| Product Type | Hybrid Super Capacitor |
| Model | PCX-20F |
| Capacitance | 20 Farad (20,000,000 microfarad) |
| Capacitance Tolerance | ± 10% |
| Working Voltage | 16 DCV |
| Surge Voltage | 20 DCV |
| Equivalent Series Resistance (ESR) | 0.0015 ohm @ 120Hz / 25°C |
| Voltage Meter | 3-digit super bright blue display, 0.1V DC resolution |
| LED Lighting Window | Blue illumination with sleep mode after 3 minutes of inactivity |
| Reverse Polarity Protection | Audible buzzer warning when polarity reversed |
| Over/Under Voltage Warning | Buzzer sounds if voltage above 17 DCV or below 10 DCV |
| Charging Method | Use included resistor; connect between positive terminals of battery and capacitor; charge for 5-60 seconds |
| Discharging Method | Disconnect cables; touch resistor leads to both terminals; wait 1-5 minutes |
| Safety Warning | Risk of explosion if improperly connected; follow manual instructions |
Frequently Asked Questions - PCX-20F Power Acoustik
User questions about PCX-20F Power Acoustik
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric capacitor in PDF format for free! Find your manual PCX-20F - Power Acoustik and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PCX-20F by Power Acoustik.
USER MANUAL PCX-20F Power Acoustik
Surge Voltage.... 20 DCV
E. S. R. (Equivalent Series Resistance)..... 0.0015 ohm @ 120Hz / 25°C
Capacitance Tolerance....± 10 %
MODEL NO.: PCX-20F
20 Farad Hybrid Super Capacitor with 3-Digit Blue Voltage Meter
Capacitance.... 20,000.000 micro farad (20 Farad)
Working Voltage.... 16 DCV
Surge Voltage.... 20 DCV
E. S. R. (Equivalent Series Resistance)..... 0.0015 ohm @ 120Hz / 25°C
Capacitance Tolerance....± 10 %
MODEL NO.: PCX-30F
30 Farad Hybrid Super Capacitor with 3-Digit Blue Voltage Meter
Capacitance.... 30,000.000 micro farad (30 Farad)
Working Voltage.... 16 DCV
Surge Voltage.... 20 DCV
E. S. R. (Equivalent Series Resistance)..... 0.0015 ohm @ 120Hz / 25°C
Capacitance Tolerance....± 10 %
DETAILED FEATURES:
a) 3 digit super bright blue voltage meter measures 0.1V DVC range.
b) Blue LED lighting window illuminates, and goes to sleep status when the amplifier is switched off and there's no voltage variation within 3 minutes.
c) Reverse polarity connection warning buzzer. If the capacitor is connected incorrectly by reversing the positive and negative wires during the installation process, the buzzer on the PCB will ring till you correct polarity connection.
d) Over voltage limit and low battery voltage limit warning. When the system voltage goes ABOVE 17 DCV or BELOW 10 DCV, the buzzer will issue warning sound.

INSTALLATION AND MOUNTING:
Securely mount the capacitor using supplied hardware. Be careful when choosing mounting location to avoid moving parts and possible exposure to moisture.

CHARGING THE CAPACITOR AND WIRING:
The capacitor must be charged before connecting the Power and Ground cables to the capacitor. Failure to charge the capacitor will result in a large spark generated from the rapid inflow of current.
CHARGING

- To charge the capacitor:
Make capacitor positive terminal connections with amplifier and tighten the bolt. Do not over-tighten the bolt!
Caution: Stripped terminals are not covered under the capacitor's warranty.
- Connect the ground cables of the battery, amplifier, and capacitor separately to chassis.
- Place the supplied charging resistor between the positive terminal of the capacitor and the battery's positive terminal. After 5\~60 seconds, the capacitor will be fully charged.
Caution: The resistor will become hot!
- Immediately after the charging process, take away the charging bulb from the connecting wire, and connect the positive cable to the positive terminal on the capacitor.

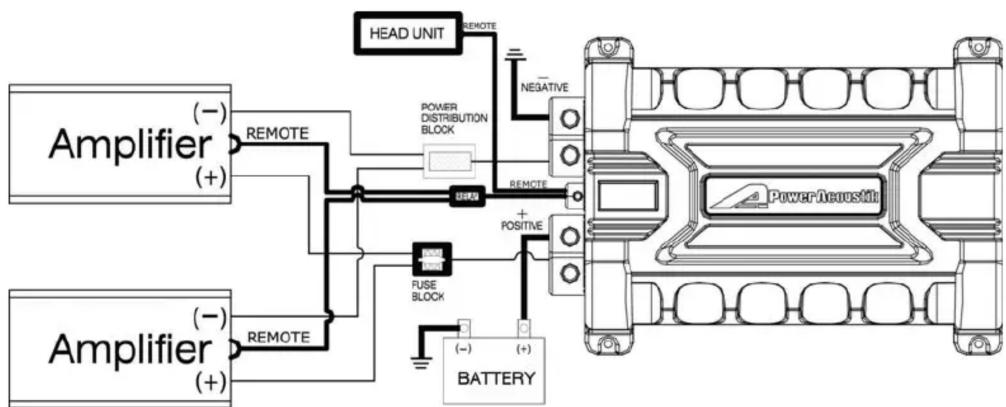

CAPACITOR WIRING DIAGRAM:
