MP4284S - Mp3 player Manta - Free user manual and instructions

Product Type	MP3 Player
Brand	Manta
Model	MP4284S
Storage Capacity	8 GB Internal (expandable via microSD up to 32 GB)
Display	1.8-inch TFT Color Screen
Audio Formats Supported	MP3, WMA, WAV, FLAC, APE
Battery Type	Rechargeable Lithium-Ion 3.7V 200mAh
Playback Time	Up to 20 hours (music)
Charging	USB 2.0, approximately 2 hours full charge
Radio	FM Radio with presets and recording
Voice Recording	Built-in microphone, WAV format
Equalizer	Preset EQ modes: Normal, Rock, Pop, Classical, Jazz, Bass
Playback Modes	Repeat, Shuffle, Folder Play
Dimensions	approximately 100 x 45 x 10 mm
Weight	approximately 35 g (with battery)
Material	Plastic with metallic coating
Connectivity	USB 2.0 for data transfer and charging, 3.5mm headphone jack
Accessories Included	USB cable, earphones, user manual
Operating System	Plug and Play (no driver required for most OS)
Languages Supported	English, Spanish, French, German, Italian, etc.
Safety Precautions	Do not expose to moisture or extreme temperatures. Use only provided charger.
Maintenance	Clean with a soft, dry cloth. Avoid solvents.
Spare Parts Available	Replacement battery, earphones, USB cable (contact Manta support)
Repairability	Battery replaceable by user. Other repairs by authorized service.

Frequently Asked Questions - MP4284S Manta

How do I transfer music to my Manta MP4284S?

Use the included USB cable to connect the player to your computer. It will appear as a removable drive. Drag and drop audio files into the 'Music' folder. Eject safely before disconnecting.

How long does the battery take to charge?

Full charging takes approximately 2 hours via USB. The battery provides up to 20 hours of music playback.

What audio formats are supported?

The player supports MP3, WMA, WAV, FLAC, and APE formats.

Can I expand the storage?

Yes, it has a microSD slot supporting cards up to 32 GB.

How do I reset the device if it freezes?

Press and hold the Power button for 10 seconds until the device turns off, then turn it back on. Alternatively, use the Reset pinhole with a paperclip.

Does it have an FM radio?

Yes, it includes an FM radio with automatic scanning, presets, and the ability to record radio programs.

How do I use the voice recording feature?

From the main menu, select Voice Recorder. Press Record to start and Stop to save. Files are saved in WAV format in the 'Recordings' folder.

What earphones are compatible?

Any standard 3.5mm earphones or headphones are compatible. For best sound quality, use the included earphones.

Can I use this while exercising?

Yes, it is lightweight and portable. However, it is not water-resistant; avoid sweat and rain. Use an armband for convenience.

How do I clean and maintain the device?

Wipe with a soft, dry cloth. Do not use chemical cleaners. Store in a dry place.

USER MANUAL MP4284S Manta

Black-and-white landscape photo of a forested hill reflected in calm water under a cloudy sky (no text or symbols)

William Blake To see a world in a grain of sand, And a heaven in a wild fllower, Hold infinity in the palm of your

1. Pobierania

1. Wysytania

10. Inne ustawienia

1. Enter Music Mode and press PLAY to play music.

1. Select a Track: LAST: Previous Track;

NEXT: Next Track.

- Equalizer Mode

1. When playing music
2. Press MODE to enter in submenu
3. Push NEXT choosing Equalizer Mode;
4. Press M O D E to entry 'Equalizer Mode' submenu.
5. Detail of each equalizer (EQ):
   Natural, Rock, Pop, Classic, Soft, Jazz, DBB
6. Push NEXT to select an EQ and press MODE to confirm.

- Synchronous Lyric Display

The player supports lyric files with *.LRC suffix, and displays synchronously.

How to use lyric files?

Please make sure the lyric has the same name as the music file.

Press MODE and hold for a few seconds.

For example:

Music file: Journey.mp3

Lyric file: Journey.Irc

2. Play Videos

1. Enter main menu, press NEXT scrolling to "Video" (Only available to AMV files)

2. Press MODE to enter:

Black-and-white landscape photo of a forested hill reflected in calm water under a cloudy sky (no text or symbols)

1. Press PLAY to start video.

1). When in the interface of 'Movies stop'

2). Press MODE to enter submenu.

Local Folder, Delete file, Delete all, Repeat (Normal, repeat one, Folder, Repeat Folder, Repeat all, Random ,intro ) , Exit.

3. Record

- Recording in "Record mode"

1. Enter the main menu:
2. Push NEXT scroll to Record mode
3. Push MODE to select Record mod, screen will display as below:

1. Press PLAY to start / pause recording.
2. Press MODE for a few seconds to save the recording.

- Select Record Type

MODE to enter record submenu

1. Push NEXT scrolling into 'REC type' submenu then presses MODE to select it.

2. Press NEXT to choose appropriate type and press MODE to select it

3. . Press PLAY to start recording.

4. Voice

1. Enter main menu
2. Push NEXT to choose 'Play mode'
3. Push MODE to enter playing interface
4. Press PLAY again to play the file.

1. Choose voice record files:
   LAST: Select previous file;
   NEXT: Select the next file;
2. When in the interface of 'Voice stop'
3. Press MODE to enter submenu.
   Local Folder, Delete file, Delete all, Exit.
4. When in the interface of 'Voice play'
5. Press MODE to enter submenu.
   Repeat, Replay mode, Exit.

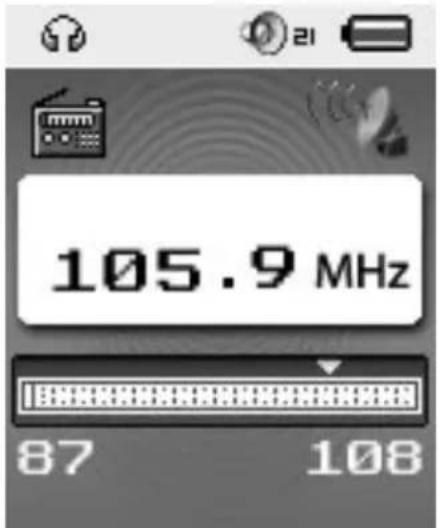

5. Using FM radio

1. Enter main menu;
2. Push NEXT scrolling "FM Mode"
3. Push MODE to enter

1. Auto search "20 pressets maximum"

Hold LAST/NEXT 2 seconds to start the channel search in 100 KHz interval upwards or downwards. To stop tuning, push LAST/NEXT.

1. Manual tuning

Push LAST: Downward 100 KHz

Push NEXT: Upward 100 KHz

1. Save current channel:

Push MODE to enter FM submenu

Press MODE again to save channel.

1. Listening to a saved channel:

You can press PLAY to choose a saved channel.

1. Record.

A. Press PLAY to start recording.
B. Press MODE for a few seconds to save the record.
C. When in the interface of 'Record stop'
D. Press MODE to enter record submenu

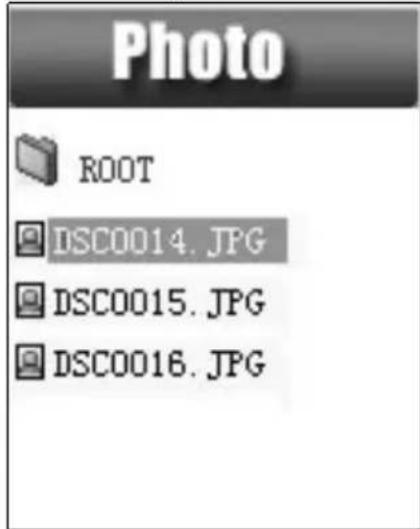

6. Photo Browsing

This function is only available for JPG and BMP format.

1. In the main menu, press LAST/NEXT choosing Browsing pictures.

1. Press MODE to enter corresponding submenu.
2. Press LAST or NEXT choosing the document you want to read, then press PLAY to play it.
3. In stop mode we have a submenu.

Local folder, Playback set (Manual play, autoplay), delete file, delete all, exit.

7. Setup

- Enter Settings

You can set system performances here, options may vary in different versions of the firmware.

1. Entry main menu
2. Push NEXT Scrolling into "Settings"
3. Press MODE to entry.

- Options introduction:

Clock Setting system	date and time
LCD set Screensaver	setting
Language Choosing different languages
Power off	Setting a count down time in minutes, the player will shut off when time out.
Online mode	Multiply driverNormal onlyEncrypted onlyCard only
memory info Show memory capacity and used percentage
Firmware Version Version of player's firmware
Firmware upgrade Use for upgrade firmware
Exit Exit from Setting interface

8. E-book

1. On main menu, press NEXT/LAST choosing e-Document,
2. Press MODE to enter corresponding submenu:
3. Press NEXT or LAST choosing the document you want to read, then press PLAY to read it.

E-book

William Blake To see a world in a grain of sand, And a heaven in a wild flower, Hold infinity in the palm of your

Note: If you are in 'Manual play' you must scroll text via LAST or NEXT; texts can be scrolled automatically under 'Auto play' set. We have two menus.

4824PEN

In stop mode: Local folder, playback set, Deleted file, delete all, exit.

In play mode: Bookmark select, bookmark delete, bookmark add, exit.

9. Using USB Disk

The player is also a standard USB disk. Supported by Windows / Mac/XP.

The player supports USB power supply, can be used without using the battery when connected to a PC. To enter, when in' waiting mode' press MODE return to main menu and choose the operation you need.

When connected to PC, The player works on the three modes below:

1. Waiting

1. Downloading

1. Uploading

10. Other Settings

- Play mode (Play submenu)

You can choose different play mode (repeat, shuffle) when playing music or recorded files.

The first option on Play submenu is 'Play mode'

o REPEAT: Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro.

- Replay mode (Play submenu)

Enter from Play submenu:

○ ABRept

1. When play music or recorder
2. Push MODE to entry play submenu
3. Push NEXT scrolling into 'Repeat Mode' option
4. Push MODE to enter
   Repeat Mode: 'A' of Symbol flashes, waiting for starter A
5. Push NEXT to select 'A'
   'B' of symbol flashes, waiting ender B
6. Push NEXT to select B. Symbol fixed and starting repeat between A-B, while playing,
   you can push LAST to reset A point.

- Replay times (Play submenu)

Please consult into 'Replay mode'

Replay time determines the times of play A-B repeat until exit

11. Battery Level

The power displays full. With the increase in the use of time, the battery indicator will be reduced.
☐ When the battery is almost /completely run out. The battery icon will be completely white and the unit should be charged to through of the mini USB.

12. Troubleshooting

No Power Make sure you	u have switched the player on
No Sound Make sure the	volume is not at 0 and that the earphones are connected correctly.Please make sure the earphone jack is cleanDamaged MP3 files may have background noise and may not even play.
Strange characters on display	Make sure you have chosen the correct language
FM has bad performance	Adjust place of player and earphoneSwitch off nearby power appliances.Earphone is used as antenna
Cannot Download Music	Check USB cable, and make sure the player is properly connected to the PCCheck if the driver has been well installedMake sure there is sufficient memory

T

Dimension 80mm x 4	0mm x 9.5mm
Weight
Screen 1.8 TFT (128*160)
Connecting to PC High Speed USB2.0 (micro 5PIN)
Memory 1G - 16G Flash
Voice Recorder Form	at WAV (32K, 64K,128K,256Kbps)
Music Formats MP3,	WMA
MP3, WMA	Max. Output	(L) 10mW + (R)10mW(32Ohm)
	MP3 Bit rate	8K bps – 320K bps
	WMA Bit rate	5K bps – 384K bps
FM radio	Receiverfrequency range	76MHz – 90MHz / 87MHz– 108MHz
	Storage units	20 + 20
	Maximumheadphoneoutput	(L) 10mW + (R)10mW(32Ohm)
	Signal to noisesratio	45dB
Photo	Format	JPG, BMP
OperateTemperature	5 to 40 degree
Multi-LanguagesDisplay	Polish, English, French, Germany, Italian......
Supported Systems	Windows / Mac, etc.

Note!

Product design and Technical parameters may be change without notice. This mainly concerns parameters technical, software and user manual present. User's Manual is a general orientation on service product. Manufacturer and distributor do not assume any responsibility as compensation for any inaccuracies errors in the descriptions appearing in this user manual.

Note about disposal

Older appliances, which display the symbol as shown in the picture, may not be discarded in household waste. You must take them to a specific disposal site (check with your local authority) or to your retailer. These sites will guarantee

disposal without harming the environment
