Product Type	Under-mount Sink
Brand	CDA
Model	KA32
Material	Stainless Steel
Finish	Brushed
Number of Bowls	1
Bowl Shape	Rectangular
Overall Dimensions (L x W)	500 x 400 mm
Bowl Dimensions (L x W x D)	480 x 380 x 180 mm
Cutout Dimensions (L x W)	480 x 380 mm
Mounting Type	Under-mount
Weight	5 kg
Drain Hole Diameter	90 mm
Overflow	Yes
Sound Deadening Pads	Yes
Corner Radius	R10 mm
Steel Gauge	18
Included Accessories	Drain kit, mounting clips
Certifications	CE, UKCA
Warranty	2 years
Cleaning	Mild soap and water, avoid abrasives
Maintenance	Rinse and dry after use
Installation	Professional recommended
User Manual	Download from notice-facile.com

Frequently Asked Questions - KA32 CDA

How do I install the CDA KA32 sink?

The sink is designed for under-mount installation. Cut the countertop to the specified cutout dimensions (480x380 mm). Apply silicone sealant around the rim, then secure the sink using the provided mounting clips. Professional installation is recommended.

What tools are needed for installation?

You will need a jigsaw for cutting the countertop, silicone sealant, a screwdriver for the mounting clips, and a plumber's putty for the drain assembly.

How should I clean the sink?

Clean the sink with mild dish soap and water using a soft cloth or sponge. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners, steel wool, or bleach as they can damage the brushed finish.

Can the sink be mounted as a top-mount?

No, the CDA KA32 is specifically designed for under-mount installation. Mounting it as a top-mount may compromise stability and seal.

Is the sink scratch resistant?

The stainless steel surface is durable but can scratch with heavy use. To minimize scratches, use a cutting board and avoid dragging metal pots. Minor scratches can be polished with a stainless steel cleaner.

Does the sink come with a warranty?

Yes, the CDA KA32 sink includes a 2-year warranty against manufacturing defects. Proof of purchase is required for claims.

How do I remove tough stains?

For tough stains, make a paste of baking soda and water and gently rub with a soft cloth. Rinse thoroughly. Avoid chlorine-based cleaners or harsh chemicals.

Can I use bleach to clean the sink?

No, bleach and other harsh chemicals can damage the stainless steel finish. Stick to mild detergents and avoid leaving acidic substances like lemon juice or vinegar for prolonged periods.

What is the required cutout size?

The cutout dimensions for the CDA KA32 sink are 480 mm long x 380 mm wide. Ensure the cutout is precise to achieve a proper fit and seal.

Where can I download the user manual?

You can download the manual for free from notice-facile.com by searching for CD# KA32. The manual includes installation instructions, care tips, and warranty information.

USER MANUAL KA32 CDA

ka30, ka32, ka80 and ka82 Stainless Steel Sinks

Installation

Installation

Before Installation

Offer up the sink to the worktop and/or the cabinets to confirm that the external dimensions of the bowls are compatible with the cabinets themselves.

Confirm that with the sink in position:

• There is adequate space to install any taps or other required accessories.
• There is adequate space to install the waste pipework and that any necessary modification to internal shelves to accommodate the waste (and trap) is acceptable.
• Access to any water stop-cock or other services will still be adequate after the installation.

Installation

• Refer to the cut-out sizes on the back of this manual and use them to mark out where the worktop needs to be cut. Double-check the dimensions before cutting the worktop aperture.
• After cutting out the worktop aperture, we recommend you seal the cut edges with silicone (or similar) sealant to help prevent ingress of water.

- Position the supplied gasket around the perimeter of the hole (Fig. 1).

- It is often easier to mount the taps, waste-fitting and overflow onto the sink prior to fitting the sink to the worktop.

- Ensure that the external edge of the sink is positioned on the gasket, to

Line drawing of hands performing a repair or cleaning procedure on a wall (no text or symbols)

create a barrier to the ingress of water and other items between sink and worktop.

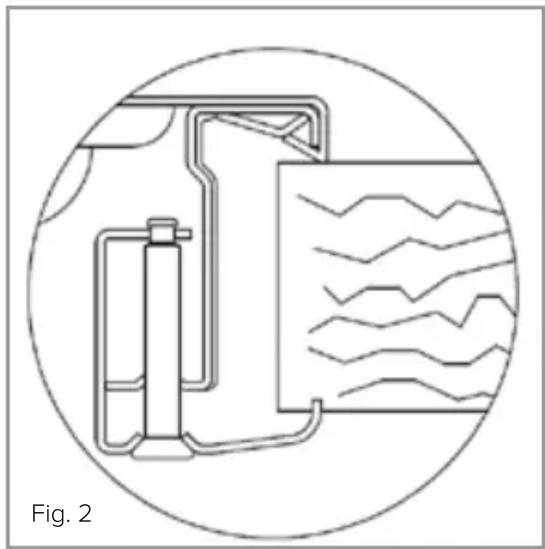

• After positioning the sink on the worktop, position the fixing brackets as shown in Fig. 2, then tighten their screws.
• Do not use a power tool to tighten the screws; by using a hand tool it is easier to ensure that they are tightened just enough to clamp down more.

• After fixing, remove any excess gasket material with a suitable cutter.
• We recommend a thin bead of silicone sealer is applied around the perimeter as added protection against water ingress.
- The taps, waste-fitting and overflow can now be mounted onto the sink (if not already done) and fully connected to their respective services.
- To check the waste for leaks, close the plug/basket of the waste fitting, open the tap and fill the sink to the level of the overflow; turn off the tap and wait several minutes to verify that the water doesn’t drain away.
• Empty the sink.

After fitting, ensure that the enclosed “Stainless Steel Sinks Use and Maintenance” guide is retained for the customer and/or user of the sink.

E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.

Technical line drawing of a mechanical component inside a circular frame, showing internal structure and wavy lines (no text or symbols)

Cut-Out Dimensions
