KA80 - Sink CDA - Free user manual and instructions

Product Type	Undermount Sink
Brand	CDA
Model	KA80
Material	Stainless Steel (Grade 304)
Finish	Satin Brushed
Overall Dimensions (W x D)	800 mm x 500 mm
Bowl Depth	190 mm
Number of Bowls	1
Installation Type	Undermount
Cutout Dimensions (W x D)	770 mm x 470 mm
Drain Opening Size	90 mm (standard)
Weight	Approx. 8 kg
Included Accessories	Fixing clips, template, drain basket (optional)
Noise Reduction	Sound-absorbing pads underneath
Care Instructions	Clean with mild soap and water; avoid abrasive cleaners
Warranty	Limited lifetime warranty (residential use)
Country of Origin	Italy

Frequently Asked Questions - KA80 CDA

What is the CDA KA80 sink made of?

The CDA KA80 is made of stainless steel grade 304 with a satin brushed finish.

How do I install the KA80 sink?

The KA80 is an undermount sink. Use the included template for cutout, apply adhesive and clips, then mount under the countertop. Seal edges with silicone.

What are the dimensions of the cutout required?

The required cutout dimensions are 770 mm x 470 mm.

Can I use harsh chemicals or abrasive cleaners on this sink?

No, avoid abrasive pads or harsh chemicals as they can scratch or dull the finish. Use mild soap and water.

Does the sink come with a drain?

The sink includes a drain basket (optional in some regions). A standard 90 mm drain is required.

What is the warranty on the CDA KA80?

CDA offers a limited lifetime warranty for residential use covering manufacturing defects.

How do I remove hard water stains?

Use a vinegar and water solution or a dedicated stainless steel cleaner. Rinse thoroughly.

Can the sink be installed as a drop-in?

No, the KA80 is designed specifically for undermount installation. Drop-in installation is not recommended.

What is the weight of the sink?

The approximate weight is 8 kg (17.6 lbs). Ensure countertop can support it.

How do I prevent scratches?

Use a cutting board and avoid sliding metal pans. Clean with a soft cloth and non-abrasive cleaner.

USER MANUAL KA80 CDA

ka30, ka32, ka80 and ka82 Stainless Steel Sinks

Installation

Installation

Before Installation

Offer up the sink to the worktop and/or the cabinets to confirm that the external dimensions of the bowls are compatible with the cabinets themselves.

Confirm that with the sink in position:

• There is adequate space to install any taps or other required accessories.
• There is adequate space to install the waste pipework and that any necessary modification to internal shelves to accommodate the waste (and trap) is acceptable.
• Access to any water stop-cock or other services will still be adequate after the installation.

Installation

• Refer to the cut-out sizes on the back of this manual and use them to mark out where the worktop needs to be cut. Double-check the dimensions before cutting the worktop aperture.
• After cutting out the worktop aperture, we recommend you seal the cut edges with silicone (or similar) sealant to help prevent ingress of water.

• Position the supplied gasket around the perimeter of the hole (Fig. 1).

- It is often easier to mount the taps, waste-fitting and overflow onto the sink prior to fitting the sink to the worktop.

- Ensure that the external edge of the sink is positioned on the gasket, to

Illustration of hands performing a massage or rolling motion on a wall, labeled 'Fig. 1' (no text or symbols on the diagram itself)

create a barrier to the ingress of water and other items between sink and worktop.

• After positioning the sink on the worktop, position the fixing brackets as shown in Fig. 2, then tighten their screws.

- Do not use a power tool to tighten the screws; by using a hand tool it is easier to ensure that they are tightened just enough to clamp down more.

• After fixing, remove any excess gasket material with a suitable cutter.
• We recommend a thin bead of silicone sealer is applied around the perimeter as added protection against water ingress.
- The taps, waste-fitting and overflow can now be mounted onto the sink (if not already done) and fully connected to their respective services.
- To check the waste for leaks, close the plug/basket of the waste fitting, open the tap and fill the sink to the level of the overflow; turn off the tap and wait several minutes to verify that the water doesn't drain away.
• Empty the sink.

After fitting, ensure that the enclosed “Stainless Steel Sinks Use and Maintenance” guide is retained for the customer and/or user of the sink.

E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.

Diagram of a mechanical or fluid system with internal components and wave patterns, labeled 'Fig. 2' (no text or symbols on diagram itself)

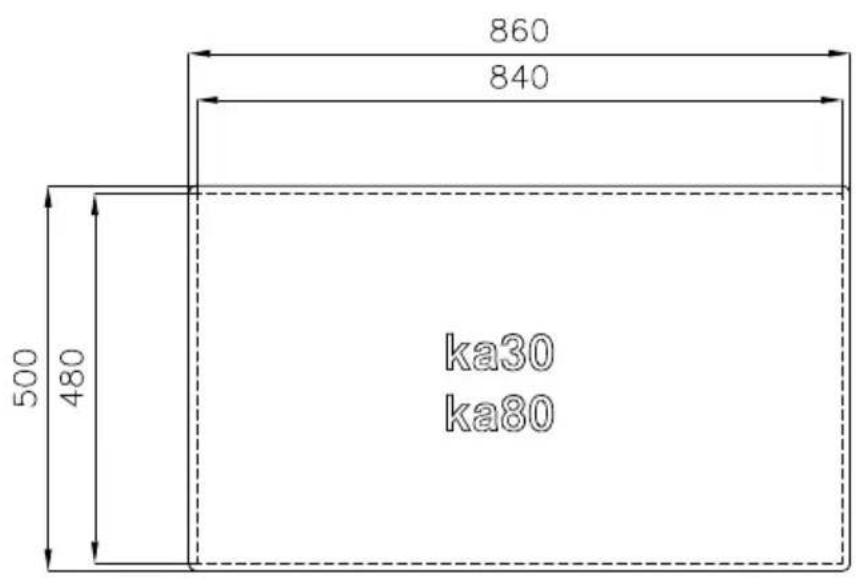

Cut-Out Dimensions
