Assento 510 PL - Washing machine Haceb - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	Haceb
Model	Assento 510 PL
Capacity	6 kg (estimated)
Maximum Spin Speed	1000 rpm (estimated)
Number of Programs	15 (including Cotton, Synthetics, Delicates, Quick Wash)
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm (estimated)
Weight	Approx. 70 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Consumption	0.95 kWh per cycle (estimated)
Water Consumption	50 L per cycle (estimated)
Special Functions	Delay start, Quick wash, Eco mode, Stain pre-treatment
Display Type	LED or digital display (estimated)
Drum Material	Stainless steel
Noise Level (Wash/Spin)	58 dB / 78 dB (estimated)
Installation Type	Freestanding
Door Type	Front-load with tempered glass
Safety Features	Child lock, overflow protection, unbalanced load detection, foam control
Maintenance	Clean lint filter monthly, descale every 3 months, check hoses annually
Spare Parts Availability	Genuine parts available through Haceb service centers
Repairability Index	7/10 (estimated, user-serviceable filter and drain pump)
Energy Class	A+++ (estimated modern rating)

Frequently Asked Questions - Assento 510 PL Haceb

How do I install the Haceb Assento 510 PL washing machine?

Ensure the machine is on a level, sturdy surface. Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Insert the drain hose into a standpipe or sink. Plug into a grounded outlet (220-240V). Level the machine by adjusting the feet. Remove all transportation bolts before first use.

What should I do if the washing machine does not start?

First, check that the door is fully closed and latched. Ensure the water supply is on and the drain hose is not kinked. Verify that the machine is plugged in and the circuit breaker is not tripped. Also, check that you have selected a program and pressed the start button. If the issue persists, try a reset by unplugging for 1 minute.

How do I clean the filter on the Assento 510 PL?

Locate the filter on the bottom front of the machine (behind a small hatch). Place a towel under it to catch water, then unscrew the filter cover. Remove any lint or debris. Clean under running water and screw back firmly. Clean the filter every month for optimal performance.

What does error code 'E20' mean?

Error E20 indicates a water heating problem. Check the thermostat connection and the heating element. If the water is not heating, the element may need replacement. Contact Haceb service for repair.

Can I use a high-efficiency detergent in this machine?

Yes, the Haceb Assento 510 PL is compatible with high-efficiency (HE) detergents. Use the recommended amount to avoid oversudsing. For best results, use a detergent suitable for front-load washers.

What is the maximum spin speed?

The maximum spin speed is approximately 1000 rpm. This can be adjusted in the program settings for delicate items.

How do I use the delay start feature?

Select your desired wash program, then press the 'Delay' button until the desired delay time (1-24 hours) appears on the display. Close the door and press Start. The machine will begin the wash so that it finishes at the set time.

Why is the machine making a loud noise during spin?

Check that the load is balanced. Overloading or a large single item (like a blanket) can cause imbalance. Also, ensure the machine is level and all transportation bolts are removed. If noise persists, inspect the drum bearings or contact service.

How often should I descale the washing machine?

Descale every 3 months using a limescale remover suitable for washing machines. Place the product in the detergent drawer and run a hot cotton cycle (90°C) without laundry. This helps maintain heating efficiency.

Where can I buy spare parts for this model?

Genuine Haceb spare parts are available through authorized service centers. Visit the Haceb website or contact customer support to find a nearby distributor. Common parts like belts, filters, and door seals are often in stock.

USER MANUAL Assento 510 PL Haceb

Exploded view diagram of a device showing internal components and structural layout (no text or symbols)

Diagram showing a pipe with a circular connector being inserted into a loop (no text or symbols)

Illustration of a flexible hose with a bulb and connector, labeled as Figure 4 (no text or symbols on the object itself)

Illustration of a portable water heater with a hand holding a circular device, labeled 'Figura 5.' (no text or symbols on the diagram itself)

Diagram showing two screw fasteners inserted into a curved mechanical component, with arrows indicating rotation direction (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and a downward arrow (no text or symbols)

Illustration of a plug inserted into an electrical outlet with two outlets, showing a black arrow indicating power flow (no text or symbols)

Two diagrams (A and B) showing a soccer player floating in water, with bubbles rising from inside (no text or symbols)

Diagram of a container with circular arrows indicating flow or movement, no text or symbols present

■ Disolución de detergente (Figura 15A)
Lavado (Figura 16A)
Centrifugado (Figura 17)

■ Remojo (Figura 15B)
■ Enjuague(Figura 16B)

IMPORTANTE

LIMPIEZA

Diagram showing a mechanical component with an arrow indicating rotation, labeled 'Figura 22' (no text or symbols on the diagram itself)

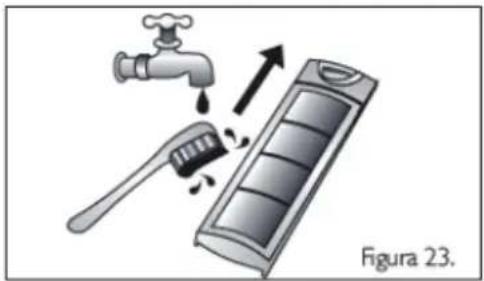

Illustration of a toothbrush cleaning a toothpaste tube with faucet and brush (no text or symbols)

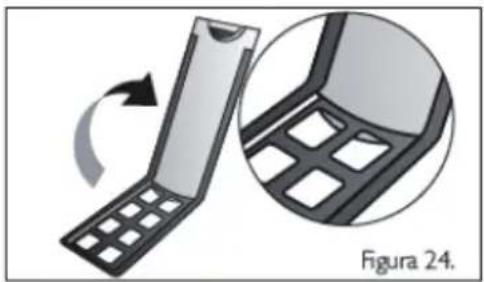

Diagram of a mobile phone with a grid layout and rotation arrow, labeled as Figure 24 (no text or symbols on the diagram itself)

Diagram of two circular components with a central dot, labeled 'Figura 25.' (no text or symbols on the components themselves)

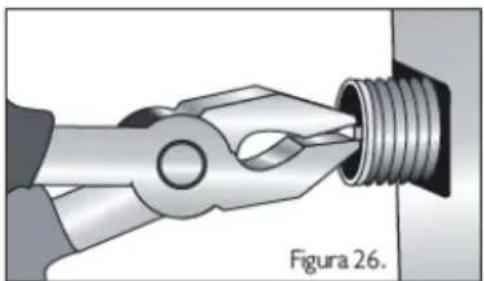

Illustration of a hand using a pliers to connect a threaded component (no text or symbols present)

SOLUCIONES ANTES DE LLAMAR A SERVICIO TÉCNICO
