Product Type	Front-load washing machine
Brand	Haceb
Model	D1800 PL
Capacity	8 kg
Maximum Spin Speed	1400 rpm
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	70 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	2000 W
Energy Efficiency Class	A+++
Water Consumption per Cycle	50 L
Noise Level (Wash/Spin)	76 dB / 83 dB
Programs	Cotton, Synthetics, Delicates, Wool, Quick, Rinse & Spin, Drum Clean
Special Features	Delay start, Child lock, Overflow protection, Anti-flood system
Display	LED screen with remaining time indicator
Drum Material	Stainless steel
Door Opening	180 degrees
Installation Type	Freestanding
Maintenance	Clean lint filter monthly, run drum clean cycle every 2 months
Spare Parts Availability	Drum, motor, door seal, control board, hoses, filter available
Repairability Index	8.5 / 10

Frequently Asked Questions - D1800 PL Haceb

What is the capacity of the Haceb D1800 PL washing machine?

The Haceb D1800 PL has a capacity of 8 kg, suitable for medium to large households.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm, which helps reduce drying time.

How do I clean the lint filter?

Turn off and unplug the machine. Open the flap at the bottom right, unscrew the filter cap, remove any debris, rinse under water, and reassemble. Do this monthly to maintain performance.

What programs are available?

Programs include Cotton, Synthetics, Delicates, Wool, Quick 30 min, Rinse & Spin, and Drum Clean. Choose based on fabric type.

How can I activate the child lock?

Press and hold the Child Lock button (usually indicated by a padlock icon) for 3 seconds until the symbol appears on the display. Repeat to deactivate.

What should I do if the machine displays an error code?

Refer to the manual for error code explanations. Common codes include E01 (door lock issue), E02 (drain problem), E03 (motor issue). Turn off, wait 5 minutes, and restart. If persists, contact service.

Can I use a delayed start feature?

Yes, you can set a delay start up to 24 hours. Press the Delay button and use +/- to set hours, then press Start. The display will show the remaining time until start.

What are the dimensions and weight?

Dimensions are 85 x 60 x 60 cm (height x width x depth) and weight is approximately 70 kg. Ensure the installation space allows for door opening and ventilation.

How do I descale the washing machine?

Use a drum clean program or run a cotton cycle at 90°C with a descaling agent. For frequent descaling, use a water softener if you have hard water.

Is there an anti-flood system?

Yes, the machine is equipped with an anti-flood system that automatically stops water inflow if a leak is detected. Also has overflow protection to prevent overfilling.

USER MANUAL D1800 PL Haceb

Black-and-white illustration of a splash of bubbles rising from a water surface, with ISO 9001 and IQNet logos in the corner (no text on bubbles or background)

Figura I

Figura 2

Line drawing of a washing machine with open lid and side-mounted wheels, placed on floor with measurement annotations (4 cm, 10 cm, 4 cm) — no text or symbols on the device itself.

Figura 7

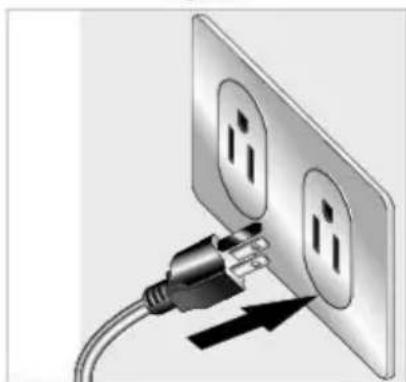

Illustration of a plug inserted into a wall socket with two outlets, showing a black arrow indicating insertion (no text or symbols present)

Figura 8

Close-up of a circular mechanical component with radial blades and central hub (no visible text or symbols)

Figura 16

LIMPIEZA

Illustration of a hand using a tool to clean or brush the next to a device (no text or symbols visible)

Figura 34

Illustration of a mobile phone with a keypad and screen, mounted on a perforated wall (no text or symbols visible)

Figura 35

Illustration of a folding solar panel with a black arrow indicating direction (no text or symbols)

Figura 36

Illustration of a hand brushing teeth with a toothbrush, next to an open toothboard and a faucet (no text or symbols)

Figura 37

Haceb

Figura 38

Technical line drawing of a mechanical assembly with a coiled spring and wheels (no text or symbols)

Figura 39

Figura 40

Mechanical assembly diagram showing a rotating component with arrows indicating motion, and a small bowl below (no text or symbols)

Figura 41

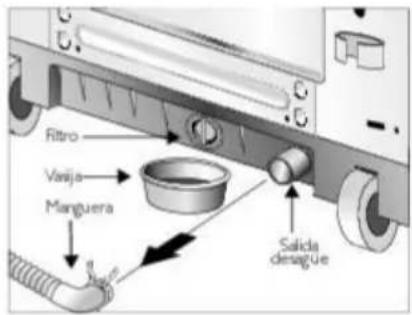

Illustration of a bucket pouring liquid into a basin, with no visible text or symbols

Figura 42

Figura 43

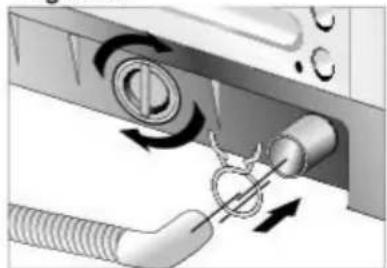

Illustration of a hand using a tool to interact with a mechanical component, showing rotational motion arrows (no text or symbols)

Figura 44

ADVERTENCIAS

Abstract grayscale graphic of a stylized letter 'S' with a hand gesture overlay (no text or symbols)
