Product Type	Washing Machine
Brand	Haceb
Model	D1302 PL
Capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	70 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Spin Speed	1200 rpm
Energy Efficiency Class	A+++
Noise Level (Wash/Spin)	58 / 76 dB(A)
Water Consumption	52 L per cycle
Programs	Cotton, Synthetics, Delicates, Wool, Quick 15'
Functions	Delay Start, Child Lock, Overheat Protection
Maintenance	Clean detergent drawer and filter monthly
Safety	Anti-flood system, door lock
Spare Parts	Available through Haceb service centers
Reparability	Repairable with common tools

Frequently Asked Questions - D1302 PL Haceb

How do I install the washing machine?

Remove all transport bolts from the back, level the feet, connect the water inlet hose to a tap, and attach the drain hose securely. Refer to the manual for step-by-step instructions.

What is the maximum load capacity?

The maximum load capacity is 7 kg for cotton and other fabrics. Do not overload to ensure proper cleaning and avoid damage.

How do I clean the filter?

Open the bottom front cover, unscrew the filter cap, remove lint and debris, and rinse under water. Replace and tighten. Clean the filter every 30 cycles or monthly.

Why is the machine not spinning?

Check for an unbalanced load, a clogged drain filter, or a blocked drain hose. Also ensure the machine is on a level surface. If the problem persists, the pump motor may need servicing.

How do I use the delay start function?

Press the Delay Start button repeatedly to set the desired delay (1 to 24 hours). Start the program and the machine will begin washing after the delay period.

What do error codes mean?

Common codes: E1 (water supply issue), E2 (drain problem), E3 (door lock failure), E4 (overheating). Consult the manual for a full list.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a key icon) for 3 seconds. The display will show a lock symbol. To deactivate, press and hold again.

How do I descale the washing machine?

Run an empty hot cycle (90°C) with a descaling agent or a cup of white vinegar. Repeat every 3 months to prevent limescale buildup.

What is the warranty period?

Haceb typically offers a 2-year warranty from the date of purchase. Register your product online for coverage details.

Where can I buy spare parts?

Spare parts are available through Haceb authorized service centers and select online retailers. Use the model number D1302 PL for ordering.

USER MANUAL D1302 PL Haceb

Diagram of a mechanical device with internal components and dot patterns, enclosed in a circular frame (no text or symbols)

Illustration of a U-shaped pipe with two flanged ends and a central hub (no text or symbols)

3D rendering of a curved metal bracket with two flanges and a mounting hole (no text or symbols)

Figura 3.

Accesorios

Cross-sectional diagram of a medical device with internal components and a black arrow indicating a specific area (no text or symbols present)

IMPORTANTE

LIMPIEZA

Limpieza interna

Diagram of a cylindrical object with an arrow pointing to it, surrounded by textured patterns and dots (no text or symbols)

Geological cross-section diagram showing layered rock formations with a directional arrow and label 'Figura 18.' (no text or symbols beyond label)

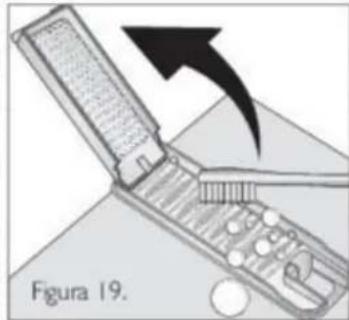

Illustration of a handheld device with a black arrow pointing to a section, labeled 'Figura 19.' (no text or symbols on the device itself)

Diagram of a door with a partially open lid and arrow pointing to the door, labeled 'Figura 20.' (no text or symbols on the diagram itself)

Abstract grayscale graphic of a stylized letter 'S' with a hand holding a small object (no text or symbols)
