Product Type	Freestanding Washing Machine
Brand	Premier
Model	LAV-5007
Dimensions (H x W x D)	85 x 60 x 55 cm
Weight	Approximately 62 kg
Power Supply	220-240 V, 50 Hz
Rated Power	2000 W
Max. Load Capacity	7 kg
Spin Speed	Up to 1200 rpm
Energy Class	A++ (Estimated)
Wash Programs	Cotton, Synthetics, Delicates, Quick, Eco, Rinse & Spin
Temperature Settings	Cold, 30°C, 40°C, 60°C, 90°C
Water Connection	Cold water supply only
Noise Level (Wash/Spin)	Approx. 56 dB / 76 dB
Display Type	LED with timer and program indicator
Door	Front loading, 180° opening
Drum Material	Stainless steel
Maintenance	Clean filter and detergent drawer regularly; descale every 3 months
Safety Features	Child lock, overflow protection, unbalanced load detection
Spare Parts Availability	Common parts available online; contact Premier support for specific parts
Repairability Index	7/10 (Estimated) – modular design, easy access to components

Frequently Asked Questions - LAV-5007 Premier

How do I install the Premier LAV-5007 washing machine?

Remove all packaging and transit bolts. Connect the inlet hose to a cold water tap. Place the drain hose into a standpipe or sink. Level the machine by adjusting the feet. Plug into a grounded outlet.

What should I do if the machine does not start?

Check that the door is fully closed, the water supply is turned on, and the machine is plugged in. Also verify that the program selector is properly set and no error code is displayed.

How can I clean the detergent drawer?

Press the release button inside the drawer to remove it completely. Rinse under warm water and scrub with a brush. Wipe dry and reinsert.

What does the error code E01 mean?

E01 typically indicates a door lock problem. Make sure the door is closed properly. If the error persists, inspect the door lock mechanism for obstructions or damage.

How often should I clean the filter?

Clean the drain pump filter every month or when the machine displays a filter clean warning. Regular cleaning prevents blockages and ensures proper drainage.

Can I wash wool or delicate items?

Yes, select the Delicates or Wool program with a low temperature (30°C) and reduced spin speed. Use a laundry bag for extra protection.

Why is the machine vibrating excessively?

Ensure all transit bolts are removed and the machine is level. Check that the load is evenly distributed in the drum and not exceeding the maximum capacity.

How do I descale the washer?

Run an empty hot wash (90°C) with a descaling agent or white vinegar. Repeat every 3 months to prevent limescale buildup.

Where can I find spare parts for the LAV-5007?

Search online using the model number LAV-5007. Common parts like door seals, pumps, and belts are available on e-commerce sites. For rare parts, contact Premier customer service.

Is the machine energy efficient?

The Premier LAV-5007 is estimated to be rated energy class A++, meaning it consumes less electricity and water per cycle compared to older models. Use the Eco program for maximum efficiency.

USER MANUAL LAV-5007 Premier

Line drawing of a simple washing machine with three buttons and side compartments (no text or symbols)

ESTIMADO CLIENTE

Two abstract diagrams: one showing a circular pattern with internal dots, the other a simple curved line (no text or symbols)

CARACTERÍSTICAS PRINCIPALES

Line drawing of a hand cleaning a kitchen appliance with a washing machine (no text or symbols)

Line drawing of a simple washing machine with three buttons and front panel (no text or symbols)

DEAR CUSTOMER

In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference.

If you need extra support, please write to [e-mail]

CAUTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

Caution: To reduce the risk of electric shock do not ope this device, there are not serviceable parts for customers. Please refer any maintenance or repair to qualified personnel.

This sign means the existence of dangerous voltage at the inside of the unit, which states a risk of electric shock.

This sign means that there are important instructions operation and handling in the manual that comes with this device.

PREMIER CUSTOMER SERVICE

Venezuela:	0800 – ELECTRIC (353-2874)
Panama:	300-5185
Website	www.premiermundo.com
E-mail:	[e-mail]

NOTE

This unit may be submitted to changes in specifications, characteristics and/or operation without prior notice to the user, in order to continue improving and developing its technology.

Diagram 1. Name of respective parts

1. Control panel 2. Overflow filter plate 3. Wash lid 4. Lint filter 5. Pulastor 6. Base 7. Drain hose 8. Cabinet 9. Power Plug 10. Frame 11. Safety lid 12. Spin lid

Diagram 2. Accessories

Two labeled diagrams: one showing a circular object with internal patterns, the other showing a coiled tube (no text or symbols)

1. Inner lid of draining tub
2. Water inlet hose

Main Feature and Technical Data

• Big Capacity: 9kg of Clothing can be washed in a single operation
• Low noise: adopting the updated squelch technology
• Sufficient Cleaning: adopting acetabuliform pulastor, hand work water flow, not only for washing ordinary clothing but also for blanket, jean, etc.....
• All function and easy operation: Filtering thrum and other multiple functions
• Good stability in washing and spinning
• Beautiful design of outlook, plastic coating and plastic base for preventing rust and corrosion.

Attachment : Main Technical Data Sheet

	Washing	Spin-drying
Capacity (Maximun)	9kg dry clothes	5.5kg dry clothes
Power Supply	Local Voltage
Input power	400W	150W
Maxinum timing	15 minutes	5 minutes
Amount of water	Low : 64L , High: 73L
Modes of washing/spinning	Automatic reverse/hand-rubbing like	Centrifugal
Overall dimension	90 x 73 x 43 CM (With feet)

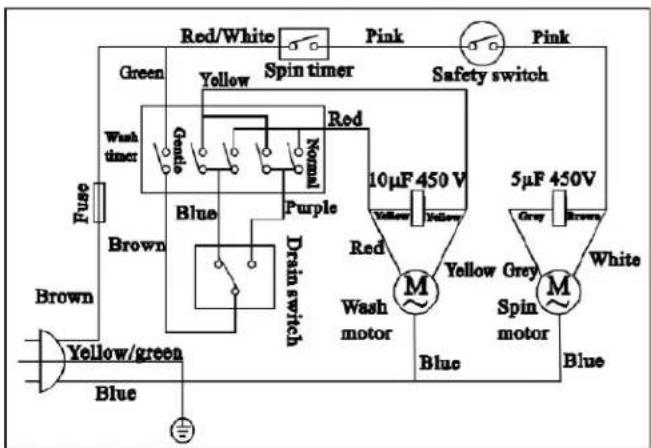

Diagram 3. Circuit diagram of twin-tub washing machine

Diagram 4. Operation Part

Preparation instructions:

• Insert the water inlet hose into the water inlet mouth
• Put the drain hose down into the water drain area
• Insert the water inlet hose securely into the top water inlet
• Remove all items and clean out sands or mud from the clothing, which should not be laundered in the washing machine
• Separate clothes by color, dirty degree and fabric type
• For small pieces such as socks, wash tem in a net bag
• Please refer to the following charts for guidelines on washing and spin-drying laundry
• Plug in power

Precaution to washing:

• Checking pocket of clothes to avoid coins, clips and etc...
• Reversing the clothes which is easy teased
• To resist clothes crossing, please cross their sleeves or the ties in advance.
• Zipping the clothes if they have in advance.
• Separating clothes if they have easily fading color.
• To put clothes of puff into washing net bag.

Attachment: Wash capacity, Wash time and Detergent consumption:

Fabric type	Laundry capacity (kg)	Water level(l)	Water flow	Wash time (minutes)	Detergent amount(g)
Synthetics, silk, Delicate fabrics	2.0		Gentle	3	About 57
	2.0-4.0			3-5	About 63
Cotton or linen	2.5		Normal	7	About 63
	2.5-7.5			7-10	About 69
Heavy soils	2.5		Normal	10	About 63
	2.5-7.5			10-15	About 69

Washing instruction:

• Add water until level reaches halfway to the desired water level, then turn off the water, add detergent and mix it in the water.
• Set the “wash-drain selector” to “normal” or “gentle” according to the fabric type. Set the wash timer to the desired time and the machine will begin washing.
• At the end of washing, set the "wash-drain selector" to "drain" to empty the water.
• Blankets marked for “hand washing” up to 4 kgs can be washed
• Dilute the detergent in warm water (under 50°C) and pour the mixture into the tub.
• Fold blanket as shown in following diagram and then put blanket into the wash tub.

Fold in half

Fold in 1/3

Roll up blanket

Put blanket into the tub with the edge downward

Spinning-dryer instructions:

1. Transfer laundry from the washer to the spin-dryer, place clothes evenly in bottom of the tub.
2. Place the inner cover of the spin-dryer on top of the laundry and make sure it is place evenly.
3. Close the safety lid and the upper spin-dryer lid.
4. Set the "spin timer" to the desired time and the spin-dryer will start.

Supports

Spin Tub Inner Lid Spin Tub

Spin time (minutes)	0.5	1	1-2	2-3	3-4	5
Lanudry type	Thread	Synthetic delicate	knitgood (synthetic)	Underwear (cotton)	Jacket (cotton/linen)	Heavy cotton

Attention

If the spin tub shakes heavily, check and make sure the washing machine is placed evenly and t clothes are put equally.

If the draining and spinning are done at the same time, do drain after spinning has done.

Rinsing instructions

Ordinary rinsing is done in the wash tub. It is used after half of the spin-dryer cycle is complete, and can save times, water and power usage.

1. Put laundries which have already been dehydrated into the wash tub.
2. Set the "wash-drain selector" to "normal" or "gentle" position.
3. Set the water level as per laundry capacity.
4. Start the flow of water level until it reaches desired level and then turn off water.
5. Set the "wash timer" for 3-5 minutes rinsing.
6. Buzzer will sound when rinsing cycle is complete.
7. Put the laundries into the spin-dryer tub for 1-3 minutes dehydrating.
8. Drain the water from wash tub.
9. Repeat the above steps as needed for additional rinsing.

Attachment: washing weight reference

T-shirt (cotton)about 150g	Shirt (synthetic fabric)about 200g	Slipover (cotton)about 500g
Panties (cotton)about 50g	Sock (synthetic fabric)about 50g	Scarf (cotton)about 300g

Maintaining:

After using the machine, please take care of the following steps:

1. Pull out the power plug.
2. pull off the water inlet hose

Cabinet care:

- To clean the cabinet off the water and dirt with soft cloth, no detergent, volatile and other chemicals used to avoid surface destroying.

Cleaning the lint filter

• While pressing down on the button, pull the lint filter out.
• Turn the filter net inside out and rinse with water.
• After Cleaning, insert edge of filter into place while pressing the button down.

Cleaning dirty drain valve:

• Take off the overflow filter cover, loose the belt and screw off the valve cover in counter-clockwise, to take valve rod and other parts out then remove dirt inside.
• Reverse the above steps to make all parts reverting.

Freezing prevention:

1. Turn off the water faucet, pull off the inlet hose and empty all water from the inlet hose.
2. Put down drain hose and switch the indicator to "drain" position to empty all water from wash tub.
   3.

If Freezing happens to:

1. Put the inlet hose in warm water of 50^ C.
2. Have about 2 liter or warm water less than 50°C into the wash tub for 10 minutes.
3. Install inlet hose and turn on the water faucet to ensure inlet and outlet of water are working normally.

How about laundry clothing outside of spin-dryer:

1. Loose all of the screws around fame.
2. Pull up frame by two hands.
3. Take out the laundry clothing from the outside of spin-dryer.
4. Press down the frame to make it reverting.
5. Screw all of screws

How to clean dirty pump

• Take off the back cover off the washer, press the clip at the drain hole of pump, and pull out the drain hose.
• Clean the pump from the drain hole of pump.

Where to put the washing machine

• Keep the washing machine away from heavy sun shine
• Keep the washing machine away from moisture and rain
• Avoid uneven and elastomeric ground.

Cautions

The machine's power line are connected in Y type, please do not open the power line otherwise it may call some bad effects to the machine.

Maintenance of Power line is referred to special technicians

The machine's grounding wire must be connected the earth.

• After using, please pull off the power plug for sure.
• According to the type of the plug, please use a corresponding electrical socket
• More then 2 degrees of sliding surface are not allowed.
• No departing electrical motor by yourself.
• Do not block the air intake of the base while the machine working.
• Absolutely avoid connection of earth and midline.
• Do not touch laundry and spin-dryer while the dryer spinning.
• Do not place the machine in bathing room for prevention of rusting and corrosion
• Do not brush the control panel with water
• Do not allow children get near to the machine
• Do not wash laundries of paint and gasoline to avoid fire risk.
• Do not forget to cover the spin lid.
• Do not use hot water more than 50°C
• Get away from fire and heat.

Inspection when meeting the following problems:

? The machine does not work

• if power failure
• if power plug loose
• if "wash timer" or Spin timer "in "0" position

? The machine can not drain

• if drain hose place down
• if drain hose or inner pipe freezed
• if drain hose inner pipe blacked

? The machine has special noise

- if coins or other sundries inside the wash tub

? The machine has special noise and strong shaking

• if the machine place evenly
• if spin-dryer inner cover pressed well
• if some laundry outside the spin-dryer

Circuit Diagram

Voltage: AC110V/60Hz Voltage: AC220V/60Hz
