Product Type	Marine Multifunction Navigation Display
Model	PI32
Brand	Simrad
Display Size	12.1 inches (diagonal)
Display Resolution	1280 x 800 pixels
Display Type	Color TFT LCD with LED backlight
Touchscreen	Yes, multi-touch
Dimensions (W x H x D)	350 mm x 250 mm x 50 mm (13.78 in x 9.84 in x 1.97 in)
Weight	2.5 kg (5.5 lbs)
Power Supply	12-24 V DC, 15 W max
Waterproof Rating	IPX6 (protected against powerful water jets)
Operating Temperature	-15°C to +55°C (5°F to 131°F)
GPS Receiver	Integrated 10 Hz GNSS (GPS, GLONASS, Galileo, BeiDou)
Chart Support	C-MAP MAX-N+, Navionics, and others
Key Functions	Navigation, Chartplotting, Fishfinder, Radar overlay, AIS, Autopilot integration
Connectivity	NMEA 2000, NMEA 0183, Ethernet, Wi-Fi, Bluetooth, USB, Video input
Storage	Internal 16 GB, microSD slot for expansion
Mounting	Flush mount or bracket mount
Maintenance	Clean with a soft damp cloth; avoid abrasive cleaners. Keep vents clear.
Safety	Use only approved power sources; install away from heat sources; ensure secure mounting.
Spare Parts and Repairability	Contact Simrad authorized service centers for repairs. Replacement parts available via dealers.

Frequently Asked Questions - PI32 SIMRAD

How do I update the chart data on my Simrad PI32?

You can update charts via a microSD card. Download the latest charts from C-MAP or Navionics, copy to a microSD card, insert into the PI32, and follow the on-screen update instructions. Ensure the device has a stable power supply during update.

Can I use the PI32 with a radar system?

Yes, the PI32 supports radar overlay when connected to a compatible Simrad radar scanner (e.g., HALO series) via Ethernet. You need to enable radar in the settings and configure the overlay.

What should I do if the touchscreen is unresponsive?

First, clean the screen with a soft, dry cloth. Remove any screen protector. If still unresponsive, try rebooting the device by holding the power button for 10 seconds. If the issue persists, contact Simrad support or perform a factory reset (backup data first).

How do I connect my PI32 to a NMEA 2000 network?

Use a NMEA 2000 backbone cable with a drop cable to the PI32's NMEA 2000 port. Ensure proper termination at both ends of the backbone. Power the network via a dedicated NMEA 2000 power cable. The PI32 will autoconfigure to detect devices.

What is the maximum depth the fishfinder can display?

The PI32's fishfinder (with appropriate transducer) can display depths up to 900 meters (2950 feet) depending on transducer frequency and water conditions. For best results, use a 50 kHz frequency for deep water and 200 kHz for shallow.

Can I view my PI32 on a smartphone or tablet?

Yes, via the Simrad GoFree app. Connect the PI32 to your home network via Wi-Fi or Ethernet, then use the GoFree app on a smartphone or tablet to mirror the display and control some functions.

Does the PI32 support AIS reception?

Yes, the PI32 can receive AIS data if connected to an AIS receiver or transponder via NMEA 0183 or NMEA 2000. It displays AIS targets on the chart with collision risk information.

How do I perform a factory reset?

Go to Settings > System > Factory Reset. Confirm the action. Note that this erases all user data including waypoints, routes, and settings. Backup important data to a microSD card before resetting.

What power cable is included with the PI32?

The PI32 includes a 1.5-meter (4.9 feet) power cable with a fuse holder. It terminates in bare wires for connection to a 12-24V DC system. Use a 2-amp fuse (included). Ensure correct polarity: red positive, black negative.

Can I install the PI32 in a location exposed to direct sunlight?

While the PI32 has an IPX6 rating and high-brightness display (1200 nits), prolonged direct sunlight can cause overheating. Install under a sun cover or in a shaded area to maintain optimal performance and lifespan.

USER MANUAL PI32 SIMRAD

Catch monitoring system

www.simrad.com

Sim radPI 32 Catchmonitoringsystem

Operatormanual

Important notice

Operation of the PI32 Catch monitoring system assumes that the communication between the Operator Unit and the sensors is fully functional. Ensure that the communication channels and update rates defined on the Operator Unit matches those of the sensors.

About this document

RevDateWrittenbyCheckedby	Approvedby
Rev.A	04.12.05RBrKRaKRa
	Originalissue

©2005SimradAS

ISBN82-8066-059-3

Allrightsreserved.NopartofthisworkcoveredbythecopyrightthereonmaybereproducedorotherwisecopiedwithoutpriorpermissionfromSimradAS.

The information contained in this document is subject to changing without prior notice.

Simrad AS shall not be liable for errors contained herein, or for incidental or consequential damages in connection with the furnishing, performance, or use of this document.

The equipment to which this manual applies must only be used for the purpose for which it was designed. Improper use or maintenance may cause damage to the equipment or injury to personnel. The user must be familiar with the contents of the appropriate manuals before attempting to operate or work on the equipment. Simrad AS disclaims any responsibility for damage or injury caused by improper installation, use or maintenance of the equipment.

If you require maintenance on your Simrad equipment, contact your local dealer. You can also contact Simrad using the following e-mail address: [e-mail]

Sections

1 l n t r o d u c t i o n

Thissectionintroduces the PI32Catchmonitoringsystemoperatormanual. Refertopage1.

2 System description

ThissectionprovidesageneralintroductiontothePI32Catchmonitoring systemandtheunitsinuse.Refertopage2.

3 Getting started

ThissectionprovidesgeneralguidelinestohelpyougetstartedwiththePI32 Catchmonitoringsystem.Refertopage8.

4 Applications

ThissectiongivesanoverviewofthevariousapplicationsthatthePI32can offer.Refertopage20.

5 Display modes

Thissectiongivesanin--depthdescriptionofallthedisplaypresentations. Refertopage27.

6 Operational procedures

Thissectionprovidesdetailedprocedurestoguideyouthroughtthemost commonfunctions.Refertopage45.

7 Practical use of the sensors

This section describes how to install and use each sensor type. Both PI and PS sensors are described and explained. Refertopage83.

8 Sensor chargers

This section describes how to install and use the sensor chargers. Refer to page 144.

9 M e n u s y s t e m

Thissectionallowsyoutoaccessthereferenceinformationfromthemenu structure.Refertopage149.

10 References

Thissectiondetailsthevarioussetuppages,thoselectedfromthemenu systemandthoseaccessedfromthedisplaypresentation.Refertopage152.

11 PI Configurator

ThissectionexplainshowtousethePIConfiguratorutilityto changethe sensor'scommunicationchannelandupdaterate.Refertopage184.

12 Sensor test procedures

Thissectionprovidessimpletestprocedureyoucanusetoverifythethesensors areworkingproperly.Refertopage223.

13 Technical specifications

Thissectionprovidesthebasictechnicalspecifications.Refertopage243.

INTRODUCTION 1....

SYSTEM DESCRIPTION 2....

Systemdiagram3.

OperatorUnit4.

Hullmountedandportablehydrophones5.

Sensor overview 6

Batterychargers 7....

GETTING STARTED 8

How to switch power on and off 9

Defining initial presentation pages 10

Introduction to the main menu 12

Introduction to the keypad 13

Introducing the sensors 15

APPLICATION EXAMPLES 20

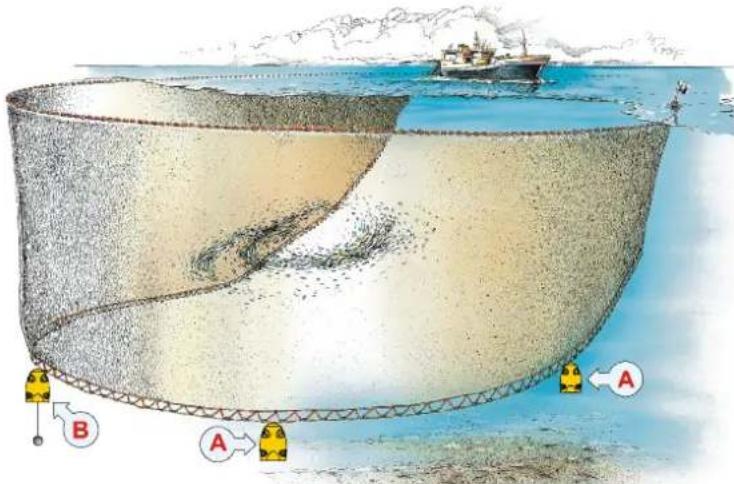

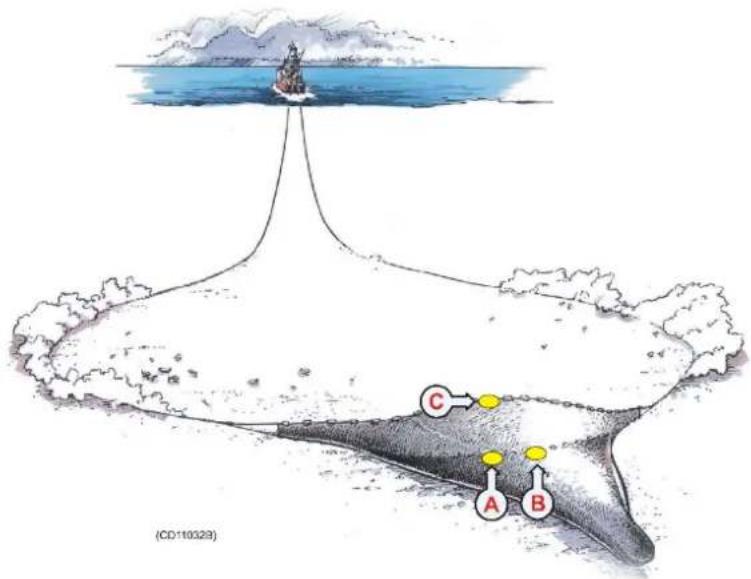

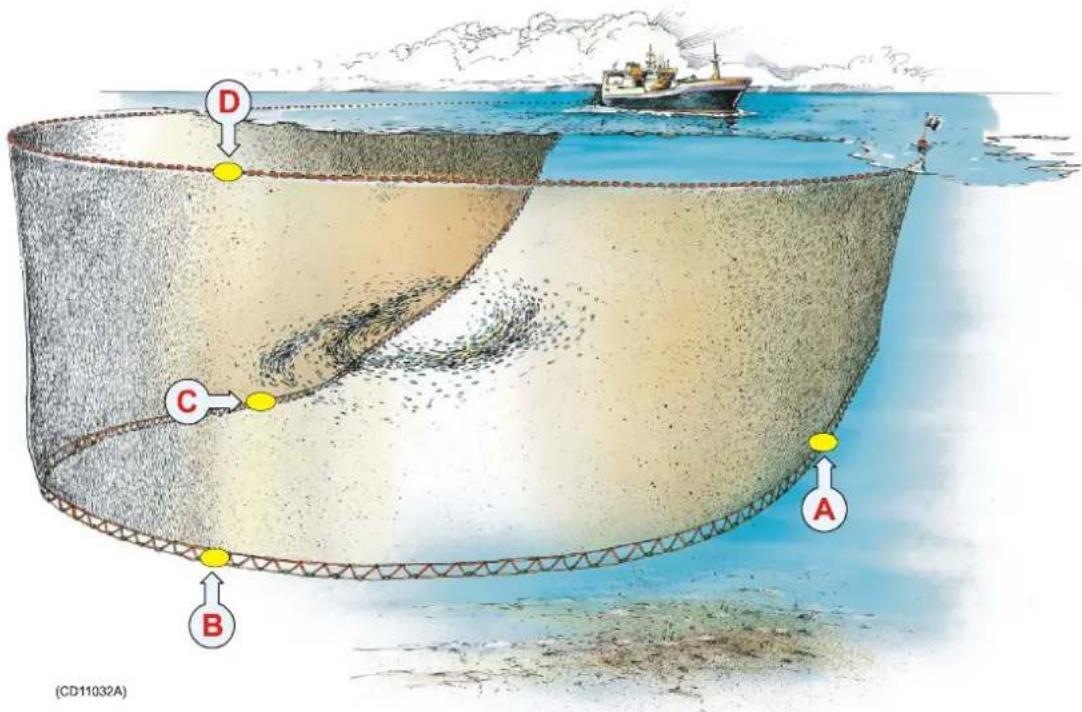

Purse seine 21

Danish seine 22

Bottom trawl 23

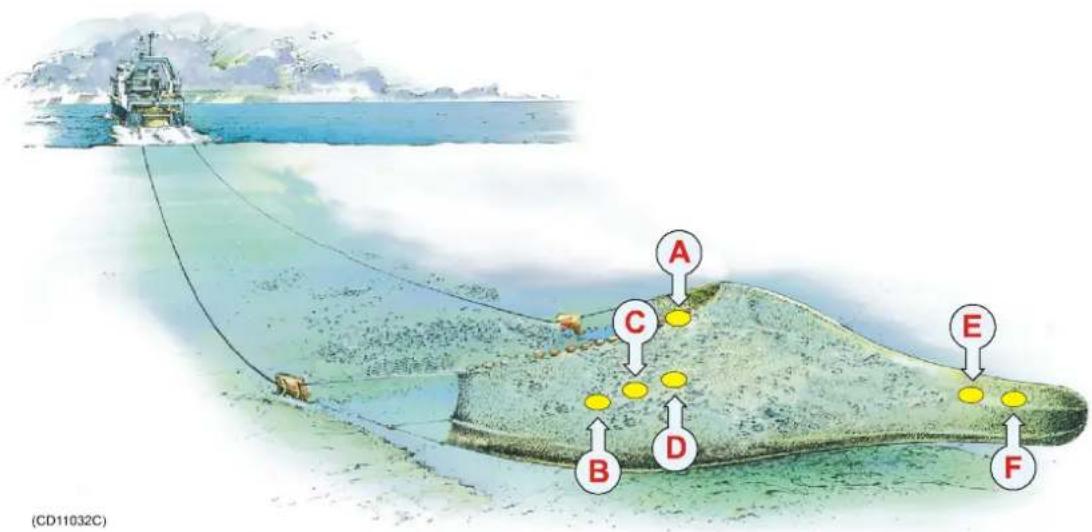

Pelagic trawl 24

Echo sounder 25

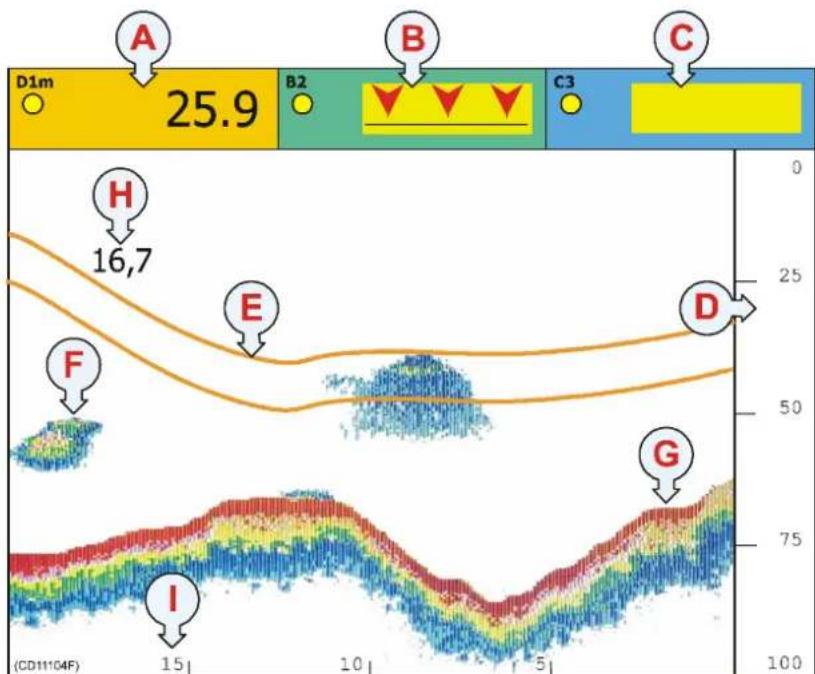

Graphicdisplay 26.

DISPLAY PRESENTATIONS 27

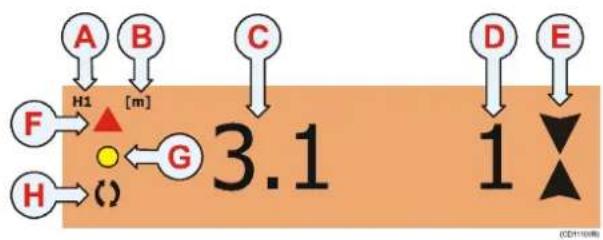

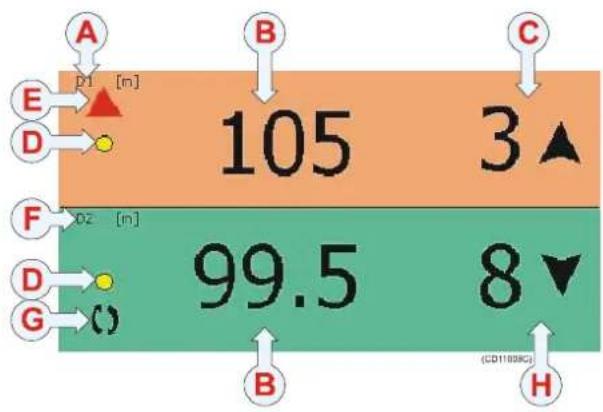

Numeric display 28

Graphicdisplay 35.

Surface temperature 37

Statusdisplay 38.

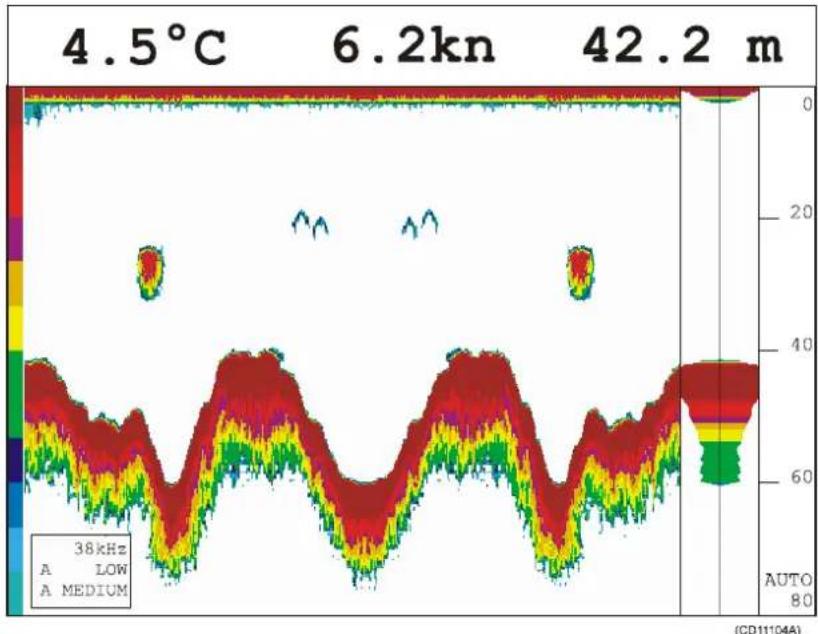

Echo sounder display 40

Navigation display 43

Position display 44

OPERATIONAL PROCEDURES 45

Overview 45

How to define sensor presentation 46

How to set up the sensors 48

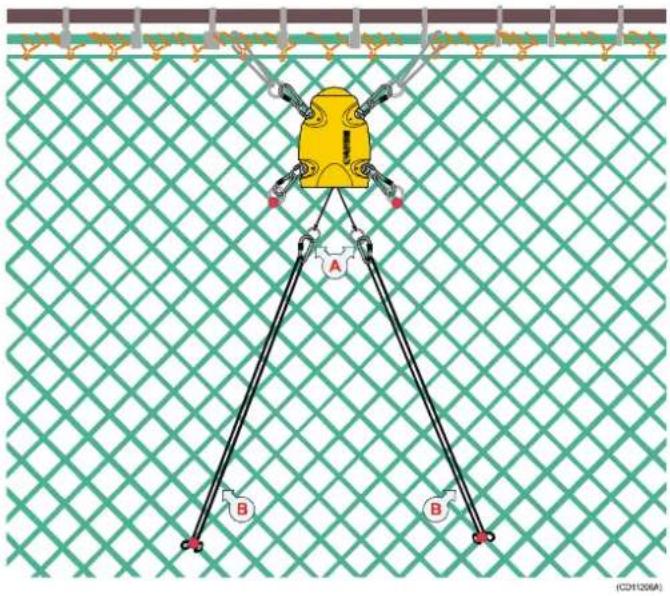

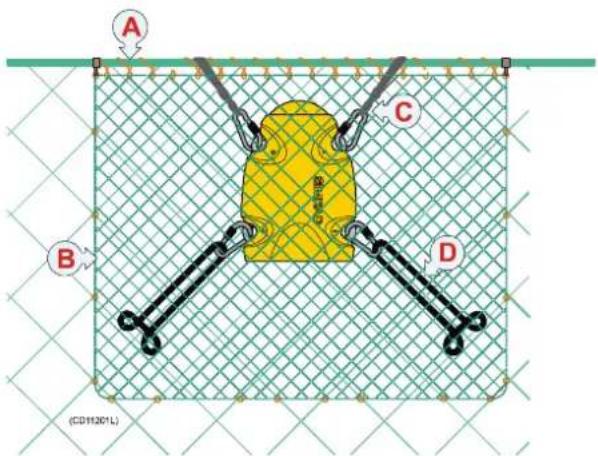

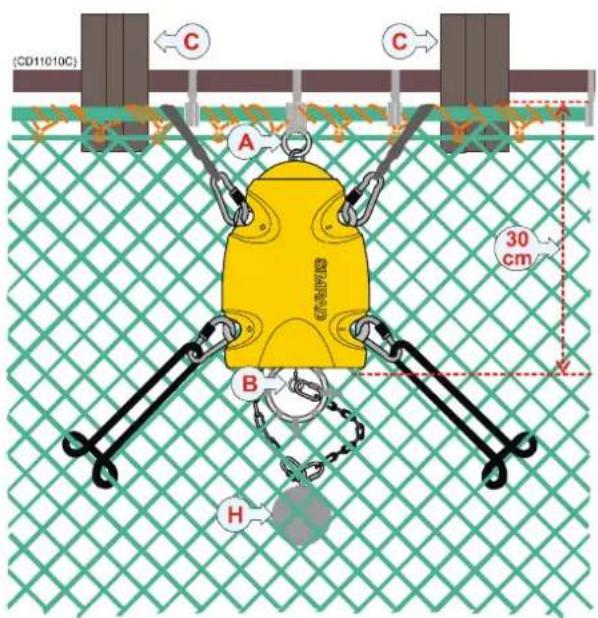

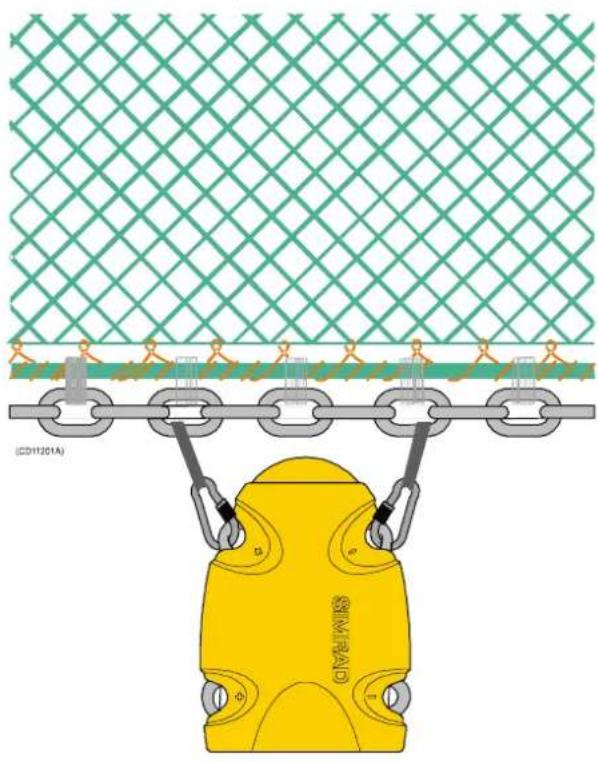

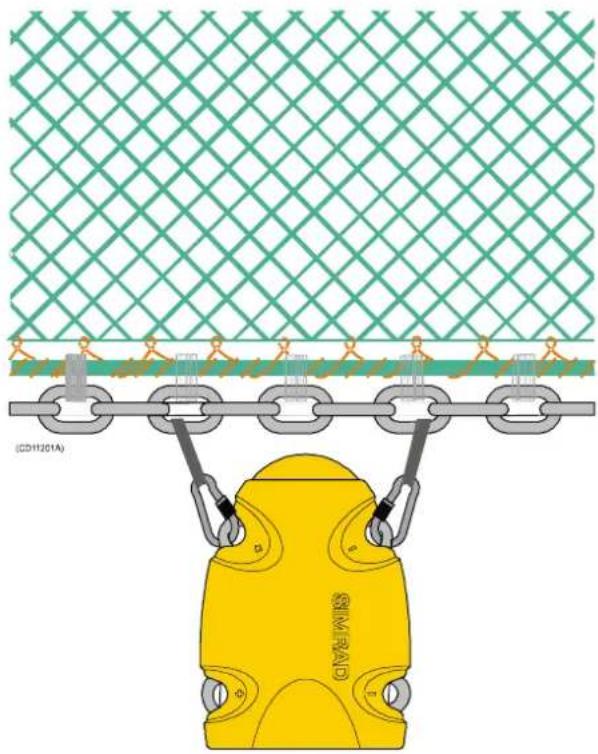

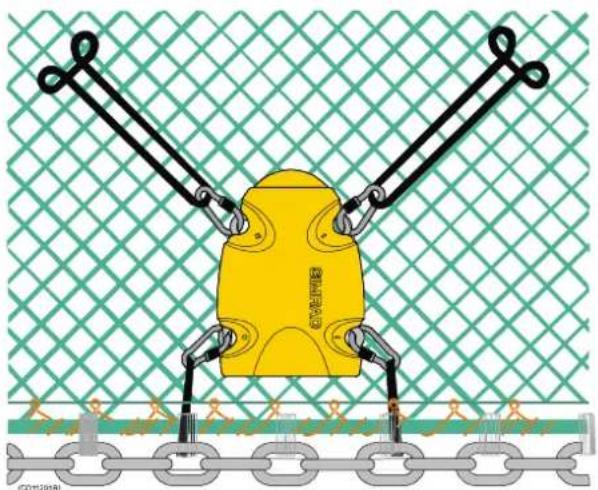

How to mount the sensors on the net 51

How to use the sensors 52

How to replace the sacrificial water switch 53

How to test the sensors 54

How to calibrate the Depth sensor 55

How to define sensor offsets 56

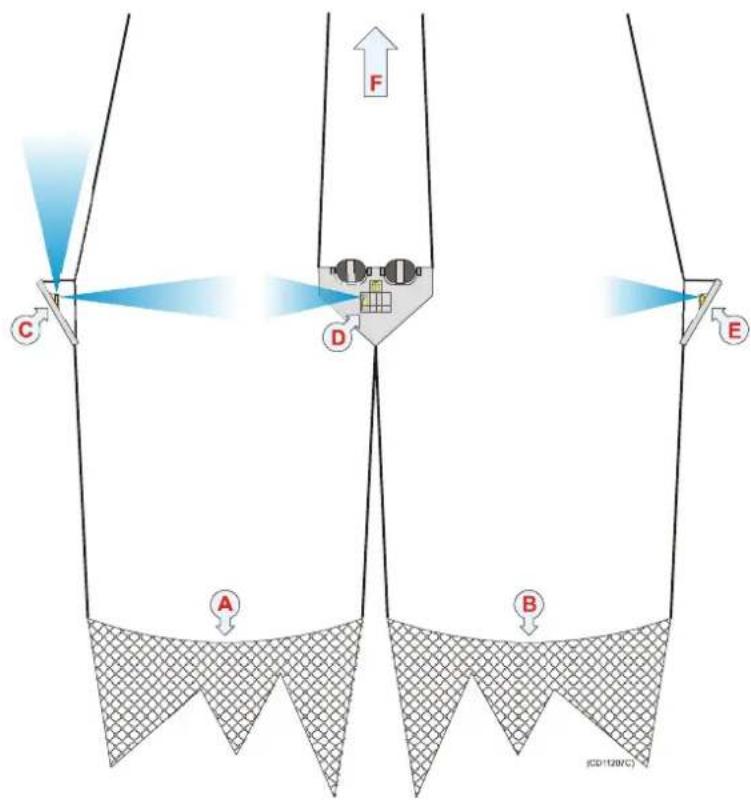

HowtosetupaTwinSpreadsensorfortwintrawlapplications57....

Howtoaccessgraphicdisplayparameters62.

Howtoviewechosounderdata63.

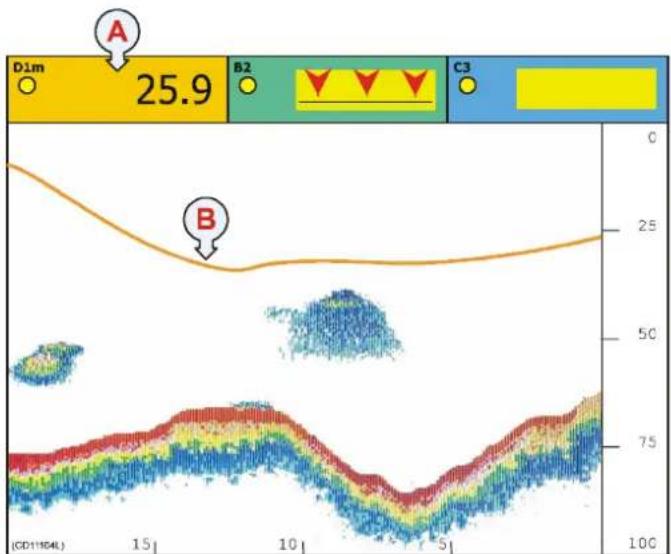

Howtosetupmarkerlines64.

Specialfeaturesfortrawlmarkerlines67.

How to access echo sounder parameters 69

How to use visual aids and filters 70

How to define echo sounder range 72

How to zoom in on bottom echoes 74

How to zoom in on pelagic echoes 75

How to enable A-Scope presentation 76

Howtodefinealarmlimits77

How to select menu language 80

How to control automatic page rotation 81

How to restore default settings 82

PRACTICAL USE OF THE SENSORS 83

Sensor configuration 84

PI Bottom Contact sensor 87

PS Bottom Contact sensor 91

PI Catch sensor 95

PS Catch sensor.... 100

PI Depth sensor 104

PS Depth sensor 109

PI Height sensor 114

PI Rip sensor 118

.PISpreadandRemotesensors123

PI Twin Spread 128

PI Temperature sensor 133

PS Temperature sensor 139

SENSOR CHARGERS 144

Overview 144

PI Charger 145

PS30 Charger 147

MENU SYSTEM 149

The main menu 150

REFERENCES 152

Depth calibration 153

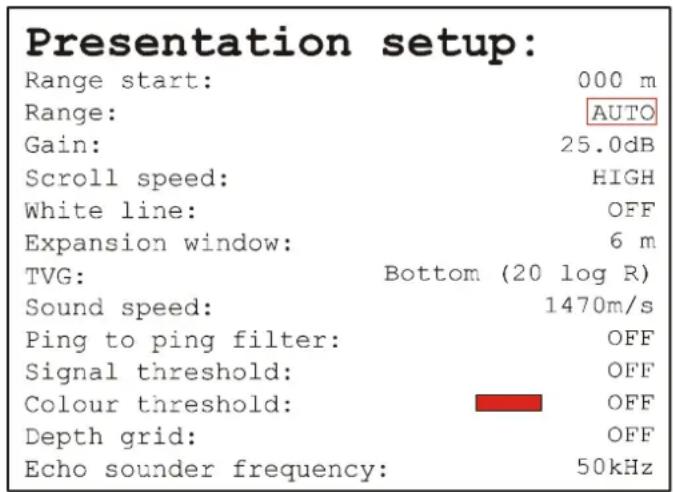

Echo presentation setup 154

Echo sounder setup 157

Factorypresets159.

Graphicsetup160.

InterfacesetupNMEA162.

Interfacesetupremote/alarm167.

Navigationsetup168.

Numericsetup 169....

Offset adjust 170

Page setup 171

Palette setup 172

Position display setup 173

Receiver setup 174

Sensoralarms 177....

Sensor setup 179

Speed setup 180

Surface temperature setup 181

Trawlinfosetup 182.

Units setup 183

PI CONFIGURATOR 184

Purpose 184

Basic information 185

About sensor configuration 187

Main dialogue description 189

Operational procedures 191

References 198

Maintenance 219

SENSOR TEST PROCEDURES 223

Overview 223

Bottom Contact test procedure 224

Catch sensor, test procedure 227

Depth sensor, test procedure 230

Height sensor, test procedure 233

Spread & Remote sensors test procedure 236

Temperature sensor, test procedure 240

TECHNICAL SPECIFICATIONS 243

Sensors 244

INDEX 249

Sensors

UsehistabletowritedownthesensorsyouuseonyourPI32Catchmonitoringsystem.

Sensor type	Serial number	Communication channel	Update rate

Sensors

UsehistabletowritedownthesensorsyouuseonyourPI32Catchmonitoringsystem.

Sensor type	Serial number	Communication channel	Update rate

INTRODUCTION

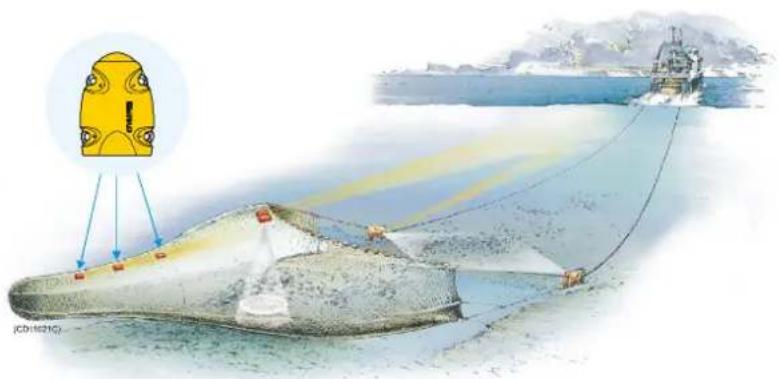

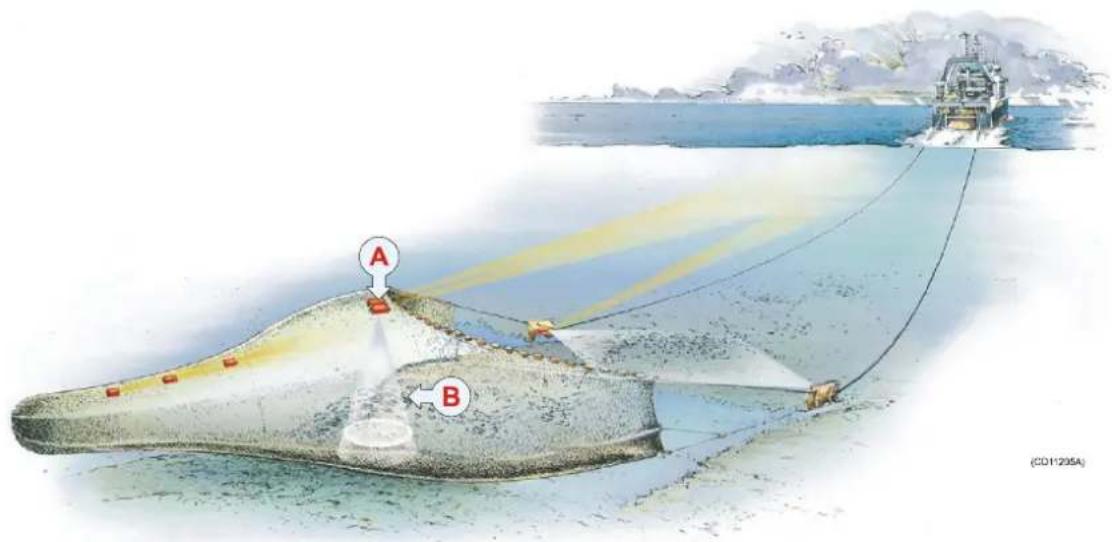

The Simrad PI32 is an integration of proven commercial fishing technologies which candramatically increase they yield and effectiveness of purse/danish seining and bottom/pelagic trawling applications.

Bymeansofthreeunderwatersorsorsmountedonthegear,this robust,maintenance-freecatchmonitoringsystemallows unparalleledcontroloverfishingoperationsbyproviding continuous,centralisedinformationonthevessel'sposition,its gearandtheenvironmentatandbelowthesurface.

Thismanualisnotintendedtobereadfromcovertocover,but isdesignedasabookofreferencesthatyoucanconsult whenevernecessary.

ThismanualdescribesPI32softwareversionSW3.09.

Illustration of a man operating a control panel inside a train car, with a monitor displaying data (no visible text or symbols)

Topics

→ Systemdescription,page2

→ Gettingstarted,page8

→ Applications, page20

→ Displaymodes,page27

→ Operationalprocedures,page45

→ Sensors,page83

→ Menusystem,page149

→ References,page152

→ PICoufigurator,page184

→ Sensortestprocedures,page223

SYSTEM DESCRIPTION

TheSimradPI32Catchmonitoringsystemconsistsofan operatorstation,ahydrophoneandanoptionalechosounder transducer.Thehydrophoneandthetransducerareboth mountedunderthevessel'shall.Thesystemfurthercomprisesa numberofsmallandrobustsensorsmeasuringtheconditionson yourfishinggear.

The PI32 Catchmonitoringsystem can work with three sensors simultaneously.

Thesensors are powered by built-in rechargeable batteries. They are housed in titanium casings, and designed using advanced shock-absorbing materials. The information collected by the sensors are sent through the watertothe hydrophone by means of coded sound waves. From the hydrophone, the signals are sent to the operator unit, which decode the information, interprets it, and finally present it to you.

Topics

→ Systemdiagram,page3
→ Operatorunit,page4
→ Hydrophones, page5
→ Sensorsoverview,page6
→ Batterychargers, page7

System diagram

(A)=OperatorUnit

(B)=PIcharger

(C)=Hydrophone (providescommunication withthesensors)

(D)=Optionalecho soundertransducer. Severaltypesare available.

(E)=Sensorsmountedon thenet.Maximumthree sensorsmaybeused simultaneously, and several types are available.

(F)=Interfacesto externalsensors(serial lines,NMEAformat)

(G)=+24Vdcpower

Operator Unit

The PI32OperatorUnitisamarinegrade electronic instrument incorporating an impact resistant polycarbonate front panel, die-castaluminium housing and watertight electrical connections.

The PI32 electronics are sealed in the operator unit allowing the it to be flushor bracket mounted in the wheel house or at an exposed control station.

Computedinformationisdisplayedinbothnumericaland graphicalformonthedisplay.Theunitisoperatedusing drop-downmenusandanintegratedkeypad.

Hull mounted and portable hydrophones

Twohullmountedhydrophonesareavailable,oneforpurse seiningoperations,andonefortrawloperations. Youcaninstall both,andthenselectactivehydrophonebymeansofaselector boxonthebulkhead.

Coiled black cable with a red rectangular device attached, no visible text or symbols

Purseseining: The hull mounted hydrophone for purseseining operations has a 90-degree horizontal beam and a 30-degree vertical beam to provide the PI32 with optimal reception from the sensors. This specific beampattern is especially suited for purseseining and the wide coverage are reduced by careful alignment.

Trawling: The hull mounted hydrophone for trawling operations has a 50 degrees horizontal beam and 30 degrees vertical beam to provide the PI32 with optimal reception from the sensors. This specific beampattern is especially suited for trawling and the wide coverage area are reduced by the need for careful alignment.

Blue and yellow portable cable holder with black insulation and yellow rubber strap (no text or symbols visible)

Portable: Aportablehydrophoneisalso available. It is designed as atemporary measure until a fixed hydrophone can be installed at the vessel's next planned dry docking. I thas anomni-directional beam and a 50 meter integrated cable which is sheathed in polyurethane providing robust external protection to compliment its 150 kgtensile strength. The cable issupplied on areelfor convenient retrieval and stowage, and is equipped with plug foreasy attachment to the Operator Unit.

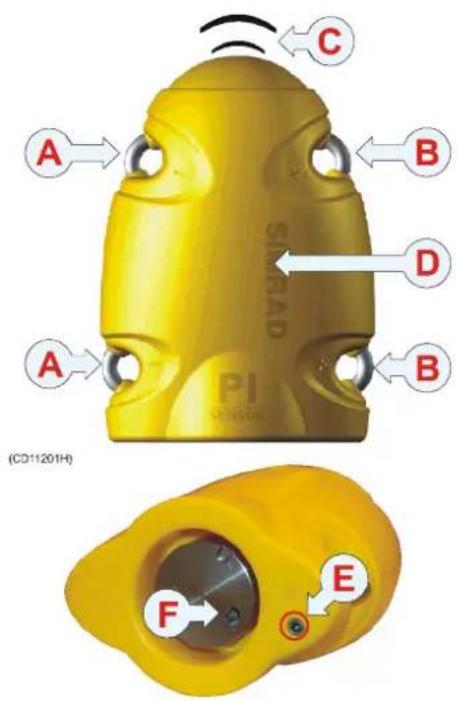

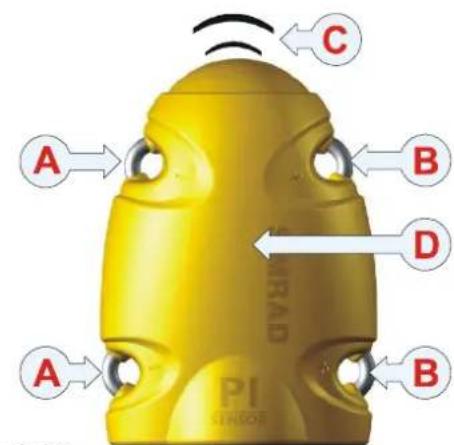

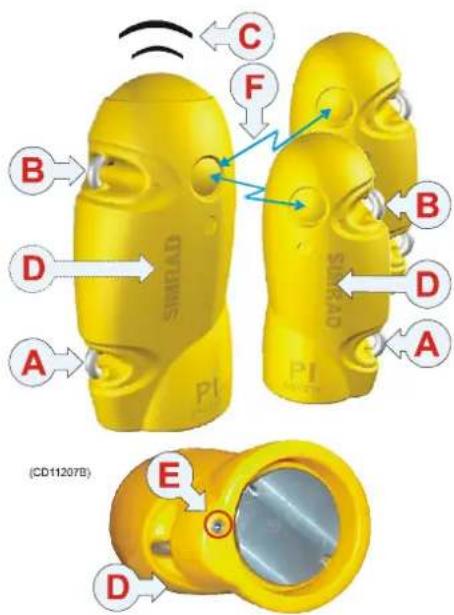

Sensor overview

Thischapterprovidesaveryshortdescriptionofeachsensor.

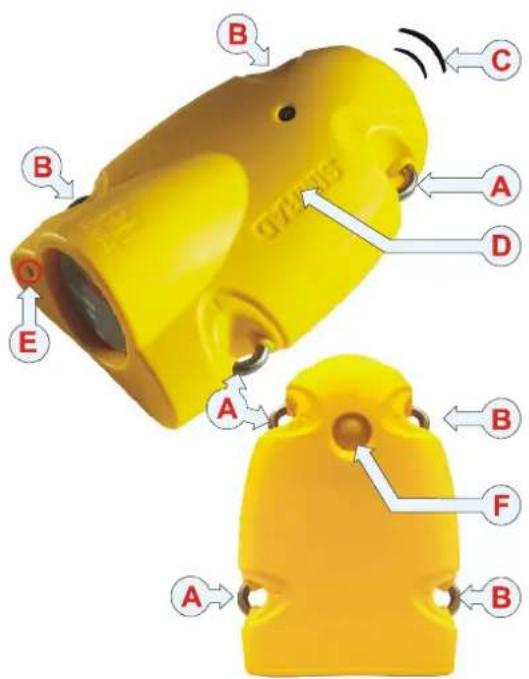

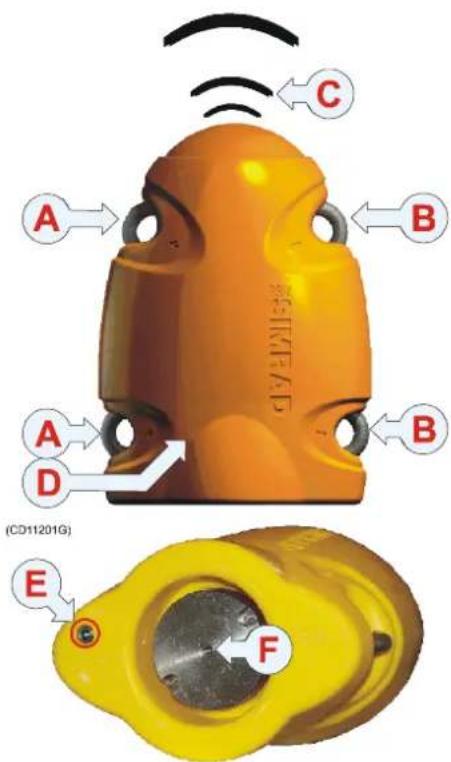

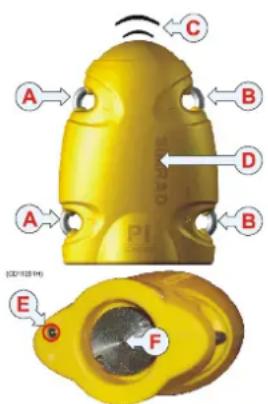

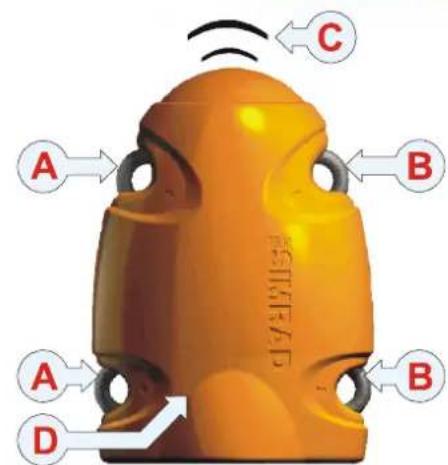

• Depthsensor-TheDepthsensorprovideinformationabout thecurrentdepthaswellasthedescendingorascendingrate relatedtothesurface.
• Catchsensor-TheCatchsensorprovidesinformationabout theamountofcatchinthetrawl. Thesensormonitorsthe openingofthemeshesinthecod-end, andwillactivateonce thecaughtvolumepullsthedetectorwire. Tomonitorthe fillingrate, youareadvicedtouseminimumtwosensors.

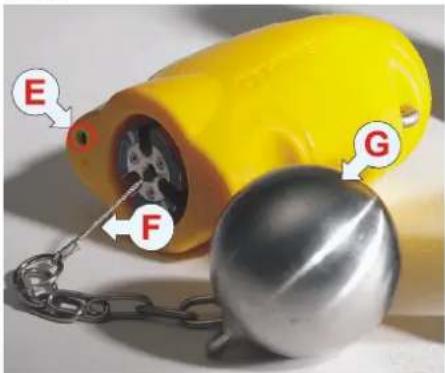

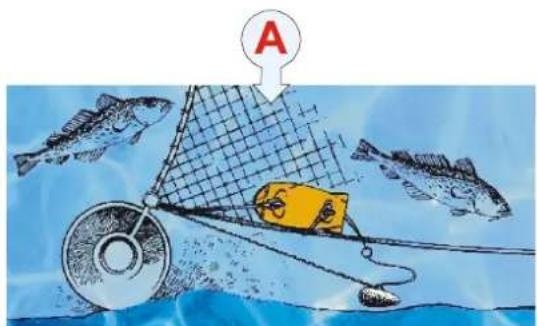

• BottomContactsensor-TheBottomContactsensors detectsifatrawlisaccidentallyliftedofftheseabed,ora purseseineistouchingthebottom.
• Ripsensor-TheRipsensorprovidesanimmediatewarning whenthenetisripped.
• Temperaturesensor-Temperature sensors read and transmit the ambient watertemperature at the geardepth.
• Heightsensor-TheHeightsensorcontainsssmallecho soundertomeasurethecurrentdepthrelatedtotheseabed.

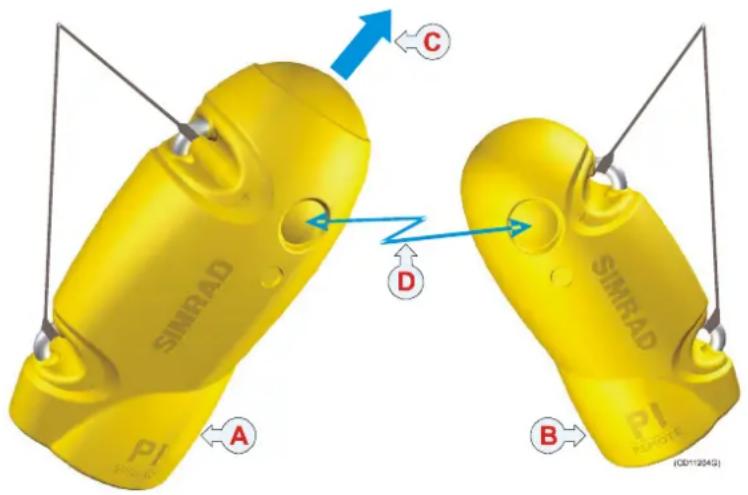

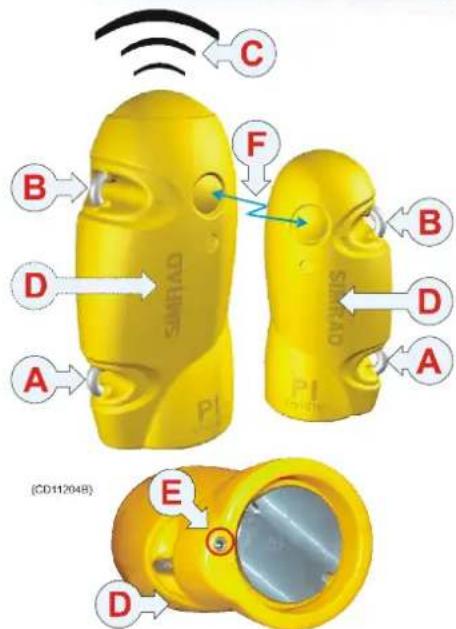

• Spread&Remotesensor-Thesesensoralwaysworkin pairs, and they measure the distance between the trawldoors. You can also set two Remotesensors if your unatwintrawl.

The use of separate communication channels for the individual sensors allows you to output your sensors in the vicinity of other vessels using PI or PS sensors. The communication channels can be defined and/or changed on board your vessel using a standard computer and the PIC configurator utility.

Related topics

→ Moreinformationaboutthesensors,page15
→ Howtousethesensors, page83

Battery chargers

Allsensorsarepowerbyinternalbatteries, and the seneed charging at regular intervals. The Simradchargers have been designed to allow the sensor to be stored in charging positions whenever they are not used, and "overcharging" will not take place. Either of the two chargertypescan be used on any of the sensors, but the PICharger will only provide fast charging on the PISensors.

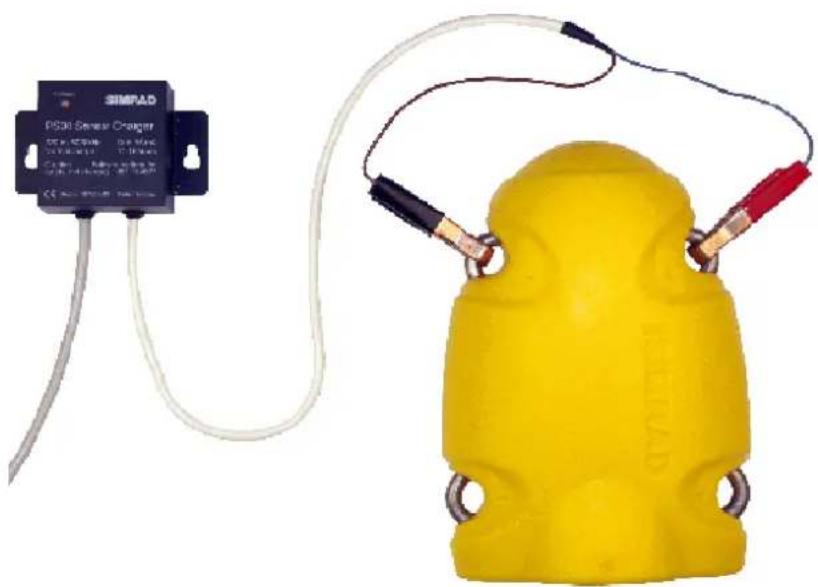

PS30 Charger

ThreedifferentSimradPS30Chargersare availabledependingonthevessel'smainpower supply;230Vac,110Vacand+24Vdc.

PI Charger

ThePIChargerwillprovidefastchargingofthe new PI sensor series. The Simrad PI Charger requiresa+12to+32Vdcpowersupply.

Related topics

→ PICharger,page145
→ PS30Charger,page147

GETTING STARTED

Thissectioncontainsanbriefoverviewofthebasicsystem operation. If you are first time user, were recommend that you read through this chapter while operating the PI32 so that you can familiarize yourself with the buttons, menus and display presentations.

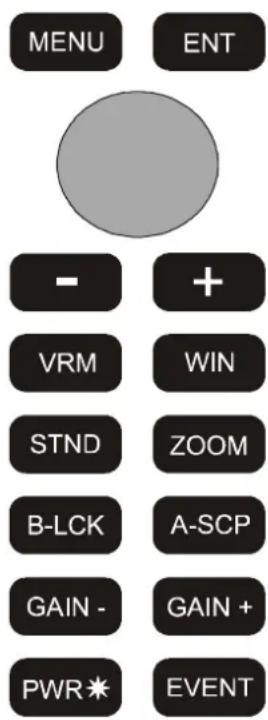

Inordertonavigatethemenustructuresanddisplay presentations,youneedtoknowthemostimportantbuttons.

MENU: Presstoaccessthemainmenu. Pressagaintocloseit.

ENT: Presstoapplythechangesyouhaverequested.

Selectorpad(circular):Pressalongtheedgestomovethe cursor.

WIN: Presstoleafthroughthepredefineddisplaypages (windows). Youcanhavefourdifferentpresentationsactive simultaneously, andusethisbuttonontoaccessthem.

Topics

→ Howtoswitchpoweronandoff, page9
→ Defininginitialpresentationpages,page10
→ Introducingthemainmenu,page12
→ Introducingthekeypad,page13
→ Introducingthesensors,page15

How to switch power on and off

ObservethefollowingproceduretoswitchthePI32onandoff.

Poweron

1 Press and hold the PWR button until the display is switchedon.

2Observethatthestart-uppageappears.

When you power up the PI32, it will automatically assume operation using them most recent pagemode.

Poweroff

1 Press the PWR button to call up the Light and power dialogue.

2 Press and hold the PWR button to switch off the PI32.

Defining initial presentation pages

Observethefollowingproceduretosetupthefourdisplaypages onthePI32. Thepresentationschosenarethosecommonlyused, butusingtheguidelinesinthisprocedureyoucanchangethe contentofindividualpagestosuityourrequirements.

Page1:Echosounder

1 Press the MENU button to bring up the main menu.
2 Press the Selector pad to move the cursor (inverse video) totheECHOchoiceonthemainmenu.
3 On the Echo menu, select Echo display.
4 Press the ENT button to enter the choice.

Anechosounderappears. If you already know the basic settings of an echosoundery you can access these setup page by pressing the ENT button on one more time.

Page2:Numericdisplay

1PresstheWINbuttononcetoselectthenextdisplaypage.

2 Press the MENU button to bring up the main menu.
3 Press the Selector pad to move the cursor (inverse video) totheFisherychoiceonthemainmenu.
4 On the Fishery menu, select Numeric display.
5 Press the ENT button to enter the choice.

Thenumericdisplayappears.Ifyoualreadyknowhowto performthebasicsetup,youcanaccessthesetuppageby pressingtheENTbuttononemoretime.

Page3:Graphicdisplay

1PresstheWINbuttononcetoselectthenextdisplaypage.

2 Press the MENU button to bring up the main menu.
3 Press the Selector pad to move the cursor (inverse video) totheFISHERYchoiceonthemainmenu.
4 On the Fishery menu, select Graphic display.
5 Press the ENT button to enter the choice.

Thegraphicdisplayappearswiththesensordatashownonthe topandtheechosoundershownbelow.Ifyoualreadyknow howtosetupthebasicparametersyoucanaccessthesetuppage bypassingtheENTbuttononemoretime.

Page4:Navigationdisplay

1PresstheWINbuttononcetoselectthenextdisplaypage.

2 Press the MENU button to bring up the main menu.
3 Press the Selector pad to move the cursor (inverse video) totheNAVchoiceonthemainmenu.
4 On the Navigation menu, select Navigation display.
5 Press the ENT button to enter the choice.

Thenavigationdisplayappears.Ifyoualreadyknowhowtoset upthebasicparametersyoucanaccessthesetuppageby pressingtheENTbuttononemoretime.

Leafingthroughthepages

Toleafthroughedisplaypresentationsyouhavedefined, presstheWINbutton.

Otherdisplaypresentations

Severalotherdisplaypresentationsareavailable, butyouonly havefourdifferentdisplaypagestouse. Aftersomeexperience withthePI32system, youwillhoweversoonfindoutwhich displaypresentationsthatarethemostusefultoyou, andyou canalterthesetupaccordingly.

Related topics

→ Displaypresentations,page27

Introduction to the main menu

Themainmenuislocatedacrossthetopofthedisplay.Toopen themenu,presstheMENUbutton.Notethatifitisleft unactivated,themenuwilldisappearautomaticallyafterafew seconds.

ECHO SOUNDER
FISHERY	NAV	ECHO	SETUP

(CD11034A)

Eachofthefouroptionsofthemainmenuprovideadrop-down menu.Onthese,youcanselectwhichinformationtoviewon thedisplaypages,orwhichparameterstodefine.Mainand drop-downmenusarehighlightedwhenselected,andthe completemainmenutitleisdisplayedinthetopleft-handcorner ofthescreen.

• To open a sub-menu, press the ENT button, or press “down” ontheselectortab.
• Tomakeyourselection, highlightthechoice, and press the ENTbutton.

Related topics

→ Thechoicesonthemainmenu,page150

Introduction to the keypad

ThekeypadisusedfordirectuserinterfacewiththePI32 system, and allows youtocontrol the functionality. Not that the majority of the buttons are mainly used only during echo sounder operations, and that some of them will only work when they are enabled by a specific function.

MENU: This button turn sthemenubaron and off. It will also allow you to exit dialogues without applying any changes.

ENT(Enter):Turnsthecursoronandoff.Openforinsertion, andconfirmstheeditingofdata.

Selectorpad: Usethisbuttontonavigatethroughmenusand dialogues. Itmovesthecursorhorizontallybypassingitonthe leftorrightside, and verticallybypassingitonitstopor bottom.

-/+:Thesetwobuttonsareusedtoselectbetweenavailable values, scalesandranges.(-)reducesand(+)increases the graduation.

VRM(VariableRangeMarker): Thisbuttonprovides a horizontalmarkerlineontheechosounderdisplay. Use the Selectorpadtoalterthedepthofthemarker.Pressthebutton onemoretimetoswitchthemarkerlineoff.

WIN(Windows): Changesthedisplaypresentationbetween fourpredefinedpagemodes.

STND(Standard): Thisbuttonactuatesafull-screenstandard echosounderdisplay. Thisisdonebyreplacingthecurrent presentationwiththeechosounderpresentation. If you did not have an echosounderpresentation amoung your four predefined pages, you will have onenow. If you already had such a presentation onadifferentpage, you will now havetwo.

ZOOM: This button actuates a full-screen standard de echo sounder display, and then expand the area around a variable rangemarker. Adjust the depth of the angemarker with the selector pad, and choose the zoom range in the setup menu. The page is provided by replacing the current presentation with the echosounder presentation. If you did not have an echosounder presentation among your four predefined pages, you will have on now. If you already had such a presentation on a different page, you will now have two.

B-LCK(Bottomlock): Thisbuttonactuatesafull-screen standardechosounderdisplay, and then expandstheareajust abovethebottom. In the expanded presentation, the bottom will appear flat. Choose the vertical expansion range in the setup menu. The page is provided by replacing the current presentation with the echosounder presentation. If you did not have an echosounder presentation among your four predefined pages, you will have been now. If you already had such a presentation on a different page, you will now have two.

A-SCP(A-Scope): This button will only work if you have an echosounder presentation on your current page. It will open a vertical presentation of the echoes from the latest ping. The horizontal deflections indicate the strength of the echo, while the vertical information shows at which depth the echoes appeared.

GAIN: Thetwogainbuttonsareusedtoadjustthereceivergain ontheechosounder.

PWR*(Power): This button is used to switch the PI32 system on and off. During operation, it is also used to adjust the display intensity and the background illumination of the buttons.

EVENT: This button places a vertical marker on the echo sounder depth display to identify an event.

Introducing the sensors

ThePI32Catchmonitoringcanbeusedwithavarietyof sensors. Allthesesensorscanbeplacedonyourtrawlorpurse seinetomonitorkeyparameters.

OnthePI32,youcanusea maximumofthreesensors simultaneously.

There are two sensor families; PI and PS. The sensors in the twofamiliesarealmostidentical, and they can be used together on the same PI32 system. The PIsensors will however offer increased range, some added functionality, and they can also be charged much faster using the PICharger.

Bottom Contact: Bestatthebottom!

Withpatentedtechnologyandawardwinningdesign,Simrad providesyoufullcontroloftheactionsthattakeplaceatthe bottom.Mountedonabottomtrawl,pelagictrawlorpurse seine,thisssensorwillprovidetheimportantinformationwhen youneedit!

Illustration of a fishing net with fish and a yellow object, no text or symbols present

Illustration of a yellow fish jumping from a net over water, with a red letter 'C' above (no text or symbols on the diagram itself)

(CD11202C)

(A)=TheBottomContactsensormountedonabottomtrawl willletyouknowoncethetrawlliftsafewcentimetersabovethe bottom. Youcanthenimmediatleyperformthenecessary adjustments, and you will not lose anycatch.

(B)=Onapurseseineyouwillbenotifiedoncetheseine reachesthebottom, andyoucanthusfishevenonarough bottom.

(C)=Onapelagictrawl,thesensorwillnotifyyouonceyouget nearthebottom.

TheBottomContactsensorwillletyouknowimmediatelyif yourgeartouchesthebottom.

- Bottowtrawl: If your trawlliftsoffthebottom, this may cause fishtoescape, and hencereducethecatch. This sensor will detect this, and allow you to trim your equipment for perfect balance.

• Pelagic trawl: On a pelagic trawl, this sensor proves very usefulwhentetrawlmovesdownwards.Itwillletyou knowimmediatelyifthefootropetouchesbottom.
• Purseseine: When you work with apurseseine, you need to know when these in each the bottom. This sensor will let you know once it happens.
• Danish seine: Used on a Danish seine, the sensor will let you knowwhenthenethasastablebottomcontact,andwhenit istimetohaul.
• Scientificresearch: Duringscientificsurveys, anexact definition of towed distance with proper ground gear contact is an essential parameter in bottom trawlswept area estimates offish abundance. Using a Bottom Contacts sensor will reduce errors in this key parameter.

Catchsensor:Whenisthetrawlfull?

Thisisyour“eye”atthecod-end. With PICatchsensorsinuse, youcaneasilymonitorthefillingrateandtheamountofcatch inthetrawl.Savetimeandfuel,haulinthetrawlatheright moment! Thedesignisruggedandawardwinning,andthe sensor’s sensitivityiseasilyadjustablefortrawlsofallsizes.

Some professionals claim that the Catch sensor is the most important sensoronthetrawl. Why? Because it will tell you the amount of catch in the trawl.

Thesensorsimplymonitortheexpansionofthemeshesinthe cod-end. Oncethevolumecaughtisenoughtoexpandthe meshes, theywillpullthedetectorwiresandengagethesensor. Thesensitivityofthesensorcaneasilybeadjusted, justextend thedetectionrubberbandstospanadditionalmeshes.

Tomonitorthefillingrate, were recommend that you use minimumtwosensors. Placethefirstsensoratthefarendofthe cod-end, it will tell you that the trawlis actually fishing. Place thesecond sensor clos to the trawlopening. Oncethetrawlis filled to the chosen location, the sensor is engaged, and you know that it istimetohaul.

Use the PICatchsensortoadjustthecatchvolumeaccording to theproductioncapacity, check that the trawl is fishing, adjust the caught volumetosecure quality, and minimizethetowing timetosave fuel. These are only a few of thereasons why this sensor is considered to be so important.

Depth: How deepcanyougo?

Whenthesonarandechosoundertellyouhowdeeptheschool goes,itisgoodtoknowthatyoucanplaceyourfishinggearat thesamedepth.Andevenbetter,youcanmonitorandholdthe desireddepth.Thedesignisruggedandawardwinning,andthe sensorisavailableforthreedifferentdepthranges.

ThePIDepthsensorprovidesinformationaboutthecurrent depthandthedepthchangesofyourgear.

• Bottom trawl: On a bottom trawl, you will use the sensor to achieve full control when shooting, and top position the trawl on the slope.
• Pelagic trawl: During pelagic trawling, you know how importantitistopositionthetrawlrelativetothe largest concentrationoffish. By usingaDepthsensor, you can monitor the exact depth relative to the surface, and adjust the trawl depth accordingly. Additional depth sensor on the doors will monitor if the doors stay at the same depth.
• Purseseine: Duringseining, use the Depthsensor to monitor the depth of thenet, and the descendings speed of thenet. Then you will know when start pursuing, and which speed to use.
• Danishseine:MountedonaDanishSeinetheDepthsensor monitorsthesinkingspeedofthenet, anditwilltellyou whentostarthaulingoncethenethasstoppedsinking.

Heightsensor: Accurated distancetothe bottom!

Withabuilt-inechosounder, this new PIsensorisfullof advancedtechnology. Whereveryouplaceit, it will alwaystell youtheexactdistancetothebottom.

Theheightsensormeasurestheheightoverthebottom,thatis thedistancefromthebottomanduptowhereverthesensoris located.Thisprovidesyouwithavaluablerangeofapplications forbottomandpelagictrawling.

• Bottomtrawl: Placethesensorbehindtheheadrope, and it will tell you the height of the trawlopen. This allows you to adjust you equipment immediately if the opening is reduced, and you will avoid loosing catch.
• Pelagictrawl:Withaheightsensorbehindthefootropeyou willknowatonceifthetrawlapproachesthebottom.If you useasecondsensorbehindtheheadrope,thedifference betweenthetwomeasurementswillgiveyoutheheightof thetrawlopening.

Rip:Checkfordamages!

TheRipsensorisidenticaltotheCatchsensor,andcanthusbe regardedasaapplicationfortheCatchsensor.Placethesensor onthetrawlbellybehindthefootrope,anduseittodetectifthe trawlistornorinanyotherwaysdamagedbyrocksorother roughnessonthebottom.Ifthisisdetectedimmediatelyyoucan adjustthegeartominimisethedamage.

SpreadandRemote:CheckthetrawIdoors!

Thisdynamicduotellsyoutheexactdistancebetweenthetrawl doors.UsedonbottomandpelagictrawlstheSpreadand Remotesensorsprovidecrucialinformationaboutyourtrawl behaviour.Onatwintrawl,simplyaddaRemotesensorand youhavebothopeningscovered!

Thesetwosensorsalwaysworkinpairs. They are used to monitor the physical distance between the trawldoors during bottom and pelagic trawling.

UseaSpreadsensorontheportdoorandaRemotesensoron thestarboarddoor. Bothsensorsarenormallymounted in specialadapters, butyoumayalsoattachedthemtothe wing-endorwarpusingsnaphooksorrope.

TheSpreadsensorcommunicateswiththeRemotesensorusing aspecialtransversecommunicationlink.Bymeansofthislinkit measuretheexactdistance(maximum350meters)between thetwosensors.Theinformationisistransmittedtothevessel bytheSpreadsensor.

Asyoualreadyknow, correctdoorspread is important in order to obtain the correctsweep-angle, ast hisensures optimal trawl performance. Door behavior and stability during shooting and towing is also monitored by these sensors. Many regard this pair of sensors one of them most important sensor stoo obtain efficient trawling.

A special version of the PI Spread sensor, The PI Twin Spread, allowsyoutouseasingleSpreadsensorwithtwoRemote sensorstomonitoratwintrawl.

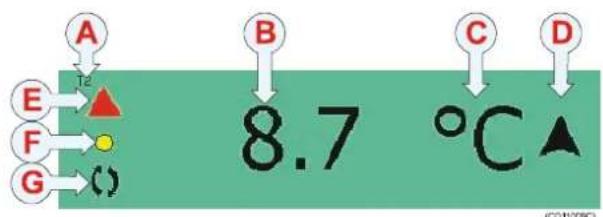

Temperature: Toowarmortoocoldwater?

Fishing into warmortoocold water may be just a waste of time and money. Thesame appliestoapelagic trawl placed on the wrong side of a thermall layer. Using advanced technology, rugged construction and award winning design, the PI Temperaturesensor allows you to increase your fishing efficiency.

The PITemperaturesensor tells you the exact seawater temperature while you are fishing.

Thewatertemperatureisanimportantparameter.Fishandbait aretemperaturesensitive,andtheyarenormallyfoundwithin specifictemperaturezonesforfeedingandspawning.

However, the temperature layers in the water are changing constantly, and for this reason the temperature must be monitored constantly. Fishing in an area with unfavourable water temperature might be just a waste of time!

Foranykindoftrawling, usethissensortomonitoring and log the temperature. Then, increase your knowledge about the correlation between temperature, fish concentration and catch efficiency. On apursesinenet, monitorthetemperature to see when you are passing the thermo-cline.

Related topics

→ Purseseine, application, page21
→ Danishseine, application, page22
→ Bottomtrawl, application, page23
→ Pelagictrawl, application, page24
→ Sensorconfiguration,page84
→ PIBottomContact,page87
→ PSBottomContact, page91
→ PICatch,page95
→ PSCatch,page100
→ PIDepth,page104
→ PSDepth,page109
→ PIHeight,page114
→ PIRip,page118
→ PISpread&Remote,page123
→ PITemperature,page133
→ PSTemperature,page139

APPLICATION EXAMPLES

TheSimradPI32systemisdesignedtofulfillallyour requirementswithinarangeofspecificapplications.This chapterprovidesafewexamplesonhowthevarioussensorscan beplacedonyourfishinggear.Italsoprovidesabrief descriptionoftheechosounderandgraphicdisplay functionality.

Topics

→ Purseseine, application, page21
→ Danishseine, application, page22
→ Bottomtrawl, application, page23
→ Pelagictrawl, application, page24
→ Echosounder, application, page25
→ Graphicdisplay, application, page26

Purse seine

When used for pursesining, the PI32 system must have one or more of the following sensors attached to the net: Depth sensor, Bottom Contact sensor and Temperature sensor.

Thesystemisdesignedtobeusedwithuptothreesensors, optimallytwoDepthsensorsandoneTemperatureorBottom Contactsensor. Thesensorconfigurationcanbetailoredtosuite individualneeds.

(A)=(B)=Depth/BottomContactsensor
(C)=Temperature/BottomContactsensor
(D)=Depthsensor(placedontheheadropetowarnifitsinks)

Using there recommended sensors, the PI32 system will provide the following information:

• Whentobeginpursing, and which speedtouse forthemost efficientpursing
  • Locationofthenetrelatedtotheschool
  • Bottomapproximationwithoutnetcontact
• Netsinkrate,whenthenethasstoppedsinking,andwhenit startstorise
  • Watertemperatureatdifferentdepths
  • Whenthegearpassesthethermocline

Danish seine

When used for Danish seining the PI32 system needs up to three of the following sensors attached to the net: Depth and Bottom Contact.

Thesystemisdesignedtobeusedwithuptothreesensors. OptimallytwoDepthsensors(locatedatthetopandbottomof thenet)andoneBottomContactsensorareused.Sensor configurationcanbetailoredtosuiteindividualneeds.

(A)=Bottomcontactsensor

(B) = (C) = Depthsensors

Using therecommended sensors, the PI32 system will provide the following information:

• Whentostarthauling
  • Monitornetsinkagerate
  • Bottomapproximationwithoutnetcontact
  • Netopening(usingtwodepthsensors)

Bottom trawl

When used for bottom trawling, the PI32 system will give you all necessary information about the trawl status. You should haveminimum three of the followings sensors attached to the net: Depth sensors(s), Bottom Contact sensor, Rip sensor and Catch sensors(s).

Thesystemisdesignedtobeusedwithuptothreesensors. We recommend that you use a Catch sensor, a Heights sensor behind the headrope and a Spread sensor. Sensor configuration can be tailored to suite individual needs.

(A)=Depthsensor(headrope)

(B)=Depthsensor(footrope)

(C)=Bottomcontactsensor

(D)=Ripsensor

(E)=(F)=Catchsensor(s)

Using there recommended sensors, the PI32 system will provide the following information:

• Optimalvesselspeedwithregardtonetsinkrateandbottom approximation.
  • Whenthecodendisfull.
  • Footwire/bottomlift-off.
  • Netopening(usingtwodepthsensors)anddamage

Pelagic trawl

When used for pelagic trawling the PI32 system must have one or more of the following sensors attached to thenet: Depth sensor(s), Bottom Contact sensor, Temperature sensor, Rip sensor and Catch sensor(s).

Thesystemisdesignedtobeusedwithuptothreesensors. We recommend that you use a Catch sensor, a Depthsensor behind the headrope, and a Spreadsensor. Sensor configuration can be tailored to suite individual needs.

(A)=Depthsensor(headrope)

(B)=Depthsensor(footrope)

(C)=Bottomcontactsensor

(D)=Ripsensor

(E)=Temperaturesensor

(F) = (G) = Catchsensors

Using there recommended sensors, the PI32 system will provide the following information:

• Optimalvesselspeedwithregardtonetsinkrateandschool location.
• Whenthecodendisfull.
  • Bottomapproximationtoavoidnetcontact.
  • Netopening(usingtwodepthsensors)anddamage
  • Ambientwatertemperatureatgeardepth.

Echo sounder

The built-inechosounderwillprovideinformationaboutdepth, bottomcontoursandthepresenceoffishbelowthevessel. The echosoundercanusethreefrequencies;38kHz,50kHz and 200kHz. Twofrequenciescanbeoperatedsimultanously.

The following operational modes are available

• Standardmode: Rangestartisfixed, and the depth range can be altered
• Bottomlock: Theechosounderprovidesanexpansion windowtostudytheechoesclosesttothebottom.
• Zoom: Theechosounderprovidesanexpansionwindowto studyechoesinthewatercolumn.
  • A-scope: Singlepingechopresentation

Graphic display

Bymeansofthebuilt-inechosounderandtheinformation providedbytheanaloguesensors,youcansetupagraphic displaytogiveyouatotaloverviewoftheunderwatersituation.

Thegraphicdisplaypresentstheechogramatthebottomofthe screenwhilethenumericalsensorpresentationsarelistedatthe topofthescreen.Theinformationfromthoseensorsproviding analoguedata(Depth,Height,TemperatureandSpread)are superimposedontheechogram.

Related topics

→ Howtosuperimposeechosounderdata,page63

→ Howtosuperimposemarkerlines,page64

DISPLAY PRESENTATIONS

ThePI32supportsarangeofdisplaypresentations. These are theinformationelementsthatyoucanchoosetoseeoneach page.

Topics

→ Numericdisplay,page28
→ Graphicdisplay,page35
→ Surfacetemperature, page37
→ Statusdisplay,page38
→ Echosounderdisplay,page40
→ Navigationdisplay, page43
→ Positiondisplay,page44

Numeric display

Thenumericdisplayprovidesvitalsensordatainlarge,easyto readdigitsandsymbols.Inthefollowing,allsensor presentationsareexplainedindetail.

This illustrations shows atypical wind display setup with thenumeric presentation from six sensor on the left side and an echosounder presentation on the right hand side.

The background colour for the numerical display presentations can be selected individually from the palette. If the data from the sensors are unstable, the presentations will set the following character presentations:

???-Thesensorprovidesuncertainreadings.

±±±-NocommunicationbetweenSpreadandRemotesensors

***.*-Nocommunicationwiththesensor.

Topics

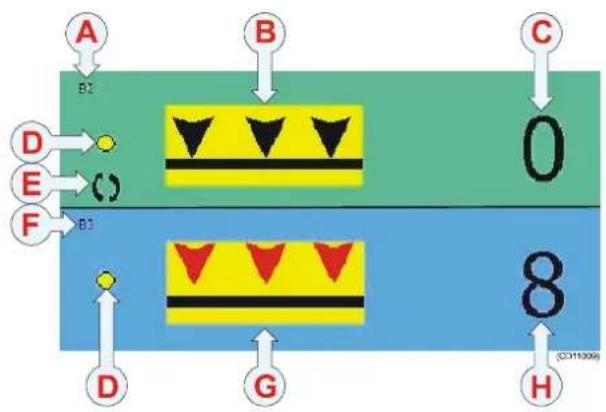

→ BottomContactsensorpresentation,page29
→ Catchsensorpresentation, page30
→ Depthsensorpresentation, page31
→ Heightsensorpresentation, page32
→ Spreadsensorpresentation,page33
→ Temperature sensorpresentation, page34

Tochangepresentationparameters

Thenumericpresentationsarecontrolledbytheparameters definedinthesetup.Tochangetheseparameters,presstheENT buttontoaccesstheNumericsetuppage.

Related topics

→ Numericsetup,page169

Bottom Contactpresentation

TheBottomContactsensorpresentationisshownbelow.

(A)Thecharacterandthenumberidentifiesthetypeofsensor, andwhichidentificationnumberthesensorhasonthePI32 system. In this example, B4 meansthatitisabottomcontact sensor, and that itissensorno. 4.

(B)Statusfield.Thethreearrowsdisplay“bottomcontact”, graphicallyrepresentedbytheblackorreddownwardpointing arrowsincontactwiththehorizontalblackline.Uponlossof bottomcontact,thearrowswillrisefromtheblackline(seabed) andchangecolourfromblacktored.Atthesametimean audiblewarningissounded,andthetimerstarts.Bottomsensor measurementrangemaybeadjustedasnecessary.

(C)Timer,recordshowmanyminutesthathaveelapsedsince thesensorlostbottomcontact.Ifthebottomcontactisregained, thetimerstops.Itisthenrestartedoncethestatuschangesagain. ThetimermustbemanuallyrestartedintheNumericsetup.

(D) Yellowpulselampblinkseachtimeasignalisreceived from the correspondingsensor.

(E)Interferencewarning,activatedwhenthePI32detects interferencefromothernearbyvessel(s)operatingonthesame channelorwithsimilarhydroacousticequipment.Contactyour Simraddealertoselectadifferentfrequencyshouldthis problempersist.

Catchpresentation

TheCatchsensorpresentationisshownbelow.

Note: If you use more than one to catch sensor in the trawl, makes sure that you configure them with different channel numbers, and that you mount and read them in the correct order!

(A)Thecharacterandthenumberidentifiesthetypeofsensor, andwhichidentificationnumberthesensorhasonthePI32 system.Inthisexample,C3meansthatitisacatchsensor,and thatitissensorno.3.

(B)Statusfield.Ayellowrectanglemeansthatthesensorhas notbeenactivatedyet.Aredrectanglemeansthatthetrawlhas beenfilledwithfish,andthishastriggeredthesensor.Whenthe indicatorswitchesfromyellowtoredanaudiblealarmis sounded,andthetimerstarts.

(C)Timer,recordshowmanyminutesthathaveelapsed since the sensorwastriggered. If the status switches from red back to yellow, the timer stops. It is then restarted on the status changes again. The timer must be manually restarted in the Numeric setup.

(D) Yellowpulselampblinkseachtimeasignalisreceived from the correspondingsensor.

(E)Interferencewarning,activatedwhenthePI32detects interferencefromothernearbyvessel(s)operatingonthesame channelorwithsimilarhydroacousticequipment.Contactyour Simraddealertoselectadifferentfrequencyshouldthis problempersist.

Depthpresentation

TheDepthsensorpresentationisshownbelow.

(A)Thecharacterandthenumberidentifiesthetypeofsensor, andwhichidentificationnumberthesensorhasonthePI32 system.Inthisexample,D1meansthatitisadepthsensor,and thatitissensorno.1.

(B)Unitofmeasure.[m]meansmeter,[ft]meansfeet,[fm]meansfathomsand|pb|meansbraccia.

(C)Depthreadout.

(D)Ascendingordescendingspeedofthenetshowninunitsper minute. Thedirectionisshownwiththearrow(E). Ifthespeed is0, thearrowisremoved.

(E)Directionindicatorfornetmovements.

(F)Graphicalarm. Thedirectionofthetriangleindicatesifthe netdepthshouldbeincreasedordecreasedwithregardtothe selectedalarmlimits. Ifrequested,thisgraphicalarmmaybe accompaniedwithanaudiblealarms.

(G)Yellowpulselampblinkseachtimeasignalisreceived from the correspondingsensor.

(H)Interferencewarning,activatedwhenthePI32detects interferencefromothernearbyvessel(s)operatingonthesame channelorwithsimilarhydroacousticequipment.Contactyour Simraddealertoselectadifferentfrequencyshouldthis problempersist.

Heightpresentation

TheHeightsensorpresentationisshownbelow.
    note_right_of_H1["m"]
    note right of G 3.1

(A)Thecharacterandthenumberidentifiesthetypeofsensor, andwhichidentificationnumberthesensorhasonthePI32 system.Inthisexample,H1meansthatitisaeightsensor,and thatitissensorno.1.

(B)Unitofmeasure.[m]meansmeter,[ft]meansfeet,[fm]meansfathomsand[pb]meansbraccia.

(C)Readoutoftheactualheightbetweenthesensorandthesea bottom.

(D)Speedofincreasingordecreasingdepth. Thetwoarrows (E)areusedtoindicateifthedistanceisincreasingor decreasing. Ifthedepthisconstantandthespeedis0, the arrowsareremoved.

(E)Depthincrease/decreaseindicators.Ifthetwoarrowspoint towardseachother(asshownintheexample),thedepthis decreasing.

(F)Graphicalarm. Thedirectionofthetriangleindicatesifthe depthshouldbeincreasedordecreasedwithregardtothe selectedalarmlimits. If requested, thisgraphicalarmmaybe accompaniedwithanaudiblealarms.

(G)Yellowpulselampblinkseachtimeasignalisreceived from the correspondingsensor.

(H)Interferencewarning,activatedwhenthePI32detects interferencefromothernearbyvessel(s)operatingonthesame channelorwithsimilarhydroacousticequipment.Contactyour Simraddealertoselectadifferentfrequencyshouldthis problempersist.

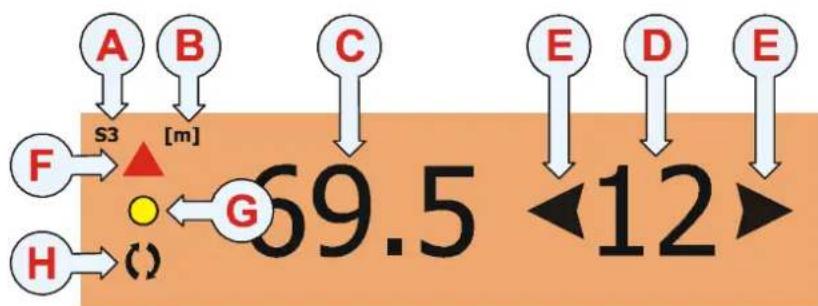

Spreadpresentation

TheSpreadsensorpresentationisshownbelow.

(A)Thecharacterandthenumberidentifiesthetypeofsensor, andwhichidentificationnumberthesensorhasonthePI32 system. In this example, S3 meansthatitisaspreadsensor, and thatitissensorno.3.

(B)Unitofmeasure.[m]meansmeter,[ft]meansfeet,[fm]meansfathomsand[pb]meansbraccia.

(C)Readoutoftheactualdistancebetweenthetwotrawldoors.

(D)Increasingordecreasingdistancespeedofthetrawldoor distanceshowninunitsperminute. Thetwoarrows(E)areused toindicateifthedistanceisincreasingordecreasing. Ifthe distanceisconstantandthespeedis0, thearrowsareremoved.

(E)Distanceincreasing/decreasingindicators.Ifthetwoarrows pointawayfromeachother(asshownintheexample),the distanceisincreasing.

(F)Graphicalarm. Thedirectionofthetriangleindicatesifthe trawldoordistanceshouldbeincreasedordecreasedwithregard totheselectedalarmlimits. Ifrequested,thisgraphicalarmmay beaccompaniedwithanaudiblealarms.

(G)Yellowpulselampblinkseachtimeasignalisreceived from the correspondingsensor.

(H)Interference warning, activated when the PI32 detects interference from other nearby vessel(s) operating on the same channel or with similar hydroacoustice equipment. Contact your Simrad deal alert to select different frequency should this problem persist.

Temperaturepresentation

Thetemperature sensor presentation is shown below.

(A)Thecharacterandthenumberidentifiesthetypeofsensor, andwhichidentificationnumberthesensorhasonthePI32 system. In this example, T2meansthatitisatemperature sensor, and that itissensorno.2.

(B)Temperaturereadout.

(C)UnitofmeasureinCelciusorFahrenheit.

(D)Temperaturetrend,indicatesifthetemperatureisfallingor rising.Anarrowpointingupthisindicatesthatthetemperature isincreasing,whileanarrowpointingdownindicatesdecreasing temperature.

(E)Graphicalarm. Thedirectionofthetriangleindicatesifthe temperatureishigherorlowerthanapredefinedlimit.

(F) Yellowpulselampblinkseachtimeasignalisreceivedfrom thecorrespondingsensor.

(G)Interferencewarning,activatedwhenthePI32detects interferencefromothernearbyvessel(s)operatingonthesame channelorwithsimilarhydroacousticequipment.Contactyour Simraddealertoselectadifferentfrequencyshouldthis problempersist.

Graphic display

ThegraphicdisplayprovidedbythePI32offersanaccurate echosoundercombinedwithnumericreadoutsfromthenet sensors.

Notethatsomeoftheinformationprovidedbythegraphic presentationassumesthatyouhavetherlevantsensors connectedtoyourPI32system.

The following information is provided in the graphic presentation.

(A)Numericdisplay. In this example, the information from a depthsensoris shown. The current depth is 25.9 meters.

(B)Numericdisplay. In this example, the information from a bottom contacts sensor is shown. The result has currently lifted off these abed.

(C)Numericdisplay.Inthisexample,theinformationfroma catchsensorisshown.Thesensorhasnotyetbeentriggered.

(D)Depthscale.

(E) Datafromadepthsensorlocatedonapelagictrawl. The informationhasbeensuperimposedontothegraphicdisplay. Thecolourofthelinewillautomaticallybethesameasthe currentbackgroundcolouroftherelevantnumericdisplay. Therearetwolinesbecausetheheightofthetrawlopeninghas beenaddedmanually.

(F)Fishecho

(G)Bottomecho

(H)Heightoftrawlopening(manualinput)

(I)Timescale.

Information not shown in this example

Temperaturescale: When requested, atemperature scale can be provided on the left side of the display. Toswitch the temperatures scale on or off, use the Graphic setup.

Depthbars: Depthinformationfromrelevantsensorscanbe shownasverticalbarsontherightsideofthedisplay.Each verticalbarwillusethesamecolourasthecurrentbackground colouroftherelevantnumericdisplay.Toswitchthedepthbars onoroff,usetheGraphicsetup.

Tochangepresentationparameters

Thepresentationiscontrolledbytheparametersdefinedinthe PI32setup.Tochangetheseparameters,presstheENTbutton toopentheGraphicsetuppage.

Tochangeechosounderparameters, press the MENU button to openthemainmenu, and select Echosoundersetupon the Echomenu.

Related topics

→ Graphicsetup,page160

→ Echopresentationsetup,page154

Surface temperature

TheSurfacetemperaturedisplayshowsthecurrent temperature.Bymeansofthegraphitwillalsoshowyouthe temperaturehistoryforthepastminute.Thepresentationis activatedfromtheFisherymenu.Tohavethisinformation available,youmusthavetherelevanttemperaturefeeler connectedtoyourPI32system.Asuitablefeelerisintegrated withseveralSimradechosoundertransducers,oritmaybe connectedasaseparateperipheral.

Tochangepresentationparameters

Thepresentationiscontrolledbytheparametersdefinedinthe PI32setup.Tochangetheseparameters,presstheENTbutton toopentheSurfacetemperaturesetuppage.

Related topics

→ Surfacetemperaturesetup,page181

Status display

TheStatusdisplayshowssensordata,signalthresholdsand backgroundnoiselevelsprovidinganoverviewofpresent hydro-acousticalconditionsandthemarginforreliablesignal detection.Otherinformationdisplayedincludescablestatus, programversion,andechosounder/positioninformation.

NotethatsomeoftheinformationprovidedbytheStatus displayassumesthatyouhavetherelevantsensorsconnectedto andoperationalonyourPI32system.

The following information is provided by the Status display.

(A)Numericdisplay. In this example, the information from a depth sensor is shown. The current depth is 47.9 meters.
(B)Numericdisplay.Inthisexample,theinformationfroma bottomcontactsensorisshown.Thetrawlhascurrentlylifted offtheseabed.
(C)Numericdisplay.Inthisexample,theinformationfroma catchsensorisshown.Thesensorhasnotyetbeentriggered.
(D)Informationlines1 and2: Thetoplineprovidesthe followinginformation:

• ThestatusoftheMP(MultiPath)filter

• ThecurrentsoftwareversionofthePI32.

Thesecondlinesshows:

• ThecurrentAGCstatus(AutomaticGainControl)
- Thestatusoffthehydrophonecable.Ayellowcirclemeans thatthecableisserviceable.Ablackcirclemeansthatithas broken,whilearedcircleindicatesashortcircuit.
- CH/R:Thechannelnumberofthesensorfromwhichdata waslastreceived.
- E:Errorcodeforsystemsmanlfunctions.Theerrorcode“0” signifiesthatnosystemerrorispresent.

(E)Frequencyspectrumforfrequenciesonthe00to15band. Select the desired band by pressing the respective - or + buttons. Waitfortheunittoupdatethedisplay. Thegraphrepresents the associatedbackgroundnoiseandthesignalstrengthoftheband selected.

(F)Gainindicator

(G)Gainindicatorsforthethreecurrentsensors. Thegreenfield indicate that the detection level is within normal specifications. Theredfield indicates that the signal level is currently over the detection threshold (DT).

(H)Informationlines3and4.Thetoplineprovidesthe followinginformation:

• Geographicalposition(longutide)
- Currentcourse
- Currentdepth
- Currenttime.

Thebottomlineshows:

• Geographicalposition(latitude)
- Currentspeed
• Currentsurfacetemperature

Tochangestatusdisplayparameters

Theparametersarefixed, and they cannot be changed.

Related topics

→ Receiversetup,page174

Echo sounder display

ThePI32offersanaccurateechosounderwithacolourdisplay. Theechosoundercanoperateon38,50or200kHz,andwith twofrequenciessimultaneously.Inordertoenjoytheecho sounderfunctionality,youmusthaveoneortwoechosounder transducersinstalled.

Notethatsomeoftheinformationprovidedbytheechosounder presentationassumesthatyouhavetherelevantsensors connectedtoyourPI32system.

The following information is provided in the echosounder presentation.

(A)Currentseatemperature.

(B)Currentvesselspeed

(C)Currentdepth

(D)Colourscale. This scales how show the echoes are presented, The strongest echoes are displayed using the colour on the top of the scale, while the weakest echoes are displayed using the colours at the bottom of the scale.

(E)Depthscale: This scale can be set up change automatically depending on the current depth. Automatic depth scale is identified with the text AUTO at the bottom of the scale.

(F)A-scopepresentation.

(G)Bottomecho

(H)Singlefishecho

(I)Currentprimarytechnicalparameters. Thetoplinespecifies thecurrentoperationalfrequency. Thesecondlinespecifiesthe currentoutputpower("A" meansthatitissetautomatically), andthethirdlinespecifiesthecurrentpulselength.

Thepresentationiscontrolledbytheparametersdefinedinthe presentationsetup.Tochangetheseparameters,presstheENT buttontoopenthePresentationsetup.Tochangepresentation units,presstheMENUbuttontoopenthemainmenu,andthen select Speed alarm, units and language on the Setup menu.

In the Echo sounder setup (on the Echo menu) you can change thereadoutforcurrentdepth(C).TheA-scopepresentationcan beswitchedonandofffromtheEchomenu.

Bottomexpansion

ThePI32providesaBottomexpansionfunction.Whenenabled the vertical area closetothesebedisexpanded. Theresulting presentationwillnotshowthedepthvariations,asthebottom willappearflat.However,echoesclosetothebottomwillbe enhanced.Notethathedepthrangeinthispresentationwillbe "upsidedown",astheseabedisdefinedaslevel"0".

To enable this function, press the MENU button, and select Bottom expansion on the Echo menu. To disable it, select Echodisplayonthesamemenu.Theverticalsizeofthe expansionwindowiscontrolledbytheExpansionwindow parameter in the Presentation setup. Press the ENT button to accessthissetuppage.

A-Scope

ThePI32providesanA-Scopefunction. This presentation provides the echo from the latest ping only. The strength of the returned signal from various depths in the water column are indicated by the horizontal deflections from the Y-axis. This presentation is very useful to you wish to search for single fish, as those echoes are hard to see on theregulate chogram. Also, the presentation will give an indication on how strong the various echoes are.

To enable this function, press the MENU button, and select Turn A-Scope on on the Echo menu. To disable it, select Turn A-Scopeoffonthesamemenu.

VRMexpansion

ThePI32providesanVRMexpansionfunction. Whenenabled the vertical area on both sides on a vertical rangemarker (VRM) is expanded. Theresulting echosounder presentationist thus split into with the lower half of the screen providing the expanded view.

When activated, you can movethedepthofthe vertical marker bypassing the circular Selectorpad.

Toenablethethisfunction, press the MENU button, and select VRM expansion on the Echo menu. To disable it, select Echo displayonthesamemenu. The vertical sizeoftheexpansion windowiscontrolled by the Expansionwindowparameter in the Presentation setup. Press the ENT button to access this setup page.

Tochangepresentationparameters

Theechosounderpresentationiscontrolledbytheparameters definedinthesetup.Tochangetheseparameters,presstheENT buttontoaccessthePresentationsetuppage.

Thetechnicalparametersfortheechosounderarelocatedonthe Echo sounder setup page. To access, press the MENU button, and select Echo sounder setup on the Echo menu.

Related topics

→ Echopresentationsetup,page154

→ Echosoundersetup,page157

Navigation display

ThenavigationdisplayprovidedbythePI32offersallkey informationrelatedtowaypointnavigation.Notethatthe informationprovidedbythispresentationassumesthatyouhave therelevantsensor(GPS)connectedtoyourPI32system.

The following information is provided by the Navigation display:

(A)“C”isthecurrentcourse overground,while“B”isthe coursetothenextwaypoint.

(B)“DS”isthecurrentdepth fromthesurface,while the temperatureisthecurrent surfacetemperature.

(C)"S"isthecurrentspeed overground,while"V"isthe speedtowardsthenext waypoint.

(D)Crosstrackerror

(E)Crosstrackerror

(F)Satellitereceptionstatus. Thecharacter“A”meansthatthe receptionisgood, “B”meansthatthereceptionisacceptable, and “C”meansthatitispoor. If thereisnoreception, the messageNovalidPOSwillbeshown.

(G)Theidealcourselinebetweenthetwowaypoints.

(H) These are the cross-strack error alarmlines.

(I)Thedistancetothenextwaypoint.

Tochangepresentationparameters

Thepresentationiscontrolledbytheparametersdefinedinthe PI32setup.Tochangetheseparameters,presstheENTbutton toopentheNavigationsetuppage.

Related topics

→ Navigationsetup,page168

Position display

The Position display provided by the PI32 offers all key informationrelatedtosafenavigationononedisplay presentation. NotethattheinformationprovidedbythePosition displayassumesthatyouhavetherelevantsensors(GSPand temperaturefeeler)connectedtoyourPI32system.

StatusGPS A	Log 1125.3nm	Log 20.0nm
LAT 5°653.000NLON 9°50.000E
Speed8.9kn	Course092m	Depth S5.4m
Water temp2.5°C	Local time09:31:15	Local date17.01.2005

(CD11104I)

The following information is provided by the position display:

Watertemperature:The temperaturewillonlybe availableiftheapplicable temperaturefeelerisconnected tothePI32.

Twoindividualdistancelogs: Bothdistancelogscanbereset usingthesetupparameters.

Currentgeographical position: If the position fail to be updated, the characters will flash.

Currentspeed,courseanddepth: Thisinformationwillonly beavailableiftheapplicablesensorshavebeenconnectedtothe PI32.

Localtimeanddate

Status: This isthe current status of the satellite reception. The character "A" mean that thereception is good, "B" mean that thereception is acceptable, and "C" mean that it is poor. If there is no reception, the message No valid POS will be shown.

Tochangepresentationparameters

Thepresentationiscontrolledbytheparametersdefinedinthe PI32setup.Tochangetheseparameters,presstheENTbutton toopentheResetlogpage.

Related topics

→ Resetlogsetup,page173

OPERATIONAL PROCEDURES

Overview

Thischapterwillprovideyouwithbasicproceduresinorderto helpyousetupthemostcommonfunctionsandparametersin thePI32.

Sensor procedures

→ Howtoshoworhidethegraphic alarm, page46
→ Howtoshoworhidethesensortimers, page46
→ Howtoresetthesensortimers, page46
→ Howtochangebackgroundcolour, page46
→ Howtosetupthesensors, page48
→ Howtomountthesensorsonthenet, page51
→ Howtousethesensors, page52
→ Howtoreplacethesacrificialwater switch, page53
→ Howtotestthesensors,page54
→ HowtocalibratetheDepthsensor, page55
→ Howtodefinesensoroffsets, page56
→ HowtosetupaSpreadsensorfora twintrawl, page57

Graphic display procedures

→ Howtoaccessgraphicdisplay parameters,page62
→ Howtoviewechosounderdata, page63
→ Howtosetupmarkerlines, page64
→ Howtousethespecialfeaturesfor trawlmarkers,page67

Echo sounder procedures

→ Howtoaccessechosounder parameters,page69
→ Howtousevisualaidsandfilters, page70
→ Howtodefinerange,page72
→ Howtozoominonbottomechoes, page74
→ Howtozoominonpelagicechoes, page75
→ HowtoactivatetheA-Scope presentation,page76

Common procedures

→ Howtodefinealarmlimits, page77
→ Howtoselectmenulanguage,page80
→ Howtocontrolautomaticpage rotation, page81
→ Howtorestoredefaultsettings, page82

How to define sensor presentation

The information from the various sensors are provided by the Numerical display, where each sensor is presented in its own rectangular data winsow.

How to show or hide the graphical alarm

1 Ensure that you have a Numeric display presentation in youractive window.
2 Press the ENT button to open the Numeric setup dialogue.
3SwitchShowgraphicalarmonoroff.
4 Press the ENT button to save the parameters and exit.

Howtoshoworhidethesensortimers

Sensor timers are only used on Catch and Bottom Contact sensors.

1 Ensure that you have a Numeric display presentation in youractivewindow.
2 Press the ENT button to open the Numeric setup dialogue.

3SwitchSensortimeronoroff.

4 Press the ENT button to save the parameters and exit.

How toresetthesensortimers

Sensor timers are only used on Catch and Bottom Contact sensors.

1 Ensure that you have a Numeric display presentation in youractivewindow.
2 Press the ENT button to open the Numeric setup dialogue.

3SetResetsensortimersto YES.

4 Press the ENT button to save the parameter and exit.

5 Press the ENT button one more time to accept the process.

ThenexttimeyouaccesstheNumericsetupdialogue,thevalue forResetsensortimersisNO.

Howtochangethebackgroundcolour

Youcanchangethebackgroundcoloursontherectangulardata windowsinordertoeasilydistingushthemfromeachother.

1 Press the ENT button to open the manin menu.

2 On the Setup menu, select Display colour.

3Observethefirstpalettepageappear.Itcontainsfixed colours,whichcannotbealtered.Pressthe+button repeatedlyuntilyoureachacustompage.

4 By means of the circular Selector pad and the + and - buttons, select therequested colour(s).

5 Press the ENT button to accept the choice.

Related topics

→ Numericsetup,page169

→ Numericdisplay,page28

How to set up the sensors

The very first time you switch on the PI32, you will need to set up the sensor configuration. This will also be required if you perform a “master reset” on the PI32, and then reload the manufacturer’s default settings.

Observethefollowingproceduretoestablishthemostcommon values.Formoredetailedinformationaboutthesettings,referto theReferenceschapter.

Note: Inordertoestablishthesensorconfiguration,youneedtoknow whatkindofsensorsyouhave,whichchannelsthey communicateon,andhowoftentheycommunicate.This informationisrequiredbeforeyoustarttheconfigurationonthe PI32.

Note: Donotattempttosetupthesensorsunlessthisisabsolutely necessary.

Westrongly suggest that you use the forms in the front of this manual to writed down the sensory you have within information about their updates and communication channels.

1 Press the MENU button to open the main menu.
2 Open the Setup menu, and select Sensor setup.
3 Press the ENT button to enable modification. Observe the warning, and press the ENT button to proceed.
-Inthefollowing,youmustusetheSelectorpadto navigate through the parameters, and the + and - buttonstoselectvalues.
-EachofthethreesensorsareinitiallysettoNoneand Normal, and the communication channels are not defined.

4ForSensor1:

a Set type (currently None) to Single.
b Set Update to the current update rate of the chosen sensor(Slow, NormalorFast)
c Set Measure to the type of sensor.
d Select transmission Channel (currently NO), and use the + and - buttons to select desired channel.

5 Repeat for Sensor 2 and Sensor 3.
6 Press the ENT button to save the configuration and exit.

Predefinedsettings

Eachsensorisdeliveredwithapredefinedsetup.Thissetup includes:

• transmissionchannelfortheacousticcommunicationlink betweenthesensorandthevessel'shydrophone
• updaterate;howoftenthesensorsendsitsreadingsbackto thePI32system.

Tochangethesensorsetup,youcancallyourlocalSimrad dealer,oryoucandoityyourselfifyouhavetheproper equipment,trainingandthePIConfiguratorsoftware.

Changingatransmissionchannel

It may be required to change one more or more transmission channels, and there may be many reasons for this.

• You havemorethanoneofeachsensor. Forexample, if you havethreetemperaturesensors, they MUST communicate on threedifferentchannels.
• OthervesselsnearyourusethesamePI32system(ora similar), and they have one more of their sensors set up to the same communication channels as you have. This will create interference, as you will "read" each others sensors.
• Ifyoursensorsaresetuptousecommunicationchannelstoo closetoeachother(forexample,youhavechosenchannels 4,5and6),thiswilllimitthevessel'sspeed.Thereasonfor thisisthedopplereffect.Ifthespeedistoohigh,thedoppler willcausethetransmissionfrequenciestochangesomuch thattheyoverlap,andthiswillcreateinterference.ThePI32 willprovideawarningifthisisabouttohappen!Youmust theneitherchangetoothercommunicationchannelsfurther apart,orreducethemaximumshootingspeed.
• If you operate at the maximum range of the sensors, you may be able to increase this ranges slightly if you use lower communication channels. This is because the lower communication channels user lower transmission frequencies.

Changingtheupdaterate

Itmayberequiredtochangetheupdaterateonasensor, thatis howoftenitsendsinformationbacktothePI32system. A high updaterate will give frequent information updates, but the sensor will use more battery power. If you need your batteriesto last as long as possible, you must consider lowering the update rate.

• Alowupdaterate will provide you with fewer information updates, but the battery will last very long.
• Ahighupdateratewillgiveyoufrequentinformation updates,butthebatterywillrunoutfaster.

AllsensorsareprovidedfromSimradwithadefaultupdaterate setting.Insomecasesyoumayfindthatthisupdateratedoes notsuityouroperationalneeds.Thisisadecisionyouhaveto madedependingonthelocalfishingconditions.

Howtochangethesensorsetup

Tochangethesensorsetup,youcancallyourlocalSimrad dealer,oryoucandoityyourselfifyouhavetheproper equipment,trainingandthePIConfiguratorsoftware.

Related topics

→ Sensorconfiguration,page179
→ Maxshootingspeed,page174
→ PICoufigurator,page184

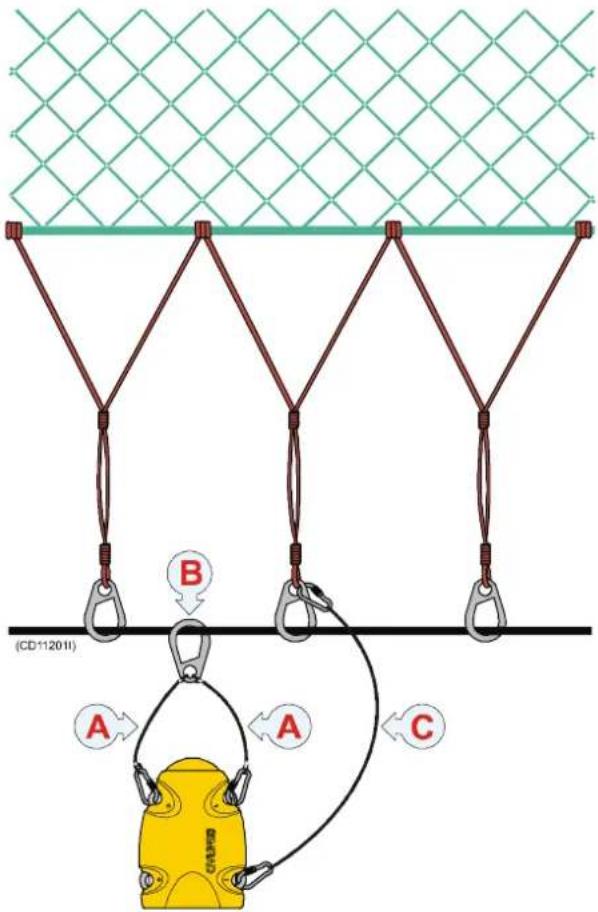

How to mount the sensors on the net

Oncethesensorhasbeencodedcorrectly,youmustmountiton thenet. Themountinginstructionsforeachsensorisprovidedin theSensorschapter,andthesameinformationcanalsobefound ontheQuickReferenceGuideforeachsensor.

Related topics

→ Sensorsoverview, page83

How to use the sensors

Oncethesensorshavebeencodedandinstalledonthenet,they willautomaticallybeswitchedononcetheyaresubmergedinto water.ThePI32willthenautomaticallyretreiveinformation fromthem,andprovidedthatyouhavechosenthecorrect displaypresentation,theinformationwillbeprovidedtoyou.

Applications

The various applications available to you with the different sensors are explained in the Getting started and Applications chapters.

Displaypresentation

Howtosetupthedisplaytoseetheinformationprovidedbythe sensorsaredescribedintheGettingstartedchapters.The variousmodesareexplainedindetailintheDisplaymodes chapter.

Practicalinformation

The practical information about the various sensors is provided in the Sensors chapter, and the same information can also be found on the Quick Reference Guide for each sensor.

Related topics

→ Gettingstarted:Presentationpages,page10
→ Gettingstarted:Sensors,page15
→ Applications, page20
→ Sensorsoverview, page83

How to replace the sacrificial water switch

AllPIandPSsensorsareequippedwithawaterswitch,andtwo differenttypesareused.Ifyoursensorsareequippedwitha brassscrew,observethefollowingprocedureforreplacement.

1Turnthesensorupsidedown,andlocatethebrassscrew.

2Inspectthescrewforwearandtear.Ifrequired,replace thescrew.

Astandardcommercialbrassscrewisused. Localsupplywill normallybeavailable, butthefollowingspecificationsmustbe met:

Brass,SizeM5x10,DIN85A,roundedhead

Close-up of a brass-colored metal screw with threaded shaft and flange (no text or symbols visible)

Beforeanewscrewisinserted, AquaShield (orasimilar underwaterlubricant) must be applied. Duetothesize of the tube, were recommend that the grease is applied from asyringe.

1 Apply Aqua Shield to the screw threads.

2Insertthescrew,mountfirmly,butnottoohard.

3Usemaximumtorque1.5NM

ApackwithtenscrewsandatubeofAquaShieldcanbe orderedfromSimradasasparepartskit.

AquaShieldismanufacturedbyD.A.Stuart,Warrenville, Illinois,USA(www.d-a-stuart.com).

How to test the sensors

By using the PI Configurator, you can test the operational status of each sensor. Test procedures for all the sensor have been provided in a separate chapter in this manual.

NotethatPIandPSsensorsaretestedusingthesame procedures.

Related topics

→ PICoufigurator,page184
→ Testprocedures, page223

How to calibrate the Depth sensor

Only the Depth sensor can be calibrated. The purpose is to ensure that the depth reported by the sensor as accurate as possible.

Thisprocedureiscarriedoutonboardthevessel.

1Mountaropetothetopfasteninglugsonthesensor.

2 Tightentherope, and measure onemeter from the bottom of the sensorto aspotontherope. Place a visual marker on the orope at that location.

3Lowerthesensoroverthesideofthevesselandintothe water. Lowerituntilthevisualmarkerontheropeiseven withthesurface.

4OnthePI32, observethenumericalpresentationofthe sensor, and allowthereadingtostabilizeitself.

5 On the PI32, press the MENU button to open the Main menu.

6 Open the Setup menu, and select Sensor alarm/calibration.

7Atthebottomofthepage, setDepthsensorcalibration to YES.

8Leavethesensorhangingfromtheropeforminimumtwo minutes.Meanwhile,observethatthenumerical presentationsshowsgreycharactersonly.

9OnthePI32, observethatthenumericalpresentationof theDepthsensorisstable,andshows1meter.

10Retrievethesensorfromthewater.

Note: Inordertocalibratethesensor, it must besubmergedinsalt water.

Youmaywishtouseadifferentdepthreferencethanthesea surface. If thisisthecase, changethemarkingontheropetofit youpreference, forexamplethedepthofthekeelorthedepthof anechosoundertransducer.

Related topics

→ Howtodefinesensoroffsets, page56

→ Depthcalibration, setup, page153

How to define sensor offsets

Only the Depth and Spreadsensors can have their offset values adjusted. The purpose is to allow you to compensate for known deviations.

YoumaywishtoinsertaDepthsensoroffsettolineupthe depthreadingsfromthesensorwiththosefromyourecho sounder.IftheechosoundertransducerislocatedXmeters belowthesurface,theDepthsensorshouldhavethesameoffset value.

Note: If you have performed a Depth sensor calibration, you will see than an offset value may already be present. This value has been provided by the calibration routine.

1 On the PI32, press the MENU button to open the main menu.
2 Open the Setup menu, and select Sensor alarm/calibration.
3Atthebottomofthedialogue,entertherequiredvalues.
4 Press the ENT button to save the parameters and exit.

Related topics

→ Offsetadjust, setup, page170

How to set up a Twin Spread sensor for twin trawl applications

BymeansoftheTwinSpreadsensor,youcansetupyourPI32 tomonitortheopeningsonatwintrawl.ApartfromtheTwin Spreadsensor,youwillalsoneedtwoRemotesensors.

Sensorconfiguration

The TwinSpread and Remotesensors are supplied insets, and they MUST operate in the these sets. Thesets are:

• Twin Spread 1 uses two Remote sensors; Remote 1 and Remote3.
• Twin Spread 2 uses two Remote sensors; Remote 2 and Remote4.

Whensuppliedfromthemanufacturer, all TwinSpreadsensors aresetupasTwinSpread1. If youwishtouseaTwinSpread2, yourdealer(oryourself)mustreconfigurethesensorusing the PIConfiguratorapplication.

Communicationchannelsandupdaterate

EachTwinSpreadsensorwillcommunicateontwochannels, oneforeachofthetwodistancesthesensormeasures. By default, these communication channels are set to 02 and 07.

• Channel 02 is used to measure the distance to Remote 1.
• Channel 07 is used to measure the distance to Remote 3.

Bydefault, both communication channels a resetup with Fast updat rate. In order to increase the lifetime between each sensor charging, you may consider changing to Normal update rate.

If you wishtore configure the settings, your dealer (ory yourself) must us the PIC configurator application.

Placingthesensorsonthetrawl

The TwinSpread sensor must be mounted on the port trawl door, and the three communication transducers on the sensor must not be obstructed. Ensure that you have a clear line of sight between the tip of the Twin Spread sensor and the vessel, and between the Twin Spread sensor and the two Remote sensors.

Remote1isplacedonthecentreclump.

Remote3isplacedonthestarboarddoor.

This configuration will allow the TwinSpread sensor to measure the distance from the port doort the centre clump directly. It will also measure the distance between the two or more indoors. In order to calculate the distance between the centre clump and the star boarddoor, you must perform there required settings on the PI32.
    note right of B: Light beam direction (up arrow)
    note right of D: Light beam direction (down arrow)
    note left of B: Intersection point
    note right of D: Intersection point
    note bottom of B: Cross-hatched pattern
    note bottom of D: Cross-hatched pattern
    note right of F: Up arrow
    note right of D: Down arrow
    note right of E: Right arrow
    note right of F: Up arrow
    note right of D: Left arrow
    note right of E: Right arrow
    note right of F: Down arrow
    note right of D: Cross-hatched pattern
    note right of S: Cross-hatched pattern
    note right of F: Up arrow
    note right of D: Left arrow
    note right of E: Right arrow
    note right of F: Down arrow
    note right of D: Cross-hatched pattern
    note right of S: Cross-hatched pattern
    note right of F: Up arrow
    note right of D: Left arrow

(P) = Porttrawl

(S)=Starboardtrawl

(C)=PorttrawldoorwiththeTwinSpread1sensormounted.

(D)=CentreclumpwithRemote1mounted.

(E)=StarboardtrawldoorwithRemote3mounted.

(F)=Forward

(1)=Distancebetweenporttrawldoorandcentreclump, measureddirectlybytheTwinSpreadsensor.

(2)=Distancebetweenthecentreclumpandthestarboard trawldoor,mustbecalculatedbythePI32system.

Sensorsetup

ObservetheprocedurebelowtosetupaTwinSpread configurationwithitsdefaultsettings.

In this procedure, sensors1 and2 are used, and no others sensors are shown. Dueto the fact that the Twin Spread sensor occupy two communication channels, the setup program requires that is configured as if it was to separate sensors, but not necessarily sensors1 and 2. Theremaining four channels can be used for others sensors.

Westronglysuggestthatyouusetheformsinthefrontofthis manualtowritedownthesensoryouhavewithinformation abouttheirupdateratesandcommunicationchannels.

1 Press the MENU button to open the main menu.
2 Open the Setup menu (4), and select Sensor setup (5).
3 Press the ENT key to bypass the warning page.

4ToconfiguretheTwinSpreadsensor,enterthefollowing parameters:

a Set Sensor 1 type to SINGLE to activate the sensor.
bSetUpdate1ratetoFAST.
cSetMeasure1toSPREAD.
dSetChannelto02.
e Set Sensor 2 type to SINGLE to activate the sensor.
fSetUpdate2ratetoFAST.
gSetMeasure2toSPREAD.
hSetChannelto07.

5 For operational use, make sure that Demo mode is set to OFF.

6Whenyouhavedefinedthesensors,presstheENT buttomtosavethechangesandexit.

According to the sensor locations previously described, Spread 1 will now measure the distance from the port trawldoorto the centre clump, while Spread2 will measure the distance from the port trawldoorto the star board trawldoor.

Readoutadjustments

ItisnecessarytosetcertainparametersinordertohavethePI32 tocalculatethedistancefromthecentreclumptothestarboard trawldoor.

1 Press the MENU button to open the main menu.

2PresstheWINbuttontoselectafullscreenpresentation.

3 Open the Fishery menu, and select a Graphic display.
4 Press the ADJ button to open the Graphic setup.
5 Press the PAGE+ button three -3- times to access the Trawlinfodialoge.
6 Locate the Clump sensor setting, select SPREAD 1.

-Aspreviouslydefinedanddescribed,sensorSpread1 measuresthedistancebetweentheporttrawldoorand thecentreclump.

7 Locate the Door sensor setting, select SPREAD 2.

-Aspreviouslydefinedanddescribed,sensorSpread2 measuresthedistancebetweentheportandthe starboardtrawldoors. ThissettingallowsthePI32to calculatethedistancebetweentheclumpandthe starboardtrawldoor.

8 Locate Trawl data in additional info, select ON.

9 Locate Type of trawl data, select SPREAD.

10 Press the ENT button to save the settings and exit.

Readouts

Following the configuration and readout adjustment explained, the following readouts are now available in the Graphic display.

• Numeric display: Rectangle S1 shows the distance between theporttrawldoorandthecentreclump.RectangleS2 shows thedistancebetweentheporttrawldoorandthestarboard trawldoor.
• Additionalinformation:Theinformationbardirectlybelow thenumericrectanglesdisplaytheabbreviationTSanda value.Thisvaluerepresentsthedistancebetweenthecentre clumpandthestarboardtrawldoor.

Related topics

→ TwinSpread,page128
→ Sensorsetup,page179
→ Trawlinfo,page182

How to access graphic display parameters

The various parameters defining the Graphic display presentation are controlled from the following dialogues:

• Graphicsetup
• Numericsetup
• Trawlinfo

Howtousethemostcommonparametersareexplainedin separateprocedures.

AccesstoGraphicsetup

1 MakesurethatyouhaveaGraphicdisplaypresentationin youractivewindow.

2 Press the ENT button to open the Graphic setup dialogue.

Accessto Trawlinfo

1 MakesurethatyouhaveaGraphicdisplaypresentationin youractivewindow.

2 Press the ENT button to open the Graphic setup dialogue. The Trawlinfoparametersarelocatedatthe bottomofthissetuppage.

AccesstoNumericsetup

1 MakesurethatyouhaveaNumericdisplaypresentationin youractivewindow.

2 Press the ENT button to open the Numeric setup dialogue.

Related topics

→ Graphicsetup,page160
→ Numericsetup,page169
→ Trawlinfosetup,page182

Howtoviewechosounderdata

WhenyouhavechosentheGraphicdisplaypresentation,you canchoosetosuperimposetheinformationfromtheecho sounder. Thisfeatureallowsyoutoseewhereyoursensorsare locatedinrelationtothebottomandfishechoes.Notethatthis featurewillonlyworkifyouhavemountedanechosounder transducertothePI32.

1 MakesurethataGraphicdisplaypresentationisactive.

2 Press the ENT button to open the Graphic setup dialogue.
3 Locate the setting Superimpose echo sounder, and set the optiontoON.
4 Press the ENT button to save the setting and close the dialogue.

Related topics

→ Graphicsetup,page160

How to set up marker lines

WhenyouhavechosentheGraphicdisplaypresentation,you canchoosetosuperimposetheinformationfromtheecho sounder,andthenaddmarkerlinestoseewhereyoursensors arelocatedinrelationtothebottomandfishechoes.Notethat theechosounderdatawillonlyappearifyouhavemountedan echosoundertransducertothePI32.

The following parameters will affect the way themarkerlines are displayed:

• Width - you can select how thick (in pixels) each marker line shall be.
• Delay - The echo sounder information is provided by the transducer, and thistransducer is located under the vessel. Thesensors are located on the gear, which may be positioned several hundred meters behind the vessel. To adjust for this delay, you can enter a value for Markerlinedelay. You must calculate this value (in minutes) based on the vessel's speed, the wire length and the depth of the gear.
  Alternatively, you can us the built-in Trawl caluclatorto find the correct delay.
• Colour-Thecolourofthemarkerlineisautomaticallysetto thecurrentNumericdisplaybackgroundcolourforthesame sensor.Tochangethatcolour,youmustaccesstheDisplay colour setup page from the Setup menu.

(A)=Numericdepthdisplay
(B)=MarkerlinefromDepthsensor

Accesstothemarkerlineparameters

1 Make sure that a Graphic display presentation is active.
2 Press the ENT button to open the Graphic setup dialogue.
3 The Marker line parameter allows you to switch the markerlineonoroffforsensorsS1,S2andS3.

DepthandHeightmarkerlines

The purpose of these marker lines is to provide an easy way to monitor the depth of the gear. The Heights sensor measures the distance from these abed and up to the sensor, while the Depth sensor measures the distance from these as surface and down to the sensor.

1IdentifywhichofthesensorsthataretheDepthand/or Heightsensors.

2Settheapplicablemarkerline(s)toON.

3EnterthepreferredsettingsforMarkerlinethickness andMarkerlinedelay.

4 Press ENT to save the settings and exit to the graphic displaypresentation.

TheDepthandHeightmarkerlinesarepresentedonthe Graphicdisplaywithcontinuouslinesinthesamebackground colourasintheNumericdisplay.Toreadthedepth,consultthe depthrangeontherightsideofthedisplay,orthereadoutinthe Numericdisplay.

Spreadmarkerline

The purpose of this marker line is to provide an easy way to monitor the distance between the trawldoors.

1IdentifywhichofthesensorsthatistheSpreadsensor.

2SetthemarkerlinetoON.

3EnterthepreferredsettingsforMarkerlinethickness andMarkerlinedelay.

4 Press ENT to save the settings and return the the graphic presentation.

TheSpreadmarkerlineispresentedontheGraphicdisplay withacontinuousline.Thecolourofthelineisthesameasthe backgroundcolourinthenumericpresentation.Toreadthe distancebetweenthetrawldoors,consultthedepthrangeonthe rightsideofthedisplay,orthereadoutintheNumericdisplay. Ifthetrawldoordistanceisreducedorincreased,thiswillbe easilydetectedasthemarkerlinemovesupordown.Notethat youdonotmonitorthedepthofthetrawldoorseventhough youusethedepthscale,thescaleisusedasarangescale.

Surfacetemperaturemarkerline

The purpose of this marker line is to provide an easy way to monitor the surface temperature. Not that this is not a reading from temperatures sensor, but from a feeler. Such feelers are often built into the echosounders transducers.

1 Ensure that a proper feeler is connected to the PI32.

2SetthemarkerlinetoOn.

3EnterthepreferredsettingsforMarkerlinethickness andMarkerlinedelay.

4 Locate the Temperature scale parameter, and switch it ON.
5 Press ENT to save the settings and exit to the graphic displaypresentation.

The Temperature marker line is presented on the Graphic display as a continuous line.

Related topics

→ Graphicsetup,page160

Special features for trawl marker lines

Whenyouhavechosenagraphicpresentation,youcanchoose tosuperimposetheinformationfromtheechosounder,andthen addmarkerlinestoseewhereyoursensorsarelocatedin relationtothebottomandfishechoes.Whenyouuseapelagic orbottomtrawl,thePI32offerscertainspecialfeaturesto provideadditionalinformation.

(A)=Numericdepthdisplay

(B)=Headropemarkerline

(C)=Footropemarkerline

(D)=Thevalueentered(calculated)fortheManualtrawl marker

Therecommended sensor configuration to monitor the trawl openingistouse one Heightor Depth sensor on the headrope, and one Depth sensor on the footrope. However, if you only use one of these sensors, place it on the headrope. The PI32 will then manually draw the trawl opening markers for you provided that you enter the typical height of the trawl opening.

The following parameters will provide the e-xtrain information related to trawl markers:

- Headrope and footrope sensors: You need to tell the PI32 whichDepthand/orHeightsensor(s)youhaveplacedonthefootropeand/orheadropeofthetrawl.

- Trawlopeningmode: This parameter decides how the trawl openings shall be created on the graphic presentation. If you have sufficient sensor on the trawl you must select Auto, and the PI32 will automatically calculate the trawl opening and draw it accordingly. If you only have one sensor on the trawl opening (Depthor Heights sensor on the headrope), the Manual setting will add an artificial line on the presentation. The distance from the headropeto the footropemust then be defined manually using the Manual trawl marker parameter.

Accesstotheparameters

1 Makesurethatagraphicpresentationisactive.

2 Press the ENT button to open the Graphic setup dialogue.

Setuptheparameters

1 Locate the setting Headrope sensor, and choose the sensor that you have placed on the headrope.

-IfyouhavenoDepthorHeightsensorsonthe headrope,leavethesettingtoNone.

2 Locate the setting Footrope sensor, and chose the sensor that you have placed on the footrope.

-IfyouhavenoDepthorHeightsensorsonthe footrope,leavethesettingtoNone.

3 Observe that the setting for Trawl opening mode is automatically settoAutoorManual.

-If you have sensors placed on both the footrope and the headrope, the PI32 will be able to calculate the trawl opening automatically, and them mode is set to Auto.

-If you have only onesensor, you will need to enter a manual trawl marker.

4If you have only onesensor, enter a value for Manual trawl marker.

-Thisvaluemustrepresenttheactualheightofyour trawlopening,basedonyourknowledgeaboutyour gear.TheinformationwillbeusedbythePI32todraw asecondtrawlmarkerline.

Related topics

→ Graphicsetup,page160

How to access echo sounder parameters

The built-inechosounderiseasilycontrolled from separate dialogues.

• The Echo presentation setup dialogue controls the visual parameters, such as Range, Gain, Whiteline and Expansion window.
• The Echosounder setup dialogue controls the operational parameters, such as alarms, sound velocity and transducer selection.

Howtofindthemostcommonparametersareexplainedin separateprocedures. The parametersaredescribedindetailin theReferenceschapter.

Echopresentationsetup

1 Makesurethastyouhaveanechosounderpresentationin view.

2 Press the ENT button to open the Presentation setup.

Echosoundersetup

1 Press the MENU button to open the main menu.

2SelectEcho

3 On the Echo menu, select Echo sounder setup.

Related topics

→ Echopresentationsetup,page154

→ Echosoundersetup,page157

How to use visual aids and filters

Whenyouusetheechosounder, severalvisualaidsandfilters areavailabletomaketheechoeseasiertoreadandinterpret.

Pingtopingfilter

Thisfunctionemploysafilterwhichcomparestheecho informationfromonepingwiththeinformationfromthe previousping.Thiswill“cleanup”theechogrambyremoving randomnoisespikesandinterferencewithnocorrelationwith thepreviousecho.Thefunctionwillthusmaketheechoes appearmorestable.Youcanswitchthisfilteronoroff.

1 Makesurethatyourechosounderpresentationisactive.

2 Press the ENT button to open setup dialogue.
3 Locate the Ping to ping filter parameter. Set it to ON.

Colourthreshold

Thisfunctionallowsyoutochoosethenumberofcolourstouse forechogrampresentation.Byswitchingthisfilteronand selectingacolourinthebox,allechocolours“below”the chosencolourwillnotbeshownintheechogram.Youcanthus regardthisasan“echothreshold”whichwillremovethe weakestechoes.

1 Makesurethatyourechosounderpresentationisactive.

2 Press the ENT button to open setup page
3 Locate the Colour threshold parameter. Set it to ON.
4Selectpreferredcolourinthebox.

Signalthreshold

Thisisanon/offfunction.Whenactivated,itwillremovethe weakestechoesfromthescreen.Thethresholdlevelis automatic.Activatewithcaution,asitmayremovesmallfishor otherweakunidentifiedechoesfromthepresentation.

1 Makesurethatyourechosounderpresentationisactive.

2 Press the ENT button to open setup page
3 Locate the Signal threshold parameter. Set it to ON.

Depthgrid

When this function is enabled, thin horisontal depthlines will be added to the echogram to easier identify the depth intervals.

1 Makesurethatyourechosounderpresentationisactive.

2 Press the ENT button to open setup page
3 Locate the Depth grid parameter. Set it to ON.

Scrollspeed

Thisfunctioncontrolshowfastthepresentationshallscroll fromrighttoleftacrossthedisplay.Bydefiningthisspeedyou alsocontrolthetimescale.Ifyouslowdownthescrollspeed, youwillalsoincreasethetimebetweeneachechosounder transmission(ping).IfyouchooseFREEZEthepresentation (andalsotheechosoundertransmissions)willstopaltogether.

1 Makesurethatyourechosounderpresentationisactive.

2 Press the ENT button to open setup page
3 Locate the Scroll speed parameter. Set it to your preferred value.

Whiteline

Whenenabled, abandinthecurrentechogrambackground colourisinsertedimmediatelybelowthedetectedbottomdepth.

1 Makesurethatyourechosounderpresentationisactive.

2 Press the ENT button to open setup page
3 Locate the White line parameter. Set it to ON.

Backgroundcolour

You can choose which background colourtouse on the echogram presentation.

1 Press the MENU button to open the main menu.
2SelecttheSetupmenu.

3SelectDisplaycolour.

4Observethefirstpalettepageappear.Itcontainsfixed colours,whichcannotbealtered.Pressthe+button repeatedlyuntilyoureachacustompage.

5 Locate the Echogram background, and make the required changes.
6 Press the ENT button to save the changes and exit the setuppage.

Related topics

→ Presentationsetup,page154
→ Displaycolour,page172

How to define echo sounder range

Therearetwoparametersforrange:

• Rangestart: This is the upper depth from which the echo sounder will provide its presentation.
• Range: This is the vertical depth range for the echo sounder.

The PI32 also offers a Phased range function, where the Range is fixed, but the Rangestartismodified.

Thetwoparametersinquestionarelocatedatthetopofthe parameterlist.

The Range and Range start parameters can be manually controlled from the Presentationsetupdialogue. The Range starts a fixed value. It is normally set to 0 meters, and if you wish to use an other value, you must defin this manually in the Presentationsetup dialogue.

Standardmode

1 Makesurethasty you have an echosounder presentation in view.

2 Press the ENT button to open the Presentation setup.
3 Locate the Range start and Range parameters.
4 Set Range start to 0 meters, and Range to a suitable valuedependingonthecurrentdepth(orselectAuto).
5 Press the ENT button to close the dialogue, save the new settings, and return to the echosounderview.

Whenyoureachtheupperandlowerrangelimits,theecho sounderwillautomaticallyshifttoAutorange.

Phasedrangemode

In this mode, the Range start is variable, and the Range is fixed.

1 Makesurethastyouhaveanechosounderpresentationin view.

2 Press the ENT button to open the Presentation setup.
3 Locate the Range start and Range parameters.
4 Set Range start to a suitable depth, and Range to a suitable valued depending on the current depth (or select Auto).
5 Press the ENT button to close the dialogue, save the new settings, and return to the echosounderview.

Youwillseethatdifferentrangesareused,butthevalueforthe Rangestartisalwaysadded.Forexample,ifyousettheRange startto30meters,andthenselectthe250metersrange,the totalrangeachievedisfrom30to280meters.Theupper30 metersarehowevernotshownintheechogram.

Related topics

→ Echopresentationsetup,page154

How to zoom in on bottom echoes

TheBottomExpansionfunctionsallowsyoutozoominonthe echoesclosesttothebottom.

Whenthisfunctionisactive,theechosounderpresentationis splitintwo.Theupperpartistheordinarypresentation,while thelowerpartshowstheechoesjustabovethebottom.The bottomappearstobeflat,butthismaynotbethecase,asthe zoomedareaisrelatedtothebottom.

ActivateBottom Expansion

1 Makesurethatyourechosounderpresentationisactive.

2 Press the MENU button to open the main menu.

3OpentheEchomenu.

4SelectBottomexpansion.

If your current window was not an echosounder, you haven now closed it, and replaced with an echosounder with bottom expansion. If you also have a second page with an echosounder enabled, you need to enable the expansion mode for these second pages separately.

Changetherangeintheexpansionwindow

1 Press the ENT button to open the Presentation setup.

2 Locate the Expansion window setting, and change to a newvalue.

3 Press the ENT button save the setting and return to the echosounderview.

De-activateBottom Expansion

1 Press the MENU button to open the main menu.

2OpentheEchomenu.

3SelectEchodisplay.

Related topics

→ Echopresentationsetup,page154

How to zoom in on pelagic echoes

The VRMExpansion functions allows youtozoominone echoes in the watercolumn.

When this function is active, the echosounderpresentation is split into two. The upper partist the ordinary presentation, while the lower part shows the expansion window with the echoes over and under are referenced depth.

ActivateVRMExpansion

1 Makesurethatyourechosounderpresentationisinview.

2 Press the MENU button to open the main menu.

3OpentheEchomenu.

4SelectVRMexpansion.

If your current window was not an echosounder, you haven now closed it, and replaced with an echosounder with VRM expansion. If you have an addition alechosounder page you will need to enable the expansion mode for that pages separately.

Changethereferencedepth

1 Press “up” and “down” on the Selector pad to change the referenced depth.

The depthyouselectwillbestoredbytheechosounder. The nexttimeyouactivatetheVRMexpansionmode, it will automaticallyusethisreferencevalue.

Changetherangeintheexpansionwindow

1 Press the ENT button to open the Presentation setup.

2 Locate the Expansion window setting, and change to a newvalue.

3 Press the ENT button save the setting and return to the echosounderview.

De-activateVRMExpansion

1 Press the MENU button to open the main menu.

2OpentheEchomenu.

3SelectEchodisplay.

Related topics

→ Echopresentationsetup,page154

How to enable A-Scope presentation

The A-Scope presentation provides the echo from the latest ping only. The strength of the returned signal from various depths in the watercolumn are indicated by the horizontal deflections from the Y-axis. This presentation is very useful if you wish to search for single fish, asthose echoes are hard to see on the regularechogram. Also, the presentation will give an indication on how strong the various echoes are.

ActivateA-Scope

1 Makesurethatyourechosounderpresentationisinview.
2 Press the MENU button to open the main menu.
3OpentheEchomenu.
4SelectTurnA-Scopeon.

De-activateA-Scope

1 Press the MENU button to open the main menu.
2OpentheEchomenu.
3SelectTurnA-Scopeoff.

How to define alarm limits

ThePI32willprovideavarietyofaudibleandvisiblealarmsto keepyoupostedwhensomethingoccur.

Observethefollowingprocedurestosetupanenablethemost commonalarms.Formoredetailedinformationaboutthesetup pages, refertotheReferenceschapter.

Speedalarm

Thespeedalarmprovidesyouwithanaudiblewarningifthe vessel'sspeedexceedsapredefinedspeedlimit,orifthespeed islowerthanapredefinedminimum.

1 Press the MENU button to access the main menu.
2 On the Setup menu, select Speed alarm, units & language.
3 Move the cursor down the the Speed alarm parameters.
4 Make the necessary changes, and set each alarm to ON.
5 Press the ENT key to store the parameters and exit.

Fishalarm

Thefishalarmprovidesyouwithanaudiblewarningiffish echoesaredetectedbytheechosounder. Youcanselectthe alarmsensitivity(howstrongtheechoesneedtobetotrigger thealarm), and youcanalsodefineaverticaldepthareatolimit themonitoredarea.

1 Press the MENU button to access the main menu.
2 On the Echo menu, select Echo sounder setup.
3 When the page is presented, press the ENT button again to allowediting.
4 Move the cursor down the the Alarm for fish parameter.

5Selectrequiredstrength,andsetthealarmtoON.

6Movethecursortothenextline, andselectaverticalarea forthealarmbyenteringminimumandmaximumdepths.

7 Press the ENT key to store the parameters and exit.

Depthalarm

The depthalarmprovides you with a audible warning if the waterdepth this shallower or deeper than predefined limits.

1 Press the MENU button to access the main menu.

2 On the Echo menu, select Echo sounder setup.
3 When the page is presented, press the ENT button again to allowediting.
4 Move the cursor down the the Depth DK alarm alarm parameters.(DKmeans“depthunderkeel”.)
5Selectrequiredminimumand/ormaximumdepths, andset thealarmstoON.
6 Press the ENT key to store the parameters and exit.

Sensoralarms

Thesensoralarmsprovideyouwithanaudibleandvisual warningifthedatafromasensoreexceedspredefinedlimits.

1 Press the MENU button to access the main menu.
2 On the Setup menu, select Sensor alarm/calibration.
3Selectminimumand/ormaximumlimitsfortheindividual sensors, and activateeachalarmseparately.
4 Press the ENT key to store the parameters and exit.

NotethattheCatch,RipandBottomContactsensorscanonly providealarmswhentheyareactivated,thatiswhentheir detectorwireshavebeenpulledtight.

Surfacetemperaturealarm

Thesurfacetemperaturealarmprovideyouwithanaudibleand visualwarningifthetemperatureexceedspredefinedlimits,or ifitchangestoofast.

1 Press the MENU button to access the main menu.
2 On the Setup menu, select Sensor alarm/calibration.
3Selectminimumand/ormaximumtemperaturelimitsfor thealarms, and activate each alarm separately.
4 Enter the appropriate value for the Shear alarm, and activatethealarm.
5 Press the ENT key to store the parameters and exit.

The Shearalarm will be triggered if the temperature changes faster per minute than the value you have entered.

Note: Inordertoenablethesealarms, your PI32 must have the relevant temperature feeler fitted!

Clearancealarms

The clearance alarm provide you with a audible and visual warning if at raw lor an other to object either movestoo closeto the bottom, or lift sto of far off the bottom.

1 Verify that the echosounder is operational.

2 Press the MENU button to access the main menu.
3 On the Setup menu, select Sensor alarm/calibration.
4Selectminimumand/ormaximumdistanceforthealarms, andactivateeachalarmseparately.
5 Press the ENT key to store the parameters and exit.

The clearance alarm will take the current depth reading from the echosounder and subtract the current depth reading from the Depthsensor. The calculated depth of the trawlortowed body is then compared to the alarm limits. Duethedistance between the vessel and the trawl, you will have a completimetomakethe necessary adjustment to avoid damage.

If your Depthsensorismounted to the headrope, you must create an manual depth marker. This is made in the Trawlinfo dialogue.

Related topics

→ Speedsetup,page180
→ Echosoundersetup,page157
→ Trawlinfodialogue,page182
→ Sensoralarmsetup,page177

How to select menu language

ThemenusonthePI32canbeprovidedinseveraldifferent languages.

Observethefollowingproceduretoselectmenulanguage. For more detailed information about these setuppages, refertothe Referenceschapter.

1 Press the MENU button to access the main menu.
2 On the Setup menu, select Speed alarm, units & language.
3 Move the cursor down the Display text in parameter.
4 Press the + or - buttons to select language.
5 Press the ENT button to store the parameter and exit.

Related topics

→ Pagesetup,page171

How to control automatic page rotation

YoucansetupthePI32toautomaticallyleafthroughthefour displaypages.Eachpagewillthenbeshownasettimebefore thenextpageisbroughtup.

Observethefollowingproceduretosetupautomaticpage rotation.Formoredetailedinformationaboutthesetuppages, refertotheReferenceschapter.

1 Press the MENU button to access the main menu.

2 On the Setup menu, select Speed alarm, units & language.

3MovethecursordowntheWINchangeinterval parameters.

4 Press the + or - buttons to select time interval.

5SelectAUTOifyowishtoactivatetheautomaticpage rotation.

6 Press the ENT button to store the parameter and exit.

Related topics

→ Pagesetup,page171

How to restore default settings

Whenever necessary you can restore the default factory settings on the PI32.

Observethefollowingprocedure.

1 Press the MENU button to access the main menu.

2 On the Setup menu, select Master reset.

3Presstheselectorpad“up”, thenpressit“down”.

4PresstheENTbutton.

Caution: If you choose todo a master reset, you will need to redefine every single parameter you have made on the PI32. This includes allechosoundersettings, sensor selections and setup, system interfaces and alarms.

Related topics

→ Factorypresetsetup,page159

PRACTICAL USE OF THE SENSORS

The PI32 Catch monitoring can operate with several different sensors. In the following, them most important information regarding installation and use of each sensor is described.

BothPIandPSsensorsaredescribed.ThePIsensorshave longer ranges, they can be “fast-charged” using the PI Charger, andtheywillprovidesomeadditionalfunctionality.Forall otherpracticalpurposesthetwotypesmayberegardedas identical.ThePI32systemwillautomaticallyadapttoandwork withbothtypes,andyoucanalsousePSandPIsensors together.

Topics

→ Sensorconfiguration,page84
→ PIBottomContact,page87
→ PSBottomContact,page91
→ PICatch,page95
→ PSCatch,page100
→ PIDepth,page104
→ PSDepth,page109
→ PIHeight,page114
→ PIRip,page118
→ PISpread&Remote,page123
→ PITemperature,page133
→ PSTemperature,page139

Related topics

→ Howtosetupthesensors,page48
→ Howtotestthesensors, page223

Sensor configuration

Communicationchannelsandupdaterates

Allsensorsareprovidedfromthefactorywithpre-defined communicationchannelsandupdaterates.

SensorCom.channelUpdate	erate
PIBottomContact6Normal
PICatch4Normal
PIDepth(300m)16Fast
PIDepth(600m)12Fast
PIDepth(1000m)10Fast
PIHeight14Fast
PISpread	2Fast
PI Twin Spread	2 and 7	Fast
PITemperature	8Fast
Factorydefaultcommunicationchannelsandupdaterates

Changingatransmissionchannel

It may be required to change one more or more transmission channels, and there may be many reasons for this.

- You have more than one of each sensor. For example, if you havethreetemperaturesensors, they MUST communicate on threedifferentchannels.

- OthervesselsnearyourusethesamePI32system(ora similar), and they have one or more of their sensors set up to the same communication channels as you have. This will create interference, as you will "read" each others sensors.

- Ifyoursensorsaresetuptousecommunicationchannelstoo closetoeachother(forexample,youhavechosenchannels 4,5and6),thiswilllimitthevessel'sspeed.Thereasonfor thisisthedopplereffect.Ifthespeedistoohigh,thedoppler willcausethetransmissionfrequenciestochangesomuch thattheyoverlap,andthiswillcreateinterference.ThePI32 willprovideawarningifthisisabouttohappen!Youmust theneitherchangetoothercommunicationchannelsfurther apart,orreducethemaximumshootingspeed.

- If you operate at the maximum range of the sensors, you may be able to increase this ranges slightly if you use lower communication channels. This because the lower communication channels user lower transmission frequencies.

Changingtheupdaterate

Itmayberequiredtochangetheupdaterateonasensor, that is how oftenitsendsinformationback to the PI32 system. A high updaterate will give frequent information updates, but the sensor will use more battery power. If you need your batteriesto last as long as possible, you must consider lowering the update rate.

• Alowupdaterate will provide you with fewer information updates, but the battery will last very long.
• Ahighupdateratewillgiveyoufrequentinformation updates,butthebatterywillrunoutfaster.

AllsensorsareprovidedfromSimradwithadefaultupdaterate setting.Insomecasesyoumayfindthatthisupdateratedoes notsuityouroperationalneeds.Thisisadecisionyouhaveto makedependingonthelocalfishingconditions.

Howtochangethesensorsetup

Tochangethesensorsetup,youcancallyourlocalSimrad dealer,oryoucandoityyourselfifyouhavetheproper equipment,trainingandthePIConfiguratorsoftware.

ThePIConfiguratorapplicationisprovidedtoenablelocal sensorconfiguration.Inordertoperformthisconfiguration,you willneedapersonalcomputer(desktoporlaptop)running Microsoft®Windows®2000orWindowsXP®,andaspecial cable.

SpecialconfigurationofPI Spread

The PI Spread sensor is always used with a PI Remote sensor, and these must be configured in a pair in order to make the transverse communication link work properly. In order to allow for additional spread application, you can set two predefined configurations: PI Spread 1 and/or PI Spread 2.

TheRemotesensorsareavailablepre-programmedforthese twopairs,andthesensorsareidentifiedasRemote1and

Remote2.

Thetwopairsmustbeconfiguredasfollows:

ConfigurationSpreadsensorRemotesensor
PISpread1PISpread(*)Remote1
PISpread2PISpread(*)Remote2
(*)=ThesamePISpreadsensorisusedforbothconfigurations.Bydefault,itisprogrammedforPISpread1. If you wish to use it for PI Spread 2, you must re-configure it using thePIConfiguratorapplication.

You can select the communication channels between the PI Spread sensors and the vessel to your preferences.

PI Bottom Contact sensor

Purpose

The PI Bottom Contact sensor detects if a trawl is accidentally liftedofftheseabed,orapurseseineistouchingthebottom.

Illustration of a fishing net with a yellow object and a rope, surrounded by fish (no text or symbols)

(A)=Thetrawlfollowsthebottom. Thedetectionwireonthesensorisnotreleased.
(B)=Thetrawlhasliftedoffthebottom,andthedetectionwireisreleased.

Mainparts

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink(Channel1-30)
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Detectionwire(in/out)
(G)=Groundweight

Dailyoperation

Onceinstalledandputtouse,thesensorwill automaticallybeswitchedononcethe waterswitchisactivated.Afteraninitialstartup, thesensorstartstransmissionofthedetectorwire (F)status(inorout).Whenthesensorisnotin use,checkthatthesensorlamp(D)isnotflashing fromtimetotime,asthisindicatiesthatthe sensorisonandisdischargingitsbatteries.In thiscase,washthesensorinfreshwaterto removesaltanddirt.

If you operate with Fastupdaterate, the sensor must be charged approximately every 35 hours. Used with Normal or Slow update rates, the operational life is approximately 60 or 250 hours respectively. The optimal sensor charging temperature is from +10 to +25°C.

(CD11013B)

Note: Chargingsensorsatsub-zerotemperaturescancreateexplosive gasses.SimradASassumesnoliabilityfortheimproper chargingofsensorsortheuseofchargersnotspecifiedin Simradsensorchargingdocumentation.

Bottom Contactpresentation

OnthePI32display,theBottomContactsensorstatusis displayedwithgraphicsymbols.Notethatthetimerscountthe totalnumberofminutesthesensorhaslostcontactwithbottom. Ifonlypredictedtimervaluesexist,thecharactersareshowning grey.Ifthesensorcommunicationislost,thegraphicsymbolis replacedbythecharacters***.*(ingrey).

(A)=Sensorsetupassensorno.2.
(B)=Sensorincontactwithbottom. Thetimerhasstopped.
(C)=Thetimercountshowmany minutesthesensorhasbeen "lifted off" thebottom.Itmustbereset manually.
(D)=Indicator, litforeverysensor interrogation.
(E)=Interferencesymbol.
(F)=Sensorsetupassensorno.3.
(G)=Sensorhaslostcontactwith bottom. Thetimerstarts.Anaudible alarmmaybeenabled.
(H)=Thetimershowshowmany minutesthenethas "liftedoff" duringatow.

Sensorconfiguration

Ondelivery, allBottomContactsensors are configured in Channel 6 and with Normal update rate.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection,updaterateetc), usethePIConfiguratorutility.

Thesensorupdateratecontrolshowoftenthesensormonitors whether the gearisonofoffthebottom. Threesettings are available. Notethatafasterupdaterate will decrease the battery life.

- Fast(\~3,2sec):Recommendedfornewtrawlorgear,or changesinriggingtomonitorinstabilitiesingroundgear bottomcontact.

• Normal(\~5,3sec):Recommendedfornormalfishing.
- Slow(\~33sec):Recommendedifmaximumoperational batterylifebeforechargingisrequired. Thesystemwillbe moresensitivetobadcommunicationconditionsduetothe slowdataupdate.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectupdaterateandchannelnumber accordingtothesensor's configuration.Writedownthis configurationforfuturereference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Catch/Bottomsensorfilter: Switchthisfilteroff.Setitto Light or Heavy only if you experience excessive noise.

Mounting

Location: Placethesensorwhereyou wishtomonitorbottomcontact. This isnormallyinthecenterofthenet. Seizetheattachmentring(A)forthe stayunderneaththenet, thenputtwo carabinehooksinsidethefootrope formingabridleof15to20cm securelyholdingthesensorinastable position.

Penetrationring: Placethe penetrationring(B) forthedetection wire approximately 30cm rear of the footrope. Before final seizing, mount the sensor to the carabine hooks and check that the detection wire(E) passestrough the center of the penetration ring(B). Remove anynet on the inside of the penetration ring.

Setup: Correctfunctionrequiresthatthelengthofthestay(F) andthedetectionchain(G)aretrimmedwithregardtoeach otherandthegearinuse.Standarddeliveryincludesa63cm stayand39cmdetectionchainforusewith14to16inch bobbinsorrockhoppers(C).

(A)=Attachmentstringforthe stayseizedsecurelyunderneath thefootrope
(B)=Penetrationringforthe detectionwire
(C)=Rockhopper,bobbinsetc.
(D)=Endlink
(E)=Detectionwire
(F)=Stay
(G)=Detectionchain
(H)=Weight\~5.5kg
(J)=Weightandstayhang freely.
(K)=Bottom
(L)=Angleapproximately25°

Adjustment: Laythesensoronanelevatedsurface. Adjust the lengthofthedetectionchain(G)asnecessary. Observedetection wire(E)movementwhilesimulatingbottomcontactbyraising theweight. Tilttheweightapproximately25°tocompensatefor dragforceswhentowedthroughthewater, andadjustthestay lengthtobetaut. Toavoiddamage,removetheweightbefore coilingthegearonthedrum.

Note: Thesensor'sdetectionwiremustalwaysbeallowedtopass freelythroughthecenterofthepenetrationringwhenitis deployed.Attachtherubberstrapssothatthesensorisheld horizontallyduringtowing.

Sacrificialwaterswitchsensor

Ifthewaterswitchonyoursensorisasacrificialbrassscrew, thisscrewmustbecheckedeverymonth. Wheneverrequired duetowearandtear,thescrewmustbereplaced.Refertothe Operationalproceduresintheoperatormanual.

PS Bottom Contact sensor

Purpose

The PS Bottom Contact sensor detects if a trawl is accidentally liftedofftheseabed,orapurseseineistouchingthebottom.

Illustration of a fishing net with a gold object and a rope, surrounded by fish (no text or symbols)

(A)=Thetrawlfollowsthebottom. Thedetectionwireonthesensorisnotreleased.
(B)=Thetrawlhasliftedoffthebottom,andthedetectionwireisreleased.

Mainparts

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink(Channel1-30)
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Detectionwire(in/out)
(G)=Groundweight

Dailyoperation

Onceinstalledandputtouse,thesensorwill automaticallybeswitchedononcethe waterswitchisactivated.Afteraninitialstartup, thesensorstartstransmissionofthedetectorwire (F)status(inorout).Whenthesensorisnotin use,checkthatthesensorlamp(D)isnotflashing fromtimetotime,asthisindicatiesthatthe sensorisonandisdischargingitsbatteries.In thiscase,wasthesensorinfreshwatertoremove saltanddirt.

If you operate with Fastupdaterate, the sensor must be charged approximately every 35 hours. Used with Normal or Slow update rates, the operational life is approximately 60 or 250 hours respectively. The optimal sensor charging temperature is from +10 to +25°C.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimradsensorchargingdocumentation.

Bottom Contactpresentation

OnthePI32display,theBottomContactsensorstatusis displayedwithgraphicsymbols.Notethatthetimerscountthe totalnumberofminutesthesensorhaslostcontactwithbottom. Ifonlypredictedtimervaluesexist,thecharactersareshowning grey.Ifthesensorcommunicationislost,thegraphicsymbolis replacedbythecharacters***.*(ingrey).

(A)=Sensorsetupassensorno.2.
(B)=Sensorincontactwithbottom. Thetimerhasstopped.
(C)=Thetimercountshowmany minutesthesensorhasbeen "lifted off" thebottom. It must be reset manually.
(D)=Indicator, litforeverysensor interrogation.
(E)=Interferencesymbol.
(F)=Sensorsetupassensorno.3.
(G)=Sensorhaslostcontactwith bottom. Thetimerstarts.Anaudible alarmmaybeenabled.
(H)=Thetimershowshowmany minutesthenethas "liftedoff" duringatow.

Sensorconfiguration

Ondelivery, allBottomContactsensors are configured in Channel 6 and with Normal update rate.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection,updaterateetc), usethePIConfiguratorutility.

Thesensorupdateratecontrolshowoftenthesensormonitors whether the gearisonofoffthebottom. Threesettings are available. Notethatafasterupdaterate will decrease the battery life.

Fast(\~3,2sec):Recommendedfornewtrawlorgear,or changesinriggingtomonitorinstabilitiesingroundgearbottom contact.

Normal(\~5,3sec):Recommendedfornormalfishing.

Slow(\~33sec):Recommendedifmaximumoperationalbattery lifebeforechargingisrequired. Thesystemwillbemore sensitivetobadcommunicationconditionsduetotheslowdata update.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectupdaterateandchannelnumber accordingtothesensor'sconfiguration.Writedownthis configurationforfuturereference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Catch/Bottomsensorfilter:Switchthisfilteroff.Setitto Light or Heavy only if you experience excessive noise.

Mounting

Location: Placethesensorwhereyou wishtomonitorbottomcontact. This isnormallyinthecenterofthenet. Seizetheattachmentring(A)forthe stayunderneaththenet, thenputtwo carabinehooksinsidethefootrope formingabridleof15to20cm securelyholdingthesensorinastable position.

Penetrationring: Placethe penetrationring(B) forthedetection wire approximately 30cm rear of the footrope. Before final seizing, mount the sensortothecarabine hooks and check that the detection wire(E) passestrough the center of the penetrationring(B). Remove anynet on the inside of the penetration ring.

Setup: Correct function requires that the length of the stay (F) and the detection chain (G) are trimmed with regard to each other and the gearin use. Standard delivery includes a 63 cm stay and 39 cm detection chain for use with 14 to 16 inch bobbinsorrockhoppers (C).

(A)=Attachmentstringforthe stayseizedsecurelyunderneath thefootrope
(B)=Penetrationringforthe detectionwire
(C)=Rockhopper,bobbinsetc.
(D)=Endlink
(E)=Detectionwire
(F)=Stay
(G)=Detectionchain
(H)=Weight\~5.5kg
(J)=Weightandstayhang freely.
(K)=Bottom
(L)=Angleapproximately25°

Adjustment: Laythesensoronanelevated surface. Adjust the length of the detection chain (G) as necessary. Observed detection wire (E) movement whilesimulating bottom contact by raising the weight. Tilt the weight approximately 25^ to compensate for drag forces when towed through the water, and adjust the stay length to beaut. To avoid damage, removal the weight before coiling the gear on the drum.

Note: Thesensor'sdetectionwiremustalwaysbeallowedtopass freelythroughthecenterofthepenetrationringwhenitis deployed.Attachtherubberstrapssothatthesensorisheld horizontallyduringtowing.

PI Catch sensor

Purpose

The PI Catch sensor detects when the trawl has been filled with fish. Thesensormonitorstheopeningofthemeshesinthecod end, and will be activated on cethevolumecaughtisenoughto pullthedetectorwires.

Illustration of a submarine being grounded near a ship's deck, with a yellow vehicle component above (no text or symbols)

Catchsensorprinciple:Threesensors are mounted at the codendofthetrawltodetectthe amountoffishcaught.

Mainparts

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Detectionwires

Dailyoperation

Tomonitorthefillingrate, were recommend that you use minimum twosensors. The first sensor is located at the forendof the cod-end indicating that the trawl is fishing, while these seconds sensor tells whentohaul. Dueto the fish moving back and forth in the cod-end, the sensor will normally changestatus (on/off) several times until the volumec aught keepsthe opening of themes hes stable.

Onceinstalledandputtouse,thesensorwillautomaticallybe switchedononcethewaterswitchisactivated.Afteraninitial startup,thesensorstartstransmissionofthedetectionwires(F) status(inorout).Whenthesensorisnotinuse,checkthatthe sensorlamp(D)isnotflashingfromtimetotime,asthis indicatiesthatthesensorisonandisdischargingitsbatteries. Inthiscase,washthesensorinfreshwatertoremovesaltand dirt.

If you operate with Fast update rate, the sensor must be charged approximately every 35 hours. Used with Normal or Slow updaterates, the operationallifeisapproximately 150 or 300 hours respectively. The optimal sensorcharging temperature is from +10 to +25°C.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimradsensorchargingdocumentation.

Presentation

OnthePI32display,theCatchsensorstatusisdisplayedwith graphicsymbols.Thetimerscountthetotalnumberofminutes thesensorhasbeenactivated(redrectangle).Ifonlypredicted timervaluesexist,thetimercharactersareshowningrey.Ifthe sensorcommunicationislost,thegraphicsymbolisreplacedby thecharacters***.*(ingrey).

(A)=Sensorsetupassensorno.2.
(B)=Sensorinstandby. Thetimer hasstopped.
(C)=Thetimercountshowmany minutesthesensorhasbeenactivated duringatow.Itmustbereset manually.
(D)=Indicator, litforeverysensor interrogation.
(E)=Interferencesymbol.
(F)=Sensorsetupassensorno.3.

(G)=Thesensorhasbeenactivated. Thetimerstarts. An audiblealarmmaybeenabled.

(H)=Thetimershowshowmanyminutesthesensorhasbeen activated.

Sensorconfiguration

Ondelivery, allCatchsensorsareconfigured in Channel4 and with Normal update rate. If you use more than one Catch sensor, makesurethatyousetthemuptooperate on different channels and with different sensor numbers!

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection,updaterateetc), usethePIConfiguratorutility.

TheCatchsensorcanbeconfigured(usingthePIConfigurator software)toactasaFA701catchsensor.Thiswillallowthe sensortobeusedwiththeSimradFStrawlsonar.The communicationchannelontheFSsonarmustbesetupto correspondtotheequivalentsensornumber(1,23or4).

Thesensorupdateratecontrolshowoftentheamountoffish caughtismeasuredandtransmittedtothevessel.Threesettings areavailable.Notethatafasterupdateratewilldecreasethe batterylife.

• Fast(\~5,3sec):Recommendedfortrawlinginareaswhere therateoffillingisveryhigh. Usethissettingtoavoid damagetothetrawlorexcessivecatches.
  • Normal(\~33sec):Recommendedfornormalfishing.
• Slow(\~125sec):Recommendedifmaximumoperational batterylifebeforechargingisrequired.Thesystemwillbemoresensitivetobadcommunicationconditionsduetotheslowdataupdate.

When the Catch sensor is configured as an FA701, it will have a constantupdaterateofapproximately80seconds. This rate mustnotbechanged.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectupdaterateandchannelnumber accordingtothesensor's configuration.Writedownthis configurationforfuturereference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Catch/Bottomsensorfilter: Switch this filter off. Set to Light or Heavy only if you experience excessive noise.

Mounting

Location: Attachthesensorontopofthecod-endwherethe catchistobemonitored. Asthecod-endfills, thenet'smeshes willopenpullingthedetectorwiresandthusactivating the sensor.

Sensorattachmenttoanetwithanapproximatemeshsizeof140mm. Thedistance between the anchor points for the attachment rings and rubber straps will vary according to mesh size and sensitivity required.

(A)=Snaphookandscrewlink
(B)=Steelattachmentringsbenttothenet
(C)=Nylonattachmentringsbenttothenet
(D)=Detectionwires
(E)=Rubberstrap
(F)=Attachmentpoint

Attachment: The Catchsensor's orientation toward the vessel is maintained by the steel and nylon attachment rings. The number of meshest attachment rings are supported between must be restricted to avoid unnecessary stress on the sensors fastening lugs when the cod-end is filled to maximum. The use of both nylon and steel attachment rings is required to secure the sensor lugs if excessive forces are applied on them. Then nylon rings will stretch or breakdown, but the steel ring will prevent the sensor from being lost. Not that two steel rings must be mounted on these sideside.

Sensitivity: ThesensitivityoftheCatchsensorisdeterminedby thenumberofmeshesseparatingtherubberstraps. Youcan simulatethisbystretchingthenet'smeshestoapproximatethe meshopeningestimatedtotriggerthesensor.Markthelocation (withcoloredthread)forfuturereferences.

Rubberstraps: Inspecttherubberstraps regularly and always before anewhaul. Replacethemifyoudetectvisiblesignsof cracksordamage.

Sacrificialwaterswitchsensor

Ifthewaterswitchonyoursensorisasacrificialbrassscrew, thisscrewmustbecheckedeverymonth. Wheneverrequired duetowearandtear,thescrewmustbereplaced.Refertothe Operationalproceduresintheoperatormanual.

PS Catch sensor

Purpose

The PSCatchsensordetectswhenthetrawlhasbeenfilled withfish. Thesensormonitorstheopeningofthemeshesinthe codend, and will beactivated oncethevolumecaughtisenough topullthedetectorwires.

Illustration of a submarine being deployed at sea, with a yellow device and blue cables visible (no text or symbols)

Catchsensorprinciple:Threesensors are mounted at the codendofthetrawltodetectthe amountoffishcaught.

Mainparts

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Detectionwires

Dailyoperation

Tomonitorthefillingrate, were recommend that you use minimum twosensors. The first sensor is located at the forendof the cod-end indicating that the trawl is fishing, while these seconds sensor tells whentohaul. Dueto the fish moving back and forth in the cod-end, the sensor will normally changestatus (on/off) several times until the volumec aught keepsthe opening of themes hes stable.

Onceinstalledandputtouse,thesensorwillautomaticallybe switchedononcethewaterswitchisactivated.Afteraninitial startup,thesensorstartstransmissionofthedetectorwire(F) status(inorout).Whenthesensorisnotinuse,checkthatthe sensorlamp(D)isnotflashingfromtimetotime,asthis indicatiesthatthesensorisonandisdischargingitsbatteries.In thiscase,washthesensorinfreshwatertoremovesaltanddirt.

If you operate with Fast update rate, the sensor must be charged approximately every 60 hours. Used with Normal or Slow updaterates, the operationalallifeisapproximately250or450 hoursrespectively. WhenthesensorisconfiguredasanFA701, the operationaltimeisapproximately250hours. The optimal sensorchargingtemperatureisfrom+10to+25°C.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimradsensorchargingdocumentation.

Catchpresentation

OnthePI32display,theCatchsensorstatusisdisplayedwith graphicsymbols.Thetimerscountthetotalnumberofminutes thesensorhasbeenactivated(redrectangle).Ifonlypredicted timervaluesexist,thetimercharactersareshowningrey.Ifthe sensorcommunicationislost,thegraphicsymbolisreplacedby thecharacters***.*(ingrey).

(A)=Sensorsetupassensorno.2.

(B)=Sensorinstandby. Thetimer hasstopped.

(C)=Thetimercountshowmany minutesthesensorhasbeenactivated duringatow.Itmustbereset manually.

(D)=Indicator, litforeverysensor interrogation.

(E)=Interferencesymbol.

(F)=Sensorsetupassensorno.3.

(G)=Thesensorhasbeenactivated. Thetimerstarts.Anaudiblealarm maybeenabled.

(H)=Thetimershowshowmany minutesthesensorhasbeen activated.

Sensorconfiguration

Ondelivery, allCatchsensors are configured in Channel4 and with Normalupdaterate. If you use more than one Catch sensor, makes sure that you set them up to operate on different channels and with different sensor numbers!

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection,updaterateetc), usethePIConfiguratorutility.

TheCatchsensorcanbeconfigured(usingthePIConfigurator software)toactasaFA701catchsensor.Thiswillallowthe sensorobeusedwiththeSimradFStrawlsonar.The communicationchannelontheFSsonarmustbesetupto correspondtotheequivalentsensornumber(1,2,3or4).

Thesensorupdateratecontrolshowoftentheamountoffish caughtismeasuredandtransmittedtothevessel.Threesettings areavailable.Notethatafasterupdateratewilldecreasethe batterylife.

• Fast(\~5,3sec):Recommendedfortrawlinginareaswhere therateoffillingisveryhigh. Usethissettingtoavoid damagetothetrawlorexcessivecatches.
  • Normal(\~33sec):Recommendedfornormalfishing.
• Slow(\~125sec):Recommendedifmaximumoperational batterylifebeforechargingisrequired.Thesystemwillbemoresensitivetobadcommunicationconditionsduetotheslowdataupdate.
• When the Catch sensor is configured as an FA701, it will have a constant updaterate of approximately 80 seconds. This ratemust not be changed.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectupdaterateandchannelnumber accordingtothesensor's configuration.Writedownthis configurationforfuturereference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Catch/Bottomsensorfilter: Switch this filter off. Set to Light or Heavy only if you experience excessive noise.

Mounting

Location: Attachthesensorontopofthecod-endwherethe catchistobemonitored. Asthecod-endfills, thenet'smeshes willopenpullingthedetectorwiresactivatingthesensor.

Sensorattachmenttoanetwithanapproximatemeshsizeof140mm. Thedistance between the anchorpoints for the attachment rings and rubber straps will vary according to mesh size and sensitivity required.

(A)=Carabinehookandscrewlink
(B)=Steelattachmentringsbenttothenet
(C)=Nylonattachmentringsbenttothenet
(D)=Detectionwires
(E)=Rubberstrap
(F)=Attachmentpoint

Attachment: The Catchsensor's orientation towards the vessel is maintained by the steel and nylon attachment rings. The number of meshest attachment rings are supported between must be restricted to avoid unnecessary stress on the sensors fastening lugs when the cod-end is filled to maximum. The use of both nylon and steel attachment rings is required to secure the sensor lugs if excessive forces are applied on them. Then nylon rings will stretch or breakdown, but the steel ring will prevent the sensor from being lost. Not that two steel rings must be mounted on these sideside.

Sensitivity: Thesensitivity of the Catchsensor is determined by thenumberofmeshesseparatingtherubberstraps. You can simulate this by stretching thenet's meshestoapproximate the meshopening estimated to trigger the sensor. Markthelocation (with colored thread) for further references.

Rubberstraps: Inspecttherubberstraps regularly and always before anewhaul. Replacethemifyoudetectvisiblesignsof cracksordamage.

PI Depth sensor

Purpose

The PIDepthsensormonitorsthecurrentdepthofthenet, as wellastherateofanydepthchanges. All measurements are relatedtothesurface.

(A)=TwoDepthsensorsaremountedtothegroundropeto monitorthedepth.

(B)=OneBottomContactsensorismountedtothegroundrope todetectifthenethitsthebottom.

Mainparts

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Pressuresensor(labelisremoved)

Dailyoperation

Onceinstalledandputtouse,thesensorwill automaticallybeswitchedononcethe waterswitchisactivated.Afteraninitialstartup, thesensorstartstransmissionofthecurrentdepth whenthisexceedsapredefineddepthyouhave selected.Whenthesensorisnotinuse,checkthat thesensorlamp(D)isnotflashingfromtimeto time,asthisindicatesthatthesensorisonandis dischargingitsbatteries.Inthiscase,washthe sensorinfreshwatertoremovesaltanddirt.

If you operate with Fastupdaterate, the sensormustbecharged approximately every 24 hours. Used with Normal or Slow updaterates, the operationallifeis approximately 75 or 150 hours respectively. The optimal sensorcharging temperature is from +10 to +25°C.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimrad'ssensorchargingdocumentation.

Numericalpresentation

OnthePI32display, thedepthisdisplayedinthenumeric display. Thedescendingorascendingrateisshowninunitsper minutesupported by an arrow indicating the direction. In order to monitor changes of depth as a function of time, the depth will also be displayed in the graphic display showing both the numeric value and corresponding marker line for each sensor. Whenthereadings are stable, the digits are shown in black colour. Whenthe values are predicted, the digits are grey, and if the contact is lost, the characters*. **areshowning grey.

(A)=Sensorsetupassensorno.1.

(B)=Currentdepth.

(C)=Currentrateofdepthchange. Thearrowindicates that the depth this ascending.

(D)=Indicator, litforeverysensor interrogation.

(E)=Graphicalarm

(F)=Sensorsetupassensorno.2.

(G)=Interferencesymbol.

(H)=Currentrateofdepthchange. Thearrowindicates that the depth this descending.

Sensorconfiguration

Ondelivery, alldepthsensors are configured in Channel16 (300 m), Channel 12 (600 m) or Channel 10 (1000 m) and with Fastupdaterate. If you use more than one sensor, you must set them up to operate indifferent channels.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection), usethe PI Configuratorutility.

Thesensorupdateratecontrolshowoftenthesensorreadsand reportsthecurrentdepth.Threesettingsareavailable.Notethat afasterupdateratewilldecreasethebatterylife.

• Fast(\~4,5sec):Recommendedforpurseseineortrawl, allows immediate update of critical depth information, and help to avoid damage to the purseseine or trawl.
• Normal(\~14sec):Recommendedfortrawlandnormal fishing.
• Slow(\~34sec):Recommendedifmaximumoperational batterylifebeforechargingisrequired.Thesystemwillbemoresensitivetobadcommunicationconditionsduetotheslowdataupdate.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberaccordingtothe sensor's configuration.Writedowntheconfigurationforfuture reference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessivenoise. Position Off will provideraw data and fastest possibleresponse.

Mounting

Purseseine: Inordertosecurestablecommunicationwiththe vessel'shydrophone, it is very important that the sensoris allowed to hang freely with the endpoint pointing towards the surfaced uringshooting and pursuing.

Attachthesensortoastandardpurse ringwithtwoseparatewires(A). Mountoneendofeachwiretoa commonsnaphook(B),andplace anothersnaphookattheotherendof eachwiretosnapontothesensor.

Mountasafetyline(C)between the sensorandtheadjacentbridle/purse ring. Makesurethatsecuritylinedoes notpreventthesensorfromhanging freely!

Removethesensorfromthepurse seinebeforeitpassesthroughthe powerblock.

Anyattachmentmaterial "permanently"attachedtothe sensor'scharginglugsmustnotform anelectricalconnectionbetweenthe twocharginglugsshortingthe chargingcurrent.

(A)=Twowireswithasnaphookin oneendandtheotherendattached permanentlyto(B).

(B)=Largesnaphook.

(C)=Safetywirewithsnaphookson eachend. Notethattheupperendis NOTattachedtothepurseseinewire.

Tunapurse: Thesensormustnotbe attachedtothefootropewire, butto thefoot-ropechain. Useasafetywire inadditionincasethesensorisripped offthenet.

TrawlorDanishseine: The depth sensoris normally attached to the headrope (A). For secure fastening and stable positioning of the sensor pointing toward the vessel, make a finemeshbag (B) located at the centre of the headrope. Sizetwosnap hooks (C) approximately 10-15cm from the headrope forming abridle, and keep the sensor stretched by means soft worubber straps (D) attached to the aft fastening lugs.

Sacrificialwaterswitchsensor

Ifthewaterswitchonyoursensorisasacrificialbrassscrew, thisscrewmustbecheckedeverymonth. Wheneverrequired duetowearandtear,thescrewmustbereplaced. Refertothe Operationalproceduresintheoperatormanual.

PS Depth sensor

Purpose

The PS Depth sensor monitors the current depth of the net, as wellastherateofanydepthchanges. All measurements are related to the surface.

(A)=TwoDepthsensorsaremountedtothegroundropeto monitorthedepth.

(B)=OneBottomContactsensorismountedtothegroundrope todetectifthenethitsthebottom.

Mainparts

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Pressuresensor(labelisremoved)

Dailyoperation

Onceinstalledandputtouse,thesensorwill automaticallybeswitchedononcethe waterswitchisactivated.Afteraninitialstartup, thesensorstartstransmissionofthecurrentdepth whenthisexceedsapredefineddepthyouhave selected.Whenthesensorisnotinuse,checkthat thesensorlamp(D)isnotflashingfromtimeto time,asthisindicatesthatthesensorisonandis dischargingitsbatteries.Inthiscase,washthe sensorinfreshwatertoremovesaltanddirt.

YoucanonlyoperatethissensorwithFastupdaterate,the sensormustthenbechargedapproximatelyevery35hours.The optimalsensorchargingtemperatureisfrom+10to+25°C.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimrad'ssensorchargingdocumentation.

Numericalpresentation

OnthePI32display, thedepthisdisplayedinthenumeric display. Thedescendingorascendingrateisshowninunitsper minutesupported by an arrow indicating the direction. In order to monitor changes of depth as a function of time, the depth will also be displayed in the graphic display showing both the numeric value and corresponding marker line for each sensor. Whenthereadings are stable, the digits are shown in black colour. Whenthe values are predicted, the digits are grey, and if the contact is lost, the characters*. **areshowning grey.

(A)=Sensorsetupassensorno.1.

(B)=Currentdepth.

(C)=Currentrateofdepthchange. Thearrowindicates that the depth this ascending.

(D)=Indicator, litforeverysensor interrogation.

(E)=Graphicalarm

(F)=Sensorsetupassensorno.2.

(G)=Interferencesymbol.

(H)=Currentrateofdepthchange. Thearrowindicatesthatthedepthis descending.

Sensorconfiguration

Ondelivery, alldepthsensors are configured in Channel16 (300 m), Channel 12 (600 m) or Channel 10 (1000 m) and with Fastupdaterate. It is not possible to change the updaterate setting. If you use more than one sensor, you must set them up to operate indifferent channels.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection), usethe PI Configuratorutility.

Thesensorupdateratecontrolshowoftenthedepthis measured, and the datatransmitted to the vessel. Tobeable to monitor critical depth information and avoid damage to the pursese in the trawl, the depths sensor will only operate on Fastupdaterate.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberaccordingtothe sensor's configuration.Writedowntheconfigurationforfuture reference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessivenoise.PositionOffwillprovideraw data and fastest possibleresponse.

Mounting

Purseseine: Inordertosecurestablecommunicationwiththe vessel'shydrophone, it is very important that the sensoris allowed to hang freely with the endpoint pointing towards the surfaced uringshooting and pursuing.

Attachthesensortoastandardpurse ringwithtwoseparatewires(A). Mountoneendofeachwiretoa commonsnaphook(B),andplace anothersnaphookattheotherendof eachwiretosnapontothesensor.

Mountasafetyline(C)between the sensorandtheadjacentbridle/purse ring. Makesurethatsecuritylinedoes notpreventthesensorfromhanging freely!

Removethesensorfromthepurse seinebeforeitpassesthroughthe powerblock.

Anyattachmentmaterial "permanently"attachedtothe sensor'scharginglugsmustnotform anelectricalconnectionbetweenthe twocharginglugsshortingthe chargingcurrent.

(A)=Twowireswithasnaphookin oneendandtheotherendattached permanentlyto(B).

(B)=Largesnaphook.

(C)=Safetywirewithsnaphookson eachend. Notethattheupperendis NOTattachedtothepurseseinewire.

Tunapurse: Thesensormustnotbe attachedtothefootropewire, butto thefoot-ropechain. Useasafetywire inadditionincasethesensorisripped offthenet.

TrawlorDanishseine: The depth sensoris normally attached to the headrope (A). For secure fastening and stable positioning of the sensor pointing toward the vessel, make a finemeshbag (B) located at the centre of the headrope. Sizetwosnap hooks (C) approximately 10-15 cm from the headrope forming abridle, and keep the sensor stretched by means soft worubber straps (D) attached to the aft fastening glugs.

PI Height sensor

Purpose

The PI Height sensor monitors the current height of the trawl, as well as therate of any height changes. All measurements are related to the bottom.

(A)=ThePIHeightsensorisnormally mountedontheheadrope, andbymeansof thebuilt-inechosounderitwillmeasurethe distancetothebottom.
(B)=Echosoundertransmissionfield

Mainparts

(A)=Negativechargingandfasteninglug
(B)=Positivechargingandfasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Echosoundertransducer-mustbe directedtowardstheseabed!

Dailyoperation

Onceinstalledandputtouse,theHeightsensorwill automaticallybeswitchedononcethewaterswitchisactivated. Afteraninitialstartup,thesensorstartstheechosounder,and thedepthresultsaretransmittedtothevessel.Whenthesensors arenotinuse,checkthatthesensorlamp(D)donotflashfrom timetotime,asthisindicatesthatthesensorisonandis dischargingitsbatteries.Inthiscase,washthesensorinfresh watertoremovesaltanddirt.

If you operate with Fastupdaterate, the sensors must be charged approximately every 35 hours. Used with Normalor Slowupdaterates, the operational life is approximately 60 or 250 hours respectively. The optimal sensor charging temperature is from +10 to +25°C. Thesensor can only be charged with the PIC charger.

Note: Chargingsensorsatsub-zerotemperaturescancreateexplosive gasses.SimradASassumesnoliabilityfortheimproper chargingofsensorsortheuseofchargersnotspecifiedin Simrad'ssensorchargingdocumentation.

Numericalpresentation

OnthePI32display,thedistancetothebottomisdisplayedin thenumericdisplay.Iftheheightisincreasingordecreasing, thisisshownwithtwoarrowsandthevariationinmetersper second.Whenthereadingsarestable,thedigitsareshownin blackcolour.Whenthevaluesarepredicted,thedigitsaregrey, andifthecontactislost,thecharacters*.* *areshowningrey.

(A)=Sensorsetupassensorno.1.
(B)=Heightmeasuredinmeters.
(C)=Currentdistancefromthe sensortothebottom.
(D)=Thedistanceisdecreasingby1 meterspersecond.

(E)=Arrowspointing "out" meansthattheheightis increasing.Arrowspointing "in" meansthattheheightis decreasing.

(F)=Graphicalarm
(G)=Indicator,litforeverysensorinterrogation.
(H)=Interferencesymbol.

Sensorconfiguration

Ondelivery, allHeightsensorsareconfiguredinChannel14 andwithFastupdaterate.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection), use the PI Configurator utility.

Thesensorupdateratecontrolshowoftenthesensorreadsand reportstheheight.Threesettingsareavailable.Notethatafaster updateratewilldecreasethebatterylife.

• Fast(\~5,5sec):Recommendedfornewtrawlorchangesin riggingtomonitoranyinstabilitiesorunexpectedchanges. Thismodeprovidestheshortestbatterylifebeforecharging.
• Normal(\~14sec):Recommendedforwellknowntrawl behaviorwithstablesituations. Usethissettingduring normalconditions.
• Slow (\~34 sec): Recommended to monitoring a stable situationovertime. Thesystemwillbemoresensitivetobad communicationconditionsduetotheslowdataupdate. This modeprovideslongestoperationalbatterylifebefore charging.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberandupdaterate accordingtothesensor's configuration.Writedownthe configurationforfuturereference.

Status & Receiver: The Interference filter must be switched on. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessive noise. Position Off will provide raw data and fastest possibler response.

Mounting

Location: Placethesensorwhereyouwishtomonitorthe height. Thisisnormallyaftoftheheadropeathecenterofthe net.

Ensure that you mount the sensor with there converseside (D) and the echosounder transducer (E) pointing toward the bottom! The SIMRAD print on the sensor (C) must point uptoward the watersurface!

Mounting: Securethetwoforward fasteninglugs(A)usingtwosnap hooksandrope. Then, securethetwo aftfasteninglugs(B)usingsnap hooksandstrongrubberbands. This mountingplacesthesensorinacradle supportedonallfoursides.

Inordertosecurethesensorinplace, werecommendthatyouassemblea bagoffine-meshednet,andtiesthis tothetrawlclosetothemiddleofthe headrope.Then,mountthesensor insidethisbag.Thesensormustbe properlysecuredtopreventitfrom movingsidewaysorrotateduringuse.

(A)=Ropeandsnaphooks

(B)=Rubberbandsandsnaphooks

(C)=SIMRADimprintonthesensor mustpointup!

(D)=Reversesideofsensor

(E)=Echosoundertransducermust pointtowardsthebottom!

Sacrificialwaterswitchsensor

Ifthewaterswitchonyoursensorisasacrificialbrassscrew, thisscrewmustbecheckedeverymonth. Wheneverrequired duetowearandtear,thescrewmustbereplaced.Refertothe Operationalproceduresintheoperatormanual.

PI Rip sensor

Purpose

The PI Rip sensor is identical to the PI Catch, and it must be regarded as a second application for the Catch sensor. The PI Ripsensor will monitor if your net is damaged and ripped apart due to obstructions or foreign objects on these abed.

(A)=ThePIRipismountedonthefootropewith thetwosensorwiresstretchedoutandthewires engaged.
(B)=Twostrongrubberbandsensurethatthe sensorisactivated. If thenetistorn, theslackin thenetwilldisengagetheRipsensor.

Mainparts

(A)=Negativechargingandfasteninglug
(B)=Positivechargingandfasteninglug
(C)=Communicationlinktothevessel
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Detectionwires

Dailyoperation

Inmostcases, oneortwoRipsensorsmounted onthefootropewillbesufficienttomonitorthe conditionofthenet.

Once installed and puttouse, the sensor will automatically be switched on on the waters switch is activated. After an initial startup, the sensor will detect the status of the detection wires, and transmit this information to the vessel. When the sensor is not in use, check that the sensor lamps (D) donot flash from timetotime, asthis indicate that the sensor is on and discharging its batteries. In this case, wash the sensor in fresh watertore moves salt and dirt.

If you operate with Fastupdaterate, the sensors must be charged approximately every 35 hours. Used with Normalor Slowupdaterates, the operational life is approximately 150 or 300 hours respectively. The optimal sensor charging temperature is from +10 to +25°C.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimrad'ssensorchargingdocumentation.

Numericpresentation

OnthePI32display,theRipsensorstatusisdisplayedwith graphicsymbols.Thetimerscountthetotalnumberofminutes thesensorhasbeenactivated(redrectangle).Ifonlypredicted timervaluesexist,thetimercharactersareshowningrey.Ifthe sensorcommunicationislost,thegraphicsymbolisreplacedby thecharacters***.*(ingrey).

(A)=Sensorsetupassensorno.3.

(B)=Ayellowrectangleindicates that the sensor has deactivated, and that the has been damaged. The timer has stopped.

(C)=Thetimercountshowmany minutesthesensorhasbeenactivated withaserviceablenetduringatow.It mustberesetmanually.

(D)=Indicator, litforeverysensor interrogation.

(E)=Interferencesymbol.

(F)=Aredrectangleindicatesthatthesensorisactivated. This isthenormalposition, anditmeansthatthenetisserviceable. Thetimerisrunning.

(G)=Timer

Sensorconfiguration

Ondelivery, allRipsensorsareconfiguredinChannel4and withNormalupdaterate. If you wishtouse Rip and Catch sensorssimultaneously, one of them must be set to different communication channel.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection), usethe PI Configuratorutility.

Thesensorupdateratecontrolshowoftenthesensorreadsand reportstheconditionofthenet.Threesettingsareavailable. Notethatafasterupdateratewilldecreasethebatterylife.

• Fast(\~5,3sec):Recommendedifyoususpectthatthebottom conditionsareroughandunpredicable,andthatdamagemay beeasilyinflicted.Thismodeprovidestheshortestbattery lifebeforecharging.
• Normal(\~33sec):Recommendedfornormalbottom conditions.
• Slow(\~125sec):Recommendedifthebottomconditionsare wellknown, and you know that no obstruction sexist. This mode provides longest operational battery life before charging.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberandupdaterate accordingtothesensor's configuration.Writedownthe configurationforfuturereference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencechesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessive noise. Position Off will provide raw data and fastest possibler response.

Mounting

Location: Placethesensorwhereyouwishtocheckthenet condition. Thisisnormallyclosetothefootropeatthecenterof thenet. If thenetistorn, theslack will release one or both of the sensor's detectionwires.

Ripsensorattachmenttothenet, locationjustaftofthefootrope. Thedistancebetween theanchorpointsfortheattachmentringsandrubberstrapsmustbedefineddepending onthesizeofthenetandhowlargeareayouwishtomonitor.

(A)=Snaphookandscrewlink
(B)=Steelattachmentringsbenttothenet
(C)=Nylonattachmentringsbenttothenet
(D)=Detectionwires
(E)=Rubberstrap
(F)=Attachmentpoint

Attachment: Thesensor's orientation toward the vessel is maintained by the steel and nylon attachment rings. Then number of meshest attachment rings are supported between must be restricted to avoid unnecessary stress on the sensors fastening lugs. The use of both nylon and steel attachment rings is required to secure the sensor lugs if excessive forces are applied on them. Then nylon rings will stretch or breakdown, but the steel ring will prevent the sensor from being lost. Not that two steel rings must be mounted on the same side of the sensor.

Rubberstraps: Thetworubberbands(E) must best stretched towards aft, and mounted tothemeshesinsuchaway that the detection wires are engaged during normal operations. The angle between the worubber band should be approximately 70 degrees. Inspecttherubber straps regularly and always before a newhaul. Replacethemify you detect visible sign so for cracks or damage.

Sacrificialwaterswitchsensor

Ifthewaterswitchonyoursensorisasacrificialbrassscrew, thisscrewmustbecheckedeverymonth. Wheneverrequired duetowearandtear,thescrewmustbereplaced. Refertothe Operationalproceduresintheoperatormanual.

PI Spread and Remote sensors

Purpose

The PI Spread and Remote sensors measure the physical distancebetweenthetrawldoors.

Note: EachSpreadsensorcanbeconfiguredtocommunicatewithone

oftworemotesensors; Remote1 or Remote2. LabeltheSpread sensoraccordingly, andensurethatyouonlyusethesensors in thecorrectpairs.

(S)=ThePISpreadsensorismountedina specialadapterontheporttrawldoor.
(R)=ThePIRemotesensorismountedina specialadapteronthestarboardtrawldoor.
(C)=ThePISpreadsensorcommunicateswith thePIsystemonthevessel.
(F)=Usingthetransversecommunicationlink, thetwosensorsmeasurethephysicaldistance betweenthetrawldoors.

Mainparts

(A)=Negativechargingandfasteninglug
(B)=Positivechargingandfasteninglug
(C)=Communicationlinktothevessel
(D)=Locationofsensorlamp(rearsideofPI Spread)
(E)=Waterswitchsensor
(F)=Transversecommunicationlink

Dailyoperation

Once installed and puttouse, the Spreadsensor will automatically beswitched on on cethewaters switch is activated. After an initial startup, the sensor starts interrogating the Remotesensortomeasurethed distance. There results are transmitted to the vessel. Whenthesensors are not in use, check that the sensor lamps (D) donot flash from timetotime, asthis indicate that the sensor is on and discharging its batteries.

If you operate with Fastupdaterate, the sensors must be charged approximately every 45 hours. Used with Normalor Slow update rates, the operational life is approximately 100 or 150 hours respectively. The optimal sensor charging temperature is from +10 to +25°C.

Note: Thetworubberinsertsprovidedatthebottomofeachsensor adaptermustnotbereplacedwithanyothertypesordesigns.It isessentialthattheseinsertsprovideasecurecradleforthe sensors,buttheymustalsoallowforfreewatercirculationto allowthesensor'swaterswitchtoengage.Also,thedesignof theinsertsallowssandandmudtoflowoutwhenthetrawl doorsarepulledupfromthewater.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimrad'ssensorchargingdocumentation.

Numericalpresentation

OnthePI32display,thedistancebetweenthetrawldoorsis displayedinthenumericdisplay.Ifthedistanceisincreasingor decreasing,thisisshownwithtwoarrowsandthevariationin meterspersecond.Whenthereadingsarestable,thedigitsare showninblackcolour.Whenthevaluesarepredicted,thedigits aregrey,andifthecontactislost,thecharacters*.***are showingrey.Ifthetransverecommunicationlinkfails,thisis indicatedwiththecharacters±±±.

(A)=Sensorsetupassensorno.3. Thedistanceismeasuredinmeters.

(B)=Currentdistancebetweenthe trawldoors.

(C)=Thedistanceisincreasingby 18meterspersecond.

(D)=Arrowspointing "out" meansthatthedistance is increasing. Arrowspointing "in" meansthatitisdecreasing.

(E)=Graphicalarm

(F)=Indicator,litforeverysensorinterrogation.

(G)=Interferencesymbol.

Sensorconfiguration

Ondelivery, allSpreadsensorsareconfiguredinChannel2, with Fast update rate, and for use with Remote 1.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection), usethePI Configuratorutility.

Thesensorupdateratecontrolshowoftenthesensorreadsand reportsthedoorspread.Threesettingsareavailable.Notethata fasterupdateratewilldecreasethebatterylife.

• Fast(\~5,5sec):Recommendedfornewtrawlorgearor changesinriggingtomonitoranyinstabilitiesorunexpected changes.Thismodeprovidestheshortestbatterylifebefore charging.
• Normal(\~14sec):Recommendedforwellknowntrawl,gear anddoorbehaviorwithstablesituations. Usethissetting duringnormalconditions.

- Slow(\~34sec):Recommendedtomonitoringastable situationovertime, focusondoornotfallingover, broken sweeplinesetc.duringthetow. Thesystemwillbemore sensitivetobadcommunicationconditionsduetoslowdata update. Thismodeprovideslongestoperationalbatterylife beforecharging.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberandupdaterate accordingtothesensor's configuration.Writedownthe configurationforfuturereference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessivenoise.PositionOffwillprovideraw data and fastest possibleresponse.

Mounting

TheSpreadandRemotesensorsmustbemountedinspecial adaptersoneachtrawldoor.Theseadaptersmustbeinstalled aforehand.Detailedinformationonhowtoinstalltheadapters areprovidedwiththeinstallationkit.

Installationprinciple

ThePISpreadsensorismountedontheportdoor,whilethePI Remotesensorismountedonthestarboarddoor.Itisessential thatthereisaclearlineofsightbetweenthewotransverse communication“eyes”(oneoneachsensor),andbetweenthe topofthePISpreadsensorandthehydrophoneonthevessel.

Topview:

(A)=Starboarddoor
(B)=Portdoor
(C)=Communicationlinktovessel's hydrophone
(D)=Angleofattack
(E)=Directionoftow
(F)=Transversecommunicationlink
(R)=PIRemotesensorinitsadapter
(S)=PISpreadsensorinitsadapter

Sacrificialwaterswitch sensor

Ifthewaterswitchonyoursensorisa sacrificialbrassscrew, thisscrew mustbecheckedeverymonth.

Wheneverrequiredduetowearand tear,thescrewmustbereplaced.

RefertotheOperationalprocedures intheoperatormanual.

PI Twin Spread

Purpose

The PI Twin Spread is used with two Remote sensors to measure the physical distance between the trawldoors during twintrawloperations.

(A)=ThePITwinSpreadsensorcommunicateswiththePIsystemonthevessel.
(B)=ThePITwinSpreadsensorismountedontheporttrawldoor.
(C)=OnePIRemotesensorismountedonthecenterclump.
(D)=OnePIRemotesensorismountedonthestarboardtrawldoor.

Mainparts

(A)=Negativechargingandfasteninglug
(B)=Positivechargingandfasteninglug
(C)=Communicationlinktothevessel
(D)=Locationofsensorlamp(rearsideofPI TwinSpread)
(E)=Waterswitchsensor
(F)=Transversecommunicationlinkstothetwo Remotesensors

Dailyoperation

Onceinstalledandputtouse,theTwinSpreadsensorwill automaticallybeswitchedononcethewaterswitchisactivated. Afteraninitialstartup,thesensorstartsinterrogatingthe Remotesensorstomeasurethetwodistances.Theresultsare transmittedtothevessel.Whenthesensorsarenotinuse,check thatthesensorlamps(D)donotflashfromtimetotime,asthis indicatethatthesensorisonandisdischargingitsbatteries.In thiscase,washthesensorinfreshwatertoremovesaltanddirt.

If you operate with Fastupdaterate, the sensors must be charged approximately every 24 hours. Used with Normalor Slowupdaterates, the operation all life is approximately 48 or 70 hours respectively. For the Remotesensors, the batteries will last approximately 50, 100 and 150 hours respectively. The optimalsensor charging temperature is from +10 to +25°C.

Note: Thetworubberinsertsprovidedatthebottomofeachsensor adaptermustnotbereplacedwithanyothertypesordesigns.It isessentialthattheseinsertsprovideasecurecradleforthe sensors,buttheymustalsoallowforfreewatercirculationto allowthesensor'swaterswitchtoengage.Also,thedesignof theinsertsallowssandandmudtoflowoutwhenthetrawl doorsarepulledupfromthewater.

Note: Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnot specifiedinSimrad'ssensorchargingdocumentation.

Numericalpresentation

OnthePI32display,thedistancesbetweenthetrawldoorsare displayedinthenumericdisplay.Tworectanglesareused,one foreachdistance.Ifthedistanceisincreasingordecreasing,this isshownwithtwoarrowsandthevariationinmetersper second.

When thereadingsarestable, the digits are shown in black colour. Whenthe values are predicted, the digits are grey, and if the contact is lost, the characters **.* a r e s h o w n i n g r e y . The characters ± ±. indicate that the Twin Spread sensor has lost contact with the Remotesensor(s), while characters??. means that the Remotesensors are out of range.

(A)=TwinSpreadsensorsetupas sensorno.1.

(B)=Thedistanceaaremeasuredin meters.

(C)=Currentdistancebetweenthe portdoorandthecenterclump.

(D)=Thedistanceisincreasingby1 meterspersecond.

(E)=Arrowspointing "out" means that the distance is increasing. Arrowspointing "in" mean that it is decreasing.

(F)=Graphicalarm

(G)=Indicator, litforeverysensor interrogation.

(H)=Interferencesymbol.

Thebottomnumericdisplayshowsthedistancefromtheport doortothestarboarddoor,andindicatesthatthedistanceis decreasingwith0.5meterspersecond.

Sensorconfiguration

YoucanoperatetwosetsofTwinSpreadsensors,thesesetsare identified as Twin Spread 1 and Twin Spread 2.

Twin Spread 1 uses two Remote sensors: Remote 1 and 2.

Twin Spread 2 uses two Remote sensors: Remote 2 and 4.

Ondelivery, all TwinSpread sensors are configured as Twin Spread 1 in Channels 2 and 5, with Fast update rate, and for use with Remote sensors 1 and 3. The four Remote sensors can be ordered pre-programmed from Simrad, but if you wish to use a TwinSpread2 set-up you must re-configure a TwinSpread1 sensor using the PI Configurator utility.

Note: The TwinSpreadsensor and the PI32 system setup must also correspond, otherwise communication will not work.

Thesensorupdateratecontrolshowoftenthesensorreadsand reportsthedoorspread.Threesettingsareavailable.Notethata fasterupdateratewilldecreasethebatterylife.

• Fast(\~5,5sec):Recommendedfornewtrawlorgearor changesinriggingtomonitoranyinstabilitiesorunexpected changes.Thismodeprovidestheshortestbatterylifebefore charging.
• Normal(\~14sec):Recommendedforwellknowntrawl,gear anddoorbehaviorwithstablesituations. Usethissetting duringnormalconditions.
• Slow(\~34sec):Recommendedtomonitoringastable situationovertime, focusondoornotfallingover, broken sweeplinesetc.duringthetow. ThePI32systemwillbe moresensitivetobadcommunicationconditionsduetoslow dataupdate. Thismodeprovideslongestoperationalbattery lifebeforecharging.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberandupdaterate accordingtothesensor's configuration.Writedownthe configurationforfuturereference.

Status & Receiver: The Interference filter must be switched on. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessivenoise.PositionOffwillprovideraw data and fastest possibleresponse.

Mounting

TheSpreadandRemotesensorsmustbemountedinspecial adaptersoneachtrawldoorandonthecentreclump. These adaptersmustbeinstalledaforehand. Detailedinformationon howtoinstalltheadaptersareprovidedwiththeinstallationkit.

Installationprinciple

ThePITwinSpreadsensorismountedontheportdoor.OnePI Remotesensorismountedonthecenterclump,whiletheother Remotesensorismountedonthestarboarddoor.Itisessential thatthereisaclearlineofsightbetweenthetransverse communication“eyes”(oneoneachsensor),andbetweenthe topofthePITwinSpreadsensorandthehydrophoneonthe vessel.

Topview:

(A)=Porttrawl

(B)=Starboardtrawl

(C)=Portdoorwiththe PITwinSpreadsensor mountedinanadapter. Oneacoustic communicationlinkis directedforwardtowards thevessel,whiletwoare directedtowardsthettwo Remotesensors.

(D)=Centerclumpwith oneRemotesensor

(E)=Starboarddoorwith theotherRemotesensor

(F) = Forward

InaTwinSpread1set-up, thetworemotesensors wouldneedtobeRemote 1andRemote3.

Sacrificialwaterswitchsensor

Ifthewaterswitchonyoursensorisasacrificialbrassscrew, thisscrewmustbecheckedeverymonth. Wheneverrequired duetowearandtear,thescrewmustbereplaced.Refertothe Operationalproceduresintheoperatormanual.

PI Temperature sensor

Purpose

The PIT temperaturesensormonitorsthecurrentwater temperatureatthechosenlocationonthepurseseineortrawl.

(A)=ThesinkingrateofthenetismonitoredbytwoDepth sensors
(B)=OneTemperaturesensorismountedonthefootropeto monitorthelocationofthethermo-cline.

Illustration of a naval vessel deploying a large ship's hull with visible deck and hull details (no text or symbols)

(C)=OneTemperaturesensorismountedontheheadropeto monitoriftheseawatertemperatureisfavourableforthetarget species.

Mainparts

(A)=Negativechargingandfasteninglug
(B)=Positivechargingandfasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Temperaturesensor(labelisremoved)

Dailyoperation

Onceinstalledandputtouse,thesensorwill automaticallybeswitchedononcethe waterswitchisactivated.Afteraninitialstartup, thesensorstartstransmissionofthecurrent temperature.Whenthesensorisnotinuse,check thatthesensorlamp(D)isnotflashingfromtime totime,asthisindicatesthatthesensorisonand isdischargingitsbatteries.

If you operate with Fastupdaterate, the sensor must be charged approximately every 24 hours. Used with Normal or Slow update rates, the operational life is approximately 75 or 150 hours respectively. The optimal sensor charging temperature is from +10 to +25°C.

Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnotspecified inSimrad'ssensorchargingdocumentation.

Temperaturepresentation

OnthePI32display, the temperature is displayed in the numeric display. If the temperature is falling or rising, this is shown with an arrow. When thereadings are stable, the digits are shown in black colour. When the values are predicted, the digits are grey, and if the contact with the sensor is lost, the characters ^* .** are shown in grey.

(A)=Sensorsetupassensorno.2.

(B)=Currenttemperature.

(C)=Denomination(Celciusor Fahrenheit)

(D)=Temperaturechange. This arrowindicates that the temperature is rising.

(E)=Graphicalarm

(F) = Indicator,litforeverysensor interrogation.

(G)=Interferencesymbol.

Sensorconfiguration

Ondelivery, alltemperaturesensorsareconfiguredinChannel8 and with Fast update rate. If you use more than one sensor, you mustsetthemuptooperateindifferentchannels.

Note: ThesensorandthePI32systemsetupmustcorrespond, otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection), usethe PI Configuratorutility.

Thesensorupdateratecontrolshowoftenthesensorreadsand reportsthetemperature.Threesettingsareavailable.Notethata fasterupdateratewilldecreasethebatterylife.

- Fast(\~4,5sec):Recommendedforpurseseineortrawl, allows immediate update of changes in these at temperature.

- Normal(\~14sec):Recommendedfortrawlandnormal fishingwithfairlyconstantseatemperatures.

- Slow(\~34sec):Recommendedifyouexperienceconstant seatemperatures,orifmaximumoperationalbatterylife beforechargingisrequired.Thesystemwillbemore sensitivetobadcommunicationconditionsduetotheslow dataupdate.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberaccordingtothe sensor's configuration.Writedowntheconfigurationforfuture reference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessivenoise.PositionOffwillprovideraw data and fastest possibleresponse.

Mounting

Purseseine: Inordertosecurestablecommunicationwiththe vessel'shydrophone, it is very important that the sensoris allowed to hang freely with the endpoint pointing towards the surfaced uringshooting and pursuing.

Attachthesensortoastandardpurse ringwithtwoseparatewires(A). Mountoneendofeachwiretoa commonsnaphook(B),andplace anothersnaphookattheotherendof eachwiretosnapontothesensor.

Mountasafetyline(C)between the sensorandtheadjacentbridle/purse ring. Makesurethatsecuritylinedoes notpreventthesensorfromhanging freely!

Removethesensorfromthepurse seinebeforeitpassesthroughthe powerblock.

Anyattachmentmaterial "permanently"attachedtothe sensor'scharginglugsmustnotform anelectricalconnectionbetweenthe twocharginglugsshortingthe chargingcurrent.

(A)=Twowireswithasnaphookin oneendandtheotherendattached permanentlyto(B).

(B)=Largesnaphook.

(C)=Safetywirewithsnaphookson eachend. Notethattheupperendis NOTattachedtothepurseseinewire.

Tunapurse: Thesensormustnotbe attachedtothefootropewire, butto thefoot-ropechain. Useasafetywire inadditionincasethesensorisripped offthenet.

Diagram of a yellow mechanical component with two arms and chains, mounted on a chain-link base against a green mesh background (no text or symbols)

TrawlorDanishseine: Thesensoris normallyattachedtotheheadrope. Forsecurefasteningandstable positioningofthesensorpointing towardsthevessel,makeafinemesh bagsizedtothemiddleofthe head-rope.Sizetwosnaphooks approximately 10-15cmfromthe headropeformingabridle,andkeep thesensorstretchedbymeansoftwo rubberstrapsattachedtotheaft fasteninglugs.

Sacrificialwaterswitchsensor

Ifthewaterswitchonyoursensorisasacrificialbrassscrew, thisscrewmustbecheckedeverymonth. Wheneverrequired duetowearandtear,thescrewmustbereplaced.Refertothe Operationalproceduresintheoperatormanual.

PS Temperature sensor

Purpose

ThePSTemperaturesensormonitorsthecurrentwater temperatureatthechosenlocationonthepurseseineortrawl.

(A)=ThesinkingrateofthenetismonitoredbytwoDepth sensors
(B)=One Temperature sensor is mounted on the footropeto monitor the location of the thermo-cline.

Illustration of a submarine being grounded near a ship's deck, with no visible text or symbols

(C)=OneTemperaturesensorismountedontheheadropeto monitoriftheseawatertemperatureisfavourableforthetarget species.

Mainparts

(A)=Negativechargingandfasteninglug
(B)=Positivechargingandfasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Temperaturesensor(labelisremoved)

Dailyoperation

Onceinstalledandputtouse,thesensorwill automaticallybeswitchedononcethe waterswitchisactivated.Afteraninitialstartup, thesensorstartstransmissionofthecurrent temperature.Whenthesensorisnotinuse,check thatthesensorlamp(D)isnotflashingfromtime totime,asthisindicatesthatthesensorisonand isdischargingitsbatteries.

YoucanonlyoperatethissensorwithFastupdate rate. Thesensormustthenbecharged approximately every 30 hours. The optimal sensorcharging temperature is from +10 to +25°C.

Notethatchargingsensorsatsub-zerotemperaturescancreate explosivegasses.SimradASassumesnoliabilityforthe improperchargingofsensorsortheuseofchargersnotspecified inSimrad'ssensorchargingdocumentation.

Temperaturepresentation

OnthePI32display, the temperature is displayed in the numeric display. If the temperature is falling or rising, this is shown with an arrow. When thereadings are stable, the digits are shown in black colour. When the values are predicted, the digits are grey, and if the contact with the sensor is lost, the characters ^* . **are showing grey.

(A)=Sensorsetupassensorno.2.
(B)=Currenttemperature.
(C)=Denomination(Celciusor Fahrenheit)
(D)=Temperaturechange. This arrowindicates that the temperature is rising.

(E)=Graphicalarm

(F)=Indicator,litforeverysensorinterrogation.

(G)=Interferencesymbol.

Sensorconfiguration

Ondelivery, alltemperaturesensorsareconfiguredinChannel8 and with Fast update rate. It is not possible to change the update ratesetting. If you use more than onesensor, you must set them up to operate indifferent channels.

Note: ThesensorandthePI32systemsetupmustcorrespond,

otherwisethecommunicationwillnotwork.

Tochangethesensorsetup(channelselection), usethe PI Configuratorutility.

Thesensorupdateratecontrolshowoftenthetemperatureis measured, and the datatransmitted to the vessel. Tobeableto monitor fast changes in these atemperature, the sensor will only operate on Fast updaterate.

System configuration

Sensorconfiguration: Thesensormustbeconfiguredwitha uniquesensornumber.Selectchannelnumberaccordingtothe sensor's configuration.Writedowntheconfigurationforfuture reference.

Status&Receiver:TheInterferencefiltermustbeswitchedon. Setittolevel9ifyouhavenoiseproblemsfromother hydroacousticsources.Notethatwiththefilteron,itwill influencethesignalspectrumshownintheStatusdisplay.

Sensor filter: Switch this filter to Light. Set it to Heavy only if you experience excessive noise. Position Off will provide raw data and fastest possibleresponse.

Mounting

Purseseine: Inordertosecurestablecommunicationwiththe vessel'shydrophone, it is very important that the sensoris allowed to hang freely with the endpoint pointing towards the surfaced uringshooting and pursuing.

Attachthesensortoastandardpurse ringwithtwoseparatewires(A). Mountoneendofeachwiretoa commonsnaphook(B),andplace anothersnaphookattheotherendof eachwiretosnapontothesensor.

Mountasafetyline(C)between the sensorandtheadjacentbridle/purse ring. Makesurethatsecuritylinedoes notpreventthesensorfromhanging freely!

Removethesensorfromthepurse seinebeforeitpassesthroughthe powerblock.

Anyattachmentmaterial "permanently"attachedtothe sensor'scharginglugsmustnotform anelectricalconnectionbetweenthe twocharginglugsshortingthe chargingcurrent.

(A)=Twowireswithasnaphookin oneendandtheotherendattached permanentlyto(B).

(B)=Largesnaphook.

(C)=Safetywirewithsnaphookson eachend. Notethattheupperendis NOTattachedtothepurseseinewire.

Tunapurse: Thesensormustnotbe attachedtothefootropewire, butto thefoot-ropechain. Useasafetywire inadditionincasethesensorisripped offthenet.

Diagram of a yellow mechanical component with two arms and chains, mounted on a chain-link base against a green mesh background (no text or symbols)

TrawlorDanishseine: Thesensoris normallyattachedtotheheadrope. Forsecurefasteningandstable positioningofthesensorpointing towardsthevessel,makeafinemesh bagsizedtothemiddleofthe head-rope.Sizetwosnaphooks approximately10-15cmfromthe headropeformingabridle,andkeep thesensorstretchedbymeansoftwo rubberstrapsattachedtotheaft fasteninglugs.

SENSOR CHARGERS

Overview

TwodifferentbatterychargerscanbeusedtochargethePIand PSsensors:

• PICharger
• PS30Charger

Event though both chargers can be used to charge any of the sensors (except the PI Height sensor), only the PI Charger will provide fast and intelligent charging of the PIsensors.

Note: ThePIHeightsensorcanonlybechargedwiththePICharger.

Topics

→ PICharger,page145
→ PS30Charger,page147

PI Charger

Purpose

ThePIChargerisanintelligentbatterychargerforfastand securechargingofthePIsensors. Thechargerwill automaticallysetupthecorrectchargingcurrentdependingon thesensortypeandthebatterytemperature.EventhoughthePI ChargerisdesignedforfastchargeofthePIsensors,itcanalso chargethePSsensors,butonlyatnormalchargerate.Afuel metershowsthestatusofthebatteryduringthecharge.

Dailyoperation

1) Attach the charging clamp to the sensor as follows:

Redclamp: Positive fastening lug(+)

Blackclamp: Negative fastening lug(-)

2) Ensure that attachment materials, rope etc. donot short circuit the charginglugs, preventing charging and causing damage to the sensorlugs.

Onceconnected,thechargerwillidentifywhether thesensorconnectedcanbefastchargedornot. Thebatterytemperaturewillalwaysbemonitored forafastchargingsensor.Asensorwhichcannot befastcharged,willnotdisplaythebattery temperature,andthetemperatureLEDwillbe dark.

3) Observethechargetimesandtemperaturelimitations:

Fastcharge: Firstapproximately 1 hour for 70% battery capacity, then approximately 3 hour store each 100% capacity. Once fully charged, a constant trickle chargewill compensate for self discharging. Not that fast charging appliesto PI sensor only!

Normalcharge: 16 hours for full battery capacity. This mode applies for charging outside specified temeparture range, and for all PS sensors.

Chargingtemperature:Forbestresults,keeptheambient temperaturebetween+10and+25°C.Donotchargein temperaturesabove+50°Corbelow0°C!

Indicators

(A)=Mains:12to32Vdc
(B)=Fuelmeter. ThenumberofLEDsilluminatedshowsthe currentchargingstatus. Acompletechargingcycleisindicated withall“full”battery.Charging:

Fast: Fast flash

Normal: Slowflash

Trickle: On, off every 4 second

(C)=Batterytemperatureindicatorsduringfastcharging:

Green: Battery temperature between +5 and +40°C. Fast chargeisenabled.

Green and Blue: Battery temperature between 0 and +5°C. Fastcharge is disabled, normal charge is used.

Green and Red: Battery temperature between +40 and +50°C. Fastchargdisabled, normalchargeisused.

Blue: Battery temperature is below 0^ C. No charging takes place.

Red: Batterytemperatureisabove+50°C. Nocharging takes place.

Warning:Chargingasensoratsub-zerotemperaturemight developexplosivegasesrepresentingapotential danger.Simradassumesnoliabilityforimproper charging, or the use of other chargers than those approvedbySimrad.

Automaticconfiguration

Thechargercommunicateswiththesensoratregularintervals. Thefastchargecycleiscontrolledbydataexchangedbetween thePIsensorandthecharger,andaseriesofsafetymechanisms controlstheterminationofthefastchargingcurrent.

The PS sensors donot communicate with the charger. A constant charge current of 58 mA isthen setup by the charger regardless of the battery temperature.

Typicalsensor(PI Depth)

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink
(D)=Locationofsensorlamp
(E)=Waterswitchsensor
(F)=Waterpressuresensor

PS30 Charger

Purpose

ThePSChargerisabatterychargerforsecurechargingofthe PSandPIsensors.

Yellow electroplating device connected to a SIMPAD sensor device via cable (no visible text or symbols on the device itself)

Dailyoperation

1) Attachthechargingclampstothesensorasfollows:

Redclamp:Positivefasteninglug(+)

Blackclamp:Negativefasteninglug(-)

2) Ensure that attachment materials, rope etc. does not short circuit the charging lugs, preventing charging and causing damage to the sensor lugs.

3) Observethesensor'sindiactorlamp.Itwillflashonceevery foursecondsduringcharging.

4) Observethechargetimesandtemperaturelimitations:

Normalcharge:\~16hoursforfullbatterycapacity.

Chargingtemperature: Toobtainbestresults, trytokeep the ambient temperature between +10°C and +25°C. The sensormust not be charged in temperatures above +50°C or below 0°C!

Warning:Chargingasensoratsub-zerotemperaturemight developexplosivegasesrepresentingapotential danger.Simradassumesnoliabilityforimproper charging,ortheuseofotherchargersthanthose approvedbySimrad.

Generalguidelines

Operationaltimeandservicelifeofthesensor'sNiCdbattery dependsonproperuseandregularcharging. Observethe followingprecautions, asthesewillhaveaninfluenceonthe batteryperformance:

• Observethechargingtemperatures.
• Chargesensors regularly. Avoiddrainingthesensorbattery completelybeforecharging.
• Chargethesensorbatterybeforestorage, and at three-month intervals under long-term storage.
• Operationallifemaybeinitiallyreducedafterlong-term storageorchargingforalongtime.
• Sensorsarenotdamagedbybeingleftattachedtoacharger forseveraldays. However, donotstorethesensorfor extendedperiodsundercharge.
• Werecommendthatawoodenboxismadetokeepthesensor inasecureplaceduringchargingandstorage.Makeopenings inthebottomtodrainforseawater.

Batterydepletedfrequently

If the charger lamp is illuminated, but the sensor lamp does not flare every four seconds, the battery is not being charged properly. Most likely, this is because the sensor was not switched off when the charger was connected.

Tocorrect, chargethesensorfortenminutes, thendisconnect thealligatorclips. Useasmallwire, and makecontactbetween thewaterswitchsensorandoneofthefasteninglugs. This will causethesensortoflashitsstart-upcode. If not, washthesensor infreshwatertodisengagethewaterswitch.

Typicalsensor(PI Depth)

(A)=Negativecharging/fasteninglug
(B)=Positivecharging/fasteninglug
(C)=Communicationlink
(D) = Location of sensor lamp
(E)=Waterswitchsensor
(F)=Waterpressuresensor

MENU SYSTEM

ThePI32iscontrolledusingasmallmenysystem. Although severalshortcutsexist, themainfunctionsandsetupparameters can be accessed from themainmenu. To access themainmenu, presstheMENUbutton.

Topics

→ Mainmenu,page150

The main menu

Toaccesstheimainmenu, presstheMENUbutton.

ECHO SOUNDER
FISHERY	NAV	ECHO	SETUP

(CD11034A)

Fishery

OntheFisherymenu,youcanselectdisplaymodesrelatedto catchmonitoring.

→ Numericdisplay,page28
→ Graphicdisplay,page35
→ Surfacetemperature, page37
→ Statusdisplay,page38

Navigation

OntheNavigationmenu,youcanselectdisplaymodesrelated tovesselnavigation.

→ Positiondisplay,page44
→ Navigationdisplay, page43

Echo

OntheEchomenu,youcanselectdisplaymodesrelatedtothe built-inechosounder,andyoucanswitchechosounder functionsonoroff.

→ Echodisplay,page40
→ Bottomexpansion,page41
→ VRMexpansion,page42
→ Echosoundersetup,page157

Setup

OntheSetupmenu,youcanaccesssetupparameterstocontrol theoperationofthePI32.

Notethatadditionalparametersareaccesseddirectlyfromthe presentationsbypassingtheENTbutton.

→ Speedalarm, unitsandlanguage:
→ Speedalarm,page180
→ Units,page183
→ Language,page171

→ InterfacesetupNMEA,page162

→ Interfacesetupremote/alarm,page167
→ Sensoralarm/calibration, page177
→ Sensorsetup,page179
→ Receiversetup,page174
→ Displaycolour,page172
→ Masterreset,page159

REFERENCES

Thischaptercontainsreferenceinformation.Itthusprovides detailedinformationaboutthevariousparametersusedto controltheoperationandperformanceofthePI32system.You donotneedtoreadandunderstandthicchaptertooperatethe PI32,buttheinformationmayguideyoutoamoreefficientuse.

Thesetuppagesareprovidedinalphabeticalorder.Someare accessedfromtheSetupmenu,othersdirectlyfromthedisplay presentationsbymeansoftheADJbutton.

Topics

→ Depthcalibration,page153
→ Echopresentationsetup,page154
→ Echosoundersetup,page157
→ Factorypresets,page159
→ Graphicsetup,page160
→ InterfacesetupNMEA,page162
→ Interfacesetupremote/alarm,page167
→ Navigationsetup,page168
→ Numericsetup,page169
→ Offsetadjust,page170
→ Pagesetup,page171
→ Palettesetup,page172
→ Positiondisplaysetup,page173
→ Receiversetup,page174
→ Alarmsetup,page177
→ Sensorconfiguration,page179
→ Speedsetup,page180
→ Surfacetemperaturesetup,page181
→ Trawlinfosetup,page182
→ Unitssetup,page183

Depth calibration

ThisfunctionisusedtoenablecalibrationofthePI32Depth sensor.

Toaccessthisfunction, presstheMENUbuttonontoopenthe main menu. Then, open the Setup menu, and select Sensor alarm/calibration.

Depth/Spread Sensor:

Depth sensor calibration: Offset: D1: 0.0 m S2: 0.0 m

NO

(CD11100R)

The Depthcalibration feature will calibrate the current depth of the Depthsensortoone-1-meter.

1Lowerthesensoroverthesidetoadepthofonemeter, to acertaindraftdepthplusonemeter, ortoanyreference level that you wishtobedefinedasonemeter.

2Oncethereadingfromthesensorisstable,setDepth sensorcalibrationtoYES.

Thecalibrationtakesoneminute. While the process is running, then numerical presentation is shown with grey text. Not that the sensormust besubmerged intosalt watertoperform the calibration.

Related topics

→ Howtocalibratethesensor, page55
→ PIDepthsensor,page104
→ PSDepthsensor,page109

Echo presentation setup

Thesesettingsareusedtosetuptheechosounderpresentation parametersonthePI32. Theoperationalparametersaresetup usingtheEchosoundersetupdialogue.

Toaccesstheparameters, presstheENTbuttonwhenyouhave anechosounderpresentationonthescreen.

(CD11100C)

Rangestart: This is the upper depth from which you wish the echosoundershall start. This value will typically be 0 meters, but you may fore example setup the echosoundert o only present echoes from 5 meters below these as surface and downwards.

Range: This is the vertical depth range for the echosounder. You can set it to changed depth range automatically (AUTO), or you can define your own fixed range. The maximum rangewill depend on the chosenechosounder frequency, asthe 38 or 50 kHz modes will detect echoes deeper than the 200 kHz mode.

Gain: Thisisthegainintheechosounder'spreamplifier. The gainmustbedefinedmanually, and you can choose any value between 1 and 95dB. In most cases, use a value around 30dB. If you set to much gain, the echogram will contain a lot of noise and false echoes.

Whiteline: This parameter allows youtoswitch the Whiteline function on or off. When enabled, abandin the current echogram background colour is inserted immediately below the detected bottom depth.

Expansion window: The PI32 provides a Bottom expansion function. Whenthisisenabled, you can control the depth range in the expanded window using this parameter. To enable the Bottom expansion function, select it on the Echo menu. To disable it, select Echo display on the Echo menu.

TVG(TimeVaryingGain): The PI32 provides a TVG function to enhance the echoes from deeper waters. You can select either Bottom(20logR) or Fish(40logR) setting, depending on which echoes you wish toenhance.

Soundspeed: This parameter allows you to finet the performance of the PI32 echosoundertothespeed of sound in the water. However, in most cases, these speed is not known, and this parameter is not important at all when operating in shallow waters. For all practical purposes, leavethissetting to the default value of 1470 m/s.

Pingtopingfilter: This function employs a filter which compares the echo information from one ping with the information from the previous ping. This will “cleanup” the echogram by removing random noises spikes and interference with no correlation with the previous echo. The function will thus make the echoes appear more stable. You can switch this filter on or off.

Signalthreshold: This is an on/off function. When activated, it will remove the weakest echoes from the screen. The threshold level is automatic. Activate with caution, as it may remove small fish or other weak unidentified echoes from the presentation.

Colourthreshold: This function allows you to choose the number of colourstouse forechogram presentation. By switching this filter on and selecting a colour in the box, all echocolours “below” the chosen colour will not be shown in the echogram. You can thus regard this as an “echo threshold” which will remove the weakest echoes.

Depthgrid: Whenthisfunctionisenabled, thinhorisontaldepth lineswillbeaddedtotheechogramtoeasieridentifythedepth intervals. Whenyouoperatewithagraphicdisplay, thisfunction canalsobeswitchedonandoffintheGraphicsetup.

Scrollspeed: This function control show fast the presentation shall scroll from right to left across the display. By defining this speed you also control the timescale. If you slowdown the scroll speed, you will also increase the time between each echo sounder transmission (ping). If you choose FREEZE the presentation (and also the echosounder transmissions) will stop altogether. Not that this parameter can also be set in the

Graphicsetup.

Echosounderfrequency: This function allows you to choose echosounderoperating frequency. Use the high frequency for shallow waters, and the low frequency for deeper waters.

Note: Theechosounderfrequencyyouchoosemustbesupportedby thetransduceryouhaveinstalled!

Related topics

→ Howtodefinetheechosounderrange, page72
→ Echosoundersetup,page157
→ Graphicsetup,page160
→ Bottomexpansion,page41

Echo sounder setup

Thesesettingsareusedtosetuptheoperationalparametersfor thePI32echosounder.

Toaccessdialogue, press the MENU button to access the main menu. Then, select Echo sounder setup on the Echo menu.

Notethatthepresentationparametersaredefinedinaseparate dialogue;thePresentationsetup.

Echo sounder setup:

Transducer depth below surface:	0.0 m
Keel depth below surface:	0.0 m
Display:	DEPTH BELOW KEEL
Alarm for fish, strength:	30dB OFF
Depth for fish: min:0010m max:0100m
Depth alarm maximum:	0100m OFF
Depth alarm minimum:	0010m OFF
Transmitter:	AUTO
Transmit pulse length:	AUTO
Echo sounder mode:	NORMAL

(CO11000)

Transducerdepthbelowsurface: Entertheverticaldistance between the transducerface and the watersurface. Normally, this value can be fixed, but if tichanges considerably when the vessel is loaded, you may need to change it. The value is used to provide you with a correct depth under the keel (DK) value in the echosounder presentation.

Keeldepthbelowsurface: Entertheverticaldistancebetween thekeelandthewatersurface. Normally, thisvaluecanbe fixed, butifitchangesconsiderablywhenthevesselisloaded, youmayneedtochangeit. Thisparameterisusedtoprovide youwiththecorrectdepthbelowkeelvalueintheechosounder presentation.

Display: This parameter defines which depth valuetobe provided in the echosounder presentation. You can choose to seethewater depth under the keel, the depth below the transducer, orthedepth from these as surface. In order to ensure correct depth readouts, you must make sure that the distances between the surface and the transducer face and the surface and the lower part of the keel are defined. Seethe parameter descriptions above.

Alarmforfish, strength: This parameter enables the fish detection alarm, and adjust the sensitivity (strength). With high sensitivity, smaller fish (with weakerechoes) will trigger the alarm.

Depthforfish: This parameter allows y outo define a vertical depth area (between a maximum and a minimum depth) in which the fish alarm can be triggered. Echoes outside the chosen are will not trigger the alarm.

Depthalarm(minimumandmaximumvalues): This parameter enables an alarm to soundoff the water depth shall lower or deeper than wopredefined limits.

Transmitter: This parameter allows you to obtain the power output from the echosounder. You can choose OFF (and no echogram will appear!), LOW, HIGH or AUTO. In most cases, select AUTO. The echosounder will then automatically adjust the power output depending on the current operational frequency and the current depth.

Transmitpulselength: This parameter allows you to choose the length of the echosounders and transmissions. You can choose OFF (to observ the ambient seanoise), SHORT, MEDIUM, LONG or AUTO. In most cases, select AUTO. The PI32 will then automatically choose the pulselength depending on your current depth range. If you choose to try a manual mode, try long pulselengths when you operate in deeper waters, and shorter pulses with higher frequency in shallower waters. As a general rule, short pulse tesservetomakethe echoes from various objects more distinct. It is therefore used to obtain optimal vertical resolution, as it will separate individual fishes from each other and from the bottom. Longer pulses will penetrate deeper, but with less resolution.

Echosoundermode: This parameter allows you to our the echo sounderina “demonstration” mode, ortoswitchitoff. When you select any other modethan NORMAL, the echosounder will automatically use a “demotransducer” to avoid damage to the output circuitry.

Display: This parameter defines which depth value to be provided in the echosound presentation. You can choose to seethewater depth under the keel, the depth below the transducer, orthedepth from these as surface. In order to ensure correct depth readouts, you must make sure that the distances between the surface and the transducer face and the surface and the lower part of the keel are defined. Seethe parameter descriptions above.

Related topics

→ Echosounderdisplay,page40
→ Echopresentationsetup,page154

Factory presets

ThisfunctionallowsyoutorestorethePI32parameterstothe defaultsettingschosenbySimrad.

Toaccessthisfunction, presstheMENUbuttontopopenthe main menu. Open the Setup menu, and select Master reset.

Onceaccessed, you must first press these selector pad up, then down, and finally the ENT key. The PI32 restarts automatically, and once it has passed the welcomes screen it will automatically ask to have the sensors setup.

Caution: If you choose todo a master reset, you will need to redefine every single parameter you have made on the PI32. This includes allechosoundersettings, sensor selections and setup, system interfaces and alarms.

Related topics

→ Howtorestoredefaultsettings, page82

Graphic setup

ThesesettingsareusedtosetupthePI32parametersrelatedto theGraphicdisplay.

Toaccesstheparameters, press theENTbutton when you have a Graphic display on the screen.

Graphic setup:
Superimpose echo sounder:	YES
Scroll speed:	HIGH
Depth bars:	OFF
Depth grid:	OFF
Surface temperature marker: 1 pixels OFF
Temperature scale:	ON
Marker line: S1:OFF, S2:OFF, S3:ON
Marker line thickness: S1:2, S2:2, S3:2
Marker line delay: 00 min

(CD11100H)

Superimposeechosounder: When activated, the presentation from the echosounder is added to the graphic display. Not that this option is only valid if you have the echosounder transducer(s) installed, and the echosounder is setup for normal operation. You can only switch this function on or off.

Scrollspeed: This function control show fast the presentation shall scroll from right to left across the display. By defining this speed you also control the timescale. If you slowdown the scroll speed, you will also increase the time between each echo sounder transmission (ping). If you choose FREEZE the presentation (and also the echosounder transmissions) will stop altogether. Not that this parameter can also be set in the Echo presentation setup.

Depthbars:Thefeaturewillenableverticaldepthbarsonthe righthandsideofthedisplaypresentation.Thebarswill indicate the current depth of the sensors. You can only switch this function on or off.

Depthgrid: Whenthisfunctionisenabled, thinhorisontaldepth lineswillbeaddedtothepresentationontoeasieridentify the depthintervals. Notethatthisfunctioncanalsobeswitchedon andoffintheEchopresentationsetup.

Surfacetemperaturemarker: This function places a marker on the display to identify the current surface temperature. You can only switch this function on or off, and you can define how thick you want the marker in the tobe.

Temperaturescale: This function provides at temperature scale located on the left side of the Graphic display. You can only switch this function on or off.

Markerline: Certainsensorswillprovideinformationthatcan besuperimposedonthegraphicdisplay. Thisparameterallows youtoswitchuptothreemarkerlinesonandoff. The identificationsS1toS3relatetosensors1,2and3,andifthe sensorinquestiondoesnotprovideinformationthatcanbe superimposed,therelatedswitchcannotbeswitchedon. The markerlineswillappearusingthesamecolourasthecurrently definedbackgroundcolourfortheapplicablesensor'snumeric display.

Markerlinethickness: Usethisparametertocontrol the thicknessofthemarkerline(s).

Markerlinedelay: Usethisparametertocontrolthedelay of themarkerline(s). Using this function you can adjust for the timedelay between the echosounder depth detection and the information from the sensor(s).

Related topics

→ Echopresentationsetup,page154
→ Sensorsetup,page179
→ Numericsetup,page169

Interface setup NMEA

ThesesettingsareusedtosetupthePI32parametersrelatedto thecommunicationontoandfromperipheralunits.Toaccessthe parameters,presstheMENUbuttontontoaccessthemainmenu. Then, select Interface setup NMEA on the Setup menu.

Background

BymeansoftheconnectorsontherearsideofthePI32cabinet, itcancommunicatewithseveralperipheraldevices. This is useful, as it allows you to export and import information to and from these devices. In order to establish this communication, the devices one each end of the cable must speak the same “language”. The National Marine Electronics Association (NMEA) has defined communication standards for maritime electron equipment, and the PI32 system conform to these standards. Themost common standard is NMEA 0183, and the National Marine Electronics Association describes it as follows: “The NMEA 0183 Interface Standard defines electrical signal requirements, data transmission protocol and time, and specific sentence formats fora 4800-baud serial database. Each bus may have only on a talker but many listeners.” Form more information about the National Marine Electronics Association and the NMEA 0183 standard, referto the organization’s web pages at www.nmea.org.

Telegrams

Tomoveinformationbetweenwoelectronicunits,thedataare collectedintelegrams.Thecontent(protocol)ofeachtelegram isdefinedbytheNMEAstandard,andseveraltelegramtypes existtoallowdifferenttypeofdatatobedistributed.Unlessyou wishtowriteyourownsoftware,youdonotneedtoknowhow thesetelegramsaredesigned.However,wheneveryousetup equipmentinterfaces,youneedtoensurethateachsystemon yourcommunicationlineissetuptosendandreceivethesame telegram.Thestandardallowsonesystemtosenddata(a "talker")andseveralotherstoreceivedatasimultaneously ("listeners")onthesameline.Therefore,youmustensurethat allproductsreceivingdataonacommunicationlineissetupto receivethesametelegram(s)thatthetransmittingproduct provides.

Topics

→ Parameters,page163

→ Applicablelegramformats,page165

Input

Bydefault,thePI32isonlyequippedwithoneNMEAinterface connector.Forthisreason,youcanonlyreceivedatafromone peripheraldevice.However,thisdevicemayprovideyouwith morethanonetypeofinformation.Forexample,GPSsystems willprovideyouwithposition,course,speedandnavigational information,andthesetelegramsaretransmittedsequentiallyon thesameseriallineusingdifferenttelegramtypes.

If you donot use you Remote connect to interface a secondary display, you can defin this output as an NMEA interface. Form more information, referto the Interfaces setup Remote/Alarm setup page.

Interface setup NMEA
Input pin (3,4): NMEA0183
Position: RMC ON
Course: RMC ON
Speed: RMC ON
Navigation (APB, RMB and XTE): ON
Water temperature: MTW OFF
Output pin (1,2): NMEA0183
DBK ON	DBS OFF	DBT OFF
DPT ON	MTW ON	VHW ON
Navigation data (RMC): ON
Configuration data (PSIMP,C): ON
Data output (PSIMP,D): ON
Sensor definition (PSIMP,F): ON
Frequency spectrum (PSIMP,S): ON
Transit (PSIMP,T): ON

Position: Selectwhichtelegramyouwishtousetoreceive positiondata; eitherGLL, RMA, RMCorGGA. Then, switch theinterfaceonoroff.

Course: Selectwhichtelegramyouwishtousetoreceive coursedata; either RMA, RMCorVTG. Then, switch the interfaceonoroff.

Speed: Selectwhichtelegramyouwishtousetoreceivespeed data; either RMA, RMCorVTG. Then, switchtheinterfaceon oroff.

Navigation: Thetelegramsusedtoreceivenavigationaldataare fixed, and the PI32 will receive APB, RMBand XTEtelegrams. Switch the interfaceonoroff.

Watertemperature: Thetelegramusedtoreceivewater temperaturedataisfixed, and the PI32 will receive this information using the MTW telegram. Switch the interface on or off.

Output

ThePI32isonlyequippedwithoneNMEAconnector,butyou canstillexportseveralinformationtypes,asthesewillbe transmittedsequentiallyusingdifferenttelegramtypes.Whether thisinformationcanbeacceptedandinterpretedonyour peripheraldevice(s)attheotherendofthecabledependsonthe functionalityofthisdevice.

DBKOn/Off: The PI32 will export the current depth below keelifyous switch this parameter on.

DPTOn/Off: The PI32 will export the current depth and offset values if you switch this parameter on.

DBSOn/Off: The PI32 will export the current depth below surface if you switch this parameter on.

MTW On/Off: The PI32 will export the current water temperature if you switch this parameter on.

DBTOn/Off: ThePI32willexportthecurrentdepthifyou switchthisparameteron.

VHWOn/Off: The PI32 will export the currents speed and heading if you switch this parameter on.

Navigationdata:ThePI32willonlyexportnavigationaldata ontheRMCtelegramformat.Switchtheinterfaceonoroff.

Configuration: The PI32 will export the \$PSIMP Configurationsentence(C)onthechosenNMEAport.

Dataoutput: The PI32 will export the \$PSIMP Datasentence (D) on the chosen NMEA port.

Sensordefinition:ThePI32willexportthe\$PSIMPSensor definitionsentence(F)onthechosenNMEAport.

Frequency spectrum: The PI32 will export the \$PSIMP Frequencyspectrum sentence(S) on the chosen NMEA port.

Transit:ThePI32willexportthe\$PSIMPTransmitsentence (T)onthechosenNMEAport.

Related topics

→ Interfacesetupremote/alarm,page167

Applicable telegram formats

The following NMEA telegram formats are used by the PI32.

APB = Autopilot Sentence "B". The information provided includes Status, Crosstrackerormagnitude, Directiontosteer, Crosstrackunits, Bearingorigintodestination, Destination waypointidentification, Bearing, and Headingtosteer.

DBK = Depth below keel. The information provided includes the depthin meters, fathomsand feet.

DBS = Depth below surface. The information provided includes the depth in meters, fathoms and feet.

DPT = Heading - Deviation & Variation. The information provided include the depth and the offset from the transducer.

GGA = Global positioning system fix data. The information provided includes Universaltimecoordinated, Latitude, Longitude, GPSqualityindicator, Numberofsatellitesinview, Horizontaldilutionofprecision, Antennaaltitude, Geoidal separation, AgeofthedifferentialGPSdata, and Differential referencestation.

GLL = Geographic Position - Latitude/Longitude. The information provided includes Latitude, Longitude and Universaltimecoordinated.

MTW = Water temperature. The information provided includes watertemperature in Celsius.

RMA = Recommended minimum navigation information. The information provided includes Blinkwarning, Latitude, Longitude, Timedifference, Speedoverground, Trackmade good, and Magnetic variation.

RMB = Recommended minimum navigation information. The information provided includes Status, Crosstrackerror, Direction to steertowaypoint, Destination waypoint latitude and longitude, Rangetodestination (in nautical miles), Bearing to destination (in degrees True), and Destination closing velocity (inknots).

RMC = Recommended minimum navigation information. The information provided includes Universaltimecoordinated, Latitude, Longitude, Speedoverground(inknots), Trackmade good, degreestrue, Date, and Magnetic Variation.

VHW = Water speed and heading. The information provided includes Vesselspeedrelativetothewater(inknotsand kilometersperhour)andHeading(trueandmagnetic).

VTG = Track made good and Ground speed. The information provided includes Trackdegrees(trueandmagnetic)andSpeed(inknotsandkilometersperhour).

XTE = Cross-Track Error, Measured. The information provided includes Status, CrosstrackerrorandDirectiontosteer.

Interface setup remote/ alarm

ThePI32isequippedwithonlyoneNMEAinterfaceport,but theRemoteinterfacecanalsobeusedforNMEAinterface providedthattheremotedisplayisnotused. Thissetuppageis usedtodefinetheinputsandoutputsiftheRemoteinterfaceis usedasanNMEAport.

Interface setup remote/alarm:
Input pin (3,4): NMEA0183
Position: RMC OFF
Course: RMC OFF
Speed: RMC OFF
Navigation (APB, RMB and XTE): OFF
Water temperature: MTW OFF

Interface setup alarm:
Output pin (5,2): ALARM ON
Alarm stand-by level: LOW

(CD11100S)

Position: Selectwhichtelegramyouwishtousetoreceive positiondata; eitherGLL, RMA, RMCorGGA. Then, switch theinterfaceonoroff.

Course: Selectwhichtelegramyouwishtousetoreceive coursedata; either RMA, RMCor VTG. Then, switch the interfaceonoroff.

Speed:Selectwhichtelegramyouwishtousetoreceivespeed data;eitherRMA,RMCorVTG.Then,switchtheinterfaceon oroff.

Navigation: Thetelegramsusedtoreceivenavigationaldataare fixed, and the PI32 will receive APB, RMBandXTEtelegrams. Switchtheinterfaceonoroff.

Watertemperature: Thetelegramusedtoreceivewater temperaturedataisfixed, and the PI32 will receive this information using the MTW telegram. Switch the interface on or off.

Output

The output pins on the Remote connector can be used as an alarm output.

Outputpin:ThePI32willallowprovideanalarmoutputwhen thissettingisenabled.

Alarmstand-bylevel:???

Navigation setup

ThesesettingsareusedtosetupthePI32parametersrelatedto thenavigationdisplaypresentation.

Toaccesstheparameters, presstheENTbuttonwhenyouhave thenavigationdisplayinview.

Navigation setup:
Course & bearing as:	MAGNETIC
XTE alarm distance:	0.50nm

Course & bearing as: Select True or Magnetic reading.

XTEalarmdistance: Define how large cross-track error the PI32 can accept before the alarmist triggered.

Related topics

→ Navigationdisplay, page43

Numeric setup

ThesesettingsareusedtosetupthePI32parametersrelatedto theNumericdisplay.

Toaccesstheparameters, presstheENTbuttonwhenyouhave theNumericdisplaypresentationsinview.

Numeric setup:
Data window 1:	Depth 300m - sensor 1
Data window 2:	Temperature - sensor 2
Data window 3:	Catch - sensor 3
Show graphic alarm:	ALWAYS
Sensor timer:	ON
Reset sensor timers:	NO

Datawindow1/2/3: Select which sensor data to appear in the three numeric presentations.

Showgraphicalarm: Thegraphicalarmisthesmallred triangleineachsensorpresentation. If the triangle is lit, it indicates an alarmsituation. If the triangle points upwards a "minimum" alarm has been triggerd, if it points downwards, a "maximum" alarm has been triggerd. The default setting for this parameter is ALWAYS.

Sensor timer: The Catch and Bottom Contact sensors have a timerfeatureindicatinghowmanytimeseachsensorhasbeen activatedduringatow. Thetimerrunwhenthesensoris activated, and stopsoncethesensorisreleased. This parameter allowsyoutoenableordisablethesetimers. Thedefaultsetting isON. YoucanalsoaccessthisparameterintheGraphicsetup.

Reset sensor timers: The Catch and Bottom Contact sensors haveatimerfeatureindicatinghowmanytimeseachsensorhas beenactivatedduringatow.Toresetthetimersto0priortoa newtow,selectYES.DefaultsettingisNO.Youcanalsoaccess thisparameterintheGraphicsetup.

Related topics

→ Howtodefinesensorpresentations, page46
→ Numericdisplay,page28

Offset adjust

ThesesettingsareusedtosetupoffsetvaluesfortheDepthandSpreadsensors.

Toaccesstheparameters, press the MENU button to open the main menu. Then, open the Setup menu and select Sensor alarm/calibration.

Depth/Spread Sensor:

Depth sensor calibration: Offset: D1: 0.0 m S2: 0.0 m

NO

(CD11100R)

When accessed, this dialogue will only display the Depth and Spread sensors currently configured. Offset adjustments can be only bemade on the listed sensors. Enter anegative or positive valuetodecrease or increase all readings from the chosen sensor.

Related topics

→ Howtodefinesensoroffsets, page56
→ PIDepthsensor,page104
→ PSDepthsensor,page109
→ PISpreadsensor,page123

Page setup

ThesesettingsareusedtosetupthePI32parametersrelatedto thepage;automaticpagerotationandmenulanguage.

Toaccesstheparameters, presstheMENUbuttonontoaccessthe main menu. Then, open the Setup menu and select Speed alarm, units&language.

WIN change interval: Display text in:

15 sec. OFF English GB

WINchangeinterval:ThefeaturewillmakethePI32leaf throughitsfourpagesautomatically.Thisparametercanturnthe functiononoroff.Thechangeintervalisthetetimeitkeepseach pagedisplayedbeforeitbringsupthenextpage.

Displaytextin: This parameter allows you to change the menu language. Not that the presence of other language is the will depend on the software version.

Related topics

→ Howtocontrolautomaticpagerotation,page81

Palette setup

ThesesettingsareusedtosetupthePI32parametersrelatedto presentationcolours.

The information provided by the PI32 can be presented using one out of nine palettes. In each palette, the text and background colours are defined. Seven of the palettes are user defined, and you can make your own preferences.

To access the Palette setup, press the Menu key, and select Setup. On the submenu, select Display colour.

To leaf through the palette pages, use the + and - buttons. To change colour settings, use the Selector pad to find the graphic element, and the + and - button stole a fthrough the available colours.

Position display setup

ThesesettingsareusedtosetupthePI32parametersrelatedto thepositiondisplaypresentation.

Toaccesstheparameters, presstheENTbuttonwhenyouhave thePositiondisplayinview.

Reset log:

Log 1:

00000.0 nm

Log 2:

00000.0 nm

Log1/2:Usethisparametertoresetthetwodistancelogs.

Related topics

→ Positiondisplay,page44

Receiver setup

Thesesettingsareusedtoestablishthecommunication parametersbetweenthePI32andthesensors.

Toaccesstheparameters,selectSensorconfig&receiver setupontheSetupmenu.

Receiver setup:
Interf.filter:	ON	Level:	9
AGC:	ON	Manual gain:	00dB
MP Filter:	OFF	MPF level:	42dB
Max shooting speed:			05kn
Detection Threshold (DT):			08dB
Sensor filter:			LIGHT
Catch/Bottom sensor filter:			OFF
Time: 07:53:43 Date: 21.03.1980

(CD11100B)

The Receiversetupparametershaveamajorinfluenceonthe PI32performance. Thedefaultsettingsarethosewehavefound tobethebestforgeneraluse, butforindividualinstallations optimizedsettingsmayenhancetheperformance.

Interferencefilter: Whenthisfilterisactiveitwillremove interference(noiseandfalseechoes)fromotherechosounders andsonarsinthethevincinityofyourownvessel.Itmaynot removeallinterference,butinmostcasesyouwillfindthis filtertobeveryefficient.Ifyousufferfrompoorrange performance,andthespectrumontheStatusDisplayisnearly flat,thisfiltermayalsoproveuseful.Anormalsensorwillthen showupwithanarrowpeakatitsdedicatedfrequency.This filterisbydefaultswitchedonandsettolevel9,andwilltend toprioritizestrongersignals.

Interferencefilterlevel: Usethissettingtocontrolthestrength of the Interference filter. 9 is the default value and the heaviest filtering. Selecting0willhardlyhaveanyeffect, andisreally equivalentwiththefilterswitchedoff.

Sensorfilter:ThePI32isdesignedtoquicklyupdatedata. Afterthesensorshavebeensubmerged,thereceiverrequires onlythreeconsecutivepingsfromindividualsensorstocalculate anddisplaytheirrespectiveinformation.However,ifyou experienceproblemswiththereception,youmayalsotrythis filter:itwillaveragethedatareceivedfromthesensors.Light filteringwillaveragethedatareceivedbythelastfourpings, whileheavyfilteringaveragesthedatareceivedbythelasteight pings.Werecommendthatyouonlyuseheavyfilteringifthere arelargefluctuationsinthedisplayeddata,orifterateof changeissmall.Reducedfilteringshortensthedelaybetween updatingthechangesinsensorlocationandthecorresponding displayedinformation.DefaultsettingisLIGHT.

Catch/BottomSensorfilter: This filter is used to smooth out the information from the Catch and Bottom Contact sensors. When the filter is switched off any change in sensor status will immediately be shown on the display. Set to LIGHT the change in status must last and remain stable for least twopings before the display is changed. When HEAVY filtering is applied the change in status must last and remain stable for at least four pings before the change is shown on the PI32 display.

AGC(AutomaticGainControl): This function allows the PI32 to automatically control there receive vergain. The units reads and interpret these received signal strength, and adjust the gain accordingly. During normal operation, ONisthere recommended (and default) setting.

Manualgain: If you decide to switch the AG Coff you must set the gain manually. This can be useful when you work at maximum detection ranges with favourable noise levels. The default setting is 0dB, and you can adjust the gain in steps of 20dB.

Multipathfilter(MPfilter): When you operate in an areas with substantial reverberation duetobottom topography, or in shallow waters, you may experience problems when consecutive operating channels have been configured, but the corresponding sensors are not in use. False signals and sporadic error values can also be caused by other types of hydroacoustic equipment operating on the PI32 frequency range. This filter has been implemented to remedy for such interference problem. Default setting is OFF.

Multipathfilterlevel(MPfilterlevel): WhentheMultipath filterhas been enabled, you can adjust the filter level in small step to correct the interference problem. Lower filter values represent stronger filtering. It is best to experiment with this parameter by reducing the value in step of 3dB until the

detectionerrordisappears. Checkthatthesignalsfromthe sensorinusearestillbeingreceived,iftheyarenot,thefilter willnotbeofhelpinthisparticularsituation.Thefilter's effectivenessisbothlocationandnetspecific.Therefore,the sameparameterswillnotnecessaryworkindifferentareasor usingvarioustypesofnets.Defaultsettingis42dB.

DetectionThreshold(DT): This function will inhibit reception of the weakest signals. If you experience problems with interferences, signal generating fals data and all of the configured sensors are operative (analogous with the Multipath problem); increase the Detection Threshold value carefully in step of 1 dB. High values allow only strong sensors signal to be detected. Alower threshold value will provide greater range if conditions are optimal, but if toolow, interference will be detected. It is best to experiment with different value to determine which to employ.

Note: If the Detection Threshold (DT) value is set higher than 28 dB, all signals will be prevented from being detected.

Maxshootingspeed:ThePI32hasabuiltindoppler compensationfunctionwhichisconfiguredusingthisparameter. Theparameterandrelatedfunctionishoweveronlyrelevantif sensordataisdesiredwhilethepurseseineisbeingdeployed.It hasnoeffectoncethevesselisstoppedwaitingforthenetto sink.Notethatifyousetthisparametertohigh,youcancreate aconflictwiththechannelselection.Shouldthissituationarise, thefollowingmessagewillappear:Maxshootingspeeddiffers fromwanted,channelsaresettooclosetoeachother.

Time: Presenttime. You can adjust the time by altering the individual digits.

Date: Presentdate. You can adjust the date by altering the individual digits.

Sensor alarms

ThesesettingsareusedtosetupthePI32parametersrelatedto sensoralarms.

Toaccesstheparameters, presstheMENUbuttonontoopenthe main menu. Then, open the Setup menu, and select Sensor alarm/calibration.

Each sensor has an individual alarm setting, and you can also trigger alarm to warn you about sudden temperature changes and shallow water. Whenever an alarm misriggered a audible signal is provided, and a message on the display presents the cause of the alarm. Unless there are on the alarm is corrected, or the alarm disabled, it will sound again after 20 seconds.

Alarm setup:

Depth 1:	0 m OFF	max: 300 m ON
Temp 2:	-5.0°C OFF	max: 30°C OFF
Spread 3:	0 m OFF	max: 300 m ON
S.temp:	0.0°C OFF	max: 10°C OFF
Shear alarm:		2.0°C OFF
Catch sensor alarm:		ON
Bottom sensor alarm:	LIFT-OFF	ON
Clearance pre-warning, min:	0 m OFF
Clearance pre-warning, max:	300 m OFF

(CD111000)

Sensoralarms: These parameters allow you to define alarms related to the information provided by the sensors you have in current use on your PI32 system. The appearance of the dialogue will thus automatically change the source your individual configuration. Each sensor has an individual alarm setting. To enable an alarm, you must defin minimum and maximum limits for the sensor, and set it to ON.

Catchsensoralarm: This sensorcanonly provide an alarm when it is triggered.

Bottomsensoralarm: This sensorcanonly provide an alarm when it is triggered.

S.Temp(Surfacetemperature): This parameter allows you to define an alarm related to the surface temperature. In order to enable this alarm, your PI32 must have relevant sensor fitted. To enable an alarm, you must defin the appropriate limits, and set it to ON.

Shearalarm: This alarm triggers if the temperature changes faster per minute than the limit value provided.

Clearancepre-warning: Thesealarmsareusedtowarnyouifa trawloranothertowedobjecteithermovestooclosetothe bottom,orliftstoofaroffthebottom. Youmusthavetheecho sounderswitchedontousethisalarm.Toenableit,setthe minimumlimittotheminimumalloweddistancebetween the footropeandthebottom,and/orthemaximumlimittothe maximumalloweddistancebetween thefootropeandthe bottom.Then,switchoneorbothalarmstoON.Thealarmis triggeredifthereadingfromaDepthsensormountedonthe footrope(oramanualdepthmarker)exceedsoneofthedefined limits.Tousethisalarmforasingletowedobject,selectthe Depth sensor as a Foot rope sensor in the Trawl info dialogue.

Related topics

→ Howtodefinealarmlimits,page78
→ Trawlinfodialogue, page182

Sensor setup

Theseparameters are used to establish communication between the PI32 and the sensors.

Toaccesstheparameters, press the MENU button to open the main menu, Then select Sensor setup on the Setup menu.

Note: Inordertosetuptheseparameterscorrectly,youneedtoknow whatkindofsensorsyouhave,howoftentheprovide informationupdates,andonwhichchannelstheycommunicate. Aformhasbeenprovidedinthefrontofthisbooktowritedown thisinformation.

Sensor setup:

Sensor 1: SINGLE - Update: FAST
Measure 1: DEPTH 1000M - Channel: 28
Sensor 2: SINGLE - Update: FAST
Measure 2: HEIGHT HEAD - Channel: 13
Sensor 3: SINGLE - Update: FAST
Measure 3: DEPTH 100M - Channel: 19

(CD11100A)

Foreachofthesensors, enableit, and selectsensortype, communicationrate and communicationchannel.

Note: Thesettingsyouchooseforupdaterateandcommunication channelmustbeidenticaltothesettingsintherelevantsensor.If thesesettingsarenotmatched,yourPI32willnotbeableto readtheinformationfromthesensor!

Related topics

→ Howtosetupthesensors, page48

Speed setup

ThesesettingsareusedtosetupthePI32parametersrelatedto speed.

Toaccesstheparameters, presstheMENUbuttonontoaccessthe mainmenu. Then, selectSpeedalarm, units&languageon theEchomenu.

Setup for speed:

LOG speed sensor:		OFF
LOG speed calibration:	19000 PULSES/nm
Speed alarm maximum:	0.0 kn	OFF
Speed alarm minimum:	0.0 kn	OFF

LOGspeedsensor:ThePI32maybeinterfacedtoanexternal speedlog. Use this parameter to enable order disable the input from this device.

LOGspeedcalibration: Ifanexternalspeedlogisused, this parameter allows youtomatch the output data from the speed log with the PI32 input. Refertotheapplicablespeedlog documentation, and find therated output in number of pulses per nautical miles. Then, set this PI32 accordingly.

Speedalarmmaximum: This parameter provides you with an audible warning if the vessel's speed exceeds apredefinedspeed limit.

Speedalarmminimum: This parameter provides you with an audible warning if the vessel's speed is slower than a predefined minimum.

Related topics

→ Alarmprocedures,page77

Surface temperature setup

ThesesettingsareusedtosetupthePI32presentation parametersrelatedtothesurfacetemperaturepresentation.

Toaccesstheparameters, press theENTbutton when you have a Surface temperature display in view.

Surface temp. setup:
Temperature scale min temp:	+00°C
Temperature scale max temp:	+30°C
Temperature offset:	+00.0°C
Temperature grid:	OFF
Temp. trend monitor:
Average of readings:	10

Temperaturescalemax/min: Usethesesettingstodefinethe maximumandminimumvaluesinyourtemperaturescale.

Temperaturegrid: Whenenabled, this function places horizontal gridlines in the temperature graph to make it easier to read the data.

Temperatureoffset: Using this function, you can add or subtract a fixed temperature value for compensate for known deviations in the sensor.

Averageoftemperaturereadings: If you wishtoread the avergatemperature, you must define how many readingstotake before the result is computed.

Related topics

→ Surfacetemperaturedisplay,page37

Trawl info setup

ThesesettingsareusedtosetupthePI32parametersrelatedto thetrawlpresentationsontheGraphicdisplay.Whenenabled, markerlinesprovidingtrawldepthinformationwillbe superimposedonthedisplay.

Toaccesstheparameters, presstheENTbuttonwhenyouhave agraphicdisplayinview.

Trawl info:

Headrope sensor:	Depth 300m - sensor 1
Footrope sensor:	NONE
Trawl opening mode:	020 m MANUAL OFF
Manual trawl marker:	OFF

Headropesensor: This setting defines which sensor that is placed on the headrope.

Footropesensor: This setting defines which sensor that is placed on the footrope.

Trawlopeningmode: This parameter decides how the trawl opening shall be recreated on the Graphic Display. If you have sufficient sensor on the trawly you must select Auto, and the PI32 will automatically calculate the trawl opening and draw it accordingly. If you only have one sensor on the trawl opening (Depthor Heights sensor on the headrope), the Manual setting will add an artificial line on the Graphic Display. The distance from the headrop to the footrop must then be defined manually using the Manual trawl marker parameter (below).

Manualtrawlmarker:Setthemanualtrawlopeningheightfor usewiththeTrawlopeningmodeparameter(above).

Clumpsensor: This setting defines which sensor that is placed on the clump.

Doorsensor: This setting defines which sensor that is placed on the door.

Related topics

→ Graphicdisplay, page35
→ Graphicsetup,page160

Units setup

ThesesettingsareusedtosetupthePI32parametersrelatedto units.

Toaccesstheparameters, presstheMENUbuttonontoaccessthe mainmenu. Then, selectSpeedalarm, units&languageon theSetupmenu.

Setup for units:

Depth/Spread in:

METRES

Distance in:

NAUTICAL MILES

Speed in:

KNOTS

Temperature in:

DEGREE CELCIUS

Selecttheunitsyouwishtouseonthevariousdata. These parametersareselfexplanatory.

PI CONFIGURATOR

Purpose

The purpose of the PI Configurator utility is to be able to configuresensorssothattheycanoperateondifferent communicationchannels.SeveralPIequippedvesselsmaythen operatesimultaneouslyinthesameareawithoutinterference.

Theutilityalsoallowsyoutochangetheupdaterateoneach sensor. Thisisthetimeelapsedbetweeneachdatatransmission fromthesensortothehostPIsystem.

Thisdocumentdescribessoftwareversion3.40.

Introduction

→ Basicinformation,page185
→ Aboutsensorconfiguration,page187
→ Maindialoguedescription, page 189

Procedures

→ Howtoperformsoftwareinstallation,page192
→ Howtointerfaceesensor,page193
→ Howtoperformbasicsensorconfiguration, page194
→ HowtosetupaTwinSpreadsystem,page195
→ Howtuploadfactorysettings,page197

Reference information

→ References,page198

Maintenance

→ Programmingmodes,page220
→ Makingaprogrammingcable, page221
→ Troubleshooting, page222

Sensor test procedures

→ Sensortestprocedures, page223

Basic information

Defaultsensorsettings

PIandPSsensorsaredeliveredfromSimradconfiguredwith commondefaultsettings.Whenrequired,theindividualsensors maybere-configuredwithregardto:

• Communicationchannel
• LEDcontrol
• Pingcontrol
• DataUpdaterate
• Remote
  • ShowchannelwithLEDflashatstartup

WhocanconfigurePI sensors?

Sensorconfigurationisnormallyperformedbyauthorized Simradtechnicians. However, individualswithbasiccomputer skillsandaccesstothenecessaryequipmentshouldnotfindit difficult.

Programmingmodes

ThePIConfiguratorconfigurationsoftwarehastwo programming modes, Standard and Professional.

Note: ItishighlyrecommendedthattheconfigurationofPIandPS sensorsintheProfessionalmodeisonlyperformedbyskilled andexperiencedpersonnel.

Necessaryequipment

The following hard-and software is required to set the PI Configurator utility:

• PICoufigurationsoftware
- A PC with Microsoft Windows© 2000 or XP operating systemandaCOMport(serialline).
- Asensorprogrammingcableforeitherastationaryor portablePC.

The sensor programming cables for stationary and portable PCs are constructed differently and are not ____ interchangeable.

Available equipment

The following is available from Simrad:

• UserGuide(857-164924)
• Software(889-204037)
• ProgrammingcableforstationaryPCs(380-204624)
• ProgrammingcableforportablePCs(380-208429)
• Servicehydrophone(314-204480)

Theconfigurationequipmentisalsoisavailableinkits:

• KIT1,Userguideandsoftware(KIT-208780)
- KIT2,Userguide,softwareandprogrammingcableforstationaryPC(KIT-208781)
- KIT3,Userguide,softwareandprogrammingcablefor portablePC(KIT-208782)

About sensor configuration

Allsensorsareprovidedfromthefactorywithpre-defined communicationchannelsandupdaterates.

SensorCom.channelUpdate	erate
PIBottomContact6Normal
PICatch4Normal
PIDepth(300m)16Fast
PIDepth(600m)12Fast
PIDepth(1000m)10Fast
PIHeight14Fast
PISpread2Fast
PI Twin Spread	2 and 7	Fast
PITemperature	8Fast
Factorydefaultcommunicationchannelsandupdaterates

Changing a transmission channel

It may be required to change one more or more transmission channels, and there may be many reasons for this.

• You have more than one of each sensor. For example, if you havethreetemperaturesensors, they MUST communicate on threedifferentchannels.
• OthervesselsnearyourusethesamePICconfiguratorsystem (orasimilar), and they have one or more of their sensors set up to the same communication channels as you have. This will create interference, as you will "read" each others sensors.
• Ifyoursensorsaresetuptousecommunicationchannelstoo closetoeachother(forexample,youhavechosenchannels 4,5and6),thiswilllimitthevessel'sspeed.Thereasonfor thisisthedopplereffect.If thespeedistoohigh,thedoppler willcausethetransmissionfrequenciestochangesomuch thattheyoverlap,andthiswillcreateinterference.ThePI Configuratorwillprovideawarningifthisisaboutto happen!Youmusttheneitherchangetoothercommunication channelsfurtherapart,orreducethemaximumshooting speed.
• If you operate at the maximum range of the sensors, you may be able to increase this ranges slightly if you use lower communication channels. This is because the lower communication channels user lower transmission frequencies.

Changingtheupdaterate

Itmayberequiredtochangetheupdaterateonasensor, thatis howoftenitsendsinformationbacktothePICfigurator system. Ahighupdateratewillgivefrequentinformation updates, butthesensorwillusemorebatterypower. If youneed yourbatteriestolastaslongaspossible, youmustconsider loweringtheupdaterate.

• Alowupdaterate will provide you with fewer information updates, but the battery will last very long.
• Ahighupdateratewillgiveyoufrequentinformation updates,butthebatterywillrunoutfaster.

AllsensorsareprovidedfromSimradwithadefaultupdaterate setting.Insomecasesyoumayfindthatthisupdateratedoes notsuityouroperationalneeds.Thisisadecisionyouhaveto madedependingonthelocalfishingconditions.

Main dialogue description

Observetheillustrationanddescriptionsbelow. Notethatthe appearanceoffunctionbuttonswilldifferdependingonthe sensortypeconnectedtotheapplication. Whenfunctionsare unavailable, thefieldsareidentifiedaccordinglywithashaded appearance.

IDButton/FunctionUse
1Establishcommunicationwith sensor		OncethesensorisconnectedtothePC,clicktoinitiate sensorinterface.
2	Read sensor data	Click to download current parameter settings from the sensor.Theinformationisshowninthemessagefield (5).
3ConfiguresensorClicktouploadthenew		configurationparameterstothesensor.
IDUse	Button/Function
4	TerminatecommunicationClicktodisconnectthesensorfromthePC.
5	MessagefieldDisplaysprogramandsensordata.
6	Communication channel	Select channel number to be uploaded to the sensor. If aTwinSpreadsensorisconnected,two communicationchannelsmustbedefined.
7	LED control	Click and drag the slider bar to control the behaviour of the sensor'sinternalLED.
8	Pingu controlClickanddragthesliderbartocontrolhowoftenther sensorwilltransmit("ping").
9	SensortypeDisplaysthesensortype.
10	Data update rate	Select the time interval between data transmissions fromthesensor.
11	Remote	Only available for Twin Spread sensors, used to definedthesetof Remotesensorstobeusedinthe TwinSpreadsystem.
	Number	OnlyavailableforRemotesensors, usedtodefineits identificationnumber(1- 4)
12	Show channel at startup	Click to activate or deactivate the sensor's internal LED identificationflash.
13	PI Configurator title	Displays current software version.
14	Serial number	Displays the sensor's serial number. This parameter is notavailableforPSsensors.
15	Dialogue box function buttons	Standard operating system functionality.
16	Communication port setup	Click to select which COM port you use to communicatewiththesensor.
17	Language	Clicktochangelanguage.
18	Help	Click to open on-line help.
19	Factory default	Click to configure the sensor with the corresponding factorydefaultsettings.
20	Indicator lamp	Indicates sensor interrogation.
21	Quit	Close the PI Configurator utility.

Operational procedures

Observethefollowingprocedures.

→ Howtoperformsoftwareinstallation,page192
→ Howtointerfacehesensor,page193
→ Howtoperformbasicsensorconfiguration,page194
→ HowtosetupaTwinSpreadsystem,page195
→ Howtuploadfactorysettings,page197

Softwareinstallation

ObservethefollowingprocedureinstallthePIConfigurator softwareonastationaryorportablecomputer.Notethatthe computermusthaveeitherMicrosoftWindows©2000or MicrosoftWindows©XPoperatingsystem.Youmustalsohave theWinziputilityinstalledonyourcomputer.ifthisisnotthe case,itcanbedowloadedfromwww.winzip.com.

Note: Certainantivirus applications may cause the installation process to fail. If you suspect this, closed down the antivirus protection, and reinstall the PIC configurator.

1 Locate the zip file containing the PI Configurator utility. -ThefilecanbefoundonaCD, itcanbedownloaded, ordistributedbye-mail.
2 Copy the zip file to your harddrive, and open it. - The Winziputilityisrequiredtoopenthefile.

3 Unpacktheinstallationfilestoatemporaryfolderonyour harddrive.

4 Locate and run the setup.exe file.

5 Allowtheinstallationwizardtostart.Followtheonline instructionscarefully.

Note: If you have a previous version of the PI Configurator utility, the installationprogramwillremoveit.Youwillthenneedtorestart the setup.exe file to complete the installation of the new version.

TheuserguideisavailableinelectronicformonthePI ConfiguratorCD.ItmaybeviewedbyopeningtheCD's contentsanddouble-clickingthefile.

How to interface the sensor

Beforeyoucanconfigurethesensor,youneedtoconnectitto thecomputer. Observetheprocedurebelow.

1StartthePIC configuratorutility.
2Plugtheprogrammingcableintooneofcomputer'sCOM ports(COM1isrecommended).
3Ensurethatthesensortobeconnecteddisswitchedoff. CheckthattheinternalLEDdoesnotflash,andthatthe seawaterswitchisnotactivatedinanyway.
4 Attachtheprogrammingcable'spositive(red)alligator cliptooneofthesensor'spositivefasteninglugs (designatedwithaplussymbol).
5Attachtheprogrammingcable'snegative(black)alligator cliptooneofthesensor'snegativefasteninglugs (designatedwithaminussymbol).

6InthePIConfiguratorutility, clicktheCommunication Port Setup button to open the Com Port Setup dialogue box.

7SelecttheCOMporttheprogrammingcableisplugged intobyclickingit,thenclickOK.

8ObservethattheEstablishCommunicationwithSensor buttonhasbeenactivated.

9 Click the Establish Communication with Sensor button.

Smalldialogueswilltellyouthatthecomputerfirstopensthe COMport, and then wakes up the sensor. If there is a malfunction, you will be notified accordingly. Once the communication between the PC and interfaced sensors is established, they yellow text field will display the key parameters retrieved from the sensor. Also, the indicator lamp in the lower right-hand corner of the PIC configurator dialogue will turn on and off every two seconds. The indicator lamp inside the sensor will illuminate at the samerate.

How to perform basic configuration

Oncethesensorisconnectedtothecomputer, and you have established communication, you can us the PIC configurator utility to changethe basicsensor parameters.

1ClicktheReadSenorDatabutton.

- Observethatthecurrentsensorconfiguration parametersaredisplayedinthemessagefield. The informationincludessensortype,channelnumber,and thesensor'ssoftwareversion.

2Ifrequired,selectanewcommunicationchannelinthe spinboxnexttotheCommunicationchannellabel.

3Ifrequired,selectadifferentupdaterateinthespinbox nexttotheDataupdateratelabel.

4 Press the Configure sensor button to upload the new parameters.

5 Press Terminate communication, and disconnect the sensor.

HowtoconfigureaTwinSpreadsystem

ThisproceduredescribeshottosetupaTwinSpreadsystem usingoneTwinSpreadsensorandtwoRemotesensors.

Setting up the Twin Spread sensor

1ConnecttheTwinSpreadsensortothePIConfigurator.

2 Press Establish communication with Sensor.

- Observethatthecurrentsensorconfiguration parametersaredisplayedinthemessagefield. The informationincludessensortype,channelnumber,and thesensor'ssoftwareversion.

3Ifrequired,selectnewcommunicationchannelsinthe spinboxesnexttotheCommunicationchannellabels.

-Twocommunicationchannelsarerequiredbecausethe TwinSpreadsystemmeasuretwodifferentdistances. ThechannelsyouselecthereMUSTmatchthe channelsyouselectionthePI44.

4Ifrequired,selectadifferentupdaterateinthespinbox nexttotheDataupdateratelabel.

5 Use the spin box next to the Remote label to choose the setofRemotesensoryouwishtouse.

- You can either use Remote set 1 and 3 or 2 and 4. - TheselectionyoumakehereMUSTmatchthetwo Remotesensorsyouwishtouse.

6 Press the Configure sensor button to upload the new parameters.

7 Press Terminate communication, and disconnect the sensor.

Setting up the first Remote sensor

1ConnectthefirstRemotesensortothePIConfigurator.

2 Press Establish communication with Sensor.

- Observethatthecurrentsensorconfiguration parametersaredisplayedinthemessagefield.

3 Use the spin box next to the Number label to define the sensor'snumberintheTwinSpreadsystem.

-ThenumberyouchooseMUSTmatchoneofthe numberschoseninstep5intheTwinSpreadsensor setup.

4 Press the Configure sensor button to upload the new parameters.

5 Press Terminate communication, and disconnect the sensor.

Setting up the second Remote sensor

1ConnectthesecondRemotesensortothePIConfigurator.

2 Press Establish communication with Sensor.

- Observethatthecurrentsensorconfiguration parametersaredisplayedinthemessagefield.

3 Use the spin box next to the Number label to define the sensor'snumberintheTwinSpreadsystem.

-ThenumberyouchooseMUSTmatchtheother numberchoseninstep5intheTwinSpreadsensor setup.

4 Press the Configure sensor button to upload the new parameters.

5 Press Terminate communication, and disconnect the sensor.

How touploadfactorysettings

Oncethesensorisconnectedtothecomputer, and you have established communication, you can us the PIC configurator utility to upload the applicable sensor's factory settings.

1ClicktheReadSenorDatabutton.

- Observethatthecurrentsensorconfiguration parametersaredisplayedinthemessagefield. The informationincludessensortype,channelnumber,and thesensor'ssoftwareversion.

2 Click the Factory default button to retrieve the default parameters for the current sensor.

3 Press Configure sensor button to upload the parameters tothesensor.

4 Press Terminate communication, and disconnect the sensor.

References

ThefeaturesavailablewhenusingPIConfiguratorsoftware depend which mode it is in (Standard or Professional) and the typeofsensorathatisinterface. All commands are described here, and they are listed in alphabetical order.

→ CommunicationChannel, page199
→ CommunicationPortSetup, page200
→ ConfigureSensor, page201
→ DataUpdateRate, page202
→ EstablishCommunicationwithsensor,page203
→ FactoryDefault, page204
→ Help, page205
→ Language, page206
→ LEDcontrol,page207
→ Messagefield, page208
→ Number,page209
→ Pingcontrol, page210
→ Quit,page211
→ ReadSensorData, page212
→ Remote,page213
→ SensorType,page214
→ Serialnumber,page215
→ Showchannelatstartup,page216
→ TerminateCommunication,page218

CommunicationChannel

Thisparameterallowsyoutoredefinethesensor'stransmission channel(1to30).

Sensorssendinformationusingspecificfrequencies, each designated as an individual channel. PI and PS sensors have 30 channelstochoosefrom,andtheFA701sensorshavefour.The frequencyrangeofthesechannelsareoffrom43.5to49.5kHz for PI and PS systems, and 70 to 80 kHz for FA710 systems.

Note: Thisisakeyparameter.Unlessthecommunicationchannel definedinthesensormatchesthechanneldefinedonthehostPI system,thecommunicationwillnotwork!

Operation

Tooperate, click the upordownarrow on the Communication Channel spinbox until the desired channel is shown in the text box. It is also possible to enter a channel directly by clicking the textbox and inputting the value with the PC's keyboard.

ClicktheConfigureSensorbuttontoprogramtheinterfaced sensorwiththenewchannelnumberparameter.Finally,check thatthemessagefieldisupdatedwiththenewparameter,and thatthemessageSuccess!!isdisplayedatthebottomas confirmationthatthecommandwasexecuted.

Spread sensors

NotethatSpreadsensorscanbeconfiguredtocommunicate withRemotesensorsNo.1or2;butshouldbelabelled accordinglybecausetheymustbeusedinpairsandcannotbe interchanged.Itisimportanttoremembertore-configurethe Spread2communicationchannel.

Note: Spread sensors configured as Sensor Type / Twin Spread have two CommunicationChanneldialogueboxes.

Related topics

→ Remote,page213

CommunicationPortSetup

ThisbuttonopenstheC o m P o r t S e t u p dialogue. The integrated sliderbarisusedtodesignate which COMport(COM1 to COM8) the programming cable is plugged into. COM1 is the factory default setting and recommended parameter.

Operation

Tooperate, click the CommunicationPort Setup button to open the C o m P o r t S e t u p dialoguebox. Click on the desired port, or use the slider bar to select. Click OK to save and exit.

If the chosen COM port is unavailable on the computer, a corresponding message will inform you about this.

ConfigureSensor

Thisbuttonisusedtore-programthecurrentlyinterfacedsensor withthenewparametersselected(thosepresentlydisplayed).

Thisoperationcannotbe“undone”however,thesensor’s previousstatusinformationandparameterconfigurationisstill availableinthemaindialogueboxandmaybere-enteredif necessary.

Operation

To operate, click the Configure Sensor button to program the sensorwiththenewparametersshownonthescreen.Checkthat themessagefieldisupdatedwiththenewparametersandthe messageSuccess!!isdisplayedatthebottomasaconfirmation thatthecommandwasexecuted.

DataUpdateRate

Thisparameterisusedtoselectaninterfacedsensor'sdata updaterate.

Note: Thisisakeyparameter.Unlessthedataupdateratedefinedin thesensormatchestherateddefinedonthehostPIsystem,the communicationwillnotwork!

Thedataupdaterateisthetetimeintervalbetweenindividual transmissionsfromthesensorcontainingmeasurementdata. The rateselectedmustmatchthecorrespondingsettinginthePI Cabinet'sSetupwindow.

Operation

Tooperate, click the spinbox next to the Data Update Rate label. Select the desired rate. Then, click the Configure Sensor button to program the interfaced sensor with the new data updaterate parameter. Finally, check that the message field is updated with the new parameter, and that the message success!! is displayed at the bottom as confirmation that the command was executed.

Related topics

→ Aboutsensorconfiguration,page187

Establish Communication With Sensor

Thisbuttoninitiatescontactbetweenthecomputerandawell chargedsensorbysendingita"wake-up"command.

Oncetwo-waycommunicationisestablishedthefollowing occurs:

• Theindicatorlamp(inthelowerright-handcornerofthe dialogue)willbeturnedonandoffeverytwoseconds.
• TheLEDinsidetheinterfacedsensorwillilluminateevery twoseconds.
• Thesensorwilldownloaditscurrentconfigurationdatatothe PC.Theinformationisshowninthemessagefield.

Operation

Tooperate:clicktheEstablishCommunicationwithSensor button.Checkthatthemessagefieldshowstheinterfaced sensor'scurrentconfigurationparameters,andthatethemessage Success!!isdisplayedasconfirmationatthebottomofthetext.

Toterminatethecommunicationwiththesensor,clickthe TerminateCommunicationbutton.

FactoryDefault

Thisbuttonisusedtorestoreasensor'sfactorydefaultvalues, accordingtothetypeofsensorcurrentlyinterfaced.

Factorydefaultsettingsinclude:

• SensorCommunicationChannel
• LEDcontrol
• Pingcontrol
• DataUpdaterate
• Remote
  • ShowchannelwithLEDflashatstartup

Operation

Tooperate, click the Factory Default button to select the original factory default settings. Then, click the Configure Sensor button to program the interfaced sensor with the original factory default settings. Finally, check that the message field is updated with the factory default settings, and that the message Success!! is displayed at the bottom as confirmation that the command was executed.

Help

Thisbuttonopenstheon-lineHelp.

Theon-linehelpincludegeneralinformationconcerningtheuse ofPIConfiguratorsoftwareandsensorinterface.

Tooperate, click the Help button to open the on-line help.

Toaccesscontextsensitivehelp, clicktherightmousebutton overagivenbuttonorparameter. This will open help window with specific information concerning the parameter or button the cursor is located over.

Language

ThisbuttonopenstheLanguagedialogue.

Thedialogueallowsyoutoselectoperationallanguageby clickingononeoftheflagicons.Clickinganiconwillconvert thePIConfigurator'sbuttons,information,helpfunctionsand interfacedsensordatatotherespectivelanguage.

Operation

Tooperate, click the Language button to open the dialogue. Click on the desiredicontoselect language, or click Cancel to closeted dialogue without replacing the present language in use.

When you have changed the language, click the Configure sensor button to have the information in the message field translated.

LEDControl

ThisparametercanonlybeaccessedintheProfessionalmode.

Thedialogueboxisusedtocontrolthebehaviourofthe interfacedsensor'sinternalLEDduringnormaloperation.LED behaviourinboththechargeandcommunicationmodescannot bealtered.SensorLEDparametersare:

• StartupOnly-TheLEDwillonlyilluminate(flashingits identificationcode)whenitisenergized.Itwillnotbeturned onduringnormaloperation.
• OnlywhenPinging-TheLEDwillonlyilluminatewhenit "pings"(transmitsdata).
• When<2m-TheLEDwillflasheverytimethesensor "pings",butonlywhenitisatadepthoflessthanttwo meters.Thisparameterisonlyavailablefordepthsensors.
• Always - If the sensor is disabled from pinging at depths less than two meters by the Ping Control parameter being set to Depth > 2m, the Always parameter causes the sensor's LED toilluminateatdepthsoflessthantwometersevenwhenthe sensordoesnot"ping".

Operation

Tooperate, usetheLEDControlspinbuttontoselectthe desiredLEDbehaviour. Then, clicktheConfigureSensor buttontoprogramtheinterfacedsensorwiththenewparameter. Finally, check thatthemessagefieldisupdatedwiththenew parameter, and thatthemessageSuccess!! is displayed at the bottomasconfirmationthatthecommandwas executed.

Messagefield

Thismessagefielddisplayspresentandpastconfigurationdata, communicationstatus,errormessagesandotherinformation. Configuredparameterscannotbe"undone"however,the previousparameterconfigurationisstillavailableinthemain dialogueboxandmaybere-enteredifnecessary.

Eachtime the ConfigureSensorbuttonis clicked, themessage fieldwillbeautomaticallyupdated. The lateststatusinformation andparameterswilldisplace(vertically)theoldervaluestuntil theyarenolongerdisplayedinthewindow.

(1)=Previousstatusinformationand parameters
(2)=Newstatusinformationand parameters

Tooperate, click the Configure Sensor buttonoupdatethemessagefield information. Check that the message field was updated and the message Success!! displayed at the bottom as confirmation that the command was executed.

Number

Thisboxallowsyoutodefinetheidentificationnumberforthe currentlyconnectedRemotesensor. Thisisakeyparameter whenyousetupaTwinSpreadsystem.

Related topics

→ HowtosetupaTwinSpreadsystem,page195

Pingcontrol

Thisparameterisonlyavailablefordepthsensors, andcanonly beaccessedintheProfessionalmode.

Thedialogueboxisusedtocontrolwhenasensorwill“ping”(transmitanacousticsignal).Forexample,itispossibleto disablethesensorfrombeinginadvertentlyactivatedwhenlying inawetnetondeck(adepthoflessthantwometers)toprolong itsbatterylife.Theavailableparametersare:

• Always-Thesensorwill "ping" atalldepthsduringnormal operation.
• Depth>2m-Thesensorwill“ping”onlywhenitisata measureddepthofmorethantwometers(deployed).

Operation

Tooperate, clickthePingControldialogueboxanddragthe sliderbartoselectthedesired“ping”behaviour. Then, clicktheConfigureSensorbuttontoprogramtheinterfacedsensorwith thenewPingControlparameter.Finally, checkthatthe messagiefiledisupdatedwiththenewparameter, and thatthe messageSuccess!!isdisplayedatthebottomasconfirmation thatthecommandwasexecuted.

Quit

ClickthisbuttontoclosethePIConfiguratorutility.

ReadSensorData

Thisbuttonrequeststhatconfigurationdatabesentfromthe interfacedsensortothePC.

WhentheReadSensorDatabuttonisclicked,thesensorwill downloadinformationtothePC.Thisdataisthenusedto populatethemessagefieldjustaswhentheEstablish CommunicationwithSensorbuttonisclicked.

Operation

Tooperate, click the Read Sensor Databutton. Check that the message field is populated with the interfaced sensor's data and the message success!! is displayed as confirmation that the command was executed.

Remote

ThisparameterisonlyavailableforSpread,TwinSpreadand Remotesensors. Thedialogueboxallowsselectionofthe channelsusedtocommunicatebetweenSpreadandtheRemote sensors.

Note: ThesearekeyparameterswhenyouworkwithSpreadand

Remotesensors.Makesurethecorrectchannelsareselectedfor allthesensors.Shouldincorrectparametersbechosen,the sensorswillnotbeabletocommunicatewitheachother,andthe PIOperatorUnitwilldisplay“±±±”.

TheSpreadandRemotesensorsmustalwaysbesetupinsetsas follows:

Singletrawl:

- Spread 1 must communicate with Remote 1

- Spread 2 must communicate with Remote 2

Twintrawl:

- Twin Spread 1 must communicate with Remote 1 and 3

- Twin Spread 2 must communicate with Remote 2 and 4

ATwinSpreadsensorusestwochannelstocommunicate withtheRemotesensors;onechannelforeachRemote.

Dualtwintrawl:

- Twin Spread 1 must communicate with Remote 1 and 3

- Twin Spread 2 must communicate with Remote 2 and 4

Tosetupadualtwintrawlconfiguration,thetwosetsof TwinSpreadsensorsmustworkwithdifferent communicationchannels.

Operation

UsetheRemotespinbox, and select the desired channel or channel combination. Click the Configure Sensor button to program the interfaced sensor with thenew channel parameter. Check that the message field is updated with thenew parameter and the message success!! displayed at the bottom as confirmation that the command was executed.

SensorType

Thisparameteristobeconfiguredinaccordancewiththe sensor'slabelandcanonlybeaccessedintheProfessional mode.

Thedialogueboxisusedtoselectwhichofthesensor'sinternal programstorunwhenactivated.WhenusingthePI Configurator in the Standard mode, it will only display the type of sensorinterfaced.

Itisnotpossibletochangeasensor'stype.

Operation

Tooperate, click the SensorTypedialoguebox and drag the sliderbartothetype of sensor written on its label. Then, click the Configure Sensor button to toprogram the interfaced sensor with thenew parameter. Finally, check that the message field is updated with thenew parameter, and that the message Success!! is displayed at the bottom as confirmation that the command was executed.

Serialnumber

Thistextboxdisplaystheinterfacedsensor'sserialnumber.It cannotbere-configured. ThisfeatureisnotavailableforPS sensors.

Show ChannelAtStartup

This dialogue box controls weather or not the interfaced sensor will flash a channel identification code using its internal LED when first energized.

WhenEnableddisselected, the sensor will flash its presently configured communication channel number at startup when in thenormal mode (not in the charge or communication modes).

Thisfeaturemayalsobeactivatedbytouchingasensor'slidand charginglugsimultaneously.

When activated, the sensor will respond by flashing its individual LED identification codes, as follows:

(1)=Onelongflash:Ithasadurationofapproximately1 second.
(2)=Onestartflash:Thissignalsthatthefirstdigitofthe channelnumberisnext.
(3)=None,one,twoorthreeshortflashes:Thenumberofshort flashessignifiesthefirstdigitoftheconfiguredchannelnumber.
(4)=Asecondstartflash:Thissignalsthattheseconddigitof thechannelnumberisnext.
(5)=Nonetonineshortflashes: Thenumberofshortflashes signifiesthesseconddigitoftheconfiguredchannelnumber.

Operation

To operate, use the spin box and choose Enable or Disable. Then.clicktheConfigureSensorbuttontoprogramthe interfacedsensorwiththenewparameter.Finally,checkthatthe messagefielddisupdatedwiththenewparameter,andthatthe messageSuccess!!isdisplayedatthebottomasconfirmation thatthecommandwasexecuted.

Examples

Exampleofchannelnumber16atstartup(below):

(1)=Aonesecond"longflash"
(2)=Astart"flash"
(3)=One“quickflash”(firstdigitof16is1)
(4)=Astart"flash"
(5-10)=Six"quickflashes"(seconddigitof16is6)

Normaloperationstarts

Exampleofchannel2atstartup(below):

(1)=Aonesecondflash
(2)=A"start-flash"
(3)=Noshortflashes(firstdigitof02is0)
(4)=A "start-flash"
(5-6)=Twoshortflashes(seconddigitof02is2)

Normaloperationstarts

(CD11012C)

TerminateCommunication

Pressthisbuttontoterminatetheserialdataflowbetween the sensorandthecomputer.

Operation

Pressthebuttontoterminatethecommunication,then disconnectthecable.

If you disconnect the cable before you terminate the data flow, the PIC configurator will issue an error message.

Maintenance

Thischaptercontainsinformationrelatedtomaintenance,setup andtroubleshooting.

Topics

→ Programmingmodes,page220
→ Makingaprogrammingcable, page221
→ Troubleshooting, page222

Programmingmodes

Available modes

ThePIConfiguratorutilityhastwoprogrammingmodes:

• Standard-defaultmode,describedinthismanual.
• Professional-forusebySimradpersonnelonly.

Caution: TheuseofPI ConfiguratorsoftwareintheProfessional modeisforqualified Simradpersonnelonly.Improper useofPI ConfiguratorsoftwareintheProfessional modecancausepermanent,irreparabledamageto sensors.Itmustthereforeneverbeactivatedby unqualifiedpersonnel.

To change mode

To activate PI Configurator software in the Professional mode:

1ClosethePICoufiguratorutility.

2 Open the folder C:\Program Files\PI Configurator.

3 Find the file named ps30_cfg.ini and open it with a text editor.

4Locatethelineofcodethatcontainstheword STANDARD and overwrite it to PROFESSIONAL. Makesurethathaveacharacterafterthelast word!

5Savetheps30_cfg.inifile.

6RestartthePIConfiguratorsoftware.

If you install anewsoftware version, you must repeat this procedure.

After changing modes

AfteractivatingPIConfiguratorsoftwareintheProfessional mode, thestartupscreenwilldisplay:

UKB(unchanged)

COM1(unchanged)

PROFESSIONAL(previouslySTANDARD)

Makingaprogrammingcable

ShouldaSimradprogrammingcablenotbeavailable,itis possibletomakeanadequatesubstitutionasdescribedbelow.

Itisonlypossibletomakeprogrammingcablesforstationary computers. If you wishtouse a portable computer the cable must be ordered from Simrad. Somenewstationary computers have been found to provide the same output specifications as portable computers using lowervoltage on the serial line. On these computers, a “portable” cable is also required.

Youwillneedthefollowingparts:

• A9-pin, Sub-Dfemaleconnector
• Approximatelyonetotwometersof2-wirecable
- A3kohmresistor
- Twoalligatorclamps

Thecableassemblyprocedureisasfollows:

1Connectpinnumbertwoofthe9-pin, Sub-Dfemale connectortooneendofthepositive(+)leadofthe2-wire cable. Attheotherendofthepositive(+)lead, connect thepositive(red)alligatorclamp.

2Connectpinnumberfiveofthe9-pin,Sub-Dfemale connectortooneendofthenegative(-)leadofthe2-wire cable.Attheotherendofthenegative(-),connectthe negative(black)alligatorclamp.

3Connectthe3kohmresistorbetweenpinsnumbertwoand threeofthe9-pin,Sub-Dfemaleconnector.

4Checkbothalligatorclampsandrespectivepinsfor continuity.

Troubleshooting

Mostproblemsareeasilysolved. Troubleshootinterface, configurationorothercomplicationsbycheckingthefollowing:

• Theinterfacedsensorissufficientlycharged.
- ThecorrectPIsensorprogrammingcableisusedandingood condition
- ThePIsensorprogrammingcableisconnectedtothePC's COMportcorrectly.
- ThePIsensorprogrammingcableisconnectedtothesensor correctly.
- ThePIsensorprogrammingcableisconnectedtotheCOM portselectedintheComPortSetupdialoguebox.
- ThemodeofoperationforthePICfiguratorsoftwarehas beencorrectlyselected.
- Thetypeofsensorinterfacedhasthefeatures/parameters attemptingtobeaccessed.
- ThelatestversionofPIConfiguratorsoftwarehasbeen correctlyinstalled.

SENSOR TEST PROCEDURES

Overview

Using the PIC configurator application, you can test the operational status of each sensor. In the following, you will find the test procedures. Not that PI and PS sensors are tested using the same procedures.

Topics

→ BottomContactsensor,testprocedure,page224
→ Catch&Ripsensors,testprocedure,page227
→ Depthsensor,testprocedure,page230
→ Heightsensor,testprocedure,page233
→ Spread&Remotesensors,testprocedure,page236
→ TemperatureSensor,testprocedure,page240

Seawaterswitchdesignchange

TheseawaterswitchdesignonallthePIsensorswaschanged in2005.Onsensorsproducedafterthedesignchange,thesea waterswitchiscomprisedofasacrificialbrassbolt.Thisbolt mustbereplacedwhenandifitisworn.Adedicatedprocedure isprovidedinthePISystemoperatormanual.

Bottom Contact test procedure

Tools and equipment required

• Multimeter
• Asmallpieceofwire
  • PIServiceHydrophone(Orderno.314-204480)
• PISystem

Initial check and setup identification

Keeptheareabetweenthenegativecharginglug(A)andthe waterdetector(B)cleantoreducetheriskofactivating the sensor. If necessary, applysilicongreasetodisruptconductive paths.

1Usingamultimeter,checkthevoltagebetweenthe negativecharginglug(A)andthewaterdetector(B). Makesurethesensorischarged:

-Fullydischarged: Voltagelessthan11.5Vdc
-Fullycharged: Voltagegreaterthan13.5Vdc
-Approximately50%capacityleft:12.8Vdc

2Withasmallpieceofwire,completethecircuitbetween thesensor'sseawaterdetector(B)andnegativecharging lug(A).

- ThesensorwillrespondbyflashingitsindividualLED identificationcodes.

(1)=Onelongflash:Ithasadurationof approximately1second.
(2)=Onestartflash: This signal that the first digit of the channel number is next.
(3)=None,one,twoorthreeshortflashes:The numberofshortflashessignifiesthefirstdigitofthe configuredchannelnumber.

(4)=Asecondstartflash:Thissignalsthatthesecond digitofthechannelnumberisnext.

(5)=Nonetonineshortflashes:Thenumberofshort flashessignifiestheseconddigitoftheconfigured channelnumber.

3Usingamultimeter,checktheDCcurrentbetweenthe negativecharginglug(A)andthewaterdetector(B).

-Withtheinitialseawaterswitchandaafullycharged battery, thecurrentshouldnotexceed150μA.

-Witharedesignedseawaterswitch(sacrificialbolt) andaafullychargedbattery, thecurrentshouldnot exceed67μA.

-Ifyoumeasure0μA, checkthefuseonyour multimeter.

Testing on land

1ConnectthePIServiceHydrophonetothePIOperator Unit.

2Placethesensoronalevelsurfacewithits“domedtop” pointingtowardsthetesthydrophoneapproximatelyfive metersaway.

3 Use the Status display on the PI to monitor the sensor's signalstrength.

-If the interference filter is on, the spectrum displayed should be relatively flat (approximately 25 dB, interference filters at level 9) with a peak detected in the configured channel.

4CheckthatthebottomcontactsymbolonthePIis "touchingthebottom"whenthedetectorwireisnotpulled out.

5Pulloutthedetectorwire,andcheckthatthesensor presentationchanges.

Testing in water

1DisconnectthePIServicehydrophone, andreconnectthe vessel'snormalhullmountedhydrophone.

2Switchoffthevessel'sechosounders,sonarsandother hydroacousticalequipmenttoavoidinterference.

3Lowerthesensoroverthesideofthevessel.

-Notethattheweightofthesensorinwater (approximately 1.4kg) may not provide sufficient resistancetotriggerthesensor's bottom contact function whenthedetectorwire is pulled. Apply extra weight if required.

4SwitchoffthePIsystem'sinterferencefilter,andobserve thenumericdisplay. -Iftheinterferencesymbolisnotdisplayed,leavethe interferencefilterswitchedofftoincreasethesystem's rangeandperformance.

Note: Shouldanyproblemsariseduringthisprocedure,checkthatthe communicationchannelandupdateratehasbeenconfigured correctly.

5Checkthattheinformationfromthesensorisdisplayedon thePI.

6Engagethesensor, and check that this is registered by the PI.

7 Check the PI Status Display, and record the signal strength.

8Switchonthevessel'sechosoundersandother hydroacousticalequipmentusedduringnormalfishing operations.

9SwitchthePI32interferencefilteronandoff, and observe thenumericdisplay. If the interferences symbol is not shown when the filter is off, leavethe interference filter switched off to increase the system's range and performance.

10Useawater-proofpen, writethesensor's number, configured channel number and any other pertinent information on its label.

-Adedicatedformhasalsobeenprovidedinthefrontof thePIOperatorManualtorecordthisinformation.

Note: Donotwriteonthesensor!Suchinformationmaybe misunderstoodwhenfutureserviceorreplacementisperformed.

Catch sensor, test procedure

Tools and equipment required

• Multimeter
• Asmallpieceofwire
  • PIServiceHydrophone(Orderno.314-204480)
• PISystem

Initial check and setup identification

Keeptheareabteweenthenegativecharginglug(A)andthe waterdetector(B)cleantoreducetheriskofactivating the sensor.Ifnecessary,applysilicongreasetodisruptconductive paths.

1 Using amultimeter, check the voltage between the negative charging lug(A) and the water detector(B). Makes sure the sensor is charged:

-Fullydischarged:Voltagelessthan11.5Vdc
-Fullycharged:Voltagegreaterthan13.5Vdc
-Approximately50%capacityleft:12.8Vdc

2Withasmallpieceofwire,completethecircuitbetween thesensor'sseawaterdetector(B)andnegativecharging lug(A).

- ThesensorwillrespondbyflashingitsindividualLED identificationcodes.

(1)=Onelongflash:Ithasadurationof approximately1second.

(2)=Onestartflash:Thissignalsthatthefirstdigitof thechannelnumberisnext.

(3)=None,one,twoorthreeshortflashes:The numberofshortflashessignifiesthefirstdigitofthe configuredchannelnumber.

(4)=Asecondstartflash: This signal that these second digit of the channel number is next.

(5)=Nonetonineshortflashes:Thenumberofshort flashessignifiestheseconddigitoftheconfigured channelnumber.

3Usingamultimeter,checktheDCcurrentbetweenthe negativecharginglug(A)andthewaterdetector(B).

-Withtheinitialseawaterswitchandaafullycharged battery, thecurrentshouldnotexceed150μA.

-Witharedesignedseawaterswitch(sacrificialbolt) andaafullychargedbattery, thecurrentshouldnot exceed67μA.

-Ifyoumeasure0μA, checkthefuseonyour multimeter.

Testing on land

1ConnectthePIServiceHydrophonetothePIOperator Unit.

2Placethesensoronalevelsurfacewithits“domedtop” pointingtowardsthetesthydrophoneapproximatelyfive metersaway.

3 Use the Status display on the PI to monitor the sensor's signalstrength.

-If the interference filter is on, the spectrum displayed should be relatively flat (approximately 25dB, interference filters at level 9) with a peak detected in the configured channel.

4CheckthattheCatchsymbolonthePIisactivated(red symbolandaudiblealarm)whenoneofthedetectorwire ispulledout.

5Releasethedetectorwire,andcheckthatthesensor presentationchangestoyellow.

Testing in water

1 Disconnect the PIService hydrophone, and reconnect the vessel's normal hull mounted hydrophone.

2Switchoffthevessel'sechosounders,sonarsandother hydroacousticalequipmenttoavoidinterference.

3Lowerthesensoroverthesideofthevessel.

-Notethattheweightofthesensorinwater (approximately 1.4kg) may not provide sufficient resistancetotriggerthesensorfunction when the detectorwirerarepulled. Applyextraweightif required.

4TurnoffthePIsystem'sinterferencefilter,andobserve thenumericdisplay.

-If the interferences symbol is not displayed, leave the interference filters switched off to increase the system's range and performance.

Note: Shouldanyproblemsariseduringthisprocedure,checkthatthe communicationchannelandupdateratehasbeenconfigured correctly.

5Checkthattheinformationfromthesensorisdisplayedon thePI.

6Engagethesensor, and check that this is registered by the PI.

7 Check the PI Status Display, and record the signal strength.

8Switchonthevessel'sechosoundersandother hydroacousticalequipmentusedduringnormalfishing operations.

9SwitchthePI32interferencefilteronandoff, and observe thenumericdisplay. If the interferences symbol is not ____ when the filter is off, leavethe interference filters switched off to increase the system's range and performance.

10Useawater-proofpen, writethesensor's number, configured channel number and any other pertinent information on its label.

-Adedicatedformhasalsobeenprovidedinthefrontof thePIOperatorManualtorecordthisinformation.

Note: Donotwriteonthesensor!Suchinformationmaybe misunderstoodwhenfutureserviceorreplacementisperformed.

Depth sensor, test procedure

Tools and equipment required

• Multimeter
• Asmallpieceofwire
• PISystem

Close-up of a yellow mechanical component with labeled points A and B, no readable text or symbols beyond labels

Initial check and setup identification

Keeptheareabetweenthenegativecharginglug(A)andthe waterdetector(B)cleantoreducetheriskofactivating the sensor.Ifnecessary,applysilicongreasetodisruptconductive paths.

1Usingamultimeter,checkthevoltagebetween the negativecharginglug(A)andthewaterdetector(B). Makesurethesensorischarged:

-Fullydischarged:Voltagelessthan11.5Vdc
-Fullycharged:Voltagegreaterthan13.5Vdc
-Approximately50%capacityleft:12.8Vdc

2Withasmallpieceofwire,completethecircuitbetween thesensor'sseawaterdetector(B)andnegativecharging lug(A).

- ThesensorwillrespondbyflashingitsindividualLED identificationcodes.

(1)=Onelongflash:Ithasadurationof approximately1second.
(2)=Onestartflash:Thissignalsthatthefirstdigitof thechannelnumberisnext.
(3)=None,one,twoorthreeshortflashes:The numberofshortflashessignifiesthefirstdigitofthe configuredchannelnumber.
(4)=Asecondstartflash:Thissignalsthatthesecond digitofthechannelnumberisnext.

(5)=Nonetonineshortflashes:Thenumberofshort flashessignifiestheseconddigitoftheconfigured channelnumber.

3Usingamultimeter,checktheDCcurrentbetweenthe negativecharginglug(A)andthewaterdetector(B).

-Withtheinitialseawaterswitchandaafullycharged battery, thecurrentshouldnotexceed150μA.
-Witharedesignedseawaterswitch(sacrificialbolt) andaafullychargedbattery, thecurrentshouldnot exceed67μA.
-If you measure 0μA, check the fuse on your multimeter.

Testing on land

Thesensorcanonlybetestedinwater.

Testing in water

1LowertheDepthsensoroverthesideofthevesseltoa measureddepthgreaterthantwometers.

2Switchoffthevessel'sechosounders,sonarsandother hydroacousticalequipmenttoavoidinterference.

3SwitchoffthePI32'sinterferencefilter,andobservethe numericdisplay.

-If the interferences symbol is not displayed, leavethe interference filters switched off to increase the system's range and performance.

4 Use the PI32 Status display to monitor the sensor's signal strength.

-If the interference filter is activated, the spectrum displayed should be relatively flat (approximately 25 dB with interference filters at level 9) with a peak detected in the configured channel.

5Checkthatthedepthread-outonthePI32correspondsto theactualmeasureddepthatwhichthesensoris suspended.

-If these values vary, calibratethe PI32 depth offset. The procedure is described below.

6Hoistandlowerthesensorinthewater, and observethat the depthreadout changes accordingly.

7Turnonthevessel'sechosoundersaswellasother hydroacousticalequipmentusedduringnormalfishing operations.

8SwitchthePI32interferencefilteronandoff, and observe thenumericdisplay. If the interferences symbol is not shown when the filter is off, leavethe interference filter switched off to increase the system's range and performance.

9Useawater-proofpen, writethesensor's number, configured channel number and any other pertinent information on its label.

-Adedicatedformhasalsobeenprovidedinthefrontof thePIOperatorManualtorecordthisinformation.

Note: Donotwriteonthesensor!Suchinformationmaybe misunderstoodwhenfutureserviceorreplacementisperformed.

PI32 Calibration procedure

Observethisproceduretocalibratethedepthsensorusingthe functionalityonthePIsystem.

1 Press the Menu button, and select Setup.
2 On the Setup menu, select Sensor alarm/calibration.
3 Press the Enter button to allow the parameters to be changed.

4MovethecursordowntheDepth/Spreadsensor calibration, and switch Depth sensor calibration to ON.

-If these values vary, calibrate by adjusting the PI32 depth offset function until theme measured depth under the vessel correspond to the PI32's displayed depth.
-Another method of calibration is to measure depth of three meters under the vessel, and then using the PI32's depth sensor calibration functionality. When this calibration procedure is performed, the offset value will be reduced by two meters.

PI44 Calibration procedure

Observethisproceduretocalibratethedepthsensorusingthe functionalityonthePIsystem.

Height sensor, test procedure

Tools and equipment required

• Multimeter
• Asmallpieceofwire
  • A referenceechosounder
• PISystem

Initial check and setup identification

Keeptheareabetweenthenegativecharginglug(A)andthe waterdetector(B)cleantoreducetheriskofactivating the sensor.Ifnecessary,applysilicongreasetodisruptconductive paths.

1Usingamultimeter,checkthevoltagebetween the negativecharginglug(A)andthewaterdetector(B). Makesurethesensorischarged:

-Fullydischarged: Voltagelessthan10.4Vdc
-Fullycharged: Voltagegreaterthan12.2Vdc
-Approximately50%capacityleft:11,5Vdc

2Withasmallpieceofwire,completethecircuitbetween thesensor'sseawaterdetector(B)andnegativecharging lug(A).

- ThesensorwillrespondbyflashingitsindividualLED identificationcodes.

(1)=Onelongflash:Ithasadurationof approximately1second.
(2)=Onestartflash: This signal that the first digit of the channel number is next.
(3)=None,one,twoorthreeshortflashes:The numberofshortflashessignifiesthefirstdigitofthe configuredchannelnumber.

(4)=Asecondstartflash:Thissignalsthatthesecond digitofthechannelnumberisnext.

(5)=Nonetonineshortflashes:Thenumberofshort flashessignifiestheseconddigitoftheconfigured channelnumber.

3Usingamultimeter,checktheDCcurrentbetweenthe negativecharginglug(A)andthewaterdetector(B).

-With the initial seawaters switch and a fully charged battery, the current should not exceed 150μA.
-Witharedesignedseawaterswitch(sacrificialbolt) andaafullychargedbattery, thecurrentshouldnot exceed67μA.
-If you measure 0 A , check the fuse on your multimeter.

Testing on land

Thesensorcanonlybetestedinwater.

Testing in water

1Usethevessel'smostaccurateechosounderasreference, andmeasurethewaterdepthbelowthekeel.
2LowertheHeightsensoroverthesideofthevessel.Make surethattheechosoundertransducerfacesthebottom.
-Lowerittothesamedepthasofthevessel'secho soundertransducer.

3Switchoffthevessel'sechosounders,sonarsandother hydroacousticalequipmenttoavoidinterference.

4SwitchoffthePI32'sinterferencefilter,andobservethe numericdisplay.

-If the interferences symbol is not ____ displayed, leavethe interference filters switched off to increase the system's range and performance.

5 Use the PI32 Status display to monitor the sensor's signal strength.

-If the interference filter is activated, the spectrum displayed should be relatively flat (approximately 25 dB with interference filters at level 9) with a peak detected in the configured channel.

6Checkthatthedepthread-outonthePI32correspondsto theactualdepthmeasuredbythevessel'sechosounder.

7Hoistandlowerthesensorinthewater,andobservethat thedepthreadoutchangesaccordingly.

8Turnonthevessel'sechosoundersaswellasother hydroacousticalequipmentusedduringnormalfishing operations.

9SwitchthePI32interferencefilteronandoff, and observe thenumericdisplay. If the interferences symbol is not shown when the filter is off, leavethe interference filter switched off to increase the system's range and performance.

10Useawater-proofpen, writethesensor's number, configured channel number and any other pertinent information on its label.

-Adedicatedformhasalsobeenprovidedinthefrontof thePIOperatorManualtorecordthisinformation.

Note: Donotwriteonthesensor!Suchinformationmaybe misunderstoodwhenfutureserviceorreplacementisperformed.

Spread & Remote sensors test procedure

Tools and equipment required

• Multimeter
• Asmallpieceofwire
  • PIServiceHydrophone(Orderno.314-204480)
• PISystem

Initial check and setup identification

Onbothsensortypes, keep the are abetween thenegative charginglug(A) and the water detector(B) cleantoreducethe risk of activating the sensor. If necessary, apply silicongreaseto disrupt conductive paths.

1Onbothsensors, useamultimetertocheckthevoltage between the negative charging lug(A) and the water detector(B). Makesurethesensorischarged:

-Fullydischarged:Voltagelessthan11.5Vdc

-Fullycharged: Voltagegreaterthan13.5Vdc

-Approximately50%capacityleft:12.8Vdc

2Withasmallpieceofwire,completethecircuitbetween thesensor'sseawaterdetector(B)andnegativecharging lug(A).

- ThesensorwillrespondbyflashingitsindividualLED identificationcodes.

(1)=Onelongflash:Ithasadurationof approximately1second.

(2)=Onestartflash:Thissignalsthatthefirstdigitof thechannelnumberisnext.

(3)=None,one,twoorthreeshortflashes:The numberofshortflashessignifiesthefirstdigitofthe configuredchannelnumber.

(4)=Asecondstartflash:Thissignalsthatthesecond digitofthechannelnumberisnext.

(5)=Nonetonineshortflashes:Thenumberofshort flashessignifiestheseconddigitoftheconfigured channelnumber.

3Usingamultimeter,checktheDCcurrentbetweenthe negativecharginglug(A)andthewaterdetector(B).

-Withtheinitialseawaterswitchandaafullycharged battery, thecurrentshouldnotexceed150μA.
-Witharedesignedseawaterswitch(sacrificialbolt) andaafullychargedbattery, thecurrentshouldnot exceed67μA.
-If you measure 0 A , check the fuse on your multimeter.

Testing on land

1ConnectthePIServiceHydrophonetothePIOperator Unit.
2PlacetheSpreadandRemotesensorsonalevelsurface with their "transversaleyes" pointingtowardseachother atameasureddistance(onetothreemeters). Record this distance.
3Placethetesthydrophoneapproximatelyfivemetersaway fromboththeSpreadandRemotesensors.
4TurnonthePI, and recordthedistanceshownonits display.
5Multiplytherecordedphysicaldistancebyafactorof4.5 andcompareittothedistancedisplayedbythePI.
-Thephysicaldistancebetweenthetwosensors multiplied by 4.5 and the displayed distances shown on the PI should be almost identical.

Testing in water

1DisconnectthePIServicehydrophone, andreconnectthe vessel'snormalhullmountedhydrophone.
2Switchoffthevessel'sechosounders,sonarsandother hydroacousticalequipmenttoavoidinterference.
3LowertheSpreadsensor(A)overthesideofthevessel withitshead(C)pointingtowardsthehydrophone.Lower ittominimumthreemeters.
4SwitchoffthePIsystem'sinterferencefilter,andobserve thenumericdisplay.
-If the interferences symbol is not ____ displayed, leave the interference filters switched off to increase the system's range and performance.

Lowerthetwo sensorsasshown, andmakesurethat theSpreadsensor's headpointstowards thevessel's hydrophone(C). Also,makesurethat thereisafreelineof sightforthe transverse communication(D).

5OnthePInumericdisplay, verify that thereading is +++.

- This signifies that there is no communication between the Spread and Remotesensors.

6LowertheRemotesensor(B)overtheoppositesideofthe vesselwithitsheadpointinginthesamedirectionasthe Spreadsensor.LowerittothesamedepthastheSpread sensor,andensurethatthereisafreelineofsightforthe transversecommunication(D).

-If both sensors are suspended under the vessel at its widest point, the physical distance between the Spread and Remotesensors is equivalent to the vessel's maximum beam.

7 Observ the P Inumeric display. Thereadings should be the same asthe physical distance (without any compensation) between the two sensors.

Note: Shouldanyproblemsariseduringthisprocedure,checkthatthe type(1or2),communicationchannelandupdateratehavebeen configuredforbothsensors.

8Switchonthevessel'sechosoundersandother hydroacousticalequipmentusedduringnormalfishing operations.

9SwitchthePI32interferencefilteronandoff, and observe thenumericdisplay. If the interferences symbol is not shown when the filter is off, leavethe interference filter switched off to increase the system's range and performance.

10Useawater-proofpen, writethesensor's number, configured channel number and any other pertinent information on its label.

-Adedicatedformhasalsobeenprovidedinthefrontof thePIOperatorManualtorecordthisinformation.

Note: Donotwriteonthesensor!Suchinformationmaybe misunderstoodwhenfutureserviceorreplacementisperformed.

Temperature sensor, test procedure

Tools and equipment required

• Multimeter
• Asmallpieceofwire
  • PIServiceHydrophone(Orderno.314-204480)
  • Waterproofthermometer
• PISystem

Close-up of a yellow mechanical component with labeled points A and B, showing internal structure and mounting holes (no text or symbols beyond labels)

Initial check and setup identification

Keeptheareabetweenthenegativecharginglug(A)andthe waterdetector(B)cleantoreducetheriskofactivating the sensor.Ifnecessary,applysilicongreasetodisruptconductive paths.

1 Using amultimeter, check the voltage between the negative charging lug(A) and the water detector(B). Makes sure the sensor is charged:

-Fullydischarged: Voltagelessthan11.5Vdc
-Fullycharged: Voltagegreaterthan13.5Vdc
-Approximately 50% capacityleft:12.8Vdc

2Withasmallpieceofwire,completethecircuitbetween thesensor'sseawaterdetector(B)andnegativecharging lug(A).

- ThesensorwillrespondbyflashingitsindividualLED identificationcodes.

(1)=Onelongflash:Ithasadurationof approximately1second.

(2)=Onestartflash: This signal that the first digit of the channel number is next.

(3)=None,one,twoorthreeshortflashes:The numberofshortflashessignifiesthefirstdigitofthe configuredchannelnumber.
(4)=Asecondstartflash:Thissignalsthatthesecond digitofthechannelnumberisnext.
(5)=Nonetonineshortflashes: Thenumberofshort flashessignifiestheseconddigitoftheconfigured channelnumber.

3Usingamultimeter,checktheDCcurrentbetweenthe negativecharginglug(A)andthewaterdetector(B).

-Withtheinitialseawaterswitchandaafullycharged battery, thecurrentshouldnotexceed150μA.
-Witharedesignedseawaterswitch(sacrificialbolt) andaafullychargedbattery, thecurrentshouldnot exceed67μA.
-Ifyoumeasure0μA, checkthefuseonyour multimeter.

Testing on land

1ConnectthePIServiceHydrophonetothePIOperator Unit.
2Placethesensoronalevelsurfacewithits“domedtop” pointingtowardsthetesthydrophoneapproximatelyfive metersaway.
3 Use the Status display on the PI to monitor the sensor's signalstrength.

-If the interference filter is on, the spectrum displayed should be relatively flat (approximately 25dB, interference filters at level 9) with a peak detected in the configured channel.

4 Check that the PI's displayed temperature corresponds with the actual ambient temperature.

Testing in water

1DisconnectthePIServicehydrophone, and reconnect the vessel's normal hull mounted hydrophone.

2Switchoffthevessel'sechosounders,sonarsandother hydroacousticalequipmenttoavoidinterference.

3Lowerthesensoroverthesideofthevessel.

4Lowerthewaterproofthermometeroverthesideofthe vessel, and keepitasclosetothesensoraspossible.

5SwitchoffthePIsystem'sinterferencefilter,andobserve thenumericdisplay.

-If the interferences symbol is not ____ displayed, leave the interference filters switched off to increase the system's range and performance.

Note: Shouldanyproblemsariseduringthisprocedure, check that the communicationchannelandupdateratehasbeenconfigured correctly.

6CheckthatthePIsystem'sdisplayedtemperature correspondswiththevaluefromthereference thermometer.

7Switchonthevessel'sechosoundersandother hydroacousticalequipmentusedduringnormalfishing operations.

8SwitchthePI32interferencefilteronandoff, and observe thenumericdisplay. If theinterferencesymbolisnot shown when the filterisoff, leavethe interferencefilter switched off to increase the system's range and performance.

9Useawater-proofpen, writethesensor's number, configured channel number and any other pertinent information on its label. -Adedicated form has also been provided in the front of the PIOperator Manual to record this information.

Note: Donotwriteonthesensor!Suchinformationmaybe misunderstoodwhenfutureserviceorreplacementisperformed.

TECHNICAL SPECIFICATIONS

Thischapterprovidesthebasictechnicalspecifications.

Topics

→ PISensors,page243

Sensors

Specificationscanbealteredwithoutpriornotification.

PI Bottom Contact

• PISystem:PI32,PI44orPI54
- Updaterates: -Fast:Every3,2second(approx.) -Normal:Every5,3second(approx.) -Slow:Every33second(approx.)
- Defaultupdaterate:Normal
- Lifetimebetweeneachrecharge: -Fastupdaterate:26hours -Normalupdaterate:40hours -Slowupdaterate:175hours
• Communicationfrequencyrange:43,5to49,5kHz
• Defaultcommunicationchannel:6
- Physicalproperties: -Length:246mm -Width:171mm -Thickness:123mm -Weightinair:4,6kg(withoutchainandgroundweight)
- ChargingtimewithPICharger: -To70%capacity:1hour -To100%capacity:4hours
- ChargingtimewithPSCharger: -To100%capacity:16hours

PI Catch & PI Rip

• PISystems:PI32,PI44orPI54
- Updaterates: -Fast:Every5,3second(approx.) -Normal:Every33second(approx.) -Slow:Every125second(approx.)

- Defaultupdaterate:Normal - Lifetimebetweeneachrecharge:-Fastupdaterate:35hours -Normalupdaterate:150hours -Slowupdaterate:300hours

• Communicationfrequencyrange:43,5to49,5kHz
• Defaultcommunicationchannel:4
• Physicalproperties:
-Length:246mm
-Width:171mm
-Thickness:123mm
-Weightinair:4,3kg
• ChargingtimewithPICharger:
-To70%capacity:1hour
-To100%capacity:4hours
• ChargingtimewithPSCharger:
-To100%capacity:16hours

PI Depth

• PISystems:PI32,PI44orPI54
- Updaterates:
-Fast:Every4,5second(approx.)
-Normal: Every 14 second (approx.)
-Slow:Every34second(approx.)
- Defaultupdaterate:Fast
• Lifetimebetweeneachrecharge:
-Fastupdaterate:24hours
-Normalupdaterate:75hours
-Slowupdaterate:100hours
• Communicationfrequencyrange:43,5to49,5kHz
• Defaultcommunicationchannels:
-100mdepthrange:16
-300mdepthrange:12
-1000mdepthrange:10
• Accuracy: 1% of total range
• Depthranges:100m,300mand1000m
• Physicalproperties:
-Length:246mm
-Width:171mm
-Thickness:123mm
-Weightinair:4,3kg

• ChargingtimewithPICharger:
-To70%capacity:1hour
-To100%capacity:4hours
• ChargingtimewithPSCharger:
-To100%capacity:16hours

PI Height

• PISystem:PI32,PI44orPI54
- Updaterates:
-Fast:Every5,5second(approx.)
-Normal: Every 14 second (approx.)
-Slow:Every34second(approx.)
- Defaultupdaterate:Fast
• Lifetimebetweeneachrecharge:
-Fastupdaterate:35hours
-Normalupdaterate:60hours
-Slowupdaterate:250hours
• Echosounderfrequency:70kHz
• Echosounderrange:0,7to60m
• Communicationfrequencyrange:43,5to49,5kHz
• Defaultcommunicationchannel:14
• Physicalproperties:
-Length:300mm
-Width:205mm
-Thickness:131mm
-Weightinair:6,8kg
• ChargingtimewithPICharger:
-To70%capacity:1hour
-To100%capacity:4hours

PI Spread& Remote

• PISystems:PI32, PI44 or PI54
- Updaterates:
-Fast:Every5,5second(approx.)
-Normal: Every 14 second (approx.)
-Slow:Every34second(approx.)

• Defaultupdaterate:Fast
  • Lifetimebetweeneachrecharge:
  -Fastupdaterate:45hours
  -Normalupdaterate: 100 hours
  -Slowupdaterate:150hours
  • Communicationfrequencyrang:43,5to49,5kHz
  • Defaultcommunicationchannel:2
  • Accuracy:0,2%
  • Maximumrange:350meters
  • Physicalproperties(Spread/Remote):
  -Length:298/248mm
  -Width:149/121mm
  -Thickness:120/98mm
  -Weightinair:5,7/2,9kg
  • ChargingtimewithPICharger:
  -To70%capacity:1hour
  -To100%capacity:4hours
  • ChargingtimewithPSCharger:
  -To100%capacity:16hours

PI Temperature

• PISystems:PI32, PI44 or PI54
- Updaterates:
-Fast:Every4,5second(approx.)
-Normal: Every 14 second (approx.)
-Slow:Every34second(approx.)
- Defaultupdaterate:Fast
• Lifetimebetweeneachrecharge:
-Fastupdaterate:24hours
-Normalupdaterate:75hours
-Slowupdaterate:150hours
• Communicationfrequencyrange:43,5to49,5kHz
• Defaultcommunicationchannel:8
• Accuracy:0,2%
• Physicalproperties:
-Length:246mm
-Width:171mm
-Thickness:123mm
-Weightinair:4,3kg

• ChargingtimewithPICharger:

-To70%capacity:1hour

-To100%capacity:4hours

• ChargingtimewithPSCharger:

-To100%capacity:16hours

INDEX

Thenextpagesprovideanalphabeticalindextothismanual.

A

A-Scope, Howto: Operational procedures 77

A-SCP, Buttondescription: Gettingstarted15

AGC

Parameter:References176

Status:Displaymodes40

Alarm

Clearance:References179

Depth:References159

Fish:References158

Sensors:References178

Setup:References178

Surfacetemperature:References178

Alarmoutput, Parameter:References168

Alarmstand-bylevel, Parameter:References 168

Automaticpagerotation, Procedure: Operationalprocedures82

B

B-LCK, Buttondescription: Gettingstarted 15

Backgroundcolour, Howtochangeon echogram: Operationalprocedures72

Backgroundcolour,sensor,Howto: Operationalprocedures47

Batterycharger

Description:Systemdescription8

Practicaluse: Batterychargers146

Bearing, Parameter:References169

BottomContactsensor

Numericpresentation:Displaymodes30

Practicaluse(PI):Sensors88

Practicaluse(PS):Sensors92

Specifications: Technical specifications245

Testprocedure: Sensortestprocedures225

Bottomexpansion, Howto: Operational procedures75

Bottomtrawl, Applicationexample: Applications24

C

C/Bfilter, Parameter:References176

Calibration, Depthsensor:References154

Catchsensor

Numericpresentation:Displaymodes31

Practicaluse(PI):Sensors96

Practicaluse(PS):Sensors101

Specifications: Technical specifications245

Testprocedure: Sensortestprocedures228

Catch/BottomSensorFilter, Parameter: References176

Charger,Description:Systemdescription8

Clearancealarm, Procedure: Operational procedures79

Clumpsensor, Parameter:References183

Colourthreshold

Howtoactivate:Operationalprocedures71

Parameter:References156

Configuration,NMEAParameter:References 165

Course

NMEAParameter:References164,168

Parameter:References169

D

Danishseine, Applicationexample: Applications23

Dataoutput,NMEAParameter:References 165

Datawindow,Parameter:References170

Date,Parameter:References177

DBK,NMEAParameter:References165

DBS,NMEAParameter:References165

DBT,NMEAParameter:References165

Defaultsettings

Parameters:References160

Procedure:Operationalprocedures83

Demo,Echosounder:References159

Depth

Alarm:References159

Display:References158,159

Fishalarm:References159

Keel:References158

Transducer:References158

Depthalarm

Parameter:References159

Procedure:Operationalprocedures78

Depthbars, Parameter:References161

Depthdisplay, Parameter:References158, 159

Depthforfish, Parameter:References159

Depthgrid

Howtoactivate:Operationalprocedures71

Parameter:References156,161

Depthlines:References156,161

Depthsensor

Howtocalibrate:Operationalprocedures56

Calibration:References154

Howtoadjustoffset:Operationalprocedures 57

Numericpresentation:Displaymodes32

Offset:References171

Practicaluse(PI):Sensors105

Practicaluse(PS):Sensors110

Specifications: Technical specifications246

Testprocedure: Sensortestprocedures231

Depthsensorcalibration, Setup:References 154

Det.thresh.,Parameter:References177

DetectionThreshold, Parameter:References 177

Display,Depth:References158,159

Displaycolours:References173

Displaypresentations,Overview:Display modes28

Displaytextin, Parameter:References172

Doorsensor, Parameter:References183

DPT,NMEAParameter:References165

DT,Parameter:References177

E

Echopresentationsetup:References155

Echosounder, Applicationexample: Applications26

Echosounderdisplay, Description: Display modes41

Echosounderfrequency, Parameter: References156

Echosoundermode, Parameter:References 159

Echosoundersetup:References158

ENT, Buttondescription: Gettingstarted14

EVENT, Buttondescription: Gettingstarted 15

Expansionwindow, Parameter:References 155

F

Factorysettings

Parameters:References160

Procedure:Operationalprocedures83

Fishalarm

Parameter:References158

Procedure:Operationalprocedures78

Footropesensor, Parameter:References183

Frequencyspectrum,NMEAParameter: References165

G

GAIN, Buttondescription: Gettingstarted15

Gain, Parameter:References155

Graphicalarm

Howto:Operationalprocedures47

Parameter:References170

Graphicdisplay

Applicationexample:Applications27

Description: Displaymodes36

Graphicsetup:References161

H

Headropesensor, Parameter:References183

Heightsensor

Numericpresentation:Displaymodes33

Practicaluse:Sensors115

Specifications: Technical specifications247

Test procedure: Sensor test procedures 234

Howto

A-scope:Operationalprocedures77

Access echo sounder parameters: Operational procedures70

Accessgraphicdisplayparameters: Operationalprocedures63

Backgroundcolour,sensor:Operational procedures47

Bottomexpansion:Operationalprocedures 75

Colourthreshold:Operationalprocedures71

Defineinitialpresentationpages:Getting started11

Depthgrid:Operationalprocedures71

Depthsensorcalibration:Operational procedures56

Depthsensoroffset:Operationalprocedures 57

Echogrambackgroundcolour:Operational procedures72

Graphicalarm:Operationalprocedures47

Markerlines:Operationalprocedures65

Phasedrange:Operationalprocedures73

Pingtopingfilter:Operationalprocedures71

Range:Operationalprocedures73

Scrollspeed:Operationalprocedures72

Sensorconfiguration:Operationalprocedures 49

Sensormounting:Operationalprocedures52

Sensortimerreset:Operationalprocedures47

Sensortimers:Operationalprocedures47

Signalthreshold:Operationalprocedures71

Spreadsensoroffset:Operationalprocedures 57

Superimposeechodataongraphicdisplay: Operationalprocedures64

Switchpoweronandoff:Gettingstarted10

Trawlinformation:Operationalprocedures 68

Twinspreadsetupfortwintrawl:Operational procedures58

Viewechodataongraphicdisplay: Operationalprocedures64

VRMexpansion:Operationalprocedures76

Waterswitchreplacement:Operational procedures54

Whiteline:Operationalprocedures 72

Zoombottomechoes:Operationalprocedures 75

Zoompelagicechoes:Operational procedures76

Hydrophone, Description: Systemdescription 6

|

Interf.filter,Parameter:References175

Interfacesetup:References163

Interferencefilter,Parameter:References175

K

Keeldepth, Parameter:References158

Keypad,Introduction:Gettingstarted14

L

Language

Parameter:References172

Procedure:Operationalprocedures81

Level,Parameter:References175

Log1,Parameter:References174

Logspeedcalibration, Parameter:References 181

LOGSpeedsensor, Parameter:References 181

M

MainMenu: Menusystem151

Introduction: Gettingstarted13

Manualgain, Parameter:References176

Manualtrawlmarker, Parameter:References 183

Markerline, Parameter:References162

Markerlinedelay, Parameter:References162

Markerlinethickness, Parameter:References 162

Masterreset:References160

Maxsh.speed,Parameter:References177

MaxShootingSpeed,Parameter:References 177

MENU, Buttondescription: Gettingstarted 14

Menulanguage

Parameter:References172

Procedure:Operationalprocedures81

Menusystem: Menusystem 150

Mode,Echosounder:References159

MPFilter,Parameter:References176

MPfilter, Status: Displaymodes39

MPFlevel,Parameter:References176

MTW,NMEAParameter:References165

MultiPathfilter

Parameter:References176

Status:Displaymodes39

MultiPathFilterLevel, Parameter:References 176

N

Navigation,NMEAParameter:References 164,165,168

Navigationdisplay, Description: Display modes44

Navigationsetup:References169

NMEAtelegrams:References166

Numericdisplay, Overview: Displaymodes 29

Numericsetup:References170

O

Offsetadjust, Setup:References171

OperatorUnit,Description:System description5

Outputpower,Transmitter:References159

P

Pagerotation

Parameter:References172

Procedure:Operationalprocedures82

Pagesetup:References172

Palette, Setup: References173

Pelagictrawl, Application example: Applications25

Phasedrange, Howto: Operational procedures73

PICharger

Description:Systemdescription8

Practicaluse:Batterychargers146

PingtoPingfilter, Howtoactivate: Operationalprocedures71

Pingtopingfilter,Parameter:References156

Position,NMEAParameter:References164, 168

Positiondisplay, Description: Displaymodes 45

Power, On/offprocedure: Gettingstarted10

Poweroutput, Transmitter: References159

Presentation,Define:Gettingstarted11

Presentationcolours:References173

Presets,Factory:References160

PSCharger,Description:Systemdescription8

Purseseine, Application example: Applications22

PWR, Buttondescription: Gettingstarted15

R

Range

Howto:Operationalprocedures73

Parameter:References155

Rangestart,Parameter:References155

Receiversetup:References175

Remotesensor

Practicaluse:Sensors124

PracticalusewithTwinSpread:Sensors129

Specifications: Technical specifications 247

Testprocedure: Sensortestprocedures237

Resetlog:References174

Resetsensortimers, Parameter:References 170

Ripsensor

Practicaluse:Sensors119

Specifications: Technical specifications245

S

Scrollspeed

Howtoadjust:Operationalprocedures72

Parameter:References156

Selectorpad, Buttondescription: Getting started14

Sensoralarms

Procedure:Operationalprocedures79

Setup:References178

Sensorcharger, Practicaluse: Battery chargers146

Sensorconfiguration, Howto: Operational procedures49

Sensordefinition,NMEAParameter: References165

SensorFilter, Parameter:References176

Sensormounting, Howto: Operational procedures52

Sensorsetup:References180

Sensortimer, Parameter:References170

Sensortimerreset, Howto: Operational procedures47

Sensortimers, Howto: Operational procedures47

Sensors, Introduction: Gettingstarted16

Shearalarm, Parameter:References178

Signalthreshold

Howtoactivate:Operationalprocedures71

Parameter:References156

Soundspeed, Parameter:References156

Speed, NMEAParameter: References164, 168

Speedalarm, Procedure: Operational procedures78

Speedsetup:References181

Spreadsensor

Howtoadjustoffset:Operationalprocedures 57

Numericpresentation:Displaymodes34

Offset:References171

Practicaluse:Sensors124

Specifications: Technical specifications247

Testprocedure: Sensortestprocedures237

Statusdisplay,Description:Displaymodes39

STND, Buttondescription: Gettingstarted14

Strength, Fishalarm: References 158

Superimposeechosounder, Parameter: References161

Surfacetemperature,Description:Display modes38

Surfacetemperaturealarm, Procedure: Operationalprocedures79

Surfacetemperaturemarker, Parameter: References161

System,Description:Systemdescription3

T

Technicalspecifications:Technical specifications244

Temperature,NMEAParameter:References 164,168

Temperaturegrid, Parameter:References182

Temperaturemarker, Parameter:References 161

Temperatureoffset,Parameter:References 182

Temperaturescale, Parameter:References 161,182

Temperaturesensor

Numericpresentation:Displaymodes35

Practicaluse(PI):Sensors134

Practicaluse(PS):Sensors140

Specifications: Technical specifications248

Testprocedure: Sensortestprocedures241

Testprocedures,Sensors:Sensortest procedures224

Time, Parameter:References177

Transducerdepth, Parameter:References158

Transit,NMEAParameter:References165

Transmitpower, Parameter:References159

Transmitpulselength, Parameter:References 159

Trawlinfosetup:References182,183

Trawlmarker, Parameter:References183

Trawlopeningmode, Parameter:References 183

TVG, Parameter:References156

Twinspread, Setupfortwintrawl: Operationalprocedures58

TwinSpreadsensor, Practicaluse: Sensors 129

U

Units, Parameter:References184

Unitssetup:References184

V

Velocityofsoundinwater, Parameter: References156

VHW,NMEAParameter:References165

VRM, Buttondescription: Gettingstarted14

VRMexpansion:Displaymodes43

Howto:Operationalprocedures76

W

Waterswitch, Replacement: Operational procedures54

Watertemperature, NMEAParameter: References164, 168

Whiteline

Howtoactivate:Operationalprocedures72

Parameter:References155

WIN, Buttondescription: Gettingstarted14

WINchangeinterval, Parameter:References 172

X

XTEalarmdistance, Parameter:References 169

Z

ZOOM, Buttondescription: Gettingstarted 14

Zoom,Howto:Operationalprocedures76

©2005SimradAS

ISBN82-8066-059-3

Simrad Horten AS

Strandpromenaden 50

P.O.Box 111

NO-3191 Horten

Norway

Telephone: [phone]

Facsimile: [phone]

www.simrad.com

SIMRAD

A KONGSBERG Company
