USER MANUAL AZ8125G-8 Yamato

Adjustments different from AZ8000G are mentioned in this book.

Read this book in combination with INSTRUCTION and PARTS LIST of AZ8000G.

Before using this sewing equipment, please read the instruction manual and understand the contents well.

After reading the instruction manual, please keep it in a location where it is easy to access for operators.

1. 仕様 6

2. Sewing speed and rotating direction of pulley 7

3. Adjustment of sewing machine 8

2-1 Needle thread tension for overlock stitch 8
2-2 Looper thread tension for overlock stitch 9
2-3 Adjustment of needles and loopers 10
2-3-1 Height of needles 10
2-3-2 Distance between needles and lower looper 11
2-3-3 Timing between needles and upper looper 11

1. Specifications 12

***** ILLUSTRATED SPARE PARTS LIST *****

Models

AZ8120G-8, 8125G-8

In this parts list, the parts different from those of

AZ8020G-Y5DF are only mentioned.

1. 縫速度とプーリの回転方向

2. ミシンの調整

注意

各糸道の標準の位置

1. Sewing speed and rotating direction of pulley

The maximum sewing speed is shown in the table below.

To ensure long service life under good conditions, your new machine should be run with the cycle lowered 15 - 20 % of the maximum cycle during the first 200 hours (approximately one month).

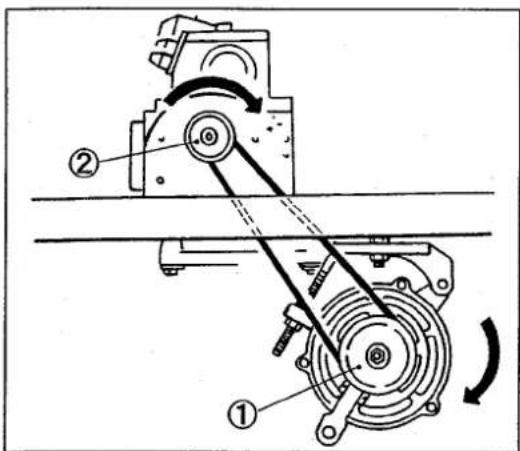

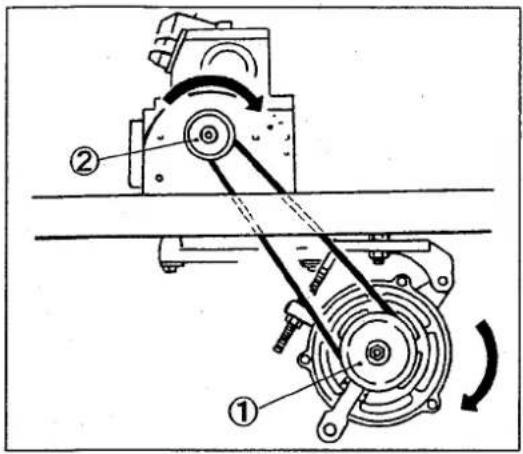

The rotating direction of the motor pulley① and the machine pulley② is clockwise as shown in the figure.

CAUTION

If the pulley is reversed, oil can not be supplied properly. It may cause the machine trouble.

Maximum sewing speed (s.p.m.)

7000

2. Adjustment of sewing machine

WARNING

ALWAYS turn OFF the motor switch and check that the motor stops before the work.

2-1 Needle thread tension for overlock stitch

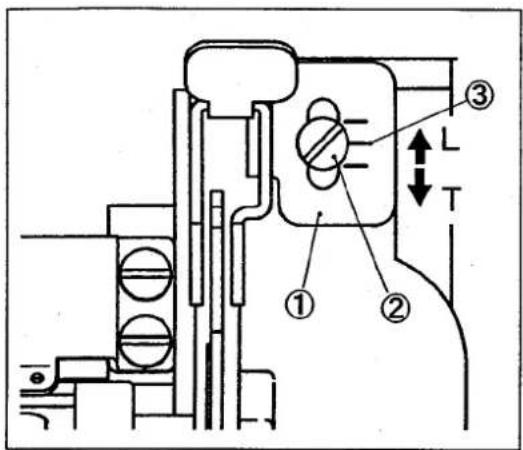

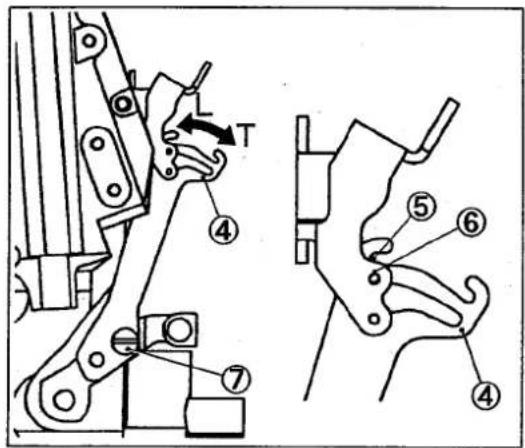

☆ At standard position of needle thread eyelet①, the center of screw② corresponds to the notch mark③.

☆ At the standard position of needle thread pull-off④, the point⑤ of thread pull-off aligns with the eye⑥ of needle thread eyelet(right) when the needle thread pull-off④ comes forward completely. To adjust it, loosen the screw⑦.

* Moving the needle thread eyelet and the needle thread pull-off to the direction "T" tightens the needle thread tension and moving it to the direction "L" loosens the needle thread tension.

2. Adjustment of sewing machine

WARNING

ALWAYS turn OFF the motor switch and check that the motor stops before the work.

2-2 Looper thread tension for overlock stitch

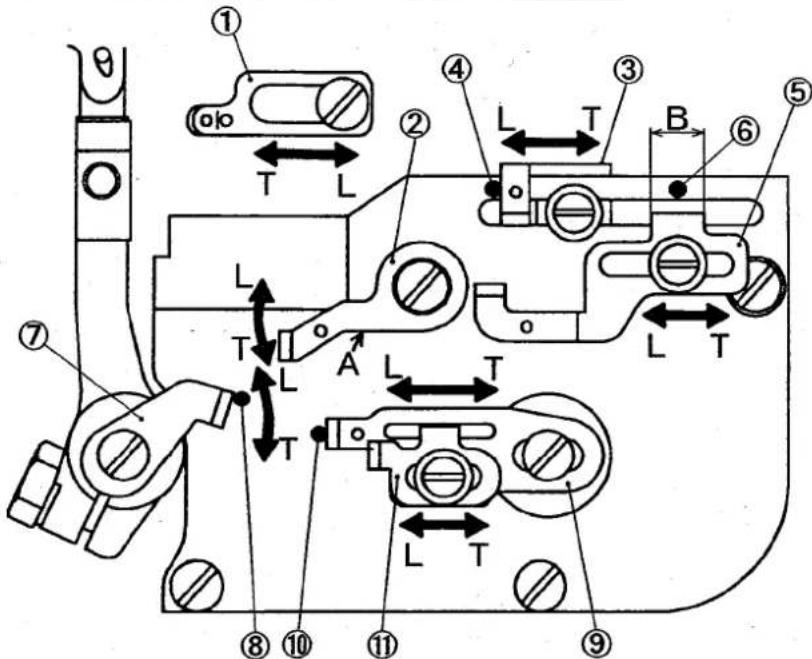

The standard setting of each needle thread eyelet is as follows;

1. Upper looper supplementary thread eyelet①

Move it to the leftmost position.

1. Looper thread eyelet(left)②

Make the part A horizontal.

1. Upper looper thread eyelet③

Move its left end to the notch mark④.

1. Lower looper thread eyelet⑤

Make the center of the part B to correspond to the notch mark⑥.

1. Looper thread pull-off⑦

Move its right end to the notch mark⑧.

1. Upper looper thread pull-off⑨

Make the eye of thread pull-off to correspond to the notch mark⑩ as the lower looper moves to the rightmost point.

1. Lower looper thread pull-off⑪

Tighten it with the screw at the center of slot.

Moving each thread eyelet or thread pull-off to the direction "T" tightens the thread tension and moving them to the direction "L" loosens the thread tension.

2. Adjustment of sewing machine

WARNING

ALWAYS turn OFF the motor switch and check that the motor stops before the work.

2-3 Adjustment of needles and loopers

Adjustment for AZ-G series should be done by taking following steps;

1. Height of needles
2. Angle for installing lower looper
3. Distance between needles and lower looper
4. Longitudinal position of needles and lower loope
5. Position of upper looper bar guide bushing
6. Timing between needles and upper looper
7. Longitudinal position of upper looper
8. Timing between lower looper and upper looper

2-3-1 Height of needles

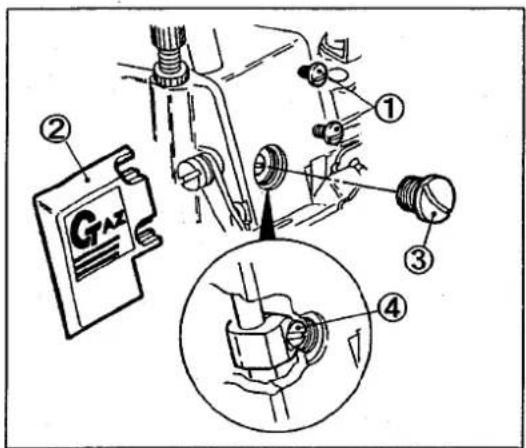

1. Loosen the screws① and remove the logo plate②.
2. Remove the screw③.
3. Rotate the machine pulley and position the needle bar at the top dead point
4. Loosen the screw④ and move the needle bar up and down to adjust it.

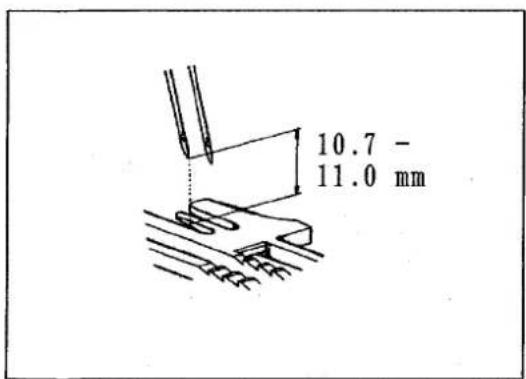

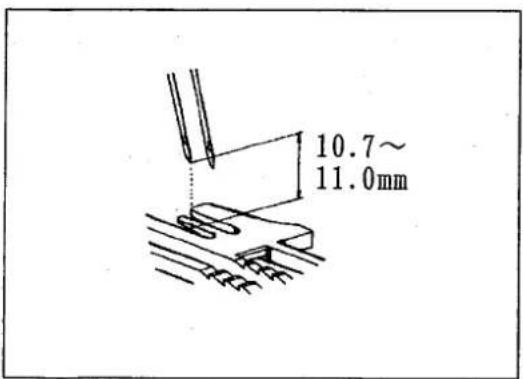

When the needle bar is at the top dead point, the height from the top surface of the stitch plate to the tip of the needle should be 10.7 - 11.0 mm.

CAUTION

The tightening torque of screw on needle bar connecting bracket is 1.5N·m(15kgf·cm).

2. Adjustment of sewing machine

WARNING

ALWAYS turn OFF the motor switch and check that the motor stops before the work.

2-3-2 Distance between needles and lower looper

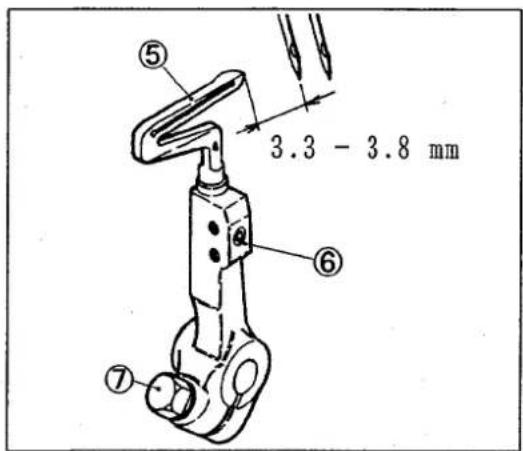

Loosen the screw⑦ on the lower looper holder, rotate the machine pulley clockwise, and adjust the lower looper so that the distance between the tip of the lower looper and the center of the left needle is 3.3 - 3.8 mm when the lower looper is at the leftmost point.

2-3-3 Timing between needles and upper looper

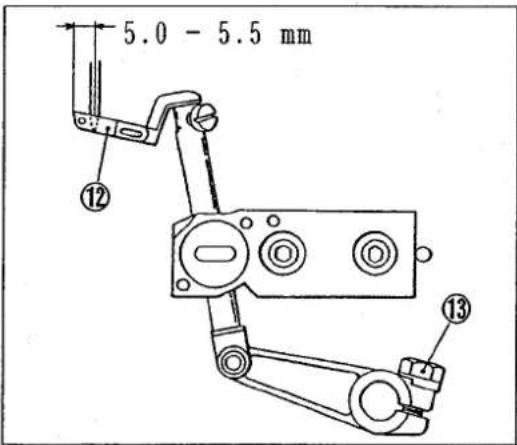

Rotate the machine pulley clockwise, loosen the screw⑬ on the upper looper crank, and adjust the upper looper so that the distance between the tip of the upper looper and the center of the left needle is 5.0 -5.5 mm when the upper looper is in the leftmost position.

3. Specifications

Model	AZ8120G-Y5-8
Dimensions	380(L) × 245(W) × 310(H) mm
Weight	27 kg
Construction	Dust-proof, Oil-tight and Completely Sealed
Stitch Type	ISO 514
Application	Overlock sewing for knitted and woven fabrics with wide seam width
Sewing Speed	Up to 7,000s.p.m.
Stitch Length	1.0 - 4.0 mm6.5 - 25 stitches per inch7.5 - 30 stitches per 30 mm
Needle System	DC×1, Size 60 - 90 (#8 - 14)
Needle Stroke	24.7 mm
Presser Foot Lift	6.0 mm (max.)
Adjustment of Feeding Mode	Push Button System
Differential Ratio	Normal Differential (Gathering) 1:2.3 (max.)(1:3 is availableby adjusting the position of lever pin on main feed dog)Reverse Differential (Stretching) 1:0.7 (max.)(1:0.6 is availableby adjusting the position of lever pin on main feed dog)
Differential Feeding	Adjustment of·Adjustment during the rotation is also available by lifting and lowering the lever.·Differential feed can be easily and quickly adjusted by Lever or Micro-Adjuster.
Knives for Cutting Fabric	Lower Knife: Flat Type, made of Special SteelUpper Knife: Flat Type, made of Super Hard Alloy
Lubrication	Automatic Lubrication System (Forced fed by Trochoide-shaped Pump)
Tape width	5.0 mm (max.)
Lubrication Oil	YAMATO SF OIL No.28
Capacity of Oil Reservoir	900cc
Installation	Table top typeFully-submerged type / Semi-submerged type

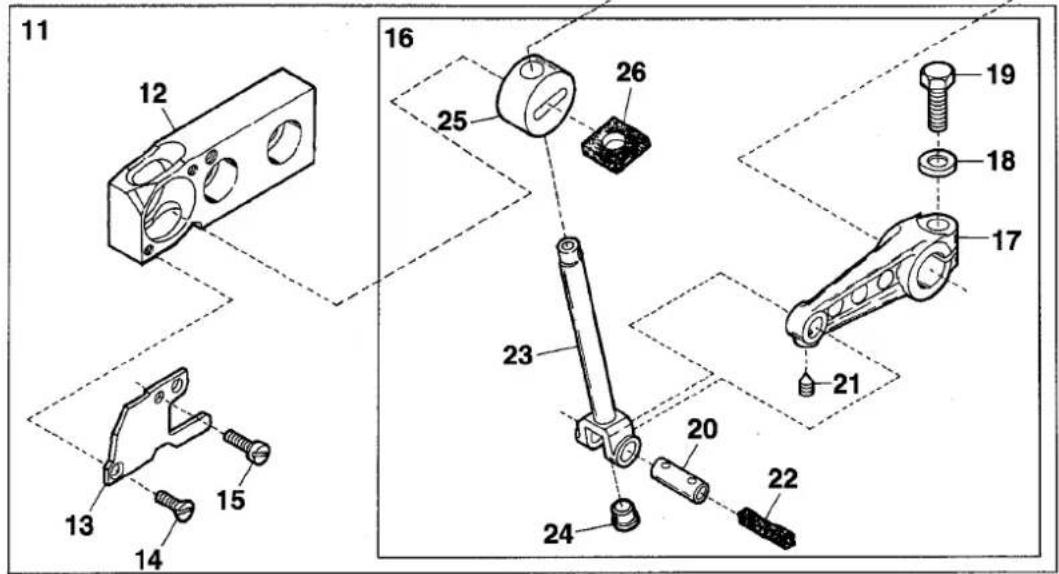

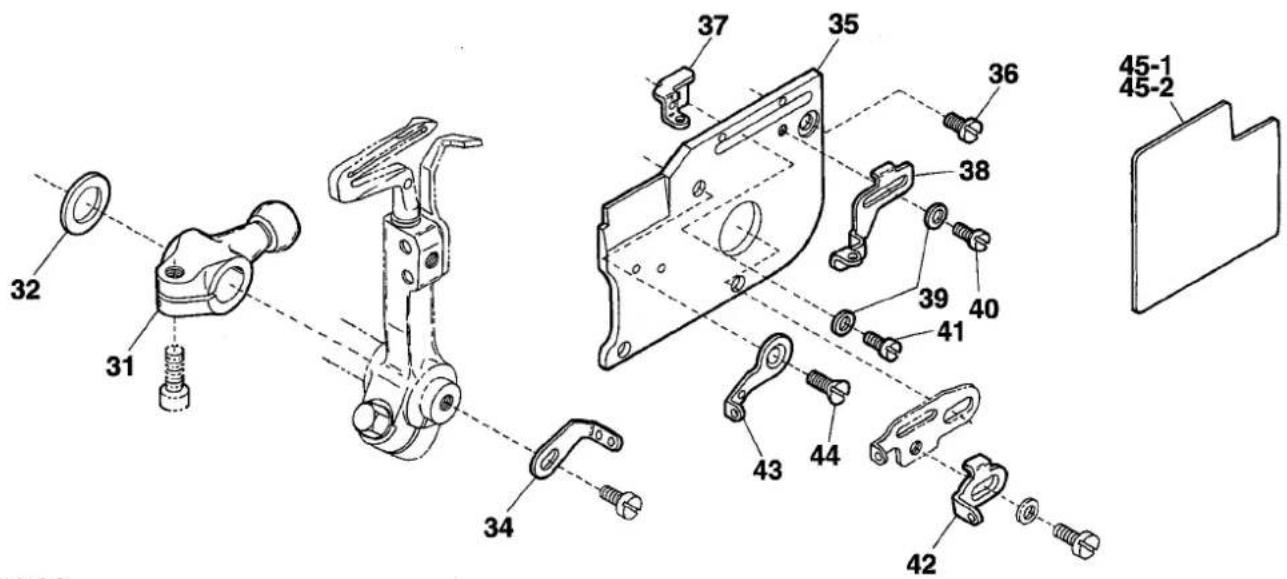

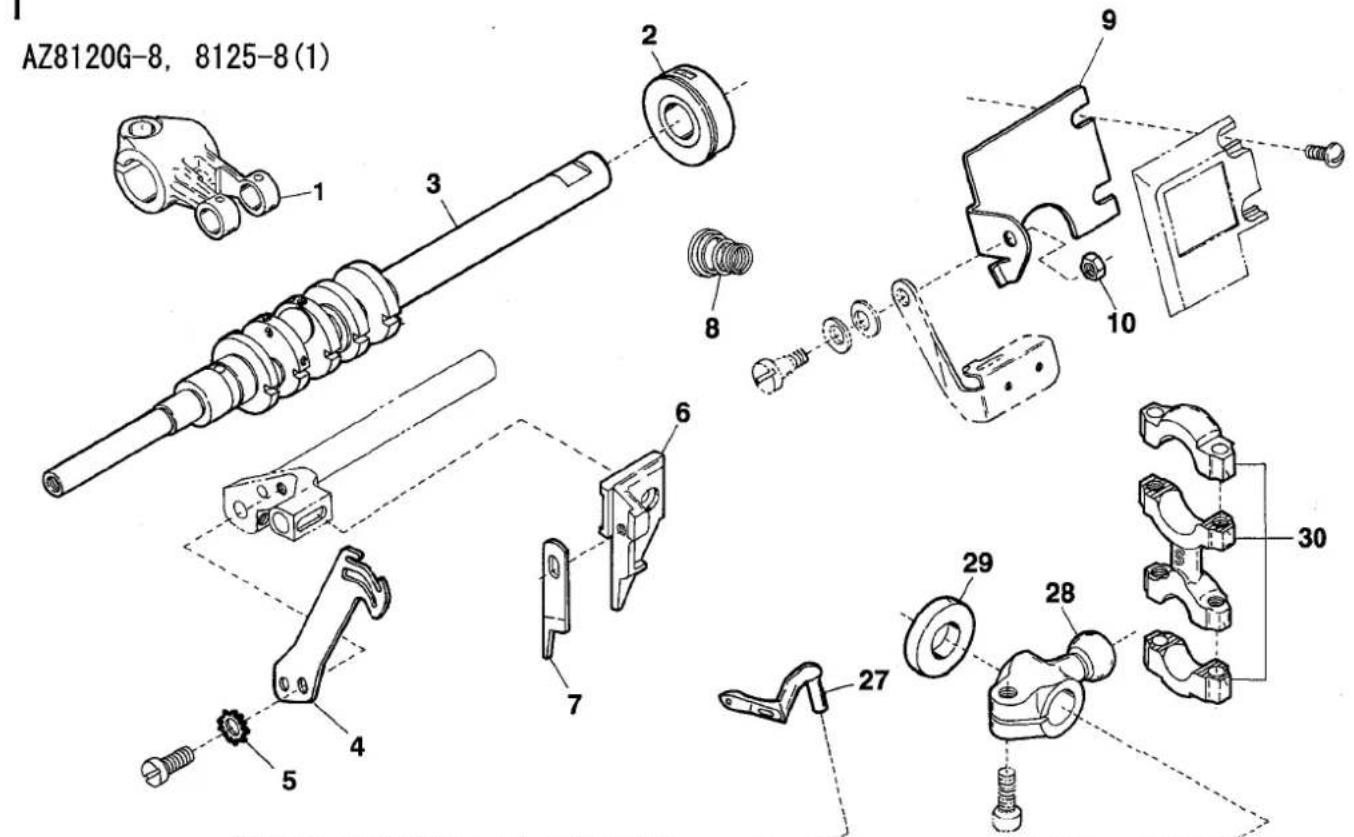

ILLUSTRATED SPARE PARTS LIST

AZ8120G-8, 8125G-8

1

AZ8120G-Y5-8/K2, Y6-8/K2, Y8-8/K2

Ref.No	Parts No.	Description	品名	Amt. Req

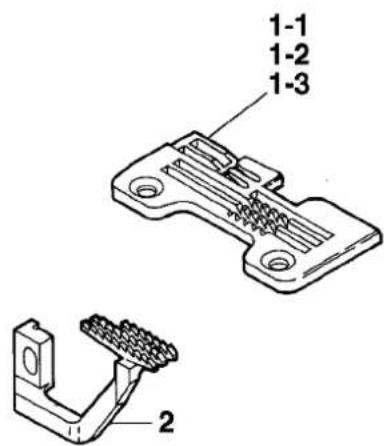

1-1	2158011	Stitch Plate(Y5)	針板	1
1-2	2108005	Stitch Plate(Y6)	針板	1
1-3	2158003	Stitch Plate(Y8)	針板	1
2	2109009	Differential Feed Dog(Y)	前送り	1
3	2157081	Presser Foot, C. Set(Y8)	押工(組)	1
4	2157000	Presser Foot Hinge	押エヒンジ	1
5	110004	Screw(M3.5-0.6 × 8)	止ネジ	1
6	2157040	Presser Foot Half-stay	半固定片	1
7	110050	Screw(M3.5-0.6 × 4.5)	止ネジ	1
8	2157020	Presser Foot (Lower)	押工(下)	1

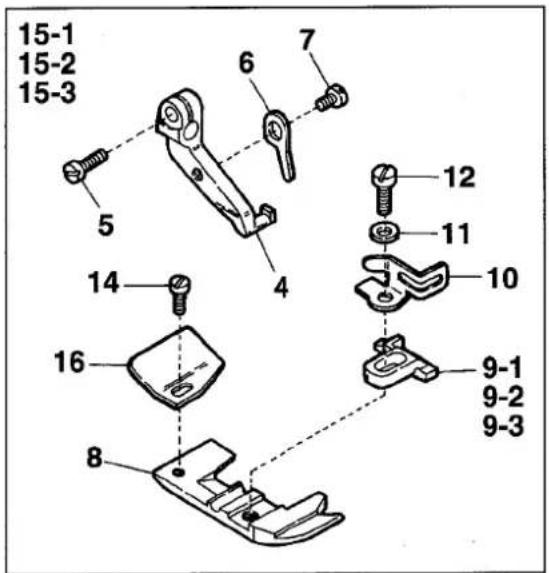

9-1	2157205	Presser Foot Stitch Tongue(Y5)	爪	1
9-2	2157206	Presser Foot Stitch Tongue(Y6)	爪	1
9-3	2157212	Presser Foot Stitch Tongue(Y8)	爪	1
10	2107643	Finger Guard	フィンガガード	1
11	000444	Washer	ワッシャ	1
12	005036	Screw(1/8-44 × 5.6)	止ネジ	1
13	2107219	Thread Chain Guide	空環ガイド	1
14	004237	Screw(3/32-56 × 2.6)	止ネジ	1
15-1	2157102	Presser Foot, C. Set(Y5/K2)	押工(組)	1
15-2	2157058	Presser Foot, C. Set(Y6/K2)	押工(組)	1
15-3	2157083	Presser Foot, C. Set(Y8/K2)	押工(組)	1
16	0034535	Thread Chain Guide	空環ガイド	1

AZ8120G-8(3)

EXTRA PARTS

Ref.No	Parts No.	Description	品名	Amt. Req

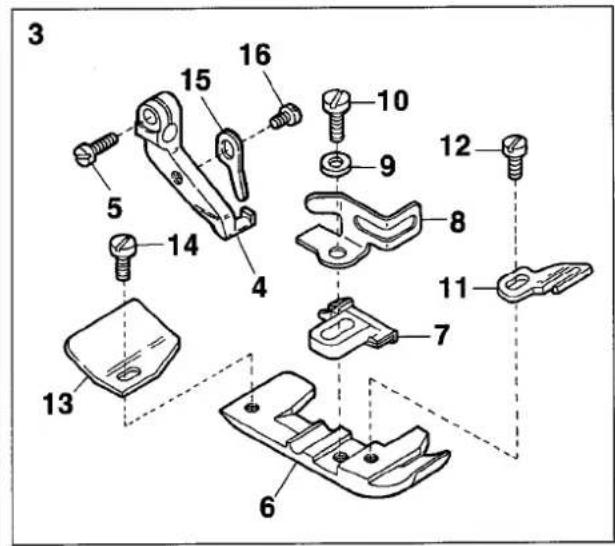

1	2157056	Presser Foot, C. Set(X8)	押工(組)	1
2	2157000	Presser Foot Hinge	押エヒンジ	1
3	110004	Screw(M3.5-0.6 × 8)	止ネジ	1
4	2157040	Presser Foot Half-stay	半固定片	1
5	110050	Screw(M3.5-0.6 × 4.5)	止ネジ	1
6	2157020	Presser Foot (Lower)	押工(下)	1
7	2157214	Presser Foot Stitch Tongue(X8)	爪	1
8	2107643	Finger Guard	フィンガガード	1
9	000444	Washer	ワッシャ	1
10	005036	Screw(1/8-44 × 5.6)	止ネジ	1
11	2107219	Thread Chain Guide	空環ガイド	1
12	004237	Screw(3/32-56 × 2.6)	止ネジ	1
13	2158019	Stitch Plate(X8)	針板	1

4
AZ8125G-8(2)

AZ8125G-Y5-8

AZ8125G-Y5-8/K2

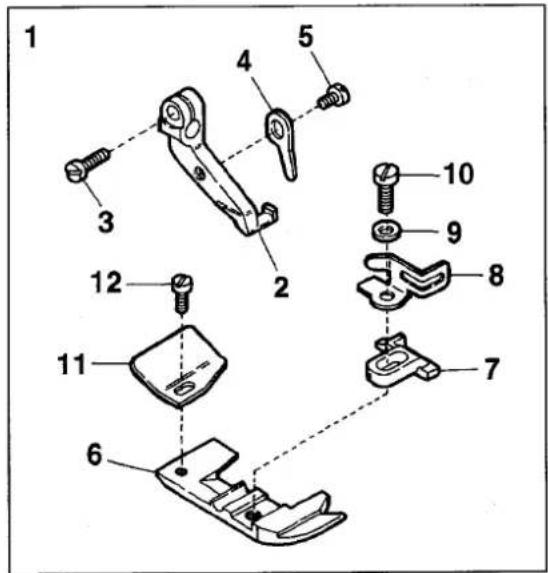

Ref.No	Parts No.	Description	品名	Amt. Req

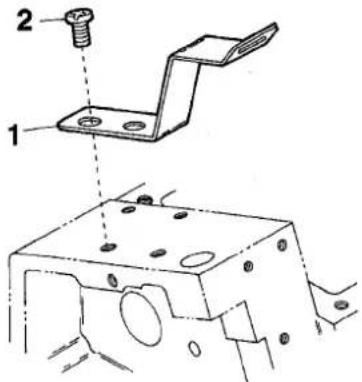

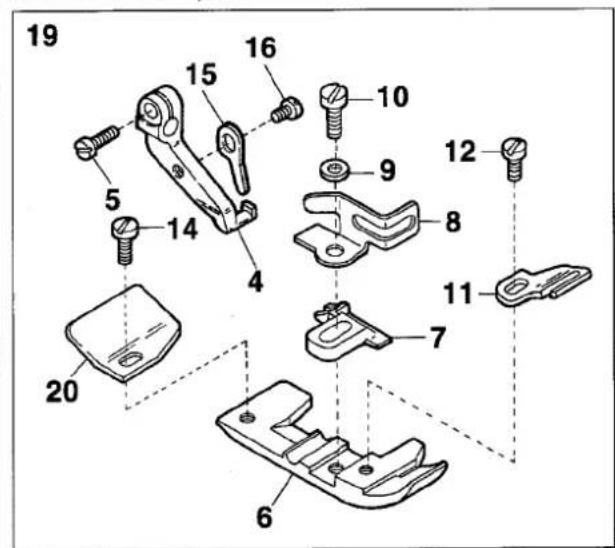

1	0024130	Tape Guide(Upper)	テープガイド(上)	1
2	110012	Screw(M4-0.7 × 5)	止ネジ	2
3	2157118	Presser Foot, C. Set(Y5)	押工(組)	1
4	2157000	Presser Foot Hinge	押エヒンジ	1
5	110004	Screw(M3.5-0.6 × 8)	止ネジ	1
6	2107631	Presser Foot (Lower)	押工(下)	1
7	2107650	Presser Foot Stitch Tongue(Y5)	爪	1
8	2107643	Finger Guard	フィンガガード	1
9	000444	Washer	ワッシャ	1
10	005036	Screw(1/8-44 × 5.6)	止ネジ	1
11	2107670	Presser Foot Tape Guide	押エテープガイド	1
12	001230	Screw(3/32-56 × 3.8)	止ネジ	1
13	0034535	Thread Chain Guide	空環ガイド	1
14	004237	Screw(3/32-56 × 2.6)	止ネジ	1
15	2157040	Presser Foot Half-stay	半固定片	1
16	110050	Screw(M3.5-0.6 × 4.5)	止ネジ	1

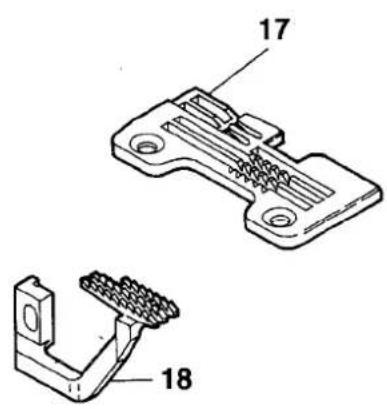

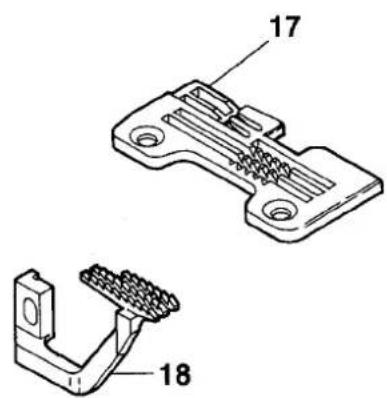

17	2158011	Stitch Plate(Y5)	針板	1
18	2109009	Differential Feed Dog(Y)	前送り	1
19	2157121	Presser Foot, C. Set(Y5/K2)	押工(組)	1
20	2107219	Thread Chain Guide	空環ガイド	1

1jamato

ヤマトミシン製造株式会社

YAMATO SEWING MACHINE MFG. CO., LTD.

4-4-12, NISHITENMA, KITA-KU, OSAKA, JAPAN

TEL:[phone] FAX:[phone]

No. 3 Edited in 2003.7

(AZ8120G-8)
