LI351568W Alpha - Laptop Micromax - Free user manual and instructions

Product Type	Laptop
Brand	Micromax
Model	LI351568W Alpha
Display Size	15.6 inches
Display Resolution	1366 x 768 pixels (HD)
Processor	Intel Celeron N4020 (dual-core, 1.1 GHz, burst up to 2.8 GHz)
RAM	4 GB DDR4 (soldered)
Storage	64 GB eMMC flash
Graphics	Intel UHD Graphics 600
Operating System	Windows 10 Home in S Mode
Battery	2-cell lithium-ion, 5000 mAh (7.4V)
Battery Life	Up to 6 hours (depending on usage)
Weight	1.8 kg
Dimensions (W x D x H)	37.6 x 25.2 x 2.3 cm
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.2
Ports	1 x USB 2.0, 1 x USB 3.0, 1 x HDMI, 1 x headphone/mic combo, 1 x SD card reader
Webcam	0.3 MP VGA
Audio	Built-in stereo speakers, digital microphone
Keyboard	Full-size island-style keyboard with numeric keypad
Touchpad	Multi-touch gesture support
Security	Kensington lock slot, BIOS password
Maintenance	Clean with a soft, dry cloth. Avoid liquids. Keep ventilation slots clear.
Repairability	Battery is replaceable. RAM and storage are soldered and not upgradable. Hard drive not present.
Color	Silver
Power Adapter	45 W, DC input

Frequently Asked Questions - LI351568W Alpha Micromax

How can I extend the battery life of my Micromax LI351568W Alpha?

To extend battery life, reduce screen brightness, close unused applications, disable Wi-Fi and Bluetooth when not needed, use Power Saver mode, and avoid extreme temperatures.

Can I upgrade the RAM on this laptop?

No, the RAM is soldered onto the motherboard and cannot be upgraded. The model comes with 4 GB DDR4.

How should I clean the laptop?

Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution. Do not spray liquids directly. Clean the screen with a microfiber cloth. Ensure the laptop is turned off and unplugged.

Why is my laptop overheating?

Overheating can be caused by blocked ventilation, heavy usage, or dust accumulation. Ensure the laptop is on a hard surface, clean the vents with compressed air, and avoid using on soft surfaces like beds.

How do I connect to Wi-Fi?

Click the network icon in the system tray, select your Wi-Fi network, enter the password, and click Connect. Ensure the Wi-Fi switch (if available) is turned on. You can also use the Fn key with the Wi-Fi icon.

How do I perform a factory reset?

Go to Settings > Update & Security > Recovery. Under 'Reset this PC', click Get Started and choose Remove everything. Follow the on-screen instructions. Backup your data first.

Does the laptop have Bluetooth?

Yes, the Micromax LI351568W Alpha supports Bluetooth 4.2. You can enable it from the Action Center or Settings > Devices > Bluetooth & other devices.

How should I charge the laptop properly?

Use the provided 45W charger. Do not cover the charger or laptop while charging. It is safe to charge overnight as the battery has overcharge protection. Avoid fully draining the battery frequently.

How do I use the function keys?

The function keys (F1-F12) perform special actions like adjusting brightness, volume, and media controls. Press Fn + a function key to use the standard function. To toggle the default behavior, press Fn + Esc.

Where can I download drivers for this laptop?

Drivers can be downloaded from the official Micromax support website. Search for 'LI351568W Alpha' under the laptop category. Alternatively, use Windows Update to install driver updates automatically.

USER MANUAL LI351568W Alpha Micromax

Power on Your Device 10

Charge the Battery 11

Battery Status....12

Put your device in Sleep Mode....13

Microsoft Account....13

Wake up your computer 14

Taskbar 14

Start Menu....15

Notification area 15

Pin and unpin Applications....16

Removing an App 17

Power off Device....17

Settings Screen....20

Connect to Wi-Fi....21

Troubleshooting....23

Device Specifications....25

Safety Precautions....26

Taking Care of your device....26

Recycle your Device 27

Disclaimer 27

Copyright 27

Welcome

Thank you for purchasing the Micromax LI351568W device. Your LI351568W device is powered by Windows 10 Operating System which is set to revolutionize your PC experience in pleasant ways.

Black laptop computer with visible keyboard and display screen (no text or symbols)

Layout

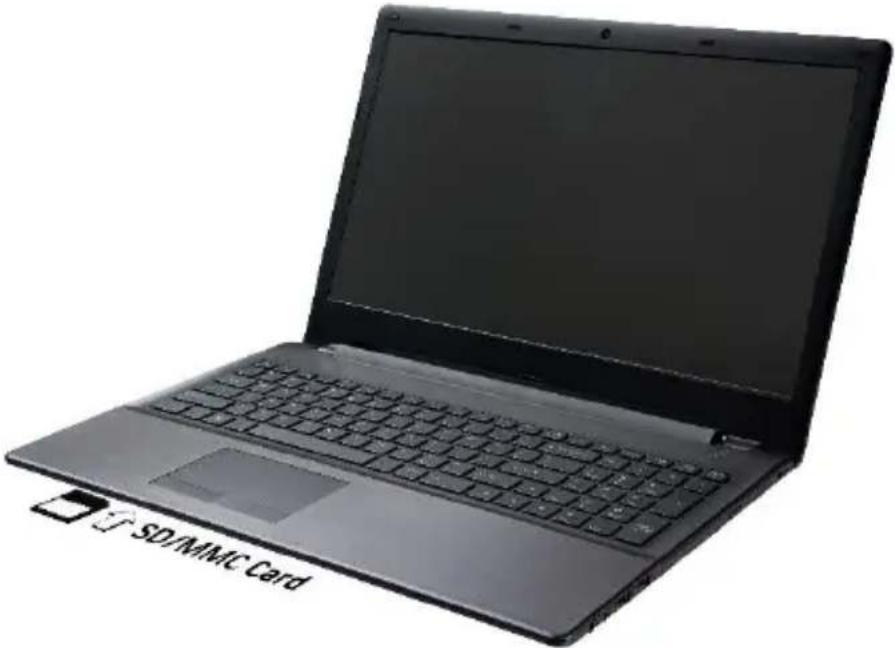

Insert Memory Card

To store additional files and applications, you need to insert a memory card. Insert the memory card in the slot as shown below:

Black laptop with visible keyboard and display, placed on a plain white background (no text or symbols on the device itself)

Touchpad

The keyboard comes with a touchpad which can be used as a built-in mouse. Place and drag your finder on the touchpad to move the mouse pointer across the screen. The lower left corner and lower right corner of the touchpad can be used as the left and right mouse-clicks respectively.

Function keys

To activate these functions, press the hot key associated with the desired function as below:

Keys	Description
	Press key combination Fn+F1 to toggle between touchpad modes.
	Press key combination Fn+F2 to turn LCD backlight off.
	Press key combination Fn+F3 to mute.
	Press key combination Fn+F5 to increase the volume.
	Press key combination Fn+F6 to decrease the volume.
	Press key combination Fn+F7 to change display configuration.
	Press key combination Fn+F8 to decrease brightness.
	Press key combination Fn+F9 to increase brightness.
	Press key combination Fn+F10 to turn the PC camera on/off.
	Press key combination Fn+F11 to turn the Airplane mode on/off.
	Press key combination Fn+F12 to sleep toggle.

In addition, you can also use the following function key combinations:

Optional Keys	Description
	Press this key combination to toggle the Control Center on/off.
	Press this key combination to control the Fan speed and toggle between automatic or maximum fan speeds.
	Press this key combination to toggle Battery charging on/off.
	Press this key combination to Play/Pause (in Audio/Video programs).

Power on Your Device

It is strongly recommended to connect the AC adapter and charge the device before use. Connect the AC adapter and fully charge the battery. Press the power button (normally 1 to 2 seconds) until you see the power indicator light up.

Note: The AC adapter included in the package is approved for your notebook; using any other adapter model may damage either the notebook or other devices attached to it. Your adapter may vary based on your country.

Close-up of a laptop keyboard with a mouse cursor and control buttons (no readable text or symbols)

CAUTION: Do not use inferior extension cords as this may result in damage to your notebook. The notebook comes with its own AC adapter. Do not use a different adapter to power the computer and other electrical devices.

NOTE: The power adapter may become warm to hot when in use. Be sure not to cover the adapter and keep it away from your body.

Charge the Battery

When the battery is low, the low-battery icon appears on the screen.

Plug the charger to the electrical outlet and plug the charging cable to the charging port on the device.

Before using the device for the first time, we recommend you to fully charge the battery. It takes around 4 to 5 hours to fully charge the battery. When not using the device for a long time, charge the device to 30 - 40% of its battery capacity to extend battery life.

Use only Micromax chargers and cables that came with the packaging. Other chargers or cables may damage the battery or your device. This will invalidate your device warranty.

Battery Status

On the Desktop screen, move the cursor to the battery icon in the taskbar. A pop-up dialog box appears and shows you the remaining battery percentage, as shown below:

	Battery is fully charged.
	Battery is starting to drain.

Battery has drained completely and you should stop using your device and charge it at once.

Battery is being charged.

Put your device in Sleep Mode

When you will be away from your computer for a short time, you can put your device into sleep. Press the power button briefly once. If you want to change the settings, just click on the battery level icon on the taskbar, and select Power and Sleep settings.

Note: It is recommended that you put your computer to sleep before you move it. Moving your computer while the hard disk is spinning can sometimes damage the hard disk, causing loss of data.

Microsoft Account

Your Microsoft Account lets you take full advantage of applications and services offered by Microsoft. Configure your Microsoft account on this device to get access to Outlook, Windows Store, One Drive, and much more.

To configure your Microsoft account on the device,

1. Connect to the Internet and open Settings → Accounts → Sign in with a Microsoft Account instead and tap the required credential(if you already have an account) or tap Create a new one.
2. Enter the required details and follow the on-screen instructions to log in or create your new account.

You may add various other accounts, depending on your applications.

Wake up your computer

Do one of the following:

A: Press the power button briefly once (when it is already in sleep mode).

B: Press any key on the keyboard, tapping the touchpad, or open the display panel.

Taskbar

The black bar on the bottom of the desktop is called Taskbar. It provides several key features and they are:

• Start menu
• Search box
• App shortcuts area
• Notification area

Start Menu

To open the Start menu, you can either click on the windows icon (which is also known as Start button) located at the left end of the taskbar or press once on the windows key of the keyboard. And the Start menu will appear, as shown:

Windows logo with four panes, no text or symbols present

Notification area

The right part of the taskbar holds several icons that show you the status of your laptop, as shown:

This is an area called Notification Area and houses the following icons:

	Click here to show more status icons
	Shows you the current battery status
	Shows you the status of your wireless network connection
	Click here to show the unread notifications

Pin and unpin Applications

1.Open the Start menu and select

1. Right-click on the app that you want to appear on your Start menu or taskbar, and an option menu appears.

3.Click or to add the app to your Start menu or taskbar.

Removing an App

1. Right click the app that you want to remove from your Start menu or taskbar.
2. Click or to remove it from your Start menu or taskbar.

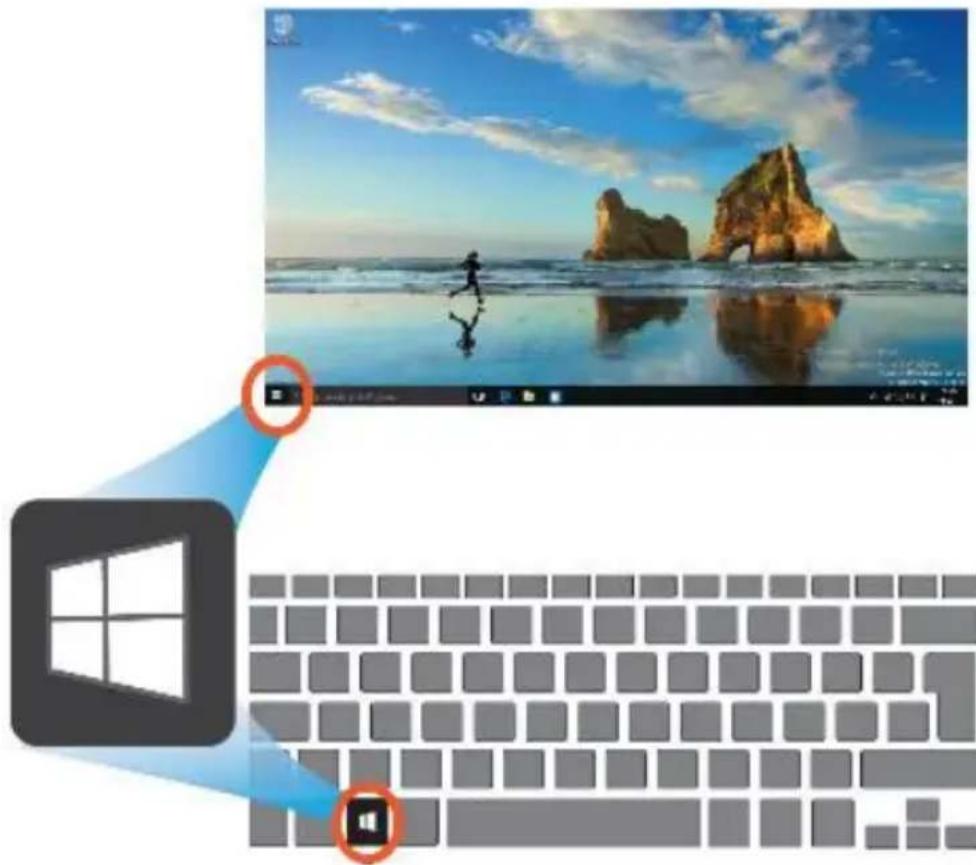

Power off Device

You can power off your device from either the Start menu or directly from the Power button.

1. Click the Windows icon on the lower left corner of the desktop or press the Windows key on the keyboard.

Desktop with a window and keyboard, showing a beach scene with mountains reflected in the sky (no text or symbols on the main image)

1. Click the Power option on the Start menu that appears.

1. Select Shut down from the Power option.

Settings Screen

1. Click the Windows icon in the low-left corner of the Desktop. Or, press the Windows key on the keyboard.

1. Select Settings. This will open the Settings screen, as shown:

Connect to Wi-Fi

1. Open Settings and select Network & Internet.

Network & Internet Wi-Fi, airplane mode, VPN

1. Select Wi-Fi and set the function to On, as shown:

1. Make sure you have switched the Airplane mode off. To confirm that Airplane mode is disabled, go to desktop and check the notification area. If you see an airplane icon on the lower right, press Fn + F11 to disable the Airplane mode.
2. Once the wireless has been enabled, the computer automatically scans for available wireless networks and displays them in the list.
3. Click the network's name in the list, and then click Connect.

Note: Some networks require a network security key or password for connection. If necessary, ask the network administrator or the Internet service provider (ISP) for the required information.

Troubleshooting

This section describes some of the possible issues that might arise on your laptop along with their possible resolutions.

Issue Description	Possible Resolutions
When I turn on the computer, nothing appears on the screen.	If the screen is blank, make sure that:The AC adapter is connected to the computer and the power cord is plugged into a working electrical outlet.The computer power is on. (Press the power button 6 seconds to force the power off, and power it on again.)If these items are properly set, and the screen remains blank, have the computer serviced.
My screen goes blank while the computer is on.	Your laptop is in its sleep mode. Do one of the following to resume from sleep mode:Press any key on the keyboard for 2 to 3 seconds.Press the power button.Press the windows key button.
The critical low-battery error message appears, and the computer turns off	The battery power is getting low. Connect the AC adapter to the computer
The computer enters sleep mode immediately after Power-on.	Make sure that the battery is charged.The operating temperature may be too hot. Move to a cooler environment and try to wake the computer.
The computer does not return from sleep mode and the computer does not work.	If your computer is in sleep mode, connect the AC adapter to the computer, then press any button or the power button.If your computer is powered-off, connect the AC adapter to the computer, then press the power button to resume operation.
The screen is blank.	Do the following:If you are using the AC adapter, or using the battery, and the battery status indicator is on, press Fn + F9 to make the screen brighter.If the power indicator is blinking, press the power button to resume from sleep mode.If the problem persists, follow the solution in the next problem “The screen is unreadable or distorted.”
The screen is unreadable or distorted.	Make sure that:The screen resolution and color quality are correctly set.The monitor type is correct.
Incorrect characters appear on the screen.	Are the operating system or programs installed correctly? If they are installed and configured correctly, has the computer been serviced?
No sound can be heard from the speaker even when the volume is turned up.	Make sure that:The Mute function is off.The combo audio jack is not being used.Speakers are selected as the playback device.
Your computer does not respond.	To turn off your computer, press and hold the power button for 6 seconds or more. If the computer still does not respond, remove the AC adapter.Your computer might lock when it enters sleep mode during a communication operation. Disable the sleep timer when you are working on the network.
The connected external device does not work.	Do not connect or disconnect any external device cables other than USB while the computer power is on. Otherwise, you might damage your computer.When using a high power consumption external device such as an external USB optical disk drive, use an external device power adapter. Otherwise, the device may not be recognized.

Device Specifications

Battery Voltage	Battery Nominal voltage 14.4V
Battery Capacity	4 cell, 31.68WHr
Device Environmental Rating	Temperature 40±5°C
Humidity Range	Relative humidity 65 ± 20%

Charger
AC-DC adaptor I/P & O/P	DC Output: 19V/2.1A,Input Voltage: 100–240VAC NominalInput Frequency: 50–60Hz
Environmental Rating	Operating Temperature: 0°C--40°CStorage Temperature: -25°C--60°COperating humidity: 25%--60%Storage humidity: 5%---75%
Humidity Range	Ambient Temperature 25°C, Relative Humidity 35~65%RH
Input/Output	1 Mini DC-in jack4 x USB port1 HDMI port1 SD Card slotAudio jack

Note: It is however recommended to use this device where the preferred ambient temperature is not more than 35^ C.

Safety Precautions

Your device's radio waves may interfere with inadequately shielded medical devices. Consult a physician or manufacturer of the medical device to know whether they are adequately shielded from external Radio Frequency. Switch off your device when regulations require you to do so.

Always keep the device and accessories out of reach of small children. Small parts such as the memory card can be swallowed by small children.

Manufacturers of medical devices recommend a minimum distance of 15.3 cm (6 inches) between a wireless device and an implanted medical device such as pacemaker or cardioverter defibrillator to avoid issues arising out of radio frequency interference.

The mains voltage (V) specified on the power supply unit must not be exceeded to prevent damage to the charging device. The power supply must be plugged into an easily accessible AC power socket when charging the battery.

Do not open the device under any circumstances. All other changes to this device are strictly prohibited and will invalidate the warranty.

The device must be repaired by Micromax authorized personnel only. Repairing this device by yourself other than our authorized service agents/centers goes against the warranty rules.

Taking Care of your device

Your device is a product of superior design and craftsmanship and should be handled with care. The following suggestions will help you protect your device:

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can rust the electronic circuits. If your device gets wet, wipe it with a dry cloth and take it to an authorized service center.
• Do not store the device in high or cold temperature. Extreme temperatures can shorten the life of electronic devices and damage batteries.

• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can get damaged.

• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Only use a soft, clean, dry cloth to clean the surface of the device.
• Do not store your device near magnetic fields or allow your device to come in contact with magnetic fields for extended period of time.

Recycle your Device

The WEEE logo (shown at the left) appears on the product (battery, device, and charger) to indicate that this product must not be disposed off or dumped with your other household wastes. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste.

Collection and proper recovery of your electronic waste equipment at the time of disposal will allow us to help preserve the environment. Recycling of the electronic waste equipment will ensure safety of human health and environment. For more information on best practices for disposal of electronic and electrical waste, please visit to our web site: www.micromaxinfo.com/weee.php.

Note: Micromax will not bear any responsibility for any incompliance with the above mentioned guidelines or improper usage of the device.

Disclaimer

• The colors, specifications, functions and graphics shown/mentioned in the user manual may differ from the actual product. In such a case, the latter shall govern. Images shown are for representation purpose only. Specifications are subject to change without prior notice. Micromax keeps the right to modify the content in this user guide without prior notice.
  • Available storage memory may vary based on the device software.

Other product logos and company names mentioned herein may be trademarks or trade names of their respective owners.

Micromax privacy policy is available at www.micromaxinfo.com.

Copyright

All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Micromax is strictly prohibited.
