Product Type	Laptop
Brand	Micromax
Model	Canvas Lapbook L1161
Operating System	Windows 10
Battery Voltage	3.7V
Battery Capacity	5000mAh
Charger Input	100–240VAC, 50–60Hz
Charger Output	12V/24W
Ports	1 x Mini DC-in, 2 x USB, 1 x HDMI, 1 x Micro SD slot, 1 x Audio jack
Wi-Fi	Yes (802.11 b/g/n compatible)
Touchpad	Built-in with left and right click areas
Keyboard	Standard with function keys (Sleep, Brightness, Volume, Flight mode, etc.)
Power Button	Press 1-2 seconds to power on; brief press for sleep
Battery Charging Time	4-5 hours for full charge
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 60°C
Humidity (Operating)	25% to 60% RH
Cleaning	Use soft, dry cloth; avoid harsh chemicals
Safety	Do not open device; repairs by authorized personnel only
Recycling	Dispose at WEEE collection points; do not mix with household waste
Warranty	Invalid if damaged by unauthorized service or non-Micromax accessories

Frequently Asked Questions - Canvas Lapbook L1161 Micromax

How do I turn on the Micromax Canvas Lapbook L1161 for the first time?

Connect the AC adapter and fully charge the battery. Then press the power button for 1-2 seconds until the power indicator lights up blue.

How do I charge the battery?

Plug the charger into an electrical outlet and connect the charging cable to the device's charging port. The battery indicator blinks blue during charging and stays solid blue when fully charged. First-time charging takes about 4-5 hours.

What should I do if the screen is blank when I turn on the computer?

Ensure the AC adapter is connected and the power cord is plugged into a working outlet. Press and hold the power button for 6 seconds to force power off, then power on again. If still blank, have the computer serviced.

How do I connect to Wi-Fi?

Open Settings > Network & Internet > Wi-Fi. Turn Wi-Fi on. Ensure Airplane mode is off (press F3 if needed). The computer scans for networks; select your network and click Connect. Enter the security key if required.

How do I put the laptop into sleep mode?

Press the power button briefly once. You can also press any key on the keyboard, tap the touchpad, or open the display panel to wake it.

How do I connect an external display via HDMI?

Connect one end of an HDMI cable to the laptop's HDMI port and the other end to the external device. Power on the external device. Right-click the desktop, select Display Settings, then click Multiple displays to choose your desired mode.

How do I insert a memory card?

Locate the Micro SD card slot on the device. Gently insert the memory card into the slot until it clicks into place.

What should I do if the battery drains quickly?

Check for apps consuming power. Reduce screen brightness, turn off Wi-Fi when not in use, and close unused apps. If the issue persists, consider replacing the battery with an authorized service.

How do I clean the laptop?

Use a soft, clean, dry cloth to wipe the surface. Do not use harsh chemicals, cleaning solvents, or strong detergents. Keep the device away from liquids and moisture.

How do I recycle the device?

Do not dispose of the device with household waste. Follow local regulations and take it to a designated WEEE collection point for recycling. For more information, visit www.micromaxinfo.com/weee.php.

USER MANUAL Canvas Lapbook L1161 Micromax

Power On Your Device....6

Charge the Battery....7

Battery Status 8

Connect to USB Device 10

Connect to HDMI Enabled Devices....10

Put your device in Sleep Mode 12

Microsoft Account....13

Wake up your computer....13

Taskbar....14

Start Menu....14

Notification area.... 15

Replacing Desktop with Start Screen...... 15

Pin and unpin Applications.... 17

Removing an App 18

Power off Device 18

Settings Screen.... 21

Connect to Wi-Fi....22

Troubleshooting.... 24

Device Specifications 26

Safety Precautions.... 27

Taking Care of your device.... 28

Recycle your Device.... 28

Disclaimer 29

Copyright 29

Welcome

Thank you for purchasing the Micromax L1161 device. Your L1161 device is powered by Windows 10 Operating System which is set to revolutionize your PC experience in pleasant ways.

Laptop with a Windows logo displayed on its screen (no visible text or symbols on the laptop or keyboard)

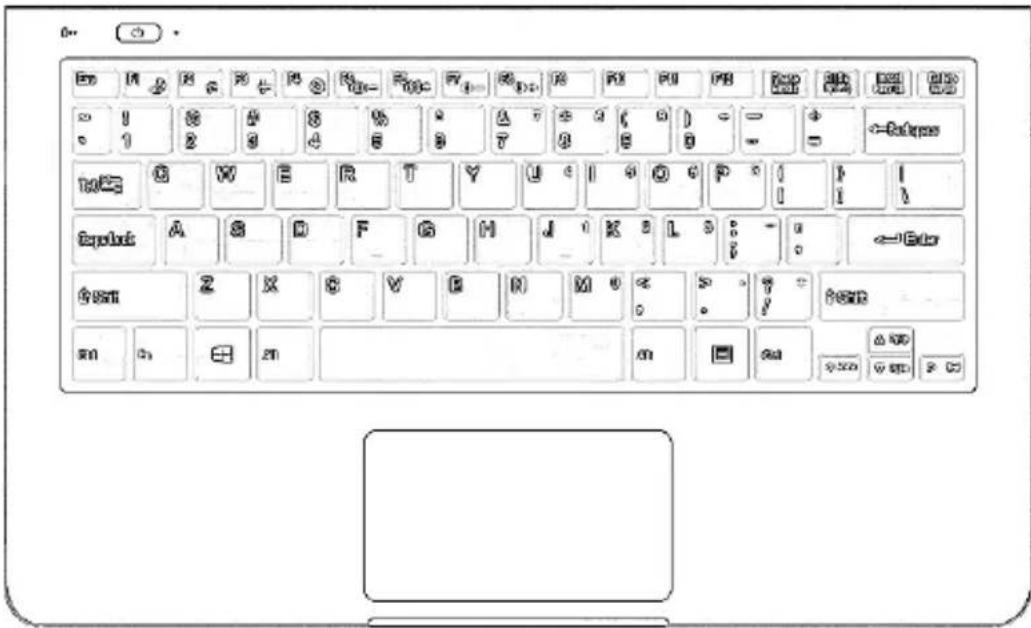

Layout

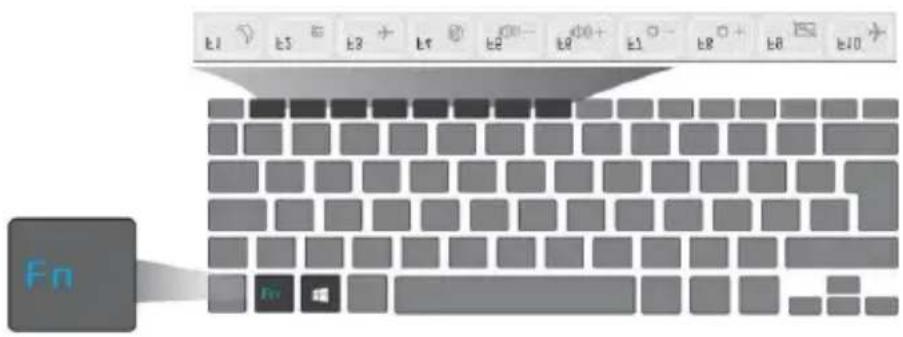

Function keys

Sleep

Brightness Up

Speaker On/Off

Volume Up

Flight mode On/Off

Brightness Down

Switch display device

Volume Down

Touchpad On/Off

Touchpad

The keyboard comes with a touchpad which can be used as a built-in mouse. Place and drag your finder on the touchpad to move the mouse pointer across the screen. The lower left corner and lower right corner of the touchpad can be used as the left and right mouse-clicks respectively.

Insert Memory Card

To store additional files and applications, you need to insert a memory card. Insert the memory card in the slot as shown below:

Power On Your Device

1. If this is the first time you turn device on, connect the AC adapter and fully charge the battery.

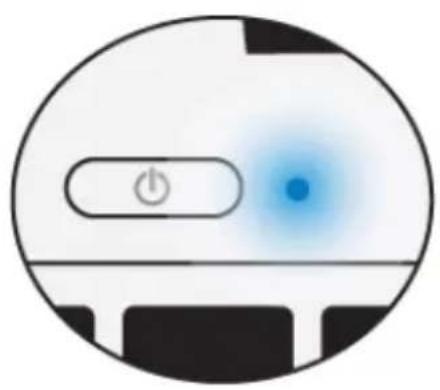

2. Press the power button (normally 1 to 2 seconds) until you see the power indicator lights up in blue.

Illustration of a hand pressing a button on a laptop keyboard (no text or symbols visible)

Circular icon showing a power button with a blue light effect, no text or symbols present

Charge the Battery

When the battery is low, the low-battery icon appears on the screen.

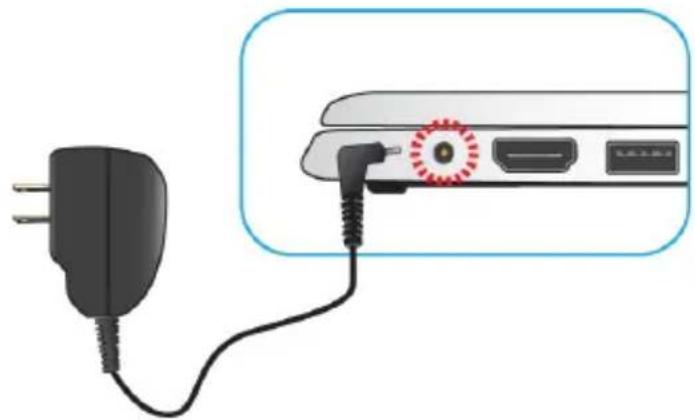

1. Plug the charger to the electrical outlet and plug the charging cable to the charging port on the device.

Close-up of a black plastic plug connected to a cable with a red circular mark on the cable connector (no text or symbols visible)

The battery indicator will start blinking in blue.

Illustration of a remote control panel with a blue circular indicator light and an 'Power' button (no text or symbols)

When the battery is fully charged, the battery indicator will stop linking and stays solid in blue.

i	Before using the device for the first time, we recommend you to fully charge the battery. It takes around 4 to 5 hours to fully charge the battery. When not using the device for a long time, charge the device to 30-40% of its battery capacity to extend battery life.
i	Use only Micromax chargers and cables that came with the packaging. Other chargers or cables n damage the battery or your device. This will invalidate your device warranty.

Battery Status

In Desktop, move the cursor to the battery icon in the taskbar. A pop-up dialog box appears and shows you the remaining battery percentage, as shown below:

	Battery is fully charged
	Battery is starting to drain
	Battery is about to completely drain, and you should stop using your tablet and charge it at once.
	Battery is being charged

Connect to USB Device

Your device comes with two USB ports compatible with USB devices. Once you plug a USB device into a USB port on your computer, Windows automatically loads a driver for that device. Once the driver has been loaded, you can disconnect and reconnect the same device without performing any additional steps.

Connect to HDMI Enabled Devices

The HDMI Out feature makes it possible to share what's on your device with an even bigger screen and an even bigger audience by connecting to an external display device such as a monitor, TV, projector, etc.

Just attach the HDMI cable to the HDMI socket on your device and you can watch a movie in your living room on your HDTV.

1. Power off the external device and locate the HDMI port on your computer.
2. Connect one end of your HDMI cable to the port, and the other end to the HDMI port on the external device.
3. Power on the external device. When connecting a TV, you may need to configure your TV or display device to external device mode.
4. Right-click on the desktop and open Display Settings.

1. Click Multiple displays to open the drop-down list.

1. From the list, select your desired monitor mode.
2. Click Apply and confirm your setting.

Put your device in Sleep Mode

When you will be away from your computer for a short time, you can put your device into sleep Press the power button briefly once.

If you want to change the settings, just click on the battery level icon on the taskbar, and select Power and

Sleep settings.

Note: It is recommended that you put your computer to sleep before you move it. Moving your computer while the hard disk is spinning can sometimes damage the hard disk, causing loss of data.

Microsoft Account

Your Microsoft Account lets you take full advantage of applications and services offered by Microsoft. Configure your Microsoft account on this device to get access to Outlook, Windows Store, One Drive, and much more.

To configure your Microsoft account on the device,

1. Connect to the Internet and open Settings → Accounts → Sign in with a Microsoft Account instead and tap the required credential(if you already have an account) or tap Create a new one.
2. Enter the required details and follow the on-screen instructions to log in or create your new account.

You may add various other accounts, depending on your applications.

Wake up your computer

Do one of the following:

A: Press the power button briefly once (when it is already in sleep mode).
B: Press any key on the keyboard, tapping the touchpad, or open the display panel.

Taskbar

The black bar on the bottom of the desktop is called Taskbar. It provides several key features and they are:

• Start menu
• Search box
• App shortcuts area
• Notification area

Start Menu

To open the Start menu, you can either click on the windows icon (which is also known as Start button) located at the left end of the taskbar or press once on the windows key of the keyboard. And the Start menu will appear, as shown below:

Windows logo with four panes, no text or symbols present

Notification area

The right part of the taskbar holds several icons that show you the status of your laptop, as shown below.

This is an area called Notification Area:

	Click here to show more status icons
	Shows you the current battery status
	Shows you the status of your wireless network connection
	Click here to show the unread notifications

Replacing Desktop with Start Screen

You can set your laptop to show the Start screen instead of the Desktop every time when you power on your laptop. To do so:

1.Open the Settings screen.
2. Select .

3.In the Personalization screen, enable the option

After these steps, you will see the Start screen every time you turn on your laptop, as shown below:

Pin and unpin Applications

1. Open the Start menu and select

1. Right-click on the app that you want to appear on your Start menu or taskbar, and an option menu appears.

Pin to Start

Pin to taskbar

Uninstall

1. Click or to add the app to your Start menu or taskbar.

Removing an App

1. Right click the app that you want to remove from your Start menu or taskbar.
2. Click or to remove it from your Start menu or taskbar.

Power off Device

You can power off your device from either the Start menu or directly from the Power button.

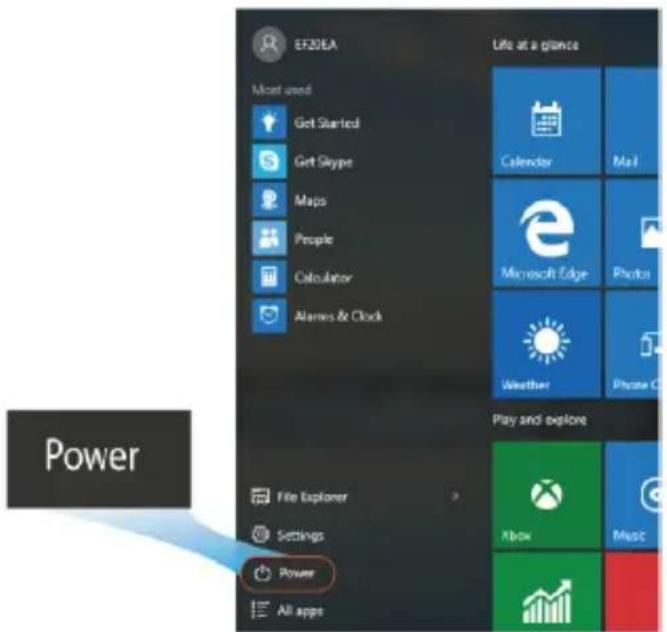

1. Click the Windows icon on the lower left corner of the desktop or press the Windows key on the keyboard.

Windows desktop with a laptop keyboard and a beach scene featuring mountains reflected in the sky (no text or symbols on the main image)

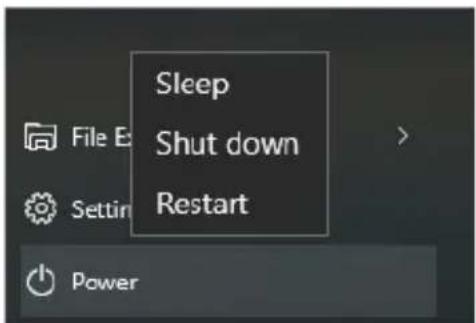

1. Click the Power option on the Start menu that appears.

1. Select Shut Down from the Power option.

Settings Screen

1. Click the Windows icon in the low-left corner of the Desktop. Or, press on the Windows key in the keyboard.

Desktop with a beach scene and a keyboard, showing a person running on the beach (no text or symbols visible)

1. Select Settings. This will open the Settings screen, as shown below.

Connect to Wi-Fi

1. Open Settings and select Network & Internet.

Network & Internet

Wi-Fi, airplane mode, VPN

1. Select Wi-Fi and set the function to ON, as shown below:

1. Make sure you have switched the Airplane mode off. To confirm that Airplane mode is disabled, go to

desktop and check the notification area. If you see an airplane icon on the lower right, press F3 to disable the Airplane mode.

1. Once the wireless has been enabled, the computer automatically scans for available wireless networks and displays them in the list.
2. Click the network's name in the list, and then click Connect.

Note: Some networks require a network security key or password for connection. If necessary, ask the network administrator or the Internet service provider (ISP) for the required information.

Troubleshooting

This section describes some of the possible issues that might arise on your laptop along with their possible resolutions.

Issue Description	Possible Resolutions
When I turn on the computer, nothing appears on the screen.	If the screen is blank, make sure that:The AC adapter is connected to the computer and the power cord is plugged into a working electrical outlet.The computer power is on. (Press the power button 6 seconds to force the power off, and power it on again.)If these items are properly set, and the screen remains blank, have the computer serviced.
My screen goes blank while the computer is on.	Your laptop is in its sleep mode. Do one of the following to resume from sleep mode:Press any key on the keyboard for 2 to 3 seconds.Press the power button.Press the windows key button.
The critical low-battery error message appears, and the computer turns off	The battery power is getting low. Connect the AC adapter to the computer
The computer enters sleep mode immediately after Power-on.	Make sure that the battery is charged.The operating temperature may be too hot. Move to a cooler environment and try to wake the computer.
The computer does not return	If your computer is in sleep mode, connect the AC adapter to t
from sleep mode and the computer does not work.	computer, then press any button or the power button.If your computer is powered-off, connect the AC adapter to the computer, then press the power button to resume operation.
The screen is blank.	Do the following:If you are using the AC adapter, or using the battery, and the battery status indicator is on, press Fn + F8 to make the screen brighter.If the power indicator is blinking, press the power button to resume from sleep mode.If the problem persists, follow the solution in the next problem "The screen is unreadable or distorted."
The screen is unreadable or distorted.	Make sure that:The screen resolution and color quality are correctly set.The monitor type is correct.
Incorrect characters appear on the screen.	Are the operating system or programs installed correctly? If they are installed and configured correctly, have the computer serviced.
No sound can be heard from the speaker even when the volume is turned up.	Make sure that:The Mute function is off.The combo audio jack is not being used.Speakers are selected as the playback device.
Your computer does not respond.	To turn off your computer, press and hold the power button for 6 seconds or more. If the computer still does not respond, remove the AC adapter.Your computer might lock when it enters sleep mode during acommunication operation. Disable the sleep timer when you are working on the network.
The connected external device does not work.	Do not connect or disconnect any external device cables other than USB while the computer power is on. Otherwise, you might damage your computer.When using a high power consumption external device such as an external USB optical disk drive, use an external device power adapter. Otherwise, the device may not be recognized.

Device Specifications

Battery Voltage	Battery Nominal voltage 3.7V
Battery Capacity	5000mAh
Device Environmental Rating	Temperature 40±5°C
Humidity Range	Relative humidity 65 ± 20%

Charger
AC-DC adaptor I/P & O/P	☐ DC Output: 12V/24W,☐ Input Voltage: 100–240VAC Nominal☐ Input Frequency: 50–60Hz
Environmental Rating	☐ Operating Temperature: 0°C--40°C☐ Storage Temperature: -25°C--60°C☐ Operating humidity: 25%--60%☐ Storage humidity: 5%---75%
Humidity Range	☐ Ambient Temperature 25°C, Relative Humidity 35~65%RH
Input/Output	□ 1 Mini DC-in jack□ 2 x USB port□ 1 HDMI port□ 1 Micro SD Card slot□ Audio jack

Note: It is however recommended to use this device where the preferred ambient temperature is not more than 35^irc C.

Safety Precautions

Your device's radio waves may interfere with inadequately shielded medical devices. Consult a physician or manufacturer of the medical device to know whether they are adequately shielded from external Radio Frequency. Switch off your device when regulations require you to do so.

Always keep the device and accessories out of reach of small children. Small parts such as the micro SD card can be swallowed by small children.

Manufacturers of medical devices recommend a minimum distance of 15.3 cm (6 inches) between a wireless device and an implanted medical device such as pacemaker or cardioverter defibrillator to avoid issues arising out of radio frequency interference.

The mains voltage (V) specified on the power supply unit must not be exceeded to prevent damage to the charging device. The power supply must be plugged into an easily accessible AC power socket when charging the battery.

Do not open the device under any circumstances. All other changes to this device are strictly prohibited and will invalidate the warranty.

The device must be repaired by Micromax authorized personnel only. Repairing this device by yourself other than our authorized service agents/centers goes against the warranty rules.

Taking Care of your device

Your device is a product of superior design and craftsmanship and should be handled with care. The following suggestions will help you protect your device:

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can rust the electronic circuits. If your device gets wet, wipe it with a dry cloth and take it to an authorized service center.
• Do not store the device in high or cold temperature. Extreme temperatures can shorten the life of electronic devices and damage batteries.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can get damaged.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Only use a soft, clean, dry cloth to clean the surface of the device.
• Do not store your device near magnetic fields or allow your device to come in contact with magnetic fields for extended period of time.

Recycle your Device

The WEEE logo (shown at the left) appears on the product (battery, device, and charger) to indicate that this product must not be disposed off or dumped with your other household wastes. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the

specified collection point for recycling of such hazardous waste.

Collection and proper recovery of your electronic waste equipment at the time of disposal will allow us to help preserve the environment. Recycling of the electronic waste equipment will ensure safety of human health and environment. For more information on best practices for disposal of electronic and electrical waste, please visit to our web site: www.micromaxinfo.com/weee.php.

Note: Micromax will not bear any responsibility for any incompliance with the above mentioned guidelines or

improper usage of the device.

Disclaimer

• The colors, specifications, functions and graphics shown/mentioned in the user manual may differ from the actual product. In such a case, the latter shall govern. Images shown are for representation purpose only. Specifications are subject to change without prior notice. Micromax keeps the right to modify the content in this user guide without prior notice.
  • Other product logos and company names mentioned herein may be trademarks or trade names of their respective owners.

Micromax privacy policy is available at www.micromaxinfo.com.

Copyright

All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Micromax is strictly prohibited.
