Product Type	Paper Shredder
Cut Type	Cross-cut
Sheet Capacity	8 sheets (70 gsm)
Shred Size	4 x 30 mm
Bin Capacity	15 liters
Duty Cycle	2 minutes on / 30 minutes off
Power Supply	220-240 V, 50/60 Hz
Power Consumption	120 W
Dimensions (W x D x H)	30 x 20 x 40 cm
Weight	4 kg
Noise Level	65 dB (approx.)
Safety Features	Auto reverse, Overheating protection
Maintenance	Oil blades every 30 minutes of use
Color	Black
Warranty	2 years

Frequently Asked Questions - FX418D Wallner

What is the sheet capacity of the Wallner FX418D?

The Wallner FX418D can shred up to 8 sheets of 70 gsm paper at once. For best performance, do not exceed this limit.

What type of cut does this shredder produce?

It produces a cross-cut of 4 x 30 mm, providing a higher security level for confidential documents.

Can the FX418D shred credit cards or staples?

Yes, it can shred credit cards and stapled paper. However, avoid shredding continuous forms, adhesive labels, or hard objects.

How often should I oil the shredder?

It is recommended to oil the blades every 30 minutes of continuous use or when the shredder begins to make more noise. Use shredder oil only.

What should I do if the shredder jams?

The FX418D has an auto reverse function to clear jams. If it jams, let the motor cool down, then press the reverse button. If necessary, remove the jammed paper manually after unplugging.

What does the overheating protection do?

The overheating protection automatically shuts off the shredder if it runs too long. Let it cool down for 30 minutes before restarting.

What is the bin capacity and how do I empty it?

The waste bin has a capacity of 15 liters. Pull out the bin, empty it, and ensure the shredder head is properly seated before use.

Can I lubricate the shredder with cooking oil?

No, only use shredder oil. Cooking oil can damage the blades and cause buildup. Apply oil across the paper entry while the shredder is running.

What should I do if the shredder stops working?

Check if the bin is full, the shredder has overheated, or the power cord is securely plugged. Refer to the user manual for troubleshooting steps. If the issue persists, contact support.

Is the Wallner FX418D safe for children?

This shredder is designed for office use and should be kept away from children. It does not have a safety lock, so always unplug when not in use and store out of reach.

USER MANUAL FX418D Wallner

Exterior view of a modern office building (no signage)

NISZCZARKI WALLNER FX310G / FX418D

PARAMETRY TECHNICZNE

• read the manual carefully before starting to work
- check whether the voltage and frequency given in the table at the bottom of the equipment are the same as in your socket
• do not use the machine if the waste basket is not installed
• do not use the machine if the waste basket is full
• pull the plug from the socket:
a) before emptying the waste basket
b) before any servicing or preservation actions are taken
c) before opening the equipment in case of repair
- take note of the warning plate on the top of the machine to avoid serious injury when your jewellery, tie or hand are too close to the machine
• the machine may not be operated by children

IMPORTANT SAFETY NOTES

		The machine can not be operated by more than one person at any given time! The machine was designed for safe operation by „one person only”.
		During the shredding process no other work may be performed on the machine (for example cleaning, etc).
		Keep children away from the machine. This machine's design and safety concept are based on adult dimensions to ensure that it can be operated safely by adults only.
		Repairs must be executed by a qualified service personnel.
		Keep all loose articles of clothing, ties, jewelry, long hair or other loose objects away from opening, injury may result!
		Never insert fingers into opening. Serious injury may result!
		In case of danger unplug the machine.
		Always unplug the machine from the main power supply before opening the machine.
		This machine shreds only paper, plastic cards, CDs. The shredding of any other materials may result with serious damages.
		When the machine is equipped with a plug with grounding, then it has to be connected to a socket with grounding!
		Shredder is to be used indoor.
		Do not use canned air on shredder. Never use aerosol, petroleum based or other flammable products on or near shredder.
		Do not insert staples into opening. Shredding staples may result with serious damages.

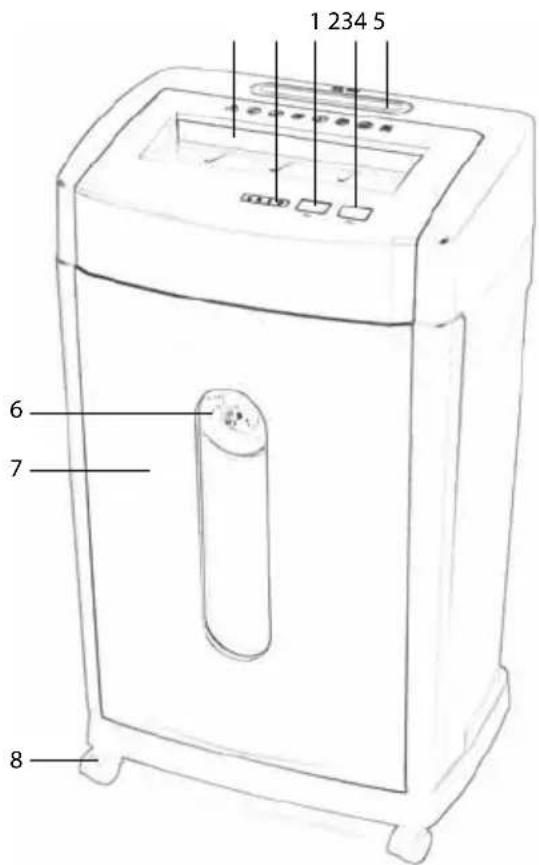

PARTS AND FUNCTIONS (Pic. 1)

1. REV - Reverse button
2. FWD – forward shredding
3. Indocators:
   POWER
   Overloading
   Overheating
   Full bin
4. Paper entry
5. CD / credit card entry
6. Transparent window
7. Wastebasket
8. Casters

INSTALLATION:

• Unpack and set machine upright.
• Put the machine on a horizontal surface.
- Plug in the machine.

• The socket-outlet should be installed near the equipment and shall be easily accessible

OPERATION

FEEDING THE PAPER

1. Please check the voltage of your shredders carefully before using and then plug in and press the switch, the power light is now on. The shredder is equipped with Energy Saving system. After 5 seconds of iddle state the machine goes in "sleep mode", it takes low power (almost "0") - the POWER signal turns off. When you insert the paper sheet into entry gap the shredder goes in "stand-by" mode - the POWER signal ligths up.
2. Feed the paper into the proper entry and the machine will start automatically. When the shredding will be over it will stop automatically.
3. If you want to stop shredding the paper, please set it to Reverse. The machine will reverse automatically and turn back the papers.

CAUTION:

It is forbidden to place more sheets of paper then the maximum amount indicated by the producer.

If the machine will be overloaded, then please proceed according to the information given in the "paper jam" section.

FEEDING CREDIT CARDS/CDS

1. Plug in the machine.
2. Feed the credit card/ CD into the proper entry and the machine will start automatically

CAUTION:

Never attempt to shred more than one credit card/CD at a time or the shredder will jam. Never attempt to shred BOTH paper and credit cards/CDs at the same time. Doing so will damage the shredder.

MOTOR PROTECTION

The shredder is equipped with a motor overload device.

After 8 minutes of continuous work allow the unit to cool for 50 minutes before restarting. After cooling down, the shredder is ready to re-start to work. It is crucial to avoid the situation when the thermal fuse will work - this type of usage of the shredder is not proper and implies machine's overwork.

CUTTER OILING INSTRUCTIONS

To ensure proper operation and function, periodic oiling of the cutting system is required. Failure to oil your cutting system could result in reduced sheet capacity performance, excess noise, paper jams and possibly machine failure. Oil your cutters every 5th or 6th time you empty the basket, if excess squeaking and rubbing noise is coming from the machine or if the shredders sheet capacity has diminished. Squeeze the lubricant across the full width of the cutters. Press the "I" button, insert paper into sensor to activate the cutting system forward for 3 seconds. Then press „REV" to make shredder reverse for 3 seconds. Alternate between forward and reverse at least three times or until all paper clears the cutters.

CAUTION:

Never use flammable synthetic oil, petroleum based or aerosol lubricants to oil your cutting system. Use only a vegetable oil based lubricant in a non-aerosol container with extension nozzle.

BASIC EXPLOITATION RULES

It is not advised to cut as many sheets as indicated as the maximum capacity of the shredder. By exploiting the machine at its top capacity we significantly reduce its vitality. Therefore, to maintain a durable and faultless work of the shredder, it is advised to place no more than 70% of the maximum amount of sheets to be shred at one time indicated for each model by the producer. The maximum amount of sheet should be used only occasionally.

It is forbidden to shred more sheets then the maximum amount of sheets to be shred at one time indicated by the producer. It may cause the blockade of the machine and massive engine overloading, which will diminish shredder's durability or even damage it. Also you should not shred soft objects such as foil, paper towels, toilet paper or fabrics. Nor paper with self-adhesive tape should be placed into the shredder. Those materials wrap around and jam the knives.

IMPORTANT RECOMMENDATIONS / WARNINGS

For your own safety please maintain particular care while installing and using the machine.

GENERAL

• Keep hands, long hair, loose articles of clothing, jewellery and ties away from device to avoid serious injury.
  • Unstable surfaces may cause the fall of the device, which can result in body injuries.
• Please avoid fast stopping, use of additional force or surface unevenness while transporting the device on trolley, casters or table.
• Do not remove mechanical and electrical securities such as locks, covers or others. It is forbidden to use objects not dedicated to do so or liquids.

ELECTRICAL

• The machine should be plugged to the electric circuit only as presented in the manual.
- The socket must be in close vicinity with easy access to the device. While moving the machine, pull the plug from the socket.
- To turn off the appliance unplug it from the socket. Socket should be in close vicinity with easy access to device.
- Do not use the machine when the wire or plug are damaged or after noticing symptoms of machine's damage. Please contact seller to obtain help.
- When the device is equipped with a plug with grounding, then it has to be connected to a socket with grounding!

SERVICE

Proceed only with routine actions according to the manual. Do not repair or service machines on your own. Unplug the machine from the circuit and contact seller when one or more of the following faults occur:

• liquid gets into the machine
• machine malfunctions as a result of improper use
• machine does not work accordingly to the manual

PROBLEM SOLVING

problems checklists solutions
No operation The power plug	is properly inserted to main supply?	Fully put the power plug to the outlet.
	Switch is set at „l” position? Set switch to „l” position for operation.
	Switch at „l” position' but power light off?	Check if the basket is out of stand. Put basket back to stand.
	Basket at stand but power light off?	Take the basket out, check the plug and put it back to place.
	No operation while inserting paper?	Paper should be inserted to trigger the sensor at center.
	Checked above, but still no operation and no power light?	Send back to your local service for repair.
No operation after long time operation	Power lamp is on? Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Stop at shredding Machine was continuously shredding for a longer time?		Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Excess squeaking and rubbing noise	Without oiling to the cutting system periodically, - squeaking and rubbing noise at shredding may appear.	Perform the cutter oiling instruction to lubricate the cutting system.
Paper jam - Exceeding the shredding capacity- The paper is not fed squarely into the feed opening.		Set switch to „Rev” for reverse running and to free excess paper. Then set to „l” for cutting the remainder of paper left in the cutting system. If serious jam occurred, send back to local service for repair.

If any faults should appear, please pass the machine along with the warranty card to the seller or closest authorised dealer. The machine might be passed further, thus the user should maintain the original and complete packaging. In cases when the machine is passed for repair in a not original or incomplete package, the risks of further damages that might arise in transportation are on the user's side. Thus, in such a case, it is in the user's best interest to make the best possible replacement packaging.

NOTE ON ENVIRONMENTAL PROTECTION

After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste.

Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices, you are making an important contribution to protecting our environment.
