Product Type	Freestanding Electric Oven
Brand	Lofra
Model	FRS69EE
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	Approx. 45 kg
Power Source	Electric, 230 V, 50 Hz
Total Power Consumption	2.8 kW
Cooking Modes	Convection, Grill, Top Heat, Bottom Heat, Fan-assisted
Oven Capacity	70 L
Energy Class	A
Self-Cleaning	Enamel interior, easy-clean
Control Type	Knobs and electronic timer
Display	LCD with clock and temperature
Interior Light	Yes
Safety Features	Child lock, auto shut-off, cool-touch door handle
Spare Parts Availability	Genuine Lofra parts available via authorized service centers
Repair Index	7.2 / 10 (estimated repairability)
Accessories Included	Baking tray, wire shelf, grill rack

Frequently Asked Questions - FRS69EE LOFRA

How do I preheat the oven correctly?

Select the desired cooking mode and set the temperature. Wait until the thermostat indicator light turns off, indicating the oven has reached the set temperature.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire bottom or placing it too close to the heating elements to prevent fire hazard. Ensure proper air circulation.

How do I clean the oven interior?

Use a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner. The enamel interior is easy to wipe clean. Do not use harsh chemicals.

What should I do if the oven doesn't heat up?

Check the power connection and circuit breaker. Ensure the timer is set for cooking. If problem persists, contact an authorized Lofra service center.

How do I set the timer?

Press the timer button, use the knob to set the desired time, and confirm. The oven will turn off automatically when the timer reaches zero.

Why is the oven light not working?

Replace the oven bulb with a new one of the same type (typically 25W, 300°C resistant). Ensure the oven is disconnected before replacing.

Can I cook two dishes at the same time?

Yes, use multiple shelves. For best results, use the fan-assisted mode to ensure even heat distribution. Avoid overcrowding.

How do I activate the child lock?

Press and hold the child lock button (usually a key symbol) for 3 seconds until an indicator appears. To deactivate, repeat the process.

Where can I buy spare parts for my Lofra FRS69EE?

Genuine spare parts are available through authorized Lofra dealers and service centers. Check the Lofra website for a list of authorized partners.

What is the recommended installation clearance?

Ensure at least 5 cm clearance behind the oven for ventilation. The oven must be installed on a flat, heat-resistant surface away from flammable materials.

USER MANUAL FRS69EE LOFRA

1. CONTROL PANEL
2. VENTILATORE
3. GUIDE TELESCOPICHE
4. GRIGLIE DI INSERIMENTO
5. SPORTELLO DEL FORNO

INDICE ARGOMENTI

INDICE ARGOMENTI....3

AVVERTENZE PER LA VOSTRA SICUREZZA E CONSIGLI .....4

1. INSTALLAZIONE......10

Simple line drawing of a rectangular object with a black arrow pointing downward (no text or symbols)

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Diagram of a refrigerator with labeled component C (no text or symbols beyond label)

Close-up of a mechanical component with labeled point A, showing internal structure and no readable text or symbols.

Exterior view of a modern glass table with a metallic handle and a small animal figurine on top (no text or symbols visible)

Symbol of a trash bin crossed with no text or labels

1. AUTO-TOUCH CONTROL PANEL
2. AIR FAN
3. TELESCOPIC GUIDES
4. RAIL POSITIONS
5. OVEN DOOR

WARRANTY :

Lofra guarantees the quality of its products sold and their proper operation in normal conditions of use for the period of the warranty, which shall be in accordance with and comply with the rights of consumers under the provisions of EU Council Directive 1999/44/CE. Conditions are reported in a pamphlet apart. Warranty does not apply to the product which has been damaged or defaced, subject to any type of damage derived from improper voltage or other misuse, abnormal service or handling and alterations or modifications in design.

INDEX

SAFETY INSTRUCTIONS AND SUGGESTIONS ...... 24

1. INSTALLATION....29

1.1 CHOOSING A LOCATION FOR YOUR OVEN....29
1.2 ELECTRICAL CONNECTION 30

2. MAINTENANCE....31

2.1 SUPPLY CABLE 31
2.2 ACCESS TO THE ELECTRICAL COMPONENTS....31
2.3 OVEN DOOR REMOVAL....31
2.4 REPLACEMENT OF THE LIGHT BULB 31

3. HOW TO USE YOUR OVEN....32

3.1 GRILL....32
3.2 ROTISSERIE....32
3.3 HOW TO USE MULTIFUNCTION OVENS ....32
3.4 COOKER PROGRAM FUNCTIONING ....33
3.5 HOW TO INSTALL THE FAT FILTER INTO THE OVEN....36
3.6 TELESCOPIC GUIDES....36
3.7 RAY WITH ANTI-FALL DEVICE....36
3.8 MOUNTING MECHANISM ROTISSERIE ....36

4. CLEANING AND CARE....37

5. ADVICE ON ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT....38

TECHNICAL SPECIFICATIONS....39

Lofra reserves the right to modify the product without any notice.

SAFETY INSTRUCTIONS AND SUGGESTIONS

Please read the entire service manual before installing and using the oven.

• This appliance has been specifically designed for domestic use only.
  • These instructions are specific for the country of destination indicated on the label inside the oven.

IMPORTANT!

Installation, regulations, alterations and maintenance procedures must be done by qualified personnel only in accordance to this manual and laws in force. The company will not be liable for any type of damage derived from improper voltage or other misuse, abnormal service or handling and alterations or modifications in design.

• Technical specifications Information regarding the model can be obtained from the technical data
plate on the appliance or by consulting the charts.

- When obtaining service be sure to show the technician, along with the warranty, the

document stating the date of purchase or the date of delivery.

Prior to proceeding with any kind of alteration or maintenance be sure to unplug the oven from the mains. In case the replacement of parts/accessories is needed use original replacement parts by Lofra only. Trust qualified personnel only.

• It's recommended to save this instruction manual for future reference and have the appliance checked yearly by the service centre.
• Be sure to remove the protective film which may cover some parts of the oven (steel, aluminium, enamelled,...) prior to use. It's recommended to proceed with the removal of the film very carefully to avoid any damage to the protected parts.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• It's recommended to disconnect the oven before cleaning it. Clean the oven using tepid water and a neutral detergent; rinse well using a damp cloth. Wash the oven's accessories

separately in a dishwasher or by using tepid water and a neutral detergent; dry them with a soft cloth.

- Before using the oven for the first time it's recommended to turn it on to the maximum temperature and leave it to heat for an hour. During this period there may be some smell and smoke due to the oven's thermal insulation adhesives and oils. It is recommended to leave a window open for the air to circulate.

When using the oven its surfaces will get hot: always keep children and people with learning disabilities at a safe distance and avoid letting them operate the oven.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Warning: Accessible parts may become hot during use. Young children should be kept away.

⚠️ Don not sit on top of the oven door or place heavy objects on it, it could cause serious damage to the hinges.
If oil and fat are frequently used at high temperatures it's recommended to have the oven checked periodically to ensure that eventual squirts don't catch fire.
To avoid any damage to the internal enamel refrain from using the bottom part of the oven for cooking.

- Don’t dispose of the packaging, accessories or anything else inherent to the appliance in the environment.

Use the appropriate bins in accordance to the laws in force.

- In case you notice an abnormal cooking temperature have the oven checked by a

qualified technician, who will proceed with the replacement of the thermostat as necessary.

- Don’t dispose of the packaging, accessories or anything else inherent to the appliance in the environment.

Use the appropriate bins in accordance to the laws in force.

- In case you notice an abnormal cooking temperature have the oven checked by a qualified technician, who will proceed with the replacement of the thermostat as necessary.

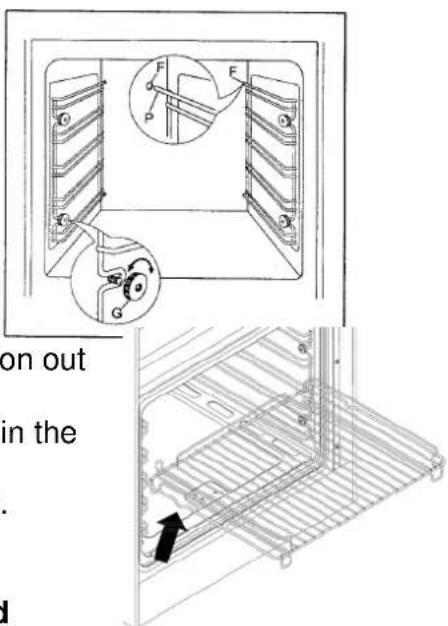

- The instructions show the proper installation of grids and trays (see 3.6 and 3.7)

- Stationary appliances not fitted with means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III, the instructions state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

- A steam cleaner is not be used.

- Warning: Ensure that the appliance is switched off before replacing the lamp to avoid

the possibility of electric shock (see “Replacing the light bulb”)

- To clean the appliance, refer to the corresponding chapter in this manual.

This instruction manual is also available on the website www.lofra.it

1. INSTALLATION

Installation, regulation, transformation and maintenance procedures must be done by qualified personnel in accordance to this manual and laws in force. The company will not be liable for any type of damage derived from improper voltage or other misuse, abnormal service or handling and alterations or modifications in design or construction..

This appliance has been designed to be fitted in a standard housing unit of about 600mm in width. The housing unit and the adjacent furniture must be able of withstanding heat up to 150^ C. Additionally, make sure the adjacent furniture's doors don't interfere with the oven.

WARNING

- Check that the electrical system meets the requirements shown on the data plate of the appliance.

1.1 CHOOSING A LOCATION FOR YOUR OVEN

The unit can be fitted either underneath a work surface or in a column unit.

Fitting measurements are shown in the pictures below..

Ovens door need to be fitted using 4 screws

Don't lever against the oven door during the installation process.

Put the oven inside the furniture and open the door.

Insert four self-threading burnished screws for wood with washer salvo-enamel edge in four holes of diameter 9mm from the front.

Close the oven door.

1.2 ELECTRICAL CONNECTION

Connection to the electrical system must be done using the oven's cable. Do not position the cable on parts of the oven which get to a temperature above 50C room temperature (top and sides); install a switch in overvoltage category III.

Use the yellow-green cable for earthing. If the cable is not long enough, replace it with a cable at least as thick as required in the chart.

The company does not accept any liability for accidents derived from faulty or inexistent earthing.

2. MAINTENANCE

WARNING :

Prior to proceeding with any kind of maintenance or alteration be sure to disconnect the oven from the electricity system, either by using the appropriate switch or by unplugging the plug from the mains. In case some accessories and/or parts of the oven need to be replaced, use replacement parts by Lofra only.

2.1 SUPPLY CABLE

In case replacement of the supply cable is needed; leave enough cable length to facilitate maintenance; the earth cable (yellow-green) must be at least 2cm longer than the other two.

This expedient ensures electrical safety in case the supply cable is accidentally damaged. Refer to the chart for the cable's specifications.

Simple line drawing of a plant stem with a bulb and base, no text or symbols present

2.2 ACCESS TO THE ELECTRICAL COMPONENTS

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

In order to proceed with maintenance/replacement of the electrical components situated at the back or on the upper part of the oven (i.e. lamp holder, roasting jack, supply cable, A.E. generator, resistances) remove the back or upper protection panel, respectively, by unscrewing the screws that fasten them to the sides.

In case maintenance/replacement is needed for the components situated behind the dashboard (i.e. keypad,

programmer,...) remove the dashboard along with the upper panel; this is done by removing the knobs and unscrewing the screws on the two sides of the dashboard. At this point simultaneously pull the dashboard vertically and towards you.

To re-attach the panels/dashboard reverse the directions.

2.3 OVEN DOOR REMOVAL

Open completely the oven door, put in the apposite hinge hole a pin block-movement of rotation (A) as indicated in the picture. Catch the door at sides and close it slowly until You feel a sort of resistance, at this moment lift up the door in order to free the hinge dap from the oven body and to take it off.

For the assembly carry out vice versa the indications above described paying attention the hinge hole is put in its own seat.

Close-up of a mechanical component with labeled parts (A), showing internal wiring and a droplet on the surface (no readable text or symbols)

N.B. Attention, reassembling the windows, the writing "REFGLASS" must be read with the door open.

2.4 REPLACEMENT OF THE LIGHT BULB

Prior to replacing the light bulb disconnect the appliance from the power supply.

Open the oven door, pull down the protective glass from the side of the fixing screw, replace the bulb (220V – E14 – 25W – T300) and fit the protective glass back on.

3. HOW TO USE YOUR OVEN

3.1 GRILL

Place the food on top of the oven's grid.

Place the grid on the dripping pan and the put the food on top of it.

Select the desired function and temperature.

Pre-heat the grill resistance for about 5 minutes with the door shut.

Place the grid in the oven along with the dripping pan on shelf level 3 or 4 for flat types of food or on shelf level 1 or 2 for bigger quantities of food.

Close the oven door.

How to use the electric grill:

Turn the function knob clockwise on the desired grill cooking type and set the temperature to 200^ C on the programmer. The oven door has to remain shut.

WARNING: Accessible parts of the oven can become very hot while the grill is operating. Keep children at a safe distance.

3.2 ROTISSERIE

The rotisserie is used for a skewer type of cooking using the oven and the grill.

To do so follow these instructions:

- Place the dripping pan on the lowest level;

- Slide the appropriate fork onto the spit (made of insulated material), which will also be used to remove the skewer when done.

Slide one of the of the forks onto the spit; put the piece of meat to be roasted onto the spit; slide the second fork onto the spit and tighten it along with the first one.

Position the meat so its weight is spreaded evenly on the fork in order to avoid unnecessary strain to the rotisserie

- Unscrew the skewer knob and insert the spit in the rotisserie's turning mechanism situated on the back of the oven;

- Select the desired cooking method.

3.3 HOW TO USE MULTIFUNCTION OVENS

Multifunction ovens are characterized by the fact that the heat can spread both in a natural way (conventional) or in a forced way (fan assisted).

CONVENTIONAL COOKING: The heat that warms the oven up is produced by the resistances placed on the upper and bottom part.

These resistances can work both individually or together. This method results in a more even cooking. The temperature is always kept constant by the thermostat in accordance

to the selected temperature ranging from 50^ C and 250^ C. During this type of cooking humidity loss in the food is slow and even.

FAN ASSISTED COOKING: Heat is obtained by a forced flow of hot air inside the oven.

The air is warmed by a circular resistance adjacent to the fan. Its circulation is made possible by the fan which spreads it quickly and evenly.

This method guarantees a quicker cooking compared to the conventional one and with temperatures 10-20°C lower. The thermostat assures a constant temperature inside the oven.

Pre-heating of the oven is necessary only for pastry making, all other types of cooking do not require it. It's ideal to defrost foods or cook simultaneously more than one dish without altering the flavours.

This feature allows different types of cooking with separate regulation of the temperature (ranging from 50^ C to 250^ C) by operating the function knob or the touch panels.

WARNING: On the ovens the chosen temperature is reached when the temperature indicator light (thermometer symbol) switches off.

3.4 COOKER PROGRAM FUNCTIONING

1 Oven light.

2 Conventional oven.

The heat distributes evenly from the top and the bottom. Ideal for baking patries, cakes & biscuits and roasts. Recommended for cooking individual items.

3 Cooking from below.

The heat distributes from the bottom to give cooked food a finishing touch.

4 Cooking from above.

The heat comes from the top (sky) heating element. Ideal for cooking the top of dishes without grilling.

5 Grilling or rotisserie.

The heat is radiated in the oven. Ideal for grilling, browning, and au gratin dishes.

6 Maxi-grill and rotisserie.

Like function 5, but with higher power and a larger radiating surface..

7 Maxi-grill with fan-assisted oven and rotisserie.

The heat is radiated in the oven and is a evenly distributed by the fan. Ideal for browning food without drying them out.

8 Even cooking.

The heat emitted by the top and bottom heating elements is distributed by the fan for quick, even cooking, inside and out. Recommended for cooking individual items.

9 Fan-assisted cooking

The heat is distributed by forced ventilation. Ideal for food that has to be well-cooked in the middle and not well-done on the outside. This cooking system enables you to cook three different dishes at the same time. Super fast defrosting Set the switch to "fan-assisted cooking" and the thermostat to 50°C in order to defrost food in no time at all.

10 Defrosting

Set the oven thermostat to "0" position. Food can be defrosted by using the fan without any heat.

COOKING PROGRAMMER

HOUR ADJUSTMENT

In order to adjust the hour on the clock, push 4 times the knob until the icon "CLOCK" blinks. To increase or decrease the time, turn the knob clockwise or anticlockwise, the minute hand will move in one-minute intervals. After 10 second from the last regulation the timer will set up automatically.

MANUAL COOKING

When off, the timer allows the manual cooking by pressing the general button of the oven.

END COOKING PROGRAMMATION

Programming the end cooking time allows starting and finishing the cooking in an automatic way according to the programmed hour.

To program the end of the cooking, briefly push the knob twice until the "STOP" icon flashes.

To increase or decrease the cooking time turn the knob clockwise or anticlockwise until the desired time is reached.

The flashing of the “STOP” icon continues for 10 seconds from the last setting, if by this time the programming isn’t made, the function ends and the hands will return to display the time.

Push the knob to confirm the program (at least 2 minutes) so the cooking can start. To display the selected program push the knob quickly.

At the end of the cooking the “STOP” icon will flash and the alarm will beep. After 1 minute the alarm will be disabled, but the “STOP” icon will keep on flashing until the knob is pushed.

To stop the program before the settled time, push the knob for 3 seconds: the program will be deleted and the timer will return to the manual cooking set up.

START COOKING DIGITAL PROGRAMMER

Programming the start cooking time allows to automatically start and stop the cooking. To program the start cooking time, briefly push the knob until the "START" icon flashes. To increase or decrease the start cooking time, turn the knob clockwise or anticlockwise. The flashing of the "START" icon continues for 10 seconds after the last setting.

If by this time the programming isn't made, the function ends and the hands will return to display the time.

If the knob is pressed the cooking start time is set (at least 1 minute) (the "START" icon is lit on and steady). The next step is the setting of the end cooking time (the "STOP" icon starts flashing).

To program the end cooking time follow the procedure below.

The two icons "START" and "STOP" will remain on to indicate successful programming.

TIMER PROGRAMMING

The timer programming allows to set a simple alarm at the end of a programmed time without starting up the cooking.

To set an alarm, press briefly the knob three times until the icon “TIMER” stars flashing. Then turn the knob, the timer programming is identical to the end cooking time program (see the relevant paragraph)

The timer can be used only when there is no ongoing function.

DISPLAY OF THE SELECTED PROGRAM

To display the selected program briefly press the knob, at the same time the programmer displays the program moving the hands on the selected time. The flashing of the relevant icons indicates the different phases.

The programmer will then return automatically to display the current time and the execution of the selected program.

DELETION OF THE SELECTED PROGRAM

To delete the selected program, push the knob for some seconds until you hear a beep and the relevant icons are off.

The programmer will then return automatically to the manual cooking mode.

BLACKOUT SIGNAL

The timer does not cancel the program in case of blackout.

The timer signals any lack of power supply through the flashing of the "CLOCK" icon, in order to verify that the time is set correctly.

In this case, to disable the alarm quickly press the knob.

3.5 HOW TO INSTALL THE FAT FILTER INTO THE MULTIFUNCTION OVEN

• Place the A-B flaps on the A1-B1 fan cover holes on the bottom of the oven.
• Push the C stirrup so that the flaps firmly get into the A1-B1 holes.
• Screw the fat filter using the supplied screws.

The fan assisted oven must operate with the fat filter inserted.

3.6 TELESCOPIC GUIDES

Telescopic guides offer a higher stability to the oven's accessories. Placing the food on top of the grid or pan will be simpler and safer.

The grids and the pans must be secured correctly to the guide mechanism.

It is recommended to use oven gloves when the oven is operating.

3.7 RAY WITH ANTI-FALL DEVICE

The tray are equipped with safety system to prevent its extraction out of the oven.

Inserting check that the anti-fall device (see picture) is always in the back.

The tray are extracted from the oven only if raised before.

Diagram showing three rectangular frames with arrows indicating movement or transformation, no text or symbols present.

For insertion of the trays on the grid please follow the directions as per image, which can be positioned either at the top or bottom.

3.8 MOUNTING MECHANISM ROTISSERIE

Attach the tray 4 threaded bushings with nuts. Place the media and the skewer through the holes of the bushings previously attached to the tray. Place the tray with the mechanism mounted on the rotisserie grill upside down as shown in the bottom shelf of the oven.

4. CLEANING AND CARE

Prior to cleaning the oven make sure it has cooled down and is unplugged from the mains. It is recommended to clean the oven after each use to prevent incrustation which may be difficult to remove and may damage the oven surfaces.

It is recommended to use a damp cloth or sponge to clean all the steel, enamel and glass parts as well as the control panel. Avoid using any kind of abrasive and corrosive substances which could scratch the materials.

To maintain the internal enamel shine clean those parts using tepid water and a neutral detergent, rinse well with a damp cloth; wash the accessories separately in the dishwasher or by using tepid water and a neutral detergent. The rail positions' guides can be removed by unscrewing the ring nuts G (refer to the image in chapter 3.6) allowing more accurate cleaning; to reattach the ring nuts insert the two lateral guides' extensions P in the F holes on the bottom of the oven, align the two anterior guides' eyelets to the screws on the flanks, fasten the guides to the ring nuts G; to simplify the cleaning process the oven door may be removed following the instructions given in chapter 2.3; don't soak the oven door in water; dry the oven and its accessories completely using a damp cloth. Don't clean the oven while it's still hot and do not use abrasive/corrosive substances.

WARNING: Do not use steam cleaners to clean the oven.

Do not allow alcaline or acid substances (i.e. VINEGAR, COFFEE, MILK, SALTED WATER, LEMON JUICE, TOMATO JUICE,...) to stay on enamelled surfaces for too long.

To clean the internal parts of the oven door remove the upper border with a screwdriver as shown in the picture and detach the glass from its guides. Proceed with maximum care.

FOR THE INNER CLEANING OF THE OVEN DOOR, REMOVE THE UPPER SECTIONS HELPING YOURSELF WITH A SCREWDRIVER, AS INDICATED IN THE PICTURE, UNTHREAD GLASSES FROM THE GUIDES. CARRY OUT THESE WORKINGS WITH EXTREME CAUTION AND PRECISION.

Close-up of a transparent rectangular object with a metallic handle and a small metallic sculpture on top (no visible text or symbols)

It recommends to carry out with extreme caution the inner cleaning of the oven upper part, paying special attention to not force temperature feeler. In case of damage it could happen oven misworking.

5. ADVICE ON ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT

• Pre-heat the oven for 10-15 minutes prior to placing the food into it. Choose the appropriate temperature (refer to the Times and Temperatures chart).
• Periodically check the integrity of the oven door's basket.
• Turn the oven off 10 minutes before the scheduled end cooking time to take advantage of the thermal inertia..
• The packaging of the appliance must be taken to the allocated recycling areas
• The electrical appliance no longer in use must be taken to the appropriate rubbish collection area.

The presence of the following symbol means that the appliance is considered as a “new type of waste” an thus is subject to the separate collection of rubbish.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

According to the art.13 of Legislative Decree 25 July 2005, n.151 “Carrying out Regulations 2002/95/CE, 2002/96/CE and 2003/108/CE, relative to reduction of dangerous substances using in electric and electronic devices, as well as to the getting rid of waste.

The symbol of rubbish skip indicated on the device or on the packing, shows that the product at the end of its life must be gathered separately respect the other waste. So the user must take the dead device to the right centres of differentiated collections of electric and electronic waste, or hand back it to the shopkeeper at the moment of the purchase of a new equivalent device, in reason one by one. The right differentiated collection for the following starting of the removed device to recycling, to treatment and getting rid compatible with ambient helps in avoiding possible negative effects on ambient and on human health and favour the reusing and the recycle of the material's device.

The abusive getting rid of device by the user causes the application of administrative sanctions provided by the regulations in force.

TECHNICAL SPECIFICATIONS

Model	Vol. [lt]	Total power of the elements [Kw]	Upper resistance	Bottom resistance	Grill resistance	Maxi- grill resistance	Circular resistance
Dolcevita	62 26	00 W 900	W 1650	W 1500 W	2400 W 20	00 W
Dolcevita	93 31	00 W 100	00 W 1750	W 2000 W	3000 W 2	500 W

Sede Via Montegrotto, 125 – 35038 TORREGLIA (PADOVA) – ITALY

Tel.: [phone]

Telefax: [phone]
