Product Type	Front-loading washing machine
Brand	Zerowatt
Model	ESX 402 EURO
Energy Class	A++
Capacity (kg)	6 kg
Maximum Spin Speed (rpm)	1200 rpm
Height (cm)	85 cm
Width (cm)	60 cm
Depth (cm)	50 cm
Weight (kg)	65 kg
Power Supply	220-240 V ~ 50 Hz
Programs	15 programs including Cotton, Synthetics, Delicates, Quick Wash
Delay Start	Up to 24 hours
Child Lock	Yes
Overflow Protection	Yes
Noise Level (dB)	62 dB (wash) / 76 dB (spin)
Annual Water Consumption	9400 L/year
Annual Energy Consumption	168 kWh/year
Maintenance	Clean filter regularly; descale every 3 months
Spare Parts	Drum, door seal, pump, belt, heating element

Frequently Asked Questions - ESX 402 EURO ZEROWATT

How do I clean the filter on my Zerowatt ESX 402 EURO?

Turn off and unplug the machine. Open the filter cover at the bottom front. Unscrew the filter counterclockwise. Remove any lint or debris. Rinse under running water and reinsert securely. Close the cover.

What does the error code E10 mean?

Error E10 indicates a water inlet problem. Check that the water tap is open, the inlet hose is not kinked, and the filter in the inlet valve is clean. If the issue persists, contact service.

Can I delay the start of a wash cycle?

Yes, the delay start function allows you to postpone the start up to 24 hours. Select the desired program, then press the delay button repeatedly to set the hours. Close the door and press start.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm. You can adjust it using the spin speed selector button. Lower speeds are available for delicate fabrics.

How do I activate the child lock?

Press and hold the two buttons indicated in the manual (usually the extra rinse and delay buttons) for about 3 seconds until a lock symbol appears. To deactivate, repeat the same steps.

The door won't open after washing. What should I do?

The door lock is engaged for safety. Wait 2 minutes after the cycle ends. If still locked, check if water remains inside. Use the drain program or manual drain hose if necessary. Do not force the door.

How often should I descale my washing machine?

Descaling should be done every 3 months using a recommended descaling agent. Run an empty hot cycle (60°C or higher) with the descaling product following the manufacturer's instructions.

What should I do if the machine vibrates excessively?

Ensure the machine is level by adjusting the feet. Check that transport bolts are removed. Distribute laundry evenly inside the drum. Overloading can cause imbalance.

How do I clean the detergent drawer?

Remove the drawer by pressing the release tab. Wash it under warm water to remove residues. Use a brush to clean the compartment. Dry thoroughly before reinserting.

What is the capacity of my Zerowatt ESX 402?

The maximum dry laundry capacity is 6 kg. Overloading may reduce washing efficiency and cause excessive wear. For best results, load approximately 4.5 kg for mixed fabrics.

User questions about ESX 402 EURO ZEROWATT

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Washing machine in PDF format for free! Find your manual ESX 402 EURO - ZEROWATT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ESX 402 EURO by ZEROWATT.

USER MANUAL ESX 402 EURO ZEROWATT

Safety, reliability, efficiency, elegance and up to the minute design are all characteristics of Zeiowall quality.

Zerowatt Technology

Every Zerowall model undergoes stringent and intensive testing during its development, resulting in appliances of the highest technology, making Zerowall one of the best European producers of domestic appliances.

Zerowatt Design

Zerowall have a modern and elegant design right down to the smallest detail so they will suit all kitchens.

Zerowatt Innovation

Zerowatt strives to introduce new concepts in domestic appliances eg the Spazio 33 washing machine, the refrigerators with the Maxi container. Zerowatt is always at the forefront of technological innovation.

Cod. 9048441.1

ZEROWATT

Zerowalt S.p.A. Via Busa, 19 • 24020 Nasa / Borgamo • Italia Tel. (035) 479111 • Telex 503295 • Telefax (035) 513251

ZEROWATT washing machines meet every laundry requirement: from 5 kg up to 7 kg loading capacity by taking up minimum floor space. Even a 33 cm depth washing machine for every space problem. ZEROWATT giant 'perfect' washing for year and years'.

Zerowatt washer-dryers

Thanks to the top ZEROWATT washer-dryers, no problem in having, your laundry perfectly washed and dried. These appliances have the highest performances: 7 kg washing and 4 kg drying capacity and even with the compact model of 44 cm depth you can wash 5 kg, and dry 2.5 kg laundry.

Zerowatt per conservare

Zerowatt refrigerators and freezers

The complete ZEROWATT high-tech range of refrigerators and freezers is ideal to meet every requirements.

ZEROWATT ESX 402 EURO - Zerowatt refrigerators and freezers - 1

ZEROWATT ESX 402 EURO - Zerowatt refrigerators and freezers - 2

COMPLIMENTI

As other millions of customers, you bought a product of high quality and reliability, which will satisfy you for years and years. More than 50 years of experience allow Zerowait to project and realize high technical appliance, which can satisfy the most modern and demanding customers. For your next purchases, we suggest you: - Zerowait dishwashers; - Zerowait refrigerators and lives

INDEX

General points on delivery

lable of Programmes

Safety Measures

Setting up and installation

Preparing and leading clothes Detergent drawer

Control description

How to sin the machine and change programme

Cleaning and routing maintenance

double shooting

L-CHENGJ (X)

CAPITOLO CHAPTER

CARICO DETERSIVO
I	II	△	※
●

	●	●	●
	●	●	●
	●		●
	●		●
	●		●
		●
			●
			●

	●		●
	●		●
	●		●
	●		●
	●		●
	●		●
	●		●
			●
			●

Note da considerare

ELECTRICAL SUPPLY AND SAFETY INSTRUCTIONS

Our washing machines are supplied to operate at 220±230 V, 50 Hz. Make sure that the power rating is of least 3 Kw. Then correct the plug to a suitable 10 A couhed socket. Make sure that it is properly couhed. Your socket and the washing machine plug must be of the same kind. We would generally not recommend the use of multiple plug adapters or extension leads. Zerowall washing machines are manufactured to IMQ Institute safety requirements.

The use of any appliance requires that some basic rules be observed, in order to ensure personal safety, for example: - do not touch the machine by wet hands or feet!

- do not use the machine when you are bare loot; - do not use extension leads in the bathroom unless special care is taken;

- do not expose the machine in the open air (under rain, sunshine or other).

WARNING The machine is equipped with devices against radio interferences, according to the current laws. In case the machine is not connected with the earling, the manufacturer is not responsible for any damage to persons or properties caused by some faulty or incomplete earthing.

ZEROWATT ESX 402 EURO - ELECTRICAL SUPPLY AND SAFETY INSTRUCTIONS - 1

ZEROWATT ESX 402 EURO - ELECTRICAL SUPPLY AND SAFETY INSTRUCTIONS - 2

ZEROWATT ESX 402 EURO - ELECTRICAL SUPPLY AND SAFETY INSTRUCTIONS - 3

CAPITOLO 5

MESSA IN OPERA INSTALLAZIONE

SETTING UP INSTALLATION

After taking the machine out of its packing, proceed as follows:

Work on the back side of the machine 1) Unscrew the central rod A, the 2 side screws C and remove the bar D, and the relevant plastic spacer. 2) Unscrew the two rods B and remove them. N° 2 or N° 4 plastic spacers will fall inside the machine. 3) By tiling the machine, remove the above mentioned plastic spacers. 4) Stop the holes using the plug that you will find inside the bar containing the instruction book. Use front feet to level the machine with the floor. Place the machine which is fitted with 2 adjustable feet in position.

Important! If the appliance is going to be installed on a carpet or rug, make sure that the ventilation grille in the base of the machine is not blocked.

WARNING! Keep bar and bolts for use again during transport. The manufacturer is not responsible for possible damage caused to the machine by non-use of the transit fixings during transport.

A B C D E F G

ZEROWATT ESX 402 EURO - SETTING UP INSTALLATION - 2

ZEROWATT ESX 402 EURO - SETTING UP INSTALLATION - 3

The machine is equipped with a water inlet hose E with 3/d junctions at both its ends. This hose is to be connected between the threaded ring fitted to the machine and the water pipe. The machine must be connected to a cold water pipe and any connection with hot water distribution sources must be absolutely avoided.

WARNING! After every wash, it is advisable to close the inlet cock in order to isolate the machine from the water circuit.

If the position of the inlet hose supply is changed, make sure that the 3/4" junction of the inlet hose is well connected to the electric valve connection.

For the correct working of the washing machine, the end of the drain hose F must be at least a minimum of 70 cm to a maximum of 90 cm above the floor level.

ZEROWATT ESX 402 EURO - SETTING UP INSTALLATION - 4

ZEROWATT ESX 402 EURO - SETTING UP INSTALLATION - 5

ZEROWATT ESX 402 EURO - SETTING UP INSTALLATION - 6

MODIFICA DELLA POSIZIONE DEL TUBO DI SCARICO F PER MODELLI PROFONDITA: 33 CM. - 40 CM. - 44 CM.

Remove the back panel G by loosening the screws. Remove the plugs I; take the outlet hose and put it into the hole that you want to use, after having removed the plug H. To insert into the holes two clips F. If you choose the outlet to be positioned on the opposite side of the cabinet, fasten the hose by passing it under the two clips F on the lower edge, making sure that the hose is kept well-straight. To fight ten the clips. Stop the hole that is still open, using the plug H. Finally, fasten the hose on the outer side of the cabinet using the semi-plugs I and then reposition the back panel G.

SERVICE CENTER

In the case of a breakdown and/or incorrect functioning, turn the appliance off and do not hamper with it. Only contact an Official Service Centre and ask for original spare parts. If you fail to follow this advice you may compromise the safety of the appliance.

ZEROWATT ESX 402 EURO - SERVICE CENTER - 1

Technical diagram of a mechanical component with labeled parts and mounting features

ZEROWATT ESX 402 EURO - SERVICE CENTER - 3

To select the wash programme suited to type of clothes and degree of soiling, see the TABLE OF PROGRAMMES in the initial part of this booklet. But there are some stains which are particularly difficult to remove. In these cases you should act as follows:

TYPE OF STAINS	SOLUTION
Pen, band for typewriter, copying pencil, carbon paper	Pretreat with a liquid detergent. Rub the stain lightly with a cotton sheet soaked with alcohol. In the case of an old stain, use a bleaching element or rinse-aid according to the type of clothes.
Perspiration	Difficult to remove, but you can try with just cold water, or rinsing them with cold water and vinegar or with some ammonia and alcohol in equal quantities.
Industrial dirt (collars and cuffs)	Treat the dirtiest part with a liquid detergent before washing in a washing machine.
Varnish	Remove these stains with oil of turpentine, and then sponge oil the traces out with tolc.
Sugar	If the stains are old and dry, soften them with steam and then wash. If it is wool, silk or not strong colours, remove the sugar stains by rinsing them with cold water.
Chewing gum	Rub with an ice cube and scrape. Rinse with benzine.
Nail/polish and glee	Dab with a cotton bud soaked with acetone.
Tar	Rinse the stain with trichloroethylene and oil of turpentine.

When you select the washing programme, remember that the timer control only turns

clockwise. If you do not turn the knob clockwise, you can seriously damage the

Appliance. During the wash cycle, before rotating the knob for a variation of the programme, remember to release the button.

WARNING: At the end of the programme, before opening the door, release button on/off and wait for about 2 minutes until the safety device releases the door.

ZEROWATT ESX 402 EURO - SERVICE CENTER - 4

ZEROWATT ESX 402 EURO - SERVICE CENTER - 5

ZEROWATT ESX 402 EURO - SERVICE CENTER - 6

i

CAPITOLO 9

FULIZIA E MANUTENZIONE ORDINARIA

PULIZIA DELLA LAVABIANCHERIA

CLEANING OF THE WASHING MACHINE

For the cleaning of the washing machine, it is necessary to use a damp cloth. Avoid the use of abrasive which could damage the vanishing of the machine.

CLEANING OF DRAWER COMPARTMENTS

Although not strictly necessary, it is advisable to clean the detergent, bleach and additives compartments occasionally.

Remove the compartments by pulling gently.

Clean with water.

Put the compartments back into place.

ZEROWATT ESX 402 EURO - CLEANING OF DRAWER COMPARTMENTS - 1

ZEROWATT ESX 402 EURO - CLEANING OF DRAWER COMPARTMENTS - 2

ZEROWATT ESX 402 EURO - CLEANING OF DRAWER COMPARTMENTS - 3

ZEROWATT ESX 402 EURO - CLEANING OF DRAWER COMPARTMENTS - 4

ZEROWATT ESX 402 EURO - CLEANING OF DRAWER COMPARTMENTS - 5

CHAPTER 10 SERVICE

To avoid unnecessary and possibly expensive service calls before requesting service it is an interest to make the following checks:

FAULT	CAUSE	REMEDY
A If the machine does not stirn make sure that:	The machine is not a bit. Every bit is ... The door is set On of the door.	Use the door is a bit. Use the door. Use the door proper. Use the door off bed.
B If the machine does not drain or spin make sure that:	See point A. The turn is off. Putymine, case is selected.	Use the case. Learn the top on. Use the top proper. Use the top.
C If the machine does not fill with water check that:	The drain has to find. The drain is closed.	Set the drain base. Clean the filter.
D If the machine fills with water and leaks continuously:	Look from the basket of water fill base.	Replace the gasket.
E If the machine is noisy or not resting evenly on the floor make sure that:	The machine is not a bit. level. The machine has not been properly open. Level. The machine has not been locked evenly.	Adjust the feet properly. Follow the instructions. Use the machine in a more even way.
F If the machine appears to be leaking check that:	See point C. "Spin exclusion" removed.	Save point C. Release "Spin exclusion" before.
G Excessive vibration during spin sequence	Machine not leveled. Guatemala shops not removed. Guatemala teeth leads.	Adjust front levelling feet. Remove strap. Check quantity & positioning.

CAPITOLO 11

Technical diagram of a washing machine with labeled control panel and door mechanism

To avoid unnecessary and possibly expensive service calls, before requesting service it is in your interest to make the following checks:

FAULT	CAUSE	REMEDY
A If the machine does not start make sure that:	The plug is not in the socket. Electricity is off. The door is open. On/off button not pressed.	Put the plug into the socket. Please check. Close the door properly. Press the on/off button.
B If the machine does not drain or spin make sure that:	See point A. The lap is off. Programme wrongly selected.	Please check. Turn the top on. Select the programme properly.
C If the machine does not fill with water check that:	The drain hose is bent. The filter is clogged.	Set the drain hose. Clean the filter.
D If the machine fills with water and leaks continuously:	Leak from the gasket of water fill hose.	Replace the gasket.
E If the machine is notsly or not resting evenly on the floor make sure that:	The machine is not perfectly level. The machine hasn't been properly unpacked. The machine hasn't been loaded evenly.	Adjust the feet properly. Follow the instructions. Load the machine in a more even way.
F If the machine appears to be leaking check that:	See point C. "Spin exclusion" connected	See point C. Release "Spin exclusion" button.
G Excessive vibration during spin sequence	Machine not levelled. Transit straps not removed. Laundry badly loaded	Adjust front levelling feet. Remove strap. Check quantity & positioning.
H The machine is not drying properly	The programme has not been set properly. The machine has been overloaded. The selected drying time is too short. Blocked filter. The tap of cold water is closed.	Set the programme properly. Reduce the load. Increase the drying time. Clean the filter. Open the top completely.

m = 311

[Non-Text]

(1)

[Non-Text]

•

[Non-Text]

m = 311

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

广力云智慧零售收银系统

[Non-Text]

(1)

[Non-Text]

。

[Non-Text]

。

[Non-Text]

(五)

[Non-Text]

•

m = 311

•

[Non-Text]

广力云

[Non-Text]

。

[Non-Text]

[Unreadable]

[Non-Text]

。

m = 311

[Non-Text]

•

m = 311

[Non-Text]

广力云

[Non-Text]

。

[Non-Text]

[Unreadable]

[Non-Text]

www.westera.com

[Non-Text]

CHAPTER 11

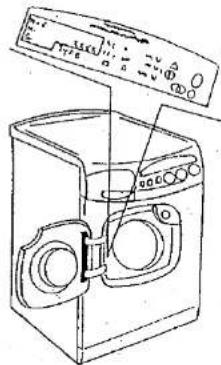

Diagram of a washing machine with labeled control panel and door mechanism

TECHNICAL DATA	KG 4	KG 5
■ Washing capacity of dry clothes	-1 Kg	5 Kg
■ Drum capacity	30 l	42 l
■ Water supply pressure	2.5 - 10 kPa	0.5 - 10 kPa
■ Spin speed	3.500 gm	2 - 100 N, cm
■ Spin speed	2.02 rpm, t.p.m.	-100 & 00 rpm, t.p.m.
Dimensions
■ Width	30 cm	50 00-60 cm
■ Depth	3.5 cm	40 d4.52 cm
■ Weight	45 cm	85 85 85 cm

Note: As far as the electric data are connected, it is also called the best part of the washing machines cabinet (near the door)

This appliance completely with the 12 and 13 of the 12 and 13 of the 12 and 13 of the 12 and 13 of the 12 and 2 changes

Nole
