Product Type	Built-in Dishwasher
Model	D11021B01
Brand	Silverline
Dimensions (Height x Width x Depth)	85 cm x 60 cm x 60 cm
Net Weight	45 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Rating	E (EU 2019/2017)
Place Settings	12
Noise Level	49 dB(A)
Number of Programs	6 (Eco, Auto, Intensive, Normal, Quick, Rinse)
Key Features	Delay start, half load, adjustable upper basket, AquaStop
Water Connection	Cold water only, max 60°C inlet
Control Type	Electronic push buttons with LED display
Interior Material	Stainless steel
Adjustable Feet	Yes, 4 adjustable feet
Safety Features	Child lock, overflow protection, door lock
Cleaning and Maintenance	Clean filters regularly, empty spray arms, descale periodically
Spare Parts Availability	Filters, spray arms, racks, door seal, control board
Repairability Index	7.5/10 (estimated)
Warranty	2 years (parts and labor)
Included Accessories	Installation kit, user manual, warranty card

Frequently Asked Questions - D11021B01 SILVERLINE

How do I start a wash cycle?

Press the Power button, select a program using the program button, then press Start. Close the door firmly.

What does the 'Salt' indicator mean?

It indicates low salt level. Refill the salt reservoir with dishwasher salt to prevent limescale buildup.

Why is my dishwasher not draining?

Check if the drain hose is kinked or clogged. Clean the filter and ensure the sink drain is not blocked.

How often should I clean the filter?

Clean the filter every 2-3 weeks or when you notice food debris. Rinse under running water and reinstall.

Can I use regular dish soap?

No, only use dishwasher detergent (powder, gel, or tablets). Regular soap causes excessive suds and may damage the appliance.

What does the 'Rinse Aid' indicator mean?

It indicates low rinse aid level. Refill the rinse aid dispenser to improve drying and prevent spots.

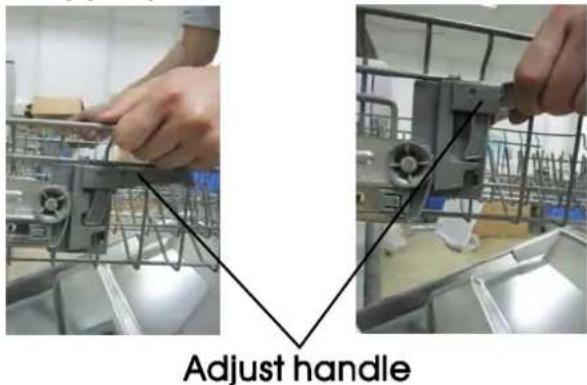

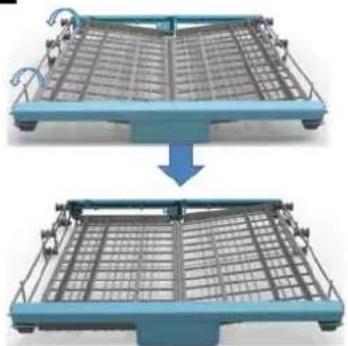

How do I adjust the upper basket height?

Pull the handles on the sides of the upper basket and lift or lower it to the desired height. Release to lock.

Why is the dishwasher not cleaning properly?

Ensure spray arms are not blocked, use the correct detergent amount, load dishes properly, and select the appropriate program.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights up. Repeat to deactivate.

What should I do if water leaks?

Turn off the water supply and unplug the dishwasher. Check door seal, hose connections, and ensure the appliance is level. Contact a technician if needed.

USER MANUAL D11021B01 SILVERLINE

English User Manual....58

Model 5:

NOT:

1. Ana filtre

Üreci: Foshan Shunde Midea Environment Electrical Appliances MFG CO. Ltd No.20 Gangqian Road, Beijiao Industrial Park, Beijiao Shunde, Foshan, Guangdong, CHINA TEL: [phone] FAX: [phone]

EN

Dishwasher User Manual

SILVERLINE®

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keepittorefertoitatalaterdate.
■ Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and TroubleshootingTips, etc.

Before Calling for Service

• Tareview these on trouble shooting Tips will help you to solve some common problems by yourself.
  If you cannot solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
This user manual shall also be got from the manufacturer or responsible vendor.

1) Safety Information....1
2) Quick operation guide.... 2
3) Operation Instructions....3
ControlPanel....3
DishwasherFeatures....3

4) Prior using for the first time....4

A、Water Softener 4
B、Loading the Salt into the Softener....5

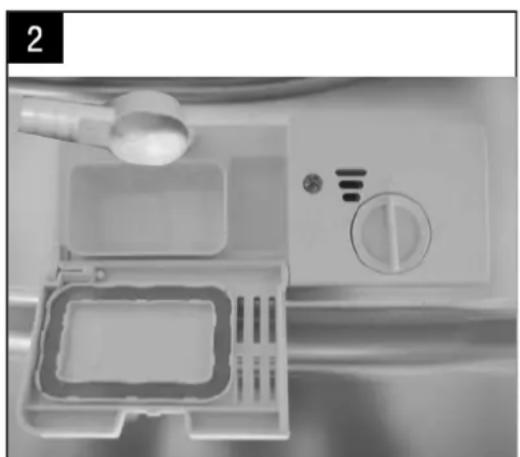

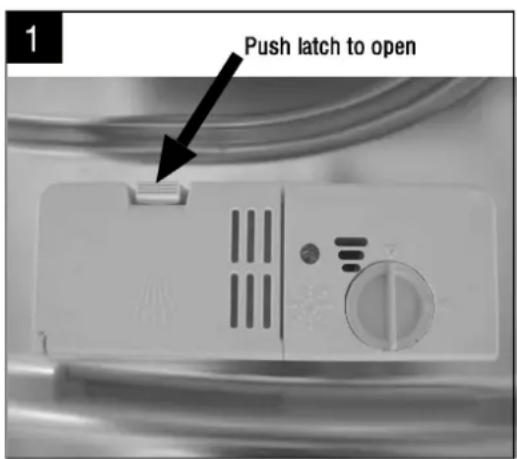

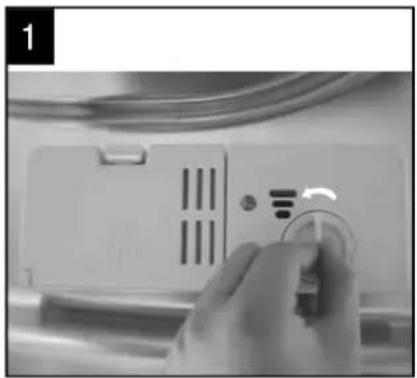

C、Fill the Rinse Aid Dispenser....5
D、Function of Detergent 6

5) Loading the Dishwasher Basket....9

Attention before or after loading the Dishwasher

Baskets....9

Loading the upper Basket....10

Loading the Lower Basket....10

6) Starting a washing programme....11

Wash Cycle Table....11

Turning on the Appliance....11

Change the Programme....12

At the end of the Wash Cycle....12

7) Maintenance and cleaning....13

Filtering System....13

Caring for the Dishwasher....14

8) Installation instruction....15

Installation preparation.... 15

Aesthetic panel's dimensions and installation...16

Tension adjustment of the door spring....18

Connection of drain hoses.... 18

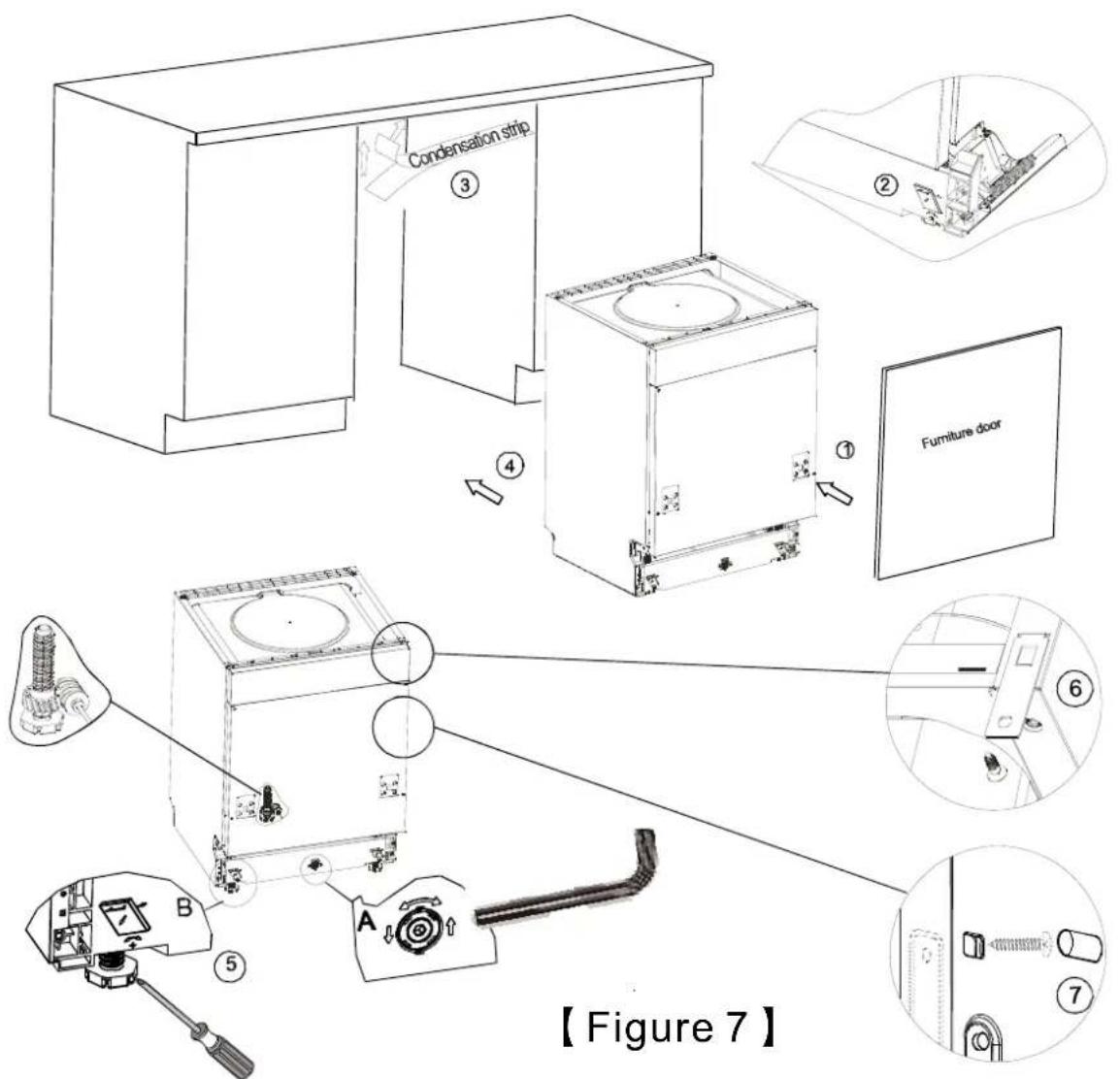

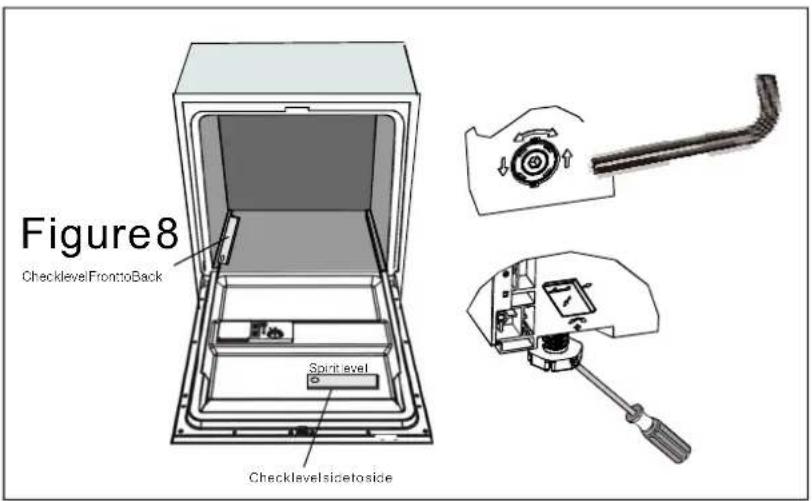

Dishwasher installation steps.... 19

About Electricity Connecting....20

Cold Water Connection....21

9) Troubleshooting Tips....22

Before calling for service....22

Error codes....23

Technical information....24

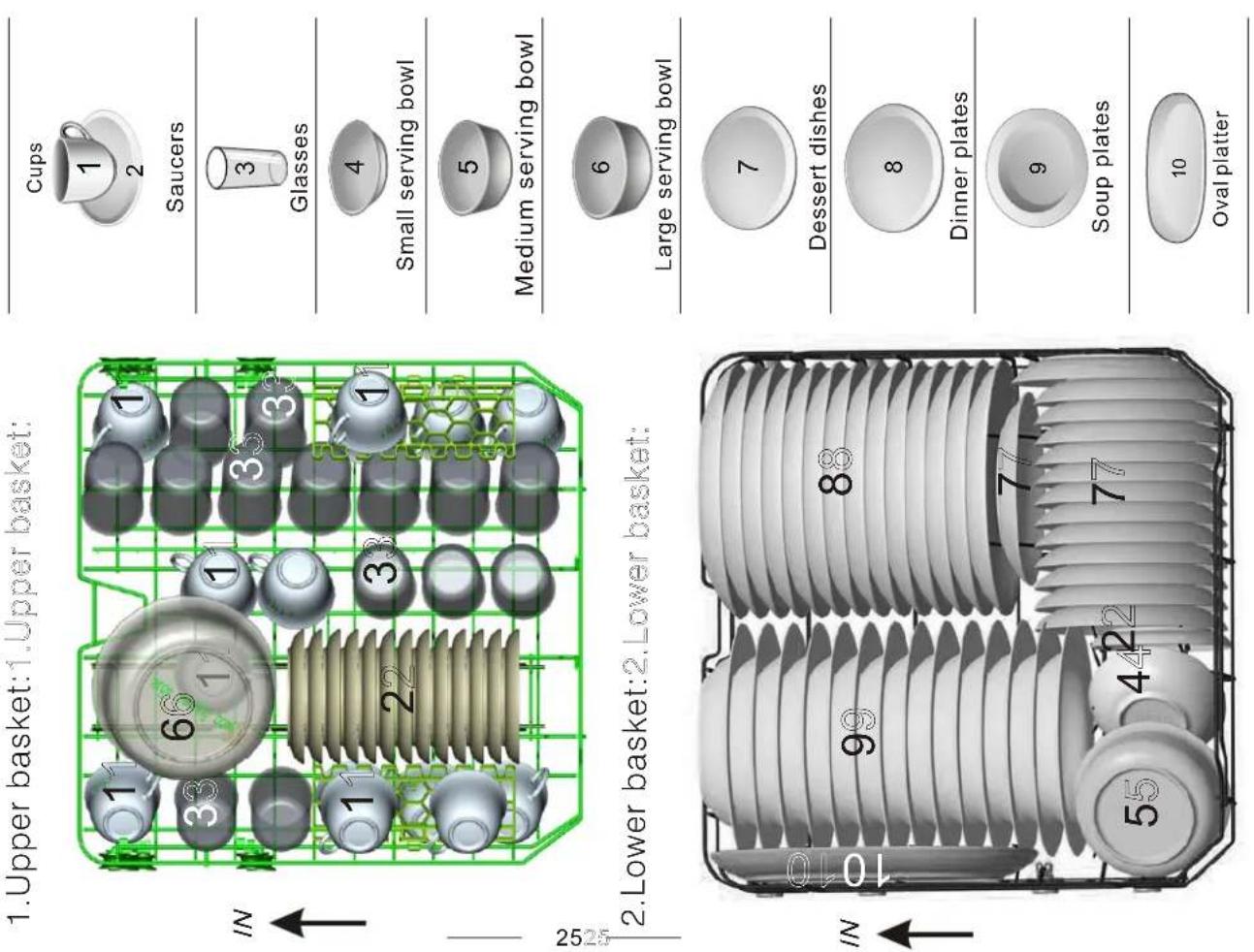

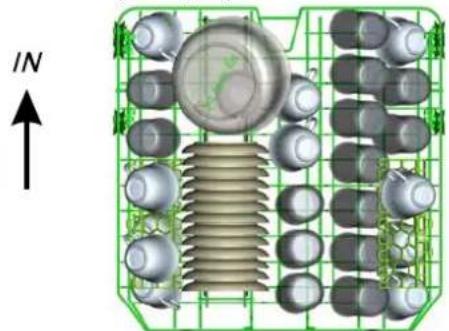

Loading the baskets according to En50242

1. IMPORTANT SAFETY INFORMATION

WARNING!

When using your dishwasher, follow the precautions listed below:

■ This appliance is intended to be used in household and similar applications such as:
-staffkitchen areas in shops, offices and other working environments;
-farmhouses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safeway and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. For EN60335-1

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. For IEC60335-1

■ This appliance is for indoor use only, for household use only.

■ Toprotectagainsttheriskofelectricalshock,donot immersetheunit,cordorpluginwaterorotherliquid.

■ Please unplug before cleaning and maintenance the appliance.

■ Use asoftclothmoistenwithmildsoap,andthenuse a dry cloth to wipe it again.

■ Thisappliancemustbeearthed. Intheeventofa malfunctionorbreakdown, earthingwillreducetherisk ofanelectricshockbyprovidingapathofleast resistanceofelectriccurrent. Thisapplianceisequipped withacordhavinganequipment-earthingconductor andagroundingplug.
■ Theplugmustbepluggedintoanappropriateoutletthat isinstalledandearthedinaccordancewithalllocal codesandordinances.
■ Improperconnectionoftheequipment-earthing conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhethertheappliance isproperlygrounded.
■ Donotmodifytheplugprovidedwiththeappliance; Ifitdoesnotfittheoutlet.
■ Haveaproperoutletinstalledbyaqualifiedelectrician.
■ Donotabuse, siton, or standard on the door or dish rack of the dish washer.
■ Donotoperateyourdishwasherunlessallenclosure panelsareproperlyinplace.
■ Openthedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectsonorstandonthedoor whenitisopen. The appliance could tip forward.
■ Whenloadingitemstobewashed: 1) Locatesharpitemssothattheyarenotlikelyto damagethedoorseal;

■2) Warning: Knivesandotherutensilswithsharppoints mustbeloadedinthebasketwiththeirpointsdownor placedinahorizontalposition.
■Check that the detergent powder is empty after completion of the wash cycle.
■Donotwashplasticitemsunlessstheyaremarked dishwashersafeortheequivalent.
■Forplasticitemsn otsomarked, checkthemanufacturer's recommendations.
■Useonlydetergentandrinseadditivesdesignedfor anautomaticdishwasher.
■Neverusesoap,laundrydetergent,orhandwashing detergentinyourdishwasher.
■Childrenshouldbesupervisedtoensurethattheydonot playwiththeappliance.
■ Thedoorshouldnotbeleftopen, sincethiscouldincrease theriskoftripping. If the supply cordisdamaged, it must bereplaced by the manufacturer or its service agent or as similarly qualified person in order to avoid a hazard.
■During installation, the powersupply must not be excessivelyordangerouslybentorflattened.
■Donottamperwithcontrols.
■The applianceistobeconnectedtothewatermainsusing newhosesetsandthatoldhose-setsshouldnotbereused.
■Themaximumnumberofplacesettingstobewashed is14.
■Themaximumpermissibleinletwaterpressureis1MPa.
■Theminimumpermissibleinletwaterpressureis0.04MPa.

Disposal

■ Dispose of the dishwasher packaging material correctly.
■ All packaging materials can be recycled.
■ Plastic parts are marked with the standard international abbreviations:

PEforpolyethylene, e.g. sheetwrapping material PSforpolystyrene, e.g. padding material POMpolyoxymethylene, e.g. plastic clips PPpolypropylene, e.g. Saltfiller ABSAcrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
■ For disposing of package and the appliance please goto arecyclingcentre. Therefore cutoff the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
■ Formoredetailedinformationaboutrecyclingofthis product,pleasecontactyourlocalcityofficeandyour householdwastedisposalservice.
■ DISPOSAL: Do not dispose this product as unsorted municipalwaste.Collectionofsuchwasteseparately forspecialtreatmentisnecessary.

2. Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switchontheappliance

PresstheOn/Offbuttontoswitchontheappliance, Openthedoor.

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Checktheregeneration saltlevel

(Onmodelswithwatersoftenersystemonly.)

Electricindicatoroncontrolpanel(ifprovided).

Ifthereisnosaltwarninglightinthecontrolpanel

(for some models), you can estimate when to fill the salt into the softenerbythenumberofcyclethedishwasherhasrun.

Loadthebaskets

Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, thenloadthebaskets. Refertothedishwasherloadinginstructions.

Selectaprogramme

Closethedoor, presstheprogrambuttonuntiltheselectedprogrammelightsup.

( See the section entitled "Operation instruction" )

Runningthedishwasher

TurnonthewatertapandpresstheStart/PauseButton. Themachinewillstartworking afterabout10seconds.

- Changingtheprogramme

- 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensersmustberefilled.

1. Press the Start/Pause Button to stop washing, then press program button for more than 3 seconds, theprogrammewillcancel.

2. Press the program button to select a new programme.

4.PresstheStart/PauseButton,thedishwasherwillrunafter10seconds.

WARNING!

- Addforgottendishesinthe dishwasher.

• 1. PresstheStart/PauseButtontostopthewashing.

2.Openthedoor.

3.Addforgottendishes.

1. Closethedoor, PresstheStart/PauseButton, thedishwasherwillrun after 10 seconds.

Open the door carefully. Hotsteam may escape when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, pleasere-select the washing cycle and operate the dish washer according to the original Power-on-state).

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerofthe dishwasherwillsound8times,thenstop.

TurnofftheapplianceusingtheOn/OffButton.

T

unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptible to break.

Theywillalsodrybetter.Unloadtheappliance,startingfromthelowerbasket.

3. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions

before using it for the first time.

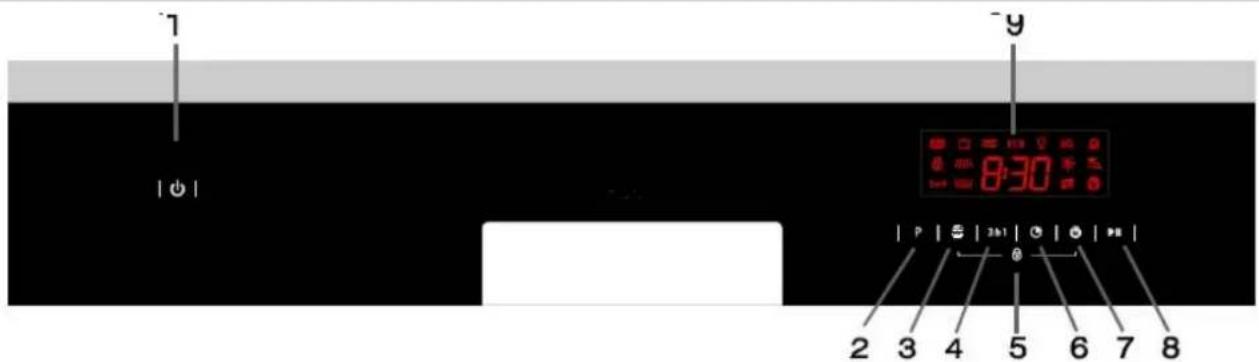

Control Panel

1. Power Button: To turn on/off the power supply.
2. Program Button: To select the programs.
3. AltButton: Dualzonewashfunction, press the button to select either upper basket or lower basket loaded, and the response indicator will blinking
4. 3in1 Button : To select the 3in1 function.
5. Child lock button: press the two buttons for 3 seconds simultaneously to lock.
   6.Delay Button: Press the button to select the delay time.
6. Extra Drying function Button: To select Extra Drying function.

7. Start/Pause button: To start the selected program or pause the washing program when the machine is working.

8. Display screen: to show the reminding time and the state(running state, delay time etc)

9. Program indicators: AUTO ECO 60'

10. Delay time, Remain time, or error codes indicator: 8:88
11. Childlockindicator:
12. 3in1functionindicator: 3in1
13. Alt function indicator:
14. RinseAid indicator: * Indicates when the dispenser needs to be refilled.
15. Addsaltindicator: Indicates when the dispenser needs to be refilled.
    • Waterfaucetindicator:
16. Exfunctionindicator:

Dishwasher Features

1 Topsprayarm
2 Cutleryrack
3 Upperbasket

4 Innerpipe
5 Lowerbasket
6 Saltcontainer

7 Dispenser
8 Cupshelf
9 Sprayarms

10 Filterassembly
11 Inletpipeconnector
12 Drainpipe

13 Adjuster

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Setthewatersoftener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Fill the rinse aid dispenser
D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have adetrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Switchonthe appliance;
2. Press the Start/Pause button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switchedon;
3. Press the Start/Pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button or no operation for 5 seconds to end the setup model.

WATERHARDNESS				SelectorPosition	Saltconsumption (gram/cycle)
dH	fH	Clark	mmol/l
0~5	0~9	0~6	0~0.94	H1	0
6-11	10-20	7-14	1.0-2.0	H2	9
12-17	21-30	15-21	2.1-3.0	H3	12
18-22	31-40	22-28	3.1-4.0	H4	20
23-34	41-60	29-42	4.1-6.0	H5	30
35-55	61-98	43-69	6.1-9.8	H6	60

Note:1

1 dH=1.25 Clark=1.78fH=0.178mmol/l

dH: Germandegree

fH: Frenchdegree

Clark: British degree

Note:2

The manufactory setting: H4 (EN50242)

Contact your local water board for information on the hardness of your watersupply.

NOTE: If your model does not have any water softener, you may skip this section.

WATERSOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will formonthedishesandutensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salts specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
■ Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

After the lower basket has been removed, unscrew and remove the cap from the salt container. Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt. Full fill the salt container with water, It is normal for a small amount of water to come out of the
D After filling the container, screw the cap tightly back clockwise.
E The salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (Wesuggesttouseashort program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is outofwarranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be one even though the salt container is filled.
   If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing watertorolloffthe dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse-aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Attention!

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Detergents

Thereare3sortsofdetergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

NOTE:

If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Onlyusebrandeddetergentaidfordishwasher.

!WARNING!

Dishwasherdetergentiscorrosive!

Take care to keep it out of reach of children.

Fillin Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Closethelidandpressuntilitlocksinplace.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ Youfindinformationabouttheamountofdetergentforthesingleprogrammeonthelastpage.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ Topreventdamage, donottakeglass and cutlery out of the dish washer immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlerywithwooden,hornchinaor mother-of-pearlhandles

- Plastic items that are not heat resistant - Older cutlery with glued parts that are not temperature resistant

■ Bondedcutleryitemsordishes

■ Pewterorcooperitems

■ Crystalglass

■ Steelitemssubjecttorusting

■ Wooden platters

■ Items made from synthetic fibres

Areoflimited suitability

■ Some types of glasses can become dull after a large number of washes

■ Silver and aluminum parts have a tendency to discolour during washing

■ Glazed patterns may fade if machine washedfrequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes underrunning water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Verysmallitemsshouldnotbewashedinthedishwasherastheycouldeasilyfalloutofthebasket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ Toavoiddamagetoglasses,theymustnottouch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Please be reminded that:

Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:

Lift the basket for upper position

Up press the handle to lower the basket

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

FoldingSpikesofLowerBasket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Cutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

For a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the male face up.
■ Long utensils in the middle.

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Ald
Auto AUTO	Auto sensing wash, lightly, normally or heavily soiled crockery, with or without dried-onfood	Pre-wash (45)°CAutowash (45-55)°CRinse Rinse(62)°CDrying	5/30g	120~180	0.9~1.3	8.4~12.7
Intensive	For heaviest soiled crockery and normally soiled pots , pans dishes etc with dried onsoiling.	Pre-wash(50)°CWash(65)°CRinse Rinse Rinse(65)°CDrying	5/30g/(or)3in1	175	1.6	17
Normal	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash(45)°CWash(55)°CRinse Rinse(65)°CDrying	5/30g/(Or)3in1	185	1.3	14
ECO (*EN50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash(50)°CRinse(65)°CDrying	5/30g/(or)3in1	175	0.93	10
Glass	For lightly soiled crockery and glass.	Pre-wash Wash(40)°CRinse Rinse (60°C)Drying	5/30g	115	0.87	14
1Hour 60	For lightly soiled loads that do not need excellent drying efficiency.	Pre-wash(50°C)Wash(60°C)Rinse (60°C)Drying	5/30g	60	1.15	10
Rapid	A shorter wash for lightly soiled load that donot need drying.	Wash(40)°CRinse Rinse(45)°C	20g	40	0.6	10

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity: 14 setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ PI:0.49w; Po:0.45w.

Turning On the Appliance

Startingacyclewash

1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").
2 Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the ON/OFF Button, and the ON/OFF light will turn on.
5 Press the program button to select the desired program. If a program is selected, the response light will light. Then press the Start/Pause button, the dishwasher begins to start.

When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start.

Change the Program...

Premise:

1 A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button, the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").
3 The LED display shows the state of the dishwasher:

a) The Screen shows 'H:MM' and the colonicon not blinking----Stand by or Being paused b) The Screen shows 'H:MM' and the colonicon blinking----Running

NOTE:

If you open the door, blurring a wash cycleill pause. the LED display window " " will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

If your model has broken remember function, the machine will go on to finish the selected program after the powercut

Forgot to Add a Dish?

1 PresstheStart/PauseButtontostopthewashing.
2 Openthedoor.

3 Addforgottendishes.

4 Closethedoor, PresstheStart/PauseButton, thedishwasher will run after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The Led screen is on but the colon icon is not blinking, only in this case the programme has ended. 1. Switch off the dishwasher by pressing the ON/OFF button. 2. Turn off the water tap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

The filtersystem consists of a coarse filter, a flat (Main filter) And a microfilter (Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. Toremove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. The reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ Thedishwasher must never be used without the filters.
■ Improperreplacementofthefiltermayreducetheperformanceleveloftheapplianceanddamagedishesandutensils.

1

Step 1 Turn the filter in anti-clockwise direction, :

2

Step2liftthefilterassyup:

NOTE: When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Tocleantheedgearoundthedoor,youshoulduseonlyasoftwarm,dampcloth. Tcavoidpenetrationofwaterintothedoorlockandelectricalcomponents,donot useaspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time washing cycles, please operate as follows:

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pantogather the water)
4. Reconnect the water inlet pipe to the watervalve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice,

please contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

Toremovetheuppersprayarm, hold thenut, rotatethearm clockwise to remove it.

Toremovethelowersprayarm, pulloutthesprayarmupward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ AfterEveryWash

After every wash, turn off the watersupply to the appliance and leave the doors slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Tocleantheexteriorandrubberpartsofthedishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. Toremovespotsorstainsfromthesurfaceofthe interior, use a cloth dampened with water an alittle vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliances slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this fromoccurring.

8. Installation instruction

▲Attention:

The installation of the pipes and electrical equipments should be done by professionals.

! Warning

ElectricalShockHazard Disconnectelectricalpower beforeinstallingdishwasher.

Failure todos o can result in deathorelectrical shock.

- Installationpreparation

The installation position of dishwasher should be near the existing inlet and drain hoses and powercord.

One side of the cabinetsink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Note: please check the accompanying installation accessories (hook for aesthetic panel, screw)

Please carefully read the installation instruction.

● Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place.
1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

【 】

Cabinetdimensions Lessthan5mm between the top of dishwasher and cabinet and the outerdooraligned to cabinet.

【 】

Minimum space when the door is opened

Figure2

● Aesthetic panel's dimensions and installation

1 The aesthetic wooden panel could be processed according to the Figure 3.

2 magical paster A and magical paster B be disjoinedon, magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b)

【 】 Installation of aesthetic panel

【 】

Installation of aesthetic wooden panel

1. takeaway the four shortscrews
2. pinup the four long screws

Figure4b

- Tensionadjustmentofthedoorspring

The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the doorspring tension. Rotate the adjusting screw to drive the adjustorto strain or relax the steel cable (see figure 5).

Doorspring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger.

【 】Tensionadjustment of the doorspring

- Connectionofdrain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

- Dishwasherinstallationsteps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration2).
3 Connecttheinlethosetothecoldwatersupply
4 Connect the drain hose. Refer to diagram.(Figure 6)
5 Connectthepowercord
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation stripisflushwithedgeofworksurface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning the Allenscrew in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flatscrew driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the worksurfacewiththewoodscrews (Illustration6).
B. Marble or granite worktop: Fix the side with Screw. (Illustration 7).

Dishwasher must be level for proper dish rack operation and wash performance.

1 Placeaspiritlevelondoorandracktrackinsidethetubasshowntocheckthatthe dishwasherislevel.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwashertipover.

【 】

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 50 mm.

About Power Connection

! WARNING!

Forpersonal safety:

■ Do not use an extension cord or an adapter plug with this appliance.
■Do not, under any circumstances, cut or remove the earthing
■Connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

⚠️ Insure proper ground exists before use

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

How to Connect the safety supply hose

The appliance must be connected to the water mains using new hose-sets.

The old hose-sets should not be reused.

Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

1 Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
2 Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
3 Turn water fully on before starting the dishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turn offthewater.

2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and theroom, from severesplashing.

UnscrewThe safetysupplyhosefromthefaucet..

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damagetheappliance.

WARNING!

Please close the hydrant after using.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

HowtoDrainExcessWaterFromHoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

WaterOutlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1The dishwasher is level and fixed properly
2Theinletvalveisopen
3 There is a leakage at the connections of the conducts
4The wires are tightly connected
5The powerisswitchedon
6Theinletanddrainhosesareknotted
7 All packing materials and printings should be taken out from the dishwasher

Attention:

After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
	Waterpressureislow	Checkthatthewatersupplyis connectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Check coarsethefilter (see section titled "Cleaning The Filter")
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay need aplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep.Openthedoorafterdraining isstopandcheckifthesudsisdisappeared.Repeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tobatheintionusedamppongwhdishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
	A pro g r a m m e w a s n runafterdishwasher saltwasadded.Tracesofsalthave gottenintothewashcycle.	Alwaysrunthequickwash programme.without anycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent),afteraddingdishwashersalt.
	Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Knocking noise in the wash cabinet	A s p a y a r m i s knockingagainst aniteminabasket	Interrupt the programme, and rearrange the items whichareobstructingthespayarm.
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination inthebaseofwash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect a shortestcycletowashtheglasswareandto themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Too little rinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram has beenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose a program with along washing time.
		Useofcutlerywith a low - quality co at i n	Water drainage is more difficult with these items. Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longerinlettime.	Faucetsisnotopened,orwaterintakeis restricted,orwaterpressureistoolow.
E4	Overflow.	Someelementofdishwasherleaks.
E8	Failure of orientation of distributary valve.	Open circuit or break of distributary valve.
E9	Keepressingabuttonmorethan30seconds.	Waterorsomethingonthebutton.

WARNING!

■ Ifoverflowoccurs,turnoffthemainwatersupplybeforecallingaservice.
■ Ifthereiswaterinthebasepanbecauseofanoverfillorsmallleak, thewatershouldberemovedbeforererestartingthedishwasher.

■ If overflow occurs, turn off the main water supply before calling a service.

If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Technical Information

Height:815mm
Width:598mm
Depth:570mm	(with the door closed)
Water pressure:	0.04-1.0MPa
Power supply:	see rating label
Capacity:	14 place settings

Information for comparability tests in accordance with EN 50242
Capacity: 14 place settings
Position of the upper basket: lower position Positio Programme: ECO
Rinse aid setting: 6
Softener setting: H4

Cutlerybasketcouldbehave5positions:

Mode1

Position one: lift the left basket up, both left and right baskets are sideling.

Mode2

Position two: adjust the left basket to lower position, left basket is flat and right basket is sideling.

Mode3

Position three: lift the right basket up, both left and right basketsareflat.

Mode4

Position Four: Move the right basket from right to left, two basket are overlapping.

Mode5

Position Five: Remove the right basket from the tray, only has the left basket.

TechnicalData Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	SILVERLINE
Type/Description	D11021B01
Standardplacesettings	14
Energyefficiencyclass 1	A++
Annualenergyconsumption 2	266kWh
Energyconsumptionofthestandardcleaningcycle	0.93kWh
Powerconsumptionofoff-mode	0.45W
Powerconsumptionofleft-onmode	0.49W
Annualwaterconsumption 3	2800liter
Dryingefficiencyclass 4	A
Standardcleaningcycle 5	ECO50°C
Programdurationofthestandardcleaningcycle	175min
Noiselevel	45dB(A)re1pW
Mounting	Buildunder
Could be built-in	Yes
Height	81.5cm
Width	59.8cm
Depth (with connectors)	57cm
Powerconsumption	1760-2100W
Rated voltage / frequency	220-240V~/50Hz
Water pressure (flow pressure)	0.4-10 bar = 0.04-1 Mpa

NOTE:

① A+++ (highest efficiency) to D (lowest efficiency)
② Energy consumption “266” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption “2800” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A(highest efficiency) to G(lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

• LVD 2006/95/EC
• EMC2004/108/EC
• ErP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.

444 755
01.01.2014

IL	ILCE	SERVIS ÜNVANI	YETKILI KİŞI	YAZIŞMA ADRESI	TELEFON 1:	FAX:
ADANA	CEYHAN	HÜSEYİN DEVİR	HÜSEYİN DEMİR	B.KIRIM MH.4 SK.NO:8/A	0 322 613 17 77	0 322 613 17 77
	KOZAN	LİDER SOĞUTMA	HÜSEYİN KURT	TUFANPAŞA MAH.ÜSTÜN SOK.NO:65-A	0 322 515 08 85	0 322 515 08 85
	MERKEZ	PRESTİ TEKNİK	VOLKAN AKYÜZ	HUZUREVLERİ MH. ALPARSLAN TÜRKİŞ BULVARI NO:329 YASIN ŞIK APT.	0 322 247 06 17	0 322 247 06 17
	MERKEZ	PRESTİ TEKNİK	VOLKAN AKYÜZ	GÜZEL YALI MAH.81204 SK.SÜLEYMAN DEMİREL BULVARI DUYGU APT.NO:3/8	0 322 247 06 18	0 322 247 06 18
ADIYAMAN	MERKEZ	ARKADAŞ SOĞUTMA	ABDÜCELİL UYANİK	KAYALIK MAH.2 ÇEVRE YOLU HISNI MANSUR CAD. NO:2/2 / A	0 416 213 43 43 04	0 416 213 43 43
	KAHTA	KARDEŞLER SOĞUTMA	YASİN BOZAN	FATİH MAH ZAFER CAD NO 20/8	0 416 725 99 89	0 416 725 99 89
AFYON	MERKEZ	BARBAROS TEKNİK SERVIS	ABDULLAH BARBAROS	MARET CAMİ KARŞISI MARULCU MH.AÇIKGÖZÖĞLU SK. NO:18/A	0 272 215 12 17	0 272 215 12 77
	MERKEZ	FATİH SOĞUTMA	FATİH ÇOMAK	CUMHURIYET MH. SÜKRU ÇELİK ALAY CD. ESRA SİTESİ ALTI C BLOK NO:13	0 272 214 51 33	0 272 214 30 77
AĞRI	PATNOS	AĞLAMAZ ELEKTRİK	MESUT AĞLAMAZ	CUMHURIYET CD. HAMAM YOLU. NO:16	0 472 616 61 81	0 472 616 61 81
	MERKEZ	AĞRI YETKİLİ SERVIS	LEVENT BUDAK	29 EKİM CAD.MEYDAN CAMİ ARKASI SEVİ APT.ALTI	0 472 215 99 36	0 472 215 99 36
	DOĞÜBEYAZIT	BEYTER TEKNİK	MEHMET BEYTER	BÜÜK AĞRI CAD. FATİH CAMİ YANI NO:48	0 472 312 47 95
AKSARAY	MERKEZ	GÜLER TEKNİK SOĞUTMA	METİN UYANİK	HACIHASANLI MAH.DORUKAN APT.ALTI NO:129/C	0 382 222 00 03	0 382 222 00 03
	ORTAKÖY	GÜVERCIN SOĞUTMA	GÜNER GÜVERCIN	AKSARAY CD.ZIRAAT BANKASI KARŞISI NO:18/D	0 382 351 82 16	0 382 351 82 16
AMASYA	MERZİFON	EMEK TİCARRET	HÜSEYİN KARACAN	HARIVANLAR MAH.KADIOĞLU PSI NO:11 / A	0 358 514 47 57	0 358 514 47 57
	MERZİFON	ER TEKNİK	SERKAN ER	HARMANLAR MAH.ZÜBEYDE HANIM CAD.NO:10/C	0 358 514 07 00	0 358 514 07 00
	GÜMÜSHACİKÖY	GÖZDE BEYAZ EŞYA SERVIS	FATİH GÜLTEKİN	ARTIKABAT MH. CUMHURIYET CD. NO:14	0 358 717 60 60	0 358 717 60 60
	MERKEZ	ELİT TEKNİK	GÖKIAN ÖZSOY	PIRINÇİ MI.HABIBI SK.TARTAN APT.NO:26 AMASYA ÇOREKÇISI YANI	0 358 201 00 05	0 358 201 00 05
ANKARA	ÇANKAYA	BAY TEKNİK	MUSA KARABAY	BIRLIK MAH.457 SOK. NO:5 / A	0 312 495 92 66	0 312 495 50 38
	KEÇÖREN	DOĞSER SERVIS	CİHAN AKDOĞAN	SANATORYUM CD.NO:201 / A	0 312 381 44 55	0 312 355 44 55
	POLATLI	TAMİRCIM TEKNİK SERVIS	ZAFFER AYDIN	KURTULUŞ MAHALLESİ ATATÜRK CADDESI NO:139	0 312 623 47 46	0 312 621 38 47
	SİNCAN	UĞUR TEKNİK	UĞUR GÜYAGÜLER	MARAŞAI ÇAKMAK MAH. ŞEHİT AHMET DOĞAN SOK. NO:22 / 14	0 312 245 37 37	0 312 245 57 57
	PURSAKLAR	YALÇIN TEKNİK	DURALI KARABACAK	YUNUS EMRE MH. YUNUS EMRE SK. NO:14	0 312 236 20 52	0 312 236 20 52
	ÇANKAYA	YILDIZ ANKARA TEKNİK SERVIS	A.OĞUZ KELEŞ	SANCAK MH. CIDDE CD. NO:13/A	0 312 440 97 97	0 312 442 44 69
ANTALYA	KUMLUCA	AKGÜL TEKNİK	MEHMET ZIYA AKGÜL	ADNAN MENDERES BULV. KAVAKLI KUYU CD. KÜLTÜR HAN KARŞ. NO:9	0 242 887 53 80	0 242 887 64 72
	MERKEZ	AKSOY TEKNİK	HAMZA AKSOY	UÇGEN MAH. DOLAPLIDERE CAD M. ALI AKYUZ APT. N:33/E MURATPAŞA	0 242 243 51 55	0 242 248 74 26
	ALANYA	ALP TEKNİK	IBRAHIM KALKAN	KADIŞA MAH. ALHAYDAR SK. NO:5 / A	0 242 519 31 32	0 242 519 31 32
	KAŞ	SARICAOĞLU TİCARRET	IDRİS SARICAOĞLU	ANDİFLİ MH.ATATÜRK BULVARI NO:41	0 242 836 19 99	0 242 836 29 88
	MANAVGAT	ÜREYEN ISITMA VE SOĞUTMA	MEHMET ÜRÜYEN	YUKARI HİSAR MH.HASTANE CD.NO:70/B	0 242 746 06 57	0 242 746 03 89
	MERKEZ	YILDIZ TEKNİK	AHMET YIDIZ	GÜVENLIK MH. 261 SK. ÖZGÜR APT. NO:15 / B	0 242 345 74 72	0 242 345 74 72
ARDAHAN	MERKEZ	OKTAY SOĞUTMA	OKTAY FIRINCI	KAPTANPAŞA MAH. ÜMIT KAFTANCIOĞLU CD. NO:15	0 478 211 29 82	0 478 211 29 82
ARTVIN	HOPA	EFULİM YE TKILI SERVIS	BÖLEN T ARSLAN	KULEDİBİ MH.KARADENIZ CAD.ZEMİN KAT NO:17	0 466 351 76 12	0 466 351 76 12
	SAVŞAT	TEKNİK SOĞUTMA	SÜLEYMAN DEMİRCİ	YENİKÖY MAH.EMEK CAD.NO:10	0 466 317 34 93	0 466 517 34 93
AYDIN	KUŞADASI	ADA TEKNİK	HASAN KUŞ	İGE MAH. AYDIN BULV. NO:25/A	0 256 614 26 32	0 256 614 25 41
	MERKEZ	EFE SOĞUTMA	ADNAN YALÇINKAYA	SÜZELHİSAR MAHALLESİ TÜRKOCASI CADDESI NO:38/A	0 256 212 90 79	0 256 214 52 34
	MERKEZ	KAYRA TEKNİK	LEVENT ÖZENÇ	MIMAR SINAN MH. YÖRÖK ALI EFE BLV. AL KONUT SİTESİ NO:24/F	0 256 219 12 97	0 256 219 12 97
	NAZİLİ	MERT BOBİNA SOĞUTMA	NAILE-MUSTAPA KABASAKAL	ALTINTAŞ MH.FEVZİ ÇAKMAK CD. NO:22/A	0 256 313 62 66	0 256 313 62 66
	SÖKE	MURAT SOĞUTMA	MURAT ÇALIŞKAN	YENİ CAMİ MH. SEKİLER CD. NO:33/A	0 256 512 77 74	0 256 518 50 22
	DIDIM	YORANSOĞUTMA	DENİZ DEMİRTAŞ	YENİ MAH 821 SOK. NO:16	0 256 811 24 65	0 256 811 40 70
BALIKESİR	BANDIRMA	EMEK TEKNİK	MURAT SAĞIR	HSANIYE MH. 8 EVLER SK.NO:18/B	0 266 714 12 50	0 266 714 12 50
	MERKEZ	ERDOĞAN ELEKTRİK	SAİM ERDOĞAN	ALI HİKMET PAŞA MH.ALTAY CD.NO:56	0 266 243 84 85	0 266 243 84 85
	EDREMİT	GİZEM ASLANTAŞ	GİZEM ASLANTAŞ	CAMİ VASAT MAH.23 SOKAK NO/6/B	0 266 373 77 88	0 266 373 25 34
	BURHANYE	UĞUR TEKNİK	ŞAKİR DUYGULU	MAHKEME MH.MITHATPAŞA CD.NO:64	0 266 412 86 89	0 266 412 86 89
BARTIN	MERKEZ	EFE SOĞUTMA	OKTAY KAMAN	OKULAK MH. TOPÇU KONAĞI CD. NO:110/A	0 378 227 56 59	0 378 227 82 92
BATMAN	MERKEZ	AKDAŞ KARDEŞLER SOĞUTMA	M. EVMİN AKDŞ	AYDINLIK EVLER MAH. 12. CD. NO:127	0 488 214 04 74	0 488 215 10 79
BİLEÇİK	BOZÜYÜK	TÜL-SEV TEKNİK	İLHAN BİLGİN	KASIMPAŞA MH. KIVRIKOĞLU CD. NO:13	0 228 314 79 57	0 228 314 78 57
BINGÖL	MERKEZ	PINAR SOĞUTMA	MUHAVMET PINAR	YENİŞEHİR MH.HAYDAR ÜNSAL CD.BUKET SK.GÜL APT.NO:1	0 426 214 11 91	0 426 214 11 91
BİTLİS	TATVAN	DOĞU TEKNİK	FATİH GEÇLER	TUŞ MAH.ZİRAİ DONATIM CAD.NO:106	0 434 827 11 77
BOLU	MERKEZ	IKLİM SOĞUTMA VE ELEKTRİK	ERGÜN RÜZGAR	KARAMANLI MH.ŞEHİTEROL MÜHÖRCÜĞLU SK.NO:10/A	0 374 212 23 32	0 374 212 12 32
BURDUR	MERKEZ	DADAK SOĞUTMA	MURAT DADJK	KONAK MH. RIZA DOĞRUL CD. NO:29	0 248 233 49 07	0 248 233 49 07
	BUCAK	ÖZDOĞAN SOĞUTMA	BAYRAM ÖZDOĞAN	ÖĞUZHAN MAH.1911 SOK.NO:7	0 248 325 25 75	0 248 325 25 75
	MERKEZ	SUDE SOĞUTMA	SERKAN EVCİL	ÖĞÜR MAH ÇELIK SOK.NO:12	0 248 234 03 03	0 248 234 03 03
	KARAMANLI	ŞENGÜN TEKNİK	MEHMET ŞENGÜN	PAZAR MH. HAL BİNALARI NO:2	0 248 331 23 52	0 248 331 23 52
BURSA	OSMANGAZİ	AYDIN TEKNİK	İBRAHİM AYDIN	SOĞANLI MH.NİLÜFER CD.NO:66	0 224 233 11 48	0 224 233 19 74
	INEGÖL	BULVAR TEKNİK	VAROL YIL MAZ	SİNANBEY MAH.MURAT CAD.NO:1/A	0 234 713 89 92	0 234 713 89 92
	NİLÜFER	ERER TİCARRET	ERTUĞRUL ERDOĞAN	BEŞEVLER NILÜFER TİCARRET MERKEZİ KAĞAN PLAZA NO:15	0 224 544 86 16	0 224 544 98 75
	INEGÖL	IKLİM SOĞUTMA ISITMA	CENGİZ KAYAN	KEMALPAŞA MH. YEŞIL ÇAYIR SK. NO:22	0 224 712 31 00	0 224 712 31 14
	KARACABEY	KARTEK İSI	HASAN ŞİMŞEK	TAVŞANLI MH. 135. SK. NO:17	0 224 682 35 02	0 224 682 35 02
	YILDIRIM	MENZIL SOĞUTMA	İSMAİL ALANKAYA	DAVUT DEDE MH. FATİH SULTAN MEHMET CD. NO:28	0 224 361 62 79	0 224 361 62 79
	GEMLIK	PAŞA TEKNİK	ADEM ERDOĞAN	DR.ZIYA KAYA MH.ILICA CD.NO:25	0 224 513 68 40	0 224 513 68 40
ÇANAKKALE	MERKEZ	ALKAR İ KİMLENDİRME	YÜKSEL ALDEMİR	BMETPAŞA MAH.KAYAALI' CAD.NO:2	0.286 213 15 15	0.286 213 15 17
	SELISOLU	GÜNGÖR TEKNİK	UFUK GÜNGÖR	GAZİ SÜLEYMAN PAŞA CD. GAZİ SÜLEYMAN PAŞA MH. ÖZTÜRK SİT. NO:1	0.286 366 40 09	0.286 366 40 98
	ÇAN S.C OTOMASYON CENG	IZ MANDACI TERZİLAN BELDESİ ÇAKM	MAH MI.BAGLAR SK.NO:26
ÇANKIRI	ŞABANOZÜ	AYDOĞDU TEKNİK SOĞUTMA	ABDULLAH AYDOĞDU	CUMHURIYET MH. BELEDIYE ŞMERKEZ YANI NO:11/2	0.376 518 15 54	0.376 518 12 76
	MERKEZ	ÇİHAN TEKNİK	ÇİHAT ASLAN	BUŞDAY PAZARI MAH.ATATÜTK BLV.ANIL APT.A BLOK NO:4	0.376 212 29 16	0.376 212 29 16
ÇORUM	MERKEZ	ERDEM SOĞUTMA	ERSOY ERDEM	KALE MAH.EMEK CAD.NO:14/B	0.364 224 77 80	0.364 224 77 80
DENİZLİ	MERKEZ	AKSU TEKNİK	MUHAMMET AKSU	DEĞIRMENÖNÜ MH. 1739 SK. NO:12	0.258 264 44 04	0.258 264 44 04
	MERKEZ	SISTEM SOĞUTMA	ILKER TEKDEMİR	TOPRAKLİK MH. 571 SK. NO:11 / A	0.258 242 59 81	0.258 264 99 23
	ÇİVRİL	TEKİN TİÇARET	FIRAT TEKİN	SARAY MH.DEGİRİMEN CD.20.5K. NO:12	0.258 713 65 22	0.258 713 65 22
DİYARBAKIR	BAĞLAR	KAYA ISITMA VE SOĞUTMA	ŞEYHMUS KAYA	S NİSAN MH. GİRNE CD. 38. SK. NO:56/C	0.412 235 15 15	0.412 235 15 15
	MERKEZ	VIETROPOL SOĞUTMA	MEHIVET ÖÇAL	DİLEKENT BLV. 204.AZEL YAPİÇİFTELSİT. A BLOK ALTI NO:2	0.412 257 03 90	0.412 224 10 10
	MERKEZ	SUDEM TEKNİK	MEHIMET HANİTİ DEMİR	PEVAS MH.523.5K SERİN EVLER 3 SİT. B BLOK ALTI NO : 19 /A KAYAPINAR/	0.412 252 41 88	0.412 252 41 88
	ERSANI	TEKNİK ELEKTRİK	IBRAHİ BUDİK	SIM ETPAŞA MAH İSTASYON CAD NO:9	0.412 611 04 01	0.412 611 04 01
DÜZCE	MERKEZ	KÜÇÖKLER SOĞUTMA	ERÇİN KÜÇÜK	KÜLTÜR MH.SÜLEYMAN KUYUMCU CD.NO:77/B	0.380 512 39 56	0.380 512 39 56
EDİRNE	LUZUNKÖPRÜ	ÇAĞDAŞ TEKNİK	ÇAĞDAŞ ÖZKAYALARLI	HAYRABOLU CD. NO:58/A	0.284 518 33 99	0.284 518 33 99
	MERKEZ	OCAK TEKNİK	HARUN OCAK	YANCIKİ ŞAHIN MAH. ATATÜRK CD. NO:31/1	0.284 225 63 90	0.284 225 63 91
	KEŞAN	SIMGİ SOĞUTMA	ISMAIL BAYILMIŞ	BUYUK CAMI MAH. İSTIKIAL CAD. NO:29	0.284 712 39 03	0.284 714 70 34
ELAZÜĞ	MERKEZ	MEHIMET ZORLU	MEHIVET ZORLU	RIZAIYE MH. KIBRİŞEHİDİ MEHMET GÜÇÜLİ CD. NO:63/A	0.424 238 65 31	0.424 238 09 62
ERZİNCAN	MERKEZ	AKAR ELEKTRİK	EBUREKİR AKAR	KARAAĞAÇ MH.SÜMERBANK CD.NO:10	0.446 214 24 64	0.446 214 24 64
ERZURUM	MERKEZ	KARDELEN SOĞUTMA	ERUBEKİR AKIN	ŞÜRKÜPASAK MH. ŞİH KÖYÜ CD. FİM IN EVLER ALTI NO:132 YAKUTIYE	0.442 319 11 44	0.442 319 11 44
ESKİŞEHİR	MERKEZ	EKSEN TEKNİK SERVIS	SALIH ZENGİN	ARIFIYE MH. M. KEMAL ATATÜRK CD. NO:10/D	0.222 234 33 32	0.222 234 59 96
	MERKEZ	ESKOM ELEKTRONİK	DURMIŞ TEPECİK	KIRMIZI TOPRAK MH. ALİ PUAT GÜVEN CD. NO:31 / A	0.222 224 15 30	0.222 224 15 50
GAZİANTEP	MERKEZ	NEW TEKNİK	ALPER EŞKİN	BATIKE NT MH. MUHSİN YAZICIOĞLU CD. NO:12 ŞEHİTKAMİL	0.342 322 89 89	0.342 322 78 78
GIRESUN	MERKEZ	KARATAŞ TEKNİK	BAHADIR KARATAŞ	SULTAN SELIM MH.TOPAL SK. NO:31	0.454 216 42 18	0.454 216 42 18
GÜMLÜSHANE	MERKEZ	RECEP KOLOTOĞLU	RECEP KOLOTOĞLU	HASAN BEY MAH. CUMHURIYET CD. NO:94 B	0.456 213 74 49	0.456 213 74 59
HAKKARI	MERKEZ	HAKAN TEKNİK SOĞUTMA	SERKAN SERIK	ÇEVRE YOLU SIVACI APT.NO:84/B	0.438 211 73 03	0.438 211 73 03
HATAY	SAMANDAG	AKIBADA TEKNİK	YAHYA AKIABADA	CUMHURIYET MH. İLKOKUL CD. 55.SO KAK NO:3	0.326 512 19 29	0.326 512 19 29
	MERKEZ	GÜZELYÜZ SOĞUTMA ISITMA	BEREKEY GÜZELYÜZ	ATATÜRK MH. ATATÜRK CD. NO:413 HARBIYE	0.326 231 48 88	0.326 231 29 32
	ISKENDERUN	KAYNAR ISITMA	OLCAY KAYNAR- OKTAY KAYNAR	ŞEHITPAMI R CAD. KURTULUŞ MAH. 79/1 SOK NO:8 / D	0.326 614 25 17	0.326 614 25 22
İĞDIR	MERKEZ	PARLAK TEKNİK	IBRAHİV PARLAK	TANSU ÇİLLER CAD TOMURCUK SOK.NO:15	0.476 227 47 51	0.476 227 47 51
İSPARTA	MERKEZ	BOLAT SOĞUTMA	ÜMIT YÜCEER	YAYLA MH.130 CD.NO:19/B (ESKI SSK BINASI ARKASI)	0.246 223 19 66	0.246 218 23 21
	YALVAÇ	KADIİR SOĞUTMA	KADIİR ELBENLİ	ESKİ SANAYI SİTESİ 2.BLOK.NO:6	0.246 441 04 35	0.246 441 04 35
	MERKEZ	TIĞLI TEKNİK SERVIS	MEHIVET ALI TIĞLI	KEPECI MH. AKSU CD. NO:2/F	0.246 223 76 93	0.246 223 76 92
İSTANBUL	KAVACIK/BEYKOZ	BEYAZ SERVIS	TUNCAY ÇUKUR	F.S.M CAD.SULH.SOK.NO:6/A	0.216 537 01 05	0.216 537 01 07
	KAĞITHANE	BURAN SERVIS	HAMZA BURAN	MERKEZ MH. HIMMET SOK. NO:7	0.212 321 29 77	0.212 321 29 52
	AVOLAR	BURAN SERVIS	HAMZA BURAN	ÜNÜVERSİTE MH. ÇARDAK SK. NO:20	0.212 593 81 01	0.212 694 79 98
	ÜMRANYE	ÇAĞDAŞ SERVIS	MURAT COLAK	ISTIKLAL MH. KAVAKLDERE CD. NO: 83/2	0.216 523 79 98	0.216 523 79 99
	GAZIOSMANPAŞA	DUYGUN SERVIS	ENGİN DUYGUN	KARAYOLLARI M.H. ABDİ İPEKİ CD. NO:143/A	0.212 419 35 51	0.212 419 35 54
	KÜÇÜKÇEKMECE	EKİP ELEKTRONİK TEKNİK SERVIS	GAZİ ASLAN	ATATÜRK MH. İKİ TELLI CD. S. SK. NO:42 HALKALI	0.212 472 43 00	0.212 472 43 35
	İÇTERENKÖY/ATAŞEHİR	EMEK SERVIS	ISMAIL BİÇER	KARSLI AHIM ET CD. ÇİTEK SK. NO:17	0.216 574 09 90	0.216 572 39 75
	MECIDİYEKYOY	GÜVEN TEKNİK	HÜSEYİN AŞÇI	FULYA MAH.MEHMET CIK CADDESI NO:18/A	0.212 213 11 85	0.212 213 11 87
İZMİR	ÖDEMİŞ	ATOM BOBINAJ	ERSİN BOYLUER	AKINOLAR MAH. MAHSEL SOK. NO:19/A	0.232 545 40 97	0.232 543 23 88
	BERGAVA	FAVORİ SERVIS	ALİ ASIK	ERTUĞRUL MAH.2.BAGLAR CD.NO:10/B	0.232 633 58 89	0.232 632 11 62
	HATAY	GÜMÜŞ TEKNİK	HAKAN GÜMÜŞ	9109 SK. NO:12/B	0.232 232 79 79	0.232-232 79 79
	ŞİRİNYER	İŞİK TEKNİK	YAŞAR İŞİK	NAMIK KEMAL CD.NO:50/B	0.232 452 75 92	0.232 452 75 92
	ÇİĞILI	ÖZSER SERVIS	SEZER ŞENBAŞ	ANADOLU CAD.NO:996/B	0.232 329 02 31	0.232 329 01 34
	URLA	SEZER SOĞUTMA	OBEN SEZER	BÜLENT BARATALU CD. JANDARMA KAŞAĞI NO:92/B	0.232 754 45 54	0.232 754 45 54
	TİRE	YILDIZ ELEKTRONİK	SEZAI ŞENGÜN	KURTULUŞ MH. AKYOL CAD.NO:52 TIRE	0.232 511 63 19	0.232 511 63 19
KAHRAMANMARAŞ	MERKEZ	ARZU SOĞUTMA	EIDER ÇAKAR	DUMLUPINAR MH.SAITZARIFOĞLU BULVARI NO:33/A	0.344 223 96 54	0.344 223 96 54
	ELBİSTAN	GÖK SOĞUTMA	IBRAHİM GÖK	GÜNEŞLI MH. AHMET KARACABEY CD. NO:17/C	0.344 413 28 49	0.344 413 28 49
KARABÜK	MERKEZ	NUR ELEKTRİK	AHMET NURI TUNCAY	HÜRKİYET MH.KURNAZ SK.NO:2/A	0.370 424 32 95	0.370 424 32 95
KARAMAN	MERKEZ	ÖZKAR SOĞUTMA	MEHIMET TEBER	KAZIM KARABEKİR PAŞA MH. ŞEHİT NHAT AKMAN CD. NO:11	0.338 214 15 20	0.338 214 15 20
KARS	MERKEZ	TAHA ELEKTRİK	HALUK KEPENKÇI	BAKIRCILAR CD. NO:41	0.474 212 08 89	0.474 212 08 89
KASTAMONU	MERKEZ	ANIL TEKNİK SERVIS	SAİT AHMET AYDIN	M.A.ERSOY MH. ARNAVUTOĞLU CD. C BLOK TAHMİSCİOĞLU APT NO.6/B	0.366 214 44 70	0.366 214 44 70
	TOSYA	ULUER SOĞUTMA	ERDAL KOLAY	CAMİİ ATIK MAH HÜKİMET CAD NO:73/A	0.366 313 47 09	0.366 313 47 09
KAYSERİ	MERKEZ	KILIÇ TEKNİK	MÜKREMİN KILIÇ	ALSİNCAK MAH. YAVUZSULTAN SELİM CD.NO:113	0.352 245 25 76	0.352 245 25 76
KIRIKKALE	MERKEZ	İŞİK SOĞUTMA ISITMA SİSTEMLERİ	MUSTAFA İŞİK	GÜRLER MAH MILLET CAD NO:141/F	0.318 225 25 00	0.318 225 25 00
KIRKLARELİ	BABAESKİ	SEVINÇ TEKNİK	NURETTIN SEVINÇ	GAZİ KEMAL MAH.ÇÖMLIKİ ÇI SK.NO:19	0.288 512 16 58	0.288 512 16 58
KIRŞEHİR	MERKEZ	NET SOĞUTMA	BAYRAM AK KUŞ	AHI EVRAN MH. ŞEHİT BEKİR KORKMAZ CAD. MAVİKÖSK APT. B-BLOK NO:29/3	0.386 213 00 54	0.386 213 00 54
KOÇAFIİ	ÇÖLCÜK	ÇAĞ TEKNİK	İLYAS ÖZÇAKIR	MERKEZ MH. PREVEZE CD. NO:29-A	0.262 414 28 82	0.262 414 31 33
	MERKEZ	DENİZ SOĞUTMA	ÖMER FARUK ATABAŞ	KOZLUK MH. İNÖNÜ CD. NO:4/B	0.262 324 93 04	0.262 331 49 29
	ÇEBZE	SERVIS 24	FERHAT DUYKUN	FEVZİ ÇAKVAK MAH. EGİTİM CAD. NO:32 DARICA	0.262 642 04 64	0.262 642 04 65
	IZMIT	SERVIS 24	PERHAT DUYDUN	YENİŞEHİR MAH. AHMET ZIYA SK. NO:73	0.262.233.24.24	0.262.233.24.24
KONVA	SELÇUKLU	ERTUĞRUL TEKNİK SOĞUTMA	AHMET ERTUĞRUL	PERİTPAŞA MH. NİŞANTAŞ SK.NO:27/A	0.332.238.33.99	0.332.238.33.97
	AKŞEHİR	SUDE SOĞUTMA	AHMET KOCAIHTYAR	ESKİ GARAJ ARKASI TOPALOĞLU APT. NO:6/B	0.332.813.14.41	0.332.813.14.41
	EREŞLİ	TEK-SER SERVİS HİZMETLERİ	ADNAN DEMİRTAŞ	ESNAP SİTESİ A BLOK. NO:7	0.332.712.06.61	0.332.712.06.61
KÜTAHYA	GEDİZ	ÇAĞDAŞ SOĞUTMA	MUZAFFER KARAKOYUN	ÖZDYURT MH.150 SK.NO:9-10	0.274.412.48.98	0.274.412.48.98
	MERKEZ	ELİPOĞLU ELEKTRİK	FATİH TANLUKULU	P.S.M BULVARI NO:43 / B	0.274.226.32.80	0.274.226.32.80
	TAVŞANLI	KRİSTAL SOĞUTMA	YUSUF ÖZDEMİR	KAVAMLI MAH.TAVŞAN TARLA SK.NO:14/A	0.274.614.93.99	0.274.614.93.99
	SIMAV	YUSUFICA TEKNİK	YUSUF KAHRAMAN	4 EYLÜL MH. YILDIRIM BEYAZIT CD. NO:39	0.274.513.19.95	0.274.513.19.95
MALATYA	MERKEZ	BAŞER TEKNİK	MEHMET BAŞER	MİMAR SINAN CD. NO:47 / A	0.422.321.14.13	0.422.321.14.13
	MERKEZ	ERCAN TEKNİK	ERCAN SİVŞEK	KÜÇÜK MUSTAFA PAŞA MH. MILLİ ESEMENTLİK CD. NO:95	0.422.321.40.46	0.535.613.68.55
MANİSA	MERKEZ	EKOL SERVIS	METİN BULOUK	MİMAR SINAN MH.ERLER CD. NO:17/A	0.236.232.74.66	0.236.238.48.93
	AKHİSAR	MADENTEPE TİCARET	HÜSEYİN MADENTEPE	RAGIPBEY MH.18SOK.NO:10A	0.236.414.11.86	0.236.414.41.33
	ALAŞEHİR	ÖZ HISAR DAYANIKLI TÜKETİM MALIARI	TARIK DAKNI - BİLAL KOCATÜRK	SARISU MH. İSTİKLAL CD. NO:199/A	0.236.633.44.51	0.236.653.50.86
	SALİHLİ	ÖZEN SOĞUTMA	IBRAHİM GÖMLEKSİZ	MİTHAT PAŞA MH. 6.5K. NO:3/B	0.236.712.51.19	0.236.712.51.19
	MERKEZ	ŞEN SOĞUTMA	HAKAN ŞEN	ARDA MAH.KENZİ CADDESİ NO:52/A	0.236.232.22.72	0.236.232.22.72
	KIRKAĞAÇ	TEKNİK SOĞUTMA	BÜLENT SİKÇELİK	YENİ MH. 34.5K. NO:162/B	0.236.588.18.10	0.236.588.18.10
MARDİN	KIZİLTEPE	ARSLAN TEKNİK	BİLAL ASLAN	YENİ MH. 507 SK. NO:19/B	0.482.312.64.08	0.482.312.64.08
	NUSAYBİN	MODERN TEKNİKER	MEHEMET ALİ BALA	SELAMATTİNEYYÜBI MAH.MEKTEP SOK.NO:20/D	0.482.415.00.47	0.482.415.00.47
	MİDYAT	NEMAX MAKINA	ERCAN KANMAZ	BAHÇELİ EVLER MH. KAZIM KARABEKİR CD.AKKENT 2 BLOK NO:25-3/B	0.482.462.30.05	0.482.462.14.47
MERSİN	MERKEZ	DEMİR TİCARET	DURSUN DEMİR	GÜVENEVLER MH. DUMLUPINAR CD.MINA GÖK APT. NO:28/B	0.324.231.25.22	0.324.231.25.22
	MUT	GENÇ SOĞUTMA	MEHIVET GENÇ	PINARBAŞI MH. MARA CD. NO:12/A	0.324.774.63.35	0.324.774.63.35
	ANAMUR	GÜNEY SOĞUTMA	MEVIÜT DEVİR	ESENTEPE MH.23 NISAN CD. NO:22	0.324.816.80.36	0.324.816.80.36
	TARSLÜS	GÜNEY TEKNİK	MURAT SAMİ GÜNEY	ŞEHİT İSHAK MH. MEVLANA CD. NO:11	0.324.623.55.06	0.324.623.55.07
	FRODEMLİ	GÜVEN SOĞUTMA	HİLMİ OKUR	MERKEZ MAH.TÜRBE CAD. ERENLER İŞHANI EMN. MÜD. KARŞSİ NO:60/D	0.324.515.31.84	0.324.515.31.84
	SILIFKE	KARDEŞLER SOĞUTMA	MURAT BUILDIK	GAZİ MAH OĞUZKAAN CD. NO:41	0.324.714.76.03	0.324.714.76.03
	YENİŞEHİR	NEW TEKNİK	ALPER EŞKİN	HÜRRİYET MAH ISMET INÖNÜBULVARI NO 103/B	0.324.327.27.50	0.342.322.78.78
MUĞLA	BODRUM	ARBON TEKNİK	VEYSEL BONCUK	ÖZBEK CAD.HAMZA SOK.NO:17	0.252.319.60.77	0.252.319.60.77
	MERKEZ	ÇAĞLAR SEVIS VE TİCARET	MEHIVET KARAOĞLU	MÜŞTAKBEY MH. RAGIPBEY CD. NO:5	0.252.214.13.91	0.252.214.44.73
	MILAS	EMEK SOĞUTMA	SELÇÜK ZORLU	FIRUZPAŞA MAH. KİŞLA CAD. NO:45	0.252.513.00.67	0.252.512.40.67
	MARMARİS	MARMARİS TEKNİK	MEMİŞ TÜREDİ	ÇİLDIR MH. 105. SOK. TOKER APT. NO:10/1	0.252.412.24.72	0.252.412.65.25
	BODRUM	NURBAY TEKNİK	NURETTIN AKKUŞ	CUMHURIYET CAD NO:194/A/B ORTAKENT	0.252.358.55.82	0.252.358.55.83
	FETHİYE	ŞUNKA TEKNİK	RESUL ŞUNKA	TUZLA MH.ADNAN MENDERES BULVAR AYKURT 1 APT.NO:20/1	0.252.612.27.02	0.252.612.27.02
MUŞ	MERKEZ	GÜNAY SOĞUTMA	RAGIP GÜNAY	ATATÜRK BULVARI NO 141/A	0.436.212.26.89	0.436.212.18.39
	MERKEZ	ÖMER TEKNİK	ÖMER ATALAY	CUMHURIYET CD.ESKI HAL YANI 167.5K.NO:55	0.436.212.50.62	0.436.212.50.62
NEVŞEHİR	MERKEZ	EREN SOĞUTMA	FATİH OLGUN	350 EVLER MAH CANER SOK.NO:7/B	0.384.213.02.04	0.384.213.02.04
	MERKEZ	KÖSE SOĞUTMA	FEVZİ KÖSE	KAGIP ÜNER MAH. ZÜBEYDE HANIM CD. NO:46	0.384.212.93.34	0.384.212.81.85
NIĞDE	MERKEZ	DEHA TİCARET	HALILI ERTAŞ	ŞAH SÜLEYMAN MH. SUAT BAYKAL CD. ÇETİN APT ALTI. NO:14/G	0.388.233.67.57	0.388.233.67.57
ORDU	MERKEZ	SON-TEK	AHMET TEMEL	BUCAK MAH. BEKİR SİTKI PAMUK CAD. NO:36/A	0.452.666.88.89	0.452.666.88.89
	MERKEZ	TEKNİK SOĞUTMA	YUSUF TEMEL	BUCAK MH. 420 SK. NO:3/A	0.452.222.21.01	0.452.222.21.01
	ÜNYE	ZORLU SOĞUTMA	ZEKİ ZORLU	LÜSELER MH. DEĞIRMEN YOLU. 1.5K. NO:14/A	0.452.324.19.19	0.452.324.19.19
OSMANİYE	MERKEZ	BIRLIK SOĞUTMA	ILYAS GÜZEL	ISTİKLAL MAH . AKYAR CD NO:60 KOCYİĞİT APART	0.328.814.60.54	0.328.813.31.20
RİZE	ARDEŞEN	EVRİM ELEKTRONİK	CAHİT DEMİRÇELİK	YENİ MH.ATATTÜRK CD.NO:85/B	0.464.715.17.17	0.464.715.11.26
	MERKEZ	İNCİ TEKNİK	KERİM KESKİN	MÜFTÜ MAH STADYUM SOK NO:30/A	0.464.213.29.85	0.464.213.35.44
	MERKEZ	TOPRAK TEKNİK	FATİH TOPRAK	TOPHANE MH.KACKAR CD.NO:19	0.464.212.22.23	0.464.212.22.23
SAKARYA	MERKEZ	KUZEY SOĞUTMA	ZEKİ BULUT	ŞEKER MAH.SEDAT KIRTATEPE CAD.NO:36/D	0.264.279.23.90	0.264.279.23.90
SAMSUN	MERKEZ	ÇAĞDAŞ SERVIS	HAŞİM EMİRBUYURAN	HANÇERLI MH.100.YIL BULV.NO:17	0.362.446.30.02	0.362.447.00.24
	BAFRA	KARATAŞ TİCARET	ILHAN KARATAŞ	NIZIURMAK MH. FEVZİ ÇAKMAK SK. NO:18	0.362.543.04.91	0.362.543.63.87
	MERKEZ	SAYLOR ELEKTRONİK	MUSTAVA KÜÇÜKYILMAZ	FEVZİ ÇAKMAK MH. Lüse CD. NO:52	0.362.234.61.05	0.362.234.61.05
SİIRT	KURTALAN	AKSOY SOĞUTMA LTD.STI.	FIRAT AKSOY	ULU CAMI' ALTİ NO:20	0.484.411.26.91	0.484.411.50.67
	MERKEZ	DEMİR TEKNİK	ALI DEMİR	CUMHURIYET CAD. SUAT BEDÜK SOK. NO:1 SİIRT	0.484.223.37.51	0484.223.37.51
SİNOP	MERKEZ	DEMİREL TİCARET	RAFET DEMİREL	MEYDANKAPI MH.NALBANT SK.NO:5	0.368.260.07.87	0.368.260.07.87
	BOYABAT	ÖZTÜRK BEYAZ ESYA	BAYRAM ÖZTÜRK	GÖKDEHE MH. YUSUF KEMAL BEY CD. NO:24 FTT KARŞSİ	0.368.315.61.21	0.368.315.61.21
	AYANCİK	YILKAY SOĞUTMA	MEHIVET YILMAZ	YALI MAHALLESİ DOKTOR AVNİ HAMZAÖĞLU CADDESİ NO:46	0.368.613.52.12	0.368.613.52.12
SIVAS	MERKEZ	SOĞUK TEKNİK	AHMET ÜSTÜNDAG	ESKİ KALE MAH. SARAY YOLU SK. BÜYÜK DOĞU APT. ALTİ NO:8/A	0.346.221.17.89	0.346.223.87.98
	MERKEZ	YENICE TEKNİK	EROLYENİCELİ	ÇARŞIBASI CAD.BURAK APT.ALTI NO:3	0.346.225.35.32	0.346.223.39.17
ŞANLI URFA	CEYLANPINAR	ASAN SOĞUTMA	MUZAFFER ASAN	CUMHURIYET CD. NO:120	0.414.471.44.10	0.414.471.44.10
	SİVEREK	SAVET TEKNİK	SŞEHMUS BEGEÇ	ABDALAĞA MAH.UCAR CAD. NO 16	0.543.668.03.63	0.545.668.03.63
	VIRANŞEHİR	SECKİN BEYAZ ESYA	MEHIVET GÜDER	YENİŞEHİR MH. 1619 SK. NO:8/B	0.414.511.68.47	0.414.511.68.47
	MERKEZ	SERVAN BOBINAI	HALILI ŞEKER	YENİŞEHİR MAH. 229. SK.FMIR APT. ALTİ NO:19/A	0.414.312.93.27	0.414.315.36.15
	BİREÇİK	YARASİR SOĞUTMA	PATİH YARASİR	MEYDAN MH. KÖPRÜ QIKŞİ NO:9	0.414.652.36.38	0.414.652.36.38
ŞİRNAK	CIZRE	UZANLAR SOĞUTMA	HÜSEYİN UZAN	YAFES MAH.SİTTİN NEFİŞ CAD.NO:24	0.486.616.30.31	0.486.616.30.31
	SARAY	BATİ TEKNİK	BULENT BARLAS	YENİ MH.TAKSIM CD.NO:9	0.282.768.69.34	0.282.768.69.34
TEKIRDAG	ÇORLU	BEYAZ TEKNİK	EMRULLAH AY	REŞADIYE MAH.ŞINASI KURŞUN CD.3.SK.NO:15/A	0 282 653 83 43	0 282 653 83 43
	ÇERKEZKÖY	DENİZ SOĞUTMA	SEYİT DENİZ	GMKP MAH.HASAN ÇAVUŞ SOK.NO:4	0 282 726 34 04	0 282 726 34 04
	MERKEZ	GÜLEN TEKNİK	ISMAIL GÜKSİN	YAVUZ MAH.LISE CAD.NO:19	0 282 261 07 78	0 282 261 07 78
	MERKEZ	KURAL SOĞUTMA	NURKAN KURAL	ERTUĞRUL MAH. GÜNEŞ SK. TÜFEKÇİ KENAN USTA PSI. NO:7/8	0 282 262 55 46	0 282 263 89 17
TOKAT	ERBAA	EREL SOĞUTMA	ERKAN CİVELEK	GAZİOSMAN PAŞA MAH.HÜKÜMET CD.NO:84	0 356 716 17 70	0 356 715 22 08
	TURHAL	GÜCLÜ ELKTRONİK	OĞUZHAN ALEMDAR	CELAL MH. TUNA SK. NO:11/A	0 356 276 39 66	0 356 275 87 54
	MERKEZ	ÖZGÜL TEKNİK SERVİS	RIZA ÖZGÜL	YEŞIL IRMAK MH. ÇAĞ GÖLÜ CD. NO:21/B	0 356 214 60 70	0 356 213 17 75
TRABZON	VAKFIKEBİR	BIYIKLI SOĞUTMA	COŞKUN BIYIKLI	KEMALİYE MAH.FATIH CD. NO:32	0 462 841 48 31	0 462 841 30 92
	MERKEZ	KENAN TEKNİK	HAMİ KENAN	TOKLU MH.KURAN KURSU CD.HASAN TAHSİN SK.TÜRKLER APT.ALTI NO:2/8	0 462 224 31 63	0 462 230 42 45
	AKÇAABAT	TOPALDĞLU SOĞUTMA	VELİ TOPAL	İNÖNÜ CD. NO:51	0 462 228 51 98	0 462 228 51 98
	MERKEZ	YILDIZ ELEKTRONİK	MUHAMMET ÇINARLI	UZUN SOKAK ZAFER ÇARŞISI NO 4/5	0 462 321 03 31	0 462 321 03 31
TUNCELİ	MERKEZ	BATIN ELEKTRONİK	ALMET ALBAYRAK	ATATÜRK CAD. 25. SOKAK NO:1	0 428 213 10 70	0 428 213 10 70
UŞAK	MERKEZ	METİN SOĞUTMA	HAKAN METİN	ÖZDEMİR MAH. YILMAZ ATAKSOR SK. NO:16\B UŞAK -MERKEZ	0 276 223 96 35	0 276 227 80 23
VAN	ERCİŞ	ETALAR SOĞUTMA	EROL ETA	ESKİ EMNIYET KARAKOLU ARKASI	0 432 351 38 38	0 432 351 38 38
	MERKEZ	YILMAZ TEKNİK	ÜBEYT YILMAZ	ZÜBEYDE HANIM CD. ÖZ DOLUNAY SİTESİ ALTI NO:108/A	0 432 212 03 14	0 432 214 95 25
YALOVA	MERKEZ	EVSAN SERVİS	MELIH - SERAP DOĞAN	ISTANBUL CAD.BORA SOK.NO:15/A	0 226 811 18 11
YOZGAT	SORGUN	SES SOĞUTMA	AHMET TAŞKINOĞLU	BAHÇELIEVLER MAH.ATATÜRK BUIVARI OKULLAR APT.NO:1	0 354 415 80 81	0 354 415 29 46
	MERKEZ	TUNCER SOĞUTMA	SİNAN-VETİN TUNCER	MEDRESE MAH.MAHMUT TURAN SK.SARGIN APT.ZEMİN KAT NO:2	0 354 212 68 19	0 535 666 02 91
	SORGUN	YILMAZ ISITMA VE SOĞUTMA	ÖMER YILMAZ	BAHÇELIEVLER MAH.MÜFTÜOĞLU CADDESİ NO:6	0 354 415 61 30
ZONGULDAK	MERKEZ	EROL ELEKTRONİK	ISMAIL EROL	MEŞRUTİYET MİH.TAHIRKARAOĞUZ SK.UZUN ÇARŞI KI NO:104	0 372 253 76 06	0 372 253 76 06
	EREĞLI	ERŞAN SOĞUTMA	YAŞAR ARSLAN	BAĞLIK MAH. ŞEHİT RIDVAN CD. .NO: 37 / D	0 372 316 10 05	0 372 316 10 05
	ÇAYCUMA	UĞUR SOĞUTMA	AYNUR-GÖKHAN KOYMAT	YENİ MH. HANIMELİ SK. BİLKENT SİTESİ YANI. KOYMAT APT. .NO:1	0 372 615 68 07	0 372 615 68 07

Silverline End. ve Tic. A.Ş.
