Product Type	Electric Panel Heater
Brand	Mill
Model	HT5512
Dimensions (H x W x D)	45 x 60 x 10 cm
Weight	5.5 kg
Power Supply	230 V, 50 Hz
Power Consumption	500 W - 1500 W (adjustable)
Heating Type	Convection heating
Thermostat	Adjustable mechanical thermostat
Timer	24-hour programmable timer
Safety Features	Overheat protection, tip-over switch
Installation	Wall-mounted (brackets included)
Maintenance	Wipe with dry cloth; do not use water
Energy Efficiency Class	Class A
Warranty	2 years
Noise Level	< 25 dB
Color	White
Material	Steel with powder coating
Control Type	Dial and push buttons

Frequently Asked Questions - HT5512 MILL

How do I install the Mill HT5512 heater?

The heater is designed for wall mounting. Follow the included installation guide to secure the brackets to the wall and hang the unit. Ensure it is at least 30 cm from the floor and 15 cm from side walls for proper airflow.

Can I use the heater in a bathroom?

No, the Mill HT5512 is not rated for bathroom use. It should be installed in dry indoor areas only.

How do I clean the heater?

Turn off and unplug the heater. Let it cool completely. Wipe the exterior with a soft, dry cloth. Do not use water, chemicals, or abrasives. Vacuum the air inlet and outlet grills gently.

What is the temperature range of the thermostat?

The adjustable thermostat allows you to set the desired room temperature between 5°C and 30°C. Turn the dial to your preferred setting.

How do I set the timer?

Use the 24-hour timer dial to set the heater to turn on and off at specific times. Rotate the dial to align the desired on/off periods with the time markings. Refer to the manual for detailed instructions.

What should I do if the heater stops working?

Check the power supply and ensure the plug is fully inserted. Verify the thermostat is set higher than room temperature. If it still does not work, the overheat protection may have tripped; turn it off, let it cool, and try again. If problems persist, contact Mill support.

Is the heater safe to leave unattended?

Yes, the Mill HT5512 features overheat protection and a tip-over switch that automatically turns off the heater if it falls or overheats. However, always exercise caution and avoid covering the heater.

How can I save energy with this heater?

Use the programmable timer to heat rooms only when needed. Set the thermostat to a comfortable but moderate temperature. Keep windows and doors closed. Regular cleaning of the air grills ensures efficient operation.

Does the heater come with a remote control?

No, the Mill HT5512 does not include a remote control. It is operated manually via the controls on the unit itself.

What is the warranty period and how do I claim?

The heater comes with a 2-year warranty from the date of purchase. To claim, contact Mill customer service with your proof of purchase and a description of the issue. Do not attempt to repair the heater yourself.

USER MANUAL HT5512 MILL

INSTRUCTION MANUAL (EN)

for Mill HT5512

mill®

Please read the instructions carefully before use. Take good care of this manual for later use.

CE

Important safety information

You must obey common safety guidelines when using electrical products, especially in the presence of children.

WARNING! To avoid electric shock or damage due to the heat, always make sure the plug is pulled out and wait for the fan heater to cool down before it is moved or cleaned.

• The fan heater can only be used under supervision.
- Connect the fan to an outlet with the indicated voltage.
- Avoid using extension cords as this may generate heat in the cable which in turn creates a fire hazard.
- The fan should not be placed directly below a wall socket.
- The fan heater should never be used if the cable is damaged or destroyed. Have it replaced immediately by an authorized technician.
- The fan heater should always be disconnected when not in use. When you want to disconnect it, pull the plug and not the cable.
- The air input/output must never be covered. Keep a distance of at least 1 m in front and 50 cm behind the fan.
- Do not let animals or children touch or play with the fan heater. Be careful! The air outlet becomes hot during use.
- When not in use, the fan heater should be stored in a dry and cool place away from children.
- When moving and before cleaning or maintenance, unplug the cable from the mains and wait until the fan heater has completely cooled down.
- The fan heater should not be used near baths, showers or swimming pools.
- Do not use the fan heater, including the switches, sockets and outlet, with wet hands, as it may cause electric shock.
- The fan heater should never be covered, as this may cause overheating or fire.
- Do not use the fan heater in rooms with explosive gases or when using flammable solvents such as varnish or glue.
- Keep the fan heater clean. Prevent any object from entering the ventilation openings, as this may result in electric shock, fire or damage to the fan heater.
- When repaired, the fan heater should always be repaired by an authorized technician.

STORE THIS INSTRUCTION MANUAL FOR FUTURE USE!

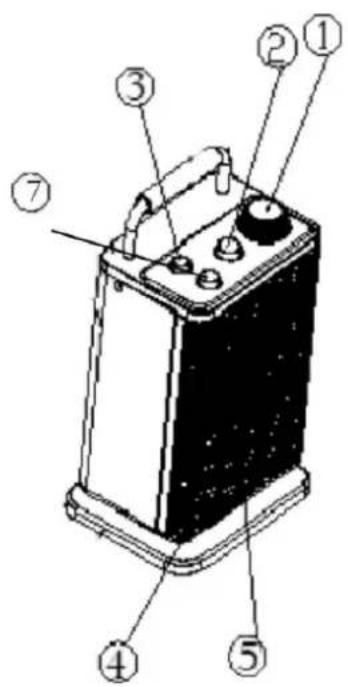

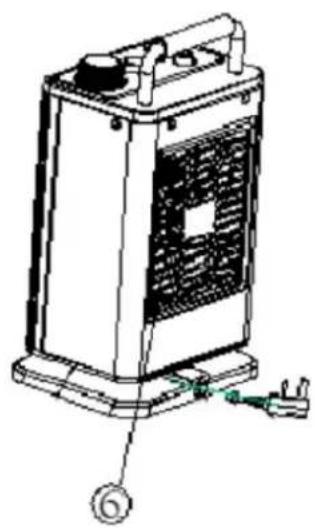

Description of the heater

Technical line drawing of a rectangular industrial or electrical enclosure with internal grid structure (no text or symbols)

Line drawing of a vertical industrial or gas storage unit with a side panel and top outlet (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and heat sinks (no text or symbols)

1. Mechanical thermostat
2. Swing function button
3. Switch, high power
4. Air outlet
5. LED light
6. Air intake
7. On/Off switch

Technical line drawing of a portable electric heater with labeled components (no text or symbols)

Instruction Manual

Display and control panel

Using the heater

Connect the power cord to an outlet with the indicated voltage.

1. Press the ON/OFF button to set the heater. The red light on the front of the device (under the heating element) indicates when the heater is in use.
2. High: Press the power button ("High") to set the power to 2000 W. Press the power button again to set the power to 1200 W.
3. Swing: Press the swing function button and the fan heater will begin to swing (oscillate). Press the button again to stop the swinging function.
4. Mechanical thermostat:

a. Turn the wheel clockwise to set the desired temperature.
b. The heater will go into standby mode when it has reached the desired temperature.
c. Once the detected temperature is below the desired temperature, the heater will automatically start up again.
d. CAUTION! You will hear a low "click" when the detected temperature is the same as the desired temperature.

Safety instructions

To avoid hazards or incorrect use of the device, please read the instructions carefully.

(For an explanation of symbols, see page 8.)

At the slightest indication that something is wrong with the device, contact an authorized technician to repair it. Do not disassemple	Do not operate the device with wet hands. You can get electrocuted.Electric shock Do not touch!
Do not insert metal objects or other sharp objects into the device.Electric shock Important	Do not use open flame or other flammable sprays near the device.Forbidden

During cleaning, the device must always be switched off and the power cord must be removed from the wall outlet.

Illustration of a portable solar panel with cooling fins and a heat sink (no text or symbols)

Do not unplug by pulling the power cord.

Illustration of a portable electric heater connected to a wall-mounted power outlet with lightning bolts (no text or symbols)

Electric shock

Forbidden

Do not disassemble

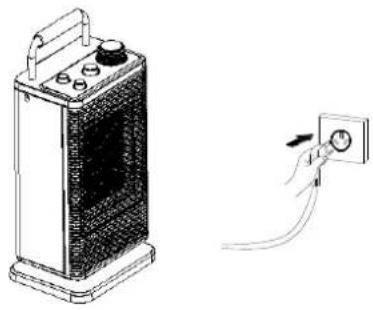

Make sure that the cord is undamaged and the plug is properly plugged in the socket.

Illustration of a battery connected to a wall-mounted power outlet (no text or symbols present)

Electric shock Important

If the heater produces weird smell or there come strange sounds from the device. Stop the heater and remove the plug.

Illustration of a battery and a wall-mounted electrical outlet connected by a cable (no text or symbols)

Important

If the cable is destroyed, the device must not be used. Contact the service department.

Two technical line drawings of electrical connectors or wires, one with a coiled cable and the other with a straight plug (no text or symbols)

Electric shock Important

The cord must not be curled. Do not place heavy objects on the cord.

Illustration of a portable electric heater next to a wall-mounted electrical outlet with three buttons and a fuse (no text or symbols)

Electric shock

The fan heater must not be rinsed under water.Electric shock Important	Never let the fan blow directly at children.Forbidden
If the device is left unused for a long time, turn it off and unplug it.Never allow children or people with impaired functions to use the heater.Important	Use power outlet that meets the standard (10 A / 230 V).Make sure that the power supply is stable. (AC 220–240 V~ 50 Hz).If the device is moved, check if the power supply is correct.Important
Never use the device near water.Never use the appliance directly below power outlet.Never use the appliance pressed towards the wall, curtain or other flammable object, because it can cause fire.Forbidden	Avoid overheating. Never place any objects over the fan heater.Never insert any objects into the device.Forbidden

Explanation of symbols in the safety instructions:

WARNING	An action which can result in damage to the fan heater and/or persons.
FORBIDDEN	An action which is strictly prohibited.
MUST BE FOLLOWED	An action that must be performed exactly as described.

Maintenance

1. Before cleaning, always unplug the heater and leave it to cool.
2. Wipe the heater regularly with a damp cloth and dry the surface before turning on the heater again.
3. The heater must be cleaned at least once a month during the heating season.

CAUTION! The heater should never be immersed in water.

Avoid using detergents to clean the heater.

Never let any water get inside the heater; this can be hazardous.

1. Dust etc. should be removed with a soft cloth.
2. The heater should be stored in a dry and clean place.
3. If the heater stops working, do not attempt to repair it yourself because it can cause a fire hazard and/or electric shock.

Technical specification

Model no.	HT5512
Voltage	220–240 V~
Frequency	50 Hz
Current	1200/2000 W
Noise level	≤50 dB
Dimensions	L182*W145*H311 (mm)

Warranty

The warranty is valid for 2 years. The heater will be repaired or replaced during this time should any malfunction occur. The warranty applies if the heater is used according to these instructions and the customer can present a purchase receipt. If the heater malfunctions in any way, please contact the store where it was purchased or the importer.

Waste disposal

In accordance with the European Directive regarding electronic appliances (Waste Electrical and Electronic Equipment – (WEEE)), please return any electrical equipment that is no longer needed.

This symbol indicates that the appliance cannot be handled as normal household waste, but should be delivered to a designated collection point for recycling electronics and electrical appliances.

Mill International AS
