Product Type	Speaker Stand
Brand	Ultimate Support
Model	TS-100B
Material	Steel
Weight Capacity	50 kg (110 lbs)
Height Range	1.0 m - 1.8 m (39-71 inches)
Base Diameter	60 cm (24 inches)
Product Weight	5.4 kg (12 lbs)
Foldable	Yes
Carrying Bag Included	No
Assembly Required	Minimal
Color	Black
Finish	Powder-coated
Tilt Adjustment	Not adjustable
Cable Management	Yes, internal routing
Rubber Feet	Yes, non-slip
Use For	PA speakers, monitors
Warranty	Limited lifetime
Cleaning	Wipe with damp cloth
Safety Note	Never exceed load capacity; ensure stable surface

Frequently Asked Questions - TS-100B Ultimate Support

How do I assemble the TS-100B speaker stand?

The stand comes partially assembled. Simply unfold the legs, tighten the locking knobs, and slide the top pole into the base. Secure with the provided pin.

What is the maximum height adjustment?

The height range is from 1.0 m to 1.8 m (39-71 inches). Adjust by loosening the collar, raising or lowering the pole, and tightening again.

Can I use this stand for heavy speakers?

The TS-100B supports up to 50 kg (110 lbs). Ensure your speaker is within this limit to maintain stability.

Will this work with any speaker?

It fits speakers with a standard 35 mm pole mount. Check your speaker's bottom for a compatible socket.

How do I ensure the stand is stable?

Place the stand on a flat, level surface. Extend the legs fully and lock them. Do not exceed the weight capacity.

Is the stand portable for gigs?

Yes, the stand folds flat for easy transport. However, it does not include a carrying bag; you may purchase one separately.

What is the warranty on this stand?

Ultimate Support offers a limited lifetime warranty against defects in materials and workmanship.

How do I clean the stand?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners that may damage the powder-coated finish.

Can I use the stand outdoors?

Yes, but avoid prolonged exposure to rain or moisture. Rinse with fresh water after outdoor use and dry thoroughly.

What if a part breaks?

Contact Ultimate Support customer service for replacement parts. The stand is designed to be repairable with common tools.

USER MANUAL TS-100B Ultimate Support

Close-up of a black mechanical component with a bolt and flange, against a dark background (no visible text or symbols)

ULTIMATE SUPPORT®

AIR-POWERED SPEAKER STAND TS-100B

Air-Powered Series speaker stands from Ultimate Support are incredibly strong and sturdy, unbelievably lightweight, AND raise and lower speaker stands on their own! Born from years of research and development, the stands in the Air-Powered Series feature an internal shock that lifts speakers weighing 25 lbs. or less with no effort, and only requires one hand to raise speakers weighing more than 25 lbs.

TS-100B KEY FEATURES

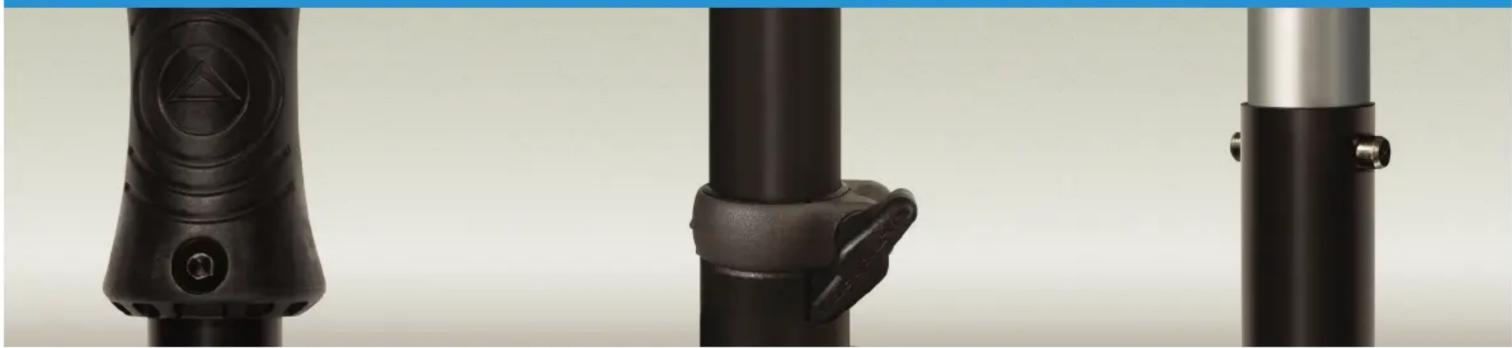

Close-up of three black mechanical components with mounting holes and connectors, no visible text or symbols

AIR-POWERED LIFT ASSIST

An air-powered shock helps lift your speaker. The shock can lift 35 lbs. with very little additional assistance required. A die-cast fitting holds the speaker in place and a grip is added to help pull speaker down.

DIE-CAST FITTINGS

Strong die-cast fittings are found through out the stand and help support key components like the tripod legs and air-powered shock.

OVER-SIZED TUBING

Our speaker stands are made with over-sized tubing for greater strength and dependability.

Close-up of a black bicycle support frame with visible branding (no text or symbols on the frame itself)

PATENTED TRIPOD DESIGN

Ultimate Support's patented tripod legs are designed for strength and durability. The legs are designed to be easily replaced over a lifetime of use.

1130 Diamond Valley Drive, Suite A
Windsor, CO 80550
Phone. [phone]
Fax. [phone]
Web. www.ultimatesupport.com
R. 1, 05/04/21, 1S-ULT-TS-90B

TS-100B SPECS

• Part Name: TS-100B
  • Part Number: 16759
  • Height: 3'8" - 6'7"
• Weight: 10 lbs.
• Base Diameter: 47"
• Telescoping Tube Diameter: 1.5"
• Adapter Diameter: 1.375"
• Load Capacity: 150 lbs.
• Folded: 43.5" x 5.5"
