PC7351 - Vacuum Cleaner PROGRESS - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Progress
Model	PC7351
Dimensions (approx.)	30 x 30 x 50 cm
Weight	5 kg
Power Rating	1200 W
Dust Capacity	2.5 L bag
Filtration System	Exhaust filter (washable)
Cord Length	6 m
Suction Control	Adjustable power on handle
Attachments Included	Crevice tool, dusting brush, upholstery nozzle
Floor Type Compatibility	Hard floor and carpet
Noise Level	75 dB
Maintenance	Regular bag and filter replacement; clean filter every 3 months
Safety Features	Automatic shut-off when overheating; do not vacuum liquids
Spare Parts Availability	Bags, filters, brush roll available for purchase
Manual Languages	English, French, German, Spanish (downloadable PDF)

Frequently Asked Questions - PC7351 PROGRESS

How do I change the vacuum bag?

Open the bag compartment cover, remove the full bag by pulling it straight out, and insert a new bag until it clicks into place. Ensure the bag is properly seated before closing the cover.

Why is my vacuum losing suction?

Check if the dust bag is full or the filter is clogged. Replace the bag if full and clean or replace the filter. Also inspect the hose and attachments for blockages.

Can I use the vacuum on wet surfaces?

No, this vacuum is designed for dry use only. Using it on wet surfaces can cause electric shock or damage the motor. For liquid spills, use a wet/dry vacuum.

How often should I clean or replace the filter?

Clean the exhaust filter every three months by tapping it gently or rinsing under water (let it dry completely before reuse). Replace it once a year or if damaged.

What attachments come with the PC7351?

The vacuum includes a crevice tool, a dusting brush, and an upholstery nozzle. These attach to the handle or wand for different cleaning tasks.

How do I adjust the suction power?

Use the suction control slide or dial located on the handle of the vacuum. Slide it to 'low' for delicate surfaces or 'high' for deep cleaning carpets.

The vacuum overheats and shuts off. What should I do?

This is a safety feature. Turn off and unplug the vacuum, check for blockages or a full bag. Allow it to cool for 30 minutes before restarting.

Where can I buy replacement bags and filters?

Replacement bags and filters are available online through major retailers or directly from the Progress spare parts website. Use the model number PC7351 to ensure compatibility.

How do I clean the brush roll?

Unplug the vacuum. Remove the bottom plate and brush roll. Use scissors to cut away any tangled hair or threads, then wipe clean. Reinstall the brush roll and plate.

Is the cord long enough for large rooms?

The cord length is 6 meters (20 feet), which is suitable for most standard rooms. For larger areas, you may need to switch outlets or use an extension cord (rated for 10A).

USER MANUAL PC7351 PROGRESS

Black vacuum cleaner device with visible internal components and branding (no readable text or symbols)

Deutsch

English

Français

Español

Português

Italiano

Nederlands

Magyar

Polski

Hrvatski

Slovensky

Česky

Slovenščina

Românâ

Menalux®

We care for homecare

Close-up of a black vacuum cleaner with adjustable handle and base (no visible text or symbols)

CB 100

Two black mechanical components with threaded ends, no visible text or symbols

AC 01

Coiled black rubber hose with white connectors (no text or symbols visible)

FL 180

Metal rod with a small protrusion at one end, shown against a plain white background (no text or symbols)

TU 21

3D rendered mechanical component with two protruding rods and a central shaft (no text or symbols visible)

BSL 20

Close-up of a mechanical tool with a textured handle and lever mechanism (no visible text or symbols)

AD:15

From the Electrolux Group

www.menalux.com

T4005 02 03 04

Line drawing of a hand operating a vacuum cleaner (no text or symbols present)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand holding a vacuum cleaner with a numbered label (31) at the bottom, no text or symbols present.

Line drawing of a hand holding a smartphone next to a vacuum cleaner device (no text or symbols)

Illustration of a hand holding a vacuum cleaner with a numbered label (34) at the bottom, no text or symbols on the device itself.

Deutsch

PROGRESS PC7350, PC7351, PC7390, PC7391

Beschreibung

Description of parts

1. Suction inlet
2. Electronic filter clogging indicator
3. On/off switch
4. Cable rewind button
5. Variable power control
6. Wheel
7. Dust container
8. Carrying handle
9. Dust container open button

10. Hose

11. Telescopic tube

12. Dual purpose floor nozzle
13. Crevice nozzle
14. Upholstery nozzle
15. Dusting brush
16. Turbo nozzle (PC7351)
17. Hard floor nozzle (PC7351)
18. Cartridge filter
19. Protector mesh
20. Vertical parking
21. Horizontal parking

Important safeguards

• Read this instruction booklet carefully.
- Before using the appliance, check that the mains power voltage corresponds to the voltage shown on the rating plate.
- Do not switch the appliance on if it appears to be faulty in any way or it has a damaged cord or plug. Do not try to repair the appliance by yourself.
• Always remove the plug from the power socket when the appliance is not in use and before carrying out any cleaning or maintenance operations.
- Never leave the appliance unattended when it is switched on. Keep the appliance out of reach of children.
• This appliance is for domestic use only. Use as described in this instruction booklet.
- Do not pull the appliance by the cord. Do not unplug by pulling on the cord.
- Do not use appliance on wet surfaces or to vacuum liquids, mud, ash and burning cigarette butts. Do not vacuum up any highly flammable or explosive substances or gases.
• Do not unplug the vacuum cleaner with wet hands.
- Do not operate the vacuum cleaner too close to heaters and radiators, stoves etc.
- Before you start using the vacuum cleaner, please remove large or sharp objects from the floor to prevent damage to the dust container and hose.

Instructions for use

• Before placing into operation make certain that the filters are in the proper position.
A Unwind a sufficient length of cable and insert the plug into the power socket. A YELLOW mark on the power cable shows the ideal cable length. Do not extend the cable beyond the RED mark.
B Press the ON/OFF button to switch the appliance on. On initial start up full power is reached after approximately 1-2 seconds.

C To rewind the power cable, press the rewind button with foot, and guide the cable with hand to ensure that it does not whip causing damage.
D By moving the variable power control, the suction power can be adjusted.
E Suction can also be regulated on the hose handle by opening / closing the aperture.
• Sound level: 83,0 dBa (PC7350, PC7351) 83,1 dBa (PC7390, PC7391)

Maintenance

Removing the contents of the dust container

• Never operate the cleaner without the dust container installed.

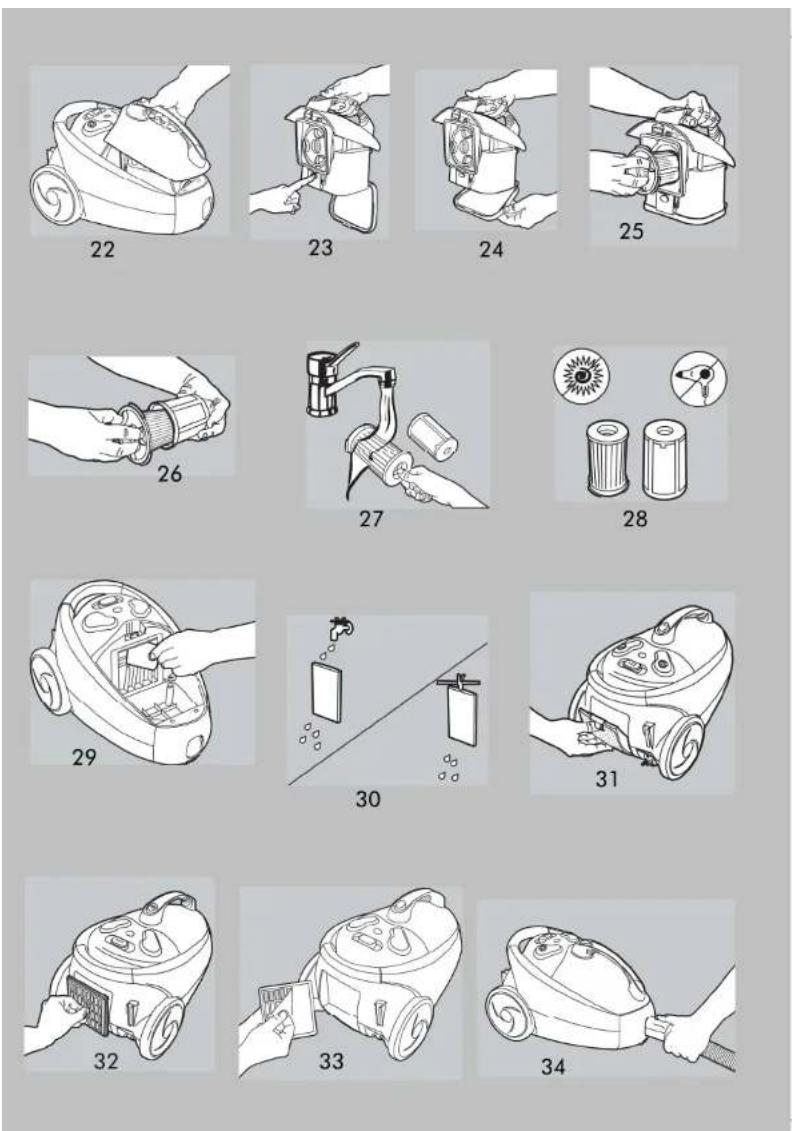

  22 Remove the dust container by pushing the open button on the handle.
  23 Remove the contents of the dust container by pushing the orange - coloured opening button.
  24 Close the dust container lid until it clicks.
  22 Put the dust container back into the cleaner.

Replacing the filters

• The dust container must be emptied if the window of the electronic filter indicator is illuminated when the cleaner is operating at maximum power and the nozzle is raised from the floor.
• Please note: It is normal for the red light of the indicator to flicker on and off during use.
  If the dust container is emptied and the indicator is still active, it means that the cartridge filter is clogged. In this case, follow the instructions of chapter 'Replacing or cleaning the cartridge filter'.
• Filters should be replaced at least twice a year or when they become visibly soiled.
  • Always operate the cleaner with filters installed to avoid reduced suction.
• Disconnect from electrical outlet before changing the filters.
• Menalux branded filters are strongly recommended by Progress. Those high quality filters will ensure a long lifetime of your Progress vacuum cleaner. For more information about Menalux products, please visit our website: www.menalux.com.

Replacing or cleaning the cartridge filter

22 Remove the dust container by using the open button on the handle.
25 Remove the cartridge filter with the protector mesh by turning them clockwise and pulling them out.
26 Remove the protector mesh from the cartridge filter.
27 Shake the dirt from the filter and the mesh into a bin, if necessary the filter and mesh can be rinsed, with cold water, under a tap.

28 Air dry them for approximately 24 hours, to ensure it is completely dry before re-using. Avoid direct sunlight and extreme drying circumstances.
26 Insert the protector mesh into its place by pushing it onto the cartridge filter.
25 Insert the cartridge filter with the protector mesh back to the dust container and turn them counter-clockwise until the cartridge filter locks completely.
22 Insert the dust container back into the cleaner by pressing it down until it clicks.

Cartridge filter reference number: Menalux F132

Cleaning the motor filter

• If necessary, the motor filter also can be washed or replaced at least twice a year or if clogged.
22 Remove the dust container by using the open button on the handle.
29 Remove the filter from its place.
30 Rinse it under tap water and dry it completely.
29 Put the filter back into its place.
22 Insert the dust container back into the cleaner by pressing it down until it clicks.

Motorfilter reference number: Menalux F132

Cleaning the exhaust filter

31 Open the filter grill.
32 Remove the exhaust filter with grill.
33 Take the filter out of the grill.
30 Rinse it under tap water and dry it completely.
33 Put the filter back into the grill.
32 Insert the filter with grill into the cleaner.
31 Close the filter grill.

Exhaust filter reference number: Menalux F132

Operating the hose in/out of the suction inlet

34 To connect the hose into the suction inlet push it until it clicks.

To disconnect the hose from the suction inlet push the button at the end of the hose.

Protecting the environment

• Attempt to recycle packaging material and old appliances.
• The cardboard packaging can be placed in the waste paper collection.
- Deposit the plastic bag made of polyethylene (PE) at the PE collection point for recycling.
- Deposit the polystyrene foam at the PS collection point for recycling. Recycling the Appliance at the end of its life.
- The plastic components all carry a material identification marking so that, like the other materials, they can recycled at the end of the life of the appliance.
- Please inquire with your local authority. Blocked air flow and dirty filters.
• The cleaner stops automatically if a blockage occurs in the nozzle/tube/hose or if the filters are blocked with dirt.
- Disconnect from mains and allow the cleaner to cool for 20-30 minutes. Remove blockage and/or clean filters.
- Restart the cleaner.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Suzhou Kingclean Floorcare Co. Ltd.

Xiangyang Road, Suzhou New District.

Suzhou, Jiangsu, China, 215009
