Product Type	Cylinder Vacuum Cleaner
Dimensions (L x W x H)	400 x 300 x 250 mm
Weight	5.2 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	1200 W
Dust Container Capacity	2.0 L
Operating Radius	8 m
Noise Level	78 dB
Filtration System	HEPA Filter
Color	Red/Black
Cord Length	6 m with automatic rewinder
Dust Disposal Type	Bagless
Filter Maintenance	Washable filter
Accessories Included	Crevice tool, dusting brush, upholstery tool
Maintenance Tips	Empty dust container after each use; clean filter monthly
Safety Features	Automatic shut-off when overheating; do not vacuum liquids
Spare Parts	Replaceable filters, brush roll, dust container assembly
Brand	Progress
Model	PC4207
Warranty	2 years

Frequently Asked Questions - PC4207 PROGRESS

How do I empty the dust container?

Press the release button on the dust container and pull it out. Hold it over a bin, press the bottom lid release to empty. For thorough cleaning, rinse the container with water and dry completely before reinserting.

How should I clean the filter?

Turn off and unplug the vacuum. Remove the HEPA filter from the compartment. Tap gently to remove loose dust, or rinse under running water if washable. Let the filter air dry completely for at least 24 hours before reinstalling.

Why is the suction power weak?

Check if the dust container is full or the filter is clogged. Also inspect the hose and brush head for blockages. Empty the container, clean the filter, and remove any obstructions. Ensure the brush roll is free of hair and debris.

How does the cord rewind work?

The cord rewinds automatically when you press the cord rewind button. Hold the plug while pressing the button to prevent whipping. If the cord does not rewind fully, gently pull out a little and press again.

Can I use the vacuum with a voltage converter?

The vacuum is designed for 220-240 V only. Using a voltage converter may damage the motor or cause safety hazards. Always check the voltage rating before use.

How do I replace the brush roll?

Disconnect the vacuum. Turn the brush head over and remove the screws securing the brush cover. Lift out the old brush roll, clean the area, and insert the new one. Secure with screws and reattach the cover.

What does the red indicator light mean?

A solid red light indicates that the dust container is full or the filter needs cleaning. If blinking, it may signal a blockage or overheating. Refer to the manual for specific light patterns.

Is the vacuum suitable for pet hair?

Yes, the Progress PC4207 features a pet tool accessory and a brush roll designed to pick up pet hair. Regular cleaning of the brush roll and filter is recommended to maintain performance.

How often should I replace the HEPA filter?

Replace the HEPA filter every 6 to 12 months depending on usage. If you notice reduced suction or a musty smell, replace it sooner. Always use genuine Progress filters for best performance.

Where can I purchase spare parts or accessories?

Official spare parts and accessories are available from Progress authorized dealers or online through the Progress website. Use the model number PC4207 to ensure compatibility.

USER MANUAL PC4207 PROGRESS

iFu 42xx press.qxd 12/5/03 1:05 PM Page 1

PC4206

PC4207

PC4208

PC4220

PC4260

PC4280

3D rendering of a vacuum cleaner with black outline and gray background, no visible text or symbols on the device itself.

4501 02 03 03

i Fu 42xx press.qxd 12/5/03 1:05 PM Page 3

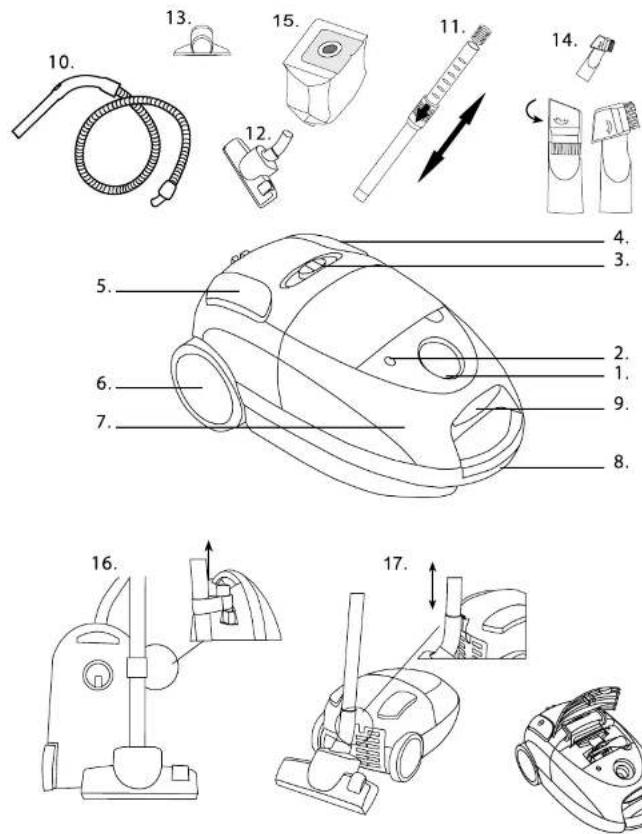

1. Suction inlet

2. Dustbag full indicator

3. Variable power control

4. Cable rewind button

5. On/off switch

6. Wheel

7. Dustbag compartment

8. Carving handle

9. Compartment open button

10. Hosa

11. Teleconic tube

12. Dual purpose floor pricing

13. Unłokstery nozzie

14. Combining service pricing, bn sh

15. Duethan

16. Boerbag

17. Verbal Parking

18. Horizontal parking

19. Tools on board

IMPORTANT SAFEGUARDS

Read this instruction booklet carefully.
Before using the appliance, check that the mains power voltage corresponds to the voltage shown on the racing plate.
Do not switch the appliance on it it appears to be faulty in any way or it has a damaged cord or plug. Do not try to repair the appliance by yourself. For repairs or accessories, contact Electrolux Customer Services.
Always remove the plug from the power socket when the appliance is not in use and before carrying out any clearing or maintenance operations.
Never leave the appliance unattended when it is switched on. Keep the appliance cut of reach of children.
This appliance is for domestic use only. Use as described in this instruction booklet.
Do not pull the appliance by the cord. Do not unplug by pulling on the cord.
Do not use appliance on wet surfaces or to vacuum liquids, mud, ash and burning cigarette butts. Do not vacuum up any highly flammable or explosive substances or gases.
Do not unplug the vacuum cleaner with wet hands.
Do not operate the vacuum cleaner too close to healers and radials, slaves etc.
Before you start using the vacuum cleaner, please remove large or sharp objects from the floor to prevent damage to the cloth dust-bone.

INSTRUCTIONS FOR USE

Before placing into operation make certain that the filters are in the proper position.
Before using the appliance, unwind a sufficient length of cable and insert the plug into the power socket. A YELLOW mark on the power cable shows the ideal cable length. Do not extend the cable beyond the RED mark.
Press the ON/OFF button to switch the appliance on. It is advisable to set the power control to MIN before switching the appliance on.
To rewind the power cable, press the rewind button with foot, and guide the cable with hand to ensure that it does not whip causing damage.
By moving the variable power control, the suction power can be adjusted.

i Fu 42xx press.qxd 12/5/03 1:05 PM Page 9

PROGRESS PC 4206, 4207, 4208, 4220, 4260, 4280

MAINTENANCE

REPLACING THE DUSTBAG

Always operate the cleaner with the dustbag installed.
If you forget to attach the dustbag or attach it in the wrong manner, the dust cover may not close completely.

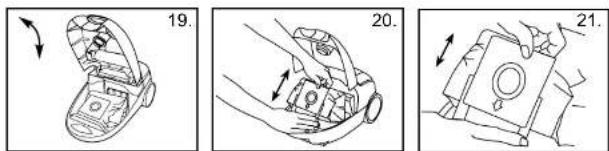

Allar removing the flexible hose, open the front pover (fig. 19).
Remove the custag and insert a new one (fig. 20, 21).
Close the cover by pressing down until it clicks (fig. 19).
Dustlog reference number: T120 / CT 120.
Dustbag reference number in Switzerland: M 06.

REPLACING THE FILTERS

The dustbag must be replaced if the window of the dustbag full indicator is completely red when the cleaner is operating at maximum power and the nozzle is raised from the floor.

Filters should be replaced at least twice a year or when they become visibly soiled.
Always operate the cleaner with fibers installed to avoid reduced suction.
Disconnect from electrical outlet before changing the filters.
Do not use a washing machine to rinse fiber
➢ Full dustbag upward and remove the motor protection filter (Fig. 22).
➢ Rinse the filter under tap water and dry it completely. (Fig. 2)
➢ Put the filter back into the cleaner (Fig. 22.)
Open the filter cover and remove the exhaust filter with grill. (fig. 24, 25) (PC 4206, 4207, 4220, 4260).
Take the fillers out of the grill (Fig. 26).
➢ Rinse the titars under tap water and dry them completely. (Fig. 23)
Place the filters back into the grill and put it back into the cleaner. (Fig. 26, 25)
Close the filter power (fig. 24).
HEPA filter (PC 4208, 4280): Take out the filter with grill, and change it for a new one (fig. 25)

PROTECTING THE ENVIRONMENT

➢ Attempt to recycle packaging material and old appliances.

The cardboard packaging can be placed in the waste paper collection.

➢ Deposit the plastic bag made of polyethylene (PE) at the PE collection point for recycling.

Recycling the Appliance at the end of its life:

The plastic components all carry a material identification marking so that, like the other materials, they can be recycled at the end of the life of the appliance.

➢ Please inquire with your local authority.

Blocked air flow and dirty filters:

The cleaner stops automatically if a blockage occurs in the nozzle, be hose or if the filters are blocked with dirt.
➢ Disconnect from mains and allow the cleaner to cool for 20-30 minutes. Remove blockage and/or clean filters.

Restart the cleaner.
