IGS1515 - Cooker Khind - Free user manual and instructions

Product Type	Infrared Gas Stove
Brand	Khind
Model	IGS1515
Fuel Type	LPG (Liquefied Petroleum Gas)
Burner Type	Infrared ceramic mesh
Number of Burners	2 (estimated)
Ignition	Manual piezo ignitor (press and turn)
Regulator Included	Yes, Triple Safety Gas Regulator (free)
Gas Hose Included	Yes, LPG hose (free, max 2 meters)
Installation	Must be installed by qualified person
Clearance from Walls	Minimum 150 mm
Material	Stainless steel body, ceramic burner plate
Dimensions (estimated)	600 x 400 x 100 mm (W x D x H)
Weight (estimated)	5 kg
Power Output (estimated)	2 x 2.5 kW (total 5 kW)
Safety Features	Triple safety regulator, leak test with soapy water
Warranty	Standard (void if regulator not used)
Care and Cleaning	Use soft cloth with warm soapy water; no abrasive cleaners; do not clean hot burner
Ceramic Mesh Cleaning	Use a pin to remove stuck food; liquid spills vaporize
Operating Principle	Infrared heat from ceramic plate
Ventilation	Maintain proper ventilation while cooking
Country of Origin	Exported to over 50 countries

Frequently Asked Questions - IGS1515 Khind

Will infrared heat pose any health risk?

No, it is not dangerous. Infrared heat is a form of heat energy emitted by sources like charcoal, ovens, and the sun. The Swedish National Institute of Radiation has concluded that infrared heat is safe for human health.

Is the Khind Infrared Gas Stove worth the extra cost?

Yes, it saves gas, helps cook better, and maintains a clean and healthy cooking environment.

Is it easy to operate?

Yes, it works like a conventional gas cooker. Simply press the ignitor knob, turn anticlockwise, and hold for 2-3 seconds until the burner lights.

How do I clean the ceramic mesh if food gets stuck?

Use a pin to remove any stuck food. For liquid spills like soup, leave them on; they will vaporize from the surrounding heat. Do not clean the burner when hot.

Does it save cooking time?

Yes, the cooking temperature is higher than normal gas stoves, saving time. For very short cooking (under 3 minutes), you may not notice time saving because the ceramic plate needs to heat up first.

How should I install the gas stove?

Installation must be done by a qualified person. Connect the hose to the LPG inlet pipe using a new hose and screw-type clip. Attach regulator to cylinder, turn lever downwards, and test for leaks with soapy water.

What should I do if I smell gas?

Immediately turn the regulator lever upward to stop gas supply. Open all windows for ventilation. Do not light matches, use lighters, or operate electrical switches. Contact a qualified technician.

Why is ventilation important while using the stove?

Proper ventilation prevents accumulation of gas and ensures safe combustion. Always maintain good airflow in the cooking area.

Can I use any gas hose with this stove?

No, use only the hose provided for free with the stove, which is specifically made for LPG. The hose must not be longer than 2 meters and should not contact the stove body.

Does the infrared burner require maintenance?

No maintenance of the infrared burner assembly is necessary; it is pre-tuned at the factory.

USER MANUAL IGS1515 Khind

Exported to over 50 countries worldwide

Silhouette of a person in a white hat standing on a globe, with no visible text or symbols.

Abstract graphic with green leaf and globe shapes, no text or symbols present

Infrared Gas Stove / 红外线煤气炉 / Dapur Gas Infra-Merah

Instruction Manual / 说明指示书 / Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书。并将之收藏以作日后参考。

(· For IGS1315 Left burner only 1 chamber and size is 130mm)

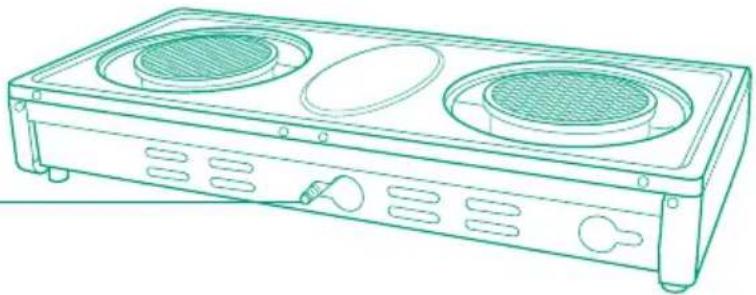

Line drawing of a portable electric stove with three burners and two outlets (no text or symbols)

Line drawing of a portable electric stove with two circular fans and a handle (no text or symbols)

LPG Inlet Pipe 煤气入口管

Salur Penyambung Gas (LPG)

Specification / 规格 / Spesifikasi

1. This Infrared Gas Stove must be connected to LPG cylinder with the FREE Triple Safety Gas Regulator provided. Failing which will void all warranty.

1. This appliance should be installed by a qualified person to avoid hazards.

以防意外，此器具须由技术人员安装。

3.

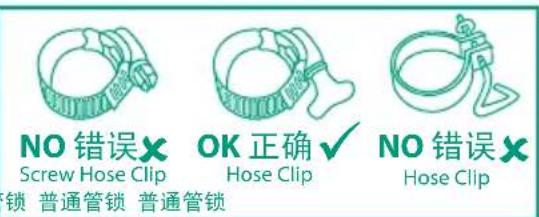

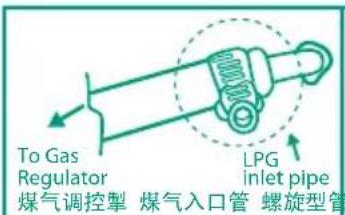

Connect hose to LPG inlet pipe. Recommend to use new hose and new hose clip (screw type). 将煤气管接至煤气入口管。建议使用新的煤气管和煤气管锁。（螺旋型管锁）

4.

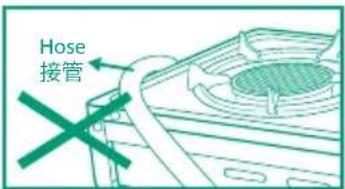

Use good quality LPG hose provided FREE. Ensure it is properly connected to inlet pipe and gas regulator. Make sure the hose does not pass over or come in contact with the body of the appliance.

onto outlet valve of LPG cylinder.

将煤气调控掣接去煤气桶。

1. Turn regulator control lever downwards to release LPG into appliance. 将煤气调控掣往下转以解放煤气。

2. After installation, test with soapy water for gas leaks. 安装后用肥皂水检查煤气外漏。

3. Do not use connecting hose that is longer than 2 metres. 勿使用超过2 m长的煤气管。

4. Observe minimum clearance distance 150mm from the walls. 确保煤气炉与墙壁有至少150mm的距离。

How to use / 使用方法

1. Turn on gas supply from LPG cylinder by turning the regulator control lever downwards. 确保煤气供应已接通。

2. Press ignitor knob and turn anti clockwise. Hold position for about 2-3 seconds until the burner is lighted. 将点燃钮按下，向左转。保持这姿态约二至三秒直到火已点燃整个燃烧器。

3. Air may be accumulated in the gas hose during installation. You may have to repeat above procedure several times initially.

1. No maintenance on the infrared burner assembly is necessary as they are pre-tuned by the factory. 红外线燃烧器无需调整，因为厂方已预先调好。

Caution / 注意事项

1. LPG used must correspond to the type as mentioned in specification table. 使用液体煤气（LPG）如规格指定。

2.

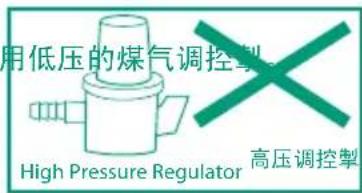

Use only approved Low Pressure Regulator.

1. Use only hose supplied FREE of charge which is made for Liquefied Petroleum Gas supplies. The hose must not come into contact with any part of the gas cooker body. 仅使用免费提供的的软管来供给液化石油气。确保它不会跟煤气炉任何部分接触。

2. Before using, check to ensure that the wok stand and spill tray are placed correctly. 使用前请确保锅架与汤盘已安装好。

3. Do not use this appliance for drying clothings etc. 别用此器具烘乾衣物。

4. Always maintain proper ventilation in cooking area at all times. 烹煮环境需确保空气循环良好。

5. If gas leak is found, stop gas supply by turning regulator control lever upward. Open all windows for ventilation. Do not light matches or use a lighter and refrain from turning electrical switches on and off during this period. Contact qualified technician immediately. 如发现煤气外漏，将煤气调控掣往上转以便把煤气关上。将窗子打开。别点燃火柴及打火机，或开关任何电器开关。尽快联络有关技术人员。

Care & Maintenance 保用及清洗

• Always allow the appliance to cool before cleaning. 清洗前确保器具已冷却。

• Use soft cloth with warm soap water for general cleaning. 用软布和温肥皂水清洗。

• Do not use caustic solutions, washing soda, aerosol spray cleaners, bleach and other abrasive chemical for cleaning.
  不要使用强烈的清洗剂或漂白剂清洗煤气炉。

• If you have accidentally spilled some liquid or solid food onto the ceramic mash, refer to item (4) under FAQ section for cleaning instruction.
  如果不小心倾倒液体或固体食物在陶瓷网罩上，请参读常问问题的第4题。
  DO NOT attempt to clean burner surface when still hot.
  严禁在陶瓷网罩烫热时清洗。

Frequently Asked Questions / 常问问题

1. Will Infrared heat pose any health risk?

Certainly NOT! It is just a form of heat energy given out by a heated source such as red hot charcoal, oven or ceramic furnace, fluorescent lamps, sun etc. In actual fact, human being and all warm-blooded living things constantly release infrared heat to the surrounding, but with less intensity. The Swedish National Institute of Radiation has concluded that Infrared heat is not dangerous to human health.

红外线危害健康？

1. Is Khind Infrared Gas Stove worth paying extra for?

Certainly Yes! Apart from helping you cook better, it saves gas. It also helps to maintain a clean and healthy cooking environment in your kitchen.

KHIND红外线煤气炉值得买妈？

1. Is it easy to operate?

Certainly Yes! Khind Infrared Gas Stove operates exactly like a conventional gas cooker.

It is easy to use.

方便使用吗？

1. How do you clean its Ceramic mesh if contaminated with food?

As the ceramic mesh has very small pores, it is very unlikely that solid food could pass through the pores and drop to the bottom. In case there is some soft food stuck in the pores, it can be removed with the help of a pin. If you have accidentally spilled some liquid food like soup over it, just leave it and it will vaporize by the surrounding temperature.

The cooking temperature generated by this Infrared Gas Stove is higher than normal gas stove. Saves your cooking time.

For simple cooking (less than 3 minutes) you may not enjoy time saving, because this Infrared Gas Stove needs time to heat up its ceramic plate to produce infrared heat.

贴士：
