Product Type	Freestanding Gas Cooker
Brand	Khind
Model	GC1009
Dimensions (W x D x H)	50 x 60 x 85 cm
Weight	30 kg
Energy Source	LPG / Natural Gas
Number of Gas Burners	4
Oven Type	Gas Oven with Grill
Oven Capacity	58 Liters
Ignition System	Electronic Ignition
Main Functions	Boiling, Frying, Baking, Grilling, Roasting
Safety Features	Flame Failure Device on Burners
Temperature Control	Adjustable Thermostat for Oven
Timer	Mechanical Timer with Bell
Interior Light	Oven Light Included
Easy Cleaning	Removable Oven Door, Enamel Interior
Maintenance	Wipe with Damp Cloth; Avoid Abrasives
Spare Parts Availability	Burners, Grates, Thermostat, Ignition Parts
Repairability	Modular design; Service centers nationwide
Warranty	1 Year Parts and Labor

Frequently Asked Questions - GC1009 Khind

How do I ignite the gas burners?

Press and turn the burner knob to the ignition position, then push the electronic ignition button until the flame appears. Some models have auto-ignition.
Note: Ensure gas supply is open.

What should I do if the oven does not heat up?

Check that the gas supply is connected and the oven knob is set to a temperature. If the flame is not lit, listen for clicking from the igniter. If no click, the igniter may need replacement.

How often should I clean the cooker?

Clean the burner caps and grates after each use. Wipe the hob and oven interior weekly with a damp cloth and mild detergent. Avoid using abrasive cleaners.

Can I use both the oven and grill simultaneously?

No, the oven and grill share the same burner system. Use only one function at a time to ensure proper heat distribution and safety.

What type of gas can I use?

The cooker is factory-set for LPG (liquid petroleum gas). For natural gas conversion, contact a qualified technician. Refer to the manual for nozzle specifications.

How do I replace the oven light bulb?

Disconnect the cooker from the power supply. Remove the glass cover by turning it counterclockwise. Replace with a 25W oven bulb (E14 base). Reattach the cover.

Why is the flame yellow and not blue?

A yellow flame indicates incomplete combustion. Check if burner ports are clogged. Clean them with a soft brush. Also ensure the air shutter is adjusted correctly. If problem persists, call a technician.

What are the dimensions of the cooker?

The approximate dimensions are 50 cm width, 60 cm depth, and 85 cm height. Allow at least 5 cm clearance on sides and rear for ventilation.

How do I set the timer?

Turn the timer knob clockwise to the desired time (up to 60 minutes). A bell will ring when time elapses. The timer does not automatically shut off the oven; it only sounds an alarm.

Where can I purchase spare parts?

Original spare parts are available at authorized Khind service centers and selected retailers. You can order online through the Khind website or call customer support.

USER MANUAL GC1009 Khind

Gas Cooker / 煤气炉 / Dapur Gas

Instruction Manual / 说明指示书 / Buku Panduan

KHIND®

Enjoy hassle-free customer service

1 Scan E-Warranty QR code or go to http://www.khind.com.my/e-warranty.html
2 Fill-up your details, product information & proof of purchase
HOTLINE [phone]

khind.com.my

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书。并将之收藏以作日后参考。

This manual is also available online.

P/N: 40-51538-00

▲ Safety Precaution Information

Safety & Warning Information

1. This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
2. Gas used is Liquefied Petroleum Gas (LPG).
3. Only use approved Low Pressure Regulator.

1. Only use hose specially made for liquefied petroleum gas supplies. The hose must not come into contact with any part of the gas cooker body.
2. Before using, check to ensure that the trivet stand are placed correctly.
3. Do not use this appliance for drying clothes.
4. Always maintain proper ventilation in cooking area.
5. If a gas leak is found, stop the gas supply by turning the regulator control lever upward. Open all windows for ventilation. Do not light matches or use a lighter and refrain from turning electrical switches on and off during this period. Contact a qualified technician immediately.
6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
7. Turn off the gas cooker whenever not in use.
8. Do not put flammable items on top of this appliance.
9. Do not touch metal parts of the appliance and middle area of the top surface during and after cooking as these areas reach high temperature.
10. Trivet stand is tighten below the gas cooker. Please do not operate the gas cooker without trivet stand.

Cleaning & Maintenance

1. Always allow the gas cooker to cool down before cleaning.
2. Use soft cloth with warm soap water for general cleaning.
3. Do not use caustic solutions, washing soda, aerosol spray cleaners, bleach and other abrasive chemicals for cleaning.
4. Do not attempt to clean burner surface when it still hot.

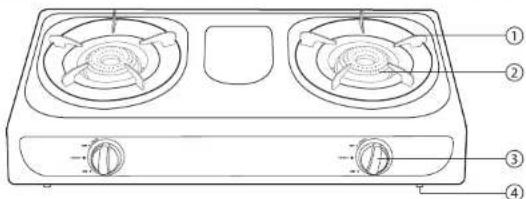

Parts Identification

1 Trivet Stand
② Beehive Burner
③ Flame Adjustment Knob
4 Rubber Feet
* Pictures are for illustration purpose only.

Specifications

Model	GC1009
Burner Size	Left: 90mm; Right: 90mm
Product Category	I3B/P(30)
Gas Type	LPG
Gas Pressure	3000Pa/30mBar
Total Heat Input	5.2kW
Gas Power Consumption	Left: 2.6kW / Right: 2.6kW
Net Weight	2.5kg
Product Dimension (LxWxH)	710 x 385 x 85mm

*Specifications are subject to change without prior notice.

Installation Guide

This appliance should be installed by a qualified person to avoid hazards.

1. Connect the hose to the gas regulator and LPG inlet pipe. Tighten the hose with the Screw Hose clip.

1. Make sure the hose does not pass over or come in contact with the body of the Gas Cooker.

1. Insert regulator onto outlet valve of LPG cylinder.

1. Turn regulator control lever downward to release LPG into the Gas Cooker.

1. After installation, test with soap water to test any gas leaks.
2. Do not use the hose that is longer than 2 meters.
3. Ensure minimum distance of 150mm from the wall and 1 meter from the ceiling.

How to Use

1. Turn on the gas supply from the LPG cylinder by turning the regulator control lever downwards. Make sure the knob of the Gas Cooker is at off position.

How to Use

1. Press the Flame Adjustment Knob and turn it anti-clockwise. Continue to press the knob for 3 - 8 seconds to operate the Gas Cooker.

1. Air may be accumulated in the gas hose during installation. You may have to repeat above procedure several times initially.
2. For maximum cooking heat, turn Flame Adjustment Knob to "MAX" position.

1. For minimum cooking heat, turn Flame Adjustment Knob to "MIN" position.

Troubleshooting

Problems	Observation	Problem-Solving
Ignition failed	a. The valve is not opened	Open the gas valve and supply the gas
	b. The hose is bent	Straighten it or replace with a new hose
	c. No gas in the cylinder	Replace with a new gas cylinder
	d. The nozzle or the burner is blocked	Pass through the blockage with a pin
	e. There is air inside the hose	Open the nozzle and then release the air
Other problems	a. There is gas leakage from the gas pipe	Please send to nearby service center
	b. The hose is broken	Replace the new hose
	c. There is no flame	Ignite again
