Product Type	Cylinder Vacuum Cleaner
Brand	Swan
Model	SC6010N
Motor Power	1200 W
Suction Power	250 Air Watts
Dust Capacity	2.5 L
Filtration Type	HEPA H13 Washable Filter
Cord Length	6 m
Operating Radius	8 m
Noise Level	78 dB
Weight	5.2 kg
Dimensions (W x D x H)	30 x 40 x 50 cm
Body Material	Plastic
Bag Type	Bagless
Accessories Included	Crevasse tool, dusting brush, upholstery nozzle
Variable Speed Control	Yes, electronic
Automatic Cord Rewind	Yes
Park System	Vertical park on handle
Cleaning on Floors	Hard floors and carpets
Maintenance	Wash filter every 3 months; empty dust container after each use
Safety Features	Thermal overload protection; CE certified
Spare Parts Available	Yes, filters and accessories online
Warranty	2 years

Frequently Asked Questions - SC6010N SWAN

How do I empty the dust container?

Press the release button on the top of the container, remove it, and open the bottom lid over a bin. Make sure to clean the filter regularly.

How often should I clean the HEPA filter?

Rinse the HEPA filter under running water every 3 months. Allow it to dry completely for 24 hours before reinstalling.

The vacuum is not picking up dirt properly. What should I do?

Check if the dust container is full, the filter is clogged, or the hose/brush is blocked. Also ensure the suction setting is high enough.

Can I use the vacuum on delicate surfaces like curtains?

Yes, use the appropriate brush accessory and set the suction power to low to avoid damage.

How do I replace the filter?

Turn off and unplug the vacuum. Open the filter compartment, remove the old filter, insert a new one, and close the compartment.

The cord doesn't rewind fully. What can I do?

Ensure the cord is not tangled or twisted. If the problem persists, contact Swan customer support for service.

What accessories are included with the SC6010N?

It comes with a combination crevice tool, a dusting brush, an upholstery nozzle, and a floor brush.

How do I clean the vacuum's brush roll?

Remove the brush from the floor head, use scissors to cut away tangled hair, and wipe with a damp cloth.

Is the vacuum bagless?

Yes, it is bagless. You empty the transparent dust container directly.

The vacuum smells bad. How to fix it?

Empty the dust container, wash the filter thoroughly, and clean the hose. If odor persists, replace the filter.

USER MANUAL SC6010N SWAN

Red HSPA vacuum cleaner with black handle and white body, displayed against black background (no text or symbols visible)

Cyclonic Vacuum Cleaner

For model: SC6010N

v2.0

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Do not leave appliance when plugged in. Unplug from outer when not in use and before servicing.
  • Do not use outdoor or on wet surfaces.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. Do not use hand vacuum if it has been dropped, damaged, left outdoors, or dropped in water. Return it to an authorised service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
  • Do not run appliance over cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked, keep free of dust, lint hair and anything that may reduce air flow.
• Keep hair, loose clothing, lingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
  • Turn off at the switch before unplugging.
  • Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Keep end of hose, wands and other openings away from your face and body.
• Do not use the hand vacuum cleaner without dust cup filter in place.
  • Always unplug this appliance before connecting or disconnecting hand vacuum hose.
• Store the hand vacuum indoors. Put the hand vacuum away after use to prevent tripping accidents.
• Using improper voltage may result in damage to the motor and possible injury to the user. Correct voltage is listed on the rating label.
  • Use only on dry, indoor surfaces.
• Do not use for any purpose other than described in this user's guide.
  • DO NOT USE EXTERNAL AUTOMATIC TIMERS IN CONJUNCTION WITH THIS PRODUCT
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarity qualified person in order to avoid hazard.

Parts & Assembly

Specification

Model No. SC6010N

220-240V\~50Hz

2000W

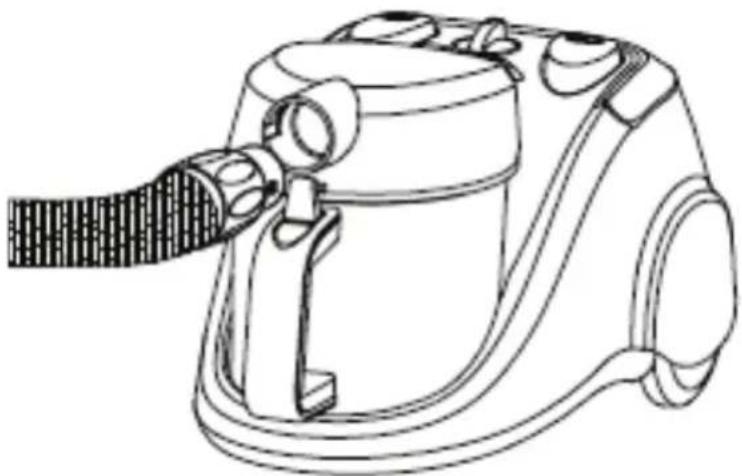

Fitting or removing the flexible hose

Insert flexible hose into the air intake duct on the top of appliance. Push and turn until it clicks into position.

Line drawing of a vacuum cleaner device with handle and control panel (no text or symbols)

To remove

Remove the plug from the power socket. Turn and pull the hose.

How to Use

Fitting the extension tubes Tools

Line drawings of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

Ideal for furniture, venation, blinds, book, lamp shades and shelves

Technical line drawings of a mechanical component, one showing a cylindrical part and the other a conical gear assembly (no text or symbols)

Crevice tool Brush tool

Line drawing of a mechanical component with no visible text or symbols

Fitting the floor brush

Extension Tube

Dusting tool

How to Use

Before using appliance, unwind a sufficient length of cable and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Don't extend the cable beyond the red mark.

1. Press the ON/OFF button to switch the appliance on.

To rewind the power cable, press the rewind button with one hand and guide the cable with the other hand to ensure that it does not whip causing damage

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Swan designed for life

Cleaning and Maintenance

Always remove the plug from the power socket before maintenance/cleaning

Empty debris from the dust compartment subassembly

Always operate the cleaner with the dust compartment subassembly fully installed.

If you forget to attach HEPA and filter or attach its in the wrong manner, the dust compartment subassembly may not clean

After removing the flexible tube, hold handle and press the locking button. Rotate the front-cover compartment subassembly to the correct position.

Line drawing of a mechanical component before and after assembly (no text or symbols)

Take out the inlet HEPA filter compartment directly. Remove the dust cap and empty rubbish Replace the dust compartment subassembly until it is locked

Cleaning and Maintenance

Cleaning and changing HEPA filter

HEPA for air-inlet/air outlet should be cleaned at least twice a year or when it becomes visibly blocked

Always operate the cleaner with air-inlet/air outlet installed otherwise, reduced suction or motor damage may be result.

Disconnect from electrical outlet, before cleaning filter.

Do not use a washing machine to rinse filter.

Do not use hair drier to dry it.

(1) After opening the dust-glass cap subassembly, take out air inlet HEPA

(2) Remove HEPA bracket.

Helpline Number: 01733 404703

WWW.SWAN-BRAND.CO.UK

Cleaning and Maintenance

(4) Rinse bracket and HEPA in lukewarm water and dry Filter and HEPA completely.

(HEPA is rinsed by brush.)

Simple line drawing of a sun above a window frame with an arrow indicating direction (no text or symbols)

Simple line drawing of a sun above a cylindrical object on a base, no text or symbols present.

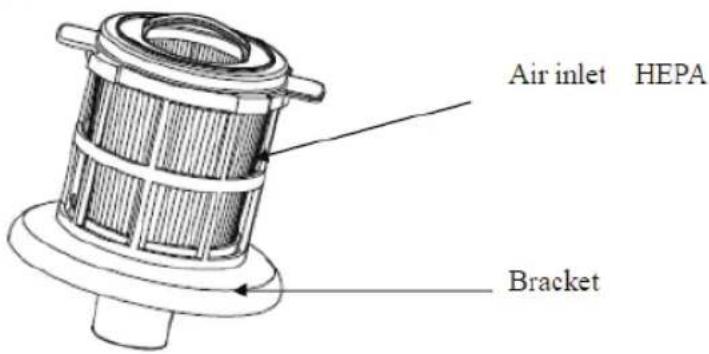

(5) Put the HEPA into the bracket or change new HEPA, then put them back.

Changing air outlet HEPA

(1) Open the grille for air-outlet.
(2) When open the grille for air-outlet, the filter for air-outlet is found.

(3) Rinse HEPA in lukewarm water with brush and dry completely.

Parts List

If you need to order spares for your vacuum cleaner please use the following references:

SC6010N -001: Inlet HEPA Filter

SC6010N-002: Outlet HEPA Filter

SC6010N-003: Crevice tool

SC6010N-004: Brush tool

SC6010N-005: Dusting tool

SC6010N-006: Floor brush

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

Helpline Number: 01733 404703

WWW.SWAN-BRAND.CO.UK

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recylcenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Two Year Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase.

The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.

Declaration of EC Conformity

We Swan Products Ltd Declare that this product conforms to all the following product legislation. In accordance with the following directive(s):

2004/108/EEC. The Electromagnetic Compatibility Directive

2006/95EC. The LVD directive (Low Voltage Directive)

2011-65-EU. The RoHS. Directive. (Restriction of Hazardous substances Directive)

Kev Stewart

Product Manager

CE

Swan Brand Heritage

Exterior view of a multi-story brick industrial building with vintage trucks parked in front (no visible signage or text)

Camden St, Birmingham

Did you know...

Components for the Swan Teasmade were still being made at the original Bullpitt & Sons factory on Camden St, Birmingham as recently as 2006.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Stylized white and gray swan logo design on black background (no text or symbols)

www.swan-brand.co.uk

Scan this QR code to hear about our story

We love what we do

we're proud of our quality

Find us on Facebook

Copyright © 2012

Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD
