Product Type	Vacuum Cleaner
Brand	Swan
Model	Lynsey SC18410QOCN
Power Source	Corded Electric
Motor Power	1200 W
Suction Power	Adjustable, Max 20 kPa
Dust Capacity	1.5 L (Bagless)
Filtration System	HEPA H13 Washable Filter
Noise Level	78 dB(A)
Cord Length	5 m
Weight	4.5 kg
Dimensions (HxWxD)	25 x 25 x 110 cm
Cleaning Path Width	30 cm
Attachments Included	Crevice Tool, Dusting Brush, Upholstery Nozzle, Extension Wand
Storage	Vertical Stand with Accessory Holder
Maintenance	Empty Dust Bin After Use, Wash Filter Monthly
Safety Features	Overheat Protection, Automatic Shut-off
Repairability	Filter and Brush Roll Replaceable
Warranty	2 Years

Frequently Asked Questions - Lynsey SC18410QOCN SWAN

How do I empty the dust bin?

Press the release button on the dust bin and pull it out. Hold it over a trash can, press the bottom release to open the lid, and empty the contents. Wash the bin with warm water and let it dry completely before reattaching.

How often should I wash the filter?

Wash the HEPA filter at least once a month. More frequently if you have pets or use the vacuum heavily. Let it air dry for 24 hours before reinstalling. Never use a wet filter.

The vacuum has lost suction, what should I do?

Check for blockages in the hose, wand, and brush roll. Empty the dust bin if full. Clean or replace the filter. Ensure the brush roll is free of hair and debris.

Can I use it on hardwood floors?

Yes, it is safe for hardwood floors. Use the appropriate floor setting or turn off the brush roll if provided. The included soft bristle brush head is ideal for hard floors.

How do I clean the brush roll?

Turn off and unplug the vacuum. Remove the brush roll cover (refer to manual). Use scissors or a seam ripper to cut away tangled hair and fibers. Wipe the brush roll with a damp cloth.

What is the warranty period?

The Swan Lynsey SC18410QOCN comes with a 2-year warranty against manufacturing defects. Retain your receipt for proof of purchase.

The vacuum overheated and shut off, what now?

Turn off and unplug the vacuum. Let it cool for at least 30 minutes. Check for blockages and clean the filter. Once cool, it should restart normally.

Where can I buy replacement filters?

Replacement HEPA filters (model SWAN-FIL1) are available on the Swan website, Amazon, and other online retailers. Contact Swan customer support for genuine parts.

Is the vacuum bagless?

Yes, it is bagless with a 1.5L transparent dust bin. You can see when it needs emptying. No need to buy bags.

Can I use the vacuum with a long extension cord?

Yes, but use a cord rated for at least 10 amps and fully unwound to avoid overheating. Keep the extension cord length under 10 meters.

USER MANUAL Lynsey SC18410QOCN SWAN

Pink electric vacuum cleaner with a white cloth, displayed against a pink background (no visible text or symbols)

Handheld

Carpet Cleaner

Multi-purpose Cleaning Device

We love what we do

We're proud of our quality

A Word from Lynsey Queen of Clean

Thank you so much for purchasing from my range!

Over my 18 year career in home care I have always dreamed of creating ingenious cleaning tools that make housework a pleasure, not a chore.

Swan Brand and I have combined our expertise to turn my day-dreams into a gleaming reality, with fabulous products that'll transform your busy household into a sparkling, pristine palace.

Let's get cleaning!

Woman standing in a kitchen holding a vacuum cleaner, surrounded by bookshelves and appliances (no visible text or symbols)

Hand holding a pink electric shaver placed on a chair, no visible text or symbols

Important Safety Information

Please read this instruction manual carefully and keep in a safe place for future reference.

• Do not use outdoors, the cleaner is for household use only.
• Do not leave the cleaner unattended when plugged in.
• Unplug from the mains power supply when not in use, before filling, emptying or cleaning.
• The cleaner is not a toy. Pay close attention when using it near children, pets and/or plants.
• Young children should be supervised to ensure that they do not play with the cleaner.
  • Use the appliance only as described in this manual.
• Only use commercially available carpet and upholstery cleaning fluids, this includes Swan's Dirtmaster Carpet Detergent 250ml (SDMWDV250) and 1L (SDMWDV1000).
• Do not use the product if it has a damaged power cord. If the power cord is damaged, it must be replaced by a qualified electrician.
• If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, have it checked and repaired by a qualified person before using it again.
• Do not pull or carry the product by the power cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners.
• Keep the cord away from heated surfaces.
• Do not use an extension cord or outlets with inadequate current carrying capacity.

Important Safety Information

• Do not unplug by pulling on the power cord. To unplug, pull on the plug, not the cord. Do not handle the plug or cleaner with wet hands or operate without shoes.
• Do not put any objects into any of the openings. Do not use with any opening blocked.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lit.
• Never turn the appliance onto its side when using it.
• When the cleaner is turned off, residual water or cleaning fluid may leak out, it is therefore advised to store the cleaner on an old cloth when not in use.
• Do not immerse the cleaner into water or any other liquids.
• Always unplug the power cord from the electrical socket when filling the cleaner.
• Never put de-scaling, aromatic or detergent products into the cleaner, as this may damage it or make it unsafe to use.
• Any repair work, including the replacement of the power cord must only be carried out by a qualified electrician.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the cleaner by a person responsible for their safety.
• Do not use the cleaner as a conventional vacuum; small particles or dust can block suction channels and affect the cleaner's efficiency.

Important Safety Information

• Always make sure the cleaner is on a flat surface and there is no risk of it tipping over as water could leak out of the tanks.
• Always turn off the cleaner and remove the plug from its socket before filling or emptying the water tanks.
- Do not use excessive water on carpet or upholstery. For stubborn stains allow the area to dry completely before repeating the process.
- This product has been designed for spot cleaning and not for large areas.
• Not suitable for commercial purposes.

Technical Specifications

Description: Handheld Carpet Cleaner

Model: SC18410QOCN

Input Voltage: 220-240V

Frequency: 50Hz

Power consumption: 500 Watts

Fresh water tank capacity: 300ml

Dirty water tank capacity: 900ml

Electrical class: 1

CAUTION!

Do not immerse in water

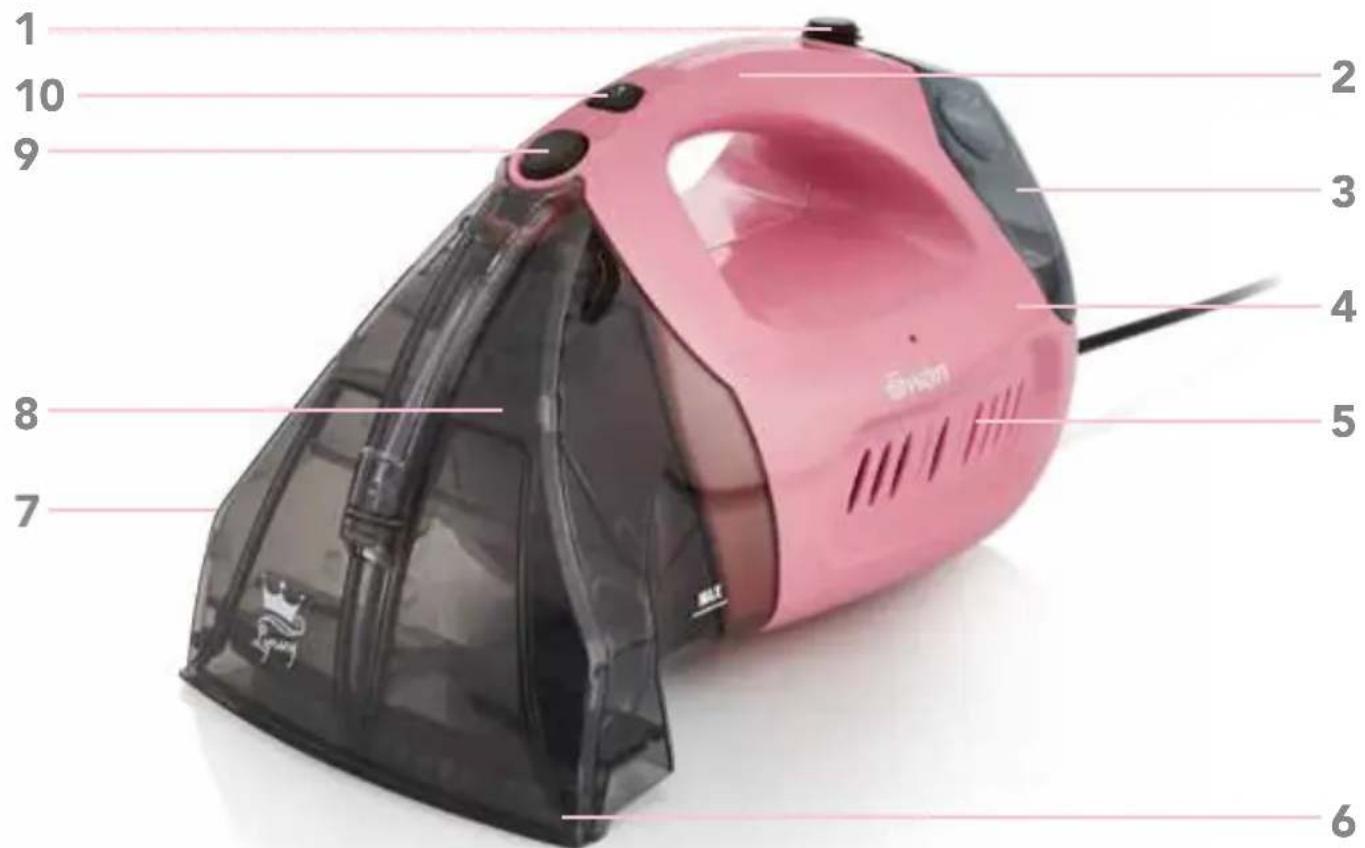

Product Description

1. On/off switch 6. Suction nozzle brush
2. Handle 7. Cap to the dirty water tank
3. Fresh water tank 8. Dirty water tank
4. Main unit 9. Release button for dirty water tank
5. Exhaust filter 10. Button for spraying water and/or cleaning solution

Product Description

This carpet and upholstery cleaner is perfect for removing unwanted spots and stains on carpets around the home or on other small areas of fabric such as car seats, chairs and sofas.

Note: the carpet cleaner is designed to clean only small areas of carpet or fabric.

Before First Use

1. Carefully remove your appliance from the packaging and remove all packing materials.
2. To avoid danger, always keep packaging materials (plastic bags, polystyrene, etc.) away from children. Dispose of the packaging in a responsible manner.
3. Check that the main product, the accessories, the power cord and the plug are in good condition and show no signs of damage.

Instructions for Use

Preparing the upholstery or carpet to be cleaned

1. Vacuum the area fully; if possible, remove all furniture from the carpet area to be cleaned. If large pieces of furniture can't be moved, place plastic sheeting around the base to protect it from any water damage to the legs.

Instructions for Use

1. Check the upholstery or carpets colour-fastness. Dip a piece of white fabric into the cleaning solution that you are using (see section "Preparing the Cleaner/Filling the Fresh Water Tank") and carefully rub a hidden part of the area to be cleaned. If the fabric does not discolour, you can clean the surface safely with the chosen solution and cleaner. For multi-coloured surfaces test all colours for colour-fastness.

Preparing the cleaner/filling the freshwater tank

CAUTION! Only use commercially available carpet and upholstery cleaning fluids, this includes Swan's Dirtmaster Carpet Detergent 250ml (SDMWDV250) and 1L (SDMWDV1000).

Do not use any high foaming cleaners as an excessive amount of foam impairs the function of the cleaner and can block the vent.

1. Hold the cleaner by the handle and release the freshwater tank by holding the 2 upper indentations and pulling until the tank comes off.
2. The refilling cap on the base of the clean water tank should be unscrewed and removed.
3. Fill the tank with the chosen cleaner and warm water to a (maximum of 40° C), following the ratio mixing levels for water to cleaning solution. It is advised to do this in a jug prior to filling the tank.
4. Fill the freshwater tank to the 'Max' level, replace the cap and mount the tank back onto the cleaner. Apply slight pressure and it will snap back into its location.

Instructions for Use

Cleaning carpet / upholstery

CAUTION! When the cleaner is turned off residual water or cleaning fluid may leak out, it is advised that you have a cloth ready during use to lay the cleaner on when not in use.

1. Plug the cleaner into an easily accessible socket close to the working area and turn on the power.
2. Push the on/off switch to I position.
3. Push the cleaner forward in a straight line on the carpet/upholstery. To spray cleaning solution onto the area, press the spray button and make gentle forward and backward movements to work the solution into any stubborn stains.
4. Now go back over the treated area and the dirty water will be vacuumed up.
5. Repeat this slightly overlapping the area you have treated.
6. In the event of really stubborn stains, go over the area several times, allowing the area to dry between each clean.
7. When the dirty water tank fills to the 'Max' level mark, it needs to be emptied (see "Cleaning and Maintenance" section).
8. When you have finished cleaning, turn the cleaner off and remove the plug from the socket.

After Use

Clean up any water or cleaning solution that may have splashed onto other surfaces.

Do not sit or step on cleaned area until it dries completely.

When completely dry, use a standard vacuum with a brush adapter to clean the carpet or upholstery.

Cleaning and Maintenance

CAUTION! Do not use any chemical cleaners to clean the device, they may harm it. The water tanks must be emptied and rinsed out before the cleaner is put away.

1. Make sure the cleaner is switched off and the plug disconnected from the mains socket.
2. Empty the dirty water tank by firstly pushing the release button to remove it from the main unit.
3. Open the cap on the side of the tank and pour out the dirty water. Rinse the tank thoroughly with clean warm water.
4. Empty any remaining clean water and solution from the clean water tank and rinse thoroughly with clean warm water.
5. Allow all parts to dry completely before storing.
6. When reattaching the dirty water tank, ensure that the two recesses on the bottom of the tank are engaged with the catches on the main unit. You should hear a click as it locks into place.

Two pink electric fans, one shaped like a plastic bag and the other with black filter cover (no text or symbols visible)

Spares

To order spare parts please visit our website:

www.swan-brand.co.uk

Replacement Part Part Number

Suction Top SC18410QOCN001

Water Tank SC18410QOCN002

Plug Wiring

These safety instructions should be read carefully and kept in a safe place for future reference.

This appliance is fitted with a plug that complies with BS 1363. Only high quality 13A (square pin) plugs that comply with this standard should be fitted.

Wires are coloured as follows:

Brown – Live

Blue - Neutral

Yellow & Green – Earth

If the appliance is fitted with a 2-core cable it is double insulated and will not have the yellow and green earth wire.

IT IS ESSENTIAL THAT WIRES ARE ATTACHED ONLY TO THEIR DESIGNATED POSITIONS IN THE PLUG.

Fuses must be replaced with the same rating as the original; please refer to the fuse rating stated on the plug for this information. Only genuine fuses compliant with BS 1362 should be used.

Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
  • It does not cover wear and tear, damage, misuse or consumable parts.
  • Swan Products Ltd has limited liability for incident or consequential loss or damage.
  • This guarantee is valid in the UK and Eire Only.

Helpline: 0333 220 6050

Find advice online: www.swan-brand.co.uk/support

Disposal of Unit

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately.

Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
