Killer Whale Premium - Computer Cooling Component DeepCool - Free user manual and instructions

Product Type	CPU Air Cooler
Brand	DeepCool
Model	Killer Whale Premium
Compatible Sockets	Intel LGA 1200/115x, AMD AM4/AM3+
Dimensions (W x D x H)	129 x 103 x 158 mm
Weight	1050 g (with fan)
Fan Size	120 x 120 x 25 mm
Fan Speed	500 - 1800 RPM ± 10%
Airflow	75.8 CFM
Noise Level	17.8 - 31.6 dBA
Power Consumption (Fan)	2.64 W (12 V, 0.22 A)
Connector	4-pin PWM
Heatpipes	6 x 6 mm copper heatpipes
Fin Material	Aluminum fins
Base Material	Copper base with direct contact
Maximum TDP	180 W
Maintenance	Periodically clean with compressed air
Safety	Ensure secure mounting to prevent damage
Spare Parts Availability	Replacement fans and mounting kits available
Warranty	2 years

Frequently Asked Questions - Killer Whale Premium DeepCool

What is the compatibility of the DeepCool Killer Whale Premium?

It supports Intel LGA 1200/115x and AMD AM4/AM3+ sockets.

Does it come with thermal paste pre-applied?

Yes, thermal paste is pre-applied on the base for easy installation.

What is the noise level of the cooler?

The noise level ranges from 17.8 dBA at idle to 31.6 dBA at full speed.

How do I install the cooler?

Refer to the included manual. Generally, attach the mounting bracket to the motherboard, apply the cooler onto the CPU, and secure it using screws or clips. Connect the fan to the CPU fan header.

Can I use this cooler with a Ryzen 7 or Intel i7?

Yes, with a maximum TDP of 180W, it can handle high-end CPUs like Ryzen 7 and Intel i7 under normal workloads.

How often should I clean the cooler?

Clean every 6-12 months by blowing compressed air through the fins to remove dust buildup.

Is the fan replaceable?

Yes, the 120mm PWM fan can be replaced with any standard 120mm fan.

Does the cooler support RGB lighting?

No, the Killer Whale Premium does not feature RGB lighting; it focuses on performance.

What is the warranty period?

DeepCool provides a 2-year warranty against manufacturing defects.

Can I use this cooler in a small form factor case?

The cooler height is 158 mm, so ensure your case has sufficient clearance for CPU coolers.

USER MANUAL Killer Whale Premium DeepCool

This installation guide is applicable for all ICEWING 5 and KILLER WHALE series.

1. All specifications subject to change without notice.
2. Under no condition shall Deepcool be liable for any indirect, incidental or consequential damages arising from any defect or error in this manual or product.
3. Please ask for professional help if you are not sure of safe installation.
4. Installation manual in other languages is available on our website: www.deepcoolglobal.com.

警告声明：

Technical line drawing of a computer fan with cooling fins and heatsink (no text or symbols)

ICEWING 5 冰翼5

Technical line drawing of a mechanical device with no visible text or symbols

KILLER WHALE 黑虎鲸

产品示意图

PRODUCT SCHEMATIC DRAWING

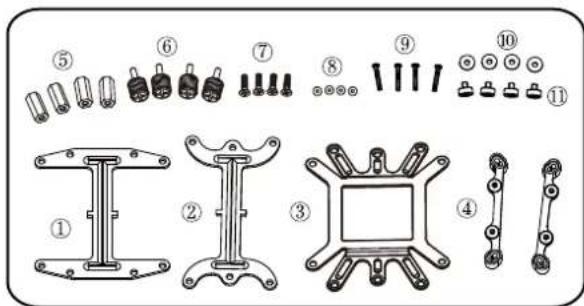

COMPONENTS LIST 零部件说明

1) Retention Plate(Intel) 工型扣具UI 1PC
2) Retention Plate(AMD) 工型扣具UA 1PC
3) Back Plate 背板 1PC
4) LGA1366/1156 Retention Bracket 1366/1156转接架 2PCS
5) Hex-head Nut 六角螺母 4PCS
6) Thumb Screw 螺丝A 4PCS
7) Flat Screw 十字螺钉 4PCS
8) Washer 垫片A 4PCS
9) Panhead Screw 长十字螺钉 4PCS
10) Insulating Washer 绝缘胶垫 4PCS
11) LGA1366/1156 Rivet Nut 背铆钉 4PCS

INTEL LGA775 Installation 安装步骤

Put the back plate onto the back of the motherboard and insert the flat screws through the LGA775 mounting holes.
如图所示，放好背板，将十字螺丝穿过背板对应的LGA77S孔位。

Diagram of a mechanical assembly with a tool interacting with a component, surrounded by test tubes (no text or symbols)

Evenly apply a thin layer of thermal grease onto the processor.
将导热膏均匀涂在CPU表面。

Technical line drawing of a mechanical assembly with no visible text or symbols

Finish the installation by connecting the fan cable to the motherboard.
将风扇插头插在主板相应位置，确认无误后完成安装

Isometric illustration of a microchip mounted on a circuit board with multiple components (no text or symbols)

Slip the washers on the flat screws protruding out of the motherboard, and thread the hex-head nuts on the screws to secure the back plate.
将垫片A装置穿过主板的十字螺钉上，然后用六角螺母锁紧背板。

Technical line drawing of a mechanical assembly with no visible text or symbols

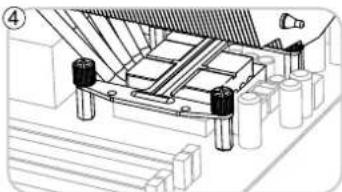

Put the heatsink onto the processor, and put the retention plate(Intel) across the heatsink base, then secure the heatsink by threading the thumb screws into the hex-head nuts.
将散热器放在CPU上，注意底部与CPU表面完全解除，然后放入工型扣具UI，使其LGA775孔位与六角螺母对齐，将螺母A穿过工型扣具，锁入六角螺母，用手拧紧。

AMD AM3/AM2+/AM2 Installation 安装步骤

Remove the original retention frame from the motherboard.
将主板上原有塑胶框拆除。

Put the back plate onto the back of the motherboard, insert the flat screws through the AM3/AM2+/AM2 mounting holes as circled.
如图所示，放好背板，将十字螺钉穿过背板对应的AM3/AM2+/AM2孔位。

Isometric technical diagram of a microchip mounted on a circuit board with multiple pins and components (no text or symbols)

Slip the washers on the flat screws protruding out of the motherboard, and thread the hex-head nuts on the screws to secure the back plate.
将垫片A装置穿过主板的十字螺钉上，然后用六角螺母锁紧背板。

Illustration of a pipette dispensing liquid onto a sample block, with test tubes in the background (no text or symbols)

Evenly apply a thin layer of thermal grease onto the processor.
将导热蓄均匀涂在CPU表面。

Technical diagram of a mechanical assembly with multiple components and no visible text or symbols

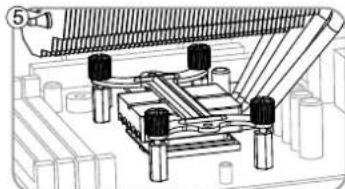

Put the heatsink onto the processor, and put the retention plate(AMD) across the heatsink base, then secure the heatsink by threading the thumb screws into the hex-head nuts.
将散热器放在CPU上，注意底部与CPU表面完全接触，然后放入工型扣具UA，使其AM3/AM2+/AM2孔位与六角螺母对其，将螺母A穿过工型扣具，锁入六角螺母，用手拧紧。

Diagram of a mechanical assembly with gears and a central component (no text or symbols)

Finish the installation by connecting the fan cable to the motherboard.
将风扇插头插在主板相应位置，确认无误后完成安装。

INTEL LGA1366/1156 Installation 安装步骤

Peel off the film of insulating washer from one side and stick it onto the LGA1366/1156 rivets.
撕开绝缘胶垫一面胶纸，贴纸背铆钉上面

Technical line drawing of a mechanical assembly with no visible text or symbols

Fasten the LGA1366/1156 retention brackets onto the motherboard by threading panhead screws into the LGA1366/1156 rivets.

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Put the heatsink onto the processor, and put the retention plate(Intel) across the heatsink base. 将散热器放在CPU上，注意底部与CPU表面完全接触，然后放入工型扣具UI，使其箭头所指孔位对准转接架键钉。

Technical line drawing of a mechanical assembly with cylindrical components and a bracket (no text or symbols)

Finish the installation by connecting the fan cable to the motherboard. 将风扇插头插在主板相应位置，确认无误后完成安装。

Isometric view of a rectangular electronic component with four circular pins, placed on a base with no visible text or symbols.

Peel off the other film of insulation washers, stick them onto the back of the motherboard. 撕开绝缘胶垫另一面胶纸，将背铆钉对准主板孔位放置，压紧。

Illustration of a mechanical assembly with a tool interacting with a component (no text or symbols visible)

Evenly apply a thin layer of thermal grease onto the processor. 将导热膏均匀涂在CPU表面。

Mechanical assembly diagram showing a heat exchanger or cooling unit with cooling fins and cooling elements (no text or labels visible)

Secure the heatsink by threading the thumb screws into the retention bracket. 用螺丝A穿过工型扣具对用孔位，锁入转接架铆钉，用手拧紧。

AMD K8 Installation 安装步骤

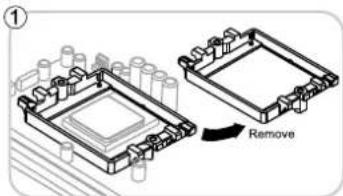

Remove the original retention frame from the motherboard.
将主板上原有塑胶框拆除。

Put the back plate onto the back of the motherboard, insert the flat screws through the AM3/AM2+/AM2 mounting holes as circled.
如图所示，放好背板，将十字螺钉穿过背板对应的AM3/AM2+/AM2孔位。

Technical diagram of a microchip assembly with cylindrical components and mounting holes (no text or labels)

Slip the washers on the flat screws protruding out of the motherboard, and thread the hex-head nuts on the screws to secure the back plate.
将垫片A装在穿过主板的十字螺钉上，然后用六角螺母锁紧背板。

Illustration of a sewing machine needle stitching a layered block (no text or symbols)

Evenly apply a thin layer of thermal grease onto the processor.
将导热膏均匀涂在CPU表面。

Technical diagram of a mechanical assembly with no visible text or symbols

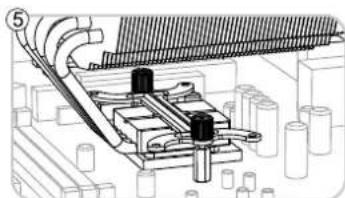

Put the heatsink onto the processor, and put the retention plate(AMD) across the heatsink base, then secure the heatsink by threading the thumb screws into the hex-head nuts.
将散热器放在CPU上，注意底部与CPU表面完全解除。然后放入工型扣具UA，使其KB孔位与六角螺母对其，将螺丝A穿过工型扣具，锁入六角螺母，用手拧紧。

Technical diagram of a mechanical assembly with no visible text or symbols

Finish the installation by connecting the fan cable to the motherboard.
将风扇插头插在主板相应位置，确认无误后完成安装。
