Product Type	Freestanding Fridge-Freezer
Model Number	CNE63520PX
Brand	Beko
Width	600 mm
Height	1850 mm
Depth	650 mm
Net Weight	70 kg
Energy Rating	A+
Total Net Capacity	340 L
Fridge Net Capacity	240 L
Freezer Net Capacity	100 L
Freezer Type	Frost Free
Noise Level	40 dB
Climate Class	N/ST
Temperature Control	Electronic with LED display
Cooling System	NeoFrost (dual cooling)
Interior Light	LED
Shelves Material	Safety glass
Reversible Door	Yes
Defrost Method	Automatic (frost free)
Annual Energy Consumption	290 kWh/year
Refrigerant	R600a (isobutane)

Frequently Asked Questions - CNE63520PX BEKO

How do I set the temperature on my Beko CNE63520PX fridge-freezer?

Use the electronic control panel on the front. Press the Fridge or Freezer button repeatedly to cycle through temperature settings. The recommended settings are 4°C for the fridge and -18°C for the freezer.

Why is my fridge making a loud buzzing noise?

A slight buzzing sound is normal from the compressor. However, if it becomes loud, check that the appliance is level on the floor and not touching any walls or cabinets. Also ensure the back is clean and ventilated.

How often should I clean the condenser coils?

Clean the condenser coils located at the back of the fridge every 6 months using a vacuum cleaner with a brush attachment. This helps maintain energy efficiency.

Does the Beko CNE63520PX have a water dispenser?

No, this model does not include a built-in water or ice dispenser. It is a standard fridge-freezer with no plumbing connection.

How do I reverse the door opening direction?

The door is reversible. Refer to the user manual for step-by-step instructions. You will need to move hinges and handle to the opposite side. Basic tools like a screwdriver and spanner are required.

What should I do if the freezer is not freezing properly?

First, check that the temperature setting is correct (-18°C). Ensure the door is sealing properly and the condenser coils are clean. If the problem persists, there may be a fault with the thermostat or compressor; contact a qualified technician.

How do I defrost the freezer?

This model features Frost Free technology, so manual defrosting is not needed. The appliance automatically defrosts itself, and water is evaporated via a drainage system.

Can I change the interior LED light bulb?

The interior LED light is built-in and not user-replaceable. If it fails, please contact Beko customer service or a qualified technician for assistance.

What is the maximum ambient temperature for this fridge?

The fridge is designed to operate in ambient temperatures between 10°C and 43°C, depending on the climate class (N/ST). Avoid placing it in direct sunlight or near heat sources.

How can I save energy with my Beko fridge?

Keep the fridge away from heat sources, ensure the door seals are clean and tight, allow hot food to cool before storing, and set the temperature to the recommended 4°C (fridge) and -18°C (freezer). Also, defrost the freezer regularly if manual defrost is needed, but this model is frost-free.

USER MANUAL CNE63520PX BEKO

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product. Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Your Refrigerator 3

2 Important Safety Warnings 4

Intended use ....4 For products with a water dispenser; .6 Child safety 6 HCA Warning 6 Things to be done for energy saving ..7 Recommendations for freshfood compartment ....7

3 Installation 8

Preparation 8 Points to be considered when re-transporting your refrigerator .....8 Before operating your refrigerator .....9 Electric connection .....9 Disposing of the packaging .....9 Disposing of your old refrigerator .....10 Adjusting the feet 10 Placing and Installation ....10

4 Using your refrigerator 11

Indicator Panel 11 Egg tray 13 Blue light 13 Sliding Body Shelves .....14 Chiller compartment 14 Crisper 15

5 Maintenance and cleaning 16

Protection of plastic surfaces ..... 16

6 Recommended problem solving 17

1 Your Refrigerator

1- Fridge compartment 2- Diffuser cover 3- Illumination lens 4- Fridge compartment glass shelves 5- Chiller compartment 6- Crisper

7- Icematic 8- Freezing compartments 9- Freezer compartment 10- Ventilation lid 11- Fridge compartment door shelves 12- Bottle shelf

Figures in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes;

– in closed working environments such as stores and offices;

– in closed accommodation areas such as farm houses, hotels, pensions.

- This product should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

- Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

- For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

- For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

- Do not touch frozen food by hand; they may stick to your hand.

- Unplug your refrigerator before cleaning or defrosting.

- Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

- Never use the parts on your refrigerator such as the door as a means of support or step.

- Do not use electrical devices inside the refrigerator.

- Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

- In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.
• Place the beverage with higher proofs tightly closed and vertically.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended for use by persons with physical, sensory, or mental disabilities, or by unlearned or inexperienced people (including children), unless they are supervised by a person responsible for their safety or who has instructed them on the proper use of the product.
• Do not operate a damaged refrigerator. If you have any concerns, consult the service agent.
• The electrical safety of your refrigerator is only guaranteed if the grounding system in your house complies with standards.
• Exposing the product to rain, snow, sun, or wind is dangerous with respect to electrical safety.
• Contact authorized service if the power cable is damaged to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended only for storing food items. It must not be used for any other purpose.
• The label with technical specifications is located on the left wall inside the refrigerator.
• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.
• If the refrigerator has a blue light, do not look at it with optical tools.
• For manually controlled refrigerators, wait at least 5 minutes before restarting after a power failure.
• This operation manual should be handed over to the new owner if the product is transferred.
• Avoid damaging the power cable when transporting the refrigerator. Bending the cable may cause fire. Never place heavy objects on the power cable. Do not touch the plug with wet hands when plugging in the product.

• Do not plug the refrigerator if the wall outlet is loose.
• For safety reasons, do not spray water directly on the inner or outer parts of the product.
• Do not spray substances containing flammable gases, such as propane gas, near the refrigerator to avoid the risk of fire and explosion.
• Never place containers filled with water on top of the refrigerator, as this may cause electric shock or fire.
• Do not overload your refrigerator with excessive amounts of food. If overloaded, food items may fall

down and injure you or damage the refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator door.

• Vaccines, heat-sensitive medicines, scientific materials, and similar items should not be kept in the refrigerator, as they require precise temperatures.
• If the refrigerator is not to be used for a long time, it should be unplugged. A possible problem in the power cable may cause fire.
• The plug's tip should be regularly cleaned; otherwise, it may cause fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
• The refrigerator may move if the adjustable legs are not properly secured on the floor. Properly securing the adjustable legs on the floor can prevent the refrigerator from moving.
• When carrying the refrigerator, do not hold it by the door handle. Otherwise, it may break.
• If you have to place your product next to another refrigerator or freezer, the distance between the devices should be at least 8 cm. Otherwise, adjacent side walls may become damp.

For products with a water dispenser:

The pressure of the water mains should be minimum 1 bar and maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

- Do not leave the doors of your refrigerator open for a long time.

- Do not put hot food or drinks in your refrigerator.

- Do not overload your refrigerator so that the air circulation inside of it is not prevented.

- Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

- Pay attention to keep your food in closed containers.

- For products with a freezer compartment; You can store the maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. The energy consumption value stated for your refrigerator has been determined by removing the freezer shelf or drawer and under maximum load. There is no harm in using a shelf or drawer according to the shapes and sizes of food to be frozen.

- Thawing frozen food in the fridge compartment will both provide energy saving and preserve the food quality.

Recommendations for fresh food compartment * OPTIONAL

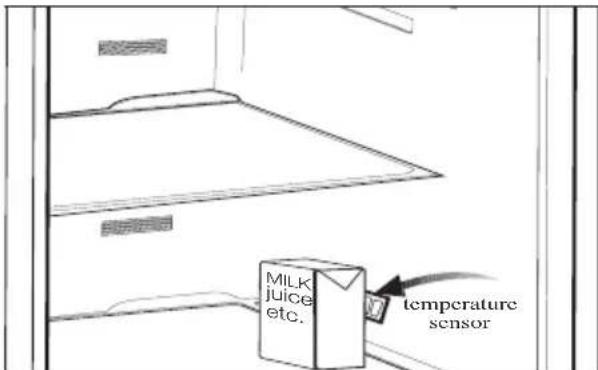

- Please do not let any foodstuff come into contact with the temperature sensor in the fresh food compartment. In order to maintain the fresh food compartment at the ideal storage temperature, the sensor must not be blocked by foodstuffs.

- Do not place hot foodstuff in your appliance.

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Preparation

- Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heaters, and stoves, and at least 5 cm away from electrical ovens, and should not be located under direct sunlight.

- The ambient temperature of the room where you install your refrigerator should be at least 10° C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.

- Please make sure that the interior of your refrigerator is cleaned thoroughly.

- If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.

- When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

- Original packaging and foam materials should be kept for future transportations or moving.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources. If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

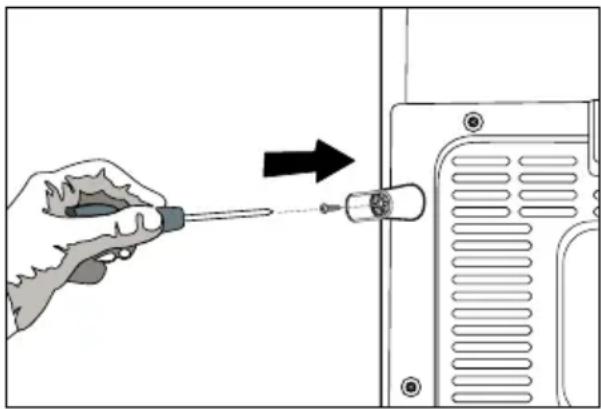

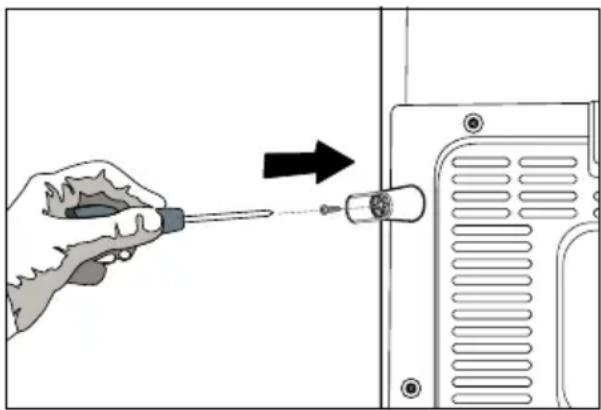

2. You can install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

1. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.
2. Plug the refrigerator into the wall outlet. When the fridge door is open the fridge compartment interior light will come on.
3. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running, and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket that is protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Voltage and permitted fuse protection are indicated in the “Specifications” section.
• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician. ⚠️ Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Adjusting the feet

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs as shown in the illustration below. The corner where the leg exists is lowered when you turn it in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, than call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.
4. Place your refrigerator on an even floor surface to prevent jolts.
5. Do not keep your refrigerator in ambient temperatures under 10° C.

4 Using your refrigerator

Indicator Panel

This touch-control indicator panel allows you to set the temperature without opening the door of your refrigerator. Just touch the relevant button with your finger to set the temperature.

1. Fast Freeze Button
2. Freezer Compartment Temperature Setting Button
3. Eko-Ekstra Button
4. Vacation Button
5. Fridge Compartment Temperature Setting Button
6. Quick Cool Button
7. Fridge Compartment Temperature Indicator
8. Eco Extra Function Indicator
9. Freezer Compartment Temperature Indicator
10. Quick Cool Function Indicator
11. Vacation Function Indicator
12. Quick Freeze Function Indicator
13. Economy Mode Indicator
14. Error Status Indicator
15. Key Lock Indicator
16. Ionizer Indicator Light
17. Humidity Indicator

Figures in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1- Fast Freeze Button

Press this button briefly to activate the Fast Freeze function. Press this button again to deactivate the selected function.

2- Freezer Compartment Temperature Setting Button

Press this button to set the temperature of the freezer compartment to -18, -20, -22, -24, -18... respectively. Press this button to set the desired temperature for the Freezer Compartment.

3- Eco Extra Button

Press this button briefly to activate the Eco Extra function.

4- Vacation Button

Press this button briefly to activate the Vacation function. To stop ice formation, press the same button for 3 seconds.

5- Fridge Compartment Temperature Setting Button

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2, 8... respectively. Press this button to set the desired temperature for the Fridge Compartment.

6. Quick Cool Button

Press this button briefly to activate the Quick Cool function. Press this button again to deactivate the selected function.

7- Fridge Compartment Temperature Indicator

Indicates the temperature set for Fridge Compartment.

8- Eco Extra Function Indicator

Indicates that the Eco Extra function is active. If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

9- Freezer Compartment Temperature Indicator

It indicates the temperature set for Freezer Compartment.

10- Quick Cool Function Indicator

Indicates that the Quick Cool function is active. Use this function when you place fresh food into the fridge compartment or when you need to cool your food quickly. When this function is active, your refrigerator will run for 2 hours without stopping.

Press the relevant button again to deactivate this function.

11- Vacation Function Indicator

Indicates that the vacation function is active. If this function is active, “- -” appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

12- Quick Freeze Function Indicator

Indicates that the Quick Freezer function is active. Use this function when you place fresh food into the freezer compartment or when you need ice. When this function is active, your refrigerator will run for 6 hours without stopping.

Press the relevant button again to deactivate this function.

13- Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

14- Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display “E” and Fridge Compartment Temperature Indicator will display numbers such as “1,2,3...”. These numbers on the indicator provides information about the error to the service personnel.

15- Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. Press Eco Extra Button and Freezer Compartment Temperature Setting Button simultaneously for a long time (3 sec) to activate this feature.

Press the relevant buttons again to deactivate this function.

16- Ionizer Indicator Light

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

17- Humidity Indicator

Indicator light lights up continuously. This light indicates that the food kept in the refrigerator is preserved for a long time under ideal humidity.

Egg tray

You can install the egg holder to the desired door or body shelf.

Never store the egg holder in the freezer compartment.

Blue light

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

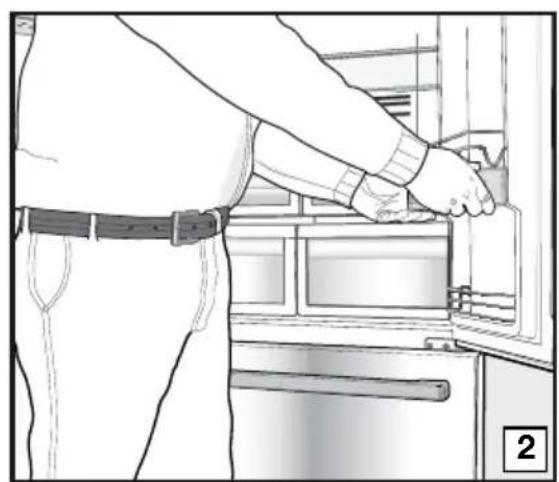

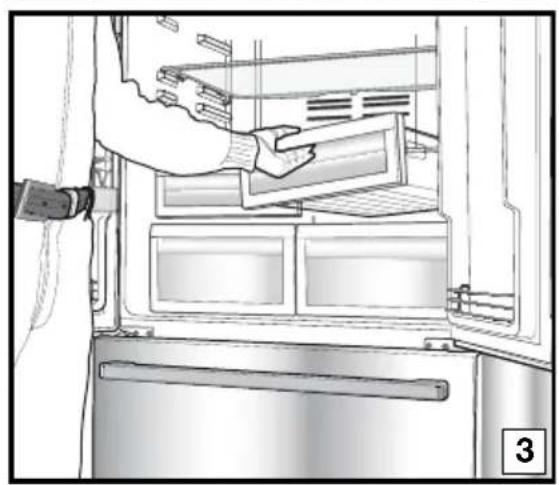

Sliding Body Shelves

Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf; when it is pulled after slightly lifted upwards at the second stop point, the body shelf will be released.

The shelf should be hold tightly from the bottom as well in order to prevent it from tipping over. The body shelf is placed on the rails at the sides of the refrigerator body by bringing it to one lower or one upper level.

The body shelf should be pushed backwards to seat it completely.

Chiller compartment

Chiller compartments enable the foods to be frozen become ready for freezing. You can also use these compartments to store your food at a temperature a few degrees below the fridge compartment.

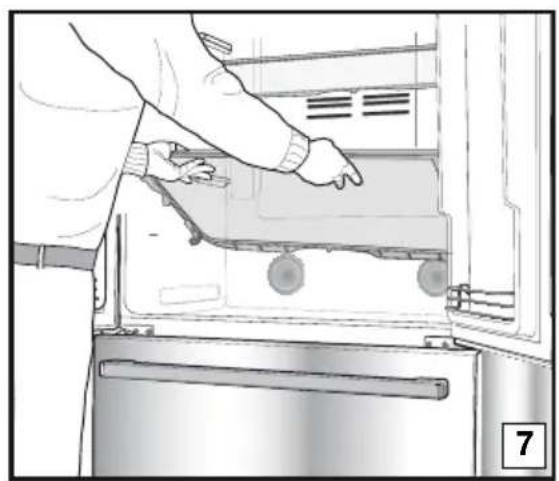

You can increase the inner volume of your refrigerator by removing any of the chiller compartments. To do this, pull the compartment towards yourself; the compartment will lean against the stopper and stop. This compartment will be released when you lift it about 1 cm and pull it towards yourself.

Crisper

Crisper of your refrigerator is designed specially to keep your vegetables freshly without loosing their humidity. For this purpose, cool air circulation occurs around the crisper in general. Remove the door shelves that align with the crisper before removing the crispers. You can remove the crispers as illustrated in the figure.

5 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes. ⚠️ We recommend that you unplug the appliance before cleaning. ⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. ⚠ Make sure that no water enters the lamp housing and other electrical items. ⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar. Check door seals regularly to ensure they are clean and free from food particles. ⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

6 Recommended problem solving

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently. • Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.
• Are the temperature adjustments correctly made? • Power might be cut off.

The fridge is running frequently or for a long time.

Your new product may be wider than the previous one. This is quite normal.Large refrigerators operate for a longer period of time.The ambient room temperature may be high. This is quite normal.The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.Doors might have been opened frequently or left ajar for a long time; open them less frequently.Door might have been left ajar; close the door completely.Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

·The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

·The floor is not even or it is weak. The refrigerator rocks when moved slowly.Make sure that the floor is strong enough to carry the refrigerator, and level.·The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

·Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

·Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

·Hot and humid weather increases icing and condensation. It is normal and not a fault.·Doors might have been left ajar; make sure that the doors are closed fully.·Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

·There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

·Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.·Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

·Food packages may prevent the door's closing. Replace the packages that are obstructing the door.·The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.·The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

·The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

3 Installation

Sliding shelves

3 Installation

Extractable shelves

3 Installation

Sliding shelves on the cabinet

3 Installation

⚠ Please note that the manufacturer will not be held responsible if you do not follow the information provided in the user manual.

Preparation

• Your refrigerator should be placed at least 30 cm away from heat sources such as burners, ovens, heaters, and stoves, and at least 5 cm away from electric ovens, and should not be placed in direct sunlight.
• The room temperature in the room where you place the refrigerator should be at least 10°C. Operating your refrigerator in colder conditions than specified is not recommended for efficiency.
• Make sure the interior of your refrigerator is thoroughly cleaned.
• If two refrigerators are to be installed next to each other, there should be a gap of at least 2 cm between them.
• When you first turn on the refrigerator, please follow the instructions below for the first six hours.

- The doors should not be opened frequently.

- It must run empty, without any food in it.

Installation and Setup

⚠️ If the entrance to the room where the refrigerator will be placed is not wide enough for the refrigerator to pass through, call an authorized service to remove the doors of your refrigerator so that it can pass through the doorway sideways.

Sliding shelves

Vegetable compartment

3 Installation

Sliding shelves
