KTD60M - Tumble dryer KELVINATOR - Free user manual and instructions

Product Type	Tumble Dryer (Condenser)
Brand	Kelvinator
Model	KTD60M
Capacity	6 kg
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	40 kg
Power Supply	220-240 V ~ 50 Hz
Energy Efficiency Class	A+
Annual Energy Consumption	500 kWh
Drying Programs	Cotton, Synthetics, Delicates, Timed Drying, Cool Air
Drying Technology	Condenser with Heat Pump
Noise Level	65 dB(A)
Display	LED with Program Selector
Delay Start	Up to 24 hours
Child Lock	Yes
Lint Filter	Removable and cleanable
Water Tank Capacity	4.5 L
Maintenance	Clean lint filter after each cycle; empty water tank; check condenser periodically
Safety Features	Overheat protection, door lock, anti-vibration pads
Spare Parts Availability	Available from authorized service centers
Repairability Index	8.0/10
User Manual	Free PDF download from notice-facile.com

Frequently Asked Questions - KTD60M KELVINATOR

How do I clean the lint filter on my Kelvinator KTD60M?

Open the door, pull out the lint filter located in the door frame, remove lint by hand or with a soft brush, rinse under running water if needed, dry thoroughly, and reinsert. Clean after each cycle for optimal performance.

What should I do if the dryer doesn't start?

Check that the power cord is plugged in, the door is fully closed, the program is selected, and the start button is pressed. Also ensure the water tank is not full and the lint filter is clean.

How do I empty the water tank?

Pull out the water tank from the bottom front of the dryer, empty it into a sink, and reinsert it securely. The tank should be emptied after each cycle or when the indicator lights up.

Why is my dryer making unusual noises?

Check for foreign objects in the drum, ensure the dryer is level on the floor, and verify that the lint filter and condenser are clean. Loose items or uneven placement can cause rattling.

Can I install the dryer in a cupboard?

Yes, but ensure adequate ventilation. The condenser dryer releases warm, moist air; allow at least 10 cm clearance around the dryer and ensure the room or cupboard has good airflow to prevent overheating.

How often should I clean the condenser unit?

Clean the condenser every month or more frequently if the drying performance decreases. Remove the condenser cover (usually at the bottom front), rinse with water, and let it dry before reinstalling.

What does the 'Child Lock' function do?

The child lock prevents accidental program changes or door opening by disabling the buttons. Activate it by pressing and holding the child lock button for 3 seconds. To deactivate, repeat.

How much energy does the KTD60M consume?

The annual energy consumption is approximately 500 kWh based on standard usage. It is rated A+ efficiency. Using lower temperature programs and proper loading can reduce energy use.

What spare parts are available for this model?

Common spare parts include the lint filter, water tank, condenser, door seal, control board, and drum belt. Parts can be ordered from authorized Kelvinator service centers or online.

How do I download the user manual for free?

Visit notice-facile.com, search for 'KTD60M Kelvinator', and download the PDF manual. You can also request a translated version by selecting your language and providing your email on the site.

USER MANUAL KTD60M KELVINATOR

INSTRUCTIONS FOR USE

TUMBLE DRYERS

Kelvinator

KTD60W

KTD60M

KTD600M

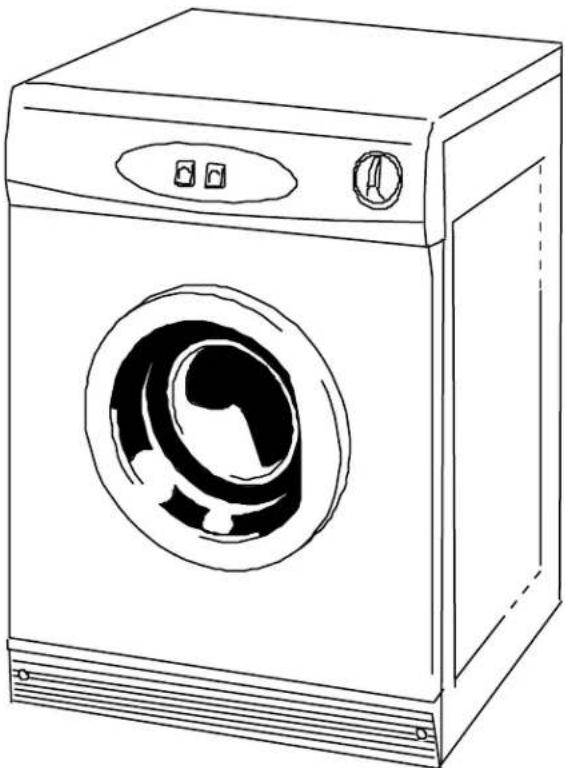

Line drawing of a front-loading washing machine with circular vent and control buttons (no text or symbols)

IMPORTANT

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS APPLIANCE.

KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

INSTALLATION

Position the tumble dryer so that the plug remains accessible after installation. Do not block the vent at the front or base of the dryer, as this will impair the working of the machine. This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer.

TUMBLE DRYER VENTING

Line drawing of a vintage kitchen appliance with fan and control panel (no text or symbols)

Your tumble dryer will release warm, damp air in one of three ways.

1) EXTENDABLE REAR VENTING - A long flexible vent hose is built into the dryer and can be extended from the large opening at the rear of the machine
2) FIXED REAR VENTING - Venting is through the large opening at the bottom of the rear panel. A separate extendible vent hose can be attached if desired.
3) FRONT VENTING - This is a special type of dryer which vents through a grille on the plinth. The opening on the rear panel is blanked off during manufacturing.

Rear vented dryers can be used without a vent hose but not in a confined space. Rear vented machines must have a vent hose if they are installed under a work surface. To minimise condensation it is preferable to vent through a vent to outside. This may be through an open door or window. The best solution is to connect the vent hose to a permanent connection through a wall or a single glazed window.

This is particularly recommended for small, cool rooms. A kit for this purpose is available as an accessory. Front venting machines must be converted to extendible rear venting before a permanent connection can be made to the outside.

When using a vent hose, remember the following points:

The vent hose must be at least 10cm (4 ins) in diameter.

No more than three right-angled bends should be allowed when positioning the vent hose.

Do not distort or constrict the vent hose as this will reduce the airflow.

The vent hose must not be shared with other appliances, for example, a cooker hood outlet.

FINAL INSTALLATION

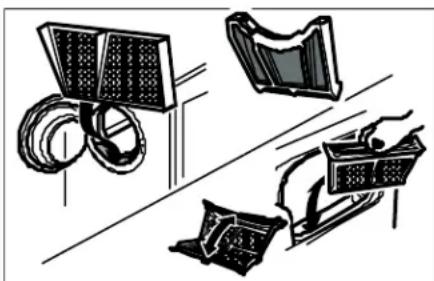

Push the filter into its operating position as shown in the diagram. If you wish to change the side on which your door opens, see the instructions on the back page. Remove any dust by wiping the drum and door with a damp cloth. Any initial smell of burning will be caused by dust on the heater and will quickly disappear.

Illustration of surveillance cameras and a mounted device on a surface (no text or symbols)

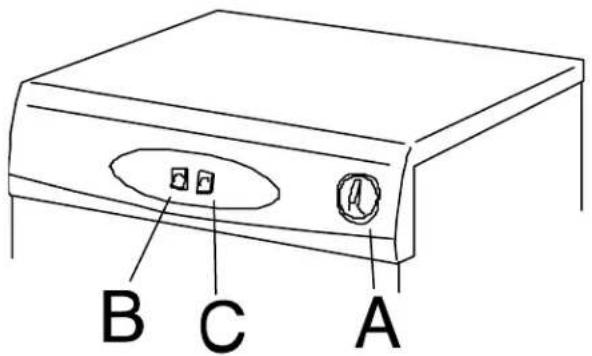

THE CONTROLS

A. THE TIMER Select the required drying time based on the recommendations on the control panel.

B. HEAT SWITCH(ES) Select the required heat setting based on the recommendations on the control panel.

C. START BUTTON (IF FITTED) Press Start button after closing the door and selecting the required drying time.

PREPARATION

Check care labels inside the garments.

CARE LABELS YOU MAY FIND ON YOUR FABRICS

Do not tumble dry woollen or wool mixture articles unless the article is labelled as being suitable. This should avoid shrinkage.

Place delicate articles, e.g.tights, scarves, inside a pillowcase.

To avoid the need to iron easycare polyester/cotton items it is better to only dry small loads (i.e. half fill drum) It is better to dry small and large articles together.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. Do not overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important that the airflow through the dryer is not obstructed.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

OPERATION

Open the door.

Load clothes loosely into the drum.

Load sheets first, starting with one corner.

Close the door.

Dry your hands.

Check that the timer is in the '0' position.

Plug in the machine.

Select correct heat position, (see programme chart on control panel for recommendations).

Set the timer to the required time setting (see programme chart on control panel for recommendations).

Press the start button if fitted.

The drum will begin rotating. Reversing drum models will stop periodically to rotate in the reverse direction for a short time.

Should the clothes become dry before the cycle has finished, or if an excessive programme time has been selected, the drum will continue to rotate while the thermostat will automatically regulate the heater to reduce the risk of over drying.

If the door is opened during a cycle the dryer will stop. To restart, close the door and press the start button (if fitted). When drying large items such as sheets, we suggest you periodically stop the dryer to redistribute the load.

There is an automatic 12 minute cool down period at the end of every cycle, during which the heater is switched off. This helps to minimize creasing, and must always be used fully to avoid the risk of fire.

NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM. RISK OF FIRE.

ALWAYS CLEAN THE FILTER AFTER EACH USE. Failure to do so could cause the safety cut-out to operate.

Two technical line drawings of open and closed panels, no text or symbols present

- Pull the filter upwards and away from the appliance.

- Remove any threads or fluff by hand or with a soft brush.

- Slide the filter back.

- Wash the filter occasionally in detergent solution using a soft brush to remove small particles.

- If your filter becomes damaged, replace it to ensure no damage is caused to the dryer.

ANY PROBLEMS

If the clothes are not dry after normal drying time:

-Check that you used the correct heat setting.

- Check that you have not set the timer within a cool down period.

- Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.

- Check that your dryer is heating - below the door to the left side, should feel warm to the touch after the first 10-15 minutes of its programme.

Failure to heat may indicate the safety cut-out has operated. To reset, simply press the red button at the rear of the machine. If it has operated then a sharp “click” will be heard.

This cut-out only operates if the airflow is severely restricted so make sure the filter is clean, the air inlets and outlets at the front and back are not blocked, and that all other restrictions are removed before re-starting.

If the cut-out continues to operate after checking the above points, you should contact your service agent.

Check that the machine has the correct weight load in the drum before stating the appliance.

If your machine does not work check the following before calling a service engineer:-

• Check that there is a supply of electricity.
• Check that the door has been properly closed and the machine is switched on (start button pressed, if fitted).
• Check the fuse in the moulded plug.

OPTIONAL EXTRAS

Front to Extendible Rear Venting Kit

To convert your dryer from front venting to extendible rear venting.

Vent Hose

Only available for fixed rear dryers. Leads the warm, damp air to outside.

Wall/Window Vent Kit - To make a permanent connection through a wall or window. Front venting dryers need converting to rear venting before installing this kit (see ‘Front to Extendible Rear Venting Kit’ above). This kit is not suitable for double glazed windows.

Stacking Kit - To enable your dryer to be secured onto the top of a front loading washing machine (to save floor space).

The above items can be purchased as accessories for your tumble dryer from your supplier.

Instructions for stacking, if required, are supplied with the stacking kit.

TECHNICAL DATA

OVERALL DIMENSIONS:

Height:85 cm

Width:59.5 cm

Depth:58 cm

MAXIMUM DRY WEIGHT LOADS:

Cotton 6kg

(For minimum creasing 2kg)

Delicates 2kg

For electrical ratings see plate on back of dryer.

For Model No. see serial plate inside door (needed when requesting service).

Room temperature range 5°C to 30°C.

Your washing machine should have a spin speed of not less than 800rpm.

IMPORTANT USER INFORMATION – These notes are provided in the interest of safety. You must read them before installing or using the appliance.

-This tumble dryer is intended for NORMAL DOMESTIC USE ONLY.

- Adequate ventilation must be provided to avoid back flow of gases into the room from appliances burning other fuels. Including open fires.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuel.

—Please note it is not recommended that the dryer is placed directly next to ovens or cookers as the performance of the dryer may be affected.

-A carpet must not obstruct the ventilation openings in the base of the dryer.

-Do not stack the tumble dryer on top of other appliances without the correct stacking kit.

- Any electrical work required to install the appliance should be carried out by a qualified person.

—It is important to clean the lint filter after each drying cycle or the restrictions to airflow will extend drying times and could cause the safety cut-out to trip.

IMPORTANT USER INFORMATION

- Under no circumstances should anything other than the recommended articles be placed in the tumble dryer.

—The tumble dryer should be serviced by an appointed service organisation and only genuine parts used.

-It is dangerous to alter or modify the product in any way other than fitting authorized accessories.

- We recommend that the appliance is unplugged each time after use. It should always be disconnected from the electricity supply or long periods (i.e. weekends, if it is to be left unattended for holidays etc.)

–The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible while in operation, but ensure that the sides have a space available to allow airflow.

–The special mains cable and plug assembly must only be replaced with a genuine part from the manufacturer or our appointed service agent.

It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle. Failure to do so could result in water leaking.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure they do not play with the appliance.

WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed and spread out so that heat is dissipated.

Remove all objects from pockets such as lighters and matches.

DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket.

DO NOT block the air inlets at the front, base, rear and side of your dryer.

DO NOT allow fluff to accumulate around the tumble dryer. Risk of fire

DO NOT exceed the recommended maximum load.

DO NOT dry unwashed items in the tumble dryer

DO NOT place articles in the dryer if anything other than a water solution has been used in the cleaning process.

DO NOT attempt to dry dripping wet articles.

DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury. Consult your local appointed service engineer and insist on genuine spare parts.

THIS APPLIANCE MUST BE EARTHED

This label, positioned on the rear of your dryer, indicates the surface is hot when in operation - avoid touching

CAUTION HOT SURFACE

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European wide validity of return and Recycling on Waste Electrical and Electronic Equipment.

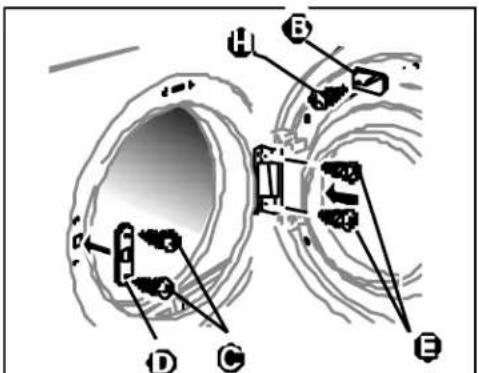

Open the door. Undo screw (A) remove switch strike (B) and replace screw, Remove screws (C) and latch plate (D). Remove hinge block screws (E). Remove door hinge from blocks.

Remove hinge screws (F) and hinge (G) and re fit to opposite side as shown below

Re fit latch plate (D) with screws (C). Remove screw (H) at top of door and re fit switch strike (B) as shown. Fit door to hinge blocks and secure with screws (E).
