USER MANUAL KTD61M KELVINATOR

Thank you for selecting this auto tumble dryer Before operating this unit, please read this operation manual thoroughly

Part Name 2

Installation before use 2

Simple Installation 5

Operation Explanation 6

Predry Actions 6

Inspection on Filter 6

Put in clothes 6

Operation of the control panel 7

How to clean filter, cabinet and inner tub 9

Other Functions Description 10

Warning Function 10

Auto power off 10

Notice 11

Packing List 12

Specifications Back cover

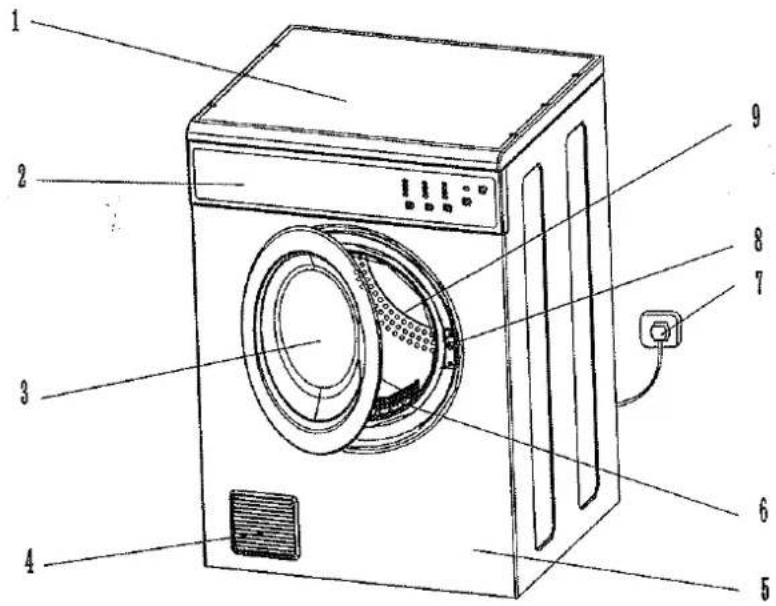

Part name

Labeled diagram of a washing machine with numbered parts for identification

1. Topboard 2. Control panel 3. Door 4. Front vent cover 5. Cabinet 6. Filter 7. Power lead 8. Door lock 9. Tumbling box

Installation before use

The first step: Power source and grounding.

The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 10% of rated voltage, the dryer can work normally. A special power socket for the dryer had better be set beside the dryer for convenience and safety. The method of connection of the socket is as the figure below.

Grounding

Notices:

The socket and the grounding wire must be installed by an electrician to prevent incorrect installation or use of the socket and to guarantee the safety of use of electricity. The power wire of the dryer employs Y connection and the replacement of the power wire should be carried out by professionals. No connection of the grounding wire with the neutral wire, otherwise the cabinet will be charged, which is likely to cause the danger of electric shock.

Step2:Precautions

Do not store or install the dryer where it will be exposed to water or the weather.	Please place dryer in a ventilated place.
Do not put in wet clothes.	Make sure combustible sprayer will not be close to dryer when it is working, and once the gas leaks, do not touch plug or start / pause on it.
It is not allowed to dry clothes contains combustible cleanser, gasoline etc.	Do not operate this dryer if it is damaged, malfunctioning, partially disassembled or has missing or broken parts.
The dryer is not intended for use by young children or infirm persons without supervision.	Please do not use the machine when your foot or hand with water.
Do not to put any heavy or hot article on the top of dryer to avoid deformation of control panel.	Do not try to dry raincoat or fluff clothes or whatever things contains rubber or elasticity materials on any heat setting.
Only open door once program is finished to avoid scalding.
This product belongs to type I electronic products and please take note of safety problem accordingly: 1.It is rule to use power which is buried in the earth and will not touch any socialequipments such as gas pipe or water pipe etc. Make sure the difference of different lines and they are not connected. 2.Please use special socket which is according to National Standard and will endure 10A current. To be safe, please make improvements as soon as possible according to the rules and suggestions mentioned above.
[XAGH] Not used for dryer in the tub Hang for dry Drip dry Flat dry Dry automatically Clothes with the above symbols are not suitable for tumble drying.

Simple installation • Operation explanation

Simple Installation

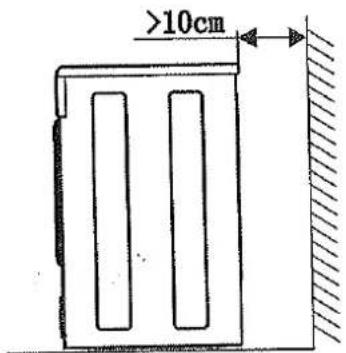

Step 1: Dryer should be placed in a ventilated area with not less than 10 cm distance from the wall. If placed in a room such as bathe room, it is suggested there is no obstacle within 1.5m in front of dryer and keep ventilated.

>10cm

Step 2: Place dryer on level surface.

Notice when installing:

• Do not install the dryer in the open air or place easily damaged by rain;
• Do not place the back of dryer near curtain or something in the wind;
• Do not place the dryer near gas or flammable area.

Operation explanation

1. Preparing before drying

● Clothes have to be washed and spun before putting in the dryer.

- Put same kind clothes to dry together.

- Sort your clothes into loads that take a similar time to dry e.g. Heavier items form light items, it is suggested change the inner side of clothes to outside and then put into dryer.

- Make sure the decoration and buttons are safe for high temperature and will not damage the inner tub of dryer. Make sure the clothes are well protected.

- It is better to turn out the pocket for drying.

- Please check the clothes after washing, and if still dirty on clothes, those dirty may not disappear after drying.

- Please make sure the power socket are well connected and will not touch conduit of water supply and gas supply etc.

1. Make sure the filter is well cleaned and in the right position.

2. Put clothes into the dryer.

- It is better to put clothes with 1/3-1/2 capacity of inner tub for drying because drying needs space to make clothes tumble evenly and overfilling clothes will not get a good result.

- When drying big clothes, it is better to fulfill with small pieces of clothes together.

- When drying expensive or little clothes, it is better to add two towels so as to reach better drying result.

- Do not overdry the clothes.

Operation explanation

The reference weight of dry clothings

	Mixed-weave clothes (about 800g)		Jacket (about 800g cotton)		Jeans (about 800g)		Towel quilt (about 900g cotton)
	Single beedsheet (about 600g cotton)		Work clothes (about 1120g)		Sleepwear (about 200g)		Long sleeves shirt (about 300g cotton)
	Short sleeves shirt (about 180g cotton)		Short pants (about 70g cotton)		Socks (about 50g mixed-weave)

4. Close the door

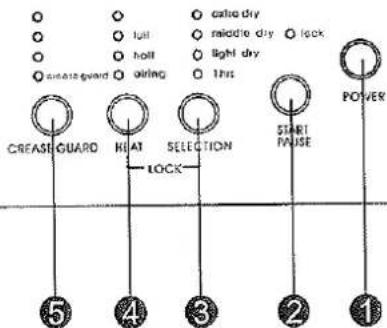

5. Instruction on control panel

Fuzzy Auto Tumble Dryer

CREASE GUARD HEAT SELECTION START FUSE POWER ⑤ ④ ③ ② ①

Power
② Start / Pause
③ Program (extra dry / middle dry / light dry / 1 hour)
④ Heat (full / half / airing)
⑤ Crease Guard

Note: Push Program and Heat at the same time, function could be changed to Lock.

Operation explanation

1) Push Power button;

2) Program setting will according to the texture and capacity of clothes. Every time pushing the Program button, the indication light will shine orderly for a while, and stop at the program you choose;

3) Temperature setting will according to the texture and capacity of clothes. Every time pushing the Heat button, the indication light will shine orderly for a while, and stop at the program you choose;

4) For function of Crease Guard, it is better to dry some expensive or easily creased clothes. When the indication light is on, it works.

5) Push Start / Pause button, it works while push it second time, it stops working for 3 seconds, and could be adjusted to restart program, and also add or reduce clothes through the door but to avoid hot steam scalding. Push again, and it continues working. This button is used for switch between start and pause. If push Start / Pause button directly, dryer will work with light dry and full heat automatically.

6)Lock function could be started when push Program and Heat button at the same time with indication light on, and this can avoid children's mistake. If push the two buttons again, dryer will be unlocked.

Note: Push all buttons will cause a short buzzer with shining lights.

Program function setting table

Program	Max volume of dry clothings	Temperature	Clothings type	Air-cold	Anticerase	Child-lock	Max dry time
An hour dry	4.0~5.0kg	Full heating √	Easy to dry and not need lots of time to dry on clothings.	10min	√	√	70min
	<4.0kg	Half heating √
	5.0kg	Air-dry √	Fine fabric and not need to heat on clothings.
Litter dry	4.0~5.0kg	Full heating √	Chemical fiber and smallsize clothings.	10min	√	√	100min
	<4.0kg	Half heating √
Middle dry	4.0~5.0kg	Full heating √	Cotton weaving and jeans	10min	√	√	120min
	<4.0kg	Half heating √
Strong dry	4.0~5.0kg	Full heating √	Bedsheet、cotton clothings and jeans.	10min	√	√	150min
	<4.0kg	Half heating √

Note: 1. Cold wind function means there is only cold wind for circulating before finishing heating 10 minutes';

heating 10 minutes, 2. Crease Guard means after programming, it adds extra 30s' one way running to shake clothes in order to protection of creasing;
3. The inside temperature and humidity will not affect drying time;
3. The inside temperature and humidity of clothing is 100%. Check the label attached on clothes and choose the right temperature and time
4. Check the label attached on according to the explanation.

Operation explanation

6. End of Program

At the end of program, buzzer rings to remind take out clothes from dryer.

7. Take out the plug

To be safe, every time using please take out the plug.

8. Clean filter, cabinet and inner tub.

- Accumulated woolen chips etc will affect air circulate smoothly and cost long time for drying, it is better to clear it once finishing working

Make sure to cut off the power before clearing

Filter Clean

1) Unbolt filter

The lint filter is located in the door opening, remove the lint filter and open it out.

2) Cleaning filter

Use wiping cloth wipe with your hand.

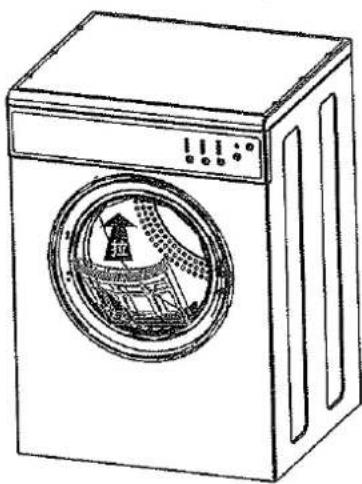

3) Install filter

If the filter is cleaned by damp cloth or in the water, please install after the sun dry.

Line drawing of a washing machine with a circular vent and window (no text or symbols)

Cleaning cabinet and inner tube

use soft damp cloth wipe when cleaning cabinet and inner tube.

1. Not to rinse by water direct.
2. Not to use neutral scour wipe
3. Not to use gasolene and alcohol wipe

Make sure open the front door for aeration after

cleaning the inner tube

Line drawing of a washing machine with a hand cleaning the top panel (no text or symbols)

Other functions description

Step 1: Warning function

Indication of fault	Cause of fault	Phenomenon of fault	Alarm of the buzzing sound	Solution of alarm
Alarm for temperature exceed	If the check temperature exceed 63° in any program, alarm.	"Middle dry"、"strong dry" indicator flash	The buzzer goes to on buzzing sound for 10 seconds.If the alarm does not be solved, every 16 minutes re-buzzs for 10 seconds.	Power off, wait the heating temperature fall then start
Alarm for the door open	Open the door after program start	"light dry"、"middle dry" indication flash		Close the door, solve alarm。
Alarm for malfunction of temperature sensor	Program start sensor open	"An hour dry"、"light dry" indication flash		Power off, check the machine, start it when in normal
	Program start sensor short	"An hour dry"、"middle dry" indication flash

Step 2: Auto power-off function

1. This machine will auto power-off after 10 minutes when you do not set any program.
2. This machine will auto power-off after 6 time's buzzer on drying.

Trouble
Cause
Solution

Will not start	Power cutThe power plug is not plugged tight.Dry clothings exceedThe temperature fuse is cut	Wait for switching on electricityCheck the power socket, make sure plug tight.The clothes in drier must be after spinning, and drying clothes can not exceed 5kg.Exchange the temperature fuse.
External hot or can smell hot	The lint filter is dirty.The uptake or exhaust duct is dirty.	Make sure clean the lint filter in timeClean out
Clothes too dry	The clothes in machine are too fullNot to take out the clothes in time when finish.The clothes do not assort properly.The temperature is enacted too high	Make sure the clothes are not too fullTake out the clothes immediately when finishSee page 7.Observe the maintenance label on clothes
Clothes shrink	Too dry	Observe the maintenance label on clothes, if easy to shrink, should examine the clothes when dry. Take out the clothes when tiny damp for too dry. Then hang the clothes until full dry.

The sound of dryer when runs can cause

• Buzzer of vibration: Due to heavy wet clothes' turning and bumping, and this will cause noise accordingly.
• Timer noise when working.

Packing list

Packing list
Amount		1 set
Accessory	Name		Amount
	Instruction Manual		1
	Guarantee voucher		1
	User return receipt		1

Specifications

Dimension	595x530x840(mm)	Weight of product	28.5kg
Rated input power	1700W	Rated volume of dryer	5.0kg (Dry clothes)
Rated voltage	220V~	Rated frequency	50Hz
