IHP211B - Hi-Fi System iLive - Free user manual and instructions

Product Type	Home Music System for iPod + iPhone
Compatible Devices	iPod and iPhone with 30-pin dock connector
CD Playback	CD, CD-R/RW
Radio	FM PLL tuner with 20 station presets
Audio Input	3.5mm auxiliary input
Sound Enhancement	Dynamic Bass Boost System (DBBS)
Display	LCD with blue backlight and dimmer control
Clock	Digital clock with automatic time sync from docked iPhone
Alarm	Single alarm, wake to iPod, CD, radio, or alarm tone
Sleep Timer	Yes, adjustable in radio, iPod, or Line In modes
Remote Control	Full-function remote with CR2025 battery (pre-installed)
Power Source	AC/DC power adapter (included)
Backup Battery	2 x AAA batteries (not included) for clock/alarm retention
Charging	Charges docked iPod or iPhone when using AC power
Laser Class	Class 1 laser for CD playback
Safety	Double insulation, polarized plug, safety interlocks
Cleaning	Clean with a dry cloth
Included Accessories	Remote control, 2 rubber spacers, AC/DC power adapter

Frequently Asked Questions - IHP211B iLive

How do I set the alarm?

With the power off, press and hold the Alarm/Mute button until the alarm time flashes. Use the Volume buttons to adjust the hour and minute, then press Alarm/Mute again to confirm. The alarm can wake you to iPod, CD, radio, or a tone.

How do I dock my iPod or iPhone?

Attach the included rubber spacers to the back of the dock as needed for proper support. Connect your iPod or iPhone to the connector inside the dock. When using AC power, the device will charge automatically.

How do I program CD tracks to play in a specific order?

Load a CD and press Stop. Press Memory once; 'P01' appears. Use the Skip/Search buttons to select a track, then press Memory to save. Repeat for all desired tracks. Press Play/Pause to start programmed playback.

How can I save FM radio stations as presets?

Tune to the desired station using the Tune/Search buttons. Press Memory; a preset number appears. Use the Mem ± buttons to choose a preset number, then press Memory again to save.

Can I use the system without the remote?

Yes, all essential functions (power, source, volume, play/pause, etc.) are accessible via buttons on the main unit. The remote is needed for convenient operation but not mandatory.

How does the auto time sync with iPhone work?

When an iPhone is docked and the clock radio is off, the clock automatically synchronizes with the iPhone‘s time. If it does not sync, press and hold the Clock button for 3 seconds to manually sync.

What batteries are needed for the backup?

The backup battery compartment requires 2 AAA batteries (not included). These retain time and alarm settings during short power outages but do not power the main functions.

How do I adjust the display brightness?

With the power off, press and hold the Stop/Dimmer button. Each press cycles through brightness levels: high, medium, low, and off.

Can I play music from a Bluetooth device?

No, the IHP211B does not support Bluetooth. You can connect external audio sources via the 3.5mm auxiliary input on the front.

How do I reset the unit to factory settings?

Unplug the AC/DC adapter and remove all batteries (backup and remote). Wait 1 minute, then reconnect power. This clears all user settings and presets.

USER MANUAL IHP211B iLive

Product photo of a CD audio workstation with two speakers, a digital clock, and a smartphone on top (no visible text or symbols)

IHP211B

Home Music System for iPod + iPhone

For the most up-to-date version of this User's Guide, go to www.ilive.net

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, fire, or the like.
• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player's lid is open and the system's interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Special note: When placing your unit on a lacquered or natural finish, protect your furniture with a cloth or other protective material.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Home Music System for iPod + iPhone

Features

• Made for iPod and iPhone
- Plays and charges docked iPod and iPhone
• CD player: CD, CD-R/RW
- FM Radio (PLL)
• Station memory presets (20 FM)
• DBBS: Dynamic Bass Boost System
- iPhone authentication IC
- Top-load disc player
- 3.5mm audio input
• Auto time sync with iPhone
• Digital volume control
- Last user's setting memory
• Full-function remote
• LCD display with blue backlight
- Dimmer control
- Digital clock
- Single alarm
- Wake to iPhone, CD, radio, and alarm
- DC power input: requires an AC/DC power adapter (included)

Included

• Remote control: requires 1 CR2025 battery (pre-installed)
• 2 rubber spacers
• AC/DC power adapter

Table of Contents

Home Music System for iPod + iPhone.... 4

Features

Included

Table of Contents....5

Introduction 6

Setup....8

Power

Remote

Backup Battery

iPod and iPhone....9

Docking an iPod or iPhone

Playing a Docked iPod or iPhone

Auto Time Sync with iPod or iPhone

CD....10

Loading a CD

Playing a CD

Programming a CD

FM Radio and 3.5mm Audio Input....11

Tuning the FM Radio

Saving a Station as a Preset

Tuning Preset Radio Stations

3.5mm Audio Input

Company Information 12

International Support

Contact Information

Green Initiative

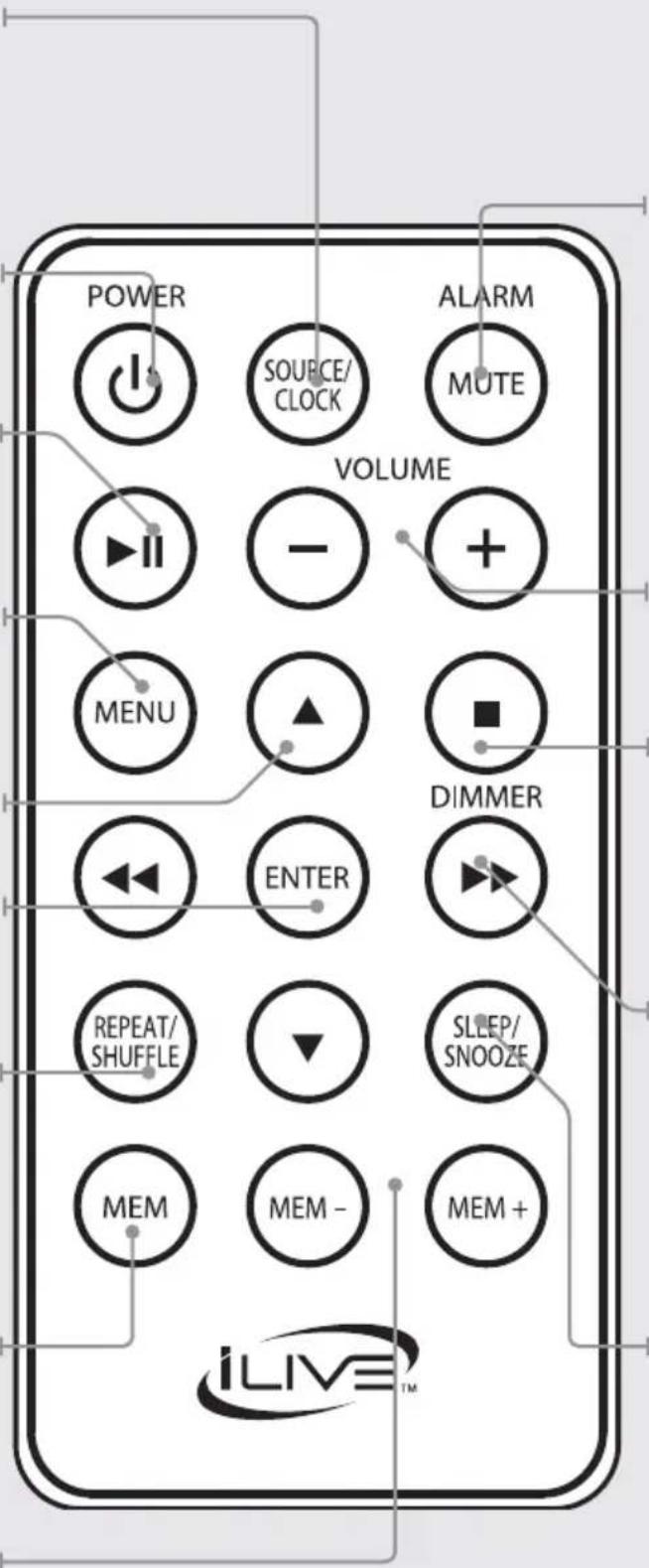

Introduction

Source/Clock

Press to adjust the source to iPod, Line In, FM Radio, or CD. With the power off, press to begin setting the clock.

Power

Press to power the music system off or on.

Play/Pause

Press to play or pause a docked iPod or iPhone, or loaded CD.

Menu

Press to cycle between menus on a docked iPod or within the iPod app on a docked iPod touch or iPhone.

Arrows (▲▼)

Enter

Press to make selections on a docked iPod or iPhone.

Repeat/Shuffle

Press repeatedly to set the repeat and shuffle options on a loaded CD or docked iPod or iPhone.

Memory

In FM Radio mode, press to begin saving the current station as a preset.

Mem ±

In FM Radio mode, press to cycle through preset radio stations.

Alarm/Mute

With the power off, press and hold to begin setting the alarm, or press to activate or deactivate the set alarm. In iPod, Line In, FM Radio, or CD modes press to mute the volume.

Volume

Press to adjust the volume.

Stop/Dimmer

Press to stop a CD during play. With the power off, press and hold to adjust the brightness of the display.

Tune/Search

Press to adjust the FM radio station. Press to skip between tracks on a loaded CD or docked iPod or iPhone. Press and hold to search through an individual track.

Snooze/Sleep

After the alarm sounds, press to delay the alarm for an additional 9 minutes. In radio, iPod, or Line In modes press repeatedly to set the sleep timer.

Setup

Power

DC power input: requires an AC/DC power adapter (included)

Diagram of a power supply connection showing two connected devices with a terminal block and a meter (no text or symbols present)

Remote

Requires 1 CR2025 battery (pre-installed)

WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste.

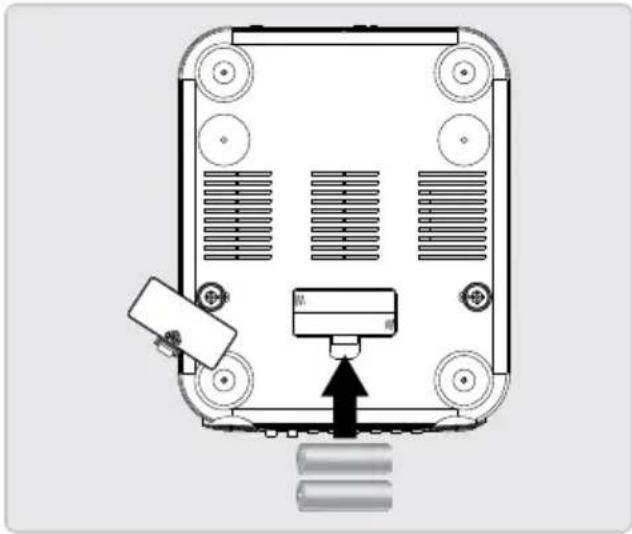

Backup Battery

Requires 2 AAA batteries (not included)

The battery backup is designed for short-term unexpected power outages. Under these circumstances, the time and alarm settings will be saved. The music system cannot power primary functions such as the radio or playing a docked iPod off of the battery backup alone.

Diagram of a device rear panel with labeled ports and an arrow pointing to a component (no text or symbols present)

iPod and iPhone

Docking an iPod or iPhone

1. Attach the included rubber spacers to the back of the dock as needed to properly support your iPod or iPhone model.
2. Connect the iPod or iPhone to the connector inside the Dock for iPod and iPhone.
3. When the dock is plugged in, using AC power, the docked iPod or iPhone will charge.

Playing a Docked iPod or iPhone

1. Follow the instructions for Docking an iPod or iPhone.
2. Press the Source button to switch to iPod mode.
3. Press the Play/Pause button to begin playing the docked iPod or iPhone.

Auto Time Sync with iPod or iPhone

1. Press the Power button to turn the clock radio off.
2. Follow the instructions for Docking the iPod or iPhone.
   Auto time sync will not work with all iPods.
3. When an iPod or iPhone is docked with the clock, the clock will automatically synchronize it's time with the docked iPod or iPhone.
4. If the clock does not automatically sync, press and hold the Clock button for 3 seconds to manually sync the clock with the docked iPod or iPhone.

Diagram of a device with two buttons above a central connector, showing internal components and an arrow indicating direction (no text or symbols)

CD

Loading a CD

1. Press the Open button on the top of the music system to open the CD door.
2. Load a CD into the music system, label side facing up.
3. Close the CD door.

Playing a CD

1. Follow the instructions for Loading a CD.
2. Press the Power button to power the music system on.
3. Press the Source button to switch to CD mode.
   The track number will appear on the display, to the right of the time, when the music system is in CD mode.
4. Press the Play/Pause button to begin playing the loaded CD.

Programming a CD

1. Follow the instructions for Loading a CD and Playing a CD.
2. With the CD stopped, press the Memory button once.
   "P01" will appear on the display.
3. Press the Skip/Search buttons to select a CD track. Press the Memory button to save the CD track to the program.
4. Repeat steps 2 and 3 to program all desired tracks.
5. Press the Play/Pause button to begin playing the programmed CD.
   Tracks will play in the order they were programmed.
6. Press the Stop button to cancel the program.

FM Radio and 3.5mm Audio Input

Tuning the FM Radio

1. Press the Source button to switch to FM Radio mode.
2. Use the Tuning/Search buttons to tune the FM radio.

Saving a Station as a Preset

1. Follow the instructions for Tuning the EM Radio.
2. Tune to the desired station.
3. Press the Memory button. A preset number will appear on the display.
4. Press the Mem ± buttons to adjust to the desired preset number.
5. Press the Memory button to save the current radio station to the selected preset.

Tuning Preset Radio Stations

1. Follow the instructions for Tuning the Radio and Saving a Station as a Preset.
2. Press the Mem ± buttons to cycle through preset radio stations.

3.5mm Audio Input

Requires a 3.5mm line input cable (not included)

1. Connect a line input cable to the 3.5mm Audio Input and an MP3 player.
2. Press the Power button to turn the clock radio on.
3. Press the Source button repeatedly to switch to Line In mode.
4. Use the native controls on the connected MP3 player to play audio through the clock radio.
