Product Type	Hi-Fi System
Brand	iLive
Model	IHB227B
Dimensions (W x H x D)	Approx. 10 x 12 x 15 inches
Weight	Approx. 6.5 lbs
Power Supply	AC 120V, 60Hz
Power Consumption	40 Watts
Main Functions	CD Player, FM/AM Radio, USB Playback, AUX Input, Headphone Jack
Remote Control	Included
Display	LED Display
Speaker Configuration	2.0 Stereo
Supported Discs	CD, CD-R/RW
Radio Bands	FM (87.5-108 MHz), AM (530-1710 kHz)
Audio Output Power	2 x 10W RMS
Connectivity	AUX 3.5mm, USB Type-A, Headphone 3.5mm
Cleaning Instructions	Wipe with a dry soft cloth; do not use liquids or abrasive cleaners.
Safety Features	Overload protection, auto standby after 15 minutes of inactivity
Spare Parts / Repairability	Contact iLive customer support for spare parts; product is not user-serviceable.
General Information	Designed for home audio entertainment; supports multiple media sources.

Frequently Asked Questions - IHB227B= iLive

How do I connect my smartphone to play music via AUX?

Use a 3.5mm AUX cable to connect your smartphone's headphone jack to the AUX input on the front of the unit. Select 'AUX' mode using the source button.

Can I play music from a USB flash drive?

Yes, insert a USB flash drive with MP3 files into the USB port. Press 'USB' mode to start playback. The system supports up to 32GB drives formatted in FAT32.

Why is there no sound from the speakers?

Check if the volume is turned up and the system is not muted. Ensure the correct source (CD, AUX, USB, Radio) is selected. Verify speaker connections are secure.

How do I set the clock?

Press and hold the 'Clock' button until the hour digits flash. Use the 'Track' buttons to adjust hour, then press 'Clock' again to set minutes. Press 'Clock' to confirm.

Can I use the system with Bluetooth?

No, this model does not have Bluetooth. Use the AUX input or USB port for wireless-like connectivity via a Bluetooth adapter plugged into AUX.

How do I program a CD track sequence?

Press 'Program' while CD is stopped. Use the 'Track' buttons to select a track, then press 'Program' again. Repeat for up to 20 tracks. Press 'Play' to start.

What should I do if the CD skips or doesn't play?

Ensure the disc is clean and free of scratches. Try a different CD. If problem persists, the lens may need cleaning; use a CD lens cleaner disc.

How do I improve FM radio reception?

Extend the FM wire antenna fully and reposition it. Avoid placing the system near metal objects or electronic interference. For AM, rotate the system for best reception.

Is there a sleep timer?

Yes, press the 'Sleep' button repeatedly to set sleep time (15, 30, 45, 60, 90 minutes). The system will turn off automatically.

How do I reset the system to factory settings?

Unplug the power cord for 30 seconds, then plug it back in. This will reset all settings including clock and presets.

USER MANUAL IHB227B= iLive

Three black audio speakers connected in a row, one displaying a digital display (no visible text or symbols)

Wireless Home Music System

User's Guide for Model IHB227 v1909-01

For the most up-to-date version of this User's Guide, go to www.iliveelectronics.com

Important Safety Instructions

• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Battery Warnings

• WARNING: Do not ingest the battery, Chemical Burn Hazard.
• The remote control supplied with this product contains a coin/button cell battery.
• If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children. Iff the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside and part of the body, seek immediate medical attention.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMII batteries.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not mix old and new batteries.
  • Completely replace all old batteries with new ones.

• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

• Batteries should be recycled or disposed of as per state and local guidelines.
  • Additional Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or bottom of the apparatus.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus.
• WARNING: This product may contain chemicals known to the State of California to cause birth defects, or other reproductive harm (California Prop 65). Wash hands after handling.
  • This product meets and complies with all Federal regulations.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player's lid is open and the system's interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Table of Contents

Setup 4

Features

Includes

Power

Battery Backup

Orientation 5

Controls & Inputs

Connect Speakers

Remote Control 6

Functions

Batteries

Connecting External Devices 7

Pairing Bluetooth and Playing Audio Wirelessly

Aux In (3.5mm Audio Input)

CD & Radio 8

Loading and Playing a CD

Programming a CD

Playing the AM/FM Radio

Programming Radio Station Presets

Clock, Sleep Timer & Alarm 9

Setting the Clock

Setting the Sleep Timer

Setting the Alarm

Cancelling the Alarm

Customer Support....10

Contact Information

Warranty

International Support

Features

• Bluetooth wireless: range 60 ft.
  • 2 channel stereo sound
• CD player: CD, CD-R/RW
  • AM/FM radio with built-in antennas
  • Aux In (3.5mm audio input)
• LCD display
• AC power: built-in AC power cable

Includes

• Remote control with CR2025 battery
• User's Guide & Warranty

Power

Plug the built in AC power cord into a standard wall outlet.

Line drawing of a device with two outlets connected to a power outlet, showing ports and wiring (no text or symbols)

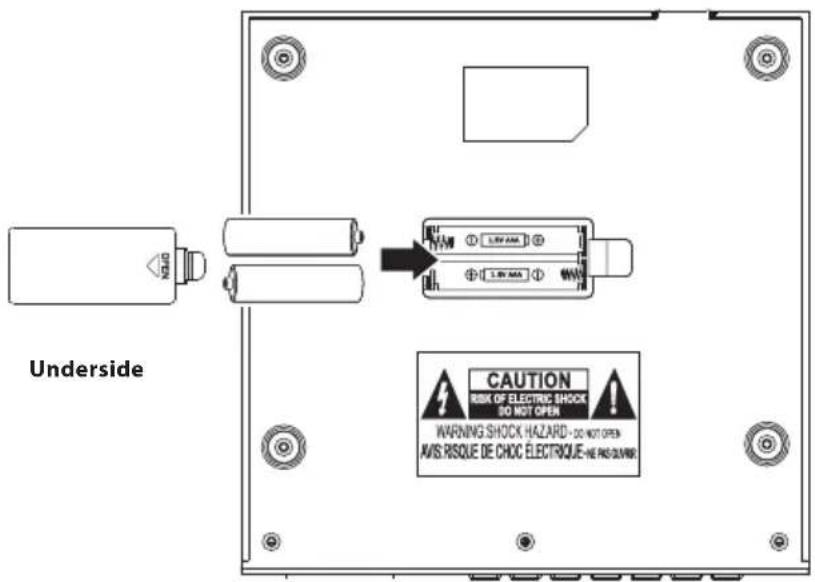

Battery Backup

Requires 2 AAA/1.5V batteries (not included).

Battery backup is for display and clock functions only. The unit will not play music on battery power.

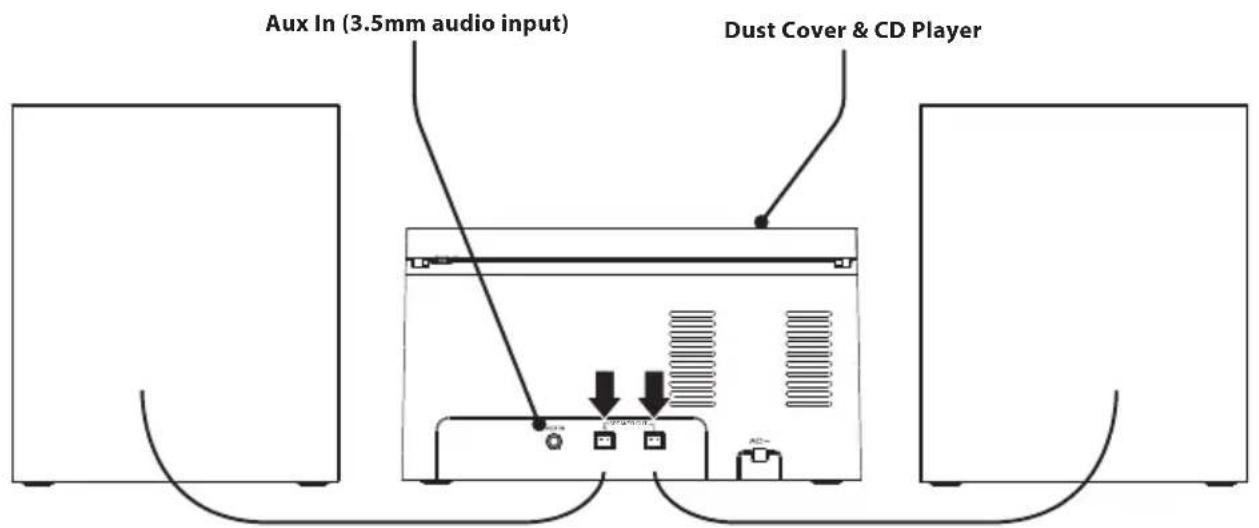

Controls & Inputs

Connect Speakers

Be sure to match the positive (red) and negative (black) wires to their corresponding inputs.

Functions

Power

Press to power the system ON or OFF.

Source

Press to switch media source.

Clock

Press to set clock time.

Repeat

Press to repeat 1 audio track or all audio tracks on a loaded CD.

Random

Press to play random audio tracks.

Prog/Mem

Press to program tracks to play in a specific order.

Press to begin saving radio presets (RADIO MODE).

Skip Back/Fwd

Press to skip and audio track.

Play/Pause

Press to play or pause an audio track.

Display

Press to dim display.

Sleep

Press to snooze alarm.

Alarm

Press to begin setting alarm.

Mem-/+

Press to cycle memory presets (RADIO MODE).

Stop/Pair

Press to stop audio track.

Press to pair (BLUETOOTH MODE).

Volume -/+

Press to adjust volume.

Mute

Press to mute volume.

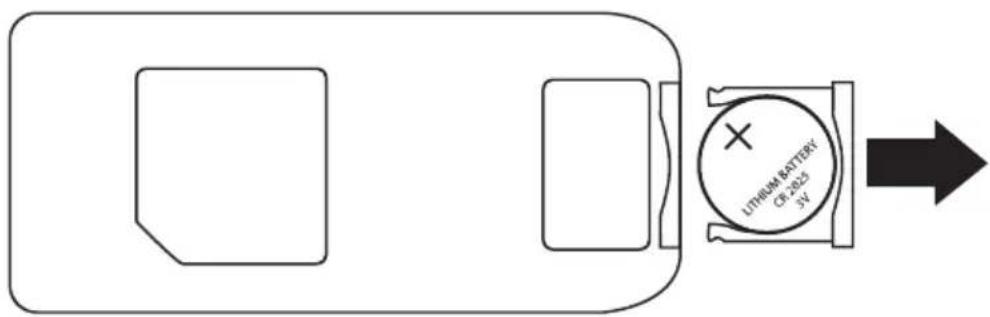

Batteries

Requires 1 CR2025 battery (included).

Pairing Bluetooth and Playing Audio Wirelessly

1. Set the Source to BT (Bluetooth) and press the Pair/Stop button. The pairing indicator will begin quickly flashing blue. When pairing, remain within 3 feet of the unit.
2. Using the controls on your Bluetooth device, search for and select IHB227 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0 . If need be, refer to the user's manual for your specific device for instructions on pairing and connecting Bluetooth devices.
3. When successfully paired and connected, a chime will sound and the pairing indicator will turn solid. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat these steps.
4. Use the controls on your connected Bluetooth Device to select and begin playing audio. Use the controls on the connected device or the unit and remote to play, pause or skip audio.

Aux In (3.5mm Audio Input)

Requires 3.5 mm audio input cable (not included).

1. Plug a 3.5 mm audio input cable into the Aux In on the unit and the headphone jack on a smartphone or other audio source.
2. Set the Source to Aux and use the controls on your connected music player to select and play audio.
3. Audio played through the connected device should now be heard through the speakers.

Loading and Playing a CD

1. Open the CD tray and place a CD in the tray, label side facing up, then close the CD tray.
2. Set the Source to CD mode.
3. Use the controls on the unit or the remote to begin playing the loaded disc.

Programming a CD

1. Press the Stop button to stop a loaded CD.
2. Press the Prog button on the remote ("01" will blink on the display).
3. Press the Skip Back/Fwd buttons to select a track.
4. Press the Prog button to add the selected track to the program. Repeat this process to program up to 20 tracks to play in a specified order.
5. Press the Stop button to cancel a program.

Playing the AM/FM Radio

AM and FM antennas are built into the unit. Adjust the position of the unit to improve AM/FM radio reception.

1. Set the Source to AM or FM mode.
2. Use the Tune -/+ buttons to tune to a desired radio frequency.

Programming Radio Station Presets

1. In AM or FM mode, tune to a desired frequency and press and hold the Prog/Mem button on the remote.
2. Press the Tune -/+ buttons to select a preset number (up to 20 stations may be set).
3. Press the Prog/Mem button to save the current station to that preset.
4. Press the Mem -/+ button to cycle through your memory presets.

Setting the Clock

1. With the unit powered off, press the Clock Set/Mem button on the front of the unit, or the Clock button on the remote. The hour will begin flashing on the display.
2. Press the Tuning buttons on the front of the unit or the Skip Rev/Fwd buttons on the remote to set the hour.
3. Press the Clock Set/Mem or Clock button again. The minutes will begin flashing on the display.
4. Repeat Step 2 to set the minutes.
5. Press the Clock Set/Mem or Clock button again to finish setting the time.

Setting the Sleep Timer

1. With the unit powered on, press the Sleep button on the remote. The display will show the amount of time in minutes before the timer goes off.
2. Press the Sleep button to select the amount of time before the timer goes off: 90 minutes, 80, 70, etc.
3. Wait for the display to return to normal. "Sleep" will be visible on the display when the timer is on.
4. To turn the Sleep Timer off, perform Step 2 until the display reads "OFF".

Setting the Alarm

1. With the unit powered off, press the Alarm button on the front of the unit or the remote. The hour will begin flashing on the display.
2. Press the Tuning buttons on the front of the unit or the Skip Rev/Fwd buttons on the remote to set the hour.
3. Press the Alarm button again. The minutes will begin flashing on the display.
4. Repeat Step 2 to set the minutes.
5. Press the Alarm button again to set the alarm type. The alarm type will begin flashing on the display.
6. Repeat Step 2 to set the alarm type: Radio, CD or Buzzer.
7. Press the Alarm button again to finish setting the alarm.

Cancelling the Alarm

1. After the alarm has sounded press the Alarm button to cancel it.
2. Press and hold the Alarm button to turn it off entirely. The alarm indicator on the display will disappear.

Contact Information

Website: www.iliveeelectronics.com

Email Support: [e-mail]

Email Parts: [e-mail]

Phone Support: 1-888-999-4215

Warranty

For Warranty Information and the most up-to-date version of this User's Guide, go to: www.iliveelectronics.com

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iliveelectronics.com

Protect for Today Sustain for Tomorrow

Copyright © 2017 Digital Products International (DPI, Inc.). All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
