Product Type	Stereo Speaker Dock
Model	iMM288
Brand	iLuv
Compatible Devices	iPhone and iPod with 30-pin dock connector
Audio Output	Stereo speakers (2x 3W estimated)
Power Source	AC power adapter (100-240V, 50/60Hz)
Input Voltage	DC 5V, 1A (via adapter)
Dimensions (Approx.)	200 x 120 x 100 mm
Weight (Approx.)	0.6 kg
Charging Function	Charges connected iPhone/iPod when docked
Auxiliary Input	3.5mm audio input for external devices
Controls	Volume, track navigation, play/pause
Remote Control	Not included
Material	Plastic
Frequency Response	20 Hz - 20 kHz (typical)
Signal-to-Noise Ratio	>80 dB (typical)
Warranty	1 year limited warranty
Maintenance	Wipe with a dry, soft cloth
Safety	Do not expose to moisture or liquids
Spare Parts	Not available; no user-serviceable parts
Repairability	Contact iLuv support for service
Package Contents	Docking station, power adapter, quick start guide

Frequently Asked Questions - IMM288 ILUV

What devices are compatible with the iLuv IMM288?

The iLuv IMM288 is compatible with iPhone and iPod models that have a 30-pin dock connector, such as iPhone 4, 3GS, and iPod classic, nano, touch (2nd-4th gen).

How do I power the dock?

Connect the included AC power adapter to the dock and plug it into a wall outlet. The dock will automatically power on.

Can I charge my iPhone while playing music?

Yes, the iLuv IMM288 charges your device when it is docked, so you can listen to music and charge simultaneously.

Does it have an auxiliary input for other devices?

Yes, there is a 3.5mm auxiliary input on the back of the dock, allowing you to connect MP3 players, phones, or other audio sources via a standard audio cable.

How do I control the volume?

The dock has volume control buttons on the top panel. You can also adjust volume directly on your connected iPhone/iPod.

What is the warranty period?

The iLuv IMM288 comes with a 1-year limited warranty. For details, refer to the enclosed warranty card or contact iLuv support.

How do I clean the dock?

To clean, unplug the dock and wipe the exterior with a soft, dry cloth. Avoid using liquids or abrasive cleaners.

Does it include a remote control?

No, the iLuv IMM288 does not include a remote control. All controls are on the dock itself.

Can I use it with an iPod shuffle?

Only iPod models with a 30-pin dock connector are compatible. The iPod shuffle (any generation) uses a 3.5mm plug and can be used via the auxiliary input instead.

What should I do if the dock stops working?

Check the power connection and try a different outlet. Try a different device to rule out compatibility issues. If still not working, refer to the quick start guide or contact iLuv support for warranty service.

USER MANUAL IMM288 ILUV

Designed by iLuv in New York

Stereo Speaker Dock for iPhone and iPod

Quick Start Guide

model:iMM288

Welcome.

iLuv

Innovative Lifestyle Unquestionable Value®

CONTENTS

Stereo Speaker Dock for iPhone and iPod | iMM288

WHAT'S INCLUDED	3
POWERING UP	4
CHARGING | PLAYING	5
CONTROLS	6
CONNECTING OTHER DEVICES	7
WARRANTY	8

2

WHAT'S INCLUDED

3

POWERING UP

CHARGING | PLAYING

5

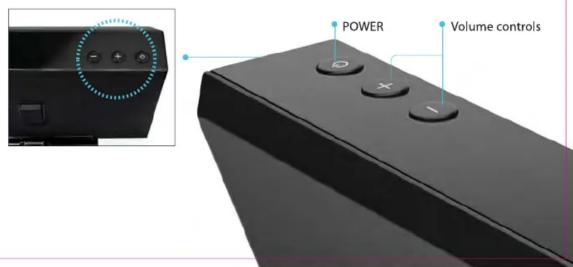

CONTROLS

CONNECTING OTHER DEVICES

WARRANTY

ONE YEAR LIMITED WARRANTY | UNE GARANTIE LIMITEE D'AN | GARANTIA LIMITADA DE UM ANO | GARANTÍA LIMITADA DE UM ANO EINEM JAHR EINGESCHRÁNKTE GARANTIE | GARANZIA LIMITATA UN ANNO | 1년 제한 보증 | 壹年有限保証 | 一年有限保証 1年 制限保証 | 1 JAAR VOOR BEPERKTE GARANTIE

iLuv®, Innovative Lifestyle Unquestionable Value® and GreeNology® trademarks are the exclusive properties of JWIN Electronics Corp. and are registered with the U.S. Patent and Trademark Office, and may be registered or pending registration in other countries. All other iLuv® trademarks, service marks, and logos may be registered or pending registration in the U.S. or in other countries. All other trademarks or registered trademarks are the property of their respective owners. © 2011 iLuv Creative Technology.

8
