Product Type	Print Server
Brand	Kraun
Model	KR.PS
Dimensions (approx.)	120 x 80 x 30 mm
Weight (approx.)	200 g
Power Supply	5V DC via USB or external adapter
Network Interface	Ethernet 10/100 Mbps
Printer Interface	USB 2.0 Type B
Supported Protocols	TCP/IP, LPD, SMB, IPP
Configuration	Web-based interface (HTTP)
Operating Systems	Windows, macOS, Linux
Maintenance	Keep clean, avoid moisture, update firmware regularly
Safety Precautions	Use in dry environment, avoid power surges
Spare Parts	No user-serviceable parts; contact support for replacement
Repairability	Designed for replacement, not repair
General Information	Allows sharing of USB printers over network

Frequently Asked Questions - KR.PS Kraun

How do I set up the Kraun KR.PS print server?

Connect the print server to your router via Ethernet and plug in the USB printer. Power on the device. Access the web interface by entering the default IP (often 192.168.0.1) in a browser. Follow the setup wizard to configure network settings and install printer drivers on your computer.

What should I do if my computer cannot find the print server on the network?

Ensure the print server is powered on and connected to the same network. Verify the Ethernet cable is secure. Check your router's DHCP client list to confirm the print server obtained an IP address. Use the provided utility software to scan for the device.

Can I use a USB hub to connect multiple printers to the KR.PS?

The KR.PS is designed for a single USB printer. Using a USB hub may cause compatibility issues. For multiple printers, consider using multiple print servers or a model that supports multiple USB ports.

Does the KR.PS support wireless printing?

No, the KR.PS is a wired print server with an Ethernet port. However, you can connect it to a wireless router to enable wireless printing for clients on the same network.

How do I reset the KR.PS to factory defaults?

Locate the reset button on the device (usually a small pinhole). Press and hold it for about 10 seconds using a paperclip until the LED blinks. The device will reboot with default settings.

Is the KR.PS compatible with AirPrint or Google Cloud Print?

The KR.PS does not natively support AirPrint or Google Cloud Print. However, you can set up a computer on the network as a print server to enable these services for the shared printer.

What is the default username and password for the web interface?

Default credentials are often 'admin' for both username and password. Check the label on the device or the manual for exact details. Change these for security.

Can I update the firmware of the KR.PS?

Yes, firmware updates are available on the Kraun support website. Download the latest firmware file, access the web interface, and use the firmware upgrade section to upload it. Do not power off during the update.

Why is my printer not responding after connecting to the KR.PS?

Check that the printer is powered on and properly connected via USB. Ensure the printer is compatible (most PCL or PostScript printers work). Install the correct printer driver on your computer and select the KR.PS as the port.

How do I assign a static IP to the KR.PS?

Access the web interface, go to network settings, and change the IP configuration from DHCP to static. Enter the desired IP address, subnet mask, and gateway. Save the settings and reboot the device.

User questions about KR.PS Kraun

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Print Server in PDF format for free! Find your manual KR.PS - Kraun and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KR.PS by Kraun.

USER MANUAL KR.PS Kraun

Quick Guide

Guida Rapida

Cod. KR.PS

www.kraun.it

KRAUN®COMPUTER ACCESSORIES	Quick Guide	KRAUN®COMPUTER ACCESSORIES	Quick Guide
Contents		8.3 Device Setup	48
1. Introduction 6		8.3.1 System	48
2. Product Package 7		8.3.2 Printer	49
3. MFP Server with Print Server 7		8.3.3 TCP/IP	49
4. MFP Server Installation in Windows 2000/XP 9		8.4 Setup Wizard	50
4.1 Hardware Installation Procedure 9		8.4.1 System	50
4.2 Software Installation Procedure 10		8.4.2 TCP/IP	52
4.3 MFP Server Utilities 16		8.4.3 Save Settings 53
4.4 Install the MFP Drivers/Utilities 17		8.5 System Tools	54
5. Using the MFP 22		8.5.1 Load Default	54
5.1 Share Print 23		8.5.2 Upgrade Firmware from Browser	55
5.2 Share Scan 23		9. LPR Printing	56
5.3 Share Card Reader 24		10. RAW Printing	62
5.4 Fax a File 25		11. IPP Printing	68
6. MFP Server Control Manager 26		11.1 Introduction	68
6.1 MFP Server List	26	11.2 System Setup	68
6.2 My Favorite	29	11.2.1 MFP Server Side	68
6.3 Auto Connect List	30	11.2.2 Client Side	68
6.4 Quick Setup	33	12. MFP Server Installation in Windows 98SE/Me/NT 73
6.5 Option Settings	34	12.1 Software Installation Procedure 73
6.5.1 General Setting	34	12.2 Server Utilities	80
6.5.2 Installed MFP List 35		12.3 Network Port Setup	81
6.5.3 Search for MFP Server	36	12.4 Add Printer	82
7. Server Configuration	37	13. UNIX System Network	86
7.1 Introduction	37	13.1 Introduction	86
7.2 Search for All Available MFP Server	38	13.2 Enable MFP Server's TCP/IP Support	87
7.3 Status of MFP Server	39	13.3 Setup MFP Server's IP Address	87
7.4 Setup the MFP Server	40	13.3.1 DHCP	87
7.5 General Configuration	41	13.3.2 BOOTP	87
7.6 TCP/IP Configuration	42	13.4 Verify MFP Server's IP Address	89
7.7 System Configuration	43	13.5 Configure Remote LPD Printing on the Host	89
7.8 MFP Server Management	45	14. MFP Server Installation in MAC OS	92
7.9 Report	46	15. Troubleshooting	96
8. Web Management	46	Appendix: MFP Server Compatibility List	100
8.1 Introduction	46	COPYRIGHT	102
8.2 Login	47	FCC COMPLIANCE STATEMENT	102
		DISCLAIMER	103

www.kraun.it

Thank you for purchasing and using our MFP server. This MFP server allows your Multi-function, all-in-one printer (called for short: MFPI) or printer to become a shared device on the network. Unlike many print servers, it can communicate with MFP and printer as if it is connected directly to your computer. Because of the features, all users can share print, scan, card reader and fax functions through the network. Furthermore, the MFP Server can build the bi-directional communication with MFPs and Printers so that it can help to monitor important information such as ink levels and paper levels.

The MFP server supports print, scan, card reader and fax sharing functions in the most popular operating systems: Windows 2000 SP4 above and XP SP1 above. It also supports Windows XP scanning utility and MFP vendors' scanning utilities. When you want to scan in the Windows XP, you can choose one of the utilities.

Not only be a MFP Server, this MFP Server can also be a traditional print server. It supports TCP/IP network protocol and LPR, RAW and IPP printing protocols. It can share print function in the various common network operating systems including Windows 98SE/Me/NT/2000/XP/2003, Unix, Linux and MAC OS 9.x above.

The MFP server is the best solution for users to share MFP or printer conveniently and easily. It offers the most flexibility and manageability for MFP or printer on your Local Area Network

at an extremely low cost and with an absolute minimum setup and maintenance required.

2. Product Package

This package contains the following components:

One MFP Server
• One Power Adapter
• One Quick Installation Guide
One CD-ROM (Including all the software utilities, drivers and User's Manual).

3. MFP Server with Print Server

This MFP Server supports dual functionalities: MFP Server Mode and Print Server Mode at the same time. Users can choose one of the modes to share MFP or Printer functions through the MFP Server.

www.kraun.it6

www.kraun.it 7

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

MFP Server Mode:

The MFP Server can communicate with MFP and printer as if it is connected directly to your computer. This enables users to connect to MFP for sharing print, scan, card reader and fax functions. If the MFP Server is connected to a printer but not MFP, users still can share printing function through the operation mode. The supported OS in this mode is Windows 2000 SP4 above and Windows XP SP1 above. The MFP Server mode doesn't support Windows 98SE/ME/NT, Linux/Unix or MAC OS. For the detailed applications, please refer to the following chapters.

Chapter 4: MFP Server Installation in Windows 2000/XP

Chapter 5: Using the MFP

Chapter 6: MFP Server Control Manager.

Print Server Mode:

The MFP Server also supports LPR, IPP and RAW printing protocols, which enable users to share print function from MFP or Printer. The supported OS is Windows 98SE/Me/NT/2000/XP/2003, Unix, Linux and MAC OS 9.x above.

For the detailed applications, please refer to the following chapters.

Chapter 9: LPR Printing

Chapter 10: RAW Printing

Chapter 11: IPP Printing

Chapter 12: MFP Server Installation in Windows 98SE/ME/NT

Chapter 13: Unix System Network

Chapter 14: MFP Server Installation in MAC OS.

4. MFP Server Installation in Windows 2000/XP

Before you start, you should have:

• One computer with Windows 2000 SP4 above and Windows XP SP1 above
• One MFP or printer with USB port and an installation CD
• One Category 5 Ethernet Cable
- One USB Cable.

4.1 Hardware Installation Procedure

Unpack the MFP Server package and verify that all the items listed in the previous section are provided.
Plug the USB cable to the MFP Server with the MFP or printer that you want to share on the network.
Connect the MFP Server to your network by attached the network cable to the network port of the MFP server.
Connect the power adapter to the MFP Server. The MFP Server will perform the Power-On-Self-Test (POST) after it is powered on. When the Status LED is unlighted, the MFP Server is ready.

www.kraun.it8

www.kraun.it 9

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Note:

You must use the power adapter shipped along with the MFP Server, do NOT use any other power adapter from other sources.
To prevent the compatibility problem between MFP Server and a few MFP or printer, it is recommended that you power on the MFP Server before the MFP or printer.

4.2 Software Installation Procedure

Before you start, you should check your computer's operating system. This program can be run in Windows 2000 SP4 above and Windows XP SP1 above. Please follow the steps below to start installation.

Tip: You have to uninstall all the MFP server drivers and utilities if you have installed the previous version.

Insert the CD shipped along with the MFP Server into your CD-ROM drive. The Autorun.exe program should be executed automatically. If not, run Autorun.exe manually from CD-ROM drive's root directory
The following screen will be displayed. Click "MFP Server Installation".

MFP Server Installation Quick Installation Guide User's Manual Acrobat Reader Installation Exit

The "MFP Server Utilities - InstallShield Wizard" is displayed, click "Next".

NT Server Utility - Installable Wizard NT Server Utility 1.1.2.0 Setup Provider: The installable tool It is all necessary to deliver and serve It helps you through the NT Server setup process

www.kraun.it10

www.kraun.it 11

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Click "Next" to install the MFP Server utilities in the default folder or click "Change" to specify the destination folder where you would like to install the MFP Server utilities.

XP Server Utility - InstallShield Wizard Device Destination Settings Save As/Down Active Users InstallShield Supply Utility to: CPU Programs Tools XP Server Utilities Install

The system starts installing the MFP Server Utilities.

WP Server Utility - InstallShield Wizard Step 5.1 WP Server Utility Switches Systematics Advanced Software

The "MFP Server Configuration" screen is displayed. If you want to configure the MFP Server, please click "Next" directly. Or you can select "No, I will configure the MFP Server later" and click "Next" to complete the installation.

The following steps are for MFP Server Configuration.

Windows 8.0 (Windows - Microsoft Word) <|vision_start|> Program Files (*.doc) Program Files (*.doc) Program Files (*.doc) Program Files (*.doc)

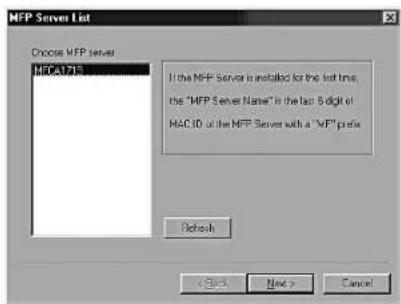

The MFP Server List will auto search the MFP Servers in the network. Select the MFP Server you want to setup and click "Next" to continue.

Deselect HTP Server HSP-01.07 If the HTP Server is an estimate, for the local HTP HTP Server Name is a local Google or HSP-01.07 as the HTP Server with a "56" path. Remove Back Next > Cancel

www.kraun.it12

www.kraun.it 13

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Enter the "User Name" and "Password" of the MFP Server you have selected to login the MFP Server. The default "User Name" is "admin"; default "Password" is "1234."

Kraun KR.PS - Quick Guide - 1

Set the "Alias Name" and the "MFP Server Description" to the MFP Server here. Click on "Next".

Note: You can define the location or other information of the MFP Server for easy to find the MFP by filling "MFP Server Description".

Name: The MFP Server Device Name: MFC01719 The unique serial number of the MFP Server Alias Name: MFC01719 An alternative name for easy management MFP Server Description: Enter 15 key descriptions of the MFP Server such as location or other information < Back Next > Cancel

Setup the IP address of the MFP Server and click "Next".

Note: The MFP Server IP Address should be in the same network segment with the connected computer. If you are not sure how to set up the IP Address, you are recommended to select "Assign MFP Server IP Address" and choose "Assigned by Wizard", and then the program will assign a valid IP Address to you.

Preview Settings Device Name: 20.0/10 FTP Server Configuration: Abit Name: 20.0/10 P Address Configuration: 20.0/10 P Address: 20.0/10 Click "Finish" for program Will have the settings to the FTP Server and install the FTP Server Back Next Cancel

The configurations are finished. Please click "Finish" to apply new settings.

Preview Settings Location Name: IP-01174 MPT Server Description: Address Name: IP-01174 IP Address: IP-01174 Data "HKEY" Location Call down the website in the MPT Server installed for MPT Server Back Quick Cancel

www.kraun.it14

www.kraun.it 15

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Click "Finish" to complete the installation.

ASP Server Utility - InstallShield Wizard InstallShield Wizard Descentor The installShield utility has second-adjusted ASP Server Utility. Click: Fresh to end the ASP01

4.3 MFP Server Utilities

After the installation is completed, there will be three utilities and a text file in the MFP Server's Program folder.

MFP Server Control Manager – Allows you to manage the connection between the MFP and your computer for sharing MFP function.

Server Configuration – Allows you to configure the MFP Server's IP Address, network protocols and other advanced features. It also allows you to manage the MFP Server.

Uninstall – Assistant for removing all installed MFP Server software programs.

About Version – Display the version of each utility including in the MFP Server software programs.

MTP Server Utility File and folder details Share a new folder Database the folder to the info Share a new folder About folder Terminal 2305 Server Configuration Terminal 2305 Internet Terminal 2305 About folder Terminal 2305 MTP Server Control Manager Terminal 2305 External Terminal 2305

4.4 Install the MFP Drivers/Utilities

When the installation is completed, the "MFP Server Control Manager" will be popped up. It will automatically find the MFP Servers and the connected MFPs in the network and show it in the "MFP Server List". To start installing the MFP Drivers/Utilities, please follow the steps below.

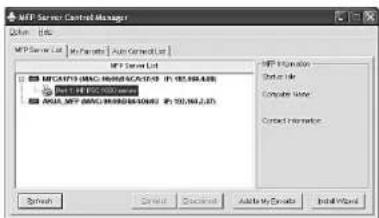

MFP Server Control Manager System: MFC MFP Server List My Format Auto Control List MFP Server List MFCATYS (MMC) 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000 MFCATYS (MMC) 0000000000000000000000000000000000000000000000000 MFCATYS (MMC) 19999999999999999999999…

Select the MFP that you want to install in the "MFP Sever List" and click "Install Wizard".

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

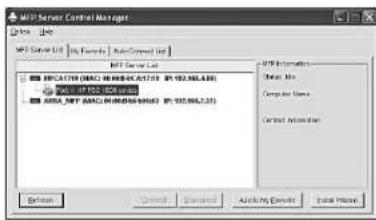

MPT Server Control Manager MPT Server List IP Address AutoCorrect List MPT Server List MPT Server (MAC) MPT@MAC-01759 IP: 102.066.1388 MPT: IP:102.066.1388 MPT: MAC_MPT(MAC)MPT@MAC-01759 IP: 102.066.1388 MPT: MAC_MPT(MAC)MPT@MAC-01759 IP: 102.066.1388 MPT: MAC_MPT(MAC)MPT@MAC-01759 IP: 102.066.1388…

The following message is displayed to warn you that you have to follow the installation instructions in the manual of the MFP. If the MFP is requiring you to connect the MFP to your computer directly, please click "Connect".

Tip: Some MFP requires users to install the drivers/utilities before connecting the MFP to your computer, please make sure you have followed the instructions of MFP. When the MFP requires checking if you have connected the USB cable to MFP and your computer, please click "Connect" to create the connection. Please refer to the below illustration of "HP ALL-In-One Series" as an example.

Installing MFP Server... You are now installing the MFP please refer to the instruction in the manual of the MFP? Custout Some MFP required users can not connect the MFP to the computer before installing the software from the CD. Please read the MFP manual button and follow the instructions in this…

Connect Your Device Name 1. Make your device to powered us 2. Connect the USB drive □ If you are unable to connect your device now, click, press and help click, then first make up the software. You can contact your device name. OK Cancel Help Cancel

If the MFP has required you to plug the USB cable between the MFP and your computer, please click "Yes".

Kraun KR.PS - Install the MFP Drivers/Utilities - 5

Before creating the connection, you have to install two kinds of drivers: the drivers for MFP Server and the drivers for MFP. Please click "Next" to start the installation.

Installing MIP Server... You will be guided to go through the following two steps: Step 2: Install the Driver of MIP Server... Step 2: Install the Driver of MIP. Please select the CIR of the MIP when you want installing the Driver. Next Cancel

www.kraun.it18

www.kraun.it 19

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

When you are installing the MFP Server Drivers, the following message will be displayed to notify you. When the MFP Server drivers are all installed, the message will be disappeared automatically.

Kraun KR.PS - Quick Guide - 1

Select "Install the software automatically (Recommended)" to auto install the "MFP Server Enhanced Controller" driver, then click "Next".

Found New Hardware Wizard Welcome to the Found New Hardware Wizard The hardware helps you install software to: HTTP Server Advanced Controller If your hardware came with an installation CD or floppy disk, insert it into... What do you want to add to it? Install the software automatically. Features n…

The driver is installed automatically. Click "Finish" to complete this driver installation.
The following message is displayed to remind you that you are now installing the MFP Drivers. When you are sure that the MFP has been installed completely, please click "Finish".

Tip 1: The Windows system will auto detect the MFP drivers need to be installed. Please follow the pop-up screens to install the drivers, when the system stops prompting the drivers are all installed.

Tip 2: When the two steps have finished, the MFP is now connected to your computer directly. Please continue to install the MFP by following the steps in the manual of MFP.

Step2 install the MFP Drivers The drive will script you to install drivers for the MFP. The drive are stored on MFP Driver CD. The drivers are completely installed when the system stops the program. When the drive is MFP Driver and MFP are installed completely, the MFP is now operating in the mode w…

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

5. Using the MFP

After you have followed the install wizard to finish the MFP installation, the MFP is now connected to your computer. You can start sharing print, scan, card reader or fax function provided by the MFP.

Tip 1: If you have finished using the MFP, please click "Disconnect" to release the MFP. Another users can't use the MFP until the MFP is released.

Tip 2: It doesn't always have to manually click "Disconnect" to release the MFP. There is alternative of releasing device by enabling "Idle Timeout Setting". The device will be released after a period of idle time. Please refer to Section 6.5.1 for more information.

NTFS Server Control Manager [Other: 540] NTFS Server List My Portfolio Auto Control List NTFS Server List □ BMTCAITH (MACD: 1986.00.2.17/0) IP: 192.00.3.37 □ Port 1: IP FSC 1986 installed □ AMD: MTP (MACD: 1986.00.2.17/0) IP: 192.00.3.37 MTP Information Status: Connected Computer Name: SLST-2C/C/198…

The MFP will be added to "Printers and Faxes" in the Windows after the MFP is installed. When you have connected to the MFP by clicking "Connect" in the "MFP Server Control Manager", the MFP Server will auto create the connection between the MFP and your computer and then you can print a document just follows the same steps as usual.

Printers and Faces File Edit View Favorites Tools Help Back Search Followers Printers and Faces Printer Tasks Add a printer Size what's printing Select printing Top design 3600 series Ready HP-PC1.1600 series B.1600

Most of the MFP provides scan utility for users. You can scan pictures or documents through the utility. In Windows XP, user can also scan from Windows XP scanning utility.

An example: HP 1600 Series Utilities
HP Director Select Devices: HP PSC 1000 series System > Settings > Help > Scan Extrave Scan Document Transfer Images New Data Creative Stores HP Shipping Software Update HP Director Structures to Flow IP product Functions, Settings and Information

www.kraun.it22

www.kraun.it 23

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Windows XP Scanning Utility

My Computer File Edit View Tools Help Search Folders My Computer Systems Tools Show system from Add to remove programs Change setting Other Places My Network Places My Documents Shared Documents Local DNA (C:) CD Drive (D:) Shared Documents RemoteDrive (E:) Local DNA (C:) HP-ESC (LOG Series) Search…

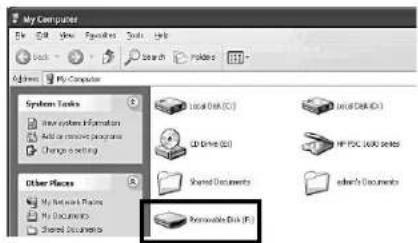

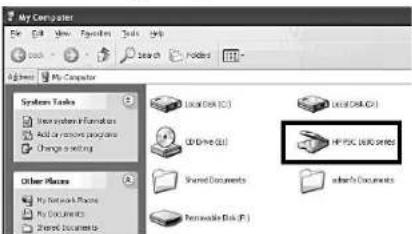

If the MFP supports card reader function, you can read the files from the plugged card reader through the MFP Server.

My Computer File Edit View Favorites Tools Help Back Search Folder Address My Computer System Tools New system Information Add or remove programs Change setting Other Places My Network Places My Documents Shared Documents Local DNA (C:) Local DNA (D:) LP Drive (E:) HP-POC-3000 Series Shared Document…

5.4 Fax a File

If the MFP supports fax function, you can fax files from your computer to the fax number you designated.

An example: Fax through HP Officejet 5600 Series

After the MFP is installed, there is a fax device will be added to "Printers and Faxes" in the Windows. When you have connected to the MFP by clicking "Connect" in the "MFP Server Control Manager", you can fax a file through the MFP Server to the fax device.

Procedures to fax a file:

In the Microsoft Office or other programs, select "Print" from the "File" menu.
The following screen will be popped up, select the fax device and then click "Print".

Printer Select Printer Add Print HP Laser Set HP Offcogene 5000 series HP Offcogene 5000 Series 2100P PC-Offcogene 5000 Series PC-6 Status: Ready Location: Contact: Print to On Preferences Find Power Pages Range: All Selection: Current Pages Pages: 163595 Number of pages: 1 Delete Edit Cancel Apply

www.kraun.it24

www.kraun.it 25

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

The "Send Fax" screen is popped up, please configure the file and enter the fax number. Click "Send Fax" to fax the file.

MF Office/Get 5400 series - Send Fax Address Book Send Page Right File List Send Name Log Number Voice Number Company Include with Fax PC-Connected Cover Page Fax Content Package List Name Fax Number Project Manager Email Color Black and White Color System Send Fax Send Fax Help Cancel

6. MFP Server Control Manager

6.1 MFP Server List

The "MFP Server Control Manager" can automatically find the MFP server in the network and show it in the MFP Server List. Users can select a MFP and click "Connect" to connect the MFP just like you have directly connected the MFP to your computer through USB cable. It also displays the information of the connection status.

When you don't want to use the MFP or Printer, please click "Disconnect" so that other users can use the device. If you unplug

the USB cable or turn off the MFP while using, the device will not display in the list. After you reconnect the USB cable or turn on MFP, you have to click "Refresh" and "Connect" buttons in the "MFP Server Control Manager" to recover the connection.

MTP Server Control Manager Options MTP Server List Any Options Auto Connect List MTP Server List □ MTCAT19 (MAC: 88000000000000000000000000000000000000000000000000000000000000000000000000000000000000 □ Part I: MTC 1663.237 □ AMA_MTP (MAC: 880000000000000000000000000000000000000000000000000000000 MTP…

Parameter Description
MFP Server List	The “MFP Server List” will list all the MFP Servers within the network. You can find the information of the MFP Servers including “MFP Server Name”, “MAC ID”, “IP Address” and the device that is connected to the MFP Server B+G mode per permettere ad AP di selezionare automaticamente il collegamento a 802.11b e a 802.11g.
MFP Server/MFP Information “MFP	When you are clicking on the “MFP Server” in the Server List”, you will see the “MFP Server Description” and the “Idle Timeout” setting for the MFP Server.MFP Server Description – It is a description that can help users to identify where or what the MFP Server is.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Parameter Description

When you are clicking on the "MFP" in the "MFP Server List", you will see the information including "Status", "Computer Name" and "Contact Information".Status- It displays the status of the MFP including Connected, Idle and Busy. When the status is "Connected", it indicates that you are connecting the MFP. When the status is "Idle", it indicates that the MFP is not being used. When the status is "Busy", it indicates that other user is using the MFP to scan, print, or etc.Computer Name- It displays the computer name of the user who is connecting to the MFP.Contact Information- When the current user has set his "Contact Information", you can see it here. You can contact with the current user for asking to disconnect the MFP.
Refresh Refresh the "MFP Server List" immediately.
Connect Let the MFP be connected to your computer.
Disconnect Disconnect the selected MFP.
Add to My Add the MFP Servers that you frequently use to
Favorite "My Favorite List".

Parameter Description

Install Wizard When you install the MFP at the first time, click "Install Wizard" will help you to go through all the installation steps and complete the installation.

6.2 My Favorite

You can add the frequently use MFP Servers to "My Favorite" list. The MFP Server in the list will be added to the quick link list when you right click the MFP Server icon in the system tray. Please refer to Section 5.4 to know more about the quick setup functions.

MTP Server Control Manager My Service List My Service List MTP Server Info session MTP Server Control session Part 1: MP-PCD 1000 audio Edit Format Enter Cancel Remove Delete

Parameter Description

My Favorite List	The "My Favorite List" will list your favorite MFP Servers. You can find the information of the MFP Servers including "MFP Server Name", "MAC ID", "IP Address" and the device that is connected to the MFP Server.
MFP Server/MFP Information	The information listed here are the same as MFP Server List. Please refer to Section 5.1.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Parameter Description

Refresh Refresh the "MFP Server List" immediately.
Connect Let the MFP be connected to your computer.
Disconnect Disconnect the selected MFP.
Delete Delete the selected MFP Server from the "My Favorite List".

6.3 Auto Connect List

To let the system occupy the MFP server automatically when you want to print a document just like the behavior of using traditional print server, you can add the MFP into your Auto Connect List. The system will send the printing jobs to the MFP when the MFP Server is idle and not being connected.

Tip: If you have sent a printing job to the MFP while the MFP is busy or connected, you may be prompt that the device is not found or not connected. The MFP may queue your printing job in your computer spooler. The MFP Server will then print the job after the MFP is idle or disconnected.

To add the MFP to the Auto Connect List, please follow the steps below.

Click "Add" from the "Auto Connect List".

MPT Server Agent System: Info MPT Server List My Favorite Auto Contact List Auto Contact List Provider Name to Computer MPT Server Name MPT Server Add Delete

The MFP Servers within the network will be displayed in the following screen. Select the MFP Server you would like to add to the list.

Auto Connect Criteria Select a Printer MPD Service Note MPD MPD1111.2P IP Professional 2700 series MPD4718.0P IP/SEC 1600 series Select a Printer Source IP SEC 1600 series ✓ Keep pointing to: 35 on account) after printing has been installed (F-90)

Select the MFP that is connected to the selected MFP Server. Click "Ok". Note that in some cases, new coming printing jobs cannot be printed because the MFP is already disconnected. It will cause unformatted messages to be printed out. "Keep connecting for 30 second(s) after printing has

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

been finished (5-60)" is enabled by default. It will help to avoid this kind of situation.

Auto Connection Settings Select a Printer MFP Server Name MPF MFI11111.SP HP Photoperant 2700 series NFCAT754.PI HP PSC 1600 series OK Cancel Refresh Select a Printer Course HP PS2 1600 series ✓ Keep connecting for 30 seconds to the printing has been finished(5-63)

The setup is finished.

MTP Server Control Manager Option Help MTP Server List | My Favorite - Add Correct List | Auto Connect List Infer Name in Console MTP Server Name MTP Server Mac HP MSC 1000 series MFCATTIS 03-02-284-CA-T7-19 Auto Add Delete

6.4 Quick Setup

Right click on the MFP Server icon in the system tray you can see the MFP servers you have designated to "My Favorite List". You can directly connect or disconnect the MFP and check the MFP information from the here easily.

Status Connected Connect Disconnect Information MFC1719 Open Control Manager Exit MFC Server Information IP Address: 102.168.4.88 MFC Server Description: Idle Interrupt /Server Interrupt Part 1 Status Connected Primer Name: HP PSC 1600 service User: MPSP1.Bhd Contact Information Close

Parameter Description

Status The current status of the MFP will be displayed here. "Connected" indicates that you are connecting to the MFP. "Busy" indicates the MFP is being used. "Idle" indicates that the MFP is free to use by any users.

www.kraun.it32

www.kraun.it 33

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Parameter Description

Connect If the MFP is free to use, the “Connect” will be available to click for occupying the MFP. Or it will be grayed.

Disconnect Disconnect the selected MFP. The “Disconnect” will be available only for the current user.

Information To check more information about the MFP Server and the MFP, please click this button. The information will be listed as the illustration above.

6.5 Option Settings

6.5.1 General Setting

General Settings Start Control Manager on Windows startup Ministered when start Control Manager Refresh status every 5 seconds (5-300) Auto release when click time is over 5 minutes(5-250) Your Contact Information OK Cancel

Parameter Description
Start Control Execute the "MFP Server Control Manager" when Manager on Windows starts every time. By default, it is enabled. Windows startup

Parameter Description
Minimized when start Control an Manager Server	Minimized the "MFP Server Control Manager" to con in the system tray when you start the "MFP Control Manager". By default, it is disabled.
Refresh status every xx seconds (5-300)	Setup the refresh interval for device status update.By default, it is disabled.
Auto Release To when idle time is over xx minutes (5-255) period of	avoid you occupy the MFP overtime; you can setup idle timeout. It is used to disconnect the current connection after the MFP is idle for a specified time. By default, it is never timeout. It is recommended to enable idle timeout setting after the MFP and MFP Server are installed completely so that the MFP resource will not be occupied easily.
Your Contract En Information conn	ter your contact information here. When you ect to the MFP, your contact information will be displayed in the right side of the program for other users to contact you.

6.5.2 Installed MFP List

The MFPs that have been installed will be displayed in the list. If you have removed the MFP from your computer, please delete the MFP from the list. The "MFP Server Control Manager" will guide you to install the MFP when you want to install the same MFP next time.

www.kraun.it34

www.kraun.it 35

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Installed MFTP List Delete Delete

6.5.3 Search for MFP Server

If there is an MFP Server is not in the network as your computer, you can enter the IP Address of the MFP Server to do the remote search. The MFP Server in the "Remote MFP Server List" will be added to the "MFP Server List" for you to configure.

Note:

If the remote MFP Server you have searched is behind NAT Router, the MFP Server may not operate normally.

Remote MTP Server List Remote MTP Server List IP Address: New Address Add Delete Close

7. Server Configuration

7.1 Introduction

This chapter introduces MFP Server's system configuration utility in Windows environment. This utility provides the most complete management and configuration functions on the MFP Server side. This utility only provides configuration functions for MFP Server itself; it does not include configuration functions for client side or other file server in the network environment.

The Configuration Utility provides the following configuration and management functions:

Search MFP Server: Search All Available MFP Servers on the Network.
• Status: Display MFP Server Network Status.
General Configuration: Configure general settings about the MFP Server such as Server Name, Password, etc.
TCP/IP Configuration: IP Address and DHCP Server Configuration.
System Configuration: MFP Server Network Ability Setting and Firmware Upgrade.
MFP Server Management: For administrator to manage the MFP Server. Administrator can force disconnect the current connection of the MFP Server.
• Report: List the some information of All Available MFP Servers on the Network.

We will explain each function separately in the following section.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

7.2 Search for All Available MFP Server

Server Manager 1.0.7 File Edit View Help Server Group MPCAT179 Status MPC AT 010841CA1715 Icon Type: T-PC Version: 36.25A Server Path Port1: OFF/HP MFC Server MFC Server Description: Port1: File TCP/IP P Asynchronous: 132.194.2.2 SubmitMask: 265.265.250.0 Backway: 88.8.0 DHCP Server Dismisses 1689M…

Every time when you run the "Server Manager" configuration utility, click the "Search" icon on the tool bar. The configuration utility will delay for several seconds because the utility is using system's available network protocols to search for all MFP Servers on the network. All available MFP Servers will be listed under "Server Group" on the left side of the window.

You must select the MFP Server you would like to configure from the list. The system will, at the same time, display the selected MFP Server's status on the right side of the window.

7.3 Status of MFP Server

Server Manager 1.0.7 File Edit Server Group MCA1219 Status MCA ID: 01.05.042.CA17.15 Model Type: 1996C Version: 36.25A Server Port Port 1, Off Line MTP Server MTP Server Description: Port 1, Tools TCP/IP IP Address: 182.168.2.2 Submit Mask: 200.263.256.0 Gateway: 8.0.0.0 DHCP Server: Disable System…

Click "Status" icon set the tool bar, the status of the currently selected MFP Server will be showed on the right side of the window. The information of the MFP Server displayed are including MAC ID, Model Type, Firmware Version, status of each server port, IP address, subnet mask, default gateway and supported printing protocols, etc.

You can refresh the MFP Server's status by pressing the "Refresh" button

You can restart the MFP Server by pressing the "Reboot" button.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

7.4 Setup the MFP Server

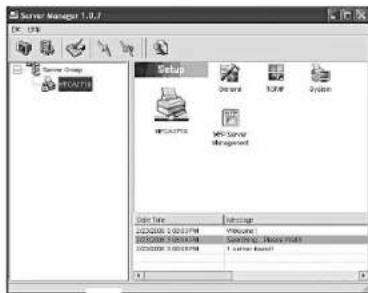

Server Manager 1.0.7 MRCA4773 Setup MRCA4773 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MRCA4772 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSCA4773 MSC…

Click "Setup" icon on the tool bar, the setup items of the current selected MFP Server will be showed on the right side of the window.

Double click one of the icons to set up the selected MFP Server. A screen will pop up to verify "User Name" and "Password" of the MFP Server. The default values are: User Name: admin, Password: 1234.

Tip: When you have finished the settings, please click "to restart the MFP Server to let the settings take effect.

7.5 General Configuration

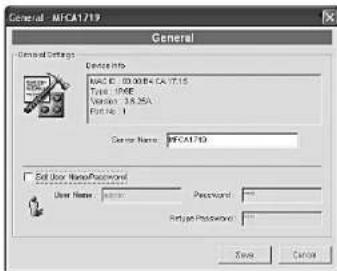

General: MFCA1719 General Settings Device Help: MAC C: 03.00E+CA.715 Type: IP/IE Version: 3.6.5A Format: 1 Sensor Name: MFCA1719 Edit User Name/Password User Name: Password: Retige Password: Save Cancel

Double Click "General" icon and the General configuration window will pop-up. You can see basic MFP Server information in this page. You also can configure the "Server Name", "User Name" and "Password" here.

Server Name, the name of the MFP Server. You can use this name to identify the MFP Server when you are searching for the MFP Server by the "Server Manger" utility.

User Name / Password is used to authenticate the administrator to login the MFP Server for configuring it from the "Server Manager" utility or the Web Management tool.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

7.6 TCP/IP Configuration

TCP/IP - NBCA1719 TCP/IP TCP/IP Start P DNCIP Start Casp IP Nurse IP IP Address: 182 168 2 2 Send Host: 258 268 268 0 Outflow: 0 0 0 0 Save Cancel

TCP/IP - MECALTFIE TCP/IP Settings P CHIP Server AID STOCK P STOCK Starting Address: 0 Port: 0 Switch Mask: 0 Gateway: 0 GND: 0 Save Cancel

Double Click "TCP/IP" icon and the TCP/IP configuration window will pop-up.

You can configure the MFP Server to automatically get IP from DHCP server or manually specify static IP. The MFP Server also has a built-in DHCP server. You can enable this DHCP server and let it manages IP for you.

Click the "IP" button to enter the IP setting page. If you need the MFP Server to automatically get an IP from DHCP server, select "Auto IP". You also can select "Static IP" to manually assign "IP Address", "Subnet Mask" and "Gateway" for the MFP Server.

Click the "DHCP Server" button to enter into the DHCP server's setting page. You can enable/disable the DHCP server and assign a range of IP addresses here. By the default, the DHCP server is disabled. If the DHCP is enabled, you have to assign a range of IP addresses. Fill in the "Starting Address", "Range", "Subnet Mask", "Gateway" and "DNS"; then the MFP Server will assign a unique IP for each DHCP client. You have another option called "Auto" for the DHCP server. It means the MFP Server can detect any DHCP server automatically and if the DHCP server doesn't exist, the MFP Server will turn on his DHCP server.

7.7 System Configuration

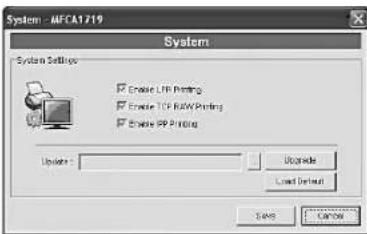

System - MFCA1719 System Settings □ Create LTP Printing □ Create TCP RMSN Printing □ Create BP Printing Update: Upgrade Load Default OK Cancel

www.kraun.it42

www.kraun.it 43

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Double Click "System" icon and the System configuration window will pop-up. In the System configuration page, you can see all available printing protocols and upgrade the new firmware for this MFP Server.

Upgrade Firmware: You can use this "Upgrade Firmware" tool to update the newest firmware of the MFP Server. Click "Button and select the correct firmware in your PC. After selecting the firmware file, click the "Upgrade" button to finish the firmware update process.

Tip: Before you upgrade the firmware, please make sure that the IP Address settings of the MFP Server are in the same network as your computer.

Load Default: If you want to reset the MFP Server to default factory settings, please click "Load Default".

7.8 MFP Server Management

MFP Server Management - MFC1719 MFP Server Management Frame Release □ Port □ Lot □ Lot □ Frame Release Settings MFP Server Description Save Cancel

Double Click "MFP Server Management" icon and the MFP Server configuration window will pop-up. You are able to manage the MFP Server as below.

Force Release: Select the port number and then click "Force Release" will help to you disconnect the current connection between the user and the connected device. It is very useful when a user forgets to disconnect the MFP, administrator can force to disconnect the connection and let the MFP be free to use.

MFP Server Description: Enter 15 digits description of the MFP Server such as location or other information to help user to find the MFP Server easily.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

7.9 Report

Report! Device Name MC-0 Model Type Version Status MFCAT173 8800MFCAT173 学报 36.25A N## 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 N## 173

Click "Report" icon on the tool bar, the Report window will pop up.

The report lists basic information of all available MFP Servers on the network. The information includes Device Name, MAC ID, Model Type and Firmware Version of MFP Server.

8. Web Management

8.1 Introduction

MFP Server can be configured and managed on the Web. Through Local Area Network, or even Internet, administrator can easily configure and manage MFP Server's various main functions in browsers. Simply enter MFP Server's IP address into your browser's address field to manage a MFP Server by MFP

Server's built-in Web Server.

The default IP Address, User Name and Password settings of the MFP Server are as follows.

IP Address: 192.168.2.2

User Name: Admin

Password: 1234

You may use any Web Browser to review the status or configure the settings of the MFP Server. After entering the IP address of the MFP Server, a login page display. You have to enter correct "User Name" and "Password" before going to the Web Management pages.

Note: Default User Name is "admin", default password is "1234".

Connect to 192.163.2.2 Default password: 12% User name: admin Password: ****** □Remember my password OK Cancel

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

8.3 Device Setup

8.3.1 System

MFP Server - Microsoft Internet Explorer MFP Server Device Setup | Setup Wizard | System Tools MFP Server Status This page displays the current system settings of the MFP server. System Information Device Name: MFCA1215 Raw Printing Enable MFP Server Name: MFCA1719 IPP Printing : Enable Model Type:…

System Information includes "Device Name", "MFP Server Name", "Model Type", "Firmware Version", "MAC Address", "Wireless LAN Status", and the protocols enabled status, etc.

8.3.2 Printer

MFP Server Device Setup | Setup Wizard | System Tools STATUS SYSTEM System Printer TCP/IP This page displays the information of each printer connected to the MFP server. Note: If your printer does not support bi-directional function, some information will not be displayed correctly. Printer 1 Manufa…

This page lists information of MFP or printer connected to the MFP Server port.

8.3.3 TCP/IP

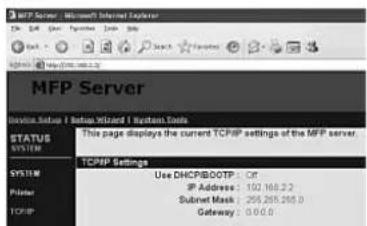

MFP Server MFP Server Device Setup 1 Setup Wizard 1 System.Daily STATUS SYSTEM SYSTEM Printer TCP/IP This page displays the current TCP/IP settings of the MFP server. TCP/IP Settings Use DHCP00TP : Off IP Address : 192.168.2.2 Subnet Mask : 255.265.265.0 Gateway : 0.0.0.0

This page lists all TCP/IP settings of the MFP Server including "IP Address", "Subnet Mask" and "Gateway". It also can tell the DHCP server is "On" or "Off".

www.kraun.it48

www.kraun.it 49

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

8.4 Setup Wizard

Note: You can configure the MFP Server from the Setup Wizard. To let the changes take effect, you have to click "Save Settings" in the menu of the left side to reboot the MFP Server.

8.4.1 System
MFP Server - Microsoft Internet Explorer File Edit View Favorites Tools Help MFP Server MFP Server Device Setup 1 Setup Wizard 1 System Tools SETUP SYSTEM SYSTEM TOPSP Save Settings This Menu allows you to configure general system settings of the MFP server. Click "Save and Next" to continue. System…

You can change the MFP Server name and password of the MFP Server from here.

MFP Server Name, the name of the MFP Server. You can use this name to identify the MFP Server when you are searching for the MFP Server by the "Server Manager" utilities.

Password, enter the password you want to change to the MFP Server. The password can be up to 7-digit alphanumeric format. The default password is "1234".

Re-type Password, enter the same password for the MFP Server again.

8.4.1.1 Advanced Settings
MFP Server - Microsoft Internet Explorer Back Edit Save Favorites Done Help Back Search Paste Export Access Http://192.168.2.0/ MFP Server Device Setup | Setup Wizard | System Tools SETUP SYSTEM SYSTEM Advanced Settings TCP/IP Save Settings This page allows you to configure Advance settings for the…

Some advanced feature of the MFP Server can be set here.

TCP/IP Printing: This MFP Server supports TCP/IP network protocol and LPR/IPP/RAW printing protocols. By default these protocols are enabled.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

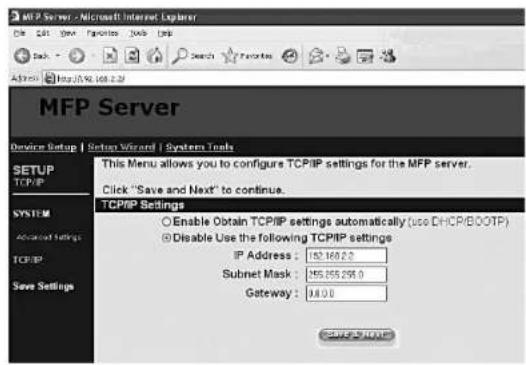

8.4.2 TCP/IP
MFP Server Device Setup | Setup Wizard | System Tools SETUP TCP/IP SYSTEM Advanced Settings TCP/IP Save Settings This Menu allows you to configure TCP/IP settings for the MFP server. Click "Save and Next" to continue. TCP/IP Settings Enable Obtain TCP/IP settings automatically (use DHCP/BOOTP) Disab…

If you need the MFP Server to automatically get an IP from DHCP server, select "Enable Obtain TCP/IP Settings Automatically (Use DHCP/BOOTP)". You also can select "Disable Use the following TCP/IP Settings" to manually assign "IP Address", "Subnet Mask" and "Gateway" for the MFP Server.

8.4.3 Save Settings
MFP Server - Microsoft Internet Explorer MFP Server Device Setup | Setup Wizard | System Tools SETUP TCP/IP SYSTEM Advanced Settings TCP/IP Save Settings This Menu allows you to configure TCPIP settings for the MFP server. Click "Save and Next" to continue. TCPIP Settings Enable Obtain TCP/IP settin…

After configuring the MFP Server, you have to click the "Save Settings" to save the settings and restart the system.

www.kraun.it52

www.kraun.it 53

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

8.5 System Tools

8.5.1 Load Default

MFP Server MFP Server Device Setup | Setup Wizard | System Tools SYSTEM Load Default Load Default Upgrade from Browser This menu allows you to restore the factory default settings. Load Factory Defaults Are you sure you want to load factory defaults?

You can use this page to restore the factory default settings. All of your previous setup will be cleared.

8.5.2 Upgrade Firmware from Browser

MFP Server - Microsoft Internet Explorer MFP Server Device Setup 1 Setup Wizard 1 System Tools This Menu allows you to upgrade the firmware of the MFP server. Note: please make sure the firmware is correct before you proceed. If you do not know which firmware file you should use, please contact your…

You can upgrade new firmware for this MFP Server in this page. Click "Browse" to select the new firmware in your storage and then click "OK", the firmware will be updated in several minutes.
Be aware that if you have started upgrading firmware, you have to follow all the upgrading steps or the MFP Server can't turn back to normal configuration.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

9. LPR Printing

LPR Printing (Line Printer Remote technology) allows users to connect to MFPs or printers via TCP/IP for printing sharing. The computer with Windows 98SE/Me/NT/2000/XP/2003 operating system can use the protocol to share printing in the network. MFP Server can support LPR printing by default. If you install the MFP Server in Windows 98SE/Me/NT, the MFP Server provides a tool "Network Port Setup" that help to add the LPR protocol to users' computer easily. Please refer to Chapter 10. To configure the LPR setting in Windows 2000/XP/2003, please follow the steps below.

Click "Start", choose "Settings" and select "Printers and Faxes".
Click "Add a Printer".

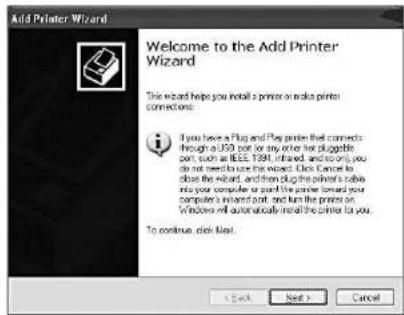

The "Add Printer Wizard" is displayed. Click "Next".

Add Printer Wizard Welcome to the Add Printer Wizard This wizard helps you install a printer or make printer connections. If you have a Plug and Plug printer that connects through an USB port for any other hot plugable port, such as EEA 104, micro, and port, you do not need to use this wizard. Click…

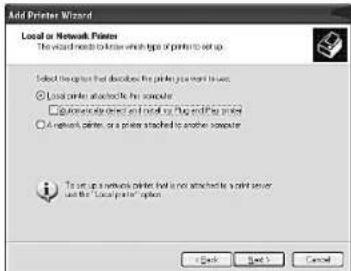

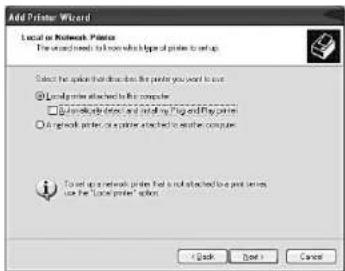

Select "Local Printer attached to this computer" and click "Next".

Add Printer Wizard Local or Network Printer The second edition will now include the printer to setup Select the option that defines the printer you want to use ● Local printer attached to this computer □ Internal device and other print and print machines ○ Internal printer on a printer attached to a…

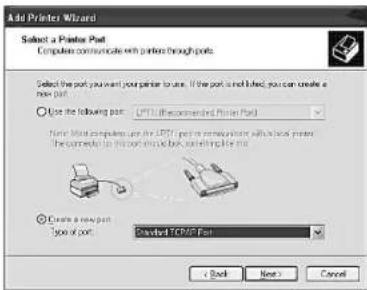

Choose "Create a new port" and "Standard TCP/IP Port". Click "Next".

Add Printer Wizard Select a Printer Port Computer communicate with ports through ports. Select the port, you want your printer ports. If the port is not filled, you can create a new port. Use the following port: LPTU (Recommended Printer Port) Name: Not computer use the LPTU port in remote ports wit…

www.kraun.it56

www.kraun.it 57

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Please make sure that the MFP Server and the MFP or Printer have turned on and connected to the network correctly before you continue. Click "Next".

Add Standard TCP/IP Printer Port Wizard Welcome to the Add Standard TCP/IP Printer Port Wizard You are this existing add port for a network printer. Before switching to use this: 1. The device is turned on. 2. The network is connected and configured. To continue add next. Edit Edit Cancel

Enter the IP Address of the MFP Server in the "Printer Name or IP Address". Click "Next".

Add Standard ICPHP Printer Port Wizard Add Port For which device does you want to add a port? Enter the Printer Name or IP address, and a port name for the selected device Printer Name or IP Address: 192.189.2.2 Port Name: IP_192.189.2.2 < Back Next > Cancel

Select "Custom" and click "Settings". When you have finished the settings at step 9, click "Next" to continue.

4.6 Standard TOSO PRimer Part Wizard Advanced Part Information Required The device will not be installed. The deployed devices of all new types. It is not that: 1. The device is properly designed. 2. The address on the previous page is closed. After current the address and instructions are sent on t…

Select "LPR" and enter "lpt1" in the "Queue Name", click "OK". By default the queue name of the MFP Server is "lpt1".

Configure Standard TCP/IP Port Member Port Settings Port Name: IP 190148.22 Porter Name or IP Address: IP 190148.22 Period: Row LPR Flow Settings Port System: 1136 LPR Settings Gaze Name: p81 LPR Byte Ordering Enabled SNMP Status Enabled Community Name: public SNMP Device Index: 1 OK Cancel

www.kraun.it58

www.kraun.it 59

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Click "Finish".

Add Standard TCP/IP Printer Port Wizard Completing the Add Standard TCP/IP Printer Port Wizard You have selected a port with the following one characteristics: STOP Yes Protocol LPR IP1 Device ISO 304.2.2 Port Name: IP_1521852.2 Adapter Type: To complete this request, click Finish. OK Cancel Cancel

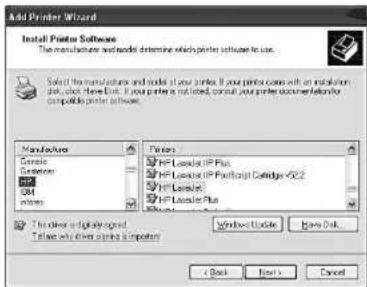

Select a suitable printer manufacturer and the printer model and click "Next". If your printer is not in the list, click "Have Disk..." to install the driver of the printer. After installation, the printer model will be added to the list.

Add Printer Wizard Install Printer Software The manufacture and model determine which printer software uses. Select the manufacturers and modified your printer if your printer covers all installations. On this list, click New Desk. If your printer is not listed, consult your printer documentation fo…

Choose to set the print whether as a default printer or not. Click "Next". 11. Select a suitable printer manufacturer and the printer model and click "Next". If your printer is not in the list, click "Have Disk..." to install the driver of the printer. After installation, the printer model will be added to the list.

Add Printer Wizard Name: Printer Words * You must change your name to this printer. Type: A version of the printer, then save versions progress, do not support printer and save an under-label distribution of name than 12 times. This is also used to keep the name as standard available. Driver name: 1…

You have added the network printer to the PC successfully. The information of the printer is displayed in the windows. Click "Finish".

Add Printer Wizard Completing the Add Printer Wizard You have successfully completed the Add Printer Wizard. You should be following your printer settings: Name: HP Laserbird Source code: Wk 100.2.2 Port: IP_0021652.2 Model: HP Laserbird Checked: Yes Text pages: Yes To save this record, click Finish…

www.kraun.it60

www.kraun.it 61

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

10. RAW Printing

RAW Printing allows users to connect to MFPs or printers via TCP/IP for printing sharing. The computer with Windows 2000/XP/2003 operating system can use the protocol to share printing in the network. MFP Server can support RAW printing by default.

To configure the RAW setting in Windows 2000/XP/2003, please follow the steps below.

Click "Start", choose "Settings" and select "Printers and Fax-

es"

Click "Add a Printer"
The "Add Printer Wizard" is displayed. Click "Next".

Add Printer Wizard Welcome to the Add Printer Wizard This wizard helps you install a printer or make printer connections. If you have a plug and play printer that connects through a USB port for any other plugible port, such as IEEE 1091, infrared and/or on, you do not need to run the wizard. Click…

Select "Local Printer attached to this computer" and click "Next".

Add Printer Wizard Local or Network Printer The wizard needs to know which types of printers set up Select the option that describes the printer you want to use: ● Local printer attachment for computer ○ Applicable device and manual print plug and/or print ○ All network printer, as a printer attache…

Choose "Create a new port" and "Standard TCP/IP Port". Click "Next".

Add Printer Wizard Select a Printer Port Computer communicate with printers through ports. Select this port, you want your printer to use. If the port is not filled, you can create a new port. Use the following port: LPT3 (Recommended Printer Port) Note that computer use the LPT3 port to communicate…

www.kraun.it62

www.kraun.it 63

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Please make sure that the MFP Server and the MFP or Printer have turned on and connected to the network correctly before you continue. Click "Next".

Add Standard TCP/IP Printer Port Wizard Welcome to the Add Standard TCP/IP Printer Port Wizard You use this setup to add a network packet. Before confirming by a network • The device is installed on • The network is connected and configured. To continue click Next OK Next > Cancel

Enter the IP Address of the MFP Server in the "Printer Name or IP Address". Click "Next".

Add Standard TCP/IP Printer Port Wizard Add Port For which device does you want to add a port? Enter the Provider Name or IP address, and a port name for the desired device Printer Name or IP address: 190.188.2.2 Port Name: IP_130160.2.2 < Back Next > Cancel

Select "Custom" and click "Settings". When you have finished the settings at step 9, click "Next" to continue.

Add Standard 3D/OP Printer Port Wizard Additional Port Information Required The device should not be installed. The detected device is an unknown type. Do not find 1. The device is typically configured. 2. The address of the previous project is connected. Either correct the address and partition pro…

Select "RAW" and enter "lpt1" in the "Queue Name", click "OK". By default the queue name of the MFP Server is "lpt1".

Configure Standard TCP/IP Port Monitor Port Settings Port Name: IP:152168.22 Port Name or IP Address: 152168.22 Protocol: □ LPR □ LPR Port Settings Port Name: PSS LPR Settings Current Name: ppl □ LPR (File Counting Enabled) □ SNMP Status Enabled Community Name: public SNMP Service Index: 0 OK Cancel

www.kraun.it64

www.kraun.it 65

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

10. Click "Finish".

Add Standard TCP/IP Printer Port Wizard Completing the Add Standard TCP/IP Printer Port Wizard You have selected a port with the following characteristics: SNMT: No Protocol: 100% Port 1000 Device: 192.168.2.2 FontName: IP_132.168.2.2 Adapter Type: To complete the wizard, click: Finish. + Back Finis…

Select a suitable printer manufacturer and the printer model and click "Next". If your printer is not in the list, click "Have Disk..." to install the driver of the printer. After installation, the printer model will be added to the list.

Add Printer Wizard Install Printer Software The manufacturer and model determine which printers software to use. Select the manufacturer and model your printer. If your printer covers an installation, click Here Key, if you print or not listed, consult your printer documentation for computing printe…

Choose to set the print whether as a default printer or not. Click "Next".

Name: Name Printer Description: name to the printer. Type: name for this printer. Additional some programs do not support printer or other user(s) or other related items that do so much better. It is also to keep this paper as part as possible. Printer name: 10000000000 Do you own to use this paper…

You have added the network printer to the PC successfully. The information of the printer is displayed in the windows. Click "Finish".

Add Printer Wizard Completing the Add Printer Wizard You have successfully completed the Add Printer Wizard. You specify the following printer settings: Name: HP Lesnaler Share name:

www.kraun.it66

www.kraun.it 67

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

11. IPP Printing

11.1 Introduction

IPP (Internet Printing Protocol) Printing provides a convenient way of remote printing service by TCP/IP. The MFP Server can support IPP printing in Windows 2000/XP/2003 by default. By using the IPP printing, you can share the printer to all the PC's that can access the MFP Server by IP. You can even share your MFP or printer to Internet users.

11.2 System Setup

11.2.1 MFP Server Side

It is needless to do any setting on the MFP Server side. Make sure the MFP Server has correct IP settings. If you want to share the printers to Internet users, you have to set a real IP to the MFP Server. You also have to make sure that any gateway, router or firewall does not block IPP protocol if you have these gateway devices installed in your network.

11.2.2 Client Side

You only need to perform Window's standard Add New Printer procedure.

Click "Start", choose "Settings" and select "Printers and Faxes".
Click "Add a Printer".
The "Add Printer Wizard" is displayed. Click "Next".

Add Printer Wizard Welcome to the Add Printer Wizard The Wizard helps you install a printer or make print connections. If you choose a Plug and Play printer that connects through a USB port for any other disputer port, such as USB 1998, wireless and so on, you do not need to use this device. Click C…

Select "A network printer, or a printer attached to another computer". Click "Next".

Add Printer Wizard Local in Network Printers The wizard needs to know which type of printer to set up. Select the option that describes the printer you want to use ○ Local printer attached to this computer □ Subsequently detect and install my Quad and Quad printer ● A network printer, or a printer a…

www.kraun.it68

www.kraun.it 69

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Select "Connect to a printer on the Internet or on a home or office network" and enter the URL of MFP Server. The URL format is "http://IP:631/Port Name". The IP should be the MFP Server's IP. The number 631 is IPP standard port number. Port Name is the port name of MFP Server that your printer is connected to. The default port name is "lpt1". One example of the URL is http://192.168.2.2:631/lpt1. After entering the URL of MFP Server, click "Next".

Add Printer Wizard Specify a Printer Input: From the name or address of the printer, you can search for a printer that means your needs. What other do you want to connect to? ○ Choose for a power ○ Correct to the printer to be shared for a printer, select the print and click link Name: Example: Home…

Select a suitable printer manufacturer and the printer model and click "Next". If your printer is not in the list, click "Have Disk..." to install the driver of the printer. After installation, the printer model will be added to the list.

Add Printer Wizard Install Printer Software The manufacturer and model determine which printer software is used. Select the manufacturer and model at your printer. If your printer comes with an installation or click click here next. If your printer is not used, consult your printer documentation for…

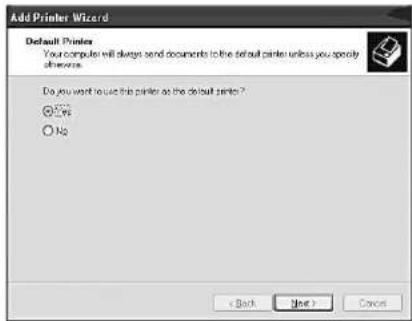

Choose to set the print whether as a default printer or not. Click "Next".

Add Printer Wizard Default Printer Your computer will always send documents to the default printer unless you specify otherwise. Do you want to use this printer at the default printer? OK No < Back Next > Cancel

www.kraun.it70

www.kraun.it 71

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

You have added the network printer to the PC successfully. The information of the printer is displayed in the windows. Click "Finish".

Add Printer Wizard Completing the Add Printer Wizard You have successfully completed the Add Printer Wizard. You spotted the following printer settings: Name: unknown on http://192.188.2.2631 Default: Yes Location: Comment: To choose this wizard, click Finish.

12. MFP Server Installation in Windows 98SE/Me/NT

This MFP Server supports TCP/IP network protocol and IPP, RAW and LPR printing protocols, it can be a print server when you operate it in Windows 98SE/Me/NT/2000/XP/2003, Unix/Linux and MAC OS. The IPP and RAW printing protocols can be used in Windows 2000/XP/2003. The LPR printing protocol can be used in Windows 98SE/Me/NT/2000/XP/2003, Unix/Linux and MAC OS. For the LPR, RAW and IPP settings in Windows 2000/XP/2003, please refer to Chapter 9, 10 and 11.

This chapter will introduce you how to install the MFP Server to be print server in Windows 98SE/Me/NT.

Before you start, you should have:

• One computer with Windows 98SE/Me/NT
• The TCP/IP network protocol has been installed in the PC.

12.1 Software Installation Procedure

The following are the installation steps in Windows 98SE. To install MFP Server in Windows Me/NT, the procedures are similar.

Insert the CD shipped along with the MFP server into your CD-ROM drive. The Autorun.exe program should be executed automatically. If not, run Autorun.exe manually from CD-ROM drive's root directory.

www.kraun.it72

www.kraun.it 73

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

The "Installation Manager" will be displayed on the screen as following. Click "MFP Server Installation".

MFP Server Installation Quick Installation Guide User's Manual Acrobat Reader Installation Exit

The message is prompted to remind you that the MFP Server will only support print sharing function since the operation system of your computer is Windows 98SE/Me/NT. Click "Ok".

MFP Server Utilities - InstallShield Wizard This MFP Server only allows you to share the printing function from MFP since your PC's operating system is Windows SBSE/ME/NT. It will install the First server Utilities, now OK

The "MFP Server Utilities - InstallShield Wizard" will be displayed. Click "Next".

MTP Server Startup - InstallShield Wizard MTP Server Utilities 1.1.2.0 Setup Available This installed software.mtl • 3.5 open all necessary services and devices • 2.5 each you through the MTP Server setup process

Click "Next" to install the MFP Server utilities in the default folder or click "Change" to specify the destination folder where you would like to install the MFP Server utilities.

$ASP Server Utility - SmallShield Wizard Basic Disk Utility Options ASP Server Utility (ASP Server Utility) Install ASP Server Utility C:\Program Files\ASP Server Utility$

www.kraun.it74

www.kraun.it 75

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

The MFP Server Utilities are being installed.

IP Server Options - InstallShield Wizard Initial type HTTP Path: CIRU to Solar's sharing IP macrocomputer mask. Microsoft Windows 2007

The "Configuration" screen is displayed. If you want to configure the MFP Server, please click "Next" directly. Or you can select "No, I will configure the MFP Server later" and click "Next" to complete the installation.

The following steps are for the MFP Server Configuration.

MTP Server Utility - Artificial Board Configuration Please select to select the configuration key based on: ■ Yes/No continue to install MTP Server key; ■ No/No continue to install MTP Server key

The MFP Server List will auto search the MFP Servers in the network. Select the MFP Server you want to setup and click "Next" to continue.

MFP Server List Choose MFP server MFC41713 If the MFP Server is installed for the list time, the "MFP Server Name" in the last 6 digit of MACID of the MFP Server with a "MF" prefix Refresh < Back Next > Cancel

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Set the "Alias Name" and the MFP Server here. Click on "Next".

Name the MTP Server Device name: MTP One PC The initial read number of the MTP server AssetName: 1000000 An alternative name to any management OK Finish Cancel

Setup the IP address of the MFP Server and click "Next".

Network Protocol and IP Address Configuration TCP/IP Assign the MFP Server on IP address IP Address: 134.160.2.2 Don't charge Configure the IP Address later < Back Next > Cancel

The settings are finished click "Finish" to apply new settings.

Add Network Port Device Name: PRCA171C Access Name: MTCAC171C TCP/IP support: Enable IP Address Assignment: Manual IP Address: 132188.75 Click "Finish" the program and add by Network Port of the MTP Server to your PC automatically + Back Finish Cancel

Click "Finish" to complete the installation.

MTP Server Office - InstallDisk Wizard Install Disk Wizard Complete The installed disk drive has successfully installed MTP Server Units. Send Updates to the void

www.kraun.it78

www.kraun.it 79

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

12.2 Server Utilities

After the installation is completed, there will be three utilities and a text file in the MFP Server's Program folder.

Network Port Setup – Add the network ports of MFP Server within the network to your PC.

Server Configuration – Allows you to configure IP Address, network protocols and other advanced functions. Please refer to Chapter 6 for the detail instruction of the configuration.

Uninstall – Assistant for removing all installed software.

About Version – Display the version of each utility including in the MFP Server software programs.

$MFP Server Utilities File Edit View Go Favorites Help Back Forward Up Cut Copy Paste Undo Delete Address C:\WINDOWS\Start Menu\Program\MFP Server Utilities About Version Network Post Setup Server Configuration Uninstall MFP Server Utilities Select an item to view its description.$

12.3 Network Port Setup

"Network Port Setup" Utility offers a very simple method to add or remove MFP Server's printer port from the client's computer.

During the MFP Server's installation procedure, the system will automatically search for all MFP Servers on the network, and add the printer port of the MFP Server you have selected to user's computer (see below).

If you have just installed another new MFP Server in the network, you must run this program first. This program will search for new MFP Servers and allow you to add the new network printer port into your computer conveniently. Perform the standard Add Printer procedure, then you can print directly to the printer through the newly installed MFP Server.

Note: Please be aware that Network Port Setup Utility can only detect and configure all MFP Servers within the same network; it cannot search and configure the MFP Servers on other subnets across network segments.

Network Ports Quick Setup 3.1.6 Available Ports Choose Ports Print Quick

www.kraun.it80

www.kraun.it 81

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

12.4 Add Printer

After adding a "Network Port" of the MFP Server to your computer, you can follow the procedure described below to add printer to the Windows. Note that following "Add Printer" steps are running in Windows 98SE, the steps in other Operating Systems are similar.

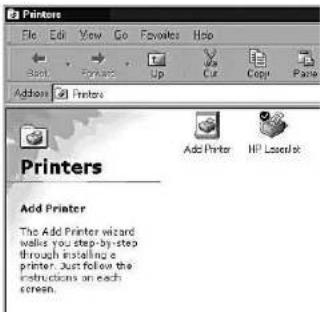

Click "Start", choose "Settings" and select "Printers".
Click "Add Printer".
The "Add Printer Wizard" is displayed. Click "Next".

Add Printer Wizard This was set to help you to install your printers quickly, and exactly. To begin installing your printers, click blank.

Select "Local printer" and click "Next".

Add Power Wizard How is this part for attached to your computer? It is also attached to your computer, click Local System. It is attached to another computer, click Network System. ● Network nodes ○ Network node Back Next Cancel

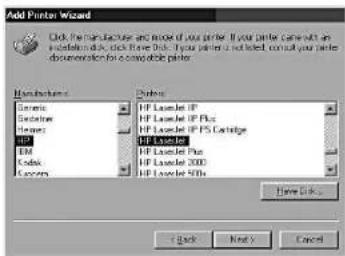

Select a suitable printer manufacturer and the printer model and click "Next". If your printer is not in the list, click "Have Disk..." to install the driver of the printer. After installation, the printer model will be added to the list.

Add Printer Wizard Click the manufacturer and more of your printer. If your printer can switch an optional mode, click these icons. You print a list not listed, which your printer document is to be compatible printer. Product Systems Desktops Hardware HP EM Cable Content HP Lescler IP HP Lescler IP…

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

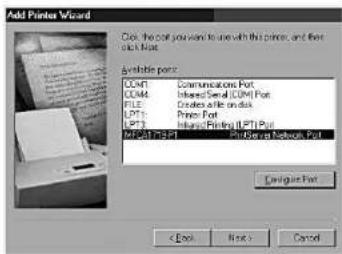

Choose the suitable "Print Server Network Port" and click "Next".

Add Printer Wizard Click the port you want to use with this printer, and free click this. Available ports: COM1 Communications Port COM4 Intersect Serial (COM) Port FILE Creates file on disk LPT1 Press Port LPT2 Intersect Printing (LPT) Port MCP-0175391 Print Server Network Port Configure Port < Bac…

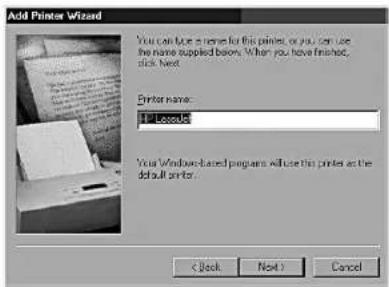

Please enter the new name for the printer or click "Next" to keep the default printer name.

Add Printer Wizard You can issue a name for this print, or you can use the name supplied below. When you have finished, click Next. Printer name: 1st paper Your Windows-labeled programs will use this print as the default printer. < Back Next > Cancel

Choose to print the test page or not. It is recommended to print a test page. Click "Finish".

Add Puzzle Wizard After your projects is installed, Windows can pick up a test page. You can add the next step in order to add up your this will call you like to add a new project? ✓ Use recommendations ✓ Use OK Finish Cancel

The drivers of the printer will be installed. After complete the installation, the printer has been added to your computer.

Printers Add Printer The Add Printer wizard walks you step-by-step through scrolling a printer. Just follow the instructions on each screen.

www.kraun.it84

www.kraun.it 85

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

13. UNIX System Network

13.1 Introduction

The MFP Server is available for TCP/IP printing by Unix LPD (Line Printer Daemon) protocol. The LPD protocol originated with Unix release is based on the BSD version of Unix and supported under most versions of Unix.

This chapter explains how to configure the MFP Server for TCP/IP operation, and how to modify configuration files on your Unix system to allow printing to the MFP Server. The configuration examples in this manual follow the syntax for BSD based Unix systems. Please refer to the related system documentation for the correct syntax of your systems.

To configure the MFP Server for LPD printing, perform the procedures below:

Enable MFP Server's TCP/IP Support.
Set up MFP Server's IP address.
Verify MFP Server's IP Address.
Configure remote LPD printing on the host.
Print a test page.

In the next sections, we will describe these five procedures step by step.

13.2 Enable MFP Server's TCP/IP Support

The default configuration of the MFP Server is with TCP/IP support enabled. Anyway, you can configure the MFP Server to enable TCP/IP support using the configuration program.

13.3 Setup MFP Server's IP Address

The MFP Server must have a unique IP address in order to be recognized by the network.

You can set up the IP address on the various Unix systems using any one of the following methods:

DHCP (Dynamic Host Configuration Protocol)
BOOTP (Bootstrap Protocol).

The MFP Server will use the last two methods to obtain its IP address automatically if its IP address is configured as Auto (0.0.0.0).

13.3.1 DHCP

There are many Unix systems that support DHCP protocol, and the procedures to configure the DHCP server database are different. Please refer to the manual of Unix for the way to use different DHCP Server. It is highly recommended that the DHCP server should be located on the same network as the MFP Server.

13.3.2 BOOTP

If you have the BOOTP daemon, bootpd, running on your UNIX system that is accessible by the MFP Server, you can use the BOOTP protocol to set up the IP address of the MFP

www.kraun.it86

www.kraun.it 87

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Server. We recommend that the BOOTP server should be located on the same subnet as the MFP Server. If you use Network Information Services (NIS) in your system, you may need to rebuild the NIS map with the BOOTP services before doing the following BOOTP configuration. To rebuild the NIS map, please refer to your system documentation.

To configure the IP address data for the BOOTP server, you will need to log in the host of BOOTP server as the superuser (root). Perform the following steps to add address entries,

Optionally, assign a name corresponding to the MFP Server's IP address. You can add this address to the /etc/hosts file, by adding a line such as:

203.66.191.12 pserver

Add an entry to the host's /etc/bootptab file, similar to the following:

hostname:\

:ht=1:\

:ha=MFP_Server_ethernet_address:\

:ip=MFP_Server_ip_address:

Lines should be indented with tabs.

Where hostname is the device name of a MFP Server, the ht=1 tag specifies the hardware type is Ethernet, the ha-tag specifies the Ethernet address of a MFP Server, which is the Node ID located on the MFP Server. The ha tag must be preceded by the ht tag. The ip= tag should correspond to the IP address you want to assign to the MFP Server.

For example, a MFP Server with the following configuration:

Node ID: 0000B4010101 (this implies Ethernet address is 0000B4010101),

IP address: 203.66.191.12

The entry for this MFP Server in the /etc/bootptab file should be:

MF010101:\

:ht=1:\

:ha=0000B4010101:\

:ip=203.66.191.12:

13.4 Verify MFP Server's IP Address

To verify your MFP Server is responding to the newly assigned IP address using a PING command:

ping ip-address

13.5 Configure Remote LPD Printing on the Host

The procedure you use to configure your Unix host(s) to allow printing to your network remote MFP Server varies between different varieties of Unix. The procedure below can be used for Unix variants that are related to BSD Unix, such as SunOS or Linux. For other versions of Unix, consult your system documen-

www.kraun.it88

www.kraun.it 89

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

tation, keeping in mind that:

The MFP Server should be treated as a BSD networked MFP Server host.
The host name should be the name (or IP address) that you have assigned to the MFP Server.
The printer name (or queue name) on the remote host should be lpt1, lpt2 or lpt3, the name of the printer port on the MFP Server.

You will need to perform the tasks below, logged in as the superuser (root). To configure your Unix host for printing.

Optionally, assign a name corresponding to the MFP Server's IP address. You can add this address to the /etc/hosts file, by adding a line such as:

203.66.191.186 pserver

Create a spool directory for the printer in the same directory where spool directories are normally kept on the machine, such as /var/spool or /var/spool/lpd:

mkdir /var/spool/lpd/pserverd chown daemon /var/spool/lpd/pserverd chgrp daemon /var/spool/lpd/pserverd chmod 775 /var/spool/lpd/pserverd

Add an entry to the host's /etc/printcap file, similar to the following:

printer-name:\

:lp=:\

:rm=203.66.191.186:\

:rp=lp+1:\

:lf=/var/spool/lpd/pserverd.log:\

:sd=/var/spool/lpd/pserverd:\

:mx#0:

Lines should be indented with tabs. More than one printer name can be used, with variants separated by vertical bars (name1\name2).

The rm= entry should correspond to the IP address you have assigned to the MFP Server. You can also use a host name if you have assigned one in the /etc/hosts file.

The sd= entry should correspond to the spool directory you created in the previous step.

The rp= entry should correspond to the port name of the remote printer. The values should be one of lpt1, lpt2 or lpt3 depends on the printer port.

The MFP Server should now be available for printing from your Unix host.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

14. MFP Server Installation in MAC OS

LPR Printing (Line Printer Remote technology) allows Macintosh computers to connect to MFPs or printers via TCP/IP. LPR Printing can be set up on any Macintosh with version 9.x above.

To enable LPR Printing in Macintosh, please follow the procedures below.

In the Desktop, click "System Preferences".

Kraun KR.PS - MFP Server Installation in MAC OS - 1

Click "Print & Fax".

System Preferences Personal Appearance Desktop & Screen Silver Deck Expand International Security Hardware Chips & OVCs Displays Energy Silver Keyboard & Remote Print & Fax Sound Internet & Network Mac Network Quick Time Sharing System Accounts Classic Date & Time Software Update Speech Startup Disk…

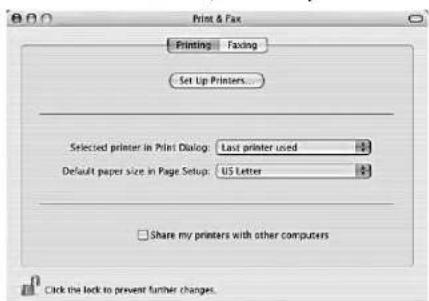

From the "Print & Fax" screen, click "Set Up Printers...".

Print & Fax Printing Faxing Set Up Printers... Selected printer in Print Dialog: Last printer used Default paper size in Page Setup: US Letter Share my printers with other computers Click the lock to prevent further changes.

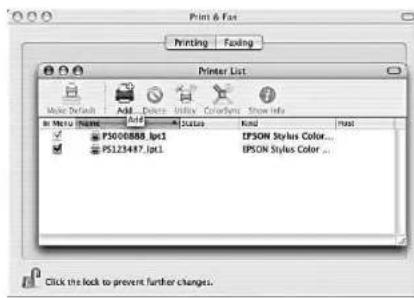

Click "Add" to add the new MFP Server through TCP/IP.

Print & Fax Printing Fixing Printer List Music Defaults Add Delays Index Color/Syn Show Info In Menu Name Add Status Kind Next ✓ P5000888_lpt1 IPSON Styles Color... ✓ P5123487_lpt1 IPSON Styles Color... Click the lock to prevent further changes.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

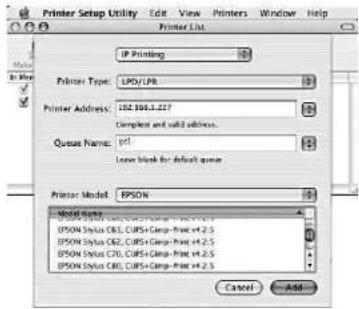

Enter the "Printer Type", "Printer Address" and "Queue Name" and select the "Printer Model" to setup the MFP Server. Click "Add" to continue.

Printer Type: LPD/LPR.

Printer Address: Input the IP Address of the MFP Server.

Queue Name: The queue name of the MFP Server is "lpt1".

Printer Model: Select the MFP or Printer Model that is attached to the MFP Server.

Printer Setup Utility Edit View Printers Window Help Printer List IP Printing Printer Type: LPD/LPR Printer Address: 152.1863.227 Complete and valid address. Queue Name: 91 Lower Block for default queue Printer Model: EPSON Model Name: EPSON Styles CWL, CUPS+Comp-Print v4.2.5 EPSON Styles CWL, CUPS+…

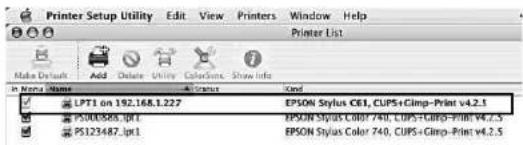

The MFP Server is installed completely. You can see it in the "Printer List".

Printer Setup Utility Edit View Printers Window Help Printer List Make Default Add Delete Utility Colors Show Info LPT1 on 192.168.1.227 EPSON Stylus C61, CUPS+Climp-Print v4.2.1 PS003585.3pt1 EPSON Stylus Color 740, CUPS+Climp-Print v4.2.5 PS123487.3pt1 EPSON Stylus Color 740, CUPS+Climp-Print v4.2…

You can print a file to check whether the MFP Server is installed successfully.

LPT1 on 192.168.1.227 Delete Hold Resume Sop R Stop Jobs SuperMario.jpg Spooling LPR job, 55% complete... Status Name Printing SuperMario.jpg

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

15. Troubleshooting

This product is not found even after searching by the "MFP Server Control Manager".
Check if the power adapter and the network cable are connected to the MFP Server properly.
Check if the LAN and Ready LEDs are turned on.
Check if the IP Address of the MFP Server is in the network segment as your computer.
If you are not sure the IP Address setting of the MFP Server, please check the TCP/IP setting of the MFP Server from the "Server Manager".
The ways to change the IP Address of the MFP Server.

• A DHCP Server is installed in the network.

If a DHCP Server is installed, you can setup to let the MFP Server get IP Address from the DHCP Server automatically.

Open "Server Manager" and then select "TCP/IP" setting.
Select "Auto IP" and click "Save".
Reboot the MFP Server.

- Set up the IP Address Manually.

Open "Server Manager" and then select "TCP/IP" setting.
Select "Static IP" and enter the IP Address and Subnet Mask as your computer. Click "Save".
Reboot the MFP Server.

Note: Set a static IP Address to MFP Server is recommended since DHCP assignment may dramatically change the IP Address for MFP Server.

$TCP/IP - MFC8179 TCP/IP Settings D:\MFC8179\nd Auto P F Status P F Address: 193 188 2 2 Submit User: 268 266 265 0 Outflow: 0 0 0 0 Save Cancel$

A user always connects the MFP Server.
Contact with the current user and ask the user to disconnect the device.
If the user forgets to disconnect the device, you can inform the administrator to release the device.
I can't use the MFP to scan, print, read the card reader or fax a file even I have followed the installation of MFP as the manual.
Check if the MFP you are using is in the "Compatibility List" in Appendix.
Attached the MFP to PC directly and try if the MFP is able

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

to use.

My computer has installed the firewall and the MFP Server can't work normally in my computer.

- Some firewalls, for example, the "Network Access Manager" firewall program attached with nVidia network card may block the communication between MFP Server and your computer; you have to add the MFP Server programs to the exception list of your firewall. The programs are as follows.

Add "servoap.exe" program to the exception list.
Add "mfpagent.exe" program to the exception list.
When I use LPR, IPP or RAW printing, the printing jobs are not able to print to the MFP or printer.
Check if the MFP is "Idle" but not being connected. Printing from all PC connected to MFP server will be performed when the MFP Server is not being connected. The printing jobs are been queuing in the Windows spooler when there is a PC which is under connected with MFP Server.

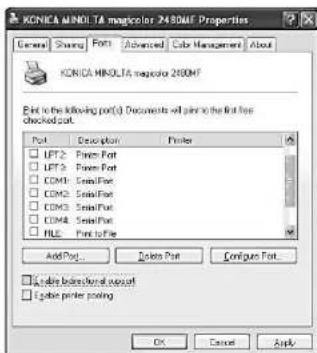

Disable "Bi-Directional Support". Please follow the steps below.
Right click the printer from "Printer and Faxes" in the Windows.
Select "Properties" and select "Ports".
Uncheck the "Enable bidirectional support".

KONICA MINOLTA magulator 740MF Properties Current Share Fort Advanced Cable Management About KONICA MINOLTA magulator 260MF Port to the following port(s) Documents will pin to the first line checked port. Port Description Prints LPT2 Power Port LPT3 Power Port COM1 Small Port COM2 Small Port COM3 Sm…

- Check if the MFP you are using is in the "Compatibility List" in Appendix or contact your dealer.

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

Appendix: MFP Server Compatibility List

The compatibility information is the first released in April 2006. For the latest information, please contact with your dealer.

No.	Brand MFP Name Print Scan Fax Card	Model Windows 2000 & XP
No.	Brand MFP Name Print Scan Fax Card			Reader
1 HP Laser Jet 1020 (GDI) -- --		--√
2 HP Laser Jet 3020		√	√	--	--
3	HP	PSC 1210	√	--	--
4 HP PSC 1350		--√	--√
5	HP	PSC 1410	√	--	--
6 HP PSC 1510		--√	--√
7 HP PSC 1610		--√	√		√
8 HP PSC 2210		--√	√		√
9 HP PSC 2310		--√	√		√
10 HP PSC 2355		√--	√		√
11	HP	PSC 2410	√	--	√
12	HP	PSC 2510	√	--	√
13	HP PhotoSmart 2575		√--	√
14	HP PhotoSmart 2610		√--	√
15	HP PhotoSmart 2710		√--	√
16	HP PhotoSmart 3110		√--	√
17	HP	PhotoSmart 3310	√	--	√
18	HP	Office Jet 4255	√	--	--
19	HP	Office Jet 5510	√	--	--
20	HP	Office Jet 5610	√	--	--
21	HP	Office Jet 6110	√	--	--
22	HP	Office Jet 6210	√	--	--

23	HP	Office Jet 7210	√	√	--	√
24	HP Office Jet	7410	√-	√		√
25	HP Office Jet	9100	√	√	--	√
26	EPSON	CX1500	√	√	--	--
27	EPSON	CX3700	√	√	--	--
28	EPSON	CX4700	√	√	--	√
29	EPSON	PHOTO 4990 Scanner	--	√	--	--
30	EPSON	RX430	√	√	--	√
31	EPSON	RX510	√	√	--	√
32	EPSON	RX530	√	√	--	√
33	EPSON	RX630	√	√	--	√
34	CANON	MPC 190	√	√	--	--
35	CANON	PLXMA MP130	√	√	--	√
36	CANON	PLXMA MP150	√	√	--	--
37	CANON	PLXMA MP170	√	√	--	√
38	CANON	PLXMA MP450	√	√	--	√
39	LEXMARK	X3350	√	√	--	--
40	LEXMARK	X5150	√	√	√	--
41	LEXMARK	X6150	√	√	√	--
42	LEXMARK	X6170	√	√	√	--
43	Brother	MFC-215C	√	√	√	√
44	Brother	MFC-3240C	√	√	√	--
45	Brother	MFC-8840D	√	√	√	--
46	Konica Minolta	2480	√	√	--	--
47	Samsung	SF-565P	√	√	√	--
48	Samsung	SCX-4720F	√	√	√	--
49	BenQ	CM3000	√	√	--	--

www.kraun.it100

www.kraun.it 101

KRAUN

COMPUTER ACCESSORIES

Quick Guide

KRAUN

COMPUTER ACCESSORIES

Quick Guide

COPYRIGHT

Copyright © 2006/2007 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

DISCLAIMER

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Kraun KR.PS - DISCLAIMER - 1

Kraun KR.PS - DISCLAIMER - 2

Warning

The manufacturer is under no circumstances liable for any unauthorised modifications made to the product by the user or any other parties which may compromise its conformity and safety.

www.kraun.it102

www.kraun.it 103

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

1. Introduzione

This MFP Server supports dual functionalities: MFP Server Mode and Print Server Mode at the same time. Users can choose one of the modes to share MFP or Printer functions through the MFP Server.

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

www.kraun.it110

www.kraun.it 111

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

www.kraun.it112

www.kraun.it 113

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

4.3 Utility Server MFP

Connect Your Device Now 1. Make your device to powered on 2. Connect the USB drive □ If you can launch to connect your device now, click her own and wait them first making the software. You can connect your device now. OK Cancel Help Cancel

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

www.kraun.it120

www.kraun.it 121

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

Windows XP Scanning Utility

My Computer File Edit View Favorites Tools Help Book Search Folders My Computer Systems Tools In-system f formations Add to new programs Change settings Other Places My Network Places My Documents Shared Documents Local Disk (C:) CD Drive (D:) Shared Documents Remote Disk (E:) Local Disk (C:) HP-ESC…

5.3 Condivisione del Card Reader

5.4 Faxare un file

www.kraun.it122

www.kraun.it 123

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

6. MFP Server Control Manager

6.1 MFP Server List

6.3 Auto Connect List

MPP Server Information IP Address: 102.168.4.88 MPP Server Description: Idle Transfer / Server Transfer Part 1 Status Connected Primer Name: HP PSC 1800 statics User: MPSP1.BM Contact Information Close

6.5.2 Installed MFP List - Lista MFP Installata

6.5.3 Search for MFP Server - Ricerca del Server MFP

www.kraun.it140

www.kraun.it 141

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

IP Address: 192.168.2.2

User Name: Admin

Password: 1234

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

www.kraun.it154

www.kraun.it 155

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

Inserire l'IP Address del Server MFP a livello del campo "Printer Name or IP Address". Fare clic su "Next".

Add Standard XCPSP Printer Part Wizard Add Port For which device do you want to add a port? Enter the Printer Name or IP address and a port name for the selected device Printer Name or IP Address: 192.188.2.2 Out Name: IP_192.188.2.2 < Back Next > Cancel

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

Fare clic su "Finish".

Add Standard TCP/IP Printer Port Wizard Completing the Add Standard TCP/IP Printer Port Wizard You have selected a port with the following characteristics: SNMT: Yes Protocol: LPTL-Inf Device: 192.160.2.2 Port Number: IP_192.160.2.2 Adapter Task To complete this wizard click Finish Finish Cancel

www.kraun.it158

www.kraun.it 159

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

10. RAW Printing - Stampa RAW

www.kraun.it160

www.kraun.it 161

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

KRAUN

COMPUTER ACCESSORIES

Guida Rapida

Fare clic su "Finish".

Add Standard TCP/IP Printer Port Wizard Completing the Add Standard TCP/IP Printer Port Wizard You have selected ports with the following characteristics: SNIP: No Protocol: RAW, Port 9.00 Device: 152.163.2.2 Port Name: IP_192.163.2.2 Adaptive Type: To complete the initial click press. OK Finish Can…

KR.PS - Print Server Kraun - Free user manual and instructions

Frequently Asked Questions - KR.PS Kraun

User questions about KR.PS Kraun

USER MANUAL KR.PS Kraun

2. Product Package

3. MFP Server with Print Server

KRAUN

Quick Guide

KRAUN

Quick Guide

MFP Server Mode:

Print Server Mode:

4. MFP Server Installation in Windows 2000/XP

4.1 Hardware Installation Procedure

KRAUN

Quick Guide

KRAUN

Quick Guide

Note:

4.2 Software Installation Procedure

KRAUN

Quick Guide

KRAUN

Quick Guide

KRAUN

Quick Guide

KRAUN

Quick Guide

KRAUN

Quick Guide

KRAUN

Quick Guide

4.3 MFP Server Utilities

4.4 Install the MFP Drivers/Utilities

KRAUN

Quick Guide

KRAUN

Quick Guide

KRAUN

Quick Guide

KRAUN

Quick Guide

5. Using the MFP

5.1 Share Print

5.2 Share Scan

Windows XP Scanning Utility

5.3 Share Card Reader

5.4 Fax a File

An example: Fax through HP Officejet 5600 Series

Procedures to fax a file:

KRAUN

Quick Guide

KRAUN

Quick Guide

6. MFP Server Control Manager

6.1 MFP Server List

6.2 My Favorite

KRAUN

Quick Guide

KRAUN

Quick Guide

6.3 Auto Connect List

KRAUN

Quick Guide

KRAUN

Quick Guide

6.4 Quick Setup

Parameter Description

KRAUN

Quick Guide

KRAUN

Quick Guide

6.5 Option Settings

6.5.1 General Setting

6.5.2 Installed MFP List

6.5.3 Search for MFP Server

Note:

7. Server Configuration

7.1 Introduction

7.2 Search for All Available MFP Server
