Product Type	Media Player
Brand	iconBIT
Model	XDS100GL
Dimensions (W x D x H)	Approx. 120 x 80 x 25 mm
Weight	Approx. 150 g
Power Supply	5V DC, 1A (via USB power adapter)
Video Output	HDMI, Composite AV
Audio Output	HDMI, Optical S/PDIF, Analog Stereo
Storage Media Support	USB flash drive, external HDD (FAT32/NTFS)
Supported Video Formats	AVI, MKV, MP4, MOV, Xvid, DivX, H.264, MPEG-2/4
Supported Audio Formats	MP3, WMA, AAC, OGG, FLAC, WAV
Supported Image Formats	JPEG, BMP, PNG, GIF
Subtitle Formats	SRT, SUB, SSA, ASS
File System Support	FAT32, NTFS
Remote Control	Infrared remote included
Interface Languages	English, French, German, Spanish, Italian, etc.
Power Consumption	< 5W
Operating Temperature	0°C to 40°C
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Safety Notice	Keep away from moisture and heat sources
Spare Parts & Repairability	Contact iconBIT support for replacement parts
Manual	Available for download in PDF on notice-facile.com

Frequently Asked Questions - XDS100GL iconBIT

How do I connect the XDS100GL to my TV?

Use the HDMI cable for the best quality. Alternatively, you can use the composite AV cable (red, white, yellow) if your TV has RCA inputs.

What video formats does the XDS100GL support?

It supports AVI, MKV, MP4, MOV, Xvid, DivX, H.264, MPEG-2/4 and many others. Check the manual for a full list.

Can I play files from an external hard drive?

Yes, connect a USB flash drive or external HDD formatted as FAT32 or NTFS to the USB port.

How do I change the subtitle language?

During playback, press the Subtitle button on the remote to cycle through available subtitle tracks. You can also adjust timing via the menu.

Why is there no sound?

Check the audio output settings: go to Settings > Audio and ensure the correct output (HDMI, Optical, or Analog) is selected. Also verify the volume is not muted.

Can I use a USB hub to connect multiple drives?

The XDS100GL may not support USB hubs reliably. It's recommended to connect one storage device at a time for best performance.

How do I update the firmware?

Download the latest firmware from the iconBIT support website, copy it to a USB drive formatted in FAT32, insert it into the player, and follow the on-screen instructions in Settings > System Update.

Does the XDS100GL support network streaming?

No, this model is a local media player without Ethernet or Wi-Fi. It plays files from USB-connected storage only.

How do I reset the device to factory settings?

Go to Settings > System > Factory Reset and confirm. This will erase all your personal settings and return the player to its original state.

What should I do if the remote control stops working?

First, replace the batteries. If still not working, check for obstructions between the remote and the sensor. You can also use the buttons on the device as a temporary solution.

USER MANUAL XDS100GL iconBIT

2. About the player....7

2.1 Remote Control....7
2.2 Front Panel 9
2.3 Back Panel....9
2.4 Side Panel 9
2.5 Connection ....10

2.5.1 Power connection.... 10
2.5.2 Connecting to a PC.... 10
2.5.3 USB Mass Storage Device Connection.... 10
2.5.4 Connecting a Memory Card 11

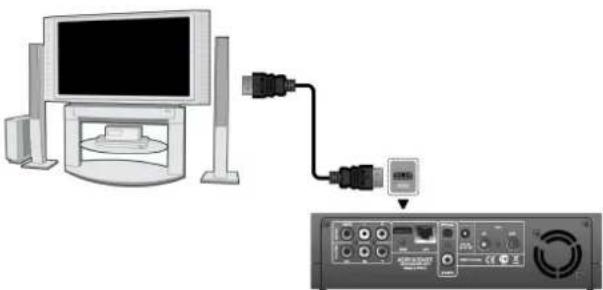

2.5.5 TV connection.... 11

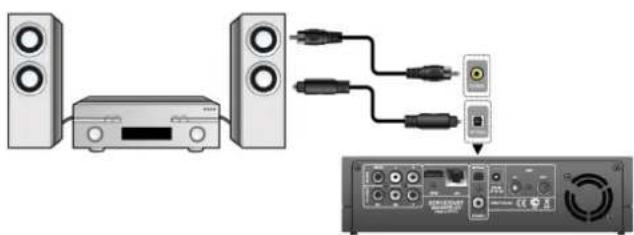

2.5.6 Digital Audio Device connection 13
2.5.7 Connecting to a LAN.... 13
2.5.8 Connecting to a WLAN 13

2.6 Player Usage....14

2.6.1 Power On / Off.... 14
2.6.2 Menu language 14
2.6.3 External HDD Format.... 14

3. Main Functions 15

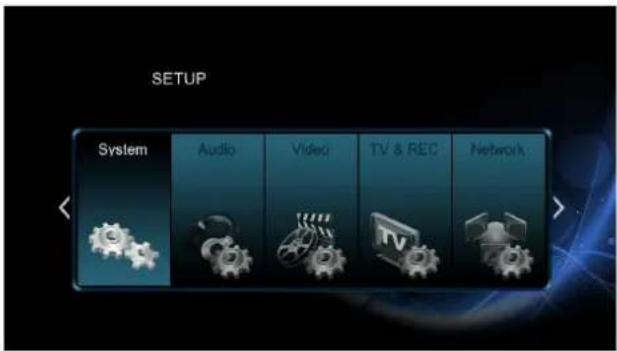

3.1 Setup Menu .... 15

3.1.1 Changing System Settings 15

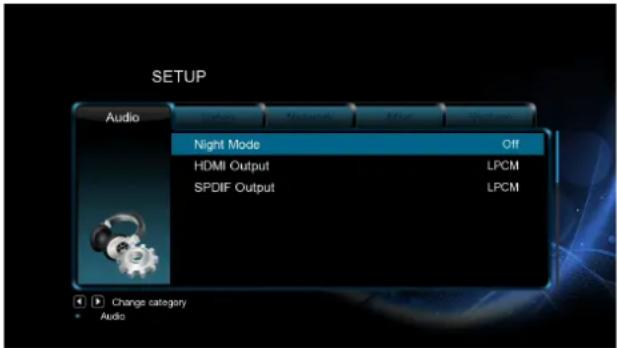

3.1.2 Changing Audio Settings.... 16
3.1.3 Changing Video Settings.... 17

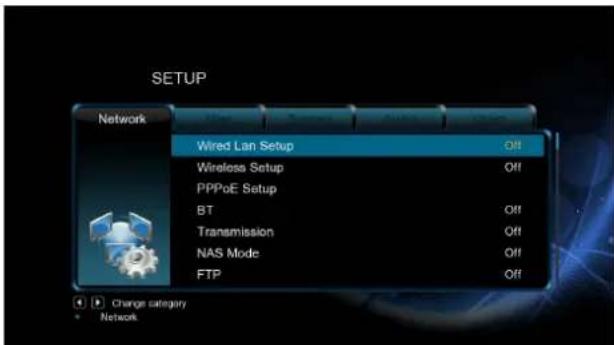

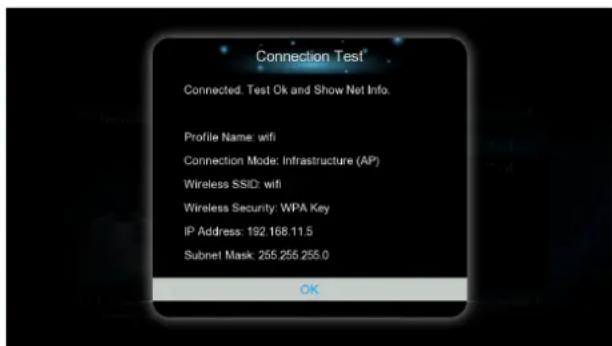

3.1.4 Changing Network Settings 17
3.1.5 Changing TV and Record settings.... 19

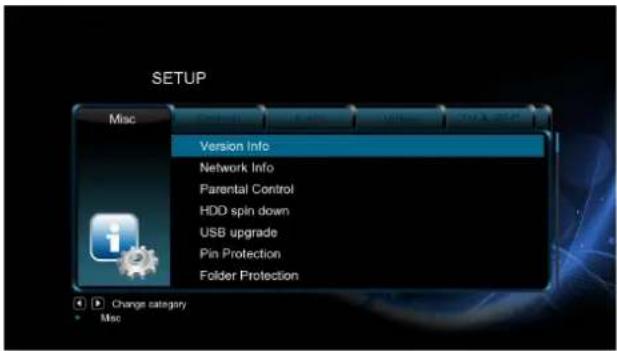

3.1.6 Miscellaneous 20

3.2 Movie Library 21

3.2.1 Movie Library Options.... 21
3.2.2 Movie Playback Control 22
3.2.3 Movie Playback Options 22

3.3 Photo Library 23

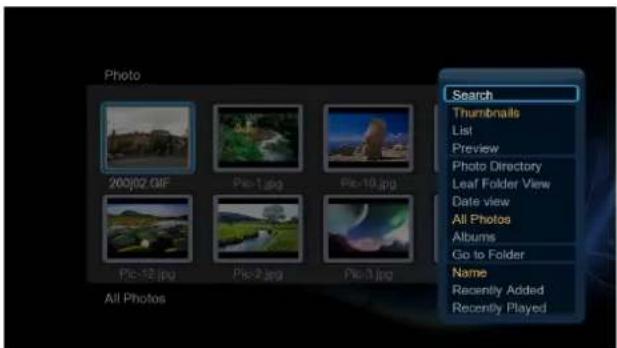

3.3.1 Photo Library Options 23
3.3.2 Photo Playback Control 24
3.3.3 Photo Playback Options.... 24

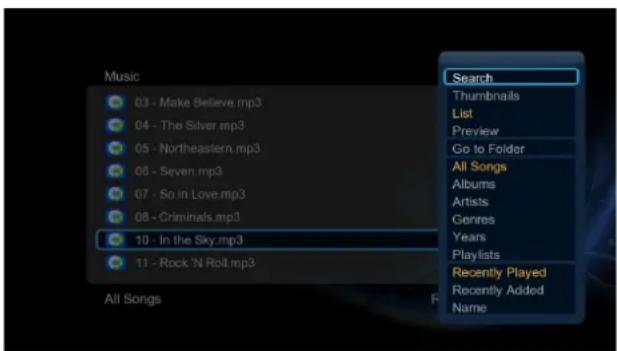

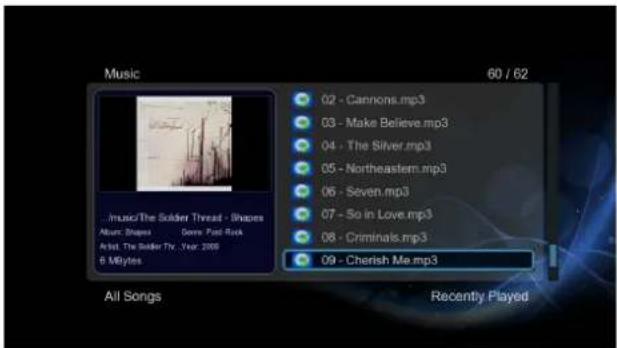

3.4 Music Library 24

3.4.1 Music Library Options 25
3.4.2 Music Playback Control 25
3.4.3 Music Playback Options.... 25

3.5 DTV 26

3.5.1 Watching DVB-T Programs.... 26
3.5.2 DVB-T Program Recording 27
3.5.3 Time Shifting....27

3.6 Schedule recording....27

3.7 File Manager....29

3.7.1 File Manager Options 29

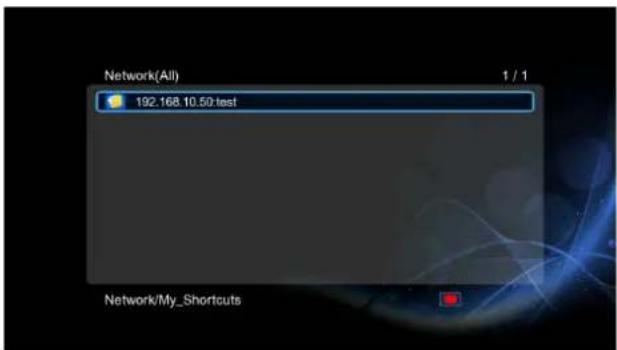

3.7.2 A/V Streaming via Network 29
3.7.3 A/V Streaming via UPnP-server.... 31
3.7.4 A/V Streaming via Linux NFS server 33

3.8 Copy Function....33

3.8.1 Copy under Media Library 33
3.8.2 Copy under File Manager 34

3.9 Internet Media 34

3.9.1 SHOUTcast Radio 34

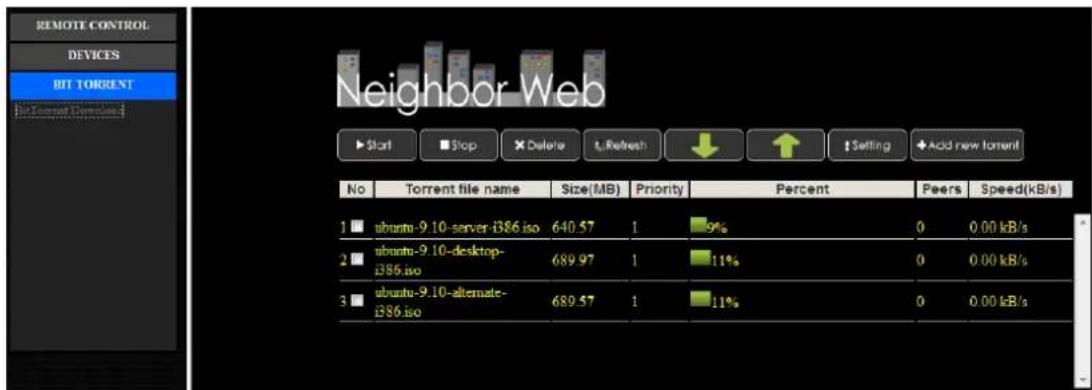

3.9.2 BT Download 35

3.10 Web Browser....36

3.11 SAMBA Server and Client....36

1. Upgrading the Firmware 40
2. Frequently Asked Questions 41
3. Appendices 42

6.1 Warranty Information....42
6.2 GNU General Public License ("GPL") 42
6.3 Copyrights and Trademarks 46

1. Introduction.

1.1 General Information

Dear Customer!

Thank you for choosing the iconBIT device. We hope that you will be satisfied by using our device for home entertainment. The iconBIT multimedia HD-player allows playing high-quality digital video, audio and photo from different sources on an analogue TV, HDTV (TV supporting high-definition video), home theater and other devices.

1.2 Key Features

This iconBIT Multimedia HD-player has the following functions:

Audio/Video outputs

• HDMI V1.3 for high-definition video and digital audio
• Composite & component video and stereo audio for analog audio-visual connection
• S/PDIF coaxial & optical interface for high-fidelity digital audio
- Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)

Multimedia Playback

• Supports major audio, video and image file formats (1080p HD video decoding)
- Movie format: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/WMV/ASF/RM/RMVB/FLV
• Music format: MP3/OGG/WMA/WAV/FLAC/APE
• Photo format: HD JPEG/BMP/GIF/TIF/PNG
• Photo slide show with background music

DVB-T TV

• Digital Video Broadcasting Terrestrial (DVB-T) TV reception
- Double-tuner, allow to watch other programs while recording
• Electronic Program Guide (EPG), Teletext and subtitle
- Loop out the DVB-T signal received from Aerial

Video Recording

• One button recording and scheduled recording, can easily record programs from DVB-T TV, DVD player, DV, etc., and save as MPEG-2 (.mpg, or .ts) format;
  • Time shifting function

Interfaces Support

• 2 x USB 2.0 HOST port (for external USB storage devices)
  • USB 3.0 DEVICE port (for computer connection)
• SD card slot

Network Feature

• A/V streaming/transmission via Ethernet (10M/100M/1000M) & Wi-Fi (802.11b/g/n, optional)
• File sharing via Samba server
  • A/V streaming via UPnP Media Server
• BitTorrent download (controlled and managed via web server)
  • Digital Radio (SHOUTcast)

File Copy

• Supports copying & moving files among Card, USB, HDD, and Network.

Note: All the features and functions associated with DVB-T and video recording require a build in DVB-T tuner (sold separately).

Note: All the information contained in this manual was correct at the time of publication. However, as our engineers are always updating and improving the product, your device's software may have a slightly different appearance or modified functionality than presented in this manual.

1.3 Packing List

Part Quantity
Multimedia player 1
Remote Control 1
A/V cable 1
AC/DC adaptor 1
AC/DC adaptor Power Cord 1
USB 3.0 cable 1
User manual (printed) 1

Note: The actual contents in the package might be different from the packing list in this manual.

1.4 Safety instructions

Please read the safety instructions carefully prior to using the device. Keep the instructions in an easily accessible location for further use.

Warning signs

	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure the may be of sufficient magnitude to constitute a risk of electric shock to persons.	ALERT: To reduce the risk of electric shock, do not remove the back cover. No user serviceable parts inside. Refer servicing to qualified service personnel.	The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

Precautions concerning power supply:

• Do not plug many devices into one electric socket. This may lead to an overcharge, combustion or electrical trauma.
• Do not touch the plug with wet hands. This may lead to electrical trauma, short circuiting and combustion.
• When connecting an electric cable, make sure that the cable is protected from damaging and is not being subject to any tension.
• It is essential to use the recommended power unit type with characteristics that comply with the specification.
• If you are not planning to use the media player for a long time, you should disconnect it from the power system in terms of safety and energy saving. Keep in mind, that even being in standby mode the device consumes electric energy.
• You should not connect the device to the power system immediately after bringing it from a cold surrounding to a warm one. Unpack the device and leave it in the warm environment for 2 to 3 hours to let the condensate evaporate from the inner parts of the device.

Effect of radio interference and magnetic field:

- In case of absence of adequate screening virtually any electronic device becomes subject to radio interference. In some conditions the radio interferences may affect the operation of the media player.

- The iconBIT media player is designed in compliance with the FCC/CE standard, as well as the following statements:

a. This player does not produce any harmful interference or emission;

b. When placed close to a source of strong radio interference the player may not be able to function properly.

- Do not locate the device close to sources of strong magnetic fields. Such field may damage data on your hard disk. In such case we will not be responsible for integrity of data on your hard disk.

Installation precautions:

- The device is designed for indoor usage. Do not expose it to direct sunlight; do not locate it next to any heat sources, heaters, radiators or refrigerating equipment. The operational temperature should be within the range of +5°C to +35°C.

- Protect the device from getting wet as this may lead to combustion or electrical trauma.

- Do not place any containers with liquid on top or next to the player.

- Do not use the device in high humidity, e.g. in a bathroom or a swimming pool.

- When installing the device in an enclosed space, make sure there is enough space for the device to cool via heat emission. Do not cover vent holes of the device, so that sufficient amounts of air could enter the device body.

- Do not place the device on an uneven or unsteady surface. Do not drop the device and protect it from other objects getting dropped onto it.

Comments on the use of the remote control (RC):

-Point the RC directly at the infrared receiver of the device. Otherwise the RC may not function properly.

-Handle the RC with care. In case of loss of RC, contact the service centre to order a new one. A large portion of functions of the device is accessible only via the RC.

Operation precautions:

- Other devices and associated equipment should be connected via audio and video cables only when the devices are switched off.

- Do not use the device during thunder to prevent breakdown.

- Do not use the player together with any devices, which it does not support – this may lead to player breakdown.

- Do not push the player buttons to hard.

- When disconnecting the device from PC USB hub, always use the "Safely Remove Hardware" functionality to prevent data loss.

Maintenance:

- When cleaning the device, always unplug the power cable. Use a soft cotton tissue or similar, that does not produce electrostatic charge.

- Never use gasoline or any other dissolvent for cleaning the player, as they might damage the device.

- In case of severe dirtying wet wipes for computers may be used.

Comments on equipment repairs:

- It is forbidden for users to modify the design of the device. Do not disassemble the player. In case of device breakdown due to self-performed repairs or modification, no warranty service will be provided.

- Should any malfunction appear, the device must be taken to an authorized service centre, where personnel will perform diagnostics and repair.

Do not dispose the device. The product is recyclable. Utilization requirements should be met. In some countries utilization of electronic devices is in the scope of specialized guidelines; please refer to relevant local organizations for additional information.

2. About the player

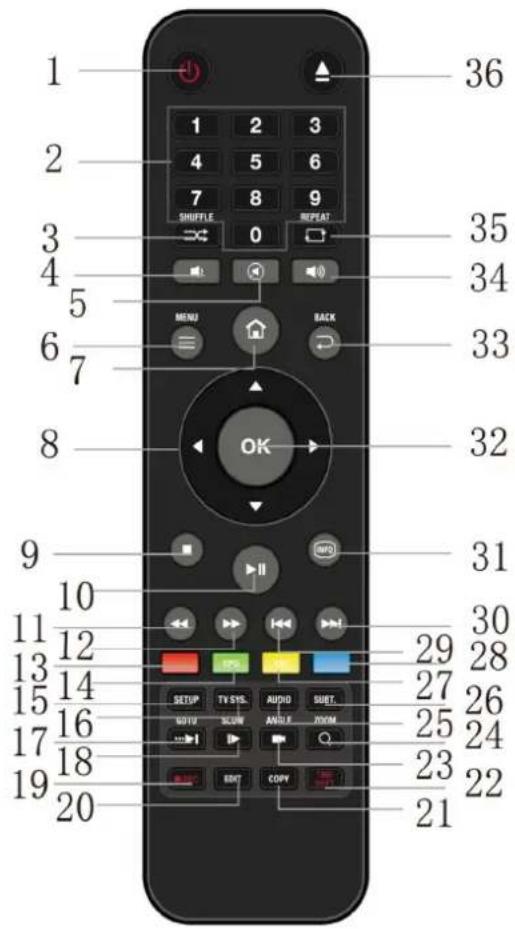

2.1 Remote Control

1. Power
2. Numeric buttons
3. Shuffle 4. VOL-
4. Mute 6. Menu
5. Home 8. Navigational buttons
6. Stop 10. Play/Pause
7. FR
8. FF
9. Red 14. EPG(Green)
10. Setup 16. TV SYS
11. Goto 18. Slow
12. REC 20. Edit
13. Copy 22. Time Shift
14. Angle 24. Zoom
15. Audio 26. Subtitle
16. TXT(Yellow) 28. Blue
17. Prev 30. Next
18. Info 32. OK
19. Back 34. VOL+
20. Repeat 36. Eject

No.	Button Function
1	Power	Press to enter standby mode or wake up.
2	Numeric buttons	Press to enter channel numbers or numeric input when changing settings.
3	Shuffle	Press to select shuffle mode during music playback.
4	VOL-	Press to decrease the volume.
5	Mute	Press to mute audio output, and press again to resume.
6	Menu	Press to enable the option menu, where you can change the review mode of file manager and media library;Press to display or hide the option menu during playback.
7	Home	Press to enter the home screen.
8	Navigational buttons	Press the arrow buttons to select menu options, and the OK button to confirm.
9	Stop	Press to stop playback.
10	Play/ Pause	Press to begin/pause playback.
11	FR	Press to fast rewind the current playback. Press repeatedly to select speeds.
12	FF	Press to fast forward the current playback. Press repeatedly to select speeds.
13	Red	Function is available in virtual keyboard.
14	EPG (Green)	Press to enter the Electronic Program Guide which displays an on-screen list of programs for the coming week when watching Digital Terrestrial TV. Press to add the selected files to the playlist under browser menu.
15	Setup	Press to enter the setup menu.
16	TV SYS.	Press to switch between NTSC, PAL, 480P, 576P, 720P, 1080I, and 1080P.
17	Goto	Press to jump to a specific point on a title. Specify the point using Title, Chapter and Time.
18	Slow	Press to play back in slow motion. Press the Play button to resume regular playback.
19	REC	Press to begin recording. Press repeatedly to set one touch recording (OTR) length (30 MIN. / 60 MIN. / 90 MIN. / 120 MIN. / 180 MIN. / 240 MIN. / Off).
20	Edit	Press to enter file editing menu in file manager. Press to enter file selecting menu in media library.
21	Copy	Press to enter file selecting menu.
22	Time Shift	Press to activate the time shift function. Time shift function allows you to pause live TV and resume the program from the point you left it. While paused, the program is recorded to the internal HDD as long as the space is available. Time shift mode remains active until you press the Stop button.
23	Angle	Press to change the view angle during DVD (with multi-angle) playback.
24	Zoom	Press to zoom the image (photo or video).
25	Audio	Press to select an audio track.
26	Subtitle	Press to set subtitle options. You can change the color/size/offset/text encoding of subtitle.
27	TXT(Yellow)	Press to open Teletext OSD if it is available in the broadcasted stream of Digital Terrestrial TV.
28	Blue	Press to open/close USB DVD-rom.
29	Prev	Press to view the previous file / page up.
30	Next	Press to view the next file / page down.
31	Info	Press to display current status. Press during playback, an onscreen display appears showing track number and time elapsed/remaining.
32	OK	Press OK button to confirm.
33	Back	Press to return to the previous screen while navigating menus.
34	VOL+	Press to increase the volume.
35	Repeat	Press to set repeat option.
36	Eject	Press to safely remove the USB device.

2.2 Front Panel

1. Infrared receiver window

2. Power indicator

3. Power button

4. Recording indicator

2.3 Back Panel

1. A/V OUT jack
2. HDMI interface
3. S/PDIF Optical jack

4. DC-IN jack

5. Y/Pb/Pr OUT jack

6. RJ-45 LAN socket
7. S/PDIF Coaxial jack

2.4 Side Panels

Simple diagram of a cabinet with two side drawers and a labeled connector (no text or symbols)

1. Memory card slot

2. USB 3.0 DEVICE port (B-Type)

3. USB 2.0 HOST port (A-Type) x 2

4. USB CHARGER port

2.5 Connection

2.5.1 Power connection

(1) Follow the picture and connect the AC adaptor to the player's DC IN jack;
(2) Follow the picture and plug in the AC adaptor to the power outlet.

Diagram showing connections between a power outlet, a network cable, and an audio device (no text or symbols present)

2.5.2 Connecting to a PC

(1) Make sure the player is powered on;
(2) Plug in the squarish connector of the USB cable to this player's USB DEVICE port;
(3) Plug in the rectangular connector of the USB cable to computer.

Diagram showing connection between a computer monitor and an audio device via USB cable (no text or symbols)

2.5.3 USB Mass Storage Device (like USB stick, USB HDD etc.) Connection

(1) Make sure the player is powered on;
(2) Plug in the USB stick or USB HDD etc. to one of the USB host ports of this player.

2.5.4 Connecting a Memory Card

Memory card can be used by inserting to the card slot

(1) Follow the picture to insert the memory card to the card slot properly;

(2) Insert the card by following the arrow pointer in the picture.

2.5.5 TV connection

2.5.5.1 A/V OUT

(1) Follow the picture and plug in the 3 color connector to the player's A/V OUT jack;
(2) Follow the picture and plug in the 3 color connector to the TV's A/V IN jack.

Diagram showing a computer setup connected to an audio amplifier via three cables (no text or labels visible)

2.5.5.2 Y/Pb/Pr Component OUT

(1) Follow the picture and plug in the connector of the YUV cable to the player's Y/Pb/Pr jack;
(2) Follow the picture and plug in the 3 color connector to the TV's Y/Pb/Pr jack.

Audio Connection while using Y/Pb/Pr Video out:

First method: use the audio output from the A/V OUT jack;

Second method: use the audio output from the S/PDIF Coaxial or Optical jack.

Diagram showing a computer monitor connected to an audio amplifier via cable, with a separate CD-ROM interface (no text or symbols visible)

2.5.5.3 HDMI OUT

(1) Follow the picture and plug one connector on your HDMI cable to the player's HDMI jack;
(2) Follow the picture and plug the other connector on your HDMI cable to the TV's HDMI jack.

Diagram showing connection between a computer monitor and an audio device via USB cable (no text or symbols present)

2.5.5.4 ANT. IN

Follow the picture and plug a TV Aerial to the ANT. IN socket;

Pure electrical circuit lines without any symbols

2.5.5.5 ANT. / RF OUT

(1) Make sure the player is connecting to power supply;
(2) Make sure a TV Aerial is connecting to the ANT. IN socket;
(3) Follow the picture and plug a TV cable to the ANT. OUT socket then plug the cable to a TV or other TV receiver.

Diagram showing connection between a computer monitor and an audio equipment unit (no text or symbols visible)

The player can loop out the DVB-T signal to other TV receiver device. In this way, you can watch the TV programs with another TV receiver while recording.

2.5.6 Digital Audio Device connection

(1) Follow the picture and plug in the Toslink connector on your optical fiber to the player's S/PDIF Optical jack; (not supplied);

(2) Follow the picture and plug in the other connector on your optical fiber to the digital audio device. (not supplied).

Diagram showing audio equipment connections including speaker, audio jack, and audio device (no text or labels visible)

2.5.7 Connecting to a LAN

To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not supplied).

(1) Connect one of the crystal plugs on the cable to the player's RJ45 LAN socket;
(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or hub devices.

2.5.8 Connecting to a WLAN

(1) Make sure the player is powered on;

(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the player.

Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to '3.1.4 Changing Network Settings' for more details about wireless setup)

2.6 Player Usage

2.6.1 Power On / Off

Power On

After connecting the DC IN jack and press the power button on the remote control, the player will soon enter the home screen, and the power indicator will turn blue.

Power Off

Press the power button on the remote control, the player will soon enter standby mode, and the power indicator will turn red. Then unplug the power cord to cut off the power supply.

2.6.2 Menu language

The system language of this player can be set to English or other languages. Change the language you wish in the setup menu, the selected language will take effect immediately.

2.6.3 External HDD Format

For users who wish to use BT download, Transmission, you need format the external hard disk on the player before usage. Please refer to the following procedures to format the hard disk.

Step 1: Select OK on the Warning page, press OK to confirm.

Note: This page can be also accessed via Setup->System->Format menu.

A password needed when you try to format the HDD, please refer to '3.1.6 MISC' for more details about the password.

Step 2: Select Format, press OK, and then hard disk format will start.

The formatting procedure will be finished within a few minutes. And then you can use the hard disk properly on the player.

Note: HDD format will remove all data stored on the hard disk drive. Please take care and backup your data in advance!

3. Main Functions

3.1 Setup Menu

The Setup menu allows you to personalize and configure the preferences for your player. To select a Setup option:

• Select the Setup icon on the home screen, or press Setup button on the remote control.
• Use the Left/Right navigational buttons to select an option, and then press OK.

There are five setup options, including System, Audio, Video, Network and MISC. Use the Left/Right navigational buttons to select a menu. Press OK to confirm. Press Back to cancel and display the previous menu screen.

3.1.1 Changing System Settings

Use this menu to configure system settings.

Menu Language

- Select to choose the OSD (On-Screen Display) language.

Text Encoding

- Select to set the text encoding option (subtitle display)

Change system font

- Select to change system font.

Create a folder named "Resource" in the root directory of your USB or HDD, rename your font as 'font.ttf' and then copy it to the folder.

Change Desktop

- Select to change the desktop.

Create a folder named "Resource" in the root directory of your USB or HDD, rename your photo as 'desktop.png' and then copy it to the folder.

Time

- Select to set system time.

DVD Auto-Play

- Select to turn on/off DVD auto-play.

Screen Saver

- Timing

Select to change timing of screen saver.

- Options

Select to change screen saver.

DLNA DMR

- Digital Media Renderer, can play content received from a digital media controller (DMC), which will find content from a digital media server (DMS)

DLNA Device Name

- Select to name DLNA DMR.

Mini KBD Language

- Select to change the language of the mini keyboard.

Scan storage

- Select to set the scan mode of media library.

Resume Play

- Select to turn on / off resume playback (auto-bookmarking) feature for movies.

Format

- Select to format your external HDD.

Restore Default

- Select to restore factory defaults.

3.1.2 Changing Audio Settings

Use this menu to configure audio settings

Night Mode

- Choose among Off / On / Comfort. If the option is turned on, the audio output volume will be decreased to make you more comfortable.

HDMI Output

- Choose among LPCM, RAW.

SPDIF Output

- Choose among LPCM, RAW.

Note: In raw mode, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS sound can be by passed to the HDMI TV or Digital amplifier.

Due to the bandwidth requirement, Dolby TrueHD and Dolby Digital Plus sound only can be by passed though HDMI cable, also the TV system must up to 720p or above.

3.1.3 Changing Video Settings

Use this menu to configure video settings.

Aspect Ratio

• Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant portions. Select when a standard 4:3 TV is connected.
• Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3 screen. Select when a standard 4:3 TV is connected.
• 16:9: Compress the image to convert the whole image. Select when a 16:9 TV is connected.
• 16:10: Select when a 16:10 TV is connected.

TV SYSTEM

- Select to adjust video output resolution.

1080p 24Hz

- Choose this option to enable or disable 1080P 24HZ support. A TV set with 1080P 24HZ (24P) mode is needed.

Plasma Mode

- Help to protect your plasma TV by reducing the level of brightness.

Deep Color

- Help to perform more detailed level of color depth, make continuous color change smoother. You can get more vivid color effects.

A TV set with deep color support is needed.

Screen Size

• Adjust the video output size according to the size of TV screen. Press Left/Right button to adjust the width of the screen, and Up/Down button to adjust the height of the screen.
• And press Zoom button to fit the screen size you have set during video playback.

3.1.4 Changing Network Settings

Use this menu to configure your Wireless Local Area Network.

Wired Lan Setup

- DHCP IP (AUTO)

Select to obtain IP address automatically.

- FIX IP (MANUAL)

Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server IP Address.

Wireless Setup

There are 3 mode for you to select, Infrastructure (AP) and Peer to Peer (Ad Hoc) and WPS (AP) mode. Follow the prompting message on the screen and press Red button to choose Peer to Peer (Ad Hoc) or WPS (AP) mode.

This player can store up to three wireless network connections. Press OK to connect, press Back to cancel, and press Zoom to modify the parameters of the connection, press Red button to choose Peer to Peer (Ad Hoc) or WPS (AP).

Infrastructure (AP)

Infrastructure mode is used to connect computers with wireless network adapters, also known as wireless clients, to an existing wired network with the help from wireless router or access point. Please follow following steps to configure your wireless network.

Step 1: Scanning AP (Access Point) in your network

Follow the prompting message on the screen and press the Zoom button to select Infrastructure (AP) mode and update the access points list, and all SSID will be displayed on the screen.

Step 2: Input WEP / WPA key.

Press OK to input encryption keys via the virtual keyboard. Press the navigational buttons to select, OK to input, FR to move cursor left, FF to move cursor right, Zoom to switch between uppercase and lowercase, Stop to delete a character, Red to make more symbols available, Green to change the language of the virtual keyboard, OK to confirm and to start testing the connection.

The testing process will take for a while, please be patient to wait. If the test is ok, the network information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be displayed on the screen.

Peer to Peer (Ad Hoc)

Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is used to connect wireless clients directly together, without the need for a wireless router or access point.

WPS (AP)

WPS, Wi-Fi Protected Setup, is used to connect a wireless router directly, without searching SSID and inputting password. In this mode, you just need to configure the parameters of your router which support WPS function. There are two modes for you to select, PBC mode and PIN mode.

PBC: First press the WPS button on the router or select the button mode in the configuration menu of the router, then select the PBC mode, the connection process will take for a while, please be patient to wait.

PIN: Input the pin code when configure your router, then select the PIN mode, the connection process will take for a while, please be patient to wait.

PPPOE Setup

- Input the ADSL accountant and password in this menu, system will obtain IP address automatically from the server based on PPPOE protocol. Following the message on the screen to use this function.

BT

- Select to turn BitTorrent download On/Off. Please refer to 'BT download' for more details on this unique feature of this product.

Transmission

- Select to turn transmission On/Off. Transmission is a free, open-source and cross-platform BitTorrent client. To use this function, launch a web browser such as Internet Explorer or Firefox, and at the address bar, key in http://192.168.50.196:9091 where 192.168.50.196 is the IP address of your product.

- You need format the external hard disk on the player to use transmission.

NAS Mode

- Select to turn NAS function On/Off. Please refer to 'SAMBA Server' for more details on NAS function of this product.

FTP

- Select to turn on / off FTP services and to configure your desired login User Name and Password. Please refer to 'FTP Server' for more details on this unique feature of this product.

UPnP Server

- This player can work as a UPnP Server, all media files stored on external HDD can be founded by a UPnP client.

Host Name

- Select to key in your desired host name to be seen in your network.

3.1.5 Changing TV and Record settings

Use this menu to adjust TV and Record settings.

TV Region

- Select TV region.

Channel Scan

- Select to start channel scan automatically or manually.

Channel Sort

- Select to sort channels by name, LCN, Service ID or ONID.

REC Device

- Select to set device to restore the recorded files.

REC priority

- Select to choose record priority manual or schedule.

3.1.6 Miscellaneous

Use this menu to adjust miscellaneous settings.

Version Info

- This tab shows you information about the software installed and about the material components of your player.

Network Info

- This tab shows you information about your network, MAC Address, IP address Gateway, Subnet.

Parental Control

- Select to set the TV parental control options.

The default password is '0000'. Press the numerical buttons to input, and the OK button to confirm.

USB Upgrade

- Select to update the firmware via a USB stick.

1) Copy 'install.img' or extension files to the root directory of a USB stick, and connect it to the USB HOST port of the player.

2) Press OK to confirm.

Edit Protection

- To prevent deleting files and formatting HDD by asking for a password.

The default password is '0000'. Press the numerical buttons to input, and the OK button to confirm.

Password

- Change the password.

The default password is '0000'. Press the numerical buttons to input, and the OK button to confirm.

3.2 Movie Library

Enter into movie interface; only supported files will be displayed.

3.2.1 Movie Library Options

In movie library, press Menu button to display the option menu, you can get following functions though the option menu.

Quick-Search

- Choose the Search option in the option menu, you can search for a media file by filter media library to locate the specific media file.

Review Mode

- Choose a review mode among Thumbnails, List, Preview from option menu.

Sorting Mode

- Choose to sorting by Name, Size, Most Viewed or Recently Added from option menu.

Show DVDs

- Choose to display DVD IFO, BD MV and ISO files directly in media library.

Flash Animation

- Choose to display .swf files in media library.

Go to Folder

- Choose to locate the file in file manager.

3.2.2 Movie Playback Control

You can access the following functions during playback.

Button	Function
Play/Pause	Pause or resume the current playback.
Prev/Next	View the previous or next file/chapter.
FR/FF	Fast rewind or fast forward. Press repeatedly to select the speed.
Slow	Play back in slow motion.
Goto	Jump to a specific point on a title. Specify the point using Title, Chapter and Time.
Menu	Display or hide the option menu during playback.
Stop	Stop playback.
VOL+/-	Increase/decrease the volume.
Audio	Select an audio track.
Subtitle	Select a subtitle and change the color/size/offset/text encoding of subtitle.
Repeat	Set the repeat option.
Zoom	Zoom in the image.
Info	View the media information.

3.2.3 Movie Playback Options

During movie playback, press Menu button to display or hide the option menu at the bottom of the screen.

Except select audio track, subtitle, repeat mode, you also can get following functions though the Option menu during video playback.

DVD Menu

- Select to return to the navigation menu during DVD IFO or ISO playback.

- Title menu, return to the main menu of entire disc during DVD playback.

- Root menu, return to the root main of each title during DVD playback.

GOTO

- Select to jump to a specific point on a title. Specify the point using Title, Chapter and Time.

Video Setting

- Select to adjust the value of Brightness, Contrast, Saturation and Hue.

3.3 Photo Library

Enter into photo interface, only supported image files will be displayed. This player supports JPG/JPEG/BMP/files.

3.3.1 Photo Library Options

In photo library, press Menu button to display the option menu, you can get following functions though the option menu.

Quick-Search

- Choose the Search option in the option menu, you can search for a photo by filter photo library to locate the specific photo.

Review Mode

- Choose a review mode among Thumbnails, List, Preview from option menu.

Sorting Mode

- Choose to sorting by Name, Recently Added or Recently Played from option menu.

Folder Directory

- Choose to show all folders.

Leaf Folder View

- Choose to show all folders that included photo.

Date View

- Choose to view photo by date.

3.3.2 Photo Playback Control

You can access the following functions during photo playback.

Button	Function
Prev / Next	View the previous or next photo.
Up / Down	Rotate a photo in any angle.
Menu	Display or hide the option menu during playback.
Stop	Stop playback.
Zoom	Zoom in the image.

3.3.3 Photo Playback Options

During photo playback, press Menu button to display or hide the option menu at the bottom of the screen. You can get following functions though the Option menu during photo playback.

Slideshow Control

- Select to choose the Interval and Transition effect of the slideshow.

Repeat Mode

- Choose a repeat mode among Repeat off, Repeat all and Shuffle Loop from option menu.

Select Music

- Select to turn on/off background music during slideshow playback.

- Select a special music as the background music during photo playback.

Video Setting

- Select to adjust the value of Brightness, Contrast, Saturation and Hue.

3.4 Music Library

Enter music interface, only supported audio files will be displayed. This player supports MP3, WMA, and OGG audio files.

3.4.1 Music Library Options

In music library, press Menu button to display the option menu, you can get following functions though the option menu.

Quick-Search

- Choose the Search option in the option menu, you can search for a music by filter music library to locate the specific music.

Review Mode

- Choose a review mode among Thumbnails, List, Preview from option menu.

Filter options

• Choose Albums to search for music files by album.
• Choose Artists to search for music files by artist.
• Choose Genres to search for music files by genre.
• Choose Years to search for music files by modified year.

Sorting Mode

- Choose to sorting by Name, Recently Added or Recently Played from option menu.

3.4.2 Music Playback Control

You can access the following functions during music playback.

Button	Function
Play/Pause	Begin/Pause playback.
FR / FF	Fast rewind or fast forward. Press repeatedly to select the speed.
Prev / Next	Go to the previous or next track.
Menu	Display or hide the option menu during playback.
VOL+/-	Increase/Decrease the volume.
Repeat	Set the repeat option.
Shuffle	Select the shuffle mode.

3.4.3 Music Playback Options

During music playback, press Menu button to display or hide the option menu at the bottom of the screen. You can get following functions though the Option menu during music playback.

Repeat Mode

- Choose a repeat mode among Repeat off, Repeat one, Repeat all and Shuffle Loop from option menu.

3.5 DTV

In this menu, you can watch and record Digital Terrestrial TV programs, or have the time shift function. To enter the DVB-T TV mode, select the DTV icon on the main menu. The following are some functional buttons on the remote control available when watching Digital TV programs.

Name	Function
OK	Press to view the program list menu.
Up/Down	Press to switch channels. (Channels cannot be switched in the recording mode.)
Numeric buttons	Press to input channel numbers. Press the OK button to confirm.
REC	Press to start recording the current TV program.
Time Shift	Press to activate the time shift function.
Subtitle	Press to activate the subtitle list menu if available.
EPG	Press to activate the EPG menu if available.
TXT	Press to activate the Teletext menu if available.
Zoom	Press to zoom out the image.

3.5.1 Watching DVB-T Programs

Program List Menu

Press the OK button when watching DVB-T TV programs, and the program list menu where you can see the program number and name will be displayed.

All the TV and Radio programs will be listed on this list. Press the Up/Down button to select channels, and press the OK button to confirm. Press the Prev/Next button to page up /down.

Info Bar

While switching channels by the Up/Down button, an info bar will be displayed to show the channel information.

Electronic Programming Guide

Press the EPG button when watching DVB-T TV programs, the Electronic Programming Guide will be displayed.

Press the Prev/Next button to change channels. Press the Left/Right button to change date. Press the Up/Down button to change program. Press the RED button to add / delete scheduled recording.

Teletext Menu

If the broadcasted stream supports Teletext, press the TXT button to enter the Teletext menu.

Press Navigational and Numeric buttons to view the content in the Teletext menu.

Subtitle List Menu

Press the Subtitle button when watching DVB-T TV programs, the Subtitle List menu will be displayed.

Press the Up/Down button to select the subtitle, and press the OK button to confirm.

3.5.2 DVB-T Program Recording

Press REC button to start the recording, recording files are automatically stored in a folder named REC by default.

This product allows you to watch other programs while recording is running. When recording is running, press the OK button, you can get the program list, then use Up/Down button to select the channel.

3.5.3 Time Shifting

Time shift function allows you to pause live TV and resume the program from the point you left it. While paused, the program is recorded to the internal HDD as long as the space is available. Press the TIME SHIFT button to active time shift function. Press Play button to resume the program. Time shift mode remains active until you press the Stop button.

3.6 Schedule recording

The Timer Record menu allows you to create, edit and delete recording schedules and view all schedule status and history. Select the TIMER REC icon on the main menu to enter this menu.

Create a New Schedule

Press the Left/Right button on the remote control to select the Edit tab from the menu bar.

Select Add a New Schedule and press the OK button. The schedule setting screen appears.

Use the Left/Right button on the remote control to move between fields and press the Up/Down button to adjust each setting.

Name Function
Source	Select the video source or TV channels for the recording.
Start Time	Enter the date and time of the recording.
Length	Enter the length of the recording.
Repeat	Select how often you want the schedule to record. Choose from Once, Everyday, Mon-Fri, Mon-Sat or for an individual day of the week.
Quality	Select the recording quality. Choose from HQ, SLP, EP, LP and SP.The higher the quality, the more space required on the hard drive. See HDD Free Space on the left of the screen for details of how long you can record for using each setting.
Preview	This small preview window will show the current program of the selected channel.

Edit Schedule

Press the Left/Right button on the remote control to select the Edit tab from the menu bar.

Select the schedule you want to edit from the list and press the OK button. The schedule setting screen appears. Modify the schedule as described in 'Create a New Schedule'.

Delete Schedule

Press the Left/Right button on the remote control to select the Delete tab from the menu bar.

Select the schedule you want to delete and press the OK button. A confirmation message appears.

Select CANCEL, Delete the selected schedule, or Delete all schedules. Press the OK button to confirm.

View Schedule Status

Press the Left/Right button on the remote control to select the Status tab from the menu bar.

The schedule list is displayed. Select a schedule and press the OK button.

Select Enable the selected schedule or Pause the selected schedule. Press the OK button to confirm.

Viewing Recording History

Press the Left/Right button on the remote control to select the History tab from the menu bar.

Here you can view a complete history of all recordings that were set.

3.7 File Manager

The file manager allows you to browse and play music, photo and movie files stored on an external devices and network.

3.7.1 File Manager Options

In file manager, press Menu button to display the option menu, you can get following functions though the option menu.

Review Mode

- Choose a review mode among Thumbnails, List, Preview from option menu.

Filter options

• Choose Movies to display all the the supported video files in current directory.
• Choose Photos to display all the supported image files in the current directory.
• Choose Music to display all the supported audio files in the current directory.

3.7.2 A/V Streaming via Network

You can stream your media files shared on the home network. Please refer to '3.1.4 Changing Network Settings' for more details on network settings.

There are two ways to locate media files shared on your local network in the Network menu. One is to browse through workgroup; the other way is to browse through 'My_Shortcuts'.

3.7.2.1 Browsing though workgroup

You can choose the workgroup which your PC belongs to from the workgroup list, find your PC name, and press the OK button to confirm. Then you can select and play the shared media files that you want to browse.

Note: Due to different network conditions, sometimes the workgroup might not be accessed or shown in the list. And then you need to use 'My_Shortcuts' to browse shared files.

3.7.2.2 Browsing though 'My Shortcuts'

You can also set 'Specific File Server IP' and access it from 'My_Shortcuts' in the menu. - Press the Red button and a popup menu appears.

- Select Add to open a popup menu where you can input Label, Net User ID, Net Password, Domain, Host Name, and Specific File Server IP. Select OK to confirm, Cancel to cancel, and Simple / Detail to switch between simple and advanced options.

- Select the shortcut you added and press the OK button to confirm. Then you can select and play the shared media files on the destination computer.

3.7.3 A/V Streaming via UPnP-server

A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which enables the player to auto-detect UPnP Media Servers on the network to browse and stream media files from them.

3.7.3.1 Installing UPnP Media Server on your PC

There're a lot of free and commercial UPnP Media Server software, such as Windows Media Connect, Windows Media Player 11, XBMC Media Center (Linux/Mac/Windows), MediaTek (Linux), etc. Please install one of them on you computer. In the following chapters, we will take Windows Media Player 11 on Microsoft Windows XP SP2 for an example.

3.7.3.2 Sharing Media on your PC

The Media Sharing feature of Windows Media Player 11 lets you enjoy the contents of your Windows Media Player library from anywhere in your home.

- Open Windows Media Player 11, click Library -> Add Library -> Advanced Options to add or remove media files from the library.

- Click Library -> Media Sharing, then you can allow or deny devices to access the media library. Click Allow to authorize your player.

3.7.3.3 Streaming Media on your Player

• Connect your player to the home network (LAN or WLAN).
• Visit Files Manager -> UPnP menu on the player, select the UPnP-server, and press OK.

- Then you can browse the media library shared by Windows Media Player 11.

Note:

• Make sure your player and your computer are on the same local area network and subnet.
• Firewalls may prevent your player to communicating with your computer. Please open the ports manually and add your player to the 'trusted' list, or disable the firewall temporarily.

3.7.4 A/V Streaming via Linux NFS server

This system enables you to browser the media files shared on Linux NFS Server (Ethernet or WLAN). Please refer to '3.1.4 Changing Network Settings' for details about network settings.

• Visit Files Manager - > NFS menu
• Press the Menu button and a popup menu appear. You can then Add/Modify/Delete a NFS server's shortcut. Select Add to open a popup menu where you can input the NFS Server's IP and the desired folder destination.

Then you can select and play the shared media files on the Linux NFS server.

3.8 Copy Function

3.8.1 Copy under Media Library

Step 1: press Copy button to enter file selecting menu.

Step 2: press Play/Pause button to select file or folder which you want to copy to the list.

Step 3: press Edit button to enter multi-file editing menu.

Step 4: Select destination, and then follow the prompt on screen to finish the copy process.

3.8.2 Copy under File Manager

Press Edit button to enter file editing menu, choose Copy and follow the prompt on screen to finish the process. If you want to select more files and folders, please choose Multiple Select to enter the file selecting menu.

3.9 Internet Media

This feature is additional function. All contents and services under this feature are provided by third-party service providers, our company does not offer any contents and services of this feature and it not responsible for any contents and services provided under this feature. Our company is not responsible for any operational stability of the contents and services, for example, if you cannot access certain web site for video streaming or news broadcast, or the content of a web site has been changed etc, are all responsible and control by the third-party service providers. If you find that these features cannot operate properly, please contact our customer service or visit our company website to obtain the relevant information.

Here are the introductions of shoutcast radio, BT download and video podcast function.

3.9.1 SHOUTcast Radio

Select SHOUTcast Radio icon to get all free internet radio stations, press OK to select and play radio station, press Back to come back

Note:

- When you enter the Digital Radio menu at the first time, it will take several seconds to download data from the Internet, please be patient to wait;

• For more about SHOUTcast, please refer to the website: www.shoutcast.com

Station

- All downloaded stations will be listed under this menu.

Genre

- You can search for stations by genre (pop, rock, jazz, etc.) under this menu.

Favorite

- Your favorite stations can be kept under this menu.

Search

- You can search for stations with the on-screen virtual keyboard under this menu.

3.9.2 BT Download

Select the BitTorrent icon on internet media menu. You can see the status of torrents download progress and configure the BT download settings in this menu. Press Left/Right button to enter into download menu and BT setup menu.

Note: You need format the external hard disk on the player to use BT Download function.

Add a torrent

Locate your torrent file in file manager menu, then press OK button to add the torrent to start downloading.

Download Menu

After add the BT torrent files, the download progress can be displayed in this menu.

The following buttons can be used under this menu.

Button	Function
Up/ Down	Move cursor up / down.
OK	press to adjust the priority of the download task
Play/Pause	Press to start/pause download.
Stop	Press to stop the download.
Back	Return to the previous menu.

BT setup Menu

In the BT Setup menu, you can configure the following settings. Use Up/Down and OK to change the settings.

• Set the maximum download rate.
• Set the maximum upload rate.
• Set the idle hours to start the next download automatically.
• Set the seeding hours.
• Set to delete the finished torrent files automatically or not.
• Set the maximum number of simultaneous download tasks.

3.10 Web Browser

The following buttons can be used during webpage browsing.

Button	Function
Red	Press to enter navigation mode or normal mode.In normal mode, only mouse can be used to move the cursor.In Navigation mode, remote control also can be used to move the cursor.
Green	Press to pop up the address bar.
Navigation buttons	In Navigation mode, press navigation buttons to move cursor.In normal mode, press Up/Down to move to the top/bottom of the webpage.
OK	Press to enter selected hyperlink while in navigation mode.
Play	Press to load the web site when the cursor stays on the address bar.
Back	Return to exit web browser.

3.11 SAMBA Server and Client

This player can be used either as a SAMBA Server or as a client.

3.11.1 SAMBA Client

You can stream media files shared on the home network. Please refer to '3.5.2 A/V Streaming via Network' for more details.

3.11.2 SAMBA Server

• This product functions as a NAS (Network Attached Storage) device when it is attached to the home network via WLAN. This feature allows users to store and retrieve large amounts of data from their own local network.
• When the network connection is done correctly and ready for use, please turn on SAMBA function in the setup menu in advance (refer to 3.1.4 Changing Network Settings for more details), and then type in: \IP Address or \Host name in the Run window (click Run in the start menu) or in the address bar of a web browser, for example Internet Explorer on your PC (if the IP address of the product is 192.168.0.9, please type in: \192.168.0.9), and click OK or press the Enter button on the keyboard.

Under Windows Vista and Windows 7, please type in: \192.168.0.9 at the search bar, then press the Enter button on the keyboard.

You can then manage the files stored on the internal hard disk of the product. In this way, you can also playback and copy files via network between your PC and the internal hard disk of this product.

Note: Make sure the player is connected properly to WLAN with Internet access, please refer to '3.1.4 Changing Network Settings' for more details.

3.12 FTP Server

This product can also function as a FTP Server when it is attached to your home network via wired or wireless connection.

3.12.1 FTP Server Configuration

- You can configure the username and password of the FTP Server. Please refer to '3.1.4 Network setup' on doing so.

On your product,

• Assign a manual Fixed IP address for the product, for example 192.168.0.9 when you connect to your router either via wired or wireless connection.
• Assign the same subnet mask as your router, usually 255.255.255.0 and the gateway of your router (router's local IP address, usually 192.168.xxx.xxx). Please refer to your router documentation on getting these information from your router.
• Key in your router DNS IP address (primary or secondary)

On your router,

• Configure FTP Server within your router's Virtual Server setting and key in the above IP address in example, 192.168.0.9 and change the public port to 21 and private port to 21 which is by default.
• For your convenience, you can also choose to enable Dynamic DNS and sign up for a free DDNS domain at any of the website providing such free services. An example would be www.dyndns.com
• At your router's DDNS page, key in your host name and enter the same user name and password when you create a DDNS account. Please refer to your router documentation on getting these information from your router.

3.12.2 Accessing from a FTP program

Using your favorite FTP application on your PC, an example would be ALFTP, which can be downloaded from http://www.altools.com/ALTools/ALFTP.aspx

At the FTP program connection page, you can either connect using your router's WAN IP address or via your DDNS host name.

Be sure to start the FTP service with your User Name and Password as discussed at FTP, '3.1.4 Network setup'

FTP Address: Your router's WAN IP address

User ID: The User Name which was set under FTP, '3.5 Network setup'

Password: The Password which was set under FTP,' 3.5 Network setup'

FTP Address: Your DDNS host name

User ID: The User Name which was set under FTP,' 3.1.4 Network setup'

Password: The Password which was set under FTP,' 3.1.4 Network setup'

After login is successful, you will be able to upload/download files via FTP Server.

3.13 Remote Management

This product comes with a unique remote management feature that allows user to remotely access from the internet to operate the following functions on the product via a built-in HTTP server.

Remote Control

Using the on-screen virtual remote control and use it like you would with the hand-held.

BitTorrent management

View and manage your BitTorrent tasks remotely over the internet.

HTTP Server configuration

On your product,

• Assign a manual Fixed IP address for the product, for example 192.168.0.9 when you connect to your router either via wired or wireless connection.
• Assign the same subnet mask as your router, usually 255.255.255.0 and the gateway of your router (router's local IP address, usually 192.168.xxx.xxx). Please refer to your router documentation on getting these information from your router.
• Key in your router DNS IP address (primary or secondary)

On your router,

• Configure HTTP Server within your router's Virtual Server setting and key in the above IP address in example, 192.168.0.9 and change the public port to 1024 and private port to 80 which is by default.
• For your convenience, you can also choose to enable Dynamic DNS and sign up for a free DDNS domain at any of the website providing such free services. An example would be www.dyndns.com
• At your router's DDNS page, key in your host name and enter the same user name and password when you create a DDNS account. Please refer to your router documentation on getting these information from your router.

To access via HTTP server in your local network, launch a web browser such as Internet Explorer, Firefox or Safari, and at the address bar, key in http://192.168.0.9:1024 where 192.168.0.9 is the IP address of your product.

To access via HTTP server from out of your local network, launch a web browser such as Internet Explorer, Firefox or Safari, and at the address bar, key in either

- http://123.456.789.000:1024 where 123.456.789.000 is the WAN IP address of your router. Please refer to your router documentation on getting this information from your router.

Or

- Key in http://DDNS-HOST-NAME:1024, where DDNS-HOST-NAME is the host name which you have signed up for at your desired DDNS service provider.

4. Upgrading the Firmware

The firmware is the operating system (OS) installed on the device. Firmware upgrades can bring new features, improvements and bug fixes.

Step 1: Copy `install.img' to the root directory of a USB stick, and connect it to the USB HOST port of the player.
Step 2: Press and hold the power / standby button on the front panel, and do not loosen.
Step 3: Plug the power cable into the DC IN jack, wait for about 5 seconds or more, and then loosen your finger on the power / standby button;

Firmware installation will start. There is another way for upgrading. Please refer to USB Update in chapter '3.1.6 Miscellaneous' for more details.

5. Frequently Asked Questions

Question 1. When I try to disconnect the USB device, I keep on getting "The device 'Generic volume' cannot be stopped right now. Try stopping the device again later." message, what should I do?

Answer:

Close any program that might be accessing data on the player, including Windows® Explorer. If it does not work, close all programs and wait for another 20 seconds, then try the green arrow icon again. If it still does not work, you should shut down the player and disconnect the USB cable.

Question 2. I find new file names and folder names that I never created before or they have strange gibberish names.

Answer:

Most likely, the player's file allocation table (FAT) has been corrupted. This might be due to the player shutting down (due to low battery power) while reading or writing to your computer by the USB connection. Windows and Macintosh often write extra files to the hard disk such as finder.def or System volume info. These are normal and will not do any harm to the player.

Question 3. I used my player to transfer files back and forth between different computers. Will defragmenting the player hard disk do any harm to it?

Answer:

Defragmenting the player hard disk may be useful after having transferred many files to and from the player. It is never harmful to use the defragment on the player. Make sure no other programs are running while using the Windows® defragment utility. Make sure you have connected the player with the external power adapter during this procedure.

Question 4. My files have disappeared from the player.

Answer:

Make sure that you browse your files via the correct browser mode which means correct filtered views such as Photos, Music, or Movies.

Question 5. During power on, why does the TV will have a short flashing, blue screen or screensaver?

Answer:

This is normal, when the system initializes, it will setup the corresponding parameters so it can output the correct video signal to the TV, during the initializing time, the TV will receive incorrect signals or the signals will not be stable and will cause the TV screen to flash, some TV's will treat this as no signal, and will display a blue screen or screensaver.

Question6. Why couldn't the player find the hard disc?

Answer:

You need format the hard disk on the player before usage. If hard disc failure occurs in file manager, please backup your data and format your HDD on the player.

Question7. Why I can't find my USB drive in file manager?

Answer:

Try to replace a short USB cable or plug in the power cable to your USB drive. You are suggested to plug in one USB drive at the same time.

6. Appendices

6.1 Warranty Information

Obtaining Service

iconBIT values your business and always attempts to provide you the very best of service. If this Product requires maintenance, either contact the dealer from whom you originally purchased the Product or visit our product support Web site at www.iconbit.com. Your original box and packaging materials should be kept for storing or shipping your iconBIT product. iconBIT shall have no liability for lost data regardless of the cause, recovery of lost data, or data contained in any Product placed in its possession.

Limited Warranty

iconBIT warrants that the Product, in the course of its normal use, will for the term defined below, be free from defects in material and workmanship and will conform to specification therefore. The term of your limited warranty is 1 (one) year. The term of your limited warranty period shall commence on the purchase date appearing on your purchase receipt. Subject to the limitations specified below, your sole and exclusive warranty shall be, during the period of warranty specified above and at iconBIT's option, the repair or replacement of the Product.

Warranty does not cover:

• Acts of nature, such as fire, static discharge.
• Damage from unauthorized repair, alteration or accident.
• Damage from misuse or neglect.
• A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.
• Loss of customer's software, firmware, information, or memory data.
• Improper handling or installation.
• The serial number of the product is defaced or missing.

The foregoing limited warranty is iconBIT's sole warranty and is applicable only to products sold as new. The remedies provided herein are in lieu of a) any and all other remedies and warranties, whether expressed, implied or statutory, including but not limited to, any implied warranty of merchantability or fitness for a particular purpose, and b) any and all obligations and liabilities of iconBIT for damages including, but not limited to accidental, consequential, or special damages, or any financial loss, lost profits or expenses, or lost data arising out of or in connection with the purchase, use, or performance of the Product, even if iconBIT has been advised of the possibility of such damages.

6.2 GNU General Public License ("GPL")

Firmware incorporated into this product may include third party copyrighted software licensed under the GPL ("GPL Software"). The Free Software is copyrighted by Free Software Foundation, Inc. and the program is licensed "As is" without warranty of any kind.

You may re-use, re-distribute, and modify the GPL Software. Users are free to download the base source code of the iconBIT players at the following Address: www.iconbit.com. The source code can be sent to your address via mail for a charge of actual expense executed. Please contact us at [e-mail].

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

6.3 Copyrights and Trademarks

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks are property of their respective holders.

Manufactured under license under U.S. Patent #’s:5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS 2.0 + Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Copyrights

All rights reserved. No part of this manual may be reproduced, or transmitted in any form or by any means, whether by electronically or mechanically, without the express written permission from the copyright holder. Copyrighted materials, such as software, music files, or movies, are protected by local law, and may not be illegally copied or used without permission from the copyright owner.

Information furnished by iconBIT is believed to be accurate and reliable; however, no responsibility is assumed by iconBIT for its use nor for any infringement of patents or other rights of third parties which may result from its use. iconBIT reserves the right to change specifications at any time without notice. iconBIT – trademark of iconBIT Limited.

© 2011 iconBIT Limited. All rights reserved.

iconBIT Limited. Suite 1604-5, Wilson House, 19-27 Wyndham Street, Central, Hong Kong. Phone: [phone], Fax: [phone] www.iconbit.com
