Product Type	Passive Bookshelf Speaker
Brand	Jamo
Model	626K4
Driver Configuration	2-way
Woofer Size	6.5 inches (165 mm)
Tweeter Size	1 inch (25 mm) soft dome
Frequency Response	45 Hz - 20 kHz
Impedance	8 Ohms
Sensitivity	89 dB (2.83V/1m)
Power Handling (RMS)	100 W
Peak Power Handling	150 W
Enclosure Type	Bass reflex (rear port)
Dimensions (H x W x D)	14.2 x 8.3 x 9.8 inches (360 x 210 x 250 mm)
Weight	15.4 lbs (7.0 kg) each
Grille	Removable black cloth
Binding Posts	Gold-plated, dual binding posts (bi-wire/bi-amp capable)
Recommended Amplifier Power	20 - 150 W per channel
Placement	Bookshelf or stand, away from rear wall for optimal bass
Cleaning	Wipe with dry cloth; avoid solvents
Safety	Place on stable surface; keep away from moisture

Frequently Asked Questions - 626K4 JAMO

What is the impedance of the Jamo 626K4?

The Jamo 626K4 has an impedance of 8 Ohms, making it compatible with most stereo amplifiers and receivers.

Can I bi-wire or bi-amp the Jamo 626K4?

Yes, the speaker features dual binding posts that allow bi-wiring or bi-amping. Remove the metal jumpers between the terminals for separate high and low frequency connections.

What type of enclosure does the 626K4 use?

It uses a bass reflex enclosure with a rear-firing port. Leave at least 6 inches (15 cm) of space behind the speaker for proper airflow.

What is the recommended amplifier power for these speakers?

Jamo recommends an amplifier with 20 to 150 watts per channel (RMS) for optimal performance and headroom.

How should I clean the Jamo 626K4?

Use a soft, dry cloth to dust the cabinet. Avoid using any liquids, abrasives, or cleaning solvents that may damage the finish.

What are the dimensions of the Jamo 626K4?

Each speaker measures approximately 14.2 x 8.3 x 9.8 inches (H x W x D) and weighs about 15.4 lbs (7 kg).

Where should I place the speakers for best sound?

Place them on sturdy bookshelves or stands at ear level when seated. Keep rear ports at least 6 inches from walls to avoid boomy bass. Angle them slightly toward the listening position.

Do I need to break in the Jamo 626K4 speakers?

While not strictly necessary, playing them at moderate levels for 20-30 hours can help the suspension components loosen up, potentially improving bass response.

Can I use these speakers in a home theater setup?

Yes, they work well as front left/right or surround speakers. Pair them with a center channel and subwoofer for a complete 5.1 system.

What is the frequency response of the 626K4?

The frequency response is 45 Hz to 20 kHz, providing deep bass and clear highs for most listening genres.

USER MANUAL 626K4 JAMO

Close-up of a metallic mechanical component with smooth curved surfaces and no visible text or symbols

WARNING: Improper installation of the speaker could result in amplifier damage. Read all instructions before installation.

Placement

Make certain the speaker is located between wall studs to avoid cutting into studs. Place the supplied template a minimum of 5/8" from any studs. Level it and draw a line around it to mark the cutout. Take care when cutting the hole to avoid cutting into pipes or electrical conduits. If you encounter pipes, electrical conduits or other obstacles you may have to select another location for the speaker.

Installation

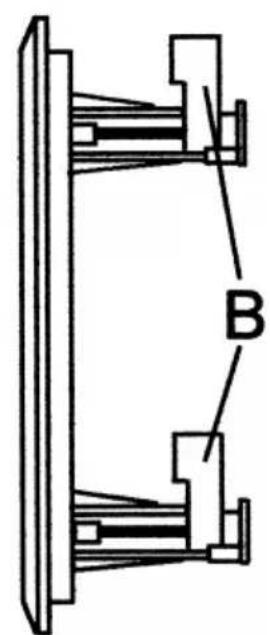

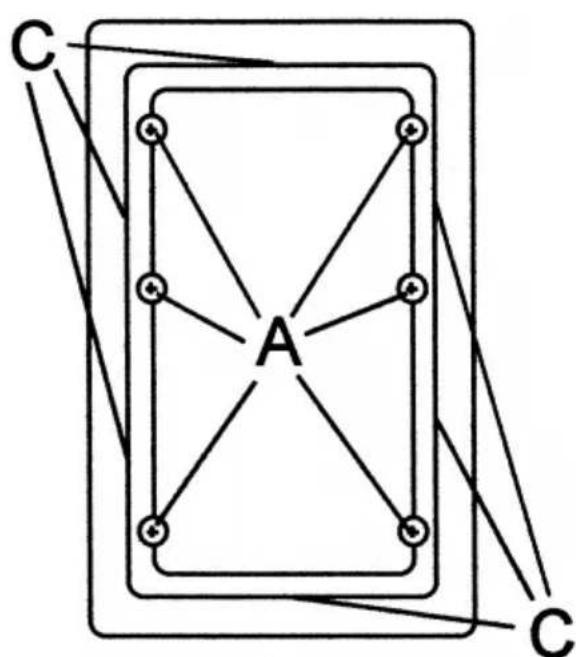

First install the frame. Loosen screws A (fig. 1) by turning them counter clockwise. Loosen all 4 screws until the „Dog ears“ B (fig. 2) can move freely. Do not remove the screws. Install the frame into the wall and level it (notice TWEETER and WOOFER markings on the frame). Turn screws A clockwise until they are tightened and the frame is firmly installed.

Next install the speaker into the frame. Before installing the speaker connect the speaker wires as described under „Hookup“ and set the impedance switch to the desired position (see “Adjustments”). Remove the grill from the speaker. Place the speaker into the frame and secure with the 6 screws supplied.

Before reinstalling the grill on the speaker make tweeter level adjustments as described under "Adjustments". Reinstall the grill. If the grill has a loose fit and/or is vibrating when the speaker is playing remove the grill, install the supplied non-curing glue strips at locations C (fig. 1) and reinstall the grill.

Hookup

The receiver/amplifier must be turned OFF before you connect the speaker or it may cause damage to the amplifier.

Connect the speaker wires from the receiver/amplifier to the speakers. When connecting the speaker wires make sure that LEFT (L) is connected to LEFT (L), RIGHT (R) to RIGHT (R), POSITIVE (+) to POSITIVE (+) and NEGATIVE (-) to NEGATIVE (-). If terminals are color coded, RED is POSITIVE (+) and BLACK is NEGATIVE (-).

Adjustments

The tweeter can be tilted towards the listening area, due to high frequencies being more directional than low frequencies. The impedance of the speaker and the level of the tweeter are adjustable.

IMPEDANCE:

Located on the crossover on the back. The factory setting is 8 ohm. If the receiver/amplifier specifies a minimum impedance of 4 ohm, the speaker may be switched to the 4 ohm position. This will make the speaker play louder. When installing more then 1 pair of speakers to a receiver/amplifier special care should be taken to impedance matching the speakers to the receiver/amplifier. This may require impedance matching devices. Consult your dealer for information regarding impedance matching.

TWEETER LEVEL:

Located on the front baffle. The factory setting is 0 dB. The level of the tweeter can be lowered by 3 or 6 dB to suite individual tastes in different room environments. Experiment with the settings to find the preferred sound.

Custom painting

The grill and frame may be painted to match your decor. Paint the grill and frame separately before mounting to the wall. After painting the grill blow air through the holes to prevent clogging. The speaker is supplied with a sheet of acoustically transparent foam. This may be inserted behind the grill so the holes look less dark.

Maintenance

All Jamo loudspeakers are made of modern thoroughly tested materials, which will usually require no maintenance, other then dusting or drying with a soft, dry cloth. If the loudspeakers have become greasy, the grease may be removed by moistening the cloth with water and possible using a mild detergent.

NOTE:

Never use any scouring powder, household cleansers or any other solvents for cleaning the loudspeaker.

Fig. 1

Fig. 2

The scope of the warranty

The warranty period will come into force as from the purchase date stated on the invoice. The warranty will apply for the following period of time:

• 2 years for electronics (power supply, amplifier, etc.)
- 7 years for other parts (cabinet, speaker units, etc.)

In case of warranty inquiries, please contact your dealer.

In case of request for service under warranty, please enclose your original receipt.

Defects covered by the warranty:

Except for the defects stated below, the warranty covers any production and material defects of the product.

Defects not covered by the warranty:

• Defects arising from accidents, misuse, normal wear and tear, mis-maintenance, voltage variation, overloading, stroke of lightning, and other force majeure events
• Defects arising from incorrect installation or operation
  • Defects arising from modification/repair/attempt of repair by a non-authorised service centre
• Defects arising from the use of non-original spare parts
• Defects on products with altered or lacking series number
• Other defects due to conditions or circumstances beyond the supplier's control

Transportation costs for servicing are not covered by the warranty.

The supplier is liable only to repair or replace defective parts or products. A replacement cannot exceed the value of the product under warranty.
