Studio S 622 DA - Loudspeaker JAMO - Free user manual and instructions

Product Type	Floorstanding Speaker
Brand	Jamo
Model	Studio S 622 DA
Speaker Design	2.5-way bass reflex
Frequency Response	38 Hz – 24 kHz
Sensitivity	89 dB (2.83V/1m)
Impedance	4 ohms
Power Handling (RMS)	150 W
Recommended Amplifier Power	50 – 200 W
Drivers	2 x 6.5" woofer, 1 x 1" tweeter
Enclosure Type	Bass reflex with front-firing port
Dimensions (H x W x D)	1010 x 200 x 320 mm
Weight	16.5 kg each
Finish	Black Ash or White Satin
Crossover Frequency	2.5 kHz
Wiring	Single wire (bi-wire terminals removable)
Cleaning and Maintenance	Wipe with a soft dry cloth. Avoid liquids or abrasives.
Safety Instructions	Do not expose to moisture. Place on stable surface. Ensure adequate ventilation.
Parts and Repairability	Contact authorized service center. Do not open enclosure.
Warranty	2 years limited
Included Accessories	Floor spikes, foam port plugs, manual

Frequently Asked Questions - Studio S 622 DA JAMO

What is the best placement for Jamo Studio S 622 DA speakers?

Place speakers at least 20 cm from walls to avoid bass boom. Angle them slightly toward the listening position for optimal imaging. Use the supplied floor spikes on carpet for stability.

Do I need to break in the speakers?

Yes, allow about 20-30 hours of play at moderate volume for the drivers to reach optimal performance. The sound will become smoother and more detailed.

How should I clean the speaker cabinets?

Use a soft, dry microfiber cloth to remove dust. For stubborn stains, slightly dampen the cloth with water and wipe gently. Never use solvents or abrasive cleaners.

Can I bi-wire or bi-amp these speakers?

Yes, the binding posts are designed for bi-wiring. Remove the jumpers between HF and LF terminals, then connect separate cables to each section. Ensure the amplifier supports this configuration.

What amplifier power is recommended?

An amplifier with 50 to 200 watts per channel at 4 ohms is suitable. Higher power ensures clean dynamics without clipping.

Are the speakers magnetically shielded?

No, the Studio S 622 DA is not magnetically shielded. Keep them at least 50 cm away from CRT televisions or sensitive electronics to prevent interference.

What is the difference between the S 622 and S 622 DA?

The 'DA' version includes a built-in digital amplifier, making it an active speaker. The passive version requires an external amplifier. Confirm your model before connecting.

Can I wall-mount these speakers?

The Studio S 622 DA is a floorstanding design and not intended for wall mounting. Use the included spikes on a solid floor for best performance.

What type of speaker cable should I use?

Use high-quality speaker wire with a gauge of 14-12 AWG. Keep cable runs equal in length. Ensure connections are tight to avoid signal loss.

How do I troubleshoot no sound from one speaker?

First, check speaker wire connections at both ends. Swap speakers to isolate the issue. If the problem follows the speaker, contact support. Also verify the amplifier channel is working.

USER MANUAL Studio S 622 DA JAMO

Line drawing of four rectangular blocks arranged in a staggered layout (no text or symbols)

	Note!Bemaerk!Achtung!	A noterAttentie!Obs!	¡Atención!Attenzione!Atenção!	Huomaa!注意!Проσοχή!	Внимание!Megjegyzés!Uwaga!	Dikkat!Upozomění!Pozor!	Opomba!注意!للاحظة

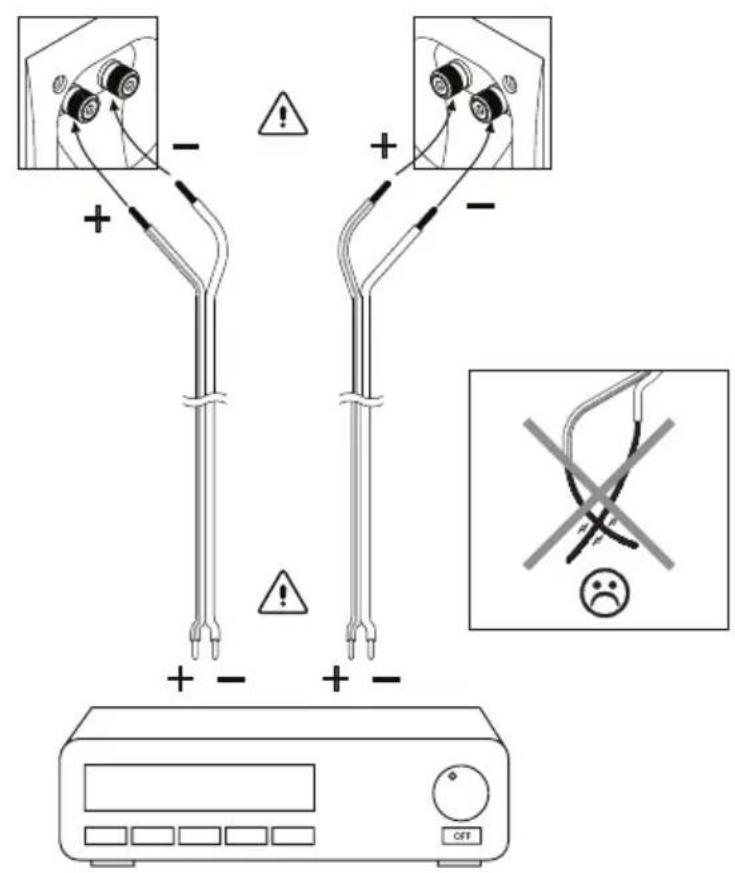

	WrongForkertFalsch!	FauxFout!Fell!	¡Incorrecto!Sbagliato!Errado!	Väärin!错误!Λάθος!	Неправильно!Hibás!Nieprawidlowo!	Yanlış!Špatně!Nesprávne!	Napačno!間達い!خطا
	CorrectKorrektRichtig!	VraiGoed!Rätt!	¡Correcto!Giusto!Correto!	Oikein!正确!Σωστό!	Правильно!Megfelelöl!Prawidlowo!	Doğru!Správně!Správne!	Pravilno!正しい!scribers!
	ListenLytHören!	Ecoutez!Luister!Lyssna!	¡Escuche!Ascoltare!Ouça!	Kuuntele!倾听!Акоúστε!	Слушайте!Hallgassa meg!Sluchaj!	Dinle!Poslouchejte!Počúvajte!	Poslušajte!聽取!ستمع!

IMPORTANT SAFETY INSTRUCTIONS!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. ONLY USE attachments/accessories specified by the manufacturer.

10. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

11. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources – such as candles – should be placed on the product.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union EMC Directive 2004/108/EC.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

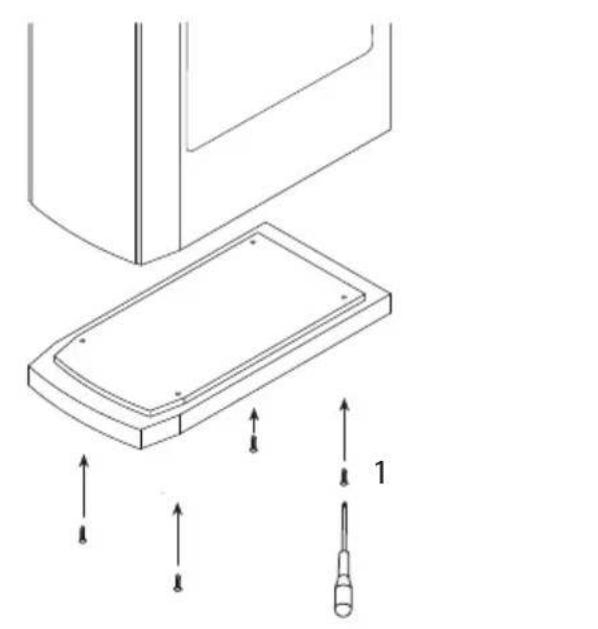

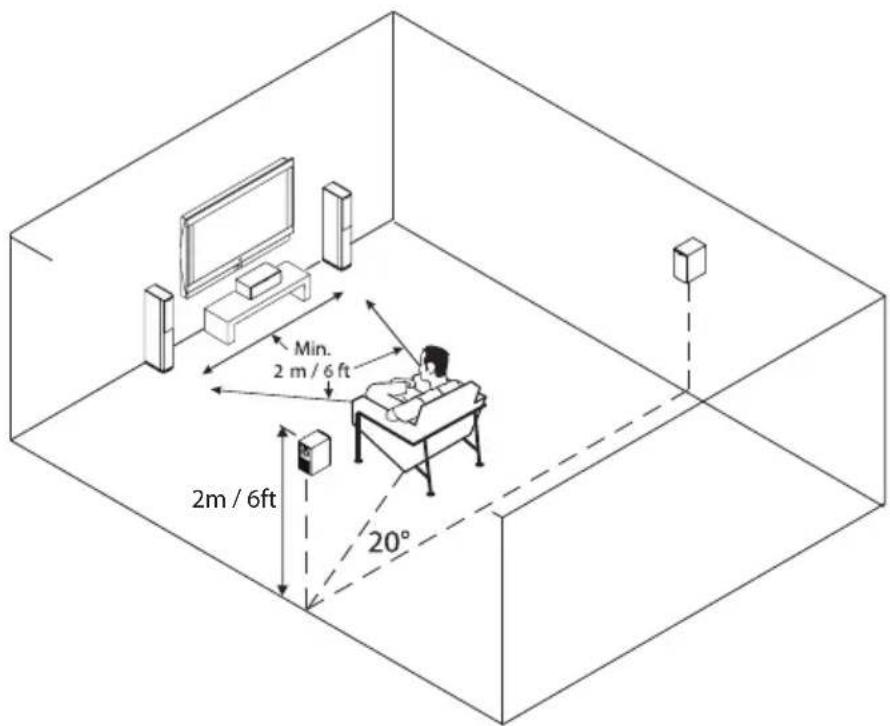

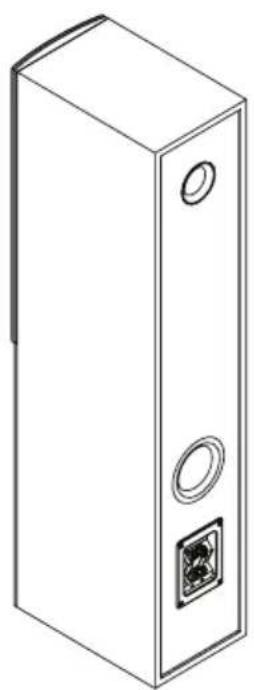

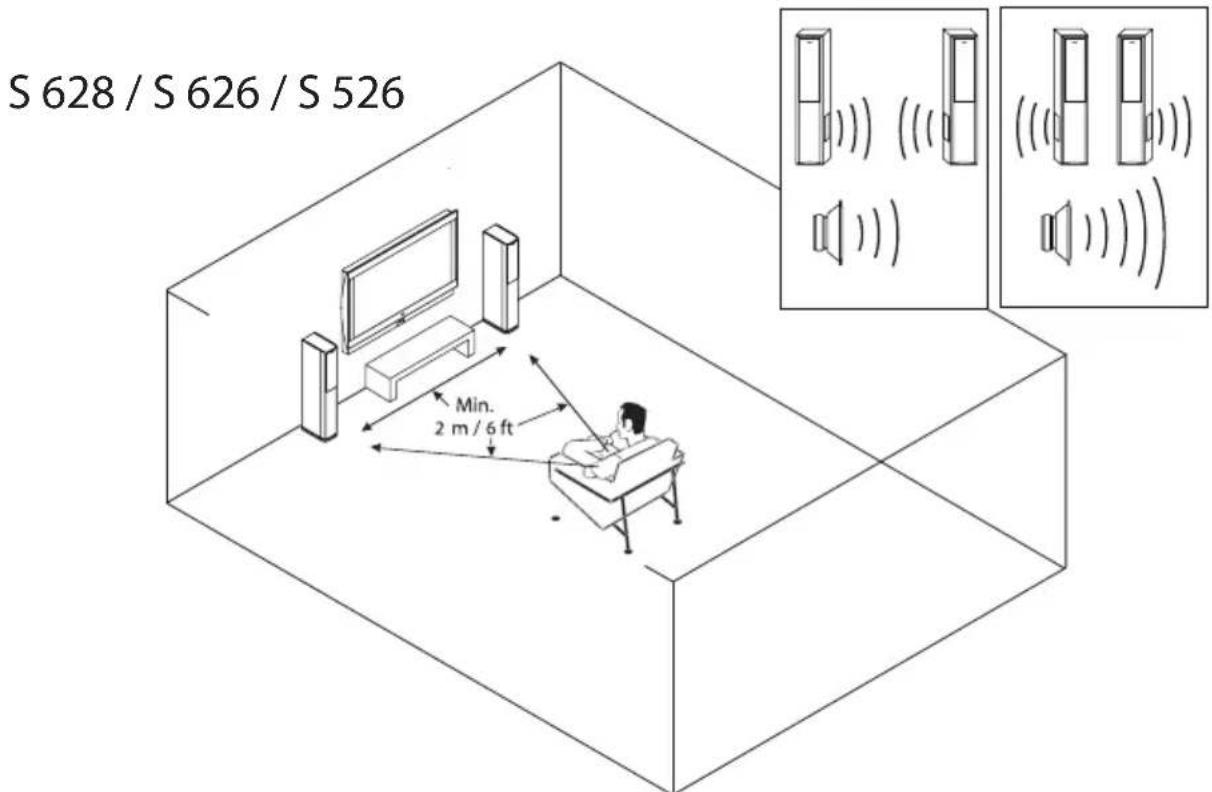

1 Placement

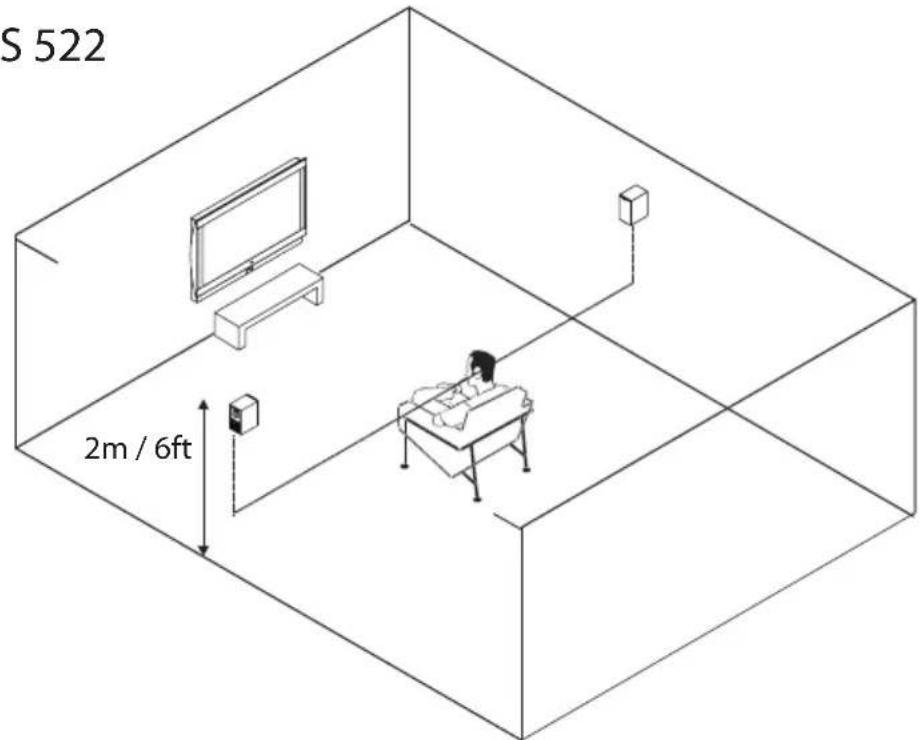

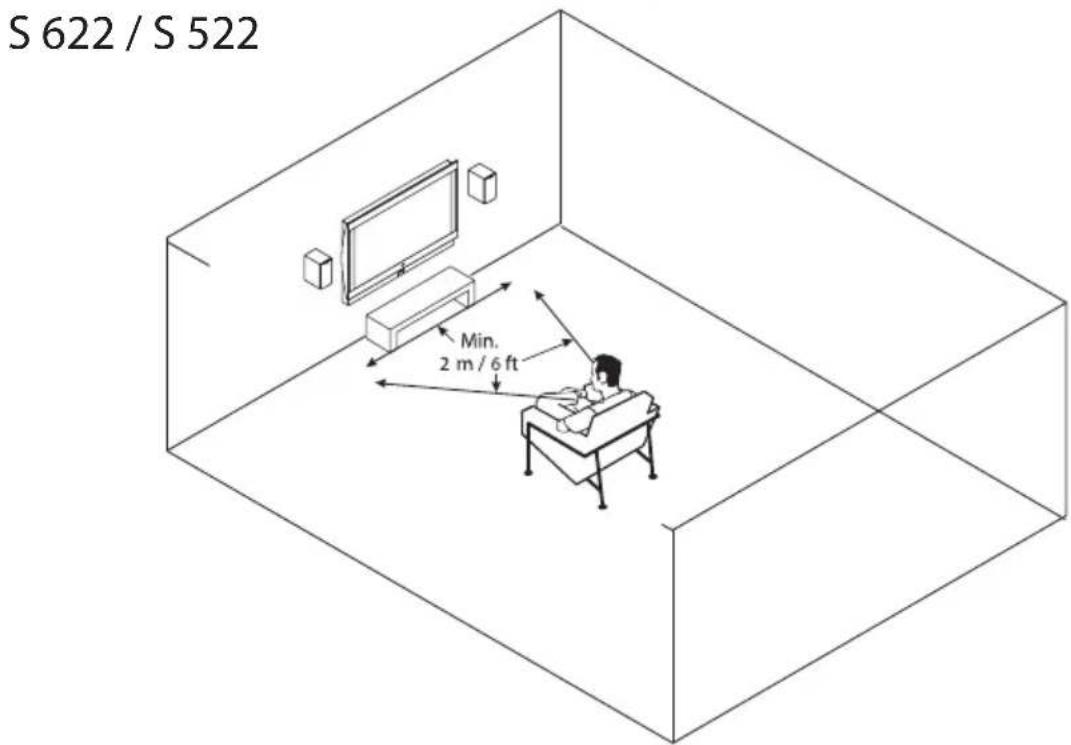

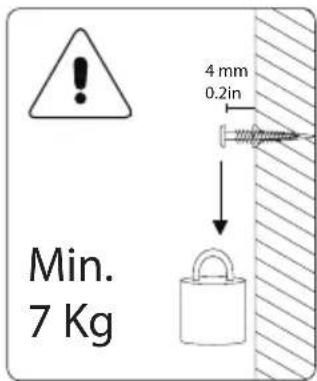

S 622 / S 522

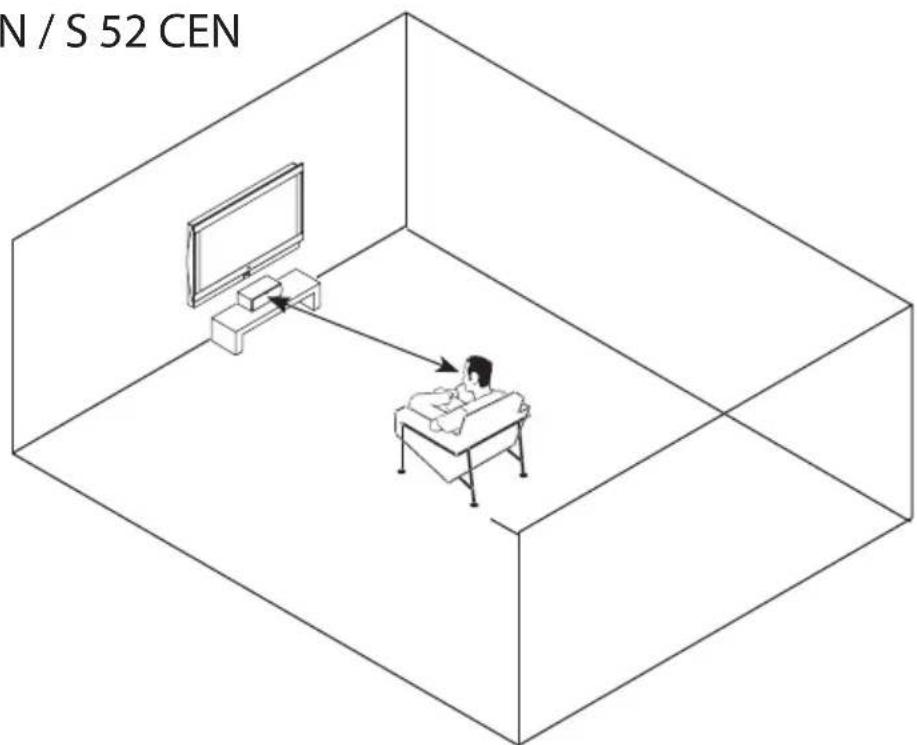

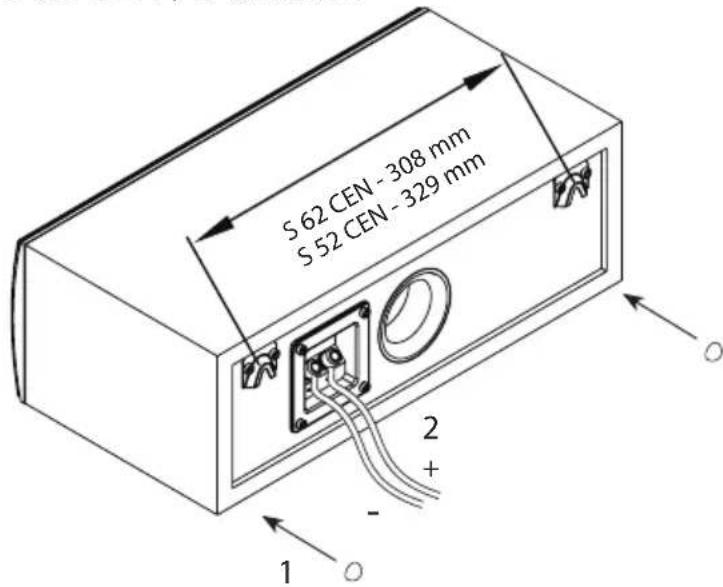

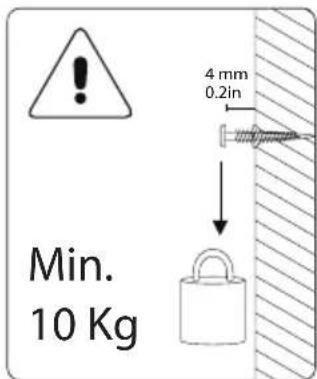

S 62 CEN / S 52 CEN

S 628 HCS / S 626 HCS / S 526 HCS

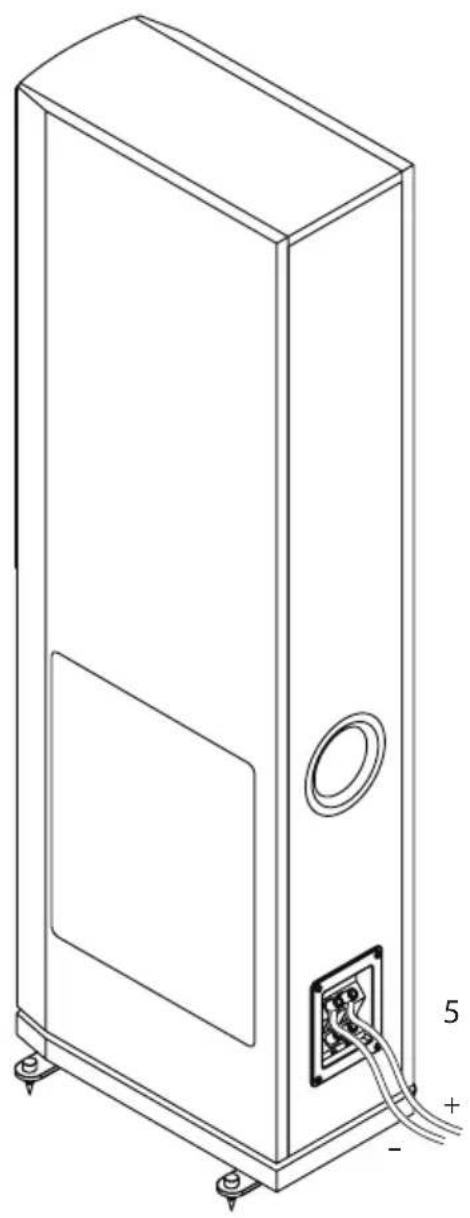

Diagram of a mechanical component with a threaded shaft and curved cable, labeled with number 5 (no text or symbols on the diagram itself)

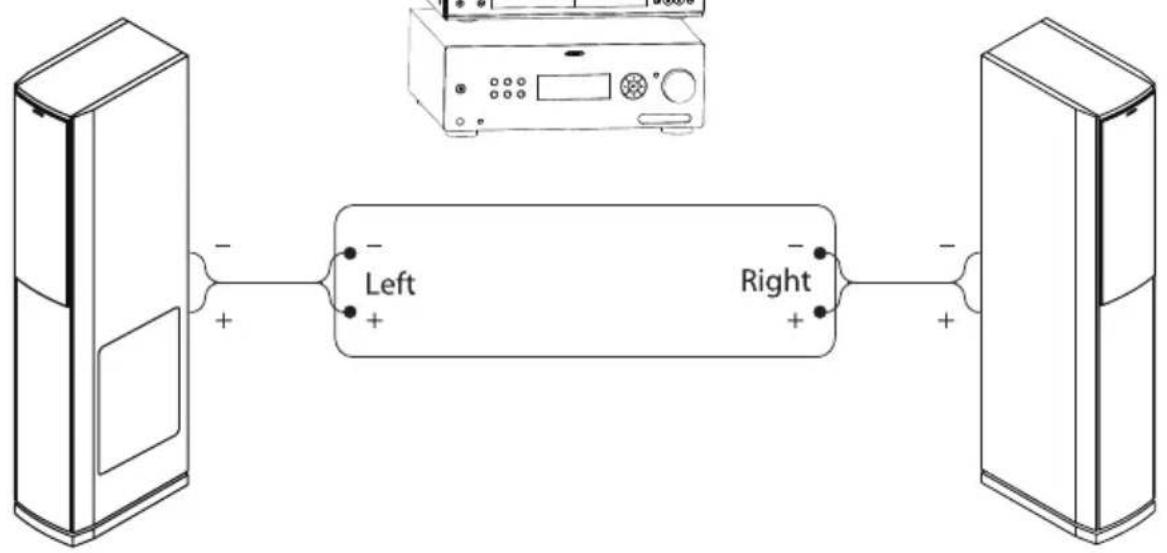

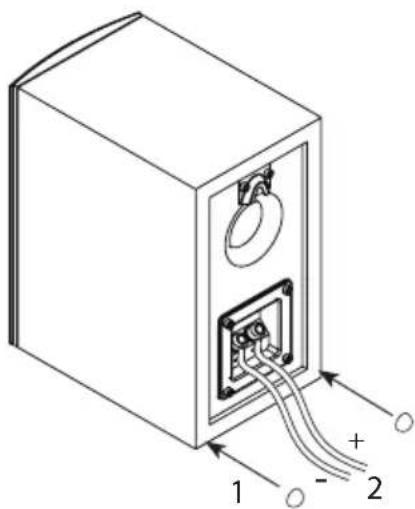

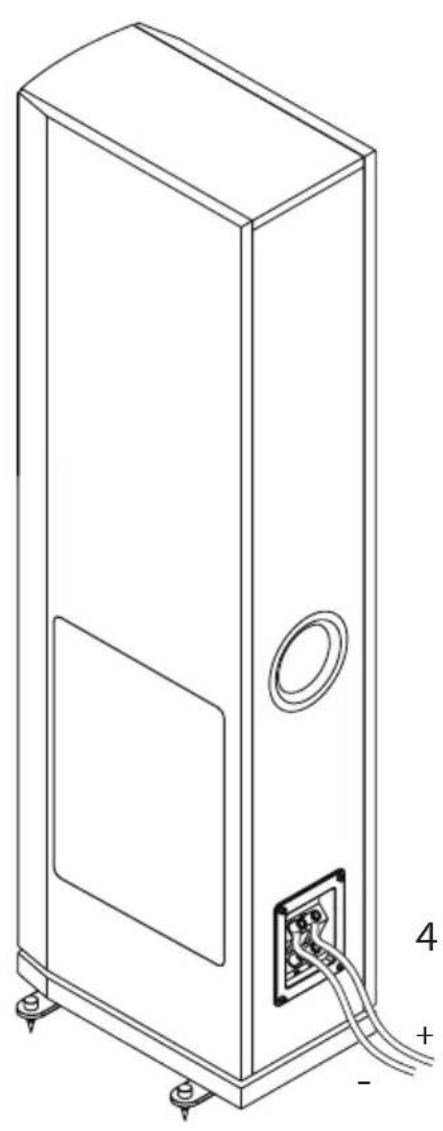

Setup A - single wiring S 628 / S 626 / S 526

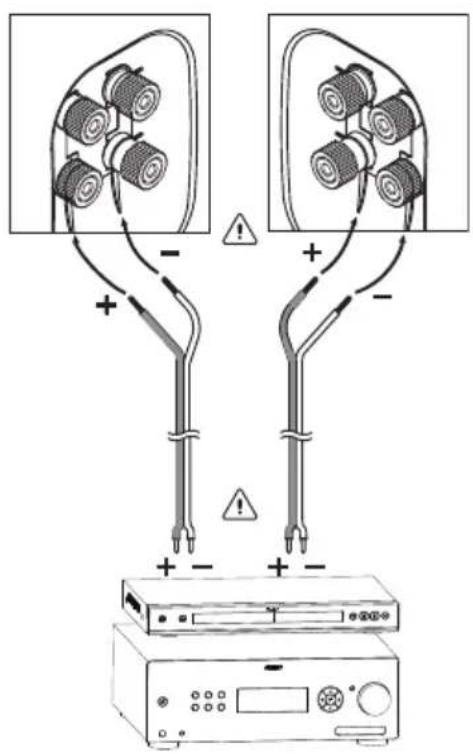

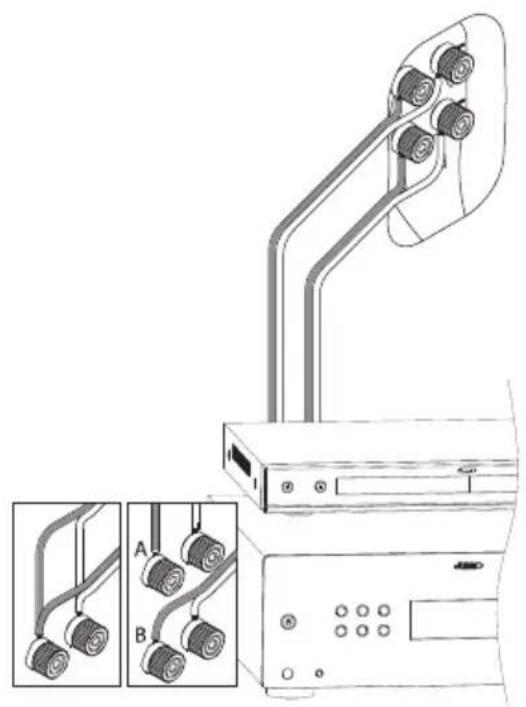

Setup B - bi-wiring S 628 / S 626 / S 526

Technical line drawing of a device with attached cable and control panel, showing internal components (no text or symbols)

S 628

Technical line drawing of a mechanical component with arrows indicating assembly or force direction (no text or symbols)

Line drawing of a rectangular electronic device with mounting feet and internal wiring (no text or symbols)

Line drawing of a rectangular device with a circular opening and attached electrical socket (no text or symbols)

S 526

Line drawing of a rectangular electronic device with two ports and a circular button (no text or symbols)

Isometric line drawing of a rectangular box with a side panel (no text or symbols)

Simple line drawing of a 3D rectangular frame with corner markers and a curved top edge (no text or symbols)

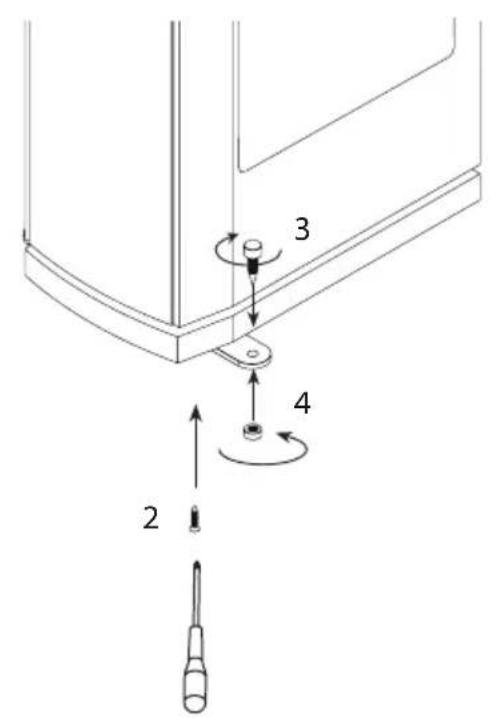

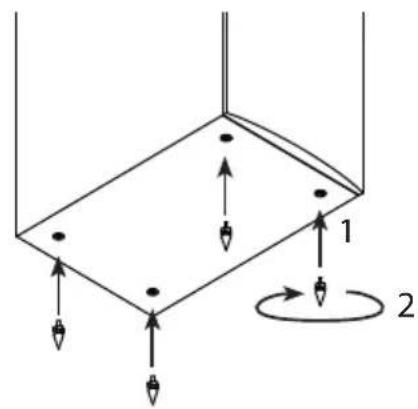

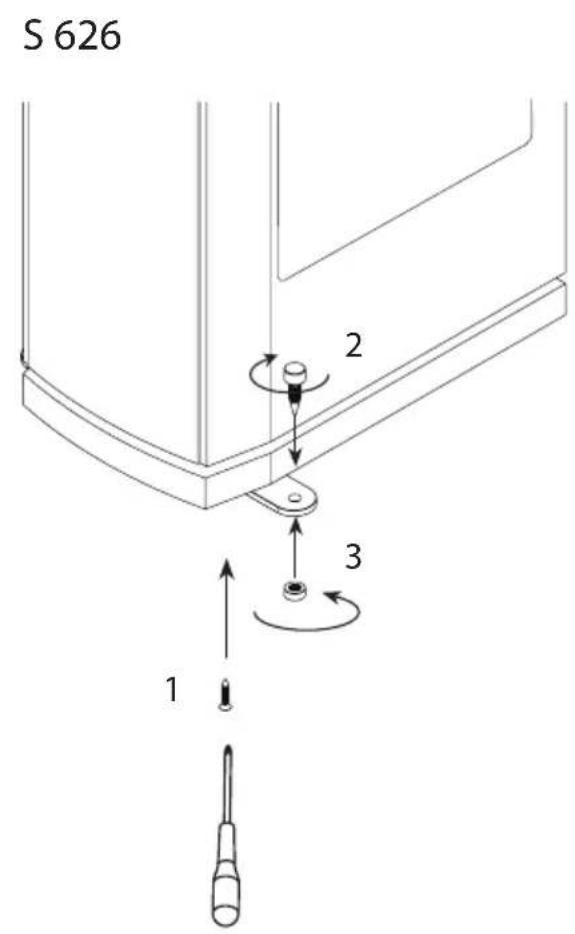

If spike's not wanted, then use included felt pad in accessories pack for protection of floor.

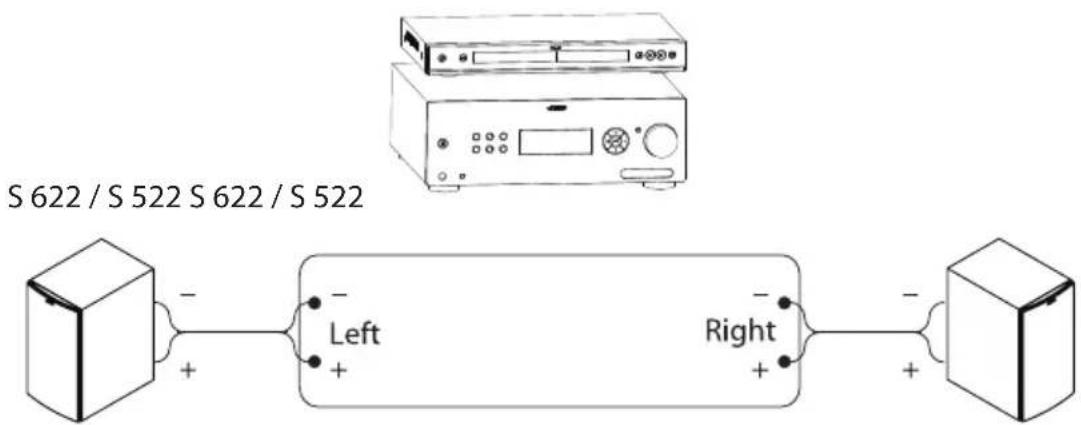

S 622 / S 522

S 62 CEN / S 52 CEN

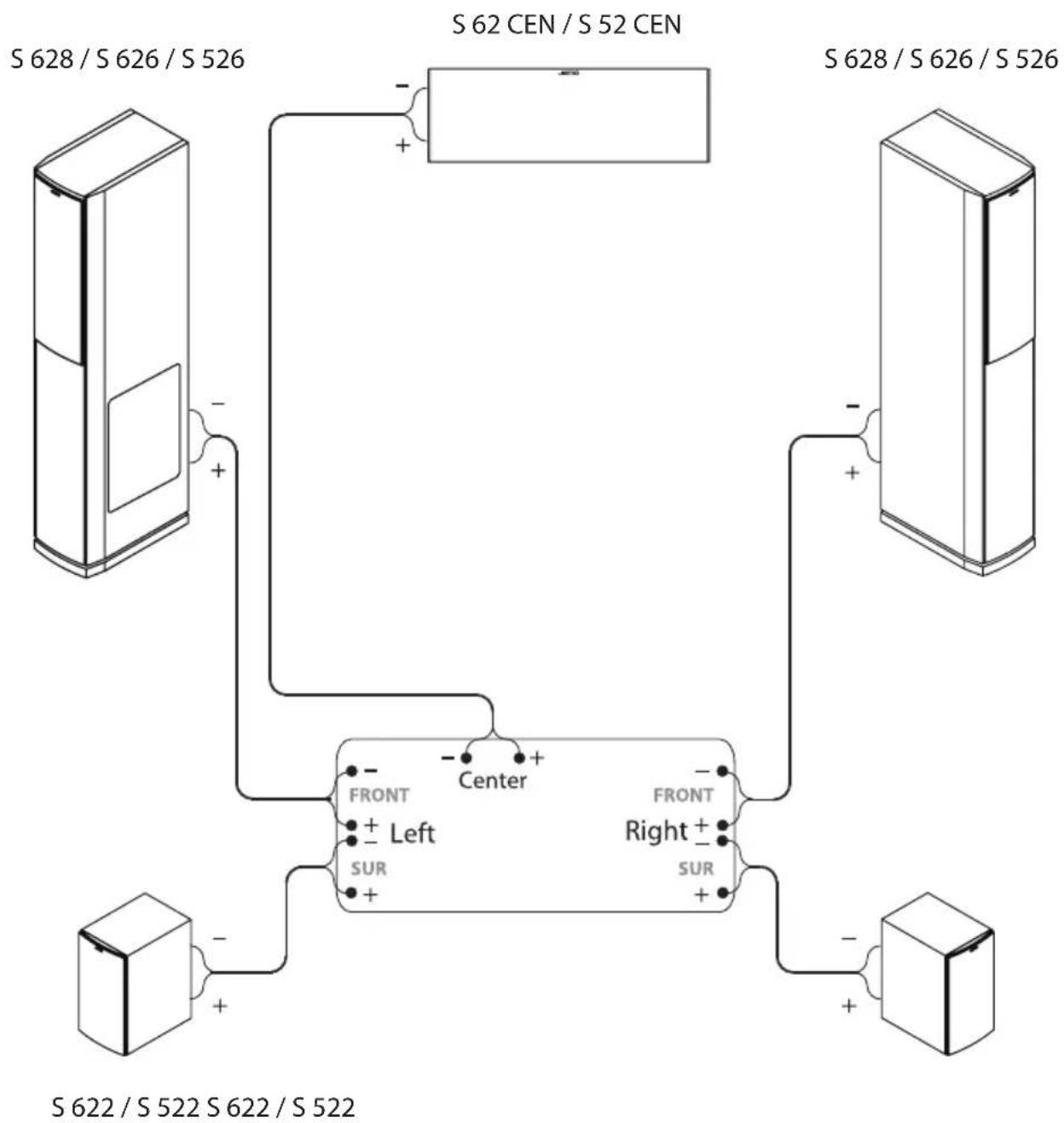

4 System Connection

S 628 / S 626 / S 526 S 628 / S 626 / S 526

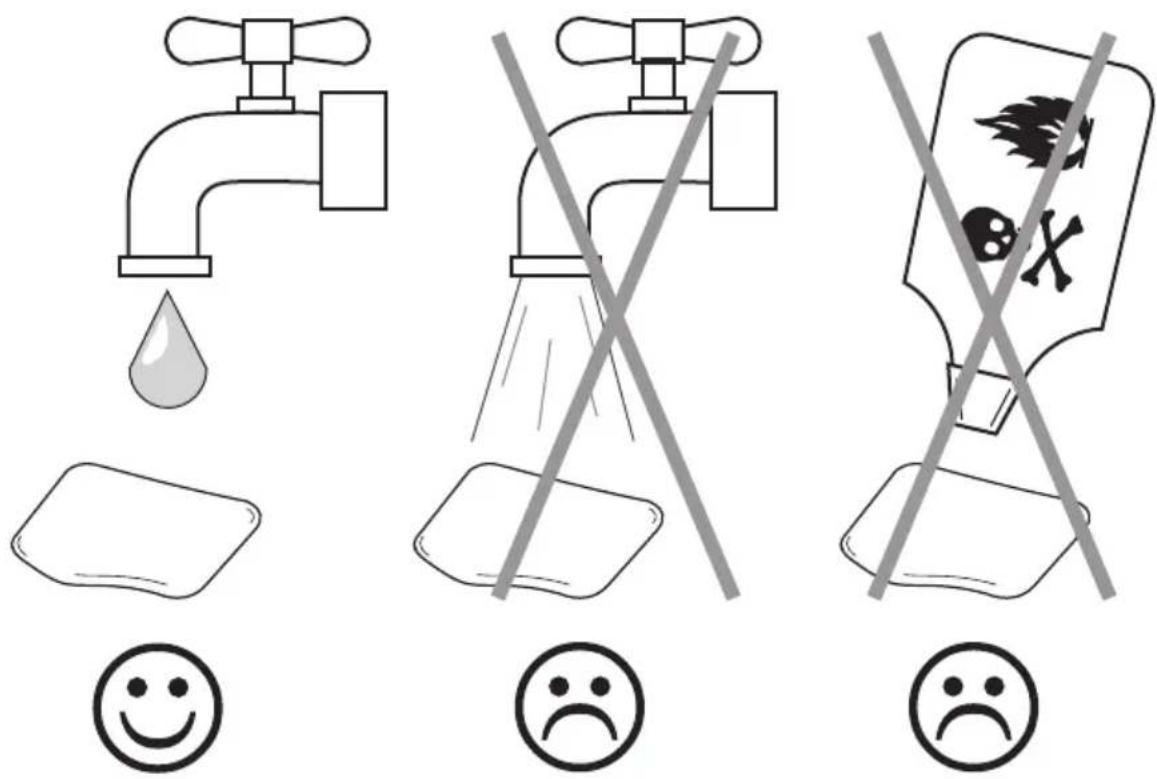

5 Care

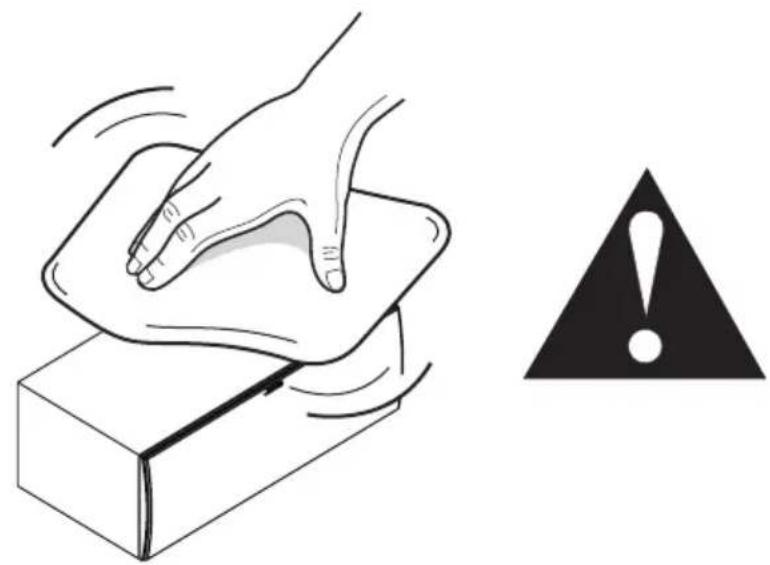

Illustration of a hand pressing down on a block with an exclamation mark symbol nearby (no text or labels)

Jamo®

Jamo Corporate Office: 3502 Woodview Trace, Indianapolis, IN USA 46268-1104

A wholly-owned subsidiary of VOXX International Corporation

jamo.com 1-800-554-7724

©2013 Klipsch Group, Inc. All Rights Reserved.

Jamo is a registered trademark of Klipsch Group, Inc.

Engineered by Klipsch Group, Inc., USA. Product of China
