IW 206 FG - Loudspeaker JAMO - Free user manual and instructions

Product Type	In-Wall Speaker
Brand	Jamo
Model	IW 206 FG
Driver Configuration	2-way
Woofer Size	6.5 inches (165 mm)
Tweeter Size	1 inch (25 mm) silk dome
Frequency Response	45 Hz - 20 kHz
Impedance	8 ohms
Sensitivity	88 dB (2.83V / 1m)
Power Handling (RMS)	80 W
Power Handling (Peak)	160 W
Recommended Amplifier Power	20 - 150 W
Crossover Frequency	2.5 kHz
Dimensions (Overall)	12.0 x 7.9 x 3.5 inches (305 x 200 x 89 mm)
Cutout Dimensions	10.6 x 6.5 inches (270 x 165 mm)
Depth Behind Wall	3.5 inches (89 mm)
Weight	5.5 lbs (2.5 kg)
Color	White (paintable grille)
Material	ABS baffle, steel grille
Mounting Type	In-wall with dog-leg clamps
Climate Rating	Indoor use only
Certifications	CE, RoHS
Warranty	5 years (limited)

Frequently Asked Questions - IW 206 FG JAMO

What tools are needed for installation?

You will need a drywall saw, screwdriver, wire stripper, pencil, level, and stud finder. Ensure you have speaker wire (16 AWG recommended).

Can I paint the grille to match my wall?

Yes, the grille is paintable. Use spray paint designed for speaker grilles or apply light coats of latex paint. Ensure the paint is fully dry before installing.

What is the recommended speaker wire gauge?

For runs up to 50 feet, use 16 AWG wire. For longer runs (up to 100 feet), use 14 AWG wire to minimize signal loss.

Is the IW 206 FG suitable for outdoor use?

No, this model is designed for indoor use only. Exposure to moisture or extreme temperatures can damage the speaker.

How do I ensure the speaker is properly sealed in the wall?

Use the included dog-leg clamps to secure the speaker. For best performance, apply putty or foam sealant around the cutout to prevent air leaks and sound transmission to adjacent rooms.

What is the impedance of the IW 206 FG?

The nominal impedance is 8 ohms, making it compatible with most home theater receivers and stereo amplifiers.

Can I use this speaker as a center channel?

Yes, the IW 206 FG can be used as a center channel speaker. For optimal performance in a home theater setup, pair with matching Jamo in-wall or in-ceiling speakers.

How do I clean the speaker grille?

Remove the grille carefully. Use a soft brush attachment on a vacuum to remove dust. For stubborn dirt, gently wipe with a damp cloth and mild soap. Do not use harsh chemicals.

What is the depth required behind the wall?

The speaker requires a minimum depth of 3.5 inches (89 mm) behind the drywall. Ensure no obstructions like studs or wiring are in the cutout area.

Does the speaker come with a template for cutting the hole?

Yes, a paper cutout template is included in the packaging. Use it to mark the exact cutout dimensions (10.6 x 6.5 inches) on the wall before cutting.

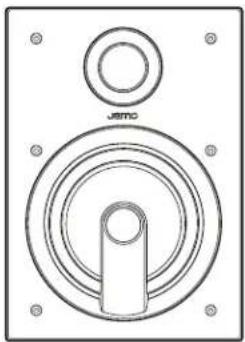

USER MANUAL IW 206 FG JAMO

Circular mechanical component diagram with concentric rings and a central slot (no text or symbols)

Technical diagram of a mechanical component with concentric rings and a central slot (no text or symbols)

Technical line drawing of a circular mechanical component with two central holes and concentric rings (no text or symbols)

Technical line drawing of a speaker with concentric rings and a central shaft (no text or symbols)

CUSTOM 200 SERIES

OWNER'S MANUAL

	Note!Bemaerk!Achtung!	A noterAttentielObs!	¡Atención!Attenzione!Atençao!	Huomaal注意!Проσοχή!	Внимание!Megjegyzés!Uwaga!	Dikkat!Upozornění!Pozor!	Opomba!注意!ミلاحظ
	WrongForkertFalsch!	FauxFout!Fell!	¡Incorrecto!Sbagliato!Errado!	Väärin!错误!Λάθος!	Неправильно!Hibás!Nieprawidlowo!	Yanlış!Špatně!Nesprávne!	Napačno!間違い!خ插ą!
	CorrectKorrektRichtig!	VraiGoed!Rätt!	¡Correcto!Giusto!Correto!	Oikein!正确!Σωστό!	Правильно!Megfeleló!Prawidlowo!	Doğru!Správně!Správne!	Pravilno!正しい! smuggling
	ListenLytHören!	Ecoutez!Luister!Lyssna!	¡Escuche!Ascoltare!Ouça!	Kuuntele!倾听!Акоúστε!	Слушайте!Hallgassa meg!Sluchaj!	Dinle!Poslouchejte!Počůvajte!	Poslušajte!聴取!ستبع!

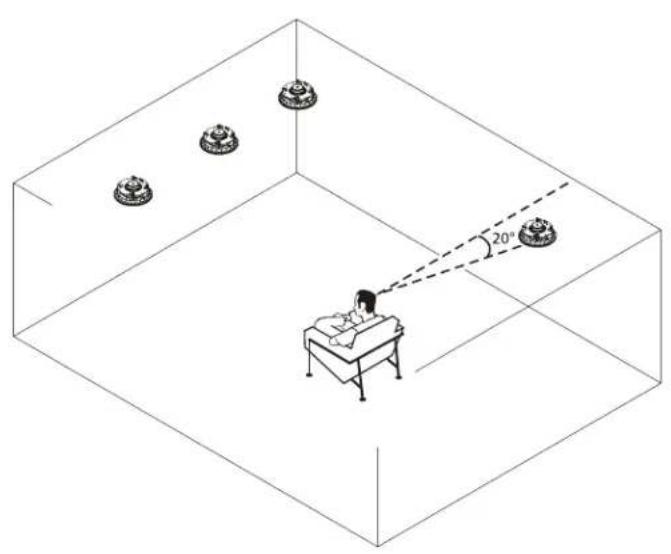

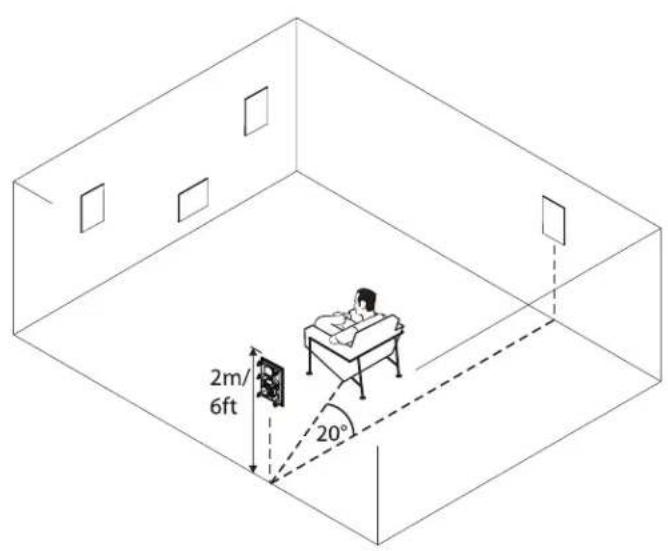

PLACEMENT

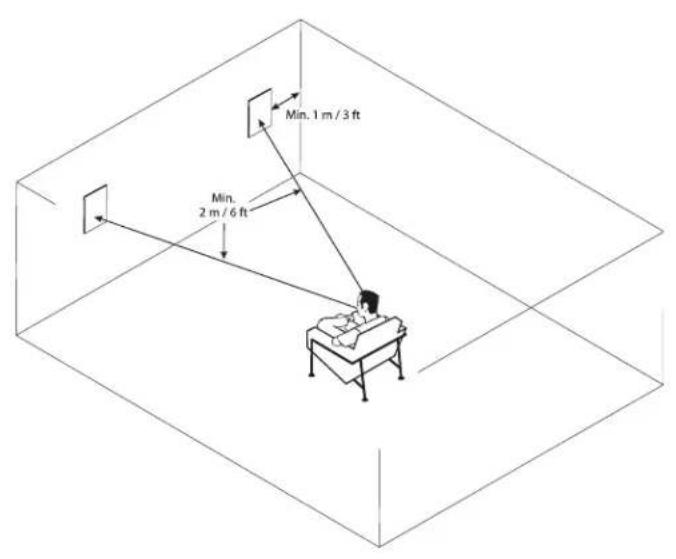

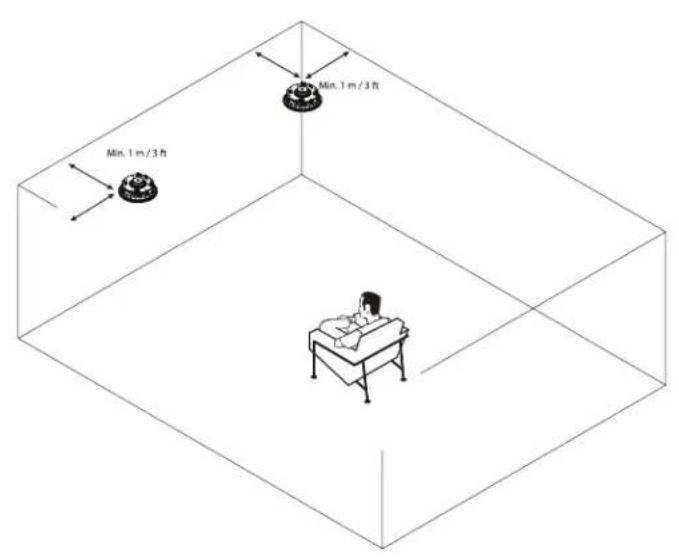

PLACEMENT

Isometric diagram of a person seated at a desk in a room with four spherical objects and a dashed 20° angle line (no text or symbols)

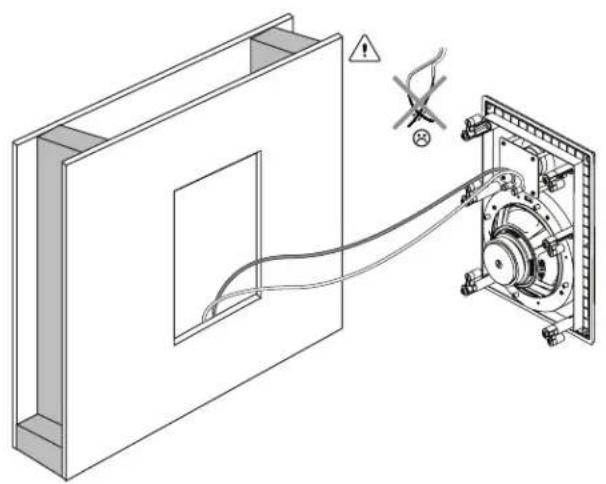

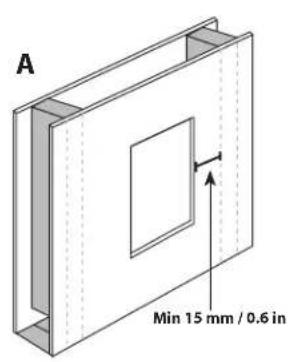

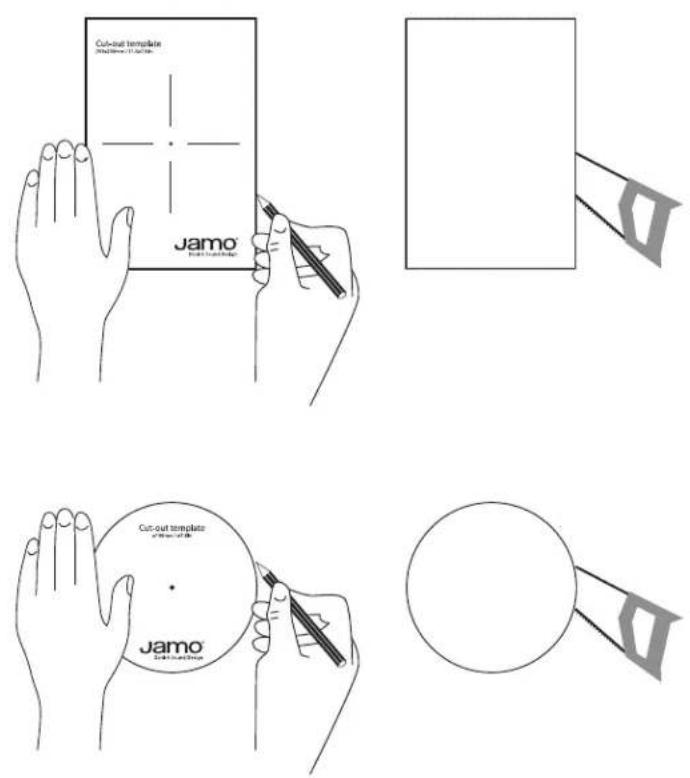

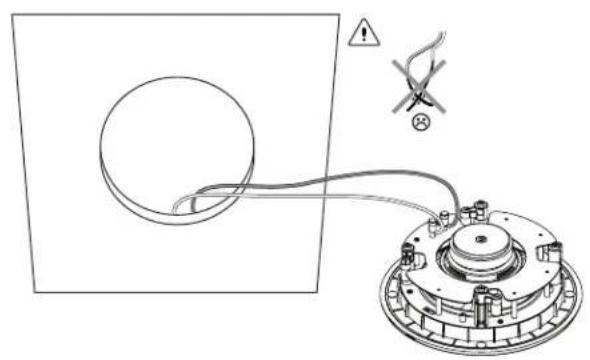

CUT OUT

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a circular component connected to a mechanical device with warning symbols (no text or labels present)

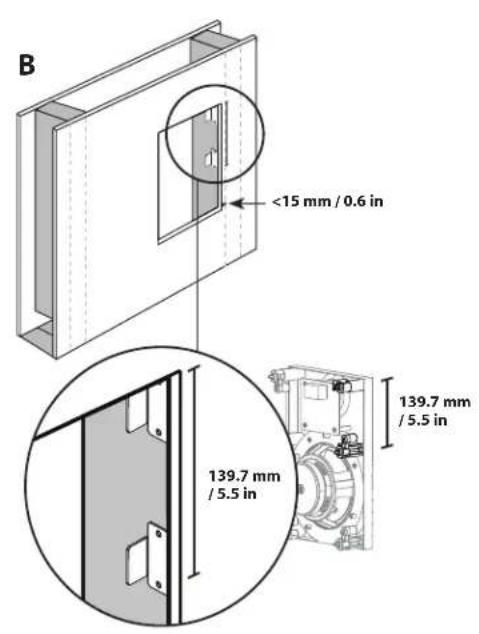

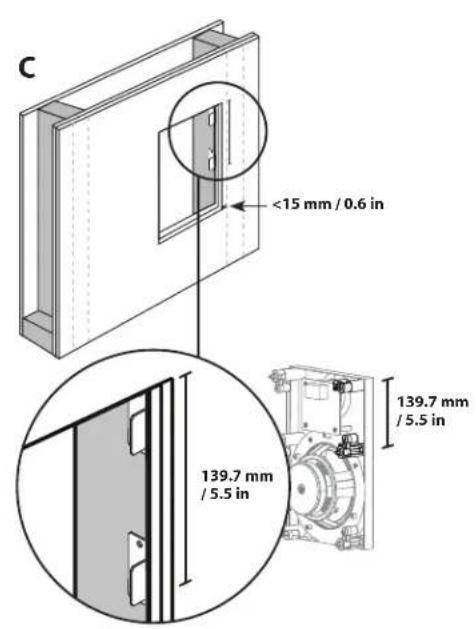

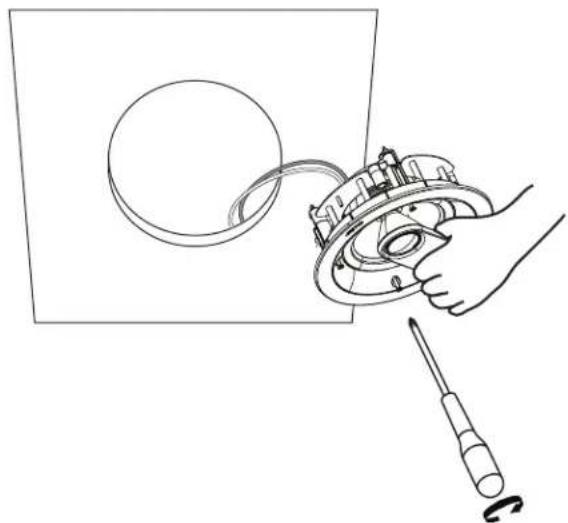

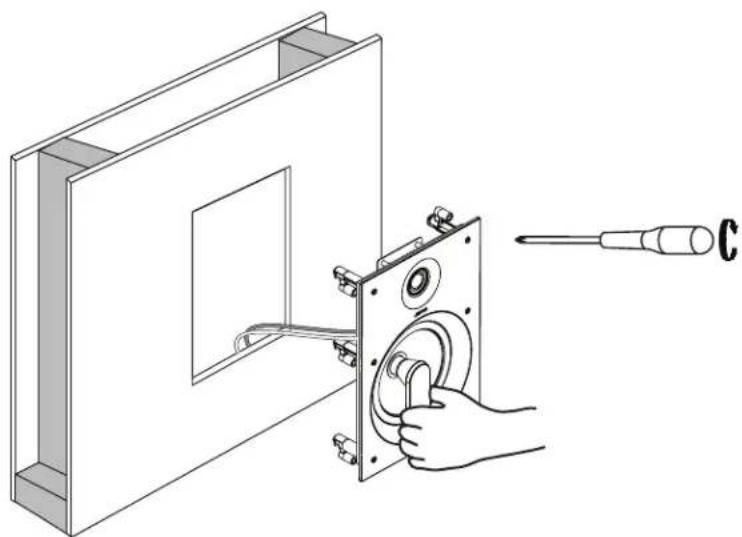

INSTALLATION

Technical illustration of a hand using a screwdriver to adjust or install a component into a rectangular panel (no text or symbols present)

Line drawing of a hand holding a mechanical component with a circular component, next to a screwdriver (no text or symbols)

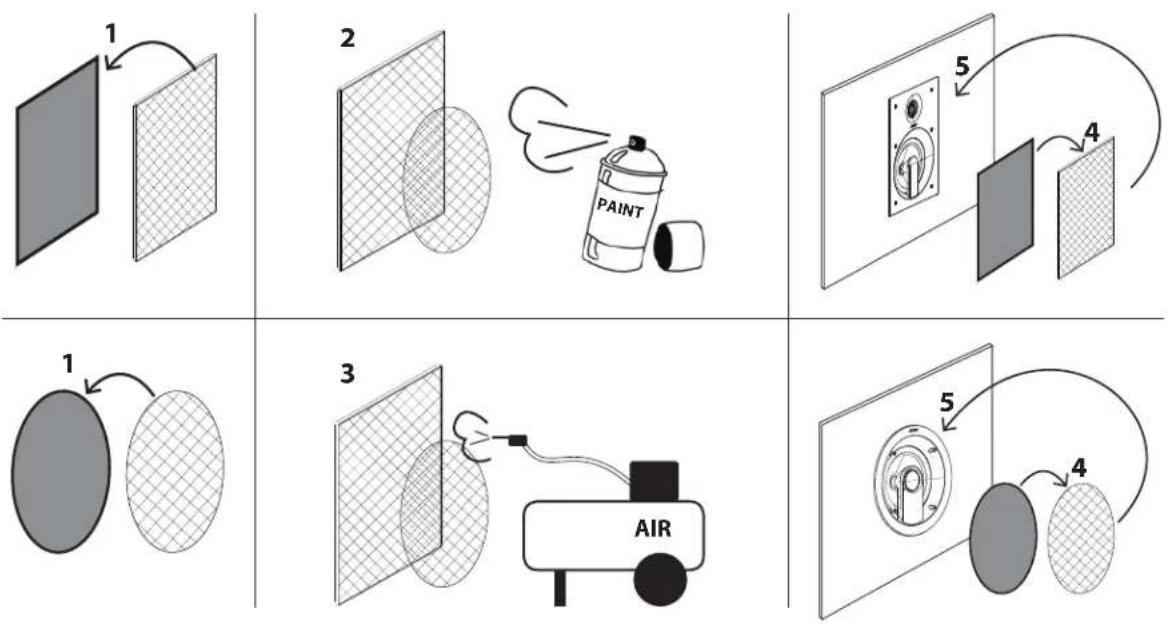

PAINTING

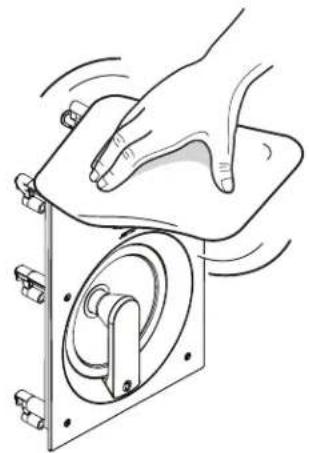

CARE AND CLEANING

Illustration of a hand using a tool to press or install a mechanical component, no text or symbols present

Simple line drawing of a faucet with a drop and a rectangular block underneath (no text or symbols)

Simple line drawing of a faucet with a handle and a bag, crossed by diagonal lines (no text or symbols)
