Product type	Universal remote control
Number of devices controlled	Up to 3 (TV, DVD, Cable/Satellite)
Setup technology	Philips Simple Setup with automatic code search or manual 4-digit entry
Power supply	2 x AAA batteries (not included)
Battery life	Approximately 6–12 months under normal use
IR range	Up to 10 meters (typical)
Dimensions (H × W × D)	Approx. 20 × 5 × 2 cm
Weight (with batteries)	Approx. 100 g
Color	Black
Code library	Over 1,000 brands
Memory retention during battery change	Up to 5 minutes
Button improvement	Yes, can be performed during or after initial setup
Button reset	Yes, via digit sequence 1+6, then 9-9-6
Device selection buttons	TV, DVD, CBL (Cable/Satellite)
Special functions	Input, Guide, Menu, Info, Exit, cursor, OK, color buttons (A/B/C/D)
Compliance	FCC Part 15, ICES-003
Warranty	1 year (typical)
Included accessories	User manual, brand list
Recycling	WEEE compliant, do not dispose with household waste

Frequently Asked Questions - SRP2003WM PHILIPS

How do I enter setup mode?

Press and hold the desired device selection button (TV, DVD, or CBL) for 5 seconds until the red Setup light remains lit. The remote is now in setup mode.

My TV turns off during step 4 of setup but does not turn back on in step 5. What should I do?

Some TV brands (e.g., Panasonic) require a long press on a digit button to turn on. In setup mode, a long press triggers button improvement instead. Switch on the TV manually or with the original remote, then continue with step 6. After setup, the remote will turn on the TV with a long press of a digit button.

After setup, some buttons do not work as expected. How can I fix them?

You can improve individual buttons. During initial setup, press and hold the non-functioning button and release it as soon as the device responds. After setup, enter setup mode by pressing and holding buttons 1 and 4 simultaneously for 5 seconds, then press and hold the problematic button until it works. Save by pressing the device selection button twice.

How do I reset a button to its original function?

In the current device mode, press and hold digit buttons 1 and 6 for 5 seconds to enter setup mode. Then press 9, 9, and 6 in order. Finally, press the button you want to reset twice. The Setup light will blink to confirm.

How do I set up the remote for a TV/DVD combo?

Combo devices may require setting up both the TV and DVD selection buttons separately. Follow the setup steps for TV and then repeat for DVD, each time selecting the appropriate device button.

Will my settings be lost when I replace the batteries?

No, all user settings are retained in memory for up to 5 minutes during battery replacement. If you take longer, you may need to set up the remote again.

My brand is not in the Shortlist of Brands. How can I set up the remote?

Use the complete brand list in the user manual (pages 16-28). If your brand is still not listed, enter the code 9999 in step 3 to initiate a full database search. This may take up to 15 minutes.

The device I want to control does not respond at all. What can I do?

• Check that the device is powered on and that you are within range.
• Ensure you selected the correct device button (TV, DVD, CBL).
• Try improving buttons (see FAQ above).
• If that fails, set up the remote again with a different code or use the full search (9999).

My remote control does not wake up. What should I do?

Replace the batteries with new ones. After replacement, test if the remote still operates your devices. If not, you will need to set up the remote again.

How do I improve a button after initial setup?

Select the device (e.g., DVD) by pressing its button. Then press and hold buttons 1 and 4 simultaneously for 5 seconds until the red Setup light lights. Press and hold the non-functioning button and release it as soon as the device responds. Save by pressing the device selection button twice.

USER MANUAL SRP2003WM PHILIPS

EN User Manual

Table of contents

1 Your SRP2003 .... 3 2 Getting started 4-

2.1 Inserting the batteries ....4

2.2 Setting up the universal remote control 4-8

3 Using the universal remote control 8-10

3.1 Buttons and functions 8-10 3.2 Resetting a button to its original function ....10

4 Service and support 11-13

4.1 Frequently asked questions .....11-13 4.2 Need help? 13

FCC Compliancy 13-14

Notice for Canada 14

Helpline 15

Brand list 16-28

Information to the consumer ....29

Compliance with EMF 29

Recycling and disposal 29

1 Your SRP2003

Congratulations on your purchase of the Philips SRP2003 universal remote control. After setting up the remote control, you can operate up to 3 different devices with it.

Simple Setup

Improved with Philips patented (pending) Simple Setup technology, the SRP2003 can be set up easily for TV, DVD player/recorder, and all common cable, satellite, and other set-top boxes, such as DirecTV, Comcast, AT&T, Verizon, Time Warner, Scientific Atlanta, TiVo, and many more.

Simply follow the instructions in chapter 2.2 to set up the remote control for your devices.

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

2 Getting started

2.1 Inserting the batteries

- Insert 2 AAA type batteries, noting the + and - configuration in the battery compartment.

Note

When replacing the batteries, all user settings will be retained in the remote control memory for 5 minutes.

2.2 Setting up the universal remote control

The example below instructs you how to set up your universal remote control for your TV. You can repeat the same steps for other devices (DVD player/recorder and cable/satellite box) which you want to operate, using the SRP2003.

The remote control can be set up to operate any 3 of the following devices:

Device name Description

TV Traditional TV, flat screen
	TV and projection TV, TV part of TV / VCR, TV / VCR / DVD and TV / DVD combos
DVD	DVD player / recorder (DVDR), DVD / Hard Disk Drive combination (DVDR-HDD), Blu-Ray player, High Definition DVD player (HD-DVD), DVD part of TV / DVD, TV / VCR / DVD and VCR / DVD combos

CBL/SAT

Cable box, satellite receiver, Internet Protocol TV (IPTV), Free To Air TV, High Definition Television decoder (HDTV) and Tivo

Example: setting up the universal remote control to operate your TV:

1 Switch ON the TV manually or use the original remote control for this. Tune to channel 1. 2 Press and hold the TV device selection button for 5 seconds until the red Setup light Ⓤ remains lit. The remote control is now in setup mode. 3 Look up the 4-digit code for your brand in the brand list at the back of this user manual.

A 4-digit code is shown for each brand.

Use the digit buttons to enter the code for your brand.

• If the red Setup light ☐ turns off, an invalid code was entered. In t

4 Aim the remote control at the TV. Press and hold the button. Release it immediately as soon as the TV switches off.

- This step normally takes between 5 and 60 seconds. In extreme circumstances this step can take up to 15 minutes.

5 Switch ON the TV. Try out the buttons you need for operating it. Try, for example, if the -CH + and digit buttons function properly.

- If a button does not work as expected, press and hold that button. Release it immediately as soon as it works. For more information, see chapter 2.2.2.

6 Press the TV device selection button twice to finish setup.

- When no button is

pressed for 5 minutes or more, the remote control will exit setup mode, automatically saving all your settings.

Important

If you made a mistake:

• Press the device selection button twice to exit setup. The red Setup light turns off.
• Restart from the beginning.

- If the device does not respond at all or not to all of the button commands, or if you cannot find the code for your brand, enter '9, 9, 9, 9' in step 3 and continue with step 4. The remote control will now search its full database for a code that works with your TV. Full database search may take up to 15 minutes.

2.2.1 Setting up the remote control for other devices (DVD player/recorder and Cable/Satellite box)

1. Make sure the device is switched on and operational. For example, insert a disc in the DVD player/recorder or a video cassette in the VCR. 2. Then follow steps 2 to 6 of 'Setting up the remote control for your TV'. Make sure to use the correct device selection button: CBL or DVD.

2.2.2 Improving buttons

When correctly set up, the remote control should be able to operate all your devices. However, when using the remote control for the first time, it might occur that some buttons do not yet function as expected. In this case, you can have the remote control search for alternatives.

Note

Improving buttons is not possible when the code was found during full database search (with code '9, 9, 9, 9').

During initial setup

1. Make sure the receiving device is able to respond. For example, when you try to repair the Play button for your DVD player, make sure to insert a DVD into the DVD player; otherwise, the Play button is not able to function. 2. Press the button that does not function, keep it pressed, and immediately release it when the device responds. Repeat this for every button that does not function. - If the button still does not function as expected, try pressing it again for a longer period of time.

After initial setup

1. Make sure the receiving device is able to respond. For example, when you try to repair the Play button for your DVD player, make sure to insert a DVD into the DVD player; otherwise, the Play button is not able to function.

2 Select the device that you wish to operate (e.g. DVD). Press the device selection button to select DVD.

3 Keep buttons ① and ④ pressed simultaneously for 5 seconds.

• The red Setup light ⓞ lights

up. The remote control is now in setup mode.

4 Press and hold the button that does not function and immediately release it when the device responds.

- If the button still does not function as expected, try pressing it again for a longer period of time.

5 Press the (DVD) device selection button twice to save your settings and exit setup mode. When no

button is pressed for 5 minutes or more, the remote control will exit setup mode, automatically saving all your settings.

3 Using the universal remote control

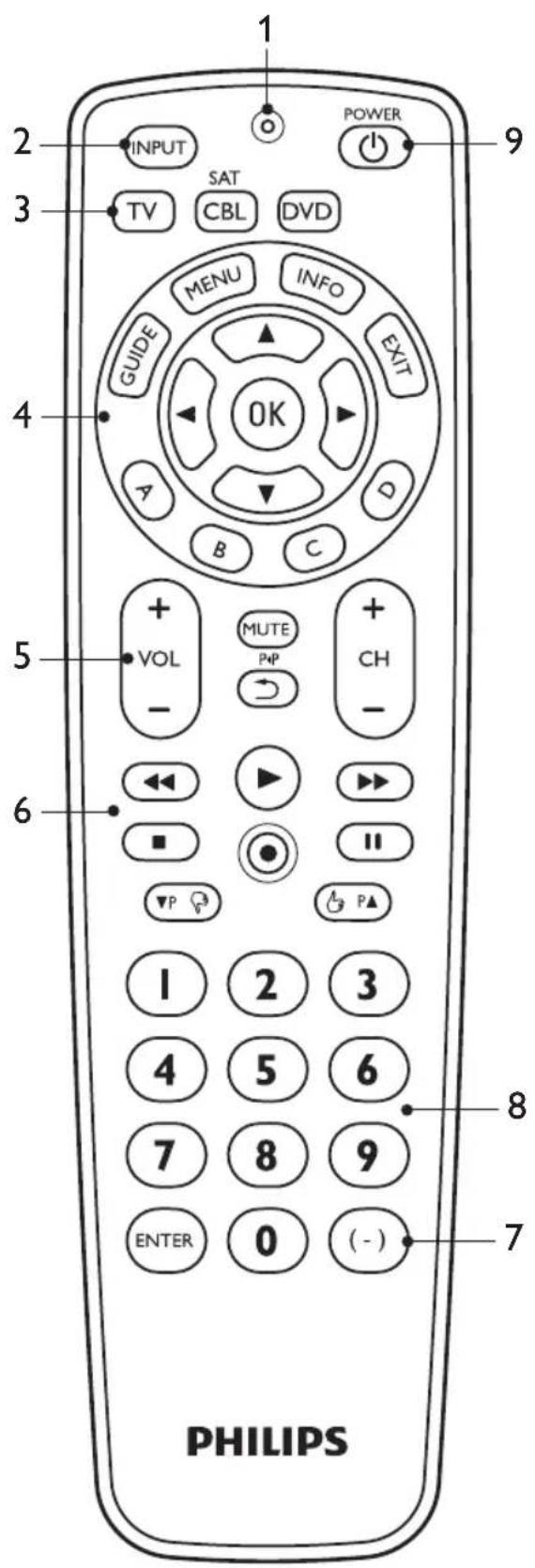

3.1 Buttons and functions

The illustration on page 2 gives an overview of all buttons on the remote control. Try out the buttons you need for operating your devices.

Notes

• Buttons having the same functions as the buttons on your original remote control may have different namings on the SRP2003 (e.g. Info / Display).
• Only functions that are available on your original remote control can be used for operating your devices with the SRP2003.

1 ⓞ Setup light.

• Lights up red when the remote control is in setup mode. • Lights up red when a remote control command is being sent.

2 INPUT ...... selects available source inputs (antenna, cable, etc.).

3 TV CBL DVD ...... device selection buttons. Select the device to be operated.

8 EN 9EN

4

GUIDE...... electronic program guide.

MENU...... menu on / off.

INFO...... on-screen channel information.

EXIT...... exits / clears on-screen menu displays.

▲ ▼ ◀ ▶ cursor up, down, left, right in a menu.

OK...... confirms your selection.

A, B, C, D.....Context sensitivity buttons, ordered following the requirements for cable boxes.

A - Yellow, B - Blue, C - Red, D - Green.

5

+ VOL -..... adjusts TV volume.

MUTE mutes TV sound.

⑤......previous program / Last.

+ CH -......previous / next channel.

6

◀......rewind.

play.

fast forward.

stop.

record.

II....pause.

▼P ▲P...... previous (▼P) / next (▲P) page / track in various modes.

/ 👍 ...... set your Thumb ratings.

7

ENTER ....used after direct channel selection. Some devices require ENTER to be pressed after channel selection.

(+)...... selects between one and two-figure channel numbers.

8 .....1.....2digit3buttons for direct

channel / track selection.

9 ...... switches the selected device on / off.

Note

For some TV brands / types, this button will only turn off the TV. You will have to press a digit button (direct channel selection) to turn on the TV again.

3.2 Resetting a button to its original function

If an improved button (see chapter 2.2.2) still does not function as expected, you can always reset the button to its original function.

1 In the current device mode, keep digit buttons ① and ⑥ pressed simultaneously for 5 seconds, until the red Setup light ◦ light

- The remote control is now in setup mode.

2 Press digit buttons ⑨, ⑨, and ⑥ in that order.

• After each button press the red Setup light ◦ blinks once.

3 Press the button that you wish to reset twice. E.g. the ▶▶ button.

• After each button press the red Setup light ◎ blinks once.

- The red Setup light ⓞ will blink one more time to confirm that the button was successfully reset to its original function.

4 Service and support

4.1 Frequently asked questions

In this chapter you will find answers to the most frequently asked questions about your universal remote control.

4.1.1 Setup

I cannot enter setup mode.

Battery level too low or battery lifetime came to an end.

- Replace the batteries. See chapter 2.1. After replacing the batteries, test if the remote control still operates your devices. If it does not, you have to set up the remote control again. For this refer to chapter 2.2.

The brand code for my device is missing in the 'Shortlist of brands' in the Quick Start Guide.

The 'Shortlist of brands' only mentions the most common TV, DVD and CBL/SAT brands.

• You will find a complete brand list on page 16-28 of this user manual.

- Use '9999' as 4-digit code in case you cannot find your brand in the complete brand list. Note that using '9999' may result in a long setup (up to 15 minutes).

My TV switches OFF in step 4 but does not switch ON again in step 5.

TVs of some brands (e.g. Panasonic) only switch ON after a long press on one of the digit buttons. After a long button press in setup mode the remote control will start trying to improve the button (see chapter 2.2.2) instead of switching ON the TV.

- In this case, switch ON the TV manually or use the original remote control for this. Continue with step 6. After successfully completing setup, the remote control will switch ON the TV with a long button press on one of the digit buttons, just as your original remote control.

After setup, not all buttons work as expected.

- Try improving the button(s). See chapter 2.2.2.

How do I set the remote control for my TV / DVD combo?

Some combo devices require you to set up two different source selection buttons to control both parts of the combo device. If you have a TV / DVD combo, you might need to set up the remote control for both TV and DVD to operate your TV / DVD combo.

4.1.2 Operation

The remote control does not wake up anymore.

Battery level too low or battery lifetime came to an end.

- Replace the batteries. See chapter 2.1. After replacing the batteries, test if the remote control still operates your devices. If it does not, you have to set up the remote control again. For this refer to chapter 2.2.

The device I want to operate does not respond at all / does not respond to all of the button commands.

• Check if the buttons you press are available on the original remote control of the device. • Try improving buttons. See chapter 2.2.2.

Wrong code selected during setup.

- Set up the remote control again for the device. Always test if the device responds, before leaving setup mode.

It may be that the buttons that you are trying to use have a different naming on the original remote control.

- Try out all buttons to find the one(s) you need.

4.1.3 Batteries

Will my settings be deleted when I replace the batteries?

No. All user settings will be retained in the remote control memory for 5 minutes.

Warning

The batteries should not be exposed to excessive heat such as sunshine, fire or the like.

4.2 Need help?

We advise you to first read this user manual carefully. It is provided to help you set up and use the remote control.

If, however, you require extra information or have additional questions about setup, usage, spare parts, warranty, etc. of the SRP2003, you can always contact us.

When calling our helpline, make sure to have the SRP2003 at hand when you call, so that our operators can help you determine whether the SRP2003 is working properly.

You will find our contact details at the end of this user manual.

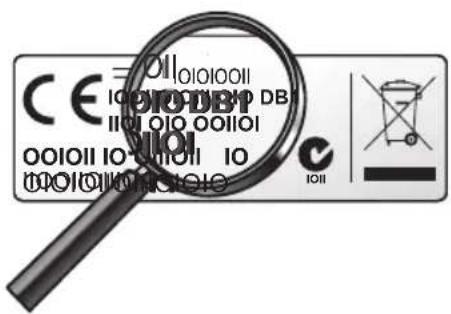

The model number of your Philips universal remote control is SRP2003/27.

Date of purchase: ....../ ....../ ....

(day/month/year)

For online support go to:

www.philips.com/welcome.

- Click 'Support' and follow the on-screen instructions.

FCC Compliancy

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference. - This device must accept any interference received, including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

User changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice for Canada

This class B digital apparatus complies with Canadian ICES-003.

Helpline

Country Phone number

United States of America / Canada 001-888-744-5477

888 0006 (DB1)

A

A.R. Systems .0012

ABC 0013

Abex 0014

ABS 0016

Accele Vision 4194

Access HD....3554

Accurian .....0022

Acer 0028

Acura 0036

ADC 0040 (DB1)

Addison .....0043

Adelphia .....4195

Admiral .....0046

Advent .....0054

Adventura .....0055

Adyson .....0058

Agashi 0063

Agazi ....3522 (DB1)

AGB 0064

Aiko 0069

Aim 0070

Aiwa 0072

Akai 0074

Akiba 0078

Akira 0079 (DB1)

Akito......0082

Akura 0083

Alaron 0085

Alba 0086

Albatron .....0087

Alco 0092

Alienware .....0099

Allegro .....0103

Alleron .....0104

Allorgan .....0105

Allstar 0108

Alpha Digital 4014

AlphaStar .....0113

Alpine 0114

America Action 0123

American High 0125

Americast .....0127

Amphion Media Works....0135

Amplivision ... 0138

Ampro .....0139

Amstrad .....0140

AMTC 4015 (DB1)

Amtron .....0141

AMW......0143

Anam 0146

Anam National 0147

Anglo 0151

Anitech .....0154

Ansonic .....0156

Antronix .....0159

AOC 0165

Aolinpiya .....4089 ^(DB1)

Apache ......0169

Apex 3691

Apex Digital .0170

Apple 0172

Arcam 0179

Archer .....0180

Archos .....0181

Ardem 0184

Aristona .....0192

Arrgo 0197

Arris 4931 (DB1)

Artec 4016

Asberg .....0205

Asha 0209

Aspire 4233

Astar 0218

Asuka 0227

AT&T 3453

Atlantic 0233

Atori 0237

Audio Dynamics

0248

Audiosonic ....0264

Audioton .....0266

Audiovox .....0268

Autovox ......0280

Aventura .....0287

Awa 0296

Axion .....0299

B

Baihua ....4092 (DB1)

Baird 0311

Bang & Olufsen 0314

Baohuashi .....0316 (DB1)

Basic Line .....0325

Bastide .....0327

Baur 0331

Bazin 0335

BBT 0338

Beaumark .....0340

Beijing 0345

Beko 0346

Belcor 0348

BELL 4376 (DB1)

Bell & Howell 0350

Bell ExpressVu 0352 (DB1)

Bell South .....0353

BenQ 0359

Beon 0361

Best 0364

Bestar 0368

Bestar-Daewoo 0369

Binatone .....0378

Black Star .....0386

Blacktron .....3526

Blackway .....0388

Blaupunkt .....0390

Blue Parade ..0394

Blue Sky .....0395

Blue Star .....0396

Bondstec .....0403

Boots 0405

BOSS 4197

BPL 0413

Bradford .....0414

Brandt 0416

Brillian .....0422

Brinkmann .....0423

Brionvega .....0424

Britannia .....0425

Brockwood ...0430

Broksonic .....0432

BskyB 0436

BTC 0439

Bush 0445

Byd:sign .....0448

C

Cable Star.....0454

Cabletenna ....0456

Cableview.....0458

Cablevision ....4238

Caihong .....0462

Caixing .....4093 (DB1)

California Audio

Labs 0467

Calix 0468

Candle .....0480

Canon 0481

Capsonic .....0486 (DB1)

Captive Works 0487

Carad 0488

Carena......0489

Carnivale .....0491

Carrefour .....0492

Carver 0494

Cascade .....0496

Casio 0499

Catha 4094

Cathay 0501

CCE 0504

Celebrity .....0509

Celera 0510

Centurion .....0520

Century .....0521

CGE 0523

Changcheng ..0526

Changfei .....0527

Changfeng .....0528 (DB1)

Changhai .....0529

Changhong ....0530

Channel Master 0531

Chaparral .....0533

Ching Tai .....0541

Chun Yun .....0545

Chunfeng .....0546

Chung Hsin....0547

Chunlan .....4097 (DB1)

Chunsun .....0549

Cimline 0552

CineVision .....0562

Citizen .....0567

City 0569

Clarion .....0575

Clarivox .....0576

Clatronic .....0581

Clearmaster .0583

ClearMax .....0584

CMS 0590

CMS Hightec 0591

Coby......0597

Colortyme .....0601

Colour Voice .0602

Colt 0603

Comcast ......3456

Commercial

Solutions .....0615

Comtronics ...0623

Concerto .....0625

Concorde .....0626

Condor .....0627

Conrowa .....0634

Contec .....0635

Contec/Cony 4199

Coolmax .....0642

Coolsat .....0643

Coship 0646

Cosmel......0647

COX 4200

Craig 0650

Crosley .....0655

Crossdigital ....0656

Crown 0658

CS Electronics 0663

CTC 0664

CTX 0665

Curtis Mathes 0667

CXC 0670

CyberHome ..0672

Cybernex.....0673

CyberPower ..0674

Cybertron .....0675

Cytron .....0680

D

Daeryung .....0691

Daewoo .....0692

Danichi ......3914

Dansai 0699

Dantax .....0702

Davidson .....4202

Dawa 0707

Daytron .....0710

DBX 0712

Decca....0718

Deitron .....0722

Dell....0725

Denon .....0731

Denver 0733

Desay 0737

Desmet .....0738

Diamant .....0746

Diamond .....0747

Diamond Vision 0748

Digatron .....0751

Digi 0754

Digiline .....0759

Digital Stream 3809

Dimensia .....3569

Director .....0793

DirecTV .....0794

Dish Network System .....0799

Dishpro .....0800

Disney 0803

Dixi....0807

Dongda .....0820

Donghai .....0821

Drake 0825

Drean 0832

DSE 0833

DTS 0837

Dual 0838

Dual-Tec .....3528

Dumont .....0840

Durabrand .....0842

Dux 0843

DVD2000 .....0844

D-Vision .....0684

Dwin....0848

Dynatech .....0854

Dynatron .....0855

Dynex 3476

E

Eastern .....0859

ECHOSPHERE

4396 (DB1)

Echostar .....0866

Eclipse 0867

Eiki 0874

Elbe 0880

Elbe-Sharp .....3529

Elcit 0883

Electroband ...0888

Electrograph .0889

Electrohome .0890

Electrophonic 0893

Elektra 0896

Element .....3477

ELG 0900

Elin 0902

Elite 0903

Elmak....0907 (DB1)

Elta 0910

Emerson .....0917

Emperor .....0921

Emprex .....0922

Enterprise .....0931

Envision .....0933

Epson 0937

Erres 0942

ESA 0943

ESC 0945

Ether 0948

Etron 0949

Eurofeel .....0954

EuroLine .....0955 (DB1)

Euroman.....0956

Europa .....0957

Europhon .....0959

Everquest .....0971

Expressvu .....0977

Exquisit .....0978

F

Fagor Life .....4102

Feilang 0990

Feilu 0991

Feiyan 0992(DB1)

Feiyue 0993

Fenmanti .....4103

Fenner 0994

Ferguson .....0996

Fidelity .....0998

Filsai 1000

Finlandia .....1003

Finlux 1004

Firstar .....1007

Firstline .....1008

Fisher 1009

Flint .....1014

FNR 1016

Focus 1017

Formenti .....1023

Formenti-Phoenix 1024

Fraba .....1030

Friac 1040

Frontech .....1042

Fuji 1047

Fujitsu 1052

Fujitsu General 1053

Funai 1056

Furi 1057

FUTEC 3960 (DB1)

Futuretech .....1064

G

Galaxi .....1068

Galaxis .....1069

Garrard .....1075

Gateway ......1076

GBC 1078

GC Electronics 1080

GE 1081

GEC 1083

Gehua .....1086

Geloso .....1087

Gemini.....1089

General Instrument 1093

General Technic ....1095

Genexxa .....1097

GFM 3820

Giant......1113

Gibraltar .....1114

Go Video.....1126

GOI 1130

GoldHand .....1136

Goldline .....1138

GoldStar .....1140

Goodmans .....1142

Goodmind .....1143

GPM 1149

Gradiente .....1151

Graetz .....1152

Granada .....1154

Grandin.....1156

Greenhill .....1157

Gronic .....1160

Grundig .....1162

Grunpy ......1165

H

Haier .....1175

Haihong .....1176

Haiyan.....1177 (DB1)

Halifax ......1179

Hallmark .....1180

Hamlin .....1182

Hampton .....1183

Hankook .....1188

Hanseatic .....1190

Hantarex .....1192

Hantor .....1193

Harley Davidson 1197

Harman/Kardon 1198

Harvard ......1202

Harwood .....1204

Hauppauge ....1206

Havermy......1208

HCM 1210

Headquarter .1214

Hello Kitty .....1221

Hema .....1222

Hemmermann 1223

Hewlett Packard 1229

Higashi ......1234

Highline .....1236

Hikona .....1237

HiLine ......3533

Hinari ......1243

Hisawa .....1247

Hisense .....1249

Hitachi ......1251

Hitachi Fujian 1252

Hiteker ......1255

Hitsu 1257

Hoeher ......1262

Hongmei .....1272

Hongyan .....1274(DB1)

Hornyphon ....1277

Hoshai .....1278

Howard

Computers ....1281

HP 1283

HTS 1285

Huafa......1287

Huanghaimei.1288

Huanghe .....1289

Huanglong .....1290

Huangshan .....1291

Huanyu ......1292

Huaqiang .....1293 ^(DB1)

Huari ......1294

Hughes .....4205

Hughes Network

Systems .....1296

Humax .....1298

Hush 1304

Hygashi .....1308

Hyper 1309

Hypson .....1312

Hytex ......1314

Hyundai .....1315

|

Iberia .....1320

iBUYPOWER

1322

ICE 1324

ICeS 1325

Illico 4206

iLo 1341

iLuv 4234

Ima 1342

Imperial .....1346

Imperial Crown

1347 (DB1)

Indiana .....1350

Infinity ......1352

InFocus .....1353

Ingelen .....1354

Ingersol .....1355

Initial 1356

Inno Hit .....1358

Innova .....1359

Innovation .....1360

Insignia .....1368

Instant Replay 3580

Integra .....1370

Inteq 1373

Interbuy ......1376

Interfunk ......1377

Internal .....1379

International ..1380

Intervision.....1386

IR 4110

Irradio .....1396

Isukai 1402

iSymphony .....3755

ITC 1404

ITS 1405

ITT 1406

ITV 1408

J

Janeil 1414

Jasco....1415

JBL 1420

JC Penney .....4208

JCB....1421

JCL 4209

Jean 1424

Jensen 1429

Jerrold .....1431

Jiahua ....1435(DB1)

JiaLiCai ....1436 (DB1)

Jinque .....1440 (DB1)

Jinta 1441 (DB1)

Jinxing 1442

Juhua ....1461 (DB1)

JVC 1464

jWin 1465

K

Kaige ....1470 (DB1)

Kaisui .....1471

Kamp 1475

Kanghua .....1477

Kangli 1478 (DB1)

Kangyi.....1479 (DB1)

Karcher......1484

Kawa 1487

Kawasaki .....1488

Kawasho .....1489

Kaypani .....1490

KEC 1496

Kendo .....1500

Kenwood .....1507

KIC....1512

Kingsley .....1520

Kioto 1523

Kiton 1525

KLH 1529

Kloss Novabeam

4210

Kneissel .....1535

Kodak 1540

Kolin 1541

Kolster .....1543

Kongque .....1545 ^(DB1)

Konig .....1547

Konka .....1548

Korpel .....1552

Korting .....1554

Kosmos .....1557

Koss 1558

KTV 1572

Kuaile.....1573 (DB1)

Kunlun .....1578 (DB1)

Kyoshu .....1583

Kyoto 1585

L

L&S Electronic

1588

Landel .....1593

Lasonic .....1600

Layco 4117

Lecson .....1606

Lenco 1615

Lenoir .....1617

Lenoxx .....1618

Lesa 1622

Lexicon .....1625

Leyco .....1627

LG 1628

LG/Goldstar ..3536 (DB1)

Liesenk ......3537 (DB1)

Liesenk & Tter 1630

Liesenkotter ..1631

Life 3538 (DB1)

Lifetec .....1633

Linksys ......1640

Linsay ......1642

Liquid Video ..1644

LiteOn .....1645

Lloyd's 1648

Local India TV 1653

Loewe......1660

Loewe Opta .3540

Logik ......1661

Longjiang .....1664 ^(DB1)

Luma .....1674

Lumatron .....1676

Lux May ......1680

Luxman .....1682

Luxor .....1683

LXI 1686

M

M & S ......1687

Madison .....1698

Magnadyne ....1702

Magnafon .....1703

Magnasonic ....1704

Magnavox .....1706

Magnin .....1708

Magnum .....1709

Majestic .....1713

Mandor .....1717 ^(DB1)

Manesth .....1718

Manhattan .....1719

Marantz .....1724

Mark .....1731

Marta .....1735

Masuda .....1744

Matsui .....1750

Matsushita .....1751

Maxent .....1757

Media Center PC 1777

Mediator .....1784

Medion .....1787

Medison .....1788

MegaCable .....4211

Megapower ...1791

Megatron .....1795

MEI 1796

Meile .....1797 (DB1)

MeiShi ......4118 (DB1)

Melectronic ...3654

Memorex .....1800

Memphis .....1802

Mercury .....1804

Metz 1810

MGA 1811

MGN Technology

1812

MicroGEM.....4024

Micromaxx .....1822

Microsoft .....1826

Microstar .....1827 (DB1)

Midland .....1831

Minato .....1835

Mind 1837

Minerva .....1838

Minoka .....1840

Minolta .....1841

Mintek .....1845

Minutz .....1847

Mitsubishi .....1855

Mivar 1857

MoDeng .....4120 ^(DB1)

Monivision .....1872

Montgomery

Ward 4212

Morgans .....3970

Motorola .....1878

Movie Time ....1880

MTC 1889

MTlogic .....1892

Mudan .....1896 (DB1)

Multistandard

1904

Multisystem ...4121 (DB1)

Multitec .....1906

Multitech .....1907

MultiVision .....1909

Murphy .....1911

Musikland .....1915

N

NAD .....1926

Naiko ....1930

Nakamichi .....1932

Nakimura .....1933

Nanbao ......1934 ^(DB1)

Nansheng .....1935 ^(DB1)

National Panasonic 4661

NEC 1950

Neckermann .1951

NEI 1952

Nesa 1959

Nesco .....1960

Net Brazil .....1962

Netsat .....1966

NetTV ......1967

Neufunk .....1970

New Tech .....1979

New World ...1980

Newave .....1981

Next Base .....1983

Next Level .....1984

Nexus .....1989

NexxTech .....1990

Nicamagic .....1994

Nikkai ....1998

Nikko 2000

Niveus Media 2012

Noblex ......2013

Nobliko ......2014

Nokia ......2017

Norcent ......2020

Nordic ......2021

Nordmende ..2022

Nordvision .....3543 ^(DB1)

Normerel .....2024

Northgate .....2027

Noshi 2030

Nova Vision ...2032

Novaplex .....2034

Novatronic .....2035

NSC 2042

NTC 2045

O

Oak 2059

Okana 4122

Okano ......2065

Olevia .....2067

Olympus......2071

Onimax ......2082

Onkyo ......2085

Onwa 2087

Opera ......2090

Oppo ......2092

Optimus .....2095

Optoma .....2097

Optonica .....2099

Orbit ......2103

Orion ......2111

Oritron .....2112

Orline 2113

Ormond .....2114 (DB1)

Orsowe .....2116

Osaki 2118

Osio 2121

Oso 2122

Osume 2123

Otto Versand 2126

P

Pace 2134

Pacific 2135

Pael 2140

Palladium .....2145

Palsonic .....2147

Panama .....2149

Panasonic .....2153

Panavision .....2154

Panda 2155

Pansat .....2158

Panther......2160

Paragon .....2161

Pathe Cinema .....2168

Pausa 2171

Paysat ......2173

PCT 4213

Penney 2182

Pentax 2183

Perdio ......2185

Perfekt ......2186

Philco .....2192

Philharmonic 2194

Philips ......2195

Philips Magnavox 3715

Phoenix ......2199

Phonola.....2201

Phonotrend ...2202

Pilot 2207

Pioneer .....2212

Pionier .....2213

Plantron ......2219

Plasmsync .....4230

Playsonic .....2224

Polaroid.....2230

Polk Audio .....2232

Poppy ......2236

Popular Mechanics 2237

Portland .....2238

Powerpoint ....2241

Prandoni Prince 4125

Precision .....2244

Prelude ......2247

Priceclub .....2252

Prima .....2253

Primestar.....2257

Princeton .....2258

Prinz 2260

Prism 2261

Proceed .....2267

Profekt .....4126

Profex ......2269

Profilo .....2272 (DB1)

Profitronic .....2273

Proline .....2274

Proscan .....2279

Prosonic .....2282

Protech .....2284

Proton .....2288

Protron .....2289

Proview .....2290

ProVision .....2291

Pulsar......2296

Pye 2302

Pymi 2304

Q

Qingdao .....2308 (DB1)

Quarter .....2318

Quartz ......2319

Quasar ......2320

Quelle ......2322

Questa .....2324

Qwestar .....2326

R

Radialva .....2329

Radio 4128

Radio Shack/

Realistic .....4214

Radiola .....2330

Radiomarelli ..2331

RadioShack ....2333

Radiotone .....2334

Radix 2335

Randex ......2343

RCA 2351

Realistic .....2354

Recor ......2359

Recoton .....2361

Rectiligne .....2362

Redstar ......2366

Reflex 2368

Regal 2370

Regency ......2371

Regent ......2372

Rembrandt.....2375

Reoc .....2379

ReplayTV .....2380

Revox 2383

Rex 2385

RFT 2386

Rhapsody .....2387

Ricavision .....2388

Rio 2393

R-Line .....2327

Roadstar ......2398

Rogers .....4215

Rotel 2414

Rowa 2416

Runco ......2423

S

Saba 2429

SageTV ....4981 ^(DB1)

Saisho 2437

Saivod .....2439

Salora 2443

Sambers .....2445

Sampo 2446

Samsung ......2448

Sandra .....2454

Sanjian .....2455 (DB1)

Sanky 2456

Sansui 2458

Sanyo 2462

Sanyuan .....2464

SBR 2492

Sceptre .....2498

Schaub Lorenz .....2500

Schneider .....2501

Scientific Atlanta 2503

Scimitsu ......2505

Scotch 2506

Scott 2508

Sears 2514

SEG 2522

SEI 2524

Sei-Sinudyne 2525

Seleco 2528

Sencora 2531

Sensory Science 2533

Sentra 2534

Serino 2539

Shancha 2546 (DB1)

Shanghai 2547

Shaofeng 2549

Sharp 2550

Sharper Image 2551

Shen Ying 2552

Shencai ......2553

Sheng Chai .....3922

Shenyang .....2555

Sherwood .....2557

Shinco 2560

Shinsonic .....2562

Shintoshi ......2564

Shivaki ......2567

Shogun ......2568

Siam 2572

Siarem .....2573

Siemens .....2574

Siera 2576

Sierra 3549 (DB1)

Sigma Designs 2579

Signal 2581

Signature .....2582

Silva 2591

Silva Schneider 2592

Silver 2594

Simpson .....2598

Sindyne .....4510

Singer 2599

Sinudyne .....2601 (DB1)

SKY 2610

Skygiant ......2618

Skyworth .....2631 (DB1)

SL Marx ......2633

Sogera .....2649

Solavox......2654

Sonawa .....2663

Sonic Blue.....2667

Sonicview .....3954

Soniko 2669

Sonitron .....2671

Sonneclair .....2673

Sonoko ......2675

Sontec .....2677

Sony 2679

Sound & Vision 2680

Soundesign ....2684

Soundwave ....2689

Sowa....2691

Squareview ....2703

Srypton .....4138

SSS 2708

Stack 4218

Standard .....2713

Standard

Components 2714

Star Choice....2716

Starcom .....2722

Stargate......2723

Starlite ......2728 Starquest ......2732 StarSight ......2734 Stenway ......2739 Strato 2745 STS 2749 STS1 4219 STS2 4220 STS3 4221 STS4 4222 Studio Experience 2750 Stylandia .....2752 Sungale ......2761 Sunkai 2762 Sunstar .....2768 Sunwood .....2772 Supercable .....2778 Superla ......2782 Supermax .....2783 Superscan .....2786 SuperTech .....2789 Supervision ....2791 Supra 2792 Supre-Macy ...2794 Supreme .....2795 Sutron 2798 SVA 2800 Sydney ......2808 Sylvania .....2809 Symphonic .....2810 Synco ......2811 Syntax ......2814 Syntax-Brillian 4231 Sysline .....2815 Systemax ......2817 Sytong 2820 Tacico 2823 Tagar Systems 2831 Tai Wah .....4139(DB1) Taishan 2835 Tandy 2843 Tashiko ......2850 Tatung ......2852 TCL 2856 ^(DB1) TCM 2857(DB1) Teac 2860 Teachimagen .4140 Tec 2861 Tech Line .....2863 Technema .....2866 Technica .....2868 Technics ......2869 Technika.....2870 Techview ......2883 Techwood .....2884 Teco 2886 Tedelex ......2889 Teknika .....2895 TeleCaption ...2902 Telecor ......2910 Telefunken .....2914 Telefusion.....2915 Telegazi ......2917 Telemeister ....2924 Telesonic .....2930 Telestar......2931 Teletech ......2934 Teleton ......2935 Televideon .....2938 Teleview .....2939 Tennessee .....2952 Tensai 2954 Tenson 2955 Terapin ......2958 Tevion ......2962 Texet 2963 Texscan .....2965 TFC 2967 Theta Digital .2970 Thomas .....2971 Thomson .....2972 Thom ......2974 Thom-Ferguson 2976 (DB1) Time Warner 3518 Timeless .....2985 Tivax 3956 Tivo 2991 TMK 2994 TNCi 2996 Tobo 2999(DB1) Tocom ....3000 Tokai 3001

T

Tokyo 3004 Tomashi .....3006 Tongguang .....3008 ^(DB1) Torx 3020 Toshiba ....3021 Totevision .....3024 Touch 3025 Towada .....3028 Toyoda....3030 Trakton .....3036 Trans Continens 3037 Trans PX .....3038 Transfec .....4143 Transonic .....3041 Transtec .....3042 Tredex 3045 Trident 3054 Tristar 3057 Triumph .....3058 TruTech ....3467 TS 3063 Tuntex 3069 Tusa 3073 TV86 3076 TView 3079 TVS 3081

U

Uher 3089

UltimateTV ....3091

Ultravox......3095

Unic Line .....3100

Uniden .....3101

Unika 3102

Unitech ......3105

United 3106

United Artists 3107

United Cable 3108

Universal .....3113

Universum .....3115

Univox 3116

Urban Concepts 3121

US Digital .....3122

US Electronics 3123

US Logic ......3124

V

V2 3128

Vector .....3136

Vector Research 3137

Venturer .....3143

Verizon .....3146

Vestel 3148

Vexa 3149

Victor 3155

Video Concepts 3157

Videologic.....3165

Videologique 3166

Videosonic .....3171

VideoSystem .3172

Videotechnic .3173

Videotron .....3175

Vidikron .....3178

Vidtech ....3179

Viewmaster ...3182

ViewSat ......3185

Viewsonic .....3186

Viewstar .....3187

Viking 3188

Villain 3189

Viore 3192

Visco 4232

Visiola....3197

Vision 3198

Vizio 3211

Vocopro .....3213

Voodoo .....3215

Voom 3216

Vortec ......3217

Vortex View ..3218

Voxson 3220

W

Waltham .....3230

Wards ......3231

Watson .....3233

Watt Radio ....3234

Waycon .....3237

Wega 3238

Wegavox ......3239

Weltblick .....3245

Westinghouse 3249

Wharfedale ....3255

White Westinghouse 3258

Windstar .....3266

Winegard .....3268

X

Xbox 3295

Xiahua ....3299

Xiangyang .....3301 (DB1)

Xiangyu .....3302

Xihu 3303 (DB1)

Xinaghai ....3304 (DB1)

Xingfu 3305

Xinghai ....3306

XR-1000 .....3316

Xrypton .....3317

Xuelian ....3320 (DB1)

Y

Yamaha ....3326

Yamishi 3328

Yapshe ....3329

Yokan ....3335

Yoko 3336

Yorx 3340

Yuhang ....3345

Z

Zanussi ....3349

Zenith 3356

Zentech .....4031

Zentek ......3361

ZhuHai ....3364

ZT Group .....3370

(DB1) Brands only available from version DB1 onwards. You can find the DB version on the sticker inside the battery compartment.

EN Information to the consumer

Compliance with EMF

Koninklijke Philips Electronics N.V. manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.

One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Recycling and disposal

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Document order number: 3139 235 5260 4

November 2011
