USER MANUAL 2443DW SAMSUNG

SyncMaster 2243DW/2443DW LCD Monitor User Manual The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

INSTALLING THE PRODUCT

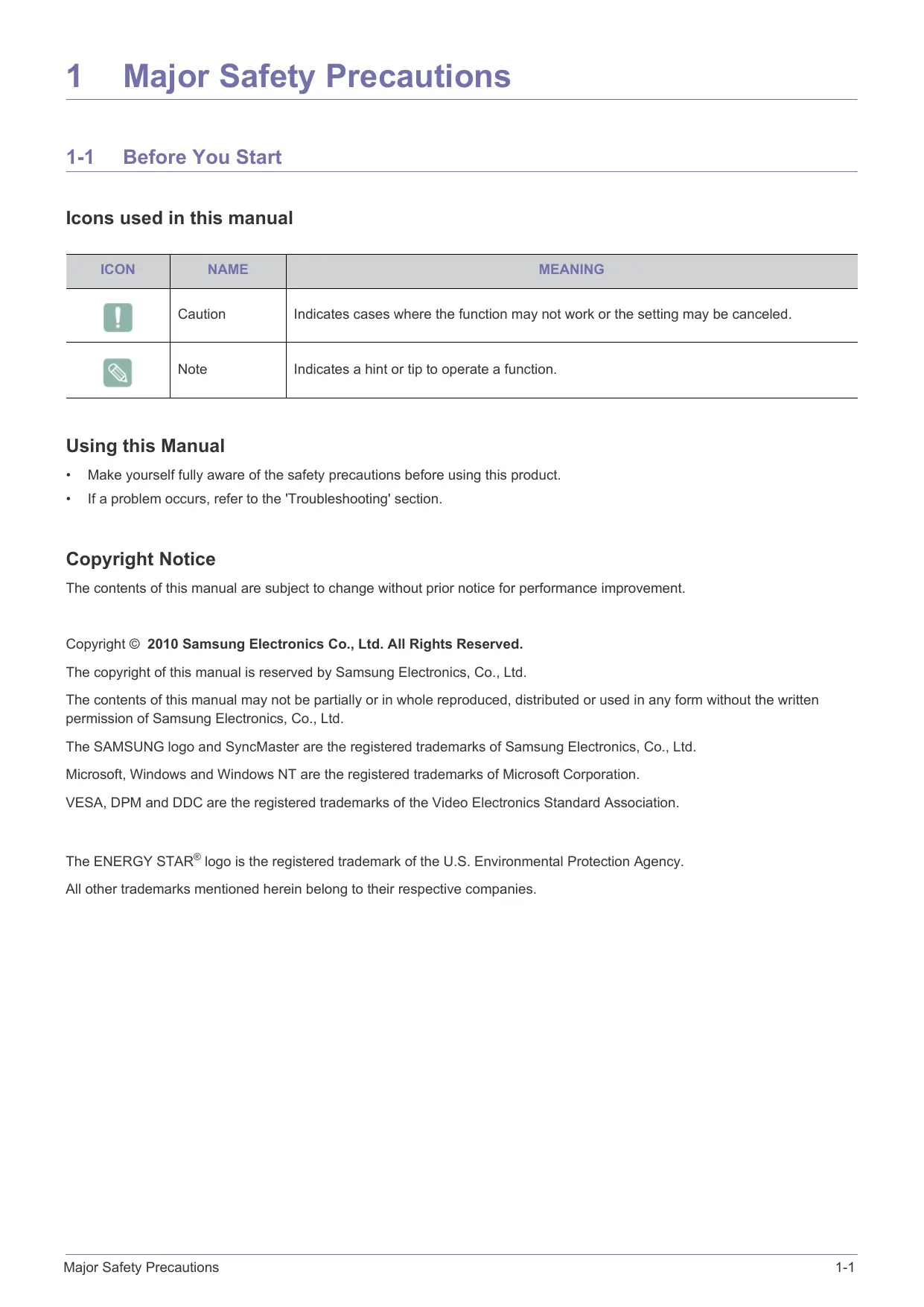

1 Major Safety Precautions 1-1 Before You Start Icons used in this manual

[1] Caution Indicates cases where the function may not work or the setting may be canceled. Note Indicates a hint or tip to operate a function. Using this Manual + Make yourself fully aware of the safety precautions before using this product. +__ fa problem occurs, refer to the Troubleshooting' section. Copyright Notice The contents of this manual are subject to change without prior notice for performance improvement. Copyright © 2010 Samsung Electronics Co., Ltd. All Rights Reserved. The copyright of this manual is reserved by Samsung Electronics, Co., Ltd. The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd. The SAMSUNG logo and SyncMaster are the registered trademarks of Samsung Electronics, Co., Ltd. Microsoft, Windows and Windows NT are the registered trademarks of Microsoft Corporation. VESA, DPM and DDC are the registered trademarks of the Video Electronics Standard Association. The ENERGY STARS logo is the registered trademark of the U.S. Environmental Protection Agency. All other trademarks mentioned herein belong to their respective companies. Major Safety Precautions

1-2 Custody and Maintenance External Surface and Screen Maintenance Clean the product with a soft dry cloth. + Do not clean the product with a flammable substance such as benzene or thinner, or clean with a wet cloth. This can cause a problem with the product. + Do not scratch the screen with your fingernails or a sharp object. This can cause permanent scratches and damage to the product. + Do not clean the product by spraying water directly onto the product. If water enters the product, it can cause fire, electric shock, or a problem with the product. + Do not use a supersonic humidifer near the monitor. A supersonic humidifier can cause a white stain to appear on the high-gloss portions of the product due to the inherent characteristics of the high golss material. The appearance and the color may differ depending on the model. Securing the Installation Space + Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature. Install the product so the required distances shown in the figure are kept. The appearance may differ depending on the product. When installing the product with a stand When installing the product with a wall-mount About persistent images + Displaying a still image for a long time can create a persistent image or stain on the screen. If you intend to leave the display on, but will not use it for a long time, set the power-saving mode or a screen saver on to protect the screen. + Due to technological constraints of the LCD Panel manufacturer, the images generated by this product may appear either brighter or darker than normal by appr.1ppm (parts per million) pixel. The number of sub-pixels of an LCD panel by size: The number of Sub-Pixels = Max. Horizontal Resolution x Max. Vertical Resolution x 3 Example ) If the maximum resolution is 1680 x 1050, the number of sub-pixels is 1680 x 1050 x 3 = 5,292,000. Major Safety Precautions

1-3 Safety Precautions Icons used for safety precautions

: Failing to follow the precautions marked with this sign, may result in a serious injury or

A even a fatality. : Failing to follow the precautions marked with this sign, may result in a personal injury or Caution VAN property damage. Meaning of Signs

Power Related Do not perform. Do not disassemble. Do not touch.

Must be followed. The power plug must be unplugged from the wall outlet. Must be grounded to prevent electric shock. The product image used in the following pictures for your reference may look different from the actual product. A Warning loose power outlet. or fire. Avoid plugging in or unplugging the power supply with wet hands. + Otherwise, it may result in electric shock. Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only). © + Otherwise, it may result in electric shock or injury. Keep the power cord and the product away or fire. CE] from a heater. ) S + Otherwise, it may result in electric shock 8 d

Avoid using a damaged power cord or plug or a + Otherwise, it may result in electric shock

Avoid connecting multiple electric appliances to a single wall outlet. + Otherwise, it may result in fire due to overheating of the wall outlet. Plug the power plug in firmly. + Otherwise, it may result in fire. Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord. + Otherwise, it may result in electric shock or fire due to a damaged power cord. If the pins of the power plug or the wall outlet are covered in dust, clean it using a dry cloth + Otherwise, it may result in fire. Major Safety Precautions

AN Caution Avoid unplugging the power plug while the product is operating. + Otherwise, it may damage the product due to electric shock. When unplugging the power plug from the wall outlet, make sure to hold it by the plug and not by the cord. U + Otherwise, it may result in electric shock ©] or fire. Installation Related A Warning Avoid placing burning candies, mosquito- repellent or cigarettes on the product and installing the product near a heater. + Otherwise, it may result in fire. Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet. + Otherwise, it may result in fire due to Al internal over-heating. e Keep the plastic bags used to pack the product away from children. + lfchildren place the plastic bags over

their heads, they may suffocate. & T >) Avoid installing the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and installing it within a vehicle. + This may result in electric shock or fire. Avoid installing the product at an easily reachable height where children may reach it. +__Ifa child touches the product, the product may fall and this may result in injury. + Since the front part is heavier, install the product on a flat and stable surface. Make sure to use only the power cord supplied by our company. In addition, do not use the power cord of another electric appliance. + Otherwise, it may result in electric shock or fire. Connect the power plug to a wall outlet that can be easily reached. + When a problem occurs with the product, you must unplug the power plug to cut the power off completely. You cannot cut the power off completely using only the power button on the product. Ask an installation engineer or relevant company to install the product onto the wall. + Otherwise, it may result in injury. + Make sure to use the specified wall mount. Keep a distance of at least 10 cm from the wall when installing the product for ventilation. + Otherwise, it may result in fire due to internal over-heating. Avoid installing the product in a location that is unstable or exposed to excessive vibrations such as on an unstable or slanted shelf. + The product may fall and this may result in damage to the product or injury. +__ If you use the product in a location exposed to excessive vibrations, it may result in a problem with the product or fire. Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a fire or heater. + This may shorten the product life cycle or cause fire. Major Safety Precautions

AN Caution Do not let the product drop while moving it. + This may result in a problem with the product or injury. When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf. + Otherwise, this may cause the product Do not place the product face down on the floor. + This may damage the panel of the product. When putting the product down, handle it gently. + Otherwise, it may result in a problem with the product or injury. to fall off and result in a malfunction or injury. + Make sure to use a cabinet or shelf suitable to the size of the product. Ifthe product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment. In this case, install the product only after consulting one of our service engineers about the matter. + Places exposed to microscopic dust, chemicals, too high or low temperature, high humidity, such as airports or stations where the product is continuously used for a long time and so on. Cleaning Related Since using a surfactant, which contains a large amount of alcohol, solvent or other strong chemicals, may result in the discoloration or cracking of the product exterior or the panel surface coming off, be sure to use the recom- mended cleansing agent only. You can purchase the recommended cleansing agent from a service center. Before cleaning the product, unplug the power cord. When cleaning the product, do not spray water directly over the product parts. Make sure that water does not enter the product. + Otherwise, it may result in electric shock or fire. + Otherwise, it may result in fire, electric shock or a problem with the product. Major Safety Precautions

AN Caution Avoid spraying cleansing agent directly onto the product. + This may result in discoloration or cracking of the exterior of the product or the panel coming off. Use a soft, cloth dampened with a “monitorexclusive cleansing agent" and wipe the product with it. +__Ifno monitor-exclusive cleansing agent is available, dilute a cleansing agent with water at a ratio of 1:10 before cleaning the product. Usage Related A Warning Since a high voltage runs through the product, never disassemble, repair or modify the product yourself. + Otherwise, it may result in fire or electric ei shock. + lfthe product needs to be fixed, contact a service center. If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service cen- ter. + Otherwise, it may result in electric shock or fire. If you drop the product or the case is dam- aged, turn the power off and unplug the power cord. Contact a service center. + Otherwise, it may result in fire or electric © shock. When thunder or lighting occurs, unplug the power cord and under no circumstance touch the antenna cable as this is dangerous. + Otherwise, it may result in electric shock or fire. When cleaning the product, disconnect the power cord and clean the product with a soft dry cloth. + Avoid using chemicals such as wax, benzene, alcohol, thinner, mosquito- repellent, fragrance, lubrication or cleansing agent when cleaning the product. This may result in the exterior being deformed or the print being removed. Because the exterior of the product is easily scratched, be sure to use a proper cleansing cloth. However, if the cloth is contaminated by alien substances, it may result in scratches to the exterior, therefore shake off any alien substances from the cloth before using it. When cleaning the product, do not spray water directly over the product parts. + Make sure that water does not enter the product. + Otherwise, it may result in fire, electric shock or a problem with the product. Avoid letting children to hang or climb onto the product. + Otherwise, it may result in the product falling and this may result in injury or death. Avoid placing objects such as toys and cookies on top of the product. +__Ifa child hangs over the product to grab an object, the object or the product may fall and this may result in injury or even death. Avoid dropping an object over the product or cause impact to the product. + Otherwise, it may result in electric shock or fire. Major Safety Precautions

Avoid moving the product by pulling the power cord or antenna cable. + Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable. Avoid lifting up or move the product by holding only the power cord or signal cable. + Otherwise, it may result in electric shock, fire or a problem with the product due to damage to the cable. Take care not to block the vent by a table cloth

or curtain. A Lo à : fn + x 0) + Otherwise, it may result in fire due to COR UL internal overheating. Q == Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product. + Ifwater or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center. + Otherwise, it may result in a problem with the product, electric shock or fire. AN Caution Displaying a still image for a long time may create a persistent image or stain on the screen. zZZ +__ If you do not use the product for a long © time, use the power-saving mode or set the screensaver to the moving picture mode. Set the appropriate resolution and frequency for the product. + Otherwise, it may result in eye strain. Fr Watching the product from too close a distance continuously may damage your eyesight. Itis important to give your eyes some rest (5 minutes every hour) when viewing the product screen for long periods of time. + This will alleviate any eye strain. When a gas leak occurs, do not touch the product or the power plug and ventilate immediately. + A spark may result in an explosion or fire. + During a thunder or lighting storm, do not touch the power cord or antenna cable. Avoid using or placing inflammable spray or objects near the product. + This may result in an explosion or fire. Avoid inserting metal objects such as a chopsticks, coins or hairpins, or inflammable objects into the product (the vents, ports, etc). + lfwater or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center. + Otherwise, it may result in a problem with the product, electric shock or fire. When not using the product for a long time such as leaving your home, unplug the power cord from the wall outlet. + Otherwise, it may cause dust accumulation and result in fire caused by overheating or short circuit or result in an electric shock. Avoid turning the product upside down or moving the product holding only the stand. + This may cause the product to fall resulting in damage to the product or injury. Avoid using a humidifier or cooker near the product. + Otherwise, it may result in electric shock or fire. Since the display panel is hot after being on for a long time, do not touch the product. Major Safety Precautions

F [ : Take care when adjusting the angle of the j! \ product or the height of the stand. + fyour hand or finger is caught, you may be injured. Keep small accessories away from the children. + __lfthe product is tilted excessively, the product may fall and this may result in injury. Avoid placing a heavy object over the product. + Otherwise, it may result in a problem with the product or injury. Maintaining the Correct Posture when Using this Product Maintain the correct posture when using this product. + Straighten your back. + Keep a distance of 45-50 cm from your eyes to the screen. Look down at the screen and face the screen forwards. + Adjust the angle of the product so that light is not reflected onto the screen. + Keep your elbow at a right angle and keep your arm level with the back of your hand. + Keep your elbow at a right angle. + Place your heels flat on the ground while keeping your knees at an angle of 90 degrees or higher and maintain the position of your arm so that your arm is below your heart. 1-3 Major Safety Precautions

2 Installing the Product 2-1 Package Contents + Unpack the product and check if all of the following contents have been included. + Store the packaging box in case you need to move the Product later. + __Ifanyitems are missing, contact your dealer. + Contact a local dealer to purchase optional items. Type 1 Monitor and HAS stand Type 2 Monitor and HAS-USB stand CONTENTS à L/ Oo -CO Installation Manual Product Warranty User Manual D-Sub Cable (Not available in all locations) ae at Power Cord Cleaning Cloth Cable holding ring Installing the Product

OPTIONAL PARTS DVI Cable USB Cable DP Cable + The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. *__ The cleaning cloth is supplied with black high-glossy models only. 2-1 Installing the Product

2-2 Installing the Stand B Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. Place a soft cloth over the table to protect the product and place the product onto the cloth face down. Insert the stand body into the stand base as shown in the figure. Turn the connecting screw at the bottom of the stand fully so that it is completely fixed. Gen

- Caution Do not lift the product holding only the stand. & Disassembly is in the reverse order of the assembly. Installing the Product 2-2

When pivot the monitor from horizontal to vertical,tilt the monitor backward to maximum first. Installing the Product

2-3 Installing the Stand for the Wall Mount This product provides a stand mount of 100 mm x 100 mm ( 3.9 inches x 3.9 inches ) that complies with the VESA specifications. Installing the Product 2-3

HAS Stand LA] Monitor © Mounting interface pad (Sold separately)

1. Turn the product off and unplug the power cord from the wall outlet.

. Place a soft cloth or cushion on a flat surface to protect the panel and place the product down on the cloth so that the front of the product faces downwards. . Separate the stand. 4. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand, wall mount stand or another stand) and firmly fix the stand by fastening the screw. If you use a screw that is longer than the standard specifications, the inside of the product may be damaged. For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ depending on the corresponding specifications. Do not use screws that are incompatible with the standard VESA specifications and do not assemble them using excessive force. This may result in damage to the product or injury due to the product falling. The company shall not be held liable for any damage or injury. The company shall not be held liable for any damage to the product or injury caused by using a stand that is not compatible with the specified specifications or due to an installation not performed by an authorized installation engineer. When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm of space from the wall. The company shall not be held liable for any problems caused by using a stand that is not compatible with the specified specifications. Use the wall mount according to the international specifications. Installing the Product

2-4 Connecting with a PC B The connecting part may differ depending on the product model.

1. Connect the product to a PC depending on the video output supported by the PC.

+ When the graphics card provides D-Sub (<Analog>) output + Connect the [RGB IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable. +. When the graphics card provides DVI (<Digital>) output + Connect the [DVI IN] port of the product to the [DVI] port of the PC with the DVI cable. 2. Connect one end of the power cord to the [POWER] port of the product and connect the other end of the power cord to the 110V or 220V wall outlet. (The input voltage is switched automatically.) Installing the Product 2-4

& When the product is connected to a PC, you can turn the product on and use it.

Switches the Power On/Off. 2-4 Installing the Product

2-5 Connecting the DP Cables Connect the [DP IN] ports of the PC and all the installed monitors using DP cables. Installing the Product 2-5

2-6 Connecting USB & Applicable to the stand models that have USB ports only Æ You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by connecting them to the *® DOWN port of the monitor without connecting them to the PC. The % USB port of the monitor supports High-Speed Certified USB 2.0. High speed Full speed Low speed Data Rate 480 Mbps 12 Mbps 1.5 Mbps Power Consumption 2.5W 2.5W 2.5W (Max., each port) (Max., each port) (Max., each port)

1. Connect the * UP port of the monitor and the USB port of the computer with the USB cable.

S . rouse * DOWN port, you have to connect the UP (Upstream Cable) to the PC. + Make sure to use the USB cable supplied with this monitor to connect the monitor's #% UP port and your computer's USB port.

2. Connectthe *% DOWN port of the USB monitor and a USB device with the USB cable.

3. The use procedures are as the same as those for using an external device connecting to the PC.

+. You can connect and use a keyboard and mouse. 2-6 Installing the Product

+ You can play a file from a media device. (Examples of media devices: MP3, digital camera, etc.) + You can run, move, copy or delete the files on the storage device. (Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.) + You can use other USB devices that can be connected to a computer.

When connecting a device to the * DOWN port of the monitor, connect the device using a cable appropriate to the device. + (For the purchase of the cable and external devices, ask the service center of the corresponding product.) + The company is not liable for problems or damages to an external device caused by using an unauthorized cable for the connection. + Some products do not follow the USB standard, and it may cause a malfunction of the device. +__lfthe device malfunctions even if it is connected to the computer, contact the service center of the device/computer. Installing the Product 2-6

2-7 Kensington Lock A Kensington Lock is an anti-theft device that enables users to lock the product so that they can safely use it in public locations. Since the shape and usage of the locking device may differ depending on the model and the manufacturer, for more information, refer to the User Manual supplied with the locking device for more information. & You must purchase the Kensington Lock separately. To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as a desk or chair.

2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.

3. Insert the locking device into the Kensington slot on the Monitor({)) .

4. Lock the 1ock(@D).

B + These are general instructions. For exact instructions, see the User Manual supplied with the locking device. + You can purchase the locking device from an electronics store, an online shop, or our service center. 2-7 Installing the Product

3 Using the product 3-1 Setting the Optimal Resolution If you turn the power on after purchasing the product, a message regarding the optimal resolution setting appears on the screen. Select a language and the optimal resolution. A/Y : You can select a language with these buttons. MENU : If you press this button, the message disappears. + lt can be displayed up to one (1) times. Make sure to adjust the resolution of your PC before reaching the maximum count. +__ To set the resolution to the optimal resolution +. Whenthe PC is turned off, connect the product and the PC and turn the power on. + Right-click over the Desktop and select ‘Properties’ from the pop-up menu. +__Inthe ‘Settings’ tab, set the resolution to the optimal resolution. Using the product

3-3 Installing the Device Driver If you install the device driver, you can set up the appropriate resolution and frequency for the product. The device driver is included on the CD-ROM supplied with the product. If the supplied drive file is corrupted, please visit a service center or Samsung Electronics website(http://{www.samsung.com/), and download the driver. Insert the driver installation CD-ROM into the CD-ROM drive. Click on "Windows Driver". Complete the remaining installation steps according to the instructions displayed on the screen. PSN > Select the model of your product from the model list. Sete display odaprer on mich your tale monts EEE | Selectthe montor nhch you onto tal

5. Check if the appropriate resolution and screen refresh rate are displayed in the Control Panel settings. For more information, refer to the document about the Windows operating system. 3-3 Using the product

3-4 Product Operating Buttons Product Operating Buttons Touch them lightly with your fingers to use them. ICON DESCRIPTION MENU Press this button to view the On Screen Display (OSD). This button is also used to exit the OSD or to return to a higher-level OSD menu

• OSD Adjustment Lock This function locks the OSD in order to maintain the current settings or to prevent the settings from being changed by another person On: If you press and hold the MENU button down for 5 seconds, the OSD Adjustment Lock function is activated. Off: If you press and hold the MENU button down for 5 seconds again, the OSD Adjustment Lock function is disabled. Even if the OSD Adjustment Lock function is activated, users can adjust the brightness and contrast and can set up the adjustment function assigned to the [æ]. AIY Use these buttons to navigate the menu or to adjust a value in the OSD. Use this button to control the brightness of the screen. Users can set the <Customized Key> to one of the following functions. If the user presses the Customized Key[c] after setting it, the configured function will be performed. +. <MagicBright> - <MagicAngle> - <MagicEco> - <Image Size> You can set the function of the <Customized Key> by selecting <SETUP&RESET> -> <Customized Key> in the OSD. Use this button to select a function. If you press the [O/@)] button when there is no OSD, the input signal (Analog/Digital/ DP) is switched. When the input signal is switched by pressing [O/@] button or the product is turned on, a message displaying the selected input signal appears at the top left of the screen. +__ To select Digital mode, you have to connect the product and the PC with the DVI cable. +__ To select DP mode, you have to connect the product and the PC with the DP cable. Using the product 3-4

ICON DESCRIPTION Press [AUTO] button to adjust the screen settings automatically. AUTO This function is only available in Analog mode. If the resolution settings are changed in the Display Properties, the AUTO adjustment func- tion is performed.

Press this button to turn the product on or off LA] Power Indicator This light is lit when operating normally, and blinks once when your adjustments are saved. & For more information on the power-saving function, refer to the power saving function in More Information. When not using the product for a long time, unplugging the power cord is recommended to minimize power consumption. Using the product

3-5 Using the Screen Adjustment Menu (OSD: On Screen Display) The Screen Adjustment Menu (OSD: On Screen Display) Structure Top Menus Sub Menus [] PICTURE Brightness Contrast Sharpness MagicBright MagicAngle Coarse Fine EZ COLOR MagicColor Red Green Blue Color Tone Color Effect Gamma [1] SIZE & POSI- H-Position V-Position Image Size Menu H-Position | Menu V-Position TION EASETUPARESE | Reset Language MagicEco Off Timer On/Off_ | Off Timer Setting T Customized Key Auto Source Display Time PC/AV Mode Menu Transpar- ency [1 INFORMA- TION Æ Monitor functions may vary according to models. Please refer to actual product. [1 PICTURE Brightness SETUP&RESET INFOR Menu Description Controls the screen brightness. Brightness & + This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> mode. + This menu is unavailable when <MagicEco> is set. Controls the contrast of the pictures displayed on the screen Æ + This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> or <Cinema> Contrast mode. +__ This menu is unavailable when <MagicColor> is set to <Full> mode or <intelligent> mode. + This menu is unavailable when <Color Effect> is set. Controls the clarity of details of pictures displayed on the screen B + This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> or <Cinema> Sharpness mode. +__ This menu is unavailable when <MagicColor> is set to <Full> mode or <intelligent> mode. + This menu is unavailable when <Color Effect> is set. Using the product

Menu Description MagicBright Provides preset picture settings optimized for various user environments such as editing a document, surfing the Internet, playing games,or movies and so on. + <Custom> If the preset picture modes are not sufficient, users can configure the <brightness> and <Contrast> directly using this mode. + <Standard> This mode provides the picture setting appropriate for editing a document and surfing the Internet (text + picture). + <Game> This mode provides the picture setting appropriate for playing games that include lots of graphics and that require a fast screen refresh rate. + <Cinema> This mode provides brightness and sharpness settings similar to those of a TV for the best entertainment environment (movie, DVD, etc.). + <Dynamic Contrast> Controls the picture contrast automatically so that bright and dark pictures are balanced overall. & This menu is unavailable when <MagicAngle> or <MagicEco> is set. MagicAngle This feature allows you to see optimal screen quality according to your viewing position. When viewing the screen at an angle from below, above or the side of the monitor, by setting the appropriate mode for each position you can obtain a similar picture quality as viewing the screen directly from the front. & Set to <Off> when viewing directly in front of the screen. + <Off> © - Select when viewing from the front position. + <Lean Back Mode1> © - Select when viewing from a slightly lower position. + <Lean Back Mode2> © - Select when viewing from the lower position. +__<Standing Mode> © -Select when viewing from the upper position. + <Side Mode> © - Select when viewing from the left or right position. + <Group View> - Select when two or more person view among 0,0,6 position at the same time. + <Custom> -When <Custom> is selected, settings for <Lean Back Mode 1> is applied by default. Users can set suitable picture quality as needed. Æ + This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> or <Cinema> mode. +__ This menu is unavailable when <MagicColor> or <Color Effect> is set. Using the product

Menu Description Removes vertical noise lines (line pattern) from the screen. The location of the screen may be changed after the adjustment. In this case, move the screen so Coarse that the screen is displayed at the center of the display panel using the <H-Position> menu. & This function is only available in Analog mode Removes horizontal noise lines (line pattern) from the screen. If you cannot remove the noise completely with the <Fine> function, adjust the <Coarse> and then Fine use the <Fine> function again. B This function is only available in Analog mode. SIZE&POSITION SETUP&RESET RMA Using the product

Menu Description Expresses natural colors more clearly without changing the picture quality using proprietary digital picture quality improvement technology developed by Samsung Electronics. +. _<Off>- Turns the MagicColor function off. + <Demo> - You can compare the pictures processed by MagicColor with the original pictures. MagicColor + __<Full> - Provides a clearer picture including areas corresponding to skin color. + __<intelligent> - Improves the chroma of pictures except for areas corresponding to skin color. Æ + This menu is unavailable when <MagicAngle> is set. + This menu is unavailable when <Color Effect> is set. You can adjust the red color value of pictures according to your preference. Red +__ This menu is unavailable when <MagicColor> is set to <Full> mode or <intelligent> mode. + This menu is unavailable when <Color Effect> is set. You can adjust the green color value of pictures according to your preference. Green +__ This menu is unavailable when <MagicColor> is set to <Full> mode or <intelligent> mode. + This menu is unavailable when <Color Effect> is set. You can adjust the blue color value of pictures according to your preference. Blue +__ This menu is unavailable when <MagicColor> is set to <Full> mode or <intelligent> mode. + This menu is unavailable when <Color Effect> is set. You can set the color temperature according to your preference. + <Coo!> - Sets the color temperature of the screen to a cooler color. + <Normal> - Sets the color temperature of the screen to the standard color temperature. +. _<Warm> - Sets the color temperature of the screen to a warmer color. Color Tone + __<Custom> - Select this menu to set the color temperature manually. If you do not like the preset color temperatures, you can manually adjust the value of RGB. Æ + This menu is unavailable when <MagicColor> is set to <Full> mode or <Intelligent> mode. + This menu is unavailable when <MagicAngle> is set. + This menu is unavailable when <Color Effect> is set. You can change the overall atmosphere by changing the color of pictures. + <Off> - Turns the <color effect> function off. + <Grayscale> -Displays pictures in black and white. + __<Green> - Displays pictures in green mono color. Color Effect -__<Aqua> - Displays pictures in aqua mono color. + <Sepia> - Displays pictures in sepia mono color. + This menu is unavailable when <MagicAngle> is set. + This menu is unavailable when <MagicColor> is set. Using this menu, you can change the intensity of the colors of medium brightness. +__<Mode1> - <Mode2> - <Mode3> Gamma This menu is unavailable when <MagicAngle> is set. Using the product

& (This is unavailable when <MagicBright> is set to <Dynamic Contrast> and <Cinema> mode.)

SETUP&RESET NFORMATIC Menu Description H-Position Moves the position of the display area on the screen horizontally. & + This function is only available in Analog mode. + When TV signal is input in AV mode ,select <Screen Fit> to adjust horizontal position in 0-6 levels. V-Position Moves the position of the display area on the screen vertically. & + This function is only available in Analog mode. + When TV signal is input in AV mode ,select <Screen Fit>to adjust vertical position in 0-6 levels. Image Size & Supplied for the wide models only such as 16:9 or 16:10 PC signals + <Auto> - The picture is displayed at the aspect ratio of the input signal. +__<Wide> - The picture is displayed in full screen regardless of the aspect ratio of the input signal. B -+ A signal not in the standard mode table is not supported + Ifthe resolution is set to the optimal resolution, the aspect ratio does not change whether the <Image Size> is set to <Auto> or <Wide>. AV signals + __<4:3> - Displays pictures at the 4:3 aspect ratio. + __<16 : 9> - Displays pictures at the 16:9 aspect ratio. + <Screen Fit>- If a 720P, 1080i or 1080P signal is input in DVI input mode, the picture is displayed as is without truncation. & This can only be set when the external input is connected through DVI and <PC/AV Mode> is set to <AV> + __<4:3> - Displays pictures at the 4:3 aspect ratio. + __<wide> - Displays pictures at the 16:10 aspect ratio. + <Screen Fit>- If a 720P, 1080i or 1080P signal is input in DVI input mode, the picture is displayed as is without truncation. & + Itcan only be selected if an external input is connected to the DVI terminal and the <PC/AV Mode? is set to <AV>. + When the panel is of 16:10,the screen size options include <4:3>,<wide>,<Screen fit>. Using the product

>ff Timer Setting SETUP&RESET stomized Key # INFORMATION Auto Source Menu Description Reset Use this function to restore the visual quality and color settings to the factory defaults. + <No>-<Yes> Select a language for the OSD. + English, Deutsch, Español, Français, Italiano, Svenska, Language Pycckuÿ, Português, Türkçe, Polski, Magyar & The selected language is only applied to the product OSD. This setting does not affect the other functions of the PC. This function provides user a low power mode which is realized by lowering the current of the display panel. + <100%> When <100%> is selected, the power consumption is 100% of default setting. + <75%> When <75%> is selected, the power consumption is about 75% of default setting. MagicEco + <50%> When <50%> is selected, the power consumption is about 50% of default setting. + <Power Saving Off> When <Power Saving Off> is selected, the function is turned Off. & This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> mode. You can turn the Off Timer on or off. Off Timer On/Off + <Off> - <On> Turns the power off automatically when the configured time is reached. Off Timer Setting & When <On> of <Off Timer On/Off> is selected, This function is available only. You can set the function of the Customized Key to one of the following. Customized Key <MagicBright> - <MagicAngle> - <MagicEco> - <Image Size> + <Auto> - The monitor automatically selects an input signal. Auto Source + __<Manual - Users have to manually select an input signal. 3-5 Using the product

Menu Description The OSD automatically disappears if no action is taken by the user. Display Time You can determine the time to wait before the OSD is hidden. + <5 sec> - <10 sec> - <20 sec> - <200 sec> Set to PC when connected to a PC. Set to AV when connected to an AV device. PC/AV Mode & + This function does not support Analog mode. + Supplied for the wide models only such as 16:9 or 16:10. Menu Transparency You can select the transparency of the OSD. + <Off> - <On> [1 INFORMATION Analog SIZE&POSITION “kHz SETUP&RESET INFORMATION Menu Description INFORMATION Shows the frequency and resolution set on the PC. Using the product

4 Installing the Software 4-1 Natural Color What is Natural Color ? This software works only for Samsung products and enables adjusting the displayed colors on the product and matches the colors on the product with the colors of the printed pictures. For more information, refer to the online help of the software (F1). The Natural Color is provided online. You can download it from the website below and install; http:/www.samsung.com/us/consumer/learningresources/monitor/naturalcolorexpert/pop_download.html 4-1 Installing the Software

4-2 MagicTune What is MagicTune? MÉactune” MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines. Users can adjust the product with the mouse and the keyboard without using the operating buttons of the product. Available in Digital mode only. Installing the Software

1. Insert the installation CD into the CD-ROM drive.

2. Select the MagicTune setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MagicTune setup file on the CD-ROM.

3. Select the installation language and click [Next].

4. Complete the remaining software installation steps according to the instructions displayed on the screen.

+ The software may not work properly if you do not restart the computer after the installation. + The MagicTune icon may not appear depending on the computer system and the product specifications. + Ifthe shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MagicTune'") The installation of Magic Tune "may be affected by the graphics card, motherboard and the networking environment. System Requirements

Windows 2000 Windows XP Home Edition Windows XP Professional “Windows Vista 32Bit Windows 7 32Bit For MagicTune"", Windows 2000 or later is recommended. Hardware -At least 32MB of memory -At least 60MB of free space on the hard disk drive For more information, refer to the website. Removing the Software You can only remove MagicTune "through [Add or Remove Programs ] in Windows. To remove MagicTune", complete the following steps. Installing the Software

1. Click [Start] select [Settings], and select [Control Panel] from the menu.

For Windows XP, click [Start], and select [Control Panel] from the menu. Double-click the [Add or Remove Programs] icon in the Control Panel. In the [Add/Remove] window, find and select MagicTune "so that it is highlighted. Click [Change or Remove Programs] to remove the software. Select [Yes] to start removing MagicTune ". press Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTuneT", please visit our website. 4-2 Installing the Software

4-3 MagicRotation What is MagicRotation? (0) MagicRotation The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation feature (0, 90, 180, 270 orientation) that facilitates the optimum utilization of computer display screen, better viewing and improved user productivity. Installing the Software

1. Insert the installation CD into the CD-ROM drive.

2. Select the MagicRotation setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MagicRotation setup file on the CD-ROM.

3. Select the installation language and click [Next].

4. Complete the remaining software installation steps according to the instructions displayed on the screen.

+ The software may not work properly if you do not restart the computer after the installation. + __ The MagicRotation icon may not appear depending on the computer system and the product specifications. + Ifthe shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MagicRotation) The installation of MagicRotation may be affected by the graphics card, motherboard and the networking environment. Limitation

1. The "Display Driver" should be properly loaded for the MagicRotation to work properly.

The installed "Display Driver" should be the latest driver supplied by the vendor. 2. If some applications like Windows Media Player, Real Player, etc. are not displaying movie files properly in 90, 180 and 270 orientations then do the following : + Close the application. + Select the Orientation (90, 180, 270) you want to view the application. + Relaunch the application. In most cases this should fix the problem. 3. User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation mode selected (90. 180, 270). e.g. 3D games Dual is not supported in WindowsT" 98, ME, NT 4.0. MagicRotation does not provide support for 24 bits per pixel (Bit depth/Color Quality). NP ms System Requirements

+ Windows?" 98 SE *__ Windows" Me + Windows?" NT 4.0 + WindowsT" 2000 + Windows XP Home Edition DOS based applications in Full Screen Mode will not function as per the orientation mode selected (90, 180, 270). If you are changing your Graphic Card it is recommended that you uninstall the MagicRotation Software before doing so. Installing the Software

+ Windows XP Professional + Windows Vista 32Bit + Windows 7 32Bit For MagicRotation, Windows 2000 or later is recommended. Hardware + Atleast 128MB of memory(recommended) + Atleast 25MB of free space on the hard disk drive Service Packs +__Itis recommended that your System has the latest Service Pack installed. + For Windows®" NT 4.0, it is recommended to install Internet Explorer 5.0 and above with Active Desktop component. + For more information, refer to the website. + Windows®" is registered trademark of Microsoft Corporation, Inc. Removing the Software You can only remove MagicRotation through [Add or Remove Programs ] in Windows. To remove MagicRotation, complete the following steps.

1. Click [Start] select [Settings], and select [Control Panel] from the menu.

For Windows XP, click [Start], and select [Control Panel] from the menu. . Double-click the [Add or Remove Programs] icon in the Control Panel. In the [Add/Remove] window, find and select MagicRotation so that it is highlighted. . Click [Change or Remove Programs] to remove the software. . Select [Yes] to start removing MagicRotation. oo uw » & RD . Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicRotation, please visit our website. 4-3 Installing the Software

4-4 MultiScreen What is MultiScreen ? ia) MultiScreen MultiScreen enables users to use the monitor by partitioning multiple sections. Installing the Software

1. Insert the installation CD into the CD-ROM drive.

2. Select the MultiScreen setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MultiScreen setup file on the CD-ROM.

3. When the Installation Wizard appears, click [Next].

4. Complete the remaining software installation steps according to the instructions displayed on the screen.

+ The software may not work properly if you do not restart the computer after the installation. + The MultiScreen icon may not appear depending on the computer system and the product specifications. + Ifthe shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation (MultiScreen) The MultiScreen installation may be affected by the graphics card, motherboard and the networking environment. Operating System

Windows 2000 Windows XP Home Edition Windows XP Professional “Windows Vista 32Bit Windows 7 32Bit For MultiScreen, the operating systems Windows 2000 or later is recommended. Hardware -At least 32MB of memory -At least 60MB of free space on the hard disk drive Removing the Software Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs]. Select MultiScreen from the program list and click the [Add/Delete] button. Installing the Software 4-4

5 Troubleshooting 5-1 Monitor Self-Diagnosis + You can check if the product is working properly using the Self-Diagnosis function. + __Ifa blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform the self-diagnosis function according to the procedures below. Turn the product and the PC off. Separate the signal cable from the product . Turn the product on. BYSN > Ifthe product is working properly, the <Check Signal Cable> message appears. In this case, if a blank screen is displayed again, make sure that there is no problem with the PC and the connection. The product is working properly. 5-1 Troubleshooting

5-2 Before Requesting Service B Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center. A BLANK SCREEN APPEARS / I CANNOT TURN THE PRODUCT ON Is the power cord connected properly? Check the connection status of the power cord. Is the <Check Signal Cable> message displayed on the screen? Check the cable connecting the PC and the product. Ifthe message appears on the screen even if the cable is properly connected, recheck the input signal by pressing the DE button of the product. Is the <Not Optimum Mode> message displayed on the screen? This occurs when the signal from the graphics card exceeds the maximum resolution or the maximum frequency of the product. In this case, set up the appropriate resolution and the fre- quency for the product. Is a blank screen displayed and does the power LED blink at a 1 second interval? This occurs when the power saving function is running. If you click the mouse or press any key, the screen will be turned on. Did you connect with a DVI cable? If you connect the DVI cable when the PC has booted up or if you reconnect the DVI cable after disconnecting the cable while using a PC, the screen may not be displayed because some graphics cards do not output the video signal. In this case, reboot the PC while the DVI cable is connected. THE IMAGE IS TOO LIGHT OR TOO DARK. Adjust the <Brightness> and <Contrast>. (Refer to the <Brightness>, <Contrast>) The display brightness can differ according to the mode set for <MagicAngle>. If <MagicBright> is set to <Dynamic Contrast>, the display brightness can differ according to the input signal. THE ON SCREEN ADJUSTMENT MENU (OSD) DOES NOT APPEAR. Did you cancel the screen adjustment? Check if the OSD Adjustment Lock function is set to Off.

Is the entire screen displayed in the same color as if viewing the screen through a cellophane paper? Check the cable connection to the computer. Reinsert the graphics card into the computer completely. Check if the <Color Effect> is set to <Off>. Is the graphics card configured correctly? Set up the graphics card referring to the user manual. THE DISPLAY AREA SUDDENLY MOV! ES TO AN EDGE OR TO THE CENTER. Did you change the graphics card or the driver? Please press the [AUTO] button to run the auto adjustment function. Did you change the resolution and frequency appropriate to the product? Set the resolution and the frequency to the appropriate values in the graphics card refer to the (Standard Signal Mode Table) Is the graphics card configured correctly? Set up the graphics card referring to the user manual. Troubleshooting

THE PICTURES ARE OUT-OF-FOCUS. Did you change the resolution and the frequency appropriate to the product? Set the resolution and the frequency to the appropriate values in the graphics card refer to the (Standard Signal Mode Table) THE COLORIS DISPLAYED IN 16 BIT (16 COLORS). THE GRAPHIC: COLOR HAS BEEN CHANGED AFTER CHANGING THE S CARD. Did you install the device driver for the product? Windows XP : Set the color again by selecting Control Panel — Appearance and Themes — Display — Settings. Windows ME/2000 : Set the color again by selecting Control Panel — Display — Settings. Windows Vista : Change the color settings by selecting Con- trol Panel — Appearance and Personalization — Personaliza- tion — Display settings. Windows 7 : Change the color settings by selecting Control Panel — Appearance and Personalization — Display — Adjust resolution — Advanced settings — Monitor. (For more information, refer to the Windows user manual for the computer.) Is the graphics card configured correctly? Configure the color again in accordance with the new graph- ics card driver. WHEN I CONNECT THE MONITOR, THE ‘UNKNOWN MONITOR, PLUG&PLAY (VESA DDC) MONITOR FOUND' MESSAGE IS DISPLAYED. Did you install the device driver for the product? Install the device driver referring to the descriptions about the driver installation. Check if all the Plug&Play (VESA DDC) functions are sup- ported referring to the User Manual of the graphics card. Install the device driver referring to the descriptions about the driver installation. WHEN I LOOK AT THE EXTERIOR EDGES OF THE PRODUCT, SMALL ALIEN SUBSTANCES APPEAR ON IT. Since this product is designed so that the color has a soft appearance by coating it with a transparent material over the black edges, such things may be seen. This is not a defect of the product.

A “BEEP, BEEP” SOUND IS HEARD

WHEN BOOTING THE COMPUTER. If the beep sound is generated 3 or more times when booting up the computer, please request service for the computer. Troubleshooting

5-3 FAQ FAQ! PLEASE TRY THE FOLLOWING! How can | change the frequency (refresh rate) of the video signal? You have to change the frequency of the graphics card. Windows XP : Change the frequency by selecting Control Panel — Appearance and Themes — Display — Settings — Advanced — Monitor, and then change the refresh rate under Monitor Settings. Windows ME/2000 : Change the frequency by selecting Con- trol Panel — Display — Settings — Advanced — Monitor, and then change the refresh rate under Monitor Settings. Windows Vista : Change the frequency by selecting Control Panel — Appearance and Personalization — Personalization — Display settings — Advanced settings — Monitor, and then change the refresh rate under Monitor Settings. Windows 7 : Change the frequency by selecting Control Panel — Appearance and Personalization — Display — Adjust reso- lution — Advanced settings — Monitor, and then change the refresh rate under Monitor Settings. (For more information, refer to the User Manual of the com- puter or the graphics card.) How can | change the resolution? Windows XP : Change the resolution by selecting Control Panel —> Appearance and Themes —+ Display —> Settings. Windows ME/2000 : Change the resolution by selecting Con- trol Panel — Display — Settings. Windows Vista : Change the resolution by selecting Control Panel — Appearance and Personalization — Personalization — Display settings. Windows 7 : Change the resolution by selecting Control Panel — Appearance and Personalization — Display — Adjust reso- lution. (For more information, refer to the User Manual of the com- puter or the graphics card.) How can | use the power saving function? Windows XP : Configure it by selecting Control Panel — Appearance and Themes — Display — Screen Saver Setting or configure it in the BIOS Setup of the computer. Windows ME/2000 : Configure it by selecting Control Panel — Display — Screen Saver Setting or Configure it in the BIOS Setup of the computer. Windows Vista : Change settings by selecting Control Panel — Appearance and Personalization — Personalization — Screen Saver. You can also use the BIOS SETUP menu on the PC. Windows 7 : Change settings by selecting Control Panel — Appearance and Personalization — Personalization — Screen Saver. You can also use the BIOS SETUP menu on the PC. (For more information, refer to the Windows user manual for the computer.) Troubleshooting

Separate H/V sync, Composite, SOG TTL level (V high > 2.0V, V low < 0.8V) Maximum Pixel Clock 150 MHz (Analog, DVI, Display Port) 170 MHz (Analog, DVI, Display Port) This product supports 100-240 V.Since the standard voltage may differ from Rene ET country to country, please check the label on the back of the product. 15pin-to-15pin D-sub cable, Detachable Signal Cable DVI-D to DVI-D connector, Detachable DP Cable ,Detachable Dimensions (WxHxD) / Weight (Simple stand)

x 7.9 inches) (With Stand) / 5.7 kg (12.6 lbs)

x 9.8 inches) (With Stand) / 7.7 kg (17.0 lbs) VESA Mounting Interface 100 mm x 100 mm / 3.9 inches x 3.9 inches Temperature : 50°F - 104°F (10°C - 40°C) n Operating Environmen- Humidity :10 % - 80 %, non-condensing tal consider- ations Temperature : -4°F — 113°F (-20°C — 45°C) Storage Humidity : 5 % - 95 %, non-condensing Æ Design and specifications are subject to change without prior notice. & Class B (Information Communication equipment for residential use) This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.) More Information

6-2 Power Saving Function This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. STATE NORMAL OPERATION POWER SAVING MODE POWER OFF Power Indicator On Blinking Off 2243DW:28 W Power Consumption Less than 1 watts Less than 1 watts 2443DW:47 W If there is no power cut-off switch, the power consumption is only when the power cord is disconnected. More Information

6-4 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please sepa- rate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of mate- rial resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. More Information 6-4
