USER MANUAL WW10K6410QX SAMSUNG

Washing Machine User manual WW10K6***** WW10K6410QX_DC68-03676Y-00_EN.indd 1 2017/5/16 10:49:192 English Contents Contents Safety information 3 What you need to know about the safety instructions 3 Important safety symbols 3 Important safety precautions 4 Installation 13 What’s included 13 Installation requirements 15 Step-by-step installation 17 Before you start 23 Initial settings 23 Laundry guidelines 23 Detergent drawer guidelines 26 Operations 29 Control panel 29 Simple steps to start 30 Cycle overview 31 Special features 34 Settings 36 Maintenance 37 Eco drum clean 37 Smart Check

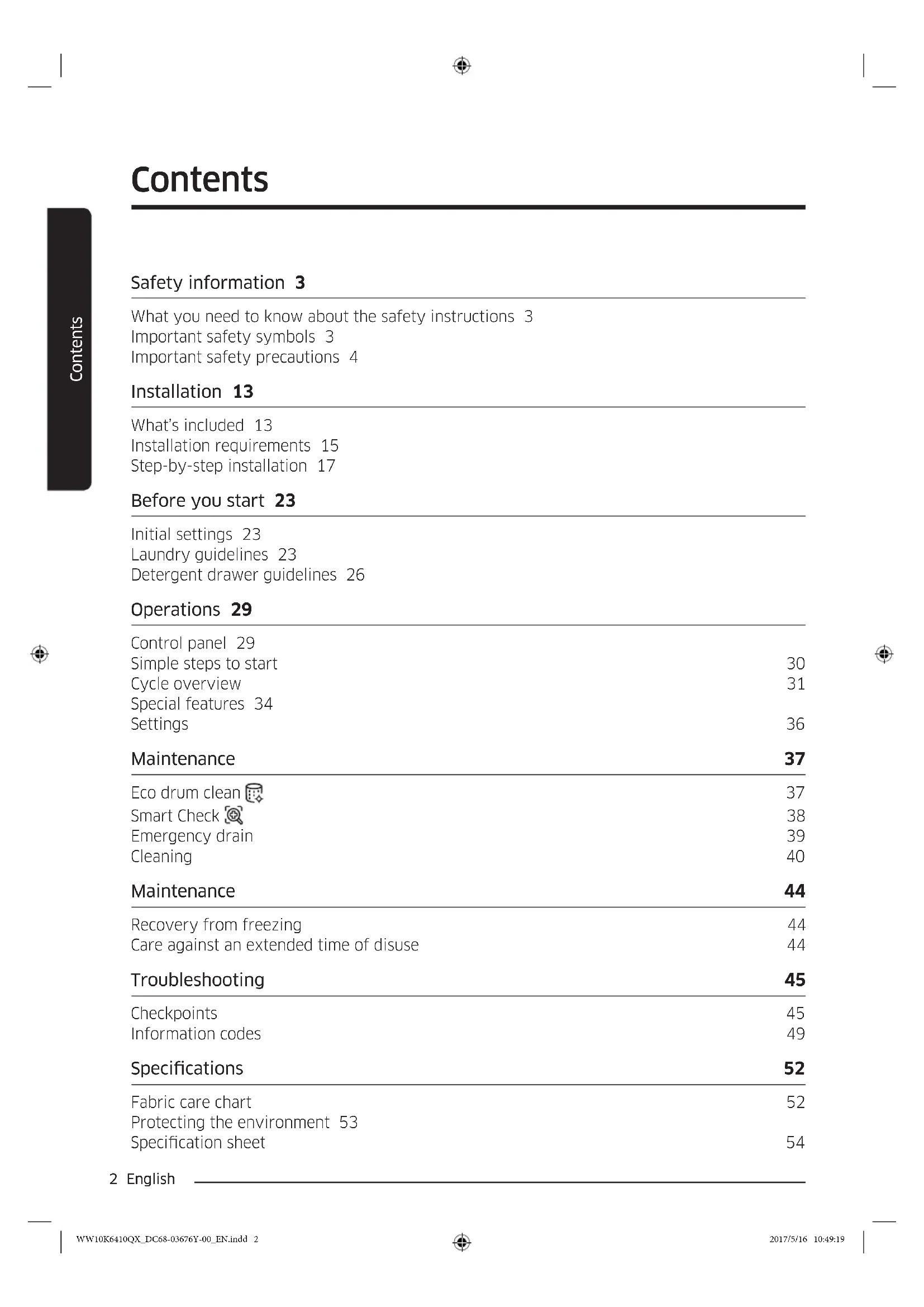

Emergency drain 39 Cleaning 40 Maintenance 44 Recovery from freezing 44 Care against an extended time of disuse 44 Troubleshooting 45 Checkpoints 45 Information codes 49 Specications 52 Fabric care chart 52 Protecting the environment 53 Specication sheet 54 WW10K6410QX_DC68-03676Y-00_EN.indd 2 2017/5/16 10:49:19English 3 Safety information Safety information Congratulations on your new Samsung washing machine. This manual contains important information on the installation, use and care of your appliance. Please take some time to read this manual to take full advantage of your washing machines many features and benets. What you need to know about the safety instructions Please read this manual thoroughly to ensure that you know how to safely and efciently operate the extensive features and functions of your new appliance. Please store the manual in a safe location close to the appliance for future reference. Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your washing machine. Because the following operating instructions cover various models, the characteristics of your washing machine may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or nd help and information online at www.samsung.com. Important safety symbols What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury, death and/or property damage. CAUTION Hazards or unsafe practices that may result in personal injury and/or property damage. NOTE Indicates that a risk of personal injury or material damage exists. WW10K6410QX_DC68-03676Y-00_EN.indd 3 2017/5/16 10:49:194 English Safety information Safety information These warning signs are here to prevent injury to yourself and others. Please follow them explicitly. After reading this manual, store it in a safe place for future reference. Read all instructions before using the appliance. As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this appliance, familiarise yourself with its operation and exercise care when using it. Important safety precautions WARNING To reduce the risk of re, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. This appliance is not to be used by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. For use in Europe: This appliance can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Children should be supervised to ensure that they do not play with

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. WW10K6410QX_DC68-03676Y-00_EN.indd 4 2017/5/16 10:49:19English 5 Safety information

5. Use the new hose-sets supplied with the appliance and do not reuse

6. For appliances with ventilation openings in the base, the carpet must

not obstruct any openings.

7. For use in Europe: Children of less than 3 years should be kept away

unless continuously supervised. CAUTION

8. In order to avoid a hazard due to inadvertent resetting of the

thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. Critical installation warnings WARNING The installation of this appliance must be performed by a qualied technician or service company.

• Failure to do so may result in electric shock, re, an explosion, problems with the product, or injury. The appliance is heavy, therefore take care when lifting it. Plug the power cord into a wall socket that meets local electrical specications. Use the socket for this appliance only, and do not use an extension cord.

• Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or re.

• Ensure that the power voltage, frequency, and current are the same as those of the product specications. Failure to do so may result in electric shock or re. Plug the power plug into the wall socket rmly. WW10K6410QX_DC68-03676Y-00_EN.indd 5 2017/5/16 10:49:196 English Safety information Safety information Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

• Unplug the power plug and clean it with a dry cloth.

• Failure to do so may result in electric shock or re. Plug the power plug into the wall socket so that the cord is running towards the oor.

• If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or re. Keep all packaging materials out of the reach of children as these may be dangerous.

• If a child places a bag over its head, it may suffocate. When the appliance, power plug or power cord is damaged, contact your nearest service centre. This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• This may result in electric shock, re, an explosion, or problems with the product.

• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national regulations. Do not install this appliance near a heater or any inammable material. Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water (rain drops). Do not install this appliance in a location exposed to low temperatures.

• Frost may cause the tubes to burst. Do not install this appliance in a location where gas may leak.

• This may result in electric shock or re. Do not use an electric transformer.

• This may result in electric shock or re. Do not use a damaged power plug, damaged power cord, or loose wall socket.

• This may result in electric shock or re. Do not pull or excessively bend the power cord. Do not twist or tie the power cord. Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• This may result in electric shock or re. WW10K6410QX_DC68-03676Y-00_EN.indd 6 2017/5/16 10:49:19English 7 Safety information Do not pull the power cord when unplugging the power plug.

• Unplug the power plug by holding the plug.

• Failure to do so may result in electric shock or re. This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible. Installation cautions CAUTION This appliance should be positioned in such a way that the power plug is easily accessible.

• Failure to do so may result in electric shock or re due to electric leakage. Install your appliance on a solid, level oor that can support its weight.

• Failure to do so may result in abnormal vibrations, movement, noise, or problems with the product. Critical usage warnings WARNING If the appliance is ooded, turn off the water & power supplies immediately and contact your nearest service centre.

• Do not touch the power plug with wet hands.

• Failure to do so may result in electric shock. If the appliance generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest service centre.

• Failure to do so may result in electric shock or re. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the appliance or power cord.

• Do not use a ventilating fan.

• A spark may result in an explosion or re. Do not let children play in or on the washing machine. In addition, when disposing of the appliance, remove the washing machine door lever.

• If trapped inside the product, children may suffocate to death. Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washing machine before using it. WW10K6410QX_DC68-03676Y-00_EN.indd 7 2017/5/16 10:49:198 English Safety information Safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other inammable or explosive substances.

• This may result in electric shock, re, or an explosion. Do not open the washing machine door by force while it is operating (high-temperature washing/drying/spinning).

• Water owing out of the washing machine may result in burns or cause the oor to be slippery. This may result in injury.

• Opening the door by force may result in damage to the product or injury. Do not insert your hand under the washing machine while an operation is in progress.

• This may result in injury. Do not touch the power plug with wet hands.

• This may result in electric shock. Do not turn the appliance off by unplugging the power plug while an operation is in progress.

• Plugging the power plug into the wall socket again may cause a spark and result in electric shock or re. Do not let children or the inrm use this washing machine without proper supervision. Do not let children climb in or onto the appliance.

• This may result in electric shock, burns or injury. Do not insert your hand or a metal object under the washing machine while it is operating.

• This may result in injury. Do not unplug the appliance by pulling the power cord. Always grip the plug rmly and pull it straight out of the outlet.

• Damage to the power cord may cause a short-circuit, re and/or electric shock. Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use a fuse (such as copper, steel wire, etc.) other than a standard fuse.

• When the appliance needs to be repaired or reinstalled, contact your nearest service centre.

• Failure to do so may result in electric shock, re, problems with the product, or injury. If the water supply hose comes loose from the water tap and oods the appliance, unplug the power plug.

• Failure to do so may result in electric shock or re. Unplug the power plug when the appliance is not being used for long periods of time or during a thunder or lightning storm.

• Failure to do so may result in electric shock or re. WW10K6410QX_DC68-03676Y-00_EN.indd 8 2017/5/16 10:49:19English 9 Safety information If any foreign substance enters into the appliance, unplug the power plug and contact you nearest Samsung Customer Service.

• This may result in electric shock or re. Do not let children (or pets) play in or on your washing machine. The washing machine door does not open easily from the inside and children may be seriously injured if trapped inside. Usage cautions CAUTION When the washing machine is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washing machine using a damp, soft cloth.

• Failure to do so may result in discolouration, deformation, damage, or rust. The front glass may be broken by a strong impact. Take care when using the washing machine.

• If the glass is broken, it may result in injury. After a water supply failure or when reconnecting the water supply hose, open the water tap slowly. Open the water tap slowly after a long period of non-use.

• The air pressure in the water supply hose or the water pipe may damage a product part or result in a water leak. If a draining error occurs during an operation, check if there is a draining problem.

• If the washing machine is used when it is ooded because of a draining problem, it may result in electric shock or re. Insert the laundry into the washing machine completely so that the laundry does not get caught in the door.

• If laundry gets caught in the door, it may result in damage to the laundry or the washing machine, or result in a water leak. Turn the water supply off when the washing machine is not being used. Ensure that the screws on the water supply hose connector are properly tightened.

• Failure to do so may result in property damage or injury. Ensure that the rubber seal and front door glass are not contaminated by a foreign substance (e.g. waste, thread, hair, etc.).

• If a foreign substance is caught in the door or the door is not completely closed, it may cause a water leak. WW10K6410QX_DC68-03676Y-00_EN.indd 9 2017/5/16 10:49:1910 English Safety information Safety information Open the water tap and check if the water supply hose connector is rmly tightened and that there is no water leak before using the product.

• If the screws on the water supply hose connector are loose, it may result in a water leak. The product you have purchased is designed for domestic use only. Using the product for business purposes qualies as a product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse. Do not stand on the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

• This may result in electric shock, re, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.

• As well as being harmful to humans, this may result in electric shock, re or problems with the product. Do not place objects that generate electromagnetic elds near the washing machine.

• This may result in injury due to a malfunction. Water drained during a high-temperature wash or drying cycle is hot. Do not touch the water.

• This may result in burns or injury. Do not wash, spin, or dry water-proof seats, mats, or clothing (*) unless your appliance has a special cycle for washing these items. (*): Woollen bedding, rain covers, shing vests, ski pants, sleeping bags, diaper covers, sweat suits, and bicycle, motor cycle and car covers, etc.

• Do not wash thick or hard mats even if the washing machine mark is on the care label. This may result in injury or damage to the washing machine, walls, oor, or clothing due to abnormal vibrations.

• Do not wash throw rugs or doormats with rubber backing. The rubber backing may come off and stick to inside the drum, and this may result in malfunction such as a drainage error. Do not operate the washing machine when the detergent drawer is removed.

• This may result in electric shock or injury due to a water leak. Do not touch the insides of the drum during or just after drying as it is hot.

• This may result in burns. Do not insert your hand into the detergent drawer.

• This may result in injury as your hand may be caught by the detergent input device.

• The liquid detergent guide (applicable models only) is not used for powder detergent. Remove the guide when using powder detergent. WW10K6410QX_DC68-03676Y-00_EN.indd 10 2017/5/16 10:49:20English 11 Safety information Do not place any objects (such as shoes, food waste, animals) other than laundry into the washing machine.

• This may result in damage to the washing machine, or injury and death in the case of pets due to the abnormal vibrations. Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.

• This may result in electric shock or injury. Do not wash laundry contaminated by oils, creams or lotions usually found in skincare shops or massage clinics.

• This may cause the rubber seal to become deformed and result in a water leak. Do not leave metal objects such as safety pins, hair pins or bleach in the drum for long periods of time.

• This may cause the drum to rust.

• If rust starts appearing on the surface of the drum, apply a (neutral) cleansing agent to the surface and use a sponge to clean it. Never use a metal brush. Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent.

• This may result in spontaneous combustion or ignition due to the heat from the oxidation of the oil. Do not use water from water cooling/heating devices.

• This may result in problems with the washing machine. Do not use natural hand-washing soap for the washing machine.

• If it hardens and accumulates inside the washing machine, it may result in problems with the product, discolouration, rust, or bad odours. Place socks and brassieres in a washing net and wash them with the other laundry. Do not wash large laundry items such as bedding in the washing net.

• Failure to do so may result in injury due to abnormal vibrations. Do not use hardened detergent.

• If it accumulates inside the washing machine, it may result in a water leak. Make sure that the pockets of all the clothing items to be washed are empty.

• Hard, sharp objects such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance. Do not wash clothing with large buckles, buttons or other heavy metal objects. Sort the laundry by colour on the basis of its colorfastness and select the recommended cycle, water temperature and additional functions.

• This may result in discolouration or fabric damage. WW10K6410QX_DC68-03676Y-00_EN.indd 11 2017/5/16 10:49:2012 English Safety information Safety information Take care that children’s ngers are not caught in the door when you close it.

• Failure to do so may result in injury. Critical cleaning warnings WARNING Do not clean the appliance by spraying water directly onto it. Do not use the a strong acidic cleaning agent. Do not use benzene, thinner or alcohol to clean the appliance.

• This may result in discolouration, deformation, damage, electric shock or re. Before cleaning or performing maintenance, unplug the appliance from the wall socket.

• Failure to do so may result in electric shock or re. WW10K6410QX_DC68-03676Y-00_EN.indd 12 2017/5/16 10:49:20English 13 Installation Installation Follow these instructions carefully to ensure proper installation of the washing machine and to prevent accidents when doing laundry. What’s included Make sure all the parts are included in the product package. If you have a problem with the washing machine or the parts, contact a local Samsung customer centre or the retailer.

• Bolt caps : The provided number (3 to 6) of bolt caps depends on the model.

• Hot water hose: Applicable models only.

• Liquid detergent guide: Applicable models only. WW10K6410QX_DC68-03676Y-00_EN.indd 14 2017/5/16 10:49:20English 15 Installation Installation requirements Electrical supply and grounding

• AC 220-240 V / 50 Hz fuse or circuit breaker is required

• Use an individual branch circuit specic to the washing machine To ensure proper grounding, the washing machine comes with a power cord featuring a three-prong grounding plug for use in a properly installed and grounded outlet. Check with a qualied electrician or serviceperson if you are not sure about the grounding. Do not modify the provided plug. If it does not t the outlet, call a qualied electrician to install a proper outlet. WARNING

• Do NOT use an extension cord.

• Use only the power cord that comes with the washing machine.

• Do NOT connect the ground wire to plastic plumbing, gas lines, or hot water pipes.

• Improperly connected grounding conductors may cause electric shock. Water supply A proper water pressure for this washing machine is between 50 kPa and 800 kPa. Water pressure less than 50 kPa may cause the water valve not to close completely. Or, it may take longer to ll the drum, causing the washing machine to turn off. Water taps must be within 120 cm from the rear of the washing machine so that the provided inlet hoses reach the washing machine. To reduce the risk of leaks:

• Make sure water taps are easily accessible.

• Turn off the taps when the washing machine is not in use.

• Check for any leaks at the water inlet hose ttings on a regular basis. CAUTION Before using the washing machine for the rst time, check all connections at the water valve and taps for any leaks. Drain Samsung recommends a standpipe in height of 60-90 cm. The drain hose must be connected through the hose clip to the standpipe, and the standpipe must fully cover the drain hose. WW10K6410QX_DC68-03676Y-00_EN.indd 15 2017/5/16 10:49:2016 English Installation Installation Flooring For best performance, the washing machine must be installed on a solid oor. Wood oors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft tile surfaces are not a good resistance to vibrations and may cause the washing machine to move slightly during the spin cycle. CAUTION Do NOT install the washing machine on a platform or a poorly supported structure. Water temperature Do not install the washing machine in areas where water may freeze as the washing machine always retains some water in its water valves, pumps, and/or hoses. Frozen water left in the connection parts may cause damage to belts, the pump, and other components of the washing machine. Alcove or closet installation Minimum clearance for stable operation: Sides 25 mm Rear 50 mm Top 25 mm Front 550 mm If both the washing machine and a dryer are installed in the same location, the front of the alcove or closet must have at least a 550 mm unobstructed air opening. Your washing machine alone does not require a specic air opening. WW10K6410QX_DC68-03676Y-00_EN.indd 16 2017/5/16 10:49:21English 17 Installation Step-by-step installation STEP 1 Select a location Location requirements:

• Solid, level surface without carpeting or ooring that may obstruct ventilation

• Away from direct sunlight

• Adequate room for ventilation and wiring

• The ambient temperature is always higher than the freezing point (0 ˚C)

• Away from a heat source STEP 2 Remove the shipping bolts Unpack the product package and remove all shipping bolts.

1. Loosen all shipping bolts on the rear of

the machine using the supplied spanner.

2. Fill the holes with the supplied plastic

bolt caps. Keep the shipping bolts for future use. WARNING Packaging materials can be dangerous to children. Dispose all packaging material (plastic bags, polystyrene, etc.) out of children’s reach. WW10K6410QX_DC68-03676Y-00_EN.indd 17 2017/5/16 10:49:2118 English Installation Installation STEP 3 Adjust the levelling feet

1. Gently slide the washing machine into

position. Excessive force may damage the levelling feet.

2. Level the washing machine by manually

adjusting the levelling feet.

3. When levelling is complete, tighten the

nuts using the spanner. STEP 4 Connect the water hose The provided hose adaptor may differ with the model. This step guides you through connecting the connector-type adaptor. If you are provided with the screw-type adaptor, go to 7.

Connect the water hose to the water tap.

1. Remove the adaptor (A) from the water

2. Use a Philips screwdriver to loosen four

3. Holde the adaptor and turn part (C) in

the arrow direction to loosen it by 5 mm

4. Insert the adaptor into the water tap,

and tighten the screws while lifting up the adaptor.

5. Turn part (C) in the arrow direction to

6. While holding down part (E), connect the

water hose to the adaptor. Then, release part (E). The hose ts into the adaptor with a clicking sound.

7. If you are using a screw type of water

tap, use the provided screw-type adaptor to connect to the water tap as shown. WW10K6410QX_DC68-03676Y-00_EN.indd 19 2017/5/16 10:49:2120 English Installation Installation

8. Connect the other end of the water

hose to the inlet valve on the back of the washing machine. Turn the hose clockwise to tighten.

9. Open the water tap and check if there

are any leaks around the connection areas. If there are water leaks, repeat the steps above. WARNING Stop using the washing machine if there is a water leak, and contact a local Samsung service centre. Otherwise, this may cause electric shock. CAUTION Do not stretch the water hose by force. If the hose is too short, replace the hose with a longer, high-pressure hose. NOTE

• After connecting the water hose to the adaptor, check if it is connected properly by pulling the water hose downwards.

• Use a popular type of water taps. If the tap is square-shaped or too big, remove the spacer ring before inserting the tap into the adaptor. WW10K6410QX_DC68-03676Y-00_EN.indd 20 2017/5/16 10:49:22English 21 Installation For models with an additional hot water inlet:

1. Connect the red end of the hot water

hose to the hot water inlet on the back of the machine.

2. Connect the other end of the hot water

hose to the hot water tap. Aqua hose (applicable models only)

The aqua hose alerts users of a risk of water leaks. It senses the water ow and turns red on the centre indicator (A) in case of a leak. WW10K6410QX_DC68-03676Y-00_EN.indd 21 2017/5/16 10:49:2222 English Installation Installation STEP 5 Position the drain hose The drain hose can be positioned in three ways:

Over the edge of a wash basin The drain hose must be placed at a height of between 60 cm and 90 cm (*) from the oor. To keep the spout of the drain hose bent, use the supplied plastic hose guide (A). Secure the guide to the wall using a hook to ensure stable drainage. ln a sink drain pipe The drain pipe must be above the sink siphon so that the end of the hose is at least 60 cm above the oor.

ln a drain pipe The drain pipe should be between 60 cm and 90 cm high (*). It is advisable to use a 65 cm high vertical pipe. Make sure the drain hose is connected to the stand pipe at a slant. Drain standpipe requirements:

• Minimum diameter of 5 cm

• Minimum carry-away capacity of 60 litres per minute STEP 6 Power on Plug the power cord into a wall socket featuring an AC 220-240 V / 50 Hz approved electrical outlet protected by a fuse or circuit breaker. Then, press Power to turn on the washing machine. WW10K6410QX_DC68-03676Y-00_EN.indd 22 2017/5/16 10:49:22English 23 Before you start Before you start Initial settings Run Calibration (recommended) Calibration ensures accurate weight detection by the washing machine. Make sure the drum is empty before running Calibration.

1. Power off, and then power on the washing machine.

2. Hold down Temp. and Delay End simultaneously for 3 seconds to enter Calibration mode.

The “CB” message appears.

3. Press Start/Pause to run the Calibration cycle.

4. The drum will rotate clockwise and counter-clockwise for about 3 minutes.

5. When the cycle is complete, “0” appears on the display and the washing machine will turn

6. The washing machine is now ready for use.

Laundry guidelines STEP 1 Sort Sort the laundry according to these criteria:

• Care Label: Sort the laundry into cottons, mixed bres, synthetics, silks, wools, and rayon.

• Colour: Separate whites from colours.

• Size: Mixing different-sized items together in the drum improves the washing performance.

• Sensitivity: Wash delicate items separately for pure, new woollen items, curtains, and silk items. Check the labels on the items. NOTE Make sure to check the care label on the clothing, and sort them accordingly before starting the wash. WW10K6410QX_DC68-03676Y-00_EN.indd 23 2017/5/16 10:49:2224 English Before you start Before you start STEP 2 Empty pockets Empty all the pockets of your laundry items

• Metal objects such as coins, pins, and buckles on clothing may damage other laundry items as well as the drum. Turn clothing with buttons and embroideries inside out

• If pants or jacket zippers are open while washing, the drum may be damaged. Zippers should be closed and xed with a string.

• Clothing with long strings may become entangled with other clothes. Make sure to tie the strings before starting the wash. STEP 3 Use a laundry net

• Brassieres (water washable) must be placed in a laundry net. Metal parts of the brassieres may break through and tear other laundry items.

• Small, light clothing such as socks, gloves, stockings, and handkerchiefs may become caught around the door. Place them inside a ne laundry net.

• Do not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that could move the washing machine and result in injury. STEP 4 Prewash (if necessary) Select the Prewash option for the selected course if the laundry is heavily soiled. Do not use the Prewash option when detergent is manually added into the drum or if applying liquid detergent. STEP 5 Determine the load capacity Do not overload the washing machine. Overloading may cause the washing machine to not wash properly. For the load capacity for the type of clothing, see page 31. NOTE When washing bedding or bedding covers, the wash time may be lengthened or the spin efciency may be reduced. For bedding or bedding covers, the recommended maximum spin cycle speed is 800 rpm, and the load capacity is 2.0 kg or less. CAUTION If the laundry is unbalanced and the “Ub” information code is displayed, redistribute the load. Unbalanced laundry may reduce the spinning performance. WW10K6410QX_DC68-03676Y-00_EN.indd 24 2017/5/16 10:49:22English 25 Before you start STEP 6 Apply a proper detergent type The type of detergent depends on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. NOTE

• Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your local area. If you are not sure about the water hardness, contact a local water authority.

• Do not use detergent that tends to be hardened or solidied. This detergent may remain after the rinse cycle, blocking the drain outlet. CAUTION When washing wool using the wool course, use only a neutral liquid detergent. If used with the Wool course, powder detergent may remain on the laundry and discolour the laundry. Laundry capsules To get the best results from using laundry capsules, please follow these instructions.

1. Put the capsule in the bottom of the

empty drum towards the rear.

2. Put the laundry in the drum on top of

the capsule. WW10K6410QX_DC68-03676Y-00_EN.indd 25 2017/5/16 10:49:2326 English Before you start Before you start Detergent drawer guidelines The washing machine provides a three-compartment dispenser: the left compartment for the main wash, the front-right for fabric softeners, and the rear-right for the preliminary wash.

01 Prewash compartment: Apply prewash detergent or starch.

Main-wash compartment: Apply main-wash detergent, water softener, soaking detergent, bleach, and/or stain removers.

Softener compartment: Apply additives such as fabric softener. Do not exceed the max line (A). CAUTION

• Do not open the detergent drawer while the washing machine is operating.

• Do not use the following types of detergent:

• To prevent the compartment clogging, concentrated or highly-enriched agents (fabric softener or detergent) must be diluted with water before being applied. To apply washing agents to the detergent drawer

1. Slide open the detergent drawer.

2. Apply laundry detergent to the

main-wash compartment as instructed or recommended by the manufacturer. To use liquid detergent, see page 28. WW10K6410QX_DC68-03676Y-00_EN.indd 26 2017/5/16 10:49:23English 27 Before you start

3. Apply fabric softener to the softener

compartment. Do not exceed the max line (A).

4. If you want to prewash, apply

prewash detergent to the prewash compartment as instructed or recommended by the manufacturer.

5. Close the detergent drawer.

• Do not apply powder detergent to the liquid detergent guide.

• Concentrated fabric softener must be diluted with water before applied.

• Do not apply main-wash detergent to the softener compartment. WW10K6410QX_DC68-03676Y-00_EN.indd 27 2017/5/16 10:49:2328 English Before you start Before you start To use liquid detergent (applicable models only)

First insert the provided liquid container in the main-wash compartment. Then, apply liquid detergent to the container below the marked max line (A). NOTE

• Insert the liquid detergent guide only after you remove the detergent drawer from the washing machine by pressing release lever (A).

• After a wash, some liquid detergent may remain in the detergent drawer. CAUTION

• Do not exceed the max line that is marked inside the container.

01 Cycle Selector Turn the dial to select a cycle. 02 Display The display shows current cycle information and estimated time remaining, or an information code when a problem occurs. 03 Temp. Press to change the water temperature for the current cycle. 04 Rinse Press to change the rinse count for the current cycle. You can set the rinse count to a max of 5, depending on the cycle. 05 Spin Press to change the spinning speed for the current cycle.

• Rinse Hold ( ): The nal rinse process is suspended so that the laundry remains in the water. To unload the laundry, run a drain or spin process.

• No Spin : The drum does not spin after the nal drain process.

• Spin Only : To run the Spin Only cycle, press Spin for 3 seconds. When the cycle time and spinning speed appear, press Spin repeatedly until a desired spinning speed is selected. Then, press Start/Pause to start the cycle. The spinning time depends on the selected cycle. 06 Options Press to select an option from Intensive and Pre Wash. Press again to deselect.

• Availability of the options depends on the cycle. 07 Bubble Soak Press to activate/deactivate the Bubble Soak function. This function helps remove a wide variety of stubborn stains. 08 Delay End Delay End lets you set the end time of the current cycle. Based on your settings, the start time of the cycle will be determined by the machine’s internal logic. For example, this setting is useful for programming your machine to nish a wash at the time you normally return home from work.

• Press to choose a preset unit of hours. WW10K6410QX_DC68-03676Y-00_EN.indd 29 2017/5/16 10:49:2430 English Operations Operations 09 Quick Wash 15’/30’ For lightly soiled garments of less than 2 kg that you want to wash quickly.

• This option is available only when the COTTON cycle is selected.

• The cycle time is subject to change, depending on the detergent amount, water level, and contamination level of the load. 10 Power Press to turn on/off the washing machine. 11 Start/Pause Press to start or stop operation. Simple steps to start

1. Press Power to turn on the washing machine.

2. Turn the Cycle Selector to select a course.

3. Change the cycle settings (Temp., Rinse, and Spin) as necessary.

4. To add an option, press Options. Use the button again to choose a preferred item.

5. The machine provides two respective buttons for Bubble Soak and Delay End for easy

access. If you want to use one of these options, press the corresponding button.

6. Press Start/Pause.

To change the cycle during operation

1. Press Start/Pause to stop operation.

2. Select a different cycle.

3. Press Start/Pause again to start the new cycle.

WW10K6410QX_DC68-03676Y-00_EN.indd 30 2017/5/16 10:49:24English 31 Operations Cycle overview Standard cycles Cycle Description Max load (kg) COTTON

• For cottons, bed linens, table linens, underwear, towels, or shirts. The washing time and the rinse count are automatically adjusted according to the load.

• The energy label specications have been determined by using the following program according to UAE.S 5010 2:2013. The program is “Cotton 60 ˚C + Intensive”. Max COTTON

• Optimal performance with lower energy for cotton fabrics, bed linens, table linens, underwear, towels, or shirts. For energy saving, the actual washing temperature may be lower than specied Max SYNTHETICS

• For blouses or shirts that are made of polyester (diolen, trevira), polyamide (perlon, nylon), or the like.

• Specic for machine-washable wool for loads less than 2.0 kg.

• The wool cycle features gentle cradling and soaking to protect the wool bres from shrinkage/distortion.

• A neutral detergent is recommended.

• Featuring an additional spin process to effectively remove moisture from laundry.

• Featuring an additional rinse process after applying fabric softener to the laundry.

• Cleans the drum by removing dirt and bacteria from the drum.

• Perform once every 40 washes with no detergent or bleach applied.

• Make sure the drum is empty.

• Do not use any cleaning agents for cleaning the drum.

• Fast completion within 1 hour for everyday items such as underwear and shirts.

• The cycle time will differ depending on the water supply conditions, and the load and type of laundry.

• Low temperature ecobubble cycle helps reduce power consumption.

• For bed spreads, bed sheets, bedding covers, etc.

• For best results, wash only 1 type of bedding and make sure the load weighs less than 2.0 kg.

• Featuring a high-temperature wash and extra rinses to help remove the remaining detergent effectively.

• For outdoor clothes, skiwear, and sportswear that are made of functional materials such as spandex, stretch, and micro-bre

• Featuring additional rinses and reduced spinning to ensure that the laundry is washed gently and rinsed thoroughly.

• For badly soiled laundry. The operation time for each cycle is longer than normal. Pre Wash

• This will add a preliminary washing cycle before the main wash cycle. Bubble Soak

• Bubble Soak helps remove a variety of stubborn stains.

• With Bubble Soak selected, laundry is thoroughly soaked in water bubbles for effective washing.

• Bubble Soak is available with and adds up to 30 minutes to 5 cycles: COTTON, SYNTHETICS, SUPER SPEED, BEDDING and BABY CARE. Delay End You can set the washing machine to nish your wash automatically at a later time, choosing a delay of between 1(60minute) to 24 hours (in 1 hour increments). The hour displayed indicates the time the wash will nish.

1. Select a cycle. Then change the cycle settings if necessary.

2. Press Delay End repeatedly until a desired end time is set.

3. Press Start/Pause.

The corresponding indicator turns on with the clock running.

4. To cancel the Delay End, restart the washing machine by pressing Power.

Real-life case You want to nish a two-hour course 3 hours later from now. For this, you add the Delay End option to the current cycle with the 3-hour setting, and press Start/Pause at 2:00 p.m. Then, what happens? The washing machine starts operating at 3:00 p.m., and ends at 5:00 p.m. Provided below is the time line for this example. 2:00 pm Set the Delay End to 3 hours 3:00 pm Start 5:00 pm End WW10K6410QX_DC68-03676Y-00_EN.indd 33 2017/5/16 10:49:2534 English Operations Operations Special features AddWash When the AddWash indicator turns on, you can stop operation of the machine and put additional laundry or softener into the drum. The Add Door opens by more than 130° for easy access.

1. Press Start/Pause to stop operation.

2. Press the upper area of the Add Door

until you hear a clicking sound to unlock. Pull the handle of the Add Door to open.

3. Open the Add Door and insert additional

laundry or softener into the drum.

4. Push to lock the Add Door until you hear

5. Press Start/Pause to resume operation.

CAUTION Do not put excessive force on the Add Door. It may break. NOTE The water inside the drum does not leak if the Add Door is closed properly. Water drops may form around the window, but they do not leak from inside the drum. WW10K6410QX_DC68-03676Y-00_EN.indd 34 2017/5/16 10:49:25English 35 Operations CAUTION

• Do not open the Add Door if suds have formed inside the drum that rise above the level of the Add Door.

• Do not attempt to open the Add Door while the machine is operating without rst pressing Start/Pause. Please note that the Add Door can be opened unintentionally (without pressing Start/Pause) when the wash is complete.

• Do not add an excessive load through the Add Door. Performance may be degraded.

• Do not use the lower area of the Add Door as a handle. Your ngers may be caught.

• Make sure that no laundry is caught in the Add Door.

• Keep your pets out of the washing machine, especially the Add Door.

• When using hot water for the wash, the Add Door seems to leak water after opening and closing the Add Door. This is normal, simply because steam emerging from the open Add Door has cooled and formed water drops on the surface.

• When the Add Door closes, the door seals up and no water can leak. However, you may encounter what appears to be water leak around the door - some residual water remaining around the Add Door may form water drops. This is normal.

• Neither the main door or the Add Door can opened when the water temperature is over 50 ˚C. If the water level inside the drum is over a certain point, the main door cannot be opened.

• If an information code of DDC appears on the display, see the “Information codes” section for further actions. WW10K6410QX_DC68-03676Y-00_EN.indd 35 2017/5/16 10:49:2536 English Operations Operations Settings Child Lock To prevent accidents by children, Child Lock locks all buttons except for Power.

• To set the Child Lock function, hold down Temp. and Rinse simultaneously for 3 seconds. To activate, press Start/ Pause.

• Before you press Start/Pause, you can still open the door or change settings by pressing corresponding buttons. Once you press Start/Pause to run the machine, Child Lock will be activated. To deactivate Child Lock temporarily Open the door, and hold down both Temp. and Rinse simultaneously for 3 seconds. Child Lock is deactivated temporarily for 1 minute, and the indicator blinks. Add laundry, for example, and close the door within the next 2 minutes. Otherwise, the machine sounds an alert for another 2 minutes. Once you close the door, Child Lock will be reactivated with the indicator turned on. NOTE In the Child Lock state, you must rs deactivate the Child Lock if you want to add detergent or laundry, or change the current settings. To cancel the Child Lock Press and hold Temp. and Rinse simultaneously for 6 seconds. Alternatively, when the Child Lock is deactivated temporarily, press and hold Temp. and Rinse simultaneously for 3 seconds. Sound On/Off You can turn on or off the key. Your setting will remain effective after you restart the machine.

• To mute the sound, hold down Rinse and Spin simultaneously for 3 seconds.

• To unmute the sound, hold down again for 3 seconds. WW10K6410QX_DC68-03676Y-00_EN.indd 36 2017/5/16 10:49:26English 37 Maintenance Maintenance Keep the washing machine clean to prevent deteriorated performance and to preserve its life cycle. Eco drum clean Perform this cycle regularly to clean the drum and to remove bacteria from it.

1. Press Power to turn on the washing machine.

2. Turn the Cycle Selector to select ECO DRUM CLEAN.

3. Press Start/Pause.

NOTE The water temperature for ECO DRUM CLEAN is set to 70 °C, which cannot be changed. CAUTION Do not use any cleaning agents for cleaning the drum. Chemical residue in the drum deteriorates the washing performance. ECO DRUM CLEAN reminder

• The ECO DRUM CLEAN reminder appears on the main screen once every 40 washes. It is advisable to perform the ECO DRUM CLEAN regularly.

• When you rst see this reminder, you can ignore the reminder for 6 consecutiv washes. From the 7

wash, the reminder no longer appears. However, it appears again on the second 40

wash. WW10K6410QX_DC68-03676Y-00_EN.indd 37 2017/5/16 10:49:2638 English Maintenance Maintenance Smart Check To enable this function, you must rst download the Samsung Smart Washer app at the Play Store or the App Store, and install it on a mobile device featuring a camera function. The Smart Check function has been optimized for Galaxy & iPhone series (applicable models only).

1. Press and hold the Spin and Options buttons simultaneously for 3 seconds to enter the

2. The washing machine starts the self-diagnosis procedure and display an information code

if a problem is detected.

3. Run the Samsung Smart Washer app on your mobile device, and tap Smart Check.

4. Put the mobile device close to the washing machine’s display so that the mobile device

and the washing machine face each other. Then, the information code will be recognized automatically by the app.

5. When the information code is recognized correctly, the app provides detailed information

about the problem with applicable counteractions. NOTE

• Smart Check mode will be disabled once you press a button or control after the machine powers on.

• The function name, Smart Check, may differ depending on the language.

• If there is strong reected light on the washing machine display, the app may fail to recognize the information code.

• If the app fails to recognize the Smart Check code consecutively, enter the information code manually onto the app screen. WW10K6410QX_DC68-03676Y-00_EN.indd 38 2017/5/16 10:49:26English 39 Maintenance Emergency drain In case of a power failure, drain the water inside the drum before taking out the laundry.

1. Power off and unplug the washing

machine from the electrical outlet.

2. Gently press the top area of the lte

3. Put an empty, spacious container around

the cover, and stretch the emergency drain tube to the container while holding the tube cap (B).

4. Open the tube cap and let water in the

Emergency drain tube (C) ow into the container.

5. When done, close the tube cap, and

reinsert the tube. Then, close the lter cover. NOTE Use a spacious container because the water in the drum may be more than expected. WW10K6410QX_DC68-03676Y-00_EN.indd 39 2017/5/16 10:49:2740 English Maintenance Maintenance Cleaning Surface of the washing machine Use a soft cloth with a nonabrasive household detergent. Do not spray water onto the washing machine. Add Door

2. Use a wet cloth to clean the Add Door.

- Do not use cleaning agents. Discolouration may occur. - Use caution when cleaning the rubber packing and the locking mechanism (A). - Dust off the window area regularly.

3. Wipe up and close the Add Door until

you hear a clicking sound. CAUTION

• Do not apply force on the Add Door. It may break.

• Do not leave the Add Door open while the machine is operating.

• Do not put heavy objects on the Add Door at any time.

• To prevent physical injury, do not touch the Add Door while the drum is rotating.

• Do not open the Add Door while the machine is operating. This may cause physical injury.

• Do not manipulate the feature panel while the Add Door is open. This may cause physical injury or system failure.

• Do not input objects other than laundry.

• Do not input bulky items to the drum through the Add Door.

• Do not pull out the rubber packing of the Add Door when cleaning. This may cause damage. WW10K6410QX_DC68-03676Y-00_EN.indd 40 2017/5/16 10:49:27English 41 Maintenance Mesh lter Clean the mesh lter of the water hose once or twice a year.

1. Turn off the washing machine, and

unplug the power cord.

2. Close the water tap.

3. Loosen and disconnect the water hose

from the back of the washing machine. Cover the hose with a cloth to prevent water from gushing out.

4. Use pliers to pull out the mesh lter

from the inlet valve.

5. Submerge the mesh lter deeply in

water so that the threaded connector is also submerged.

6. Dry the mesh lter completely in the

7. Reinsert the mesh lter into the inlet

valve, and reconnect the water hose to the inlet valve.

8. Open the water tap.

NOTE If the mesh lter is clogged, an information code of “4C” appears on the screen. WW10K6410QX_DC68-03676Y-00_EN.indd 41 2017/5/16 10:49:2742 English Maintenance Maintenance Pump lter It is advisable to clean the pump lter 5 or 6 times a year to prevent its clogging. A clogged pump lter may reduce the bubble effect.

1. Turn off the washing machine, and

unplug the power cord.

2. Drain the remaining water inside the

drum drum. See the “Emergency drain” section.

3. Gently press the top area of the lte

4. Turn the pump lter knob to the left, and

drain off the remaining water.

5. Clean the pump lter using soft brushes.

Make sure the drain pump propeller inside the lter is unclogged.

6. Reinsert the pump lter, and turn the

lter knob to the right. NOTE

• Some pump lters feature a safety knob that is designed to prevent accidents by children. To open the safety knob of the pump lter, push in and turn it anticlockwise. The spring mechanism of the safety knob helps open the lter.

• To close the safety knob of the pump lter, turn it clockwise. The spring makes a rattling sound, which is normal. NOTE If the pump lter is clogged, an information code of “5C” appears on the screen. CAUTION

• Make sure the lter knob is closed properly after cleaning the lter. Otherwise, this may cause a leak.

• Make sure the lter is inserted properly after cleaning it. Otherwise, this may cause an operational failure or a leak. WW10K6410QX_DC68-03676Y-00_EN.indd 42 2017/5/16 10:49:28English 43 Maintenance Detergent Drawer

1. While holding down the release lever (A)

on the inner of the drawer, slide open the drawer.

2. Remove the release lever and the Liquid

detergent guide from the drawer.

3. Clean the drawer components in owing

water using a soft brush.

4. Clean the drawer recess using a soft

5. Reinsert the release lever and the Liquid

detergent guide to the drawer.

6. Slide the drawer inward to close it.

NOTE To remove remaining detergent, perform the RINSE+SPIN cycle with the drum being empty. WW10K6410QX_DC68-03676Y-00_EN.indd 43 2017/5/16 10:49:2844 English Maintenance MaintenanceMaintenance Recovery from freezing The washing machine may freeze when it drops below 0 °C.

1. Turn off the washing machine, and unplug the power cord.

2. Pour warm water over the water tap to loosen the water hose.

3. Disconnect the water hose, and soak it in warm water.

4. Pour warm water into the drum and leave it for about 10 minutes.

5. Reconnect the water hose to the water tap.

NOTE If the washing machine still doesn’t operate normally, repeat the above steps until it operates normally. Care against an extended time of disuse Avoid leaving the washing machine unused for an extended time. If this is the case, drain the washing machine and unplug the power cord.

1. Turn the Cycle Selector to select a RINSE+SPIN.

2. Empty the drum, and press Start/Pause.

3. When the cycle is complete, close the water tap and disconnect the water hose.

4. Turn off the washing machine, and unplug the power cord.

5. Open the door to let air circulate through the drum.

WW10K6410QX_DC68-03676Y-00_EN.indd 44 2017/5/16 10:49:28English 45 Troubleshooting Troubleshooting Checkpoints If you encounter a problem with the washing machine, rst check the table below and try the suggestions. Problem Action Does not start.

• Make sure the washing machine is plugged in.

• Make sure the door is properly closed.

• Make sure the water taps are open.

• Make sure to press or tap Start/Pause to start the washing machine.

• Make sure Child Lock is not activated.

• Before the washing machine starts to ll, it will make a series of clicking noises to check the door lock and does a quick drain.

• Check the fuse or reset the circuit breaker. Water supply is insufcient, or no water is supplied.

• Fully open the water tap.

• Make sure the door is properly closed.

• Make sure the water supply hose is not frozen.

• Make sure the water supply hose is not kinked or clogged.

• Make sure there is sufcient water pressure. After a cycle, detergent remains in the detergent drawer.

• Make sure the washing machine is running with sufcient water pressure.

• Make sure the detergent is added to the centre of the detergent drawer.

• Make sure the rinse cap is inserted properly.

• If using granular detergent, make sure the detergent selector is in the upper position.

• Remove the rinse cap and clean the detergent drawer. Excessive vibrations or makes noise.

• Make sure the washing machine is installed on a level, solid oor that is not slippery. If the oor is not level, use the levelling feet to adjust the height of the washing machine.

• Make sure the shipping bolts are removed.

• Make sure the washing machine is not contacting any other object.

• Make sure the laundry load is balanced.

• The motor can cause noise during normal operation.

• Overalls or metal-decorated clothes can cause noise while being washed. This is normal.

• Metal objects such as coins can cause noise. After washing, remove these objects from the drum or lter case. WW10K6410QX_DC68-03676Y-00_EN.indd 45 2017/5/16 10:49:2846 English Troubleshooting Troubleshooting Problem Action Does not drain and/ or spin.

• Make sure the drain hose is straightened all the way to the drain system. If you encounter a drain restriction, call for service.

• Make sure the debris lter is not clogged.

• Close the door and press or tap Start/Pause. For your safety, the washing machine will not tumble or spin unless the door is closed.

• Make sure the drain hose is not frozen or clogged.

• Make sure the drain hose is connected to a drain system that is not clogged.

• If the washing machine is not supplied with sufcient power, the washing machine temporarily will not drain or spin. As soon as the washing machine regains sufcient power, it will operate normally. The door does not open.

• Press or tap Start/Pause to stop the washing machine.

• It may take a few moments for the door lock mechanism to disengage.

• The door will not open until 3 minutes after the washing machine has stopped or the power turned off.

• Make sure all the water in the drum is drained.

• The door may not open if water remains in the drum. Drain the drum and open the door manually.

• Make sure the door lock light is off. The door lock light turns off after the washing machine has drained. Excessive suds.

• Make sure you use the recommended types of detergent as appropriate.

• Use high efciency (HE) detergent to prevent oversudsing.

• Reduce the detergent amount for soft water, small loads, or lightly soiled loads.

• Non-HE detergent is not recommended. Cannot apply additional detergent.

• Make sure the remaining amount of detergent and fabric softener is not over the limit. WW10K6410QX_DC68-03676Y-00_EN.indd 46 2017/5/16 10:49:28English 47 Troubleshooting Problem Action Stops.

• Plug the power cord into a live electrical outlet.

• Check the fuse or reset the circuit breaker.

• Close the door and press the Start/Pause button to start the washing machine. For your safety, the washing machine will not tumble or spin unless the door is closed.

• Before the washing machine starts to ll, it will make a series of clicking noises to check the door lock and does a quick drain.

• There may be a pause or soak period in the cycle. Wait briey and the washing machine may start.

• Make sure the mesh lter of the water supply hose at the water taps are not clogged. Periodically clean the mesh lter.

• If the washing machine is not supplied with sufcient power, the washing machine temporarily will not drain or spin. As soon as the washing machine regains sufcient power, it will operate normally. Fills with the wrong water temperature.

• Fully open both taps.

• Make sure the temperature selection is correct.

• Make sure the hoses are connected to the correct taps. Flush water lines.

• Make sure the water heater is set to supply a minimum 120 °F (49 °C) hot water at the tap. Also, check the water heater capacity and recovery rate.

• Disconnect the hoses and clean the mesh lter. The mesh lter may be clogged.

• While the washing machine lls, the water temperature may change as the automatic temperature control feature checks incoming water temperature. This is normal.

• While the washing machine lls, you may notice just hot and/or just cold water going through the dispenser when cold or warm temperatures are selected. This is a normal function of the automatic temperature control feature as the washing machine determines the water temperature. Load is wet at the end of a cycle.

• Use the High or Extra High spin speed.

• Use high efciency (HE) detergent to reduce oversudsing.

• Load is too small. Small loads (one or two items) may become unbalanced and not spin completely.

• Make sure the drain hose is not kinked or clogged. WW10K6410QX_DC68-03676Y-00_EN.indd 47 2017/5/16 10:49:2948 English Troubleshooting Troubleshooting Problem Action Leaks water.

• Make sure the door is properly closed.

• Make sure all hose connections are tight.

• Make sure the end of the drain hose is correctly inserted and secured to the drain system.

• Use high efciency (HE) detergent to prevent oversudsing. Has odours.

• Excessive suds collect in recesses and can cause foul odours.

• Run cleansing cycles to sanitize periodically.

• Clean the door seal (diaphragm).

• Dry the washing machine interior after a cycle has nished. No bubbles are seen (Bubbleshot models only).

• Overloading may screen bubbles.

• Severely contaminated laundry may not generate bubbles. Can I open the Add Door at any time?

• The Add Door can be opened only when the indicator appears. However, it does not open in the following cases: - When the boiling or drying process is running and the internal temperature becomes high. - If you set the Child Lock for safety reasons. - When the drum wash or drum drying cycle is running that does not involve additional laundry. If a problem persists, contact a local Samsung service centre. WW10K6410QX_DC68-03676Y-00_EN.indd 48 2017/5/16 10:49:29English 49 Troubleshooting Information codes If the washing machine fails to operate, you may see an information code on the screen. Check the table below and try the suggestions. Code Action

Water is not supplied.

• Make sure the water taps are open.

• Make sure the water hoses are not clogged.

• Make sure the water taps are not frozen.

• Make sure the washing machine is operating with sufcient water pressure.

• Make sure that the cold water tap and the hot water tap are properly connected.

• Clean the mesh lter as it may be clogged. NOTE When the washer displays the “4C” code, the washer do draining for 3 minutes. During this time, the Power button is inoperative. 4C2

• Make sure the cold water supply hose is rmly connected to the cold water tap. If it is connected to the hot water tap, the laundry may be deformed with some cycles.

Water is not draining.

• Make sure the drain hose is not frozen or clogged.

• Make sure the drain hose is positioned correctly, depending on the connection type.

• Clean the debris lter as it may be clogged.

• Make sure the drain hose is straightened all the way to the drain system.

Operating the washer with the door open.

• Make sure the door is properly closed.

• Make sure laundry is not caught in the door. DC1 The Main Door lock/unlock is not working properly.

• Turn the machine off, and restart the cycle.

• If the information code remains, contact a customer service centre. WW10K6410QX_DC68-03676Y-00_EN.indd 49 2017/5/16 10:49:2950 English Troubleshooting Troubleshooting Code Action DC3 The Add Door lock/unlock is not working properly.

• Turn the machine off, and restart the cycle.

• Restart after spinning.

• If the information code remains on the display, contact a local Samsung service centre. LC, LC1 Check the drain hose.

• Make sure the end of the drain hose is placed on the oor.

• Make sure the drain hose is not clogged.

• If the information code remains, contact a customer service centre. NOTE When the washer displays the “LC,LC1” code, the washer do draining for 3 minutes. During this time, the Power button is inoperative.

Spinning does not work.

• Make sure laundry is spread out evenly.

• Make sure the washing machine is on a at, stable surface.

• Redistribute the load. If only one item of clothing needs washing, such as a bathrobe or pair of jeans, the nal spin result might be unsatisfactory, and an “UB” check message will be shown in the display.

Check the motor for operation.

• Try restarting the cycle.

The electronic control needs to be checked (Over Voltage Error).

• Check the PCB and wire harness.

• Check if power is supplied properly.

• If the information code remains, contact a customer service centre. Low voltage detected

• Check if the power cord is plugged in.

High temperature heating check

The Water Level sensor is not working properly.

• Try power off and restarting the cycle.

• Check WaterLevel Sensor wire harness.

• If the information code remains, contact a customer service centre. NOTE When the washer displays the “1C” code, the washer do draining for 3 minutes. During this time, the Power button is inoperative.

The MEMS sensor is not working properly.

• Turn the machine off, and restart the cycle.

Check communications between main and sub PBAs.

• Try power off and restarting the cycle.

• If the information code remains, contact a customer service centre. AC6 Check communications between main and inverter PBAs.

• Depending on the state, the machine may automatically returns to normal operation.

• Turn the machine off, and restart the cycle.

• If the information code remains, contact a customer service centre. DDC This message appears when you open the Add Door without pressing Pause. If this happens, do one of the following:

• To add laundry, press the Add Door to close it properly. Then, press Start/Pause and try again.

• If you press the Add Door by mistake, press the Add Door again to close it properly. Then, press Start/Pause to resume operation. If any information code keeps appearing on the screen, contact a local Samsung service centre. WW10K6410QX_DC68-03676Y-00_EN.indd 51 2017/5/16 10:49:2952 English Specications SpecicationsSpecications Fabric care chart The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundry problems. Resistant material Do not iron Delicate fabric Can be dry cleaned using any solvent Item can be washed at 95 ˚C Dry Clean Item can be washed at 60 ˚C Dry clean with perchloride, lighter fuel, pure alcohol or R113 only Item can be washed at 40 ˚C Dry clean with aviation fuel, pure alcohol or R113 only Item can be washed at 30 ˚C Do not dry clean Hand wash only Dry at Dry clean only Can be hung to dry Can be bleached in cold water Dry on clothes hanger Do not bleach Tumble dry, normal heat Can be ironed at 200 ˚C max Tumble dry, reduced heat Can be ironed at 150 ˚C max Do not tumble dry Can be ironed at 100 ˚C max WW10K6410QX_DC68-03676Y-00_EN.indd 52 2017/5/16 10:49:31English 53 Specications Protecting the environment

• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

• Do not exceed the detergent quantities recommended in the detergent manufacturer’s instructions.

• Use stain removal products and bleaches before the wash cycle only when strictly necessary.
