Type of product	Desktop computer
Dimensions (W x D x H)	180 x 368 x 405 mm
Weight	8.5 kg
Power supply	300W
Processor	Intel Core i5/i7 (8th/9th Gen)
Memory	DDR4 RAM, up to 64GB
Storage	SSD + HDD options
Graphics	Integrated Intel UHD Graphics
Networking	Gigabit Ethernet, optional Wi-Fi
Ports	USB 3.1 Gen 2, USB-C, HDMI, VGA, DisplayPort, Audio jack
Operating system	Windows 10 Pro
Security	TPM 2.0, Kensington lock slot
Cleaning	Use a soft dry cloth, ensure vents are dust-free
Spare parts availability	RAM, storage, power supply, fans are replaceable
Repairability	Easy access to internal components; user-upgradable

Frequently Asked Questions - Pro E800 G4 ASUS

How do I upgrade the RAM on my ASUS Pro E800 G4?

Turn off the computer and unplug all cables. Open the side panel by removing the two screws at the back. Locate the RAM slots on the motherboard. Push the clips outward to release existing modules, then insert new DDR4 modules firmly until they click. Close the panel and reconnect power. The system will automatically detect the new memory.

How can I clean the inside of my desktop?

Power off and unplug the system. Use compressed air to blow dust from the fans, heatsink, and vents. Avoid using vacuum cleaners which can generate static. Clean the exterior with a soft, lint-free cloth slightly dampened with water. Ensure all components are dry before powering on.

How do I enter the BIOS setup?

Restart the computer and press F2 repeatedly (or Del key) during the ASUS logo screen. If you have fast boot enabled, you may need to use the Windows advanced startup options: go to Settings > Update & Security > Recovery, and click 'Restart now' under Advanced startup. Then choose Troubleshoot > Advanced options > UEFI Firmware Settings.

What should I do if the computer won't start?

Check the power cable connection and ensure the power supply switch is on. Try a different power outlet. If there is no response, perform a power drain: unplug the power cord, hold the power button for 30 seconds, then reconnect and try again. If the issue persists, there may be a hardware failure; contact ASUS support.

How do I perform a factory reset?

Go to Windows Settings > Update & Security > Recovery. Under 'Reset this PC', click 'Get started'. Choose 'Remove everything' for a full factory reset. You can also access recovery options by restarting while holding the Shift key. Note: This will erase all personal files, so back up important data first.

Can I install additional storage drives?

Yes, the Pro E800 G4 has multiple drive bays (2.5-inch and 3.5-inch) and SATA ports. Open the case, secure the new drive in a tray, and connect the SATA cable and power cable from the power supply. You may also use M.2 slots for NVMe SSDs. Refer to the manual for exact locations.

How do I update the BIOS?

Visit the ASUS support website, download the latest BIOS file for your model (Pro E800 G4). Copy the file to a FAT32-formatted USB drive. Restart the system and press F2 to enter BIOS. Use the EZ Flash utility to select the BIOS file and start the update. Do not turn off the system during the process.

Why is my computer beeping on startup?

Beep codes indicate hardware errors. Common patterns: 1 short beep (system normal), continuous beeps (memory issue), long beeps (graphics problem). Refer to the motherboard manual or ASUS website to decode the specific pattern. Try reseating RAM, GPU, and connections.

How do I enable virtualization technology?

Enter BIOS (press F2 on startup). Go to Advanced > CPU Configuration. Look for Intel Virtualization Technology (VT-x) and enable it. Also enable VT-d if available. Save and exit. This is required for running virtual machines like Hyper-V or VMware.

Where can I find the service manual or spare parts?

Official service manuals and spare parts can be found on the ASUS support website. Search for 'Pro E800 G4' and select 'Manual & Document'. For spare parts, visit authorized ASUS distributors or use the 'Spare Parts' section. Common parts like RAM, SSDs, and power supplies are widely available.

USER MANUAL Pro E800 G4 ASUS

Copyright © 2020 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASUS, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if ASUS has been advised of the possibility of such damages arising from any defect or error in this manual or product.

Specifications and information contained in this manual are furnished for informational use only, and are subject to change at any time without notice, and should not be construed as a commitment by ASUS. ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents

Safety information......viii

Electrical Safety ......viii

Operation Safety......viii

Restricted Access Location......viii

About this guide....x

Chapter 1: Product Introduction

1.1 System package contents....1-2

1.2 Serial number label....1-2

1.3 ASUS Pro E800 G4 specifications summary....1-3

1.4 Front panel features....1-6

1.5 Rear panel features....1-7

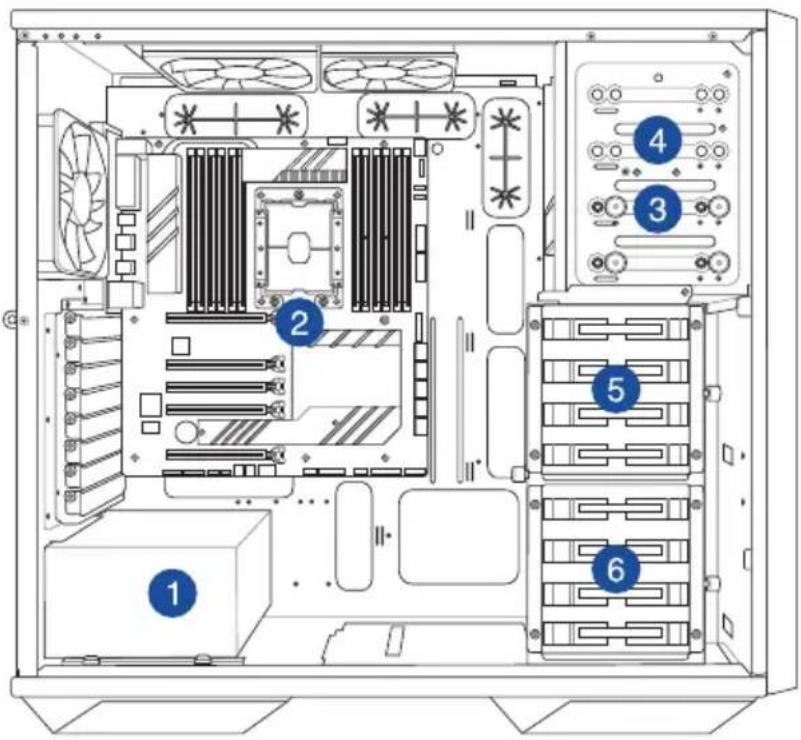

1.6 Internal features....1-8

1.7 LED information 1-9

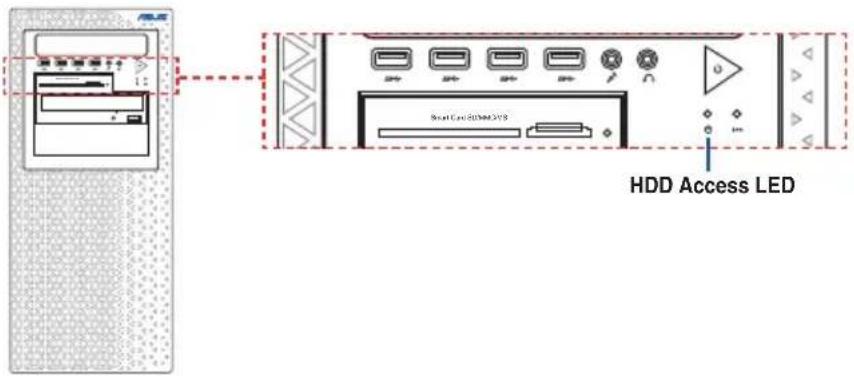

1.7.1 Front panel LEDs 1-9

1.7.2 Rear panel LEDs....1-9

Chapter 2: Hardware Setup

2.1 Chassis cover....2-2

2.1.1 Removing the side covers....2-2

2.1.2 Replacing the side covers....2-2

2.2 CPU installation....2-3

2.3 System memory 2-5

2.3.1 Installing a DIMM on a single clip DIMM socket.... 2-6

2.4 Air Duct 2-7

2.4.1 Removing the air duct 2-7

2.5 Storage devices....2-8

2.5.1 Installing 3.5-inch storage devices....2-8

2.5.2 Installing 2.5-inch storage devices....2-10

2.6 Expansion slots....2-12

2.6.1 Installing an expansion card....2-13

2.6.2 Configuring an expansion card 2-15

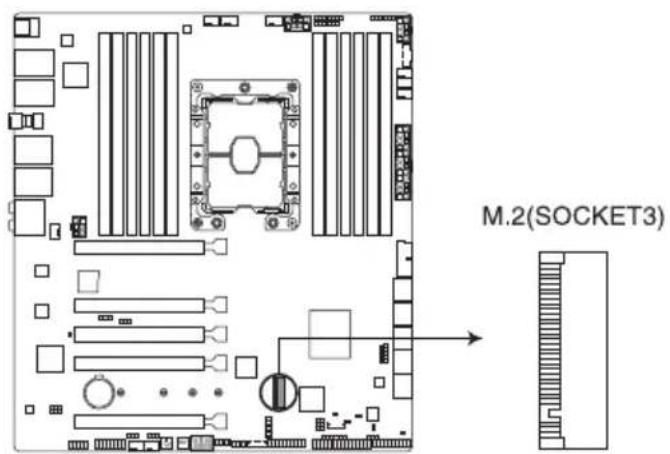

2.6.3 Installing an M.2 card....2-16

Contents

2.7 BIOS update utility....2-18 2.8 Motherboard rear and audio connection 2-19

2.8.1 Rear I/O connection 2-19 2.8.2 Audio I/O connections....2-21

2.9 Starting up for the first time....2-23

2.10 Turning off the computer 2-23

Chapter 3: Motherboard Information

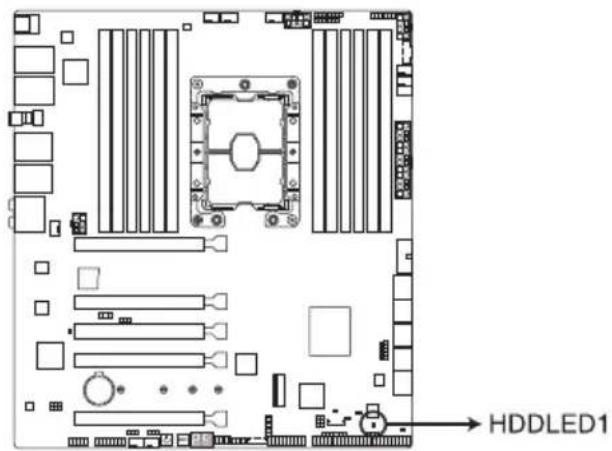

3.1 Motherboard layout....3-2 3.2 Onboard buttons....3-4 3.3 Onboard jumpers 3-5 3.4 Onboard LEDs....3-11 3.5 Internal connectors....3-15

Chapter 4: BIOS Setup

4.1 Managing and updating your BIOS 4-2

4.1.1 ASUS CrashFree BIOS 3 utility.... 4-2 4.1.2 ASUS EzFlash Utility 4-3 4.1.3 BUPDATER utility 4-4

4.2 BIOS setup program 4-6

4.2.1 BIOS menu screen....4-7 4.2.2 Menu bar....4-7 4.2.3 Menu items....4-8 4.2.4 Submenu items 4-8 4.2.5 Navigation keys....4-8 4.2.6 General help....4-8 4.2.7 Configuration fields 4-8 4.2.8 Pop-up window....4-8 4.2.9 Scroll bar 4-8

4.3 Main menu 4-9 4.4 Ai Tweaker menu....4-9 4.5 Performance Tuning menu....4-10

Contents

4.6 Advanced menu 4-11

4.6.1 Trusted Computing....4-11

4.6.2 ACPI Settings....4-11

4.6.3 SMART Self Test 4-11

4.6.4 Super IO Configuration 4-12

4.6.5 Serial Port Console Redirection....4-12

4.6.6 CPU Storage Configuration.... 4-12

4.6.7 Onboard LAN Configuration....4-12

4.6.8 APM 4-13

4.6.9 PCI Subsystem Settings 4-13

4.6.10 USB Configuration 4-14

4.6.11 CSM Configuration 4-14

4.6.12 NVMe Configuration 4-14

4.6.13 Offboard SATA Controller Configuration 4-14

4.6.14 Audio Configuration 4-15

4.6.15 ASMedia Storage Controller 4-15

4.6.16 Network Stack Configuration 4-15

4.6.17 iSCSI Configuration 4-15

4.7 Platform Configuration menu 4-15

4.7.1 PCH Configuration 4-15

4.7.2 Miscellaneous Configuration 4-16

4.7.3 Workstation ME Configuration 4-16

4.7.4 Runtime Error Logging 4-16

4.8 Socket Configuration menu 4-16

4.8.1 Processor Configuration.... 4-16

4.8.2 UPI Configuration....4-16

4.8.3 Memory Configuration....4-16

4.8.4 IIO Configuration....4-17

4.8.5 Advanced Power Management Configuration.... 4-17

4.9 Event Logs menu 4-18

4.9.1 Change Smbios Event Log Settings 4-18

4.9.2 View Smbios Event Log 4-18

Contents

4.10 Server Mgmt menu....4-18

4.10.1 System Event Log....4-18 4.10.2 BMC network configuration....4-18 4.10.3 View System Event Log 4-18

4.11 Monitor menu 4-18

4.12 Security menu 4-18

4.13 Boot menu 4-19

4.14 Tool menu....4-19

4.15 Save & Exit menu....4-20

Chapter 5: RAID Configuration

5.1 RAID configurations 5-2

5.1.1 RAID definitions 5-2 5.1.2 Installing Serial ATA hard disks 5-3 5.1.3 Setting the RAID item in BIOS 5-3 5.1.4 RAID configuration utilities....5-3

5.2 Intel® Rapid Storage Technology enterprise SATA/SSATA Option ROM Utility 5-4

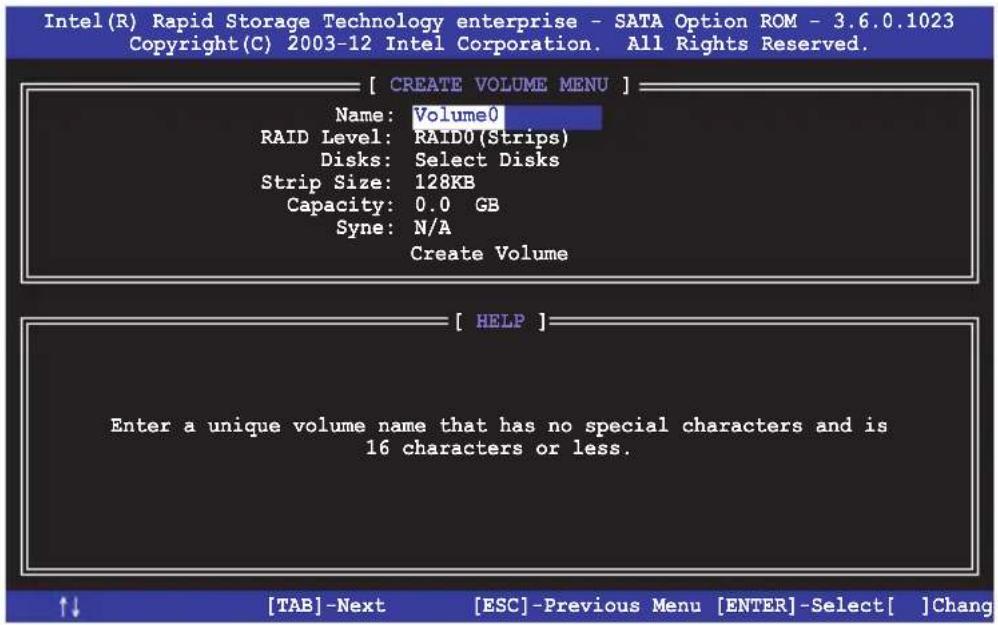

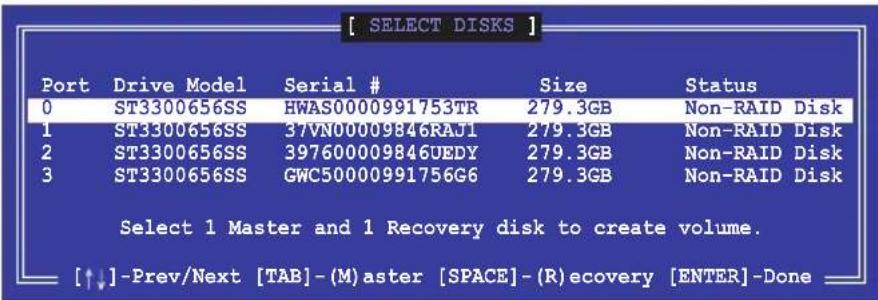

5.2.1 Creating a RAID set....5-5 5.2.2 Deleting a RAID set....5-7 5.2.3 Resetting disks to Non-RAID 5-8 5.2.4 Exiting the Intel® Rapid Storage Technology enterprise SATA/SSATA Option ROM utility....5-8 5.2.5 Rebuilding the RAID....5-9 5.2.6 Setting the Boot array in the BIOS Setup Utility....5-11

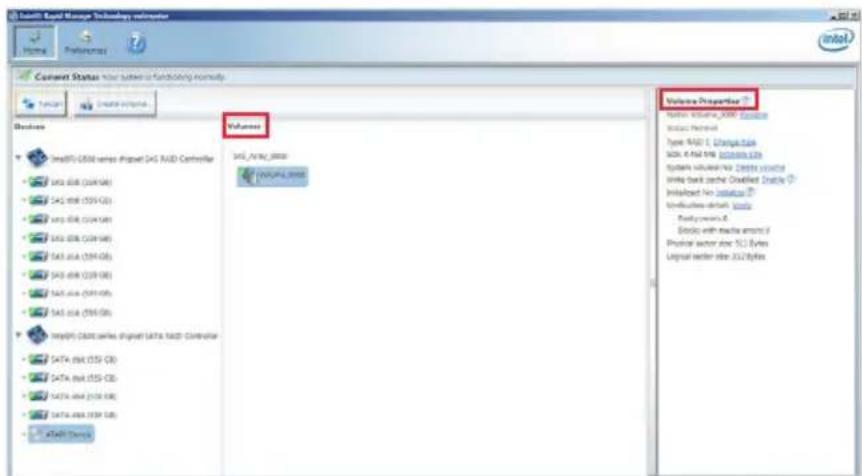

5.3 Intel® Rapid Storage Technology enterprise (Windows)....5-12

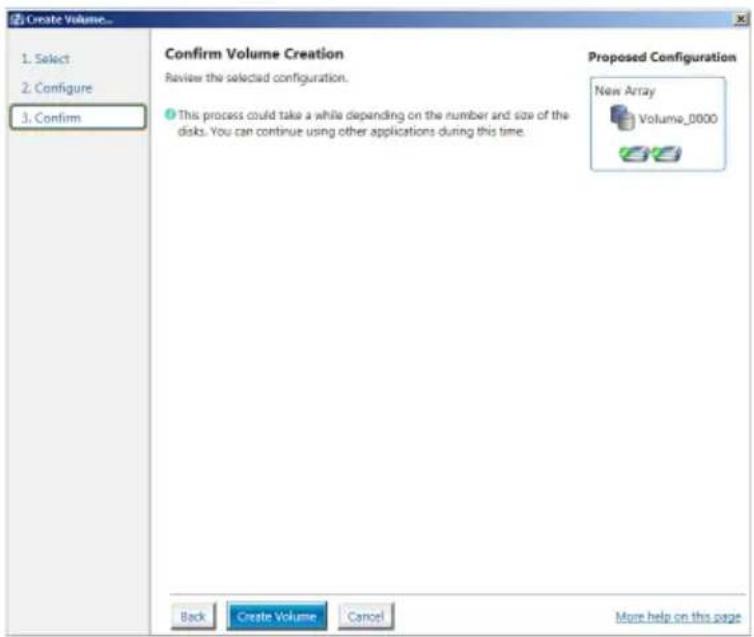

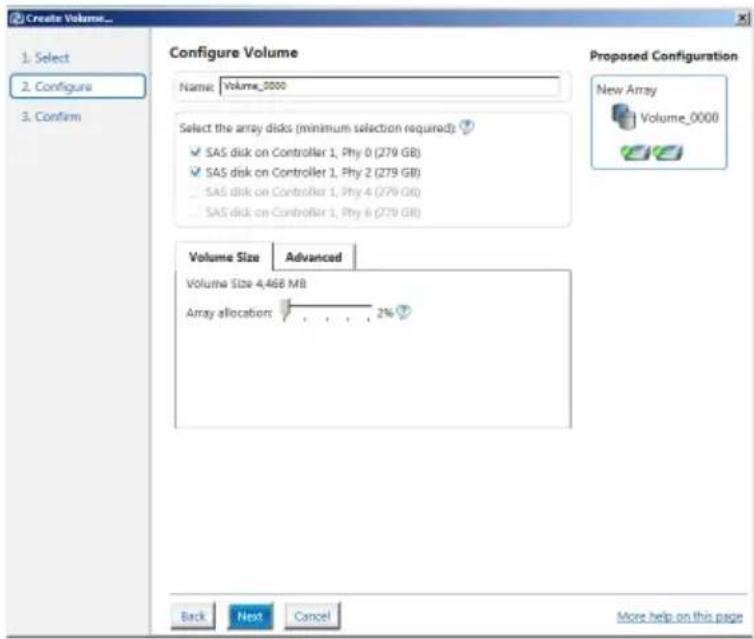

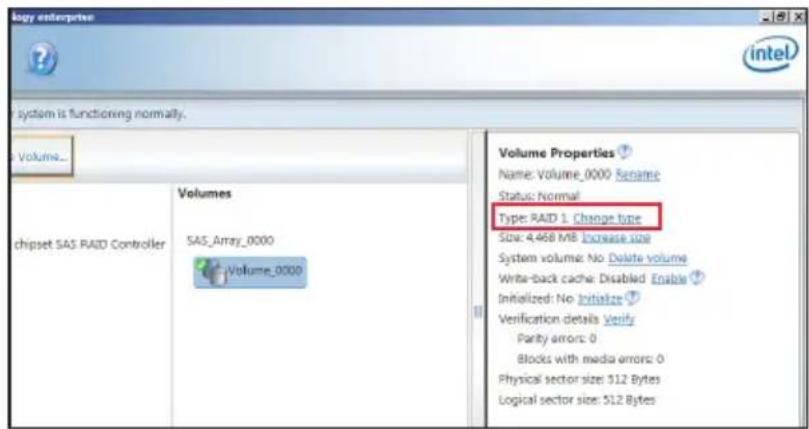

5.3.1 Creating a RAID set....5-13 5.3.2 Changing a Volume Type....5-15 5.3.3 Deleting a volume 5-16 5.3.4 Preferences....5-17

5.4 Intel® Virtual Raid on CPU in BIOS....5-18

5.4.1 Creating a RAID set....5-19 5.4.2 Deleting a RAID set....5-21 5.4.3 Installing the RAID controller driver during Windows® 10 OS installation....5-22

Contents

Appendix

Pro WS C621-64L SAGE/10G block diagram....A-2

Q-Code table....A-3

Notices ...... A-7

Federal Communications Commission Statement....A-7

ENERGY STAR Qualified Product....A-12

EPEAT Registered Products....A-12

ASUS contact information....A-13

Safety information

Electrical Safety

• Before installing or removing signal cables, ensure that the power cables for the system unit and all attached devices are unplugged.
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing any additional devices to or from the system, contact a qualified service technician or your dealer. Ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you service.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your dealer.

Operation Safety

• Servicing of this product or units is to be performed by trained service personnel only.
• Before operating the server, carefully read all the manuals included with the server package.
• Before using the server, make sure all cables are correctly connected and the power cables are not damaged. If any damage is detected, contact your dealer as soon as possible.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Place the server on a stable surface.
• The product is suitable for mounting on concrete or other non-combustible surfaces only.

This product is equipped with a three-wire power cable and plug for the user's safety. Use the power cable with a properly grounded electrical outlet to avoid electrical shock.

Restricted Access Location

The product is intended for installation only in a Computer Room where:

• Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken.
• Access is through the use of a TOOL, or other means of security, and is controlled by the authority responsible for the location.

Lithium-Ion Battery Warning

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

CLASS 1 LASER PRODUCT

Heavy System

CAUTION! This server system is heavy. Ask for assistance when moving or carrying the system.

About this guide

Audience

This user guide is intended for system integrators, and experienced users with at least basic knowledge of configuring a server.

Contents

This guide contains the following parts:

1. Chapter 1: Product Introduction

This chapter describes the general features of the server, including sections on front panel and rear panel specifications.

2. Chapter 2: Hardware Setup

This chapter lists the hardware setup procedures that you have to perform when installing or removing system components.

3. Chapter 3: Motherboard Information

This chapter includes the motherboard layout and brief descriptions of the jumpers and internal connectors.

4. Chapter 4: BIOS Setup

This chapter tells how to change system settings through the BIOS Setup menus and describes the BIOS parameters.

5. Chapter 5: RAID Configuration

This chapter provides instructions for setting up, creating and configuring RAID sets using the available utilities.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text

Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

Keys enclosed in the less-than and greater-than sign means

that you must press the enclosed key.

<Key1> + <Key2> + <Key3>

Example: means that you must press the Enter or Return key.

If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Example: + +

Command

Means that you must type the command exactly as shown, then supply the required item or value enclosed in brackets.

Example: At DOS prompt, type the command line:

format A:/S

References

Refer to the following sources for additional information, and for product and software updates.

ASUS websites

The ASUS websites worldwide provide updated information for all ASUS hardware and software products. Refer to the ASUS contact information.

Product Introduction

This chapter describes the general features of the server, including sections on front panel and rear panel specifications.

1

1.1 System package contents

Check your system package for the following items.

Model Name ASUS Pro E800 G4

Accessories 1 x CPU heatsink

1 x ASUS Pro E800 G4 support DVD

1 x AC power cord

Optional Items: DVD-ROM / DVD-RW

If any of the above items is damaged or missing, contact your retailer.

1.2 Serial number label

Before requesting support from the ASUS Technical Support team, you must take note of the product's serial number containing 12 characters such as xxSxxxxxxxxx shown as the figure below. With the correct serial number of the product, ASUS Technical Support team members can then offer a quicker and satisfying solution to your problems.

1.3 ASUS Pro E800 G4 specifications summary

The ASUS Pro E800 G4 is a workstation featuring the ASUS Pro WS C621-64L SAGE/10G motherboard.

Processor / System Bus		1 x Socket-P (LGA 3647)Intel® Xeon® W-3200 Processor Family (up to 205W)*Intel® Xeon Processor Scalable Family (up to 205W)** Refer to www.asus.com for Intel® CPU support list.
Core Logic		Intel® C621 PCH
Memory	Total Slots	12 (6-channel, 2 DIMM per channel)
	Capacity	Maximum up to 1536GB
	Memory Type	DDR4 2933/2666 RDIMM/LR-DIMM/LR-DIMM 3DS
	Memory Size	32GB, 16GB (RDIMM)64GB, 32GB (LRDIMM)128GB, 64GB (LRDIMM 3DS)* Refer to www.asus.com/support for more information
Expansion Slots	Total PCI/PCI-E Slots	5
	Slot Type	Intel Xeon W-3200 Processor:PCIe x16_1 Slot (Gen3 x16 link)PCIe x16_2 Slot (Gen3 x16 link)PCIe x4_1 Slot (Gen3 x4 link)PCIe x16_3 Slot (Gen3 x16 link)PCIe x16_4 Slot (Gen3 x16 link)Intel Xeon Scalable Processor:PCIe x16_1 Slot (Gen3 x16 link)PCIe x16_2 Slot (Gen3 x16/x8 link)PCIe x4_1 Slot (Gen3 x4 link)PCIe x16_3 Slot (Gen3 x16 link)PCIe x16_4 Slot (Gen3 x0/x8 link)

(continued on the next page)

ASUS Pro E800 G4 specifications summary

Disk Controller	SATA Controller	ASMedia® ASM1062R- 2 x SATA 6Gb/s portsIntel® C621 PCH with Intel® RSTe (for windows only, support software RAID 0,1,5,10)- 8 x SATA 6Gb/s ports- 1 x M.2 Connector, up to 22110 (PCIe 3.0 x4 or SATA mode)** The M.2 socket shares bandwidth with PCIEX4_1 when using M.2 PCIe mode device.
	SAS Controller	Optional Kits: (One PCIe slot will be occupied)- ASUS PIKE II 3008 8-port SAS HBA Card- ASUS PIKE II 3108 8-port SAS HW RAID CardSupport SAS 12Gbps
	NVMe Controller	Optional Kits: (One PCIe slot will be occupied)- ASUS NVMe Riser CardSupports 4 x NVMe SSD, Intel® VROC Feature with VROC H/W Key
Storage Bays		8 x 3.5" or 2.5" Internal Storage Bays(Backplane supports 4 x SATA/SAS + 4 x SATA/SAS/NVME devices)
Networking	LAN	1 x Dual Port Intel® X550 10GbE LAN Controller
Graphic	VGA (from BMC)	Aspeed AST2500 64MB
Audio		7.1-Channel High Definition Audio
Auxiliary Storage Device Bay (Floppy / Optical Drive)		2 x 5.25" media bays(Optional DVD-ROM/DVD-RW)
Front I/O		4 x USB 3.2 Gen 1 ports2 x Audio Jacks (Mic in / Speaker out)
Rear I/O		2 x USB 3.2 Gen 2 ports (1 x Type-A & 1 x Type-CTM)4 x USB 3.2 Gen 1 ports2 x 10GbE LAN ports (RJ45)5 x Audio Jack1 x Optical S/PDIF output1 x COM port (optional)1 x VGA port (optional, from BMC)
Switch/LED		Front:- 1 x Power Switch/LED- 1 x Reset Switch- 1 x HDD Access LEDRear:- 1 x BIOS Flash-back Button

(continued on the next page)

ASUS Pro E800 G4 specifications summary

OS Support		Windows® 10 Pro for Workstation* Refer to http://www.asus.com/ for the latest OS support.
Management Solution	Software	ASUS Control Center
	Out of Band Remote Management	ASMB9-iKVM (on-board)
Dimension (HH x WW x DD)		532 mm x 243 mm x 582 mm (21.0" x 9.5" x 22.9")
Net Weight Kg (CPU, DRAM & HDD not included)		18 Kg
Power Supply and Rating		2000W Platinum ATX Power Supply(100-240Vac, 15-12A, 60-50Hz) or750W Gold ATX Power Supply(100-240Vac, 9-4.5A, 60/50Hz)
Environment		Operating temperature: 10°C ~ 35°CNon operating temperature: -40°C ~ 70°CNon operating humidity: 20% ~ 90% ( Non condensing)

Specifications are subject to change without notice.

1.4 Front panel features

The ASUS Pro E800 G4 workstation features a simple yet stylish front panel design. The power and reset buttons, LED indicators, optical drive, and USB ports are all conveniently located at the front panel for easy access.

Refer to the Front panel LEDs section for the LED descriptions.

1.5 Rear panel features

The rear panel includes a slot for the motherboard rear I/O ports, expansion slots, a vent for the system fan, and the power supply module.

1.6 Internal features

The ASUS Pro E800 G4 workstation system includes the basic components as shown:

1. Power supply unit
2. ASUS Pro WS C621-64L SAGE/10G motherboard
3. Optical drive (Optional)
4. Front I/O board (hidden)
5. Storage device bay (Top)
6. Storage device bay (Bottom)

Turn off the system power and detach the power supply before removing or replacing any system component.

The barebone server does not include a floppy disk drive. If you need to use a floppy disk, connect the USB floppy disk drive to any of the USB ports on the front or rear panel.

WARNING

HAZARDOUS MOVING PARTS

KEEP FINGERS AND OTHER BODY PARTS AWAY

1.7 LED information

1.7.1 Front panel LEDs

LED Icon Display status Description
HDD Access LED		OFF	No activity
		Blinking	Read/write data into the HDD

1.7.2 Rear panel LEDs

ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 100 Mbps connection
GREEN Linked ORANGE 1 Gbps connection
BLINKING Activity GREEN 10 Gbps connection

Hardware Setup

This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the jumpers and connectors on the motherboard.

2

2.1 Chassis cover

2.1.1 Removing the side covers

• Ensure that you unplug the power cord before removing the side cover.
• Take extra care when removing the side cover. Keep your fingers from components inside the chassis that can cause injury, such as the CPU fan, rear fan, and other sharp-edged parts.
• The images of the system shown in this section are for reference purposes only and may not exactly match the model you purchase.
• Remove the two (2) screws from the rear of the side cover, then set them aside.
• Lift the side cover to remove it.

Be careful not to apply pressure to the air vent on the side cover to avoid damages to the system.

1. Repeat steps 1 and 2 to remove the other side cover.

2.1.2 Replacing the side covers

1. Align and insert the front of the side cover to the front of the chassis, then replace the side cover onto the chassis.
2. Replace the two (2) screws removed previously to secure the side cover to the chassis.
3. Repeat steps 1 and 2 to replace the other side cover.

2.2 CPU installation

The motherboard comes with a surface mount LGA 3647 socket designed for the Intel® Xeon® W-3200 Series processors.

Pro WS C621-64L SAGE series CPU LGA3647 Socket

Ensure that you install the correct CPU designed for LGA3647 socket only. DO NOT install a CPU designed for other sockets on the LGA3647 socket.

• Ensure that all power cables are unplugged before installing the CPU.
• Ensure that you install the correct CPU designed for LGA3647 socket only.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA3647 socket.
• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

The CPU is purchased separately.

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan, if necessary.

3

The CPU and heatsink assembly fits in only one correct orientation. DO NOT force the CPU and heatsink assembly into the socket to prevent damaging the CPU pins on the socket. The heatsink screws are T30 models. A torque value of 12 inch-lbf is recommended.

2.3 System memory

The motherboard comes with twelve (12) Dual Inline Memory Modules (DIMM) slots designed for DDR4 (Double Data Rate 4) memory modules.

A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.

Pro WS C621-64L SAGE series 288-pin DDR4 DIMM socket

Memory configurations

You may install 16 GB and 32 GB RDIMMs; 32 GB, and 64 GB LRDIMMs; and 64GB, and 128GB LRDIMM 3DS into the DIMM sockets.

• For system stability, use a more efficient memory cooling system to support a full memory load (12 DIMMs) or overclocking condition.
• Always install the DIMMS with the same CAS Latency. For an optimum compatibility, we recommend that you install memory modules of the same version or data code (D/C) from the same vendor. Check with the vendor to get the correct memory modules. • The DIMMs are purchased separately.
• Visit the ASUS website for the latest QVL.

Recommended memory configuration

C1

C2

B1

B2

A1

A2

D2

D1

E2

E1

F2

F1

1 DIMMs

-

-

-

√

-

-

-

-

2 DIMMs

-

-

-

√

-

-

√

-

-

4 DIMMs

-

-

√

-

√

-

-

√

-

-

6 DIMMs

√

-

√

-

√

-

-

√

-

√

12 DIMMs

√

√

√

√

√

√

√

√

√

√

√

√

2.3.1 Installing a DIMM on a single clip DIMM socket

1. Unlock a DIMM socket by pressing the retaining clip outward.
2. Align a DIMM on the socket such that the notch on the DIMM matches the DIMM slot key on the socket.

A DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into a socket in the wrong direction to avoid damaging the DIMM.

1. Hold the DIMM by both of its ends then insert the DIMM vertically into the socket. Apply force to both ends of the DIMM simultaneously until the retaining clip snaps back into place and the DIMM cannot be pushed in any further to ensure proper sitting of the DIMM.

Always insert the DIMM into the socket vertically to prevent DIMM notch damage.

• To install two or more DIMMs, refer to the user guide bundled in the motherboard package. • Refer to the ASUS website for qualified vendor lists of the memory modules.

Removing a DIMM from a single clip DIMM socket

1. Press the retaining clip outward to unlock the DIMM.
2. Remove the DIMM from the socket.

Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force.

2.4 Air Duct

Ensure to unplug the power cable before installing or removing any system components. Failure to do so may cause damage to the motherboard and other system components!

2.4.1 Removing the air duct

To remove the air duct:

Remove the two (2) screws of the air duct, then remove the air duct and set it aside.

2.5 Storage devices

The server system supports eight (8) 3.5-inch Serial ATA hard disk drives or eight (8) 2.5-inch SSD drives via the storage device trays, or an optional four (4) NVMe drives via the bottom four storage device trays.

• Support for the optional four (4) NVMe drives is optional and purchased separately.
• The storage devices are purchased separately.

2.5.1 Installing 3.5-inch storage devices

To install 3.5-inch storage devices:

1. Remove the side cover of the chassis. Refer to the "Removing the side cover" section for more information.

Prepare the 3.5-inch storage device and the bundled set of screws.

1. Prepare the 3.5-inch storage device and the bundled set of screws.
2. Press and hold the storage device tray latch from both sides, then pull the storage device tray out from the bay.

1. Align and insert the 3.5-inch storage device into the storage device tray, ensuring that the screw holes on the storage device match the HDD notches on the storage device bay. Ensure the storage device is seated firmly in the storage device bay.

1. Align the storage device tray and storage device assembly with the storage device tray railing in the bay.
2. Push the storage device tray and storage device assembly all the way into the depth of the bay until the storage device tray is seated securely in the bay.

1. Repeat steps 2 to 6 to install other 3.5" storage devices.

2.5.2 Installing 2.5-inch storage devices

To install 2.5-inch storage devices:

1. Remove the side cover of the chassis. Refer to the for more information.

Removing the side cover section

1. Prepare the 2.5-inch storage device and the bundled set of screws.
2. Press and hold the storage device tray latch from both sides, then pull the storage device tray out from the bay.

1. Carefully push the storage device tray lock pin out of the tray using a suitable tool. Please refer to the illustration below for the location of the storage device tray lock pin.

1. Align and insert the 2.5-inch storage device into the storage device tray ensuring that the screw holes on the storage device matches the screw holes on the storage bay, then secure the storage device to the storage device tray using the bundled screws.

1. Align the storage device tray and storage device assembly with the storage device tray railing in the bay.
2. Push the storage device tray and storage device assembly all the way into the depth of the bay until the storage device tray is seated securely in the bay.

1. Repeat steps 2 to 7 to install other 2.5" storage devices.

2.6 Expansion slots

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

Slot No. Slot Description

1 PCIe x16_1 slot

2 PCIe x16_2 slot

3 PCIe x4_1 slot

4 PCIe x16_3 slot

5 PCIe x16_4 slot

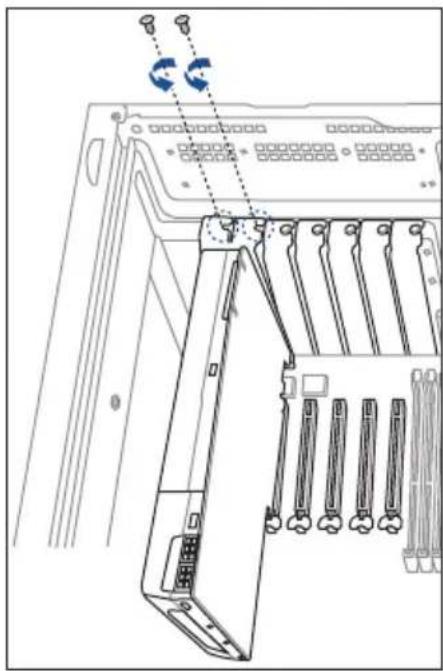

2.6.1 Installing an expansion card

The expansion cards, such as GPU cards are purchased separately.

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.
2. Remove the GPU bar. Please refer to the section Air Duct for more information on removing the GPU bar.
3. Lay the system on its side on a flat, stable surface.
4. Release the screw(s) on the metal slot cover where you wish to install the expansion card.

1. Remove the metal slot cover.

1. Align the card's golden fingers with the slot, and then press firmly until the card is completely seated in the slot.

1. Secure the expansion card with the screw(s) that you removed earlier in step 4.

2.6.2 Configuring an expansion card

Recommended VGA configuration

Slot Description	Single GPU	2-way GPU	3-way GPU	4-way GPU (Xeon W-3200)	4-way GPU (Xeon Scalable)
PCIE 3.0 x16_1 x16 x16 x16 x16 x16
PCIE 3.0 x16_2 - - x16 x16 x8
PCIE 3.0 x4_1 - - -
PCIE 3.0 x16_3 -	x16 x16			x16 x16
PCIE 3.0 x16_4 - - - x16 x8

We recommend that you provide sufficient power when running CrossFireX™ or SLI® mode.

2.6.3 Installing an M.2 card

To install an M.2 card:

1. Remove the two (2) screws from the M.2 heatsink, then remove the M.2 heatsink and set them aside.

1. Insert a stand screw into the M.2 slot where you wish to install an M.2 card.

1. Align and insert the M.2 card into the M.2 slot, then secure it using a bundled screw.

1. Peel off the plastic film on the thermal pad located on the bottom of the M.2 heatsink.
2. Align the M.2 heatsink to the screw holes on the motherboard, then secure the M.2 heatsink to the motherboard using the two (2) screws removed previously.

2.7 BIOS update utility

USB BIOS Flashback

USB BIOS Flashback allows you to easily update the BIOS without entering the existing BIOS or operating system. Simply insert a USB storage device into the USB port (the port marked in green on the I/O shield) and press the USB BIOS Flashback button for three seconds to automatically update the BIOS.

To use USB BIOS Flashback:

1. Insert a USB storage device into the USB Flashback port.

We recommend using a USB 2.0 storage device to save the latest BIOS version for better compatibility and stability.

1. Visit https://www.asus.com/support/ and download the latest BIOS version for this motherboard.
2. Rename the file as WSC64LG.CAP, then copy it to your USB storage device.
3. Shut down your computer.
4. Press the BIOS Flashback button for three seconds until the Flashback LED blinks three times, indicating that the BIOS Flashback function is enabled.

1. Wait until the light goes out, indicating that the BIOS updating process is completed.

For more BIOS update utilities in BIOS setup, refer to the section "Managing and updating your BIOS" in Chapter 4.

• Do not unplug the portable disk, power off the system, or press the CLR_CMOS button while the BIOS update is ongoing, otherwise the update will be interrupted. In case of interruption, please follow the steps again.
• If the light flashes for five seconds and then turns into a solid light, this means that the BIOS Flashback is not operating properly. This may be caused by improper installation of the USB storage device or a filename/file format error. If this happens, please restart the system to turn off the light.
• Updating the BIOS may have risks. If the BIOS program is damaged during the process and results in the system's failure to boot up, please contact your local ASUS Service Center.

2.8 Motherboard rear and audio connection

2.8.1 Rear I/O connection

Rear panel connectors

1. USB 3.2 Gen 2 Type-A port E2
2. 10G LAN (RJ-45) ports*
3. USB BIOS Flashback button
4. USB 3.2 Gen 2 Type-C™ port EC1
5. USB 3.2 Gen 1 ports 5, 6
6. USB 3.2 Gen 1 ports 3, 4. Lower port supports USB BIOS Flashback function.
7. Optical S/PDIF OUT port
8. Audio I/O ports**

* and **: Refer to the tables for LAN port LEDs and audio port definitions.

We strongly recommend that you connect your devices to ports with matching data transfer rate. Please connect your USB 3.2 Gen 1 devices to USB 3.2 Gen 1 ports and your USB 3.2 Gen 2 devices to USB 3.2 Gen 2 ports for faster and better performance for your devices.

Intel® X550 10GbE LAN port LED indications

Activity Link LED Speed LED
Status	Description	Status	Description
OFF	No link	OFF	100 Mbps connection
GREEN	Linked	GREEN	1 Gbps connection
BLINKING	Activity	ORANGE	10 Gbps connection

** Audio 2, 4, 5.1 or 7.1-channel configuration

Port	Headset2-channel	4.channel 5.1-channel 7.1-channel
Light Blue Line In Line In Line In Side Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange -- Center/Sub woofer Center/Sub woofer
Black	-	Rear Speaker Out	Rear Speaker Out

2.8.2 Audio I/O connections

Audio I/O ports

Connect to Headphone and Mic

Connect to Stereo Speakers

Connect to 2-channel Speakers

Connect to 4-channel Speakers

Connect to 5.1-channel Speakers

Connect to 7.1-channel Speakers

2.9 Starting up for the first time

1. After making all the connections, replace the system case cover.
2. Ensure that all switches are off.
3. Connect the power cord to the power connector at the back of the system chassis.
4. Connect the power cord to a power outlet that is equipped with a surge protector.
5. Turn on the devices in the following order:

a. Monitor

b. External storage devices (starting with the last device on the chain)

c. System power

1. After applying power, the system power LED on the system front panel case lights up. For systems with ATX power supplies, the system LED lights up when you press the ATX power button. If your monitor complies with the "green" standards or if it has a "power standby" feature, the monitor LED may light up or change from orange to green after the system LED turns on.

The system then runs the power-on self tests (POST). While the tests are running, the BIOS beeps (refer to the BIOS beep codes table) or additional messages appear on the screen. If you do not see anything within 30 seconds from the time you turned on the power, the system may have failed a power-on test. Check the jumper settings and connections or call your retailer for assistance.

BIOS Beep Description
One short beep VGA detected	Quick boot set to disabledNo keyboard detected
One continuous beep followed by two short beeps then a pause (repeated)	No memory detected
One continuous beep followed by three short beeps	No VGA detected
One continuous beep followed by four short beeps	Hardware component failure

1. At power on, hold down the key to enter the BIOS Setup. Follow the instructions in Chapter 3.

2.10 Turning off the computer

While the system is ON, press the power button for less than four seconds to put the system on sleep mode or soft-off mode, depending on the BIOS setting. Press the power switch for more than four seconds to let the system enter the soft-off mode regardless of the BIOS setting.

Motherboard Information

3

This chapter includes the motherboard layout and brief descriptions of the jumpers and internal connectors.

3.1 Motherboard layout

Refer to Internal connectors and Rear I/O connection for more information about rear panel connectors and internal connectors.

Layout contents Page
1. DIMM slots 2-6
2. Fan connector 3-22
3. CPU socket 2-4
4. Power connectors 3-25
5. PMBus 1.2 PSU Select jumper 3-7
6. Storage Add-on Card LED connector 3-17
7. ME Firmware Force Recovery jumper 3-7
8. DDR4 Thermal Event jumper 3-6
9. Power Supply SMBus connector 3-20
10. Serial General Purpose Input/Output connector 3-26
11. System Management Bus connector 3-26
12. USB 3.2 Gen 1 connector 3-20
13. SATA 6Gb/s connector 3-15
14. ASMedia® SATA 6 Gb/s connector	3-16
15. VROC Key connector	3-19
16. SATADOM Power jumper 3-6
17. System Panel connector	3-23
18. Auxiliary Panel connector	3-24
19. USB 2.0 connector	3-21
20. PCH_MFG1 jumper	3-8
21. Clear RTC RAM jumper	3-5
22. TPM connector	3-17
23. Serial Port connector	3-19
24. VPP_I2C1 connector	3-21
25. Q-Code LED	3-14
26. Reset button	3-4
27. Power button	3-4
28. VGA connector	3-18
29. IPMI SW jumper	3-8
30. Front Panel Audio connector	3-16
31. VGA Controller jumper	3-9
32. Baseboard Management Controller setting	3-10
33. M.2 slot	3-18
34. MicroSD card slot	3-27

3.2 Onboard buttons

1. Power button

Press the Power button to power up the system, or put the system into sleep or soft-off mode (depending on the operating system settings).

Pro WS C621-64L SAGE/10G Power on button

The button also lights up when the system is plugged to a power source, indicating that you should shut down the system and unplug the power cable before removing or installing any motherboard component.

2. Reset button

Press the Reset button to reboot the system.

Pro WS C621-64L SAGE/10G Reset button

3.3 Onboard jumpers

1. Clear RTC RAM jumper

The Clear RTC RAM jumper allows you to clear the Real Time Clock (RTC) RAM in the CMOS, which contains the date, time, system passwords, and system setup parameters.

Pro WS C621-64L SAGE/10G Clear RTC RAM jumper

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from the default pins 1-2 to pins 2-3. Keep the cap on pins 2-3 for about 5 to 10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

DO NOT short-circuit the pins except when clearing the RTC RAM. Short-circuiting or placing a jumper cap will cause system boot failure!

If the steps above do not help, remove the onboard button cell battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button cell battery.

2. DDR4 Thermal Event jumper

Set to pins 1-2 to enable DDR4 DIMM thermal sensing event.

Pro WS C621-64L SAGE/10G DDR4 Thermal Event jumper

3. SATADOM Power jumper

Set to pins 2-3 to enable SATA8 port to support SATADOM devices.

Pro WS C621-64L SAGE/10G SATADOM Power jumper

4. PMBus 1.2 PSU Select jumper

The PMBus 1.2 PSU Select jumper allows you to select the PSU PMBus version. Set to pins 1-2 for PMBus, set to pins 2-3 for others.

Pro WS C621-64L SAGE/10G PMBus 1.2 PSU Select jumper

5. ME Firmware Force Recovery jumper

Set to pins 2-3 to force Intel® Management Engine (ME) boot from recovery mode when the ME becomes corrupted.

Pro WS C621-64L SAGE/10G ME Firmware Force Recovery jumper

6. PCH_MFG1 jumper

The PCH_MFG1 jumper allows you to update the BIOS ME block.

Pro WS C621-64L SAGE/10G PCH_MFG1 jumper

7. IPMI SW jumper

The IPMI SW jumper allows you to select which protocol in the GPU sensor to function.

Pro WS C621-64L SAGE/10G IPMI SW jumper

8. VGA Controller jumper

The VGA Controller jumper allows you to enable or disable the onboard VGA controller. Set to pins 1-2 to enable the onboard VGA.

Pro WS C621-64L SAGE/10G VGA Controller jumper

Ensure the ATX power supply is switched off or the power cord is detached from the power supply when enabling or disabling the VGA controller settings using this jumper.

- If a VGA Card is installed into a PCI Express x16 Slot, the onboard VGA function will still be enabled.

- BMC Remote Management Function will still be available when VGA controller settings is set to disabled, but the display will be disabled on the client device.

9. Baseboard Management Controller setting

The Baseboard Management Controller jumper allows you to enable or disable the on-board BMC.

Pro WS C621-64L SAGE/10G Baseboard Management Controller jumper

Ensure to set this BMC jumper to Enable to avoid system fan control and hardware monitor error.

3.4 Onboard LEDs

1. Standby Power LED

The Standby Power LED lights up to indicate that the system is ON, in sleep mode, in soft-off mode, or connected to a power source. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component.

Pro WS C621-64L SAGE/10G Standby Power LED

2. Location LED

The Location LED lights up when the Location button on the server is pressed or when triggered by a system management software. The Location LED helps visually locate and quickly identify the server in error on a server rack.

Pro WS C621-64L SAGE/10G Location LED

3. Storage Device Activity LED

The Storage Device Activity LED lights up or blinks when data is read from or written to the storage device or storage device add-on card.

Pro WS C621-64L SAGE/10G Storage Device Activity LED

4. BMC LED

The BMC LED blinks to indicate that the on-board BMC is functional.

Pro WS C621-64L SAGE/10G BMC LED

5. Catastrophic Error LED

The Catastrophic Error LED indicates that the system has experienced a fatal or catastrophic error and cannot continue to operate.

Pro WS C621-64L SAGE/10G Catastrophic Error LED

6. Message LED

The Message LED lights up when a BMC event log is generated.

Pro WS C621-64L SAGE/10G Message LED

7. Q-Code LED

The Q-Code LED design provides you with a 2-digit error code that displays the system status.

Pro WS C621-64L SAGE/10G Q-Code LED

• The Q-Code LEDs provide the most probable cause of an error code as a starting point for troubleshooting. The actual cause may vary from case to case.
• Please refer to the Q-Code table in the Appendix section for more details.

3.5 Internal connectors

1. SATA 6Gb/s connector

The SATA 6Gb/s connector allows you to connect SATA devices such as optical disc drives and hard disk drives via a SATA cable.

Pro WS C621-64L SAGE/10G SATA 6 Gb/s connector

If you installed SATA storage devices, you can create a RAID 0, 1, 5, and 10 configuration with the Intel® Rapid Storage Technology through the onboard Intel® C621 chipset.

• The connectors are set to [AHCI Mode] by default. If you intend to create a SATA RAID set using these connectors, set the SATA Mode item in the BIOS to [Intel RST Premium (RAID)].
• Before creating a RAID set, refer to the RAID Configuration Guide. You can download the RAID Configuration Guide from the ASUS website.

2. ASMedia® SATA 6 Gb/s connector

The SATA 6Gb/s connector allows you to connect SATA devices such as optical disc drives and hard disk drives via a SATA cable.

Pro WS C621-64L SAGE/10G ASMedia® SATA 6 Gb/s connector

3. Front Panel Audio connector

The front panel audio connector is for a chassis-mounted front panel audio I/O module that supports HD Audio. Connect one end of the front panel audio I/O module cable to this connector.

We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high-definition audio capability.

4. Storage Add-on Card LED connector

The Storage Add-on Card LED connector allows you to connect the storage device activity LED cable from a storage add-on card. The Storage Device Activity LED lights up or blinks when data is read from or written to the storage device add-on card.

Pro WS C621-64L SAGE/10G Storage Add-on Card LED connector

Refer to section Onboard LEDs for the exact location of the Storage Device Activity LED.

5. TPM connector

The TPM connector allows you to connect a Trusted Platform Module (TPM). A TPM securely stores keys, digital certificates, passwords, data, and also helps enhance network security, protect digital identities, and ensures platform integrity.

Pro WS C621-64L SAGE/10G TPM connector

The TPM is purchased separately.

6. VGA connector

The VGA connector allows you to connect a VGA output interface.

Pro WS C621-64L SAGE/10G VGA connector

7. M.2 slot

The M.2 slot allows you to install M.2 devices such as M.2 SSD modules.

Pro WS C621-64L SAGE/10G M.2 slot

This connector supports type 22110 devices on both PCI-E and SATA interface.

The M.2 device is purchased separately.

8. VROC Key connector

The VROC (Virtual Raid on CPU) Key connector allows you to connect a VROC hardware key to enable additional CPU RAID functions with Intel® CPU RSTe.

The VROC hardware key is purchased separately.

9. Serial Port connector

The Serial (COM) Port connector allows you to connect a serial port module. Connect the serial port module cable to this connector, then install the module to a slot opening on the system chassis.

The serial port module is purchased separately.

10. Power Supply SMBus connector

The Power Supply SMBus connector allows you to connect the SMBus (System Management Bus) to the PSU (power supply unit) to read the PSU information. Devices communicate with an SMBus host and/or other SMBus devices using the SMBus interface.

Pro WS C621-64L SAGE/10G Power Supply SMBus connector

11. USB 3.2 Gen 1 connector

The USB 3.2 Gen 1 connector allows you to connect a USB 3.2 Gen 1 module for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1 connector provides data transfer speeds of up to 5 Gb/s.

Pro WS C621-64L SAGE/10G USB 3.2 Gen 1 connector

The USB 3.2 Gen 1 module is purchased separately.

The plugged USB 3.2 Gen 1 device may run on xHCI or EHCI mode depending on the operating system's setting.

12. USB 2.0 connector

The USB 2.0 connector allows you to connect a USB module for additional USB 2.0 ports. The USB 2.0 connector provides data transfer speeds of up to 480 MB/s connection speed.

Pro WS C621-64L SAGE/10G USB 2.0 connector

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB 2.0 module is purchased separately.

13. VPP_I2C1 connector

The VPP_I2C1 connector is used for the storage backplane with Intel VMD function and sensor readings.

Pro WS C621-64L SAGE/10G VPP_I2C1 connector

14. Fan connector

The Fan connector allows you to connect fans to cool the system.

• DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!
• Ensure the cable is fully inserted into the connector.

The fan connectors support a maximum of 1A (12W) fan power.

15. System Panel connector

The System Panel connector supports several chassis-mounted functions.

• System Power LED connector (PLED)

The 2-pin and/or 3-1 pin connectors allow you to connect the System Power LED. The System Power LED lights up when the system is connected to a power source, or when you turn on the system power, and blinks when the system is in sleep mode.

- Message LED (MLED)

The 2-pin connector allows you to connect the Message LED. The message LED is controlled by the hardware monitor to indicate an abnormal event occurrence.

• Storage Device Activity LED connector (HDD_LED/HDLED)

The 2-pin connector allows you to connect the Storage Device Activity LED. The Storage Device Activity LED lights up or blinks when data is read from or written to the storage device or storage device add-on card.

• System Warning Speaker connector (SPEAKER)

The 4-pin connector allows you to connect the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

• Power Button/Soft-off Button connector (PWRSW)

The 3-1 pin connector allows you to connect the system power button. Press the power button to power up the system, or put the system into sleep or soft-off mode (depending on the operating system settings).

- Reset button connector (RESET)

The 2-pin connector allows you to connect the chassis-mounted reset button. Press the reset button to reboot the system.

• Chassis intrusion connector (CHASSIS)

The 2-pin connector allows you to connect the chassis-mounted intrusion detection sensor or switch. The chassis intrusion sensor or switch sends a high-level signal to the connector when a chassis component is removed or replaced, the signal is then generated as a chassis intrusion event.

16. Auxiliary Panel connector

The Auxiliary Panel connector is for additional front or rear panel features.

Pro WS C621-64L SAGE/10G Auxiliary Panel connector

• Front panel SMB connector (FPSMB)

The 6-1 pin connector allows you to connect the front panel SMBus.

• LAN activity LED connector (LAN1_LED, LAN2_LED)

The 2-pin connector allows you to connect the Gigabit LAN Activity LED.

- Locator LED connector (LOCATORLED1, LOCATORLED2)

The 2-pin connector allows you to connect the Locator LED. The Location LED helps visually locate and identify the server in error on a server rack.

- Locator button connector (LOCATORBTN)

The 2-pin connector allows you to connect the Locator button. Press the button to light up the Locator LED.

17. Power connectors

These Power connectors allow you to connect your motherboard to a power supply. The power supply plugs are designed to fit in only one orientation, find the proper orientation and push down firmly until the power supply plugs are fully inserted.

Pro WS C621-64L SAGE/10G Power connectors

• DO NOT connect the 6-pin power plug only, the motherboard may overheat under heavy usage.
• Ensure to connect both the EATX12V1 and EATX12V2 8-pin power plugs, or connect both the 8-pin and 6-pin power plugs.

• For a fully configured system without additional add-on cards, we recommend that you use a power supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later version) and provides a minimum power of 750 W.
• We recommend that you use a PSU with a higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with 2000W power or above with a 220V AC input to ensure the system stability.
• If you want to use two GPU cards, use a PSU with 1300W power or above to ensure the system stability.

19. System Management Bus connector

The System Management Bus (SMBus) connector allows you to connect SMBus devices. This connector is generally used for communication with the system and power management-related tasks.

Pro WS C621-64L SAGE/10G System Management Bus connector

20. Serial General Purpose Input/Output connector

The Serial General Purpose Input/Output (SGPIO) connector allows you to connect the Intel Rapid Storage Technology Enterprise SGPIO interface. The SGPIO interface controls the LED pattern generation, device information, and general purpose data.

Pro WS C621-64L SAGE/10G Serial General Purpose Input/Output connector

21. MicroSD card slot

The microSD card slot allows you to install a microSD memory card v2.00 (SDHC) / v3.00 (SDXC) to log BMC events.

Pro WS C621-64L SAGE/10G MicroSD card slot

Disconnect all power (including redundant PSUs) from the existing system before you add or remove a memory card, then reboot the system to access the memory card.

• Some memory cards may not be compatible with your motherboard. Ensure that you use only compatible memory cards to prevent loss of data, damage to your device, or memory card, or both.
• The MicroSD Slot is only supported with BMC Function and not supported for normal use under the OS.

BIOS Setup

4

This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

4.1 Managing and updating your BIOS

The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup:

1. ASUS CrashFree BIOS 3

To recover the BIOS using a bootable USB flash disk drive when the BIOS file fails or gets corrupted.

1. ASUS EzFlash

Updates the BIOS using a USB flash disk.

1. BUPDATER

Updates the BIOS in DOS mode using a bootable USB flash disk drive.

Refer to the corresponding sections for details on these utilities.

Save a copy of the original motherboard BIOS file to a bootable USB flash disk drive in case you need to restore the BIOS in the future. Copy the original motherboard BIOS using the BUPDATER utility.

4.1.1 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using a USB flash drive that contains the updated BIOS file.

Prepare a USB flash drive containing the updated motherboard BIOS before using this utility.

Recovering the BIOS from a USB flash drive

To recover the BIOS from a USB flash drive:

1. Insert the USB flash drive with the original or updated BIOS file to one USB port on the system.
2. The utility will automatically recover the BIOS. It resets the system when the BIOS recovery finished.

DO NOT shut down or reset the system while recovering the BIOS! Doing so would cause system boot failure!

The recovered BIOS may not be the latest BIOS version for this motherboard. Visit the ASUS website at www.asus.com to download the latest BIOS file.

4.1.2 ASUS EzFlash Utility

The ASUS EzFlash Utility feature allows you to update the BIOS using a USB flash disk without having to use a DOS-based utility.

Download the latest BIOS from the ASUS website at www.asus.com before using this utility.

The succeeding BIOS screens are for reference only. The actual BIOS screen displays may not be the same as shown.

To update the BIOS using EzFlash Utility:

1. Insert the USB flash disk that contains the latest BIOS file to the USB port.
2. Enter the BIOS setup program. Go to the Tool menu to select Start EzFlash and press to enable it.

1. Press to switch to the Drive field.
2. Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS then press .
3. Press to switch to the Folder Info field.
4. Press the Up/Down arrow keys to find the BIOS file then press .
5. Reboot the system when the update process is done.

• This function can support devices such as a USB flash disk with FAT 32/16 format and single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

Ensure to load the BIOS default settings to ensure system compatibility and stability. Press and select Yes to load the BIOS default settings.

4.1.3 BUPDATER utility

The succeeding BIOS screens are for reference only. The actual BIOS screen displays may not be the same as shown.

The BUPDATER utility allows you to update the BIOS file in DOS environment using a bootable USB flash disk drive with the updated BIOS file.

Updating the BIOS file

To update the BIOS file using the BUPDATER utility:

1. Visit the ASUS website at www.asus.com and download the latest BIOS file for the motherboard. Save the BIOS file to a bootable USB flash disk drive.
2. Download the BUPDATER utility (BUPDATER.exe) from the ASUS support website at support.asus.com to the bootable USB flash disk drive you created earlier.
3. Boot the system in DOS mode, then at the prompt, type: BUPDATER /i[filename].CAP where [filename] is the latest or the original BIOS file on the bootable USB flash disk drive, then press <Enter>.

A:>BUPDATER /i [file name]CAP

The utility verifies the file, then starts updating the BIOS file.

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

The utility returns to the DOS prompt after the BIOS update process is completed.

1. Reboot the system from the hard disk drive.

4.2 BIOS setup program

This motherboard supports a programmable firmware chip that you can update using the provided utility described in section Managing and updating your BIOS.

Use the BIOS Setup program when you are installing a motherboard, reconfiguring your system, or prompted to "Run Setup." This section explains how to configure your system using this utility.

Even if you are not prompted to use the Setup program, you can change the configuration of your computer in the future. For example, you can enable the security password feature or change the power management settings. This requires you to reconfigure your system using the BIOS Setup program so that the computer can recognize these changes and record them in the CMOS RAM of the firmware chip.

The firmware chip on the motherboard stores the Setup utility. When you start up the computer, the system provides you with the opportunity to run this program. Press during the Power-On Self-Test (POST) to enter the Setup utility; otherwise, POST continues with its test routines.

If you wish to enter Setup after POST, restart the system by pressing + + , or by pressing the reset button on the system chassis. You can also restart by turning the system off then back on. Do this last option only if the first two failed.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various sub-menus and make your selections from the available options using the navigation keys.

• The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Press and select Yes to load the BIOS default settings.
• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
• Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard.

4.2.1 BIOS menu screen

4.2.2 Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system configuration

Ai Tweaker For changing the overclocking settings

Performance Tuning For changing the performance settings

Advanced For changing the advanced system settings

Platform Configuration For changing the platform settings

Socket Configuration For changing the socket settings

Event Logs For changing the event log settings

Server Mgmt For changing the server mgmt settings

Monitor For displaying the system temperature, power status, and changing the fan settings

Security For changing the security settings

Boot For changing the system boot configuration

Tool For configuring options for special functions

Save & Exit For selecting the save & exit options

To select an item on the menu bar, press the right or left arrow key on the keyboard until the desired item is highlighted.

4.2.3 Menu items

The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items. The other items (Advanced, Platform Configuration, Socket Configuration, Event Logs, Server Mgmt, Monitor, Security, Boot, Tool, and Save & Exit) on the menu bar have their respective menu items.

4.2.4 Submenu items

A solid triangle before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press .

4.2.5 Navigation keys

At the bottom right corner of a menu screen are the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

4.2.6 General help

At the top right corner of the menu screen is a brief description of the selected item.

4.2.7 Configuration fields

These fields show the values for the menu items. If an item is user-configurable, you can change the value of the field opposite the item. You cannot select an item that is not user-configurable. A configurable field is enclosed in brackets, and is highlighted when selected. To change the value of a field, select it and press to display a list of options.

4.2.8 Pop-up window

Select a menu item and press to display a pop-up window with the configuration options for that item.

4.2.9 Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not fit on the screen. Press the Up/Down arrow keys or / keys to display the other items on the screen.

4.3 Main menu

When you enter the BIOS Setup program, the Main menu screen appears. The Main menu provides you an overview of the basic system information, and allows you to set the system date and time.

4.4 Ai Tweaker menu

The Ai Tweaker menu items allow you to configure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field values can cause the system to malfunction

The configuration options for this section vary depending on the CPU and DIMM model you installed on the motherboard.

Ai Overclock Tuner

Allows you to select the CPU overclocking options to achieve the desired CPU internal frequency.

Configuration options: [Auto] [Manual] [OC Tune]

The following item appears only when Ai Overclocking Tuner is set to [Manual].

BCLK Frequency

This item allows you to set the BCLK (base clock) frequency to enhance the system performance. Use the <+> or <-> to adjust the value. The values range from 80.0 MHz to 300.0 MHz.

We recommend you to set the value based on the CPU specification, as high BCLK frequencies may damage the CPU permanently.

The following item appears only when Ai Overclocking Tuner is set to [OC Tune].

OC Tune Level

Allows you to select the OC Tune Level.

Configuration options: [Level 1] [Level 2] [Level 3]

4.5 Performance Tuning menu

The Performance Tuning menu items allow you to change performance related settings for different scenarios.

Optimized Performance Setting [Default] Core Optimizer [Disabled] Engine Boost [Disabled]

The following setting shows the recommended BIOS setting to optimize for performance includes those

Optimized Performance Setting [Default]

Allows you to select performance settings for different scenarios.

[Default] Default settings.

[By Benchmark] Optimize for different kinds of benchmarks. Select this option, then select a benchmark type from the >> list.

[By Workload] Optimize for different kinds of workloads. Select this option, then select a workload type from the >> list.

Configuration options:

[Peak Frequency Optimized] - Applies settings with performance and power consumption balance. Recommended for users that need higher performance.

[Latency Optimized] - Applies settings with low latency results. Recommended for latency-sensitive users.

[Power Efficient Optimized] - Applies settings with power efficiency. Recommended for general users.

[HPC] - Applies settings with optimized compute capability. Recommend for traditional HPC applications.

Core Optimizer and Engine Boost appear only when you set Optimized Performance Setting to [Default] or [By Benchmark].

Core Optimizer [Disabled]

Enable this item to keep the processor operating at the turbo frequency.

Configuration options: [Disabled] [Enabled]

Linux support may vary by version of the OS.

Engine Boost [Disabled]

Enable this item to boost the CPU's frequency.

Configuration options: [Disabled] [Level1] [Level2] [Level3(Max)]

Operate with an ambient temperature of 25°C or lower for optimized performance.

4.6 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction.

Front Panel Type

This item allows you to set the front panel audio connector (AAFP) mode to legacy AC'97 or high-definition audio depending on the audio standard that the front panel audio module supports.

[HD Audio] Sets the front panel audio connector (AAFP) mode to high definition audio.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC'97

4.6.1 Trusted Computing

The items in this menu allow you configure BIOS support for security device.

4.6.2 ACPI Settings

The items in this menu allow you to configure the system ACPI parameters.

Enable ACPI Auto Configuration

Allows you to enable or disable the BIOS ACPI Auto Configuration. Configuration options: [Disabled] [Enabled]

Enable Hibernation

Allows you to enable or disable the ability of the system to hibernate (OS/S4 Sleep State). Configuration options: [Disabled] [Enabled]

This option may not be effective with some OS.

ACPI Sleep State

Allows you to select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

Configuration options: [Suspend Disabled] [S3 (Suspend to RAM)]

4.6.3 SMART Self Test

The items in this menu allow you to configure the SMART Self Test settings.

4.6.4 Super IO Configuration

The items in this menu allow you to configure the system Super IO Chip parameters.

Serial Port 1 Configuration

Allows you to set the parameters of Serial Port 1.

Serial Port

Allows you to enable or disable Serial Port.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set Serial Port to [Enabled].

Change Settings

Allows you to choose the setting for Super IO device.

Configuration options: [Auto] [IO=3F8h; IRQ=4;] [IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] [IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] [IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] [IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;]

4.6.5 Serial Port Console Redirection

The items in this menu allow you to configure the Serial Port Console Redirection settings.

4.6.6 CPU Storage Configuration

The items in this menu allow you to configure CPU storage configurations.

4.6.7 Onboard LAN Configuration

The items in this menu allow you to configure the onboard LAN parameters.

The items in this menu may vary according to your motherboard.

Onboard X550 LAN Configuration

Intel LAN1 & LAN2 Enable

Allows you to enable or disable the Intel LAN. Configuration options: [Disabled] [Enabled]

The following item appears only when you set Intel LAN1 & LAN2 Enable to [Enabled].

Intel LAN1 ROM Type

Allows you to select the Intel LAN ROM type. Configuration options: [Disabled] [PXE]

Intel LAN2 ROM Type

Allows you to select the Intel LAN ROM type. Configuration options: [Disabled] [PXE]

4.6.8 APM

Allows you to configure the Advanced Power Management (APM) settings.

Restore AC Power Loss

When set to [Power Off], the system goes into off state after an AC power loss. When set to [Power On], the system will reboot after an AC power loss. When set to [Last State], the system goes into either off or on state, whatever the system state was before the AC power loss.

Configuration options: [Power Off] [Power On] [Last State]

Power On By PCIE

[Disabled] Disables the PCIE devices to generate a wake event.

[Enabled] Enables the PCIE devices to generate a wake event.

Power On By RTC

[Disabled] Disables RTC to generate a wake event.

[Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/Minute/Second will become user-configurable with set values.

4.6.9 PCI Subsystem Settings

Allows you to configure PCI, PCI-X, and PCI Express Settings.

Load RT32 Image

Allows you to enable or disable RT32 Image Loading.

Configuration options: [Disabled] [Enabled]

Above 4G Decoding

Allows you to enable or disable 64-bit capable devices to be decoded in above 4G address space. It only works if the system supports 64-bit PCI decoding.

Configuration options: [Disabled] [Enabled]

SR-IOV Support

This option enables or disables Single Root IO Virtualization Support if the system has SRIOV capable PCIe devices.

Configuration options: [Disabled] [Enabled]

PCIE OPROM Slot Options

PCIE1-7 Slot OPROM

This option allows you to enable or disable the OPROM of the PCIe slots.

Configuration options: [Disabled] [Enabled]

4.6.10 USB Configuration

The items in this menu allow you to change the USB-related features.

4.6.11 CSM Configuration

This item allows you to configure the CSM (Compatibility Support Module) items to fully support the various VGA, bootable devices and add-on devices for better compatibility.

CSM Support

This option allows you to enable or disable CSM Support.

Configuration options: [Disabled] [Enabled]

The following items appear only when you set the CSM Support to [Enabled].

GateA20 Active

This allows you to set the GA20 option.

[Upon Request] GA20 can be disabled using BIOS services.

[Always] Do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

Option ROM Messages

This allows you to set the display mode for option ROM.

Configuration options: [Force BIOS] [Keep Current]

INT19 Trap Response

This option allows you to control the BIOS reaction on INT19 trapping by Option ROM.

[Immediate] Execute the trap right away.

[Legacy only] Execute the trap during legacy boot.

Boot Option filter

This option allows you to control the Legacy/UEFI ROMs priority.

Configuration options: [UEFI and Legacy] [Legacy only] [UEFI only]

Network / Storage / Video

This option allows you to control the execution of UEFI and Legacy PXE/ Storage/Video OpROM.

Configuration options: [UEFI] [Legacy]

Other PCI devices

This item determines the OpROM execution policy for devices other than Network, Storage, or Video.

Configuration options: [UEFI] [Legacy]

4.6.12 NVMe Configuration

You may view the NVMe controller and Drive information if an NVMe device is connected.

4.6.13 Offboard SATA Controller Configuration

Allows you to configure the offboard SATA controller configuration.

4.6.14 Audio Configuration

The items in this menu allow you to enable or disable the onboard audio.

4.6.15 ASMedia Storage Controller

The items in this menu allow you to configure ASMedia storage controller.

4.6.16 Network Stack Configuration

The items in this menu allow you to configure IPv4 / IPv6 PXE support.

4.6.17 iSCSI Configuration

Allows you to configure the iSCSI parameters.

4.7 Platform Configuration menu

The IntelRCSetup menu items allow you to change the platform settings.

Take caution when changing the settings of the Platform Configuration menu items. Incorrect field values can cause the system to malfunction.

4.7.1 PCH Configuration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port.

PCH SATA Configuration

SATA Controller

Allows you to enable or disable the SATA Controller.

Configuration options: [Disabled] [Enabled]

The following item appears only when SATA Controller is set to [Enabled].

Configure SATA as

Allows you to identify the SATA port connected to Solid State Drive or Hard Disk Drive.

Configuration options: [AHCI] [RAID]

Support Aggressive Link Power Management

Allows you to enable or disable the Support Aggressive Link Power (SALP)

Management.

Configuration options: [Disabled] [Enabled]

SATA Port 0-7

Port 0-7

Allows you to enable or disable the SATA port.

Configuration options: [Disabled] [Enabled]

4.7.2 Miscellaneous Configuration

Active Video

Allows you to select the video type.

Configuration options: [Onboard Device] [Offboard Device]

4.7.3 Workstation ME Configuration

The items in this menu allow you to configure workstation ME technology parameters.

4.7.4 Runtime Error Logging

Displays the system errors and also allows you to configure the WHEA settings on your system.

4.8 Socket Configuration menu

The IntelRCSetup menu items allow you to change the socket settings.

4.8.1 Processor Configuration

The items in this menu show the processor-related information that the BIOS automatically detects.

Hyper-threading [ALL]

This item allows a hyper-threading processor to appear as two logical processors, allowing the operating system to schedule two threads or processors simultaneously.

Configuration options: [Disabled] [Enabled]

4.8.2 UPI Configuration

This menu displays and provides options to change the UPI Settings.

4.8.3 Memory Configuration

This menu displays and provides options to change the Memory Settings.

Memory Topology

Displays memory topology with DIMM population information.

4.8.4 IIO Configuration

This menu displays and provides options to change the IIO Settings.

4.8.5 Advanced Power Management Configuration

This menu displays and provides options to change the Power Management Settings.

CPU P State Control

Boot performance mode

Allows you to switch between Boot performance mode.

Configuration options: [Max Performance] [Max Efficient] [Set by Intel Node Manager]

Energy Efficient Turbo

Allows you to enable or disable Energy Efficient Turbo.

Configuration options: [Disabled] [Enabled]

Turbo Mode

Allows you to enable or disable Turbo Mode.

Configuration options: [Disabled] [Enabled]

Hardware PM State Control

Hardware P-States

Allows you to switch between Hardware P-States mode.

Configuration options: [Disabled] [Native Mode] [Out of Band Mode]

[Native Mode with no Legacy Support]

CPU C State Control

CPU C6 Report

Allows you to select CPU C6 Report.

Configuration options: [Disabled] [Enabled] [Auto]

OS ACPI Cx

Allows you to select OS ACPI Cx Report.

Configuration options: [ACPI C2] [ACPI C3]

Package C State Control

Package C State

Allows you to select Package C State.

Configuration options: [C0/C1 state] [C2 state] [C6(non Retention state)]

[C6(Retention state)] [No Limit] [Auto]

CPU Thermal Management

CPU T State Control

Software Controlled T-States

Allows you to enable or disable Software Controlled T-States.

Configuration options: [Disabled] [Enabled]

CPU - Advanced PM Tuning

Energy Perf BIAS

Power Performance Tuning

Configuration options: [OS Controls EPB] [BIOS Controls EPB]

4.9 Event Logs menu

The Event Logs menu allows you to view and configure SMBIOS event log settings.

4.9.1 Change SMBIOS Event Log Settings

Press to change the SMBIOS Event Log configuration.

4.9.2 View SMBIOS Event Log

Press to view all SMBIOS event logs.

4.10 Server Mgmt menu

The Server Mgmt menu items allow you to set BMC and SEL configurations.

4.10.1 System Event Log

Allows you to change the SEL event log configuration.

4.10.2 BMC network configuration

The sub-items in this configuration allow you to configure the BMC network parameters.

4.10.3 View System Event Log

This item allows you to view the system event log records.

4.11 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

4.12 Security menu

This menu allows a new password to be created or a current password to be changed. The menu also enables or disables the Secure Boot state and lets the user configure the System Mode state.

4.13 Boot menu

The Boot menu items allow you to change the system boot options.

Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

• To select the boot device during system startup, press when ASUS Logo appears.
• To access Windows OS in Safe Mode, please press after POST.

Network Device BBS Priorities

This item allows you to set the booting from network.

Hard Drive BBS Priorities

These items appear only when you connect SATA ODD or hard drive to the SATA ports and allow you to set the booting order of the SATA devices.

4.14 Tool menu

The Tool menu items allow you to configure options for special functions. Select an item then press to display the submenu.

Start EzFlash

Allows you to run ASUS EzFlash BIOS ROM Utility when you press . Refer to the ASUS EzFlash Utility section for details.

4.15 Save & Exit menu

The Exit menu items allow you to save or discard your changes to the BIOS items.

Pressing does not immediately exit this menu. Select one of the options from this menu or from the legend bar to exit.

Discard Changes and Exit

Exit System setup without saving any changes.

Save Changes and Reset

Exit System setup after saving the changes.

Restore Defaults

Restore/load default values for all the setup options.

Boot Override

These items displays the available devices. The device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

RAID Configuration

This chapter provides instructions for setting up, creating, and configuring RAID sets using the available utilities.

5

5.1 RAID configurations

The motherboard supports Intel® Rapid Storage Technology enterprise Option ROM Utility with RAID 0, RAID 1, RAID 10, and RAID 5 support.

If you want to install a Windows® operating system to a hard disk drive included in a RAID set, you have to create a RAID driver disk and load the RAID driver during OS installation. Refer to section 5.2.1 Creating a RAID set for details.

5.1.1 RAID definitions

RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a sustained data transfer rate, double that of a single disk alone, thus improving data access and storage. Use of two new identical hard disk drives is required for this setup.

RAID 1 (Data mirroring) copies and maintains an identical image of data from one drive to a second drive. If one drive fails, the disk array management software directs all applications to the surviving drive as it contains a complete copy of the data in the other drive. This RAID configuration provides data protection and increases fault tolerance to the entire system. Use two new drives or use an existing drive and a new drive for this setup. The new drive must be of the same size or larger than the existing drive.

RAID 5 stripes both data and parity information across three or more hard disk drives. Among the advantages of RAID 5 configuration include better HDD performance, fault tolerance, and higher storage capacity. The RAID 5 configuration is best suited for transaction processing, relational database applications, enterprise resource planning, and other business systems. Use a minimum of three identical hard disk drives for this setup.

RAID 10 is data striping and data mirroring combined without parity (redundancy data) having to be calculated and written. With the RAID 10 configuration you get all the benefits of both RAID 0 and RAID 1 configurations. Use four new hard disk drives or use an existing drive and three new drives for this setup.

5.1.2 Installing Serial ATA hard disks

The motherboard supports Serial ATA hard disk drives. For optimal performance, install identical drives of the same model and capacity when creating a disk array.

To install the SATA hard disks for a RAID configuration:

1. Install the SATA hard disks into the drive bays.
2. Connect the SATA signal cables.
3. Connect a SATA power cable to the power connector on each drive.

5.1.3 Setting the RAID item in BIOS

You must set the RAID item in the BIOS Setup before you can create a RAID set from SATA hard disk drives attached to the SATA connectors supported by Intel® C621 chipset.

To do this:

1. Enter the BIOS Setup during POST.
2. Go to the Platform Configuration menu > PCH Configuration menu > PCH SATA Configuration, then press .
3. Set Configure SATA as to [RAID Mode].
4. Press to save your changes and exit the BIOS Setup.

Refer to Chapter 4 for details on entering and navigating through the BIOS Setup.

5.1.4 RAID configuration utilities

Depending on the RAID connectors that you use, you can create a RAID set using the utilities embedded in each RAID controller. For example, use the Intel® Rapid Storage Technology if you installed Serial ATA hard disk drives on the Serial ATA connectors supported by the Intel® C621 chipset.

Refer to the succeeding section for details on how to use the RAID configuration utility.

5.2 Intel® Rapid Storage Technology enterprise SATA/SSATA Option ROM Utility

The Intel® Rapid Storage Technology enterprise SATA/SSATA Option ROM utility allows you to create RAID 0, RAID 1, RAID 10 (RAID 1+0), and RAID 5 set from Serial ATA hard disk drives that are connected to the Serial ATA connectors supported by the Southbridge.

Before you proceed, ensure that you have installed the Serial ATA hard disk drives, and have set the correct SATA mode in the BIOS setup. You can refer to the Installing hard disk drives, and Setting the RAID mode sections in this manual for more information.

To launch the Intel® Rapid Storage Technology enterprise SATA/SSATA Option ROM utility:

1. Turn on the system.
2. During POST, press <Ctrl+I> to display the utility main menu.

The navigation keys at the bottom of the screen allow you to move through the menus and select the menu options.

The RAID BIOS setup screens shown in this section are for reference only and may not exactly match the items on your screen.

5.2.1 Creating a RAID set

To create a RAID set:

1. From the utility main menu, select 1. Create RAID Volume and press <Enter>.
2. Key in a name for the RAID set and press <Enter>.

1. Press the up/down arrow keys to select a RAID Level that you wish to create then press <Enter>.
2. From the Disks item field, press <Enter> to select the hard disk drives that you want to include in the RAID set.

1. Use the up/down arrow keys to move the selection bar then press <Enter> to select a disk. A small triangle before the Port number marks the selected drive. Press <Enter> when you are done.
2. Use the up/down arrow keys to select the stripe size for the RAID array (for RAID 0, 10 and 5 only) then press . The available stripe size values range from 4 KB to 128 KB. The following are typical values:

RAID 0: 128KB

RAID 10: 64KB

RAID 5: 64KB

We recommend a lower stripe size for server systems, and a higher stripe size for multimedia computer systems used mainly for audio and video editing.

1. In the Capacity field item, key in the RAID volume capacity that you want to use and press . The default value field indicates the maximum allowed capacity.
2. Press to start creating the RAID volume.
3. From the following warning message, press to create the RAID volume and return to the main menu, or press to go back to the CREATE VOLUME menu.

WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST. Are you sure you want to create this volume? (Y/N):

5.2.2 Deleting a RAID set

Take caution when deleting a RAID set. You will lose all data on the hard disk drives when you delete a RAID set.

To delete a RAID set:

1. From the utility main menu, select 2. Delete RAID Volume and press .
2. From the Delete Volume Menu, press the up/down arrow keys to select the RAID set you want to delete then press .

1. Press to confirm deletion of the selected RAID set and return to the utility main menu, or press to return to the DELETE VOLUME menu.

5.2.3 Resetting disks to Non-RAID

Take caution before you reset a RAID volume hard disk drive to non-RAID. Resetting a RAID volume hard disk drive deletes all internal RAID structure on the drive.

To reset a RAID set:

1. From the utility main menu, select 3. Reset Disks to Non-RAID and press .
2. Press the up/down arrow keys to select the drive(s) or disks of the RAID set you want to reset, then press . A small triangle before the Port number marks the selected drive. Press when you are done.

1. Press in the confirmation window to reset the drive(s) or press to return to the utility main menu.

5.2.4 Exiting the Intel Rapid Storage Technology enterprise SATA/SSATA Option ROM utility

To exit the utility:

1. From the utility main menu, select 4. Exit then press .
2. Press to exit or press to return to the utility main menu.

5.2.5 Rebuilding the RAID

This option is only for the RAID 1 set.

Rebuilding the RAID with other non-RAID disk

If any of the SATA hard disk drives included in the RAID 1 array failed, the system displays the status of the RAID volume as "Degraded" during POST. You can rebuild the RAID array with other installed non-RAID disks.

To rebuild the RAID with other non-RAID disk:

1. During POST, press <Ctrl+I> at the prompt to enter the Intel Rapid Storage Technology option ROM utility.
2. If there is a non-RAID SATA Hard Disk available, the utility will prompt you to rebuild the RAID. Press the up/down arrow keys to select the destination disk then press <Enter> to start the rebuilding process, or press <Esc> to exit.

Select a destination disk with the same size as the original hard disk.

1. The utility immediately starts rebuilding after the disk is selected. When done, the status of the degraded RAID volume is changed to "Rebuild".

1. Press <Esc> to exit Intel Rapid Storage Technology and reboot the system.
2. Select Start > Programs > Intel Rapid Storage > Intel Rapid Storage Console or click the Intel Rapid Storage Technology tray icon to load the Intel Rapid Storage Manager utility.
3. From the View menu, select Advanced Mode to display the details of the Intel Rapid Storage Console.
4. From the Volumes view option, select RAID volume to view the rebuilding status. When finished, the status is changed to "Normal".

Rebuilding the RAID with a new hard disk

If any of the SATA hard disk drives included in the RAID array failed, the system displays the status of the RAID volume as "Degraded" during POST. You may replace the disk drive and rebuild the RAID array.

To rebuild the RAID with a new hard disk:

1. Remove the failed SATA hard disk and install a new SATA hard disk of the same specification into the same SATA Port.

Select a destination disk with the same size as the original hard disk.

1. Reboot the system then follow the steps in section Rebuilding the RAID with other non-RAID disk.

5.2.6 Setting the Boot Array in the BIOS Setup Utility

You can set the boot priority sequence in the BIOS for your RAID arrays when creating multi-RAID using the Intel® Rapid Storage Technology enterprise SATA Option ROM utility.

To set the boot array in the BIOS:

Set at least one of the arrays bootable to boot from the hard disk.

1. Reboot the system and press <Del> to enter the BIOS setup utility during POST.
2. Go to the Boot menu and select the boot option priority.
3. Use up/down arrow keys to select the boot priority and press <Enter>. See the Boot menu section of Chapter 5 for more details.
4. From the Exit menu, select Save Changes & Exit, then press <Enter>.
5. When the confirmation window appears, select Yes, then press <Enter>.

5.3 Intel® Rapid Storage Technology enterprise (Windows)

The Intel® Rapid Storage Technology enterprise allows you to create RAID 0, RAID 1, RAID 10 (RAID 1+0), and RAID 5 set(s) from Serial ATA hard disk drives that are connected to the Serial ATA connectors supported by the Southbridge.

You need to manually install the Intel® Rapid Storage Technology enterprise utility on a Windows® operating system.

To enter the Intel® Rapid Storage Technology enterprise utility under Windows operating system:

1. Turn on the system and go to the Windows desktop.
2. Click the Intel® Rapid Storage Technology enterprise icon to display the main menu.

Your storage system is configured for data protection, increased performance, and optimal data storage capacity. You can create additional volumes to further optimize your storage system.

You can click Rescan to re-scan any attached hard disks.

5.3.1 Creating a RAID set

To create a RAID set:

1. From the utility main menu, select Create Volume and select volume type.
2. Click Next.

1. Enter a name for the RAID set, then select the array disks.
2. Select Volume Size tab, you can drag the bar to decide the volume size.
3. Click Next.

• If you do not want to keep the data on one of the selected disks, select NO when prompted.
• If you want to Enable volume write-back cache or Initialize volume, click Advanced.
• Confirm the volume creation, then click Create Volume to continue.

This process could take a while depending on the number and size of the disks. You can continue using other applications during this time.

1. Wait until the process is completed, then click OK when prompted.

You still need to partition your new volume using Windows Disk Management before adding any data.

The RAID set is displayed in the Volumes list and you can change the settings in Volume Properties.

5.3.2 Changing a Volume Type

To change the volume type in Volume Properties:

1. Click the SATA array items you want to change in the Volumes field.
2. From the Volume Properties field, select Type: RAID 1 Change type.

1. You can change the Name, select the new volume type, and select additional disks to include in the new volume if needed.
2. Select the Data stripe size for the RAID array (for RAID 0, 10 and 5 only), and click OK. The available stripe size values range from 4 KB to 128 KB. The following are typical values:

RAID 0: 128KB

RAID 10: 64KB

RAID 5: 64KB

We recommend a lower stripe size for server systems, and a higher stripe size for multimedia computer systems used mainly for audio and video editing.

5.3.3 Deleting a volume

Be cautious when deleting a volume. You will lose all data on the hard disk drives. Before you proceed, ensure that you back up all your important data from your hard drives.

To delete a volume:

1. From the utility main menu, select the volume (ex. Volume_0000) in Volumes field you want to delete.

1. Select Delete volume in Volume Properties field. The following screen appears.

1. Click Yes to delete the volume and return to the utility main menu, or click No to return to the main menu.

5.3.4 Preferences

System Preferences

Allow you to set to show the notification area icon and show system information, warning, or errors here.

E-Mail Preferences

Allow you to set to sent e-mail of the following events:

• Storage system information • Storage system warnings - Storage system errors

5.4 Intel® Virtual Raid on CPU in BIOS

This feature requires a KEY module to enable CPU RAID functions with Intel® CPU RSTe.

• The KEY module is purchased separately. - Due to chipset behavior, CPU RAID functions with Intel® CPU RSTe only supports Intel® SSD modules. • Refer to section Internal connectors for the location of the VROC_KEY1 connector.

Due to hardware design, [PCIEX16_1], or [PCIEX16_2], or [PCIEX16_3], and [PCIEX16_4] can support CPU RAID configuration as OS drives, but OS RAID may not be built across the different [items] mentioned above.

To enter the Intel® Virtual Raid on CPU in BIOS:

1. Enter the BIOS Setup during POST.
2. Go to the Advanced menu > Intel(R) Virtual Raid on CPU > All Intel VMD Controllers then press to display the Intel® Virtual Raid on CPU menu.

Refer to Chapter 4 for details on entering and navigating through the BIOS Setup.

Due to chipset limitation, when SATA ports are set to RAID mode, all SATA ports run at RAID mode together.

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced
All Intel VMD Controllers ► Create RAID Volume Non-RAID Physical Disks: ► Port 0, VMDO, INTEL SSDPE2MX400G4 SN:CVPD6212006W400NGN,... ► Port 1, VMDO, INTEL SSDPE2MX400G4 SN:CVPD6212006H400NGN,... ► Port 2, VMDO, INTEL SSDPE2MX400G4 SN:CVPD6212004T400NGN,... ► Port 3, VMDO, INTEL SSDPE2MX400G4 SN:CVPD6212008S400NGN,...	This page allows you to create a RAID volume
	++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F5: Optimized Defaults F10: Save Changes & Reset F12: Print Screen ESC: Exit

5.4.1 Creating a RAID set

To create a RAID set:

1. From the Intel® Virtual Raid on CPU menu, select Create RAID Volume and press . The following screen appears:

1. When the Name item is selected, enter a name for the RAID set and press .
2. When the RAID Level item is selected, press to select the RAID level to create, and then press .
3. When the Enable RAID spanned over VMD Controllers item is selected, press and select X to enable this function.
4. Under Select Disks, press and select X for the disks you want to include in the RAID set.
5. When the Strip Size item is selected, press to select strip size for the RAID array (for RAID 0, 10 and 5 only), and then press . The available strip size values range from 4 KB to 128 KB. The following are typical values:
6. RAID 0: 128 KB
7. RAID 10: 64 KB
8. RAID 5: 64 KB

We recommend a lower strip size for server systems, and a higher strip size for multimedia computer systems used mainly for audio and video editing.

1. When the Capacity (MB) item is selected, enter the RAID volume capacity that you want and press . The default value indicates the maximum allowed capacity.
2. When the Create Volume item is selected, press to create the RAID volume and return to the Intel® Rapid Storage Technology menu.

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced
Create RAID Volume Name: Volume0 RAID Level: [RAIDS(Parity)] Enable RAID spanned over VMD Contr [X]
Select Disks: Port 0, VMDO, INTEL SSDPE2MX400G4 [X] Port 1, VMDO, INTEL SSDPE2MX400G4 [X] Port 2, VMDO, INTEL SSDPE2HX400G4 [X] Port 3, VMDO, INTEL SSDPE2HX400G4 [X]
Strip Size: [126KB] Capacity (MB): 1087416 RWH Policy [Disable]
▶ Create Volume	Create a volume with the settings specified above
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F5: Optimized Defaults F10: Save Changes & Reset F12: Print Screen ESC: Exit

5.4.2 Deleting a RAID set

Be cautious when deleting a RAID set. You will lose all data on the hard disk drives when you delete a RAID set.

To delete a RAID set:

1. From the Intel® Virtual Raid on CPU menu, select the RAID volume you want to delete and press . The following screen appears:

1. When the Delete item is selected, press , then select Yes to delete the RAID volume and return to the Intel® Virtual Raid on CPU menu, or select No to cancel.

5.4.3 Installing the RAID controller driver during Windows 10 OS installation

®

After creating the RAID sets, you are now ready to install an operating system to the independent drives or bootable array. This part provides the instructions on how to install the RAID controller drivers during OS installation.

To install the RAID controller driver when installing Windows® 10 OS:

1. Boot the computer using the Windows® 10 OS installation disc. Follow the screen instructions to start installing Windows® 10.
2. When prompted to choose a type of installation, click Custom: Install Windows only (advanced).

1. Click Load Driver.

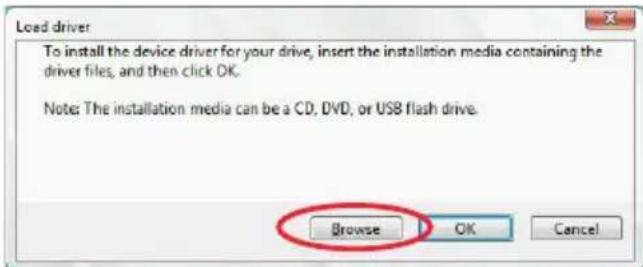

1. A message appears, reminding you to insert the installation media containing the driver of the RAID controller driver. If you have only one optical drive installed in your system, eject the Windows OS installation disc and replace with the motherboard Support DVD into the optical drive. Click Browse to continue.

1. Locate the driver in the corresponding folder of the support DVD then click OK to continue.
2. Select the RAID controller driver you need from the list and click Next.
3. When the system finishes loading the RAID driver, replace the motherboard Support DVD with the Windows Server installation disc. Select the drive to install Windows and click Next.

1. Setup then proceeds with the OS installation. Follow screen instructions to continue.

Appendix

Pro WS C621-64L SAGE/10G block diagram

Q-Code table

Code Description
00	Not used
02	microcode
03	CACHE_ENABLED
04	PCH initialization
06	CPU_EARLY_INIT
10	PEI Core is started
11 – 14	Pre-memory CPU initialization is started
15 – 18	Pre-memory System Agent initialization is started
19 – 1C	Pre-memory PCH initialization is started
2B – 2F	Memory initialization
30	Reserved for ASL (see ASL Status Codes section below)
31	Memory Installed
32 – 36	CPU post-memory initialization
37 – 3A	Post-Memory System Agent initialization is started
3B – 3E	Post-Memory PCH initialization is started
4F	DXE IPL is started
50 – 53	Memory initialization error. Invalid memory type or incompatible memory speed
4F	DXE IPL is started
54	Unspecified memory initialization error
55	Memory not installed
56	Invalid CPU type or Speed
57	CPU mismatch
58	CPU self test failed or possible CPU cache error
59	CPU micro-code is not found or micro-code update is failed
5A	Internal CPU error
5B	Reset PPI is not available
5C – 5F	Reserved for future AMI error codes
E0	S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)
E1	S3 Boot Script execution
E2	Video repost
E3	OS S3 wake vector call
E4 – E7	Reserved for future AMI progress codes
E8	S3 Resume Failed
E9	S3 Resume PPI not Found
EA	S3 Resume Boot Script Error
EB	S3 OS Wake Error
EC – EF	Reserved for future AMI error codes
F0	Recovery condition triggered by firmware (Auto recovery)
F1	Recovery condition triggered by user (Forced recovery)
F2	Recovery process started
F3	Recovery firmware image is found

(continued on the next page)

Code Description
F4	Recovery firmware image is loaded
F5 – F7	Reserved for future AMI progress codes
F8	Recovery PPI is not available
F9	Recovery capsule is not found
FB – FF	Reserved for future AMI error codes
60	DXE Core is started
61	NVRAM initialization
62	Installation of the PCH Runtime Services
63 – 67	CPU DXE initialization is started
68	PCI host bridge initialization
69	System Agent DXE initialization is started
6A	System Agent DXE SMM initialization is started
6B – 6F	System Agent DXE initialization (System Agent module specific)
70	PCH DXE initialization is started
71	PCH DXE SMM initialization is started
72	PCH devices initialization
73 – 77	PCH DXE Initialization (PCH module specific)
78	ACPI module initialization
79	CSM initialization
7A – 7F	Reserved for future AMI DXE codes
90	Boot Device Selection (BDS) phase is started
91	Driver connecting is started
92	PCI Bus initialization is started
93	PCI Bus Hot Plug Controller Initialization
94	PCI Bus Enumeration
95	PCI Bus Request Resources
96	PCI Bus Assign Resources
97	Console Output devices connect
98	Console input devices connect
99	Super IO Initialization
9A	USB initialization is started
9B	USB Reset
9C	USB Detect
9D	USB Enable
9E – 9F	Reserved for future AMI codes
A0	IDE initialization is started
A1	IDE Reset
A2	IDE Detect
A3	IDE Enable
A4	SCSI initialization is started

(continued on the next page)

Code Description
A5	SCSI Reset
A6	SCSI Detect
A7	SCSI Enable
A8	Setup Verifying Password
A9	Start of Setup
AA	Reserved for ASL (see ASL Status Codes section below)
AB	Setup Input Wait
AC	Reserved for ASL (see ASL Status Codes section below)
AD	Ready To Boot event
AE	Legacy Boot event
AF	Exit Boot Services event
B0	Runtime Set Virtual Address MAP Begin
B1	Runtime Set Virtual Address MAP End
B2	Legacy Option ROM Initialization
B3	System Reset
B4	USB hot plug
B5	PCI bus hot plug
B6	Clean-up of NVRAM
B7	Configuration Reset (reset of NVRAM settings)
B8-BF	Reserved for future AMI codes
D0	CPU initialization error
D1	System Agent initialization error
D2	PCH initialization error
D3	Some of the Architectural Protocols are not available
D4	PCI resource allocation error. Out of Resources
D5	No Space for Legacy Option ROM
D6	No Console Output Devices are found
D7	No Console Input Devices are found
D8	Invalid password
D9	Error loading Boot Option (LoadImage returned error)
DA	Boot Option is failed (StartImage returned error)
DB	Flash update is failed
DC	Reset protocol is not available

ACPI/ASL Checkpoints (under OS)

Code Description
03	System is entering S3 sleep state
04	System is entering S4 sleep state
05	System is entering S5 sleep state
30	System is waking up from the S3 sleep state
40	System is waking up from the S4 sleep state
AC	System has transitioned into ACPI mode. Interrupt controller is in PIC mode.
AA	System has transitioned into ACPI mode. Interrupt controller is in APIC mode.

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

Australia statement notice

From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit https://www.asus.com/support. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at https://www.asus.com/support

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Japan statement notice

This product cannot be directly connected to the Internet (including public wireless LAN) of a telecom carrier (mobile network companies, landline network companies, Internet providers, etc.). When connecting this product to the Internet, be sure to connect it through a router or switch.

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

EU RoHS

This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35

Japan JIS-C-0950 Material Declarations

Information on Japan RoHS (JIS-C-0950) chemical disclosures is available on http://csr.asus.com/english/article.aspx?id=19

India RoHS

This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Ecodesign Directive

European Union announced a framework for the setting of ecodesign requirements for energy-related products (2009/125/EC). Specific Implementing Measures are aimed at improving environmental performance of specific products or across multiple product types. ASUS provides product information on the CSR website. The further information could be found at https://csr.asus.com/english/article.aspx?id=1555.

ENERGY STAR Qualified Product

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor is automatically set to sleep within 10 minutes of

user inactivity; the computer is automatically set to sleep within 30 minutes of user inactivity. To wake your computer, click the mouse, press any key on the keyboard, or press the power button.

Please visit http://www.energystar.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.

Energy Star is NOT supported on FreeDOS and Linux-based operating systems.

EPEAT Registered Products

The public disclosure of key environmental information for ASUS EPEAT (Electronic Product Environmental Assessment Tool) registered products is available at https://csr.asus.com/english/article.aspx?id=41. More information about EPEAT program and purchase guidance can be found at www.epeat.net.

ASUS contact information

ASUSTeK COMPUTER INC.

Address: 1F, No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan

Telephone: [phone]

Fax: [phone]

Web site: https://www.asus.com

Technical Support

Telephone: [phone]

Online Support: https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=en

ASUSTeK COMPUTER INC. (Taiwan)

Address: 1F, No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan

Telephone: [phone]

Fax: [phone]

Web site: https://www.asus.com/tw/

Technical Support

Telephone [phone] (0800-093-456)

Online Support https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=zh-tw

ASUSTeK COMPUTER INC. (China)

Address No. 5077, Jindu Road, Minhang District, Shanghai, China

Telephone [phone]

Fax [phone]

Web site https://www.asus.com.cn

Technical Support

Telephone [phone] (400-620-6655)

Online Support https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=zh-cn

ASUS contact information

ASUS COMPUTER INTERNATIONAL (America)

Address 48720 Kato Rd., Fremont, CA 94538, USA

Fax [phone]

Web site https://www.asus.com/us/

Technical Support

Support fax [phone]

General support [phone]

Online support https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=en-us

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkortstrasse 21-23, 40880 Ratingen, Germany

Web site https://www.asus.com/de/

Online contact https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=de-de

Technical Support

Telephone (DE) [phone]

Telephone (AT) [phone]

Online support https://www.asus.com/de/support

ASUS Czech Service s.r.o. (Europe)

Address: Na Rovince 887, 720 00 Ostrava – Hrabová, Czech Republic

Telephone [phone]

Web site https://www.asus.com/cz/

Technical Support

Telephone [phone]

Fax [phone]

E-mail [e-mail]

Online Support https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=cs-cz

ASUS contact information

ASUS Holland BV (The Netherlands)

Address: Marconistraat 2, 7825GD EMMEN, The Netherlands

Website https://www.asus.com/nl/

Technical Support

Telephone [phone]

Fax [phone]

E-mail [e-mail]

Online Support https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=nl-nl

ASUS Polska Sp. z o.o. (Poland)

Online Support https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=pl-pl

ASK-Service (Russia and CIS)

Online Support https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=ru-ru
