USER MANUAL PE3100G ASUS

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2024 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language website at https://www.asus.com/support/.

Contents

Package contents....8

Chapter 1: Getting to know your Embedded Computer

1.1 Features....12

1.1.1 Front view....12
1.1.2 Rear view 18
1.1.3 Right view 24
1.1.4 Left view 27

Chapter 2: Using your Embedded Computer

2.1 Getting started 30

2.1.1 Connect a power adapter to your Embedded Computer....31
2.1.2 Connect a power supply to your Embedded Computer....33
2.1.3 Connect a display panel to your Embedded Computer 36
2.1.4 Connect the USB cable from keyboard or mouse....38

2.2 Installing antennas (optional)....39

2.3 Installing the desk mount....41

2.4 Installing the wall mount 42

2.5 Turning your Embedded Computer off....43

2.6 Putting your Embedded Computer to sleep 43

Chapter 3: Upgrading your Embedded Computer

3.1 Installing a storage device 47
3.2 Removing the fan (for selected models)....48
3.3 Replacing the fan (for selected models)....52
3.4 Removing the top heatsink....56
3.5 Replacing the top heatsink....59
3.6 Installing an MXM GPU module....60
3.7 Removing the heat spreader....63
3.8 Installing an M.2 M-key module....65
3.9 Installing an M.2 E-key module....66

3.10 Installing an M.2 B-key module....68
3.11 Installing an mPCIe / mSATA module 72
3.12 Installing a nano SIM card....76
3.13 Installing memory modules ....77

Chapter 4: BIOS Setup

4.1 Getting to know your BIOS 80

4.2 BIOS setup program 81

4.3 Main Menu 83

4.4 Advanced menu 84

4.4.1 PCH-FW Configuration....85
4.4.2 Trusted Computing 86
4.4.3 CPU Configuration 88
4.4.4 Graphics Configuration....90
4.4.5 AMT Configuration....91
4.4.6 Super IO Configuration 93
4.4.7 Serial Console Redirection 94
4.4.8 SATA configuration 97
4.4.9 VMD setup menu 98
4.4.10 Network Stack Configuration 99
4.4.11 USB Configuration....100
4.4.12 NVMe Configuration 101
4.4.13 Onboard Devices Configuration 102
4.4.14 APM Configuration....104
4.4.15 EZ-Flash....105
4.4.16 Watchdog Timer....106
4.4.17 Ignition Configuration....107
4.4.18 Tls Auth Configuration....108

4.5 Hardware Monitor menu ....109

4.6 Security menu 110

4.7 Boot menu....114

4.8 Exit menu....116

4.9 MEBx menu....118

4.10 Updating your BIOS....119

4.10.1 ASUS CrashFree BIOS utility....119

4.10.2 ASUS EzFlash Utility 120

Appendix

Safety information....124

Setting up your system....124

Care during use....125

Regulatory notices....126

Service and Support 130

About this manual

This manual provides information about the hardware and software features of your Embedded Computer, organized through the following chapters:

Chapter 1: Getting to know your Embedded Computer

This chapter details the hardware components of your Embedded Computer.

Chapter 2: Using your Embedded Computer

This chapter provides you with information on using your Embedded Computer.

Chapter 3: Upgrading your Embedded Computer

This chapter provides you with information on how to upgrade the memory modules, wireless modules, and hard disk drive / solid state drive of your Embedded Computer.

Chapter 4: BIOS Setup

This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

Appendix

This section includes notices and safety statements for your Embedded Computer.

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

WARNING! This message contains important information that must be followed to keep you safe while performing certain tasks and prevent damage to your Embedded Computer's data and components.

Typography

Bold text Indicates a menu or an item to select.

Italic Indicates sections that you can refer to in this manual.

Package contents

Your Embedded Computer package contains the following item(s):

PE3100G Series

Power terminal block Wall mount brackets

Desk mount bracket with dampers

Optional items*

Power cable DIO terminal block

Power supply Open-wire power cord

NOTE:

• *These accessories may not be bundled and may need to be purchased separately.
- Some bundled accessories may vary depending on model. For details on these accessories, refer to their respective user manuals.
- The device illustration is for reference only. Actual product specifications may vary depending on model.
- If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components.

1

Getting to know your Embedded Computer

1.1 Features

1.1.1 Front view

Models with MXM Type A GPU module

Models with MXM Type B GPU module

1

Reset

System Reset pinhole

The hard reset pinhole allows you to reboot your Embedded Computer

2

External Fan connector with cable lock (reserved)

The external fan connector allows you to connect an external fan for your Embedded Computer.

NOTE: An external fan option is currently not available for standard models. If you have a requirement for this option, please contact your sales representative.

WARNING! An external fan must be installed with a fan guard to prevent accidental contact with moving parts.

3

2.0 USB4

USB 2.0 port with cable lock

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices, such as keyboards, pointing devices, flash disk drives, external HDDs, speakers, cameras, and printers.

NOTE: The cable lock helps to prevent disconnection caused by tension or vibration.

4

10G USB 1

USB 10Gbps port with cable lock

The USB (Universal Serial Bus) 10Gbps port provides a transfer rate up to 10 Gbit/s.

10G USB2

10G USB3

NOTE: The cable lock helps to prevent disconnection caused by tension or vibration.

DIO

Isolated DIO connector

The Isolated Digital Input/Output (DIO) connector provides electrical isolation of digital input and output signals, which allow micro controllers to detect and output logic states. The high voltage protection can be used in industrial level uses.

Signal Specifications
DO	Output voltage range 0~48 VDC
	Rated output current 4 A
DI	Voltage for logic “0” 0~3 VDC
	Voltage for logic “1” 10~48 VDC
	Rated input current ±50 mA

Pin DIO Pin DIO
1 DI_COM 9 DI1
2 DI_COM 10 DI2
3 DIO_GND 11 DI3
4 DIO_GND 12 DI4
5 DIO_GND 13 DO1
6 DIO_GND 14 DO2
7 DO_PWR	15 DO3
8 DO_PWR	16 DO4

COM 3 Serial (COM/CAN) connector (optional)

COM 4 The 9-pin COM/CAN Bus serial connector allows you to connect devices with a COM/CAN interface, such as an electronic control unit (ECU). Please refer to the table below for the pin definitions of the COM/CAN Bus connector.

Pin	CAN Bus
1 NA
2 CAN_L
3 GND
4 NA
5 GND
6 NA
7 CAN_H
8 NA
9 NA

Microphone Input jack

The microphone input jack is used to connect your Embedded Computer to an external microphone.

1G PoE LAN port with cable lock

The 8-pin RJ-45 LAN port supports a standard Ethernet cable for 10/100/1000 Mbps connection to a local network, and supports Power over Ethernet (PoE).

NOTE: The cable lock helps to prevent disconnection caused by tension or vibration.

2.5G PoE LAN port with cable lock

The 8-pin RJ-45 LAN port supports a standard Ethernet cable for 10/100/1000/2500 Mbps connection to a local network, and supports Power over Ethernet (PoE).

NOTE: The cable lock helps to prevent disconnection caused by tension or vibration.

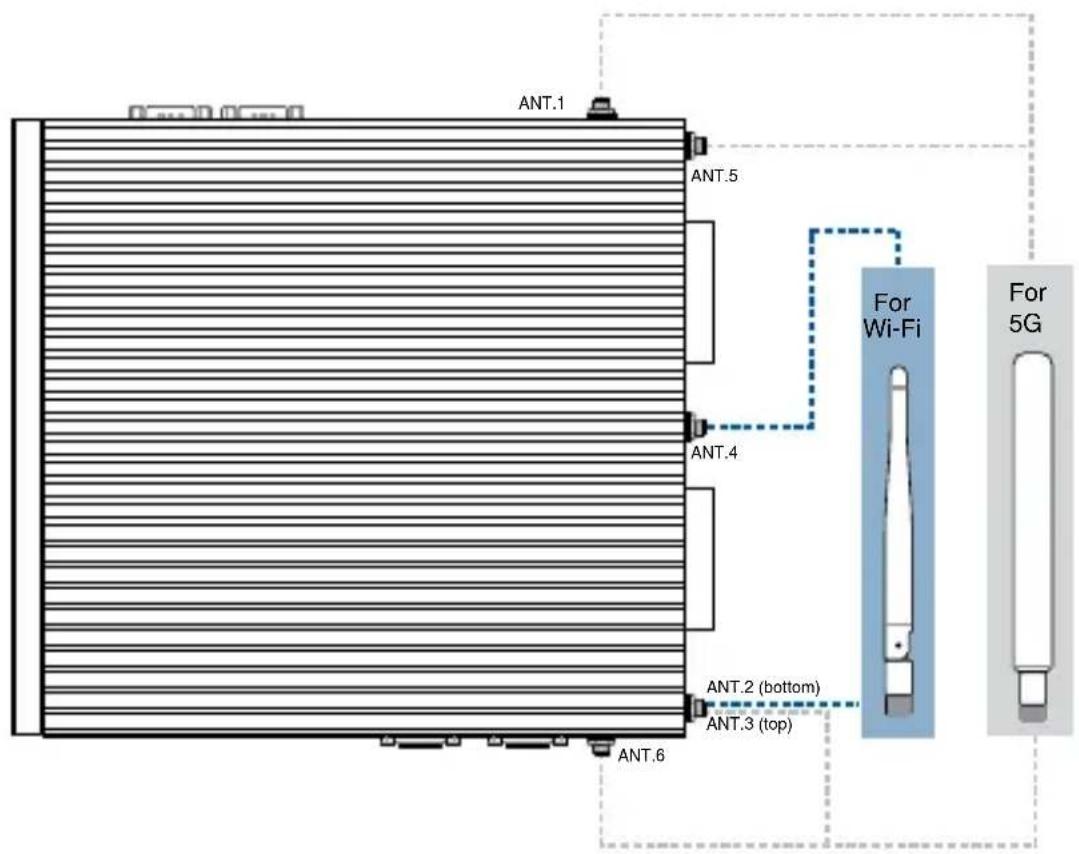

ANT. 6 Antenna jack

The antenna jack allows you to connect a wireless antenna. Refer to the Installing antennas section for more information on installing the antennas.

NOTE: SMA cables, antennas, and wireless modules are purchased separately.

External fan (on selected models)

The external fan provides the additional cooling required when using the Embedded Computer with a high-powered MXM Type B GPU module.

1.1.2 Rear view

Models with MXM Type A GPU module

Models with MXM Type B GPU module

1 ANT.1 Antenna jack

The antenna jack allows you to connect a wireless antenna. Refer to the Installing antennas section for more information on installing the antennas.

NOTE: SMA cables, antennas, and wireless modules are purchased separately.

2 Functional Earth Ground

The functional earth ground provides you with a grounding point.

3 Power Input jack

The power input jack allows you to connect a power source. Power supplied through this jack supplies power to the Embedded Computer.

WARNING! The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

4 :D1 Dual-mode DisplayPort

The DisplayPort 1.2 port can support resolutions up to 4096 x 2304 @ 60 Hz on external display devices.

5 HDMI1 HDMI™ 1.4 port with cable lock

The integrated HDMI (High Definition Multimedia Interface) port with a receptacle connector can support resolutions up to 4096 x 2304 @ 30 Hz on external display devices.

NOTE: The cable lock helps to prevent disconnection caused by tension or vibration.

6

External Fan connector with cable lock

The external fan connector allows you to connect an external fan for your Embedded Computer.

WARNING! An external fan must be installed with a fan guard to prevent accidental contact with moving parts.

7

COM1 Serial (COM) connector

COM2 The 9-pin DB9 connector allows you to connect RS-232/422/485 serial (COM) devices, such as bar code scanners, modems, and printers. Please refer to the table below for the pin definitions of the different COM connectors.

NOTE: Default set to RS-232. Setting can be changed through the BIOS.

Pin RS-232 RS-422 RS-485
1 DCD# TX- D-
2 RXD TX+ D+
3 TXD RX+ NA
4 DTR RX- NA
5 GND GND GND
6 DSR NA NA
7 RTS NA NA
8 CTS NA NA
9 RI NA NA

8

IGN Ignition LED

The ignition LED lights up when your Embedded Computer is powered on and in ignition mode.

WD

Watchdog LED

The watchdog LED lights up when a watchdog time out event occurs.

HDD

Drive Activity LED

The drive activity LED lights up when your Embedded Computer is accessing the internal storage drive.

PWR

Power LED

The power LED lights up when your Embedded Computer is turned on and blinks slowly when in sleep mode.

Power button

The power button allows you to turn the Embedded Computer on or off. You can use the power button to put your Embedded Computer to sleep mode or press it for four (4) seconds to force shutdown your Embedded Computer.

DP1

DisplayPort

DP 2 The DisplayPort allows you to connect your Embedded

DP 3 Computer to an external display.

DP 4

NOTE:

• This port is only functional when supported by an optional MXM GPU module.
• When using only this port as a display output source, this port will support a resolution of up to 4K @ 60 Hz. The resolution may also be affected by the cabling and output device.

14

Cable Management bracket

The cable management bracket enables you to organize and protect the external fan cable, preventing potential damage from tangling and shielding it from wear.

1.1.3 Right view

Models with MXM Type A GPU module

Models with MXM Type B GPU module

1 ANT.3 Antenna jack

ANT.5 The antenna jack allows you to connect a wireless antenna. Refer to the Installing antennas section for more information on installing the antennas.

NOTE: SMA cables, antennas, and wireless modules are purchased separately.

2 ANT.2 Antenna jack

ANT. 4 The antenna jack allows you to connect a wireless antenna. Refer to the Installing antennas section for more information on installing the antennas.

NOTE: SMA cables, antennas, and wireless modules are purchased separately.

3 HDD1 2.5-inch Hot-swap Storage Bay

HDD2 The 2.5-inch hot-swap storage bay allows you to install a 2.5-inch HDD/SSD and supports RAID 0/1.

1.1.4 Left view

Models with MXM Type A GPU module

Models with MXM Type B GPU module

2

Using your Embedded Computer

2.1 Getting started

This section provides a step-by-step guide for setting up your Embedded Computer. Whether your Embedded Computer is equipped with a Type A MXM GPU module (models without an external fan) or a Type B MXM GPU module (models with an external fan), the instructions remain consistent. While the illustrations may not look exactly the same as your specific model, you can use them as a reliable guide for setting up your Embedded Computer.

2.1.1 Connect a power adapter to your Embedded Computer

NOTE:

• The power adapter is optional and may not come bundled.
• The optional power adapter may vary in appearance, depending on model and country (or region) of sale. Refer to the following for more information on the power adapter, as well as the system:

330W Power adapter

Input voltage: 100 - 240 Vac

Input frequency: 50 - 60 Hz

Output current: 13.75 A (330 W)

Output voltage: 24.0 Vdc

Operating temperature : 0°C to 40°C

System

Rated input current: 41.25 A - 6.88 A (330 W)

Rated input voltage: 8 - 48 Vdc

Operating temperature : -20°C to 60°C

- We suggest using a power supply with 8 - 48 Vdc for DC-in that complies with the safety requirements of a regulated power source.

IMPORTANT!

• We strongly recommend that you use a grounded wall socket while using your Embedded Computer.

- The socket outlet must be easily accessible and near your Embedded Computer.

- To disconnect your Embedded Computer from its main power supply, unplug your Embedded Computer from the power socket.

If your Embedded Computer package comes bundled with a power adapter, you may follow the steps below to set up your Embedded Computer.

A. Connect the power cord to the AC power adapter.
B. Connect the power terminal block to power jack adapter to the AC adapter.
C. Connect the power terminal block to power jack adapter to your Edge Computer's power (DC) input, then secure it with the two screws on the power terminal block to power jack adapter cable.
D. Plug the AC power adapter into a 100 V - 240 V power source.

2.1.2 Connect a power supply to your Embedded Computer

If your Embedded Computer package comes bundled with a power supply, you may follow the steps below to set up your Embedded Computer.

IMPORTANT! Ensure to use a power supply with a rated output power of 480 W (purchased separately).

A. Prepare your power wires by cutting it to the desired length and stripping about 12 to 18 mm of insulation from both ends of each wire.
B. Connect the wires to the terminal block by inserting the stripped wire ends into the terminal block and tightening the screws or close the clamps on the terminal block to secure the wires in place.
C. Connect the opposite ends of the wires to the terminal block on your power supply.

IMPORTANT! Make sure that each wire is in the correct terminal. Typically, the red wire connects to the positive (+) terminal, and the black wire connects to the negative (-) terminal.

D. Insert the exposed wire end of the AC power cord to the termal block on your power supply. Tighten the screws or close the clamps on the terminal block to secure the wires in place.

E. Connect the power terminal block cable assembly to your Embedded Computer's power (DC) input, then secure it with the two screws on the power terminal block cable assembly.

F. Plug the power supply (purchased separately) into a 100 V \~ 240 V power source.

IMPORTANT!

- We strongly recommend that you use only UL-certified power supply, power adapters, and cables that meet the following requirements or ones that you purchased as an option with your Embedded Computer.

480 W Power supply (purchased separately)

Input voltage: 100-240 Vac

Input frequency: 50-60 Hz

Output current: 20 A (480 W)

Output voltage: 24.0 Vdc

Operating temperature: -20°C to 60°C

System

Rated input current: 41.25-6.88 A (480 W)

Rated input voltage: 8-48 Vdc

Operating temperature: -20°C to 60°C

• We strongly recommend that you use a grounded wall socket while using your Embedded Computer.
- The socket outlet must be easily accessible and near your Embedded Computer.
- To disconnect your Embedded Computer from its main power supply, unplug your Embedded Computer from the power socket.

2.1.3 Connect a display panel to your Embedded Computer

You can connect a display panel or projector that has the following connectors to your Embedded Computer:

HDMI™
- DisplayPort

To connect an HDMI™ display panel:

Connect one end of the HDMI™ cable to an external display, and the other end of the cable to your Embedded Computer's HDMI™ port.

NOTE: If you are using a HDMI™ cable with a locking screw connector, tighten the lock screw onto the cable lock screw hole on the chassis to prevent disconnection caused by tension or vibration.

Connect display via HDMI™ port

To connect a DisplayPort display panel:

Connect one end of the DisplayPort cable to an external display, and the other end of the cable to your Embedded Computer's DisplayPort.

Connect display via DisplayPort

2.1.4 Connect the USB cable from keyboard or mouse

You can connect generally any USB keyboard and mouse to your Embedded Computer. You can also connect a USB dongle for a wireless keyboard and mouse set.

To connect a keyboard and mouse to your Embedded Computer:

Connect the USB cable from your keyboard and mouse to any of the USB ports of your Embedded Computer.

NOTE:

• The keyboard varies with country or region.
- The keyboard and mouse are purchased separately.

2.2 Installing antennas (optional)

You may install antennas to the antenna jacks located on the front, rear, and right panels (refer to the Front view, Rear view, and Right view sections for the locations of the antennas). The installed antennas can be connected to a 4G LTE module installed in the M.2 B-key slot or the mini PCIe slot, a 5G NR module installed in the M.2 B-key slot, or to a Wi-Fi module installed in the M.2 E-key (Wi-Fi) slot.

4G module and Wi-Fi module

Ant. Jack Module Module Connector
ANT. 2 Wi-Fi Wi-Fi_Aux
ANT. 4 Wi-Fi Wi-Fi_Main
ANT. 3 4G LTE LTE_Main
ANT. 5 4G LTE LTE_Aux
ANT. 6 4G LTE LTE_GPS

5G module and Wi-Fi module

Ant. Jack Module Module Connector
ANT. 2 Wi-Fi Wi-Fi_Aux
ANT. 4 Wi-Fi Wi-Fi_Main
ANT. 1 5G NR 5G_M2
ANT. 3 5G NR 5G_Main
ANT. 5 5G NR 5G_Aux
ANT. 6 5G NR 5G_M1

2.3 Installing the desk mount

Temporarily remove the storage bays (refer to the Left view section for the location), and place the Embedded Computer on a flat stable surface with its left side facing down as shown.

Align the desk mount with the screw holes on the bottom of the Embedded Computer, then secure the desk mount to your Embedded Computer using the bundled screws.

IMPORTANT! When installing the Embedded Computer into a cabinet or on the ground, we strongly recommend positioning it upright with the left side facing upwards to allow for optimal heat dissipation.

2.4 Installing the wall mount

Place the Embedded Computer on a flat stable surface as shown in the illustration below.

Align the wall mount with the screw holes on the front and rear of the Embedded Computer, then secure the wall mount to your Embedded Computer using the bundled screws.

2.5 Turning your Embedded Computer off

If your Embedded Computer is unresponsive, press and hold the power button for at least four (4) seconds until your Embedded Computer turns off.

2.6 Putting your Embedded Computer to sleep

To put your Embedded Computer in Sleep mode, press the Power button once.

3

Upgrading your Embedded Computer

IMPORTANT!

• Ensure that your hands are dry before proceeding with the rest of the installation process. Before installing any of the features in this guide, use a grounded wrist strap or touch a safely grounded object or metal object to avoid damaging them due to static electricity.
• Turn off the power of your Embedded Computer, and allow it to cool for at least 10 minutes before performing any installation/uninstallation process.
• Whether your Embedded Computer is equipped with a Type A MXM GPU module (models without an external fan) or a Type B MXM GPU module (models with an external fan), the instructions for upgrading remain consistent. While the illustrations may not look exactly the same as your specific model, you can use them as a reliable guide for upgrading.
• For detailed installation instructions, please contact your sales representative.

3.1 Installing a storage device

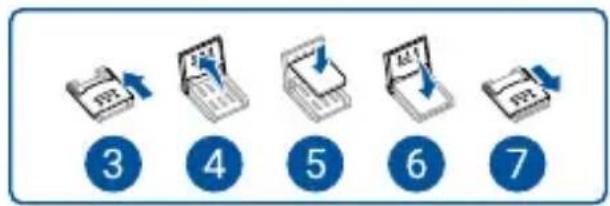

Your may install up to two (2) 2.5-inch storage devices (hot-swappable, 7\~7.5mm) to your Embedded Computer.

1. Loosen the two (2) screws securing each of the storage device trays to the right panel.

2. Pull the storage device tray out of the chassis.

1. Install your storage device to the storage device tray (A), then secure it with four (4) screws (B).

3.2 Removing the fan (for selected models)

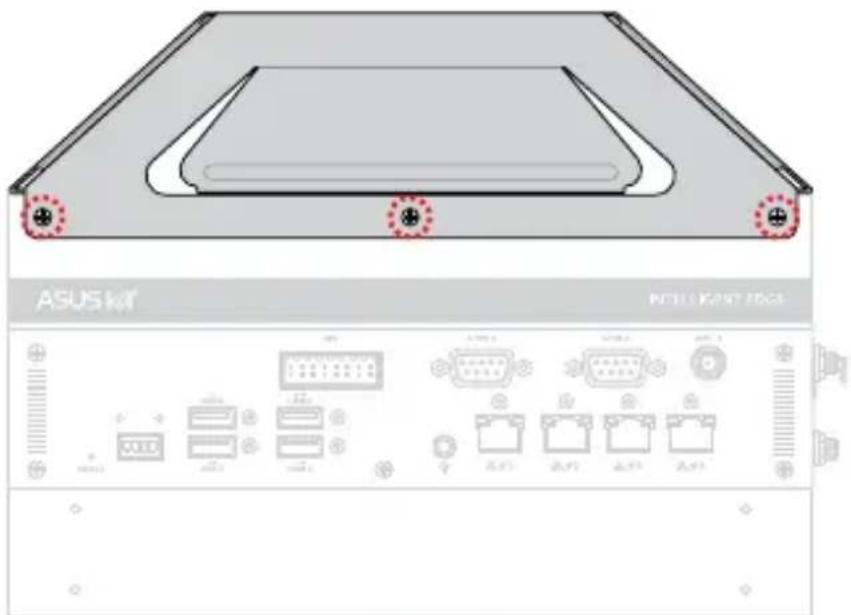

1. Remove the three (3) screws securing the cable management bracket to the external fan and your Embedded Computer's rear panel.

1. Remove the bracket.

2. Disconnect the fan cable from your Embedded Computer.

1. Remove the six (6) screws securing the external fan to the top heatsink

Front view

Rear view

1. Carefully remove the external fan.

3.3 Replacing the fan (for selected models)

1. Position the external fan on the top heat sink so that the fan cable is routed over the rear panel of your Embedded Computer as shown.

1. Secure the external fan to the top heatsink using the six (6) screws removed earlier

Front view

Rear view

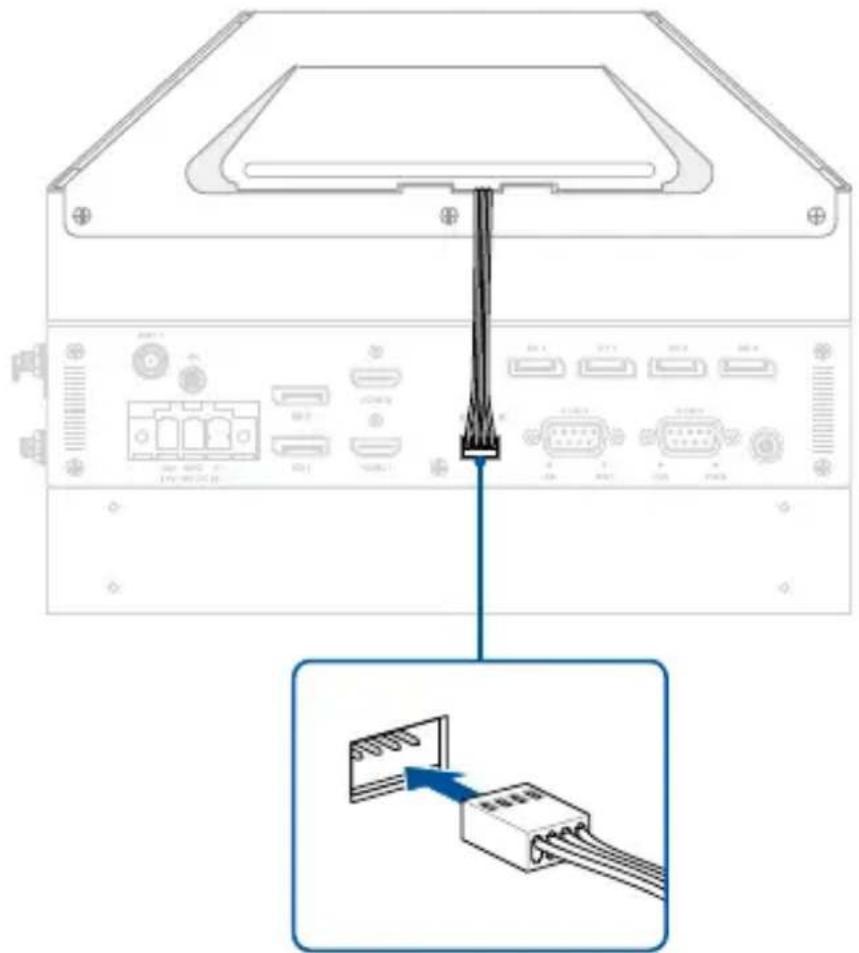

1. Insert the fan cable into the external fan connector located on the rear panel of your Embedded Computer.

1. Ensure that you completely enclose the fan cable with the cable management bracket and secure the bracket to the top heatsink and rear panel of your Embedded Computer with the three (3) screws removed earlier.

3.4 Removing the top heatsink

1. Remove the external fan, if one is installed on your Embedded Computer. Refer to the Removing the external fan section for detailed instructions.

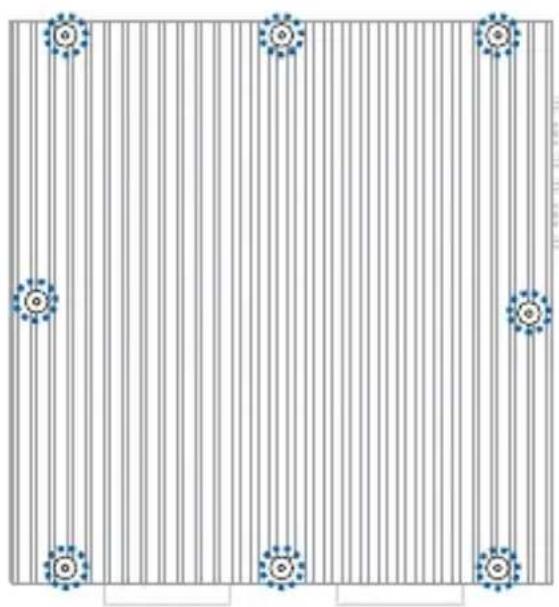

2. Remove the eight (8) screws securing the top heatsink to the chassis.

1. With the rear side of the Embedded Computer facing you, slide the top heatsink away from you until the DisplayPort ports clear the rear I/O panel.

1. After you have confirmed that the DisplayPort ports have cleared the front I/O panel, rotate the top heatsink until it can stand upright on the same stable surface as the chassis, and then remove any connections between the heatsink and the motherboard.

3.5 Replacing the top heatsink

1. Re-establish any connections removed in step 3 of the Removing the top heatsink section.
2. Replace the top heatsink as shown, and then push it towards the rear of your Embedded Computer.

1. Secure the top heatsink to the chassis using the screws removed earlier.

3.6 Installing an MXM GPU module

Your Embedded Computer comes with an MXM GPU slot on the top heatsink.

NOTE:

• The MXM GPU module is purchased separately.

• The images of the MXM GPU module and carrier board in this user manual are for illustrative purposes only. The actual appearance and specifications may vary depending on the model.

• Remove the top heatsink. Refer to the Removing the top heatsink section for detailed instructions.

• Carefully remove the absorber from the carrier board.

1. Remove the eight (8) screws securing the carrier board to the heatsink.

1. Flip the carrier board over to access the MXM GPU slot.

2. Insert the MXM GPU module into the MXM GPU slot (A), and secure it with two (2) screws bundled with your MXM GPU module (B).

1. Flip the carrier board back over and secure it to the top heatsink using the eight (8) screws removed earlier.
2. Replace the top heatsink. Refer to the Replacing the top heatsink section for detailed instructions.
3. Replace the external fan, if your Embedded Computer came with one. Refer to the Replacing the fan section for detailed instructions.

3.7 Removing the heat spreader

1. Follow the instructions in the Removing the top heatsink section to remove the top heatsink.
2. Follow steps 1-2 in the Installing a storage device section to remove the storage device trays.

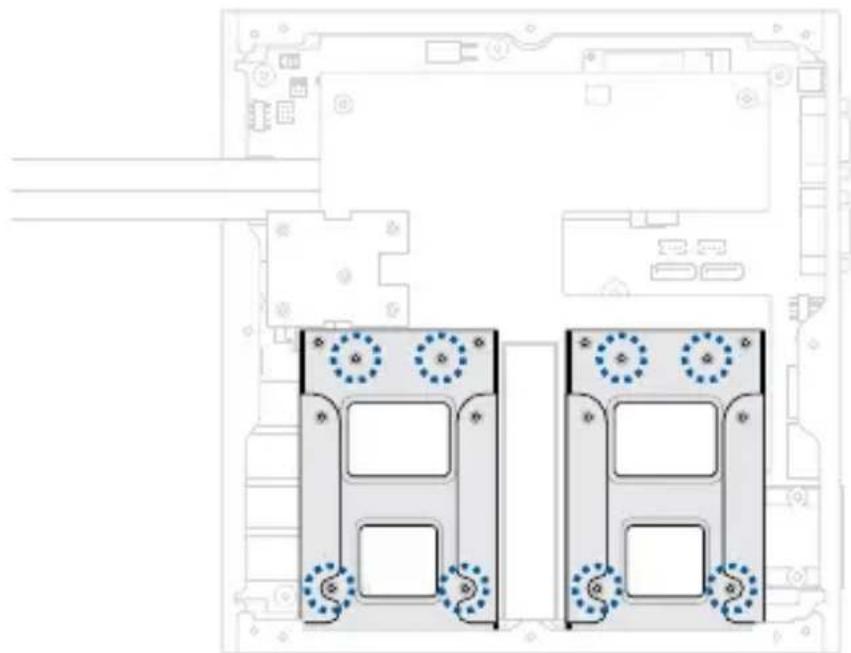

1. Remove the eight (8) screws securing the two (2) storage connector brackets (A), and disconnect the SATA signal and power cables from the motherboard (B).

1. Remove the eight (8) screws securing the storage bays, and remove the storage bays.

1. Remove the six (6) screws securing the heat spreader.

1. Carefully remove and set aside the heat spreader, making sure that the thermal pads on it do not come in contact with any surfaces.

3.8 Installing an M.2 M-key module

Your Embedded Computer comes with an M.2 (M-key) slot that allow you to install an M.2 SSD (M-key, supports 2280 PCIe Gen 4 x4) module.

To install an M.2 SSD module:

1. Follow the instructions in the Removing the heat spreader section to remove the top heatsink and heat spreader.
2. Align and insert the M.2 SSD into its slot inside the Embedded Computer.
3. Gently push down the M.2 SSD on top of the standoff, and fasten it using a screw.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

3.9 Installing an M.2 E-key module

Your Embedded Computer comes with an M.2 (E-key) slot that allow you to install an M.2 Wi-Fi module.

WARNING! RF modules are intended for OEM or host integrators only. For availability of system level RF certification, check with your OEM integrator.

To install an M.2 Wi-Fi module:

1. Follow the instructions in the Removing the heat spreader section to remove the top heatsink and heat spreader.
2. Remove the screw from the M.2 standoff.
3. Align and insert the module into its slot inside the Embedded Computer.
4. Gently push down the module on top of the standoff, and then fasten it using the previously removed screw.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. (Optional) Connect the RF cables from the antennas to your module. Make sure that the correct cable is attached to each of the connectors by referring to the illustration on the next page.

NOTE:

• Please refer to the Installing antennas section for more information on installing the antennas.
• Connecting antennas to your module may strengthen the wireless signal.
• A soft clicking sound indicates that the antenna has been securely attached to the module.

Ant. Jack Module Connector

ANT. 2 Wi-Fi_Aux

ANT. 4 Wi-Fi_Main

3.10 Installing an M.2 B-key module

Your Embedded Computer comes with an M.2 (B-key, supports 3042/3052) slot that allows you to install an M.2 5G/4G/UDR GPS module.

WARNING! RF modules are intended for OEM or host integrators only. For availability of system level RF certification, check with your OEM integrator.

To install an M.2 5G NR module:

1. Follow the instructions in the Removing the heat spreader section to remove the top heatsink and heat spreader.
2. Remove the screw from the M.2 standoff.
3. If the standoff is already seated in the right mounting hole to fit your M.2 module, skip to step 5.
4. Unscrew the standoff and install it to a mounting hole that matches the length of your M.2 module.
5. Align and insert the M.2 module into the slot.
6. Press down, and then secure it in place using the screw previously removed.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. (Optional) Connect the RF cables from the antennas to your module. Make sure that the correct cable is attached to each of the connectors by referring to the illustration on the next page.

NOTE:

• Please refer to the Installing antennas section for more information on installing the antennas.
• Connecting antennas to your module may strengthen the wireless signal.
• A soft clicking sound indicates that the antenna has been securely attached to the module.

Ant. Jack Module Connector

ANT. 1 5G_M2

ANT. 3 5G_Main

ANT. 5 5G_Aux

ANT. 6 5G_M1

To install an M.2 4G LTE module:

1. Follow the instructions in the Removing the heat spreader section to remove the top heatsink and heat spreader.
2. Remove the screw from the M.2 standoff.
3. If the standoff is already seated in the right mounting hole to fit your M.2 module, skip to step 5.
4. Unscrew the standoff and install it to a mounting hole that matches the length of your M.2 module.
5. Align and insert the module into the slot.
6. Gently press down, and then secure it in place using the screw previously removed.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. (Optional) Connect the RF cables from the antennas to your module. Make sure that the correct cable is attached to each of the connectors by referring to the illustration on the next page.

NOTE:

• Connect ANT. 6 for GPS satellite tracking capability.
• Please refer to the Installing antennas section for more information on installing the antennas.
• Connecting antennas to your module may strengthen the wireless signal.
• A soft clicking sound indicates that the antenna has been securely attached to the module.

Ant. Jack Module Connector

ANT. 3 LTE_Main

ANT. 5 LTE_Aux

ANT. 6 LTE_GPS

3.11 Installing an mPCIe / mSATA module

Your Embedded Computer comes with a mini PCIe / mini SATA slot that allows you to install a 4G LTE mPCIe module or a CAN bus module.

To install a 4G LTE mPCIe module:

WARNING! RF modules are intended for OEM or host integrators only. For availability of system level RF certification, check with your OEM integrator.

1. Follow the instructions in the Removing the heat spreader section to remove the top heatsink and heat spreader.
2. Remove the screw from the M.2 standoff.
3. Align and insert the module into the slot.
4. Gently press down, and then secure it in place using the screw previously removed.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. (Optional) Connect the RF cables from the antennas to your module. Make sure that the correct cable is attached to each of the connectors by referring to the illustration on the next page.

NOTE:

• Connect ANT. 6 for GPS satellite tracking capability.
• Please refer to the Installing antennas section for more information on installing the antennas.
• Connecting antennas to your module may strengthen the wireless signal.
• A soft clicking sound indicates that the antenna has been securely attached to the module.

To install a CAN bus module:

1. Follow the instructions in the Removing the heat spreader section to remove the top heatsink and heat spreader.
2. Remove the screw from the M.2 standoff.
3. Align and insert the module into the slot.
4. Gently press down, and then secure it in place using the screw previously removed.

NOTE: We recommend using a PH1 screwdriver with a torque of 2.0 ± 0.2 kgf-cm when tightening the screw.

1. Identify the punch-out ports for COM3 and COM4 on the front of your Embedded Computer (refer to the Front view section for the locations), and detach the metal covers from them.

WARNING! Take extra care when removing the metal covers. Use tools, such as a screw driver, to bend and remove the metal covers to avoid physical injury.

1. Connect the ends of the CAN bus cables with the 4-pin female headers to the 4-pin male headers on the CAN bus module.

2. Install the CAN bus ports by aligning and inserting them through the punch-out ports as shown, and then securing them with the bundled screws.

IMPORTANT! Ensure that the cable for the COM3 port is connected to the corresponding COM3 header on the CAN bus module, and likewise, the cable for the COM4 port is connected to the corresponding COM4 header.

3.12 Installing a nano SIM card

1. Follow the instructions in the Removing the heat spreader section to remove the top heatsink and heat spreader.
2. (Optional) Remove the M.2 module from the M.2 B-key slot, if one is installed, by first removing the screw securing the module, and then removing the module.
3. Push the nano SIM cover in the direction shown in the illustration.
4. Lift the nano SIM cover.
5. Place the nano SIM into the nano SIM slot.
6. Close the nano SIM cover.
7. Push the nano SIM cover away from the storage bays to secure the nano SIM card.

3.13 Installing memory modules

Your Embedded Computer comes with two (2) SO-DIMM memory slots that allow you to install DDR5 SO-DIMMs, ECC*, with a maximum of 64 GB.

To install a memory module:

1. Place the Embedded Computer on a flat stable surface, with its top side facing down.
2. Remove the twelve (12) screws securing the bottom heatink to the chassis, and carefully flip and set the bottom heatsink aside.

1. Align and insert a memory module into one of the two SO-DIMM memory slots in the chasses
2. Press down until the memory module is securely seated in place.
3. Repeat steps 3-4 to install the other memory module.

BIOS Setup

4

4.1 Getting to know your BIOS

The BIOS (Basic Input and Output System) stores system hardware settings such as Storage Device Configuration, Advanced Power Management, and Boot Device Configuration that are needed for system startup. Under normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. DO NOT change the default BIOS settings except in the following circumstances:

• An error message appears on the screen during the system bootup and requests you to run the BIOS setup.
• You have installed a new system component that requires further BIOS settings or update.

WARNING! Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

NOTE:

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
• BIOS settings and options may vary due to different BIOS release versions. Please refer to the latest BIOS version for settings and options.

4.2 BIOS setup program

Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

- Press or during the Power-On Self Test (POST). If you do not press or , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

- Press + + simultaneously.

- Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first option.

BIOS menu screen

This section provides a brief introduction of the BIOS Interface of your Embedded Computer.

Menu items
General helpMenu bar

Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system configuration
Advanced For changing advanced system settings
Hardware Monitor	For viewing system temperature/power status and changing the fan mode
Security For changing security settings
Boot For changing system boot configuration
Exit For selecting save and exit options or loading default settings
MEBx For viewing and changing Intel® Management Engine settings

4.3 Main Menu

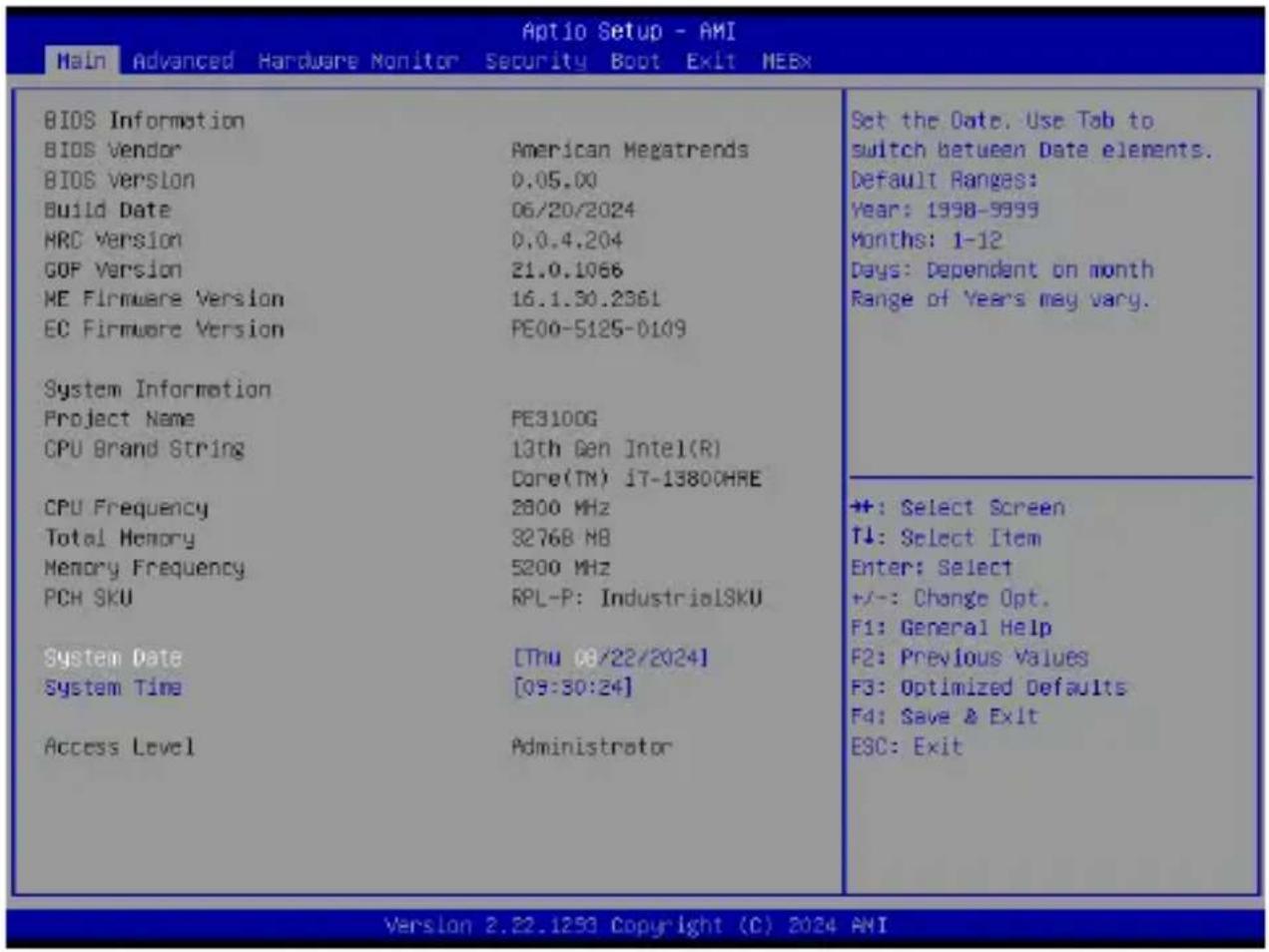

When you enter the BIOS Setup program, the Main menu screen appears. The Main menu provides you an overview of the basic system information, and allows you to set the system date and time. Scroll down to display the other BIOS items.

System Date [Day mm/dd/yyyy]

Allows you to set the system date.

System Time [hh:mm:ss]

Allows you to set the system time.

4.4 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

WARNING! Be cautious when changing the settings of the

Advanced menu items. Incorrect field values can cause the system to malfunction.

Aotio Setup - AMI Main Advanced Hardware Monitor Security Boot Exit MEBx
▶FCH-FM Configuration ▶Trusted Computing ▶CPU Configuration ▶Graphics Configuration ▶ANT Configuration ▶Super IO Configuration ▶Serial Console Redirection ▶SATA Configuration ▶VMD setup menu ▶Network Stack Configuration ▶USB Configuration ▶NVMe Configuration ▶Onboard Devices Configuration ▶APH Configuration ▶EZ-Flash ▶Matchdog Timer ▶Ignition Configuration ▶Tls Auth Configuration	Configure Management Engine Technology Parameters
	+:-: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.22.1293 Copyright (C) 2024 AMI

4.4.1 PCH-FW Configuration

The items in this menu allow you to configure Management Engine Technology Parameters.

TPM Device Selection

This item allows you to select the TPM device. Configuration options: [dTPM]

4.4.2 Trusted Computing

Aptio Setup - AMI
Advanced
TPM 2.0 Device Found Firmware Version: Vendor:	7.2 NTC	Enables or Disables BIOS support for security device. 0.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
Security Device Support Active PCR banks Available PCR banks	[Enable] SHA256 SHA256,SHA384
SHA256 PCR Bank SHA384 PCR Bank	[Enabled] [Disabled]
Pending operation Platform Hierarchy Storage Hierarchy Endorsement Hierarchy Physical Presence Spec Version PH Randomization	[None] [Enabled] [Enabled] [Enabled] [1.3] [Enabled]	-: Select Screen T↓: Select Item Enter: Select +/-: Change Opt. F1: General Help

NOTE: Changes here do not take effect until computer is restarted.

Security Device Support

Allows you to enable or disable the BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Configuration options: [Disabled] [Enabled]

NOTE:

• The following items appear only when Security Device Support is set to [Enabled].
• The availability of the following items depends on support of the TPM device installed.

SHA256 PCR Bank

Allows you to enable or disable SHA256 PCR Bank.

Configuration options: [Disabled] [Enabled]

SHA384 PCR Bank

Allows you to enable or disable SHA384 PCR Bank.

Configuration options: [Disabled] [Enabled]

Pending Operation

Schedule and Operation for the Security Device.

Configuration options: [None] [TPM Clear]

NOTE: Your computer will reboot during restart in order to change the State of the Security Device.

Platform Hierarchy

Allows you to enable or disable Platform Hierarchy.

Configuration options: [Disabled] [Enabled]

Storage Hierarchy

Allows you to enable or disable Storage Hierarchy.

Configuration options: [Disabled] [Enabled]

Endorsement Hierarchy

Allows you to enable or disable Endorsement Hierarchy.

Configuration options: [Disabled] [Enabled]

Physical Presence Spec Version

Select to tell O.S. to support PPI Spec Version 1.2 or 1.3.

Configuration options: [1.2] [1.3]

NOTE: Some HCK tests might not support 1.3.

PH Randomization

Allows you to enable or disable Platform Hierarchy randomization.

Configuration options: [Disabled] [Enabled]

4.4.3 CPU Configuration

The items in this menu show the CPU-related information that the BIOS automatically detects. Scroll down to display other BIOS items.

Intel (VMX) Virtualization Technology

When set to [Enabled], a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Configuration options: [Disabled] [Enabled]

Hyper-Threading

This item is enabled for Windows 10 and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology).

Configuration options: [Disabled] [Enabled]

Intel Trusted Execution Technology

This item allows you to enable or disable utilization of additional hardware capabilities provided by Intel (R) Trusted Execution Technology. Changes require a full power cycle to take effect. Configuration options: [Disabled] [Enabled]

VT-d

This item allows you to enable or disable VT-d capability. Configuration options: [Disabled] [Enabled]

CPU - Power Management Control

Intel(R) SpeedStep(tm)

This item allows more than two frequency to be supported. Configuration options: [Disabled] [Enabled]

Intel(R) Speed Shift Technology

This item allows you to enable or disable Intel(R) Speed Shift Technology support. When enabled, CPPC v2 interface allows hardware controlled P-states. Configuration options: [Disabled] [Enabled]

Turbo Mode

This item allows you to enable or disable processor Turbo Mode (requires Intel Speed Step or Intel Speed Shift to be available when enabled).

Configuration options: [Disabled] [Enabled]

C states

This item allows you to enable or disable CPU Power Management. Allows CPU to go to C states when it's not 100% utilized. Configuration options: [Disabled] [Enabled]

NOTE: The following item appears only when C states is set to [Enabled].

Enhanced C-States

This item allows you to enable or disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State. Configuration options: [Disabled] [Enabled]

4.4.4 Graphics Configuration

The items in this menu allow you to select a primary display from IGFX and PEG graphical devices.

Primary Display

Allows you to select which of the IGFX/PEG/PCI Graphics devices should be the primary display or select HG for Hybrid GFX. Configuration options: [FORCE] [Auto] [IGFX] [PEG Slot]

Internal Graphics

[Disabled] Disables internal graphics.

[Enabled] Enables internal graphics.

RC6(Render Standby)

Allows you to enable or disable render standby support. Configuration options: [Disabled] [Enabled]

4.4.5 AMT Configuration

The items in this menu allow you to configure Intel(R) Active Management Technology parameters.

Aptio Setup - AMI
Advanced
AMT BIOS Features	[Enabled]	When disabled AMT BIOS
USB Provisioning of AMT	[Disabled]	Features are no longer
Unconfigure ME	[Disabled]	supported and user is no
End Of Post Message	[Send in DXE]	longer able to access MEBx
Secure Erase Configuration		Setup.

AMT BIOS Features

This item allows you to enable or disable AMT BIOS features. Configuration options: [Disabled] [Enabled]

IMPORTANT! When set to [Disabled], AMT features are no longer supported, and you will no longer be able to access MEBx setup.

NOTE: Setting this option to [Disabled] will not disable the manageability features in the firmware.

USB Provisioning of AMT

This item allows you to enable or disable AMT USB Provisioning. Configuration options: [Disabled] [Enabled]

Unconfigure ME

This item allows you to enable or disable unconfigure ME by resetting the MEBx password to its default. Configuration options: [Disabled] [Enabled]

End Of Post Message

This item allows you to enable or disable End of Post message sent to ME.

Configuration options: [Disabled] [Send in DXE]

Secure Erase Configuration

Secure Erase mode

This item allows you to change Secure Erase module behavior.

Configuration options: [Simulated] [Real]

Force Secure Erase

This item allows you to enable or disable a forced Secure Erase on next boot.

Configuration options: [Disabled] [Enabled]

4.4.6 Super IO Configuration

The items in this menu allow you to configure system super IO chip parameters.

NCT5124D Super IO Configuration

Serial Port 1-2 Configuration

Allows you to set the parameters of Serial Port 1-2.

Serial Port

Allows you to enable or disable Serial Port.

Configuration options: [Disabled] [Enabled]

NOTE: The following items appear only when Serial Port is set to [Enabled].

COM1-2 Control

Configuration options: [RS422] [RS485] [RS232]

Serial Port 3-4 Configuration

Allows you to set the parameters of Serial Port 3-4.

Serial Port

Allows you to enable or disable Serial Port.

Configuration options: [Disabled] [Enabled]

4.4.7 Serial Console Redirection

The items in this menu allow you to configure serial console redirection parameters.

Aotio Setup - AMI
COM1 Console Redirection 1 [Disabled] ► Console Redirection Settings
COM2 Console Redirection 2 [Disabled] ► Console Redirection Settings
COM3 Console Redirection 3 [Disabled] ► Console Redirection Settings
COM4 Console Redirection 4 [Disabled] ► Console Redirection Settings
COM4 (PCI Bus0,Dev0,Func0) (Disabled) Console Redirection Port Is Disabled
COM4: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults

COM1-4

Console Redirection

Allows you to enable or disable the console redirection feature.

Configuration options: [Disabled] [Enabled]

NOTE: The following item appears only when Console Redirection is set to [Enabled].

Console Redirection Settings

This item becomes configurable only when you enable the Console Redirection item. The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Terminal Type

Allows you to set the terminal type.

[VT100] ASCII char set.

[VT100Plus] Extends VT100 to support color, function keys, etc.

[VT-UTF8] Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.

[ANSI] Extended ASCII char set.

Bits per second

Selects serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds.

Configuration options: [9600] [19200] [38400] [57600] [115200]

Data Bits

Configuration options: [7] [8]

Parity

A parity bit can be sent with the data bits to detect some transmission errors. [Mark] and [Space] parity do not allow for error detection.

[None] None.

[Even] parity bit is 0 if the num of 1's in the data bits is even.

[Odd] parity bit is 0 if num of 1's in the data bits is odd.

[Mark] parity bit is always 1.

[Space] parity bit is always 0.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning.) The standard setting is 1 stop bit.

Communication with slow devices may require more than 1 stop bit.

Configuration options: [1] [2]

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a “stop” signal can be sent to stop the data flow. Once the buffers are empty, a “start” signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.

Configuration options: [None] [Hardware RTS/CTS]

VT-UTF8 Combo Key Support

Allows you to enable the VT-UTF8 Combo Key Support for ANSI/VT100 terminals.

Configuration options: [Disabled] [Enabled]

Recorder Mode

With this mode enabled only text will be sent. This is to capture Terminal data.

Configuration options: [Disabled] [Enabled]

Resolution 100x31

Allows you to enable or disable extended terminal resolution.

Configuration options: [Disabled] [Enabled]

Putty KeyPad

This allows you to select the FunctionKey and Keypad on Putty. Configuration options: [VT100] [LINUX] [XTERMR6] [SCO] [ESCN] [VT400]

4.4.8 SATA configuration

The items in this menu allow you to configure SATA device options.

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show [Empty] if no SATA device is installed to the corresponding SATA port.

Aptio Setup - AMI
Advanced
SATA Configuration	Enable/Disable SATA Device.
SATA Controller(s) [Enabled]
SATA Mode Selection [AHCI]
SATABG_1 Empty
SATABG_1 [Enabled]
SATABG_2 Empty
SATABG_2 [Enabled]

SATA Controller(s)

Allows you to enable or disable the SATA Controller.

Configuration options: [Disabled] [Enabled]

NOTE: The following items appear only when SATA Controller(s) is set to [Enabled].

SATA Mode Selection

Allows you to set the SATA mode.

[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI (Advanced Host Controller Interface). AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands.

SATA6G_1-2

Allows you to enable or disable the SATA port.

Configuration options: [Disabled] [Enabled]

4.4.9 VMD setup menu

The items in this menu allow you to configure VMD options.

Enable VMD controller

Allows you to enable or disable the VMD controller. Configuration options: [Disabled] [Enabled]

NOTE: The following item appears only when Enable VMD controller is set to [Enabled].

Map this Root Port under VMD

Allows you to map/unmap this root port to VMD. Configuration options: [Disabled] [Enabled]

4.4.10 Network Stack Configuration

Allows you to configure network stack settings.

Network Stack

Allows you to enable or disable UEFI Network Stack.

Configuration options: [Disabled] [Enabled]

NOTE: The following items appear only when Network Stack is set to [Enabled].

IPv4 HTTP Support

Enables or disables the IPv4 HTTP Boot Support. If disabled, IPv4 HTTP boot support will not be available.

Configuration options: [Disabled] [Enabled]

IPv6 HTTP Support

Enables or disables the IPv6 HTTP Boot Support. If disabled, IPv6 HTTP boot support will not be available.

Configuration options: [Disabled] [Enabled]

4.4.11 USB Configuration

Aptio Setup - AMI
Advanced
USB Configuration USB Module Version 34 USB Controllers: 1 XHCI USB Devices: 1 Drive, 3 Keyboards, 2 Mice XHCI Hand-off [Enabled] USB Mass Storage Driver Support [Enabled] U32G2_1 [Enabled] U32G2_2 [Enabled] U32G2_3 [Enabled] U2_1 [Enabled]	This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.
++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults

NOTE: The USB Devices item shows the auto-detected values. If no USB device is detected, the item shows None.

XHCI Hand-off

NOTE: This item is set to [Disabled] by default for the EHCI (enhanced host controller interface) support by XHCI drivers in operating systems.

[Enabled] Support XHCI by BIOS for operating systems without XHCI support.

[Disabled] Support XHCI by XHCI drivers for operating systems with XHCI support.

USB Mass Storage Driver Support

Allows you to enable or disable the USB Mass Storage driver support. Configuration options: [Disabled] [Enabled]

USB32G2_1-3

Allows you to enable or disable each USB port. When set to [Disabled], any USB devices plugged into the connector will not be detected by the BIOS or OS.

Configuration options: [Disabled] [Enabled]

U2_1

Allows you to enable or disable each USB port. When set to [Disabled], any USB devices plugged into the connector will not be detected by the BIOS or OS.

Configuration options: [Disabled] [Enabled]

4.4.12 NVMe Configuration

This menu displays the NVMe controller and drive information of the connected devices.

4.4.13 Onboard Devices Configuration

Aptio Setup - AMI
Onboard Devices Configuration	Control Detection of the HO-Audio device. Disabled = HOA will be unconditionally disabled Enabled = HOA will be unconditionally enabled.
HD Audio [Enabled]
LAN1 [Enabled]
LAN2 [Enabled]
LAN3 [Enabled]
LAN4 [Enabled]
M.2_B [Enabled]
M.2_M [Enabled]
MCIO [Enabled]
MPCIE1 [Enabled]
M.2_E
WIF1 [Enabled]	+:- Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt.
BT [Enabled]
Debug LED support [Disabled]

HD Audio Support

Allows you to enable or disable HD-Audio support.

Configuration options: [Disabled] [Enabled]

LAN1

Allows you to enable or disable the onboard NIC.

Configuration options: [Enabled] [Disabled]

LAN2-4

Allows you to enable or disable each PCI express root port.

Configuration options: [Enabled] [Disabled]

M.2_B

Allows you to enable or disable the M.2 B-key controller.

Configuration options: [Disabled] [Enabled]

M.2_M

Allows you to enable or disable the M.2 M-key controller.

Configuration options: [Disabled] [Enabled]

MCIO

Allows you to enable or disable the MCIO controller. Configuration options: [Disabled] [Enabled]

MPCIE1

Allows you to enable or disable the MPCIE1 controller. Configuration options: [Disabled] [Enabled]

M.2_E

WiFi

Allows you to enable or disable the M.2 E-key Wi-Fi controller. Configuration options: [Disabled] [Enabled]

BT

Allows you to enable or disable the M.2 E-key Bluetooth controller. Configuration options: [Disabled] [Enabled]

Debug LED support

Allows you to enable or disable the power LED debug function. Configuration options: [Disabled] [Enabled]

4.4.14 APM Configuration

Allows you to configure the Advance Power Management (APM) settings.

ErP Ready

Allows the BIOS to switch off some power at S4/S5 to get the system ready for ErP requirement.

Configuration options: [Disabled] [Enabled]

NOTE: When set to [Enabled], all other PME options will be switched off.

Restore AC Power Loss

[S5 State] The system goes into OFF state after an AC power loss.

[S0 State] The system goes into ON state after an AC power loss.

Power On By PCIE/PCI

Allows you to enable or disable the wake-on-LAN function for the onboard LAN controller or other installed PCIe/PCI LAN cards.

Configuration options: [Disabled] [Enabled]

Power On By Ring

[Disabled] Disables the Ring devices to generate a wake event.

[Enabled] Enables the Ring devices to generate a wake event.

Power On By RTC

Allows you to disable the real-time clock (RTC) or enable it to schedule a wake event.

Configuration options: [Disabled] [Single event] [Daily event] [Weekly event] [Monthly event]

4.4.15 EZ-Flash

Enter Ez-Flash mode

This item allows you to enter Ez-Flash mode to run the ASUS Ez-Flash BIOS ROM utility.

WARNING! Make sure to back up your Bitlocker recovery key and suspend Bitlocker encryption in the operating system before updating your BIOS.

4.4.16 Watchdog Timer

The items in this menu allow you to configure settings related to Watchdog Timer.

Watchdog Support

Allows you to enable or disable Watchdog Support.

Configuration options: [Disabled] [Enabled]

NOTE: The following items appear only when Watchdog Support is set to [Enabled].

Watchdog Count Mode

Allows you to select the Watchdog Timer count mode. Configuration options: [Second Mode] [Minute Mode]

Watchdog Timer

Allows you to input the Watchdog time-out interval.

Watchdog Mode

Allows you to input the Watchdog mode. Configuration options: [POST] [POST & OS]

LED Alarm After Time's up

Allows you to enable or disable the LED alarm after the time is up. Configuration options: [Disabled] [Enabled]

4.4.17 Ignition Configuration

The items in this menu allow you to configure settings related to ignition.

Ignition Mode

Allows you to enable or disable ignition mode.

Configuration options: [Disabled] [Enabled]

NOTE: The following items appear only when Ignition Mode is set to [Enabled].

Ignition Delay Time Unit

Allows you to select ignition delay time unit.

Configuration options: [Second] [Minute]

Power On Delay

Allows you to specify the ignition power on delay time.

Configuration options: [0] - [255]

Power Off Delay

Allows you to specify the ignition power off delay time.

Configuration options: [0] - [255]

Power Hard Off Delay

Allows you to specify the ignition power hard off delay time.

Configuration options: [0] - [255]

Battery Voltage Monitor

Allows you to enable or disable the battery voltage monitor.

Configuration options: [Disabled] [Enabled]

4.4.18 TIs Auth Configuration

The items in this menu allow you to set the authentication mode.

Server CA / Client Cert Configuration

Allows you to configure the server's CA. This allows you to both enroll the required certificate files and also to delete the certificates that are not required.

Enroll Cert

Allows you to enroll a certificate using a certificate file or manually input a certificate GUID.

Enroll Cert Using File

Allows you to enroll a certificate using a certificate file. You will be prompted to select a storage device and navigate to the location of the certificate file.

Cert GUID

Allows you to enroll a certificate by manually inputting the certificate GUID.

Commit Changes and Exit

Exit Server CA configuration after saving the changes.

Discard Changes and Exit

Exit Server CA configuration without saving any changes.

Delete Cert

Allows you to delete the certificate.

4.5 Hardware Monitor menu

The Hardware Monitor menu displays the system temperature/power status, and allows you to change the fan mode.

Smart Fan Mode

Allows you to select a smart fan mode.

Configuration options: [Disabled] [Normal] [Manual]

4.6 Security menu

This menu allows a new password to be created or a current password to be changed. The menu also enables or disables the Secure Boot state and lets the user configure the System Mode state.

Administrator Password

To set an administrator password:

1. Select the Administrator Password item and press .
2. From the Create New Password box, key in a password, then press .
3. Confirm the password when prompted.

To change an administrator password:

1. Select the Administrator Password item and press .

2. From the Enter Current Password box, key in the current password, then press .

3. From the Create New Password box, key in a new password, then press .

4. Confirm the password when prompted. NOTE: To clear the administrator password, follow the same steps as in changing an administrator password, but press when prompted to create/confirm the password.

User Password

To set a user password:

1. Select the User Password item and press .
2. From the Create New Password box, key in a password, then press .
3. Confirm the password when prompted.

To change a user password:

1. Select the User Password item and press .
2. From the Enter Current Password box, key in the current password, then press .
3. From the Create New Password box, key in a new password, then press .
4. Confirm the password when prompted.

To clear a user password:

1. Select the Clear User Password item and press .
2. Select Yes from the Warning message window then press .

Secure Boot

Secure Boot can be enabled if the system is running in User mode with enrolled platform Key (EPK) or if the CSM function is disabled.

Configuration options: [Disabled] [Enabled]

Secure Boot Mode

In Custom Mode, the secure boot policy variables can be configured by a physically present user without full authentication.

Configuration options: [Standard] [Custom]

Key Management

The Key Management item allows you to modify Secure Boot variables and set Key Management page.

Platform Key (PK)

Configuration options: [Details] [Export] [Update] [Delete]

Key Exchange Keys / Authorized Signatures / Forbidden Signatures

Configuration options: [Details] [Export] [Update] [Append] [Delete]

HDD Security Configuration

The HDD Security Configuration item allows you to set up passwords to protect your HDD.

NOTE: This item is only available when you have a SATA HDD connected.

To set a password for your HDD:

1. Select the HDD Security Configuration item and press .
2. Select the Set Master Password item and press .
3. From the Create New Password box, key in a password, then press .
4. Confirm the password when prompted.
5. Select the User Password item and press .

6. From the Create New Password box, key in a password, then press .

7. Confirm the password when prompted.

To change the password for your HDD:

1. Select the HDD Security Configuration item and press .

2. Select the Set User Password item and press .

3. From the Enter Current Password box, key in a password, then press .

4. From the Create New Password box, key in a password, then press .

5. Confirm the password when prompted.

NOTE: To clear the user password, follow the same steps as in changing a user password, but press when prompted to create/confirm the password.

4.7 Boot menu

The Boot menu items allow you to change the system boot options.

Aptio Setup - AMI Main Advanced Hardware Monitor Security Boot Exit MEBX
Boot Configuration Setup Prompt Timeout Post Time Delay Bootup NumLock State Quiet Boot Fast Boot	1 0 [On] [Enabled] [Disabled]	Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.
FIXED BOOT ORDER Priorities Boot Option #1 Boot Option #2 Boot Option #3 Boot Option #4 UEFI NVME Drive BBS Priorities UEFI USB Drive BBS Priorities	[NVME-Hindous Boot Manager (N.2 (P80) STES)] [USB Device:UEFI: JetFlashTranscend 4GB 0.07, Partition 1] [Hard Disk] [Network]	+/-: Select Screen ↑↓: Select Item Enter: Select +/−: Change Opt. F1: General Help. F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Boot Configuration

Setup Prompt Timeout

Allows you to set the number of seconds that the firmware waits before initiating the original default boot selection. 65535(OxFFFF) means indefinite waiting. Use <+> or <-> to adjust the value.

Post Time Delay

Allows you to set the delay for specific situation needs. For example, HDD spin up time (Delay time = value * 500ms). Configuration options: [0] - [12]

NOTE: This feature only works when set under normal boot.

Bootup NumLock State

Allows you to select the power-on state for the NumLock. Configuration options: [On] [Off]

Quiet Boot

Allows you to enable or disable the Quiet Boot option. Configuration options: [Disabled] [Enabled]

Fast Boot

[Disabled] Allows your system to go back to its normal boot speed. [Enabled] Allows your system to accelerate the boot speed.

FIXED BOOT ORDER Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

NOTE: To select the boot device during system startup, press when the ASUS Logo appears.

UEFI NVME Drive BBS Priorities

Specifies the Boot Device Priority sequence from available UEFI NVME Drives.

UEFI USB Drive BBS Priorities

Specifies the Boot Device Priority sequence from available UEFI USB Drives.

4.8 Exit menu

The Save & Exit menu items allow you to save or discard your changes to the BIOS items.

NOTE: Pressing does not immediately exit this menu. Select one of the options from this menu or press to save and exit.

Save Changes and Exit

Exit system setup after saving changes.

Discard Changes and Exit

Exit system setup without saving changes.

Save Changes and Reset

Exit system setup after saving changes.

Discard Changes and Reset

Reset the system without saving any changes.

Save Option

Save Changes

Save changes done so far to any of the setup options.

Discard Changes

Discard changes done so far to any of the setup options.

Restore Defaults

Restore/load default values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

These item displays the available devices. The number of device items that appear on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

4.9 MEBx menu

The MEBx menu allows you to configure Intel(R) Management Engine (ME) features.

Intel(R) ME Password

Allows you to login to access the Intel(R) MEBx configuration settings.

NOTE: The default password is admin. After logging in with the default password, you must change the password before any features can be used.

4.10 Updating your BIOS

The following utilities allow you to manage and update the motherboard Basic Input/Output System (BIOS) setup:

1. ASUS CrashFree BIOS

To recover the BIOS using a bootable USB flash disk drive when the BIOS file fails or is corrupt.

2. ASUS EzFlash

Updates the BIOS using a USB flash disk.

Refer to the corresponding sections for details on these utilities.

4.10.1 ASUS CrashFree BIOS utility

The ASUS CrashFree BIOS is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using a USB flash drive that contains the updated BIOS file.

IMPORTANT! Prepare a USB flash drive containing the updated motherboard BIOS before using this utility.

Recovering the BIOS from a USB flash drive

To recover the BIOS from a USB flash drive:

1. Insert the USB flash drive with the original or updated BIOS file to one of the USB ports on the system.
2. The utility will automatically recover the BIOS. It resets the system when the BIOS recovery finished.

WARNING! DO NOT shut down or reset the system while recovering the BIOS! Doing so will cause system boot failure!

NOTE: The recovered BIOS may not be the latest BIOS version for this motherboard. Visit the ASUS website at www.asus.com to download the latest BIOS file.

4.10.2 ASUS EzFlash Utility

The ASUS EzFlash Utility feature allows you to update the BIOS using a USB flash disk without having to use a DOS-based utility.

IMPORTANT! Download the latest BIOS from the ASUS website at www.asus.com before using this utility.

NOTE: The succeeding BIOS screens are for reference only. The actual BIOS screen displayed may not be the same as shown.

To update the BIOS using EzFlash Utility:

1. Insert the USB flash disk that contains the latest BIOS file to a USB port.
2. Enter the BIOS setup program. Go to the Advanced menu > EZ-Flash > Enter Ez-Flash mode. Select Yes and then OK to auto reboot and enter EZ-Flash mode.

WARNING! Make sure to back up your Bitlocker recovery key and suspend Bitlocker encryption in the operating system before updating your BIOS.

1. Use the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS, and then press .

2. Use the Up/Down arrow keys to find the BIOS file then press .

1. Reboot the system when the update process is done.

WARNING!

• This function can support devices such as a USB flash disk with FAT 32/16 format and single partition only.
• DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

IMPORTANT! Make sure to load the BIOS default settings to ensure system compatibility and stability. Press and select Yes to load the BIOS default settings.

Appendix

Safety information

Your Embedded Computer is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source.
• Set up the system on a stable surface.
• Peripherals with extended temperature tolerance, such as industrial grade DRAM and SSD, will allow this product to be used in environments with ambient temperatures between -20°C and 60°C using DC-in power input.
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.
• This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
• Restricted Access Area:

The equipment should only be installed in a Restricted Access Area where both these conditions apply:

- access can only be gained by skilled or instructed persons who have been instructed about the reasons for the restrictions applied to the area and about any precautions that shall be taken; and

- access is through the use of a TOOL or lock and key, or other means of security, and is controlled by the authority responsible for the area.

- This device shall not be connected to an Ethernet network with outside plant routing.

Care during use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.
• When the system is turned off, a small amount of electrical current still flows. Always unplug the power cord from the power outlets before cleaning the system.

• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

• The power cord or plug is damaged.

• Liquid has been spilled into the system.
• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes.

Lithium-Metal Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

NO DISASSEMBLY

The warranty does not apply to the products that have been disassembled by users

DO NOT throw the Embedded Computer in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local technical support services for product recycling.

Regulatory notices

COATING NOTICE

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

IMPORTANT! Outdoor operations in the 5.15\~5.25 GHz band is prohibited. This device has no Ad-hoc capability for 5250\~5350 and 5470\~5725 MHz.

CAUTION! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Exposure Information

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(A)/NMB-003(A)

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

KC: Korea Warning Statement

Class A:

사용자 안내문

Japan RF Equipment Statement

屋外での使用について

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to https://esg.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with.

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at https://esg.asus.com/Compliance.htm

EU RoHS

This product complies with the EU RoHS Directive. For more details, see https://esg.asus.com/Compliance.htm

RF Module Warning Statement

RF modules are intended for OEM or host integrators only. For availability of system level RF certification, check with your OEM integrator.

HDMI Trademark Notice

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress, and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Service and Support

Visit our multi-language website at https://www.asus.com/support/.
