Geneva Cot Bed - Baby bed Silver Cross - Free user manual and instructions

Product Type	Baby Cot Bed
Brand	Silver Cross
Model	Geneva Cot Bed
Dimensions (L x W x H)	Approx. 144 x 74 x 85 cm
Mattress Size	140 x 70 cm (standard cot mattress)
Material	Solid wood (New Zealand pine) and MDF
Weight	Approx. 25 kg
Age Range	From birth up to approx. 4 years (as toddler bed)
Maximum Weight Capacity	20 kg (cot mode)
Adjustable Mattress Base	Yes, 3 positions
Teething Rails	Yes, included
Convertible	Converts to toddler bed and daybed
Safety Standards	BS EN 716, ASTM F1169
Assembly Required	Yes, detailed instructions included
Mattress Included	No, sold separately
Cleaning Instructions	Wipe with damp cloth, mild soap; avoid harsh chemicals
Warranty	2 years against manufacturer defects
Country of Origin	China
Spare Parts Availability	Available through authorized retailers

Frequently Asked Questions - Geneva Cot Bed Silver Cross

What are the dimensions of the Silver Cross Geneva Cot Bed?

The cot bed measures approximately 144 x 74 x 85 cm (L x W x H). It requires a standard cot mattress of 140 x 70 cm.

Is the mattress included with the cot bed?

No, the mattress is sold separately. You need to purchase a standard cot mattress that fits the 140 x 70 cm base.

Can the cot bed be converted into a toddler bed?

Yes, the Geneva Cot Bed converts into a toddler bed and later a daybed, suitable for children up to approximately 4 years.

How do I clean the cot bed?

Wipe with a damp cloth and mild soap. Avoid using harsh chemicals or abrasive cleaners. Do not soak the wood.

Is assembly difficult?

Assembly is straightforward with the included step-by-step manual. All tools are provided, and it typically takes about 45-60 minutes.

Does the cot bed meet safety standards?

Yes, it complies with BS EN 716 and ASTM F1169 safety standards for baby cribs and toddler beds.

What is the maximum weight limit?

In cot mode, the maximum weight is 20 kg. When converted to a toddler bed, it is designed for children up to 20 kg as well.

How many mattress base positions are there?

There are three height positions: highest for newborn, middle for baby sitting up, and lowest for toddler standing.

Are teething rails included?

Yes, plastic teething rails are provided to protect the wood when your baby chews on the cot sides.

Where can I purchase spare parts?

Spare parts are available through authorized Silver Cross retailers or the official website. Contact customer support for assistance.

USER MANUAL Geneva Cot Bed Silver Cross

IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY

Silver Cross®

Geneva

Cot bed

Parts list:

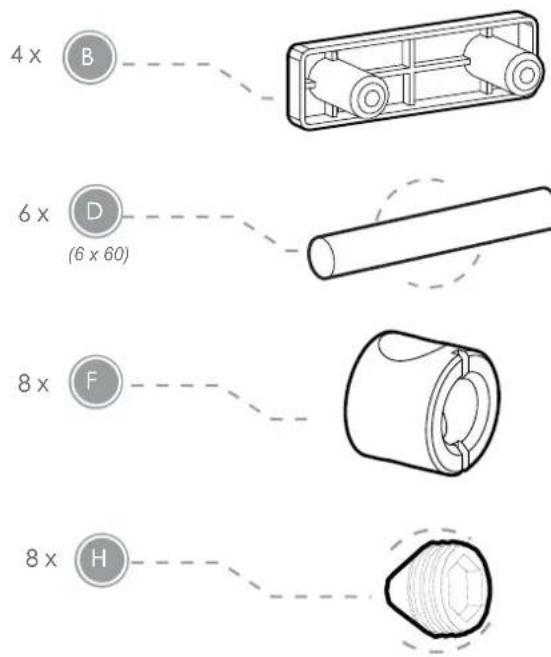

Fittings list:

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

The cot bed base can be fitted at three different heights. The lowest is the safest.

Step 8:

Step 9:

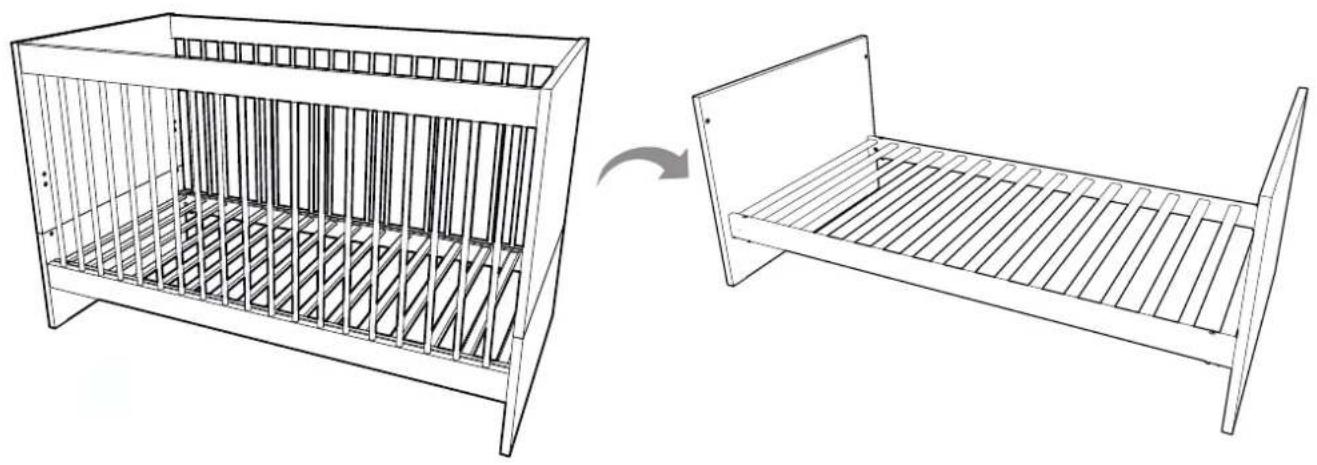

Line drawing of a baby crib with side panel and back panel, showing structural change (no text or symbols)

Step 10:

Step 11:

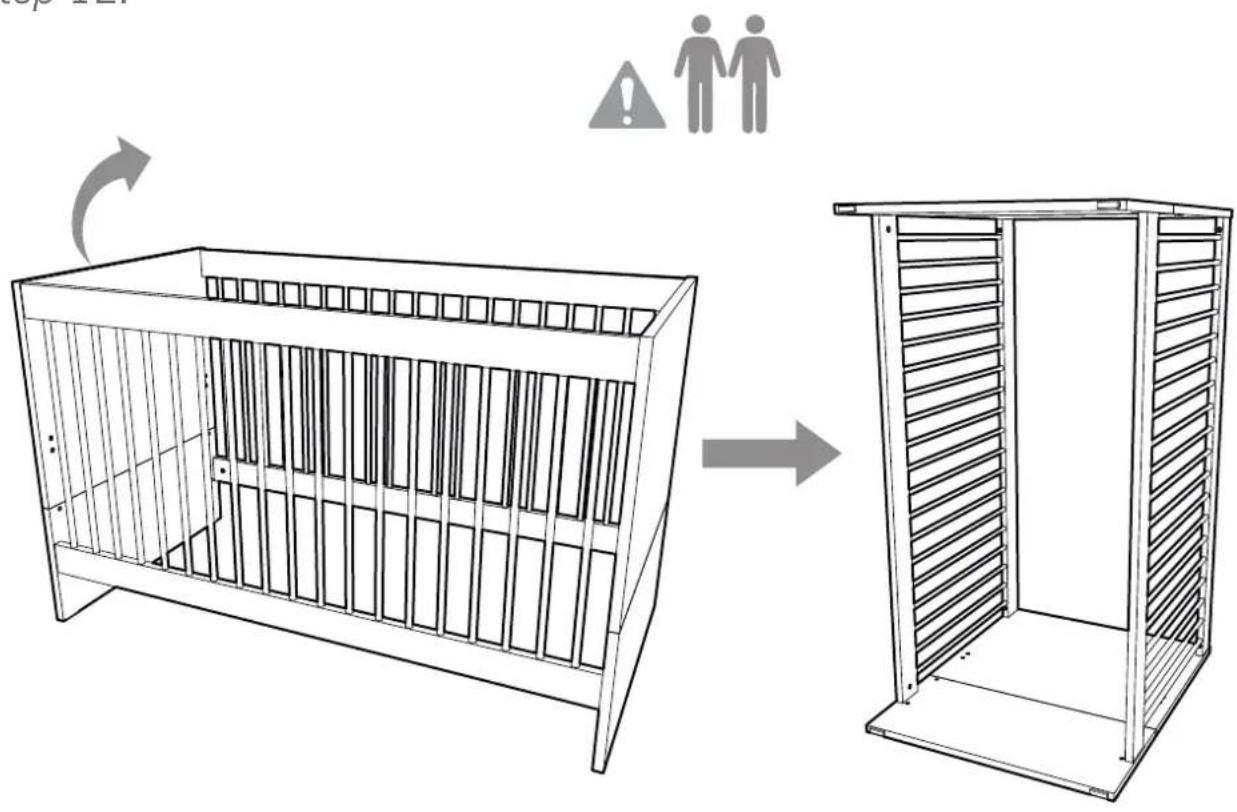

Step 12:

Step 13:

Step 14:

Step 15:

Step 16:

Step 17:


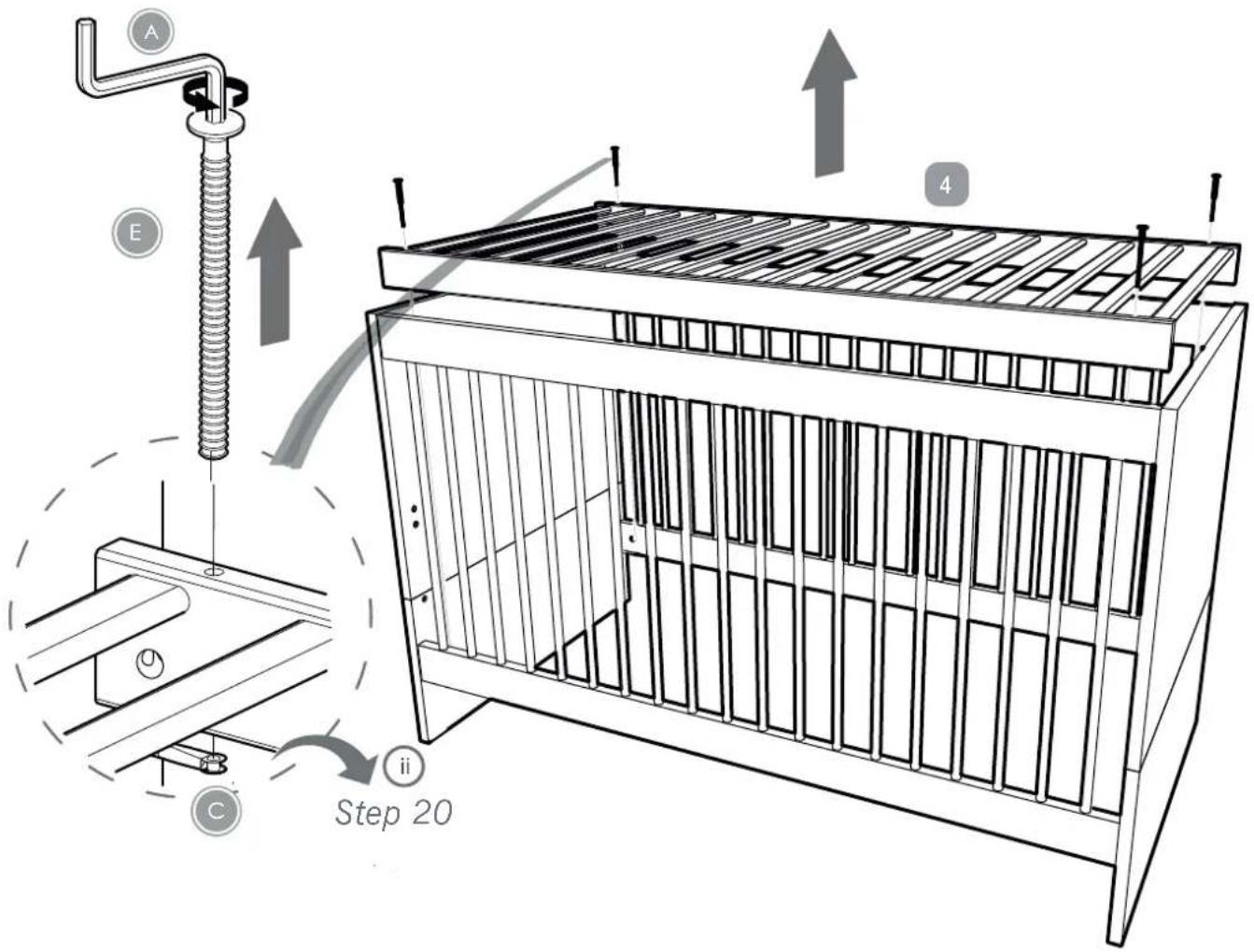

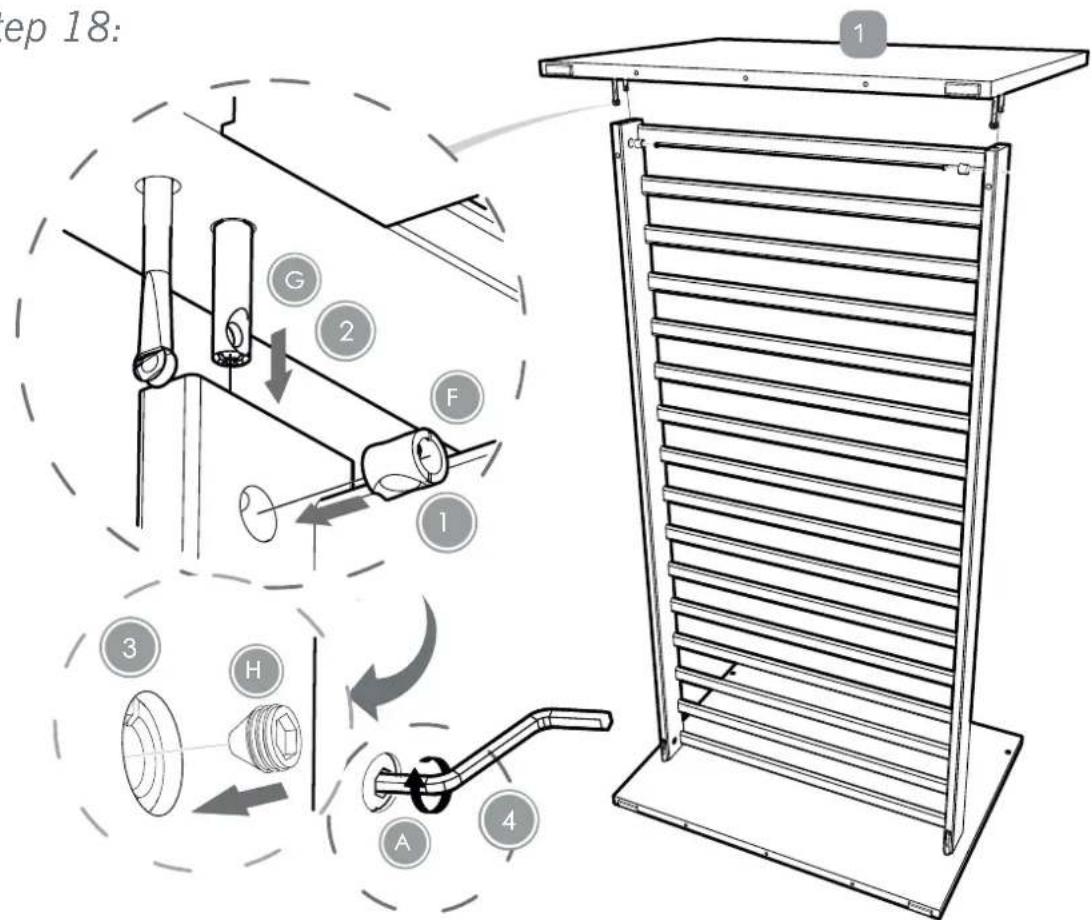

Step 18:

Step 19:

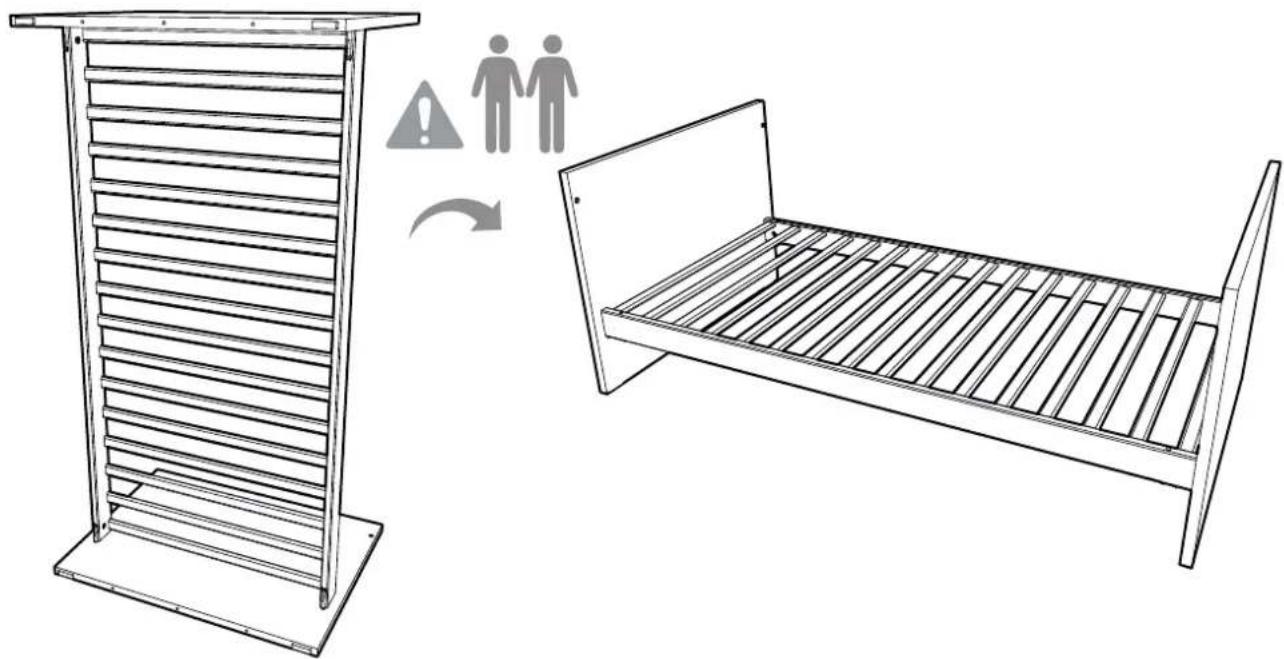

Line drawing of two simple furniture compartments: a tall slatted shelf and a single bass, with warning symbols indicating safety (no text or labels present)

Step 20:

IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY

Geneva Trundle drawer

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

1 2 3 4 5

Parts list:

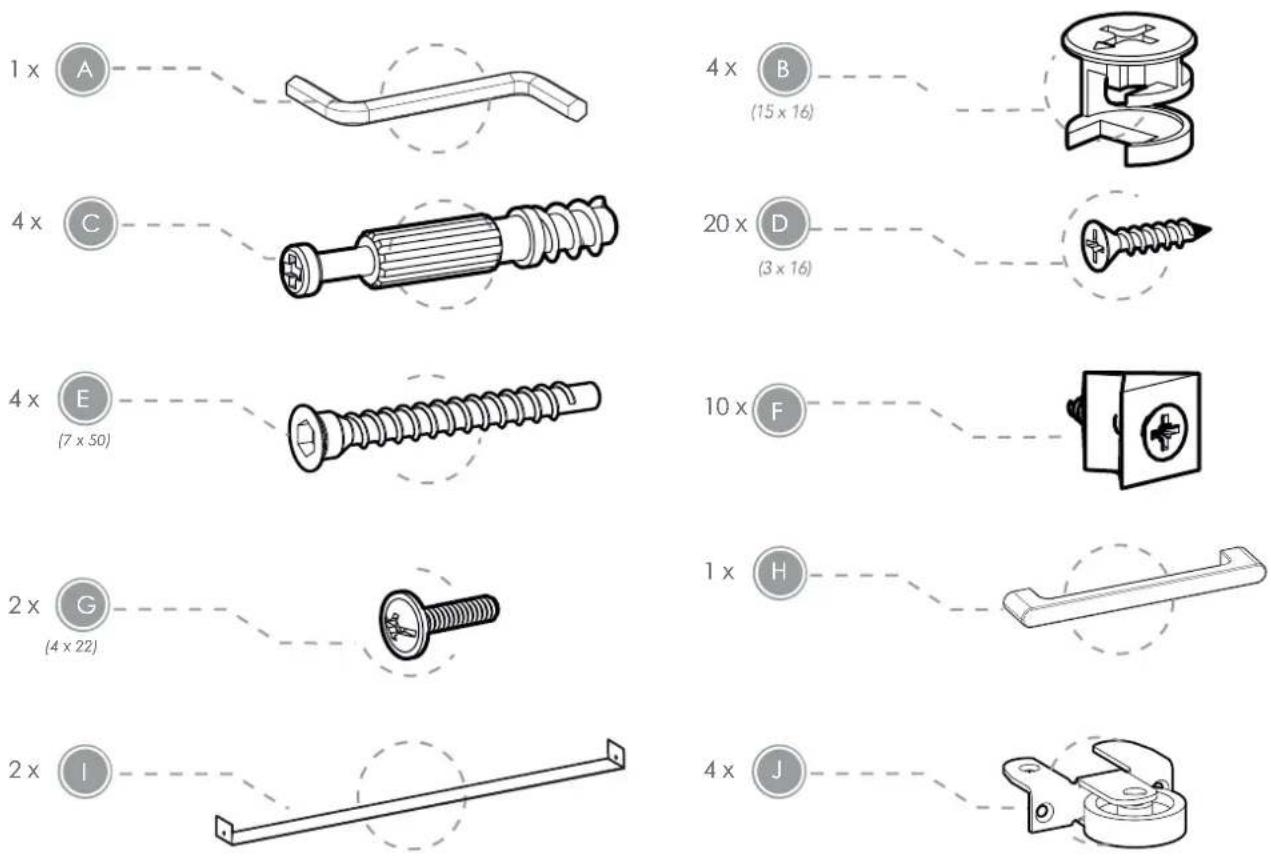

Fittings list:

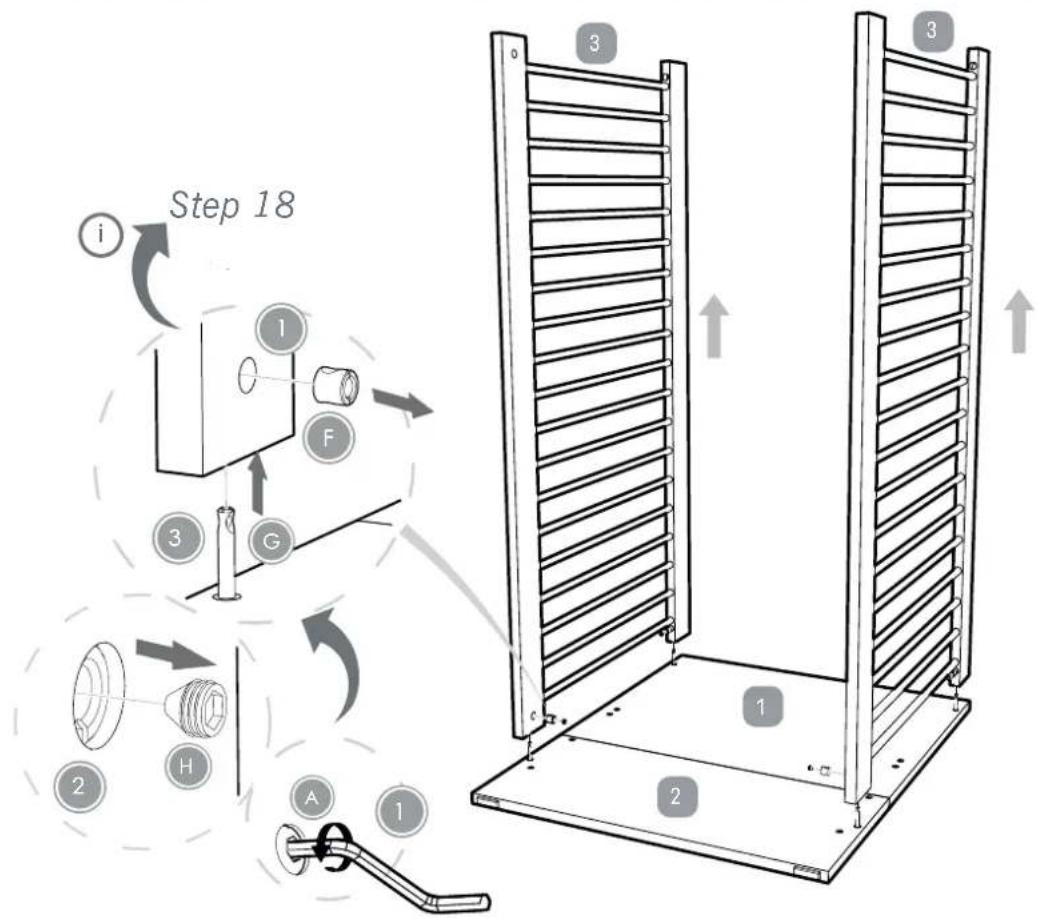

Step 2:

Step 3:

Technical line drawing of two metal frame structures with mounting holes, showing a 3D transformation (no text or symbols)

Step 4:

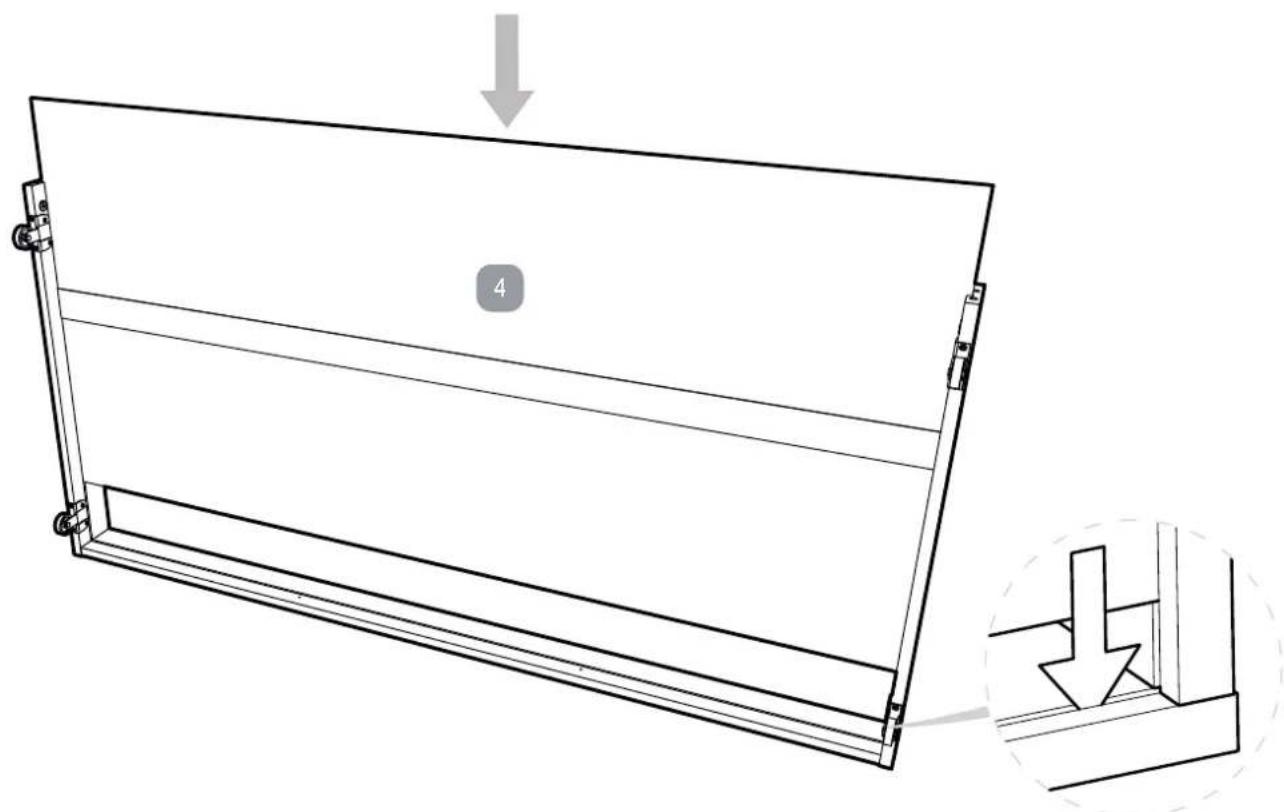

Technical line drawing of a structural frame with an arrow indicating downward force, showing internal components and a magnified detail (no text or symbols)

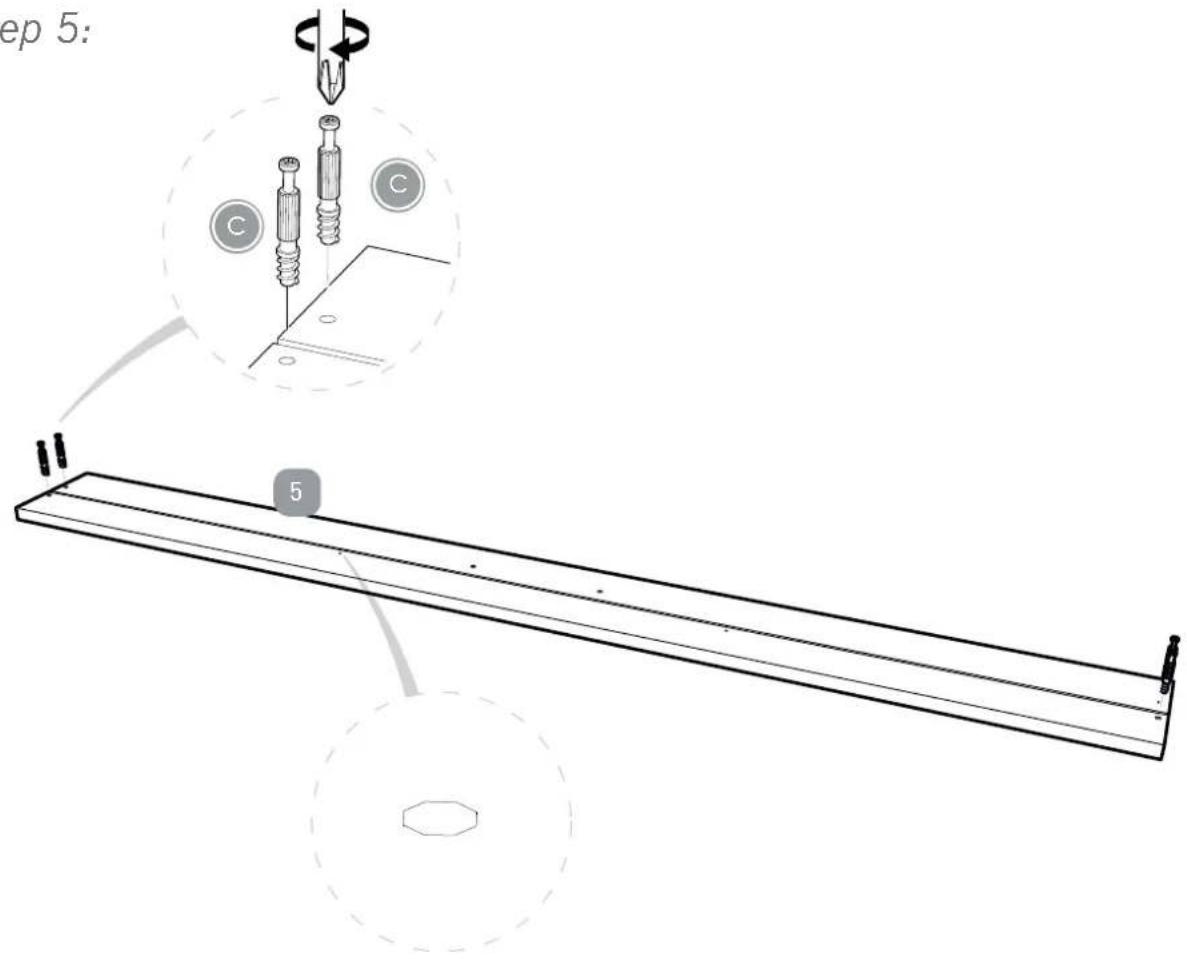

Step 5:

Step 6:

Step 7:

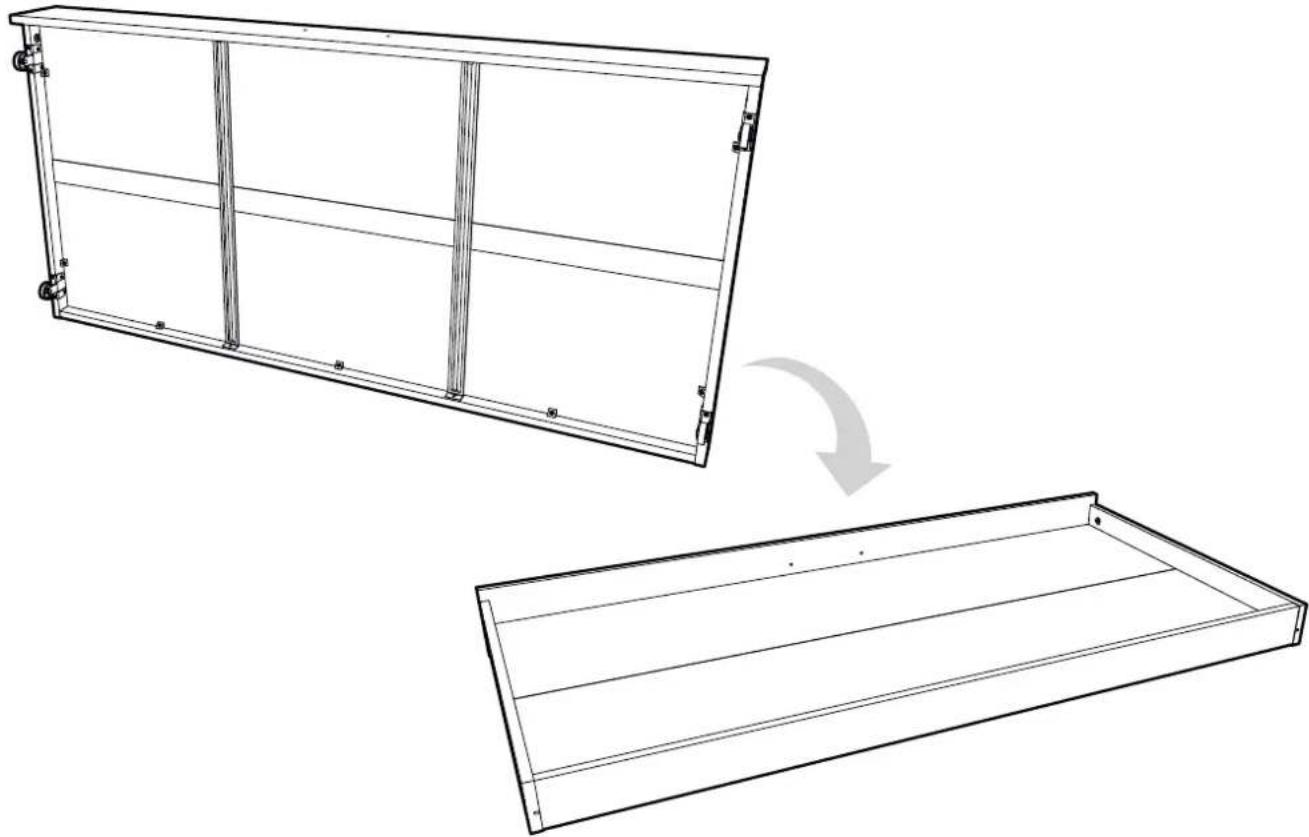

Step 8:

Technical line drawing of a rectangular metal enclosure with vertical supports and mounting feet (no text or symbols)

Simple line drawing of a screw inserted into a square socket, with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a pen with a circular icon, next to a document or plate (no text or symbols present)

Step 9:

Technical line drawing of a two-part metal enclosure with internal partitions and mounting feet, showing structural change (no text or symbols)

Step 10:

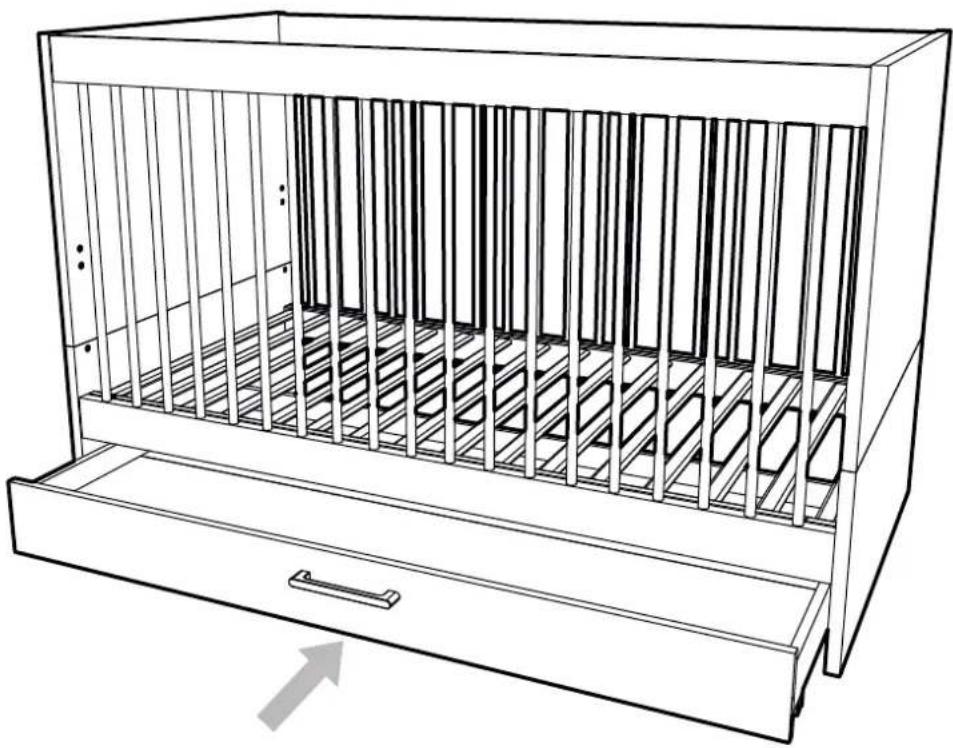

Step 11:

Line drawing of a wooden cabinet with vertical metal frames and a handle, showing internal compartments (no text or symbols)

Warnings & Instructions For Safe Use & Maintenance

WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc, in the vicinity of the cot/bed.

WARNING: Do not use the product if any part is broken, damaged, torn or missing. Approved replacement parts can be obtained from Silver Cross.

WARNING: Do not leave anything in the cot/bed, or place it close to another product which provides a foothold or presents a danger of suffocation or strangulation. For example strings, blind/curtain cords etc.

WARNING : Do not use more than one mattress in the cot.

WARNING: Children are likely to play, bounce, jump and climb on beds, therefore the child's bed should not be placed too close to other furniture or windows, and should be placed either tight to any wall or have a gap of 300mm between the wall and the side of the bed.

WARNING: Do not place this child's bed near heat sources, windows and other furniture.

The lowest position of the mattress base is the safest, and should be used as soon as the baby is old enough to sit up. To prevent injury from falls, when the child is able to climb out of the cot, the cot shall no longer be used for that child.

Thickness of the mattress chosen must not reduce the internal depth (from mattress surface to top of the side) to less than 500mm with the base in its lower position or 200mm with the base in its higher position.

Maximum 10cm thick mattress to be used with this cot bed.

If you leave the child unattended in the cot, always make sure that the dropside is in the highest position.

All assembly fittings should be tightened properly, checked regularly and re-tightened as necessary.

Screws and bolts should not be loose because a child can squeeze parts of the body, or clothing e.g string, necklaces, ribbons for babies dummies etc. could get caught. There would be a danger of strangulation.

The cot/bed must be used on a level and stable surface, away from electric sockets. Once assembled do not dismantle. Never move the cot/bed with a child in it.

Excessive chewing may damage the wood and cause splintering. If any part is damaged stop using until the correct replacement part has been obtained from Silver Cross.

Your cot/bed can be cleaned by wiping with a damp cloth and drying immediately with a soft clean cloth.

Do not use abrasives, bleach, alcohol or ammonia based household polishes.

Take care when handling or moving furniture, careless handling can damage wooden furniture.

Wood is a natural material, the colour will darken with age.

The size of the mattress to be used with the child's bed is 1400x700mm.

Cot conforms to BS EN 716-1/2:2017 and toddler bed to BS 8509:2008+A1:2011.

Cots which convert to toddler beds are intended from birth up to approximately 4 years.

The mattress length and width shall be such that the gap between the mattress and the sides and ends does not exceed 30mm.

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA

silvercrossbaby.com

IND.1136008
