Marie-Chantal Cot Bed - Baby bed Silver Cross - Free user manual and instructions

Product Type	Convertible Cot / Toddler Bed
Brand	Silver Cross
Model	Marie-Chantal Cot Bed
Recommended Age	From birth to approximately 4 years
Conversion	Converts from cot to toddler bed
Mattress Size Supported	1400 x 700 mm (recommended 400 size)
Maximum Mattress Thickness	100 mm
Internal Height (lowest base position)	At least 500 mm from mattress surface to upper edge
Internal Height (highest base position)	At least 200 mm from mattress surface to upper edge
Number of Mattress Positions	Adjustable (lowest and highest)
Material	Wood and metal
Drawer	Includes under-cot drawer unit
Assembly Required	Yes, by two people
Safety Standards	BS 8509:2008+A1:2011 (when converted to cot bed)
Cleaning Instructions	Wipe with damp cloth, dry immediately. No abrasives or bleach.
Spare Parts Availability	Use only Silver Cross approved spare parts
Warning Against Fire	Keep away from open flames and heat sources
Strangulation Hazard	Keep cords, strings, and blinds away from cot
Max Child Weight for Toddler Bed	Not specified, but intended up to 4 years
Package Contents	Frame parts, fittings, drawer components, instructions

Frequently Asked Questions - Marie-Chantal Cot Bed Silver Cross

How do I assemble the cot?

Assembly requires two people. Follow the step-by-step instructions in the manual, starting with the cot ends (Step 1-4), then the drawer unit (Step 1-7). Use the specified bolts (K1, K2) and crescents (L). Ensure all fixings are tight before use.

Can this cot be converted into a toddler bed?

Yes, the Marie-Chantal Cot Bed converts into a toddler bed. Disassemble the cot as per instructions, remove the lower section of the cot ends, and reattach the drawer runner to the upper section. Use blanking bolts (K3) to cover screw holes.

What size mattress should I use?

The recommended mattress size is 1400 x 700 mm (400 size). The mattress thickness must not exceed 100 mm. The gap between the mattress and cot sides should be no more than 30 mm.

How do I clean the cot?

Clean with a damp cloth. Never use abrasives or bleach. Dry thoroughly immediately after cleaning.

Is the cot safe for a newborn?

Yes, the cot is intended from birth. Use the highest mattress position for a newborn, lowering it as the baby grows. The lowest position is safest when the baby can sit up.

What safety warnings should I be aware of?

Keep the cot away from open flames, heat sources, windows, and cords to prevent strangulation. Do not use more than one mattress. Ensure all fittings are tight and no parts are broken or missing.

Can I use the cot without a drawer?

Yes, the drawer unit is optional? The instructions include drawer assembly separately. The cot can be used without it.

How do I know when to switch to toddler bed mode?

When your child can climb out of the cot, it should no longer be used as a cot. Convert to toddler bed mode for continued use.

Are spare parts available?

Use only Silver Cross approved spare parts. Contact the manufacturer or distributor for replacements.

What is the weight limit for the toddler bed?

The manual does not specify a weight limit, but the bed is intended for children up to approximately 4 years old.

USER MANUAL Marie-Chantal Cot Bed Silver Cross

THE BEST START IN LIFE

Marie Chantal Cot / Cot Bed

Assembly Instructions

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Parts List :

A = 2pcs (L&R)

B = 2pcs (L&R)

C = 1pc

D = 1pc

E = 2pcs (L&R)

F = 1pc

G = 1pc

H = 1pc

I = 2pcs (L&R)

Fittings List :

Retain all extra fittings for conversion into day and toddler bed

K = 7pcs
M6x30mm

K1 = 3pcs
M6x40mm

K2 = 12pcs
M6x50mm

L = 7pcs

K3 = 12pcs
M6×13

M = 3pcs
M4x20mm

P = 2pcs

N = 1pc

0 = 1pc

Cot Assembly

Step 1:

Note: For left and right ends

Step 2:

Note: Use bolt (K2) and crescent (L) in 2 locations.

Step 3:

Note: Use bolt (K2) and crescent (L) in 2 locations.

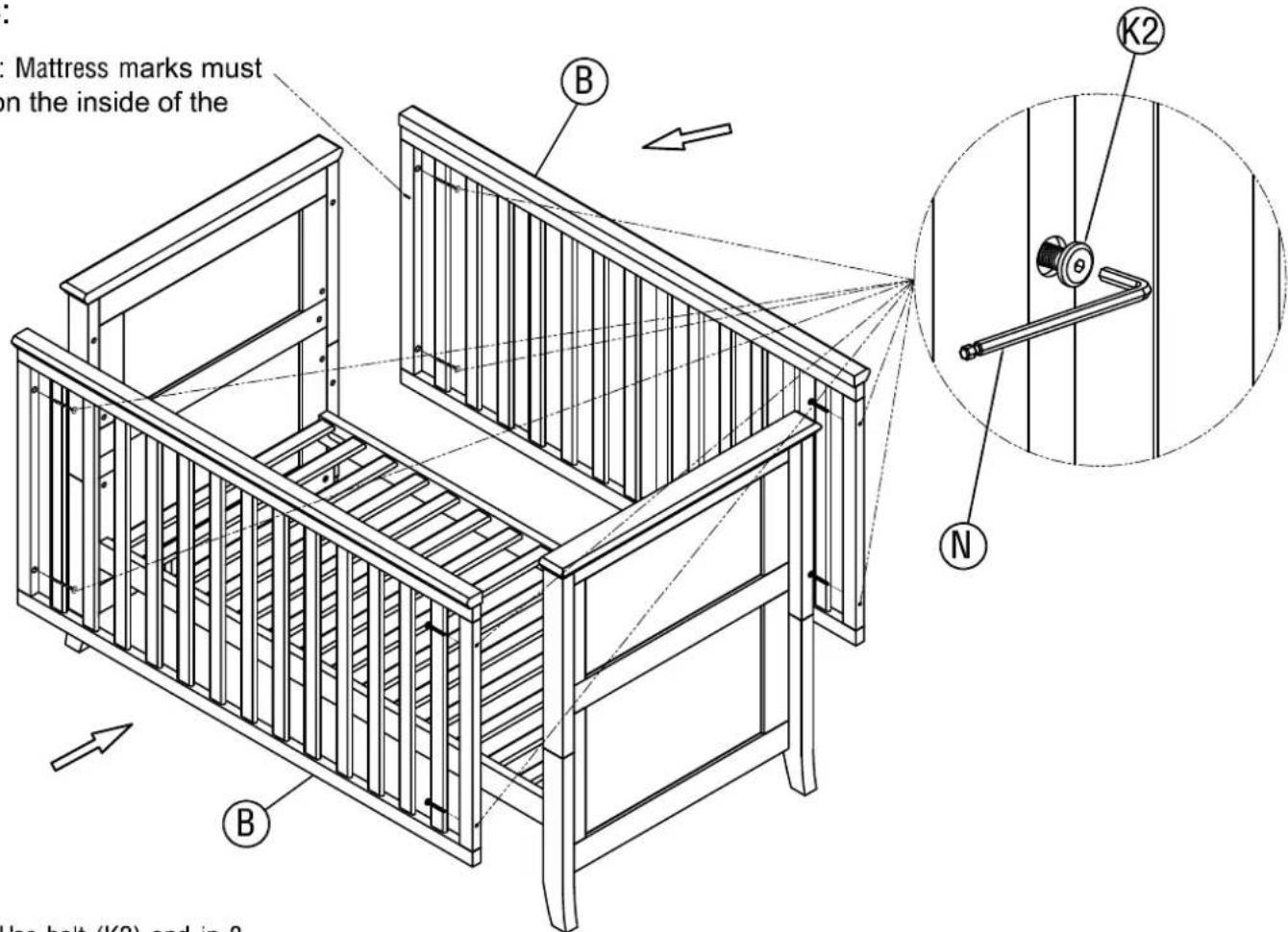

Step 4:
Note: Mattress marks must be on the inside of the cot

Note: Use bolt (K2) and in 8 locations.

Step 5:

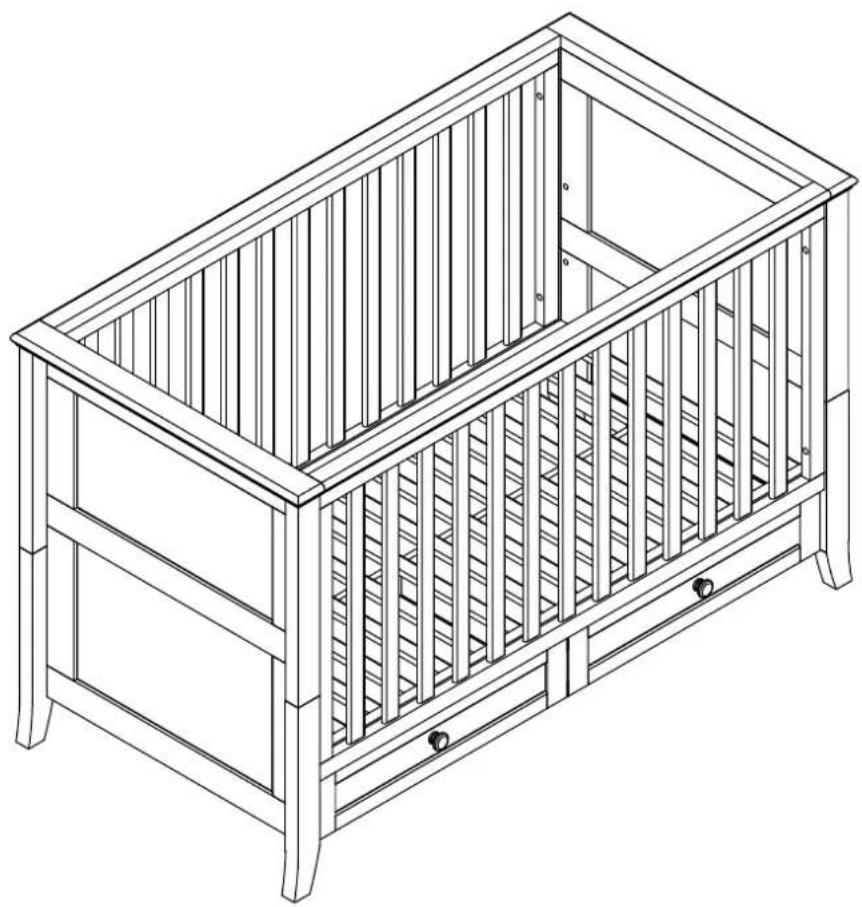

Note: Cot bed is now fully assembled, check all fixings are tight and secure before assembling the drawer unit

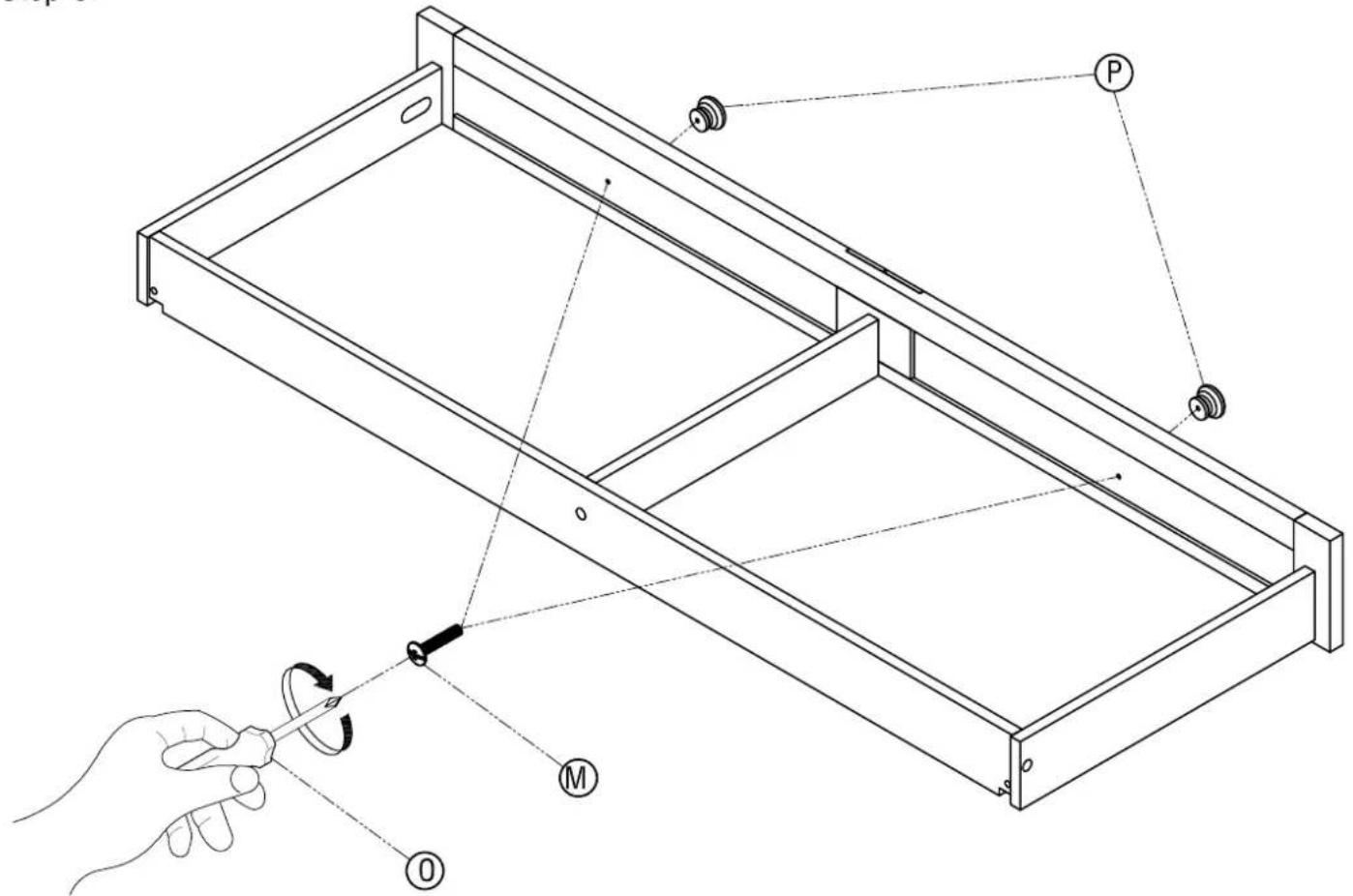

Drawer Assembly
Step 1:

Note: Use bolt (K1) and Crescent (L) in 3 locations.

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

Toddler Bed

Step1:

Disassemble the cot referring to the Cot Assembly intructions Note: the drawer unit does not require disassemble

Remove the drawer runner from the lower cot section and re-attach on the upper cot section as shown using the same fixings (K1)

Affix blanking bolts (K3) in the positions shown to disguise cscrew holes.

Step 2:

Remove the lower section of the cot end by pulling the upper and lower sections apart.

Step 2:

Step 4:

Step 5:

Warnings & Instructions For Safe Use & Maintenance

WARNING

Be aware of the risk of open fire and other sources of strong heat, such as electric bar gas fires, etc. in the near vicinity of the cot.

WARNING

Do not use the cot/bed if any part is broken, torn or missing and use only spare parts approved by Silver Cross.

WARNING

Do not leave anything in the cot or place the cot near to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blinds, curtain cords, etc.

WARNING

Do not use more than one mattress in the cot.

WARNING

When converted into child's bed mode, do not place near heat sources, windows and other furniture.

The bed is designed to be dismantled for storage or transportation;

Any additional or replacement parts are obtained from the manufacturer or distributor.

All parts of the cot should be tightened correctly. Care should be taken to ensure that none of the fittings are loose or protruding as this could trap parts of the body or clothing, ribbons, drawstrings, necklaces etc., and pose a risk of strangulation.

The lowest position of the cot base is the safest position. You should use the cot in this position as soon as your baby is old enough to sit up.

The thickness of the mattress shall be such that the internal height (surface of the mattress to the upper edge of the cot frame) is at least 500 mm in the lowest position of the cot base and at least 200 mm in the highest position of the cot base.

The thickness of mattress shall not exceed 100 mm. We recommend the use of a 400 size mattress (1400 x 700mm).

The mattress length and width shall be such that the gap between the mattress and the sides and ends does not exceed 30 mm.

Your cot/bed may be cleaned with a damp cloth. Never use abrasives or bleach.

Thoroughly dry immediately after cleaning.

All assembly fittings should always be tightened properly and all fittings should be checked regularly and re-tightened as necessary.

To prevent injuries from falls, when a child is able to climb out of the cot, it should no longer be used for that child.

This cot bed is intended for children aged from birth to 4 years approximately. When converted into a COT bed it conforms to BS 8509:2008+A1:2011.

Children are likely to play, bounce, jump and climb on beds, therefore the child's bed should not be placed too close to other furniture or windows, blind cords, curtain pulls or other strings or cords, and should be placed either tight to any wall or have a gap of 300mm between the wall and the side of the bed.
