Alnmouth Cot Bed - Baby bed Silver Cross - Free user manual and instructions

Product Type	Cot Bed (Convertible)
Brand	Silver Cross
Model	Alnmouth Cot Bed
Overall Dimensions (L x W x H)	140 x 70 x 85 cm
Weight	22 kg
Material	Solid beech wood and MDF
Finish	Non-toxic water-based paint
Recommended Mattress Size	140 x 70 cm
Age Range	From birth up to approx. 4 years
Maximum Child Weight	15 kg (cot mode) / 20 kg (toddler bed mode)
Safety Standard	EN 716-1:2017 + A1:2019
Conversion	Converts to toddler bed with side rail (optional kit)
Mattress Base Height Positions	3 adjustable positions
Assembly Required	Yes (2-person recommended, approx. 30 min)
Cleaning Instructions	Wipe with damp cloth, mild soap; avoid abrasive cleaners
Spare Parts Availability	Contact Silver Cross customer service
Warranty	2 years (subject to registration)

Frequently Asked Questions - Alnmouth Cot Bed Silver Cross

What is the recommended mattress size for the Alnmouth Cot Bed?

The recommended mattress size is 140 cm x 70 cm. Ensure the mattress is firm and fits snugly to reduce suffocation risk.

Can the cot bed be converted into a toddler bed?

Yes, the Alnmouth Cot Bed can be converted into a toddler bed using an optional conversion kit. It extends the usable age from cot to toddler.

How many mattress base height positions are available?

There are 3 adjustable height positions for the mattress base, allowing you to lower it as your child grows and becomes more mobile.

What safety standards does the cot bed meet?

The cot bed meets EN 716-1:2017 + A1:2019 safety standards for domestic children's cots and folding cots.

Is the cot bed easy to assemble?

Yes, assembly is straightforward with included instructions. We recommend two people for assembly, and it typically takes about 30 minutes.

How should I clean the cot bed?

Clean with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that may damage the finish. Dry thoroughly after cleaning.

What is the maximum child weight for the cot bed?

In cot mode, maximum weight is 15 kg. When converted to a toddler bed with side rail, up to 20 kg.

Does the cot bed come with a mattress?

No, the cot bed is sold without a mattress. You need to purchase a compatible mattress separately (140x70 cm).

What materials are used in the cot bed?

The cot bed is made from solid beech wood and MDF with a non-toxic water-based paint finish, ensuring safety for your child.

Where can I get spare parts or additional rails?

Spare parts and conversion kits can be ordered through Silver Cross customer service or authorized retailers. Please have your model number ready.

USER MANUAL Alnmouth Cot Bed Silver Cross

IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY

Alnmouth Cot bed

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

1x2 2x2 4

Parts list:

Fittings list:

Step 1:

Step 2:

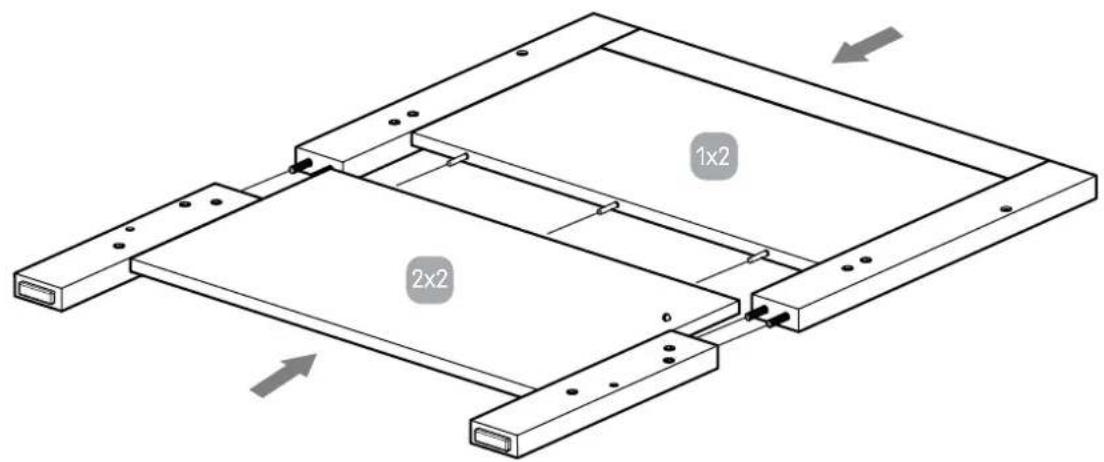

Technical line drawing of a mechanical assembly with two components, one labeled B and the other showing a 2x2 ratio (no text or symbols beyond labels)

Step 3:

Step 5:

Step 6:

Step 7:

Step 8:

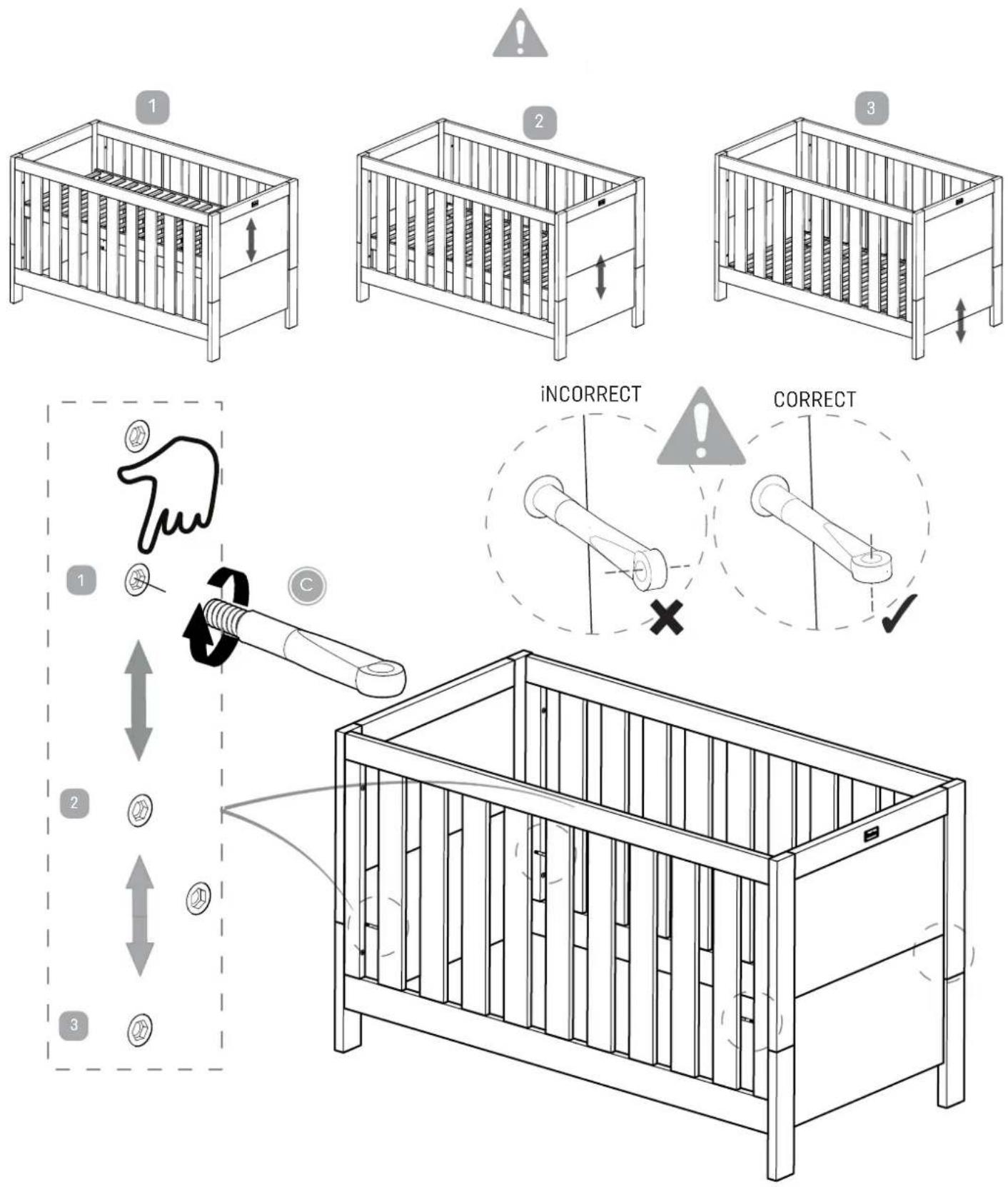

The cot bed base can be fitted at three different heights. The lowest is the safest.

Step 9:

Step 10:

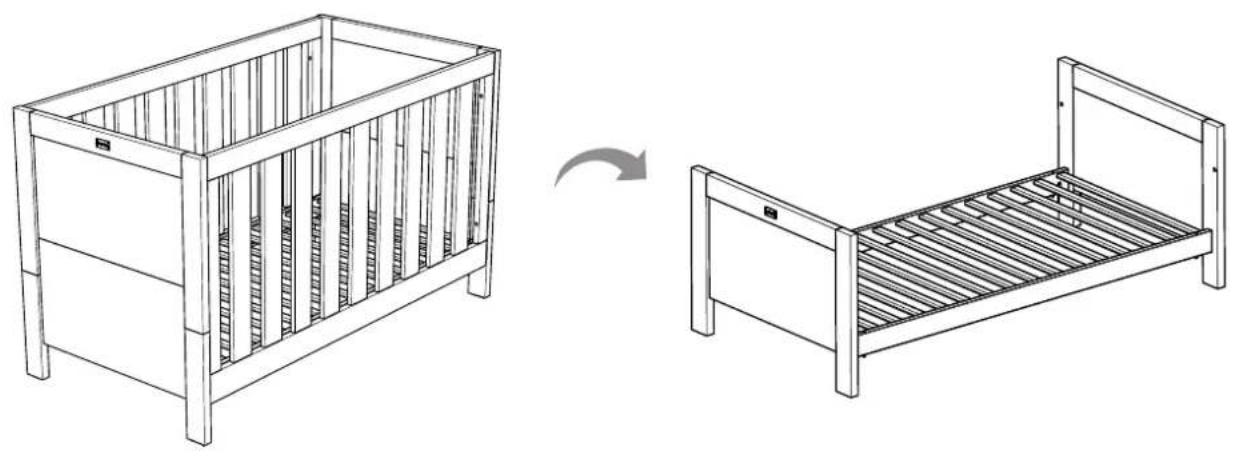

Line drawings of two baby crib beds, one open and one closed, with no text or symbols present.

Step 11:

Step 13:

Step 14:

Step 15:

Step 16:

Step 17:

Technical line drawing of a mechanical assembly with labeled components (1x2 and B), no readable text or symbols beyond labels

Step 18:

Step 19:

Step 21:

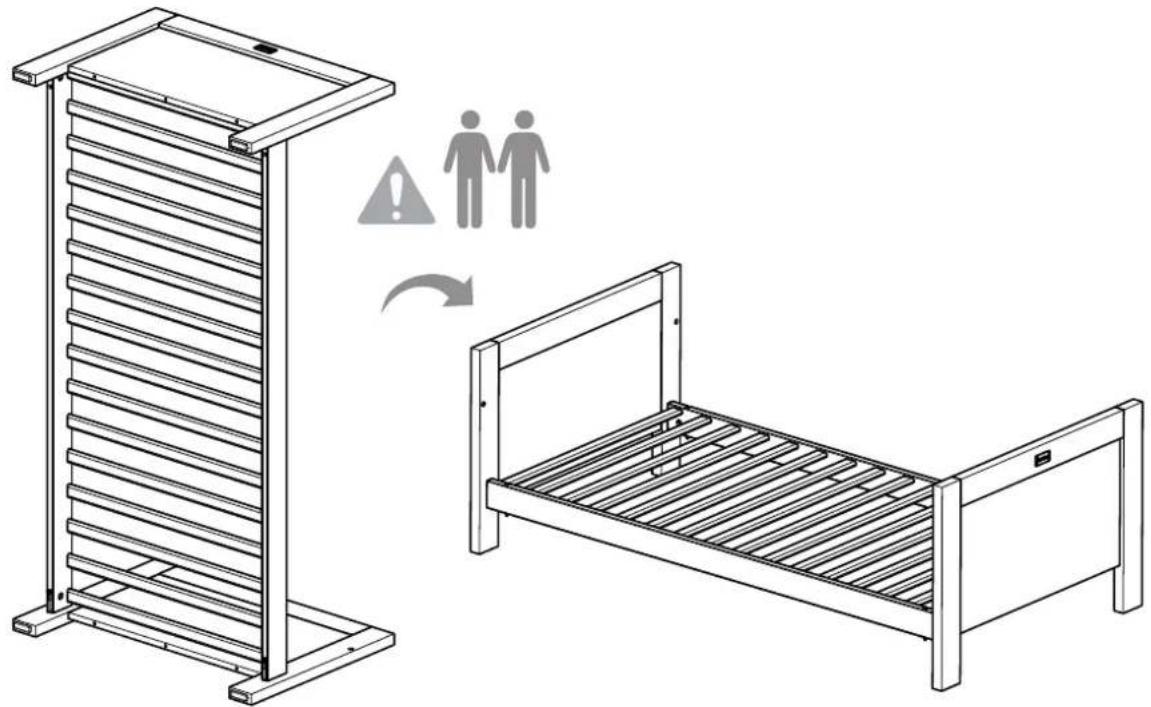

Line drawing of two different household furniture items: a tall ladder rack and a single bass, with warning symbols indicating safety or hazard (no text or labels present)

Warnings & Instructions For Safe Use & Maintenance

WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc, in the vicinity of the cot/bed.

WARNING: Do not use the product if any part is broken, damaged, torn or missing. Approved replacement parts can be obtained from Silver Cross.

WARNING: Do not leave anything in the cot/bed, or place it close to another product which provides a foothold or presents a danger of suffocation or strangulation. For example strings, blind/curtain cords etc.

WARNING : Do not use more than one mattress in the cot.

WARNING: Children are likely to play, bounce, jump and climb on beds, therefore the child's bed should not be placed too close to other furniture or windows, and should be placed either tight to any wall or have a gap of 300mm between the wall and the side of the bed.

WARNING: Do not place this child's bed near heat sources, windows and other furniture.

The lowest position of the mattress base is the safest, and should be used as soon as the baby is old enough to sit up. To prevent injury from falls, when the child is able to climb out of the cot, the cot shall no longer be used for that child.

Thickness of the mattress chosen must not reduce the internal depth (from mattress surface to top of the side) to less than 500mm with the base in its lower position or 200mm with the base in its higher position.

Maximum 10cm thick mattress to be used with this cot bed.

If you leave the child unattended in the cot, always make sure that the dropside is in the highest position.

All assembly fittings should be tightened properly, checked regularly and re-tightened as necessary.

Screws and bolts should not be loose because a child can squeeze parts of the body, or clothing e.g string, necklaces, ribbons for babies dummies etc. could get caught. There would be a danger of strangulation.

The cot/bed must be used on a level and stable surface, away from electric sockets. Once assembled do not dismantle. Never move the cot/bed with a child in it.

Excessive chewing may damage the wood and cause splintering. If any part is damaged stop using until the correct replacement part has been obtained from Silver Cross.

Your cot/bed can be cleaned by wiping with a damp cloth and drying immediately with a soft clean cloth.

Do not use abrasives, bleach, alcohol or ammonia based household polishes.

Take care when handling or moving furniture, careless handling can damage wooden furniture.

Wood is a natural material, the colour will darken with age.

The size of the mattress to be used with the child's bed is 1400x700mm.

Cot conforms to BS EN 716-1/2:2017 and toddler bed to BS 8509:2008+A1:2011.

Cots which convert to toddler beds are intended from birth up to approximately 4 years.

The mattress length and width shall be such that the gap between the mattress and the sides and ends does not exceed 30mm.

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA

silvercrossbaby.com

IND.1130130
