USER MANUAL DV-3200-B IDIS

This manual contains basic instructions on installing and using AI BOX, an IDIS product.

Users who are using this product for the first time, as well as us ers with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product. Safety warnings and precautions contained in this manual are intended to promote proper use of the product and thereby prevent accidents and property damage and must be followed at all times.

Once you have read this manual, keep it at an easily accessible location for future reference.

- The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this manual.

- It is recommended that first-time users of AI BOX and individuals who are not familiar with its use seek technical assistance from their retailer regarding product installation and use.

• If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and seek professional assistance.
• Both retailers and users should be aware that this product has been certified as being electromagnetically compatible for commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.
• This equipment has the PFC (Power Factor Correction) circuit. For stable operation, use a sign-wave output UPS with an AVR(Automatic Voltage Regulator).

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Symbol	Publication Description
	IEC60417, No.5032 Alternating current

WARNING

Hazardous moving parts

Keep away from moving fan blades

AVERTISSEMENT

Important Safeguards

1. Read Instructions

All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

4. Attachments

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and/or Moisture

Do not use this equipment near water or in contact with water.

6. Ventilation

Place this equipment only in an upright position. This equipment has an open-frame Switching Mode Power Supply (SMPS), which can cause a fire or electric shock if anything is inserted through the ventilation holes on the side of the equipment.

7. Accessories

Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

This equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

8. Power Sources

This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company. You may want to install a UPS (Uninterruptible Power Supply) system for safe operation in order to prevent damage caused by an unexpected power stoppage. Any questions concerning UPS, consult your UPS retailer.

This equipment should be remain readily operable.

9. Power Cords

Operator or installer must remove power and TNT connections before handling the equipment.

10. Lightning

For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges.

11. Overloading

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

12. Objects and Liquids

Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment.

13. Servicing

Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

14. Damage requiring Service

Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or the plug has been damaged.

B. If liquid is spilled, or objects have fallen into the equipment.

C. If the equipment has been exposed to rain or water.

D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation.

E. If the equipment has been dropped, or the cabinet damaged.

F. When the equipment exhibits a distinct change in performance — this indicates a need for service.

15. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

16. Safety Check

Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.

17. Field Installation

This installation should be made by a qualified service person and should conform to all local codes.

18. Correct Batteries

Warning: Risk of explosion if battery is replaced by an incorrect type. Replace only with the same or equivalent type. Dispose of used batteries according to the instructions. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

A manufacturer's maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.

20. Elevated Operating Ambient Temperature

If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

21. Reduced Air Flow

Installation of the equipment in the rack should be such that the amount of airflow required for safe operation of the equipment is not compromised.

22. Mechanical Loading

Mounting of the equipment in the rack should be such that a hazardous condition is not caused by uneven mechanical loading.

23. Circuit Overloading

Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits might have on over current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

24. Reliable Earthing (Grounding)

Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

HDMI Port Precautions

- Use a certified cable marked with an HDMI logo when using HDMI. The screen may not display or a connection error may occur if you do not use a certified HDMI cable.

- It is recommended that you use the following HDMI cable type.

-High-speed HDMI Cable

–High-speed HDMI Cable with Ethernet

In-Text

Symbol Type Description

Caution Important information concerning a specific function.

Note Useful information concerning a specific function.

User's Caution Statement

Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC Compliance Statement

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.

WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

WEEE (Waste Electrical & Electronic Equipment)

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Copyright

© 2023 IDIS Co., Ltd.

IDIS Co., Ltd. reserves all rights concerning this manual.

Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited.

Contents of this manual are subject to change without prior notice.

Registered Trademarks

IDIS is a registered trademark of IDIS Co., Ltd.

Other company and product names are registered trademarks of their respective owners.

The information in this manual is believed to be accurate as of the date of publication even though explanations of some functions may not be included. We are not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.

The software included in this product contains some Open Sources. You may obtain the corresponding source code which we have to distribute according to the license policy. Go to Client Menu - About page for more information. This product includes software developed by the University of California, Berkeley and its contributors, and software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Also, this product includes cryptographic software written by Eric Young ([e-mail]), and software written by Tim Hudson ([e-mail]).

Covered by one or more claims of the patents listed at patentlist.accessadvance.com.

1

Part 1 - Introduction....7

Product Features ....7

Accessories....8

Overview 9

Front Panel....9

Dimensions....12

Rear Panel 13

Rear Panel Connections 14

2 3

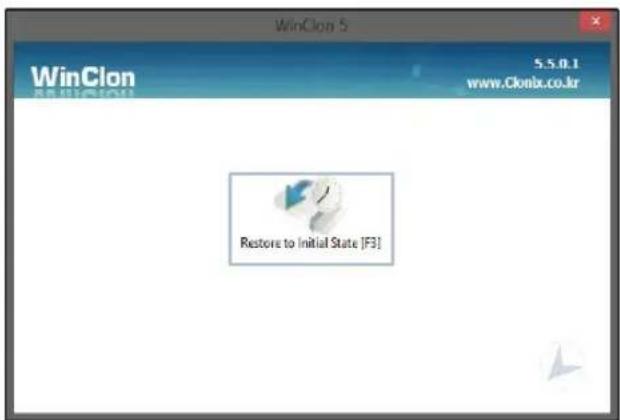

Part 2 - Recovery Solution User Guide....15

Part 3 - Appendix....16

Troubleshooting 16

Specifications ....17

Product Features

This AI BOX unit offers the following features:

• UHD resolution support
• H.265 support codec
• 2 HDMI out ports

- 2 USB 2.0 port, 4 USB 3.0 port (for connecting peripherals, upgrading software, and saving recording data)

- 8 internal HotSpare SATA2 HDD bays and 3 eSATA ports

Accessories

Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included.

AI BOX Power Cable Installation Manual
Optical USB Mouse Keyboard

Please download IDIS Center software and product manual from this link:

- IDIS Website (www.idisglobal.com)

Overview

Front Panel

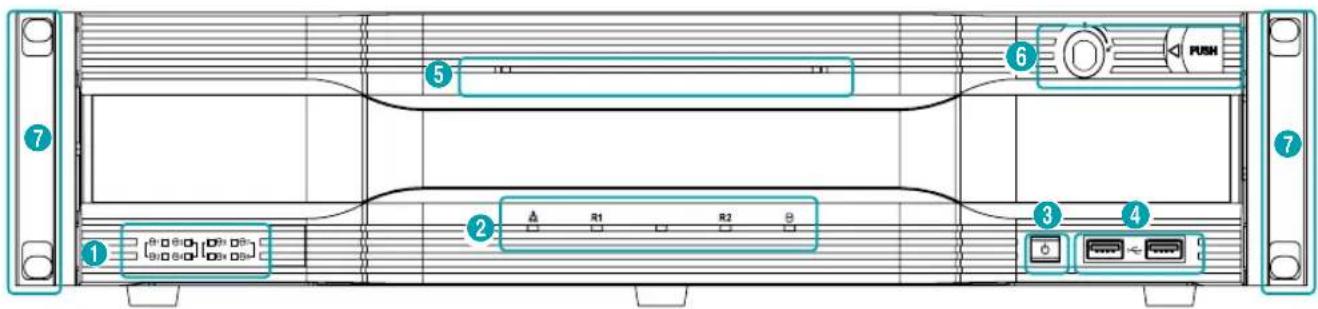

1	SATA LED	2	Status LEDs	3	Power Button	4	USB Ports
5	Power LED	6	Front Door Lock	7	Rack Mount Ears

• Some buttons have more than one function.

• Remote control sensor is located on the left side of the front panel. Ensure that the sensor remains unobstructed at all times. If obstructed, the sensor might not be able to receive remote control signals.
• Placing a Wi-Fi, Bluetooth, or any other wireless communication device near the AI BOX may interfere with remote control signal transmission.
• Access various windows and menus using a USB mouse as you would on a personal computer.
• For easier system configuration, a USB mouse and keyboard is recommended.

① SATA LED

These LEDs indicate HDD status.

LED Color	HDD Status
On Green	SATA HDD Connection
Blinking Green	Data Transmission
On Green/Red	HDD Error
Off -	No SATA HDD

② Status LEDs

Network LED: Lights up when the main unit is linked to an ethernet.

☐ SSD LED: Lights up when the OS SSD is connected.

③ Power Button

Press to turn on the power of the AI BOX.

④ USB Ports

• Storage Device Connection

Connect an external USB hard drive or a USB flash memory device to one of the USB ports for use with the Clip Copy feature. The external storage device should be placed as close to the AI BOX as possible. It is recommended that you use a connection cable that is no longer than 180cm in length. Use the connection cable included with your external storage device to connect the device to one of AI BOX's USB ports. For more information on Clip Copy, refer to the Clip Copy in the operation manual.

• Peripheral Device Connection

Use the USB ports to connect peripherals such as a USB mouse and a keyboard to the AI BOX. You can also use a USB-to-serial converter and connect multiple text-in devices to the AI BOX at the same time.

⑤ Power LED

Lights up while the main unit is in operation.

⑥ Front Door Lock

By using enclosed door-lock key, front panel can be detachable to replace the HDD. For more information on how to replace the HDD, refer to the Specifications on page 17.

⑦ Rack Mount Ears

The ears can be used for rack mount.

Rack Installation Precautions

- End users must install the rack according to the rack installation manual.

- You must use only the screws that are provided in the rack or only screws with dimensions mentioned in the rack installation manual.

- When installing this AI BOX in the rack, it must be installed by a skilled person or an instructed person.

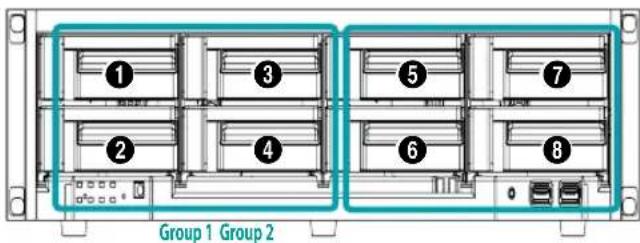

Port Number of HDD Drive

Refer to the following port number of HDD drive.

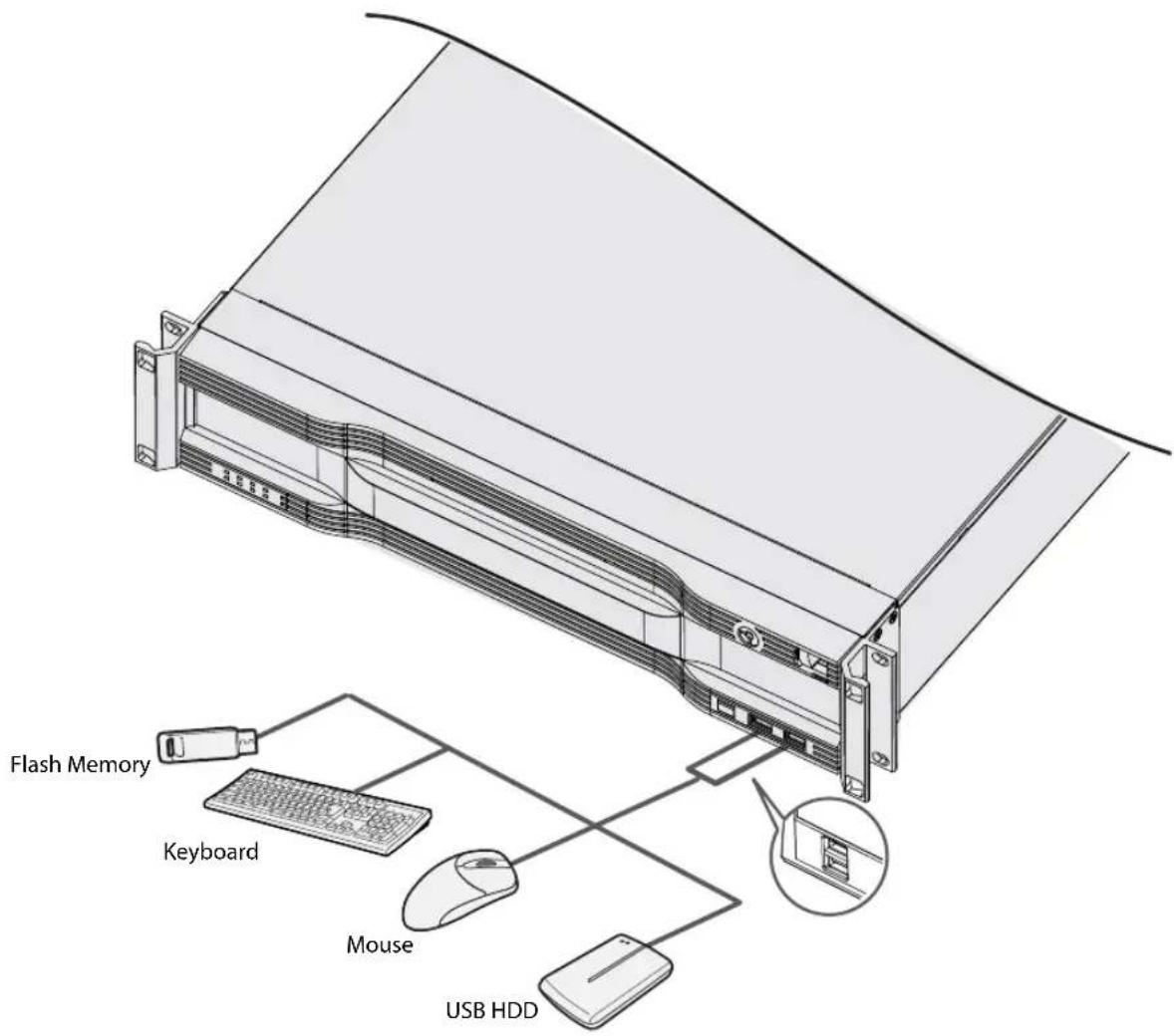

Connections on the Front Panel

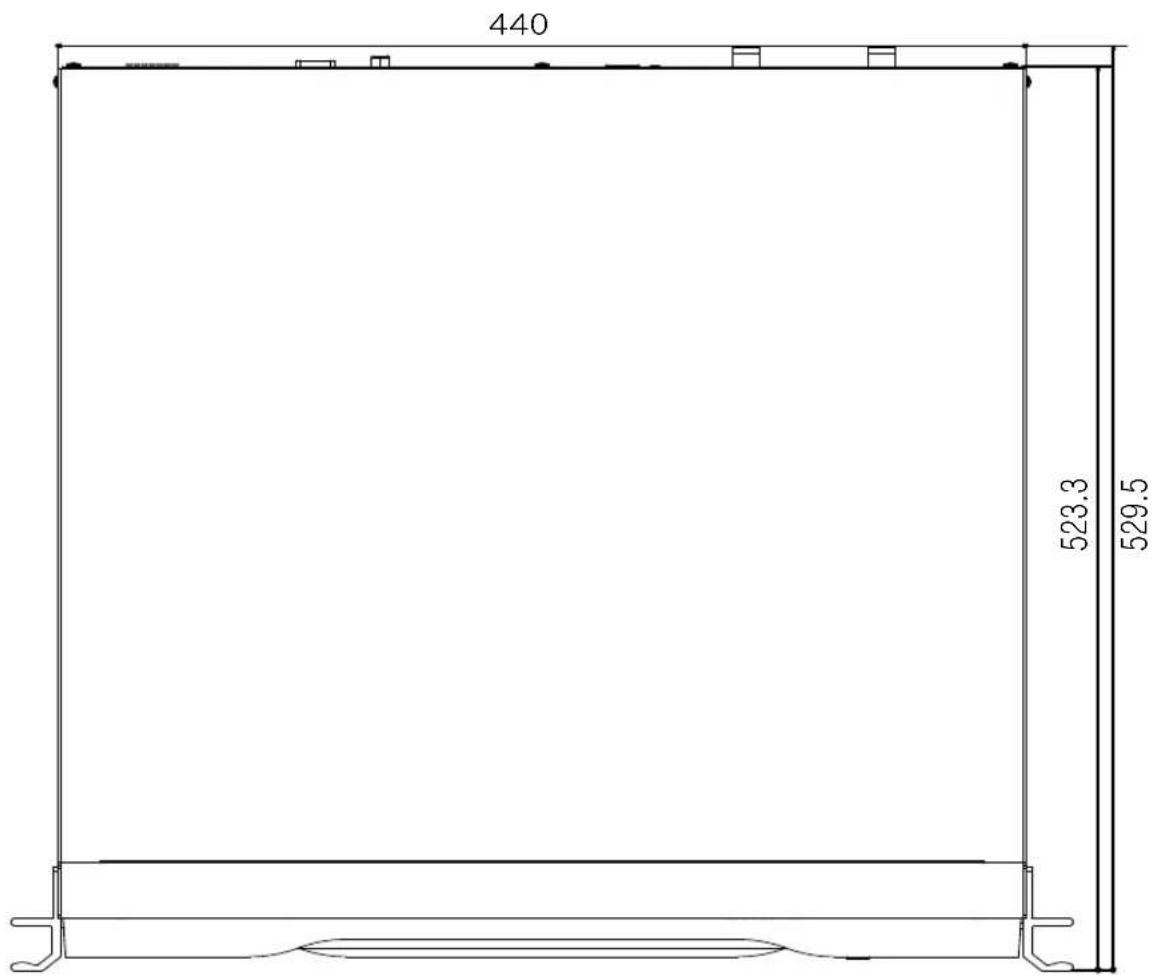

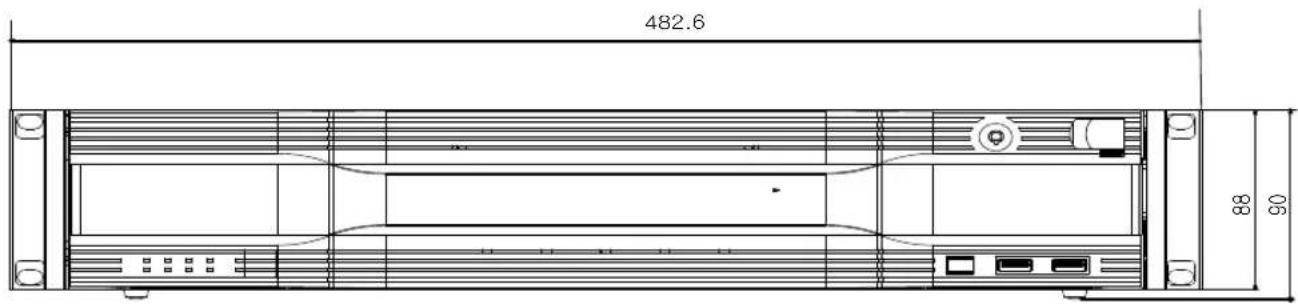

Dimensions

Unit: mm

Rear Panel

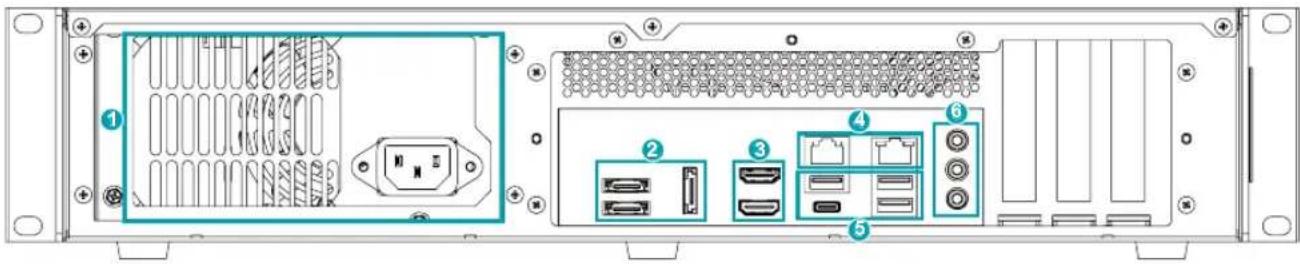

1	Power In Port	2	eSATA Ports	3	HDMI Ports
4	Network Ports	5	USB Ports	6	Audio Connection

Rear Panel Connections

Installing a device other than the compatible list does not guarantee normal operation.

Power Cable Connection

Connect the power cable to this port.

Pure electrical outlet diagram without any text, numbers, or symbols

• Organize the power cable so that it will not cause people to trip over or become damaged from chairs, cabinets, desks, and other objects in the vicinity. Do not run the power cable underneath a rug or carpet.
  •The power cable is grounded. Do not modify the power plug even if your power outlet does not have a ground contact.
• Do not connect multiple devices to a single power outlet.

Monitor Connection

Connect to the HDMI ports.

• Use a certified cable marked with an HDMI logo when using HDMI. The screen may not display or a connection error may occur if you do not use a certified HDMI cable.
• It is recommended that you use the following HDMI cable type.

-High-speed HDMI Cable

-High-speed HDMI Cable with Ethernet

RJ-45 Video/Network Connection

Connect network cameras or video encoders to the AI BOX using RJ-45 cable (Cat5, Cat5e, or Cat6). In addition to cameras or video encoders, you can connect external hubs (Optional: DH-2112PF, DH-2128PF, DH-2212PF) to form a network. The AI BOX recognizes DirectIP™ network cameras automatically.

- Green LED on the right will turn on if connected to a 1000 BASE-T network. Orange LED on the left will then flash once a link has been established.

This AI BOX is capable of connecting to networks via an ethernet connector. Connect an RJ-45 cable (Cat5, Cat5e, or Cat6) to the AI BOX's network port.

• Connector directions may vary depending on the AI BOX model.
• Green LED on the right will begin to flash if connected a 1000 BASE-T network. Orange LED on the left will then flash once a link has been established.

USB Port

Support Super-speed USB 3.0 (5Gbps), High-Speed USB 3.0 (480Mbos) and Full Speed USB 2.0 (12Mbps) for transfer.

Audio Connection

Connect the audio device to the AUDIO IN port and speakers with a built-in amplifier to the AUDIO OUT port.

- Check your local laws and regulations on making audio recordings.

Part 2 - Recovery Solution User Guide

Entering the WinClon recovery area

1 Press the F11 key during boot.

Monitor display may be slow depending on monitor response speed. Therefore, it is recommended to press the F11 key immediately after the power is turned on. Entering the F11 key late may boot into Windows.

2 Press the F3 key or use the mouse to click on Restore to Initial State [F3]' in the center of the screen.

3 Enter the password. Factory default password is 0000.

4 When restoration is complete, click OK button on the completion message window. The system will automatically reboot into the restored environment.

Part 3 - Appendix

Troubleshooting

Problem Solution
The main unit won't turn on.	Check the power cable connection status.Check the power outlet.
The monitor screen is not displayed.	Check the cable connection between the monitor and the product.Check if the mainboard makes the beep. If a certain beep sound rings and the monitor screen is not displayed, contact the manufacturer in case of the mainboard failure.

Specifications

These product specifications may change without prior notice.

VIDEO
Video Inputs RJ-45 (Network Camera)
Video Outputs 2 HDMI

* HDMI main outputs support dual output, and not triple output.
* Installing SW other than the provided SW may degrade the product performance.

AUDIO
Audio Inputs 1, "line in", 1 Vp-p
Audio Outputs 1, "line out"

CONNECTOR
Audio Input / Output 1 AUX connector (3.5 Φ) / 1 AUX connector (3.5 Φ)
Ethernet Port 2 RJ-45 (1 Gbps Ethernet)
eSATA Port 3 eSATA
USB USB 2.0: X2 (Front)	-/ USB 3.0 TYPE-A: X3 (Back) / USB 3.0 TYPE-C: X1 (Back)

STORAGE
Main Storage SATA HDD (Max. 8)
Secondary Storage (Extension)	eSATA HDD
OS Storage SSD

* SSD is suggested as a storage for OS and IDIS Solution Suite installation, not for recording storage or Clip Copy bulk storage.

GENERAL
Unit Dimensions(W x H x D)	482.6mm x 88mm x 523.3mm (19"x3.5"x20.6")
Unit Weight 12.6kg (27.8lb)
Working Temperature 0°C	to 40°C
Operating Humidity 0% ~	90%
Power Input AC 100-240 V	50/60Hz, 6.0-3.0A
Power Consumption AC 100-240V, 50/60Hz, 6.0-3.0A, 270W
Channel AnalysisPerformance	Max. 64 channels (640x360 @ 5 ips video input)
Approvals FCC, UL**, CE, CB, PSE

** CAUTION: Risk of Explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. This equipment is indoor use and all the communication wiring are limited to inside of the building.

Some hard disks may not function properly when mounted on to this product. Refer to the compatibility chart below before mounting any additional hard disk on to the product. Hard disk compatibility chart is subject to change without notice.

Contact your retailer for the latest compatibility chart.

Storage Manufacturer Model Note
4TB TOSHIBA MG08ADA400E
6TB TOSHIBA MG08ADA600E
10TB Seagate ST10000VE000
12TB	TOSHIBA	MG07ACA12TE

How to Open The Front Door

1 Insert the enclosed door-lock key and turn clockwise.
2 Press the door open button on the left side.
3 Front panel will be detached and you can replace the HDD.

IDOOR OPEN

Simple line drawing of a stylized animal head emerging from a leaf (no text or symbols)

1

Simple line drawing of a hand holding a small object, no text or symbols present

AI BOX

For more information, please visit at

www.idisglobal.com
