BOES69821 - Oven Hansa - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Hansa
Model	BOES69821
Dimensions (H x W x D)	595 x 595 x 575 mm
Oven Capacity	71 liters
Energy Efficiency Class	A+
Power Supply	230 V, 50 Hz, 16 A
Maximum Power	3.2 kW
Heating Functions	Conventional, Grill, Fan-assisted, Defrost, Bottom heat, Top heat
Cleaning System	Catalytic liners on back and side walls
Control Type	Rotary knobs + Digital timer
Display	LED digital display
Safety Features	Child lock, CoolTouch door, Auto shut-off
Interior Light	Yes, halogen
Net Weight	35 kg
Gross Weight	38 kg
Optional Accessories	Baking tray, Wire shelf, Grill rack
Spare Parts Availability	Available through Hansa service centers
Repairability Index	8.5 / 10 (estimated)
Noise Level	< 55 dB
Installation Type	Built-in (requires proper cabinet cutout)
Color	Stainless steel / Black glass

Frequently Asked Questions - BOES69821 Hansa

How do I install the Hansa BOES69821 oven?

The oven must be installed by a qualified electrician. Ensure the power supply is 230 V, 50 Hz with a 16 A fuse. The cabinet cutout should be at least 590 x 595 x 560 mm. Refer to the installation manual for detailed steps.

What should I do before first use?

Remove all packaging and accessories. Heat the oven empty at 200°C for 1 hour to burn off any manufacturing residues. Then let it cool and wipe the interior with a damp cloth. This will eliminate any initial odors.

How do I clean the catalytic liners?

Catalytic liners self-clean by absorbing grease during high-temperature cooking. Occasionally, you can wipe them with a soft brush. Do not use harsh detergents or scrubbers. For stubborn stains, heat the oven to 250°C for 30 minutes to regenerate the liners.

Why is my oven not heating?

Check if the oven is properly switched on and the timer is set. Ensure the power supply is active. If the problem persists, the heating element or thermostat may be faulty. Contact Hansa service for repair.

How do I use the grill function?

Select the grill function using the function knob. Preheat for 5 minutes. Place food on the grill rack in the top position. For best results, use the highest shelf level and keep the oven door slightly ajar (if recommended in manual).

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire oven rack or allowing foil to touch the heating elements. Use foil only to line baking trays. Improper use can cause fire hazards or damage the oven.

What does the 'child lock' feature do?

The child lock prevents accidental operation by locking the control knobs. To activate, press and hold the key symbol for 3 seconds. A beep confirms activation. Deactivate by pressing and holding again. This ensures safety in households with children.

How do I adjust the cooking time?

Use the timer knob to set the desired cooking duration. The oven will automatically shut off when the time expires. For delay start, set both start time and end time using the electronic timer (if equipped).

Why does the oven door feel hot?

The CoolTouch door minimizes external temperature, but some warmth is normal. If the door becomes excessively hot, check the gasket for damage. Ensure proper ventilation around the oven. Contact service if the issue persists.

Where can I find spare parts for my Hansa oven?

Spare parts are available through authorized Hansa service centers and online retailers. Provide your model number BOES69821 when ordering. Commonly replaced parts include heating elements, light bulbs, and door gaskets.

USER MANUAL BOES69821 Hansa

Simple line drawing of a cabinet or enclosure with no text, numbers, or symbols present.

NAUDOJIMO INSTRUKCIJA / MONTUOJAMOJI ORKAITĖ

KASUTUSJUHEND / INTEGREERITAV AHI

LIETOŠANAS INSTRUKCIJA / CEPEŠKRĀSNS IEBŪVĒJAMA LV

UPUTE ZA UPORABU

INSTRUCTION MANUAL

LT ET

RU

SAUGOS NURODYMAI 5

KAIP TAUPYTI ELEKTROS ENERGIJA 7

GAMINIO APRAŠYMAS 9

IRENGIMAS 11

APTARNAVIMAS

KEPIMAS ORKAITĖJE – PRAKTIŠKI PATARIMAI 26

ORKAITĖS VALYMAS IR PRIEŽIŪRA 31

TECHNINIAI DUOMENYS 37

13

EST

OHUTUSJUHISED

ELEKTRIENERGIA KOKKUHOID 41

SEADME KIRJELDUS 43

PAIGALDAMINE

KASUTAMINE

TOIDUVALMISTAMINE PLIIDIL - PRAKTILISED NÕUANDED 60

AHJU PUHASTAMINE JA HOOLDUS 65

TEHNILISED ANDMED 71

39

45

47

LV

NORĀDĪJUMI PAR LIETOŠANAS DROŠĪBU 73

KĀ TAUPĪT ENERĞIJU 76

JÜSU IERİCE 78

UZSTĀDĪŠANA

CEPEŠKRĀSNS LIETOŠANA

CEPŠANA CEPEŠKRĀSNĪ – PRAKTISKI PADOMI

TEHNISKIE PARAMETRI

80

82

95

106

HR

INFORMACIJE O SIGURNOSTI

KAKO ŠTEDJETI ENERGIJU

OPIS PROIZVODA

INSTALACIJA

UPORABA

PEČENJE U PEĆNICI – PRAKTIČNI SAVJETI

ČIŠĆENJE I ODRŽAVANJE PEĆNICE

TEHNIČKI PODACI

108

110

112

114

116

130

135

141

EN

SAFETY INSTRUCTIONS 143

HOW TO SAVE ENERGY 145

DESCRIPTION OF THE APPLIANCE 147

INSTALLATION

OPERATION

BAKING IN THE OVEN – PRACTICAL HINTS 165

CLEANING AND MAINTENANCE 170

TECHNICAL DATA 176

149

151

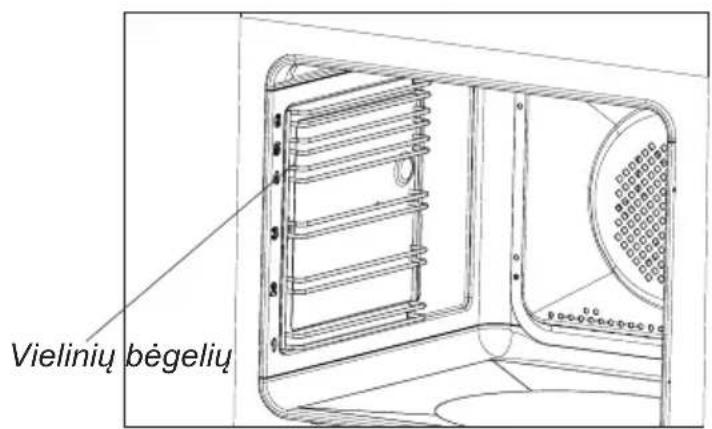

GERBIAMAS PIRKĖJAU,

Simple black-and-white line drawing of a tree with two roots and wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Isometric line drawing of a square frame with rounded corners and a small circular cutout on top (no text or symbols)

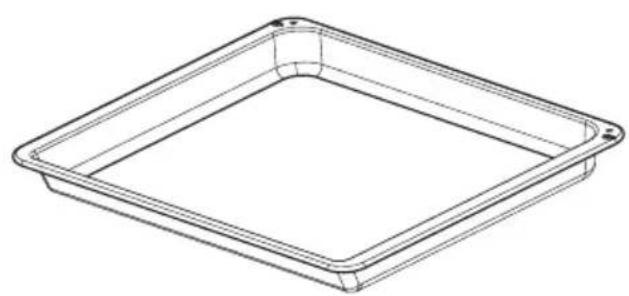

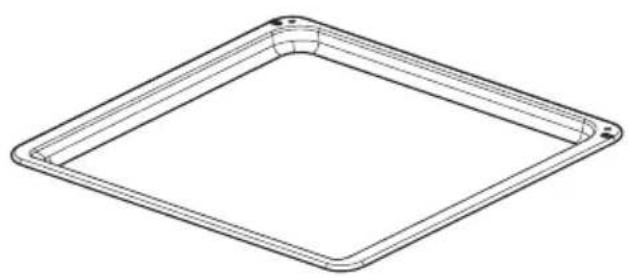

Padéklas kondit. gaminiams kepti

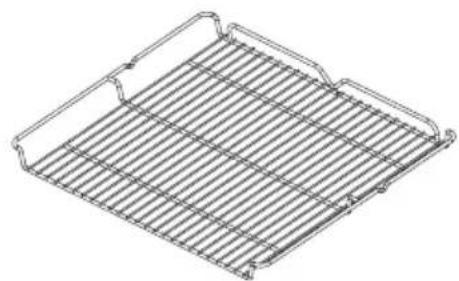

Isometric line drawing of a rectangular metal grate or rack structure (no text or symbols)

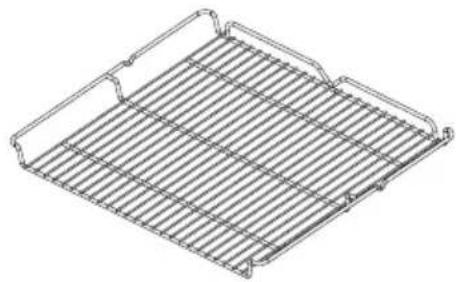

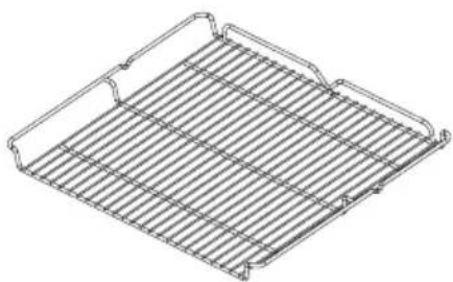

Grotelès griliui

Line drawing of a square container with rounded corners and a flat top (no text or symbols)

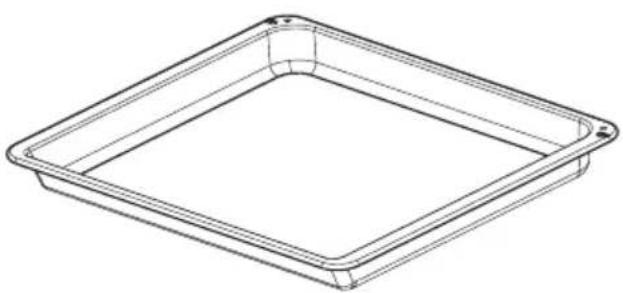

Kepimo padėklas

Line drawing of a rectangular metal tray with internal grid structure (no text or symbols)

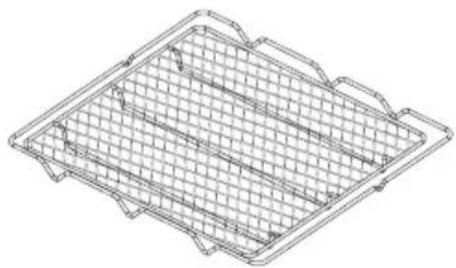

Grotelès („Airfry“ kopėčios)

Top-down schematic of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

Technical diagram of a mechanical component with an inset close-up showing a threaded fastener inserted into a housing (no text or symbols present)

Three-step diagram showing mechanical assembly with rotating components and directional arrows (no text or symbols)

Diagram showing three sequential mechanical or electrical assembly steps with no visible text or symbols

Diagram of a microwave oven with airflow direction arrows (no text or symbols)

Svarbu!

Orkaitès lemputè

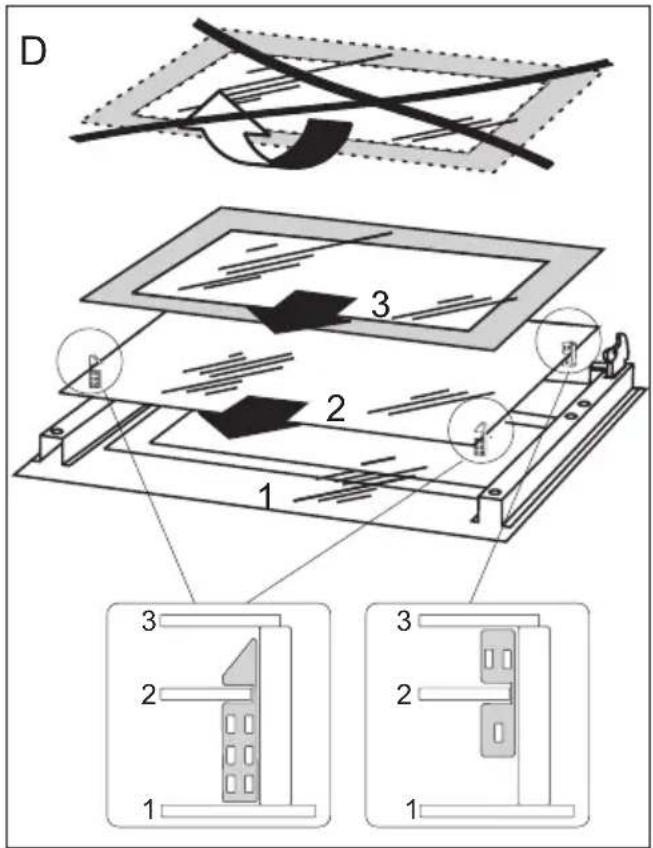

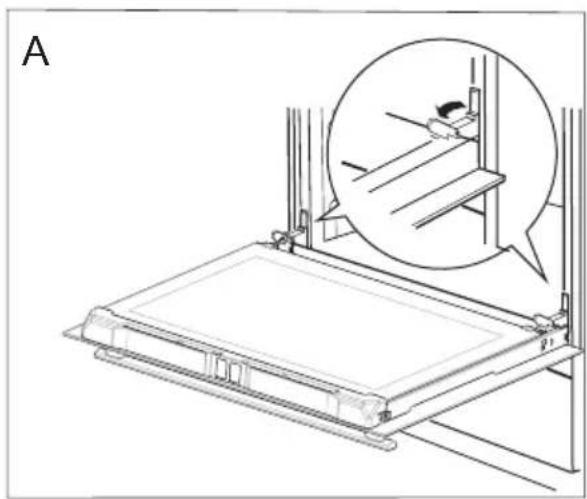

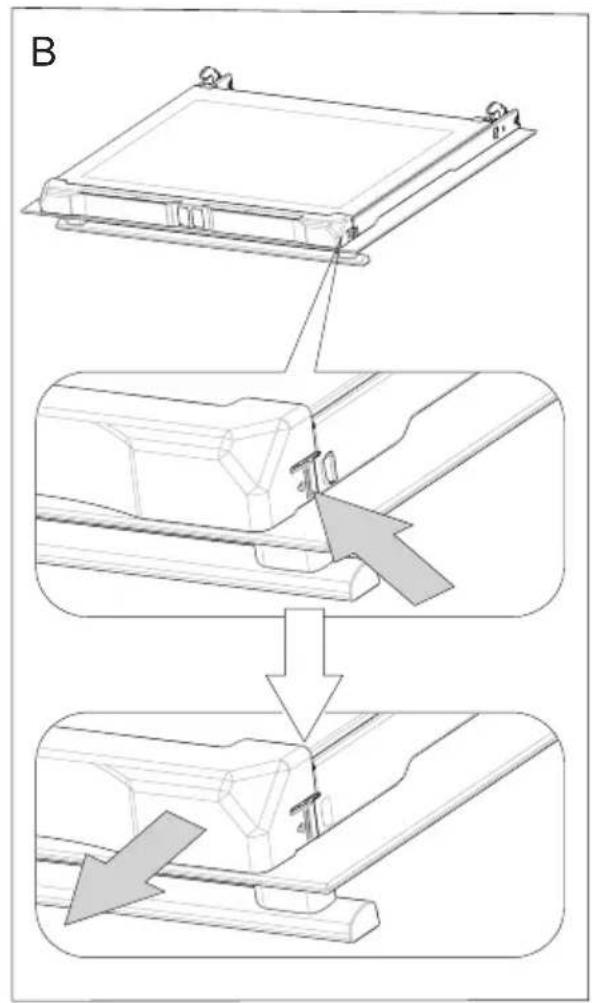

Durelių nuėmimas

Technical line drawing of a mechanical assembly with an inset magnified view of a component (no text or symbols)

Technical line drawing of a mechanical assembly with a rectangular component and a cylindrical component, no text or symbols present.

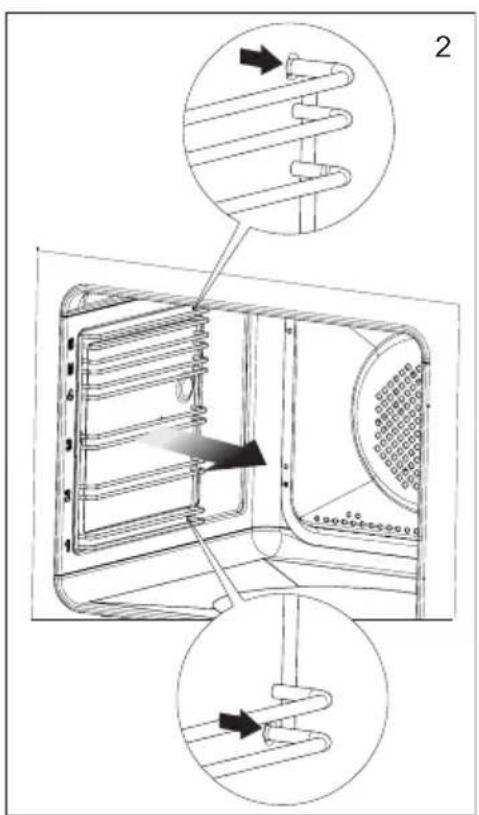

ORKAITĖS VALYMAS IR PRIEŽIŪRA

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Isometric line drawing of a square frame with rounded corners and a small circular cutout at the top (no text or symbols)

Ahjuplaat*

Isometric line drawing of a rectangular metal rack or grid structure (no text or symbols)

Line drawing of a square tray or container with rounded corners and a flat top (no text or symbols)

Küpsetusplaat*

Isometric line drawing of a rectangular metal tray with grid pattern (no text or symbols)

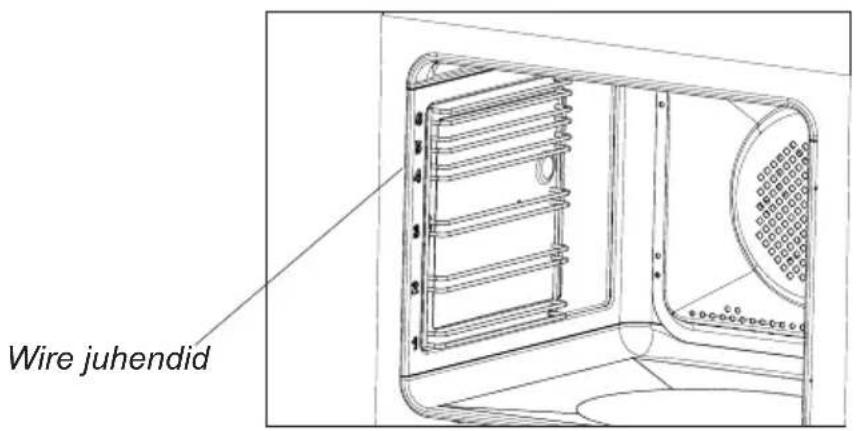

Võre (redel Airfry)

*Mõned mudelid

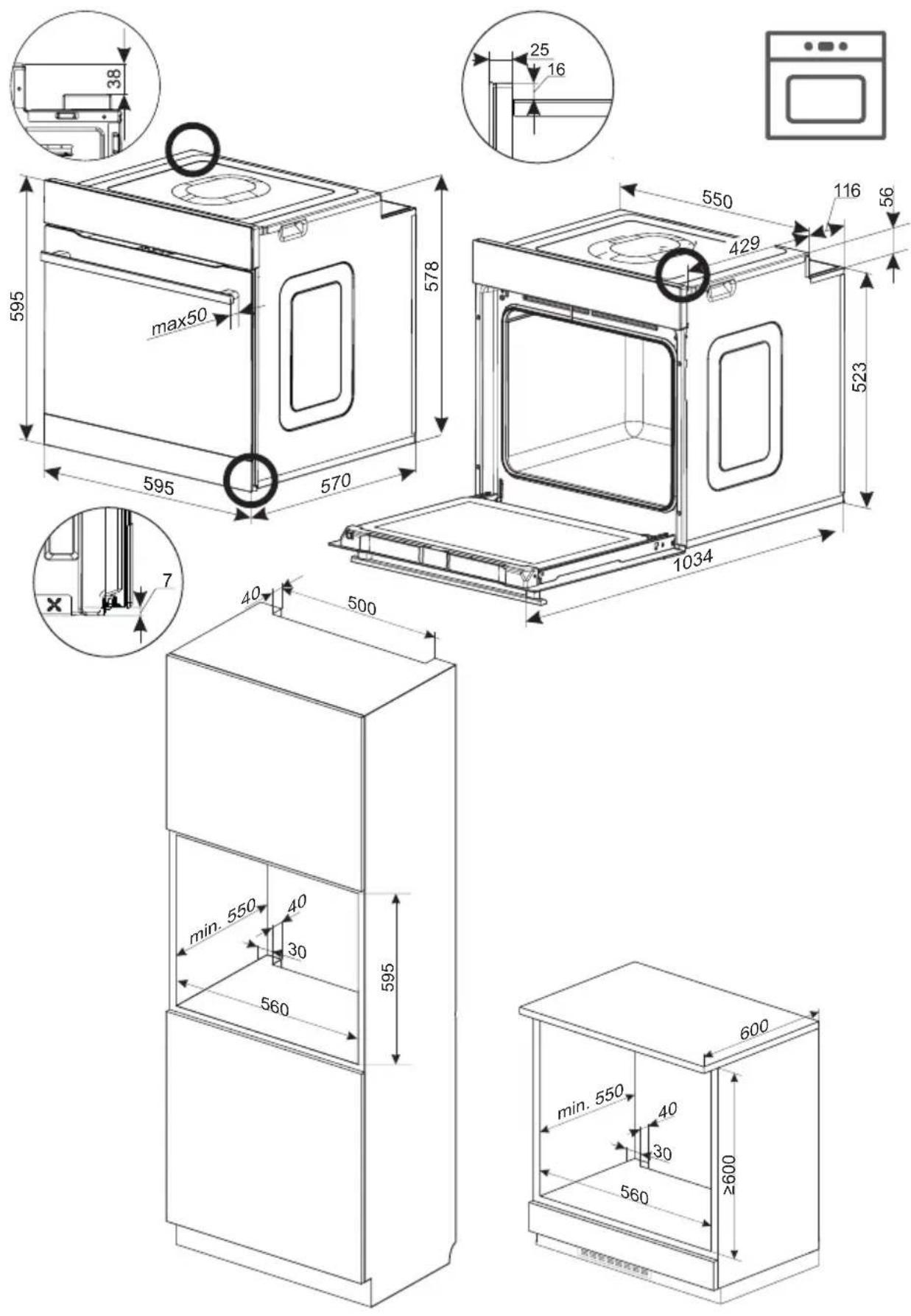

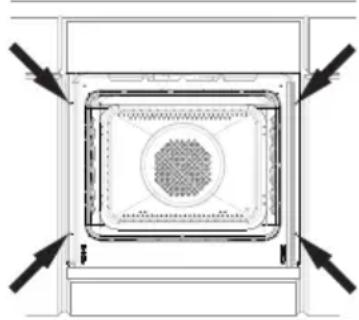

Ahju paigaldamine

Top-down schematic of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

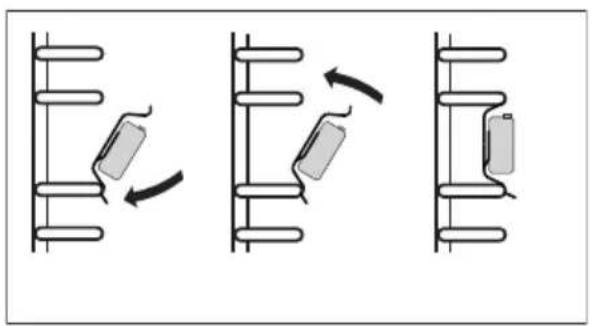

Tähelepanu!

Three diagrams showing mechanical or electrical components with directional arrows, no text or symbols present.

Three sequential diagrams showing mechanical or electrical components with curved arrows indicating motion (no text or symbols)

Tähelepanu!

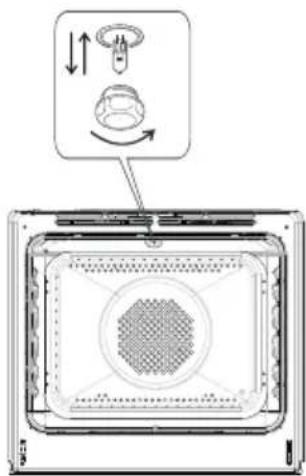

Ahju valgustus

Technical line drawing of a device with a central panel and fan, showing directional arrows (no text or symbols)

Tähtis!

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with a rectangular component and a separate cylindrical component (no text or symbols)

Simple black-and-white line drawing of a tree with two roots and wavy lines at the base (no text or symbols)

Line drawing of a square frame with rounded corners and a small corner, no text or symbols present.

Isometric line drawing of a metal rack with grid lines (no text or symbols)

Line drawing of a square tray or container with rounded corners and a flat top (no text or symbols)

Isometric line drawing of a rectangular metal tray with grid pattern (no text or symbols)

Režgis (Airfry redele)

*daži modeli

Cepeškrāsns montāža

Top-down schematic of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

CEPEŠKRĀSNS LIETOŠANA

Technical diagram of a mechanical device with an inset close-up showing a threaded component (no text or symbols present)

CEPEŠKRĀSNS LIETOŠANA

CEPEŠKRĀSNS LIETOŠANA

CEPEŠKRĀSNS LIETOŠANA

CEPEŠKRĀSNS LIETOŠANA

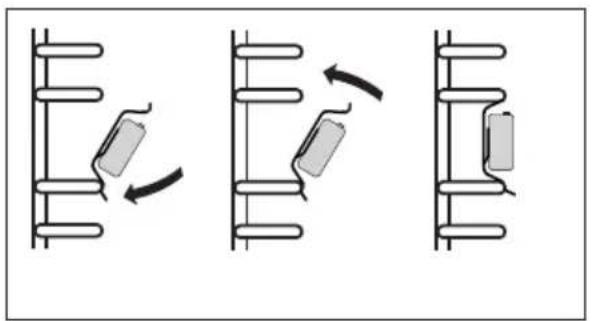

Funkcija Soft Steam

Three diagrams showing mechanical or electrical components with directional arrows, no text or symbols present

Three sequential diagrams showing mechanical or electrical components with arrows indicating motion (no text or symbols)

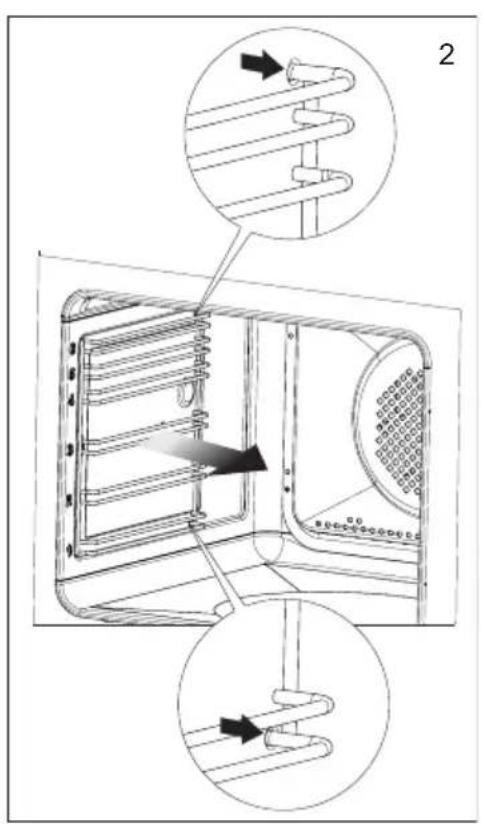

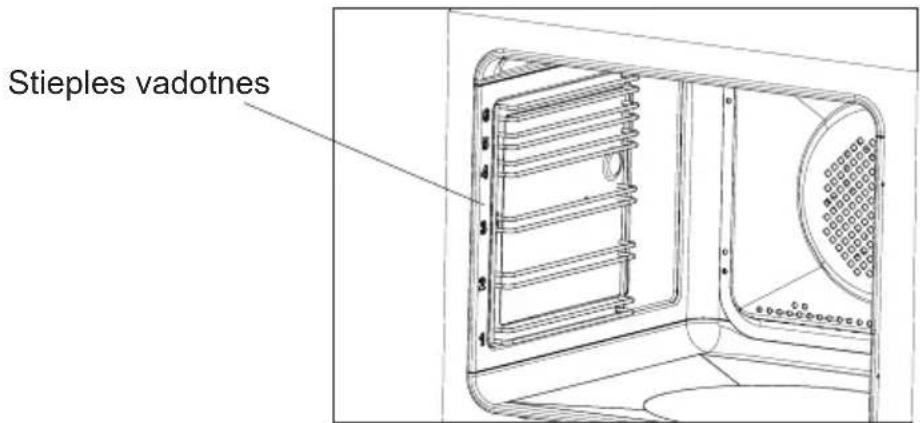

CEPEŠKRĀSNS TĪRĪŠANA UN KOPŠANA

Durvju noņemšana

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a rectangular frame and a cylindrical component (no text or symbols)

CEPEŠKRĀSNS TĪRĪŠANA UN KOPŠANA

Diagram of a device interior showing a door, panel, and fan with directional arrows indicating rotation (no text or symbols)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Uređaj je za vrijeme transporta zaštićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš. Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala je prikladno za recikliranje, stoga su označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadići stiropora itd.) prilikom uklanjanja ambalaže držati daleko od djece.

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU i poljskim zakonom o potrošenom električnom i elektroničkom otpadu. Ujedno je označen simbolom prekriženog spremnika za otpatke.

Isometric line drawing of a square frame with rounded corners and a small circular cutout at the top (no text or symbols)

Pekač za pecivo Ražanj za gril

Isometric line drawing of a metal rack with slats and handles (no text or symbols)

(rešetka sa štitnikom)

Line drawing of a square tray with rounded corners and a flat center (no text or symbols)

Plítica za pečenje*

Isometric line drawing of a rectangular metal tray with grid pattern (no text or symbols)

Rešetka (Airfry)

Top-down schematic of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

Pozor:

Montažu obavljamo kad je isključeno električno napajanje.

Priključivanje pećnice na električnu mrežu

Prije priključivanja pećnice na električnu instalaciju upoznati se s informacijama na natpisnoj pločici.

• Pećnica je tvornički prilagođena za jednofaznu izmjeničnu struju (230V 1N\~50 Hz) i opremljena priključnim kabelom 3 x 1,5 mm ^2 dužine oko 1,5 m s utikačem sa zaštitnim kontaktom.
• Priključna utičnica mora biti opremljena zaštitnim kontaktom. Nakon postavljanja pećnice korisnici moraju imati slobodan pristup priključnoj utičnici.
• Prije priključivanja pećnice u utičnicu provjeriti da:

-osigurač i električna instalacija izdržavaju opterećenje štednjaka, električni krug koji napaja utičnicu trebao bi biti zaštićen osiguračem min. 16A,

- električna instalacija je opremljena učinkovitim sustavom uzemljenja koji ispunjava uvjete trenutnih normi i propisa,

Nakon instalacije pećnice korisnici moraju imati slobodan pristup utikaču.

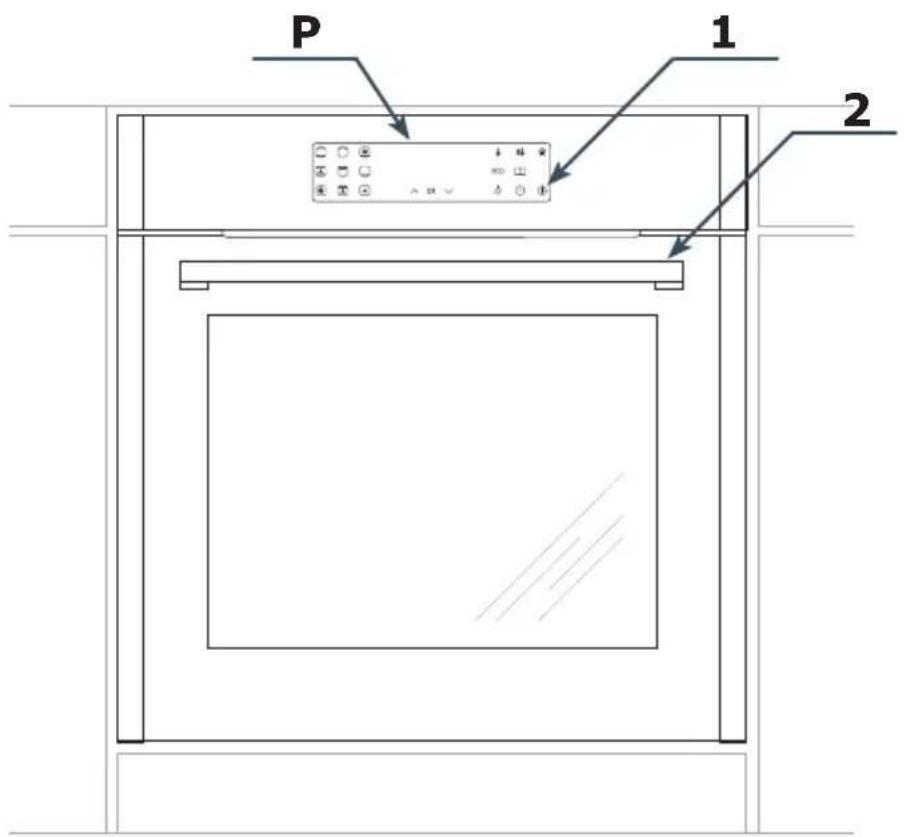

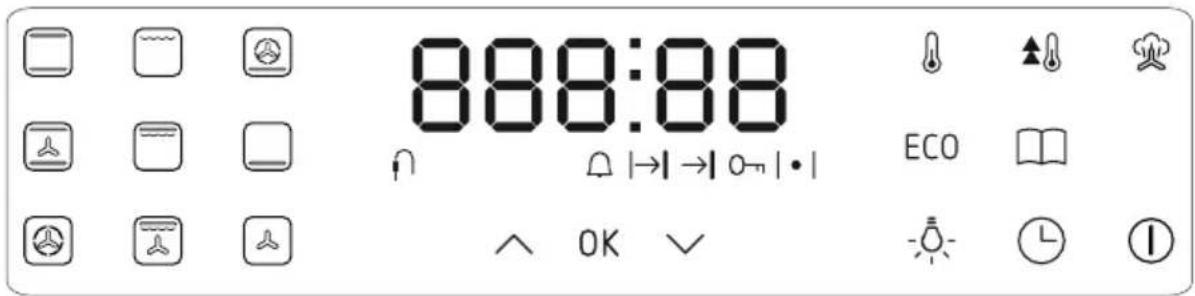

Upravljačka ploča je opremljena LED zaslonom i dodirnim senzorima (senzori su osvijetljeni):

Senzor Opis Senzor Opis

Konvencionalno grijanje Glavni prekidač (standby)

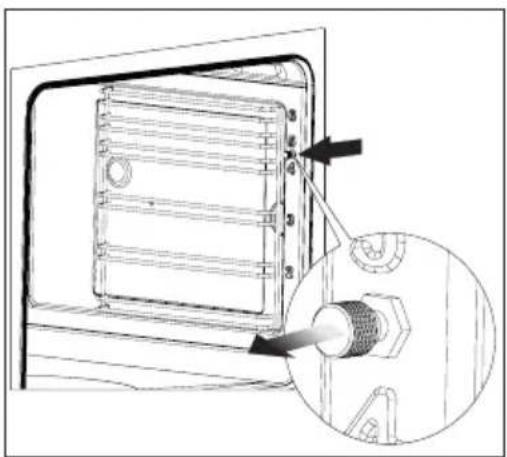

U standby i aktivnom modusu to uzrokuje samo paljenje simbola sonde za meso, bez utjecaja na djelovanje pećnice.

U modusu rada (pri podešenoj funkciji i temperaturi) umetanje sonde za meso uzrokuje prikazivanje simbola ⓗ i dvije temperature: s lijeve strane je trenutna temperatura sonde, s desne strane je vidljiva podešena temperatura (tvornički 75 °C).

Senzorima ∧ i možemo neposredno mijenjati podešenu temperaturu sonde za meso, potvrđivanje senzorom OK uzroku-je memoriranje novih postavki, a 5 sekundi neaktivnosti povratak na prethodno zapam-ćenu vrijednost.

Nakon potvrđivanja temperature sonde za meso, pećnica održava zadanu temperaturu do trenutka kad senzor pokaže predviđenu temperaturu sonde. Nakon toga je isključeno zagrijavanje i oglašava se zvučni signal. Alarm sonde za meso možemo poništiti pritiskanjem bilo kojeg senzora (osim ^∧ ) ili otvaranjem vrata. Ovakvo isključivanje alarma uzrokuje i poništavanje postavki funkcije i temperature, a nakon 60 sekundi neaktivnosti pećnica prelazi u standby.

Kad je alarm poništen senzorom ^∧ , to znači da korisnik

opet podešava vrijednost temperature sonde za meso. Nakon potvrđivanja nove temperature senzorom OK, program se nastavlja na zapisanim parametrima funkcije i temperature komore.

Ako korisnik izvadi sondu za meso tijekom rada (nakon potvrde temperature sonde), to je tretirano kao greška (moguće je oštećenje sonde) i program je prekinut.

Uporaba sonde za meso blokira mogućnost automatskog uključivanja i isključivanja pećnice. Umetanje sonde za meso uzrokuje poništavanje prethodno postavljenih vremena rada, a funkcija senzora je ograničena samo na brojač minuta. Uporaba sonde za meso nema utjecaja na modifikaciju upotrjebljene funkcije i temperaturu komore pećnice – ovi elementi su modificirani na isti način bez sonde za meso.

Temperature sonde za meso

Vrsta mesa Temperatura [°C]
Svinjetina 85 - 90
Govedina 80 - 85
Teletina 75 - 80
Janjetina 80 - 85
Divljač 80 - 85

Pozor: Koristiti isključivo tu sondu koja je isporučena s pećnicom.

Gotovi programi

To je grupa programa s određenim postavkama funkcija, temperatura i vremena pečenja koji su najprikladniji za određeno jelo.

U aktivnom stanju dodirnuti senzor 📄, uključuje se izbornik gotovih programa – na zaslonu se pojavljuje program označen kao „P01”. Koristeći senzore ∧ i √ izabrati odgovarajući program iz niže tablice. Nakon toga potvrditi izbor programa senzorom , pećnica počinje raditi.

Program	Opis Elementi pećnice		Temperatura	Brzo predgrijavanje	Funkcija grijanja
P01	Meso (govedina, janjetina, svinjetina)	Kružno grijanje – razina odoz-do 2 - 120 minuta	180°C
P02	Cijelo pile (cca 1,5 kg)	Gril + ventilator – razina odoz-do 2 - 85 minuta	190°C
P03	Cijela patka (cca 2 kg)	Gril + ventilator – razina odoz-do 2 - 120 minuta	180°C
P04	Guska (cca 3 kg)	Gril + ventilator – razina odoz-do 1 - 130 minuta	170°C		[H4DS]
P05	Purica (cca 2.5 kg)	Gril + ventilator – razina odoz-do 1 - 155 minuta	170°C
P06	Perad (krilca, bataci)	Gornji grijač + donji grijač razina odozdo 2 60 minuta, brzo predgrijavanje	180°C DA
P07	Pizza, pita, tortilla, Sendviči	Gornji grijač + donji grijač razi-na odozdo 1 – 10 minuta, brzo predgrijavanje	230°C DA
P08	Lazanje, korijensko povrće, gotova zamrznu-ta jela	Gornji grijač + donji grijač razi-na odozdo 2 – 30 minuta, brzo predgrijavanje	230°C DA

P09 Focaccia		Gornji grijač + donji grijač razi-na odozdo 2 – 15 minuta, brzo predgrijavanje	220°C DA
P10	Musaka sa mesom i povrćem	Gornji grijač + donji grijač razi-na odozdo 2 – 25 minuta brzo predgrijavanje	180°C DA
P11 Biskvit		Gornji grijač + donji grijač razina odozdo 2 – 45 minuta, zagrijana pećnica	160°C
P12 Muffini, brioche		Kružno grijanje – razina odoz-do 3 – 35 minuta	160°C
P13	Kaša, zobena kaša, žitni kolačići	Kružno grijanje – razina odoz-do 3 – 15 minuta	180°C
P14 Voćni kolač		Gornji grijač + donji grijač razi-na odozdo 2 – 60 minuta brzo predgrijavanje	180°C DA
P15 Kruh		Gornji grijač + donji grijač razi-na odozdo 2 – 60 minuta	210°C
P16 Dizanje tijesta		Gornji grijač + donji grijač razi-na odozdo 2 – 20 minuta	30°C
P17 Sušenje		Kružno grijanje – razina odoz-do 2 – 3,4,5 sati	50°C
P18 Pomfrit		Gornji grijač + donji grijač razi-na odozdo 2 – 20 minuta brzo predgrijavanje	220°C DA
P19	Gotova jela (vege, pečenje, riba, falafel, hamburgeri)	Kružno grijanje – razina odoz-do 2 – 10 minuta. brzo predgrijavanje	230°C DA

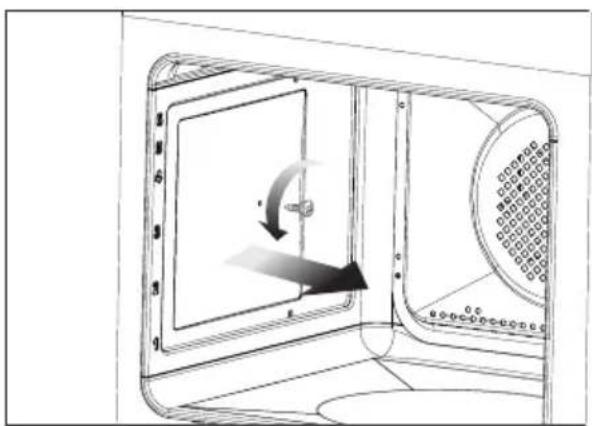

Rasvjeta pećnice

Pozor! Paziti da montiranu halogenu žarulju neposredno ne dodirujemo prstima.

- Štednjaci označeni slovom K opremljeni su oblogama pokrivenim specijalnim samočistećim emajlom. Emajl uzrokuje da nečistoće od masnoće ili ostataka hrane mogu biti samostalno uklonjene pod uvjetom da nisu isušene ili zapečene (ostatke jela i masnoće što brže ukloniti dok se ne isuše ili zapeku, jer izbjegavamo dugo samočišćenje pećnice). Samočišćenje se odvija kad uključimo pećnicu na 1 sat i podesimo temp. 250°C. Ako su ostaci jela mali, proces može biti kraći.

Važno!

Diagram of a device interior showing a screen with a rotating arrow and a grid-patterned panel (no text or symbols)

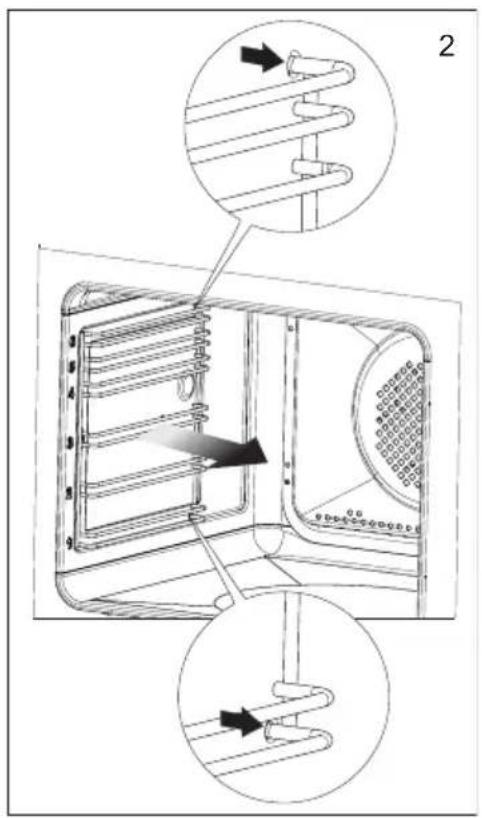

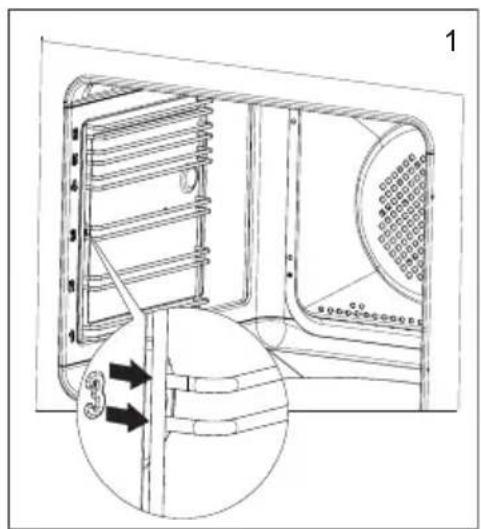

ČIŠĆENJE I ODRŽAVANJE PEĆNICE

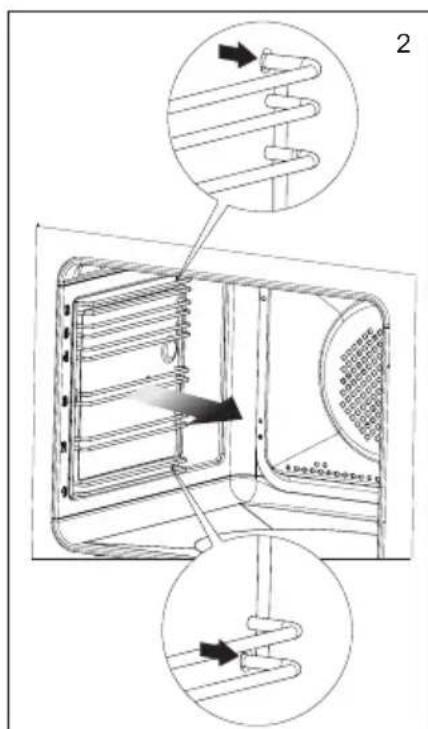

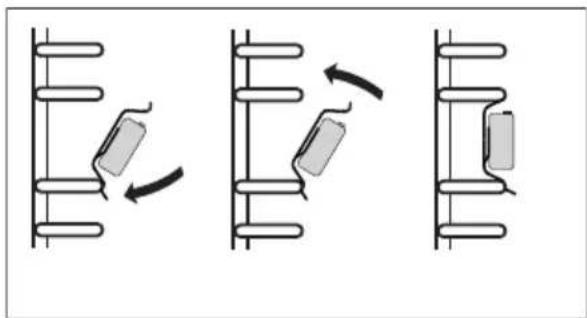

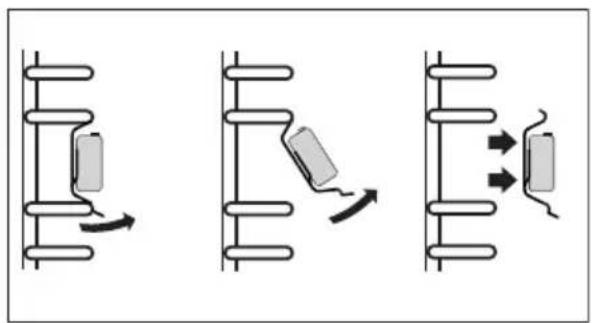

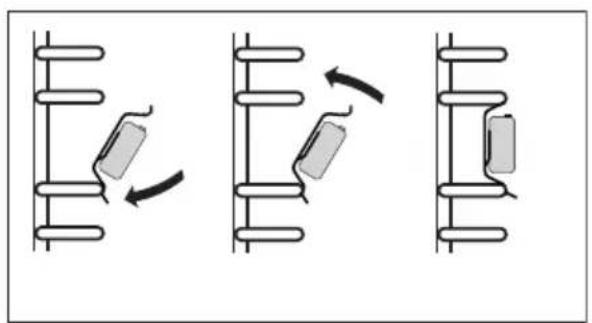

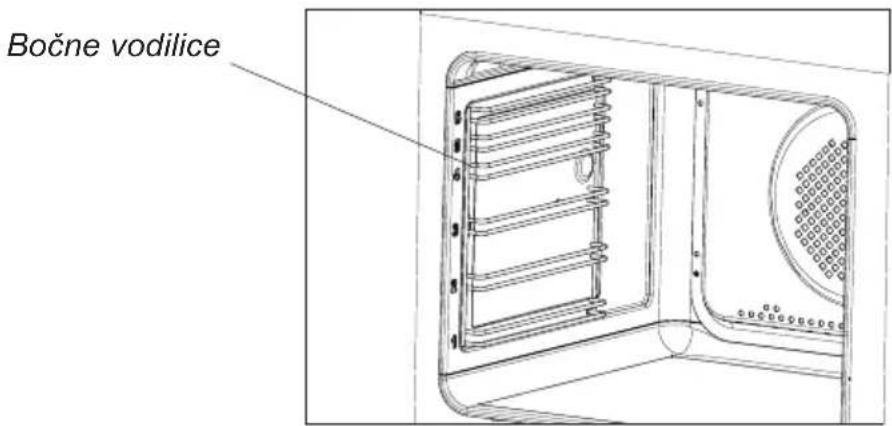

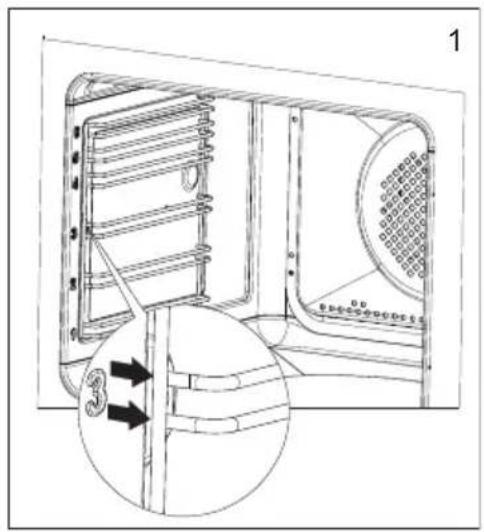

- Pećnice označene slovom D su opremljene lako izvlačivim žičanim vodilicama (rešetkama) za plitice pećnice. Vadimo ih tako da povučemo krajeve iz prednjih utora, nakon toga odvojimo vodilicu i izvadimo krajeve iz stražnjih utora.

Technical line drawing of a mechanical device with internal components and a magnified inset showing a close-up of a component (no text or symbols)

- Pećnice sa slovima Dp posjeduju nehrđajuće izvlačive vodilice plitica koje su pričvršćene na žičane vodilice. Vodilice izvlačiti i prati zajedno sa žičanim vodili-cama. Prije postavljanja plitica, vodilice izvući (ako je pećnica zagrijana vodilice izvući tako da zakačimo stražnji rub plitice na odbojnike na prednjem dijelu izvlačivih vodilica) i nakon toga ugurati zajedno s pliticom.

Pozor!

Teleskopske vodilice ne prati u perilicama za posuđe.

Three diagrams showing mechanical or electrical components with directional arrows, no text or symbols present.

Diagram showing three sequential mechanical or electrical assembly steps with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Pomicanje zaštite šarki

Technical diagram of a mechanical assembly with a rectangular frame and a separate cylindrical component (no text or symbols)

ČIŠĆENJE I ODRŽAVANJE ŠTEDNJAKA

1. Unutrašnje staklo izvaditi iz ležišta (u do-njem dijelu vrata). Crt. D.,D1

Pozor! Opasnost od oštećenja ležišta stakala. Staklo treba izvući, a ne podizati.

1. Stakla oprati toplom vodom i malom količinom sredstva za čišćenje.

Za ponovnu ugradnju stakala postupite na isti način, ali obrnutim redom. Glatki dio stakla trebao bi se nalaziti gore, a srezani rubovi dolje.

The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy.

Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the oven until you have read this instruction manual.

The oven is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Accessible parts may become hot during use. Young children should be kept away.

Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

You should not use steam cleaning devices to clean the appliance.

Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.

• Ensure that small items of household equipment, including connection leads, do not touch the hot oven as the insulation material of this equipment is usually not resistant to high temperatures.
• Do not leave the oven unattended when frying. Oils and fats may catch fire due to overheating or boiling over.
• Do not put pans weighing over 15 kg on the opened door of the oven.
• Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
• Do not use the oven in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
• In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
• The rules and provisions contained in this instruction manual should be strictly observed. Do not allow anybody who is not familiar with the contents of this instruction manual to operate the oven.
• The appliance has been designed only for cooking. Any other use (for example for heating) does not comply with its operating profile and may cause danger.

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

• Do not uncover the pan too often (a watched pot never boils!).
  Do not open the oven door unnecessarily often.
• Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

- Make use of residual heat from the oven.

If the cooking time is greater than 40 minutes switch off the oven 10 minutes before the end time.

Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

- Make sure the oven door is properly closed.

Heat can leak through spillages on the door seals. Clean up any spillages immediately.

- Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

P Control panel

1. On/off switch
2. Door Handle

Cooker fittings:

Line drawing of a square frame with rounded corners and a small circular hole at the top (no text or symbols)

Baking tray*

Isometric line drawing of a metal rack or grid structure (no text or symbols)

Grill grate (drying rack)

Line drawing of a square tray or container with rounded corners and a flat top (no text or symbols)

Roasting tray*

Isometric line drawing of a rectangular metal tray with internal grid pattern (no text or symbols)

Aifry wire shelf

Sideracks

Technical line drawing of a door with internal compartments and ventilation slots (no text or symbols)

*optional

Installing the oven

• The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the oven, easy access to all control elements should be ensured.
• This is a Y-type design built-in oven, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall. Coating or veneer used on fitted furniture must be applied with a heat-resistant adhesive (100°C). This prevents surface deformation or detachment of the coating.
• Hoods should be installed according to the manufacturer's instructions.
• Make an opening with the dimensions given in the diagram for the oven to be fitted.
• Make sure the mains plug is disconnected and then connect the oven to the mains supply.
• Insert the oven completely into the opening without allowing the four screws in the places shown in the diagram to fall out.

Technical diagram of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

Electrical connection

• The oven is manufactured to work with a one-phase alternating current (230V 1N\~50 Hz) and is equipped with a 3 x 1,5 mm ^2 connection lead of 1,5 m length with a plug including a protection contact.
• A connection socket for electricity supply should be equipped with a protection pin and may not be located above the cooker. After the cooker is positioned, it is necessary to make the connection socket accessible to the user.

• Before connecting the oven to the socket, check if:

• the fuse and electricity supply are able to withstand the cooker load,

• the electricity supply is equipped with an efficacious ground system which meets the requirements of current standards and provisions,
• the plug is within easy reach.

Important!

If the fixed power supply cable is damaged, it should be replaced at the manufacturer or at an authorized servicing outlet, or by a qualified person to avoid danger.

Before first use

• Remove all packaging elements, particularly those protecting the interior of the oven cavity during transport.
• Remove all the accessories from inside of the oven and wash them thoroughly in warm water with gentle washing up liquid.
• Remove the protective foil from the surfaces of the telescopic runners.
• Use warm water with the addition of mild detergent to wash the inside of the chamber. Do not use hard brushes or sponges. They could damage the coating of the inside of the chamber.

Warm up the oven cavity

• Turn on the ventilation in the room or open a window.
• Select conventional heating □ or fan assisted heating 🔒 (a detailed description of these functions can be found below in this manual).

The oven should operate for a minimum of 30 minutes; while it is operating the oven produces a smell, which is only present at the beginning but will eventually go away as the appliance is used. This is perfectly normal and is part of the process of warming up the oven cavity.

Control Panel

On/off switch ① is on the right side of the display. To activate the on/off switch, touch the glass in the place indicated by a pictogram. You will hear a beep. (See section: Control panel).

Touch sensor surfaces must be kept clean.

Control panel

The control panel is equipped with an LED display and backlit touch sensors:

Sensor Description Sensor Description

Conventional heating Main switch (standby)
Pastry Clock, minute minder
Fan cooking Lighting
Super grill Pre-set programmes
Turbo grill Eco programme ECO
Pizza Steam programmes
Roasting Quick oven pre-heat
Defrosting Set temperature

^ Plus / up [+]

Minus / down [-]

OK Confirm

Note: You will hear a beep each time the sensor is used. It is not possible to turn off the acoustic beeps.

Each of the sensors can be backlit at the following brightness levels:

• 100% full brightness (active sensor);
• 50% reduced brightness (a sensor can be activated);
• 50% night brightness (reduced brightness for 22:00 – 6:00), switched off.

Function indicator symbols on the display

Meat probe connected*

Minute Minder active

|→| Duration

→| Programme end

Child Lock Active

| • | Oven pre-heat active

* availability depending on the model

Connect the power supply

When you connect the appliance to power (or when power is restored after an outage), the display will show 00:00 and you will need to set the current time. You must set the current time to use the appliance.

Note: In the event of a power outage, all settings such as Duration, Temperature and Heating Function will be lost. You will need to re-enter the settings to continue cooking. If the pyrolytic cleaning is interrupted (or the door is locked for any other reason), the oven will start the cooling and door opening procedure before you can set the time. A power outage does not release the Child Lock, but it becomes active only after setting the current time and when the appliance is in standby.

Set the current time

When you connect the appliance to the power supply, the hours 00: flash on the display. (minute digits are illuminated permanently). Use and to set the hour. Touch to confirm the setting. . The minutes :00 flash on the display.(the hour

is illuminated permanently). Use ∧ and √ to set the minutes. Touch OK to confirm the setting. The appliance enters standby mode. You will hear a beep when the current time is stored in the appliance. To change the current time when the appliance is on, touch and hold. The symbol will be shown on the display. Touch the sensor once again and the digits will start to flash. Now you can proceed to set the current time.

The display brightness.

The LED display brightness varies depending on the time of day. The display is dimmed during 22:00 to 06:00 and its brightness is normal during 06:00 to 22:00. Also, the display is brighter when active than when the appliance is in Standby mode.

Standby mode

Switch the appliance to standby mode to reset all function settings, times, temperature and automatic programmes. All heating elements are disconnected. The display is dimmed except for the clock. In this mode, only the bn/off sensor is available on the display. The sensor has reduced brightness. The display is dimmed in this mode.

If the temperature in the chamber exceeds 80^ C, the temperature and current time are displayed alternately.

When Child Lock is on and you touch the LOC message and symbols will be displayed for 5 seconds instead of current time/temperature.

To turn off the appliance and put it in standby.

when you touch and hold ⏻ for 3 seconds at any time (you can turn OFF the appliance even when Child Lock is on), you will hear a beep;

after a power outage and when you set the current time;

when you touch and hold ⏻ for 3 seconds during a pyrolytic cleaning cycle, the appliance activates cooling fan to unlock the door, and enters standby only after the appliance has cooled down and the door is unlocked.

To activate the appliance:

touch and hold for 3 seconds to activate the appliance – you will hear a beep.

Operation

In this mode you can select the desired functions, programmes and adjust settings.

You can use function, programme and minute minder sensors as well as activate Child Lock and adjust settings which requires touching 2 sensors. Other touch sensors are enabled when necessary.

Auto-off: When all programmes complete and you do nothing for 30 seconds, the appliance turns off automatically.

When you use the appliance display backlight brightness is normal. The current time is shown on the display. If a meat probe is inserted in the oven cavity, the meat probe symbol is displayed. If a Child Lock is set, the lock symbol is displayed.

Child Lock

Child Lock is intended to prevent changes to the oven settings and the oven being turned on.

When the appliance is on, simultaneously touch and hold the ⏚ and -sensors for

3 seconds to activate the Child Lock. The symbol will be shown on the display.

Simultaneously touch and hold the same sensors for 3 seconds to deactivate the Child Lock. The Ⓞ symbol will go off on the display.

When Child Lock is active you cannot adjust any settings but you can turn off the appliance.

Lighting

The lighting turns on each time you open the oven door. The lighting also turns on when the oven is in active mode. This lighting is off in Standby mode. If the oven door remains open for a long time, the lighting will automatically turn off after about 5 minutes.

For details on lighting in ECO heating functions, please refer to the description of the heating functions.

The Sensor sensor operates independently and using it does not affect other functions and settings. Sensor is inactive in a standby mode.

Touch [] to turn on oven light for 30 seconds.

Touch and hold during cooking to turn the light on. Touch and hold again to turn the light off. The light turns off when cooking programme completes.

Touch 🔍 to turn off the light at any time.

Cooling fan

Cooling fan operates independently of the set functions and the appliance mode of operation. The cooling fan activates automatically when any function is activated. The cooling fan operates as long as the oven cavity temperature exceeds 100^ C. Below this temperature, the cooling fan turns off. For steam and pyrolytic programs, the cooling is two-speed and operates as described in the pre-set programmes section.

Oven pre-heat (thermostat symbol)

The pictogram indicates that at least one of the heaters in the oven operates. This pictogram goes out when the set temperature in the oven cavity is reached. Then the pictogram will be on and off periodically. This indicates that the set temperature is maintained. If you lower the set temperature, the pictogram will only light up when the oven cavity cools below the newly set temperature.

Oven door

Oven door must be closed during operation. When you open the door you will interrupt the active oven function. If the door remains open for more than 90 seconds, you will hear a beep to prompt you to close the oven door. Touch any sensor or close the oven door to mute the beeping. If you open the door for less than 5 minutes the active settings are unaffected. For safety reasons, after this time, the oven enters the standby mode (all settings are cleared).

Limit the operating time

If the oven operates any heating function for a long time, heating elements are disconnected to ensure safety as shown on

the example below. The appliance switches to standby when programme is completed. Example: If oven cavity temperature is 200^ C, heating elements are turned off after about 3 hours. At a temperature of 100^ C after about 10 hours. This prevents overheating.

Minute Minder

You can set the timer in active mode. Touch briefly to display and the current progress of the minute minder countdown.

Touch and hold ⏻ to enter the Minute Minder setting mode and the 🔒 indicator will blink.

Then touch ∧ / ∨ to adjust the setting and OK to confirm. Touch and hold ∧ ∨ simultaneously to clear the minute minder setting.

When the minute minder is counting down, the ⏰ indicator lights up on the display.

You can set the minute minder for a maximum of 120 minutes.

The Minute Minder operates independently of any active oven functions. When the set time has elapsed, you will hear beeping.

Touch any sensor to mute the beeping.

Activate a heating function

When the appliance is on touch the desired heating function symbol on the left side of the display. The backlight of the selected function is at full brightness while backlight of other functions will be reduced to half brightness. The symbols on the right side of the display that are not available for a given heating function go our and their sensors become inactive.

When the heating function is selected now you need to set the temperature. The temperature and the °C symbol are displayed at full brightness. The default temperature for the heating function is displayed. Use ∧ / ∨ to adjust temperature in steps of 5°C in a loop. The minimum, maximum and default temperature is individually defined for each heating function. The --- symbol means that the heaters are off.

Touch OK to confirm the set temperature. The temperature display brightness is reduced to normal level, the current time appears on the display and the oven starts the selected heating function at the set temperature.

Heating functions and additional functions

Function Description		Oven elements Temperature [°C]								Default temperature [°C]
		Lighting	Top heater	Roaster heater	Fan heater	Bottom heater	Fan	min. max
Heating functions
	Conventional √√√30 280 200
	Pastry √√√√30 280 180
	Fan cooking √√√30 280 180
	Grill √√30 280 250
	Super grill √√√30 280 250
	Turbo grill	√√√√30280200
	Pizza	√√√√30280220
	Roasting	√				√30 240 200
	Defrosting	√					√	-	-	-
Additional functions
	Temperature	see manual for details
ECO	ECO baking	see manual for details						30 280 200
	Lighting	√						-	-	-
	Quick oven pre-heat √√√30 280					-
	Pre-set programmes	see manual for details
	Steam programmes*	see manual for details

* availability depending on the model

Preview and modify settings during oven operation

Touch ⚙ briefly to display the temperature inside the oven cavity. Touch ⚙ again to display the set temperature. Touch again to displaying the current time.

To adjust the set temperature, touch and hold ⏻ and the currently set temperature will be displayed. Use ∧ and ∨ to adjust it as needed. Touch OK to confirm the new temperature. The new value is not set until confirmed.

You can check the set times much the same as temperature. Touch briefly to display the minute minder setting. Touch again to display the Duration. Touch again to display the End Time. Touch again to displaying the current time.

To adjust the set time, touch and hold ⏻ and the currently set time will be displayed. Use /and to adjust it as needed. Touch OK to confirm the setting. The new value is not set until confirmed.

To change the heating function during oven operation simply select a new function. The newly selected function indicator starts flashing while the currently running function does not change. Touch OK to confirm the selection of a new function. The new function indicator stops flashing and remains on while the previous function indicator goes off. If you do not confirm the new selection, the previous function will continue.

When you change a function, the set temperature remains the same.

End a heating function

Touch and hold ⓘ to end a heating function. By default the oven functions operate indefinitely, but you can set the oven to turn off using a timed operation function or delayed timed operation function. The only exception is the pyrolytic cleaning function, which cannot be modified.

Duration (automatic off)

In this mode the oven will turn off after a set duration has elapsed. You can set the duration from 1 minute to 10 hours. To set timed operation for any oven function, touch and hold the ⏻ sensor, and the ⏱ minute minder symbol will flash on the display. Touch 📁 again, the ⬇ symbol will appear on the display. Now touch ∧ to set the

Duration and touch OK to confirm. Touch ✗ to adjust Duration as needed. Touch OK to confirm the adjusted setting.

To clear the Duration touch \ until you reach 0:00 and touch OK to confirm.

Turning off the oven interrupts the active oven function. When the set Duration has elapsed, you will hear beeping. Touch any sensor except to mute the beeping. The beeping stops, the function settings and temperature are cleared and lighting will turn on for 30 s. The symbol will go out. The appliance will turn off after another 60 seconds.

Note: When you use the sensor to mute the beeping, the appliance will allow you to adjust the delayed start time.

Delayed start (automatic on and off)

You can set the oven to start at a specific time and operate for a set Duration. You can delay the oven start from 1 minute to 10 hours, and set the Duration for up to 10 hours. You first need to set the Duration. The display will show I. Then touch and hold the sensor again and the minute minder symbol will flash on the display. Touch twice and the symbol will flash on the display, now use to set the start time and touch to confirm.

Once Start Time is confirmed the and indicators light up steadily and the Current Time is shown again.

Use /ʌ to adjust the Start Time. Touch OK to confirm the adjusted setting.

To cancel timed operation use to adjust duration down to the lowest possible value and touch OK to confirm.

When the oven is turns on automatically, the symbol will go out.

When the Duration has elapsed, you will hear beeping. Touch any sensor to mute the beeping. The beeping stops, the function settings and temperature are cleared and lighting will turn on for 30 s. The symbol will go out. The appliance will turn off after another 60 seconds.

Meat probe\*

You can plug in the meat probe at any time.

Note. The meat probe socket is protected with a cap. Remove the protective cap from the socket to be able to plug in the meat probe.

Technical line drawing of a mechanical component with an inset close-up showing a threaded fastener (no text or symbols)

When the appliance is off or on and you plug in the meat probe, the symbol is displayed with no effect on appliance operation.

When you plug in the meat probe when the appliance operates (the function and temperature are set), the Ⓞ symbol will be displayed along with the measured meat probe temperature on the left and the set target meat probe temperature on the right (default 75°C).

Use ↗ to adjust the target meat probe temperature and touch OK to confirm or wait 5 seconds to abort and restore the previous setting.

When you confirm meat probe setting, the oven will keep the set temperature until the desired meat probe temperature is reached. Then heaters are turned off and you will hear beeping.

Touch any sensor (except ∧) or open the door to mute the meat probe alarm. The beeping stops, the function settings and temperature are cleared, and the appliance will turn off after 60 seconds.

* availability depending on the model

If you touch to mute the alarm you will set the new meat probe temperature.

Touch OK to confirm the new temperature and the programme is continued with the new settings.

Unplugging the meat probe during operation (after you confirm the meat probe temperature) will cause an error (meat probe might be damaged), you will hear a beep and the programme will be terminated.

When you use the meat probe the appliance will not turn on and off automatically. When you insert the meat probe, the previously set Duration is cleared, and you can use to access minute minder. Using the meat probe does not affect a heating function or set oven temperature - you can adjust them same way as when the meat probe is unplugged.

Recommended meat probe temperature settings

Type of meat Temperature [°C]
Pork 85 - 90
Beef 80 - 85
Veal 75 - 80
Lamb 80 - 85
Venison	80 - 85

Note: Only use the meat probe provided with your appliance.

These are programmes with specific settings of function, temperature and duration that are most suitable for a given dish.

When the appliance is on, touch to access the pre-set programmes menu – the pre-set programme "P01" will be shown on the display. Use the / and sensors to select the pre-set programme from the table below. Then touch to confirm your selection and the appliance will start to operate.

Programme	Description Oven functions		Temperature	Quick oven pre-heat	Heating function
P01	Meat (beef, lamb, pork)	Fan heater - level 2 - 120 minutes	180 °C
P02	Whole chicken (approx 1.5 kg)	Grill + fan - bottom level 2 - 85 minutes	190 °C
P03	Whole duck (approx. 2 kg)	Grill + fan - bottom level 2 - 120 minutes	180 °C
P04	Goose (approx. 3 kg)	Grill + fan - bottom level 1 - 130 minutes	170 °C
P05	Turkey (approx 2.5 kg)	Grill + fan - bottom level 1 - 155 minutes	170 °C
P06	Poultry (wings, thighs)	Top heater + bottom heater, level 260 minutes, quick oven pre-heat	180 °C	YES
P07	Pizza, pita, tortilla, sandwiches	Top heater + bottom heater level 1 - 10 minutes, quick oven pre-heat	230 °C	YES
P08	Lasagne, root vegetables, frozen ready meals	Top heater + bottom heater level 2 - 30 minutes, quick oven pre-heat	230 °C	YES
P09 Focaccia		Top heater + bottom heater level 2 - 15 minutes, quick oven pre-heat	220 °C	YES
P10	Casserole with vegeta-bles and meat	Top heater + bottom heater, level 2 - 25 minutes Quick oven pre-heat	180 °C	YES
P11 Sponge cake		Top heater + bottom heater level 2 - 45 minutes, oven pre-heated	160 °C
P12 Muffins, butter buns		Fan heater - level 3 - 35 minutes	160 °C
P13	Groats, porridge, cereal cookies	Fan heater - level 3 - 15 minutes	180 °C
P14 Fruitcake		Top heater + bottom heater, level 2 - 60 minutes Quick oven pre-heat	180 °C	YES
P15 Bread		Top heater + bottom heater, level 2 - 60 minutes	210 °C
P16 Dough proving		Top heater + bottom heater, level 2 - 20 minutes	30 °C
P17 Dry		Fan heater - level 2 - 3, 4, 5 hours	50 °C
P18 Chips		Top heater + bottom heater, level 2 - 20 minutes Quick oven pre-heat	220 °C	YES
P19	Read-made dishes (vegetables, roast meat, fish, falafel, burgers)	Fan heater - level 2 - 10 minutes Quick oven pre-heat	230 °C	YES

All pre-set programmes can be freely modified – you can adjust temperature or duration. To do this, follow the relevant instructions ("Preview and modify settings during oven operation" and "Timed operation"). When you make any adjustments, the stored pre-set programme is not affected and the original settings will be restored the next time you select a pre-set programme.

Pre-set programmes with quick pre-heat

Some pre-set programmes require the oven to be pre-heated. They are marked accordingly in the above table. When you select a pre-set programme with pre-heating and touch OK to confirm, the current oven cavity temperature will be displayed. When the set temperature is reached, you will hear beeping, which will turn off when you open the oven door. Place the food in the oven and close the door, at which point the actual pre-set programme will start.

Note: It is inadvisable to modify a pre-set programme during the quick pre-heat phase as this will cancel the pre-set programme and the appliance will operate with the currently set function, duration and temperature.

End a pre-set programme.

When a pre-set programme ends, you will hear beeping.

ECO function

When you select the ECO programme, the ECO indicator is on. During ECO operation, the oven lighting is switched off by default, but you can touch -to-turn lighting on for 10 seconds. It is not possible to turn on the lighting permanently.

Quick pre-heat

You can use the quick pre-heat function to quickly pre-heat the oven. Touch ▲ when the appliance is on. When quick pre-heat is on, the heating function sensors and the ▲ sensor are illuminated. The oven heats at its maximum power. The quick pre-heat function is available with all heating functions except the Defrost and Cleaning functions — for these functions, you will only hear a beep.

When the set temperature is reached, you will hear a beep. The temperature will be maintained according to the selected function.

Touch to deactivate the function at any time.

The Soft Steam function

The appliance has the Soft Steam feature ( ). Steam is produced at the beginning of the baking process, which enhances some of the dishes prepared in the oven. There is a cavity in the bottom of the oven to be filled with 150 ml of clean cold water before heating the oven. Do not add spices to the water. When the appliance is on, touch to active the Soft Steam function. When the oven

is preheated (after about 5 minutes), place the dish inside the oven and close the door. Note: Do not leave any water in the oven cavity. When the oven has cooled down, soak up the water with a cloth.

Make sure that the oven has cooled before removing water.

Due to the presence of steam in the oven cavity, water may condense on the inside of the oven door and walls when baking. Wipe off excess water each time after you have finished cooking.

Table of example oven settings
Baking cakes

	Type of food Accessories Level		Heating function	Temperature (°C)	Time (min)
Cakes in baking moulds and pans	Sponge cake	Black, round shape baking pan for baking on a wire grid	1-2 170 - 200	1)	38 - 502)
	Bundt cake (yeast dough)/ Sand cake	Commercially available black round or rectangular baking pan for baking on a wire grid	1-2 160 - 170	1)	25 - 402)
	Bundt cake (yeast dough)/ Sand cake	Commercially available black round or rectangular baking pan for baking on a wire grid	3 150 - 16025 - 40
	Fat-free sponge	Black coated round or rectangular baking pan for baking on a wire grid	1-2	170-1801)	38 - 452)
	Apple pie	Black round or rectangular baking pan for baking on a wire grid	1-2 190-200	1)	50 - 652)
Cakes on a baking tray	Small cakes Muffins	4.8 cm paper cup for baking on a bread baking tray	3	155-1601)	37 - 452)
		4.8 cm paper cup for baking on a bread baking tray	3 150-160	1)	34 - 382)
		4.8 cm paper cup for baking on a bread baking tray	3 150-160	1)	34 - 382)
		4.8 cm paper cup 2-Bread or roasting tray 4-Bread baking tray	2 + 4 150-160	1)	34 - 402)
	Shortcake	Bread baking tray 2	☐	150-1601)	30 - 402)
		Bread baking tray 2 150-170	☐	1)	25 - 352)
		Bread baking tray 2 150-170	☐	1)	25 - 352)
		2-Bread or roasting tray 4-Bread baking tray	2 + 4	160-1751)	25 - 352)

1) Pre-heat the empty oven for 5 minutes, do not use the quick pre-heat function.

2) Unless stated otherwise, duration given for a cold oven cavity.

Important!

Settings given in the table are reference only and may be adapted based on your own experience and cooking preferences.

• Try to use the baking tray supplied along with your appliance.
• If you use your own trays and moulds, place them on the wire grid. We recommend you use black trays, they conduct heat best and reduce the baking time.
• We do not recommend using trays with light coloured or glossy surfaces, as this could result in the underside of cakes being undercooked when using the upper heater +

Baking

• we recommend using the baking trays which were provided with your cooker;
• it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;
• shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters), use of such tins can result in undercooking the base of cakes;
• when using the ultra-fan function it is not necessary to initially heat up the oven chamber, for other types of heating you should warm up the oven chamber before the cake is inserted;
• before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake);
• after switching off the oven it is advisable to leave the cake inside for about 5 min.;
• temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees lower than in normal baking (using top and bottom heaters);
• the baking parameters given in Table are approximate and can be corrected based on your own experience and cooking preferences;
• if information given in recipe books is significantly different from the values included in this instruction manual, please apply the instructions from the manual.

Roasting meat

• cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners.
• use heatproof ovenware for roasting, with handles that are also resistant to high temperatures;
• when roasting on the drying rack or the grate we recommend that you place a baking tray with a small amount of water on the lowest level of the oven;
• it is advisable to turn the meat over at least once during the roasting time and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.
• For baking and reheating fat-free dishes such as fries, vegetables, fish fingers, etc. Airfry is also suitable for baking in a baking sleeve. When baking, place the Airfry wire shelf on level 3 and select the fan heater function. It is recommended to place a baking tray under the Aifry wire shelf. To obtain the best result, stir or turn over the food during baking.

ECO Heating

• ECO Heating an optimised heating function designed to save energy when preparing food.
• You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended.
• Do not change the temperature setting and do not open the oven door during cooking.

Recommended setting for ECO Heating

Type of dish	Oven functions	Temperature (°C)	Level Time	in minutes
Sponge cake		180 - 200 2 - 3	50 - 70
Sponge cake		180 - 200 2 50	- 70
Fish		190 - 210 2 - 3	45 - 60
Beef		200 - 220 2 90	- 120
Pork	[θT5G]	200 - 220 2 90	- 160
Chicken		180 - 200 2 80	- 100

BAKING IN THE OVEN – PRACTICAL HINTS

Oven with automatic air circulation (including a fan and ring heater)

Type of dish	Type of heating	Temperature (°C)	Level Time	(min.)
Sponge cake	[W240]	160 - 200 2 - 3	30 - 50
Muffins 160 -	[ASHO]	1)	3 25 - 40	2)
Muffins 155 -		1)	3 25 - 40	2)
Pizza 200 - 2		1)	2 - 3 15 - 25
Fish 210 - 2	20 2 45 -
Fish		160 - 180 2 - 3	45 - 60
Fish	[4ZHT]	190 2 - 3 60	- 70
Sausages		230 - 250 4 14	- 18
Beef 225 - 2	50 2 120 50
Beef		160 - 180 2 120	- 160
Pork		160 - 230 2 90	- 120
Pork		160 - 190 2 90	- 120
Chicken	[ZBWA]	180 - 190 2 70	- 90
Chicken		160 - 180 2 45	- 60
Chicken		175 - 190 2 60	- 70
Vegetables		190 - 210 2 40	- 50
Vegetables		170 - 190 3 40	- 50

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

1) Preheat
2) Baking smaller items

Note: The figures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.

Baking

Type of dish Accessory Level Type			of heating	Temperature (°C)	Baking time 2) (min.)
Small cakes	Baking tray 4			160 1)	28 - 32 2)
	Baking tray 3 155			1)	23 - 26 2)
	Baking tray 3 150			1)	26 - 30 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		150 1)	27 - 30 2)
Shortbread	Baking tray 3			150 - 160 1)	30 - 40 2)
	Baking tray 3 150 - 170			1)	25 - 35 2)
	Baking tray 3 150 - 170			1)	25 - 35 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		160 - 175 1)	25 - 35 2)
Fatless sponge cake	Wire rack + black baking tin diameter 26cm	3		170 - 180 1)	38 - 46 2)
Apple pie	Wire rack + 2 black baking tins diameter 20cm	2black baking tins placed after the diagonal, back right, front left		180 - 200 1)	50 - 65 2)

^1) Preheat, do not use Rapid preheat function.
^2) The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

TEST DISHES. According to standard EN 60350-1.

Grilling

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
White bread toast	Wire rack 4			2201)	3-7
Beef burgers	Wire rack + roasting tray (to gather drops)	4 - wire rack 3 - roasting tray		2201)	1st side 13 - 18 2nd side 10 - 15

^1) Preheat for 8 minutes, do not use Rapid preheat function.

Roasting

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
Whole chicken	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray	[VTW8]	180 - 190 70	-90
	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray	[ZH0A]	180 - 190 80	-100

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

By ensuring proper cleaning and maintenance of your oven you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the oven must be switched off and you should ensure that all knobs are set to the position off. Do not start cleaning until the oven has completely cooled.

Oven

• The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better.
• The oven chamber should only be washed with warm water and a small amount of washing-up liquid.
• After cleaning the oven chamber wipe it dry.

Important!

Do not use any abrasive agents, harsh detergents or abrasive objects for cleaning.

Only use warm water with a small amount of dishwashing liquid to clean the front of the appliance. Do not use washing powders or creams.

Descale the oven cavity after using the Soft Steam function:

• pour about 250 ml of pure 6% vinegar into the recessed bottom of the oven cavity,
- leave the vinegar at room temperature for 30 minutes to dissolve the scale,
- wipe the recessed bottom with a warm, damp, soft cloth.

Note: It is recommended to descale the recessed bottom every 5-10 uses of the Soft Steam function.

CLEANING AND MAINTENANCE

- Ovens in cookers marked with the letter D are equipped with easily removable wire shelf supports. To remove them for washing, pull the front catch, then tilt the support and remove from the rear catch.

- Ovens in cookers marked with the letters Dp have stainless steel sliding telescopic runners attached to the wire shelf supports. The telescopic runners should be removed and cleaned together with the wire shelf supports. Before you put the baking tray on the telescopic runners, they should be pulled out (if the oven is hot, pull out the telescopic runners by hooking the back edge of the baking tray on the bumpers in the front part of the telescopic runners) and then insert them together with the tray.

Important!

Do not wash telescopic runners in a dishwasher.

Three diagrams showing mechanical or electrical components with directional arrows, no text or symbols present

Removing telescopic runners

Three sequential diagrams showing mechanical or electrical components with arrows indicating motion (no text or symbols)

Installing telescopic runners

Replacing the halogen bulb in the oven

Before replacing the halogen bulb, make sure the appliance is disconnected from the electric mains to avoid a possible electric shock.

1. Unplug the appliance
2. Remove shelves and trays from the oven.
3. If the oven has telescopic runners, remove them also.
4. Use a flat screwdriver to pry the lamp cover loose, remove it, wash and carefully wipe it dry.

5. Pull the halogen bulb out by sliding it down using a cloth or paper. If necessary, replace the halogen bulb with a new one.

6. type G9

7. voltage 230V
8. power 25W
9. Replace the halogen bulb in its socket.
10. Replace the lamp cover

Oven lighting

- Oven is equipped with liners covered with special self-cleaning enamel. The enamel removes fat stains or leftover food automatically, providing they are not dried on and burnt (food and fat remnants should be removed when they are not dried on and burnt to avoid a long self-cleaning process). To activate self-cleaning switch on the oven for 1 hour, setting the temperature to 250^ . If remnants of food are small the process can be shortened.

If the self-cleaning per for mance is noticeably reduced, replace the liners with new ones: take out the wire rails from the in side and unscrew the catalytic enamel screw from the center of the liner. New liners can be obtained at service outlets.

Technical line drawing of a device interior with a curved arrow indicating rotation or movement (no text or symbols)

Removal of catalytic liners

Door removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig. A). Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the cooker, do the inverse. When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder. After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Tilting the hinge safety catches

Removing the inner panel

1. Pull the upper door slat loose. (fig. B, C)

Technical line drawing of a mechanical assembly with a rectangular component and a separate cylindrical component (no text or symbols)

1. Pull the inner glass panel from its seat (in the lower section of the door). Remove the inner panel (fig. D).
2. Clean the panel with warm water with some cleaning agent added.

Carry out the same in reverse order to reassemble the inner glass panel. Its smooth surface shall be pointed upwards.

Important! Do not force the upper strip in on both sides of the door at the same time. In order to correctly fit the top door strip, first put the left end of the strip on the door and then press the right end in until you hear a "click". Then press the left end in until you hear a "click".

Removal of the internal glass panel

Regular inspections

Besides keeping the oven clean, you should:

• carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years,
• fix any operational faults,
• carry out periodical maintenance of the cooking units of the oven.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorised fitter.

OPERATION IN CASE OF EMERGENCY

In the event of any fault:

• Turn off the appliance,
• Disconnect the power supply
• By following the instructions given in the table below, the user can correct some minor issues. Please check the consecutive points in the table before you refer the repair to customer service.

Problem Reason Remedy

1. The appliance does not work	no power check the fuse, replace if blown
2. Oven lighting does not work	loose or damaged bulb Replace the blown bulb (see Cleaning and maintenance)
3. Display shows blinking time "0.00"	The appliance was unplugged or there was a power outage.	Set the current time (see section "Programmer operation")
4. Fan does not work Risk of overheating! Immediately unplug the appliance or switch off the main circuit breaker. Refer the repair to the nearest service centre.
5. E1 Error on the display Meat probe failure you can use the oven without the meat probe
6. E0 Error on the display oven chamber sensor error disconnect the appliance from wall socket (fuse) and contact the nearest service centre

If the problem is not solved, disconnect the power supply and report the fault to the nearest service centre. Note! All repairs must be performed by qualified service technicians.

Voltage rating 230V\~50 Hz

Power rating max. 3,6 kW

Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm

The product meets the requirements of European standards EN 60335-1; EN60335-2-6.

The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1. These values are defined with a standard workload a with the functions active: bottom and top heaters (conventional heating) and fan assisted heating (forced air heating), if these functions are available.

The energy efficiency class was assigned depending on the function available in the product in accordance with the priority below:

Forced air circulation ECO (ring heater + fan)
Forced air circulation ECO (bottom heater + top + roaster + fan)
Conventional mode ECO (bottom heater + top)

During energy consumption test, remove the telescopic runners (if the product is fitted with any).

Certificate of compliance CE

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives:

● The Low Voltage Directive 2014/35/EC,
● Electromagnetic Compatibility Directive 2014/30/EC,
• ErP Directive 2009/125/EC,

and therefore the product has been marked with the symbol and the Declaration of Conformity has been issued to the manufacturer and is available to the competent authorities regulating the market.

Компанія виробник
