USER MANUAL T38301 Lasko
This Fan is for residential use only.
It is not intended to be used in commercial, industrial or agricultural settings.
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
Have a Question? Need a Part?
Please Do Not Return Product to Store!
Contact Lasko Customer Service:
1-800-233-0268 Monday-Friday 8AM - 5PM EST.
Rev. A 10/15
1
T38301ES
⚠ WARNING
IMPORTANT SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, Including the following:
Read all instructions before using this Fan.
⚠ WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, ALWAYS FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:
DO NOT use this fan to ventilate areas where flammable liquids or vapors are used, stored or are present, including paints, gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!
ALWAYS be sure the plug fits tightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.
ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and unplug the Fan when not in use.
BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source. The Blue Plug™ on your Lasko fan is a safety feature. It contains a non-replaceable safety device (fuse) that should not be removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace repair or tamper with the originally supplied plug. If the Fan has stopped functioning, it may be due to the safety device incorporated in this plug.
THIS FAN HAS A POLARIZED PLUG (one blade is wider than the other). This plug is designed to fit into the outlet only one way. Match the wide blade to wide slot in outlet and FULLY INSERT. DO NOT attempt to bypass or defeat this safety feature. If the plug does not fit in the outlet, consult a qualified electrician. The outlet may need to be replaced.
CAUTION
- AVOID the use of extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices may overheat and cause a fire hazard. - DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a fire hazard.
- ALWAYS place the Fan on a stable, flat, level surface while in operation to prevent the Fan from overturning. - NEVER insert or allow fingers or objects to enter grill openings while Fan is in operation or injury and/or damage to the Fan may occur. - DO NOT block, cover or obstruct air flow to or from the fan while in operation. - DO NOT use this Fan outdoors or near water or wet locations such as a bath tub, pool or hot tub. Use of this Fan in a wet location may create a shock hazard.
- DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. - NEVER use a single extension cord to operate more than one Fan or other electrical device.
- DO NOT use this Fan if it has been damaged or is not functioning properly. - Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.
- Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Fan. - THIS Fan DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-T (2008). This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-T (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings. - THIS Fan DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous materials or other products of the electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations.
NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.
SAVE THESE INSTRUCTIONS
T38301ES
MODELO T38301
ARMADO
- For ease of assembly, lay the Fan down so that the front grill and control panel are facing up.

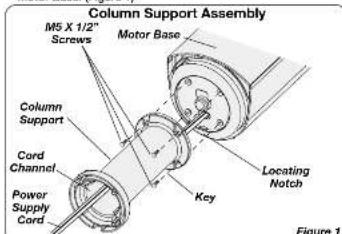

- Locate the Power Supply Cord at the bottom on the Fan. Place the Power Supply Cord through the Cord Channel of the Column Support. (Figure 1)
- Attach the Column Support Assembly to the Motor Base with (4) 1/2" Long M5 Screws. Make certain to align the Key on the Support Column Assembly with the Locating Notch on the Motor Base. (Figure 1)
- Assemble the Bases by interlocking the Bosses on Support Base A into the Boss Holes on Support Base B. Thread the Power Supply Cord through the large hole in the center of the Support Base Assembly. (Figure 2)

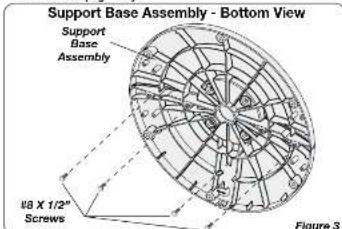

- Secure the (4) #8 X 1/2" Screws into the four holes in the bottom of the base. (Figure 3)

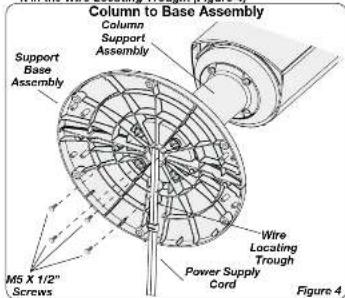

- Align the Support Base Assembly with the Column Support Assembly, noting that the cord channel on the bottom of the support base should be towards the back of the Fan. Assemble the Support Base Assembly to the Column Support Assembly with (4) 1/2" Long M5 Screws. Gently pull any excess slack of the Power Supply Cord and place it in the Wire Locating Trough. (Figure 4)
OPERATION (Figures 5 and 6)
This Fan may be operated by the Manual Controls located on top of the unit (as shown in Figure 5) or by the Remote Control (shown in Figure 6). 1. Carefully remove the Fan from the plastic bag and the carton. Assemble unit per these instructions.
- Place the Fan on a firm and level surface.
Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors.
- Plug the cord set into a 120 V-- outlet.
A WARNING
e that the plug fits tightly into outlet.
When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard; if covered by a curtain or drape, the fire hazard is even greater. 4. When the Fan is plugged in, there will be a "beep" to indicate there is power to the unit.
- Turn the Fan ON by pressing the Power Button (¢).
- SPEEDS: Press the Fan Speed Button (8) to desired speed setting. Each time the Fan Speed Button is pressed, the speed will change from Low (1), to Medium (2), to High (3). When initially plugged in, the Fan will be in Low Speed. When the Fan is turned OFF and ON again, the unit will resume the speed at which it was turned OFF.
- Top and bottom grills are adjustable left or right.
- OSCILLATION: Press the Oscillation Button (☐) to start and stop the oscillation function.
- TIMER: The timer function allows the unit to be set to operate for a length of time from 1 hour to 7 hours, in increments of 1 hour. Press the Timer Button (9) to set the length of time desired. Each time the timer button is pressed, the time is increased by 1 hour. After reaching 7 hours, pressing the timer button once more will reset the Fan to continuous running. The lights on the front of the unit will light up appropriately with the length of time that the Fan is set for.
- To turn the Fan OFF, press the Power Button() and unplug the unit from the electrical outlet.
3
MODEL T38301
REMOTE CONTROL (Figures 6 and 7)
- Install batteries (not supplied) as shown in Figure 6.
- The hallway is hope "AAA"
- The Remote Control Power Button is labeled as (○).
- All the functions performed with the Remote Control work identi-
cally to the Manual Controls. - Remote control hook is located on back of Fan. (Figure 7)
- Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cedmium) batteries.
- DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE
OR LEAK.
MAINTENANCE
To reduce the risk of electrical shock and fire please observe the following instructions:
WARNING
Always unplug the cord before moving, servicing or cleaning.
NEVER place the Fan in or near water.
Clean the Fan only with a vacuum equipped with a brush attachment: the vacuum will remove the lint
and dirt from inside the Fan.
NEVER attempt to take apart the Fan.
Clean the body of the Fan with a soft cloth only.
NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.
SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.
STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.
DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com®.
LUBRICATION: Motor is permanently lubricated.
CALIFORNIA RESIDENTS ONLY:
WARNING: This product can expose you to a chemical [or chemicals] known to the State of California to cause cancer.
WARNING: This product can expose you to a chemical [or chemicals] known to the State of California to cause
reproductive toxicity.
LABKO PRODUCTS, INC. LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for three (1) years from the date of original purchase or
WHAT LASKO WILL DO: Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, inc. at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processed.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, stopping damage, abuse, misuse, and/or repair made to be attempted, or the use of the product is commercial or reinsuranceful warranty. This warranty shall not exceed the requirements for any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arisingfrom any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arisingly from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arising from any loss arises
Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted.
CUSTOMER SERVICE:
Toll-Free (200) 233-0268. Email: producthelp@laskoproducts.com
Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday
through Friday, 0am-3pm Eastern. Please have your model number available, as well as the type and style located on the underside of your product.
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19360
PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.
Manual printed in China
