| Product Type | Box Fan |
| Blade Diameter | 20 inches (50.8 cm) |
| Dimensions (H x W x D) | Approx. 23 x 23 x 5.5 inches (58.4 x 58.4 x 14 cm) |
| Weight | Approx. 7.5 lbs (3.4 kg) |
| Power Source | 120V AC, 60Hz |
| Power Consumption | Approx. 55 Watts |
| Number of Speeds | 3 (Low, Medium, High) |
| Oscillation | No (fixed airflow direction) |
| Timer | No |
| Remote Control | No |
| Control Type | Manual rotary switch |
| Safety Features | Overheat protection, fused plug, sturdy grille |
| Cleaning | Wipe grille with damp cloth; do not immerse in water |
| Assembly Required | None (ready to use) |
| Warranty | 1 year limited |
Frequently Asked Questions - T36510 Lasko
User questions about T36510 Lasko
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Ventilateur domestique in PDF format for free! Find your manual T36510 - Lasko and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. T36510 by Lasko.
USER MANUAL T36510 Lasko
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
Register Your Product Today
www.lasko.com/product-registration/
You will benefit from:
- Efficient and enhanced support
- Future product updates
Have a Question? Need a Part?
Please Do Not Return Product to Store!
Contact Looko Customer Service
(500) 233-2386 Mondey-Friks Day - 5PM EST.
(Valid in the USA, its Territories, and CANADA Only)
READ AND SAVE THESE INSTRUCTIONS
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage.
This Family for residential use only. It is not intended to be used in commercial, industrial or agricultural settings.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, these instructions and warnings should always be
followed to reduce the risk of fire, electrical shock and injury to persons:
Read all instructions before using this Fan.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, ALWAYS
FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:
DO NOT use this Fan to ventilate areas where flammable liquids or vapors are used, stored or are present, including paints, gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!
ALWAYS be sure the plug file tightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.
ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and unplug the Fan when not in use.
BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source.
The Blue Plug™ on your Looko Fan is a safety feature. It contains a non-repliable safety device (fuse) that should not be removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace, repair or lamper with the originally supplied plug. If the Fan has stopped functioning, it may be due to the safety device incorporated in this plug.
THIS FAN HAS A POLARIZED PLUG (one blade is wider than the other). This plug is designed to fit into the outlet only one way. Match the wide blade to wide slot in outlet and FULLY INSERT. DO NOT attempt to bypass or defeat this safety feature. If the plug does not fit in the outlet, consult a qualified electrician. The outlet may need to be replaced.
CAUTION
- AVOID the use of extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices may overheat and cause a live hazard.
• DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a fire hazard.
• ALWAYS place the Fan on a stable, flat, level surface while in operation to prevent the Fan from overturning.
- NEVER insert or allow fingers or objects to enter grill openings while Fan is in operation or injury and/or damage to the Fan may occur.
- DO NOT BLANC COVER OF OBSTRET AR NOW TO BRINN THE FILL WHILE IN OPERATION.
- DO NOT use this Pan outdoor or near water or wet locations such as a bath tub, pool or hot tub. Use of the Pan in a wet location may create a shock hazard. - DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
- NEVER use a single extension cord to operate more than one Fan or other electrical device.
• DO NOT use this Fan if it has been damaged or is not functioning properly.
- Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.
- Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Fan.
- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 647-7 (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings.
- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations. Model T76519
Lasko Products, LLC
820 Lincoln Avenue
West Chester, PA
19980
www.laska.com
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 16 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.
-increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help."
SAVE THESE INSTRUCTIONS
NEW 10/20 2 T36510ES
Partes Incluidas
Cuerpo
Control Remoto
Base de Soporte A
Base de Soporte B
Lasska Products, LLC
620 Lincoln Avchi West Champion, 86
19380
www.iskpc.com
The following table provides the information that the data is available for the years 2013 and 2014.
CONSERVE ESTAS INSTRUCCIONES
NEW 10/20 6 T38510ES
Parts Included
Body
Remote Control
Support Base A
Support Base B
Assembly
1. Push the Bosses on Support Base B into the Boss Slots on Support Base A.
2. Align the Support Base Assembly with the Body.
3. Hold the Body in place while turning the Support Base Assembly clock-wise until it no longer turns and locks in place.

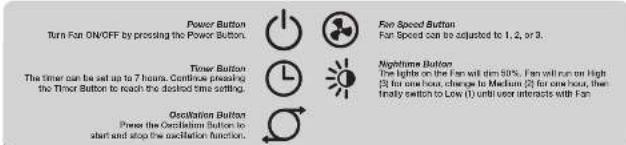

Controls
NEW 10/20 3 T36510ES
REMOTE CONTROL:
All the functions performed with the Remote Control work identify to the manual controls.
-
Install two "AAA" batteries (not included).
-
Do not mix old and new batteries. Do not mix alkaline, standard /carbon-zinc or rechargeable (nickel-cad mi um) batteries
-
DO NOT DISPOSE OF BATTERIES IN FIRE, BAT TER IES MAY EXPLODE OR LEAK.
-
Always purchase the correct size and grade of battery most suitable for the intended use.
MAINTENANCE
⚠ WARNING To reduce the risk of electrical shock and fire please observe the following instructions:
- Always unplug the cord before moving, servicing or cleaning.
- NEVER place the Fan in or near water.
- Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from inside the Fan.
- NEVER attempt to take apart the Fan.
- Clean the body of the Fan with a soft cloth only.
TROUBLE SHOOTING TIPS
If your Fan fails to operate, see below for a list of probable causes and solutions:
-
Be sure the power cord is plugged into a working electrical outlet.
-
Make certain the batteries in the remote control are now and properly installed.
SERVICING: For servicing, other than general user maintenance, please contact Customer Service at (800) 233-0268, Monday through Friday, from 8am-5pm Eastern.
STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.
LUBRICATION: Motor is permanently lubricated.
DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com ^2 .
LASKO PRODUCTS, LLC LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT LASKO WILL DO: During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, LLC at the time of sale and purchase price. This warranty is not to be used in any way for any loss arising from the issuer's customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processes.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, mistake, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the product itself. This warranty is not intended to be suitable for any loss arising from the issuer's customers' purchase price. This warranty is not intended to be suitable for any loss arising from the issuer's purchase price. ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS OF THE SALE OF THE CHANGE IN THE FACTS OF THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN THE CHANGE IN
Some states and provinces do not allow limitations on how long an implied warranty basis, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.
Proof of purchase is required before a warranty claim will be accepted.
CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: producthelp@lasko.com
Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the website of your product).
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send product to this location) www.lasko.com Manual printed in China
Lasko
Ventilador de Torre
con Control Remoto
Brand : Lasko
Model : T36510
Category : Ventilateur domestique
