RHHT1003OR - Couverture électrique / Coussin chauffant RUSSELL HOBBS - Free user manual and instructions

Product Type	Electric Blanket / Heating Pad
Brand	Russell Hobbs
Model	RHHT1003OR
Dimensions	Approximately 150 x 80 cm (single bed size)
Weight	Approximately 1.5 kg
Power Consumption	60 - 100 W
Voltage	220 - 240 V, 50/60 Hz
Material	Soft fleece fabric
Heating Settings	3 to 6 adjustable heat levels
Safety Features	Automatic shut-off after a few hours; overheat protection
Control Type	Wired remote control with LED display
Washable	Yes, blanket is machine washable (detach control first)
Certifications	CE, RoHS compliant
Warranty	2 years (subject to terms)
Intended Use	Preheating bed or providing soothing warmth
Accessories Included	Heating blanket, controller, user manual
Storage	Fold neatly, avoid sharp creases

Frequently Asked Questions - RHHT1003OR RUSSELL HOBBS

How do I wash the Russell Hobbs RHHT1003OR electric blanket?

Unplug the blanket and detach the controller completely. Machine wash the blanket on a gentle cycle with cold water. Do not use bleach or fabric softener. Tumble dry on low or hang to dry. Never iron or dry clean. Allow to dry fully before reattaching the controller.

Can I leave the electric blanket on all night?

It is not recommended to leave the blanket on all night. The RHHT1003OR features an automatic shut-off timer (typically after 2-3 hours) for safety. For overnight use, preheat the bed and turn off before sleeping.

Is the Russell Hobbs RHHT1003OR safe for children or pets?

This blanket is intended for adults. Do not allow children or pets to use it unattended. Keep sharp objects away to avoid damaging the heating elements.

What are the heat settings and how do I adjust them?

The controller typically offers 3-6 heat levels. Press the power button to turn on, then press the + or - buttons to adjust the temperature. An LED display shows the current setting.

What should I do if the blanket won't heat up?

First, check that the controller is properly connected and the plug is firmly in the socket. Ensure the outlet is working. If the blanket still doesn't heat, inspect for visible damage to the cord or fabric. If damaged, stop use and contact Russell Hobbs support.

Can I use the electric blanket with a memory foam mattress?

Yes, but ensure the blanket is placed on top of the mattress pad or directly under the sheet. Do not trap the blanket between thick mattress toppers or heavy bedding that may cause overheating.

How do I store the blanket when not in use?

Allow the blanket to cool, then fold it loosely but avoid sharp creases that could damage internal wires. Store in a dry place, preferably in the original packaging or a breathable bag. Do not place heavy objects on top.

What does the automatic shut-off feature do?

The blanket automatically turns off after a preset time (usually 2 or 3 hours) to prevent overheating and save energy. This is a safety feature; you can reactivate it by pressing the power button.

Is the controller detachable?

Yes, the controller is detachable for safe washing. Ensure the blanket is unplugged, then gently pull the connector out of the blanket socket. Do not pull the cord.

What is the warranty period for the RHHT1003OR?

Russell Hobbs typically offers a 2-year warranty from the date of purchase against manufacturing defects. Keep your receipt. Warranty does not cover misuse or damage from improper washing.

USER MANUAL RHHT1003OR RUSSELL HOBBS

Electric Throw Blanket

Line drawing of a pillow with a digital pressure monitor displaying '88' on its side, placed on a folded pillow (no text or symbols on the device itself)

Model Number:

RHHT1003 (BLU) (OR)

RHHT1004 (BLA) (BG)

220-240V AC, 50Hz, 120W

PLEASE RETAIN

FOR FUTURE REFERENCE

CONTENTS

	Page(s)
Safety Instructions and Electrical Safety	3 - 7
Blanket Feature Diagram	8
Control Feature Diagram	9
Using your Electric Throw Blanket	10-12
Cleaning and Care	13-15
Problem Solving	16
Guarantee and Customer Services	17
Connection to the Mains Supply	18
Specification	19
Disposal Information	20

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be observed, including the following:

• Read all instructions.
• Check that your mains voltage corresponds with the rating on the appliance.
• To protect against electrical shock, do not immerse cord, plug, or appliance in water or any other liquids. Do not operate with wet hands.
• Do not operate with a damaged cord or plug, or after any appliance malfunctions or after being dropped or damaged in any manner.
• The use of accessory attachments are not recommended by the appliance manufacturer as they may cause fire, electric shock or injury.
• This appliance must not be immersed when in use or plugged in.
• To disconnect remove the plug from the mains outlet. Do not pull the plug out by the cord.
  • The throw blanket must not be used over or under a waterbed.
• Never use the appliance near a bath, shower, or a swimming pool.
• Never place flammable objects or clothing on top of the appliance.
• Never use the appliance in a room with explosive gases such as petrol, or while using any kinds of flammable glues, sprays or solvents.
  • This appliance is not intended for commercial use.
• This product is intended for household use only. It is not intended for use in hospitals.

SAFETY INSTRUCTIONS

• Do not use outdoors.
  • This product is only intended for heating.
• If overheating should occur, the built-in overheating safety device will shut the appliance off.
• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit. See an electrician for professional advice.
• When in use, ensure that the throw blanket and power cord cannot become caught or rucked.
• Do not use this blanket for infants, persons with no/limited mobility or heat sensitivity conditions.
• Do not use with wired area tucked in.
• Do not tuck in.
• Do not insert pins.
• Only suitable for human use, not for pets.
• Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to electrical parts.
• Warning: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to make sure that they do not play with the appliance.

SAFETY INSTRUCTIONS

• Warning: Children should not use this appliance. Close supervision is necessary when any appliances are used near children.
• It is recommended that a qualified and registered person inspect your electric throw blanket after every 3 years of use.
• This blanket must be kept in a fully spread condition at all times during use to avoid overheating.
• It is imperative that the blanket is frequently inspected to ensure that this condition is being maintained.
• Arrange the throw blanket so that it is not beneath pillows and / or bolsters.
• Long periods of use at the high setting can result in skin irritation or burns.
• Keep control unit away from open windows.
• Be sure that this blanket is used only on an alternating current supply circuit of the correct voltage.
• The flexible power supply and switch must remain uncovered during use.
• Switch off at the power outlet and remove the plug when this throw blanket is not in actual use.
• Do not use if moist or wet.
• Do not use rucked or folded.
• Do not switch the power on if the throw blanket is wet or in a folded state.
• Do not dry-clean this blanket. Cleaning liquids may have a deleterious effect on the insulation or covering of the heating unit. It is recommended you follow instructions for localized soiling or hand washing if soiling occurs.

SAFETY INSTRUCTIONS

• If any abnormality or defect in the operation of this blanket is observed, discontinue its use immediately and consult the manufacturer or a licensed electrician.
• Regularly inspect the supply cord, plug, controller and throw blanket for any damage. If found damaged in any way, immediately cease use of the throw blanket and return to store or authorized service agent for inspection.
• Avoid pressing creases into the appliance.
• Clean this blanket only as per instruction supplied with this blanket.
• The appliance is only to be used with the type of control unit marked on the appliance.
• Avoid creasing the appliance by placing items on top of it during storage.
• When storing the appliance allow it to cool down before folding.
• When storing, fold neatly but not tightly (or roll) in the original packaging without sharp bends in the heating element and store where no other objects will be placed upon it.
• There are no customer serviceable parts inside; have the blanket serviced by a qualified service agent should the unit require access to internal components.

ELECTRICAL SAFETY

THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET

• Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 220 – 240V AC; 50Hz. Connection to any other power source may damage the unit.

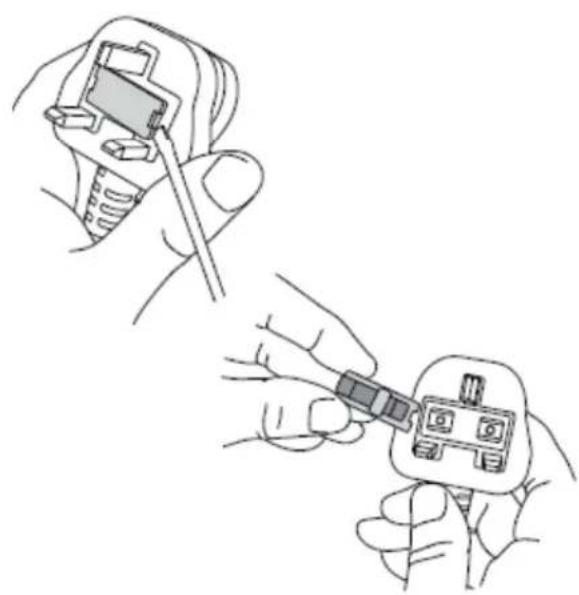

• This product may be fitted with a non re-wireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
• If the plug has to be changed because it is not suitable for your socket, or becomes damaged in any way, it should be cut off and an appropriate plug should be fitted. This should be carried out by a qualified electrician. The plug removed must be disposed of safely, as insertion into a 13 Amp socket is likely to cause an electrical hazard.

Not to be used by children under 3 years old

Do not use pins in the throw blanket

Do not iron

Wash only at maximum 40°C

Do not tumble dry

Do not bleach

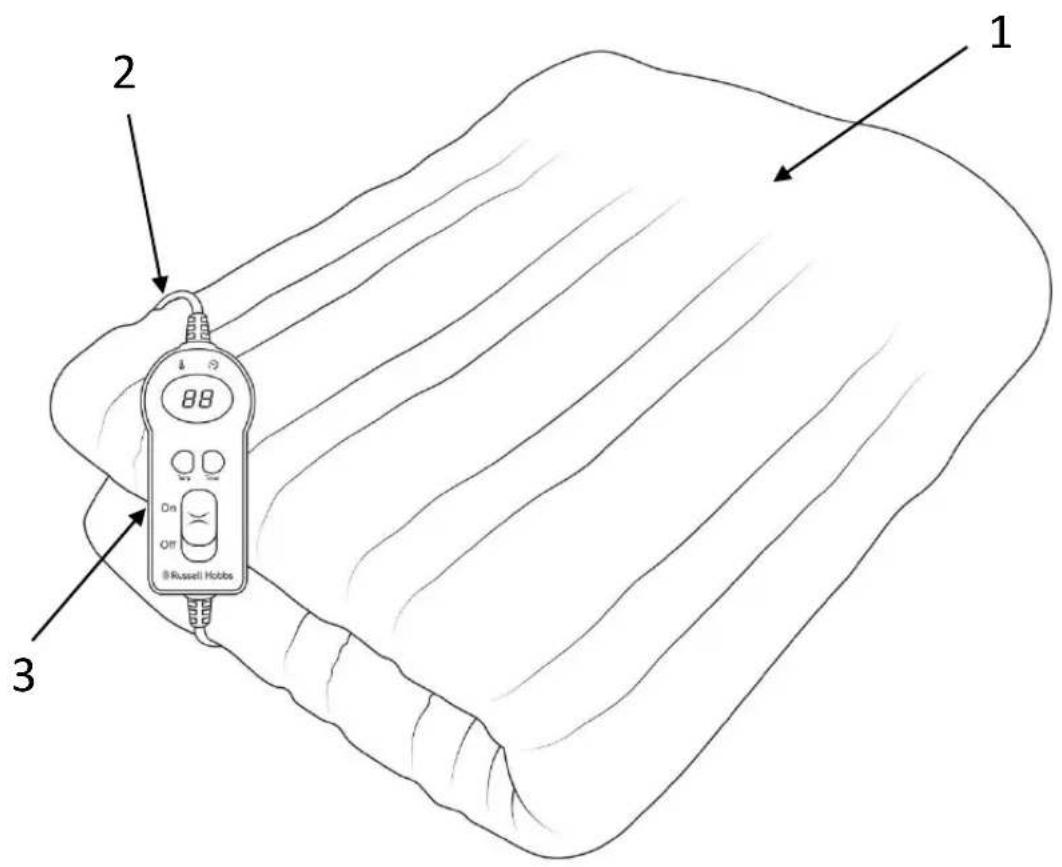

BLANKET FEATURE DIAGRAM

1. Electric throw blanket
2. Detachable power cord
3. Controller

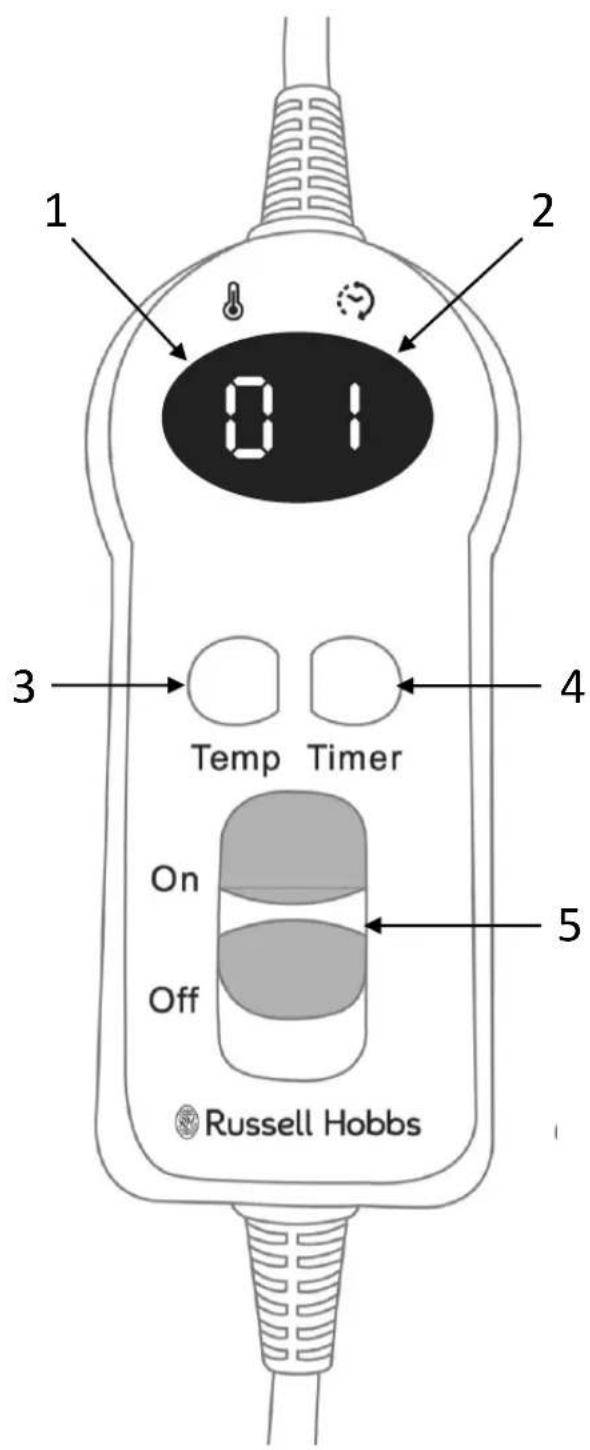

CONTROL FEATURE DIAGRAM

1. Temperature setting display
2. Timer setting display
3. Temperature setting adjustment button
4. Timer setting adjustment button
5. Power switch

USING YOUR ELECTRIC BLANKET

1. Insert the mains plug into a suitable wall mains socket using an extension lead, if needed, to ensure that the lead is not stretched.
2. Push the power switch to "On" to turn on the throw blanket. The default settings will be displayed as "0" as the heat setting and "1" as the timer setting.
3. Adjust the temperature by pressing the "Temp" button; this will enable you to select a heat setting from 1-9.
4. Adjust the timer by pressing the "Timer" button; this will enable you to choose the length of time the heated throw will operate for. Your throw can operate from 1-9, or 12 hours. After the selected time has passed, the heated throw will automatically switch off.

Note: When the display shows "H", the timer is set for 12 hours.

Note: The highest heat setting “9” should only be used for preheating; this setting is also only able to be programmed to run for 1 hour. The recommended heating setting for comfortable prolonged use is setting “4”.

Note: The lead between the controller and throw may get warm during use. This is normal and safe.

First time use

- When using your heated throw for the first time, set the heat setting to “9”, and the timer setting to “1”. This will remove any humidity and alleviate any odours present from the manufacturing process.

USING YOUR ELECTRIC BLANKET

Preheating

• To preheat the throw blanket set the heat setting to "9", and the timer setting to "1".
  • After 1 hour, manually reduce the heat setting to avoid the appliance overheating.

All night use

- Electric throw blankets are perfectly safe to be used all night, however we recommend using the heat settings 1-3. These settings will provide safe and comfortable heat to sleep on all night.

Safety Protective Devices

Overheat Protection System - The system will remain dormant indefinitely as long as the throw blanket is operating in the normal temperature range. If, for any reason, the throw blanket is operated in an abnormal situation or condition which would otherwise have induced a rapid temperature rise high enough to constitute a hazard, the over heat protection should intervene by cutting off the supply current before the temperature reaches the point at which damage may occur. In the event of the over heat protection operating, the throw blanket will cease to function.

USING YOUR ELECTRIC BLANKET

Note: You may notice an odour when using the blanket for the first time, due to the insulation material. This is harmless and will subside quickly.

Note: No attempt should be made to repair the throw blanket or have it repaired locally. The switch supplied must never be replaced since the specialised components are not generally available.

The controller MUST remain uncovered during use, and the throw blanket should be kept flat when switched on and unsupervised, even for a short time.

Below are some examples of how to use your throw blanket:

• To warm the couch
• On top of you while on the bed
• Lightly wrapped around your body

However, DO NOT use your throw blanket in the below ways. These could result in the overheat protection system activating:

• While it is folded
  • Underneath your bedding
• While sitting on it

CLEANING AND CARE

WARNING: Electrical Shock Hazard.

Note: Before any cleaning, ensure the control is set to the "OFF" position and remove the plug from the wall socket.

Note: Do not allow the controller to come in contact with any wet solution.

Before you clean the appliance, disconnect the mains plug from the wall socket.

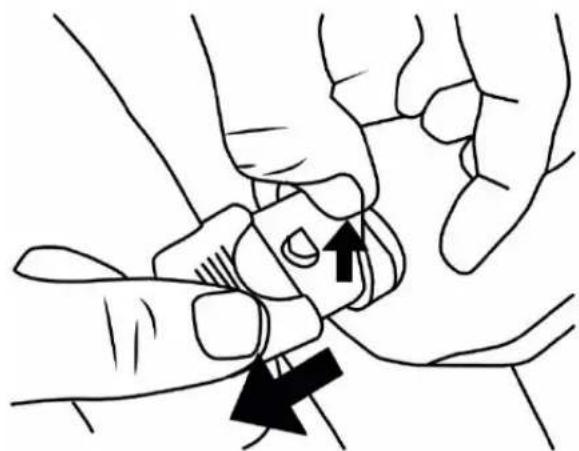

Detach the control

- Lift the tab on the controller attached to the plastic connector on the throw blanket, carefully pull the plug connector away from the throw blanket. The controller must NEVER be immersed in water.

Illustration of a finger pressing a small object with an arrow indicating direction (no text or symbols)

DISCONNECT BEFORE CLEANING

- The heating wires within the electric throw blanket are fully water-proof.

CLEANING AND CARE

Washing instructions

Only use the below instructions:

• Hand wash or spot clean
- Do not machine wash above 40°C
- Do not tumble dry
- Do not wring
- Do not bleach
- Do not dry clean
- Do not iron
- Do not immerse the controller, supply cord or plug in any liquid.

Spot Cleaning

Sponge the affected area using a luke warm neutral detergent or mild soapy solution. Follow this with a sponging using a clean water solution. Remove any excess water by compressing the wet area between absorbent towels.

Machine Washing 40°

• Immerse the throw blanket only (Do not allow the controller to come in contact with any wet solution), in luke warm neutral detergent or mild soapy solution for 15 minutes, ensure the water temperature is lower than 40°C.
• Wash in the washing machine on the shortest cycle at low temperature on a low spin washing and drying cycle.

CLEANING AND CARE

• Rinse the throw blanket thoroughly in clean fresh water.
• Unfold the throw blanket and allow to dry naturally.

Hand Washing

• Immerse the throw blanket only (Do not allow the controller to come in contact with any wet solution), in a luke warm neutral detergent or mild soapy solution.
• Soak for five minutes, remove from the solution, and gently squeeze the solution through the throw blanket.
• Rinse the throw blanket only (Do not allow the controller to come in contact with any wet solution), thoroughly clean in luke warm water; gently squeeze and drain the excess water from the throw blanket.
• Do not wring the throw blanket.

Drying

• Do not tumble dry
• Do not iron
• Do not use pegs to secure the throw blanket in position.
• Do not dry with a hair dryer or heater.
  • Drape the throw blanket across a clothes line and drip dry.

Note: Ensure the controls are in a position that will not allow dripping water to fall onto any part of the controller.

Storage

- When not in use, pack the throw blanket in its original packaging for best protection and store in a cool, clean and dry location. Avoid pressing sharp creases into the throw blanket.

PROBLEM SOLVING

My appliance does not work when I turn it on:

1. Check that your appliance is plugged in and the power is turned on at the mains socket.
2. Try another mains socket.
3. Check that the control has been set to the correct setting and is not in the off position.
4. If the appliance still doesn't work, do not try to repair it yourself.

If your appliance power is automatically cut off, follow the step below:

1. Unplug your appliance from the mains socket and allow it to completely cool down.
2. Inspect your appliance. If there are any signs of physical damage (e.g. melting, or burning of the case), do not attempt to use the appliance. Please leave all maintenance work to qualified personnel.
3. Plug in the appliance and switch it on again. If it cuts off again, move the appliance to a better ventilated location.

GUARANTEE AND CUSTOMER

SERVICES

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or consumable parts.

This does not affect your statutory rights.

Customer Services & Spare Parts:

Region	Contact	Website
UK & Northern Ireland	0345 209 7461	mda.russellhobbs.com
Ireland	1 800 938982	ie.mda.russellhobbs.com
Rest of Europe	[e-mail]	de.mda.russellhobbs.comfr.mda.russellhobbs.comes.mda.russellhobbs.comit.mda.russellhobbs.comnl.mda.russellhobbs.com

CONNECTION TO THE MAINS SUPPLY

This appliance is designed to operate from a mains supply of 220-240V\~50Hz.

Check that the voltage marked on the product corresponds with your supply voltage.

How to change the fuse:

1. Slot the end of a screwdriver into the recess in the fuse holder of the plug.
2. Pull the fuse holder upwards until free of the plug and slide the fuse out.
3. Replace the fuse and replace the fuse holder, pushing down until locked into place.

Important: Only ever use a 3 amp fuse.

Illustration of hands using a screwdriver to adjust or install an electrical plug (no text or symbols present)

SPECIFICATION

Model number RHHT1003 (BLU) (OR)

Rated voltage 220V - 240V \~ 50Hz

Power consumption 120W

Product dimensions (CMS) (W)130 x (L)180

Model number RHHT1004 (BLA) (BG)

Rated voltage 220V - 240V \~ 50Hz

Power consumption 120W

Product dimensions (CMS) (W)130 x (L)180

Russell Hobbs

Made by Product Care Trading Limited under license from Spectrum Brands (UK) Limited. Product Care Trading Ltd, Unit 1 Green Bank Business Park, Swan Lane, Hindley Green, Wigan, WN2 4AY, United Kingdom / Product Care (Ireland) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, T23 AT2P, Ireland. Russell Hobbs is the registered trademark of Spectrum Brands (UK) Ltd.

The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

SEDEX – Connecting businesses and their global suppliers to share ethical data and enabling improvement in ethical performance. Visit www.sedex.org.uk for further information.

We reserve the right, due to possible changes to design, to alter the instruction manual without prior notice.

Revision 1.5
