Product Type	Managed PoE+ Network Switch
Model	VigorSwitch PQ2121x
Ports	12 x 10/100/1000 Mbps PoE+ Ports, 2 x Combo SFP Slots
PoE Budget	240W Total, up to 30W per Port
Switching Capacity	56 Gbps
Dimensions (W x D x H)	330 x 230 x 44 mm
Weight	2.5 kg
Power Supply	Internal, 100-240V AC, 50/60Hz, 3.5A Max
Power Consumption	Maximum 280W (with all PoE ports active)
Management	Web-based GUI, CLI, SNMP, RMON, Telnet, SSH
Layer 2 Features	VLAN (802.1Q), Link Aggregation, Spanning Tree, IGMP Snooping
Quality of Service (QoS)	802.1p, DSCP, Rate Limiting, Storm Control
Security	802.1X, ACL, Port Security, DHCP Snooping, IP Source Guard
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% Non-condensing
Cooling	3 x Smart Fans, Variable Speed
Installation	Rack-mountable (19-inch, 1U) or Desktop
Maintenance & Cleaning	Wipe with dry cloth; avoid liquids; keep vents clear
Safety	CE, FCC; use supplied power cord; disconnect during thunderstorms
Spare Parts & Repairability	Contact DrayTek support; no user-serviceable parts inside

Frequently Asked Questions - VigorSwitch PQ2121x Draytek

How do I access the web interface of the VigorSwitch PQ2121x?

Connect your computer to one of the switch ports. By default, the switch uses IP 192.168.1.1. Open a browser and enter this IP. Login with default credentials: admin/admin. Change the password on first login.

What is the maximum PoE budget?

The switch provides a total PoE budget of 240W, with up to 30W per port (PoE+). Ensure total device power does not exceed 240W.

Can I mount this switch on a rack?

Yes, the VigorSwitch PQ2121x is 1U high and comes with rack-mount brackets. It can also be placed on a desktop.

How do I reset the switch to factory defaults?

Press and hold the Reset button on the front panel for about 10 seconds until the LEDs flash. The switch will reboot with factory settings.

Does the switch support VLAN configuration?

Yes, it supports 802.1Q VLAN. You can create up to 256 VLAN groups through the web interface or CLI.

What type of SFP modules are compatible?

The combo SFP slots accept standard 1000BASE-SX/LX modules. For best performance, use DrayTek-approved SFPs.

How do I update the firmware?

Download the latest firmware from the DrayTek website. Go to Maintenance > Firmware Upgrade in the web GUI and upload the .rom file. Do not power off during upgrade.

What is the default IP address?

The default IP address is 192.168.1.1 with subnet mask 255.255.255.0. If the switch is in DHCP client mode, check your router's DHCP list.

Can I use this switch for VoIP phones?

Yes, the switch is ideal for VoIP. Use PoE+ to power phones directly. Enable Voice VLAN and QoS to prioritize voice traffic.

How do I enable PoE on a specific port?

PoE is enabled by default. To disable or adjust settings, go to PoE Configuration in the web GUI. You can set priority, power limit, and schedule.

USER MANUAL VigorSwitch PQ2121x Draytek

Exterior view of a black network switch device with ports and indicator lights, set against a red background (no readable text or symbols on the device body beyond branding)

User's Guide

VigorSwitch PQ2121x

L2+ Managed Switch

User's Guide

Version: 1.0

Firmware Version: V2.8.1

Date: February 3, 2023

Intellectual Property Rights (IPR) Information

Copyrights

© All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

• Microsoft is a registered trademark of Microsoft Corp.
  Windows 8, 10, 11 and Explorer are trademarks of Microsoft Corp.
  Apple and Mac OS are registered trademarks of Apple Inc.
• Other products may be trademarks or registered trademarks of their respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

• Read the installation guide thoroughly before you set up the device.
  The switch is a complicated electronic unit that may be repaired only be authorized and qualified personnel. Do not try to open or repair the switch yourself.
  Do not place the switch in a damp or humid place, e.g. a bathroom.
  The switch should be used in a sheltered area, within a temperature range of 0 to +45 Celsius.
• Do not expose the switch to direct sunlight or other heat sources. The housing and electronic components may be damaged by direct sunlight or heat sources.
• Do not deploy the cable for LAN connection outdoor to prevent electronic shock hazards.
• Keep the package out of reach of children.
• When you want to dispose of the modem, please follow local regulations on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the switch will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Be a Registered

Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com.

Owner

Firmware & Tools Updates

Due to the continuous evolution of DrayTek technology, all modems will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

https://www.draytek.com

Table of Contents

Chapter I Introduction......IX

I-1 Introduction....1

I-1-1 Key Features....1
I-1-2 LED Indicators and Connectors....2

I-2 Installation....4

I-2-1 Network Connection....4
I-2-2 Rack-Mounted Installation....5

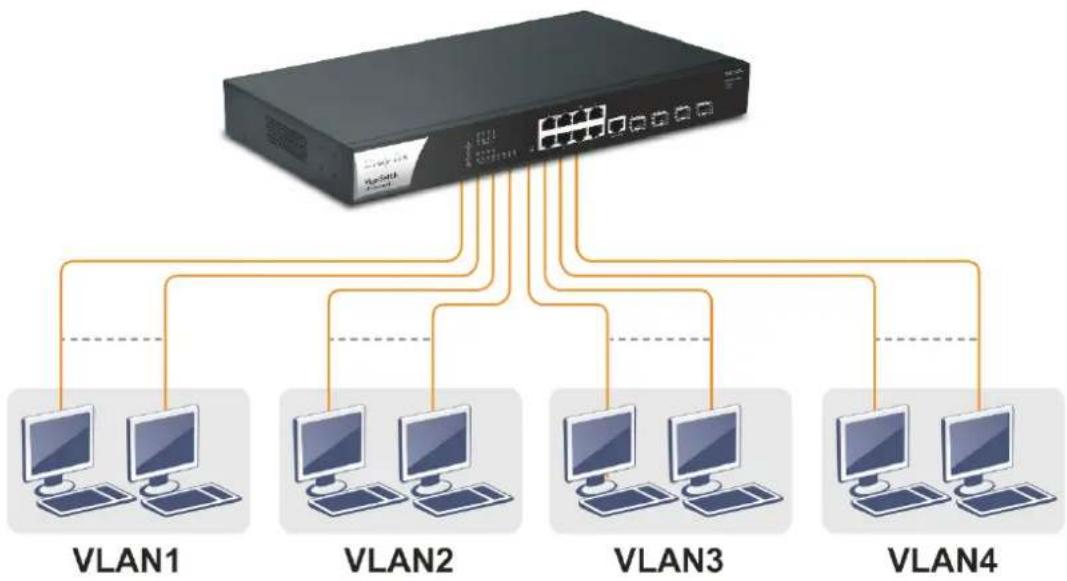

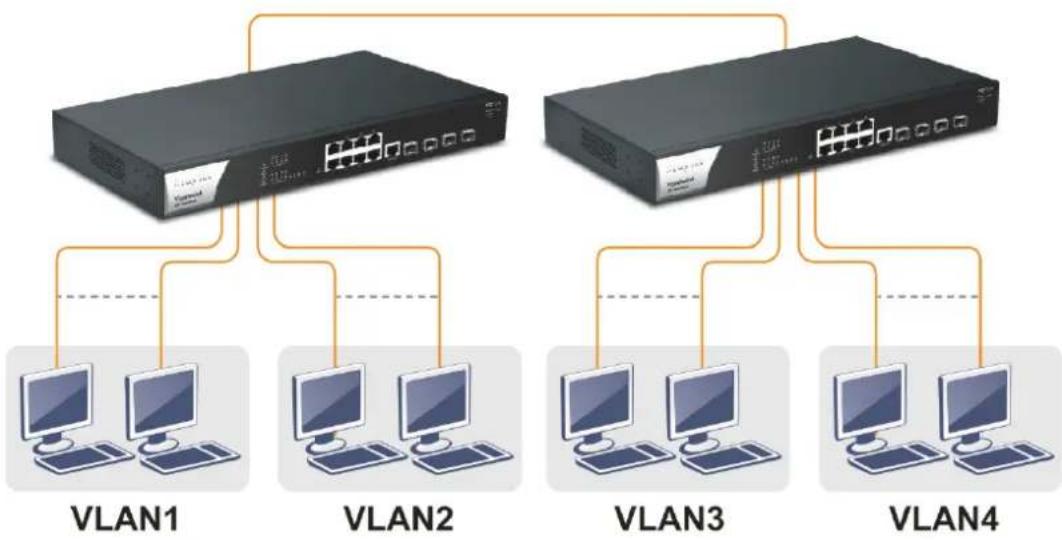

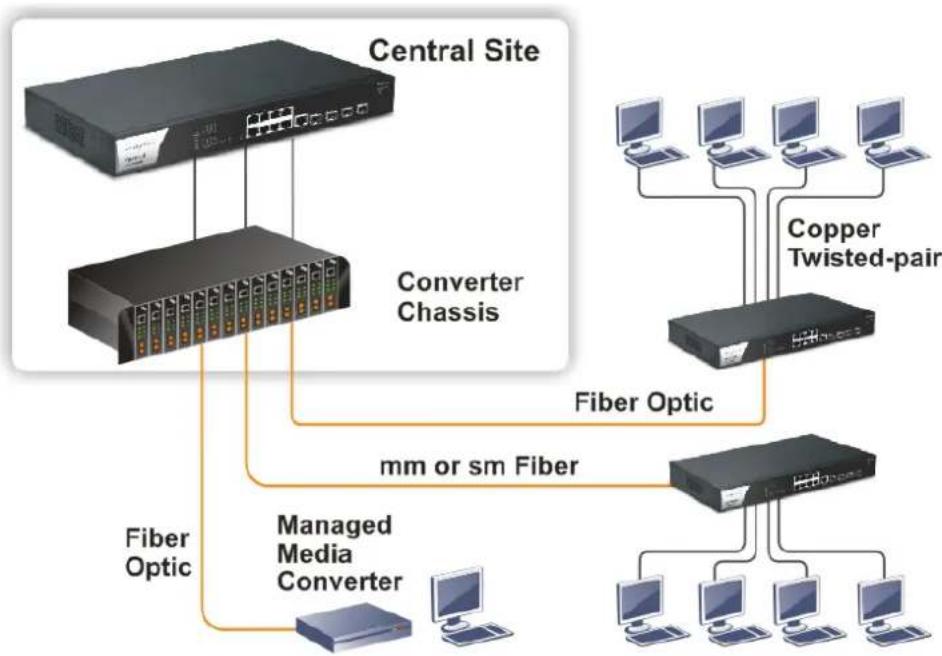

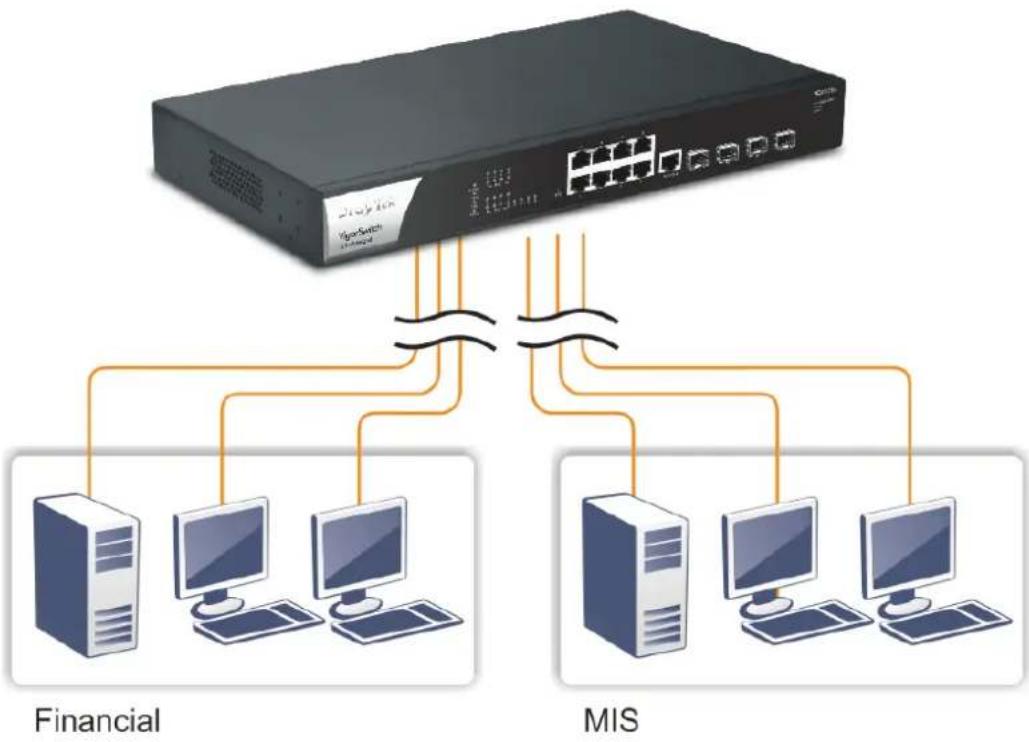

I-2-3 Typical Applications ....6
I-2-4 Configuring the Management Agent of Switch.... 10
I-2-5 IP Address Assignment....11

I-3 Accessing Web Page of VigorSwitch....15

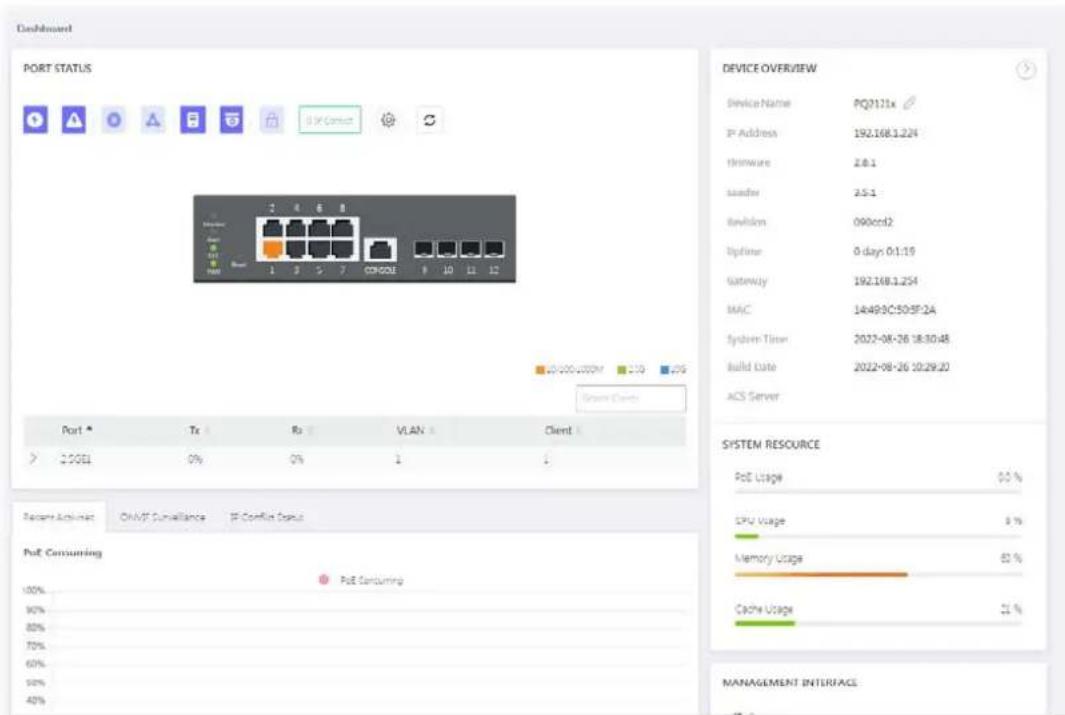

I-4 Dashboard 16

Chapter II Configuration 17

II-1 General Setup.... 18

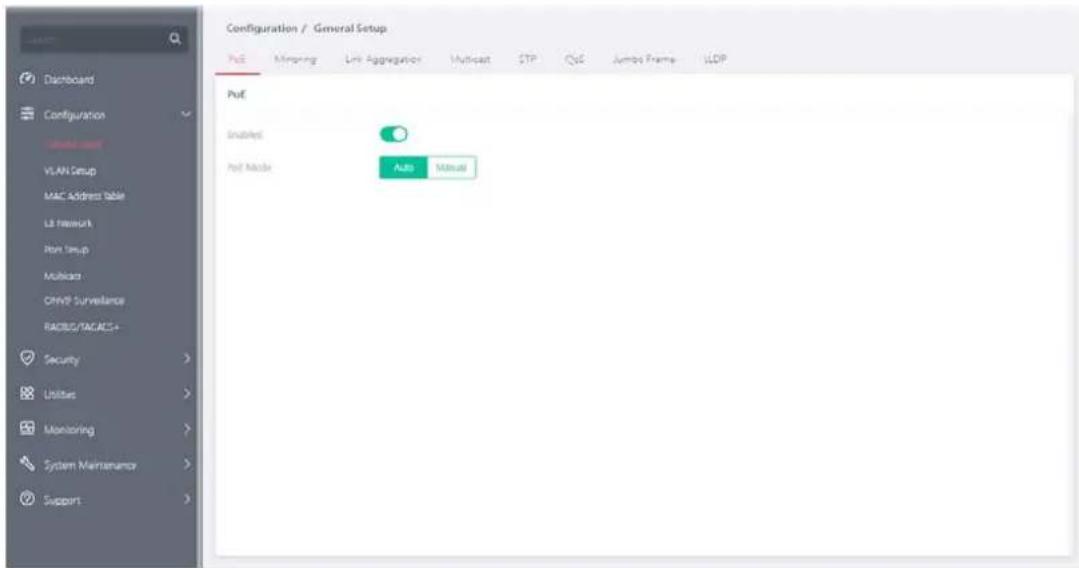

II-1-1 PoE....18
II-1-2 Mirroring.... 19

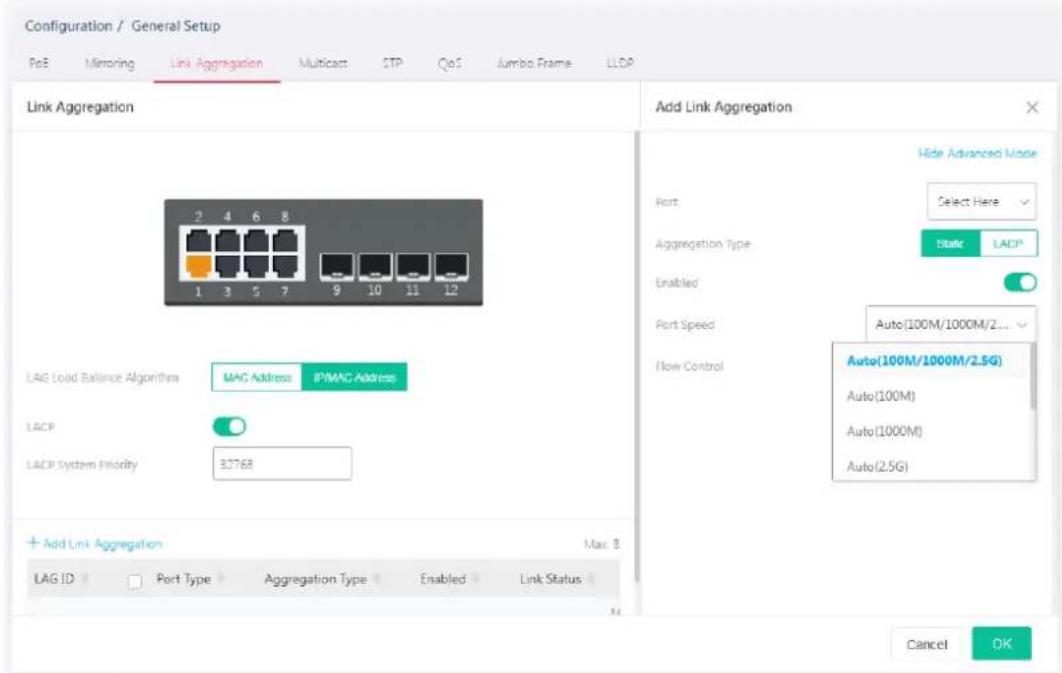

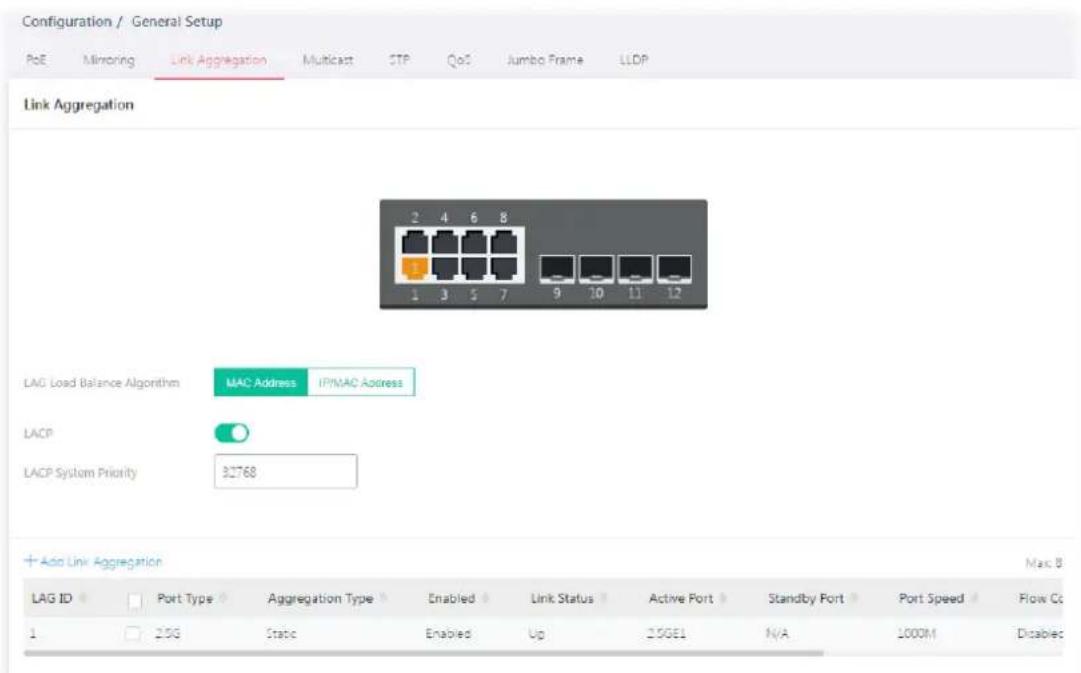

II-1-3 Link Aggregation....20

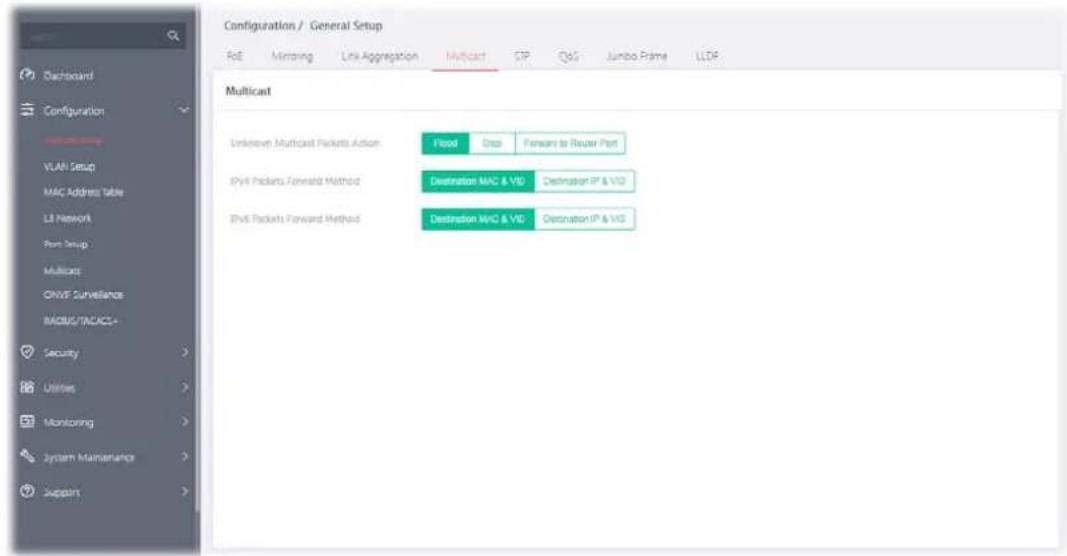

II-1-4 Multicast 23

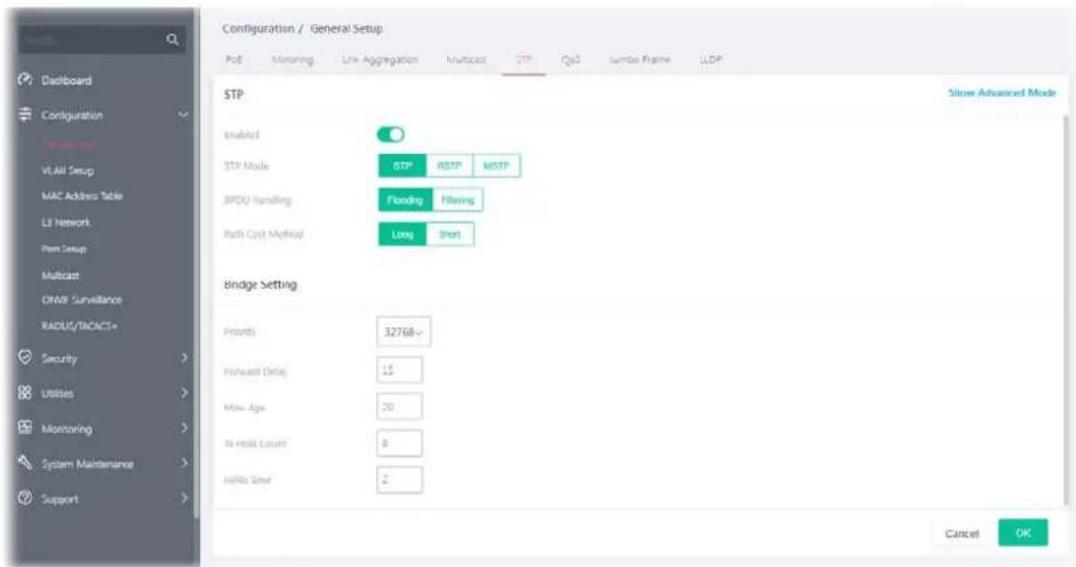

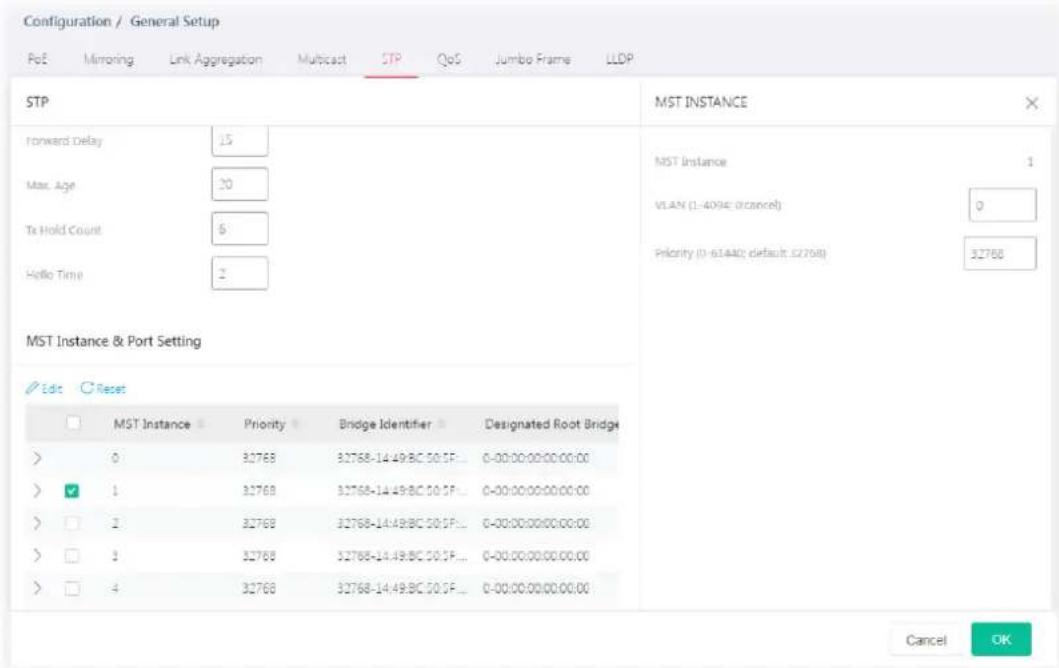

II-1-5 STP 24

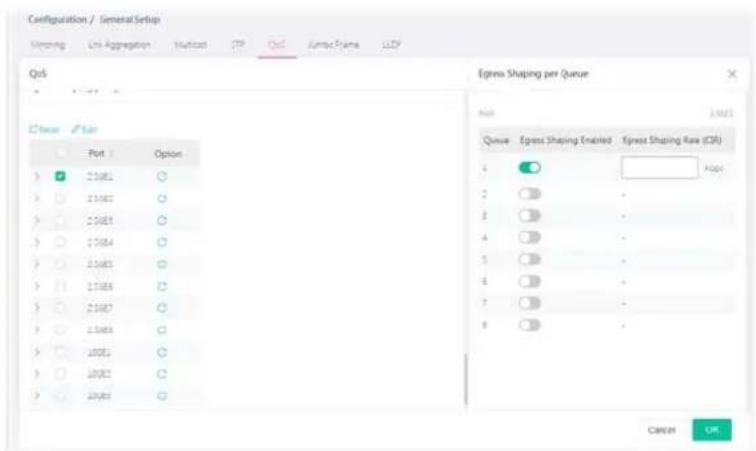

II-1-6 QoS 26

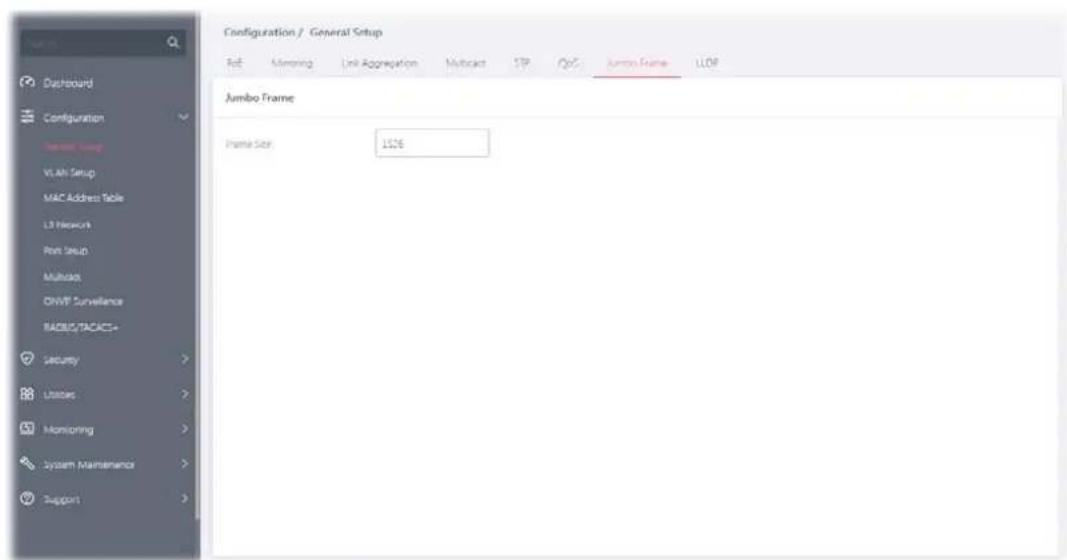

II-1-7 Jumbo Frame 29

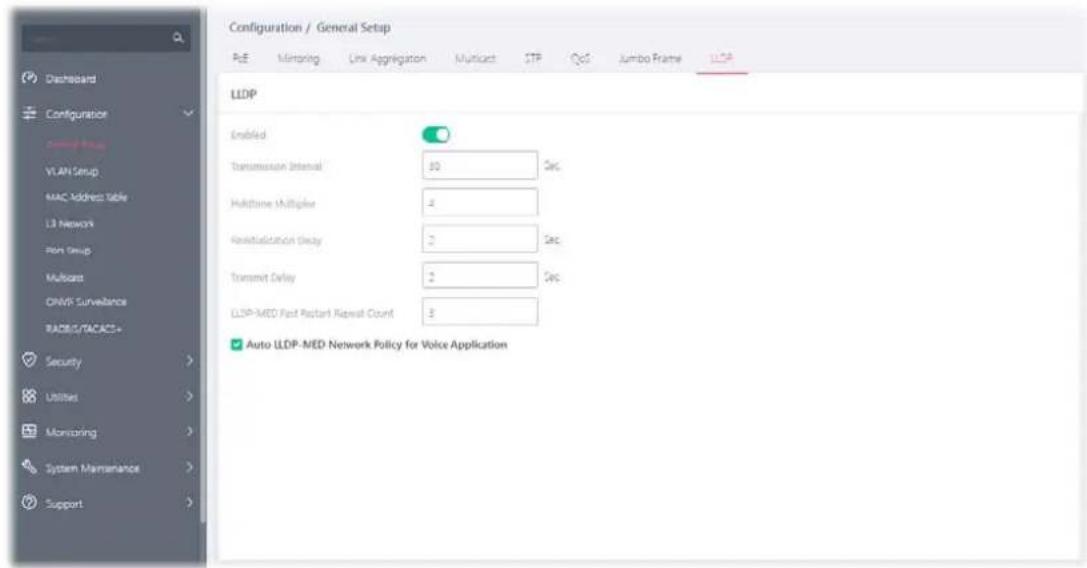

II-1-8 LLDP 30

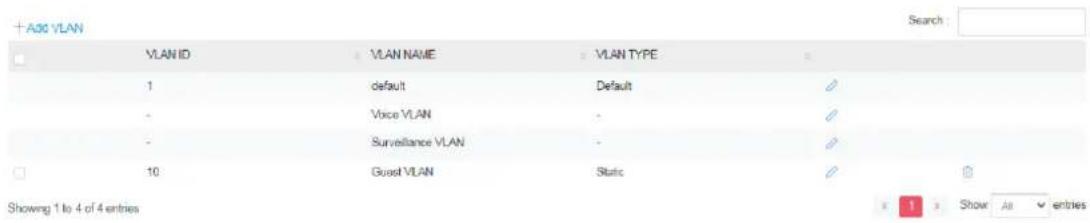

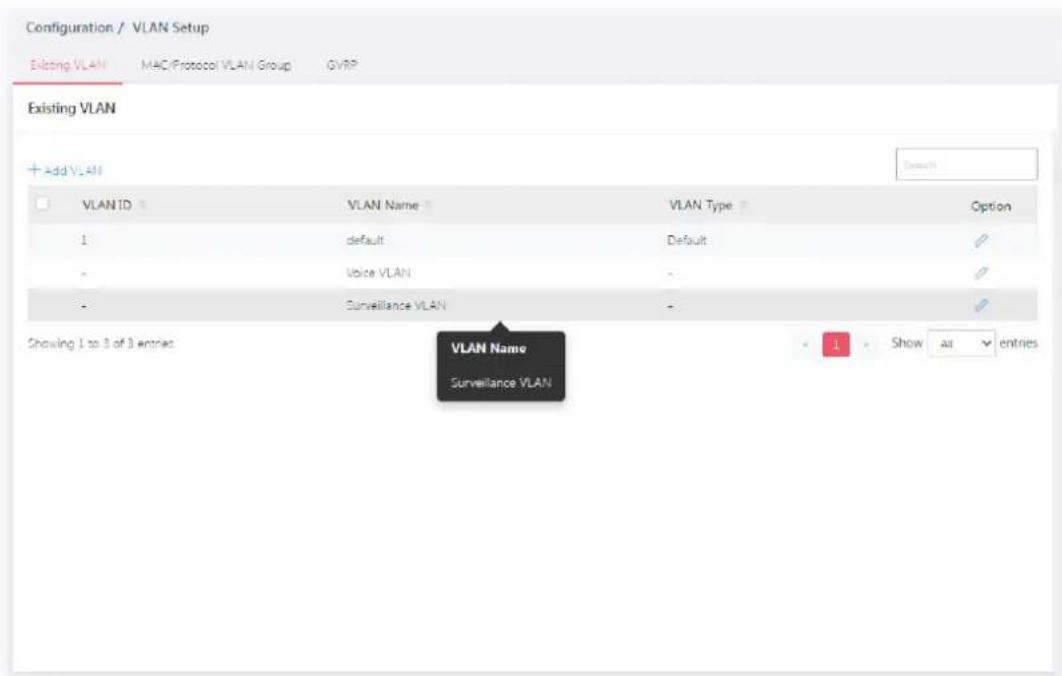

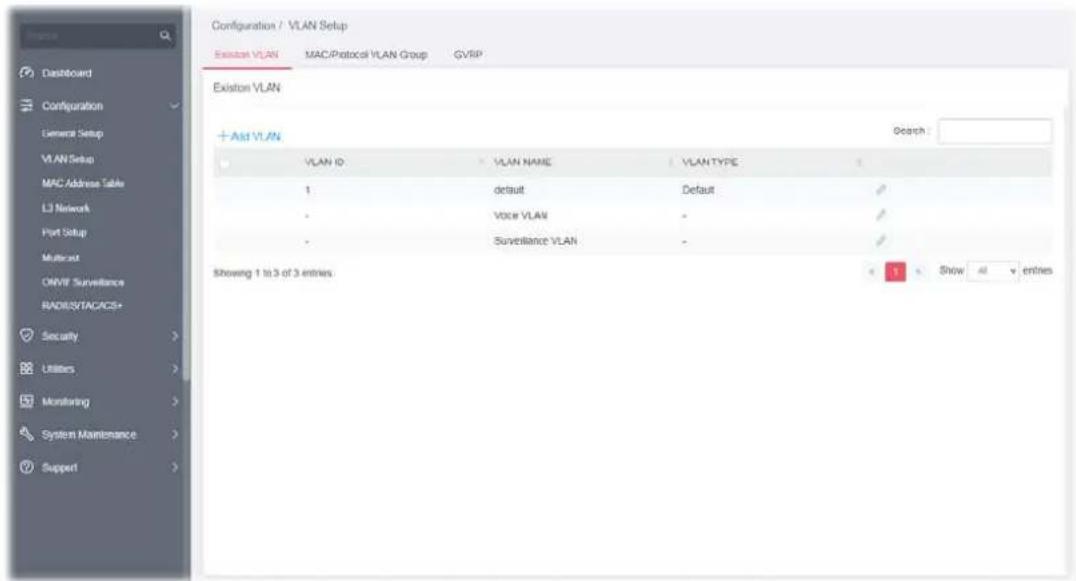

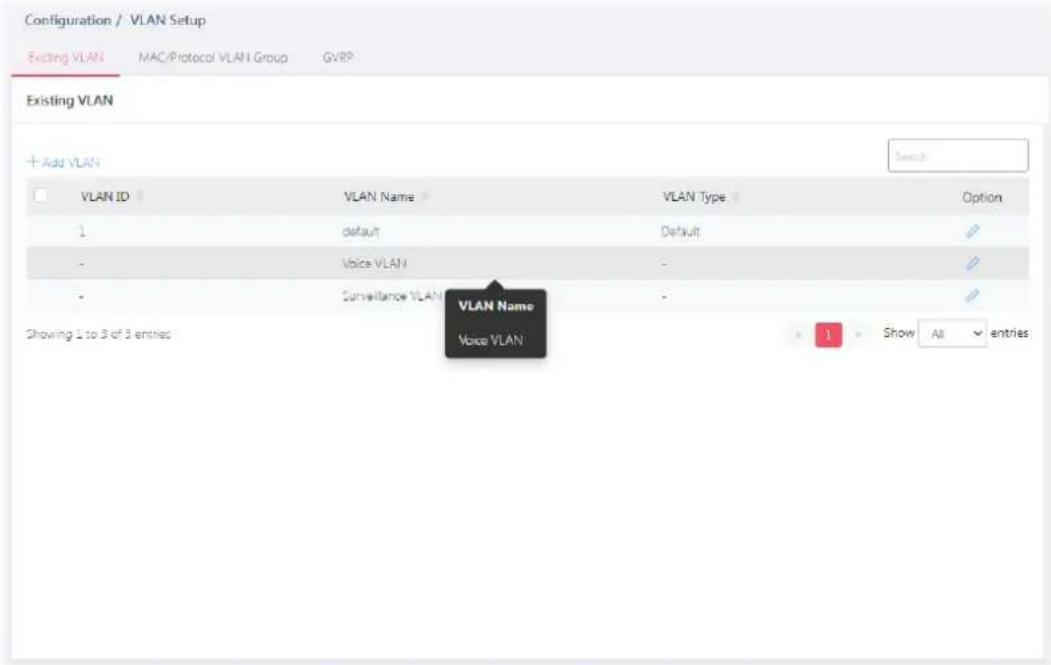

II-2 VLAN Setup 32

II-2-1 Existion VLAN 32

II-2-1-1 Default VLAN 32

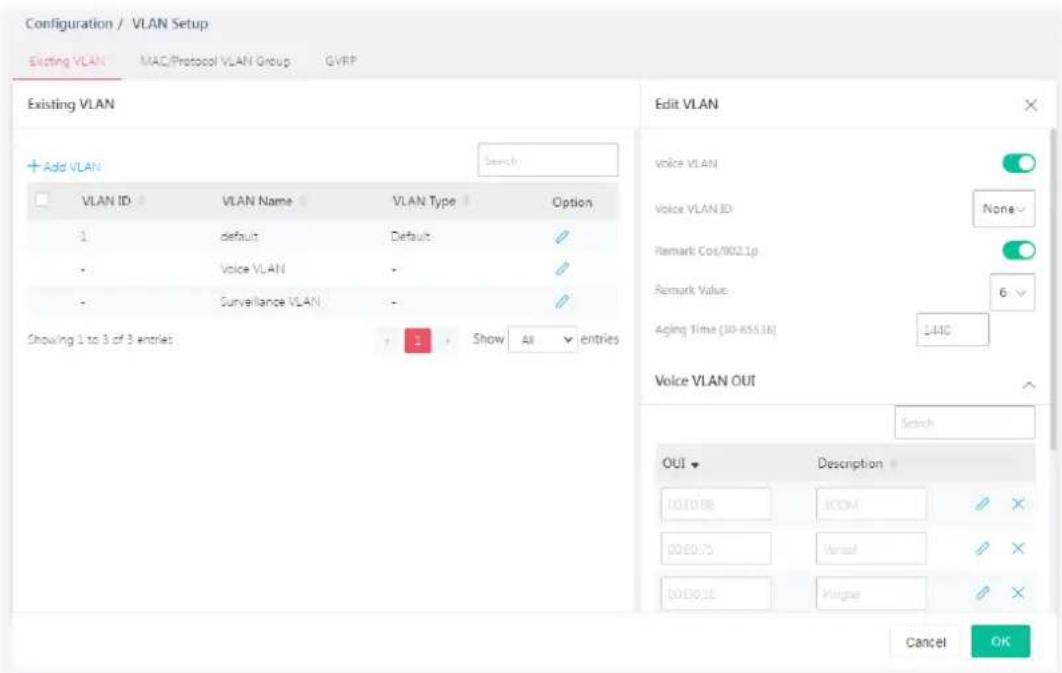

II-2-1-2 Voice VLAN....33

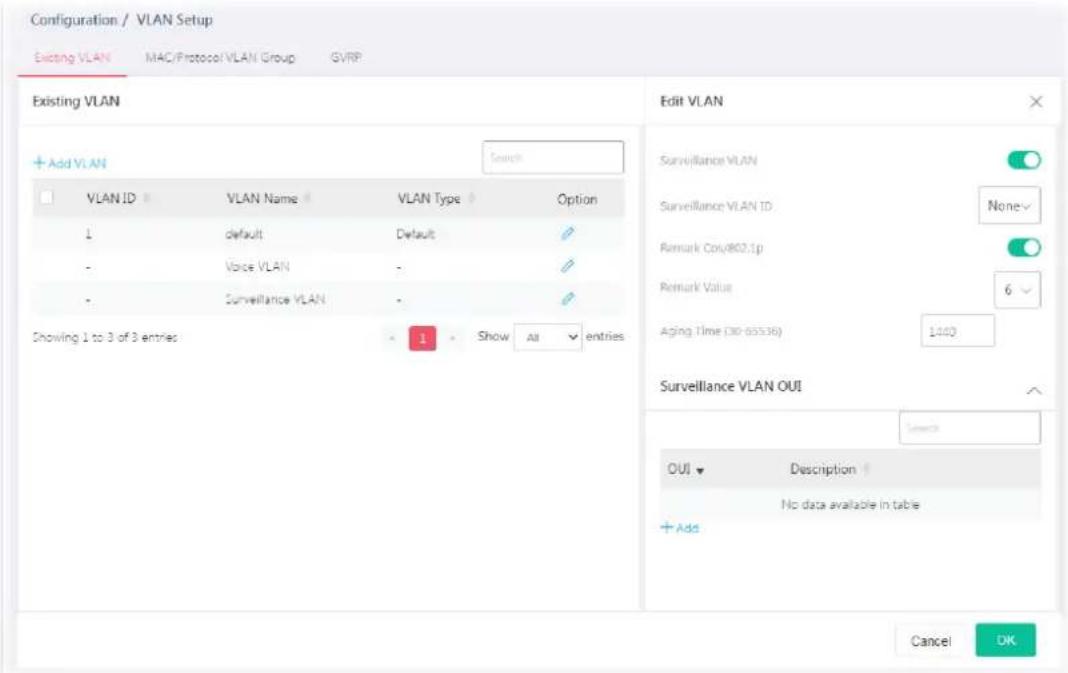

II-2-1-3 Surveillance VLAN 35

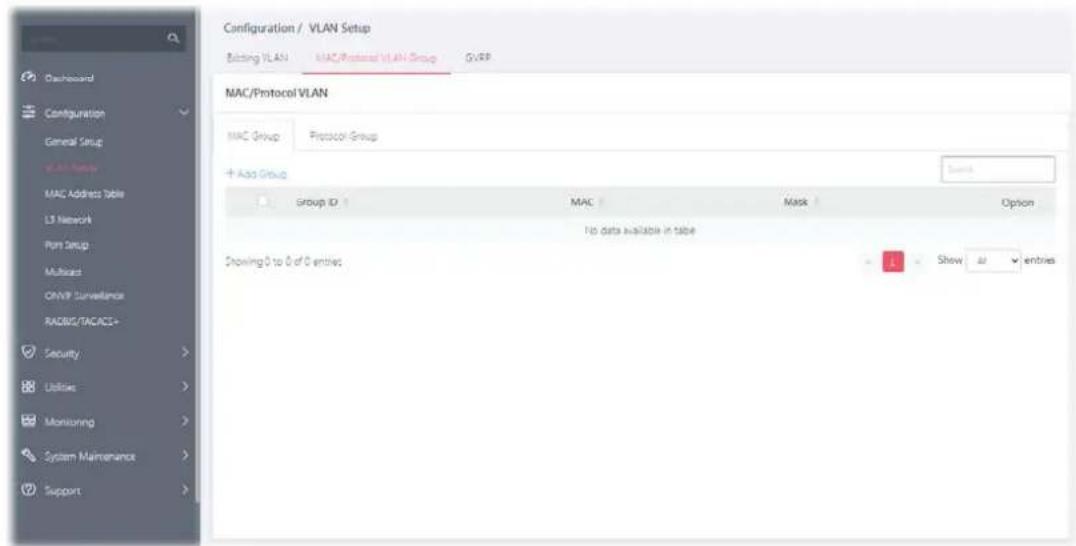

II-2-2 MAC/Protocol VLAN Group 37

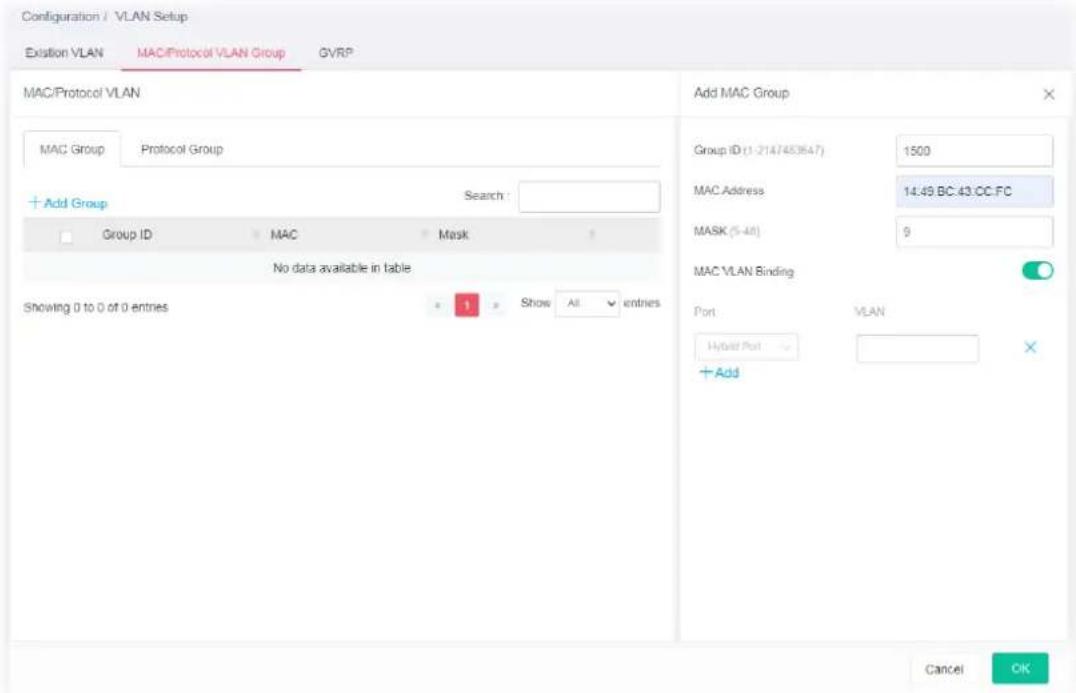

II-2-2-1 MAC Group 37

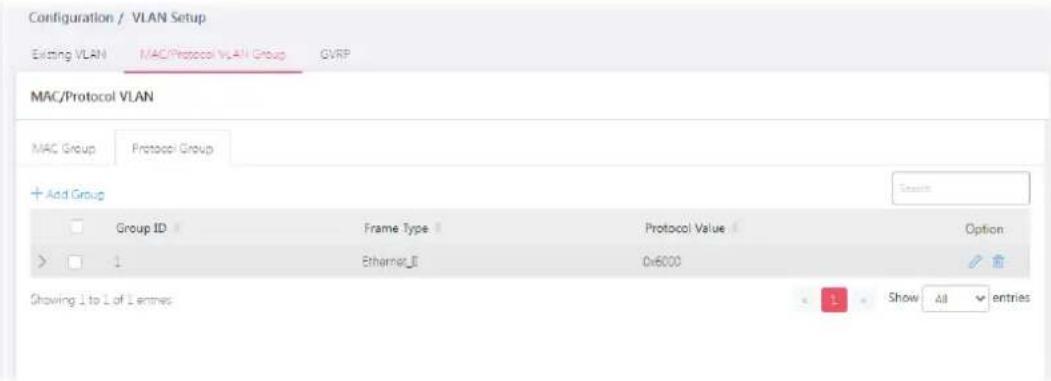

II-2-2-2 Protocol Group 39

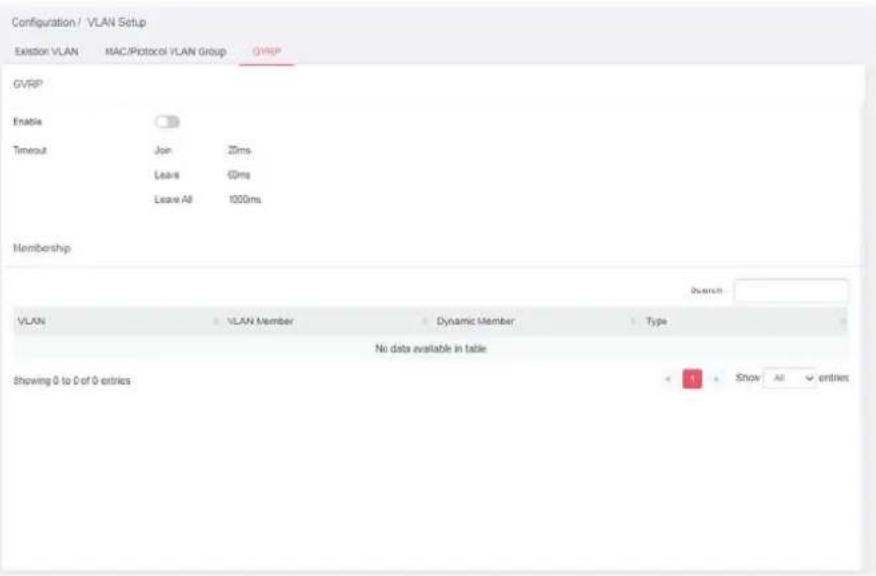

II-2-3 GVRP 41

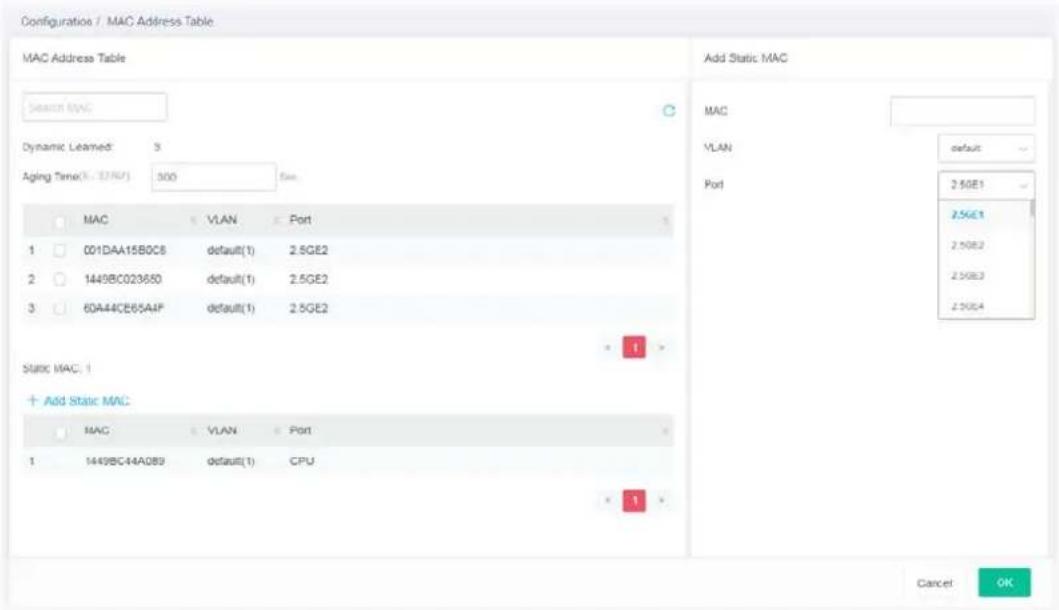

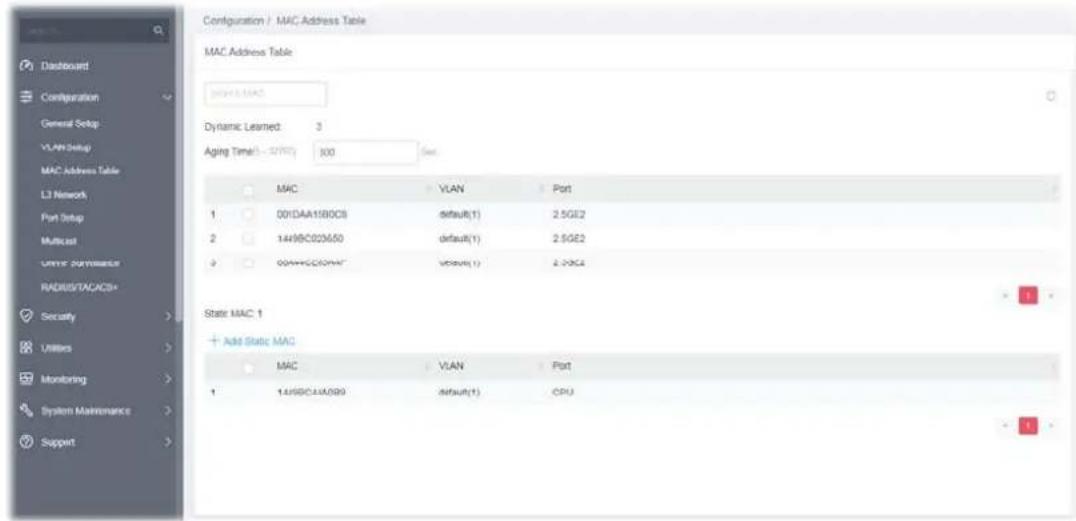

II-3 MAC Address Table 43
II-4 L3 Network 45

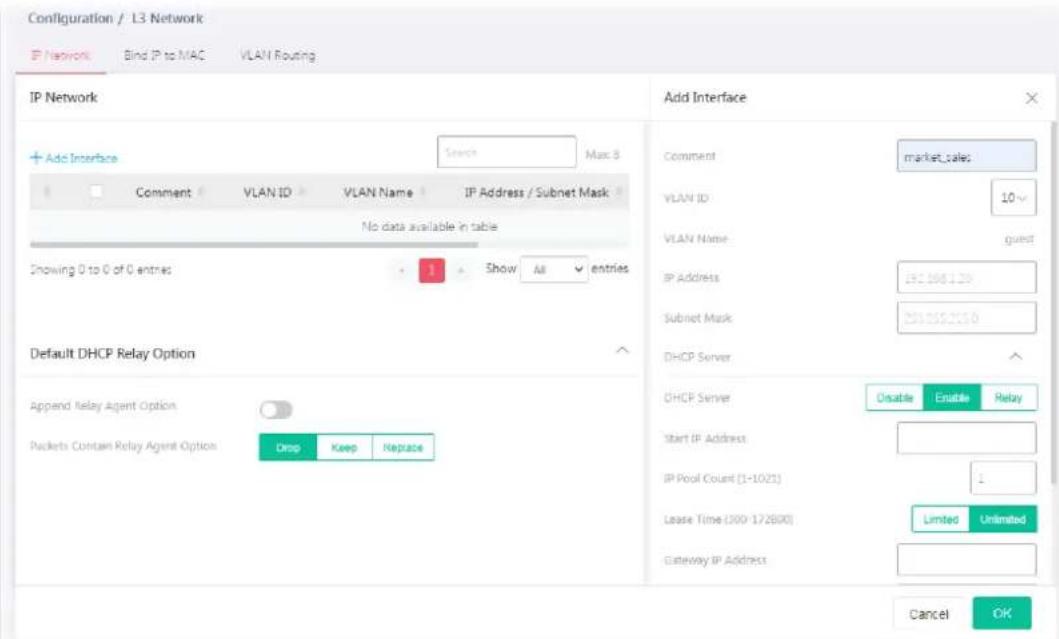

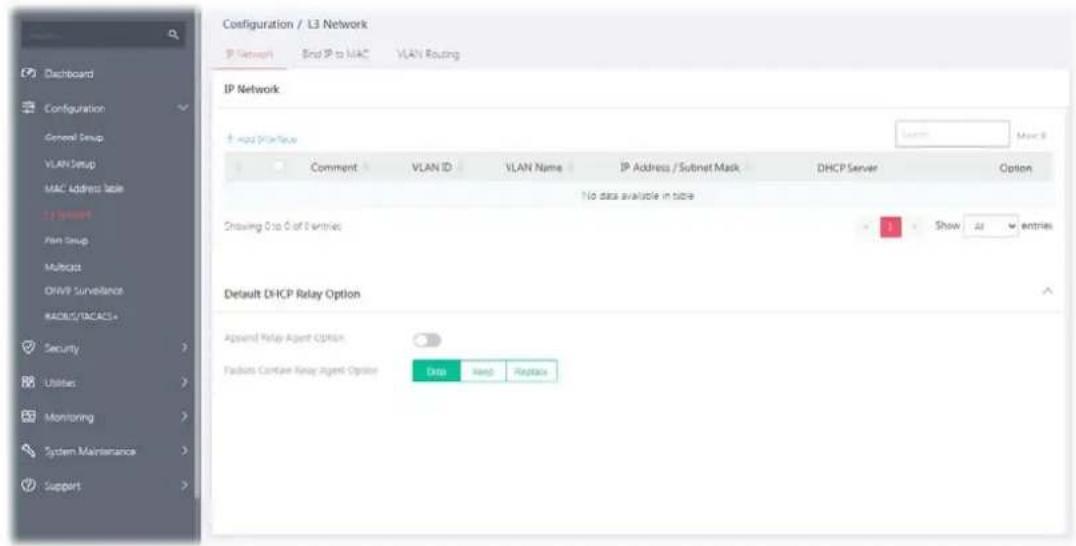

II-4-1 IP Network 45

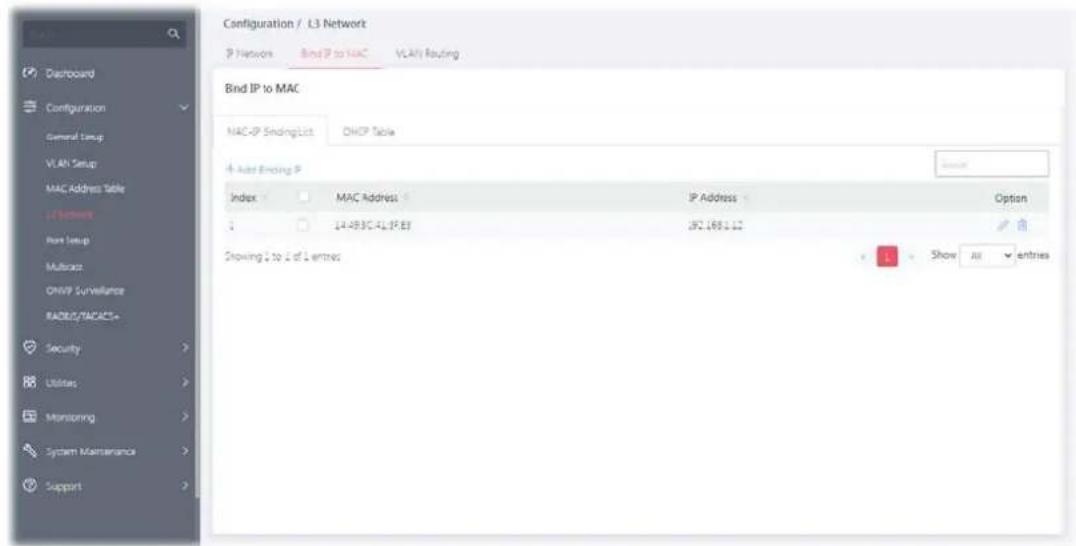

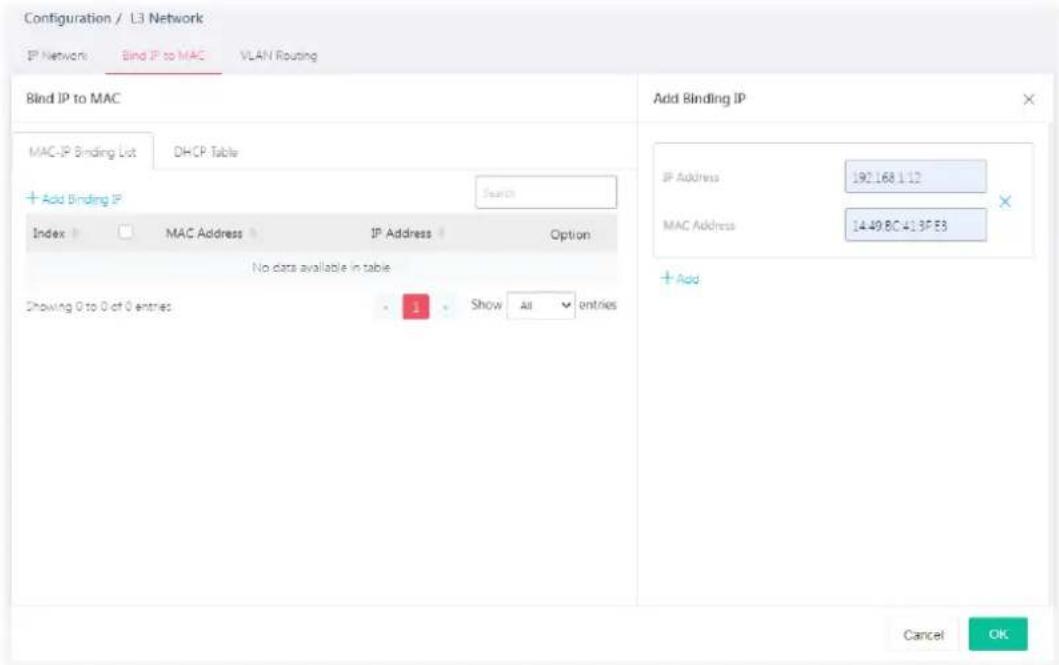

II-4-2 Bind IP to MAC 47

II-4-2-1 MAC-IP Binding List 47

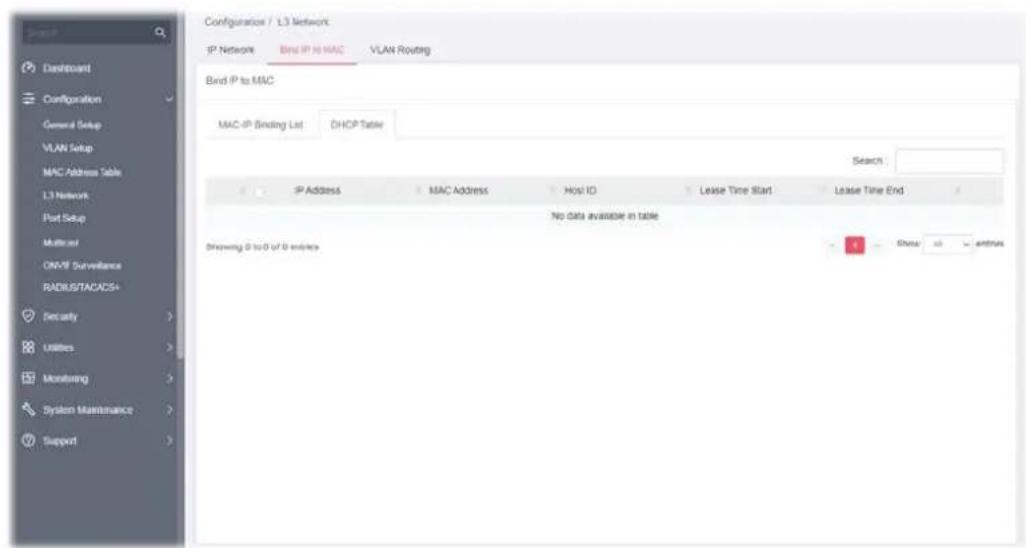

II-4-2-2 DHCP Table.... 48

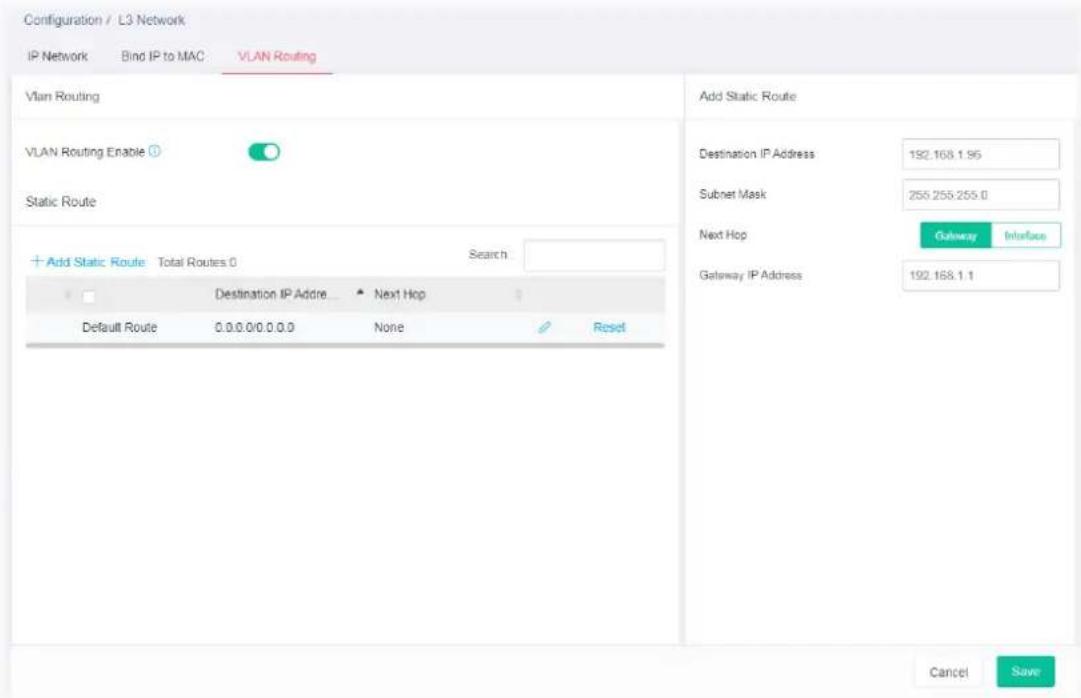

II-4-3 VLAN Routing.... 49

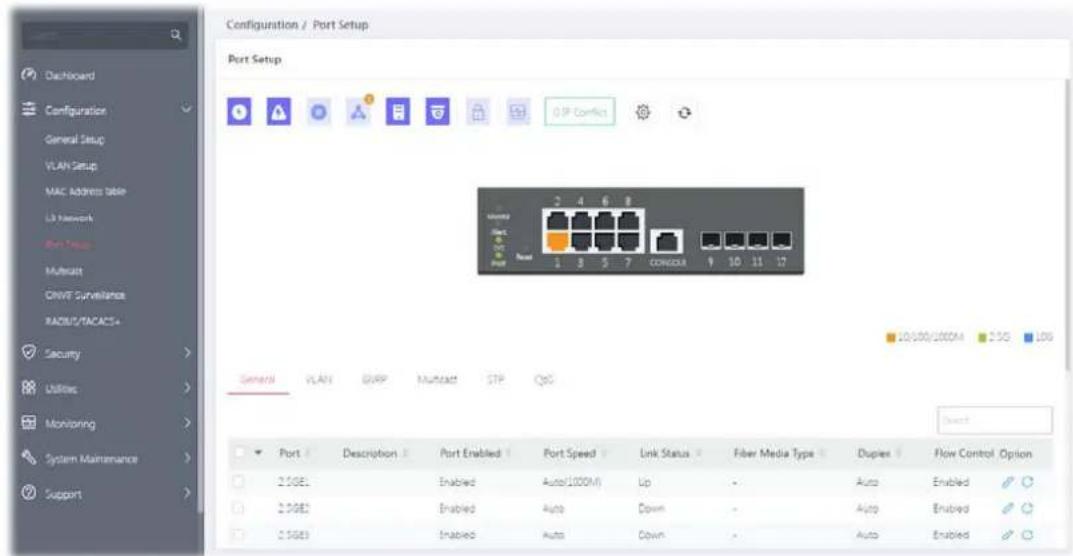

II-5 Port Setup 51

II-5-1 General 51

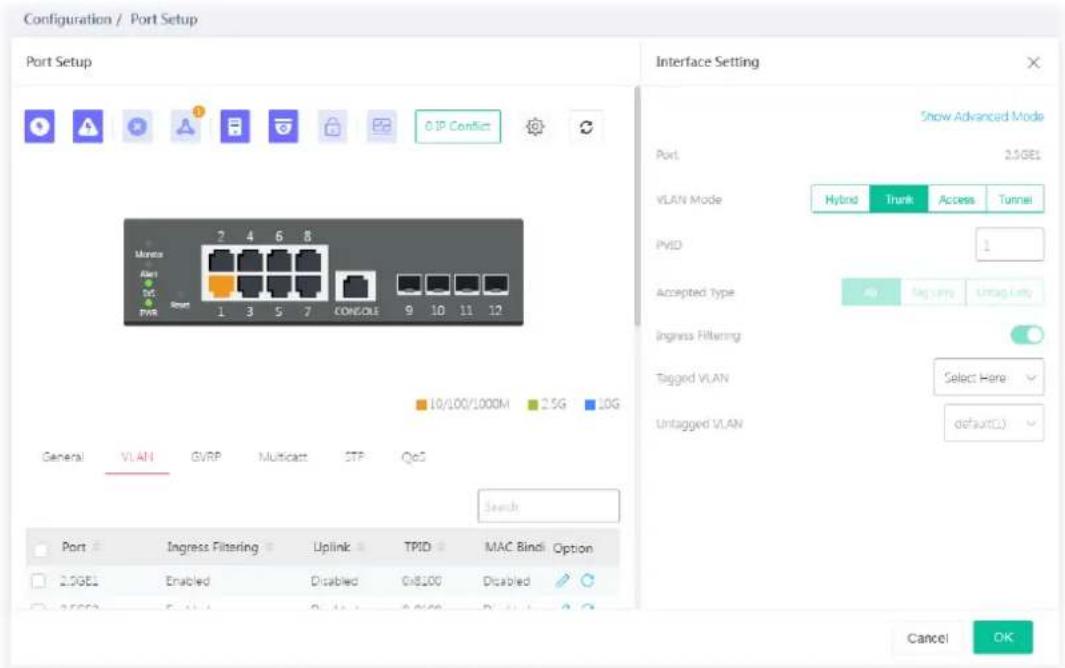

II-5-2 VLAN 53

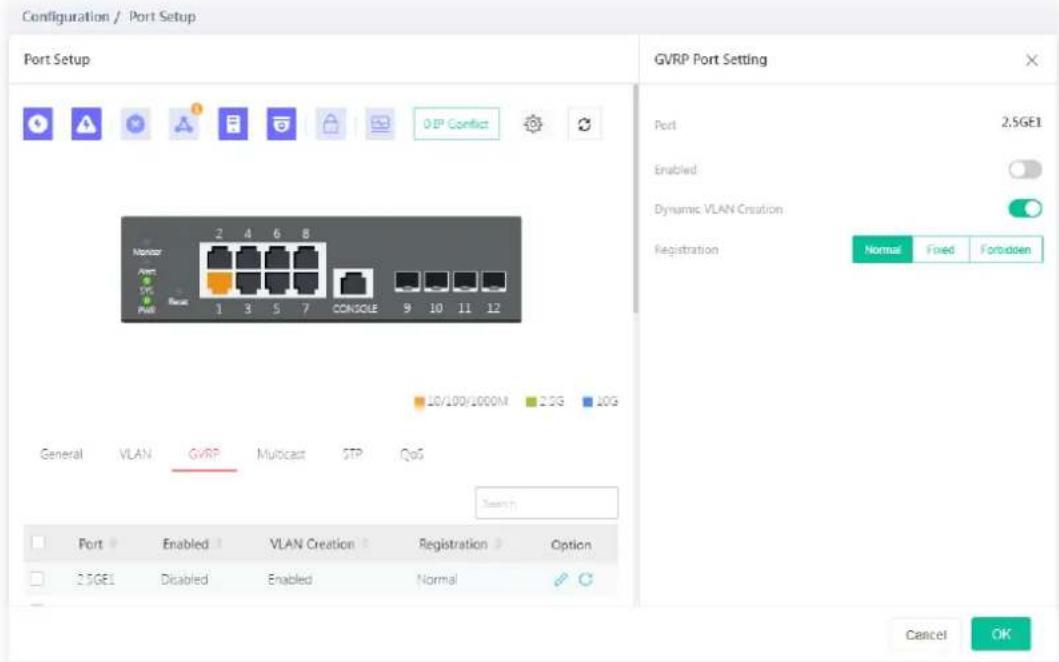

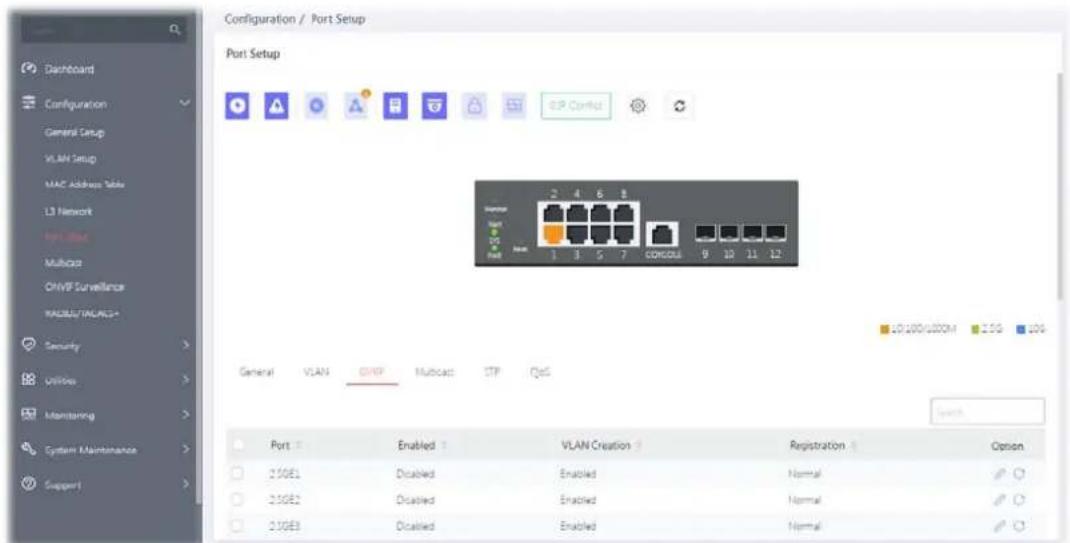

II-5-3 GVRP 57

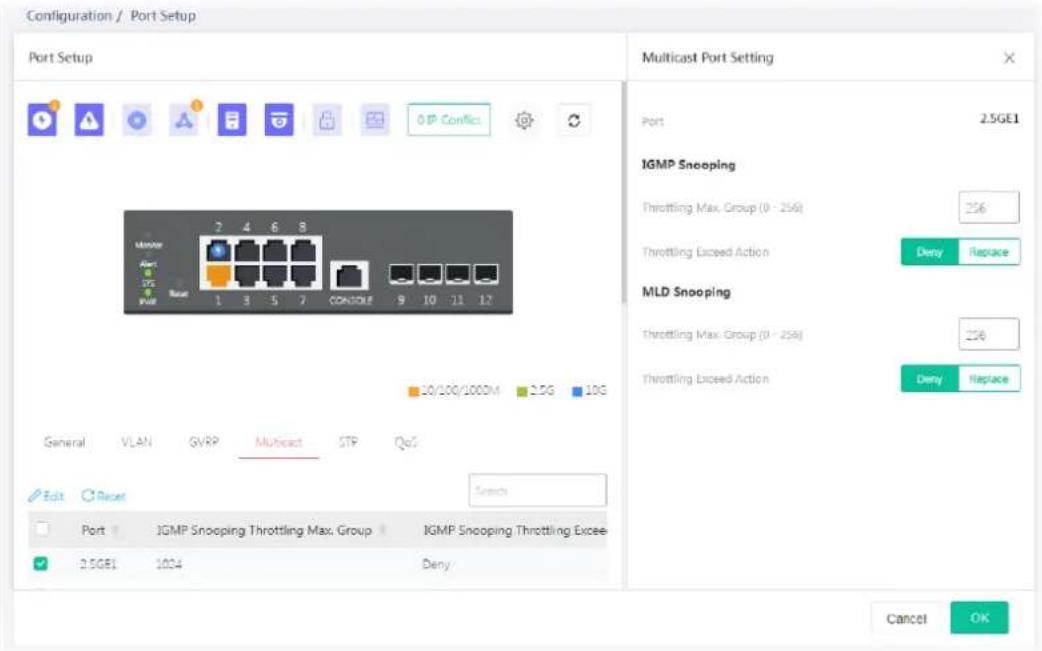

II-5-4 Multicast 59
II-5-5 STP 61

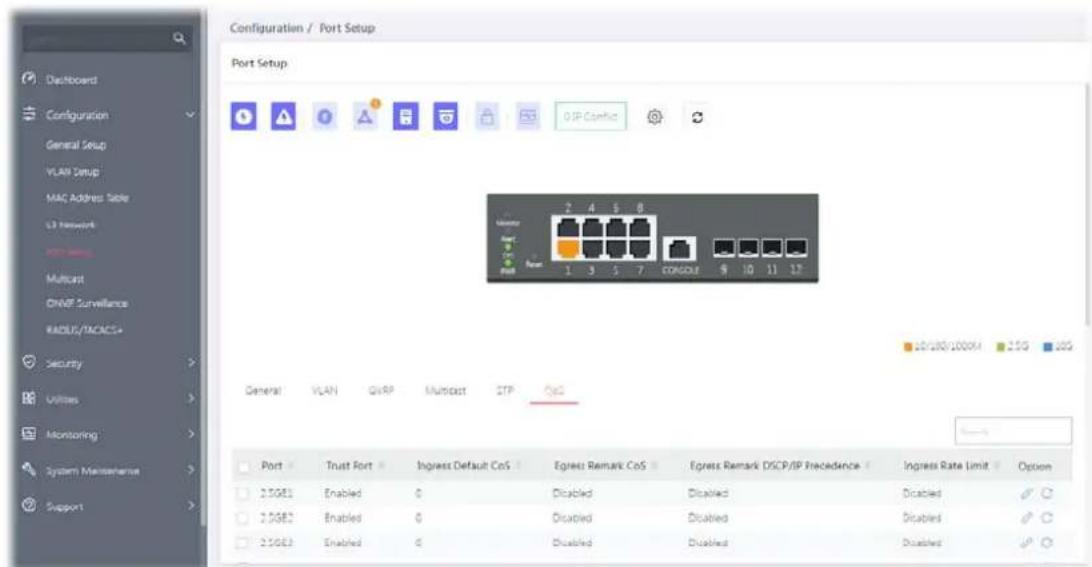

II-5-6 QoS....64

II-6 Multicast....67

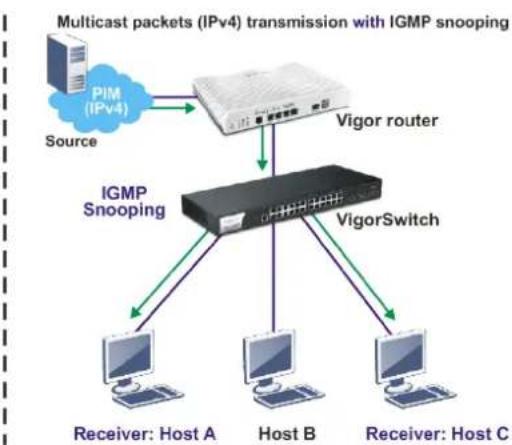

II-6-1 IGMP Snooping....67

II-6-1-1 IGMP Snooping 68

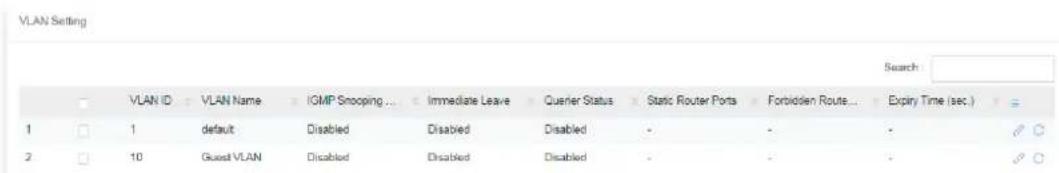

II-6-1-2 VLAN Setting....68
II-6-1-3 Group Table....71

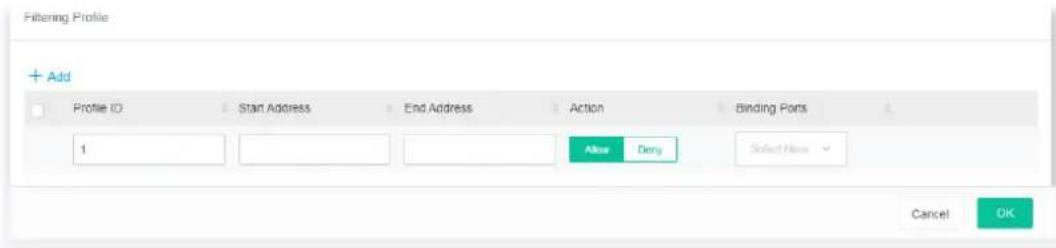

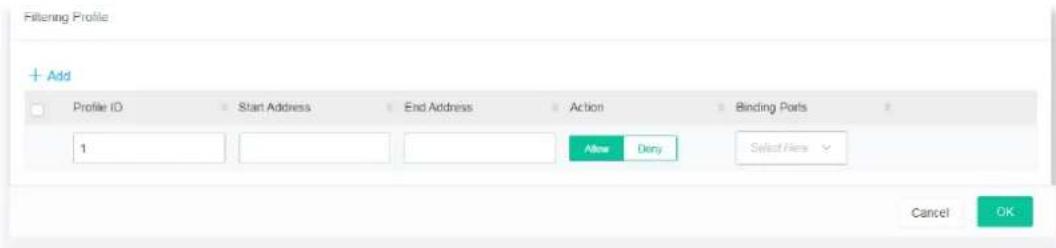

II-6-1-4 Filtering Profile....71

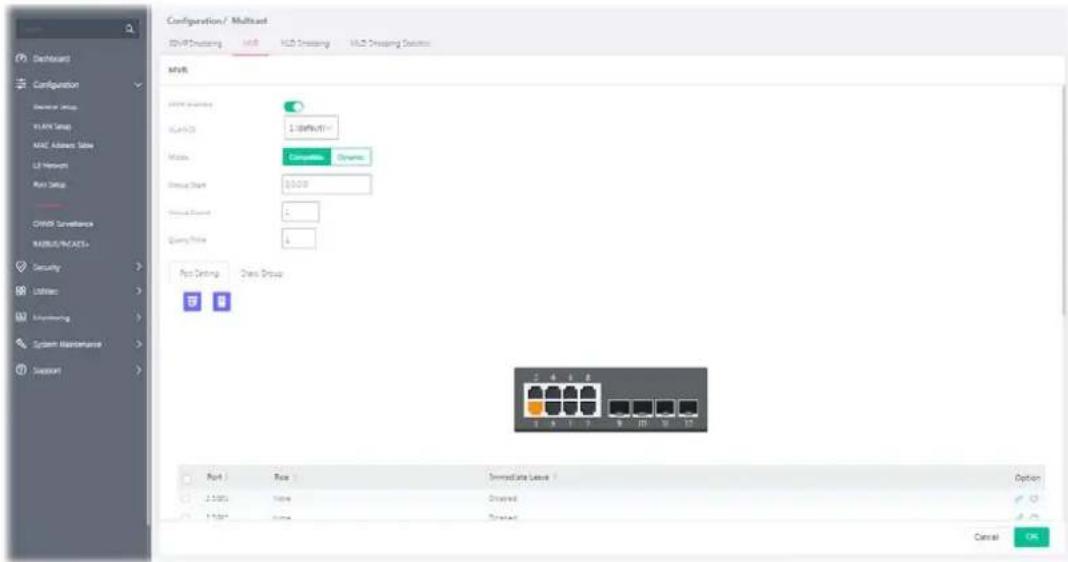

II-6-2 MVR 73

II-6-2-1 Port Setting....75

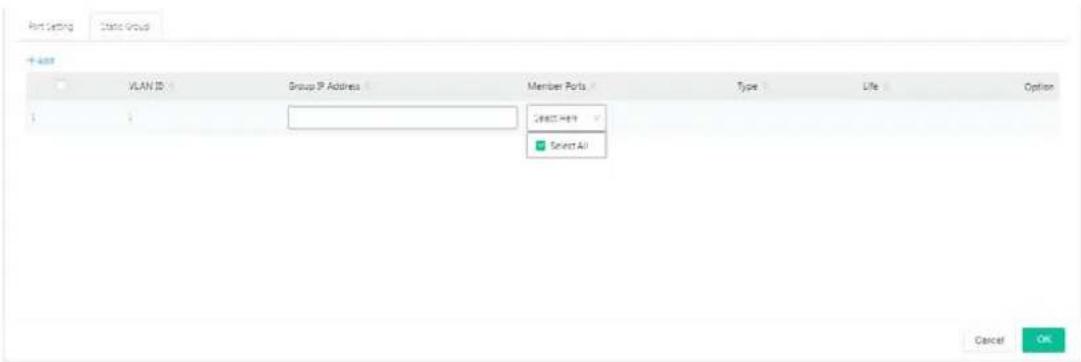

II-6-2-2 Static Group....77

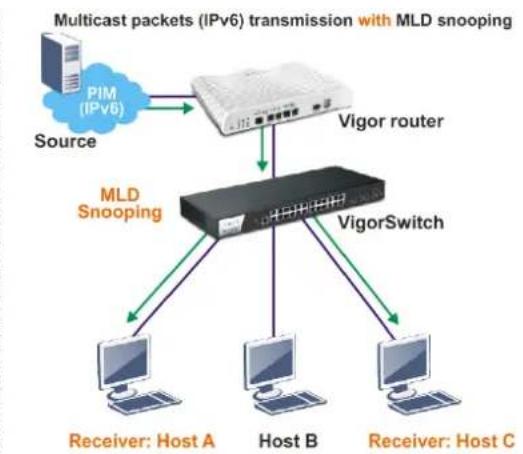

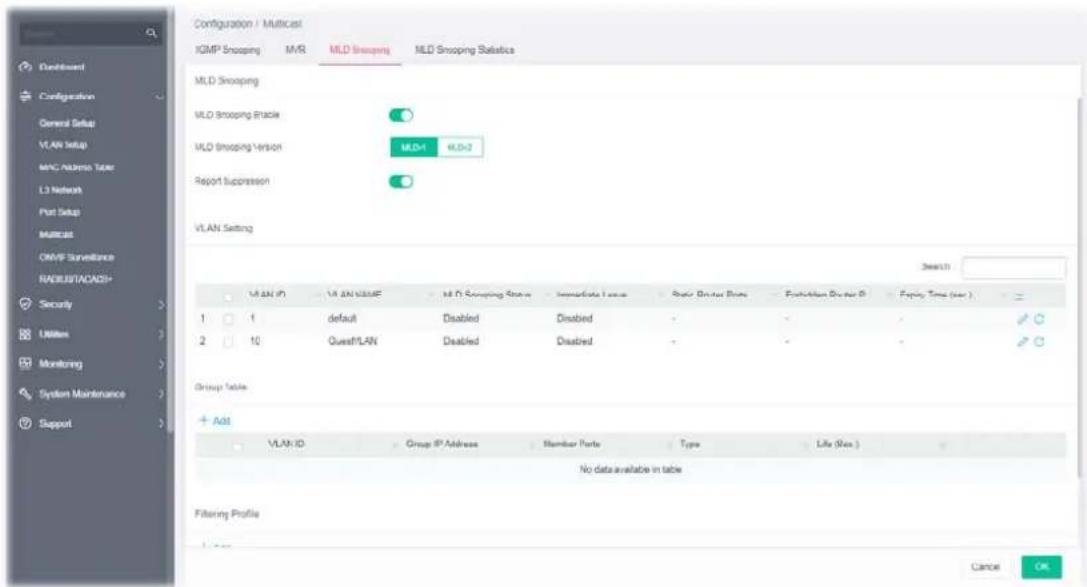

II-6-3 MLD Snooping 78

II-6-3-1 MLD Snooping....78

II-6-3-2 VLAN Setting....79

II-6-3-3 Group Table....81

II-6-3-4 Filtering Profile....82

II-6-4 MLD Snooping Statistics....84

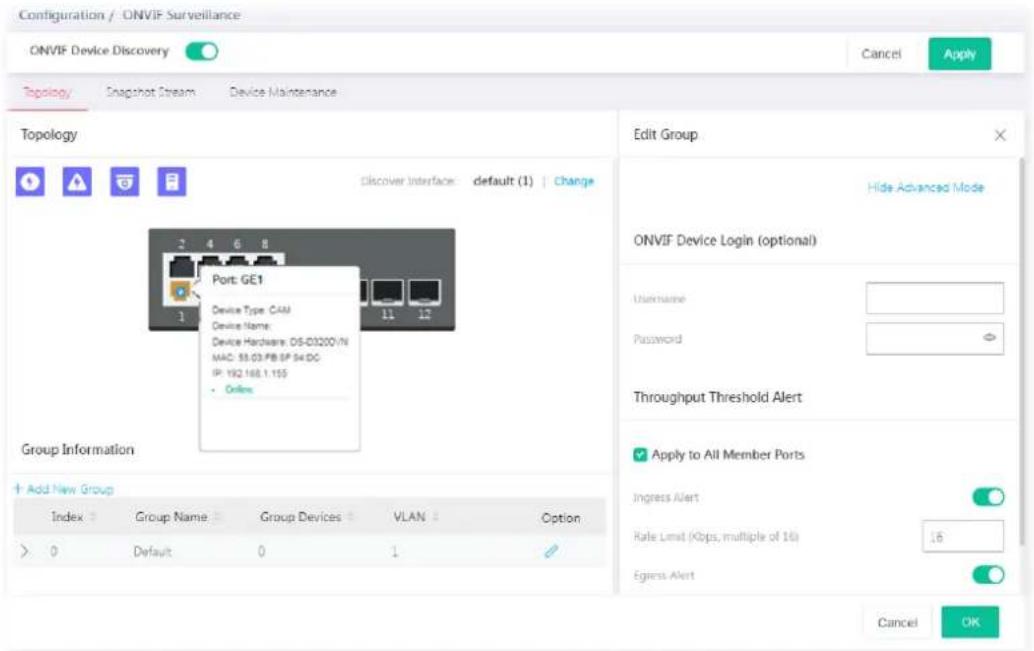

II-7 ONVIF Surveillance 85

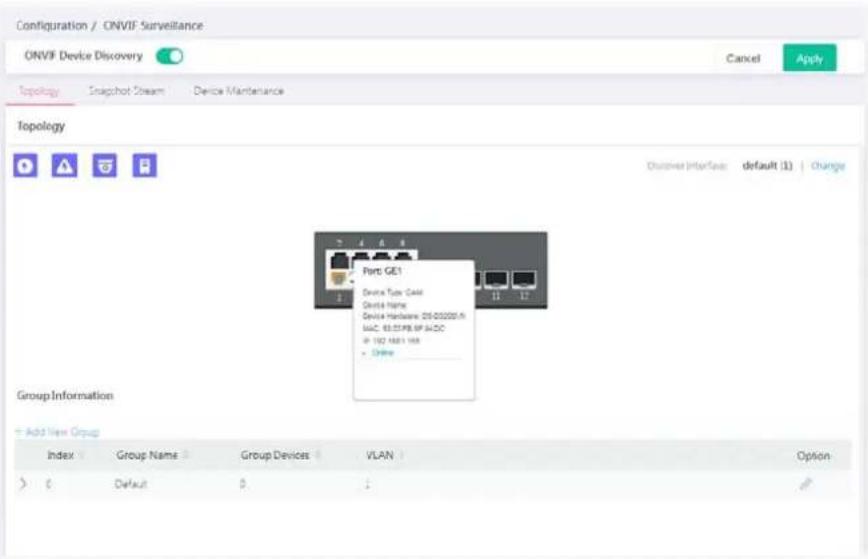

II-7-1 Topology 85

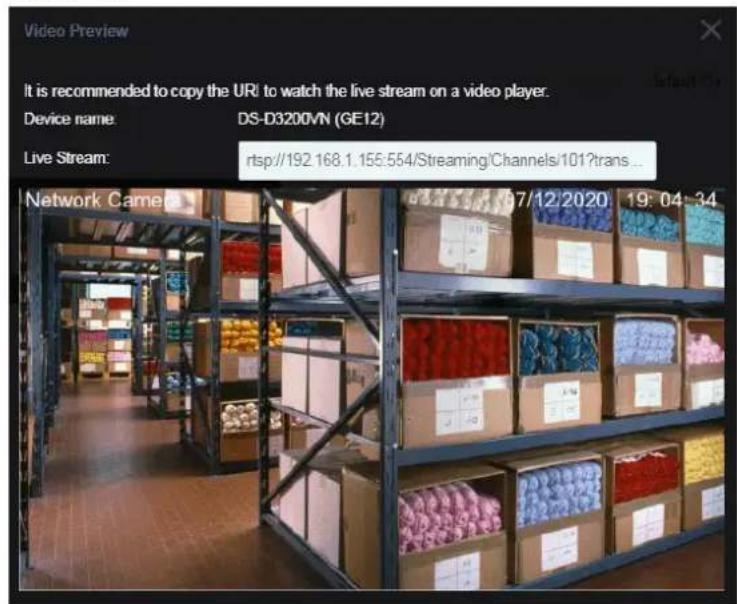

II-7-2 Snapshot Stream 89

II-7-3 Device Maintenance 90

II-8 RADIUS/TACACS+ 94

II-8-1 RADIUS....94

II-8-2 TACACS+ 96

Chapter III Security 99

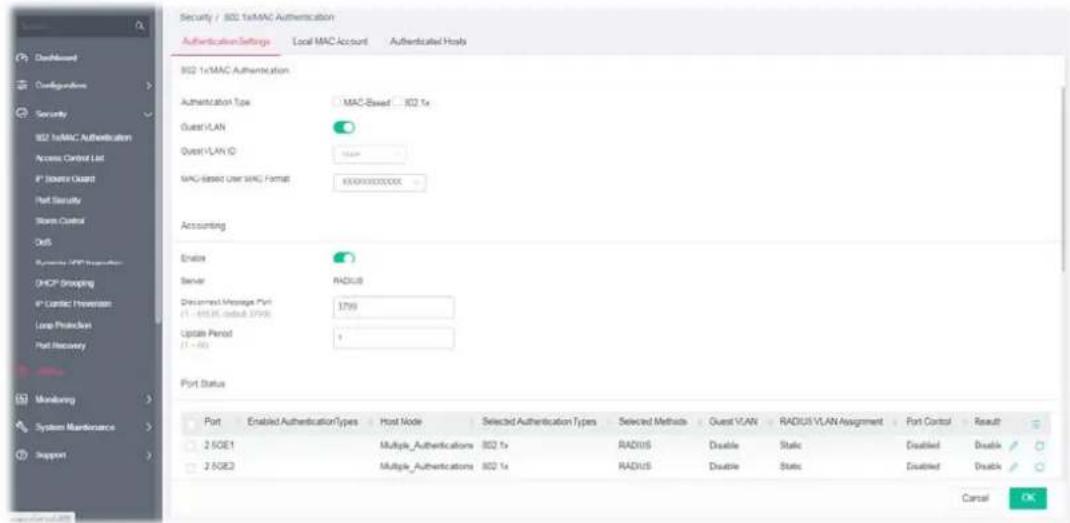

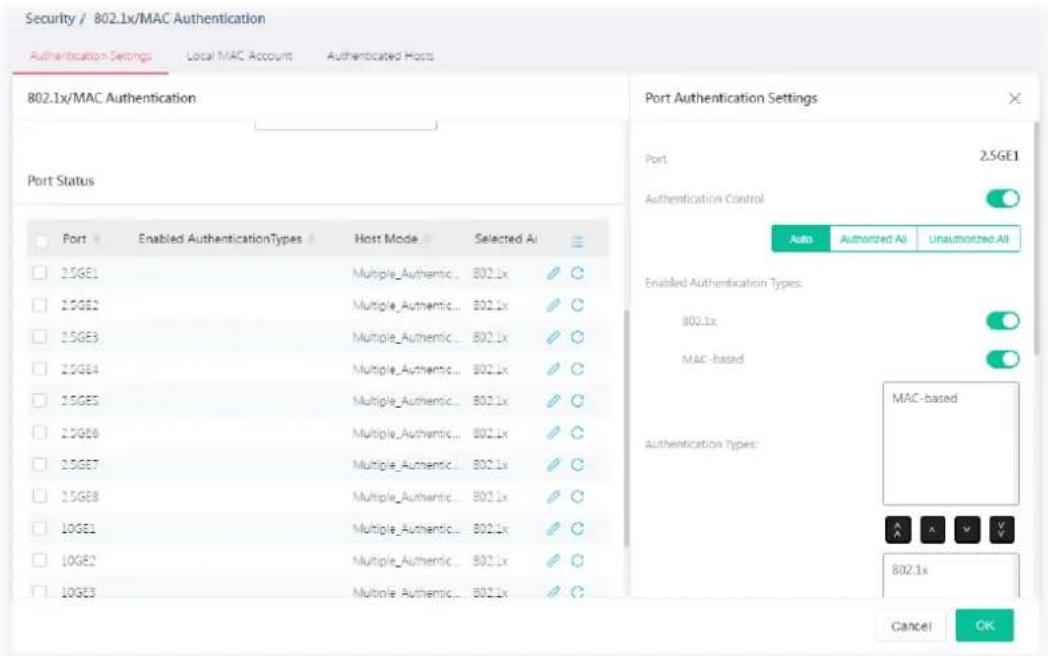

III-1 802.1x/MAC Authentication....100

III-1-1 802.1x/MAC Authentication....100

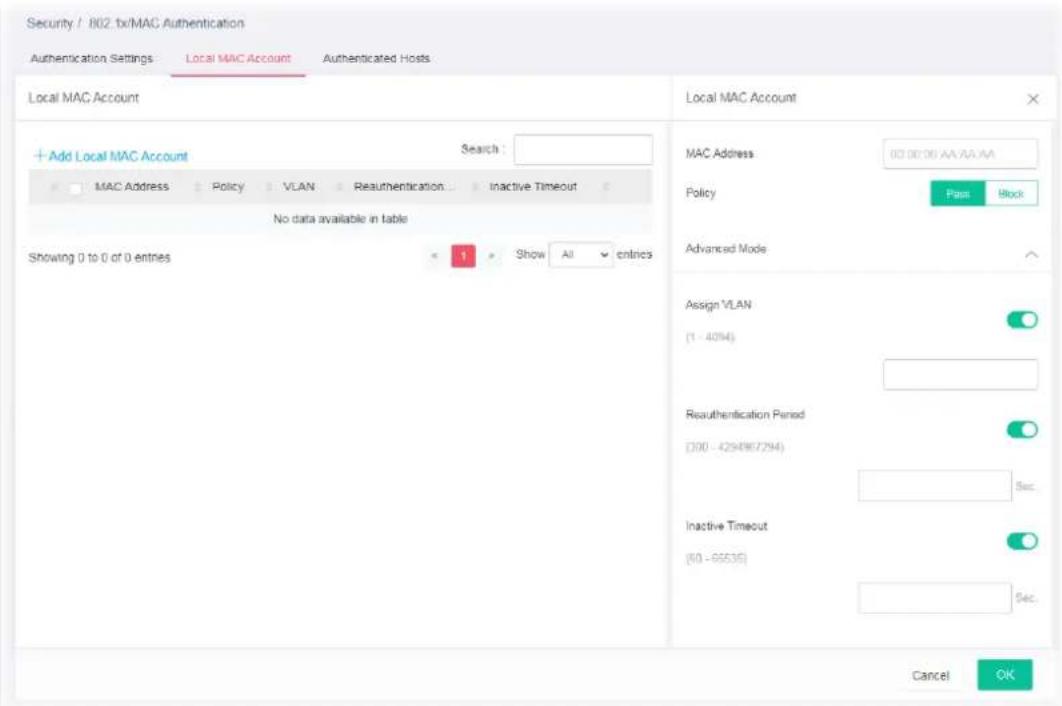

III-1-2 Local/MAC Account 103

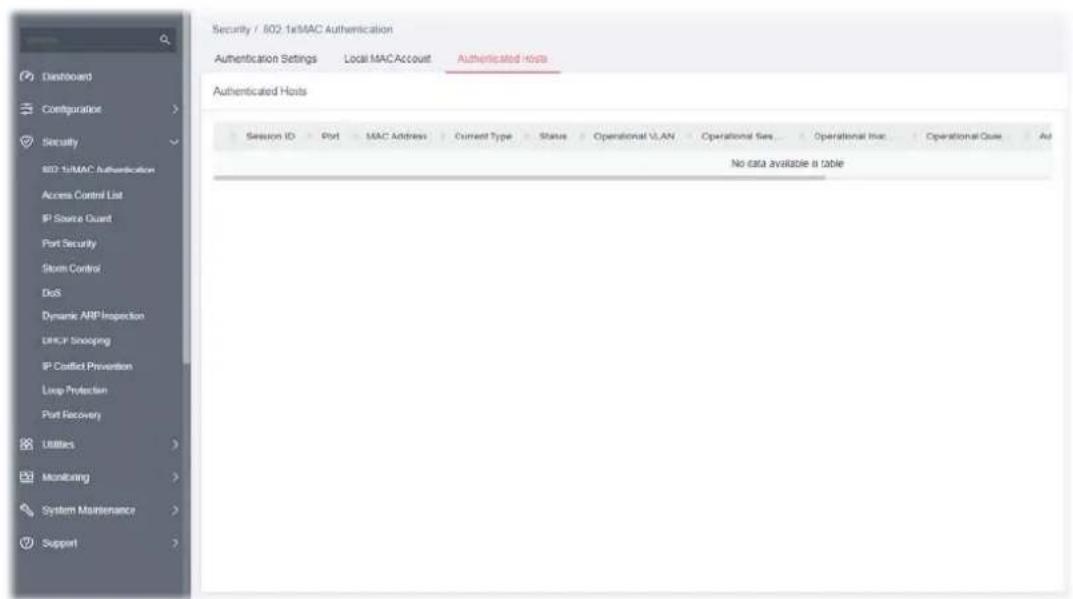

III-1-3 Authentication Hosts 106

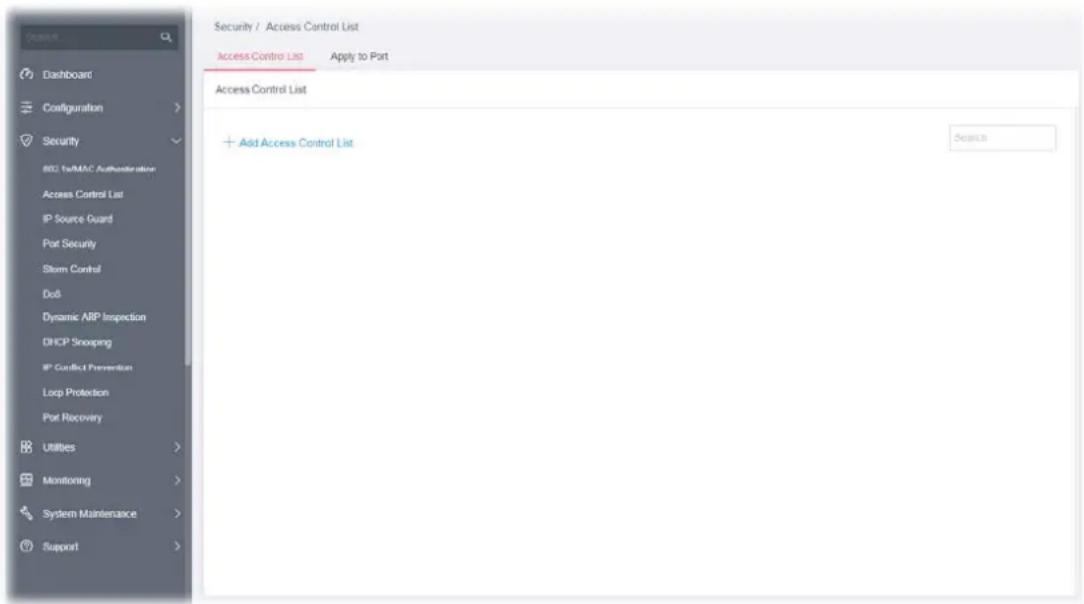

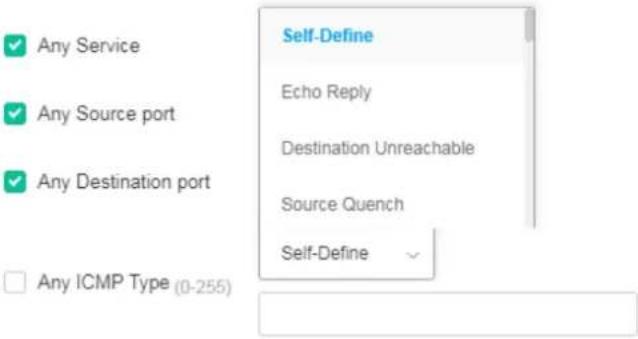

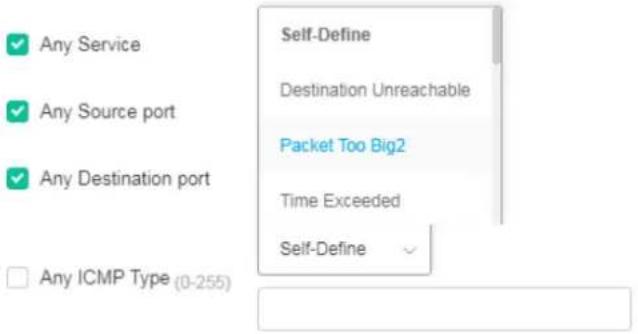

III-2 Access Control List....107

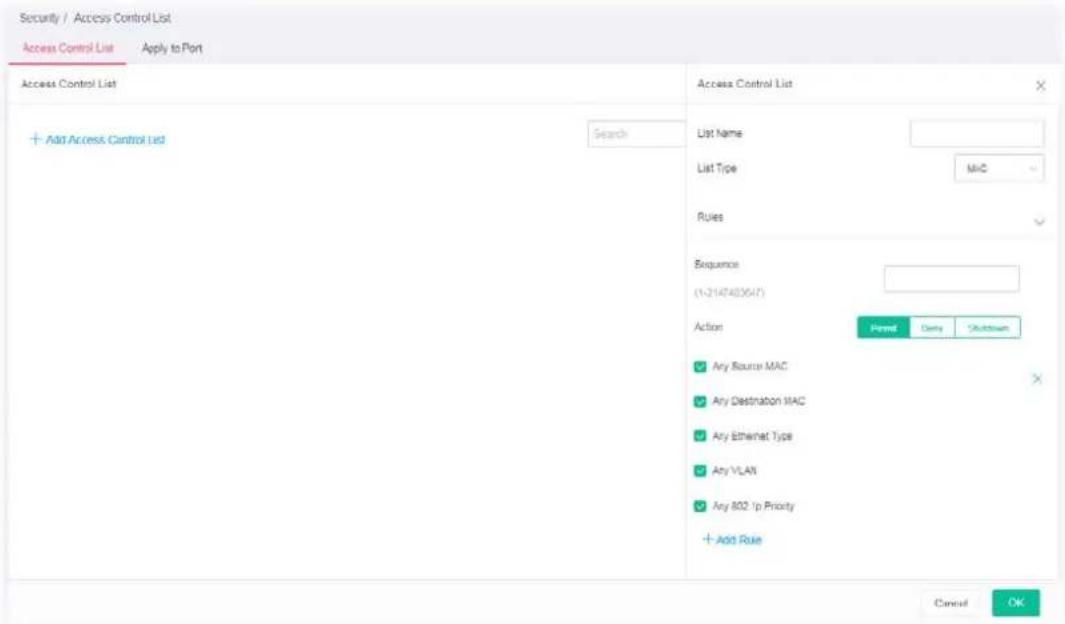

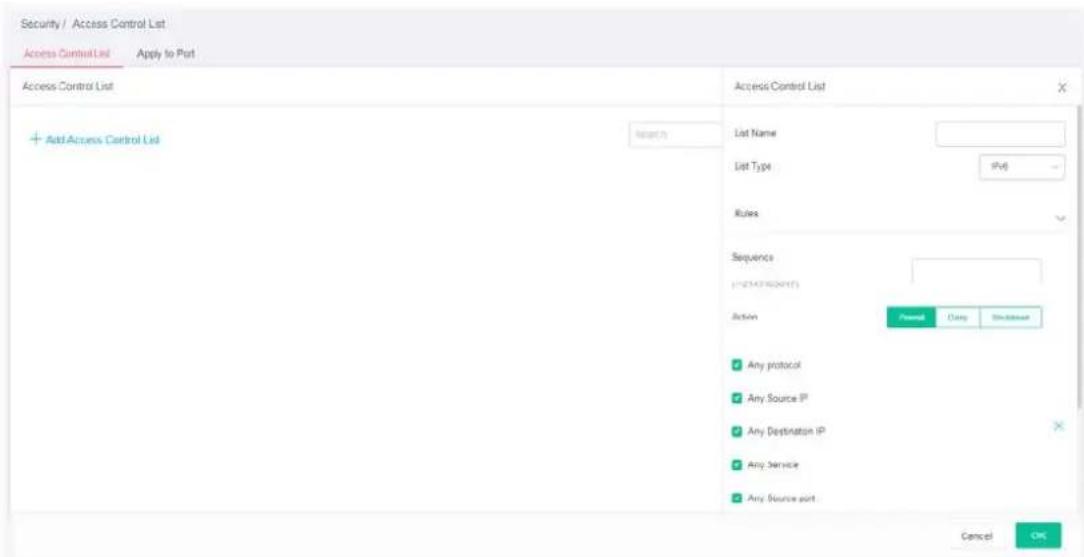

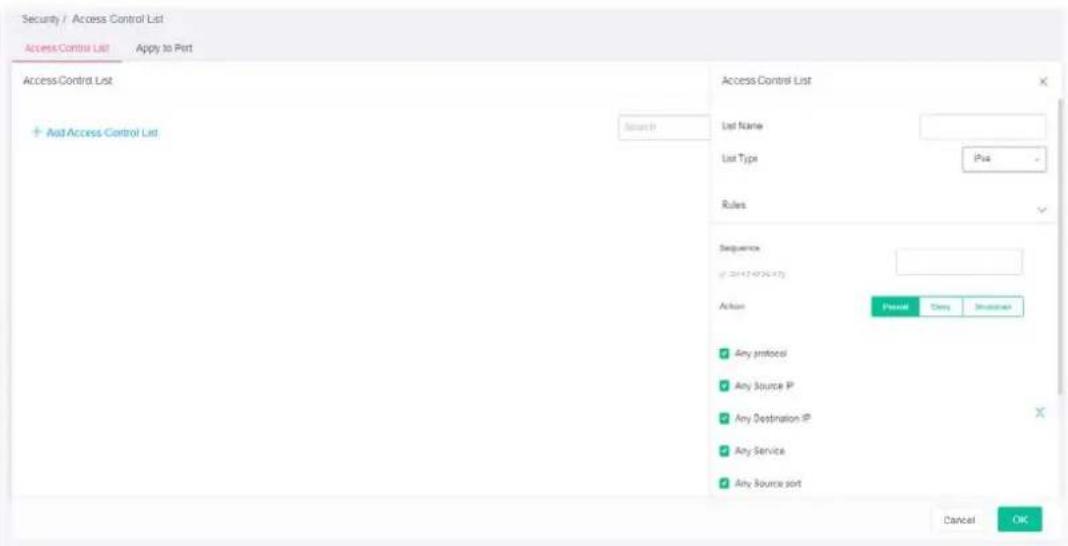

III-2-1 Access Control List 107

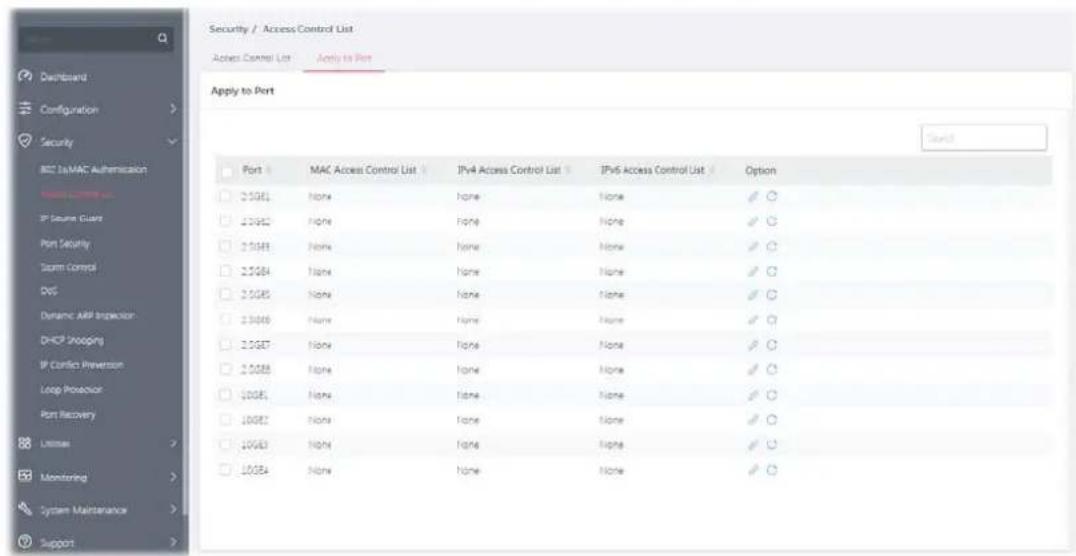

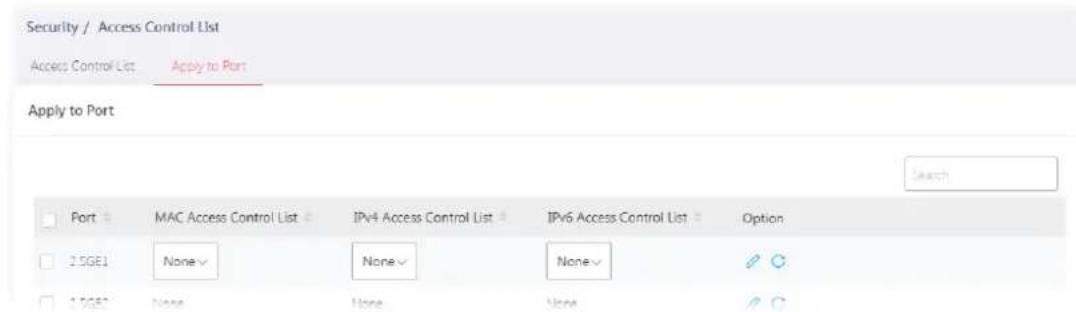

III-2-2 Apply to Port 116

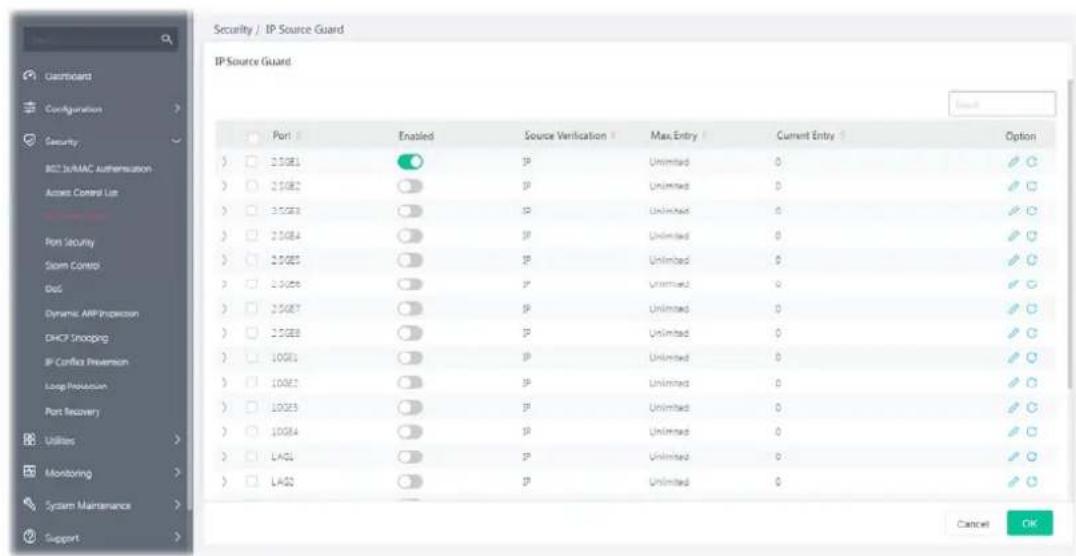

III-3 IP Source Guard 118

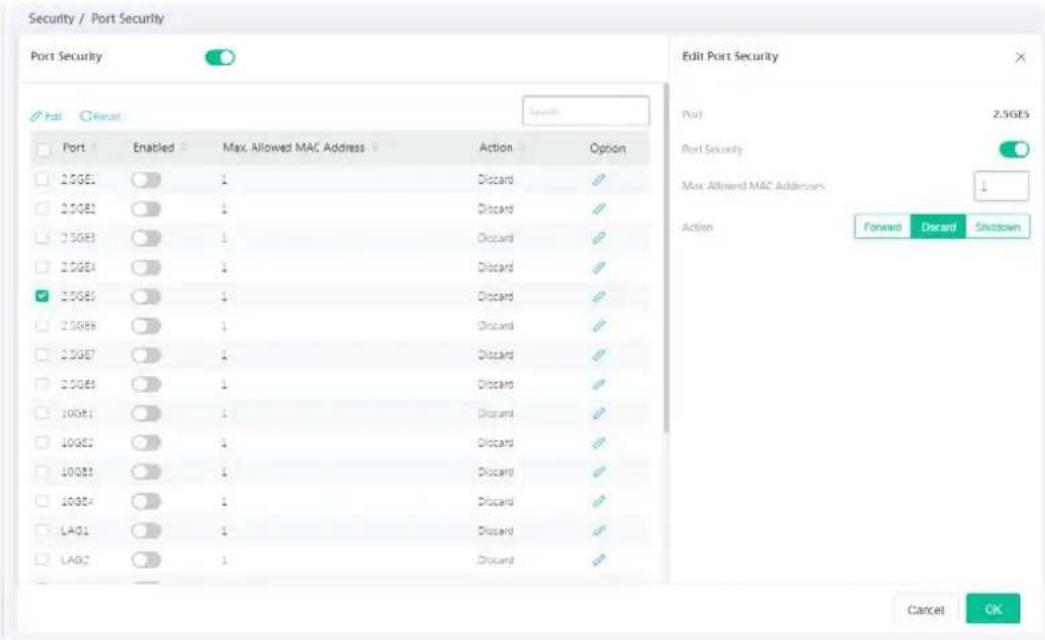

III-4 Port Security 120

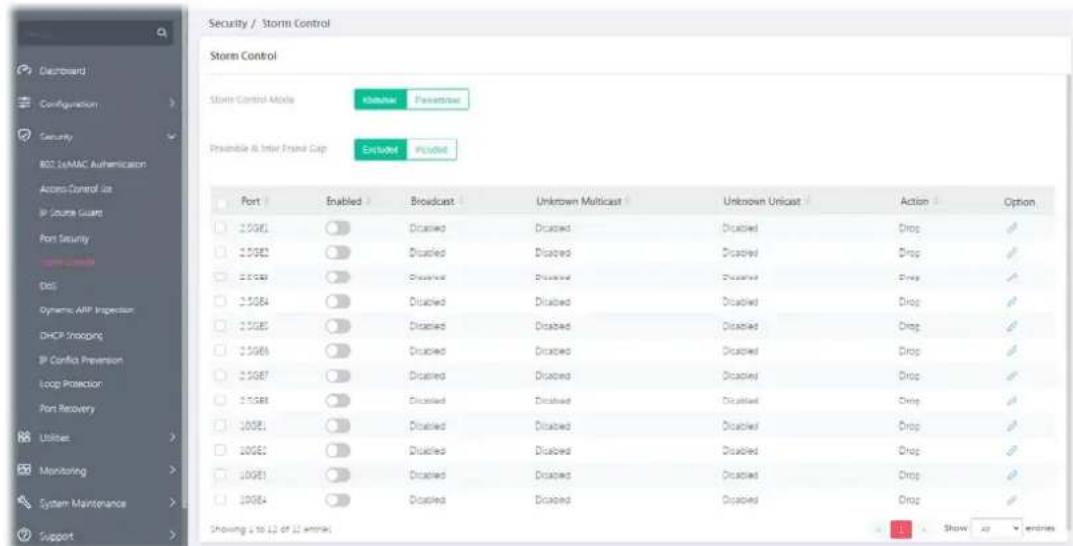

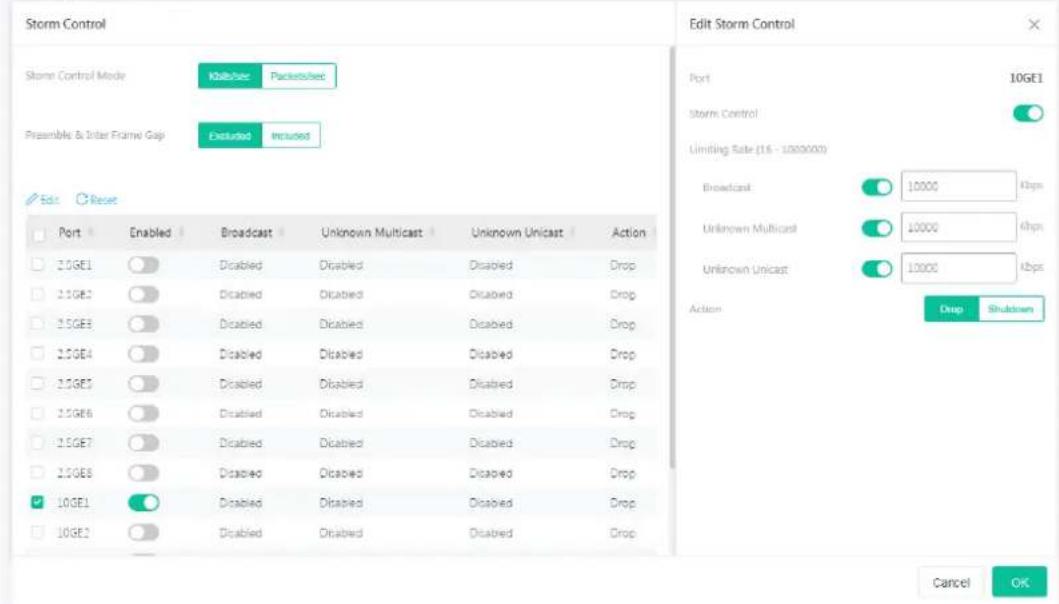

III-5 Storm Control....122

III-6 DoS.... 124

III-6-1 Properties....124

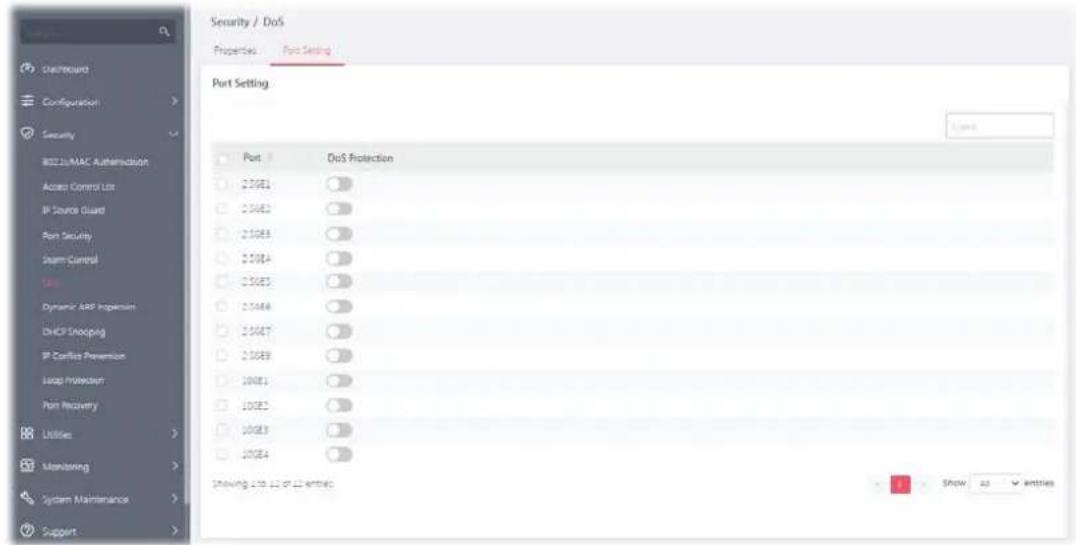

III-6-2 Port Setting 126

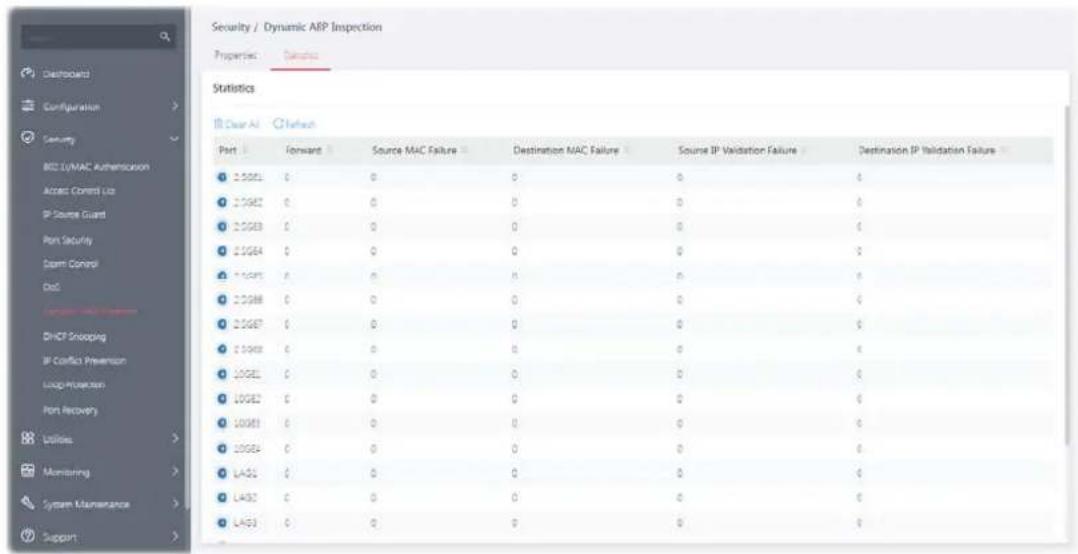

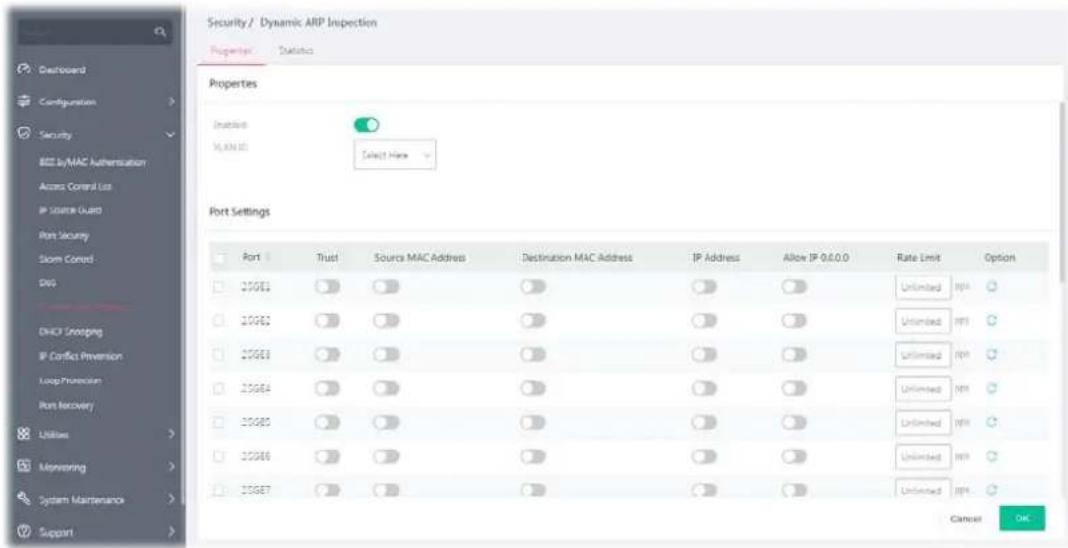

III-7 Dynamic ARP Inspection....127

III-7-1 Properties....127

III-7-2 Statistics....128

III-8 DHCP Snooping.... 129

III-8-1 DHCP Snooping 129

III-8-2 Option82....130

III-8-3 Statistics....132

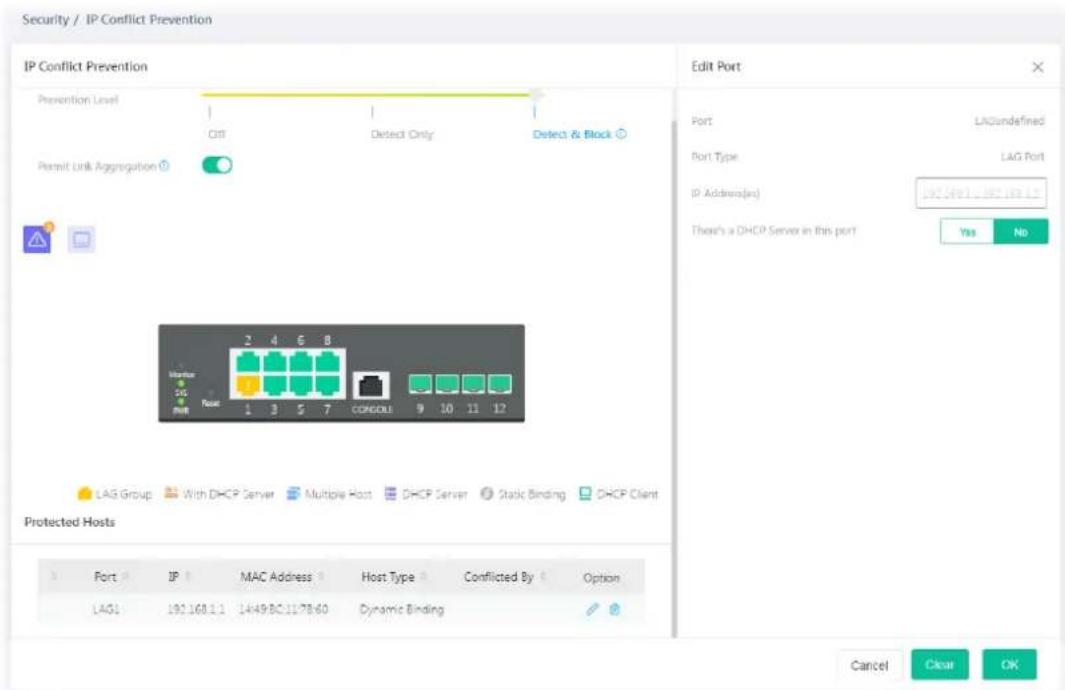

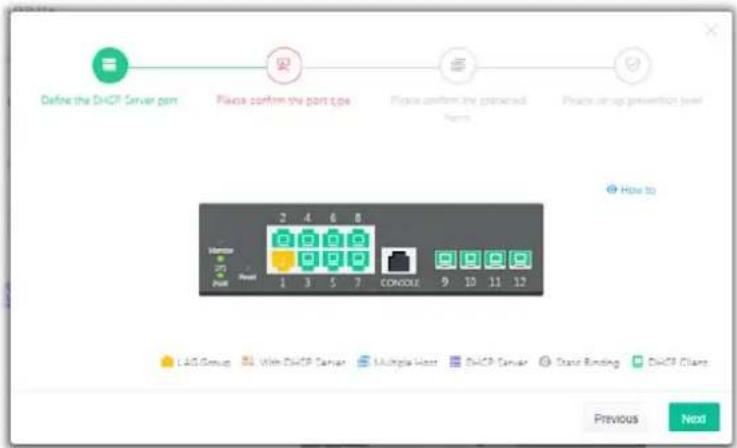

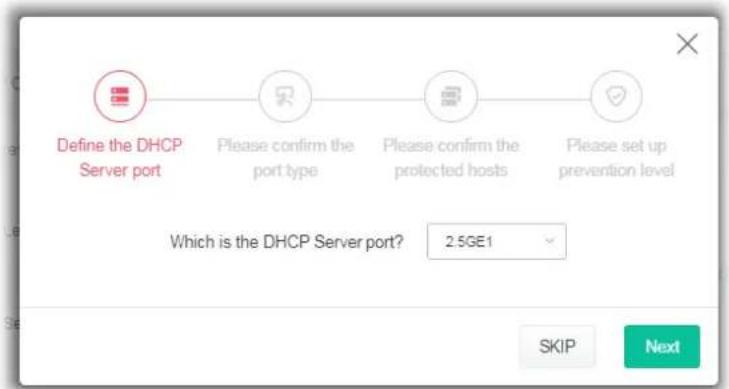

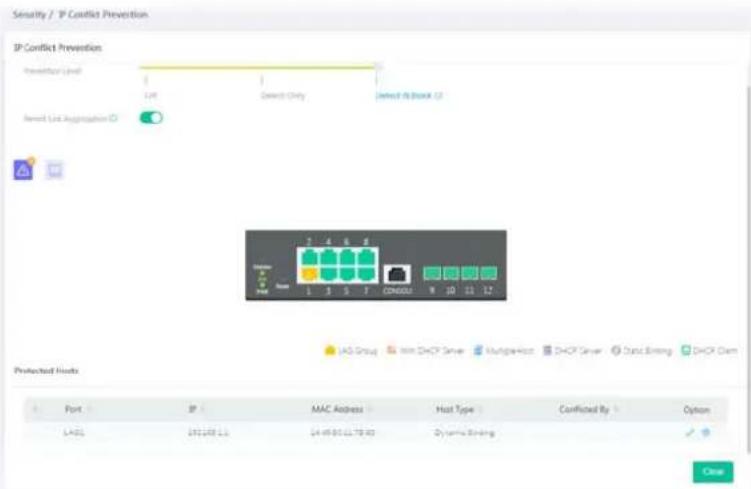

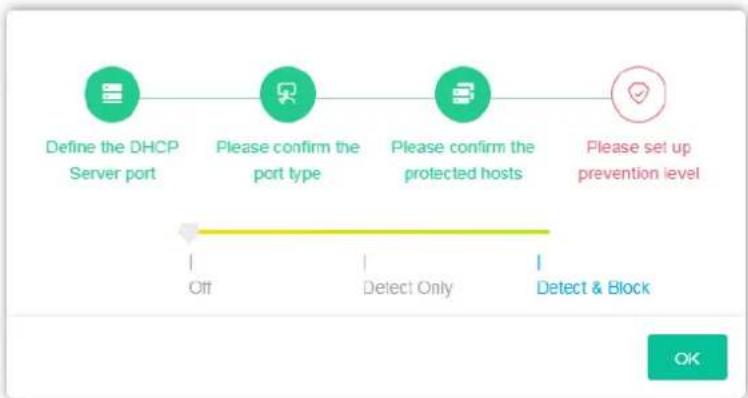

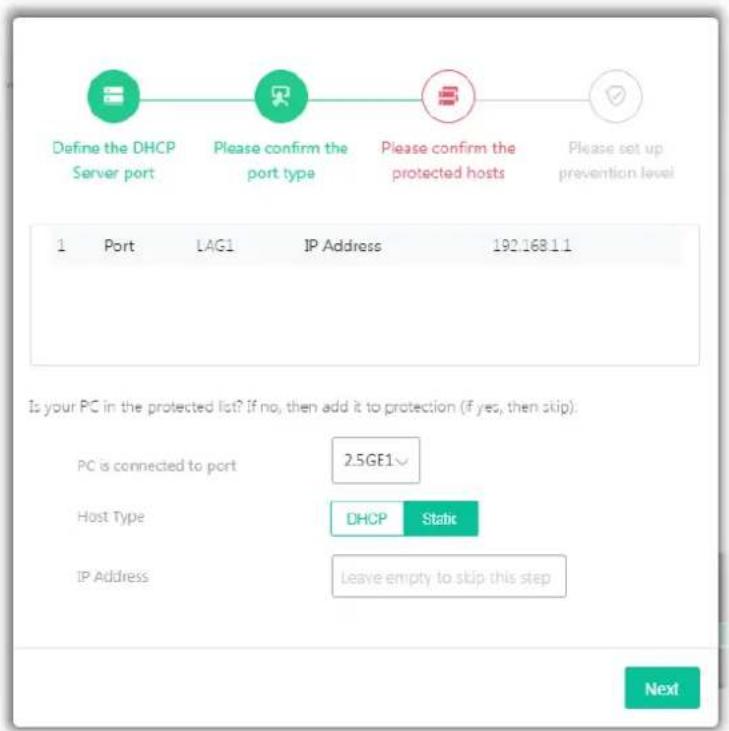

III-9 IP Conflict Prevention....133

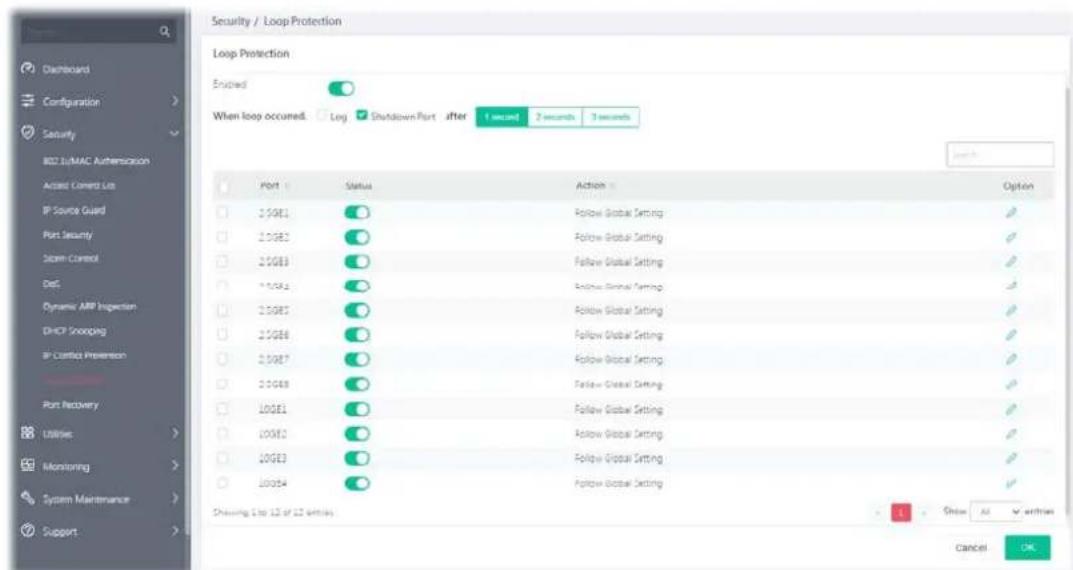

III-10 Loop Protection 138

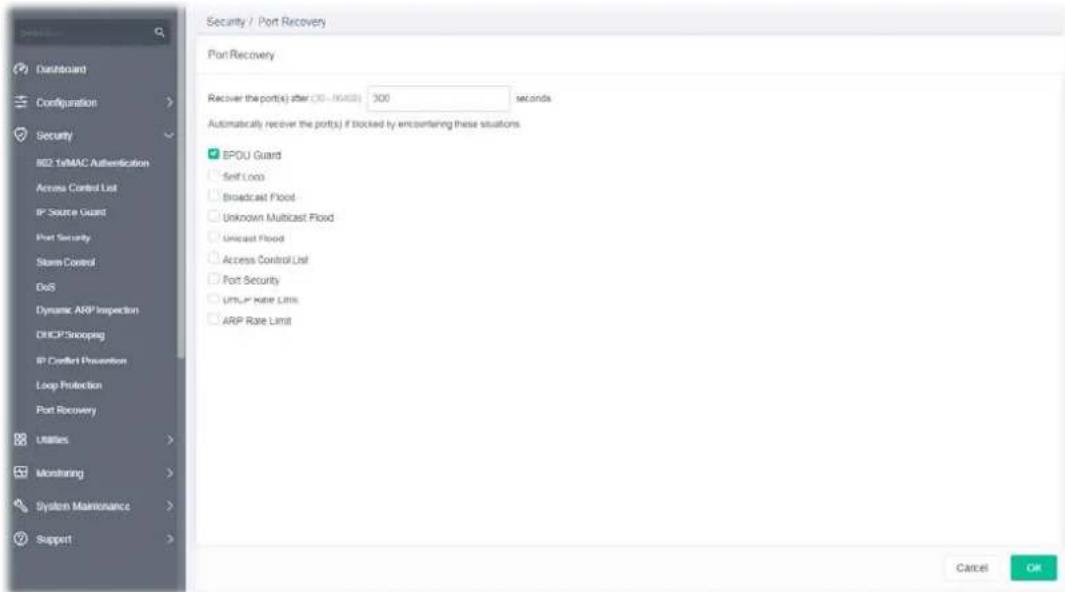

III-11 Port Recovery....140

Chapter IV Utilities....143

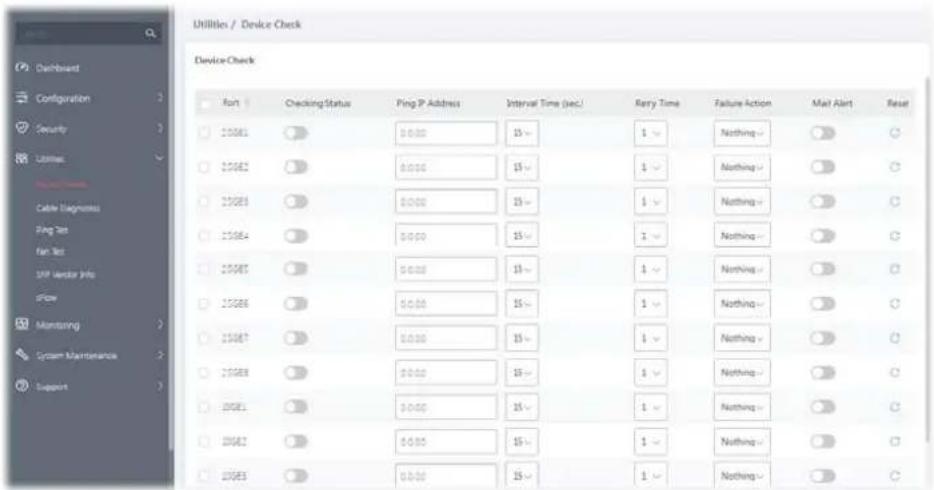

IV-1 Device Check 144

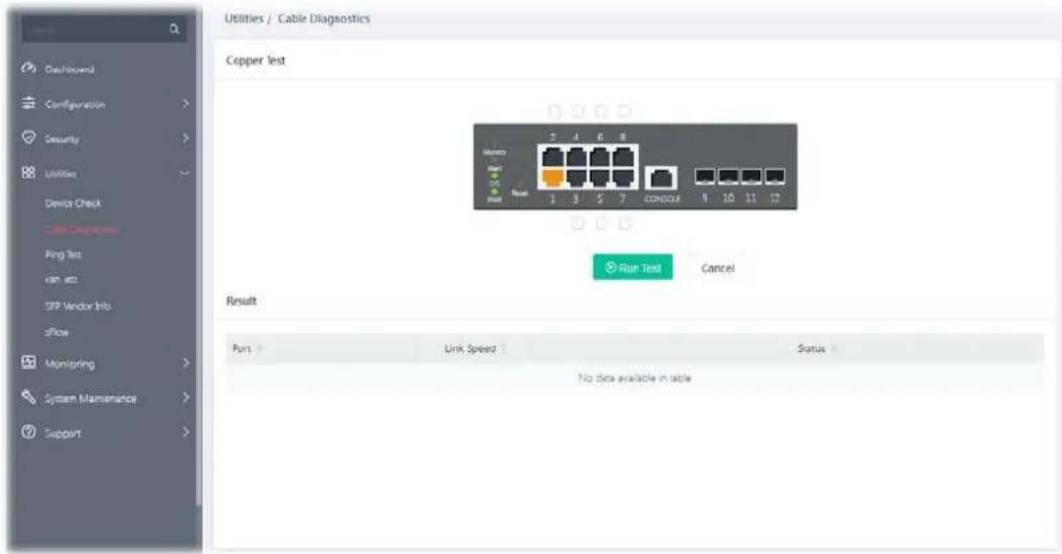

IV-2 Cable Diagnostics 145

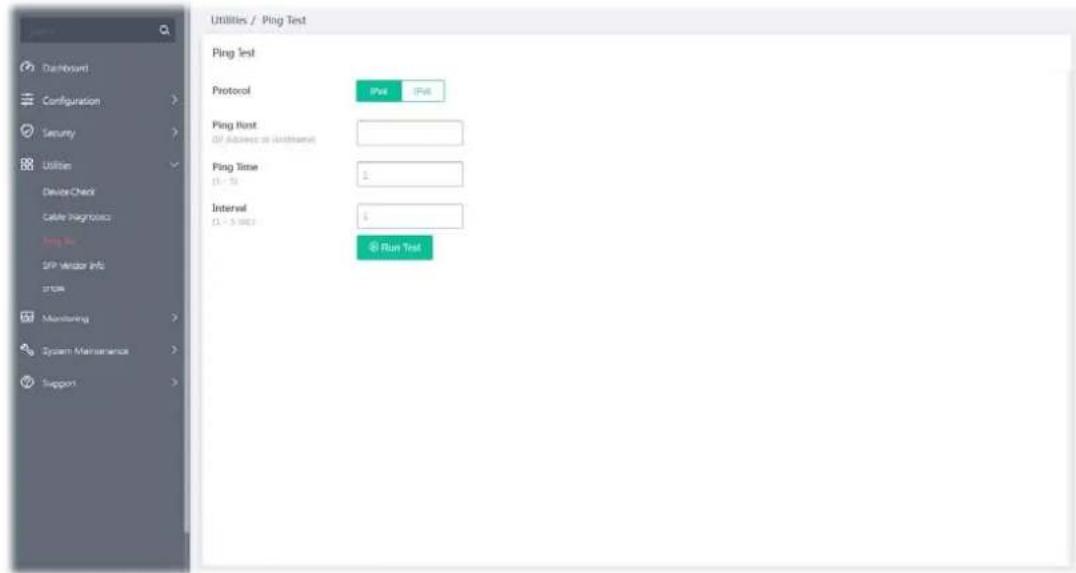

IV-3 Ping Test....146

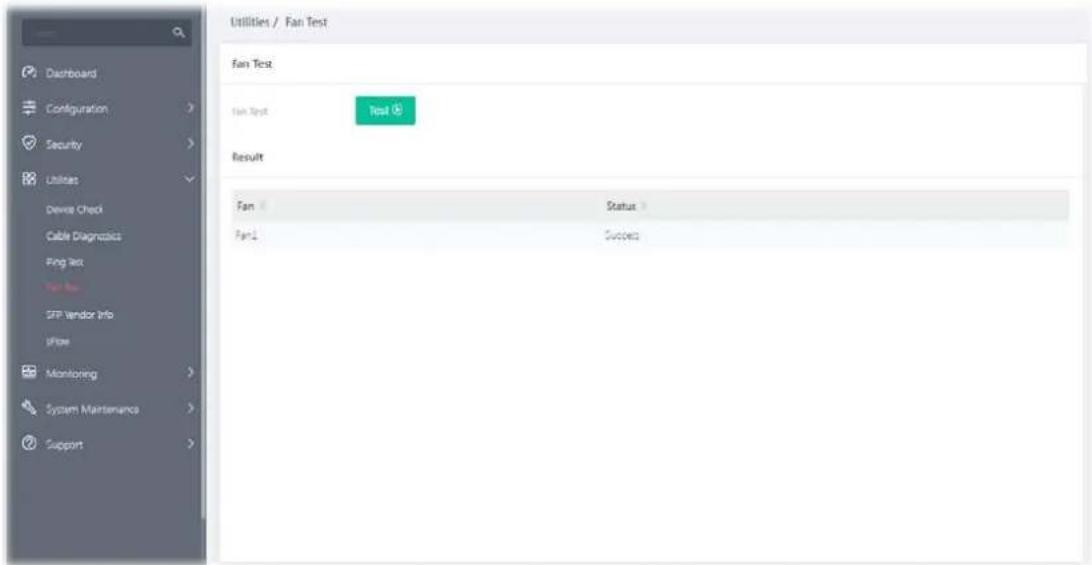

IV-4 Fan Test....147

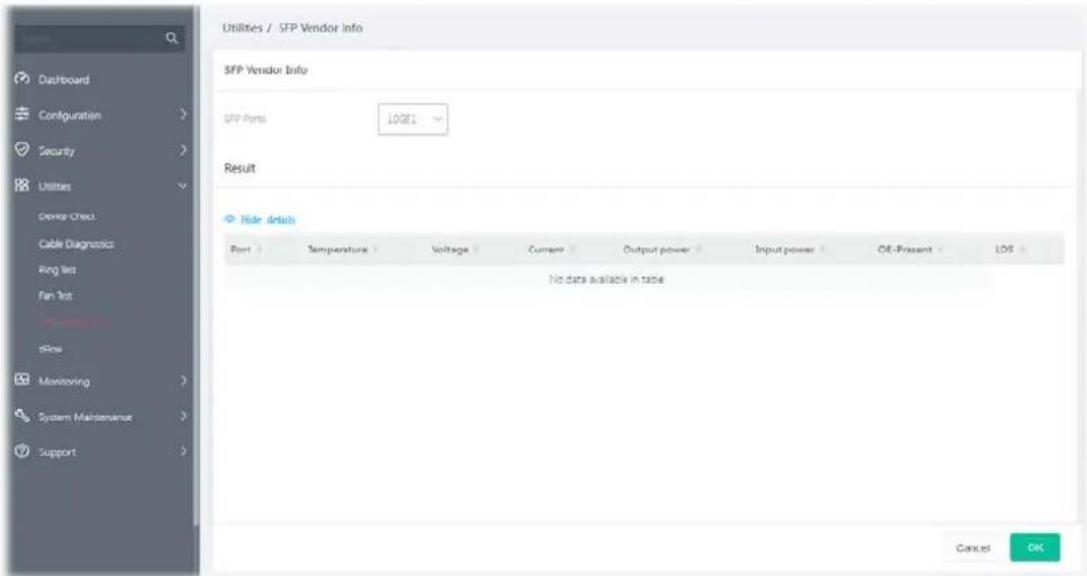

IV-5 SFP Vendor Info 148

IV-6 sFlow....149

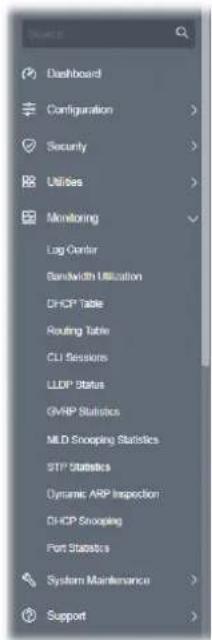

Chapter V Monitoring....151

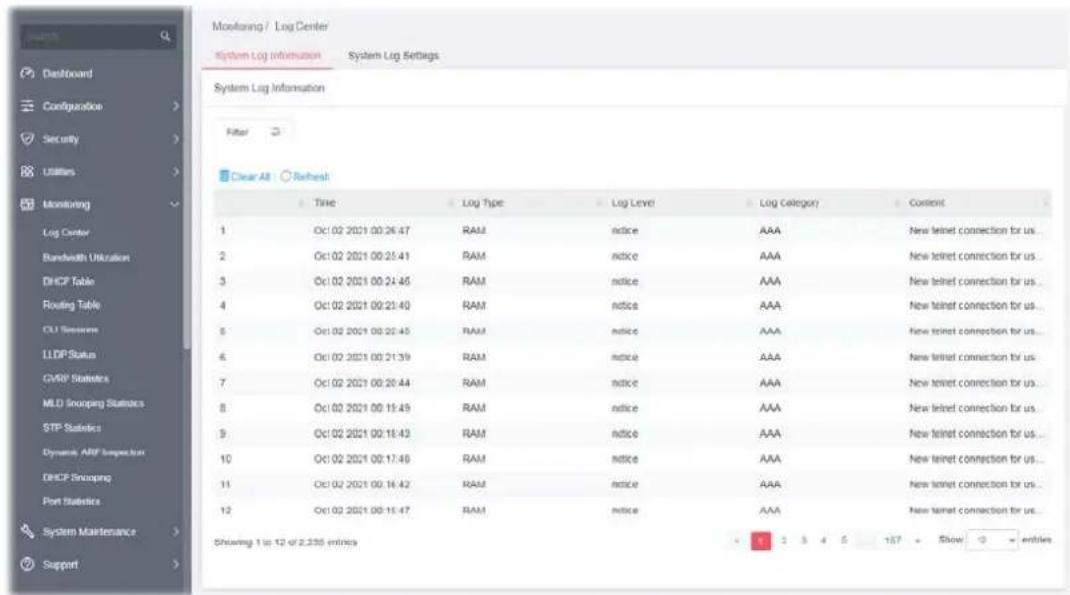

V-1 Log Center 152

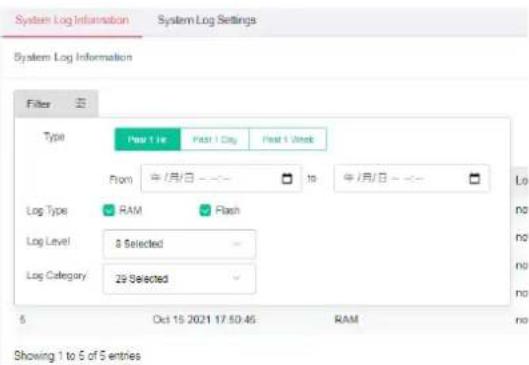

V-1-1 System Log Information 152

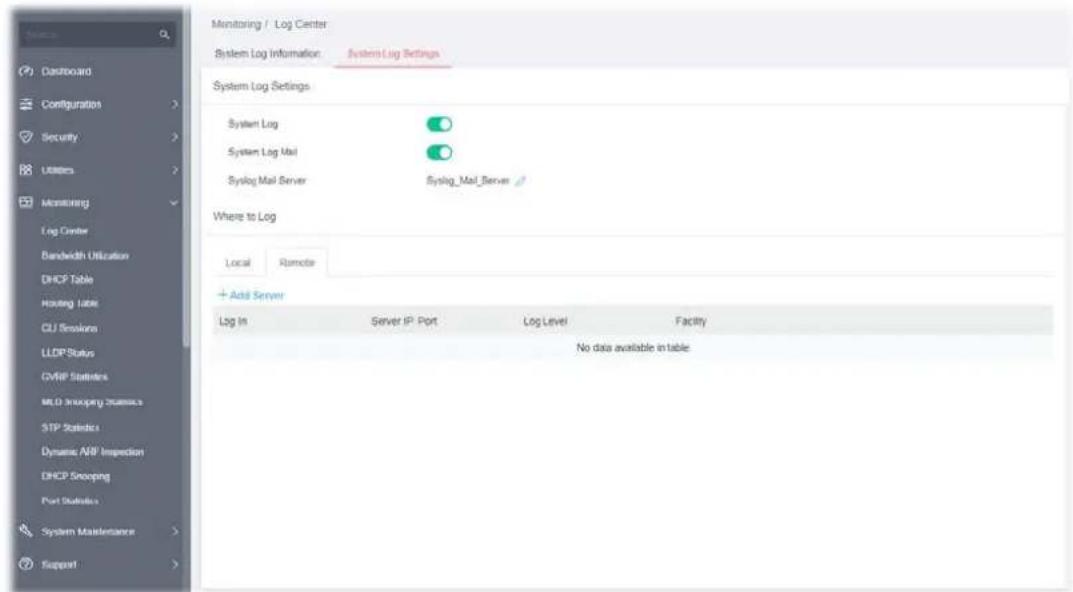

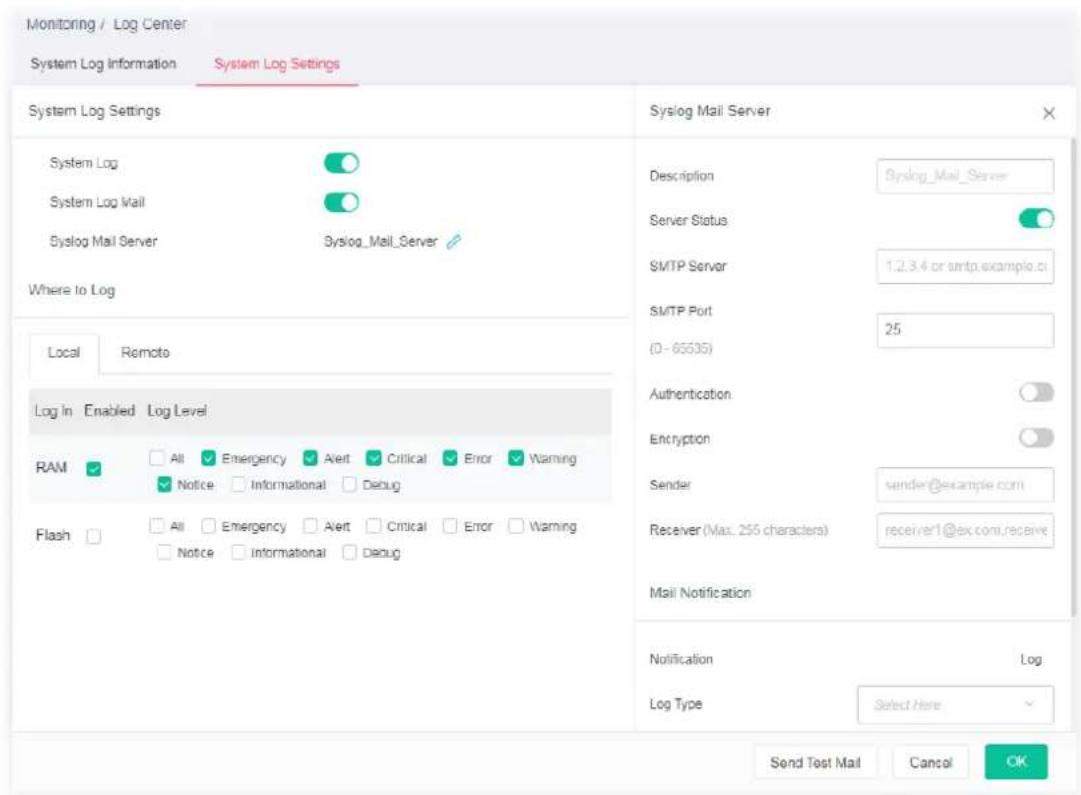

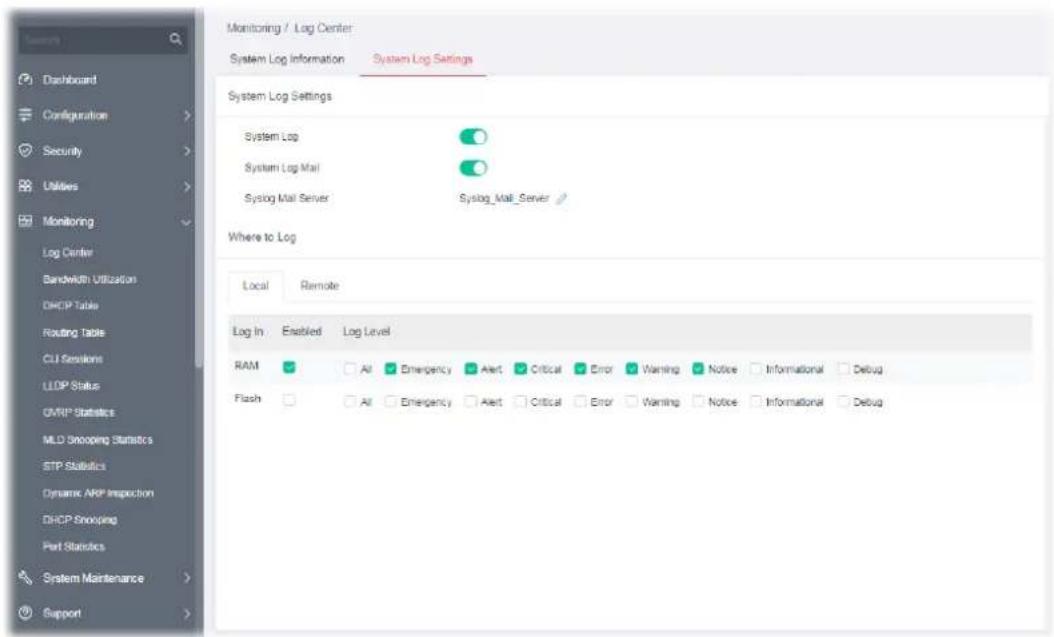

V-1-2 System Log Settings.... 153

V-1-2-1 Local 153
V-1-2-2 Remote 155

V-2 Bandwidth Utilization.... 157

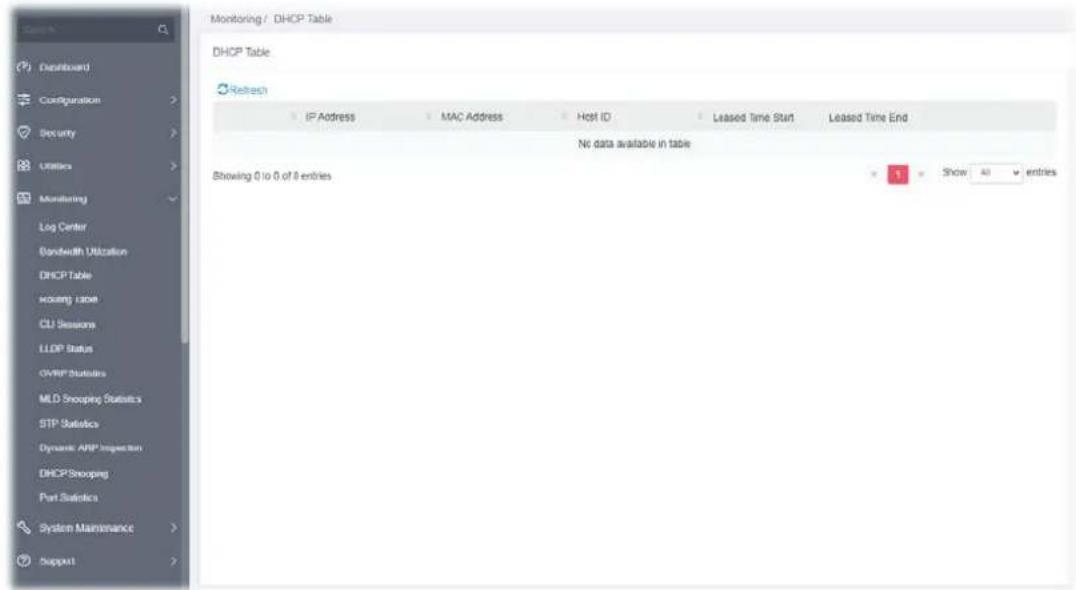

V-3 DHCP Table 158
V-4 Routing Table 159

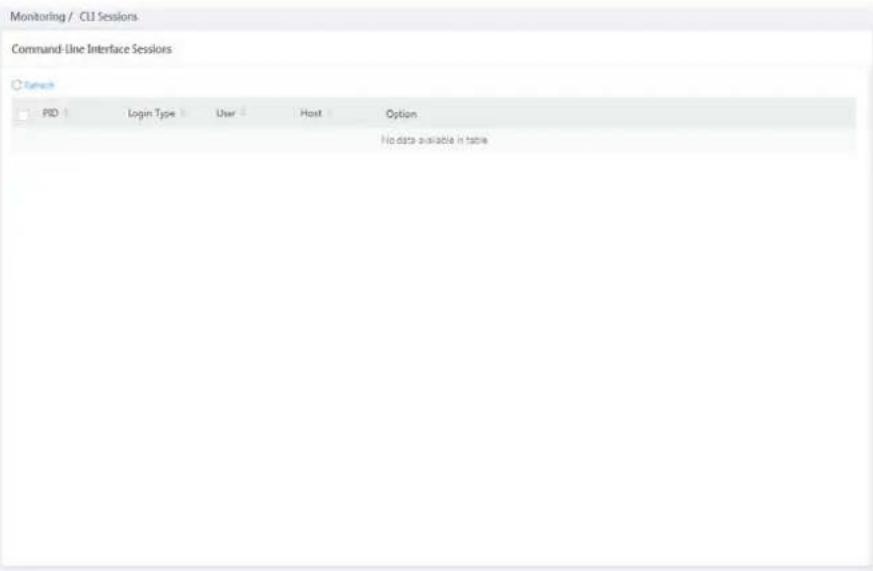

V-5 CLI Sessions....160
V-6 PoE Status....161

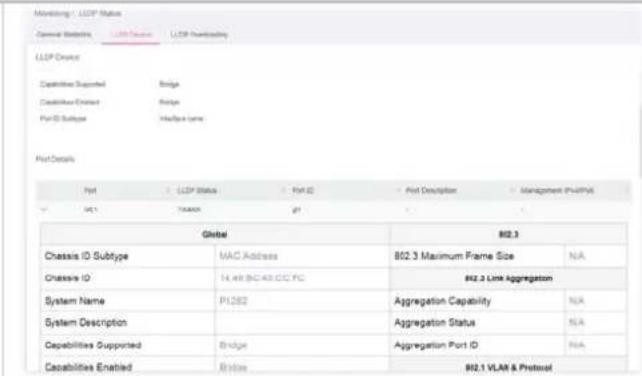

V-7 LLDP Status....162

V-7-1 General Statistics....162

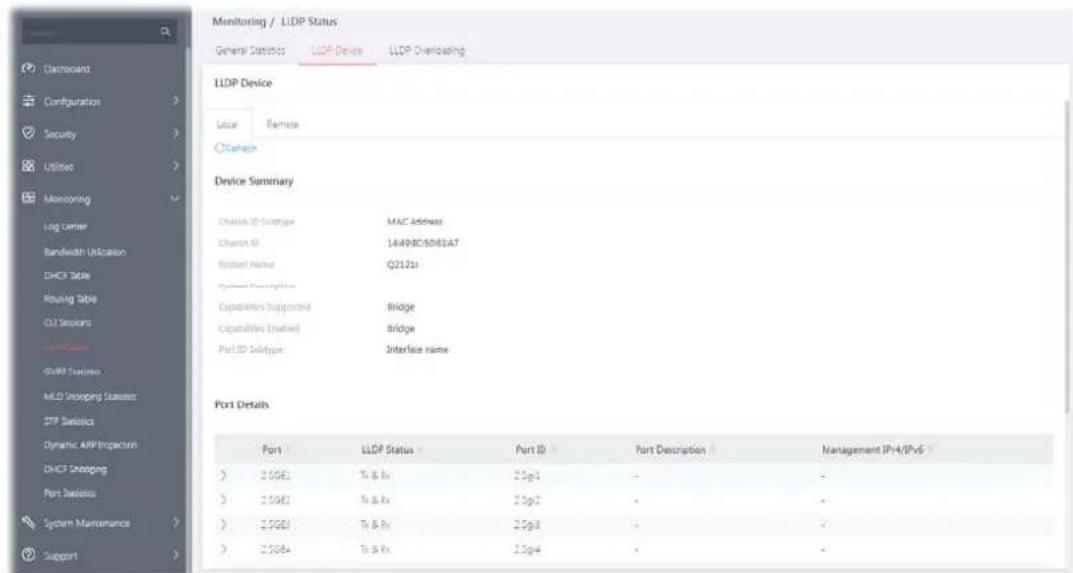

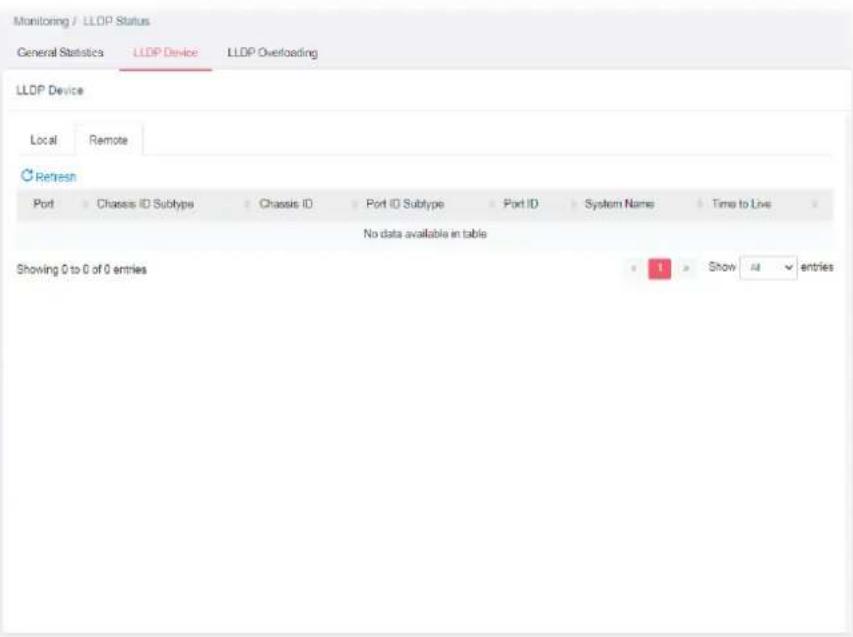

V-7-2 LLDP Device 163
V-7-2-1 Local 163
V-7-2-2 Remote 164
V-7-3 LLDP Overloading 165

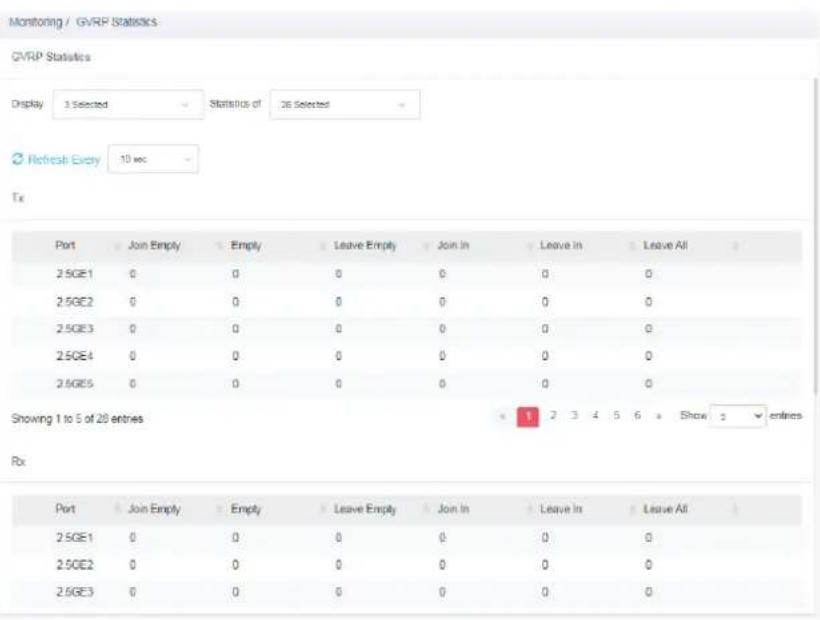

V-8 GVRP Statistics 166

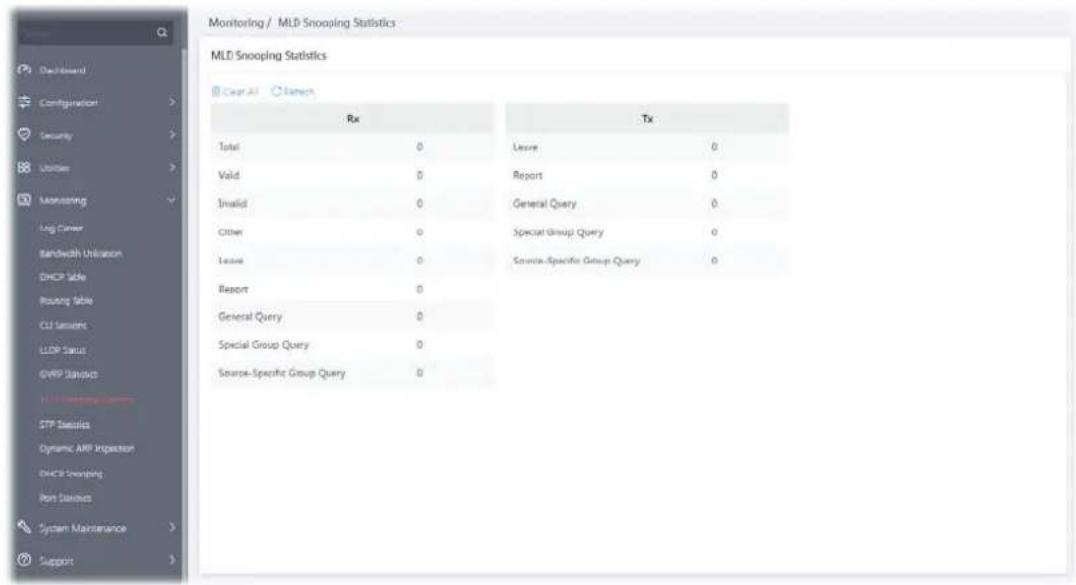

V-9 MLD Snooping Statistics 167
V-10 STP Statistics 168
V-11 Dynamic ARP Statistics 169
V-12 DHCP Snooping 170

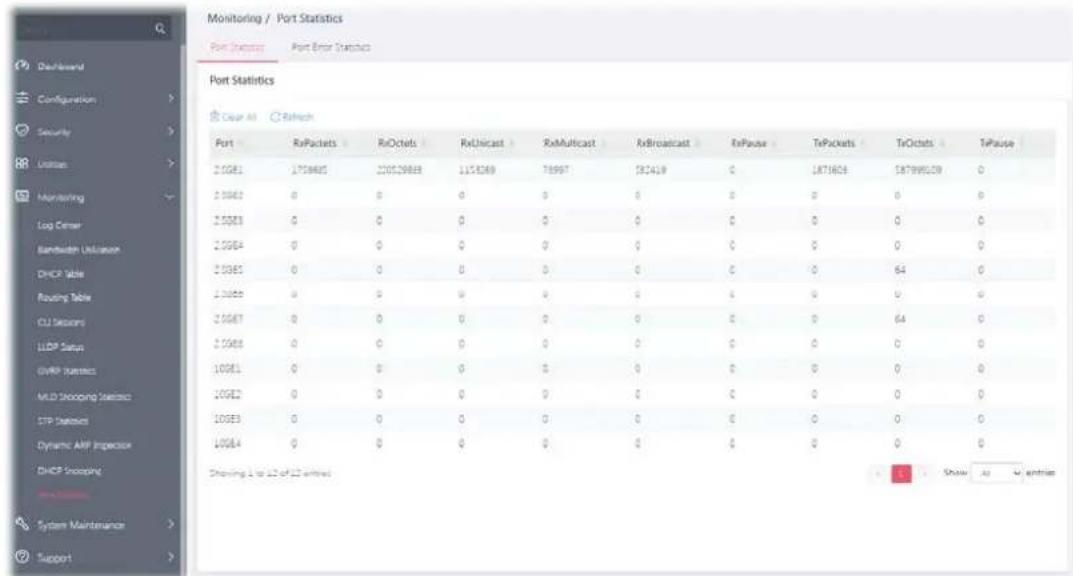

V-13 Port Statistics 171

Chapter VI System Maintenance.... 173

VI-1 General....174

VI-1-1 Device Info 174
VI-1-2 Time & Schedule 175

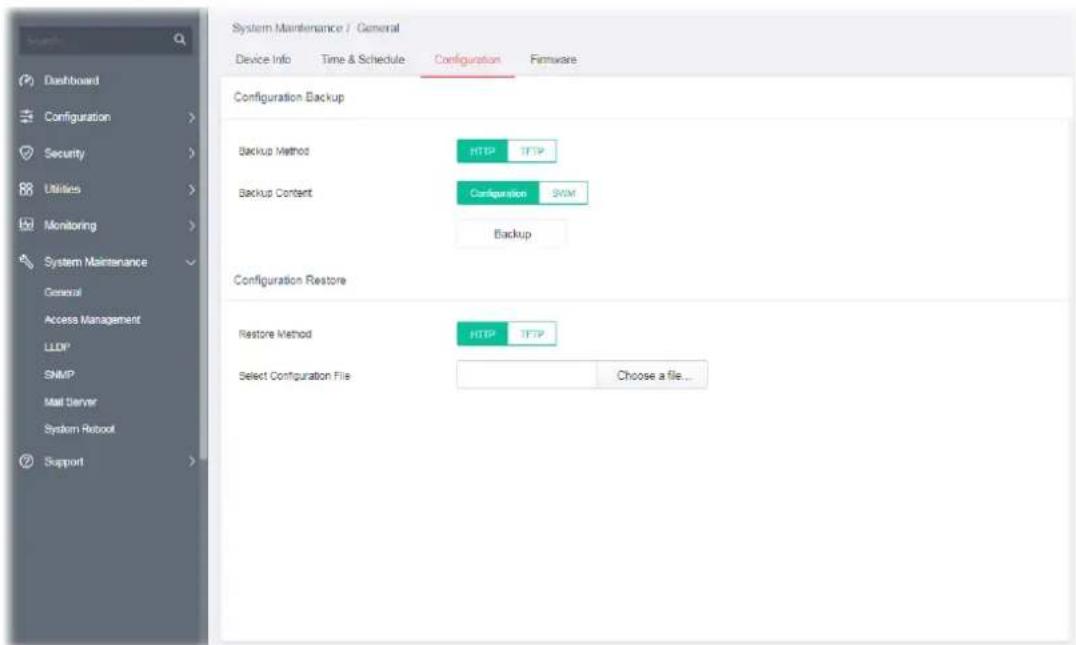

VI-1-3 Configuration.... 178

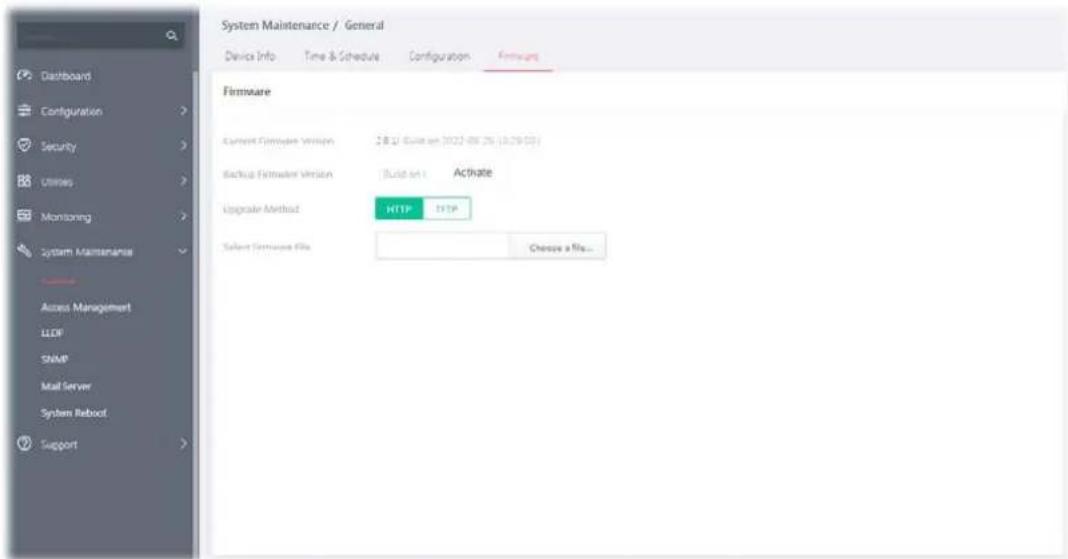

VI-1-4 Firmware 179

VI-2 Access Management 180

VI-2-1 LAN Access 180

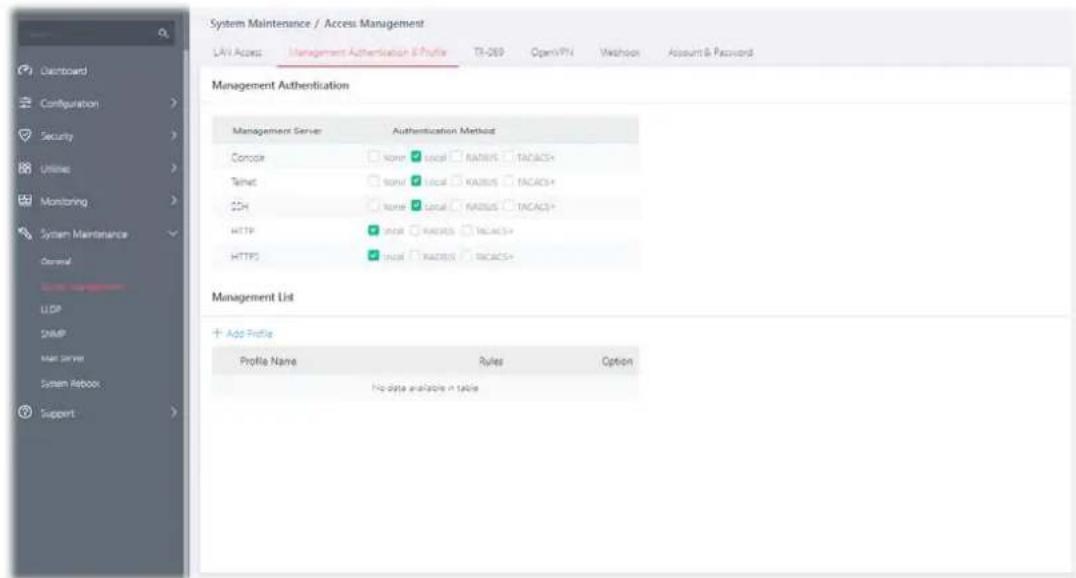

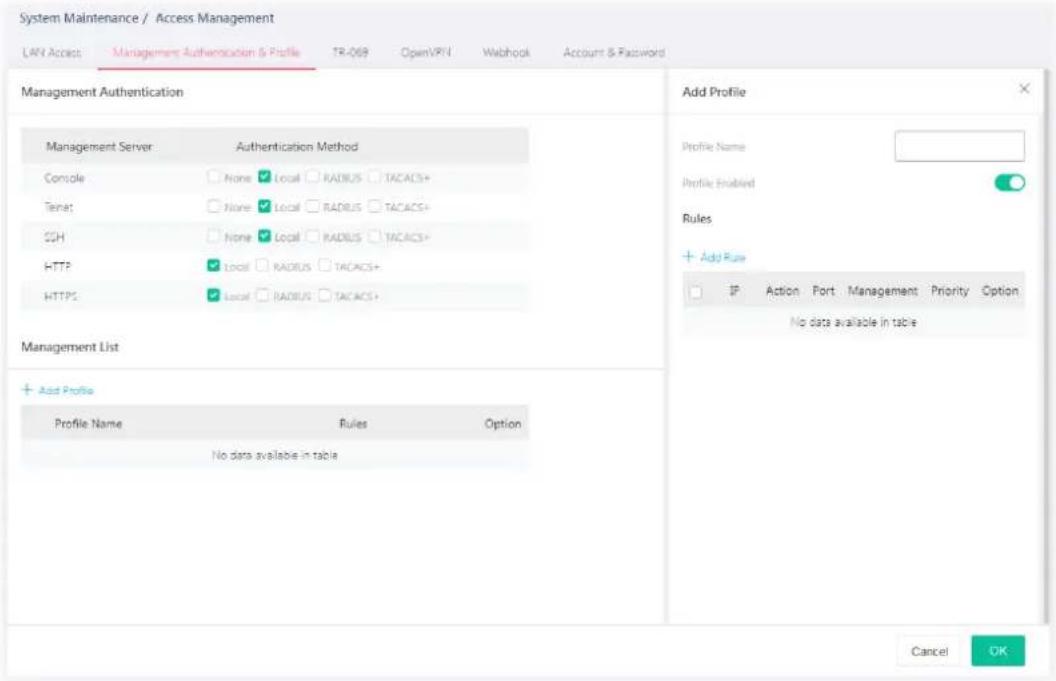

VI-2-2 Management Authentication & Profile 182

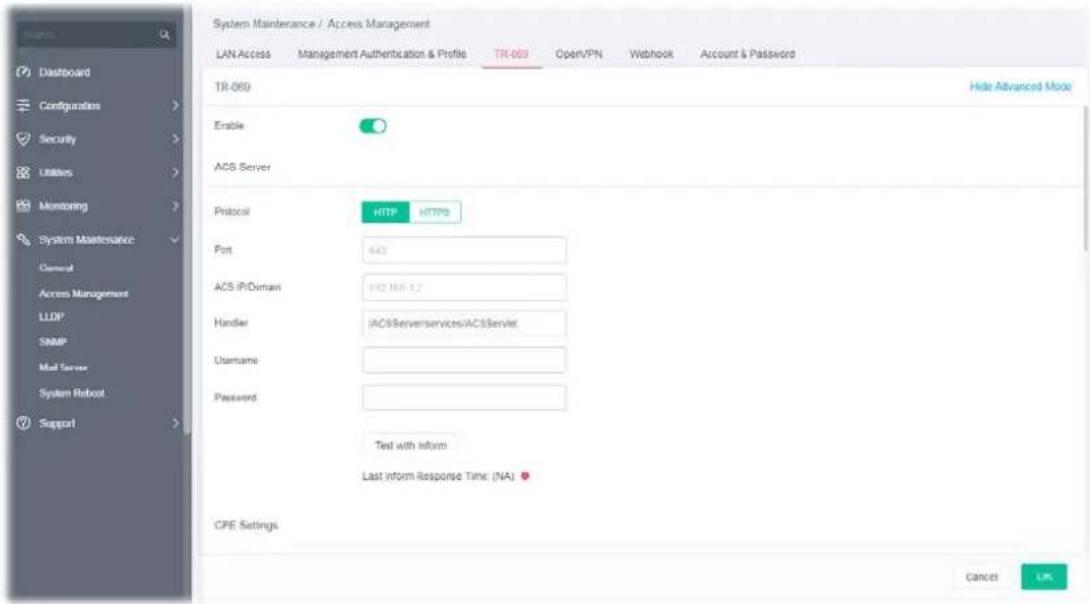

VI-2-3 TR-069 185

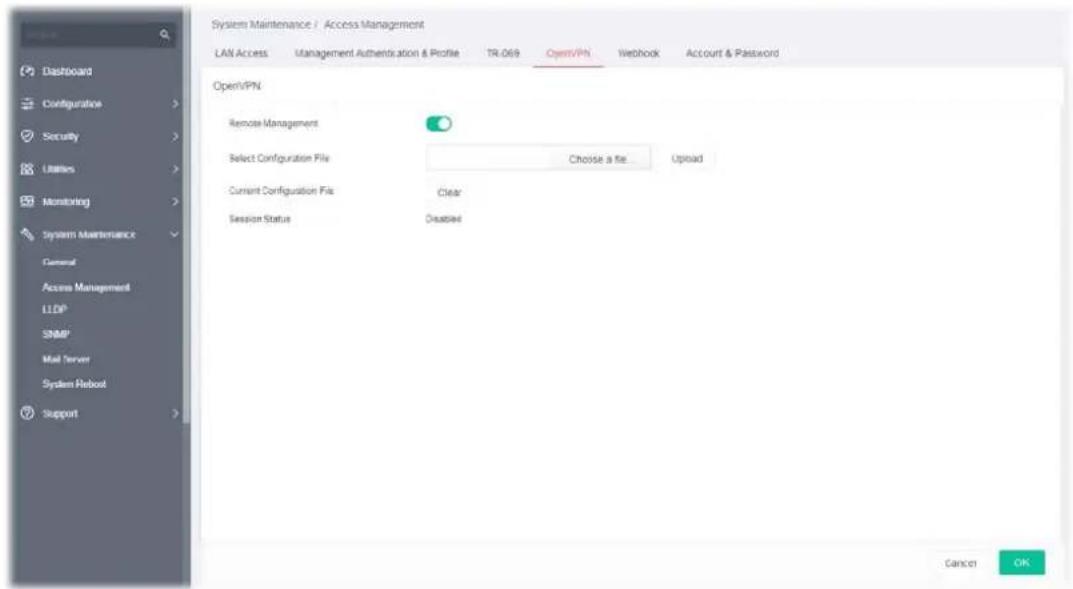

VI-2-4 OpenVPN 187

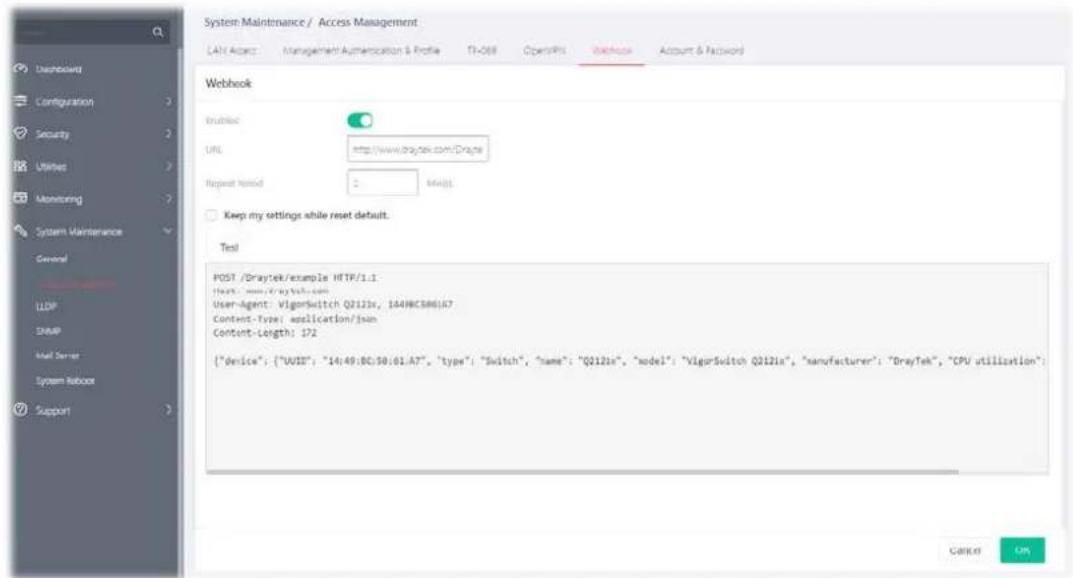

VI-2-5 Webhook 188

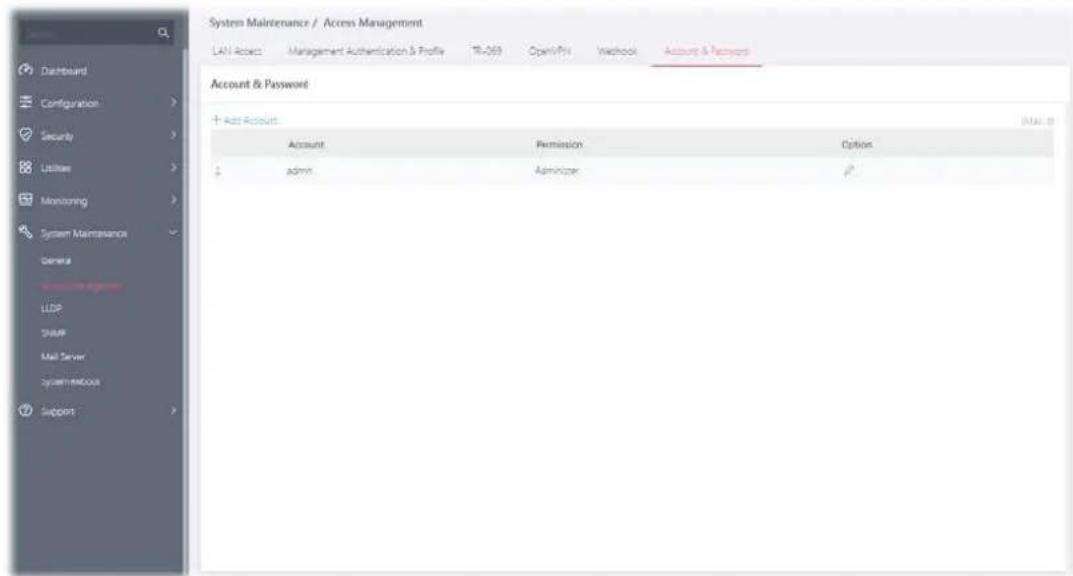

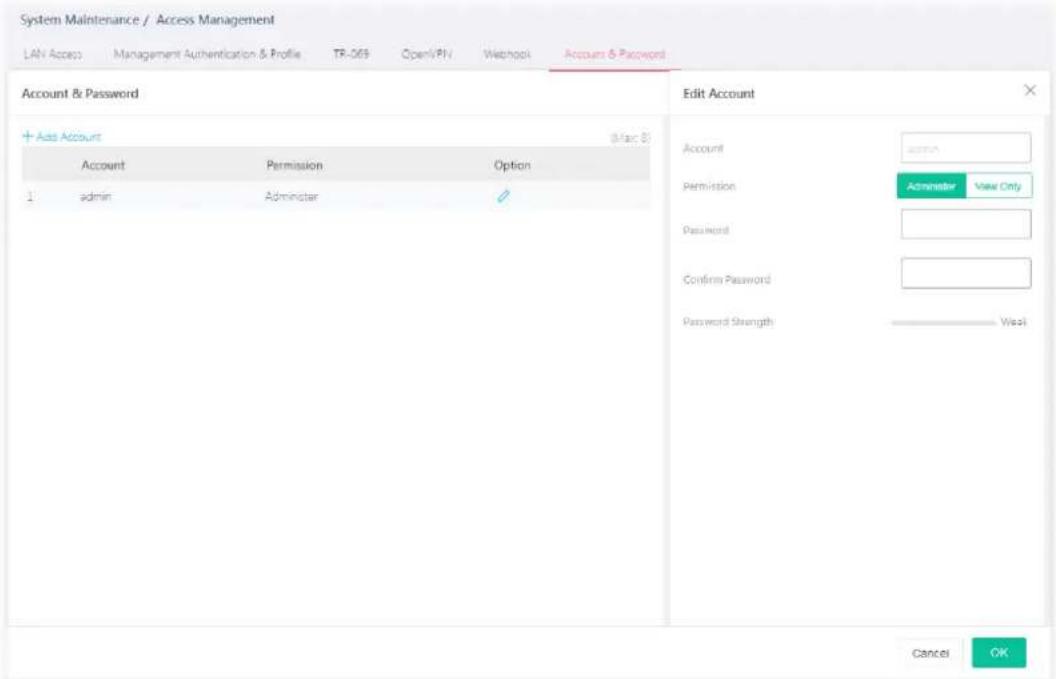

VI-2-6 Account & Password....189

VI-3 LLDP....191

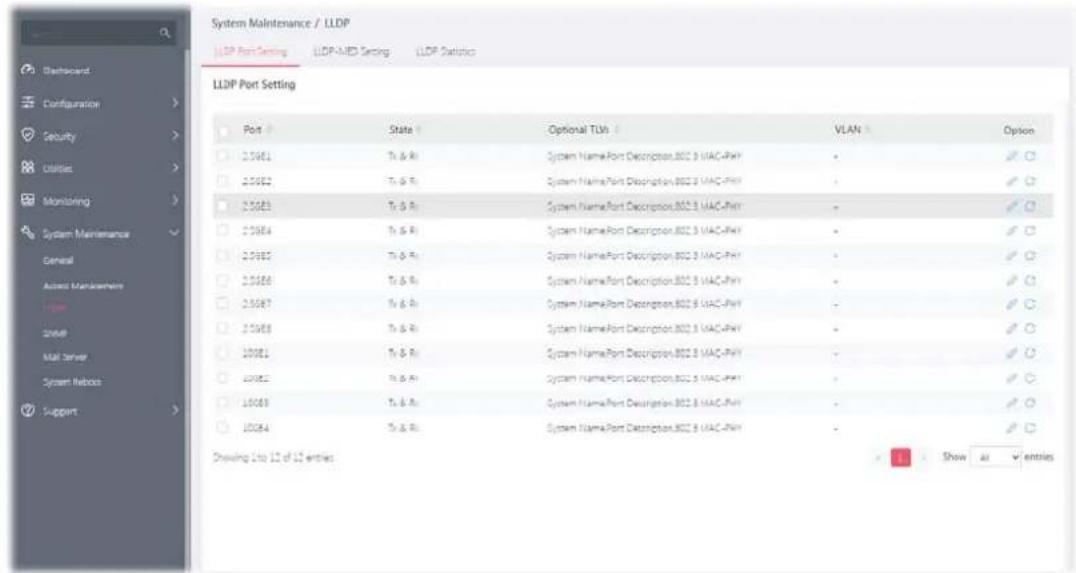

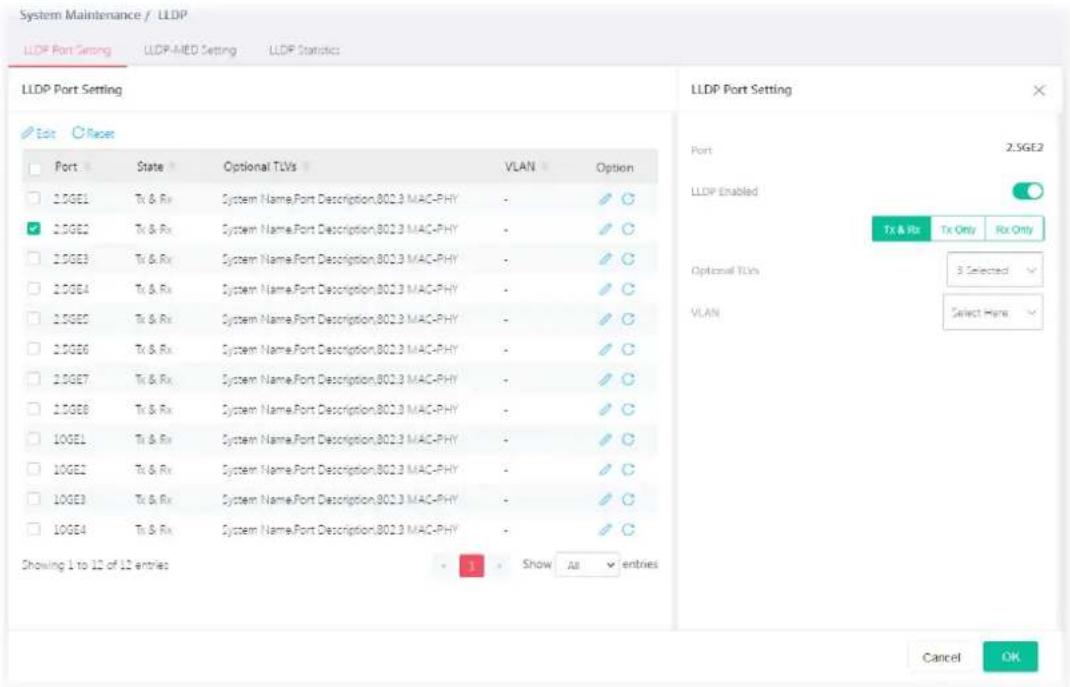

VI-3-1 LLDP Port Setting 191

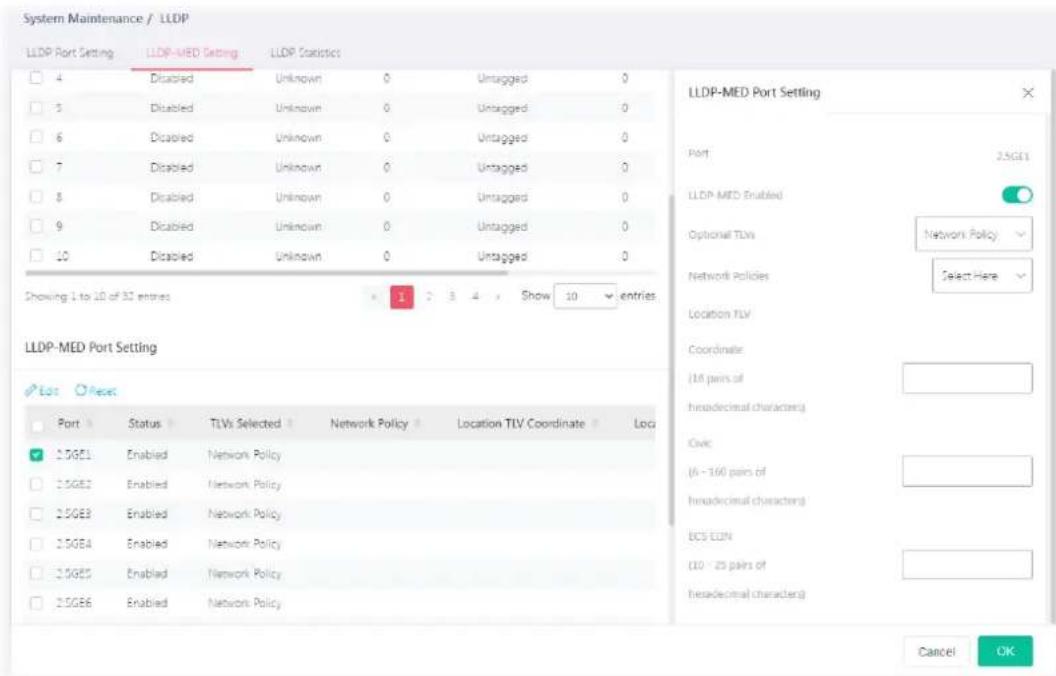

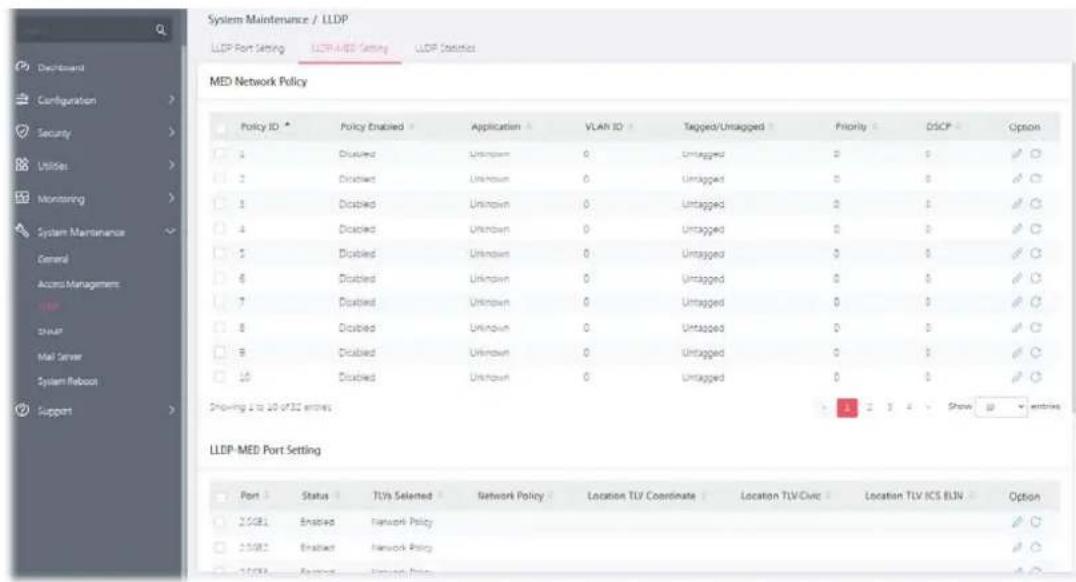

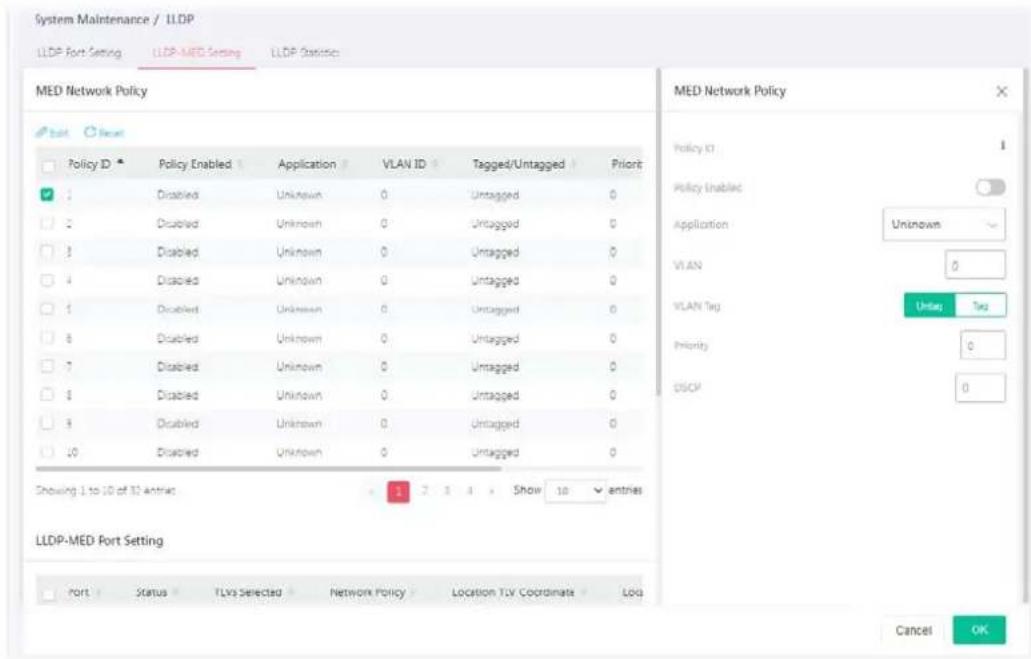

VI-3-2 LLDP-MED Setting 193

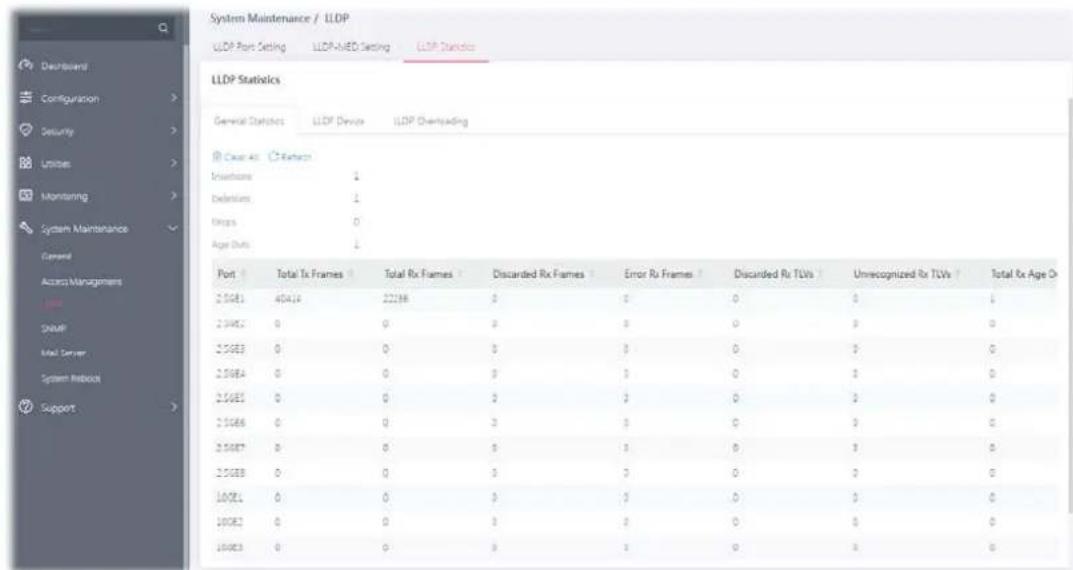

VI-3-3 LLDP Statistics 196

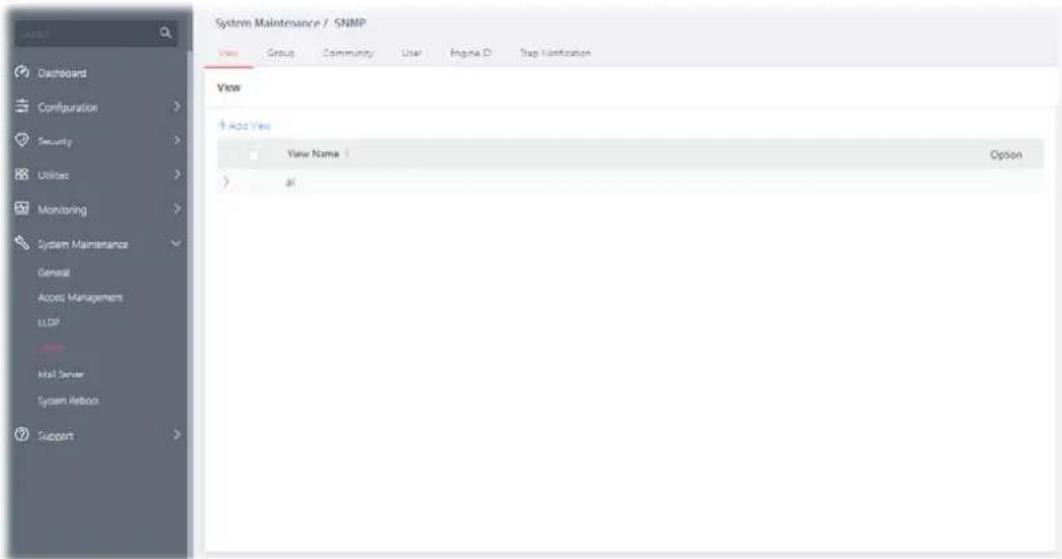

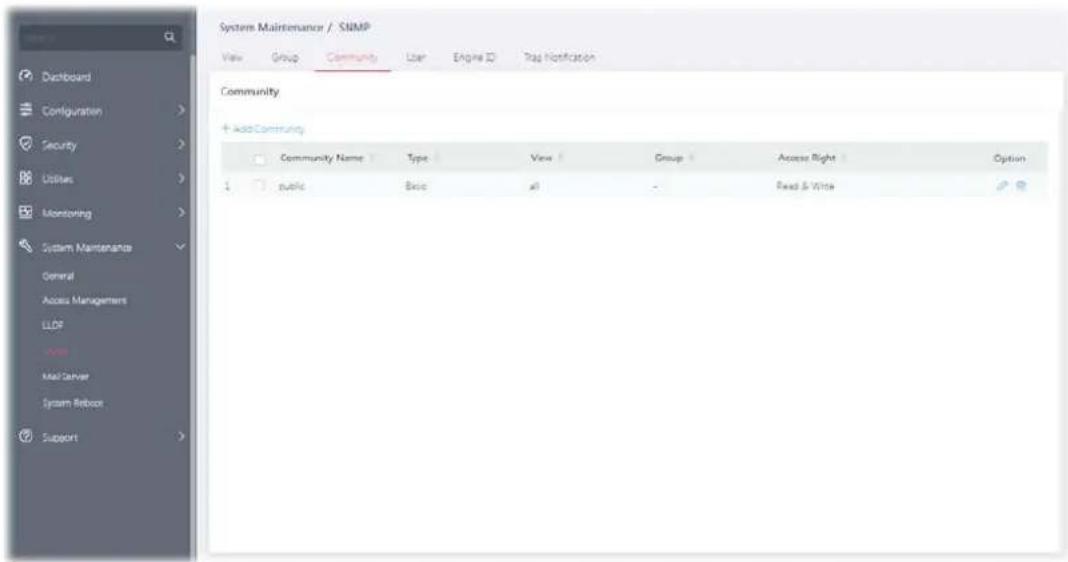

VI-4 SNMP 197

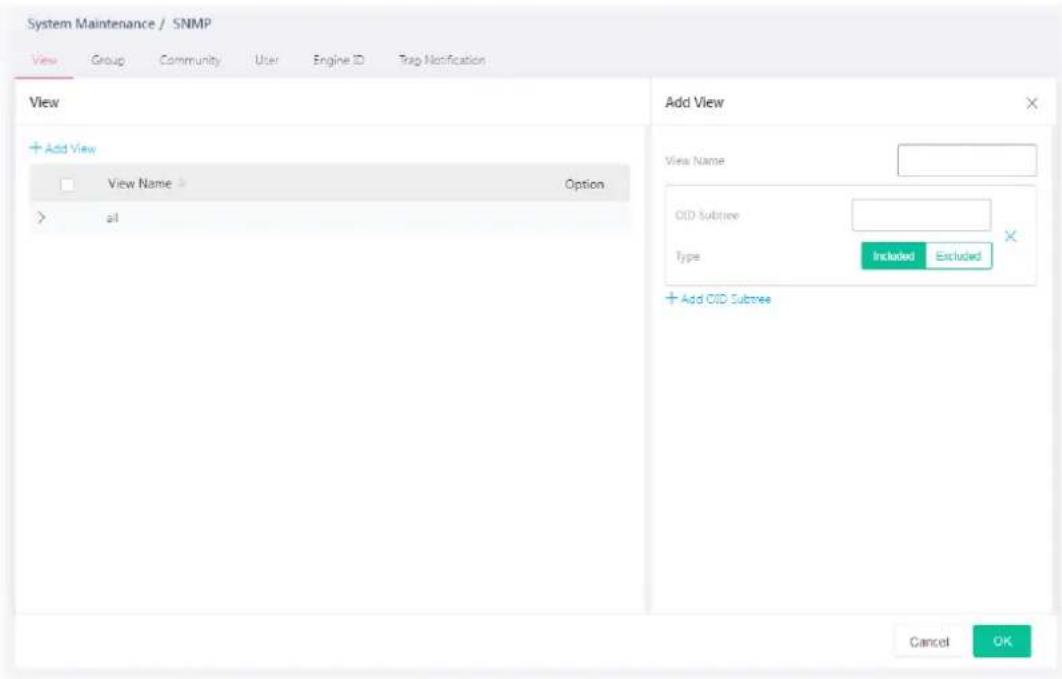

VI-4-1 View.... 197

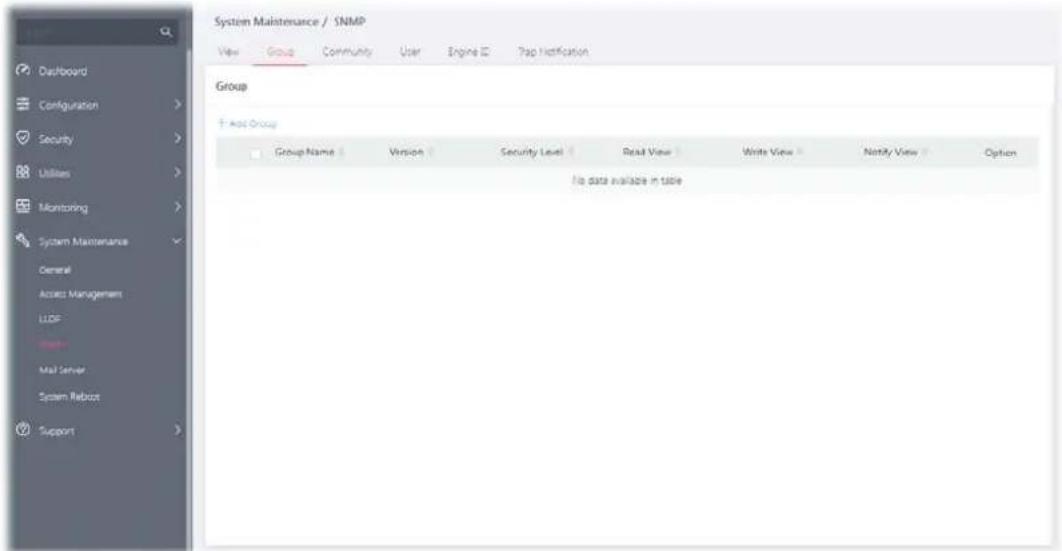

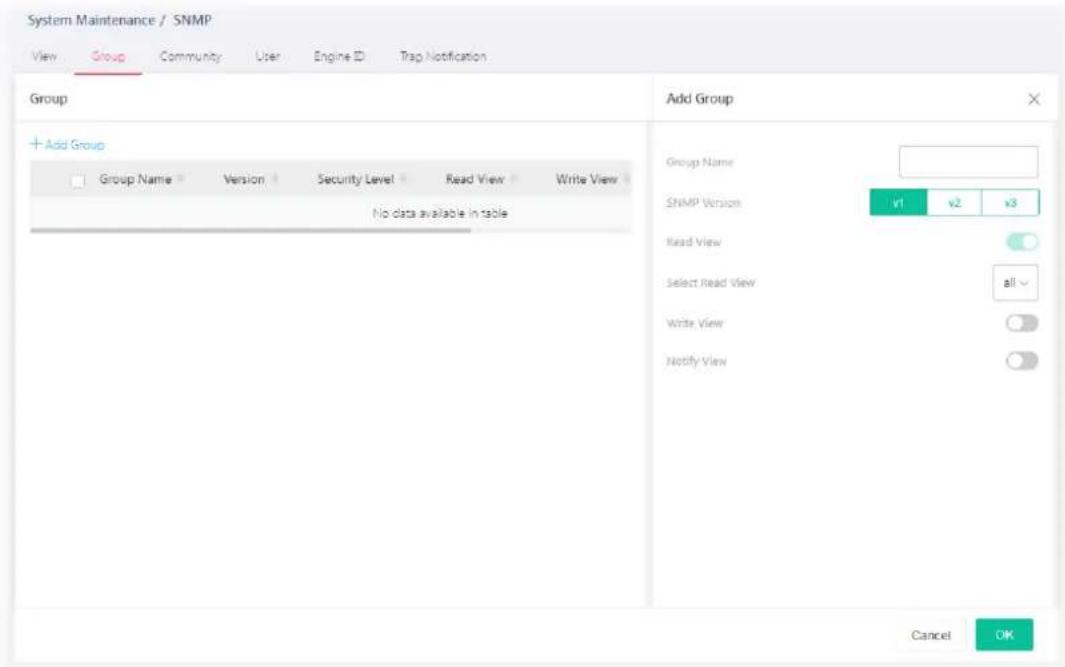

VI-4-2 Group 199
VI-4-3 Community 201

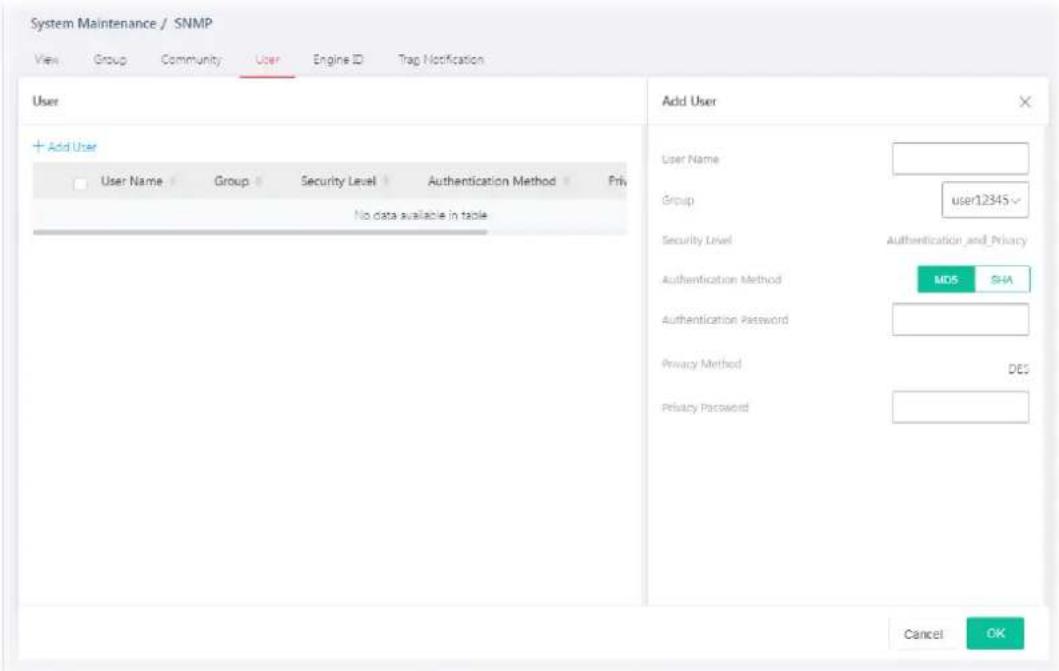

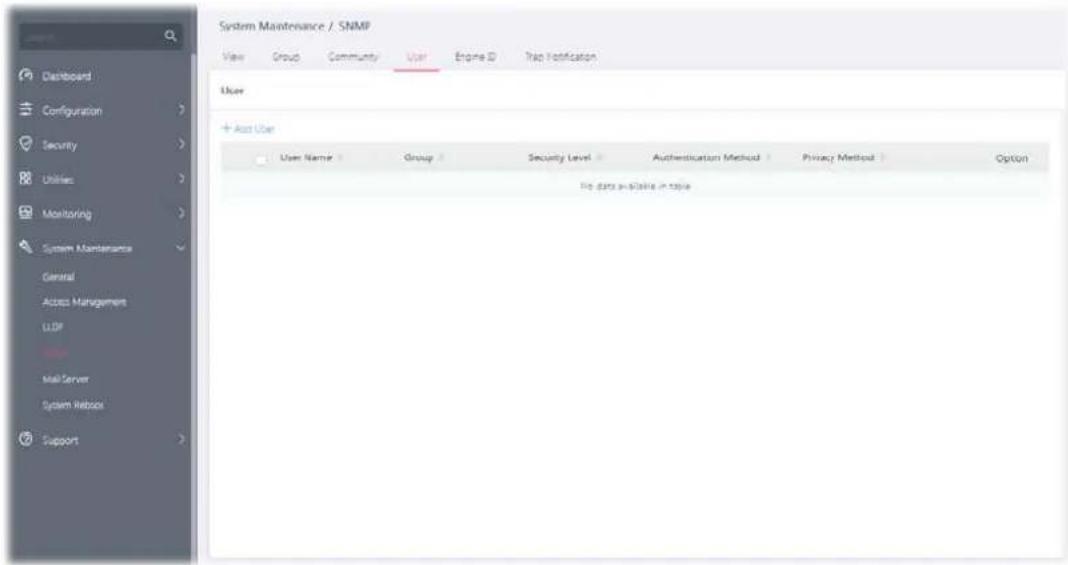

VI-4-4 User 203

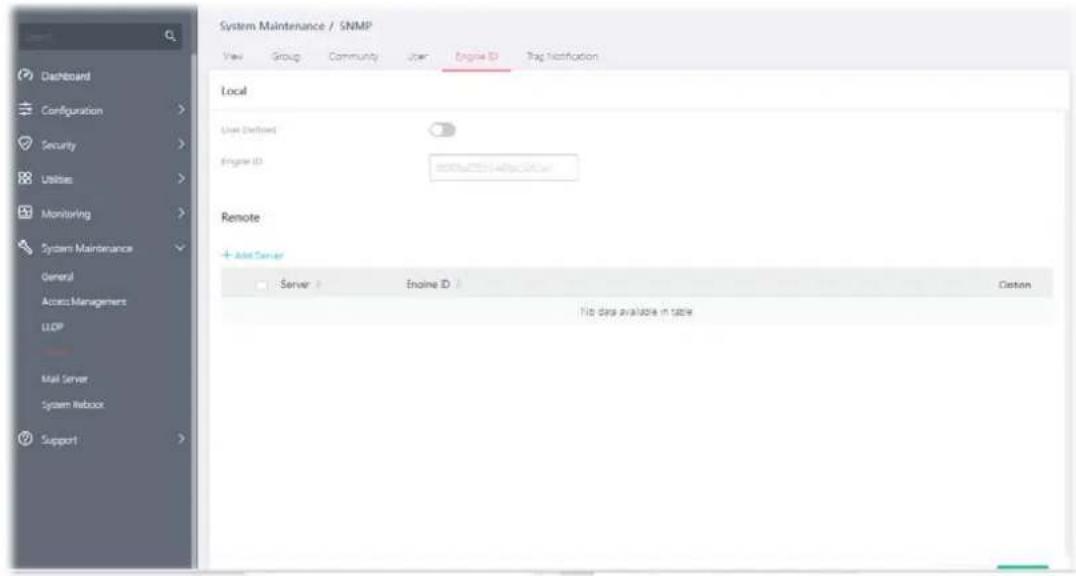

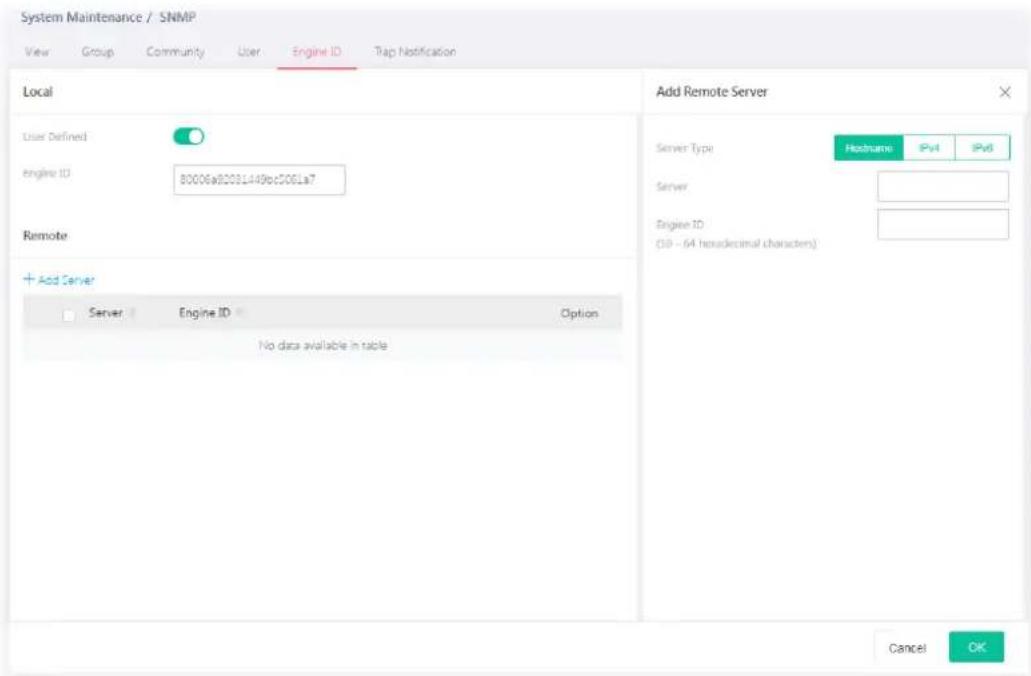

VI-4-5 Engine ID 205

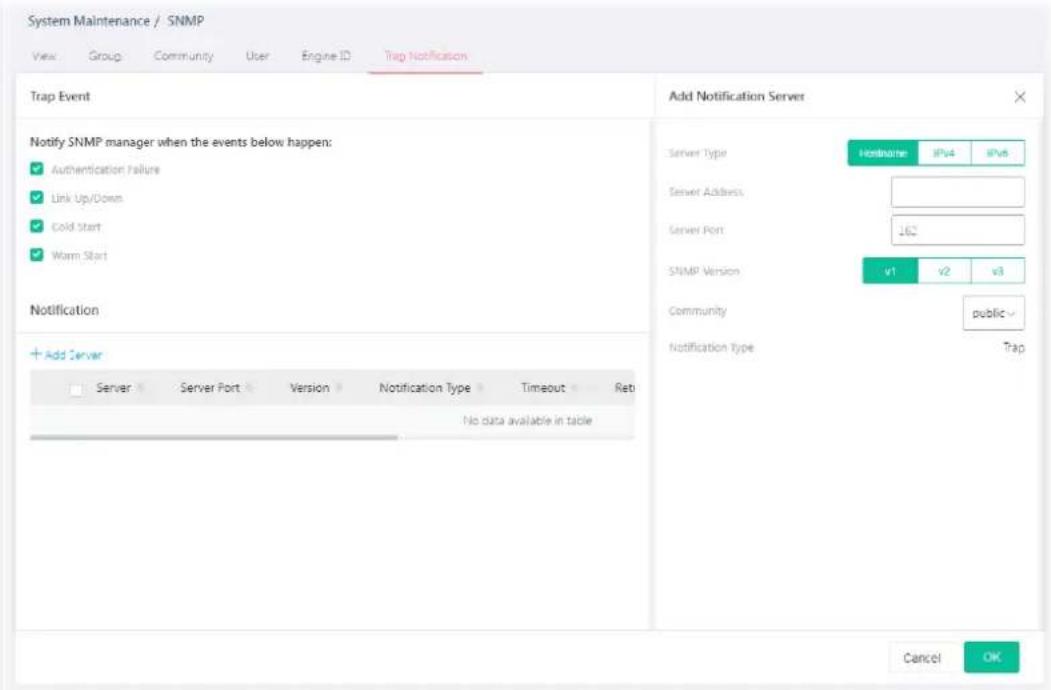

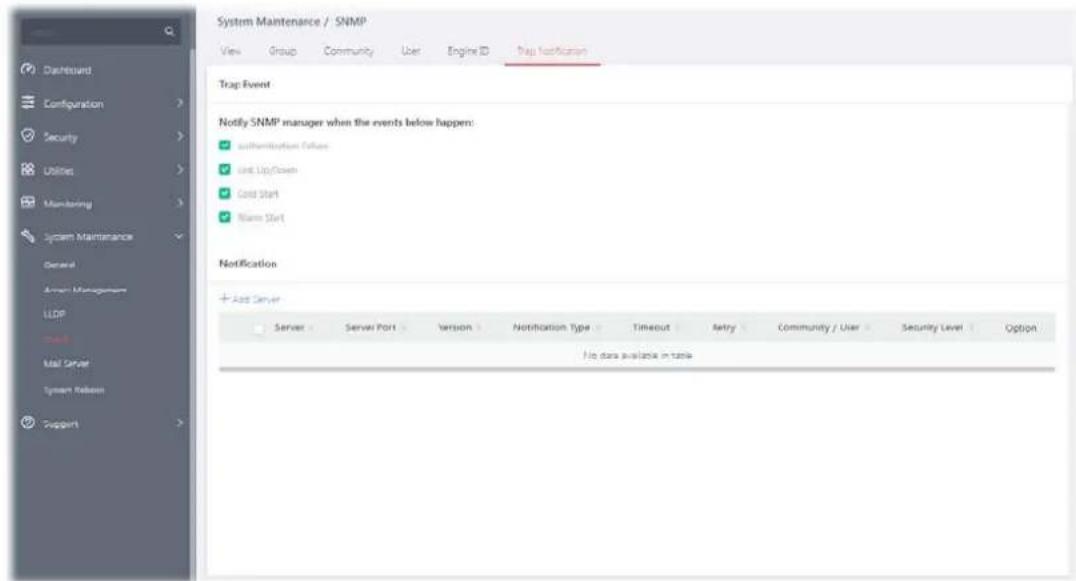

VI-4-6 Trap Notification 207

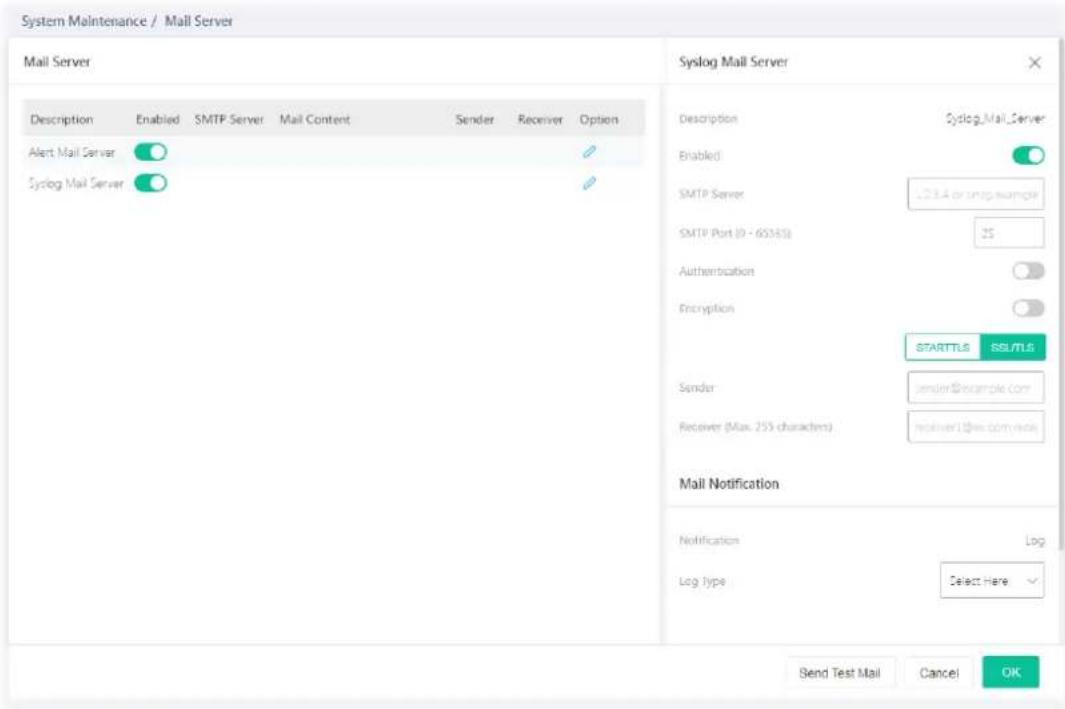

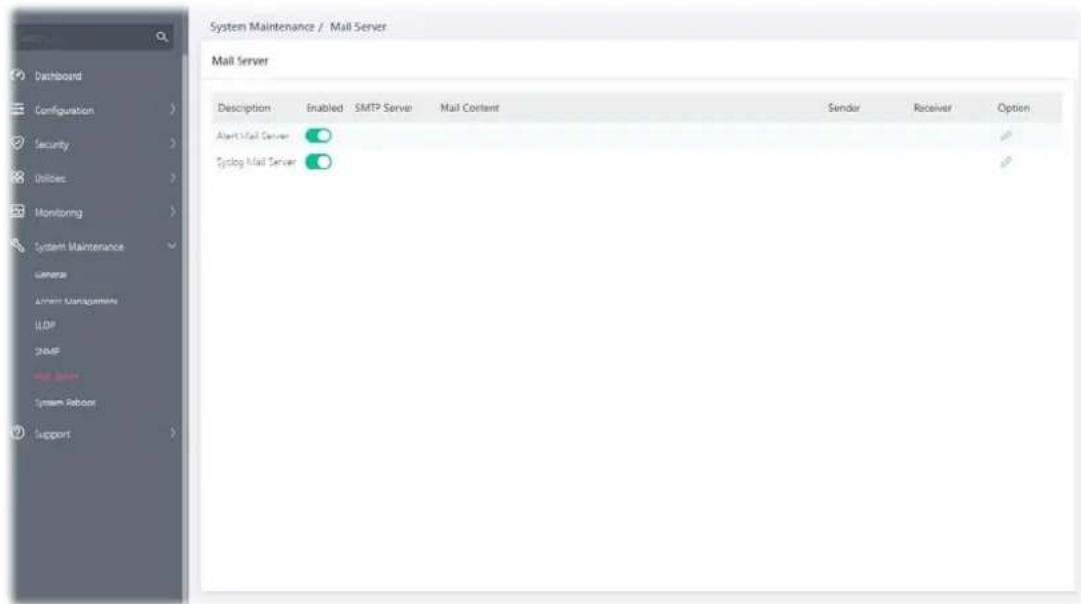

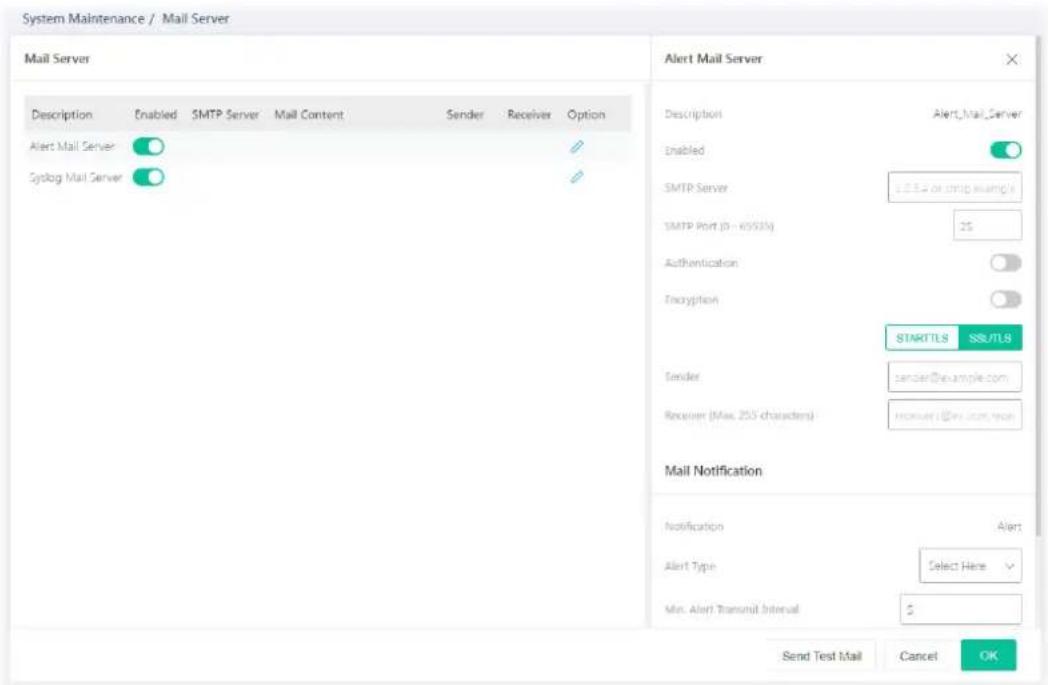

VI-5 Mail Server 210

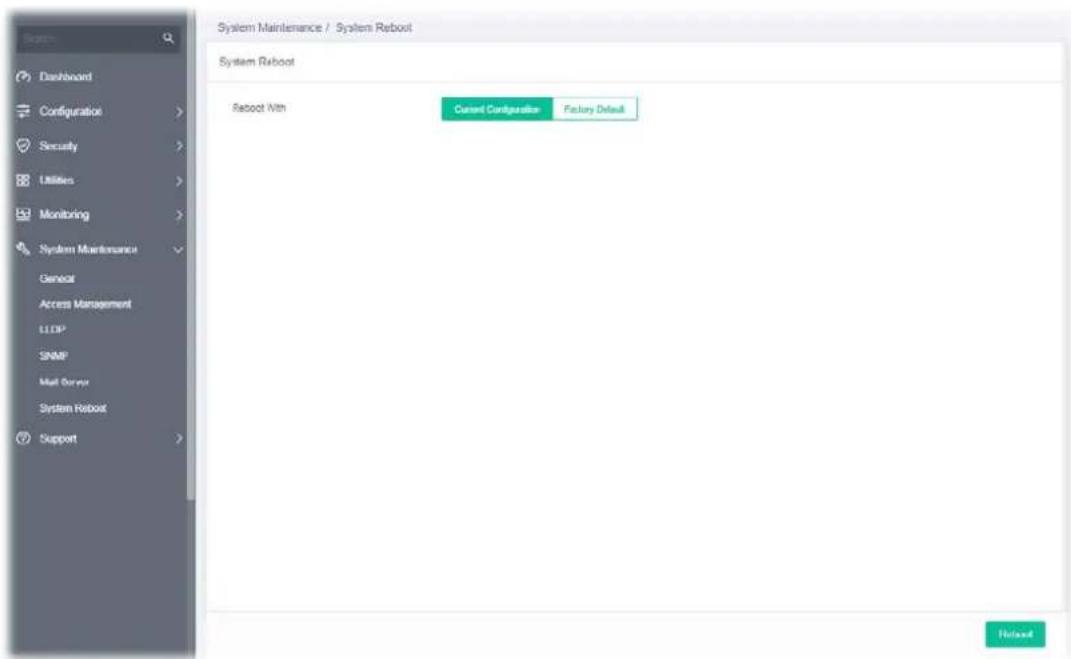

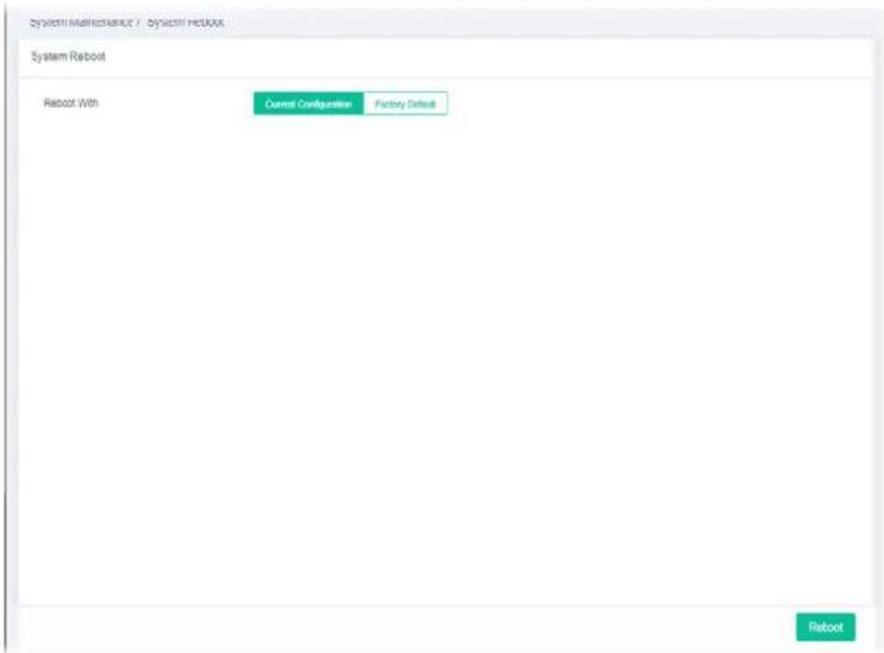

VI-6 System Reboot....214

Chapter VII Troubleshooting....215

VII-1 Backing to Factory Default Setting....216

VII-1-1 Software Reset 216

VII-1-2 Hardware Reset.... 217

VII-2 Contacting DrayTek 218

Appendix Telnet Commands....219

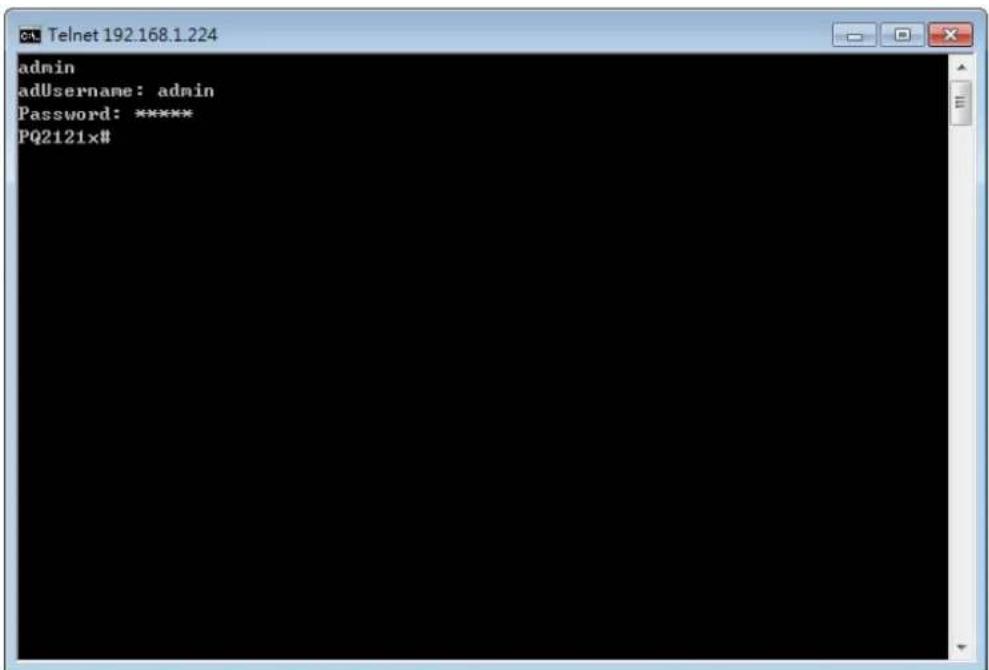

A-1 Accessing Telnet of Vigor Switch 220

A-2 Available Commands 222

A-2-1 Clear Configuration.... 222

A-2-2 Clock Configuration 231

A-2-3 Configure Configuration 232

A-2-4 Copy Configuration.... 339

A-2-5 Delete Configuration 340

A-2-6 Disable Configuration.... 341

A-2-7 End Configuration 341

A-2-8 Exit Configuration 342

A-2-9 Hardware-Monitor Configuration.... 342

A-2-10 Ping Configuration....342

A-2-11 Reboot Configuration.... 343

A-2-12 Renew Configuration.... 343

A-2-13 Restore-defaults Configuration 343

A-2-14 Save Configuration 344

A-2-15 Show Configuration.... 344

A-2-16 SSL Configuration 345

A-2-17 Terminal Configuration.... 346

A-2-18 Traceroute Configuration 346

A-2-19 UDLD Configuration 347

Chapter I Introduction

Simple icon of a browser window with three red dots, no text or symbols present

I-1 Introduction

This is a generic International version of the user guide. Specification, compatibility and features vary by region. For specific user guides suitable for your region or product, please contact local distributor.

Thank you for purchasing VigorSwitch.

I-1-1 Key Features

Before you use the Vigor modem, please get acquainted with the LED indicators and connectors first.

Below shows key features of this device:

QoS

The switch offers powerful QoS function. This function supports 802.1p VLAN tag priority and DSCP on Layer 3 of network framework.

VLAN

Support Port-based VLAN and IEEE802.1Q Tag VLAN. Support 24 active VLANs and VLAN ID 1\~4094.

Port Trunking

Allows one or more links to be aggregated together to form a Link Aggregation Group by the static setting.

Power Saving

The Power saving using the IEEE 802.3az, Energy-Efficient Ethernet to detect the client idle and cable length automatically and provides the different power. It could efficient to save the switch power and reduce the power consumption.

I-1-2 LED Indicators and Connectors

LED	Status Explanation
Monitor	On (Red) An alert for system failure due to overheating or wrong voltage.
	Off The devices in normal condition and running normally.
Alert	Blinking (Green)	The power is over (> ) 80% watts PoE power budget.
	Off The powers under (< ) 80% watts PoE power budget.
SYS	On (Green) The switch finishes system booting and the system is ready.
	Blinking (Green)	The switch is powered on and starts system booting.
	Off The powers off or the system is not ready / malfunctioning.
PWR	On (Green) The device is powered on and running normally.
	Off The devices not ready or is failed.
Port 1 ~ 8(2.5GbE PoE)	On (Green) The port is supplied with PoE power.
	Off No PoE power is supplied on the port.
Port 1 ~ 8(2.5GbE RJ45)	On (Green) The device is connected with 2500Mbps.
	On (Amber) The device is connected with 10/100/1000Mbps.
	Blinking The system is sending or receiving data through the port.
	Off The port is disconnected or the link is failed.
Port 9 ~ 12(SFP+)	On (Blue) The device is connected with 10Gbps.
	On (Amber) The device is connected with 1000Mbps.
	Blinking The system is sending or receiving data through the port.
	Off The port is disconnected or the link is failed.

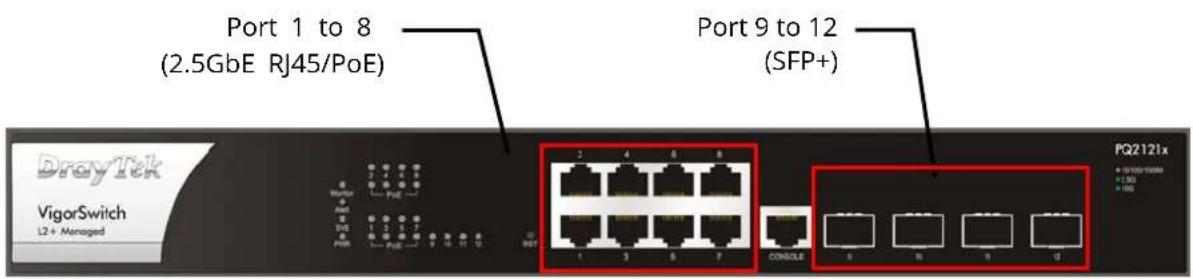

Interface Description

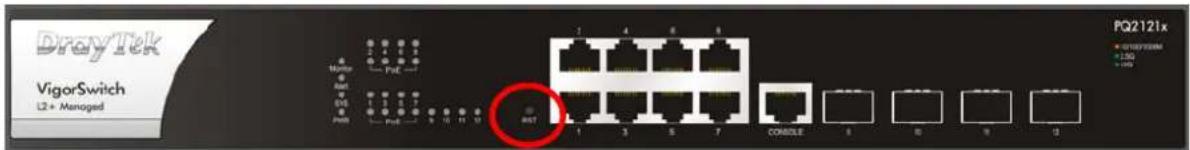

RST	Factory reset button.Press it to reboot the system. (<5 seconds)Press it to reset the system with factory default settings. (5~20 seconds)
Port 1 ~ 8 (2.5GbE RJ45/PoE)	Used for Ethernet connection (10/100/1000/2500Mbps).Used for Ethernet connection (10/100/1000/2500Mbps).PoE supports:Port 1 ~ 8: 802.3af/at, up to 30W.
Port 9 ~ 12 (SFP+) Port 9 to Port 12 are used for fiber connection.
Console Used to perform telnet command control.
	Power inlet for AC input (100~240V/AC, 50/60Hz, 2.5A).

I-2 Installation

Before starting to configure the switch, you have to connect your devices correctly.

Note:

For the sake of personal safety, only trained and qualified personnel should install this device.

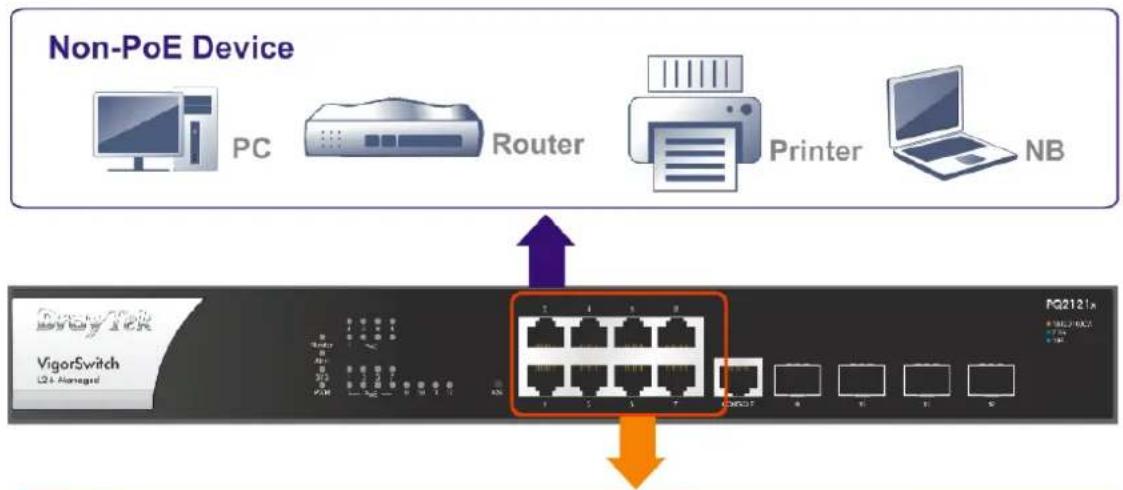

I-2-1 Network Connection

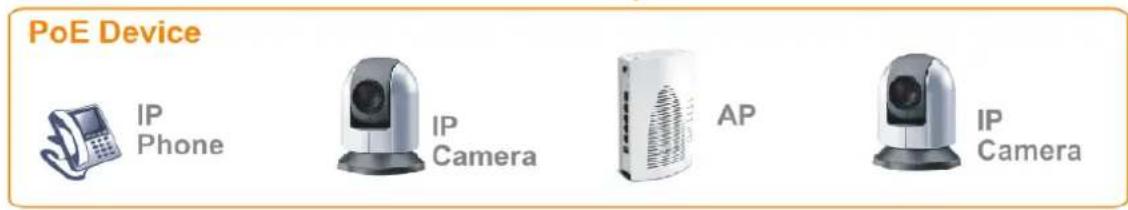

Use a Cat. 5e twisted-pair cable to connect a PoE device to the port (1\~8) of this switch.
● The switch will supply power to PoE Device over the twisted-pair cable.
- Please note that Power Device must comply with IEEE 802.3af/at.
- Other PCs, servers and network devices can be connected to the switch using a standard 'straight through' twisted pair cable.

I-2-2 Rack-Mounted Installation

The switch can be installed easily by using rack mount kit.

1. Fasten the rack mount kit on both sides of the VigorSwitch using specific screws.

3D diagram of a mechanical assembly with mounting holes and connectors (no text or symbols)

1. Then, install the VigorSwitch (with rack mount kit) on the 19-inch chassis by using other four screws.

I-2-3 Typical Applications

The VigorSwitch implements many Gigabit Ethernet TP ports with auto MDIX and four slots for the removable module supporting comprehensive fiber types of connection, including LC and BiDi-LC SFP modules. The switch is suitable for the following applications:

Case 1: All switch ports are in the same local area network.

Every port can access each other. (*The switch image is sample only.)

Two black networking switches connected to three computers (no text or labels visible)

If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.

Here VLAN area is defined by what VLAN you are using. The switch supports both port-based VLAN and tag-based VLAN. They are different in practical deployment, especially in physical location. The following diagram shows how it works and what the difference they are.

Case 2: Port-based VLAN -1 (*The switch image is sample only.)

• The same VLAN members could not be in different switches.
  • Every VLAN members could not access VLAN members each other.
  The switch manager has to assign different names for each VLAN groups at one switch.

Case 3: Port-based VLAN - 2

• VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members.
- VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.
• VLAN3 members could not access VLAN1, VLAN2 and VLAN4.
- VLAN4 members could not access VLAN1 and VLAN3 members, but they could access VLAN2 members.

Case 4: The same VLAN members can be at different switches with the same VID

Case 5: Desktop Installation

1. Install the switch on a level surface that can support the weight of the unit and the relevant components.
2. Plug the switch with the female end of the provided power cord and plug the male end to the power outlet.

Case 6: Central Site/Remote site application is used in carrier or ISP

Case 7: Peer-to-peer application is used in two remote offices

Case 8: Office network

I-2-4 Configuring the Management Agent of Switch

Users can monitor and configure the switch through the following procedures.

There are several ways to configure and monitor the switch, including Web-UI and SNMP.

VigorSwitch, for example:

IP Address: 192.168.1.224

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.1.254

I-2-5 IP Address Assignment

For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS.

IP address:

The address of the network device in the network is used for internetworking communication. Its address structure looks is shown below. It is "classful" because it is split into predefined address classes or categories.

Each class has its own network range between the network identifier and host identifier in the 32 bits address. Each IP address comprises two parts: network identifier (address) and host identifier (address). The former indicates the network where the addressed host resides, and the latter indicates the individual host in the network which the address of host refers to. And the host identifier must be unique in the same LAN. Here the term of IP address we used is version 4, known as IPv4.

32 bits

With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24. Each class has its address range described below.

Class A:

Address is less than 126.255.255.255. There are a total of 126 networks can be defined because the address 0.0.0.0 is reserved for default route and 127.0.0.0/8 is reserved for loopback function.

Class B:

IP address range between 128.0.0.0 and 191.255.255.255. Each class B network has a 16-bit network prefix followed 16-bit host address. There are 16,384 (2^14)/16 networks able to be defined with a maximum of 65534 (2^16 -2) hosts per network.

Class C:

IP address range between 192.0.0.0 and 223.255.255.255. Each class C network has a 24-bit network prefix followed 8-bit host address. There are 2,097,152 (2^21)/24 networks able to be defined with a maximum of 254 (2^8 -2) hosts per network.

Class D and E:

Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.

According to IANA (Internet Assigned Numbers Authority), there are three specific IP address blocks reserved and able to be used for extending internal network. We call it Private IP address and list below:

Class A 10.0.0.0 --- 10.255.255.255

Class B 172.16.0.0 --- 172.31.255.255

Class C 192.168.0.0 --- 192.168.255.255

Please refer to RFC 1597 and RFC 1466 for more information.

Subnet mask:

It means the sub-division of a class-based network or a CIDR block. The subnet is used to determine how to split an IP address to the network prefix and the host address in bitwise basis. It is designed to utilize IP address more efficiently and ease to manage IP network.

For a class B network, 128.1.2.3, it may have a subnet mask 255.255.0.0 in default, in which the first two bytes is with all 1s. This means more than 60 thousands of nodes in flat IP address will be at the same network. It's too large to manage practically. Now if we divide it into smaller network by extending network prefix from 16 bits to, say 24 bits, that's using its third byte to subnet this class B network. Now it has a subnet mask 255.255.255.0, in which each bit of the first three bytes is 1. It's

now clear that the first two bytes is used to identify the class B network, the third byte is used to identify the subnet within this class B network and, of course, the last byte is the host number.

Not all IP address is available in the sub-netted network. Two special addresses are reserved. They are the addresses with all zero's and all one's host number. For example, an IP address 128.1.2.128, what IP address reserved will be looked like? All 0s mean the network itself, and all 1s mean IP broadcast.

128.1.2.128/25

In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched. The following table shows the result.

Prefix Length No. of IP matched No. of Addressable IP

/32	1		-
/31	2		-
/30	4		2
/29	8		6
/28	16		14
/27	32		30
/26	64		62
/25	128		126
/24	256		254
/23	512		510
/22	1024	1022
/21	2048	2046
/20	4096	4094
/19	8192	8190
/18	16384	16382
/17	32768	32766
/16	65536	65534

According to the scheme above, a subnet mask 255.255.255.0 will partition a network with the class C. It means there will have a maximum of 254 effective nodes existed in this sub-netted network and is considered a physical network in an autonomous network. So it owns a network IP address which may looks like 168.1.2.0.

With the subnet mask, a bigger network can be cut into small pieces of network. If we want to have more than two independent networks in a worknet, a partition to the network must be performed. In this case, subnet mask must be applied.

For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network.

For assigning an IP address to the switch, you just have to check what the IP address of the network will be connected with the switch. Use the same network address and append your host address to it.

• First, IP Address: as shown above, enter "192.168.1.224", for instance. For sure, an IP address such as 192.168.1.x must be set on your PC.
• Second, Subnet Mask: as shown above, enter "255.255.255.0". Choose a subnet mask suitable for your network.

Note:

The DHCP Setting is enabled in default. Therefore, if a DHCP server presented on network connected to the switch, check before accessing your switch is essential.

I-3 Accessing Web Page of VigorSwitch

1. Open any browser (e.g., Firefox) and type "192.168.1.224" as URL.
2. Please enter "admin/admin" as the Username/Password and click Login.

1. Now, the Main Screen will appear.

Info:

The DHCP Setting is enabled in default. Therefore, if a DHCP server presented on network connected to VigorSwitch, checking before accessing VigorSwitch is essential.

I-4 Dashboard

Click Dashboard from the main menu on the left side of the main page.

A web page with default selections will be displayed on the screen. Refer to the following figure:

Chapter II Configuration

Red gear icon enclosed in a circular arrow, no text or symbols present

II-1 General Setup

II-1-1 PoE

This page allows a user to configure general settings for supplying PoE power for all PoE ports.

Available settings are explained as follows:

Item	Description
Enable	Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
PoE Mode	Auto - Provides plug and play PoE function. PoE schedule and Power Limit are disabled in this mode.Manual - Before using scheduled PoE, set Manual as PoE mode.

After finishing this web page configuration, please click OK to save the settings.

II-1-2 Mirroring

This section provides ability to mirror packets coming in or going out on any port to a destination port. Through the packet duplication in the destination port, this feature is convenient for system administrator to monitor / understand the traffic operation.

Available settings are explained as follows:

Item	Description
Enabled	Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
Destination Port Specify the port where you wish to observe the mirrored packets.
Operate as Normal Port	Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
Rx/Tx Source Mirrored Port	Select the port(s) which you wish to mirror the traffic, Rx for mirror the packets into the port, Tx for mirror the packets going out from the port.
Option	(csson) - Clear current settings and return to factory default settings.

After finishing this web page configuration, please click OK to save the settings.

II-1-3 Link Aggregation

LAG means Link Aggregation Group which groups some physical ports together to make a single high-bandwidth data path. Thus it can implement traffic load sharing among the member ports in a group to enhance the connection reliability.

Available settings are explained as follows:

Item	Description
Link Aggregation
LAG Load Balance Algorithm	Select your Load balance algorithm.MAC address- Aggregated group will balance the traffic based on different MAC addresses. Therefore, the packets from different MAC addresses will be sent to different links.IP/Mac Address- Aggregated group will balance the traffic based on MAC addresses and IP addresses. Therefore, the packets from same MAC addresses but different IP addresses will be sent to different links.
LACP	Enable / Disable- Click the toggle to enable / disable this function.- means “Enable”.- means “Disable”.
LACP System Priority	The priority is used to determine which switch (local or remote) on the LAG connection is able to decide LACP activities. The lower the number is, the higher the priority for VigorSwitch will be. Therefore, the switch with the highest system priority (e.g., 1) can make decisions about which ports actively participate in LAG at a given time.
+Add Link Aggregation	Click to open the setting page of creating Link Aggregation.

To add a link aggregation, click the "+Add Link Aggregation" to open the edit page.

Available settings are explained as follows:

Item	Description
Edit Link Aggregation
Show/Hide Advanced Mode	Click to switch different modes.
Port Select the GE port(s).
Aggregation Type Specify the type for LAG.
	Static - The static aggregated port sends packets over active member without detecting or negotiating with remote aggregated port.LACP - The LACP aggregated ports place member into active only after negotiated with remote aggregated port for best reliability.
Enabled	Enable / Disable - Click the toggle to enable / disable this function.- means "Enable".- means "Disable".
Port Speed Port speed capabilities:
	Auto(100M/1000M/2.5G): Auto speed with all capabilities (100M / 1000M / 2.5G).Auto(100M): Auto speed with 100M ability only.Auto(1000M): Auto speed with 1000M ability only.Auto(2.5G): Auto speed with 2.5G ability only.Configure the speed to match fiber module speed.
Flow Control	Enable / Disable - Click the toggle to enable / disable this function.- means "Enable".- means "Disable".A concentration of traffic on a port decreases port bandwidth and overflows buffer memory causing packet discards and frame losses. Flow Control is used to regulate transmission of signals to match the bandwidth of the receiving port. The switch uses IEEE802.3x flow control in full duplex mode and backpressure flow control in half duplex mode. IEEE802.3x flow control is used in full duplex mode to send a pause signal to the sending port, causing it to temporarily stop sending signals when the receiving port memory buffers fill. Back Pressure flow control is typically used in half duplex mode to send a "collision" signal to the sending port (mimicking a state of packet collision) causing the sending port to temporarily stop sending signals and resend later.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings. The new link aggregation group will be shown on the page.

II-1-4 Multicast

For the multicast packets, this page allows the administrator to choose actions for processing the unknown multicast packets and for handling known packets with MAC address, IP address and VLAN ID.

Available settings are explained as follows:

Item	Description
Unknown Multicast Packets Action	Select an action for switch to handle with unknown multicast packet.Drop - Drop the unknown multicast data.Flood - Flood the unknown multicast data.Forward to Router Port - Forward the unknown multicast data to router port.
IPv4/IPv6 Packets Forward Method	Set the IPv4/IPv6 multicast forward method.Dst. MAC & VID - Forward using destination multicast MAC address and VLAN IDs.Dst. IP & VID - Forward using destination multicast IP address and VLAN ID.

After finishing this web page configuration, please click OK to save the settings.

II-1-5 STP

The Spanning Tree Protocol (STP) is a network protocol that ensures a loop-free topology for any bridged Ethernet local area network.

Bridge Protocol Data Units (BPDUs) are frames that contain information about the Spanning Tree Protocol (STP). Switches send BPDUs using a unique MAC address from its origin port and a multicast address as destination MAC (01:80:C2:00:00:00, or 01:00:0C:CC:CC:CD for Per VLAN Spanning Tree).

For STP algorithms to function, the switches need to share information about themselves and their connections. What they share are bridge protocol data units (BPDUs).

BPDUs are sent out as multicast frames to which only other layer 2 switches or bridges are listening. If any loops (multiple possible paths between switches) are found in the network topology, the switches will co-operate to disable a port or ports to ensure that there are no loops; that is, from one device to any other device in the layer 2 network, only one path can be taken.

Available settings are explained as follows:

Item	Description
Show / Hide Advanced Mode	Click to display or hide the advanced settings.
STP
Enable	Enable / Disable - Click the toggle to enable / disable this function. - means “Enable”. - means “Disable”.
STP Mode Set the operating mode of Spanning Tree (STP).STP - Enable the Spanning Tree (STP) operation.RSTP - Enable the Rapid Spanning Tree (RSTP) operation.MSTP - Enable the Multiple Spanning Tree Protocol (MSTP) operation.
BPDU Handling Specify the BPDU forward method when the STP is disabled.Filtering - Filter the BPDU when STP is disabled.Flooding - Flood the BPDU when STP is disabled.
Path Cost Method Specify the path cost method.
	Long - Specifies that the default port path costs are within the range: 1~200,000,000.Short - Specifies that the default port path costs are within the range: 1~65,535.
Bridge Setting - Negotiate with other VigorSwitch for determining the bridge switch.
Priority	Specify the bridge priority. The valid range is from 0 to 61440, and the value should be the multiple of 4096. It ensures the probability that the switch is selected as the root bridge, and the lower value has the higher priority for the switch to be selected as the root bridge of the topology.
Forward Delay Specify the STP forward delay time, which is the amount of time that a port remains in the Listening and Learning states before it enters the Forwarding state. Its valid range is from 4 to 30 seconds.
Max. Age Specify the time interval in seconds for a switch to wait the configuration messages, without attempting to redefine its own configuration.
Tx Hold Count Specify the tx-hold-count used to limit the maximum numbers of packets transmission per second. The valid range is from 1 to 10.
Hello Time Specify the STP hello time in second to broadcast its hello message to other bridge by Designated Ports. Its valid range is from 1 to 10 seconds.
MST Instance & Port Setting	It appears if the Show Advanced Mode link is selected.MST Instance - MST instance allows traffic of different VLAN to be mapped into different MST Instances. VigorSwitch supports up to 16 independent MST instances (0~15) with which the VLAN can be associated.Bridge Identifier - Displays the priority of MST instance number + MAC address of the switch.Designated Root Bridge - Displays the Bridge Identifier of the root bridge.Root Port - Displays the port toward the root.Root Path Cost - Displays the path cost toward the root.Remaining Hop - Displays the remaining hop count in BPDU.VLAN -Displays the ID of the VLAN which should be associated with this MST instance.- Click to modify the setting page of the selected VLAN.- Clear settings of the selected port and return to factory default settings.

Click to open the MST editing page.

Available settings are explained as follows:

Item	Description
VLAN Enter the ID (1-4094) of the VLAN which should be associated with this MST.
Priority	The switch priority for this MST instance. A lower number gives the switch higher chance to be chosen as the root bridge.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

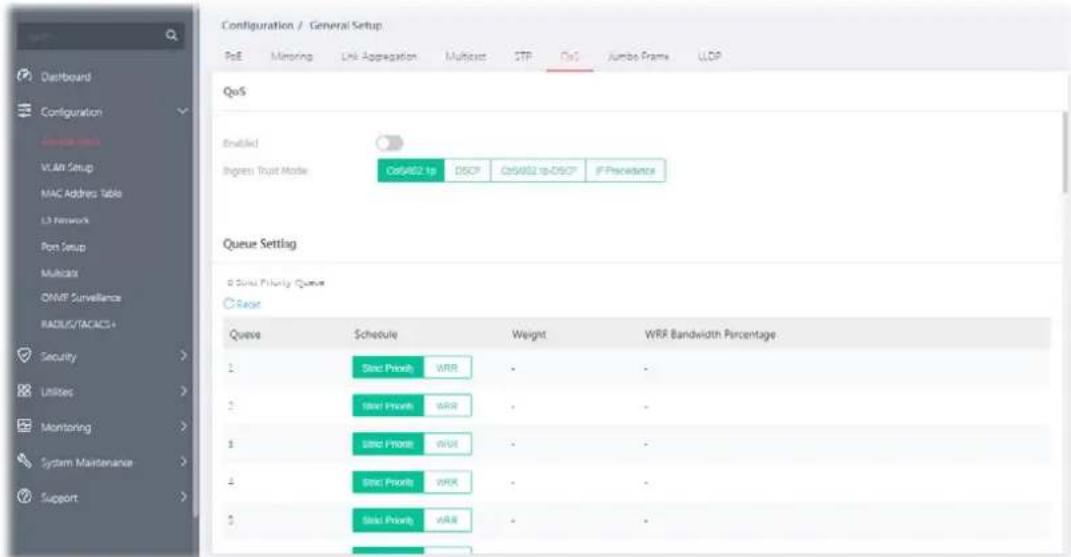

II-1-6 QoS

QoS (Quality of Service) functions to provide different quality of service for various network applications and requirements and optimize the bandwidth resource distribution to provide a network service experience of better quality.

Queue Setting

VigorSwitch supports multiple queues for each interface. The higher numbered queue represents the higher priority. The following lists the types of supported priority queues:

• Strict Priority (SP) - Egress traffic from the higher priority queue will be transmitted first, lower priority queue shall wait until all traffic in SP queue is transmitted.
• Weighted Round Robin (WRR) - The number of packets sent from the queue is proportional to the weight of the queue.

CoS Mapping

It allows users to configure how ingress frames with CoS/802.1p tag map to QoS queues, and QoS queues to CoS/802.1p on egress frames.

Actual effectiveness is based on how QoS is configured in previous QoS section. This page provides settings for user to configure mapping only.

DSCP Mapping

It allows user to configure how ingress packets with DSCP tag map to QoS queues, and QoS queues to DSCP on egress packets.

Actual effectiveness is based on how QoS is configured in previous QoS section. This page provides settings for user to configure mapping only.

It allows user to configure how ingress packets with IP Precedence tag map to QoS queues, and QoS queues to IP Precedence on egress packets.

Actual effectiveness is based on how QoS is configured in previous QoS section. This page provides settings for user to configure mapping only.

Egress Shaping Rate

It allows a user to configure the egress port rate limit. The egress rate limit is the number of bits per second that can be received from the egress interface. Excess bandwidth above this limit is discarded.

Egress Shaping per Queue

It allows users to configure the maximum egress bandwidth not only by the port but also by specific QoS queues. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Available settings are explained as follows:

Item	Description
QoS
Enabled	Enable / Disable - Click the toggle to enable / disable the function of QoS mode.○- means “Enable”.○- means “Disable”.
Ingress Trust Mode Select the QoS operation mode.CoS/802.1p -Traffic is mapped to queues based on the CoS field in the VLAN tag, or based on the per-port default CoS value if there is no
	VLAN tag on the incoming packet.DSCP – All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.CoS/802.1p-DSCP – All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP but has VLAN tag, mapped to queues based on the CoS value in the VLAN tag.IP Precedence - All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP but has VLAN tag, mapped to queues based on the CoS value in the VLAN tag.

Queue Setting

Queue There are eight queue ID numbers allowed to be configured.
Schedule	Strict Priority - Click it to set queue to strict priorityWRR - Click it to set queue to Weight round robin type.
Weight If the queue type is WRR, set the queue weight for the queue
WRR Bandwidth Percentage	Displays the percentage of traffic which can be sent by current queue compared to total WRR queues.
CoS Mapping
Class of Service Mapping to Queue (for Ingress Traffic)	Defines the queue ID (level 1 to 8) for different class of service values.Reset - Clear current settings and return to factory default settings.
Queue Mapping to Class of Service (for Egress Traffic Remarking)	Defines the class of service value (0 to 7).Reset - Clear current settings and return to factory default settings.
DSCP Mapping
DSCP Mapping to Queue (for Ingress Traffic)	Define the queue ID (level 1 to 8) for different DSCP values.Reset - Clear current settings and return to factory default settings.
Queue Mapping to DSCP (for Egress Traffic Remarking)	Define the DSCP value (0 to 63).Reset - Clear current settings and return to factory default settings.
IP Precedence Mapping
IP Precedence Mapping to Queue (for Ingress Traffic)	Defines the queue ID (level 1 to 8) for different IP Precedence values.Reset - Clear current settings and return to factory default settings.
Queue Mapping to IP Precedence (for Egress Traffic Remarking)	Defines the IP Precedence value (0 to 7).Reset - Clear current settings and return to factory default settings.
Egress Shaping per Queue	Configure the maximum egress bandwidth not only by port but also by specific QoS queues.Reset - Clear all settings and return to factory default settings.Port - Display the port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4) profiles.C - Clear settings of the selected port and return to factory default settings.

Edit - To modify the egress shaping rate for port profiles, select two (at least) GE ports to display the link.

• Egress Shaping Enabled- Switch the toggle to enable/disable the setting.
• Egress Shaping Rate (CIR) - Enter the rate value, <16-1000000>, unit: 16 Kbps.

After finishing this web page configuration, please click OK to save the settings.

II-1-7 Jumbo Frame

This page allows a user to configure switch port jumbo frame settings.

Available settings are explained as follows:

Item	Description
Jumbo Frame
Frame Size Enter Jumbo frame size. The valid range is 1526 bytes – 10000 bytes.

After finishing this web page configuration, please click OK to save the settings.

II-1-8 LLDP

This page allows a user to set general settings for LLDP.

Available settings are explained as follows:

Item	Description
LLDP
Enable	Enable / Disable - Click the toggle to enable / disable this function.○- means “Enable”.○- means “Disable”.If LLDP function is disabled, specify an action for the LLDP PDU packets.●Filtering- The LLDP packets will be filtered and deleted when LLDP is disabled.●Bridging- The LLDP packets will be bridging when LLDP is disabled.●Flooding- The LLDP packets will be flooded and forwarded to all interfaces when LLDP is disabled.
Transmission Interval	Select the interval at which frames are transmitted. The default is 30 seconds, and the valid range is 5–32768seconds.
Holdtime Multiplier	Select the multiplier on the transmit interval to assign to TTL (range 2–10, default = 4).
Reinitialization Delay	Select the delay before a re-initialization (range 1–10 seconds, default = 2).
Transmit Delay Select the delay after an LLDP frame is sent (range 1–8192 seconds, default = 3).
LLDP-MED Fast Restart Repeat Count	Select the number of LLDP packets that will be sent during LLDP-MED Fast Start period.The default is 3. Available range is from 1 to 10.
Auto LLDP-MED The default value is Enable.

Network Policy for Voice Application

After finishing this web page configuration, please click OK to save the settings.

II-2 VLAN Setup

A virtual local area network, virtual LAN or VLAN, is a group of hosts with a common set of requirements that communicate as if they were attached to the same broadcast domain, regardless of their physical location. A VLAN has the same attributes as a physical local area network (LAN), but it allows for end stations to be grouped together even if they are not located on the same network switch. VLAN membership can be configured through software instead of physically relocating devices or connections.

II-2-1 Existion VLAN

II-2-1-1 Default VLAN

Available settings are explained as follows:

Item	Description
+Add VLAN	Click to open the setting page of creating a new VLAN (with the same type of default VLAN).
VLAN ID Displays the ID number of the VLAN.
VLAN Name Displays the name of the VLAN.
VLAN Type Displays the type of the VLAN.
Option	- Click to modify the setting page of the selected VLAN.

To create a new VLAN, click +Add VLAN to open the following page.

Available settings are explained as follows:

Item	Description
Create VLAN
VLAN ID Enter the number as VLAN ID to be created or deleted. If you want to create / delete multiple VLAN profiles, simply enter multiple VLAN ID separated by comma, and/or range of VLAN ID using hyphen.
VLAN Name Enter the prefix you wish to add followed by VLAN ID as VLAN name.Leave it empty for using default "VLAN".
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings. A new VLAN will be shown on the page.

II-2-1-2 Voice VLAN

With this feature, a VLAN will be created temporarily and when the specified OUI device delivers protocol packets related to "VoIP", VigorSwitch will guide these packets into the specified Voice LAN with specified priority tag to speed up the packet transmission. Such voice VLAN is only active inside VigorSwitch for packet transmission. After these packets leave VigorSwitch, the Voice VLAN tag will be removed immediately.

Click of Voice VLAN to open the editing page.

Available settings are explained as follows:

Item	Description
Edit VLAN
Voice VLAN	Enable / Disable – Click the toggle to enable / disable this function.○ - means “Enable”.○ - means “Disable”.
Voice VLAN ID Select Voice VLAN ID profile.
Remark Cos/802.1p Click the toggle to enable / disable this function.Remark Value - If enabled, qualified packets will be remarked by this value. Specify the number of packets to be remarked. (0 to 7). The VoIP packets will be tagged with this number, so that QoS can prioritize it correctly.
Aging Time	Select value of aging time (30~65536 min).Default is 1440 minutes. A voice VLAN entry will be age out after this time if without any packet pass through.
Voice VLAN OUI	Click the to display advanced settings. Default has 8 pre-defined OUI MAC.OUI - Enter the OUI address.Description - Enter a description of the specified MAC address to the voice VLAN OUI table.- Click it to modify the OUI settings and the description.+Add - Click to create a new voice OUI.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-2-1-3 Surveillance VLAN

Surveillance VLAN can be configured for VigorSwitch to identify the packets coming from an IP camera automatically and assign those traffics to a specific VLAN ID and CoS/802.1p value, this helps you to prioritize those traffics and improve video quality.

Click to open the editing page.

Available settings are explained as follows:

Item	Description
Edit VLAN
Surveillance VLAN	Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable". the function to configure surveillance VLAN.
Surveillance VLAN ID	Cho /LAN profile as Surveillance VLAN.
Remark Cos/802.1p Click	gle to enable / disable this function. k Value - If enabled, qualified packets will be remarked by this Specify the number of packets to be remarked. (0 to 7). The packets will be tagged with this number, so that QoS can ze it correctly.
Aging Time	Select value of aging time (30~65536 min). Default is 1440 minutes. A voice VLAN entry will be age out after this[282C] without any packet pass through.
Surveillance VLAN OUI	g Surveillance traffic is based on the OUI of the IP cameras. e to display advanced settings. Click to create a new OUI. JUI - Enter OUI MAC address of monitored IP camera. Description - Enter a description of the specified MAC addressto the surveillance VLAN OUI table.
	- Click to modify the OUI settings and the description.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-2-2 MAC/Protocol VLAN Group

II-2-2-1 MAC Group

The MAC VLAN allows you to statically assign a VLAN ID to a host with specific MAC address(es). VigorSwitch allows you to configure multiple groups with configured MAC address and mask to be active on ports and to be bound with VLAN ID. This page allows the network administrator to define groups with specific MAC addresses for later binding with VLAN and Port.

Available settings are explained as follows:

Item	Description
MAC Group
+Add Group Click to open the setting page of creating a new group.
Group ID	It is a number for identification later, while chosen to be bound with VLAN/Port.
MAC Displays the MAC address of the device grouped under this VLAN profile.
Mask Displays the number of the mask.

To add a MAC VLAN group, click the "+Add Group" to open the setting page.

Available settings are explained as follows:

Item	Description
Add MAC Group
Group ID	It is a number for identification later, while chosen to be bound with VLAN/Port.
MAC Address Enter the MAC address you wish to be classified in this group.
MASK	The mask is the length of matching prefix you wish to have on MAC address.For example, configure mask in 10. It means a host with beginning of the 10-digit of MAC address will be checked, and classified into this group if matched.
MAC VLAN Binding	The MAC VLAN allows you to statically assign a VLAN ID to a host with specific MAC address(es). VigorSwitch allows you to configure multiple groups with configured MAC address and mask to be active on ports and to be bound with VLAN ID. This page allows the network administrator to bind the group of specified MAC addresses with VLAN and Port.Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".+Add - Click to enter a port number and VLAN ID number.Port - Select the ports you wish to be bound with specified MAC address group.VLAN - Enter the VLAN ID that you wish to be bound with.

After finishing this web page configuration, please click OK to save the settings.

A new group will be shown on the page.

Available settings are explained as follows:

Item	Description
	Click to modify the settings of the selected group.
	Click it to remove the selected entry.

II-2-2-2 Protocol Group

VigorSwitch offers protocol VLANs which allows Network Administrator to filter out untagged traffic of certain protocol and then assign them a specific VLAN ID.

Up to eight protocol groups can be defined, each of them can have a unique filtering criterion such as frame type and protocol value.

Available settings are explained as follows:

Item	Description
Protocol Group
+Add Group Click to open the setting page of creating a new group.
Group ID	It is a number for identification later, while chosen to be bound with VLAN/Port.
Frame Type	Displays the frame type which you would like to filter.
Protocol Value	Displays the value (ranging from 0x600 ~0xFFFE). Packets match with the value will be classified into this group.

To add a Protocol VLAN group, click the "+Add Group" to open the setting page.

Available settings are explained as follows:

Item	Description
Add Protocol Group
Group ID	It is a number for identification later, while chosen to be bound with VLAN/Port.
Frame Type	Use the drop-down list to specify the frame type which you would like to filter.Ethernet_II - Packet will be mapped based on Ethernet version 2.IEEE802.3_LLC_Other –Packet will be mapped based on 802.3 packet with LLC other header.RFC_1042 - Packet will be mapped based on RFC 1042.
Protocol Value Input a value (ranging from 0x600 ~0xFFFE). Packets match with such value will be classified into this group.
Protocol VLAN Binding	It is for setting up the ports and protocol group that we would like to filter, and the VLAN ID we would like to assign.

Enable / Disable - Click the toggle to enable / disable this function.

- means "Enable".

- means "Disable".

+Add - Click to enter a port number and VLAN ID number.

- Port - Select the ports you wish to be bound with specified MAC address group.

- VLAN - Enter the VLAN ID that you wish to be bound with.

After finishing this web page configuration, please click OK to save the settings.

A new group will be shown on the page.

Available settings are explained as follows:

Item	Description
	Click to modify the settings of the selected group.
	Click it to remove the selected entry.

II-2-3 GVRP

This page allows to enable/disable the GVRP function and displays the information for the membership for GVRP (GARP VLAN Registration Protocol).

Available settings are explained as follows:

Item	Description
GVRP
Enable	Click the toggle to enable / disable this function.○ - means "Enable".○ - means "Disable".

II-3 MAC Address Table

This section allows user to view the static MAC address entries in the MAC table, change related setting, and assign MAC address into MAC table.

Available settings are explained as follows:

Item	Description
Dynamic Learned	Displays the port number automatically learned by VigorSwitch.
Aging Time Enter the MAC address aging out value (5-32767 seconds).
MAC	Displays the MAC address that will be forwarded.
VLAN	Displays the VLAN group to which the MAC address belongs.
Port Displays the port to which this MAC address belongs.
+Add Static MAC Click it to add any port into the static MAC table.

To add a static MAC, click the "+Add Static MAC" to open the edit page.

Available settings are explained as follows:

Item	Description
Add Static MAC
MAC Enter the MAC address that will be forwarded.
VLAN Select the VLAN group to which the MAC address belongs.
Port Select the port to which this MAC address belongs.
OK	Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-4-1 IP Network

Different VLANs can communicate with each other. With the VLAN routing function, computers (or clients) under different VLANs (created from Configuration>>VLAN Setup) can access the Internet and share data or information with each other.

Available settings are explained as follows:

Item	Description
IP Network
+Add Interface Click to create a new VLAN interface profile.
Comment Displays the brief comment for the VLAN ID.
VLAN ID Displays the ID number of VLAN profile.
VLAN Name Displays the name of the VLAN profile.
IP Address/Subnet Mask	Displays the IP address and the subnet mask of the selected VLAN profile.
DHCP Server Displays the status of the server.
Option	- Click to modify the settings of the selected entry. - Click it to remove the selected entry.
Default DHCP Relay Option
Append Relay Agent Option	Click the toggle to enable / disable the built-in DHCP server on Vigor switch. - means "Enable". - means "Disable".
Packets Contain Relay Agent Option	Set the packet processing method.Drop - Received packets which already contain relay information will be discarded.Keep - All packets are forwarded, relay information already present will be ignored.Replace - Relay information already present in a packet is stripped and replaced with the router's own relay information.

To add a new interface, click the "+Add Interface" to open the edit page.

Available settings are explained as follows:

Item	Description
Add Interface
Comment Enter a brief comment for the VLAN ID.
VLAN ID Use the drop down list to select one VLAN ID.
VLAN Name Displays the name of the VLAN profile related to the VLAN ID number selected above.
IP Address Enter the IP address for the selected VLAN ID.
Subnet Mask Enter the subnet mask for the IP address set above.
DHCP Server Disable - Select to disable the DHCP server function.
OK	Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-4-2 Bind IP to MAC

This function is used to bind the IP and MAC address in LAN to have a strengthening control in network. With the Bind IP to MAC feature you can reserve LAN IP addresses for LAN clients. Each reserved IP address is associated with a Media Access Control (MAC) address.

II-4-2-1 MAC-IP Binding List

This page displays the MAC-IP Binding List and allows the user to add a new profile or edit/ delete an existed profile.

Available settings are explained as follows:

Item	Description
+Add Binding IP Click to create a new binding list profile.
Index Displays the index number of the binding list profile.
MAC Address Displays the MAC address of the binding list profile.
IP Address Displays the IP address of the binding list profile.
Option	- Click to modify the settings of the selected entry.- Click it to remove the selected entry.

To add a new binding IP, click the "+Add Binding IP" to open the edit page.

Available settings are explained as follows:

Item	Description
IP Address Enter the IP address.
MAC Address Enter the MAC address of the device to be bound with the IP address.
+Add Click to create more binding IP settings.
OK	Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-4-2-2 DHCP Table

This page displays a table of DHCP servers used by "Bind IP to MAC".

Item	Description
IP Address Displays the IP address of the DHCP server.
MAC Address Displays the MAC address of the DHCP server.
Host ID Displays the name of the DHCP server.
Lease Time Start	Displays the starting point of the lease time.
Lease Time End	Displays the ending point of the lease time.

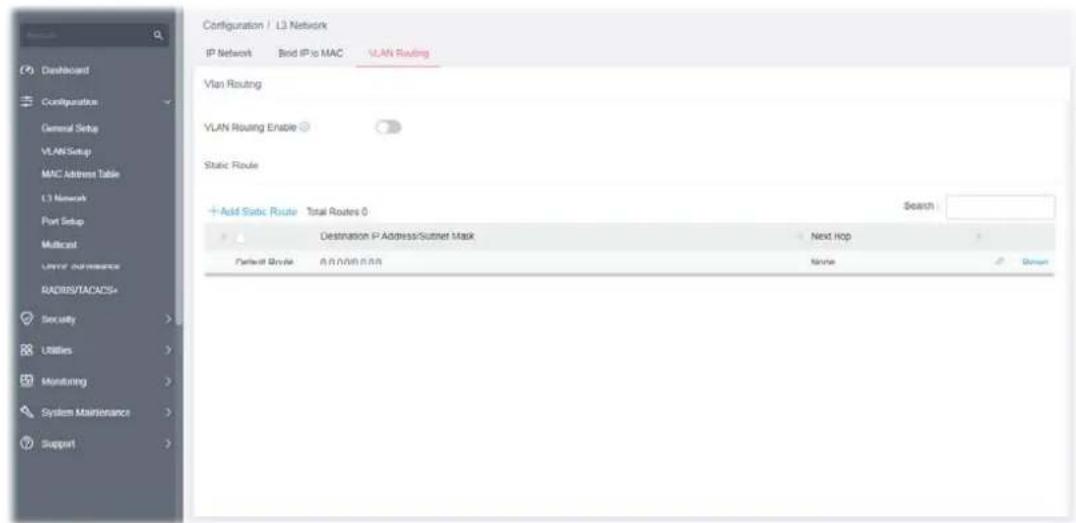

II-4-3 VLAN Routing

Static routing is a process that the system network administrator can configure the network with all the required information for packet forwarding. Each VLAN can include several IP address with the same subnet. The network administrator can specify some IP addresses (with different subnets) and different VLANs for establishing a communication channel.

Available settings are explained as follows:

Item	Description
Vlan Routing
VLAN Routing Enable Click the toggle to enable / disable this function. - means "Enable".- means "Disable".
Static Route
+Add Static Route Create a new static route.
Destination IP Address/Subnet Mask	Displays the IP address/subnet mask of the static route.
Next Hop	Displays the type (none, gateway, interface) of the next hop.
	Click to modify the settings of the selected entry.
Reset Click it to return to the factory default setting.

To add a new static route setting, click the "+Add Static Route" to open the edit page.

Available settings are explained as follows:

Item	Description
Destination IP Address	Enter the IP address.
Subnet Mask Enter the subnet mask for the above IP address.
Next Hop	Select Gateway or Interface to enter the IP address or choose VLAN ID number.
Gateway IP Address	It is available when Gateway is selected as the Next Hop.Enter the IP address of the gateway.
Interface	It is available when Interface is selected as the Next Hop.Use the drop down list to specify the VLAN ID number.
OK	Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-5-1 General

Port Setup is used to configure settings for the switch ports, trunk, Layer 2 protocols and other switch features.

Available settings are explained as follows:

Item	Description
Port Displays the LAN ports (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).
Description Displays the comment of the selected port.
Port Enabled	Displays the status (Enabled or Disabled) of the LAN port.
Port Speed Displays the port speed capability.
Link Status Displays the connection status.
Fiber Media Type	Displays the media type (with different data rate) for the fiber port.
Duplex Displays the port duplex (auto/half/full) capability.
Flow Control Config Displays the status (enabled/disabled) of Flow Control Config.
Flow Control Status Displays the status (enabled/disabled) of Flow Control.
Option	- Click it to modify the port setting.- Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Port Setting
Show / Hide Advanced Mode	Click to display or hide the advanced settings.
Port Displays the port number.
Port Enable Enable/disable the settings of the selected port.
Port Speed	Port speed capabilities:Auto: Auto speed with all capabilities.Auto(10M): Auto speed with 10M ability only.Auto(100M): Auto speed with 100M ability only.Auto(1000M): Auto speed with 1000M ability only.Auto(10/100M): Auto speed with 10/100M ability.Auto(2.5G): Auto speed with 2.5G ability only.10M: Force speed with 10M ability.100M: Force speed with 100M ability.1000M: Force speed with 1000M ability.2.5G: Force speed with 2.5G ability.Selecting Auto (auto-negotiation) allows one port to negotiate with a peer port automatically to obtain the connection speed and duplex mode that both ends support. When auto-negotiation is turned on, a port on the switch negotiates with the peer automatically to determine the connection speed and duplex mode. If the peer port does not support auto-negotiation or turns off this feature, the switch determines the connection speed by detecting the signal on the cable and using half duplex mode. When the switch's auto-negotiation is turned off, a port uses the pre-configured speed and duplex mode when making a connection, thus requiring you to make sure that thesettings of the peer port are the same in order to connect.For SFP fiber module, you might need to manually configure the speed to match fiber module speed.
Duplex	Port duplex capabilities:Auto: Auto duplex with all capabilities.Half: Auto speed with 10/100M ability only.Full: Auto speed with 10/100/1000M ability only.
Flow Control Enable	A concentration of traffic on a port decreases port bandwidth and overflows buffer memory causing packet discards and frame losses.Flow Control is used to regulate transmission of signals to match the bandwidth of the receiving port. The switch uses IEEE802.3x flow control in full duplex mode and backpressure flow control in half duplex mode. IEEE802.3x flow control is used in full duplex mode to send a pause signal to the sending port, causing it to temporarily stop sending signals when the receiving port memory buffers fill. Back Pressure flow control is typically used in half duplex mode to send a "collision" signal to the sending port (mimicking a state of packet collision) causing the sending port to temporarily stop sending signals and resend later.Enable / Disable - Click the toggle to enable / disable this function.- means "Enable".- means "Disable".
Port Isolation	It allows the network administrator to configure protected port setting to prevent the selected ports from communication with each other. Port isolation is only allowed to communicate with unprotected port. For example, GE1 and GE3 are selected in Port List and Enable is clicked as port isolation, then users behind GE1 and GE3 are separated and can not communicate with each other.Enable / Disable - Click the toggle to enable / disable this function.
LACP Priority Enter a port priority number for the port.
LACP Timeout The timeout option decides how local switch of LAG connection determines connection to be lost. Switch would also notify the remote switch about this setting value, so that remote switch can send LACP PDU in correct timing.Short - LACP PDU will be sent per second. If port member is not seen over 3 seconds, it will cause port member timeout.Long - LACP PDU will be sent every 30 seconds. If port member is not seen over 90 seconds, it will cause port member timeout.
EEE Enable or disable port EEE (Energy Efficient Ethernet) function for the selected port.

After finishing this web page configuration, please click OK to save the settings.

II-5-2 VLAN

This page allows a user to configure interface (GE) settings related to VLAN.

Voice VLAN

With voice VLAN, a VLAN will be created temporarily and when the specified OUI device delivers protocol packets related to "VoIP", VigorSwitch will guide these packets into the specified Voice LAN with specified priority tag to speed up the packet transmission. The voice VLAN is only active inside

VigorSwitch for packet transmission. After these packets leave VigorSwitch, the Voice VLAN tag will be removed immediately.

Surveillance VLAN

Surveillance VLAN can be configured for VigorSwitch to identify the packets coming from an IP camera automatically and assign those traffics to a specific VLAN ID and CoS/802.1p value, this helps you to prioritize those traffics and improve video quality.

Available settings are explained as follows:

Item	Description
Port Displays the LAN port number.
VLAN Mode Displays VLAN mode of the interface.
PVID Displays the Port VLAN ID of the interface.
Tagged VLAN Displays the VLAN profile (ID number) tagged in the VLAN interface.
Untagged VLAN Displays the VLAN profile (ID number) untagged in the VLAN interface.
Forbidden VLAN	Displays the VLAN profile (ID number) used by the VLAN interface.
Accept Frame Type Displays the acceptable-frame-type of the specified interfaces.
Ingress Filtering Displays the status (enabled/disabled) of ingress filtering.
Uplink Displays the status (enabled/disabled) of ???
	Click it to modify the VLAN interface settings.
	Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Interface Setting
Show / Hide Advanced Mode	Click to display or hide the advanced settings.
Port Displays the selected LAN port number.
VLAN Mode	Select the VLAN mode of the interface.Hybrid - Support all functions as defined in IEEE 802.1Qspecification.Access - Accepts only untagged frames and join an untagged VLAN.Trunk - An untagged member of one VLAN at most, and is a tagged member of zero or more VLANs.Tunnel - Support all functions as defined in IEEE 802.1Q tunneling specification.
PVID	A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames received on a port so that the frames are forwarded to the VLAN group that the tag defines.For port under Access Mode, VLAN ID provided as PVID would automatically be selected as the untagged VLAN.
Accepted Type	Specify the acceptable-frame-type of the specified interfaces. It's only available with Hybrid mode.All - Accept frames regardless it's tagged with 802.1q or not.Tag Only - Accept frames only with 802.1q tagged.Untag Only - Accept frames untagged.
Ingress Filtering	Enable the ingress filtering to filter out any packets not belong to any VLAN members of this port. It is enabled automatically while operating in Access and Trunk mode.
Tagged VLAN Specify the VLAN profile tagged in the VLAN.
Untagged VLAN Specify the VLAN profile untagged in the VLAN.
Below shows settings for Advanced Mode
Forbidden VLAN	The selected GE port only allows default VLAN packet to pass through.Enable / Disable- Click the toggle to enable / disable the LAN port(s) as forbidden VLAN port.- means "Enable".- means "Disable".
Uplink Port	It is available when Trunk is selected as Interface VLAN mode. Click the toggle to enable the function and specify the TPID type.
TPID Use the drop down list to specify the TPID type.
Voice VLAN Enabled	Enable / Disable- Click the toggle to enable / disable the LAN port(s) as Voice VLAN port.
Voice VLAN CoS Mode	All - Once this port is identified as Voice VLAN by frame with matched OUI, remark CoS/802.1p shall tag for all ingress frame regardless of remarked frame matched with pre-configured OUI or not.Src (Source)- Once this port is identified as Voice VLAN by frame with matched OUI, remark CoS/802.1p shall tag for only the matched ingress frame with pre-configured OUI.
Surveillance VLAN Enabled	Enable / Disable- Click the toggle to enable / disable the LAN port(s) as Surveillance VLAN port.- means "Enable".- means "Disable".
Surveillance VLAN Mode	Select port surveillance VLAN mode.Auto- Surveillance VLAN auto detect packets that match OUI table and add received port into surveillance VLAN ID tagged member.Manual- User need add interface to VLAN ID tagged member manually.
Surveillance VLAN QoS Policy	Select port QoS Policy mode.Video Packet- QoS attributes are applied to packets with OUI in the source MAC address.All- QoS attributes are applied to packets that are classified to the Surveillance VLAN.
MAC VLAN Binding Enable/disable the function of MAC VLAN Binding.
Protocol VLAN Binding Enable/disable the function of Protocol VLAN Binding.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-5-3 GVRP

This page allows the network administrator to configure registration mode (e.g., Normal, Fixed or Forbidden) of GVRP (GARP VLAN Registration Protocol) for each GE port.

Such function can eliminate unnecessary network traffic and prevent any attempt to transmit information to unregistered users.

Available settings are explained as follows:

Item	Description
Port Displays the LAN port number.
Enabled	Displays the status (Enabled/Disabled) of the GVRP port setting.
VLAN Creation Displays the status (Enabled/Disabled) of the VLAN Creation.
Registration Displays the registration mode for each GE/LAG port.
Option	- Click it to modify the GVRP settings.- Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
GVRP Portsetting
Port Displays the port number.
Enabled	Enable / Disable - Click the toggle to enable / disable the GVRP port setting.- means “Enable”.- means “Disable”.
Dynamic VLAN Creation	Click the toggle to enable / disable the VLAN creation.
Registration	There are three modes to be specified.Normal - Default setting. All packets can pass through the selected GE port.Fixed - The selected GE port only sends static VLAN information to neighboring device and allows static VLAN packet to pass through.Forbidden - The selected GE port only allows default VLAN packet to pass through.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-5-4 Multicast

IGMP Snooping

IGMP snooping is the process of listening to Internet Group Management Protocol (IGMP) network traffic. The feature allows a network switch to listen in on the IGMP conversation between hosts and routers. By listening to these conversations the switch maintains a map of which links need which IP multicast streams. Multicasts may be filtered from the links which do not need them and thus controls which ports receive specific multicast traffic.

MLD Snooping

MLD snooping does the same thing as IGMP snooping. The difference is that IGMP snooping acts on IPv4 packets; MLD snooping acts on IPv6 packets. MLD snooping is the process of listening to Multicast Listener Discovery network traffic. It can examine IPv6 packets and forward these packets to designate location via VLAN port members.

Throttling

The administrator can configure the user on a switch port (GE/LAG port) belonging to which multicast group and restrict the number of multicast group that the user on the switch can join. Then the administrator is able to control the network service (e.g, IP/TV service) that the user can enjoy.

The Throttling page is used for configuring the maximum number (0\~256) of IGMP group that a user on a switch port can join. After defined the maximum number, each switch port interface can be set to deny the IGMP join report or set to replace randomly selected multicast interface with received IGMP join report.

Available settings are explained as follows:

Item	Description
Port Displays the GE/LAG	port number.
IGMP Snooping Throttling Max. Group	Displays the maximum number of IGMP group profile.
IGMP Snooping Throttling Exceed Action	Displays the action performed when the number of IGMP join reports for the specified interface exceeds the value defined in Max Group.
MLD Snooping Throttling Max. Group	Displays the maximum number of MLD group profile.
MLD Snooping Throttling Exceed Action	Displays the action performed when the number of MLD join reports for the specified interface exceeds the value defined in Max Group.
Option	- Click it to modify the multicast settings for each port.- Clear current settings and return to factory default settings.

To modify settings for a port, select that port and click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Multicast Port Setting
Port Displays the port number.
IGMP Snooping
Throttling Max. Group	Define the maximum number of IGMP group profile that a user on the switch can join. If “0” is selected, then such interface (port) can join all of the IGMP group profiles (defined in Filtering Profile).
Throttling Exceed Action	VigorSwitch will perform the action defined below when the number of IGMP join reports for the specified interface exceeds the value defined in Max Group.Deny - It is default setting. The IGMP join report (for multicast service) received by such interface will be discarded.Replace - When it is selected, a new group with IGMP report received will replace the existing group.
MLD Snooping
Throttling Max. Group	Define the maximum number of MLD group profile that a user on the switch can join. If “0” is selected, then such interface (port) can join all of the MLD group profiles (defined in Filtering Profile).
Throttling Exceed Action	VigorSwitch will perform the action defined below when the number of MLD join reports for the specified interface exceeds the value defined in Max Group.Deny - It is default setting. The MLD join report (for multicast service) received by such interface will be discarded.Replace - When it is selected, a new group with MLD report received will replace the existing group.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-5-5 STP

The Spanning Tree Protocol (STP) is a network protocol that ensures a loop-free topology for any bridged Ethernet local area network.

Bridge Protocol Data Units (BPDUs) are frames that contain information about the Spanning Tree Protocol (STP). Switches send BPDUs using a unique MAC address from its origin port and a multicast address as destination MAC (01:80:C2:00:00:00, or 01:00:0C:CC:CC:CD for Per VLAN Spanning Tree).

For STP algorithms to function, the switches need to share information about themselves and their connections. What they share are bridge protocol data units (BPDUs).

BPDUs are sent out as multicast frames to which only other layer 2 switches or bridges are listening. If any loops (multiple possible paths between switches) are found in the network topology, the switches will co-operate to disable a port or ports to ensure that there are no loops; that is, from one device to any other device in the layer 2 network, only one path can be taken.

Available settings are explained as follows:

Item	Description
Port	Displays the LAN port number (2.5GE1 to GE28, 10GE1 to 10GE4, LAG1 to LAG8).
Admin Enabled Displays the status (enabled/disabled) of Admin Enabled.
BPDU Filter Displays the status (enabled/disabled) of BPDU Filter function.
BPDU Guard Displays the status (enabled/disabled) of BPDU Guard function.
Path Cost Displays the value of transmitting a frame onto a LAN through that port.
Priority Displays the priority value for the port interface.
Edge Port Displays the status (enabled/disabled) of Edge Port function.
P2P Option	Displays the STP of link type (All, Yes, No) on this port.
Option	^[1730] - Click it to modify the STP port setting. ^[7760] - Clear current settings and return to factory default settings.

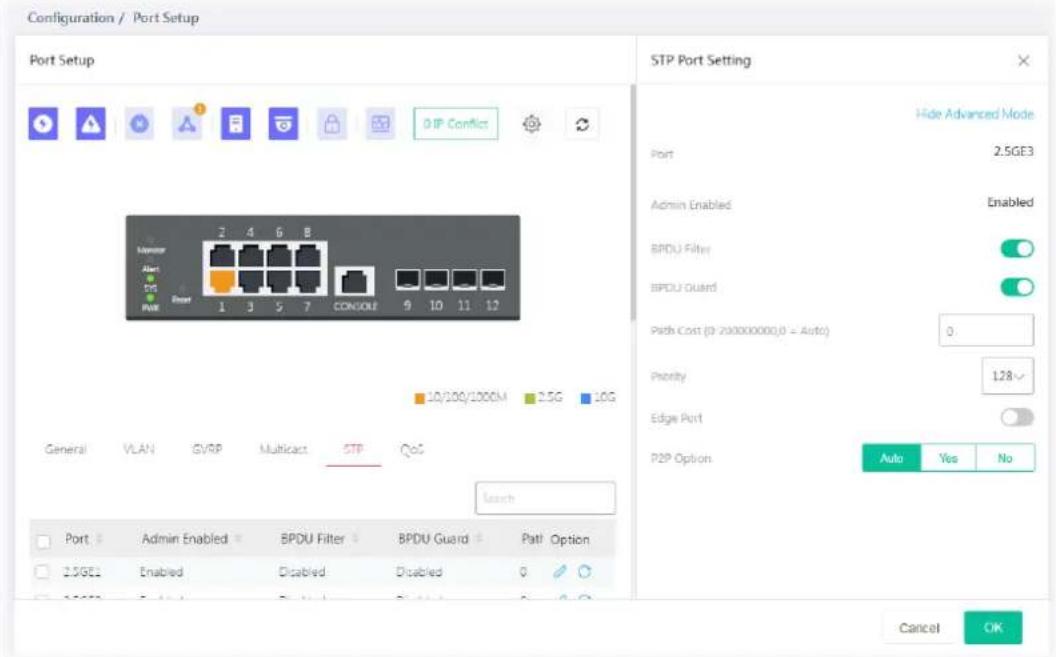

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
STP Port Setting
Show / Hide Advanced Mode	Click to display or hide the advanced settings.
Port Displays the selected LAN port number.
Admin Enabled Displays the status of Admin Enabled.
BPDU Filter	Click the toggle to enable / disable the function of dropping all BPDU packets and no BPDU will be sent.- means "Enable".- means "Disable".
BPDU Guard BPDU Guard further protects your switch by turning this port into error state and shutdown if any BPDU received from this port. Check it to enable such function.
Path Cost	Path cost is the cost of transmitting a frame on to a LAN through that port. It is recommended to assign this value according to the speed of the bridge. The slower the media, the higher the cost. Entering 0 means the switch will automatically assign a value.
Priority	Specify a priority value for the switch. The smaller the priority value, the higher the priority and greater chance of becoming the root.
Edge Port	In the edge mode, the interface would be put into the Forwarding state immediately upon link up. If the edge mode is enabled for the interface and there are BPDUs received on the interface, the loop might be occurred in the short time before the STP state change.Click the toggle to enable / disable the function.
P2P Option	Auto - VigorSwitch determines the STP of link type for this port automatically.Yes - It means the STP of link type on this port is full-duplex and directly connect to another switch or host.No - It means the STP of link type on this port is "not" full-duplex and "does not" directly connect to another switch or host.

After finishing this web page configuration, please click OK to save the settings.

II-5-6 QoS

This page is used to configure port settings for QoS. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Ingress Rate Limit

It allows a user to configure ingress port rate limit. The ingress rate limit is the number of bits per second that can be received from the ingress interface. Excess bandwidth above this limit is discarded.

Egress Shaping Rate

It allows a user to configure egress port rate limit. The egress rate limit is the number of bits per second that can be received from the egress interface. Excess bandwidth above this limit is discarded.

Available settings are explained as follows:

Item	Description
Port Displays the port profiles (GE1 to GE28).
Trust Port Displays if the traffic follow the trust mode in general setting (Enabled/Disabled).
Ingress Default CoS	Displays the default CoS priority value for those ingress frames.
Egress Remark CoS Displays the status (Enabled/Disabled) of the function.
Egress Remark DSCP/IP Precedence	Displays the status (Enabled/Disabled) of the function.
Ingress Rate Limit	Displays the value of the ingress rate limit. If this function is disabled, then Off will be shown instead.
Egress Rate Shaping	Displays the value of the egress rate shaping. If this function is disabled, then Off will be shown instead.
Option	- Click it to modify the QoS port setting.

- Clear current settings and return to the factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
QoS Port Setting
Port Displays the port profiles (GE1 to GE28).
Trust Port Enable / Disable - Click the toggle to enable / disable this function.
	- Traffic will follow trust mode in general setting.
	- No QoS service for this port.
Ingress Default CoS	the default CoS priority value for those ingress frames without _ trust QoS tag (802.1q/DSCP/IP Precedence, depending on Iration).
Egress Remark CoS	/ Disable - Click the toggle to enable / disable this function.
	- means "Enable".
	- means "Disable".
Egress Remark DSCP/IP Precedence	Click the toggle to enable / disable this function.
	DSCP - Egress traffic will be marked with DSCP value according to the Queue to DSCP mapping table.
	IP Precedence - Egress traffic will be marked with IP Precedence value according to the Queue to IP Precedence mapping table.
Ingress Rate Limit	The ingress rate limit is the number of bits per second that can be received from the ingress interface. Excess bandwidth above this limit is discarded.Click the toggle to enable / disable this function.Enter the rate value,<16-1000000>,unit:16 Kbps.
Egress Rate Shaping	The egress rate limit is the number of bits per second that can be received from the egress interface. Excess bandwidth above this limit is discarded.Click the toggle to enable / disable this function.Enter the rate value,<16-1000000>,unit:16 Kbps.

After finishing this web page configuration, please click OK to save the settings.

II-6 Multicast

IP multicast is a technique for one-to-many communication over an IP infrastructure in a network.

To avoid the incoming data broadcasting to all GE ports, multicast is useful to transfer the data/message to specified GE ports for IGMP snooping. When VigorSwitch receives a message "subscribed" by the client, it must decide to transfer the data to specified GE ports according to the location of the client (subscribed member).

II-6-1 IGMP Snooping

IGMP snooping is the process of listening to Internet Group Management Protocol (IGMP) network traffic. The feature allows a network switch to listen in on the IGMP conversation between hosts and routers. By listening to these conversations the switch maintains a map of which links need which IP multicast streams. Multicasts may be filtered from the links which do not need them and thus controls which ports receive specific multicast traffic.

II-6-1-1 IGMP Snooping

Available settings are explained as follows:

Item	Description
IGMP Snooping Enable	Enable / Disable - Click the toggle to enable / disable this function. - means "Enable".- means "Disable".
IGMP Snooping Version	Set the IGMP snooping version.v2 - Only support process IGMP v2 packet.v3 - Support v3 basic and v2.
Report Suppression	It allows the switch to handle IGMP reports between router and host, suppressing bandwidth used by IGMP.Enable / Disable - Click the toggle to enable / disable this function. - means "Enable".- means "Disable".

II-6-1-2 VLAN Setting

This page allows you to enable/disable IGMP function, select snooping version, and enable/disable snooping report suppression.

Available settings are explained as follows:

Item	Description
VLAN ID Displays the VLAN ID number of the VLAN profile.
Immediate Leave Displays the status (Enabled/Disabled)
Querier Status Displays the status (Enabled/Disabled) of IGMP querier function.
Static Router Ports Displays the LAN Port (GE/LAG) to send out query to remote host.
Forbidden Router Ports	Displays the forbidden LAN Port (GE/LAG).
Expiry Time (sec.)	Displays the time before querier is considered no longer existed.
Option	- Click it to modify the IGMP setting.- Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
IGMP Setting
Show / Hide Advanced Mode	Click to display or hide the advanced settings.
VLAN ID Displays the VLAN ID number of the VLAN profile.
VLAN Name Displays the name of the VLAN profile.
General	IGMP Snooping Enable - Click the toggle to enable / disable this IGMP snooping function. - means "Enable". - means "Disable".
Below shows settings for Advanced Mode
Router Ports Auto Learn	Click the toggle to enable / disable this function. Set the enabling status of IGMP router port learning. The server will learn router port by IGMP query.
Query Robustness	Set a number which allows tuning for the expected packet loss on a subnet.
Query Interval Set the interval of querier to send the general query.
Query Response Interval	It specifies the maximum allowed time before sending a responding report in units of 1/10 second.
Last Member Query Counter	After querying for specified times (defined here) and still not receiving any response from the subscribed member, VigorSwitch will stop transmitting data to the related GE port(s).
Last Member Query Interval	The maximum time interval between counting each member query message with no responses from any subscribed member.
Immediate Leave	Leave the multicast group immediately on the port & VLAN where leave message is sent from, regardless there is still a subscribed member or not. Click Enable to enable Fastleave function.
IGMP Querier	IGMP Querier Enable - Click the toggle to enable / disable this function.In Advanced Mode,Querier Version - Set the IGMP snooping version.v2 - Only support process IGMP v2 packet.v3 - Support v3 basic and v2.For maximum compatibility, it is suggested to use querier version lower than IGMP snooping version, for there is possible network mixed with IGMP v2/v3 client and v2 query message is widely understandable for those clients.
IGMP Static Group	The IGMP static group is allowed to assign a VLAN/port as a specific IPv4 multicast member. Every IPv4 multicast stream that belongs to the specified group IP address will be forwarded to the specified port/VLAN member.+Add - Click to create a new group.Group IP Address - Specify the IPv4 multicast address you wish to assign for the static group (defined in VLAN ID).Member Ports - Specify the port(s) that static group with given IPv4 multicast address shall include.
IGMP Router	Static Router Ports - Specify LAN Port (GE/LAG) to send out query to remote host.Forbidden Router Ports - Use the drop down list to specify forbidden LAN Port (GE/LAG).
IGMP Forward All	Static Forward Ports - Use the drop down list to specify LAN Port (GE/LAG). Later, the multicast packets will be delivered to the network device connected by these ports.Forbidden Forward Ports - Use the drop down list to specify forbidden LAN Port (GE/LAG). Later, the multicast packets will not be delivered to the network device connected by these ports.

After finishing this web page configuration, please click OK to save the settings.

II-6-1-3 Group Table

This page shows currently known and dynamically learned by IGMP snooping or shows the assigned IPv4 multicast address group in operation.

Available settings are explained as follows:

Item	Description
+Add Click to create a new profile.
VLAN ID Display the VLAN of this multicast group belongs to.
Group IP Address	Display the multicast address of this multicast group.
Member Ports	Display the port(s) where subscribing member of this multicast group belongs to.
Type	Display if it is dynamically learned or statically assigned.
Life (Sec.)	Display the life time of this multicast member left if no membership report sent again.

To add a new group, click the +Add link to open the setting page.

Available settings are explained as follows:

Item	Description
VLAN ID Specify a VLAN profile as IGMP Static Group.
Group IP Address	It is an identifier for the group member. Packets sent to such address will be transferred to all interfaces defined in Member Ports.Specify the IPv4 multicast address you wish to assign for the static group (defined in VLAN ID).
Member Ports Specify the port(s) that static group with given IPv4 multicast address shall include.

After finishing this web page configuration, please click OK to save the settings.

II-6-1-4 Filtering Profile

The administrator can configure the user on a switch port (GE/LAG port) belonging to which multicast group and restrict the number of multicast group that the user on the switch can join. Then the administrator is able to control the network service (e.g, IP/TV service) that the user can enjoy.

The filtering profile page allows to configure up to 128 IP-group (for multicast servie) profiles (starting and ending point within an IP range shall be specified). Each IP group profile can be set for permission of / denial of network service respectively.

In addition, such filtering profile is only effective for controlling the query for multicast. It has nothing to do with the general IGMP query.

Available settings are explained as follows:

Item	Description
+Add Click to create a new profile.
Profile ID Displays the index number of a filtering profile.
Start Address Displays the starting point for the IP range.
End Address Displays the ending point for the IP range.
Action Displays the action performed for this profile.
Binding Ports	Displays the interface (GE/LAG) selected for this profile.

To add a new profile, click the +Add link to open the setting page.

Available settings are explained as follows:

Item	Description
+Add Click to have new fields for creating a new profile.
Profile ID Enter one filtering profile (1~128) for IGMP snooping.
Start Address	Enter an IP address as the starting point for the IP range.
End Address	Enter an IP address as the ending point for the IP range.
Action	Allow - When it is selected, the request for multicast traffic will be forwarded to the multicast group normally.Deny - It is default setting. The forwarding request of multicast traffic will be discarded.
Binding Ports	Select the GE/LAG port(s) (interfaces) for filtering profile to process multicast traffic.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-6-2 MVR

Multicast VLAN Registration (MVR) can route packets received in a multicast source VLAN to one or more desination VLANs. LAN users are in the destination VLANs and the multicast server is in the source VLAN.

MVR can continuously send multicast stream for traffic in the multicast VLAN, but isolate the streams from the source VLANs for bandwidth and security reasons.

In general, MVR is able to:

• Identify the MVR IP multicast streams and their associated IP multicast group.
• Intercept the IGMP messages

Available settings are explained as follows:

Item	Description
MVR Enable Click the toggle to enable / disable the MVR function. - means "Enable". - means "Disable".
VLAN ID	Choose one VLAN profile from the drop down list as multicast source VLAN which will receive multicast data. All source ports must belong to this VLAN. The default is VLAN 1.Note: Each VLAN ID shall be configured with group address and member port.
Mode There are two modes offered for MVR operation.Comaptible - Multicast data received by MVR hosts (multicast server) will be forwarded to all MVR receiver ports.
	Dynamic - Multicast data received by MVR hosts (multicast server) on VigorSwitch will be forwarded from those MVR data and client ports grouped under MVR server.
Group Start	Enter an IP address. Any multicast data sent to this IP address will be sent to all source ports on VigorSwitch; and all receiver ports will accept /receive data from that multicast address.
Group Count	Select a number to configure a contiguous series of MVR group addresses (the range for count is 1 to 128; the default is 1).
Query Time	Use the drop down list to define the maximum time (1 - 10 seconds) to wait for IGMP report members on a receiver port before the port is removed from multicast group.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-6-2-1 Port Setting

It is necessary to specify destination port and source port (GE/LAG) for Vigor system to perform MVR operation.

Available settings are explained as follows:

Item	Description
Port Displays the index number of the LAN Port (GE/LAG).
Role Displays the role (None, Receiver or Source) of the port.
Immediate Leave Displays the status (enable/disable) of the immediate leave function.
Option	- Click it to modify the port setting for MVR.- Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Port	Each port can be set as Receiver or Source port respectively. If you do not satisfy with the port setting, simply click to make the modification.
Role	None - Noting will be happed to the selected LAN port in MVR operation.Receiver - The selected port will be treated as destination port which will receive multicast data from the multicast server.Source - The selected port will be treated as source port which will send multicast data to the receiver port.
Immediate Leave	Enable - Enable the function of the immediate leave. When the port (with the role of receiver) receives the leave message, it will be removed from multicast group to speed up leave latency.Disable - Disable the function of immediate leave.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-6-2-2 Static Group

The MLD static group is allowed to assign a VLAN/port as a specific IP multicast member. Every IP multicast stream that belongs to the specified group IP address will be forwarded to the specified port/VLAN member.

Available settings are explained as follows:

Item	Description
+Add Click to have new fields for creating a new profile.
VLAN ID Displays the ID number of the VLAN.
Group Address Displays the IP address(es).
Member	Displays the GE/LAG port to be grouped under the selected VLAN.
Type	Displays if it is dynamically learned or statically assigned.
Life	Displays the life time of this multicast member left if no membership report sent again.

To add a new profile, click the +Add link to open the setting page.

Available settings are explained as follows:

Item	Description
VLAN ID Display the ID number of the VLAN.
Group Address Define a range of IP address(es) with the format of “xxx.xxx.xxx.xxx - xxx.xxx.xxx.xxx”.
Member Ports	Choose GE/LAG port to be grouped under the selected VLAN.
OK Save the settings.

II-6-3 MLD Snooping

MLD snooping does the same thing as IGMP snooping. The difference is that IGMP snooping acts on IPv4 packets; MLD snooping acts on IPv6 packets. MLD snooping is the process of listening to Multicast Listener Discovery network traffic. It can examine IPv6 packets and forward these packets to designate location via VLAN port members.

II-6-3-1 MLD Snooping

Available settings are explained as follows:

Item	Description
MLD Snooping Enable	Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
MLD Snooping Version	VigorSwitch supports two versions of MLD snooping.MLDv1 - When it is selected, VigorSwitch will detect packets controlled by MLDv1 andbridgethe traffic to IPv6 destination defined with multicast address(es).MLDv2 - When it is selected, VigorSwitch will detect packets controlled by MLDv1 andforwardthe traffic to destination defined with multicast address(es).
Report Suppression	It allows the switch to handle MLD reports between router and host, suppressing bandwidth used by MLD.Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
OK	Save the settings.

II-6-3-2 VLAN Setting

This page allows you to enable/disable MLD snooping function, select snooping version, and enable/disable snooping report suppression.

Available settings are explained as follows:

Item	Description
VLAN ID Displays the VLAN ID number of the VLAN profile.
VLAN Name Displays the name of the VLAN profile.
MLD Snooping Status	Displays the status (Enabled/Disabled) of the MLD snooping function.
Immediate Leave Displays the status (Enabled/Disabled) of the immediate leave function.
Static Router Ports Displays the LAN Port (GE/LAG) to send out query to remote host.
Forbidden Router Ports	Displays the forbidden LAN Port (GE/LAG).
Expiry Time (sec.)	Displays the time before querier is considered no longer existed.
	Click it to modify the MLD setting.

Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
MLD Setting
Show / Hide Advanced Mode	Click to display or hide the advanced settings.
VLAN ID Displays the VLAN ID number of the VLAN profile.
VLAN Name Displays the name of the VLAN profile.
General	MLD Snooping Enable - Click the toggle to enable / disable this MLD snooping function. - means "Enable".- means "Disable".
Below shows settings for Advanced Mode
Router Ports Auto Learn	Click the toggle to enable / disable this function. Set the enabling status of MLD router port learning. The server will learn router port by IGMP query.
Query Robustness	Set a number which allows tuning for the expected packet loss on a subnet.
Query Interval Set the interval of querier to send the general query.
Query Response Interval	It specifies the maximum allowed time before sending a responding report in units of 1/10 second.
Last Member Query Counter	After querying for specified times (defined here) and still not receiving any response from the subscribed member, VigorSwitch will stoptransmitting data to the related GE port(s).
Last Member Query Interval	The maximum time interval between counting each member query message with no responses from any subscribed member.
Immediate Leave	Leave the multicast group immediately on the port & VLAN where leave message is sent from, regardless there is still a subscribed member or not. Click the toggle to enable Fastleave function.
MLD Static Group	The MLD static group is allowed to assign a VLAN/port as a specific IPv4 multicast member. Every IPv6 multicast stream that belongs to the specified group IP address will be forwarded to the specified port/VLAN member.+Add - Click to create a new group.Group IP Address - Specify the IPv6 multicast address you wish to assign for the static group (defined in VLAN ID).Member Ports - Specify the port(s) that static group with given IPv6 multicast address shall include.
MLD Router	Static Router Ports - Specify LAN Port (GE/LAG) to send out query to remote host.Forbidden Router Ports - Use the drop down list to specify forbidden LAN Port (GE/LAG).
MLD Forward All	Static Forward All Ports - Use the drop down list to specify LAN Port (GE/LAG). Later, the multicast packets will be delivered to the network device connected by these ports.Forbidden Forward All Ports - Use the drop down list to specify forbidden LAN Port (GE/LAG). Later, the multicast packets will not be delivered to the network device connected by these ports.

After finishing this web page configuration, please click OK to save the settings.

II-6-3-3 Group Table

This page shows currently known and dynamically learned by IGMP snooping or shows the assigned IPv4 multicast address group in operation.

Available settings are explained as follows:

Item	Description
+Add Click to create a new profile.
VLAN ID Display the VLAN of this multicast group belongs to.
Group IP Address	Display the multicast address of this multicast group.
Member Ports	Display the port(s) where subscribing member of this multicast group belongs to.
Type	Display if it is dynamically learned or statically assigned.
Life (Sec.)	Display the life time of this multicast member left if no membership report sent again.

To add a new group, click the +Add link to open the setting page.

Available settings are explained as follows:

Item	Description
VLAN ID Specify a VLAN profile as IGMP Static Group.
Group IP Address	It is an identifier for the group member. Packets sent to such address will be transferred to all interfaces defined in Member Ports.Specify the IPv6 multicast address you wish to assign for the static group (defined in VLAN ID).
Member Ports Specify the port(s) that static group with given IPv4 multicast address shall include.

After finishing this web page configuration, please click OK to save the settings.

II-6-3-4 Filtering Profile

The administrator can configure the user on a switch port (GE/LAG port) belonging to which multicast group and restrict the number of multicast group that the user on the switch can join. Then the administrator is able to control the network service (e.g, IP/TV service) that the user can enjoy.

The filtering profile page allows to configure up to 128 IP-group (for multicast servie) profiles (starting and ending point within an IP range shall be specified). Each IP group profile can be set for permission of / denial of network service respectively.

In addition, such filtering profile is only effective for controlling the query for multicast. It has nothing to do with the general IGMP query.

Available settings are explained as follows:

Item	Description
+Add Click to create a new profile.
Profile ID Displays the index number of a filtering profile.
Start Address Displays the starting point for the IP range.
End Address Displays the ending point for the IP range.

Action Displays the action performed for this profile.

Binding Ports

Displays the interface (GE/LAG) selected for this profile.

To add a new profile, click the +Add link to open the setting page.

Available settings are explained as follows:

Item	Description
+Add Click to have new fields for creating a new profile.
Profile ID	Enter one filtering profile (1~128) for MLD snooping.
Start Address	Enter an IP address as the starting point for the IP range.
End Address	Enter an IP address as the ending point for the IP range.
Action	Allow - When it is selected, the request for multicast traffic will be forwarded to the multicast group normally.Deny - It is default setting. The forwarding request of multicast traffic will be discarded.
Binding Ports	Select the GE/LAG port(s) (interfaces) for filtering profile to process multicast traffic.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-6-4 MLD Snooping Statistics

This page displays the MLD snooping statistics.

II-7 ONVIF Surveillance

ONVIF (Open Network Video Interface Forum), an International standard for current surveillance system industry, focuses on security products based on network IP address.

With this feature, VigorSwitch can:

• Integrate the ONVIF device and surveillance network
  ● Centralize management of IP video products
• View video images directly on VigorSwitch WUI
  ● Offer remote IP video products maintenance

Switch the toggle to enable the ONVIF Device Discovery function. Then click Apply.

II-7-1 Topology

ONVIF devices can be centralized and managed remotely via VigorSwitch. With a hierarchy view, the administrator can manage several ONVIF devices and check abnormal traffic detected by the Vigor system.

Available settings are explained as follows:

Item	Description
[2DAD] [Y062]	Camera - Displays the number of IP camera(s) connected to VigorSwitch. The panel sketch on the screen will display which LAN port that the IP camera connected.NVR - Displays the number of NVR device(s) connected to VigorSwitch. The panel sketch on the screen will display which LAN port that the NVR device connected.
Change VigorSwitch will detect the ONVIF device based on the interface selected.
+Add New Group A group can contain one (IP camera or NVR, as group leader) to several devices (IP cameras as group devices).Click to create a new group for managing multiple devices.
Index Displays the index number of the group profile.
Group Name	Displays the name of the group profile.
Group Devices	Displays the number of the devices grouped under this profile.
VLAN	Displays the VLAN profile.
Option	- Click it to modify the group setting.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Edit Group
	Click to display or hide the advanced settings.
ONVIF Device Login (optional)
Username / Password	Enter a name / password as the default value.In the entire ONVIF Surveillance menu, VigorSwitch will input this value in advanced and retrieve data. System administrator can access the IP device in which the username and password are as same as the default values.However, you can also input another username/password manually if the IP device username/password is different from the one you enter in Default Username/Default Password.
Advanced Mode - Throughput Threshold Alert
Apply to All Member Ports	Check the box to apply the throughput threshold setting to all member ports.
Ingress Alert Toggle the switch to enable the function. Set the ingress limit value.When the incoming traffic (packet) of the GE port reaches the limit, the Vigor System will send an alert email to the system administrator.Rate Limit - Enter the ingress rate as a threshold to send mail alert.
Egress Alert Toggle the switch to enable the function.Rate Limit - Enter the egress rate as a threshold to send mail alert.

After finishing this web page configuration, please click OK to save the settings.

To create a new group, click the +Add New Group link to open the setting page.

Available settings are explained as follows:

Item	Description
Add New Group
Show / Hide Advanced Mode	Click to display or hide the advanced settings.
Group Name Enter the name of a group.
Group Leader The system will detect the NVR or IP cameras, and list them on the field of NVR or Group Leader.
Group Member This field lists all devices (IP cameras) not included by other group.Select one IP device to multiple devices or select all the devices for managed by this group.
ONVIF Device Login (optional)
Username / Password	Enter a name / password as the default value.In the entire ONVIF Surveillance menu, VigorSwitch will input this value in advanced and retrieve data. System administrator can access the IP device in which the username and password are as same as the default values.However, you can also input another username/password manually if the IP device username/password is different from the one you enter in Default Username/Default Password.
Throughput Threshold Alert
Apply to All Member Ports	Check the box to apply the throughput threshold setting to all member ports.
Ingress Alert Toggle the switch to enable the function. Set the ingress limit value.When the incoming traffic (packet) of the GE port reaches the limit, the Vigor System will send an alert email to the system administrator.Rate Limit - Enter the ingress rate as a threshold to send mail alert.

Egress Alert Toggle the switch to enable the function. Set the egress limit value.

When the incoming traffic (packet) of the GE port reaches the limit, the Vigor System will send an alert email to the system administrator.

Rate Limit - Enter the ingress rate as a threshold to send mail alert.

After finishing this web page configuration, please click OK to save the settings.

II-7-2 Snapshot Stream

This page can offer a real-time video of specified IP camera for monitoring and control environments.

Available settings are explained as follows:

Item	Description
Snapshot Stream
Camera Name Displays the device name of the IP camera.
IP Address Displays the IP address of the IP camera.
	After authenticated with correct username and password, the image of the specified IP camera (supported by VigorSwitch) will be shown immediately.Username / Password - The default username/password will be input if it is configured on the Topology page. However, if the default input is not the correct username/password, enter the correct one of the IP camera instead.Login - Click it to authenticate the username and password for the

specified IP camera.

A pop-up window (Video Preview) appears to display a live image on the screen.

II-7-3 Device Maintenance

The system administrator can remotely configure time setting and reboot the devices (IP cameras or NVRs) managed by Vigor switch.

Available settings are explained as follows:

Item	Description
Device Maintenance
Camera Name Displays the device name of the IP camera.
IP Address Displays the IP address of the IP camera.
MAC Address Displays the MAC address of the IP camera.
Status	Displays the status (enabled or disabled) of the IP camera.
Central	Click to configure detailed settings.

Click

to configure detailed settings. First you have to login the ONVIF device.

After entering the correct username and password of the device, the detailed settings page will be shown as follows:

Available settings are explained as follows:

Item	Description
General Information
Factory Default Reset - Reset the factory default to the IP device.
Device Reboot Reboot - Reboot the IP device immediately.
Device Name	Click to modify the name of the device.
MAC Displays the MAC address of the device.
Admin IP Displays the IP address of the device.
Manufacturer Displays the manufacturer of the device.
Model Displays the model name of the device.
Firmware Displays the firmware version used by the device.
Location Displays the location of the device.
Group Displays the name of the group.
Current Time Displays the time set for the device.
UTC Time	Display the time and date information related to the selected device.
Time Zone Displays the time zone based on the location of the device.
Daylight Saving	Displays the status (enabled/disabled) of the daylight saving function.
Auto Device Check Click	the toggle to enable / disable this function. - means "Enable". - means "Disable".Mail Alert - Click the toggle to enable / disable this function. When the device is offline, Vigor system will send an alert mail to notify the recipient.With Snapshot - If enabled, the switch will try to get snapshot from the device per half hour. Before using this feature, set the group authentication information when adding group or configure Default Username/Password in the Topology page first.When the device is offline, no action will be performed.
Access Information
Mode Change the connection mode for this device.
	Static - When it is selected, you have to enter value for network setting manually for the IP device.IP Address - Enter an IPv4 address for the IP devicePrefix Length - Specify the subnet mask for the IP address.Gateway - Enter the IPv4 address for the gateway.DNS Server1/2 - Enter the IP address for primary / secondary DNS server.DHCP - When it is selected, the IP device will be assigned with the settings by the network's DHCP server automatically to access the Internet.Hostname - Display the hostname of the DHCP server.
Zero Configuration Click	the toggle to enable / disable this function.Enable - The network settings for the IP device will be configured automatically.Disable - The network settings for the IP device must be configured manually.
HTTP Port Click the toggle	to enable / disable this function.Enable - Click it to enable the HTTP port configuration and enter a port value if required.Disable - Disable the HTTP port configuration.
HTTPS Port Click the toggle	to enable / disable this function.Enable - Click it to enable the HTTPS port configuration and enter a port value if required.Disable - Disable the HTTPS port configuration.
RTSP Port Click the toggle	to enable / disable this function.Enable - Click it to enable the RTSP port configuration and enter a portvalue if required. Disable - Disable the RTSP port configuration.

II-8-1 RADIUS

This page allows the network administrator to add and configure multiple RADIUS servers.

Available settings are explained as follows:

Item	Description
+Add Server Click to create a new server profile.
Edit Default Click to modify the value(s) for Retry, Timeout and Key String. These values will be saved as default settings.
	Retry 3Timeout 3Key String
	Cancel Apply

To create a new profile, click the + Add Server link to open the setting page.

Available settings are explained as follows:

Item	Description
Add Server
Server Address Type	Specify whether switch uses a hostname to resolve address by DNS to connect to server, or directly connect using IPv4 address.HostnameIPv4IPv6
Server Address Enter the server's address corresponding with address type given.
Server Port Enter the port number used by RADIUS server.
Priority Specify the priority that switch uses this server. The higher number,the lower priority. Switch will start with server with lowest priority.
Retry Set the retry time before this server being considered not-reachable.Use Default - Use the default value.
Timeout Set the time (in seconds) before this server being considered lost connection.Use Default - Use the default value.
Key String Enter the string used to encrypt and authenticate with RADIUS server.Use Default - Use the default setting.
Authentication Specify whether you would like to use this server for switch login authentication or 802.1x access port authentication, or both.AllLogin802.1X
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

II-8-2 TACACS+

This page allows the network administrator to add and configure multiple TACACS+ server.

Available settings are explained as follows:

Item	Description
+Add Server Click to create a new server profile.
Edit Default Click to modify the value(s) for Timeout and Key String. These values will be saved as default settings.
	Add Server Edit DefaultTimeout(1-30) 5Key StringApply Cancel

To create a new profile, click the + Add Server link to open the setting page.

Item	Description
Add Server
Server Address Type	Specify whether switch uses a hostname to resolve address by DNS to connect to server, or directly connect using IPv4 address.HostnameIPv4IPv6
Server Address Enter the server's address corresponding with address type given.
Server Port Enter the port number used by TACACS+ server.
Priority Specify the priority that switch uses this server. The higher number,the lower priority. Switch will start with server with lowest priority.
Timeout Set the time (in seconds) before this server being considered lost connection.Use Default - Use the default value.
Key String Enter the string used to encrypt and authenticate with TACACS+ server.Use Default - Use the default setting.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

This page is left blank.

Chapter III Security

Abstract shield icon with a red keyhole symbol inside (no text or numbers)

III-1-1 802.1x/MAC Authentication

The authentication manager allows you to configure securely access from any host connected to physical ports. You may apply multiple ways of authentication to each port.

Available settings are explained as follows:

Item	Description
802.1x/MAC Authentication
Authentication Type	Specify which type (802.1x, MAC-based) will be used for authentication. Choose to enable 802.1x or MAC-based authenticate method for host connecting to Ethernet port. You may configure which type to be used per port, but enabling any per port without enabling here will not be effective.MAC-Based802.1x
Guest VLAN	Click the toggle to enable/disable a Guest VLAN for those who have not successfully authenticated with any given methods. - means "Enable". If enabled, specify a VLAN ID number. - means "Disable".Guest VLAN ID - Choose one of the VLAN ID as a Guest VLAN.
MAC-Based User MAC Format	Specify how the MAC-based user ID should be expressed in EAP message between AAA server and switch.
Accounting
Enable Click the toggle to enable / disable this function.Server - Displays the type of the server.Disconnect Message Port - Enter a port number (1~65535) to notify the system administration the disconnection of RADIUS server.
	Update Period - Enter the update period (1~60) for authentication.
Port Status
Port Displays the index number of the GE ports.	Select physical port(s) for applying settings. Note that port authentication will not be effective if none of them were enabled.
Enabled Authentication Types	Displays the authentication type (802.1x and/or MAC-based) used by this port.
Host Mode Displays the host mode used by this port.
Selected Authentication Types	Displays the authentication type (e.g., 802.1x) used by this port.
Selected Methods	Displays the authentication method (e.g., RADIUS) used by this port.
Guest VLAN Displays the status (enable/disable) of guest VLAN function.
	Click it to modify the port setting.
	Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Port Authentication Settings
Port Displays the GE port number.
Authentication Control	Click the toggle to enable / disable this function.- means "Enable".- means "Disable".If enabled, selectAuto, Authorized All or Unauthorized All as thecontrol mode.
Enable Authentication Types	Select 802.1x and/or MAC-based authenticate method for host connecting to this port.802.1xMAC-based
Authentication Types	Displays available authentication types of AAA server (or local) you wish to have on this port.
Selected Authentication Types (In Order)	Specify the order of authentication type (e.g., 802.1x) you wish to have on this port.
Available Methods For TACACS+	Display available methods of AAA server (or local) you wish to have on this port.
Selected Methods (In Order)	Specify the order of authentication methods (e.g., RADIUS) you wish to have on this port.
Host Mode Multi-Auth	Each host are authenticated individually.Multi Hosts - Authentication is done on port basis, only one authenticated host is required; other hosts connected to this port can access freely as authenticated host.Single Host - Only one host can be authenticated, and access the port.
Advanced Mode
Guest VLAN	Click the toggle to enable / disable this function. Select Enable to enable Guest VLAN on this port for those didn't authenticated successfully.
RADIUS VLAN Assignment	Static - Switch will use the VLAN assignment from the RADIUS server if it receives the information. If there is not VLAN information, it will keep the original VLAN of the host Cooperative - Switch will ignore the VLAN assignment from the RADIUS server and keep the original VLAN of the host.Reject - Switch will reject the host if it does not receive the VLAN information from the RADIUS server.
Max. Hosts	If Multi-Auth mode is selected as Host Mode, the total number of hosts cannot exceed the maximum number of hosts configured here.
Periodic Reauthentication	The hosts via the selected GE port will be re-authenticated periodically.Click the toggle to enable / disable this function. If enabled, specify the time setting.Periodic Reauthentication Period - Enter a time period. When the time is up, the host shall return to initial state and prepare to pass authentication procedure again. Default is 3600 seconds.
Inactive Timeout When a GE	there is no packet coming from the authenticated host, the system will start the inactive timer. After inactive timeout, the host will be unauthorized and corresponding session will be deleted. In Multi Hosts mode, the packet is counted on the authorized host only and not all packets on the port.
Quiet Period When a GE	port is disabled just because authentication fails several times, the host connected to that port will be blocked for a period of time configured in quiet period.Later, after the time period set in this field, the host will be allowed to perform authentication again.
EAP Resent Period	Set the period for host to re-send EAP (Ethernet Automatic Protection) requests.Default value is 30 (seconds).
Supplicant Timeout	Set a period of time for the maximum number of EAP requests will be sent.If a response from the host is not received by VigorSwitch after the defined period (supplicant timeout), the authentication process will be started again.
Server Timeout	Set a period of time for the server. The EAP requests shall be resent to the supplicant within the time; otherwise, the time setting will lapse and the requests won't be sent out.
Max. EAP Request	Set a period of time for the server. The EAP requests shall be resent to the supplicant within the time; otherwise, the time setting will lapse and the requests won't be sent out.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

III-1-2 Local/MAC Account

This page allows the network administrator to create profiles by entering MAC address of the hosts to be authenticated.

Available settings are explained as follows:

Item	Description
+Add Local MAC Account	Click to create a new MAC account.
MAC Address Displays the MAC address of the host.
Policy Displays the policy (pass or block) of the host.
VLAN Displays the VLAN ID assigned by the host.
Reauthentication Period	Displays the time this account is required to be authenticated again.
Inactive Timeout Displays the time to log off this account.

To add a new profile, click the +Add Local MAC Account link to open the setting page.

Available settings are explained as follows:

Item	Description
Local MAC Account
MAC Address Enter the MAC address of the host.
Policy	Pass - Click it to forcefully authenticate the host specified above.Block - The host specified above will not be authenticated by VigorSwitch.If Pass is selected, advanced mode will be shown below.
Advanced Mode
Assign VLAN Click the toggle to enable / disable this function.	- means "Enable".- means "Disable".Specify which VLAN will be assigned by the host of this account.
Reauthentication Period	Click the toggle to enable / disable this function.Set the time this account is required to be authenticated again after authentication has taken place.
Inactive Timout Click the toggle to enable / disable this function.Set a time. When the account is still inactive after the set time, it will be logged out by the system.

After finishing this web page configuration, please click OK to save the settings.

III-1-3 Authentication Hosts

This page displays information related to the host authenticated by VigorSwitch.

III-2 Access Control List

An Access Control List (ACL) is a sequential list of permit or deny conditions that apply to IP addresses, MAC addresses, or other more specific criteria. This switch tests ingress packets against the conditions in an ACL one by one. A packet will be accepted as soon as it matches a permit rule, or dropped as soon as it matches a deny rule. If no rules match, the frame is accepted.

Users can create the Access Control List (ACL) based on Layer 2 filtering, the MAC layer, Layer 2 to Layer 4 filtering, the IPv4, and Layer 2 to Layer 4 filtering, the IPv6. The ACL is composed by many Access Control Element (ACE) rules. You can create a new ACL here; then add multiple ACEs.

You may provide filtering/matching criteria for one or more packet characteristics (such as Source/Destination MAC, VLAN, 802.1p) for this ACE to identify the packet.

III-2-1 Access Control List

List Type - MAC

To create a new access control list, click the +Add Access Control List link to open the setting page.

Available settings are explained as follows:

Item	Description
Access Control List
List Name Enter a name for creating a new ACL profile.
List Type Specify the filtering type (MAC/IPv4/IPv6).Select MAC.
Rules
Sequence	Assign a sequence number to this ACE. The sequence is used to identify which one of ACEs in an ACL is firstly used to match ingress packets. The switch port bound with an ACL use the contained ACE rules, start with the one with lower sequence number to match the packet first.
Action Select the action applied to the packet matched this ACE. Permit or deny the packets into switch core, or shutdown the port for stopping further transmission.·Permit·Deny·Shutdown
Any Source MAC If disabled, please enter IP address with the subnet mask.
Any Destination MAC If disabled, please enter IP address with the subnet mask.
Any Ethernet Type	Specify Ethernet type for filtering. Select Any Ethernet.Or, enter the value with the format of "0x600 ~ 0xFFFF".□ Any EthernetType (0x600-0xFFFF)
Any VLAN	Specify VLAN profile for filtering. Select Any VLAN.Or, enter a VLAN number. The packets coming from the VLAN specified here will be filtered by Vigor device.□ Any VLAN (1-4094)
Any 802.1p Priority	Specify the 802.1p priority value for filtering. Select Any 802.1p Priority.Or, enter a number from 0 to 7.□ Any 802.1p Priority (0-7)
+Add Rule	Click it to create more ACE rule(s) for this ACL.Each ACL profile can be added with 8 ACE rules.

After finishing this web page configuration, please click OK to save the settings.

List Type - IPv4

To create a new access control list, click the +Add Access Control List link to open the setting page.

Available settings are explained as follows:

Item	Description
Access Control List
List Name Enter a name for creating a new ACL profile.
List Type Specify the filtering type (IPv4).
Rules
Sequence	Assign a sequence number to this ACE. The sequence is used to identify which one of ACEs in an ACL is firstly used to match ingress packets. The switch port bound with an ACL use the contained ACE rules, start with the one with lower sequence number to match the packet first.
Action Select the action applied to the packet matched this ACE. Permit or deny the packets into switch core, or shutdown the port for stopping further transmission.·Permit·Deny·Shutdown
Any Protocol Specify the protocol for filtering.Any Protocol - Default setting. All packets will be filtered.Self-Define - Enter a number (0 - 255) to specify a protocol. For example, 1 means “Internet Control Message”; 6 means “Transmission Control”.ICMP, IP in IP,... - Choose one of the protocols (e.g., ICMP, IP in IP, TCP, EGP, IGP...) from the drop down list. Packets passing through the selected protocol will be filtered.

	Sequence(1-2147483647)ActionAny protocol (0-255)	Self-DefineICMPIP in IPTCPSelf-Define
Any Source IP Specify the source IPv4 address for filtering.Any Source IP – Default setting. All packets will be filtered.Select Any Source IP. Or, enter the IP address to filter the packets coming from that address.Any Source IP 0-32
Any Destination IP Specify the destination IPv4 address for filtering.Any Destination IP – Default setting. All packets will be filtered.Select Any Destination IP. Or, enter the IP address to filter the packets coming from that address.Any Destination IP 0-32
Any Service Any Service - Default setting. All packets will be filtered.DSCP – All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.IP Precedence - All IP traffic is mapped to queues based on the IP Precedence field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.Any Service (0-63)DSCP IP Precedence
Any Source Port Specify the source port number for filtering the packets.Any Source Port – Default setting. All packets will be filtered.Select Any Source Port. Or, enter the port number.Single – Only the packets passing through the number defined here will be filtered.Any Source port (0-65535)Single RangeRange – Only the packets passing through the port range defined

	here will be filtered.
Any Destination Port	Specify the destination port number for filtering the packets.Any Destination Port- Default setting. All packets will be filtered.Select Any Destination Port. Or, enter the port number.Single- Only the packets passing through the number defined here will be filtered.Range- Only the packets passing through the port range defined here will be filtered.
Any ICMP Type	Any ICMP Type- Default setting. All packets will be filtered.Echo Reply, Destination Unreachable.... - Choose one of the type (e.g., Destination Unreachable, Echo Reply, MLD Query....) from the drop down list.Self-Define- Specify a type number (0 - 255) for ICMP code. For example, 0 means “Echo Reply”; 254 means “RFC3692-style Experiment 2”.
Any ICMP Code	ach ICMP type can be defined with different codes. For example, if you define ICMP Type as “3”, then the available codes for Type 3 will be 0-15.Any ICMP Code- Default setting. All packets will be filtered.Select Any ICMP Code. Or, enter 0 to 255 based on the ICMP type specified.
+Add Rule	Click it to create more ACE rule(s).Each ACL profile can be added with 8 ACE rules.

List Type - IPv6

To create a new access control list, click the +Add Access Control List link to open the setting page.

Available settings are explained as follows:

Item	Description
Access Control List
List Name Enter a name for creating a new ACL profile.
List Type Specify the filtering type (IPv6).
Rules
Sequence	Assign a sequence number to this ACE. The sequence is used to identify which one of ACEs in an ACL is firstly used to match ingress packets. The switch port bound with an ACL use the contained ACE rules, start with the one with lower sequence number to match the packet first.
Action Select the action applied to the packet matched this ACE. Permit or deny the packets into switch core, or shutdown the port for stopping further transmission.·Permit·Deny·Shutdown
Any Protocol Specify the protocol for filtering.Any Protocol - Default setting. All packets will be filtered.Self-Define - Enter a number (0 - 255) to specify a protocol. For example, 1 means “Internet Control Message”; 6 means “Transmission Control”.ICMP, IP in IP,... - Choose one of the protocol (e.g., ICMP, TCP, EGP...) from the drop down list. Packets passing through the selected protocol will be filtered.
Any Source IP Specify the source IPv6 address for filtering.Any Source IP - Default setting. All packets will be filtered.Select Any Source IP. Or, enter the IP address to filter the packets coming from that address.
Any Destination IP Specify the destination IPv6 address for filtering.Any Destination IP - Default setting. All packets will be filtered.Select Any Destination IP. Or, enter the IP address to filter the packets coming from that address.
Any Service Any Service - Default setting. All packets will be filtered.DSCP - All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.IP Precedence - All IP traffic is mapped to queues based on the IP Precedence field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.
Any Source Port Specify the source port number for filtering the packets.Any Source Port - Default setting. All packets will be filtered.Select Any Source Port. Or, enter the port number.Single - Only the packets passing through the number defined here will be filtered.Range - Only the packets passing through the port range defined
	here will be filtered.
Any Destination Port	Specify the destination port number for filtering the packets.Any Destination Port- Default setting. All packets will be filtered.Select Any Destination Port. Or, enter the port number.Single- Only the packets passing through the number defined here will be filtered.Range- Only the packets passing through the port range defined here will be filtered.
Any ICMP Type	Any ICMP Type- Default setting. All packets will be filtered.Echo Reply, Destination Unreachable....- Choose one of the type (e.g., Destination Unreachable, Echo Reply, MLD Query....) from the drop down list.Self-Define- Specify a type number (0 - 255) for ICMP code. For example, 0 means “Echo Reply”; 254 means “RFC3692-style Experiment 2”.
Any ICMP Code	ach ICMP type can be defined with different codes. For example, if you define ICMP Type as “3”, then the available codes for Type 3 will be 0-15.Any ICMP Code- Default setting. All packets will be filtered.Select Any ICMP Code. Or, enter 0 to 255 based on the ICMP type specified.
+Add Rule	Click it to create more ACE rule(s).Each ACL profile can be added with 8 ACE rules.

III-2-2 Apply to Port

It allows you to bind Access Control Lists created in previous section to an interface (physical port or aggregation).

A physical port can only be bound with one of the MAC, IPv4, or IPv6 ACLs, not all.

Available settings are explained as follows:

Item	Description
Port Select the port profiles (10GE1 to 10GE12) for binding ACL.
MAC Access Control List	Displays the ACL (MAC) to be bound on this interface (port), so the switch may filter packets by using it.
IPv4 Access Control List	Displays the ACL (IPv4) to be bound on this interface (port), so the switch may filter packets by using it.
IPv6 Access Control List	Displays the ACL (IPv6) to be bound on this interface (port), so the switch may filter packets by using it.
Option	- Click it to modify the port setting.- Clear current settings and return to factory default settings.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
MAC Access Control List	Select an ACL (MAC) to be bound on this interface (port).
IPv4 Access Control List	Select an ACL (IPv4) to be bound on this interface (port).
IPv6 Access Control List	Select an ACL (IPv6) to be bound on this interface (port).

By using the source IP address filtering function, IP source guard can prevent a malicious host from feigning a legal host with its IP address and performing malicious attack.

IP source guard is a port-based feature. Therefore, it is necessary to configure detailed settings for each GE/LAG port interface separately.

Available parameters are explained as follows:

Item	Description
Port Displays the port profile (2.5GE1 to 2.5GE8, 10GE1 to 10GE4, LAG1 to LAG8). Check the box to the left side for applying the IP source guard function.
Enabled Click the toggle to enable / disable this profile.	- means "Enable".- means "Disable".
Source Verification Displays the type of source IP for the packet coming from.
Max. Entry	Displays the total number (0~50) of accessible entries allowed for this port.
Current Entry Displays the number of accessible entries of this port.
Option	- Click it to modify the IP Source Guard setting of the selected port.- Clear current settings and return to factory default settings.

link to open the setting page.

Available settings are explained as follows:

Item	Description
IP Source Guard
Port	Displays the port profile (2.5GE1 to 2.5GE8, 10GE1 to 10GE4, LAG1 to LAG8).
Enable	Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
Source Verification	Specify the type of source IP for the packet coming from.IP - Only the packet with specified IP address will be verified.IP & MAC - Only the packet with specified IP address and MAC address will be verified.
Max. Entry	Define the total number (0~50) of accessible entries allowed for this port. The default is 0 (no limit).
Accessible Entries	Define the entry for applying the IP source guard function.IP - Select this type to enter an IPv4 address and set a VLAN ID.IP & MAC - Select this type to enter an IP address, MAC address and IPv4 address.+Add Entry - Click to display blank entry boxes for configuring a new IP address, MAC address, and VLAN ID.

After finishing this web page configuration, please click OK to save the settings.

III-4 Port Security

This page allows the network administrator to configure security settings for each port interface (GE port /LAG group). When port security is enabled for each interface, related action will be performed once detecting that the number of MAC address exceeds the limit.

Available settings are explained as follows:

Item	Description
Port Security	Click the toggle to enable / disable this function. After clicking, pressApplyto open the configuration page. - means "Enable". - means "Disable". this function to configure the settings.
Port Displays the index number of the GE/LAG port.
Enabled Click the toggle to enable / disable this function.	d - The selected port applies the port security settings.
	Disabled - The selected port does not apply the port security settings.
Max. Allowed MAC Address	is the maximum number of MAC addresses that the port is allowed to learn.
Action Displays the action med by the selected port.
Option	- Click it to modify the port security setting of the selected port.

To modify settings for a port, click the

link to open the setting page.

Available settings are explained as follows:

Item	Description
Edit Port Security
Port Displays the index number of the GE/LAG port.
Port Security Click the toggle to enable / disable this function.
Max. Allowed MAC Address	Enter the maximum number of MAC addresses that the port is allowed to learn.
Action Select an action to perform when there is an unknown MAC address on the port.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

Storm Control helps to suppress possible broadcast, unknown multicast or unknown unicast storm by applying a rate limit on those packets.

This page allows a user to configure general settings for Storm Control. In addition, it is used to configure port settings for Storm Control. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Available settings are explained as follows:

Item	Description
Storm Control Mode	Select the mode of storm control.Kbits/sec - Storm control rate will be calculated by octet-based.Packet/sec - Storm control rate will be calculated by packet-based.
Preamble & Inter Frame Gap	Select the rate calculation with/without preamble & IFG (20 bytes).Excluded - Exclude preamble & IFG (20 bytes) when count ingress storm control rate.Included - Include preamble & IFG (20 bytes) when count ingress storm control rate.
Port Enable/disable the port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4) profiles.
Enabled	Click the toggle to enable / disable this profile. - means "Enable". - means "Disable".
Broadcast Displays the storm control rate limited for broadcast.
Unknown Multicast Displays the storm control rate limited for unknown multicast.
Unknown Unicast Displays the storm control rate limited for unknown unicast.
Action Displays the action performed.

Option

- Click to modify the storm control settings of the selected port.

To modify settings for a port, click the link to open the setting page.

Security / Storm Control

Available settings are explained as follows:

Item	Description
Edit Storm Control
Port Display the port profile selected to be modified.
Storm Control	Click the toggle to enable / disable this function. - means “Enable”. - means “Disable”.
Limiting Rate	Broadcast – Specify the storm control rate for Broadcast packet.Value of storm control rate, Unit: Kbps (Kbits per-second). The range is from 16 to 1000000.Unknown Multicast – Specify the storm control rate for unknown multicast packet. Value of storm control rate, Unit: Kbps (Kbits per-second). The range is from 16 to 1000000.Unknown Unicast - Specify the storm control rate for unknown multicast packet. Value of storm control rate, Unit: Kbps (Kbits per-second). The range is from 16 to 1000000.
Action	Select the state of setting.Drop – Packets exceed storm control rate will be dropped.Shutdown - Port exceeds storm control rate will be shutdown.

After finishing this web page configuration, please click OK to save the settings.

A Denial of Service (DoS) attack is a hacker attempt to make a device unavailable to its users. DoS attacks saturate the device with external communication requests, so that it cannot respond to legitimate traffic. These attacks usually lead to a device CPU overload.

The DoS protection feature is a set of predefined rules that protect the network from malicious attacks. The DoS Security Suite Setting enables activating the security suite.

III-6-1 Properties

This page allows a user to configure DoS setting to enable/disable DoS function for global setting.

Available settings are explained as follows:

Item	Description
Destination MAC=Source MAC	Drops the packets if the destination MAC address is equal to the source MAC address.Check/unchecked the box to enable/disable the function.
LAND Attack Drops the packets if the source IP address is equal to the destination IP address.Check/unchecked the box to enable/disable the function.
UDP Flood Attack (UDP Blat)	Drops the packets if the UDP source port equals to the UDP destination port.Check/unchecked the box to enable/disable the function.
TCP Flood Attack (TCP Blat)	Drops the packages if the TCP source port is equal to the TCP destination port.Check/unchecked the box to enable/disable the function.
Ping to Death	Avoids ping of death attack. Ping packets that length are larger than 65535 bytes.Check/unchecked the box to enable/disable the function.
IPv6 Minimum Fragments	Checks the minimum size of IPv6 fragments, and drop the packets smaller than the minimum size. The valid range is from 0 to 65535bytes, and default value is 1240 bytes.Check/unchecked the box to enable/disable the function.
ICMP Fragments Drops the fragmented ICMP packets.Check/unchecked the box to enable/disable the function.
IPv4 Ping Maximum Size	Determines the IPv4 PING packet with the length.Check/unchecked the box to enable/disable the function.
IPv6 Ping Maximum Size	Determines the IPv6 PING packet with the length.Check/unchecked the box to enable/disable the function.Ping Maximum Size - Determine the IPv4/IPv6 PING packet with the length. Specify the maximum size of the ICMPv4/ICMPv6 ping packets.The valid range is from 0 to 65535 bytes, and the default value is 512 bytes.
Smurf Attack	Avoids smurf attack. The length range of the netmask is from 0 to 323 bytes, and default length is 0 byte.Check/unchecked the box to enable/disable the function.
TCP Minimum Header Size	Checks the minimum TCP header and drops the TCP packets with the header smaller than the minimum size. The length range is from 0 to 31 bytes, and default length is 20 bytes.Check/unchecked the box to enable/disable the function.
TCP-SYN (SPORT<1024) Drops SYN packets with sport less than 1024.Check/unchecked the box to enable/disable the function.
Null Scan Attack Drops the packets with NULL scan.Check/unchecked the box to enable/disable the function.
X-mas Scan Attack Drops the packets if the sequence number is zero, and the FIN, URG and PSH bits are set.Check/unchecked the box to enable/disable the function.
TCP SYN-FIN Attack Drops the packets with SYN and FIN bits set.Check/unchecked the box to enable/disable the function.
TCP SYN-RST Attack Drops the packets with SYN and RST bits set.Check/unchecked the box to enable/disable the function.
TCP Fragment (Offset=1)	Drops the fragmented ICMP packets.Check/unchecked the box to enable/disable the function.

After finishing this web page configuration, please click OK to save the settings.

III-6-2 Port Setting

This page allows a user to configure and display the state of DoS protection for interfaces. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Available settings are explained as follows:

Item	Description
Port	Displays the port profile (2.5GE1 to 2.5GE8, 10GE1 to 10GE4). Check the box to the left side to select the port profile.
DoS Protection	Click the toggle to enable / disable the function of DoS Protection. - means “Enable”.- means “Disable”.

After finishing this web page configuration, please click OK to save the settings.

III-7 Dynamic ARP Inspection

Dynamic ARP inspection (DAI) can prevent ARP spoofing attacks by validating ARP packet in a network. It can intercept, record, and discard ARP packets with invalid IP-to-MAC address bindings; and then protect the network against malicious attacks.

III-7-1 Properties

This page allows a user to configure detailed settings of DAI for each port (GE/LAG).

Available settings are explained as follows:

Item	Description
Enable	Click the toggle to enable / disable the function of Dynamic ARP Inspection. - means "Enable". - means "Disable".
VLAN ID	Select VLAN profile(s) to apply the function of Dynamic ARP Inspection.Only the GE/LAG port within the selected VLAN will apply DAI function.

Port Settings

Port Displays the port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4, LAG1 to LAG8) or ports for applying DAI function.
Trust	Click the toggle to enable/disable the function of DAI for this port.
Source MAC Address	Click the toggle to enable/disable the function of the source MAC address validation mechanism for this port.
Destination MAC Address	Click the toggle to enable/disable the function of the destination MAC address validation mechanism for this port.
IP Address Click the toggle to enable/disable the function of IP address validation mechanism for this port.
Allow IP 0.0.0.0	Click the toggle to enable/disable the function.The IP address of “0.0.0.0” can be applied to this port if it is enabled.
Rate Limit Enter a rate limitation value (0~50) for this port.
Option	- Clear current settings and return to factory default settings.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

III-7-2 Statistics

This page displays all statistics recorded by Dynamic ARP Inspection function.

DHCP snooping is able to validate DHCP messages obtained from untrusted sources and filter out invalid message.

For DHCP snooping to function properly, it is suggested to connect DHCP servers to VigorSwitch through trusted interfaces; because untrusted DHCP messages will be forwarded to trusted interfaces only.

III-8-1 DHCP Snooping

By default, DHCP snooping is inactive on all VLANs. You can enable such a feature on a single VLAN or a range of VLANs.

This page allows a user to configure detailed settings of DHCP Snooping for each port (GE/LAG).

Any device that is not in the service provider network will be regarded as an untrusted source (such as a customer switch). Host ports are untrusted sources. In VigorSwitch, you can assign a source as a trusted device by configuring the trust state of its connecting port.

Available settings are explained as follows:

Item	Description
Enable	Click the toggle to enable / disable the function of DHCP Snooping. - means “Enable”. - means “Disable”.
VLAN ID Select VLAN profile(s) to apply the function of DHCP Snooping function.Only the GE/LAG port within the selected VLAN will apply DHCP Snooping function.
Port Settings
Port Displays the port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4, LAG1 to LAG8)
	or ports for applying the DHCP snooping function.
Trust Click the toggle to enable/disable the function of DHCP snooping for this port.
Verify Hardware Address	Click the toggle to enable/disable chaddr (client hardware address) validation of GE/LAG port. All DHCP packets will be checked if the client hardware MAC address is the same as the source MAC in Ethernet header or not. Default is disabled.
Rate Limit Enter the rate limitation (0~300) of DHCP packets. The unit is "pps". "0" means unlimited. Default is unlimited.
Option	- Clear current settings and return to factory default settings.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

III-8-2 Option82

You can use information settings including Remote ID and Circuit ID for Option82, also known as the DHCP relay agent, to protect VigorSwitch against spoofing attacks.

This page allows a user to set a string as remote ID for DHCP option82. For example, use a switch-configured hostname or specify an ASCII text string as remote ID.

In addition, it allows a user to set string as circuit ID for DHCP option82 setting. Circuit ID shall be combined with VLAN name (or VLAN ID number) and interface name (GE/LAG port).

Available settings are explained as follows:

Item	Description
Option82
Option 82 Remote ID	The string specified here is used to identify the remote host.User-defined - Check it and manually enter switch MAC In byte order in the entry box.
Option 82 Circuit ID

+Add Click to have new fields for creating a new profile.

Port - Use the drop down list to select the port (10GE1 to 10GE12, LAG1 to LAG8) or ports for applying DHCP snooping, Option82 function.

VLAN - Choose a number as VLAN ID which is easy to be identified for a packet containing with it.

Circuit ID - Enter ASCII text string in the entry box. Later, any packet passes through the specified interface (GE/LAG port) will be inserted with such information.

Port Settings

Port	Displays the port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4, LAG1 to LAG8) or ports for applying the Option82 function.
Enabled	Click the toggle to enable / disable the function of Option82 Property. - means "Enable". - means "Disable".
Allow Untrust Untrusted	packets detected by VigorSwitch will be performed by the action determined here.Keep- Packets are allowed to pass through.Drop- Packets are blocked and discarded.Replace- Packets will be replaced.
Option	[7924]- Clear current settings and return to factory default settings.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

III-8-3 Statistics

This page displays all statistics recorded by DHCP snooping function.

III-9 IP Conflict Prevention

A user can configure IP addresses for network devices manually. However, it might result in conflict between different devices due to using the same IP address, and cause the devices not working correctly.

IP Conflict Prevention allows you to prevent IP conflict by binding the port with the specified IP address.

Prevention Level: Off

Prevention Level: Detect & Block

Available settings are explained as follows:

Item	Description

IP Conflict Prevention

Prevention Level Off - The function of IP conflict prevention is disabled.

Detect Only - VigorSwitch will detect the host but no further action executed.

Detect & Block - VigorSwitch will detect the host and block the host if it meets the configuration on this page.

Prevention Setup

Quick Setup Wizard - It is available only when Detect & Block is selected as Prevention Level. The system will guide to bind server port with an IP address step by step.

Step 1: Choose a server port. Click Next.

Step 2: Confirm the port type. Click Next.

Step 3: Wait for the network detection.

Step 4: Confirm / modify the protected host. Click Next.

Step 5: Set up the prevention level. Click Next.

After clicking OK, the IP address specified for the GE port will be unavailable for other network devices.

Permit Link Aggregation
It appears after running the quick start wizard for IP conflict prevention. The devices connected to the LAG ports will not be blocked due to using

	the same IP.
Protected Host
Port Displays the LAN port number (GE1 to GE8, LAG1 to LAG8) of the DHCP server.
IP Displays the IP address of the DHCP server.
MAC Address Displays the MAC address of the DHCP server.
Host Type Displays the result of host type (e.g., Dynamic Binding) of the DHCP server.
Conflicted By Displays the object conflicting with the host.
Option	- Click to modify the settings of the selected port. - Click it to remove the selected entry.
Clear Click it to remove all entries.

After finishing this web page configuration, please click OK to save the settings.

To modify settings for a host, click the link of each port to open the setting page.

Available settings are explained as follows:

Item	Description
Edit Port
Port Displays the LAN port number (GE1 to GE8, LAG1 to LAG8) of the selected host.
Port Type Displays the port type of the selected host.
IP Address(es) Enter the IP address based on the port type.
There's a DHCP Server in this port	Yes - If there is a DHCP server in this port already, click Yes.No - If there is no DHCP server in this port already, click No.

Loop event might be caused due to wrong hardware connection. VigorSwitch will periodically send packets out to check if they loopback or not. This page allows you to set conditions and perform an action when VigorSwitch detects the looped packet.

Available settings are explained as follows:

Item	Description
Loop Protection
Enable	Enable / Disable - Click the toggle to enable / disable this function. VigorSwitch will detect the loop event of the GE port automatically. - means “Enable”.- means “Disable”.
When loop occurred..	When the switch detects loop situation occurred to a port; it will perform the action selected in this field.Log - The switch will record such event as a log.Shutdown Port - The switch will shut down the port.After 1 second/2 seconds/3 seconds - Determine the time to record the event and / or shutdown the port.The settings configured here will be treated as global setting for all GE ports.
Port Displays the port number (2.5GE1 to 2.5GE8, 10GE1 to 10GE4). Check the box to the left to enable the selected port.
Status	Enable / Disable - Click the toggle to enable / disable this function.
Action Display the specified action for the selected port.
Option	- Click to modify the loop protection settings of the selected port.

To modify settings for a port, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Port Displays the port number (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).
Enable	Enable / Disable - Click the toggle to enable / disable this function. VigorSwitch will detect the loop event of the GE port automatically. - means "Enable".- means "Disable".
Action	Follow Global Setting - Adopts the settings configured for When loop occurred.Log - The switch will record such event as a log.Shutdown Port - The switch will shut down the port.Shutdown Port and Log - The switch will shut down the port and record the event as a log. The system administrator will view the content from system log.

After finishing this web page configuration, please click OK to save the settings.

III-11 Port Recovery

This page is used for configuring settings to recover the port which is being blocked by the following functions after a defined period of time.

Available settings are explained as follows:

Item	Description
Port Recovery
Recover the port(s) after	The port being blocked will be able to receive and send traffic after the time period configured here.
Check the box to block the port(s) if encountering the situations listed below.
BPDU Guard Checked - Recover the port being blocked by BPDU Guard after the time set in Recovery Interval.
Self Loop Checked - Recover the port being blocked by self loop Guard after the time set in Recovery Interval.
Broadcast Flood Checked - Recover the port being blocked by broadcast flood after the time set in Recovery Interval.
Unknown Multicast Flood	Checked - Recover the port being blocked by unknown multicast flood after the time set in Recovery Interval.
Unicast Flood Checked - Recover the port being blocked by unicast flood after the time set in Recovery Interval.
Access Control List	Checked - Recover the port being blocked by ACL after the time set in Recovery Interval.
Port Security Checked - Recover the port being blocked by port security after the time set in Recovery Interval.
DHCP Rate Limit Checked - Recover the port being blocked by DHCP rate limit after the time set in Recovery Interval.
ARP Rate Limit Checked - Recover the port being blocked by ARP rate limit after the
	time set in Recovery Interval.

This page is left blank.

Chapter IV Utilities

Abstract geometric composition with four gray squares and one red diamond (no text or symbols)

When the system administrator is unable to get Ping information from the targeted LAN port, Vigor system will send an alert e-mail to the system administrator.

The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Available settings are explained as follows:

Item	Description
Port Display the port number (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).Check the box to the left to enable the port settings.
Checking Status	Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
Ping IP Address Enter the IP address of the PoE device for check.
Interval Time(sec.)	The ping check will be performed every 15, 30, 60 or 120 seconds for the selected port (PoE device).
Retry Time The system will perform the ping check the selected port (PoE device) for 1, 3 or 5 times.
Failure Action Specify the action performed for PoE device when there is no number of retry time of echo from given IP address.Power Cycle - Forcely reboot the device by cycling the power given to PoE device.Power Off - The PoE device will be powered off.Nothing - Log this event only, no action is taken on PoE device.
Mail Alert	Enable / Disable - Click the toggle to enable / disable this function.
Reset	Clear current settings and return to factory default settings.

After finishing this web page configuration, please click OK to save the settings.

IV-2 Cable Diagnostics

After finished copper test, the results will be shown on the lower side of this web page.

Available settings are explained as follows:

Item	Description
Cooper Test
Run Test Perform the copper test action.Before clicking Run Test, select the port or ports (2.5GE1 to 2.5GE8, 10GE1 to 10GE4) on the panel figure for performing cable diagnostics.
Result
Hide details	Click to display detailed information about the test.
Port Displays the port number that has been performed with cable diagnostics.
Link Speed Displays the link speed of the port(s).
Status Displays the connection status of the port(s).

After finishing this web page configuration, please click OK to save the settings.

IV-3 Ping Test

This page is used for configuring the ping test and perform the ping test.

Available settings are explained as follows:

Item	Description
Ping Test
Protocol Choose IPv4/IPv6 to specify IP address for sending ping to check if network path is ok.
Ping Host Enter the IP address of SNMP server based on the protocol selected above.
Ping Time	It means how many times to send ping request packet.Enter a number between 1 and 5 as the count and the default configuration is 4.
Interval Defines the interval to perform ping action. For example, “1” means the ping action will be performed per second.
Run Test Perform ping action.

IV-4 Fan Test

The built-in fan in the VigorSwitch can be tested if it runs normally or not. Simply click Test to perform the fan test.

To get general information about the SFP vendor, select Diagnostics>>SFP Vendor Info.

sFlow (Sampled Flow) is a method which uses sampling to get the network packets information for the system administrator understanding the network operation and the network congestion.

VigorSwitch plays the role of sFlow agent which collects and sends the collected data to a sFlow controller (e.g., an external monitoring software) for executing data analysis. The system administrator shall install the sFlow controller on the device which can communicate with VigorSwitch. When the administrator wants to monitor the data traffic via VigorSwitch and get the statistics, he/she can configure VigorSwitch as sFlow agent by configuring the settings listed below. Later, the sFlow controller can analyze the data and offer statistics for the system administrator.

Available settings are explained as follows:

Item		option
Profile Status		/ Disable - Click the toggle to enable / disable this function.- means "Enable".
		- means "Disable".
Packet Sampling Rate		is the sampling rate of the packets for the server to capture.
Counter Sampling Interval		is the time (sec.) for the sFlow server to obtain the traffic on the site (LAN port) periodically.
Collector Address		is the hostname, IPv4 address, or IPv6 address of the data or device.
Collector Port		is the port number used for real-time monitoring traffic status.
Data Source Port		is the LAN interface (10GE1 to 10GE4) of the data source port.
Option		lick to modify the loop protection settings of the selected port.

, click the

link to open the setting page.

Available settings are explained as follows:

Item	Description
sFlow Profile #
Profile Enable	Enable / Disable - Click the toggle to enable / disable the settings for the selected profile. - means "Enable". - means "Disable".
Packet Sampling Rate Set the sampling rate of the packets for the server to capture.
Counter Sampling Interval	Set a time for the sFlow server to obtain the traffic on the interface (LAN port) periodically. Then, the sever will make statistics and transmit the data to the collector device. The default value is 30 (seconds).
Collector Address Type	Usually, you can specify a server or an IP address as a data collector device. Specify the role of the server (hostname, IPv4 or IPv6).
Collector Address	Enter the hostname, IPv4 address or IPv6 address according to the collector type selected.
Collector Port	The port number is the basic sampling unit which can be used for real-time monitoring traffic status. The default port number is 6343.
Data Source Ports Specify the LAN interface (2.5GE1 to 2.5GE8, 10GE1 to 10GE4) as the data source port.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

Chapter V Monitoring

Simple icon of a red heartbeat line inside a computer monitor (no text or symbols)

V-1-1 System Log Information

This page allows the user to set filtering conditions and displays the filtering result.

Available settings are explained as follows:

Item	Description
Filter Click to set the conditions for filtering.
	Type - Specify the time (Past 1 Hour, Past 1 Day, Past 1 Week) for filtering.Log Type - Select RAM (explore the logs contained in volatile memory (also known as RAM) or Flash (explore the logs contained in non-volatile memory).Log Level - Select severity (emerg, alert, crit, error, warning, notice, info and debug) of log messages which you wish to filter out for review.Log Category - Select the categories (related features) of logs you
	wish to review.
Clear All Clear it to remove all logs displayed in this page.
Refresh Click it to refresh the log.
Time Displays the filtering time type.
Log Type Displays the log type (RAM or Flash).
Log Level Displays the severity of the log.
Log Category Displays the category of the log.
Content Displays the brief explanation of the log.

V-1-2 System Log Settings

This page allows users to enable system logging into local Syslog and specific remote Syslog server for storage.

V-1-2-1 Local

Available settings are explained as follows:

Item	Description
System Log Settings
System Log	Enable / Disable - Click the toggle to enable / disable this function.○ - means "Enable".○ - means "Disable".
System Log Mail	Enable / Disable - Click the toggle to enable / disable this function.● Syslog Mail Server - Click to configure Syslog Mail Server.
Where to Log
Local	Log in - Displays the log type. Enable - Select the box to enable the log type (RAM/Flash). Log Level - Select the box(es) to select the severity of the log.

To modify settings for the Syslog Mail Server, click the link to open the setting page.

Available settings are explained as follows:

Item	Description
Syslog Mail Server
Description Displays the name of the Syslog Mail Server.
Server Status	Enable / Disable - Click the toggle to enable / disable the Syslog Mail Server settings.- means "Enable".- means "Disable".
SMTP Server Enter IP address or URL of the SMTP server.
SMTP Port Enter the port number for the SMTP server.
Authentication	Enable / Disable - Click the toggle to enable / disable the authentication mechanism.Usage - Enter a user name for authentication.Password - Enter a password for authentication.
Encryption	Enable / Disable - Click the toggle to enable / disable this function. After enabling Authentication, choose one of the encryption servers for data encryption. • STARTTLS - The mail will be encrypted with StartTLS. • SSL/TLS - The mail will be encrypted with StartTLS.
Sender Enter the email address which will send the syslog mail out.
Receiver Enter the email address which will receive the syslog mail.
Mail Notification
Log Type Vigor system will send the e-mail related to the selected feature(e.g., AAA, ACL) to the recipient.
Send Test Mail	After clicking this button, VigorSwitch system will send a test mail to the recipient.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

V-1-2-2 Remote

This page allows users to enable system logging into a specific remote Syslog server for storage.

Available settings are explained as follows:

Item	Description
System Log Settings
System Log	Enable / Disable – Click the toggle to enable / disable this function. - means “Enable”.- means “Disable”.
System Log Mail	Enable / Disable – Click the toggle to enable / disable this function.• Syslog Mail Server - Click to configure Syslog Mail Server.
Where to Log
+Add Server Click to create a new remote server.
Server IP: Port Displays the IP address and port number used by the server.
Log Level Displays the severity of the system log.
Facility Displays the facility of the remote Syslog server.

To add a remote server, click the "+Add Server" to open the edit page.

Available settings are explained as follows:

Item	Description
Log Server
Server IP Address Enter	IP address of the Syslog server.
Server Port Specify the port that syslog should be sent to.
Log Level Select severity	(emerg, alert, crit, error, warning, notice, info and debug) of log messages which will be stored.
Facility One device supports multiple facilities (represented with facility ID, local0 to local7) of remote Syslog server. For each facility ID contains different Syslog server configuration, please choose a facility ID for this Syslog server.

After finishing this web page configuration, please click OK to save the settings.

V-2 Bandwidth Utilization

This page offers the traffic statistics including data information and data of interframe gap for each port.

Available settings are explained as follows:

Item	Description
Auto Refresh Select the time interval for refreshing this page.
Interframe Gap	The data of the interframe gap can be displayed or hidden by enabling/disabling for Interframe Gap. Enable / Disable - Click the toggle to enable / disable this function. - means "Enable". - means "Disable".

V-3 DHCP Table

This page shows the IP list assigned by the DHCP server.

V-4 Routing Table

This page shows a list of route information via IPv4 address.

V-5 CLI Sessions

This page shows a list of CLI command executed. You can delete the selected CLI session by click the Remove button under the Edit item.

This page displays the current PoE status (configured in Device Check) for each PoE port.

V-7-1 General Statistics

This page offers the statistics of LLDP packets of each port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).

Available settings are explained as follows:

Item	Description
General Statistics
Clear All Clear it to remove all logs displayed in this page.
Refresh Click it to refresh the status page.

V-7-2 LLDP Device

This page displays information for LLDP local and remote devices.

V-7-2-1 Local

This page displays information for LLDP local device.

Available settings are explained as follows:

Item	Description
Refresh Click it to refresh the status page.
Device Summary	Display a summary of the LLDP information for this switch.Chassis ID Subtype - Display the type of chassis ID, such as the MAC address.Chassis ID - Display Identifier of chassis. Where the chassis ID subtype is a MAC address, the MAC address of the switch is displayed.System Name - Display model name of switch.System Description - Display description of switch.Capabilities Supported - Display the primary functions of the device, such as Bridge, WLAN AP, or Router.Capabilities Enabled - Primary enabled functions of the device.Port ID Subtype - Display the type of the port identifier that is shown.
Port Details Display detailed information of the selected GE port.Click > to review the detailed information contained in TLVs sent out from each interface, containing MAC/PHY, 802.3, 802.3 Link Aggregation, 802.1 VLAN and Protocol for each LAN port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).

V-7-2-2 Remote

This page is used to view the information sent from neighboring devices by LLDP protocol.

Available settings are explained as follows:

Item	Description
Refresh Click it to refresh the status page.
Port Displays the number of the local port to which the neighbor is connected.
Chassis ID Subtype Displays the type of chassis ID (for example, MAC address).
Chassis ID Displays the identifier of the 802 LAN neighboring device's chassis.
Port ID Subtype Displays the type of port identifier.
Port ID Displays the number of port identifier.
System Name Displays the name of the switch.
Time to Live Displays the time interval in seconds after which the information for remote device will be deleted.

V-7-3 LLDP Overloading

This page allows user to review current size, overall size of LLDP packet and whether it is to exceed maximum allowed size of single LLDP packet.

Available settings are explained as follows:

Item	Description
Refresh Click it to refresh the status page.
Port	Displays the name of the port.
Total	Displays the total number of bytes of LLDP information in each packet.
Left to Send	Displays the total number of available bytes left for additional LLDP information in each packet.
Status	Displays if LLDP TLVs has overloaded the PDU maximum size or not.
Mandatory	Displays how many bytes used by mandatory TLVs.
802.3TLVs	Displays how many bytes used by 802.3 TLVs.
Optional TLVs	Displays how many bytes used by optional TLVs.
802.1 TLVs	Displays how many bytes used by 802.1 TLVs.

GVRP (Generic Attribute Registration Protocol) is used automatically for exchanging information for VLAN membership between switches. This page counts the GVRP information received on each port.

V-9 MLD Snooping Statistics

This page counts the MLD messages received or transmitted on the network.

The Spanning Tree Protocol (STP) can be used to detect and disable network loops, and to provide backup links between switches, bridges, or routers.

This page allows users to edit the general setting of the STP CIST port and browser CIST port status.

Available settings are explained as follows:

Item	Description
Refresh Click it to refresh the status page.
Port Displays the interface number for GE and LAG.
Identifier Displays the spanning tree port identifier.
Path Cost Displays current path cost of given port.
Designated Root Bridge	Displays the Identifier of designated root bridge.
Root Path Cost	Displays the operational root path cost.
Designated Bridge	Displays the identifier of next bridge on this port.
Configure BPDUs Rx	Displays the counts of the received CONFIG BPDU.
TCN BPDUs Rx.	Displays the counts of the received TCN BPDU.
Configure BPDUs Tx.	Displays the counts of the transmitted CONFIG BPDU.
TCN BPDUs Tx	Displays the counts of the transmitted TCN BPDU.

V-11 Dynamic ARP Statistics

Port	Forward	Source MAC Failure	Destination MAC failure	Source IP Validation Failure	Destination IP Validation Failure	IP-MAC Mismatch fe
10GE1	0	0	0	0	0	0
10GE2	0	0	0	0	0	0
10GE3	0	0	0	0	0	0
10GE4	0	0	0	0	0	0
10GE5	0	0	0	0	0	0
10GE6	0	0	0	0	0	0
10GE7	0	0	0	0	0	0
10GE8	0	0	0	0	0	0
10GE9	0	0	0	0	0	0
10GE10	0	0	0	0	0	0
10GE11	0	0	0	0	0	0
10GE12	0	0	0	0	0	0
10GE13	0	0	0	0	0	0
10GE14	0	0	0	0	0	0
10GE15	0	0	0	0	0	0
10GE16	0	0	0	0	0	0
10GE17	0	0	0	0	0	0
10GE18	0	0	0	0	0	0

V-12 DHCP Snooping

Monitoring / DHCP Snooping

DHCP Snooping Statistics

Port	Forward	Client Hardware Address Check Drop	Untrust Port Drop	Untrust Port Drop With Option&2 Drop	Invalid Drop
ZUGEL	0	0	0	0	0
ZUGGE	0	0	0	0	0
ZUGEB	0	0	0	0	0
ZUGBE	0	0	0	0	0
ZUGBE	0	0	0	0	0
ZUGBE	0	0	0	0	0
ZUGBE	0	0	0	0	0
ZUGBE	0	0	0	0	0
LOGEL	0	0	0	0	0
LOME	0	0	0	0	0
LOGE	0	0	0	0	0
LOGE	0	0	0	0	0
LAGL	0	0	0	0	0
LAGL	0	0	0	0	0
LAGL	0	0	0	0	0
LAGL	0	0	0	0	0
LAGL	0	0	0	0	0

This page displays statistics for GE ports.

Available settings are explained as follows:

Item	Description
Clear All Clear it to remove all logs displayed in this page.
Refresh Click it to refresh the status page.
Port Displays the port number (GE).

This page is left blank.

Chapter VI System Maintenance

Abstract graphic with a gray gear and red line, no text or symbols present.

VI-1-1 Device Info

This page displays general information (name, location and contact) for the VigorSwitch.

Available settings are explained as follows:

Item	Description
Device Name Displays the name of this VigorSwitch. Change the name if required.
Location Define the location of this VigorSwitch.
Contact Define the contact information of this VigorSwitch.

After finishing this web page configuration, please click OK to save the settings.

VI-1-2 Time & Schedule

This page allows a user to specify time and activate SNTP server manually.

Available settings are explained as follows:

Item	Description
Time
Current System Time	Display current system time based on the time server.
Time Mode	SelectSNTP or Manual.If SNTP is selected, configure:SNTP/NTP Server- Enter the web site of the time server or the IP address of the server.Server Port- Enter the port number use by the time server.If Manual is selected, configure:Manual Time- Specify static time (year, month, day, hours, minutes and seconds) manually.Auto Detect Time Zone- Click the toggle to enable / disable this function.- means "Enable".Daylight Saving Time- Click the toggle to enable / disable this function. If enabled, select the mode of daylight saving time.Recurring- Using recurring mode of daylight saving time.Non-Recurring- Using non-recurring mode of daylight saving time.USA-Using daylight saving time in the United States that starts on the second Sunday of March and ends on the first Sunday of November.European- Using daylight saving time in the Europe that startson the last Sunday.
whenRecurringis selected	Daylight Saving Time Offset- Specify the adjust offset of daylight saving time.Recurring From- Specify the starting time of recurring daylight saving time.Recurring To- Specify the ending time of recurring daylight saving time.
whenNon-Recurringis selected	Daylight Saving Time Offset- Specify the adjust offset of daylight saving time.Non-recurring From- Specify the starting time of non-recurring daylight saving time.Non-recurring To- Specify the ending time of recurring daylight saving time.

Schedule

+Add Click to add a new schedule (up to 15).
	Delete - Click to remove a selected schedule profile.
Description	Displays a short comment for the schedule profile.
Status Displays the status (enable / disable) the schedule profile.
Action Displays the action adopted by the schedule profile.
Frequency Displays how often the schedule will be applied.
	Click to modify the setting page of the selected schedule profile.
	Clear current settings and return to factory default settings.

After finishing this web page configuration, please click OK to save the settings.

To edit a schedule profile, select and check the box of the schedule profile. Click of the selected profile to open the edit page.

Available settings are explained as follows:

Item	Description
Schedule
Schedule Index Use the drop down list to choose one schedule profile.
Description Enter a brief comment for such schedule.
Schedule Enable Click the toggle to enable / disable this function.	- means "Enable". The selected schedule profile will take action as configured. - means "Disable". The selected schedule profile will not take action but be saved for future use.
Action	Specify which action should perform during the period of the schedule.Power On-PoE connection is always on.Power Off-PoE connection is always down.
Start Date Specify the starting date of the schedule by choosing from a drop down calendar.
Start Time Specify the starting time of the schedule by using the drop down list to specify the starting hours and minutes.
Duration Time Specify the ending time of the schedule by using the drop down list to specify the ending hours and minutes.
End Time Displays the time period setting.
Frequency Specify how often the schedule will be applied.Once - The schedule will be applied just once.Weekdays Routine - Specify which days in one week should perform the schedule.Every - Check to select the days in a week.Monthly Routine - Specify the day in a month as the starting point.Duration Time - Use the drop down list to select the date in a month.Few Days Routine - The period of cycle duration is between 1 day and 31 days. For example, 7 means the whole cycle is 7 days; 20 means the whole cycle is 20 days. When the time is up, the PoE device will be turned on of off automatically.Every - Use the drop down list to select the date in a month.

After finishing this web page configuration, please click OK to save the settings. A new schedule profile will be shown on the page.

To modify an existing schedule profile, click the link of of the one to be changed.

After clicking OK, the existed schedule profile will be changed.

VI-1-3 Configuration

Configuration Backup allows a user to backup the firmware image or configuration file on the switch to remote TFTP server or host file system through HTTP protocol.

Configuration Restore allows a user to upgrade the firmware image or configuration file on the switch to remote TFTP server or host file system through HTTP protocol.

Available settings are explained as follows:

Item	Description
Configuration Backup
Backup Method Select Backup method.	HTTP - Use WEB browser to backup firmware.TFTP - Use TFTP to backup firmware.Server IP Address - Enter the IPv4/IPv6 address for the TFTP server.
Backup Content	Backup - Make a backup copy for the configurations/SWM for VigorSwitch.
Configuration Restore
Restore Method	Select Restore method.HTTP - Use WEB browser to restore firmware.Select Configuration File - Choose the file which will be used to restore the configuration settings.TFTP - Use TFTP to restore firmware.Server IP Address - Enter the IPv4/IPv6 address for the TFTP server.File Name - Enter the firmware image or configuration file name on the TFTP server.

After finishing this web page configuration, please click OK to save the settings.

VI-1-4 Firmware

This page allows a user to upgrade the firmware image or configuration file on the switch to remote TFTP server or host file system through HTTP protocol.

Available settings are explained as follows:

Item	Description
Firmware
Current Firmware Version	Displays current used firmware.
Upgrade Method	Select Upgrade method:HTTP - Use WEB browser to upgrade firmware.Select Firmware File - Choose the firmware file located in your computer.TFTP - Use TFTP to upgrade firmware.Server IP Address - Enter the IPv4/IPv6 address for the TFTP server.File Name - Enter the firmware image or configuration file name on the TFTP server.

After finishing this web page configuration, please click OK to save the settings.

VI-2-1 LAN Access

The switch needs an IP address for it to be managed over the network. The factory default IP address is 192.168.1.224. The subnet mask specifies the network number portion of an IP address. The factory default subnet mask is 255.255.255.0.

Use the IP Address (IPv4/IPv6) screen to configure the switch IP address and the default gateway device. The gateway field specifies the IP address of the gateway (next hop) for outgoing traffic. In addition, this page allows the network administrator to change the VLAN ID of management access. Management access protocols such as http, https, SNMP and etc., are only accessible from the VLAN specified as management VLAN.

Available settings are explained as follows:

Item	Description
IPv4 Access
IP Mode Select the mode of network connection.
	DHCP - Use static IPv4 address.
	Static - Use DHCP provisioned IP address and Gateway if feasible.
	IP Address - Enter the IP address of your switch in dotted decimal notation for example 192.168.1.224. If static mode is enabled, enter IP address in this field.
	Subnet Mask - Enter the IP subnet mask of your switch in dotted decimal notation for example 255.255.255.0. If static mode is enabled, enter subnet mask in this field.
	Gateway - Enter the IP address of the gateway in dotted decimal notation. If static mode is enabled, enter gateway address in this field.
	DNS Server1/2 - Enter primary/ secondary DNS server addressin this field.
IPv6 Access
Auto Configuration Enabled - Let the switch automatically configure IPv6 address.Click the toggle to enable / disable this function.	- means "Enable".- means "Disable".DHCPv6 Client - Enable this feature if there is a DHCPv6 server on your network for assigning IPv6 Address, instead of using Router Advertisement.
	Disabled -IPv6 Address - Enter the IPv6 address of your switch. If auto configuration mode is disabled, enter IPv6 address in this field.Gateway - Enter the IPv6 address of the router as your default IPv6 gateway to access IPv6 Internet or other IPv6 network.DNS Server1/2 - Enter primary/ secondary DNS server address in this field.
Management VLAN
Management VLAN Select the VLAN ID as management VLAN.
Protocol Access
HTTP Server, HTTPS Server, Telnet Server, SSH Server, Enforce HTTPS Server	Select the protocol(s) and set the port number for remote access.

After finishing this web page configuration, please click OK to save the settings.

VI-2-2 Management Authentication & Profile

The system administrator can log in VigorSwitch from profiles defined on this page. All profiles will apply the configuration of management server(s) and authentication method(s) settings.

Available settings are explained as follows:

Item	Description
Management Authentication
Management Server Displays available servers set as management server.
Authentication Method	Displays available protocols for different management servers.Select one or more protocols for each server.
Management List	Displays a list of profiles that will apply the settings of server and authentication defined above.+ Add Profile - Click to create a new management profile.

To add a remote server, click the "+Add Profile" to open the edit page.

Available settings are explained as follows:

Item	Description
Add Profile
Profile Name Enter a name for an authentication profile.
Profile Enable Click the toggle to enable / disable this profile.
	- means "Enable".- means "Disable".
+Add Rule Click to create a rule.

IP Version - Specify the IP address/subnet to which the ACL should be applied.

All - All the IP address should be applied.
IPv4 – Specify the IPv4 address /subnet.
Enter the IPv4 address/subnet to which the ACE rule should apply.
IPv6 – Specify the IPv6 address /subnet.
Enter the IPv6 address/subnet to which the ACE rule should apply.

Action - Select the action to be taken on the traffic of selected service type.

• Deny – Incoming / outgoing data which meets ACE rules will be blocked.
  Permit – Incoming / outgoing data which meets ACE rule is allowed to pass through.

Port - Select the ports to which the ACL profile should be applied.

Management - Specify a management server for this rule.

Priority - Specify a priority number (1 to 65535) for such rule. The lower the number, the higher the priority.

OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

This page allows a user to configure TR-069 settings for connecting to VigorACS 3.

Available settings are explained as follows:

Item	Description
Show/Hide Advanced Mode	Click to display / hide the advanced mode settings.
TR-069 Click the toggle to enable / disable this function.
	- means "Enable".
	- means "Disable".
Basic Mode - ACS Server
ACS IP/Domain	Enter the IP address or domain name of the server.
Username Enter the username that you want to link with the VigorACS (Auto Configuration Server).
Password Enter the password that you want to link with the VigorACS (Auto Configuration Server).
Test with Inform	Click to send a message to test if this CPE is able to communicate with VigorACS server.
Advanced Mode - ACS Server
Protocol	Choose HTTP or HTTPS for connecting with VigorACS.
Port Enter a value that VigorACS can use to access to this switch.
ACS IP/Domain	Enter the IP address or domain name of the server.
Handler Enter the URL that you want to link with the VigorACS (Auto Configuration Server).
Username Enter the username that you want to link with the VigorACS (Auto
	Configuration Server).
Password Enter the password that you want to link with the VigorACS (Auto Configuration Server).
Test with Inform	Click to send a message to test if this CPE is able to communicate with VigorACS server.
CPE Settings
CPE Client	Choose HTTP or HTTPS for connecting with VigorACS.
URL Display the URL of VigorSwitch
Port Enter a value that VigorACS can use to access to this switch.
Username	Enter the username that VigorACS can use to access into this switch.
Password	Enter the password that VigorACS can use to access into this switch.
TLS Version
TLS Minimum Protocol Version	Due to security consideration, the built-in HTTPS VPN server of the router had upgraded to TLS1.x protocol (TLS1.2/TLS1.3). Select one of the versions.
Periodic Inform
Enable Click the toggle to enable/disable the function.
Interval Time Set the interval time for the switch to send notification to CPE.
STUN Settings
Enable Click the toggle to enable / disable this function.
Server Address Enter the IP address of the STUN server.
Server port Enter the port number of the STUN server.
Minimum Keep Alive Period	If the STUN server is enabled, the switch must send binding request to the server for the purpose of maintaining the binding in the Gateway. Please type a number as the minimum period. The default setting is "60 seconds".
Maximum Keep Alive Period	If the STUN server is enabled, the switch must send binding request to the server for the purpose of maintaining the binding in the Gateway. Please type a number as the maximum period. A value of "-1" indicates that no maximum period is specified.
Notification
Port Link Up/Down	Vigor system will check the health status of LAN ports including link up /down, or speed change.Select LAN port(s) to do the health check of port link.
Link Speed Change Select LAN port(s) to do the health check of speed change.
PoE Port Warning	Select LAN port(s) to do the health check of PoE power.

After finishing this web page configuration, please click OK to save the settings.

VI-2-4 OpenVPN

Devices connecting to VigorSwitch can transmit data to remote end via OpenVPN to ensure the information security.

Available settings are explained as follows:

Item	Description
Remote Management	Click the toggle to enable / disable OpenVPN tunnel between VigorSwitch with the remote end. - means “Enable”. - means “Disable”.
Select Configuration File	It is available when remote management is enabled.As a VPN client, please import the OpenVPN config file coming from OpenVPN server.
Current Configuration File	Click to remove current configuration file.
Session Status Display current OpenVPN status (Disabled, Connecting or Success).

After finishing this web page configuration, please click OK to save the settings.

VI-2-5 Webhook

Without getting any request, VigorSwitch will send the data (if available) that a user concerned to the specified URL (provided by remote client) automatically.

Available settings are explained as follows:

Item	Description
Enable	Click the toggle to enable / disable the webhook service. The data will be transmitted to the specified URL. - means “Enable”. - means “Disable”.
URL	Specify the destination to receive the real-time data by entering the URL.Please get the URL from the client who wants to obtain the newest and available data automatically from the Vigor switch.
Repeat Period Set the transmission interval (unit is minute).
Keep my settings while reset default	Check the box to keep the webhook configuration when resetting VigorSwitch with default settings.
Test Vigor system will send a test report to the remote address.

After finishing this web page configuration, please click OK to save the settings.

VI-2-6 Account & Password

This page allows a user to add or delete local user on switch database for authentication.

Available settings are explained as follows:

Item	Description
+Add Account Click to create a new account (up to eight accounts).
Account Displays the name of the account.
Permission Displays the privilege level (Admin or View Only) of the account.
Option	- Click to modify the account settings.

To modify an existing schedule profile, click the link of of the one to be changed.

To add a schedule profile, click the "+ Add Account " to open the edit page.

Available settings are explained as follows:

Item	Description
Add Account
Account Enter a username for new account.	If you want to modify an existed user account, simply enter the same string in this field. Then, modify the password and choose privilege level. After clickingApply, the existed user name will be modified with different values.
Permission	Administer - Allow to change switch settings.View Only- See switch settings only. Not allow to change it.
Password Enter a password for new account.
Confirm Password Enter the password again for confirmation.
Password Strength	Displays the strength of the password, indicated by the words “weak”, “medium” or “strong”.

After finishing this web page configuration, please click OK to save the settings.

LLDP is a one-way protocol; there are no request/response sequences. Information is advertised by stations implementing the transmit function, and is received and processed by stations implementing the receive function. The LLDP category contains LLDP and LLDP-MED pages.

VI-3-1 LLDP Port Setting

This page allows a user to select specified port or all ports to configure LLDP state.

Available settings are explained as follows:

Item	Description
Port	Displays the index number of GE ports (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).
Status	Displays the transmission of LLDP PDUs.
Optional TLVs	Displays the data communication protocols and optional information.
VLAN	Displays the VLAN ID number.
Option	- Click to modify the LLDP port settings of the selected port.- Clear current settings and return to factory default settings.

To modify the port settings for the selected port, click the link of of the one to be changed.

Available settings are explained as follows:

Item	Description
Port	Displays the index number of GE ports (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).
LLDP Enable	Click the toggle to enable / disable this function. - means "Enable".- means "Disable".TX&RX - Transmit and receive LLDP PDUs both.TX Only - Transmit LLDP PDUs only.RX Only - Receive LLDP PDUs only.
Optional TLVs	Within data communication protocols, optional information may be encoded as a type-length-value or TLV element inside a protocol. TLV is also known as tag-length value.The type and length are fixed in size (typically 1-4 bytes), and the value field is of variable size.Select the LLDP optional TLVs to be carried (multiple selection is allowed).Available items include System Name, Port Description, System Description, System Capability, 802.3 MAC-PHY, 802.3 Link Aggregation, 802.3 Maximum Frame Size, Management Address and 802.1 PVID.
VLAN Select the VLAN ID	number to be performed (multiple selections are allowed).

After finishing this web page configuration, please click OK to save the settings.

VI-3-2 LLDP-MED Setting

This page allows the network administrator to set MED (Media Endpoint Discovery) network policy and configure TLV (Type / Length / Value) settings for each port.

Available settings are explained as follows:

Item	Description
Option	- Click to modify the LLDP port settings of the selected policy.- Clear current settings and return to factory default settings.

VI-3-2-1 MED Network Policy

To modify the port settings for the selected MED network policy, click the link of ____ of the one to be changed.

Available settings are explained as follows:

Item	Description
Policy ID Choose a number for configuring the policy profile. Available selections include 1 to 32.
Policy Enable	Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
Application	There are several applications which can be used for MED network. Selections include Voice, Voice Signaling, Guest Voice, Guest Voice Signaling, Softphone Voice, Video Conferencing, Stream Video and Video Signaling.
VLAN	Set a VLAN ID (ranging from 1 to 4094) for this profile.
VLAN Tag Specify if the outgoing packets will be tagged or not.Untag – Packets will be sent out without any tag.Tag – Packets will be sent out with a number tagged.
Priority Set Layer2 priority (range from 0 to 7).
DSCP Set DSCP value (range form 0 to 63).
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

VI-3-2-2 LLDP-MED Port Setting

To modify the port settings for the selected MED port setting, click the link of ____ of the one to be changed.

Available settings are explained as follows:

Item	Description
LLDP-MED Port Setting
Port Displays the index number of 10GE port.
LLDP-MED Enable	Click the toggle to enable / disable the LLDP MED on the selected port.- means “Enable”.- means “Disable”.
Optional TLVs	There are three TLVs (Type / Length / Value) for choosing: Location, Inventory, Network Policy and Select All. Select the one(s) for this profile.
Network Policies	Select network policy profiles for applying onto the selected port.
Location TLV Coordinate	Enter the coordinate location in 16 pairs of hexadecimal characters.
Civic	Enter the civic address in 6 ~ 160 pairs of hexadecimal characters.
ECS ELIN Enter the ECS (Emergency Call Service) ELIN (Emergency Location Identification Number) in 10 ~ 25 pairs of hexadecimal characters.
OK Save the settings.

After finishing this web page configuration, please click OK to save the settings.

VI-3-3 LLDP Statistics

This page offers the statistics of LLDP packets (in, out and error) of each port (2.5GE1 to 2.5GE8, 10GE1 to 10GE4).

Available settings are explained as follows:

Item	Description
Clear All	Clear it to remove all logs displayed in this page.
Refresh Click it to refresh the log.
Port Displays the port number.

Simple Network Management Protocol (SNMP) is an "Internet-standard protocol for managing devices on IP networks". Devices that typically support SNMP include routers, switches, servers, workstations, printers, modem racks and more.

SNMP is used mostly in network management systems to monitor network-attached devices for conditions that warrant administrative attention.

SNMP is a component of the Internet Protocol Suite as defined by the Internet Engineering Task Force (IETF). It consists of a set of standards for network management, including an application layer protocol, a database schema, and a set of data objects.

An SNMP-managed network consists of three key components:

• Managed device
  • Agent - software which runs on managed devices
  • Network management station (NMS) - software which runs on the manager

A managed device is a network node that implements an SNMP interface that allows unidirectional (read-only) or bidirectional (read and write) access to node-specific information. Managed devices exchange node-specific information with the NMSs. Sometimes called network elements, the managed devices can be any type of device, including, but not limited to, routers, access servers, switches, bridges, hubs, IP telephones, IP video cameras, computer hosts, and printers.

An agent is a network-management software module that resides on a managed device. An agent has local knowledge of management information and translates that information to or from an SNMP-specific form.

A network management station (NMS) executes applications that monitor and control managed devices. NMSs provide the bulk of the processing and memory resources required for network management. One or more NMSs may exist on any managed network.

VI-4-1 View

This page allows the network administrator to create MIB views (Management information base) and then include or exclude OID (Object Identifier) in a view.

Available settings are explained as follows:

Item	Description
+Add View Click it to add a new MIB view profile.
View Name Displays the name of the MIB view.

To add a schedule profile, click the "+ Add View " to open the edit page.

Available settings are explained as follows:

Item	Description
View Name Enter a name of the MIB view.
OID Subtree Enter an OID string to be included or excluded (based on the view type setting) from the MIB view.
Type Determine to include or exclude the selected MIBs.
+Add OID Subtree Click it to add a new MIB view profile.

After finishing this web page configuration, please click OK to save the settings.

VI-4-2 Group

This page allows the network administrator to group SNMP users and assign different authorization and access privileges.

Available settings are explained as follows:

Item	Description
+Add Group Click it to create a new group profile.
Group Name Displays the name for the group.
Version Displays the SNMP version adopted by the group.
Security Level	Displays the SNMP security level for the group.
Read View Displays the read view profile.
Write View Displays the write view profile.
Notify View Displays the notify view profile.

To add a schedule profile, click the "+ Add Group " to open the edit page.

Available settings are explained as follows:

Item	Description
Add Group
Group Name Enter a name for the group.
SNMP Version Specify SNMP version (v1, v2 or v3).
Security Level Specify SNMP security level for the group. It is available when SNMPv3 is selected.No Security - No authentication.Authentication - Authentication without encryption will be performed for packets.Authentication and Privacy - Authentication with encryption will be performed for packets.
Read View	Click the toggle to enable / disable this function. If it is enabled, users of this group have the right to read the selected MIB view. - means "Enable". - means "Disable".
Select Read View	Use the drop down list to select one of the views. The default is "all", which means the group user can read all MIB views.
Write View	Click the toggle to enable / disable this function. If it is enabled, users of this group have the right to write the selected MIB view.Select Write View - Use the drop down list to select one of the views. The default is "all", which means the group user can write all MIB views.
Notify View	Click the toggle to enable / disable this function. If it is enabled, users of this group have the right to send notifications for the selected MIBview.Select Notify View - Use the drop down list to select one of the views. The default is “all”, which means the group user have the right to send notification for all MIB views.

After finishing this web page configuration, please click OK to save the settings.

VI-4-3 Community

This page allows a user to add/remove multiple communities of SNMP.

Available settings are explained as follows:

Item	Description
+Add Community Click it to add a new community.
Community Name Displays the community name.
View Displays the view profile.
Group Displays the name of the group.
Access Right	Displays the accessing right (read, read and write) that this community has.
Option	- Click to modify the settings of the community. - Remove the selected entry.

To modify an existing community profile, click the link of of the one to be changed.

To add a schedule profile, click the "+ Add Community " to open the edit page.

Available settings are explained as follows:

Item	Description
Add Community
Community Name Enter a name as community name. The maximum length of the text is limited to 23 characters.
Access Authorization Directly - View and access right can be specified for this SNMP community profile.Via Group - Specify one of the SNMP groups for this SNMP community profile.
View	Simply specify one of the view profiles from the drop down list.
Group	It is available whenVia Groupis selected as access authorization.Specify a SNMP group to define the object available to the community.
Access Right Define the access right of the community group.
	Read Only- It allows unidirectional access to node-specific information.Read & Write- It allows bidirectional access to node-specific information.

After finishing this web page configuration, please click OK to save the settings.

VI-4-4 User

This page allows a user to configure SNMP user profile(s).

Available settings are explained as follows:

Item	Description
+Add User Click it to add a new user profile.
User Name Displays the name of this user profile.
Group	Displays the group name to which this user profile belongs.
Security Level	Displays the security method used by this user profile.
Authentication Method	Displays the authentication method used by this user profile.
Privacy Method	Displays the privacy method used by this user profile.

To modify an existing user profile, click the link of of the one to be changed.

To add a user profile, click the "+ Add User " to open the edit page.

Available settings are explained as follows:

Item	Description
Add User
User Name Enter a name for creating new SNMP user.
Group	Select one of theSNMPv3groups from the drop down list. Then, this user profile will be grouped under the selected SNMP group.
Security Level Displays the security level configured for the selected SNMP group.If the selected group is not aSNMPv3group, nothing will be displayed in this field.
For SNMPv3 group only
Authentication Method	It is available only when the Security Level is set with "Authentication", or "Authentication_and_Privacy".You can change the methods (None, MD5, SHA) for the selected SNMPv3 group. If no method is available for you to select, that means the selected SNMPv3 group is set with No Security.
Authentication Password	It is available only when the Security Level is set with "Authentication", or "Authentication_and_Privacy".Enter a string as the password for authentication.
Privacy Method It is available only when the Security Level is set with "Authentication_and_Privacy".You can change the methods (None, DES) for the selected SNMPv3 group. If no method is available for you to select, that means the selected SNMPv3 group is set with No privacy.
Privacy Password It is available only when the Security Level is set with "Authentication_and_Privacy".Enter a string as the password for authentication.

After finishing this web page configuration, please click OK to save the settings.

VI-4-5 Engine ID

This page allows a user to configure and display SNMP local and remote engine ID.

Available settings are explained as follows:

Item	Description
Local
User Defined	Click the toggle to enable / disable this function. - means "Enable". - means "Disable".
Engine ID Displays the engine ID of the local server.The default Engine ID which is made up of MAC and Enterprise ID will be used instead.
Remote
+Add Server	Click it to create a new remote server profile.
Server Displays the hostname/IP address of the server.
Engine ID Displays the engine ID of the remote server.
Option	- Click to modify the server setting.- Clear the selected entry.

To modify an existing server profile, click the link of of the one to be changed.

To add a remote server profile, click the "+ Add Server " to open the page.

Available settings are explained as follows:

Item	Description
Add Remote Server
Server Type	Specify the address type for entering hostname or IPv4/IPv6 address.HostnameIPv4IPv6
Server	Enter the IP address or the hostname of the remote SNMP server.
Engine ID Specify the engine ID for remote SNMP server.The engine ID ranges from 10 to 64 hexadecimal characters, and the hexadecimal number must be divided by “2”.

After finishing this web page configuration, please click OK to save the settings.

VI-4-6 Trap Notification

This page allows a user to add or delete the SNMP trap receiver IP address and community name. In addition, it allows a user to configure a host to receive SNMPv1/v2/ve notification.

Available settings are explained as follows:

Item	Description
Trap Event
AuthenticationFailure, Link Up/Down,Cold Start, Warm Start	Check the box to enable the function.Authentication Failure- VigorSwitch will reboot when encountering authentication failure (including community not match or user password not match).Link Up/Down- VigorSwitch will reboot while encountering port link up or down trap.Cold Start- VigorSwitch will reboot while encountering user trap.Warm Start- VigorSwitch will reboot while encountering power down trap.
Notification
+Add Server	Click it to create a new notification server profile.
Server Displays IPv4/IPv6/Hostname of the SNMP trap recipients.
Server Port	Displays the UDP port number for the recipient's server.
Version Displays the notification SNMP version.
Notification Type	Displays the notification type (Trap or Inform).
Timeout Displays the number of SNMP informs timeout.
Retry Displays the number of SNMP informs retry count.
Community/User Displays the community profile.
Security Level	Displays the security level for SNMP notification packet.
Option	Click to modify the setting page of the server profile.Remove the selected entry.

To modify an existing server profile, click the link of of the one to be changed.

To add a user profile, click the "+ Add Server " to open the edit page.

Available settings are explained as follows:

Item	Description
Add Notification Server
Server Type	Choose IPv4/IPv6/Hostname to specify IP address or the hostname of the SNMP trap recipients.HostnameIPv4IPv6
Server Address	Specify SNMP notification version (SNMPv1/v2/v3).
Server Port Specify a port number for the server.
SNMP Version	Specify SNMP notification version (SNMPv1/v2/v3).
Community	Use the drop down list to choose one of the community profiles.
Notification Type Displays the notification type.To specify Notification Type, select v2 or v3 as SNMP Version.Trap -Send SNMP traps to the host.Inform - Send SNMP informs to the host. If it is used, Timeout and Retry also shall be defined.
Timeout	Specify the SNMP informs timeout. It is available whenInformis selected asType.
Retry	Specify the SNMP informs retry count. It is available whenInformis selected as Type.
User It is available when v3 is selected as SNMP Version.
Security Level It is available when v3 is selected as SNMP Version.
	Specify SNMP security level for SNMP notification packet. It is available when SNMPv3 is selected.No Security – No authentication.Authentication – Authentication without encryption will be performed for packets.Authentication and Privacy – Authentication with encryption will be performed for packets.

After finishing this web page configuration, please click OK to save the settings.

This page allows a user to configure settings for VigorSwitch to send alert mail or Syslog mail when encountering certain situation.

Available settings are explained as follows:

Item	Description
Mail Server
Description Displays the name of the mail server.
Status	Click the toggle to enable / disable this function.- means "Enable".- means "Disable".
SMTP Server	Displays the IP address / host of the SMTP server.
Mail Content	Displays the condition(s) for VigorSwitch system to send a mail out.
Sender Displays the email address sending the alert/syslog mail.
Receiver	Displays the email address receiving the alert/syslog mail.
Option	- Click to modify the setting page of the server profile.

Alert Mail Server

To modify the alert mail server profile, click the link of Alert Mail Server to be changed.

Available settings are explained as follows:

Item	Description
Alert Mail Server
Description Displays the name (Alert or Syslog) of the mail server.
Server Status	Click the toggle to enable / disable the mail server. - means "Enable". - means "Disable".
SMTP Server Enter IP address or URL of the SMTP server.
SMTP Port Enter the port number for the SMTP server.
Authentication Click the toggle to enable / disable this function.User Name - Enter a user name for authentication.Password - Enter a password for authentication.
Encryption Click the toggle to enable / disable this function.After enabling Authentication, choose one of the encryption servers for data encryption.STARTTLS - The mail will be encrypted with StartTLS.SSL/TLS - The mail will be encrypted with SSL/TLS.
Sender Enter the email address which will send the alert mail out.
Receiver Enter the email address which will receive the alert mail.
Mail Notification
Alert Type	Specify the condition(s) for VigorSwitch system to send an alert out.
Min. Alert Transmit Interval	Set a time interval for VigorSwitch system to send an alert out from the specified sender.
Send Test Mail	After clicking this button, VigorSwitch system will send a test mail to the recipient.

After finishing this web page configuration, please click OK to save the settings.

Syslog Mail Server

To modify the Syslog mail server profile, click the link of Syslog Mail Server to be changed.

Available settings are explained as follows:

Item	Description
Alert Mail Server
Description	Displays the name (Alert or Syslog) of the mail server.
Enabled	Click the toggle to enable / disable this function.- means "Enable".- means "Disable".
SMTP Server Enter IP address or URL of the SMTP server.
SMTP Port Enter the port number for the SMTP server.
Authentication Click the toggle to enable / disable this function.User Name - Enter a user name for authentication.Password - Enter a password for authentication.
Encryption Click the toggle to enable / disable this function.After enabling Authentication, choose one of the encryption servers for data encryption.STARTTLS - The mail will be encrypted with StartTLS.
	SSL/TLS - The mail will be encrypted with SSL/TLS.
Sender Enter the email address which will send the syslog mail out.
Receiver Enter the email address which will receive the syslog mail.
Mail Notification
Log Type Vigor system will send the e-mail related to the selected feature(e.g., AAA, ACL) to the recipient.
Send Test Mail	After clicking this button, VigorSwitch system will send a test mail to the recipient.

After finishing this web page configuration, please click OK to save the settings.

VI-6 System Reboot

This page allows you to reboot VigorSwitch with current settings or return to factory default settings for VigorSwitch.

Available settings are explained as follows:

Item	Description
System Reboot
Reboot With	Current Configuration - Use current configuration settings. Factory Default - Use the default configuration settings.
Reboot Click to reboot the device immediately.

Chapter VII Troubleshooting

Icon of a red wrench crossed with two gray hexagonal shapes (no text or symbols)

VII-1 Backing to Factory Default Setting

Sometimes, a wrong connection can be improved by returning to the default settings. Try to reset the modem by software or hardware.

i Warning:

After pressing factory default setting, you will loose all settings you did before. Make sure you have recorded all useful settings before you pressing. The password of factory default is null.

VII-1-1 Software Reset

You can reset the modem to factory default via Web page.

Go to System Maintenance and choose System Reboot on the web page. The following screen will appear. Choose Factory Default and click OK. After few seconds, the modem will return all the settings to the factory settings.

VII-1-2 Hardware Reset

While the modem is running, press the RST button and hold for more than 5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the modem will restart with the default configuration.

After restore the factory default setting, you can configure the settings for the modem again to fit your personal request.

VII-2 Contacting DrayTek

If the modem still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to [e-mail].

Appendix Telnet Commands

Icon of a red wrench crossed with two gray hexagonal shapes (no text or symbols)

A-1 Accessing Telnet of Vigor Switch

This chapter also gives you a general description for accessing telnet and describes the firmware versions for the routers explained in this manual.

Note:

For Windows 7 user, please make sure the Windows Features of Telnet Client has been turned on under Control Panel>>Programs.

Enter cmd and press Enter. The Telnet terminal will be open later.

In the following window, type Telnet 192.168.1.224 as below and press Enter. Note that the IP address in the example is the default address of the router. If you have changed the default, enter the current IP address of the router and press Enter.

For users using previous Windows system (e.g., XP), simply click Start >> Run and type Telnet 192.168.1.224 in the Open box.

Next, enter admin/admin for Account/Password.

A-2 Available Commands

Enter ? to get a list of available commands.

The available commands contain – clear, clock, configure, copy, delete, disable, end, exit, hardware-monitor, ping, reboot, renew, restore-defaults, save, show, ssl, terminal, traceroute and udld. Each command will be explained as follows.

Note: You can also enter ? to check if there are subcommands under current command.

A-2-1 Clear Configuration

This command allows resetting the functions of ARP, authentication, gvrp, interface, IP, IPv6, LACP, Line, LLDP, Logging, MAC, mvr, and Spanning Tree.

Telnet Command: clear arp

Use this command to clear entries in the ARP cache.

Syntax Items

clear arp

Description

Syntax Items Description
clear arp - Enter the	IP address of the device (e.g., 192.168.1.224).Related Syntax:# clear arp# clear arp

Example

PQ2121x# clear arp 192.168.1.224

PQ2121x#

Telnet Command: clear authentication

Use this command to clear authentication sessions based on LAN port, MAC address, or authentication type for 802.1x/MAC authentication.

Syntax Items

clear authentication sessions

clear authentication sessions interfaces 10GigabitEthernet

clear authentication sessions interfaces 2.5GigabitEthernet

clear authentication sessions mac

clear authentication sessions session-id

clear authentication sessions type

Description

Syntax Items Description
clear authentication sessions	Clear all of the sessions related to authentication.Related Syntax:# clear authentication sessions
clear authentication sessions interfaces 10GigabitEthernet	Clear the sessions of a specific interface.<1-4>- Enter the number of LAN port.Related Syntax:# clear authentication sessions interfaces 10GigabitEthernet <1-4>
clear authentication sessions interfaces 2.5GigabitEthernet	Clear the sessions of a specific interface.<1-8>- Enter the number of LAN port.Related Syntax:# clear authentication sessions interfaces 2.5GigabitEthernet <1-8>
clear authentication sessions mac	Clear the sessions with the MAC address set here.- Enter the MAC address of the device that you want to clear the authentication information.Related Syntax:# clear authentication sessions mac
clear authentication sessions session-id	Clear the sessions with the string set here.- Enter a string of a session that you want to clear.Related Syntax:# clear authentication sessions session-id
clear authentication sessions type	Clear the sessions with authentication type selected here.- Use 802.1x authentication.- Use mac-based authentication.- Use web-based authentication.Related Syntax:# clear authentication sessions type

Example

PQ2121x# clear authentication sessions No Auth Manager sessions currently exist PQ2121x# clear authentication sessions mac 48:5B:39:2F:A8:66 PQ2121x# clear authentication sessions interfaces 10GigabitEthernet 2 PQ2121x# clear authentication sessions session-id 0000000B002AFBE8 PQ2121x#

Telnet Command: clear gvrp

Use this command to clear statistics or port error statistics for all interfaces or a specific interface (LAN or LAG).

Syntax Items

clear gvrp error-statistics

clear gvrp statistics

Description

Syntax Items Description
clear gvrp error-statistics	Specify a LAN/LAG interface for clearing error statistics for GVRP.<1-4> - Enter the number (1 to 4) of LAN port (10G).<1-8> - Enter the number (1 to 8) of LAN port (2.5G).<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface) that you want to clear the GVRP setting.Related Syntax:# clear gvrp error-statistics interfaces 10GigabitEthernet <1-4># clear gvrp error-statistics interfaces 2.5GigabitEthernet <1-8># clear gvrp error-statistics interfaces LAG <1-8>
clear gvrp statistics Specify a	LAN/LAG interface for clearing statistics for GVRP.<1-4> - Specify an interface (10G) for clearing statistics for GVRP.<1-8> - Specify an interface (2.5G) for clearing statistics forGVRP.<1-8> - Specify LAG interface for clearing statistics for GVRP.Related Syntax:# clear gvrp statistics interfaces 10GigabitEthernet <1-4># clear gvrp statistics interfaces 2.5GigabitEthernet <1-8># clear gvrp statistics interfaces LAG <1-8>

Example

PQ2121x# clear gvrp error-statistics interfaces 10GigabitEthernet 2
PQ2121x#
PQ2121x# clear gvrp error-statistics interfaces LAG 2
PQ2121x#

Telnet Command: clear interfaces

Use this command to clear statistics counters for all interfaces or a specific interface (10GB LAN, 2.5GB LAN or LAG).

Syntax Items

clear interfaces 10GigabitEthernet

clear interfaces 2.5GigabitEthernet

clear interfaces LAG

Description

Syntax Items Description
clear interfaces10GigabitEthernet	Specify a LAN interface (10G) for clearing statistics counters on that port.<1-4> - Enter the number (1 to 4) of LAN port.Related Syntax:# clear interfaces 10gigabitEthernet <1-4> counters
clear interfaces2.5GigabitEthernet	Specify a LAN interface (2.5G) for clearing statistics counters on that port.<1-8> - Enter the number (1 to 8) of LAN port.Related Syntax:# clear interfaces 2.5gigabitEthernet <1-8> counters
clear interfaces LAG Specify a	LAG interface for clearing statistics counters on that port.<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:# clear interfaces LAG <1-8> counters

Example

PQ2121x# clear interfaces 10gigabitethernet 3 counters

PQ2121x# clear interfaces

PQ2121x# clear interfaces LAG 2 counters

PQ2121x#

Telnet Command: clear ip

Use this command to clear IGMP snooping groups (dynamic or static) information for all interfaces or a specific interface (LAN or LAG) with IP address.

Syntax Items

clear ip arp

clear ip dhcp

clear ip igmp

Description

Syntax Items Description
clear ip arp <1-4> - Enter the number (1 to 4) of LAN port (10GB).<1-8> - Enter the number (1 to 8) of LAN port (2.5GB).<1-8> - Specify a LAG interface for clearing ARP inspection information.statistics - Clear the statistics for ARP inspection.Related Syntax:# clear ip arp inspection interfaces 10GigabitEthernet <1-4>#clear ip arp inspection interfaces 2.5GigabitEthernet <1-8># clear ip arp inspection interfaces LAG <1-8> statistics
clear ip dhcp snooping database statistics - Clear snooping databasestatistics for DHCP server.snooping interfaces 10GigabitEthernet / LAG- Specify a LAN /LAG interface for clearing DHCP snooping information.<1-4> - Enter the number (1 to 4) of LAN port (10GB).<1-8> - Enter the number (1 to 8) of LAN port (2.5GB).<1-8> - Specify a LAG interface for clearing DHCP snooping information.Related Syntax:# clear ip dhcp snooping database statistics# clear ip dhcp snooping interfaces 10GigabitEthernet<1-4> statistics# clear ip dhcp snooping interfaces 2.5GigabitEthernet<1-8> statistics# clear ip dhcp snooping interfaces LAG <1-8> statistics
clear ip igmp	snooping groups dynamic - Clear dynamic snooping groups of IGMP server.snooping groups static - Clear static snooping groups of IGMP server.snooping statistics - Clear snooping statistics for IGMP server.Related Syntax:# clear ip igmp snooping groups dynamic# clear ip igmp snooping groups static# clear ip igmp snooping statistics

Example

PQ2121x# clear ip igmp snooping groups dynamic PQ2121x#

Telnet Command: clear ipv6

Use this command to clear MLD snooping configuration for dynamic / static group(s) with IPv6 address.

Syntax Items

clear ipv6 mld

Description

Syntax Items Description
clear ipv6 mld snooping groups dynamic - Clear dynamic snooping groups of MLD.snooping groups static - Clear static snooping groups of MLD.Related Syntax:# clear ipv6 mld snooping groups dynamic# clear ipv6 mld snooping groups static# clear ipv6 mld snooping statistics

Example

PQ2121x# clear ipv6 PQ2121x# clear ipv6 mld snooping groups dynamic PQ2121x# clear ipv6 mld snooping groups dynamic? < cr > PQ2121x# clear ipv6 mld snooping groups static PQ2121x#

Telnet Command: clear lacp

Use this command to clear LACP configuration for specified LAG interface or all LAG interfaces.

Syntax Items

clear lacp <1-8> counters

clear lacp counters

Description

Syntax Items Description
clear lacp <1-8>	<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:● # clear lacp <1-8> counters
clear lacp counters Clear LACP	configuration for all LAG interfaces.Related Syntax:● # clear lacp counters

Example

PQ2121x# clear lacp 1 counters No interfaces configured in the channel group PQ2121x#

Telnet Command: clear line

Use this command to clear line settings including SSH (Secure Shell) configuration and telnet daemon configuration.

Syntax Items

clear line ssh

clear line telnet

Description

Syntax Items Description
clear line ssh Clear SSH configuration	Related Syntax:# clear line ssh
clear line telnet Clear SSH Telnet configuration for line connection.	Related Syntax:# clear line telnet

Example

PQ2121x# clear line ssh PQ2121x# clear line telnet

Telnet Command: clear lldp

Use this command to clear LLDP statistics or reset LLDP information.

Syntax Items

clear lldp global

clear lldp interfaces

Description

Syntax Items Description
clear lldp global Clear all of the statistics related to LLDP.Related Syntax:
	# clear lldp global statistics
clear lldp interfaces Specify a	LAN / LAG interface for clearing LLDP information.<1-4> - Enter the number (1 to 4) of LAN port (10GB).<1-8> - Enter the number (1 to 8) of LAN port (2.5GB).<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:# clear lldp interfaces 10GigabitEthernet <1-4> statistics# clear lldp interfaces 2.5GigabitEthernet <1-8> statistics# clear lldp interfaces LAG <1-8> statistics

Example

PQ2121x# clear lldp global statistics
PQ2121x#
PQ2121x# clear lldp interfaces LAG 1 statistics
PQ2121x# clear lldp interfaces 10gigabitethernet 1 statistics
PQ2121x#

Telnet Command: clear logging

Use this command to clear log messages from the internal logging buffer and flash.

Syntax Items

clear logging buffered

clear logging file

Description

Syntax Items Description
clear logging buffered Clear the log stored in RAM.Related Syntax:# clear logging buffered
clear logging file Clear the log stored in flash.Related Syntax:# clear logging file

Example

PQ2121x# clear logging buffered
PQ2121x# clear logging file
PQ2121x#

Telnet Command: clear mac

Use this command to clear MAC configuration related to VLAN, LAG, and LAN port.

Syntax Items

clear mac

Description

Syntax Items Description

clear mac address-table

<1-4> - Enter the number (1 to 4) of LAN port (10GB). <1-8> - Enter the number (1 to 8) of LAN port (2.5GB). <1-8>- Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface). <1-4094> - Specify a VLAN ID by entering its number.Related Syntax: # clear mac adderss-table dynamic interfaces 10GigabitEthernet <1-4> clear mac adderss-table dynamic interfaces 2.5GigabitEthernet <1-8> # clear mac adderss-table dynamic interfaces LAG <1-8> # clear mac adderss-table dynamic vlan <1-4094>

Example

PQ2121x# clear mac address-table dynamic vlan 2038 PQ2121x# clear mac address-table dynamic interfaces 10gigabitethernet 3 PQ2121x#

Telnet Command: clear mvr

Use this command to clear information for all members (including dynamic, static) of MVR.

Syntax Items

clear mvr members

Description

Syntax Items Description
clear mvr members Clear information for dynamic / static members.Related Syntax:# clear mvr members dynamic# clear mvr members static

Example

PQ2121x# clear mvr members dynamic PQ2121x# clear mvr members static PQ2121x#

Telnet Command: clear spanning-tree

Use this command to clear running system information.

Syntax Items

clear spanning-tree

Description

Syntax Items Description

clear spanning-tree interfaces

Specify a LAN interface for clearing its running information.<1-4>- Enter the number (1 to 4) of LAN port (10GB).<1-8>- Enter the number (1 to 8) of LAN port (2.5GB).<1-8>- Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:# clear spanning-tree interfaces 10GigabitEthernet <1-4>statistics# clear spanning-tree interfaces 2.5GigabitEthernet <1-8>statistics# clear spanning-tree interfaces LAG <1-8> statistics

Example

PQ2121x# clear spanning-tree interfaces 10GigabitEthernet <1-4> 10GigabitEthernet device number
PQ2121x# clear spanning-tree interfaces 10gigabitethernet 3 statistics
PQ2121x# clear spanning-tree interfaces LAG 1 statistics
PQ2121x#

A-2-2 Clock Configuration

This command allows managing the system clock.

Telnet Command: clock set

Use this command to configure the system clock manually.

Syntax Items

clock set

Description

Syntax Items Description
clock set Set current by entering hours, minutes, seconds, month, date and year with the format listed below:- Hour, minute, second (e.g., 08:10:30).- January.- February.- March.- April.- May.- June.- July.- August.- September.- October	-November- December<1-31>- Date 1 to 31.<2000-2035>- Year of 2000 to 2035.Related Syntax:# clock set HH:MM:SSjan/feb/mar/apr/may/jun/jul/aug/sep/oct/nov/dec <1-31><2000-2035>

Example

PQ2121x# clock set 12:10:30 jan 1 2019

2019-01-01 12:10:30 UTC+8

A-2-3 Configure Configuration

This command allows configuring the settings related to VigorSwitch.

Available sub-commands under Configure include:

aaa, acct, authentication, boot, clock, custom, dhcp-server, dos, dot1x, do, dray_surveillance, enable, end, errdisable, exit, gvrp, hostname, http, https, interface, ip, ipv6, jumbo-frame, lacp, lag, line, lldp, logging, logmail, loop-protection, mac, mailalert, management, management-vlan, mirror, mvr, no, openvpn, poe, port-security, qos, radius, schedule, sflow, snmp, sntp, spanning-tree, ssh, start-up, storm-control, surveillance-vlan, system, tacacs, telnet, tr069, udld, username, vlan, voice-vlan and webhook

Before configuration, you have to enter "configure" to access into next phase.

To return to previous phase, enter "exit"

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# exit

PQ2121x#

Telnet Command: aaa

Use this command to add a login authentication list to authenticate with local, tacacs+, radius, and none service.

Syntax Items

aaa authentication enable

aaa authentication login

Description

Syntax Items Description
aaa authentication enable Enable authentication is used only on CLI for a user trying to switch from User EXEC (>) mode to Privileged EXEC (#) mode. enable – Enable the authentication list.– Enter a string as the list name for authentication
	type. Default value is "default".- Specify the authentication method by entering none, enable, tacacs+ or radius.None: Do nothing and just make user be authenticated.Enable: Use local password to authenticate.Tacacs+: Use remote Tacas+ server to authenticate.Radius: Use remote Radius server to authenticate.default - It is used to configure default enable authentication.Related Syntax:#aaa authentication enable#aaa authentication enable default
aaa authentication login Login	authentication is used when a user tries to login into the switch.LISTNAME - Enter the auth method list name.-Specify the authentication method by entering none, enable, tacacs+ or radius.default - It is used to configure default login authentication.Related Syntax:#aaa authentication login LISTNAME#aaa authentication login default

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# aaa authentication enable LISTNAME enable
PQ2121x(config)#
PQ2121x(config)# exit
PQ2121x# show aaa authentication enable lists
Enable List Name Authentication Method List
----
default enable
LISTNAME enable
PQ2121x#

Telnet Command: acct

Use this command to set RADIUS / TACACS server.

Syntax Items

acct server radius

acct server tacacs

Description

Syntax Items Description
server radius <1-65535> - Set a value to wait for a packet retransmission to the authentication server.<1-60> - Set the transmission interval (unit is second).# acct server radius disconnect message port <1-65535>interval <1-60>
server tacacs <1-65535> - Set a value to wait for a packet retransmission to the authentication server.<1-60> - Set the transmission interval (unit is second).# acct server tacacs disconnect message port <1-65535>interval <1-60>

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# acct server radius disconnect message port 3030 interval 30
PQ2121x(config)#

Telnet Command: authentication

Use this command to enable the global setting of 802.1x/MAC/WEB authentication network access control (default is disabled for all).

Syntax Items

authentication dot1x

authentication guest-vlan

authentication mac

authentication web

Description

Syntax Items Description
authentication dot1x Enable 802.1x authentication by entering the word, dot1x after authentication.Related Syntax:# authentication dot1x
authentication guest-vlan Configure the guest VLAN.<1-4094>- Specify a guest VLAN ID by entering its number.Related Syntax:# authentication guest-vlan <1-4094>
authentication mac Enable MAC authentication by entering the word, mac after authentication.mac local - Local database for MAC-Based authentication. It can add local MAC authentication hosts in database.- Enter the MAC address to be added for authentication.control auth – Set a local entry control mode, auth (the host
	will be set to authorized) or unauth (the host will be set to unauthorized).vlan <1~4094> - Specify a VLAN ID by entering its number reauth-period <300~4294967294> - Set a time to initiate automatic re-authentication.inactive-timeout <60~65535>- Set the inactive timeout for MAC authentication host. After the time interval, if there is no activity from the client, then it will be unauthorized by Vigor system.control unauth - Set a local entry control mode as "unauth" to let the host set as unauthorized.radius mac-case- Set RADIUS user ID with lower case or upper case.radius mac-delimiter- Select RADIUS user ID delimiter. In which,colon: XX:XX:XX:XX:XX:XXdot: XX.XX.XX.XX.XX.XXhyphen: XX-XX-XX-XX-XX-XXnone:XXXXXXXXXXXXgap <2/4/6> - Select delimiter gap.Related Syntax:#authentication mac#authentication mac localcontrol auth inactive-timeout <60~65535>#authentication mac localcontrol auth reauth-period <300~4294967294>#authentication mac localcontrol auth vlan <1~4094>#authentication mac localcontrol auth vlan<1~4094>reauth-period <300~4294967294>#authentication mac localcontrol auth vlan<1~4094>reauth-period <300~4294967294>inactive-timeout <60~65535>#authentication mac localcontrol unauth#authentication mac radius mac-case#authentication mac radius mac-delimitergap <2/4/6>
authentication web	Web - Enable web authentication by entering the word "web" after "authentication".username- Specify a username.password- Set a password.vlan <1~4094> - Specify a VLAN ID by entering its number.reauth-period <30~4294967294> - Set a time to initiate automatic re-authentication.inactive-timeout <60~65535>- Set the inactive timeout for MACauthentication host. After the time interval, if there is no activity from the client, then it will be unauthorized by Vigor system.Related Syntax:#authentication web#authentication web local usernamepasswordinactive-timeout <60~65535>#authentication web local usernamepasswordreauth-period <300~4294967294>#authentication web local usernamepasswordreauth-period <300~4294967294 inactive-timeout <60~65535)#authentication web local usernamepasswordvlan<1~4094>#authentication web local usernamepasswordinactive-timeout <60~65535>#authentication web local usernamepasswordreauth-period <30~4294967294 inactive-timeout <60~65535>#authentication web local usernamepasswordvlan<1~4094>reauth-period <30~4294967294 inactive-timeout <60~65535>

Example

PQ2121x# configure
PQ2121x (config)# authentication dot1x
PQ2121x (config)# vlan 3
PQ2121x (config-vlan)# exit
PQ2121x (config)# authentication guest-vlan 3
PQ2121x (config)#
PQ2121x (config)# exit
PQ2121x# show authentication
Authentication dot1x state : enabled
Authentication mac state : disabled
Authentication web state : disabled
Guest VLAN : enabled (3)
Mac-auth Radius User ID Format :XXXXXXXXXXXX
Mac-auth Local Entry :
Web-auth Local Entry :
Interface Configurations
Interface 2.5GigabitEthernet1
Admin Control : disable
Host Mode : multi-auth
Type dot1x State : disabled
Type mac State : disabled
Type web State : disabled
Type Order : dot1x
MAC/WEB Method Order : radius

Guest VLAN : disabled

Reauthentication : disabled

Max Hosts : 256

VLAN Assign Mode : static

--More-

............

PQ2121x# configure

PQ2121x (config)# authentication mac local 00:11:22:33:00:01 control auth vlan 3

reauth-period 500 inactive-timeout 300

PQ2121x (config)#

PQ2121x (config)# authentication mac local 00:11:22:33:00:01 control unauth

PQ2121x (config)#

PQ2121x (config)# authentication web local username user_1 password 1234tw vlan 3

reauth-period 600 inactive-timeout 700

PQ2121x (config)#

Telnet Command: boot

Use this command to have a backup image in the flash partition. Select the active firmware image, and another firmware image will become a backup one.

Syntax Items

boot system

Description

Syntax Items Description
boot system Boot the system	from flash image partition 0 / 1.Related Syntax:# boot system image0# boot system image1

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# boot system image0
Select "image0" Success
PQ2121x (config)# exit
PQ2121x#
PQ2121x# show boot
Image Version	Date	Status	File Name
----	----	----	----
0	1.0.2	2017-08-29 09:44:57	Not active*	2120_r442_220RC1.all
1	2.3.2	2018-05-16 09:14:31	Active	p2280_r734_230RC4.all

"*" designates that the image was selected for the next boot

PQ2121x#

Telnet Command: clock

Use this command to configure time zone, summer-time and external time source for the system clock.

Syntax Items

clock auto timezone

clock source local

clock summer-time

clock timezone

Description

Syntax Items Description
clock auto timezone	VigorSwitch sets the time zone automatically.
clock source local Configure an	external time source for the system clock."local" means to use static time. It is the default setting.Related Syntax:# clock source local
clock summer-time Configure	the system to automatically switch to summer time(daylight saving time).ACRONYM - Specify the acronym name of time zone. The acronym of the time zone will be displayed when summer time is in effect. If unspecified, the time zone acronym will be used in default. (1-4 chars)- Indicate January, February, March, April, May, June, July, August, September, October, November, December.<1-31> means date 1 to 31.<2000-2037> - means year of 2000 to 2035.- means hours and minutes.recurring - Summer time should start and end on the corresponding specified days every year.<1-1440>- Set the number of minutes to add during the summer time. The default number is 60.eu - The summer time is based on the European Union rules.(Start point - last Sunday in March, End point - last Sunday in October)usa - The summer time is based on the United States rules.(Start point - second Sunday in March, End point - first Sunday in November)first - The first week of the month.last - The last week of the month.- Indicate Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday.
	- Indicate January, February, March, April, May, June, July, August, September, October, November, December.- Specify the first week or the last week of the month.<1-5> - Specify the number of the week in the month. Note that the first group of month, date, hour and minute is used for configuring starting time, and the second group is used for configuring ending time.Related Syntax:# clock summer-time ACRONYM date<1-31> <2000-2037><HH:MM><1-31><2000-2037><HH:MM)# clock summer-time ACRONYM recurring eu<1-1440)# clock summer-time ACRONYM recurring usa<1-1440)# clock summer-time ACRONYM recurring first<1-14400># clock summer-time ACRONYM recurring last<1-5><1-14400# clock summer-time ACRONYM recurring <1-5><1-5>- Specify the hour offset (from -12 to +13) of time zone. minutes <0-59> - Specify the minute difference from UTC.Related Syntax:# clock timezone ACRONYM <-12-13> minutes <0-59>
clock timezone ACRONYM<-12-13> minutes <0-59>	Set the time zone for display purposes.ACRONYM - Specify the acronym name of time zone. The acronym of the time zone will be displayed when summer time is in effect. If unspecified, the time zone acronym will be used in default. (1-4 chars)<-12-13> - Specify the hour offset (from -12 to +13) of time zone. minutes <0-59> - Specify the minute difference from UTC.Related Syntax:# clock timezone ACRONYM <-12-13> minutes <0-59>

Example

PQ2121x# configure

PQ2121x(config)# clock source sntp

PQ2121x(config)# exit

PQ2121x# show clock detail

2019-01-05 06:51:23 UTC+8

Time source is sntp

Time zone:

Acronym is

Offset is UTC+8

PQ2121x# configure

PQ2121x(config)# clock summer-time tw date jan 30 2019 23:30 feb 1 2019 20:50

PQ2121x(config)# exit

PQ2121x# show clock detail

2019-01-05 07:13:49 UTC+8

Time source is sntp

Time zone:

Acronym is ACRONYM

Offset is UTC-10:08

Summertime:

Acronym is tw

Starting and ending on a specific date.

Begins at 1 30 19 23:30

Ends at 2 1 19 20:50

Offset is 60 minutes.

PQ2121x# configure

PQ2121x(config)# clock summer-time ACRONYM recurring eu 1200

PQ2121x(config)# clock summer-time ACRONYM recurring first mon jan 10:10 first sun feb 10:10 1000

PQ2121x(config)# exit

PQ2121x# show clock detail

2019-01-05 11:37:18 UTC+8

Time source is sntp

Time zone:

Acronym is

Offset is UTC+8

Summertime:

Acronym is ACRONYM

Recurring every year.

Begins at 1 1 1 10:10

Ends at 1 0 2 10:10

Offset is 1000 minutes.

Telnet Command: custom

Use this command to enable the module settings.

Syntax Items

custom enable

Description

Syntax Items Description
custom enable Enable the module settings.	Related Syntax:•# custom enable

Example

PQ2121x# configure
PQ2121x(config)# custom enable
PQ2121x(config)#

Telnet Command: dhcp-server

Use this command to configure for the DHCP server settings for a VLAN profile.

Syntax Items

dhcp-server option

dhcp-server reserve-ip

dhcp-server restart

dhcp-server server

Description

Syntax Items Description
dhcp-server option Configure VID setting for the DHCP server.- Enter an existed VLAN ID number for specifyingvlan profile. Before set the number, create a VLAN profile by using# vlan #.<66-67>- Enter 66 or 67 as the option-number.ASCII- Enter a string.Address- Enter a MAC address of Vigor switch or IP address of Vigor switch.hexadecimal- Enter a value (e.g., 0x00000804) with the format of hexadecimal.Related Syntax:# dhcp-server optiondisable# dhcp-server optionenable option-number <66-67>ACSII# dhcp-server optionenable option-number <66-67>Address# dhcp-server optionenable option-number <66-67>hexadecimal	- Enter an existed VLAN ID number for specifyingvlan profile. Before set the number, create a VLAN profile by using# vlan #.<66-67>- Enter 66 or 67 as the option-number.ASCII- Enter a string.Address- Enter a MAC address of Vigor switch or IP address of Vigor switch.hexadecimal- Enter a value (e.g., 0x00000804) with the format of hexadecimal.Related Syntax:# dhcp-server optionsdisable# dhcp-server optionsenable option-number <66-67>ACSII# dhcp-server optionsenable option-number <66-67>Address# dhcp-server optionsenable option-number <66-67>hexadecimal
dhcp-server reserve-ip Configure VID setting for the DHCP server.mac- Enter the MAC address (e.g.,	- Enter the MAC address (e.g.,00:1D:AA:4F:E2:98) of Vigor switch.ip - Enter the IP address of the Vigor switch.Related Syntax:# dhcp-server reserve-ip mac ip
dhcp-server restart Restart the	DHCP server.Related Syntax:# dhcp-server restart
dhcp-server server Configure settings for the DHCP server.	- Enable or disable a VID. Enter an existed VLAN ID number for specifyingvlanprofile.Before set vid number, create a VLAN profile by using "# vlan #".start-ip - Enter the start IP address.counts <1-1021> - Enter the maximum number of IP addresses to be handed out by DHCP.lease-time<-1/300-172800>- Enter the maximum duration DHCP-issued IP addresses can be used before they have to be renewed.dns1 - Enter the IP address for the primary server.dns2 - Enter the IP address for the secondary server.gateway - Enter the IP address of the host on the LAN that relays all traffic coming into and going out of the LAN.Related Syntax:# dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/300-172800># dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/300-172800>dns1 <A.B.C.D> <config># dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/300-172800>dgway <A.B.C.D> <config># dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/300-172800>gateway <A.B.C.D> <config># dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/300-172800>dgway <A.B.C.D> <config># dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/ 300-172800>dgway <A.B.C.D> <config># dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/300-172800>dgway <A.B.C.D> <config># dhcp-server server vid <2-4094>start-ip <A.B.C.D> counts <1-1021> lease-time<-1/

Example

PQ2121x# configure PQ2121x(config)# vlan 100 PQ2121x# configure PQ2121x(config)# vlan 100

PQ2121x(config-vlan)# name VLAN_100

PQ2121x(config-vlan)# exit

PQ2121x(config)# interface vlan 100

PQ2121x(config-if)# ip address 192.168.3.240 mask 255.255.255.0

PQ2121x(config-if)# exit

PQ2121x(config)# dhcp-server server vid 100 enable start-ip 192.168.3.240 counts 100 lease-time 1000 dns1 168.95.1.1

PQ2121x(config)# dhcp-server

Telnet Command: dos

Use this command to enable specific Denial of Service (DoS) protection.

Syntax Items

dos daeqsa-deny

dos icmp-frag-pkts-deny

dos icmp-ping-max-length

dos icmpv4-ping-max-check

dos icmpv6-ping-max-check

dos ipv6-min-frag-size-check

dos ipv6-min-frag-size-length

dos land-deny

dos nullscan-deny

dos pod-deny

dos smurf-deny

dos smurf-netmask

dos syn-sportl1024-deny

dos synfin-deny

dos synrst-deny

dos tcp-frag-off-min-check

dos tcpblat-deny

dos tcphdr-min-check

dos tcphdr-min-length

dos udpblat-deny

dos xma-deny

Description

Syntax Items Description
dos daeqsa-deny	Drop the packets if the destination MAC address equals to the source MAC address.Related Syntax:# dos daeqsa-deny
dos icmp-frag-pkts-deny Drop	the fragmented ICMP packets.Related Syntax:# dos icmp-frag-pkts-deny
dos icmp-ping-max-length	Set the maximum packet size for ICMPv4/ICMPv6 pingoperation.<0-65535> - Specify a packet number.Related Syntax:# dos icmp-ping-max-length <0-65535>
dos icmpv4-ping-max-check	Check ICMPv4 ping maximum packets size and drop the packets larger than the maximum packet size defined by the command, dos icmp-ping-max-length.Related Syntax:# dos icmpv4-ping-max-check
dos icmpv6-ping-max-check	Check ICMPv6 ping maximum packets size and drop the packets larger than the maximum packet size defined by the command, icmp-ping-max-length.Related Syntax:# dos icmpv6-ping-max-check
dos ipv6-min-frag-size-check	Check minimum size of IPv6 fragments.Related Syntax:# dos ipv6-min-frag-size-check
dos ipv6-min-frag-size-length<0-65535>	Set the minimum packet size of IPv6 fragmented packets.<0-65535> - Specify a packet number.Related Syntax:# dos ipv6-min-frag-size-length <0-65535>
dos land-deny Drop the packets if the source IP address equals to destinationIP address.Related Syntax:# dos land-deny
dos nullscan-deny Drop the packets if attacked by NULL Scan.Related Syntax:# dos nullscan-deny
dos pod-deny Drop the packets if attacked by Ping of Death.Related Syntax:# dos pod-deny
dos smurf-deny Drop the packets if encountered Smurf attack.Related Syntax:# dos smurf-deny
dos smurf-netmask Set the smurf attack size.<0-32> - Enter a number as smurf attacks size.Related Syntax:# dos smurf-netmask <0-32>
dos syn-sportl1024-deny Drop	SYN packets with sport less than 1024.Related Syntax:# dos syn-sportl1024-deny
dos synfin-deny Drop the packets with SYN and FIN bits set.Related Syntax:# dos synfin-deny
dos synrst-deny Drop the packets with SYNC and RST bits set.Related Syntax:# dos synrst-deny
dos tcp-frag-off-min-check	Drop the TCP fragmented packet with offset equals to the minimum packet size.Related Syntax:# dos tcp-frag-off-min-check
dos tcpblat-deny	Drop the packets if the source TCP port equals to destination TCP port.Related Syntax:# dos tcpblat-deny
dos tcphdr-min-check	Check the minimum TCP header and drop the TCP packets with the header smaller than the minimum size defined.Related Syntax:# dos tcphdr-min-check
dos tcphdr-min-length	Set the minimum size of TCP header.<0-65535>- Specify a packet number.Related Syntax:# dos tcphdr-min-length <0-65535>
dos udpblat-deny	Drop the packets if the source UDP port equals to destination UDP port.Related Syntax:# dos udpblat-deny
dos xma-deny	Drop the packets if the sequence number is zero and the FIN, URG and PSH bits are set already.Related Syntax:# dos xma-deny

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# dos icmp-ping-max-length 25252
PQ2121x(config)# dos icmpv4-ping-max-check
PQ2121x(config)#

Telnet Command: dot1x

Use this command to set 802.1x configuration.

Syntax Items

dot1x

Description

Syntax Items Description
dot1x guest-vlan <0-4094> - Enter a number as guest VLAN ID.
	Related Syntax:●# dot1x guest-vlan <0-4094>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# dot1x guest-vlan 33

VLAN does not exist

PQ2121x(config)#

Telnet Command: do

Use this command to execute a command immediately.

Syntax Items

do SEQUENCE

Description

Syntax Items Description
SEQUENCE	Enter the command that you want to execute immediately.Related Syntax: (for example)# do show info

Example

PQ2121x(config)# do show info

System Name : PQ2121x

System Location : Default

System Contact : Default

MAC Address : 14:49:BC:50:61:A7

IP Address : 192.168.1.13

Subnet Mask : 255.255.255.0

Loader Version : 2.2.0

Loader Date : Jan 28 2022 - 13:32:13

Firmware Version : 2.8.1

Firmware Date : Aug 26 2022 - 10:29:50

Firmware Revision: 090ccd2

System Object ID : 1.3.6.1.4.1.7367

System Up Time : 17 days, 18 hours, 47 mins, 7 secs

PQ2121x(config)#

Telnet Command: dray\_surveillance

Use this command to enable / disable the ONVIF.

Syntax Items

dray_surveillance add

dray_surveillance direct-add

dray_surveillance set

Description

Syntax Items Description
dray_surveillance add Add an IP device for surveillance. WORD <36-36> - Enter the UUID string of the IP camera or IP-based device.Related Syntax:•# dray_surveillance add device uuid WORD <36-36># dray_surveillance add group uuid WORD <36-36>
dray_surveillance direct-add WORD <36-36> - Enter the UUID string of the IP camera or IP-based device.Related Syntax:•# dray_surveillance direct-add device uuid WORD <36-36>
dray_surveillance set username WORD<1-32> - Enter a string as the default user name.password WORD<1-32>> - Enter a string as the default password.encptpwd WORD <1-128> - Enter a string as the encrypted key. WORD <36-36> - Enter the UUID string of the IP camera or the IP-based device.ip- Enter the IP address of the IP camera or the IP-based device.Mask- Enter the subnet mask of the IP camera or the IP-based device.vlan <1-4094> - Enter a value representing the VLAN ID.Related Syntax:•# dray_surveillance set default username WORD<1-32> password WORD<1-32>•# dray_surveillance set default username WORD<1-32>encptpwd WORD <1-128>•# dray_surveillance set device uuid WORD <36-36>•# dray_surveillance set group uuid WORD <36-36>•# dray_surveillance set interface ip•# dray_surveillance set interface mask•# dray_surveillance set vlan <1-4094>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# dray_surveillance

PQ2121x(config)#

PQ2121x(config)# dray_surveillance add device uuid 53d7762a-c52b-4bb9-8000-305501e0f35f

PQ2121x(config)#

Telnet Command: enable

Use this command to configure local password with encrypted string or not.

Syntax Items

enable password

enable privilege

enable secret

Description

Syntax Items Description
enable password	Edit the password for each privilege level for activating authentication.<1-15> - Enter a number for specifying a privilege level. Default value is 15.Related Syntax:# enable password <1-15>
enable privilege Edit the privilege level of the password for local user.<1-15> - Enter a number for specifying a privilege level. Default value is 15.- Enter a new string as the password.Related Syntax:# enable privilege <1-15> password(this password will NOT be encrypted.)# enable privilege <1-15> secret(this password will BE encrypted.)# enable privilege <1-15> secret encrypted(This password is copied from another configuration file. So, enter an existed and encrypted password.)
enable secret	Enter a new string as the encrypted password.Related Syntax:# enable secret PASSWORD# enable secret encrypted PASSWORD

Example

PQ2121x# configure
PQ2121x(config)# enable secret encrypted testtest
PQ2121x(config)# exit
PQ2121x# show running-config
PQ2121x# ...
enable privilege 2 secret "OTE5ZTY4MmNhYzgyNWQ0MzBhNTgwZTg0MmZmMGJiYzQ="
enable secret "testtest"
vlan 2
    name "test0002"
vlan 3
    name "test0003"
vlan 5
    name "test_carrie"
voice-vlan oui-table 00:E0:BB "3COM"
voice-vlan oui-table 00:03:6B "Cisco"
voice-vlan oui-table 00:E0:75 "Veritel"
......

Telnet Command: end

Use this command to end current mode.

Syntax Items

end

Example

PQ2121x# configure
PQ2121x(config)#end
PQ2121x#

Telnet Command: errdisable

Use this command to enable the auto recovery timer for port error.

Syntax Items

errdisable recovery cause

errdisable recovery interval

Description

Syntax Items Description
errdisable recovery cause	Enable the auto recovery timer for port error disabled from ACL,all, ARP rate limit, STP BPDU guard, broadcast flooding, DHCP rate limit, port security, STP self-loop, unicast flooding, or unknown multicast flooding causes.Related Syntax:# erridisable recovery cause < acl /all /arp-inspection /bpduguard /broadcast-flood /dhcp-rate-limit /psecure-violation /selfloop /unicast-flood/unknown-multicast-flood >
errdisable recovery interval Set the recovery time of the error disabled port.<30-86400> - The default value is 300 seconds.Related Syntax:# errdisable recovery interval <30-86400>

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# errdisable recovery interval 600
PQ2121x(config)#

Telnet Command: exit

Use this command to exit current mode and return to previous mode/phase.

Syntax Items

exit

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# exit
PQ2121x#

Telnet Command: gvrp

Use this command to enable the GVRP configuration. In default, the GVRP is disabled.

Syntax Items

gvrp

Example

PQ2121x# configure
PQ2121x(config)# gvrp
PQ2121x(config)#
PQ2121x(config)# exit
PQ2121x# show gvrp
GVRP Status
----
GVRP : Enabled
Join time : 200 ms
Leave time : 600 ms
LeaveAll time : 10000 ms
PQ2121x#

Telnet Command: hostname

Use this command to modify the network name of VigorSwitch.

Syntax Items

hostname WORD

Description

Syntax Items Description
Hostname WORD	- Enter a string as the network name for VigorSwitch.Related Syntax:# hostname WORD

Example

PQ2121x# configure
PQ2121x(config)# hostname Switch_3F
Switch_3F(config)#

Telnet Command: interface

Use this command to configure interface settings.

Before configuring, you have to access into next phase. See the following example:

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# interface 10GigabitEthernet 3
PQ2121x(config-if)#

Or

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# interface range LAG 3
PQ2121x (config-if-range)#

Syntax Items

interface 10GigabitEthernet

interface 2.5GigabitEthernet

interface VLAN

interface LAG

interface range

Description

Syntax Items Description
interface 10GigabitEthernet	<1-4> - Specify the number of Ethernet LAN port.Related Syntax:# interface 10GigabitEthernet <1-4>
interface 2.5GigabitEthernet	<1-8> - Specify the number of Ethernet LAN port.Related Syntax:# interface 2.5GigabitEthernet <1-8>
Interface vlan <1-4094> - Specify the number of VLAN ID.Related Syntax:# interface vlan <1-4094>
interface LAG <1-8> - Specify the number of LAG interface.Related Syntax:# interface LAG <1-8>
Interface range Specify an interface ranges for configuring detailed settings.Related Syntax:# interface range 10GigabitEthernet <1-4># interface range 2.5GigabitEthernet <1-8># interface range LAG <1-8>

Example

PQ2121x# configure
PQ2121x(config)# interface LAG 1
PQ2121x(config-if)#

Under (config-if)#, available sub-commands for LAN, VLAN or LAG will be different. Below shows the items under Ethernet LAN:

<config-if>#10g-media
<config-if># authentication
<config-if># back-pressure
<config-if># custom
<config-if># description
<config-if># device-check
<config-if># dos
<config-if># dot1x
<config-if># do
<config-if># dray_surveillance
<config-if># duplex
<config-if># eee
<config-if># end
<config-if># exit
<config-if># flowcontrol
<config-if># gvrp
<config-if># ip
<config-if># ipv6
<config-if># lacp
<config-if># lag
<config-if># lldp
<config-if># loop-protection
<config-if># mac
<config-if># mvr
<config-if># no

<config-if># poe
<config-if># port-security
<config-if># power
<config-if># protected
<config-if># qos
<config-if># rate-limit
<config-if># shutdown
<config-if># spanning-tree
<config-if># speed
<config-if># storm-control
<config-if># surveillance-vlan
<config-if># switchport
<config-if># udld
<config-if># vlan
<config-if># voice-vlan

Description

Syntax Items Description
10g-media It is used for configuring 10G media type.dac100cm - Set the media type as 100cm DAC.dac300cm - Set the media type as 300cm DAC.dac500cm - Set the media type as 500cm DAC.dac50cm - Set the media type as 50cm DAC.fiber10g - Set the media type as 10G Fiber.fiber1g - Set the media type as 1G Fiber. none - Set the media type to NONE media.Related Syntax:# 10g-media dac100cm# 10g-media dac300cm# 10g-media dac500cm# 10g-media dac50cm# 10g-media fiber10g# 10g-media fiber1g# 10g-media none
authentication	Apply Auth Manager Port Configuration Commands to the specified interface (Ethernet port/LAG port).dot1x - Execute the 802.1x authentication.guest-vlan - Authenticate the guest VLAN configuration.host-mode- Set the host mode for authentication on this port.max-hosts <1-256> - Set the maximum number of authenticated hoss allowed on this port.method- Set authentication method by using local or RADIUS server.order- Add an authentication type to the order list.port-control- Set the port state of this port as AUTO, Authorized or Unauthorized. radius-attributes vlan reject - If the Radius server authorizes the supplicant, but does not provide a supplicant VLAN, the supplicant will be rejected. If the parameter is omitted, the option is applied by default. radius-attributes vlan static - If the Radius server authorizes the supplicant but does not provide asupplicant VLAN, the supplicant will be accepted. reauth - Enable/Disable Reauthentication for this port timer <60-65535> - Set the time value for authentication. After the time interval, if there is no activity from the client, it will be unauthorized. timer quiet <0-65535> - Set the time value to wait failed authentication exchange. timer reauth <300-4294967294> - Set the time value. After the time interval, an automatic re-authentication should be initiated. web - Execute the web-based authentication. web max-login-attempts <3-10> - Set a maximum number of login attempts on the port. web max-login-attempts infinite - No limit for login attempts. Related Syntax: # authentication dot1x # authentication guest-vlan # authentication host-mode # authentication mac # authentication max-hosts <1-256> # authentication method # authentication order # authentication port-control # authentication radius-attributes vlan reject # authentication radius-attributes vlan static # authentication reauth # authentication timer inactive <60-65535> # authentication timer quiet <0-65535> # authentication timer reauth <300-4294967294> # authentication web # authentication web max-login-attempts <3-10> # authentication web max-login-attempts infinite
back-pressure Enable back-pressure for the specified interface (Ethernet port/LAG port). Related Syntax: # back-pressure
custom - Enable the custom module configuration for the
	specified interface (Ethernet port/LAG port).Related Syntax:# custom enable
description Write a description	for the specified interface (Ethernet port/LAG port).- Enter a description (up to 32 characters).Related Syntax:# description
device-check Perform a device	check the specified interface (Ethernet port/LAG port).Ip-address- Enter the IP address of the device.interval <120/15/30/60>- Check the device interval by entering the time value. Unit is second.retry <1/3/5>- Enter the retry time during a checking period.failure-action- Set the power cycle.alert- Enable or disable the alert function.- Enter multiple IP addresses separated by ",".Related Syntax:# device-check ip-addressinterval <120/15/30/60>retry <1/3/5>failure-action# device-check ip-addressinterval <120/15/30/60>retry <1/3/5>failure-actionalert# device-check multi ip-addressinterval <120/15/30/60>retry <1/3/5>failure-actionalert
dos Apply DoS to the specified interface (Ethernet port/LAG port).
dot1x It is available for Gigabit	Ethernet port only.guest-vlan - Set guest VLAN configuration.max-req <1-10>- Set the maximum request retries. Default is 2.Port-control-set the port control value (auto, authorized or unauthorized)reauth - Enable/disable the reauthentication for this port.timeout-set timeout value for this port.<0-65535>- Set a value as quiet period (default is 60-second).<300-4294967294>- Set a value as re-authentication period. (default is 3600-second).<1-65535>- Set a value to wait for a packet retransmission to the authentication server.supp-timeout <1-65535>- Set a vale as supplicant timeout period.tx-period <1-65535>- Set a value to wait for a response to an EAP-request / identity before resending the request.

	Related Syntax:# dot1x guest-vlan# dot1x max-req <1-10># dot1x port-control# dot1x timeout quiet-period <0-65535># dot1x timeout reauth-period <300-4294967294># dot1x timeout server-timeout <1-65535># dot1x timeout supp-timeout <1-65535># dot1x timeout tx-period <1-65535>
do Run execution commands in current mode.
dray_surveillance Use this command to set the ONVIF throughput alert threshold.<16-1000000>- Specify a number as the alert threshold for egress /ingress throughput.Related Syntax:#dray_surveillance set threshold alert egress <16-1000000>#dray_surveillance set threshold alert ingress <16-1000000>
duplex Apply the duplex configuration to the specified interface (Ethernet port/LAG port).-Auto duplex configuration.- Force full duplex operation.- Force half-duplex operation.Related Syntax:# duplex
eee Apply the EEE configuration to the specified interface (Ethernet port).
end End current mode, change to enable mode and return to previous phase.
exit Exit from current mode.
flowcontrol	Configure flow-control mode to the spe(Ethernet port/LAG port).- Enable AUTO flow-control configuration.- Disable the force flow-control.- Enable the force flow-control.Related Syntax:# flowcontrol
gvrp Apply the GVRP configuration to the specified interface (Ethernet port/LAG port).registration-mode- Set registration mode for GVRP. When registration-mode is fixed or forbidden, it will remove the dynamic port from VLAN.

	vlan-creation-forbid - Do not remove dynamic port from VLAN.Related Syntax:# gvrp registration-mode# gvrp vlan-creation-forbid
ip Apply IP configuration to the specified interface (Ethernet port/LAG port).acl- Specify an ACL for packets. Enter the name of the ACL.bind-ip- Enter an IP address for binding with the port type.conflict prevention bind-ip- Enter the IP address for the binding.conflict prevention port-type DHCP-Client - Set DHCP Client as the port type.conflict prevention port-type DHCP-Server -Set DHCP Server as the port type.conflict prevention port-type Multiple-Hosts - Set Multiple-Hosts as the port type.conflict prevention port-type Multiple-Hosts has-server - Use this string if there is a DHCP server in this port.conflict prevention port-type Static-Binding -Set Static-Binding as the port type.igmp filter <1-128>- Use it to bind a profile for a port. Specify a profile ID.igmp max-groups <0-256>- Use it to limit port learning max group number (0-256).igmp max-groups action- Use it to set the action (deny or replace) when the number of groups reach the limitation.source binding max-entry <1-50>- Set the maximum dynamic binding entry number.source binding max-entry no-limit - No limit to binding entry.source verify mac-and-ip - Use it to enable IP source guard function.Related Syntax:# ip acl# ip conflict prevention bind-ip# ip conflict prevention port-type DHCP-Client# ip conflict prevention port-type DHCP-Client has-server# ip conflict prevention port-type DHCP-Server# ip conflict prevention port-type DHCP-Server has-server# ip conflict prevention port-type Multiple-Hosts# ip conflict prevention port-type Multiple-Hosts has-server# ip conflict prevention port-type Static-Binding# ip conflict prevention port-type Static-Binding	has-server# ip igmp filter <1-128># ip igmp max-groups <0-256># ip igmp max-groups action# ip source binding max-entry <1-50># ip source binding max-entry no-limit# ip source verify mac-and-ip
ipv6 Apply IPv6 configuration	to the specified interface (Ethernet port/LAG port).acl- Specify the ACL name for packets mld- Set IPv6 filter for MLD configuration.mld max-groups - Specify the number for maximum group. <0-256> - MLD snooping group number.action- Define the action to be performed when excessing the maximum group.Related Syntax:# ipv6 acl# ipv6 mld filter# ipv6 mld max-groups <0-256># ipv6 mld max-groups action
lacp Apply LACP Configuration	to the specified interface (Ethernet port/LAG port).<1-65535> - Set a number for IEEE 802.3 link aggregation port priority.- Set long or short timeout value.Related Syntax:# lacp port-priority <1-65535># lacp timeout
lag Apply Link Aggregation Group	Configuration the specified interface (Ethernet port/LAG port).<1-8> - Specify LAG number.Related Syntax:# lag <1-8>
lldp med location - Configure	the LLDP MED location data. The "coordinate", "civic-address", "ecs-elin" locations are independent, so at most three location TLVs could be sent if their data are not empty.med network-policy add / remove - Configure the LLDP MED network policy table. Add /remove a network policy entry that can be bind to ports.med tlv-select - Configure LLDP MED TLVs selection. Available optional TLVs are network-policy, location, inventory and poe-pse.tlv-select - Select LLDP TLVs to send.- The location is specified as civic address.- Range from 6 to 160 hexadecimal bytes.
	- The location is specified as coordinates.- 16 hexadecimal bytes exactly.- The location is specified as ECS ELIN.- 10 to 25 hexadecimal bytes.- Range from 1 to 32.- LLDP optional TLV, pick from: port-desc, sys-name,sys-desc, sys-cap, mac-phy, lag, max-frame-size,management-addr.pvid - Enable or disable the TX optional-TLV802.1 PVID.vlan-name <2-4094> - Add/remove a selected VLAN. Enter the VLAN ID number.- Enable LLDP reception on interface.- Enable LLDP transmission on interface.Related Syntax:# lldp med location# lldp med network-policy add# lldp med network-policy remove# lldp med tlv-select# lldp tlv-select# lldp tlv-select pvid# lldp tlv-select vlan-name<2-4094># lldp
loop-protection Record the log, shutdown the port or follow the global loop-protection settings for each port.Related Syntax:# loop-protection action all# loop-protection action global# loop-protection action log# loop-protection action shutdown
mac Specify an access control	list for packets.Before configuring, you have to create an ACL based on MAC address. For example,# mac acl CA_ACL# - Enter a name for ACL.Related Syntax:# mac acl
mvr Make MVR configuration.	immediate - Enable MVR function.type - Specify MVR port type as receiver or source.Related Syntax:# mvr immediate# mvr type
no Negate command. Such command can disable current setting of command executed and return to the factory setting of that command.Example:# no mvrThe operation will make mvr setting is default. Continue? [yes/no]:yes#Related Syntax:# no
poe Enable or disable the PoE port.
port-security port-security - Enable the port security functionality. Default is disabled.address-limit <1-256>- Enter the number as limitation for MAC address.action- Spefcy an action to be performed.Related Syntax:# port-security# port-security adderss-limit <1-256>action
power Configure the inline power for the PoE device.inline auto - Turn on the PoE device discovery protocol and apply the power to the device.inline never - Turn off the PoE device power.- Set the power limit for the PoE device.priority <1-3/critical/high/low>- Set the priority of power application for the PoE device.schedule-index - Specify the index number (1 to 15) of the schedule profile.Related Syntax:# power inline auto# power inline never# power power-limit <15.4w/30w/MW)# power priority <1-3/critical/high/low)# power schedule-index <1-15>
protected Configure an interface to be a protected port.Related Syntax:#protected
qos cos - Configure the default CoS value for an Ethernet port.<0-7>- Specify a CoS value for the selected interface. Default value is 0.
	remark - Configure remarking state of each port.trust - Configure each port to trust state while the system is in "basic" mode. There are four trust types for a device to judge the appropriate queue of the packets.- Enable cos remarking.- Enable DSCP remarking.- Enable cos and DSCP remarking.- Enable IP precedence remarking.Related Syntax:#qos cos <0-7>#qos remark#qos trust
rate-limit It is effective for Ethernet port only.egress - Configure the egress port shaper.ingress - Configure the ingress port shaper.egress queue - Configure queue for egress port shaper.<0-1000000>- Enter a number as the average traffic rate in Kbps. It must be a multiple of 16.<16-1000000>- Enter a number as the average traffic rate in Kbps. It must be a multiple of 16.<1-8>- Specify a number as queue ID.Related Syntax:# rate-limit egress <0-1000000># rate-limit egress queue <1-8><16-1000000># rate-limit ingress <16-1000000>
shutdown Disable the selected interface. Example:(config)# interface 10gigabitethernet 3(config-if)# shutdown(config-if)# exit(config)# exit# show interface 10Gigabitethernet 310GigabitEthernet3 is downRelated Syntax:# shutdown
spanning-tree Configure spanning-tree settings.bpdu-filter - Set the BPDU-Filter for specified port.bpdu-guard - Set the BPDU-Guard for specified port.edge - Set the edge-port for specified port.cost - Change an interface's spanning tree path cost.link-type - Specify a link type for spanning tree protocol use.mcheck - Set the mcheck for specified port to migrate.mst - Set spanning-tree parameters of instance.port-priority- Set the priority for specified instance.<0-200000000>- Specify a value of internal path cost (0 means

		Auto).- The selected port will be treated as point-to-point.- The selected port will be treated as shared.<0-15> - Specify an instance ID.<0-240> - Specify a priority number for the selected port.Related Syntax:# spanning-tree# spanning-tree cost <0-200000000# spanning-tree link-type# spanning-tree mcheck# spanning-tree mst <0-15> cost <0-200000000# spanning-tree port-priority <0-240>
speed Configure speed operation.		<10/100/1000> - Force 10/100/1000 Mbps operation.- Enable Auto speed configuration.Related Syntax:# speed<10/100/1000)# speed auto
storm-control action - Select		an action for storm control after exceeding the threshold.broadcast level - Enable the storm control type of broadcast for the selected port.unknown-multicast level - Enable the storm control type of unknown-multicast for the selected port.unknown-unicast level- Enable the storm control type of unknown-unicast for the selected port.- Drop packets after exceeding storm control threshold.- Disable the port after exceeding storm control threshold.<1-1000000> - Specify the rate value.Related Syntax:# storm-control action# storm-control broadcast level <1-1000000># storm-control unknown-multicast level <1-1000000># storm-control unknown-unicast level <1-1000000>
surveillance-vlan cos - Set surveillance VLAN configuration.		mode - Set surveillance member port join mode.- QoS attributes are applied to all packets that are classified to the Surveillance VLAN.- QoS attributes are applied only on packets from IP phones.- Make surveillance member port join voice VLAN
		automatically.- The administrator manually makes surveillance member port join voice VLAN.Related Syntax:# surveillance-vlan cos# surveillance-vlan mode
switchport	Set switching mode characteristics.access vlan -Use it to set a native VLAN on the interface.default-vlan tagged - Use it to make the selected port interface to become the default VLAN tagged member forbidden default-vlan - Use it to forbid the defult-vlan on the interface forbidden vlan - Use it to forbid a vlan on the interface.hybrid acceptable-frame-type - Use it to choose which type of frame will be accepted.hybrid allowed - Use it to allow a VALN set on the interface.hybrid ingress-filtering - Use it to enable VLAN ingress filter.hybrid pvid - Use it to set PVID of the interface.mode access - Use it to configure the selected port as the role of access. Only untagged frames will be accepted.mode hybrid - Use it to configure the selected port as the role of hybrid. Support all functions defined in IEEE 802.1Q specification.mode trunk uplink - Use it to configure the selected port as the role of trunk. It can recognize double tagging on the interface.trunk allowed - Use it to allow a VALN on the interface.trunk native - Use it to set a native VLAN on the interface.tunnel vlan - Use it to set a Dot1q tunnel VLAN on the interface.vlan tpid - Use it to set TPID on the interface.<1-4094> - Specify a VLAN ID.- Add or remove the allowed VLAN list.- Specify an option for accepting all frames, only tagged frames or only untagged frames.<1-4094/all> - Specify a VLAN ID or all VLAN IDs.< 0x8100 / 0x88A8 / 0x9100 / 0x9200> - Specify one tag-protocol-id.Related Syntax:# switchport access vlan <1-4094)# switchport default-vlan tagged# switchport forbidden default-vlan# switchport forbidden vlan<1-4094># switchport hybrid acceptable-frame-type# switchport hybrid allowed vlan add <1-4094># switchport hybrid allowed vlan add <1-4094>

	# switchport hybrid allowed vlan remove <1-4094># switchport hybrid ingress-filtering# switchport mode# switchport mode trunk uplink# switchport trunk native <1-4094># switchport tunnel vlan <1-4094># switchport vlan tpid < 0x8100/0x88A8 / 0x9100 / 0x9200>
udld Configure UDLD enabled	or disabled and ignore global UDLD setting. aggressive - Enable UDLD protocol on such interface.Related Syntax:# udld# udld aggressive
vlan mac-vlan group - Set a MAC-based VLAN configuration.	protocol-vlan group - Set a protocol-based VLAN configuration. <1-2147483647> - Specify a group ID to map. <1-4094> - Specify a VLAN ID.Related Syntax:# vlan mac-vlan group <1-2147483647> vlan <1-4094># vlan protocol-vlan group<1-2147483647> vlan <1-4094>
voice-vlan cos - Set voice VLAN configuration as COS mode.	mode - Set voice member port join mode.- QoS attributes are applied on all packets that are classified to the Voice VLAN.- QoS attributes are applied only on packets from IP phones.- Make voice member port join voice VLAN automatically.- The administrator manually makes voice member port join voice VLAN.Related Syntax:# voice-vlan cos# voice-vlan mode

Example

PQ2121x# configure
PQ2121x(config)# interface LAG 1
PQ2121x(config-if)# speed 100
PQ2121x(config-if)# backpressure
PQ2121x(config-if)# lldp med location ecs-elin 112233445566778899AA
PQ2121x(config-if)# vlan mac-vlan group 35 vlan 1000
PQ2121x(config-if)# device-check multi ip-address 192.168.1.58,192.168.1.68 interval 30 retry 3 failure-action nothing alert enable
killall: jobsd: no process killed
PQ2121x(config-if)#

Telnet Command: ip

Use this command to create an IPv4 access list (ACL) which performs classification on layer 3 fields and enters ip-access configuration mode.

Syntax Items

ip acl
ip address
ip arp
ip conflict
ip default-gateway
ip dhcp
ip dns
ip forcedhttps
ip http
ip https
ip igmp
ip route
ip source
ip ssh
ip telnet

Description

Syntax Items Description
ip acl	acl- Set the name of the access list (ACL) based on IPv4.To configure detailed settings, enter the name of ACL to access into next level.#ip aclThen, available sub-command includes:#deny#do#end#exit#permit#sequence#show
	Use the “deny” command to create deny rules for the IPv4 access list.<0-255/egp/hmp/icmp/igp/ipinip/ipv6 /ipv6:frag /ipv6:icmp /ipv6:rout / ip / l2tp /ospf /pim / rdp / rsvp /tcp /udp > - Specify the IP protocol number or enter the name of the protocol.//- Specify the source and destination IPv4 addresses and subnet masks.dscp <0-63> - Set the DSCP filtering by specifying a value for DSCP.precedence <0-7> - Set the cos value and the cos mask for a packet.shutdown - Disable the Ethernet interface.any - Any IP address (as source or destination).Related Syntax:•#deny <0-255>/<A.B.C.D>/<A.B.C.D>/<A.B.C.D> dscp <0-63>•#deny <0-255>/<A.B.C.D>/<A.B.C.D>/<A.B.C.D> dscp <0-63> shutdown•#deny <0-255>/<A.B.C.D>/<A.B.C.D> precedence <0-7>•#deny <0-255>/<A.B.C.D>/<A.B.C.D> precedence <0-7> shutdown•#deny <0-255>/<A.B.C.D>/<A.B.C.D> any dscp <0-63>•#deny <0-255>/<A.B.C.D>/<A.B.C.D> shutdown•#deny <0-255>/<A.B.C.D>/<A.B.C.D> any dscp <0-7> shutdown•#deny <0-255>/<A.B.C.D>/<A.B.C.D> any any dscp <0-7> shutdown•#deny <0-255>/<A.B.C.D><a#any any any dscp <0-7> shutdown•#deny <0-255>/<A.B.C.D><a any any dscp <0-7> shutdown•#deny <0-255>/<a any any precedence <0-7>•#deny <0-255>/<a any any precedence <0-7> shutdown
	Use the “do” command to run execution command in current mode.-Related Syntax:•#do
	Use the “end” command to finish current mode. Any changes in current mode will be saved.Related Syntax:•#end
	Use the “exit” command to close the current CLI session orreturn to the previous mode without saving the settings.Related Syntax:#exit
	Use the "no sequence" command to delete any entry in management ACL.<1-2147483647>- Specify an index number of the ACL.Related Syntax:#no sequence <1-2147483647>
	Use the "sequence" command to deny or permit the ACL.<1-2147483647>- Enter the sequence of ACL entry. The sequence represents the priority of the ACE in the ACL.Related Syntax:#sequence <1-2147483647>deny#sequence <1-2147483647>permit
	Use the "show acl" command to list current status of the selected ACL.
ip address	Use this command to modify the administration IPv4 address. address-Specify the IPv4 addresses. This IP is required when the administer wants to access into VigorSwitch through Telnet, SSH, HTTP, HTTPS, SNMP and so on.mask-Specify the netmask of the IP address.Related Syntax:#ip addressmask
ip arp Use this command to enable the function of dynamic ARP inspection.vlan <1-4094>- Specify the VLAN ID number.Related Syntax:#ip arp inspection#ip arp inspection vlan <1-4094>
ip conflict Use this command to do IP conflict prevention.lag - Enable/disable the function.- Specify the IPv4 addresses.<1-8>- Specify a physical port (2.5G).<1-4>- Specify a physical port (10G).<1-8>- Specify a LAG port.<1-4094>- Specify a VLAN ID number.Related Syntax:#ip conflict detection#ip conflict lag#ip conflict prevention#ip conflict prevention bindingvlan <1-4094><A.B.C.D>10GigabitEthernet <1-4>server#ip conflict prevention bindingvlan <1-4094><A.B.C.D>2.5GigabitEthernet <1-8>server
	#ip conflict prevention bindingvlan<1-4094>LAG <1-8> server#ip conflict prevention bindingvlan<1-4094> 10GigabitEthernet <1-4> static#ip conflict prevention bindingvlan<1-4094> 2.5GigabitEthernet <1-8> static#ip conflict prevention bindingvlan<1-4094> interface 10GigabitEthernet <1-4> server#ip conflict prevention binding vlan <1-4094><A.B.C.D> interface 10GigabitEthernet <1-4> static#ip conflict prevention binding vlan <1-4094><A.B.C.D> interface 10GigabitEthernet <1-4> static#ip conflict prevention binding vlan <1-4094><A.B.C.D> interface 2.5GigabitEthernet <1-8> sterver#ip conflict prevention binding vlan <1-4094><A.B.C.D> interface 2.5GigabitEthernet <1-8> static#ip conflict prevention binding vlan <1-4094><A.B.C.D> interface LAG<1-8> server#ip conflict prevention binding vlan <1-4094><A.B.C.D> interface 10GigabitEthernet <1-4> interface 10GigabitEthernet <1-8> server#ip conflict prevention server-ip<A.B.C.D> interface 2.5GigabitEthernet <1-8> #ip conflict prevention server-ip<A.B.C.D> interface 2.5GigabitEthernet <1-8>
ip default-gateway Use this command to modify default gateway address.	address - Specify the IPv4 addresses.Related Syntax:#ip default-gateway
ip dhcp Use this command to enable DHCP client to get IP address from remote DHCP server.Related Syntax:#ip dhcp
ip dns Use this command to modify DNS server configuration.	- Specify the IP address as primary DNS server.- Sepcify two IP addresses as primary and secondary DNS server.- Specify the MAC address as primary DNS server.- Specify two MAC addresses as primary and secondary DNS server.lookup - Enable the IP domain naming system lookup.Related Syntax:#ip dns#ip dns#ip dns#ip dns#ip dns #ip dns lookup
ip forcedhttps Use this command	and to enable the function of forced HTTPS configuration.Related Syntax:#ip forcedhttps
ip http Use this command to	enable the function of HTTP configuration.Session-timeout - Set the session timeout.<0-86400> - Set the timeout value. 0 means no timeout.Related Syntax:#ip http session-timeout <0-86400>
ip https Use this command to	enable the function of HTTPS configuration.session-timeout - Set the session timeout.<0-86400> - Set the timeout value. 0 means no timeout.tls version - Set the TLS version.Related Syntax:#ip https session-timeout <0-86400>#ip https tls version
ip igmp Use this command to	set IGMP profile and enable IGMP snooping function.Profile - Set IGMP profile.<1-128> - Enter the index number of IGMP profile to access into next phase for configuring detailed settings.- Specify the source and destination IPv4 addressesaction - Specify the rule (deny/permit) for the IGMP profile.snooping forward-method - Set the forward method.snooping report-suppression - Set the IGMP v1 or v2 report suppression.snooping unknown-multicast action drop /flood/router-port-Set unknown multicast. The packets will be dropped, flood, or forwarded to the router ports.snooping version <2/3> - Set the IGMP snooping operation version.snooping vlan - Set a VLAN ID (1 to 4094) for the IGMP VLAN configuration.forbidden-port 10GigabitEthernt <1 -4> / 2.5GigabitEthernt <1 -8> / LAG <1 - 8> - Specify an interface for the IPv4 forbidden port configuration.immediate-leave - Enable the IGMP snooping immediate-leavefunction.last-member-query-count <1-7> - Set a value as the Last Member Query Count.last-member-query-interval <1-25> - Set the time interval.querier - Enable the querier for the IGMP VLAN configuration.querier <2/3> - Set the querier version (Version 2 or Version 3).query-interval <30-18000> - Set the time interval for the query.response-time <5-20> - Set the response time.robustness-variable <1-7> - Set the robustness variable.router learn pim-dvmrp - Enable the IGMP snooping router port learn by PIM, DVMRP and IGMP messages.static-group- Specify the IPv4 multicast address.interfaces 10GigabitEthernt <1 -4> / 2.5GigabitEthernt <1- 8> / LAG <1 - 8> - Specify an interface.static-port 10GigabitEthernt <1 -4> / 2.5GigabitEthernt <1 - 8> / LAG <1 - 8> - Set the static port for an interface.static-router-port 10GigabitEthernt <1 -4> / 2.5GigabitEthernt <1 - 8> / LAG <1 - 8> - Set the static router port for an interface.Related Syntax:#ip igmp profile <1-128># do# end# exit# profile range ip# profile range ipaction# profile range ipaction# show ip igmp profile <1-128># ip igmp snooping# ip igmp snooping forward-method# ip igmp snooping report-suppression# ip igmp snooping unknown-multicast action# ip igmp snooping version <2/3># ip igmp snooping vlanforbidden-port 10GigabitEthernt <1 -4># ip igmp snooping vlanforbidden-port 2.5GigabitEthernt <1- 8># ip igmp snooping vlanforbidden-port LAG <1- 8># ip igmp snooping vlanforbidden-router-port 10GigabitEthernt <1 -4># ip igmp snooping vlanforbidden-router-port 2.5GigabitEthernt <1- 8># ip igmp snooping vlanforbidden-router-port LAG <1- 8># ip igmp snooping vlanimmediate-leave#ip igmp snooping vlanlast-member-query-count <1-7>#ip igmp snooping vlanlast-member-query-interval <1-25>#ip igmp snooping vlanquerier#ip igmp snooping vlanquerier version <2/3>#ip igmp snooping vlanquery-interval <30-18000>#ip igmp snooping vlanresponse-time <5-20>#ip igmp snooping vlanrobustness-variable <1-7>#ip igmp snooping vlanrouter learn pim-dvmrp#ip igmp snooping vlanstatic-groupinterfaces 10GigabitEthernt <1-4>#ip igmp snooping vlanstatic-groupinterfaces 2.5GigabitEthernt <1-8>#ip igmp snooping vlanstatic-groupinterfaces LAG <1-8>#ip igmp snooping vlanstatic-port 10GigabitEthernt <1-4>#ip igmp snooping vlanstatic-port 2.5GigabitEthernt <1-8>#ip igmp snooping vlanstatic-port LAG <1-8>#ip igmp snooping vlanstatic-router-port 10GigabitEthernt <1-4>#ip igmp snooping vlanstatic-router-port 2.5GigabitEthernt <1-8>#ip igmp snooping vlanstatic-router-port LAG <1-8>
ip route Use this command to create a static route.- Specify the source IPv4 address.vlan <1-4094>- Specify the VLAN ID number.mask-> Specify the subnet mask.Related Syntax:#ip route#ip routegateway#ip routemaskgateway
ip source Use this command to create a static IP source binding entry.- Enter the MAC address for the binding entry (e.g., 14:49:BC:44:A3:D7).vlan <1-4094>- Specify the VLAN ID number.
	-Specify the IPv4 addresses and the netmask address.- Specify a physical port (2.5G GigabitEthernet port).- Specify a physical port (10G GigabitEthernet port).- Specify a LAG port.Related Syntax:#ip source bindingvlan <1-4094>interface 10GigabitEthernet <1-4>#ip source bindingvlan <1-4094>interface 2.5GigabitEthernet <1-8>#ip source bindingvlan <1-4094>interface LAG <1-8>#ip source binding vlan <1-4094><A.B.C.D>interface 10GigabitEthernet <1-4>#ip source binding vlan <1-4094><A.B.C.D>interface 2.5GigabitEthernet <1-8>#ip source binding vlan <1-4094><A.B.C.D>interface LAG <1-8>
ip ssh Use this command to generate the key files for SSH connection.- Select the key files for SSH connection.Related Syntax:#ip ssh
ip telnet Use this command to enable telnet service.Related Syntax:#ip telnet

Example

PQ2121x# configure
PQ2121x(config)# ip acl market_1
PQ2121xconfig-ip-acl)#
PQ2121x (config-ip-acl)# deny 20 192.168.2.55/255.255.255.0 192.168.2.85/255.255.255.0
PQ2121x(config)#

	any
	Use the "do" command to run execution command in current mode.-Related Syntax:#do#end
	Use the "end" command to finish current mode. Any changes in current mode will be saved.Related Syntax:#end
	Use the "exit" command to close the current CLI session or return to the previous mode without saving the settings.Related Syntax:#exit
	Use the "no sequence" command to delete any entry in management ACL.<1-2147483647>- Specify an index number of the ACL.Related Syntax:#no sequence <1-2147483647>
	Use the "permit" command to create permit rules which bypass the packets meet the rule.<0-255/icmp/ipv6/tcp /udp >- Specify the IP protocol number or enter the name of the protocol.<0-255/any>- Specify ICMPv6 number./<0-128>- Specify the source/destination IPv6 addresses and subnet masks.dscp <0-63>- Set the DSCP filtering by specifying a value for DSCP.precedence <0-7>- Set the cos value and the cos mask for a packet.shutdown - Disable the Ethernet interface.any - Any IP address (as source or destination).<0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>- <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>- Set TCP port.match-all- Set TCP flags. List of TCP flags that should occur. If a flag should be set, it is p refixed by "+"If a flag should be unset, it is prefixed by "-"Avai lable options are +urg, +ack, +psh, +rst, +syn, +fin, -urg, -ack, -psh, -rst, -syn and -fin.To define more than 1 flag - enter additional flags one after another without a space (example +syn-ack).<0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmtrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who>

/<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> - Set UDP port.

Related Syntax:

#permit <0-255>/<0-128> /<0-128>
# permit <0-255>/<0-128>/<0-128> dscp <0-63>
# permit <0-255>/<0-128>/<0-128> dscp <0-63> shutdown
# permit <0-255>/<0-128>/<0-128> precedence <0-7>
# permit <0-255>/<0-128>/<0-128> precedence <0-7> shutdown
# permit <0-255>/<0-128>/<0-128> shutdown
# permit <0-255>/<0-128> any dscp <0-63>
# permit <0-255> /<0-128> any dscp <0-63> shutdown
# permit <0-255>/<0-128> any precedence <0-7>
# permit <0-255> /<0-128> any precedence <0-7>shutdown
# permit <0-255>/<0-128> any shutdown
permit icmp /<0-128> /<0-128> <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/any> dscp <0-63>
# permit icmp /<0-128> /<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/any> dscp <0-63> shutdown
# permit icmp /<0-128> /<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/any> precedence <0-7>
# permit icmp /<0-128> /<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/any> precedence <0-7> shutdown
# permit icmp /<0-128>

/<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/any> shutdown

# permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 /any> dscp <0-63>
# permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 /any> dscp <0-63> shutdown
# permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 /any> precedence <0-7>
# permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 /any> precedence <0-7> shutdown
# permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 /any> shutdown
# permit ipv6 /<0-128> /<0-128>
# permit ipv6 /<0-128> /<0-128> dscp <0-63>
# permit ipv6 /<0-128> /<0-128> dscp <0-63> shutdown
# permit ipv6 /<0-128> /<0-128> precedence <0-7>
# permit ipv6 /<0-128> /<0-128> precedence <0-7> shutdown
# permit ipv6 /<0-128> /<0-128> shutdown
# permit ipv6 /<0-128> any dscp <0-63>
# permit ipv6 /<0-128> any dscp <0-63> shutdown
- # permit ipv6 /<0-128> any precedence <0-7>
# permit ipv6 /<0-128> any

precedence <0-7>shutdown# permit ipv6/any shutdown# permit ipv6 any/dscp <0-63># permit ipv6 any dscp <0-63>shutdown# permit ipv6 any/# 128% precedence <0-7># permit ipv6 any/# 128% precedence <0-7>shutdown# permit ipv6 any/# 128%

pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> /<0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all dscp <0-63>

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all dscp <0-63> shutdown

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all precedence <0-7>

# permit tcp /<0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> /<0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all precedence <0-7> shutdown

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all shutdown

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> precedence <0-7>

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip /

echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> /<0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> precedence <0-7> shutdown

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> shutdown

# permit udp /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who>

# permit udp /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> dscp <0-63>

# permit udp /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> dscp <0-63> shutdown

# permit udp /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> dscp <0-63> precedence <0-7>

# permit udp /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> /<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver /

	netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> dscp <0-63> precedence <0-7> shutdown# permit udp/# <0-128> any
	Use the "sequence" command to deny or permit the ACL. <1-2147483647> - Enter the sequence of ACL entry. The sequence represents the priority of the ACE in the ACL.Related Syntax:#sequence <1-2147483647> deny#sequence <1-2147483647> permit
	Use the "show acl" command to list current status of the selected ACL.
Ipv6 address	Use this command to modify the administration IPv6 address. address- Specify the IPv6 addresses. This IP is required when the administer wants to access into VigorSwitch through Telnet, SSH, HTTP, HTTPS, SNMP and so on.prefix <0-128> - Specify the prefix length of the IPv6 address.Related Syntax:#ipv6 addressprefix <0-128>
ipv6 autoconfig	Use this command to enable IPv6 auto configuration feature.
Ipv6 default-gateway Use this	command to modify default gateway address.default-address- Specify the IPv6 addresses of the gateway.Related Syntax:#ipv6 default-gateway
ipv6 dhcp Use this command to	enable DHCPv6 client to get IP address from remote DHCPv6 server.Related Syntax:#ipv6 dhcp
ipv6 mld Use this command to	set MLD configuration.profile <1-128> - Use it to enter profile configuration.snooping - Use it to enable MLD snooping function.forward-method- Specify a method to forward the packets.report-suppression - Use it to enable MLD snooping report-suppression function.unknown-multicast action- Use it to set unknown multicast action.version <1/2> - Use it to change MLD support version.vlan <1-4094> - Use it to enable MLD on VLAN. Specify a VLAN ID for configuration.forbidden-port 10GigabitEthernet <1-4> - Specify a physical port.forbidden-port 2.5GigabitEthernet <1-8> - Specify a physical port.forbidden-port LAG <1-8> - Specify a LAG port. forbidden-router-port 10GigabitEthernet <1-4> - Use it to add static forbidden router port. Specify a physical port. forbidden-router-port 2.5GigabitEthernet <1-8> - Use it to add static forbidden router port. Specify a physical port. forbidden-router-port LAG <1-8> - Use it to add static forbidden router port. Specify a LAG port. immediate-leave - Use it to enable fastleave function. last-member-query-count <1-7> - Use it to change how many query packets will send. Specify the last member query count. Default is 2. last-member-query-interval <1-25> - Use it to set interval between each query packet. Specify the last member query interval. Default is 1. query-interval <30-18000> - Use it to set interval between each query. Specify the query interval. Default is 125. response-time <5-20> - Use it to set response time. Specify a time value. Default is 10. robustness-variable <1-7> - Specify a robustness-variable value. Default is 2. router learn pim-dvmrp - Use it to enable learning router port by rouing protocol packets (DVMRP). static-group <X:X::X:X> interfaces 10Gigabitethernet <1-4> - Use it to add a static group. Specify a physical port. static-group <X:X::X:X> interfaces 2.5Gigabitethernet <1-8> - Use it to add a static group. Specify a physical port. static-group <X:X::X:X> interfaces LAG <1-8> - Use it to add a static group. Specify a LAG port. static-port 10Gigabitethernet <1-4> - Use it to add static forwarding port. Specify a physical port. static-port 2.5Gigabitethernet <1-8> - Use it to add static forwarding port. Specify a physical port. static-port LAG <1-8> - Use it to add static forwarding port. Specify a LAG port. static-router-port 10GigabitEthernet <1-4> - Use it to add static router port. All query packets wil forward to the specified port. Specify a physical port. static-router-port 2.5GigabitEthernet <1-8> - Use it to add static router port. All query packets wil forward to the specified port. Specify a physical port. static-router-port LAG <1-8> - Use it to add static router port. All query packets wil forward to the specified port. Specify a LAG port. Related Syntax: #ipv6 mld profile <1-128> # do # end # exit # profile range ipv6action
	# profile range ipv6
	# profile range ipv6
	action
	# show
	# ipv6 mld snooping
	# ipv6 mld snooping forward-method
	# ipv6 mld snooping report-suppression
	# ipv6 mld snooping unknown-multicast action
	# ipv6 mld snooping version <1/2>
	# ipv6 mld snooping vlan <1-4094>
	# ipv6 mld snooping vlan <1-4094> forbidden-port 10GigabitEthernet <1-4>
	# ipv6 mld snooping vlan <1-4094> forbidden-port 2.5GigabitEthernet <1-8>
	# ipv6 mld snooping vlan <1-4094> forbidden-port LAG <1-8>
	# ipv6 mld snooping vlan <1-4094> forbidden-router-port 10GigabitEthernet <1-4>
	# ipv6 mld snooping vlan <1-4094> forbidden-router-port 2.5GigabitEthernet <1-8>
	# ipv6 mld snooping vlan <1-4094> forbidden-router-port LAG <1-8>
	# ipv6 mld snooping vlan <1-4094> immediate-leave
	# ipv6 mld snooping vlan <1-4094> last-member-query-count <1-7>
	# ipv6 mld snooping vlan <1-4094> last-member-query-interval <1-25>
	# ipv6 mld snooping vlan <1-4094> query-interval <30-18000>
	# ipv6 mld snooping vlan <1-4094> response-time <5-20>
	# ipv6 mld snooping vlan <1-4094> robustness-variable <1-7>
	# ipv6 mld snooping vlan <1-4094> router learn pim-dvmrp
	# ipv6 mld snooping vlan <1-4094> static-group interfaces 10Gigabitethernet <1-4>
	# ipv6 mld snooping vlan <1-4094> static-group interfaces 2.5Gigabitethernet <1-8>
	# ipv6 mld snooping vlan <1-4094> static-group interfaces LAG <1-8>
	# ipv6 mld snooping vlan <1-4094> static-port 10Gigabitethernet <1-4>
	# ipv6 mld snooping vlan <1-4094> static-port 2.5Gigabitethernet <1-8>
	# ipv6 mld snooping vlan <1-4094> static-port LAG<1-8>#ipv6 mld snooping vlan <1-4094>static-router-port 10Gigabitethernet <1-4>#ipv6 mld snooping vlan <1-4094>static-router-port 2.5Gigabitethernet <1-8>#ipv6 mld snooping vlan <1-4094>static-router-port LAG <1-8>

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# ipv6 mld snooping vlan 33
PQ2121x(config)# ipv6 acl CA_v6
PQ2121x(config-ipv6-acl)# deny 3 00:50::32:ff/24 00:50::78:aa/32

Telnet Command: jumbo-frame

Use this command to modify the maximum frame size of jumbo frame.

Syntax Items

jumbo-frame

Description

Syntax Items Description
jumbo-frame Enable the function of jumbo frame.

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# jumbo-frame 8000
PQ2121x(config)#

Telnet Command: Iacp

Use this command to set the system priority of the switch.

Syntax Items

lapc

Iacp system-priority

Description

Syntax Items Description
lacp Enable the function.
lacp system-priority It is used for selecting a master switch between two devices.Lower system priority has higher priority. The device with higher priority value can determine which port is able to join LAG.<1-65535>- Specify the system priority value.Related Syntax:# lacp# lacp system-priority <1-65535>

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# lacp system-priority 1000
PQ2121x(config)#

Telnet Command: lag

LAG port can transmit packets to all ports for balancing the traffic loading. Use this command to change the load balance algorithm to src-dst-mac or src-dst-mac-ip as the Load Balance policy.

Syntax Items

lag load-balance

Description

Syntax Items Description
lag load-balance	LAG load balancing is based on source and destination MAC address and/or IP address.Related Syntax:# lag load-balance src-dst-mac# lag load-balance src-dst-mac-ip

Example

PQ2121x# configure
PQ2121x(config)# lag load-balance src-dst-mac
PQ2121x(config)#

Telnet Command: line

Use this command to select line configuration mode.

Syntax Items

line console

line ssh

line telent

Description

Syntax Items Description
console/ssh/telnet	Select console configuration mode.To configure detailed settings, access into next level.#lineconsole - Select the console line to configure. Then, available sub-commands are:#do#exec-timeout#exit#history#no#password-thresh#silent-time
	Select SSH line to configure. Then, available sub-commands are:#do#end#exec-timeout#exit#password-thresh#silent-time
	telnet - Select telnet line to configure. Then, available sub-commands are:#do#end#exec-timeout#exit#password-thresh#silent-time
#do	Use the "do" command to run execution command in current mode.-Related Syntax:#do
#exec-timeout	Use the "exec-timeout" to set the session timeout configuration.<0-65535> - Enter the number.Related Syntax:#exec-timeout <0-65535>
#exit Use the "exit" command	to close the current CLI session or return to the previous mode without saving the settings.Related Syntax:#exit
#history Use the "history" command to specify the index number of history.<1-256> - Enter a number.Related Syntax:#history <1-256>
#no Use the "no" command to negate line command.Related Syntax:#no enable#no history#no login
#password-thresh Use the "password-thresh" command to set the login password intrusion threshold.<0-120> - Set a number of allowed password attempts. 0 means no threshold.Related Syntax:#password-thresh <0-120>
#silent-time Use the "silent-time" command to set fail silent time.<0-65535> - Set the time to disable the console response.Related Syntax:#silent-time <0-65535>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# line telnet

PQ2121x(config-line)#

Telnet Command: Ildp

Use this command to set LLDP function.

Syntax Items

lldp holdtime-multiplier

Ildp Ildpdu

lldp med

lldp reinit-delay

lldp tx-delay

lldp tx-interval

Description

Syntax Items Description
lldp	Enable the function of LLDP.
lldp holdtime-multiplier	Set the multiplier used for calculating the LLDP discovery packet hold time.<2-10> - Set the LLDP hold time multiplier.Related Syntax:# lldp holdtime-multiplier <2-10>
lldp lldpdu	bridging - The LLDP packets will be bridging when LLDP is disabledPeopleing - The LLDP packets will be filtered and deleted when LLDP is disabled.flooding - The LLDP packets will be flooded and forwarded to all interfaces when LLDP is disabled.Related Syntax:# lldp lldpdu bridging# lldp lldpdu filtering# lldp lldpdu flooding
lldp med med fast-start-repeat-count - Set the LLDP PDU fast start TX repeat count.med network-policy - Set the LLDP MED network policy table.med network-poicy voice auto - Enable the network policy voice auto mode.<1-10>- Set the fast start repeat count.<1-32>- Specify the index number of the policy.appAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp AppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp appsAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp appAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp APPAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppPAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAcc AppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App Apps App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App APP App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App app App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App App
lldp reinit-delay Set the LLDP re-initial delay to avoid LLDP generating too many PDU.<1-10>- Specify a number for LLDP server to initialize.Related Syntax:# lldp reinit-delay <1-10>	lldp reinit-delay Set the LLDP re-initial delay to avoid LLDP generating too many PDU.<1-10>- Specify a number for LLDP server to initialize.Related Syntax:# lldp reinit-delay <1-10>
lldp tx-delay Set the delay time between the successful LLDP frame transmissions.<1-8191>- Enter the number of delay time.Note that both tx-interval and tx-delay will affect the LLDP PDU TX time.Related Syntax:# lldp tx-delay <1-8191>	lldp tx-interval Set the LLDP TX interval.<5-32767> - Enter the interval in unit of second.Related Syntax:# lldp tx-interval <5-32767>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# lldp holdtime-multiplier 5

PQ2121x(config)#

Telnet Command: logging

Use this command to set logging service on VigorSwitch.

Syntax Items

logging

logging buffered

logging console

logging file

logging host

Description

Syntax Items Description
logging	Enable the logging service.
logging buffered	Store the log message in the RAM.
logging console Specify the logging level.<0-7> - Specify the logging level by entering a number (from EMEGR-DEBUG).Related Syntax:# logging console# logging console severity <0-7>
logging file Store the log message in the flash.<0-7> - Specify the logging level by entering a number (from EMEGR-DEBUG).Related Syntax:# logging file severity <0-7>
logging host Define the logging server.host- Enter an IP address of the remote (or local) server.facility-Specify the facility parameter for the syslog message.port <1-65535>- Enter a number for the remote server.Default is 514.severity <0-7>- Specify the logging level by entering a number (from EMEGR-DEBUG).- Define a name as the host.
	Related Syntax:#logging hostfacility#logging hostport <1-65535>#logging hostport <1-65535> facility#logging hostport <1-65535> severity <0-7> facility#logging hostseverity <0-7> facility#logging hostfacility#logging hostport <1-65535>#logging hostport <1-65535> facility#logging hostport <1-65535> severity <0-7> facility#logging hostseverity <0-7> facility#logging hostport <1-65535> facility#logging hostport <1-65535> facility#logging hostport <1-65535> severity <0-7> facility#logging hostport <1-65535> facility#logging hostport <1-65535> facility#logging hostport <1-65535> facility#logging hostport <1-65535> severity <0-7> facility

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# logging host aa:00::1a:FF facility local1

Telnet Command: logmail

Use this command to configure log mail.

Syntax Items

logmail active

logmail auth

logmail category

logmail encpassword

logmail encry

logmail password

logmail port

logmail receiver

logmail sender

logmail server

logmail username

Description

Syntax Items Description
logmail active	- Enable or disable the function of log mail.Related Syntax:# logmail active
logmail auth	- Enable or disable the function of SMTP server authentication.Related Syntax:# logmail auth
logmail categoryAUTHMGR,CABLE_DIAG, DAI, DHCP_SNOOPING,GVRP, IGMP_SNOOPING, IPSG, L2, LLDP, Mac-based, Mirror,MLD_SNOOPING, Platform, PM, POE, Port, PORT_SECURITY,QoS, Rate, SNMP, STP, Security, System, Surveillance, Trunk,UDLD, VLAN, CLEAR>- Specify one type for the logmail.Related Syntax:# logmail categoryAUTHMGR,CABLE_DIAG, DAI, DHCP_SNOOPING, GVRP,IGMP_SNOOPING, IPSG, L2, LLDP, Mac-based, Mirror,MLD_SNOOPING, Platform, PM, POE, Port, PORT_SECURITY,QoS, Rate, SNMP, STP, Security, System, Surveillance, Trunk,UDLD, VLAN, CLEAR>	- Specify one type for the logmail.Related Syntax:# logmail categoryAuthMGR,CABLE_DIAG, DAI, DHCP_SNOOPING, GVRP,IGMP_SNOOPING, IPSG, L2, LLDP, Mac-based, Mirror,MLD_SNOOPING, Platform, PM, POE, Port, PORT_SECURITY,QoS, Rate, SNMP, STP, Security, System, Surveillance, Trunk,UDLD, VLAN, CLEAR>
logmail encpassword Set SMTP	encrypt authentication password.- Enter the password for SMTP server encrypt authentication.Related Syntax:# logmail encpassword
logmail encry	-Specify the encryption type for mail alert.Related Syntax:# logmail encry
logmail password- Enter the password for SMTP server authentication.Related Syntax:# logmail password	- Enter the password for SMTP server authentication.Related Syntax:# logmail password
logmail port <0-65535>- Enter a port number.Related Syntax:# logmail port <0-65535>	- Enter the password for SMTP server authentication.Related Syntax:# logmail receiver
logmail receiver Specify an address for receiving the alert mail.- Enter the email address of the receiver.Related Syntax:# logmail receiver
logmail sender Specify an address which sends out the alert mail.- Enter the email address of the sender.Related Syntax:# logmail	- Enter the email address of the sender.Related Syntax:# logmail
logmail server Set the IP address of the server.
	- Enter the IP address of the SMTP server.Related Syntax:# logmail server
logmail username - Enter the username authenticated by STMP server.Related Syntax:# logmail username

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# logmail receiver [e-mail]
PQ2121x(config)#

Telnet Command: loop-protection

Use this command to set loop-protection.

Syntax Items

loop-protection action

loop-protection periodicTime

loop-protection state

Description

Syntax Items Description
loop-protection action	Specify an action to be taken when the loop is happened.- Specify one action to be executed.Related Syntax:# loop-protection action
loop-protection periodicTime	Send the loop protection packets to the network hosts.<1-3>- Enter the number of the packet.Related Syntax:# Related Syntax:# loop-protection periodicTime <1-3>
loop-protection state	- Enable or disable the function of loop protection.Related Syntax:# loop-protection state

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# loop-protection state enable
PQ2121x(config)#

Telnet Command: mac

Use this command to create a MAC access list.

Syntax Items

mac acl

mac address-table

Description

Syntax Items Description
mac acl	- Set the name of the access list (ACL).To configure detailed settings, enter the name of ACL to access into next level.#mac aclThen, available sub-commands are:#deny#do#end#exit#permit#sequence
	Use the “deny” command to add deny rules for the MAC access list:/Specify the source and destination MAC addresses and subnet masks.cos <0-7><0-7> - Set the cos value and the cos mask for a packet.<0x0600-0xFFFF> - Set the EtherType of the packet.Shutdown – Disable the Ethernet interface.vlan <1-4094> - Specify the VLAN ID of the packet.any – Any MAC address.Related Syntax:●#deny/cos <0-7><0-7>●#deny/cos <0-7><0-7> ethtype<0x0600-0xFFFF>●#deny/col <0-7><0-7> shutdown●#deny/col <0-7><0-7> shutdown●#deny/col <0x0600-0xFFFF>●#deny/col <0x0600-0xFFFF> shutdown●#deny/col <0x0600-0xFFFF> shutdown●#deny/col <0x0600-0xFFFF> shutdown●#deny/col <0x0600-0xFFFF> shutdown●#deny/col <0x0600-0xFFFF> shutdown●#deny/col <0x0600-0xFFFF> shutdown●#deny/col <0x0600-0F> shutdown

#deny any //cos <0-7><0-7>

#deny any // cos <0-7><0-7> ethtype <0x0600-0xFFFF>

#deny any //cos <0-7><0-7>ethtype <0x0600-0xFFFF>shutdown

#deny any //cos <0-7><0-7> shutdown

#deny any any cos <0-7><0-7>

#deny any any cos <0-7><0-7> ethtype <0x0600-0xFFFF>

#deny any any cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown

#deny any any cos <0-7><0-7> shutdown

#deny any any ethtype <0x0600-0xFFFF>

- #deny any any ethtype <0x0600-0xFFFF> shutdown

- #deny any any shutdown

#deny any any vlan <1-4094>

#deny any any vlan <1-4094> cos <0-7><0-7>

- #deny any any vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF>

#deny any any vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown

#deny any any vlan <1-4094> ethtype <0x0600-0xFFFF>

- #deny any any vlan <1-4094> ethtype <0x0600-0xFFFF> shutdown

#deny any any vlan <1-4094> shutdown

Use the "do" command to run execution command in current mode.

-

Related Syntax:

- #do

Use the "end" command to finish current mode. Any changes in current mode will be saved.

Related Syntax:

- #end

Use the "exit" command to close the current CLI session or return to the previous mode without saving the settings.

Related Syntax:

- #exit

Use the "no sequence" command to delete any entry in management ACL.

<1-65535>- Specify an index number of the ACL.

Related Syntax:

#no sequence <1-65535>

Use the "permit" command to add permit rules which bypass the packets meet the rule.

/- Specify the source and destination MAC addresses and subnet masks.

cos <0-7><0-7> - Set the cos value and the cos mask for a packet.

<0x0600-0xFFFF> - Set the EtherType of the packet.

Shutdown – Disable the Ethernet interface.

vlan <1-4094> - Specify the VLAN ID of the packet. any – Any MAC address.

Related Syntax:

#permit / cos <0-7><0-7>
#permit / cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#permit / ethtype <0x0600-0xFFFF>
#permit / vlan <1-4094>
#permit / vlan <1-4094>cos <0-7><0-7>
#permit / vlan <1-4094>cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#permit / vlan <1-4094>ethtype <0x0600-0xFFFF>
#permit any /cos <0-7><0-7>
#permit any /cos <0-7><0-7>ethtype <0x0600-0xFFFF>
#permit any / ethtype <0x0600-0xFFFF>
#permit any /vlan <1-4094>
#permit any /vlan <1-4094> cos <0-7><0-7>
#permit any /vlan <1-4094> cos <0-7><0-7>ethtype <0x0600-0xFFFF>
#permit any /vlan <1-4094> ethtype <0x0600-0xFFFF>

Use the "sequence" command to deny or permit the ACL.

<1-2147483647> - Enter the sequence index ACE. The sequence represents the priority of the ACE in the ACL.

/- Specify the source and destination MAC addresses and subnet masks.

cos <0-7><0-7> - Set the cos value and the cos mask for a packet.

<0x0600-0xFFFF> - Set the EtherType of the packet.

shutdown - Disable the Ethernet interface.

vlan <1-4094> - Specify the VLAN ID of the packet.

any – Any MAC address.

Related Syntax:

#sequence <1-2147483647>deny //cos <0-7><0-7>
#sequence <1-2147483647>deny //cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny //cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny //cos <0-7><0-7> shutdown
#sequence <1-2147483647>deny // ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny // ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny // shutdown
#sequence <1-2147483647>deny any //cos <0-7><0-7>
#sequence <1-2147483647>deny any //cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any //cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any //cos <0-7><0-7> shutdown
#sequence <1-2147483647>deny any any cos <0-7><0-7>
#sequence <1-2147483647>deny any any cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any any cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any any cos <0-7><0-7> shutdown
#sequence <1-2147483647>deny any any ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any any ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any any shutdown

#sequence <1-2147483647>deny any any vlan <1-4094>
#sequence <1-2147483647>deny any any vlan <1-4094> cos <0-7><0-7>
#sequence <1-2147483647>deny any any vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF>
- #sequence <1-2147483647>deny any any vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any any vlan <1-4094> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any any vlan <1-4094> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any any vlan <1-4094> shutdown
#sequence <1-2147483647>permit / / cos <0-7><0-7>
#sequence <1-2147483647>permit / / cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>permit // ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>permit // vlan <1-4094>
#sequence <1-2147483647>permit
/ /
vlan <1-4094> cos <0-7><0-7>
#sequence <1-2147483647>permit
/ /
vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>permit // vlan <1-4094> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>permit any /cos <0-7><0-7>
#sequence <1-2147483647>permit any /cos <0-7><0-7>ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>permit any /vlan <1-4094>
#sequence <1-2147483647>permit any / vlan <1-4094> cos <0-7><0-7>
#sequence <1-2147483647>permit any / vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>permit any / vlan <1-4094> ethtype

<0x0600-0xFFFF>#sequence <1-2147483647>permit any any cos <0-7><0-7>#sequence <1-2147483647>permit any any cos <0-7><0-7> ethtype <0x0600-0xFFFF>#sequence <1-2147483647>permit any any ethtype <0x0600-0xFFFF>#sequence <1-2147483647>permit any any vlan <1-4094>#sequence <1-2147483647>permit any any vlan <1-4094> cos <0-7><0-7>#sequence <1-2147483647>permit any any vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF>#sequence <1-2147483647>permit any any vlan <1-4094> ethtype <0x0600-0xFFFF>

mac address-table

Set the aging time for an entry remains in the MAC address table.address-table static - Add a static address to the MAC address table to drop the packets with the specified source or destination MAC address.<10-630> - Unit is second. Default is 300.static <A:B:C:D:E:F> - Enter the MAC address (e.g., 14:49:BC:44:A3:D7).vlan <1-4094> - Specify the VLAN ID of the packet.10GigabitEthernet <1-4> - Specify a physical port.2.5GigabitEthernet <1-8> - Specify a physical port.LAG <1-8> - Specify a LAG port.Related Syntax:# mac address-table aging-time <10-630># mac address-table static <A:B:C:D:E:F> vlan <1-4094> drop# mac address-table static <A:B:C:D:E:F> vlan <1-4094> interfaces 10GigabitEthernet <1-4># mac address-table static <A:B:C:D:E:F> vlan <1-4094> interfaces 2.5GigabitEthernet <1-8># mac address-table static <A:B:C:D:E:F> vlan <1-4094> interfaces LAG <1-8>

Example

PQ2121x# configure
PQ2121x(config)# mac acl test_CA
PQ2121x (config-mac-acl)# deny 00:50:00:7f:12:11/00:00:00:00:10:20
00:50:00:aa:bb:cc/00:00:00:00:12:00 cos 3 2 ethtype 0x0600
PQ2121x (config-mac-acl)# deny any 00:50:00:7f:12:11/00:00:00:00:10:20 cos 5 6 ethtype 0x0600
PQ2121x (config-mac-acl)# deny any
PQ2121x(config)# mac address-table static 00:50:07:12:ff:aa vlan 300 drop

Telnet Command: mailalert

Use this command to configure mail alert for various conditions.

Syntax Items

mailalert active mailalert auth mailalert devicecheck mailalert encpassword mailalert encry mailalert hwmon mailalert interval mailalert ipconflict mailalert password mailalert poestatus mailalert port mailalert portlink mailalert portspeed mailalert receiver mailalert sender mailalert server mailalert sysrestart mailalert throughputcheck mailalert username

Description

Syntax Items Description
mailalert active	- Enable or disable the function of mail alert.Related Syntax:# mailalert active
mailalert auth	- Enable or disable the function of SMTP server authentication.Related Syntax:# mailalert auth
mailalert devicecheck	- Enable or disable the function of sending a mail alert when encountering a device check error.Related Syntax:# mailalert devicecheck
mailalert encpassword	- Set a encryption authentication password for the mail alert.Related Syntax:# mailalert encpassword
mailalert encry Specify the encryption type for mail alert.- Related Syntax:
	# mailalert encry
mailalert hwmon Send a mail alert when hardware monitor error.- Enable or disable the function.Related Syntax:# mailalert hwmon
mailalert interval Set the transmission interval for the mail alert.<1-60>- Unit is second.Related Syntax:# mailalert interval <1-60>
mailalert ipconflict - Enable or disable the function of sending a mail alert if encountering the IP conflict.Related Syntax:# mailalert ipconflict
mailalert password - Enter the password for SMTP server authentication.Related Syntax:# mailalert password
mailalert poestatus - Enable or disable the function of sending a mail alert when PoE status is changed.Related Syntax:# mailalert poestatus
mailalert port <0-65535>- Enter a port number.Related Syntax:# mailalert port <0-65535>
mailalert portlink - Enable or disable the function of sending an alert when the port link status changes.Related Syntax:# mailalert portlink
mailalert portspeed - Enable or disable the function of sending an alert when the port link speed changes.Related Syntax:# mailalert portspeed
mailalert receiver Specify an address for receiving the alert mail.- Enter the email address of the receiver.Related Syntax:# mailalert receiver
mailalert sender Specify an address which sends out the alert mail.- Enter the email address of the sender.Related Syntax:# mailalert sender
mailalert server Set the IP address of the server.- Enter the IP address of the SMTP server.Related Syntax:# mailalert server
mailalert sysrestart	-Enable or disable the function of sending a mail alert when the system restarts.Related Syntax:# mailalert sysrestart
mailalert throughputcheck	- Enable or disable the function of sending a mail alert when reaching the throughput threshold.Related Syntax:# mailalert throughputcheck
mailalert username	- Enter the username authenticated by SMTP server.Related Syntax:# mailalert username

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# mailalert receiver [e-mail]

Telnet Command: management

Use this command to create a management access list and set configuration mode.

Syntax Items

management access-list

management access-class

Description

Syntax Items Description
management access-list	- Enter the name of the access list.To configure detailed settings, enter the name of ACL to access into next level.#management access-listThen, available sub-commands are:#deny#do#end#exit#permit#sequence
	Use the “deny” command to add deny rules for the management access list:10GigabitEthernet <1-4> - Specify a physical port.2.5GigabitEthernet <1-8> - Specify a physical port.LAG <1-8> - Specify a LAG port.service-/Specify the servcie type.ip

for the packets.

ipv6 /<0-128> - Specify the source IPv6 address and prefix length of the packet.

Related Syntax:

#deny interfaces 10GigabitEthernet <1-4> service
#deny interfaces 2.5GigabitEthernet <1-8> service
#deny interfaces LAG <1-8> service
#deny ip / interfaces 10GigabitEthernet <1-4> service
#deny ip / interfaces 2.5GigabitEthernet <1-8> service
#deny ip / interfaces LAG <1-8> service
#deny ipv6 /<0-128> interfaces 10GigabitEthernet <1-4> service
#deny ipv6 /<0-128> interfaces 2.5GigabitEthernet <1-8> service
#deny ipv6 /<0-128> interfaces LAG <1-8> service

Use the "do" command to run execution command in current mode.

-

Related Syntax:

- #do

Use the "end" command to finish current mode. Any changes in current mode will be saved.

Related Syntax:

#end

Use the "exit" command to close the current CLI session or return to the previous mode without saving the settings.

Related Syntax:

#exit

Use the "no sequence" command to delete any entry in management ACL.

<1-65535>- Specify an index number of the ACL.

Related Syntax:

#no sequence <1-65535>

Use the "permit" command to add permit rules which bypass the packets meet the rule.

10GigabitEthernet <1-4> - Specify a physical port.

2.5GigabitEthernet <1-8> - Specify a physical port.

LAG <1-8> - Specify a LAG port.

service - Specify the servcie type.

ip / - Specify the source IP address with mask for the packets.

ipv6 /<0-128> - Specify the source IPv6 address and prefix length of the packet.

Related Syntax:

#permit interfaces 10GigabitEthernet <1-4> service
#permit interfaces 2.5GigabitEthernet <1-8> service
#permit interfaces LAG <1-8> service
#permit ip / interfaces 10GigabitEthernet <1-4> service
#permit ip / interfaces 2.5GigabitEthernet <1-8> service
#permit ip / interfaces LAG <1-8> service
#permit ipv6 /<0-128> interfaces 10GigabitEthernet <1-4> service
- #permit ipv6 /<0-128> interfaces 2.5GigabitEthernet <1-8> service
#permit ipv6 /<0-128> interfaces LAG <1-8> service

Use the "sequence" command to deny or permit the ACL.

<1-65535>- Specify an index number of the ACL.

10GigabitEthernet <1-4> - Specify a physical port.

2.5GigabitEthernet <1-8> - Specify a physical port.

LAG <1-8> - Specify a LAG port.

service - Specify the servcie type.

ip / - Specify the source IP address with mask for the packets.

ipv6 /<0-128> - Specify the source IPv6 address and prefix length of the packet.

Related Syntax:

#sequence <1-65535>deny interfaces 10GigabitEthernet <1-4> service
#sequence <1-65535>deny interfaces 2.5GigabitEthernet <1-8> service
#sequence <1-65535>deny interfaces LAG <1-8> service

#sequence <1-65535>deny ip//interfaces 10GigabitEthernet <1-4>service#sequence <1-65535>deny ip//interfaces 2.5GigabitEthernet <1-8>service#sequence <1-65535>deny ip//interfaces LAG <1-8>service#sequence <1-65535>deny ipv6//<0-128>interfaces 10GigabitEthernet <1-4>service#sequence <1-65535>deny ipv6//<0-128>interfaces 2.5GigabitEthernet <1-8>service#sequence <1-65535>deny ipv6//<0-128>interfaces LAG <1-8>service#sequence <1-65535>deny ipv6//<0-128>interfaces 10GigabitEthernet <1-4>service#sequence <1-65535>permit 10GigabitEthernet <1-4>service#sequence <1-65535>permit 2.5GigabitEthernet <1-8>service#sequence <1-65535>permit interfaces LAG <1-8>service#sequence <1-65535>permit ip//interfaces 10GigabitEthernet <1-4>service#sequence <1-65535>permit ip//interfaces 2.5GigabitEthernet <1-8>service#sequence <1-65535>permit t ip//interfaces LAG <1-8>service#sequence <1-65535>permit ipv6//<0-128>interfaces 10GigabitEthernet <1-4>service#sequence <1-65535>permit ipv6//<0-128>interfaces 2.5GigabitEthernet <1-8>service#sequence <1-65535>permit 10GigabitEthernet <1-4>service#sequence <1-65535>permit 2.5GigabitEthernet <1-8>service#sequence <1-65535>permit 10GigabitEthernet <1-4>service#sequence <1-65535>permit 2.5GigabitEthernet <1-8>service#sequence <1-65535>permit 10GigabitEthernet <1-4>service#sequence <1-6553

management access-class

Specify an ACL as active access-list.- Enter the name of the access list.Related Syntax:# management access-class

Example

PQ2121x# configure
PQ2121x (config)#
PQ2121x (config)# management access-list CA_ACL
PQ2121x (config-macl)# deny ip 192.168.2.56/255.255.255.0 interfaces gigabitethernet 3 service telnet
PQ2121x (config-macl)#
PQ2121x (config-macl)# deny ipv6 00:50::7f:3b/24

Telnet Command: management-vlan

Use this command to set VLAN ID for management VLAN.

Syntax Items

management-vlan vlan

Description

Syntax Items Description
management-vlan vlan Set the	management VLAN ID.<1-4094>- Specify the VLAN ID number of management VLAN.Related Syntax:# management-vlan vlan <1-4094>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# management-vlan vlan 200

VLAN 200: VLAN does not exist

PQ2121x(config)#

Telnet Command: mirror

Use this command to set the source / destination interface of a port mirror session.

Syntax Items

mirror session

Description

Syntax Items Description

mirror session

Set the destination/source interface of a port mirror session.<1-4> - Specify the mirror session ID number.10GigabitEthernet <1-4> - Specify a physical port as the SPAN destination.2.5GigabitEthernet <1-8> - Specify a physical port as the SPAN destination.allow-ingress – Enable the ingress traffic forwarding.Related Syntax:# mirror session <1-4>destination interface10GigabitEthernet <1-4># mirror session <1-4>destination interface 2.5GigabitEthernet <1-8># mirror session <1-4>destination interface 10GigabitEthernet <1-4>allow-ingress# mirror session <1-4>destination interface 2.5GigabitEthernet <1-8>allow-ingress

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# mirror session 3 destination interface 10GigabitEthernet 3 allow
PQ2121x(config)#

Telnet Command: mvr

Use this command to enable MVR function and configure related settings.

Syntax Items

mvr

mvr group

mvr mode

mvr query-time

mvr vlan

Description

Syntax Items Description
mvr Enable MVR function.	Related Syntax:# mvr
mvr group Set MVR group address.- Enter an IP address.<1-128>- Specify a number for contiguous series of IPv4 multicast address.Related Syntax:# mvr group<1-128>
mvr mode Set MVR mode as compatible or dynamic.- The switch does not support IGMP dynamic joins on the source ports.- The switch supports MVR membership on the source ports.Related Syntax:# mvr mode
mvr query-time Set query response time for MVR.<1-10>- Specify the response time (second).Related Syntax:
	# mvr query-time <1-10>
mvr vlan Set a VLAN ID for MVR.	- Specify the existed static VLAN ID.Related Syntax:# mvr vlan <1-4094>

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)#mvr group 192.168.2.33
The operation will delete the MVR VLAN groups include static MVR groups.Continue
? [yes/no]:y
Input Parameter Error
PQ2121x(config)#

Telnet Command: no

Use this command to disable specific command.

Syntax Items

no

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# no port-security
PQ2121x(config)#

Telnet Command: openvpn

Use this command to enable/disable the OpenVPN tunnel.

Syntax Items

openvpn enable openvpn disable openvpn filename

Description

Syntax Items Description
enable Enable the OpenVPN tunnel.
disable Disable the OpenVPN tunnel.
filename- Define a name for OpenVPN configuration.Related Syntax:# openvpn filename

Example

PQ2121x# configure

PQ2121x(config)#openvpn enable

killall: openvpn: no process killed

PQ2121x(config)#

Telnet Command: poe

It is available for PoE model.

Use this command configure settings for PoE device. This command is not available for the non-PoE model.

Syntax Items

poe mode

poe schedule

Description

Syntax Items Description
poe mode	auto - VigorSwitch determines the power watts for PoE device based on actual demand.manual - VigorSwitch will supply actual power demand for the PoE device and reserved PD class power for the PoE device. none - VigorSwitch does not supply any power for the PoE device.Related Syntax:# poe mode auto# poe mode manual# poe mode none
poe schedule Specify a schedule for PoE device.global-enable - Enable the global setting.index <1-24> - Specify the index number of the schedule profiles.Related Syntax:# poe schedule global-enable# poe schedule index <1-24>

Example

PQ2121x# configure

PQ2121x(config)# poe mode auto

PQ2121x(config)#

Telnet Command: port-security

Use this command to enable the function of port security.

Syntax Items

port-security

Example

PQ2121x# configure PQ2121x(config)# port-security PQ2121x(config)#

Telnet Command: qos

Use this command to configure QoS settings.

Syntax Items

qos qos map qos queue qos trust

Description

Syntax Items Description
qos	Enable the quality of service based on basic trust type to assign the queue for packets.Related Syntax:# qos
qos map map cos-queue - Set the CoS to queue map.map dscp-queue - Set the DSCP to queue map.map precedence-queue - Set the IP Precedence to queue map.map queue-cos - Modify the queue to CoS map.map queue-dscp - Modify the queue to DSCP map.map queue-precedence - Modify the queue to IP precedence map.<1-8> - Specify the queue number for the following CoS values mapped.<1-8> - Specify the queue number to which the DSCP value shall correspond.<1-8> - Specify the queue number to which the IP precedence value shall correspond.<0-7> - Enter the cos value to which the queue ID shall correspond.<0-7> - Enter the DSCP value to which the queue ID shall correspond.<0-7> - Enter the IP precedence value to which the queue ID shall correspond.Related Syntax:# qos map cos-queue SEQUENCE to <1-8)# qos map dscp-queue SEQUENCE to <1-8)# qos map precedence-queue SEQUENCE to <1-8)# qos map queue-cos SEQUENCE to <0-7)# qos map queue-dscp SEQUENCE to <0-7)# qos map queue-precedence SEQUENCE to <0-7>
qos queue	queue strict-priority-num - Set the number of strict priority queue.queue weight SEQUENCE - Set the number of non-strict priority queue.<0-8> - Specify the queue number.<weight1-weight8> <1-127> - Specify a number (1~127) representing queue weight value.Related Syntax:# qos queue strict-priority-num <0-8># qos queue weight SEQUENCE<1-127>
qos trust	Set the trust type, cos, for the device to judge the appropriate queue of the packets.Related Syntax:# qos trust

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# qos map cos-queue SEQUENCE to 3
PQ2121x(config)#

Telnet Command: radius

Use this command to configure settings for RADIUS server.

Syntax Items

radius default-config

radius host

Description

Syntax Items Description
radius default-config	Key- Specify key string for RADIUS server. Retransmit <1-10>- Specify the retransmit times (from 1 to 10) for RADIUS server. Timeout <1-30>- Specify the time out value (from 1 to 30) for RADIUS server.Related Syntax:# radius default-config key# radius default-config keyretransmit <1-10># radius default-config keyretransmit <1-10>timeout <1-30)# radius default-config retransmit <1-10># radius default-config retransmit <1-10>timeout <1-30)# radius default-config timeout <1-30>
radius host	host- Specify a domain name or IP address for RADIUS server host.auth-port <0~65535>- Speicfy a UDP port number for RADIUS server.key-Specify key string for RADIUS server.priority <0~65535>- Specify the priority for RADIUS server.retransmit <1-10>- Specify the retransmit times (from 1 to 10) for RADIUS server.timeout <1-30>- Specify the time out value (from 1 to 30) for RADIUS server.type <802.1x / all / login>- Choose the usage type for 802.1X authentication, or login, or both 802.1X authentication and login of RADIUS type.Related Syntax:# radius hostauth-port <0~65535)# radius hostauth-port <0~65535>key# radius hostauth-port <0~65535>keypriority <0~65535)# radius hostauth-port <0~65535>keypriority <0~65535>retransmit <1-10)# radius hostauth-port <0~65535>keypriority <0~65535>retransmit <1-10>timeout <1-30>type <802.1x / all / login)# radius hostkey# radius hostkeypriority <0~65535)# radius hostkeyretransmit <1-10)# radius hostkeyretransmit <1-10>timeout <1-30)# radius hostkeyretransmit <1-10>timeout <1-30>type <802.1x / all / login)# radius hostpriority <0~65535)# radius hostpriority <0~65535>retransmit <1-10)# radius hostpriority <0~65535>timeout <1-30)# radius hostpriority <0~65535>timeout <1-30>timeout <1-30)# radius hostretransmit <1-10>timeout <1-30>timeout <1-30)# radius hosttimeout <1-30)# radius hosttimeout <1-30>timeout <1-30)# radius hosttype <802.1x / all / login)# radius hosttimeout <1-30)# radius hosttimeout <1-30>timeout <1-30)# radius hosttype <802.1x / all / login>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# radius default-config key 123456789 retransmit 3 timeout 10

PQ2121x(config)# radius host radius auth-port 3000

Telnet Command: schedule

Use this command to set schedule.

Syntax Items

schedule index

Description

Syntax Items Description
schedule index	Specify an index number for configuring detailed settings of a schedule profile.<1-15> - Enter a number to select a schedule profile.- Give a brief description for such profile.cycle-days - The action applied with the schedule will take place every few days.monthly-date - The action applied with the schedule will take place in specified day within a month.once - The action applied with the schedule will take place for one time.weekdays - The action applied with the schedule will take place on a certain day within a week.<1-31> - Enter a number to make action repeat.- Represent month of April, August, December, February, January, July, June, March, May, November, October, and September.- Represent Sunday, Monday, Tuesday, Wednesday, Thursday, Friday and Saturday.<1-31> - Enter a number as the start date within a month.<2000-2035> - Enter the number as the year of start date.- Enter the hours and the minutes.- Enable (on) or disable (off) the action applied with such profile.Related Syntax:# schedule index <1-15> description# schedule index <1-15> how-often cycle-days<1-31> start-date<1-31> <2000-2035> start-timedurationhow-often monthly-date<1-31> start-date<1-31> <2000-2035> start-time
	durationaction
	# schedule index <1-15> how-often once start-date< apr / aug / dec / feb / jan / jul / jun / mar / may / nov / oct / sep > <1-31> <2000-2035> start-timedurationaction
	# schedule index <1-15> how-often weekdays< sun / mon / tue / wed / thu / fri / sat> start-date< apr / aug / dec / feb / jan / jul / jun / mar / may / nov / oct / sep > <1-31> <2000-2035> start-timedurationaction

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# schedule index 1 how-often cycle-days 3 start-date jan 1 2019 start-time08:01 duraton 17:30 action on

PQ2121x(config)# schedule index 2 how-often weekdays sun start-date may 11 2019 start-time02:10 duration 12:10 action on

PQ2121x(config)#

Telnet Command: sflow

Use this command to configure sflow profile.

Syntax Items

sflow profile

Description

Syntax Items Description
sflow profile	profile <1-8> - Enter the ID number (1 to 8) of the profile.rate <0-65535> - Set the sampling rate for the sFlow profile. 0 means to disable the sampling rate.interval <0-65535> - Set the time interval for the sFlow profile.collector- Set the collector hostname.data_sources interfaces 10GigabitEthernet <1-4> - Speicfy the LAN port.data_sources interfaces 2.5GigabitEthernet <1-8> - Speicfy the LAN port.port <0-65535> - Set the TCP/UDP port number for the profile.Related Syntax:# sflow profile <1-8> rate <0-65535> interval<0-65535> collectordata_sources interfaces 10GigabitEthernet <1-4)# sflow profile <1-8> rate <0-65535> interval<0-65535> collectordata_sources interfaces 2.5GigabitEthernet <1-8)# sflow profile <1-8> rateinterval<0-65535> collectorport <0-65535> data_sources interfaces 10GigabitEthernet <1-4>
	# sflow profile <1-8> rateinterval<0-65535> collectorport <0-65535> data_sources interfaces 2.5GigabitEthernet <1-8>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# sflow profile 3 rate 2558 interval 9600 collector sHost port 1000 data_source interfaces 10GigabitEthernet 2

DNS resolution failed. Please check DNS server setting or host name

PQ2121x(config)#

PQ2121x(config)# sflow profile 3 rate 2558 interval 9600 collector sHost data_sources interfaces 10GigabitEthernet 2

PQ2121x(config)#

Use this command to define SNMP community.

Syntax Items

snmp community

snmp engineid

snmp group

snmp host

snmp trap

snmp user

snmp view

Description

Syntax Items Description
snmp community	snmp community - Set community name for SNMP v1 and v2, and access group name.Available parameters for SNMP community:after community - Enter a string (maximum length: 20 characters) as community name.after group - Enter a string (maximum length: 30 characters) as access group.ro - Set the community as read only.rw - Set the community as read and write.Related Syntax:# snmp communitygroup# snmp communityro# snmp communityrw# snmp communityviewro# snmp community viewrw
snmp engineid snmp engineid	- Set the remote host for SNMP engine.
	default - Reset to default setting of engine ID for SNMP server.- Such number must be 10~64 hexadecimal.- Enter the IP address of the remote SNMP server.- Enter the host name of the remote SNMP server.- Enter the IPv6 address for remote SNMP server.Related Syntax:# snmp engineid# snmp engineid default# snmp engineid remote# snmp engineid remote# snmp engineid remote
snmp group snmp group - Set the SNMP group.- Specify the name of SNMP group.version <1/2c/3>- Specify the version of SNMP service.- Specify the packet authentication mode. "auth" means to perform packet authentication without encryption. It is applicable for SNMPv3 only. "noauth" means no packet authentication performed. "priv" means to perform packet authentication with encryption and also it is applicable for SNMPv3 only.read-view- Set the view name to enable agent configuration.notify-view- Set the view name to send only trap included in SNMP view for notification.write-view- Set the view name to enable viewing.Related Syntax:# snmp groupversion <1/2c/3>read-view# snmp groupversion <1/2c/3>read-viewnotify-view# snmp groupversion <1/2c/3>read-viewnotify-viewwrite-view
snmp host snmp host - Set a host to receive SNMP notifications.- Enter the IPv4/IPv6 address or host name of the receipt.version <1/2c/3>- Specify the version of SNMP service.- Set the community name sent with the notification. udp-port <1-65535>- Set the UDP port number.timeout <1-300>- Set the timeout of V2c informs.retries <1-255>- Enter the retry counter of V2c informs.Related Syntax:Set a host to receive SNMP notifications.# snmp hostretries <1-255)# snmp hosttimeout <1-300>
	retries <1-255># snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host
	Set a host to receive SNMP notifications. Notification type is informs.# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host## snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255>
	Set a host to receive SNMP notifications. Notification type is traps.# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp Host# traps# retries<1-255># snmp host# traps# retries<1-300># snmp host# traps# retries<1-255># snmp hosttrapstimeout<1-300> #retries <1-255># snmp hosttrapstimeout<1-300> #retries <1-255># snmp hosttrapstimeout<1-300> #retries <1-255># snmp hosttrapstimeout<1-300> #retries <1-255># snmp hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpm hosttrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-301> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-199> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255># snpthrapstimeout<1-300> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-258> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-257> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-255> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-257> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-255> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-255> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-255> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-255> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-255> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-258> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-256> #retries <1-256> #retries <1-257> #retries <1-257> #retries <1-257> #retries <1-257> #
	<1/2c/3><NAME>timeout <1-300>retries <1-255># snmp hosttraps version <1/2c/3><NAME>udp-port <1-65535># snmp hosttraps version <1/2c/3><NAME>udp-port <1-65535>retries <1-255># snmp hosttraps version <1/2c/3><NAME>udp-port <1-65535>timeout <1-300># snmp hosttraps version <1/2c/3><NAME>udp-port <1-65535>timeout <1-300>retries <1-255># snmp hostversion <1/2c/3><NAME>retries <1-255># snmp hostversion <1/2c/3><NAME>timeout <1-300># snmp hostversion <1/2c/3><NAME>timeout <1-300>retries <1-255># snmp hostversion <1/2c/3><NAME>udp-port <1-65535># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>retries <1-255># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>timeout <1-300># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>timeout <1-300>retries <1-255># snmp hostHOSTNAME# snmp host HOSTNAMEretries <1-255># snmp host HOSTNAMEtimeout <1-300># snmp host HOSTNAMEtimeout <1-300>retries <1-255># snmp host HOSTNAMEudp-port <1-65535># snmp host HOSTNAMEudp-port <1-65535>retries <1-255># snmp host HOSTNAMEudp-port <1-65535>timeout <1-300># snmp host HOSTNAMEudp-port <1-65535>timeout <1-300>retries <1-255># snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HOSTNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms## snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HostNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOSNAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAME informs# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinorms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms# snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## snmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## sh nmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shanmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shenmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## sh smp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsnmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shnsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shssmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shrspont host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shsmp host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont host HOS NAMEinforms## shs mpont hosts Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont hosts Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host Nameinforms## shs mpont host Host NAMEmatrix # snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host HOS NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms## snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp hostHost NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms### snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp hostHOS NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEinforms# snmp host Host NAMEin
	udp-port <1-65535> timeout <1-300># snmp host HOSTNAME informs# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# # snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snpm host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HOSTNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME version# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# smp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp host HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts HostNAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versions# snmp hosts Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snmp host Host NAME versionssnmp host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host HOS NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME versionssnpm host Host NAME versions snpm host Host NAME variationssnpm host Host NAME variations snpm host Host NAME variationssnpm host Host NAME variations snpm host Host NAME variationssnpm host Host NAME variations snpm host Host NAME variationssnpm host Host NAME variations snpm host Host NAME variationssnpm host Host NAME variations snpm host Host NAME variationssnpm host Host NAME variations snpm host Host NAME variationssnpm host Host NAME variations snpm host Host NAME variationssmp host Host NAME variations snmp host Host NAME variationssnmp host Host NAME variations snmp host Host NAME variationssnmp host Host NAME variations snmp host Host NAME variationssnmp host Host NAME variations snmp host Host NAME variationssnmp host Host NAME variations snmp host Host NAME variationssnmp host Host NAME variations snmp host Host NAME variationssnmp host Host NAME variations snmp host Host NAME variationssnmp host Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variations snmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnmp hosts Host NAME variations snmp hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hostsHost NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variation snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations snpm hosts Host NAME variationssnpm hosts Host NAME variations cnpm hosts Host NAME variationscnpm hosts Host NAME variations cnpm hosts Host NAME variationscnpm hosts Host NAME variations cnpm hosts Host NAME variationscnpm hosts Host NAME variations cnpm hosts Host NAME variationscnpm hosts Host NAME variations cnpm hosts Host NAME variationscnpm hosts Host NAME variations cnpm hosts Host NAME variationscnpm hosts Host NAME variations cnpm hosts Host NAME variationscnpm hosts Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAM variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpontes Host NAM variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpm host Host NAME variations cnpontes Host NAM variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host HOS NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME varies cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations crpontes Host NAM variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations crpontes Host NAP variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variationscnpm host Host NAME variations cnpm host Host NAME variations
	# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp host# snmp Hostretries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>retries <1-255>
	timeout <1-300># snmp hostversion <1/2c/3>timeout <1-300>retries <1-255># snmp hostversion <1/2c/3><NAME>udp-port <1-65535># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>retries <1-255># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>timeout <1-300># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>timeout <1-300>retries <1-255>
snmp trap snmp trap - Send the SNMP traps.auth - Enable the SNMP authentication failure trap.cold-start - Enable the SNMP cold startup failure trap.linkUpDown - Enable the SNMP link up and down failure trap.wort-security - Enable the SNMP port security trap.Warm-start - Enable the SNMP warm startup failure trap.Related Syntax:# snmp trap# snmp user - Set SNMP user account.- Specify a name of SNMP user.- Sepcify a name of SNMP group.auth - Specify the authentication mode, md5 or sha.- Enter the password for the md5/sha mode.Pri - Enter a password as a privacy key.Related Syntax:# snmp user# snmp userauthauth# snmp userauthpriv	- Specify a name of SNMP user.- Sepcify a name of SNMP group.auth - Specify the authentication mode, md5 or sha.- Enter the password for the md5/sha mode. Pri - Enter a password as a privacy key.Related Syntax:# snmp user# snmp userauthauth# snmp userauthpriv
snmp view snmp view - Set the SNMP view.- Enter the SNMP view name.Subtree - Specify the ASN.1 subtree object identifier (OID).oid-mask - Speicfy the OID mask, or use all for all masks.viewtype - Let the selected MIBs include or exclude in the SNMP view.Related Syntax:# snmp view subtreeoid-maskviewtype	- Enter the SNMP view name.- Specify the ASN.1 subtree object identifier (OID).oid-mask - Speicfy the OID mask, or use all for all masks.viewtype - Let the selected MIBs include or exclude in the SNMP view.Related Syntax:# snmp view subtreeoid-maskviewtype

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# snmp engineid remote 192.168.2.38 00036D001188

PQ2121x(config)# snmp engineid remote 00:50::16:88 00036D002288

PQ2121x(config)# snmp host 192.168.2.89 CAR_community udp-port 1500 timeout 200

PQ2121x(config)# snmp host 192.168.2.88 informs version 2c CAR_community udp-port 3000 timeout 180 retries 35

PQ2121x(config)# snmp host 192.168.2.88 traps version 2c CAR_traps udp-port 6500 timeout 60 retries 2

PQ2121x(config)# snmp host 192.168.2.88 version 2c CAR_version udp-port 3000 timeout 60 retries 2

PQ2121x(config)# snmp host HOSTNAME CAR_host udp-port 3000 timeout 60 retries

PQ2121x(config)# snmp host HOSTNAME informs HA_informs udp-port 3000 timeout 60 retries 2

PQ2121x(config)# snmp host HOSTNAME version 2c HT_version udp-port 3000 timeout 60 retries 2

PQ2121x(config)# snmp user CA_user_1 CA_group_1 auth md5 CA12345678 priv PR12345678

PQ2121x(config)# snmp view CAR_community subtree 10 oid-mask 9 viewtype included

PQ2121x(config)#

Telnet Command: sntp

Use this command to configure settings for remote SNTP server.

Syntax Items

sntp host

Description

Syntax Items Description
sntp host	Set the remote SNTP server by specifying IP address or hostname.- Enter the IP address or hostname of SNTP server.<1-65535>- Specify the port number for the SNTP server.Related Syntax:# sntp host# sntp host>> port <1-65535>

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# sntp host KEY1245 port 3000
PQ2121x(config)#

Telnet Command: spanning-tree

Use this command to configure settings for spanning-tree.

Syntax Items

spanning-tree

spanning-tree bpdu

spanning-tree forward-delay

spanning-tree hello-time

spanning-tree max-hops

spanning-tree maximum-age

spanning-tree mode

spanning-tree mst

spanning-tree pathcost

spanning-tree priority

spanning-tree tx-hold-count

Description

Syntax Items Description
spanning-tree Enable the function of spanning-tree.Related Syntax:# spanning-tree
spanning-tree bpdu Filter/flood the BPDU packets.- Packets will be filtered when STP is disabled on specified interface.- Packets will be flooded to all interfaces with STP disabled and flooding mode.Related Syntax:# spanning-tree bpdu
spanning-tree forward-delay Set the STP forward delay time.<4-30>- Default value is 15 (seconds).Related Syntax:# spanning-tree forward-delay <4-30>
spanning-tree hello-time Set the hello time interval to broadcast the message to other bridges.<1-10>- Default value is 2 (seconds).Related Syntax:# spanning-tree hello-time <1-10>
spanning-tree max-hops	Set the number of hops for BPDI packets to be forwarded in the MSTP region.<1-40>- Default value is 20 (seconds).Related Syntax:# spanning-tree max-hops <1-40>
spanning-tree maximum-age	Set the time interval for VigorSwitch to wait without receiving the configuration message.<6-40>- Default value is 20 (seconds).Related Syntax:# spanning-tree maximum-age <6-40>
spanning-tree mode - Specify the operation mode for spanning tree, such as multiple spanning tree (MSTP), rapid spanning
	tree (RSTP) or spanning tree (STP).Related Syntax:# spanning-tree mode
spanning-tree mst	spanning-tree mst - Configure port priority settings for MST.<0-15> - Specify the instance ID.<0-61440> - Set the priority for the specified instance ID.Related Syntax:# spanning-tree mst <0-15> priority <0-61440>
	spanning-tree mst configuration - Access into the MSTP configuration mode. To configure detailed settings, access into next level.# spanning-tree mst configuration# Then, available sub-commands are:# do# end# exit# instance# name# no# revisiondo - Enter the action to be performed.end - End current mode.exit - Exit from current mode.instance <0-15> vlan <1-4094> - Specify the instance ID number and VLAN ID number.name - Set a name of MST configuration.no - Set to default setting.revision <0-65535> - Set revision level.
spanning-tree pathcost Set the	path-cost method for spanning tree.- Long means the path cost ranging from 1 to 200000000; short means the path cost ranging from 1 to 65535.Related Syntax:# spanning-tree pathcost method
spanning-tree priority Set the	priority for the specified instance ID.<0-61440> - The number must be multiple of 4096.Related Syntax:# spanning-tree priority <0-61440>
spanning-tree tx-hold-count Set the maximum number of packets transmission per second.<1-10> - Valid range is from 1 to 10.Related Syntax:# spanning-tree tx-hold-count <1-10>

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# spanning-tree forward-delay 20
PQ2121x(config)#
PQ2121x(config)# spanning-tree maximum-age 38
PQ2121x(config)#
PQ2121x(config)# spanning-tree tx-hold-count 3
PQ2121x(config)#

Telnet Command: start-up

Use this command to restart ICP status after rebooting VigorSwitch.

Syntax Items

start-up icp

Description

Syntax Items Description
start-up icp Related Syntax:	# start-up icp enable

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# start-up icp enable

PQ2121x(config)#

Telnet Command: storm-control

Use this command to configure settings for Storm Control.

Syntax Items

storm-control ifg exclude

storm-control ifg include

storm-control unit bps

storm-control unit pps

Description

Syntax Items Description
storm-control ifg exclude	Exclude the preamble and IFG (inter frame gap) into the calculating.Related Syntax:# storm-control ifg exclude
storm-control ifg include Include	Include the preamble and IFG (inter frame gap) into the calculating.Related Syntax:
	# storm-control ifg include
storm-control unit bps Change	the unit of calculating method for storm-control.bps - Calculate the storm control rate by octet-based.Related Syntax:# storm-control unit bps
storm-control unit pps Change	the unit of calculating method for storm-control.pps - Calculate the storm control rate by packet-based.Related Syntax:# storm-control unit pps

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# storm-control ifg exclude
PQ2121x(config)#
PQ2121x(config)# storm-control unit bps
PQ2121x(config)#

Telnet Command: surveillance-vlan

Use this command to configure settings for surveillance-VLAN.

Syntax Items

surveillance-vlan surveillance-vlan aging-time surveillance-vlan cos surveillance-vlan oui-table surveillance-vlan vlan

Description

Syntax Items Description
surveillance-vlan	Enable the function of surveillance VLAN on VigorSwitch.Related Syntax:# surveillance-vlan
surveillance-vlan aging-time	Set the aging time for surveillance VLAN.<30-65536>- Enter a value as aging time.Related Syntax:# surveillance-vlan aging-time <30-65536>
surveillance-vlan cos	Set the class of service (0~7) for surveillance VLAN.<0-7>- Enter a number.Related Syntax:# surveillance-vlan cos <0-7> remark
surveillance-vlan oui-table Enable OUI surveillance VLAN configuration for specified interface.- Enter the OUI address (e.g., 00:50:12).
	- Enter a string to briefly explain the surveillance VLAN.Related Syntax:# surveillance-vlan oui-table
surveillance-vlan vlan Specify a	VLAN profile as surveillance VLAN.<2-4094>- Specify the surveillance VLAN ID.Related Syntax:# surveillance-vlan vlan <2-4094>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)#

PQ2121x(config)# surveillance-vlan aging-time 60

PQ2121x(config)#

PQ2121x(config)# surveillance-vlan oui-table 00:50:12 fortestonly

PQ2121x(config)#

Telnet Command: system

Use this command to modify the contact information of VigorSwitch.

Syntax Items

system contact

system location

system name

Description

Syntax Items Description
system contact	- Enter a string (maximum length: 256 characters).Related Syntax:# system contact
system location	- Specify the location of the host.Related Syntax:# system location
system name	- Change the name of the system. The default name is "PQ2121x".Related Syntax:# system name

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# system contact callMIS

PQ2121x(config)# PQ2121x(config)# system location DrayTek PQ2121x(config)# system name UPDATEFRIM UPDATEFRIM(config)#

Telnet Command: tacacs

Use this command to configure TACACS+ server.

Syntax Items

tacacs default-config

tacacs host

Description

Syntax Items Description
tacacs default-config Set the default parameters for the TACACS+ server.Modify the default parameters of server key and timeout setting for the TACACS+ server.- Enter a string as the TACACS+ server key.<1-30>- Enter a value as the TACACS+ server timeout.Related Syntax:# tacacs default-config# tacacs default-config key# tacacs default-config keytimeout<1-30>
tacacs host Set host name for the TACACS+ server or set host name, server key and priority for the TACACS+ server.- Enter the host name of the TACACS+ server.- Enter a string as the TACACS+ server key.<1-65535>- Enter a value as server priority in server group.<1-30>- Enter a timeout setting.Related Syntax:# tacacs hostkey# tacacs hostkeykeypriority <1-65535)# tacacs hostkeytimeout <1-30>

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# tacacs default-config key tce00056 timeout 25

DNS resolution failed. Please check DNS server setting or host name

PQ2121x(config)# tacacs host carrie02 key TA012345 priority 3000 timeout 10

PQ2121x(config)#

Telnet Command: tr069

Use this command to configure parameter settings of TR-069.

Syntax Items

tr069 acsPwd

tr069 acsUsername

tr069 acsurl

tr069 cpeEnable

tr069 cpePwd

tr069 cpeUsername

tr069 cpeport

tr069 healthlinkstatus

tr069 healthpoewarning

tr069 healthspeedstatus

tr069 periodicInfo

tr069 periodicTime

tr069 ssl

tr069 stun

tr069 stunMAXkeepalive

tr069 stunMINkeepalive

tr069 stunaddr

tr069 stunport

tr069 tls

Description

Syntax Items Description
tr069 acsPwd	- Enter the password used for registering to VigorACS server.Related Syntax:# tr069 acsPwd
tr069 acsUsername	- Enter the username used for registering to VigorACS server.Related Syntax:# tr069 acsUsername
tr069 acsurl	- Enter the URL for VigorACS server.Related Syntax:# tr069 acsurl
tr069 cpeEnable	- Enter Enable for VigorACS controlling such CPE through the Internet.Related Syntax:# tr069 cpeEnable
tr069 cpePwd	- Enter the password that VigorACS server can use it to authenticate and control the CPE device.Related Syntax:# tr069 cpePwd
tr069 cpeUsername -	Enter the username that VigorACS server can use it to authenticate and control the CPE device.Related Syntax:# tr069 cpeUsername
tr069 cpeport <0-65535> - Enter the port number for CPE.Related Syntax:# tr069 cpeport <0-65535>
tr069 healthlinkstatus Perform	the health check for the link status of specified interface(s).- Specify the interface, such as GE1, GE3-GE5 and so on.Related Syntax:# tr069 healthlinkstatus
tr069 healthpoewarning Perform	m the health check for PoE port warning status.- Specify the interface, such as GE1, GE3-GE5 and so on.Related Syntax:# tr069 healthpoewarning
tr069 healthspeedstatus Perform	m the health check for link speed status of specified interface(s).- Specify the interface, such as GE1, GE3-GE5 and so on.Related Syntax:# tr069 healthspeedstatus
tr069 periodicInfo - Enter Enable to activate periodic information setting.Related Syntax:# tr069 periodicInfo
tr069 periodicTime TIME Update	the CPE information to VigorACS server.Related Syntax:# tr069 periodicTime TIME
tr069 ssl - Enter Enable to enable CPE management protocol with SSL.Related Syntax:# tr069 ssl
tr069 stun - Enter Enable to enable CPE management protocol with STUN server.Related Syntax:# tr069 stun
tr069 stunMAXkeepalive Set the maximum time period for CPE to send the binding request to VigorACS server.<0-65535> - Enter a number.Related Syntax:# tr069 stunMAXkeepalive <0-65535>
tr069 stunMINkeepalive Set the minimum time period for CPE to send the binding
	request to VigorACS server.<0-65535>- Enter a number.Related Syntax:# tr069 stunMINkeepalive <0-65535>
tr069 stunaddr- Enter the URL/IP address of STUN server.Related Syntax:# tr069 stunaddr
tr069 stunport <0-65535>- Set the port number for STUN server.Related Syntax:# tr069 stunport <0-65535>
tr069 tls Set TLS version (1.2 or 1.3).Related Syntax:# tr069 tls version

Example

PQ2121x# configure
PQ2121x(config)#
PQ2121x(config)# tr069 stunaddr 192.168.3.99
PQ2121x(config)#

Telnet Command: udld

Use this command to set the time interval of UniDirectional Link Detection (UDLD) sent message.

Syntax Items

udld

Description

Syntax Items Description
udld message time	<1-90> - Specify a time interval (unit: second) for sending message.Related Syntax:#udld message time <1-90>

Example

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# udld message time 35

PQ2121x(config)#

Telnet Command: username

Use this command to add a new user account or edit an existing user account.

Syntax Items

Description

Syntax Items Description

username

privilege - Set a user account with the privilege of admin, user or customized level.secret - Set a user account with unencrypted password.secret encrypted - Set a user account with encrypted password.- Enter the name (0~32 characters) of the local user profile.- Specify the privilege level to be admin (privilege 15) / user (privilege 1).- Enter a string as the password for the local user.Related Syntax:# usernameprivilegesecret# usernamesecret# usernamesecret encrypted

Example

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# username carrie_1 privilege admin secret md123456

PQ2121x(config)#

PQ2121x(config)# username carrie_1 secret encrypted ca123456

Old password: *****

PQ2121x(config)#

Telnet Command: vlan

Use this command to configure detailed settings for VLAN profile.

Before configuring, you have to access into next phase. See the following example:

PQ2121x# configure

PQ2121x(config)#

PQ2121x(config)# vlan 3

PQ2121x(config-vlan)#

Syntax Items

vlan vlan-list

vlan mac-vlan group

vlan protocol-vlan group

Description

Syntax Items Description
vlan vlan-list	Specify the index number of VLAN profile. To configure detailed settings, access into next level.- The available range is 1 to 4094.# vlan 33# Then, available sub-commands are:#do#end#exit#name
	Use the "do" command to run execution command in current mode.- Related Syntax:#do#end
	Use the "end" command to finish current mode. Any changes in current mode will be saved.Related Syntax:#end
	Use the "exit" command to close the current CLI session or return to the previous mode without saving the settings.Related Syntax:#exit
	Use the "name" command to add a VLAN profile.- Enter the name of the VLAN profile.Related Syntax:#name
vlan mac-vlan group	Create a MAC-vlan group.<1-2147483647>- Specify a group ID.- Enter the MAC address to be mapped.<9-48>- Enter a number representing the subnet mask.Related Syntax:#mask <9-48>
vlan protocol-vlan group Create a protocol VLAN group with specified protocol type and value.<1-8>- Enter a number to specify a VLAN group.- Ethernet_ii/ 11c_other/snap_1042>- Specify a frame type by entering Ethernet_ii, 11c_other or snap_1042.- Enter a value (0x0600~0xFFFE).Related Syntax:#vlan protocol-vlan group <1-8>frame-typeprotocol-value

Example

PQ2121x# configure
PQ2121x(config)# vlan 3
PQ2121x(config-vlan)#
PQ2121x(config-vlan)# name vlan_friends
PQ2121x(config-vlan)#
...
PQ2121x(config)# vlan mac-vlan group 33 00:50:17:22:12:ff mask 10
PQ2121x(config)# vlan group 1 frame-type ethernet_ii protocol-value 0x0600
PQ2121x(config)#

Telnet Command: voice-vlan

Use this command to enable voice VLAN and configure settings for voice VLAN.

Syntax Items

voice-vlan aging-time

voice-vlan cos

voice-vlan oui-table

voice-vlan vlan

Description

Syntax Items Description
voice-vlan aging-time	Set the voice VLAN aging timeout interval.<30-65536> - The unit is minute. Default is 1440 (minutes).- Enter the name of the VLAN profile.Related Syntax:# voice-vlan aging-time <30-65536>
voice-vlan cos	Set the voice VLAN cos value and remark function.Specify the class of service for voice VLAN.<0-7> - CoS value. Default is 6. Remark is disabled.remark - L2 user priority is remarked with the CoS value.Related Syntax:# voice-vlan cos <0-7> remark
voice-vlan oui-table	Add or remove the selected OUI to/from the OUI table. In default, there are 8 OUI addresses.- Enter the OUI address.- Enter a brief description for the specified MAC address to the voice VLAN OUI table.Related Syntax:# voice-vlan cos <0-7> remark
voice-vlan vlan	Set the VLAN identifier of the voice VLAN.<2-4094> - Enter the number of VLAN ID.Related Syntax:# voice-vlan vlan <2-4094>

Example

PQ2121x# configure
PQ2121x(config)# voice-vlan aging-time 1000
PQ2121x(config)#
PQ2121x(config)# voice-vlan oui-table 22:30:ff test_01
PQ2121x(config)#
PQ2121x(config)# voice-vlan oui-table 00:01:E2 STAMP
PQ2121x(config)# exit
PQ2121x# show voice-vlan interfaces 10gigabitEthernet 1
Voice VLAN Aging : 1000 minutes
Voice VLAN CoS : 6
Voice VLAN 1p Remark: disabled

OUI table
    OUI MAC | Description
----+----
    00:E0:BB | 3COM
    00:03:6B | Cisco
    00:E0:75 | Veritel
    00:D0:1E | Pingtel
    00:01:E3 | Siemens
    00:60:B9 | NEC/Philips
    00:0F:E2 | H3C
    00:09:6E | Avaya
    22:30:FF | test_01
    00:01:E2 | STAMP

Port | State | Port Mode | Cos Mode
----+----+----
gi1 | Disabled | Auto | Src
PQ2121x#

Telnet Command: webhook

Use this command to enable or disable the webhook service.

Syntax Items

webhook active

webhook host

webhook interval

webhook keep

Description

Syntax Items Description
webhook active	- Enable or disable the webhook application.
	Related Syntax:# webhook active
webhook host	Specify the destination (URL, domain name, IP address) to receive the data transferred by VigorSwitch.ip - Enter the IP address of the destination.path - Enter the path string (part of the composition of the URL) of the destination.port - Enter a port number (1-65535).service - Specify the protocol (http or https) of the destination.url - Enter the domain name (e.g., draytek.com) of the destination. Note that it is not necessary to enter this information if IP address has been set first.Related Syntax:# webhook host ip# webhook host path# webhook host port# webhook host service# webhook host url
webhook interval	<1-60> - Set the transmission interval (unit is minute).Related Syntax:# webhook interval <1-60>
webhook keep	settings - Enable or disable the function of keep webhook settings.Related Syntax:# webhook keep settings

Example

PQ2121x# configure
PQ2121x(config)# webhook host service https
PQ2121x(config)# webhook host url www.demo.com
PQ2121x(config)# webhook host path Draytek/demo
PQ2121x(config)# webhook host port 443
PQ2121x(config)# webhook interval 2

A-2-4 Copy Configuration

Use this command to upgrade firmware image, configuration file, syslog file, language file and security certificate.

Syntax Items

copy flash://

copy tftp://

copy startup-config

Description

Syntax Items Description
copy flash:// Related Syntax:	# copy flash:// flash://# copy flash:// tftp://
copy startup-config	running-config - Copy the startup configuration file to the running configuration.tftp://- Copy the startup configuration file to remote TFTP server with a filename.- Enter the IP address of TFTP sever.- Create a name to save the configuration file.Related Syntax:# copy startup-config tftp://
copy tftp:// running-config - Get the running configuration from specified TFTP server.startup-config - Get the startup configuration from specified TFTP server.Related Syntax:# copy tftp:// flash://# copy tftp:// startup-config# copy tftp:// tftp://

Example

PQ2121x# copy startup-config tftp://172.16.3.8/test_da.cfg

Uploading file. Please wait...

Save configuration done.

PQ2121x#

A-2-5 Delete Configuration

Use this command to delete a file from the FLASH file system or restore the factory default settings of VigorSwitch.

Syntax Items

delete flash:// startup-config

delete startup-config

Description

Syntax Items Description
delete flash://startup-config	Delete the startup configuration file in FLASH file system.Related Syntax:# delete flash://startup-config
delete startup-config Restore	the factory default settings of VigorSwitch.Related Syntax:# delete startup-config

Example

PQ2121x# delete flash://startup-config
Delete flash://startup-config [y/n] y
Do you want to reload the system to take effect? [y/n] y
...

A-2-6 Disable Configuration

All commands used will be divided into EXEC mode and Privileged EXEC mode. This command is to turn off privileged mode command.

Default privilege level is 15 if no privilege level is specified on enable command.

Default privilege level is 1 if no privilege level is specified on disable command.

Syntax Items

disable

Description

Syntax Items Description
disable Enter a number to specify the privilege level. Related Syntax: # disable <1-14>

Example

PQ2121x# disable ?
<1-14> Privilege level
<cr>
PQ2121x# disable 3
PQ2121x#
<1-14> Privilege level
<cr>
PQ2121x# disable 3
PQ2121x#

A-2-7 End Configuration

Use this command to end current mode.

Syntax Items

end

Example

PQ2121x(config)# interface GigabitEthernet 3
PQ2121x(config-if)# end
PQ2121x#

A-2-8 Exit Configuration

Use this command to close current CLI session or return to previous mode.

Syntax Items

exit

Example

PQ2121x(config)# interface 10GigabitEthernet 3
PQ2121x(config-if)# exit
PQ2121x(config)#

A-2-9 Hardware-Monitor Configuration

Use this command to execute the hardware fan test.

Syntax Items

hardware-monitor fan-test
hardware-monitor fan on
hardware-monitor fan off

Example

PQ2121x# hardware-monitor fan-test
Test Start...
fan1:
4825
Fan1 Success
Test Done.
PQ2121x#

A-2-10 Ping Configuration

Use this command to send ICMP ECHO_REQUEST to network hosts.

Syntax Items

ping

Description

Syntax Items Description
ping	- Enter an IPv4/IPv6 address or a domain name to ping.<1-999999999> - Specify the number of repetitions of ping operation.Related Syntax:# ping

# ping count <1-999999999>

Example

PQ2121x# ping 192.168.1.11 count 3
PING 192.168.1.11 (192.168.1.11): 56 data bytes
64 bytes from 192.168.1.11: icmp_seq=0 ttl=64 time=0.0 ms
64 bytes from 192.168.1.11: icmp_seq=1 ttl=64 time=0.0 ms
64 bytes from 192.168.1.11: icmp_seq=2 ttl=64 time=0.0 ms
--- 192.168.1.11 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.0/0.0/0.0 ms
PQ2121x#

A-2-11 Reboot Configuration

Use this command to perform a cold restart of VigorSwitch.

Syntax Items

reboot

Example

PQ2121x# reboot
PQ2121x#

A-2-12 Renew Configuration

Use this command to renew DHCP Snooping database from backup file.

Syntax Items

renew ip dhcp snooping database

Example

PQ2121x# renew ip dhcp snooping database
PQ2121x#

A-2-13 Restore-defaults Configuration

Use this command to restore the factory default settings for the system or for the selected port.

Syntax Items

restore-defaults

Description

Syntax Items Description

restore-defaults

<1-4> - Enter the number (1 to 4) of LAN port (10Gigabit). <1-8> - Enter the number (1 to 8) of LAN port (2.5Gigabit). <1-8> - Enter the number of LAG port (LAN group).Related Syntax:# restore-defaults# restore-defaults interfaces 10GigabitEthernet <1-4># restore-defaults interfaces 2.5GigabitEthernet <1-8># restore-defaults interfaces LAG <1-8>

Example

PQ2121x# restore-defaults interfaces 10gigabitethernet 3
automedia: DAC_50CM
Interface 10gi3: restore factory defaults.
PQ2121x#
PQ2121x# restore-default
System: restore factory defaults. Do you want to reboot now? (y/n)y

A-2-14 Save Configuration

Use this command to save configuration and activate the settings.

Note that this command has the same effect as "copy running-config startup-config".

Syntax Items

save

Example

PQ2121x# save
Success
PQ2121x#

A-2-15 Show Configuration

After finished the command setting, use this command to display the configuration for all commands.

Syntax Items

show

Example

PQ2121x# show acl utilization
Type: sys usage: 256
Type: IPSG usage: 128
Type: Auth usage: 128
PQ2121x#
PQ2121x#

PQ2121x# show arp
Address HWtype HWaddress Flags Mask Iface 192.168.1.55 ether 00:1D:AA:F0:26:08 C eth0 192.168.1.10 ether 00:05:5D:E4:D8:EE C eth0 PQ2121x# show voice-vlan interfaces gigabitethernet 3 Voice VLAN Aging : 1440 minutes Voice VLAN CoS : 6 Voice VLAN 1p Remark: disabled OUI table OUI MAC | Description ----+---- 00:E0:BB | 3COM 00:03:6B | Cisco 00:E0:75 | Veritel 00:D0:1E | Pingtel 00:01:E3 | Siemens 00:60:B9 | NEC/Philips 00:0F:E2 | H3C 00:09:6E | Avaya

Port | State | Port Mode | Cos Mode ----+----+----+---- gi3 | Disabled | Auto | Src PQ2121x#

A-2-16 SSL Configuration

Use this command to generate security certificate files such as RSA, DSA.

After entering the command of SSL, follow the onscreen questions to give the required information.

Syntax Items

ssl

Example

PQ2121x# ssl
Generating a 1024 bit RSA private key ....++++++ ....+++++ writing new private key to '/mnt/ssh/ssl_key.pem_tmp'

---

You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a D There are quite a few fields but you can leave some blank For some fields there will be a default value,

If you enter '', the field will be left blank.
----
Country Name (2 letter code) [AU]:tw
State or Province Name (full name) [Some-State]:hs
Locality Name (eg, city) []:hschu
Organization Name (eg, company) [Internet Widthits Pty Ltd]:draytek
Organizational Unit Name (eg, section) []:marketing
Common Name (e.g. server FQDN or YOUR name) []:draytek
Email Address :[e-mail]
PQ2121x#

A-2-17 Terminal Configuration

Use this command to set the maximum line number that the terminal is able to print.

Syntax Items

terminal

Description

Syntax Items Description
terminal	<0-24> - Enter the length value. 0 means no limit.Related Syntax:# terminal length <0-24>

Example

PQ2121x# terminal length 15
PQ2121x# show running-config
.....

A-2-18 Traceroute Configuration

Use this command to execute network trace route diagnostic.

Syntax Items

traceroute

Description

Syntax Items Description
traceroute	- Enter the IP address or the hostname of the device for VigorSwitch to perform traceroute diagnostic.Related Syntax:# traceroute

Example

PQ2121x# traceroute 192.168.1.224

traceroute to 192.168.1.224 (192.168.1.224), 30 hops max, 40 byte packets

1 192.168.1.224 (192.168.1.224) 0 ms 0 ms 0 ms

PQ2121x#

A-2-19 UDLD Configuration

Use this command to reset all interfaces disabled by the UniDirectional Link Detection (UDLD) and make data traffic begin passing through the interfaces again.

Syntax Items

traceroute

Description

Syntax Items Description
udld Reset all the interfaces which have been shut down by UDLD.Related Syntax:# udld reset

Example

PQ2121x# udld reset

PQ2121x#
